SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Logic ICs

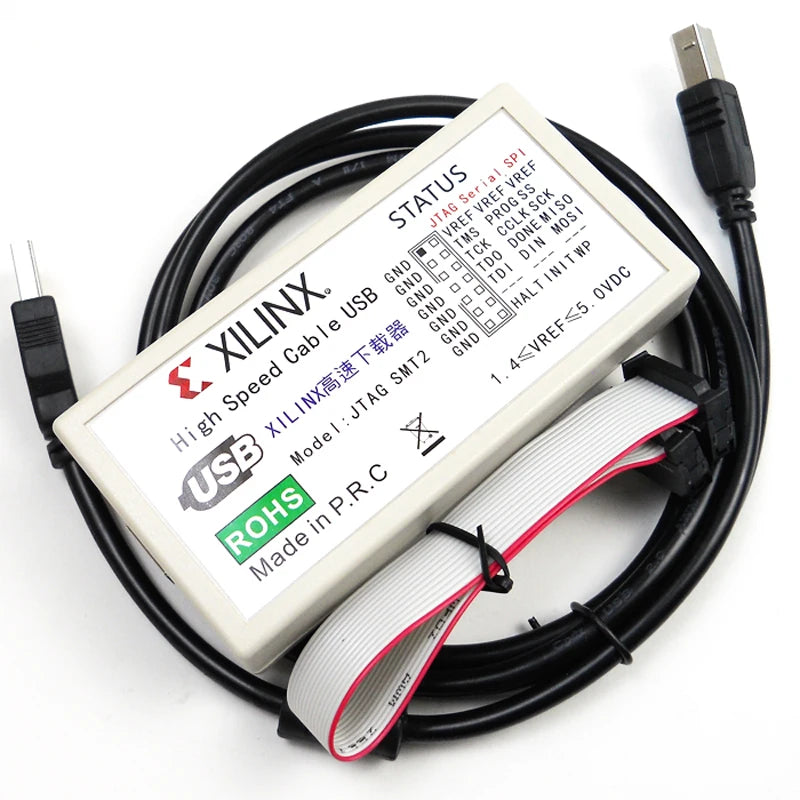

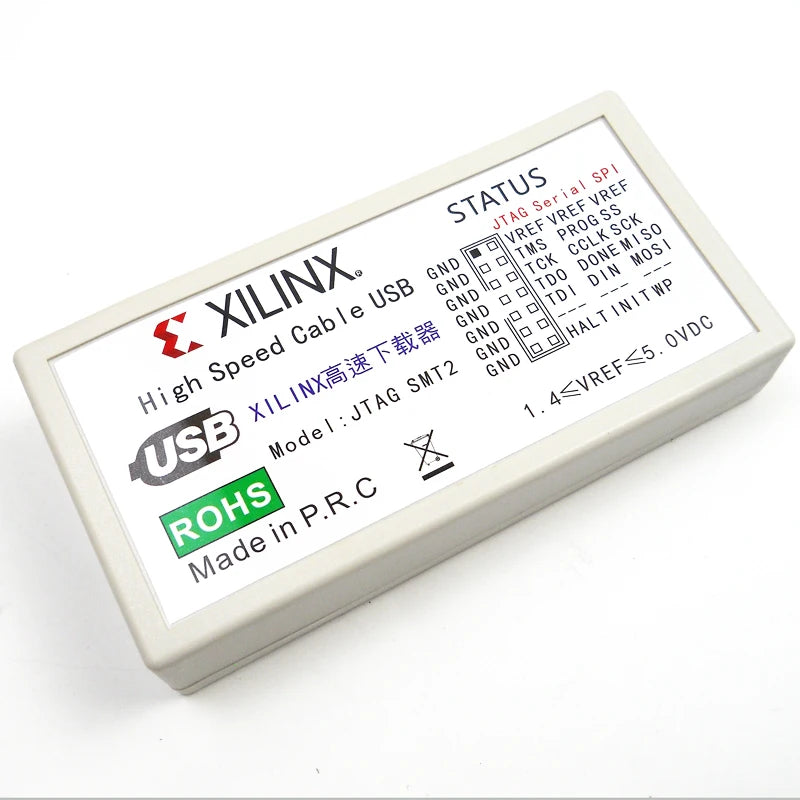

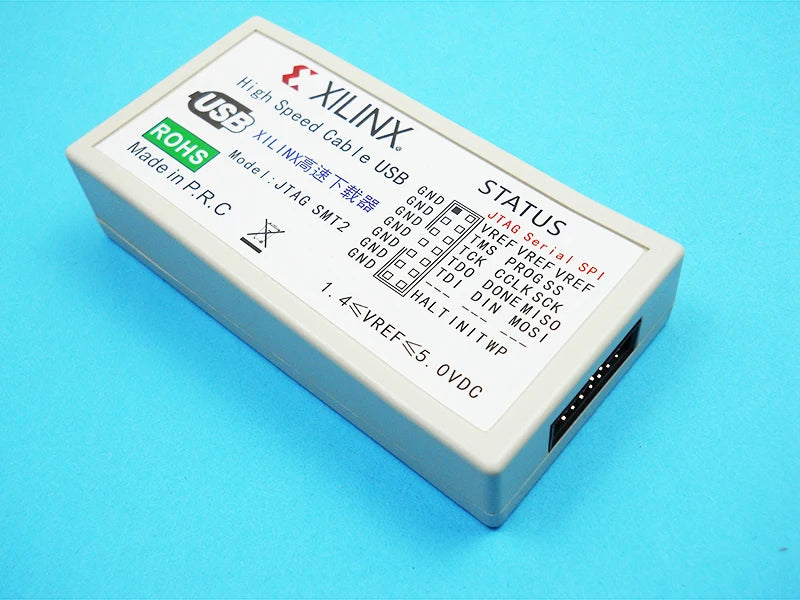

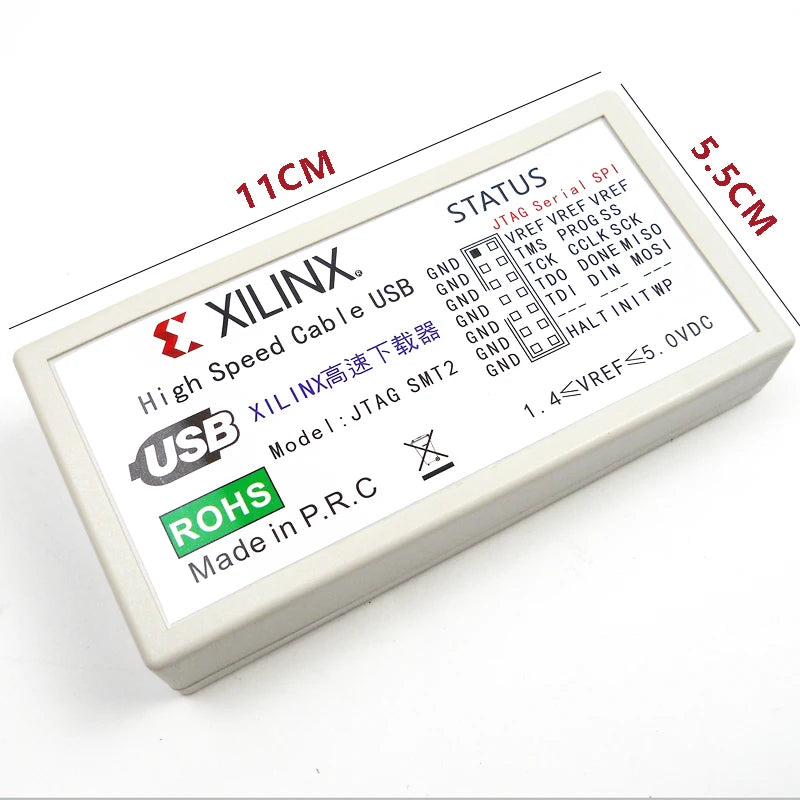

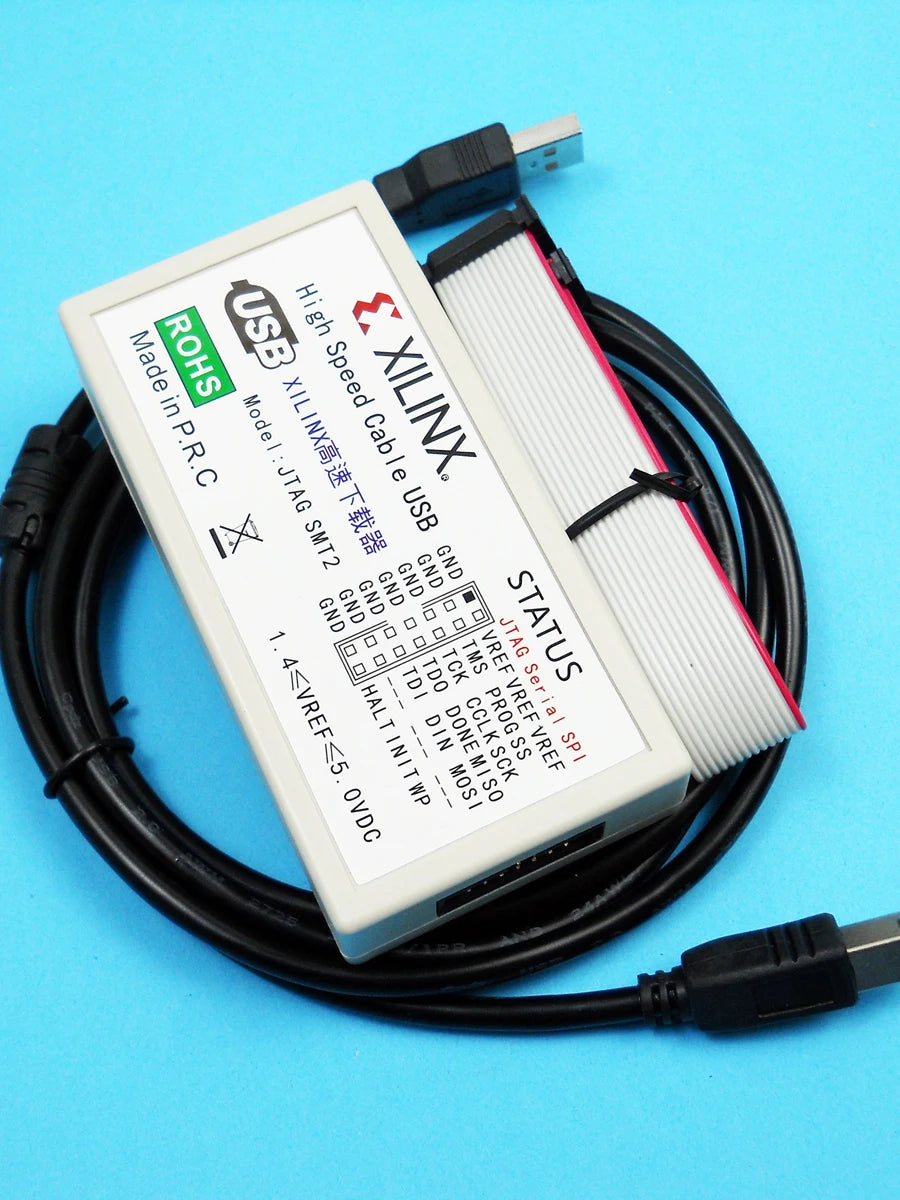

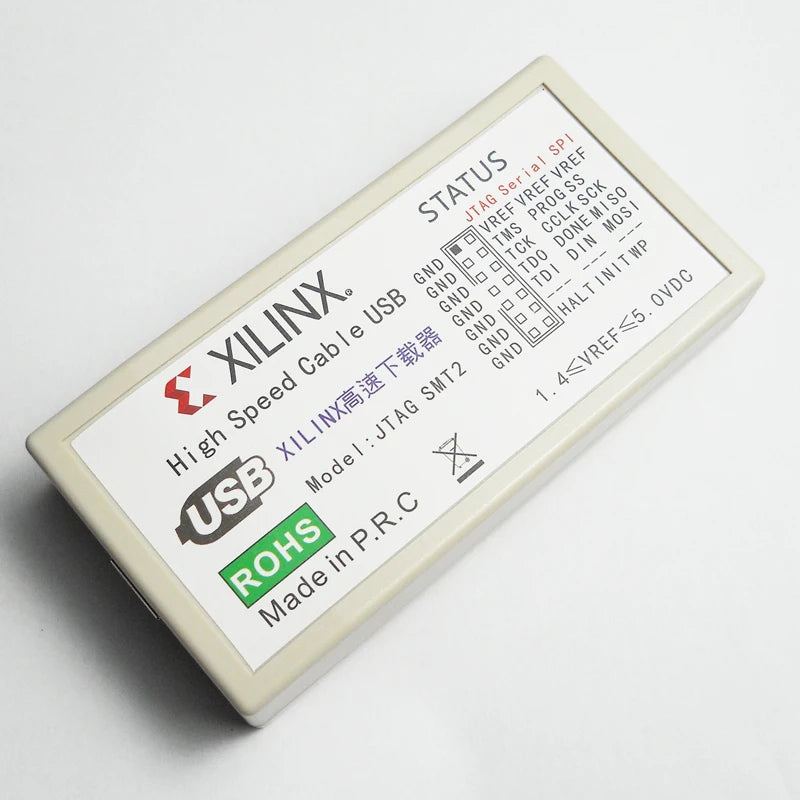

Xilinx SMT2 is a general-purpose high-speed downloader emulator

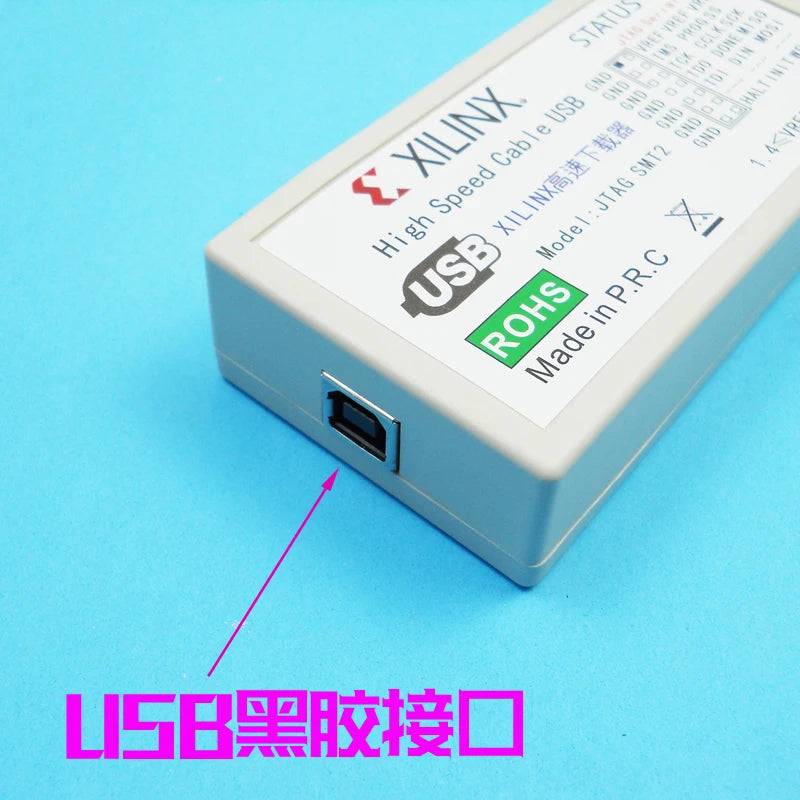

1. Large-mouth USB-square port input, vinyl USB port；
2. USB input with self-recovery； fuse, anti-static protection chip to protect the computer；

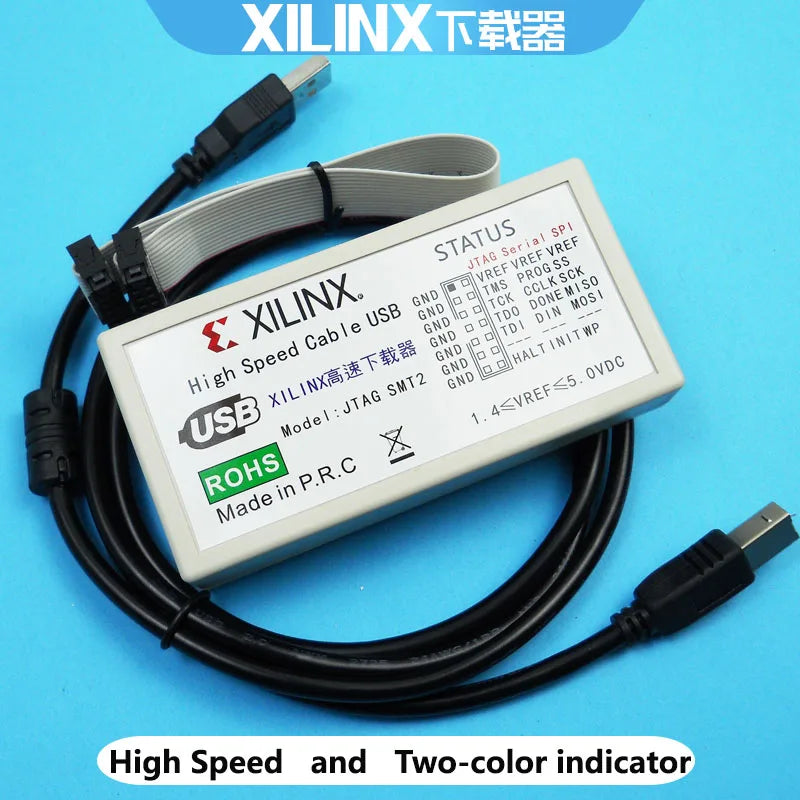

3. Bi-color - red and green LED indicators, check that there is a device access display green；

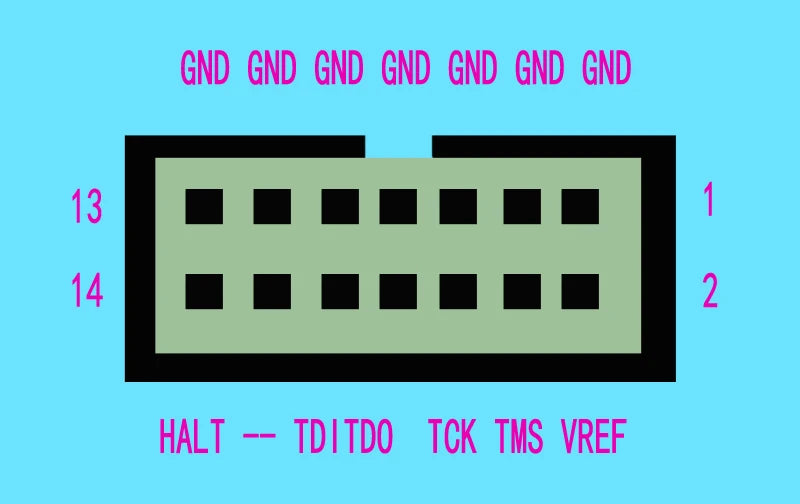

4. Official standard JTAG interface, JTAG download clock adaptive；
5. Support voltage adaptation function,support5V/3.3V/2.5V/1.8V level;
6. Output isolated buffer driver chip, multi-level matching；

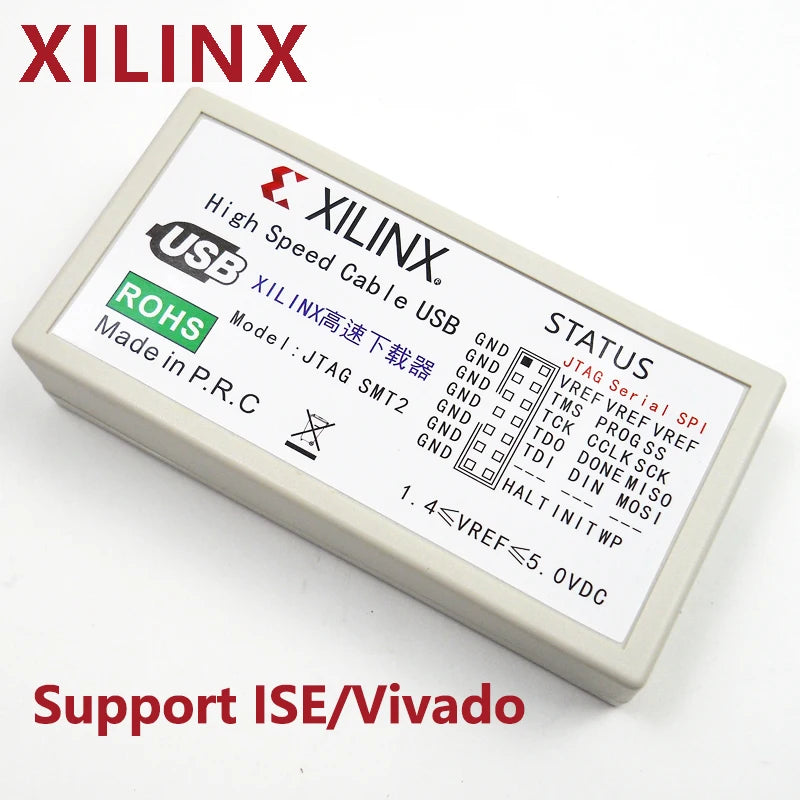

7. Support ISE 14.1 or above, Vivado 2013..1 or above, Impact, Chipscope, EDK and other software
8. Support WinXP/7/10/11 and Linux and other systems

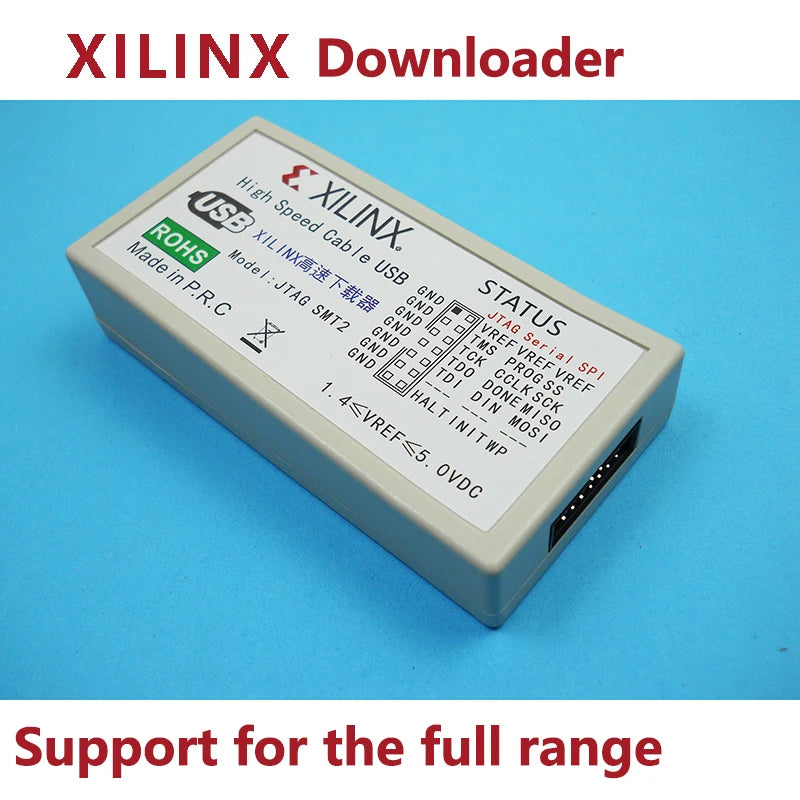

Supports XILINK every CPLD and FPGA device from XLINX (including but not limited to):

Xilinx TFPGAH(ASpartan/Artix7/Kintex/Zynq51)Xilinx CoolRunner/CoolRunner-II CPLDXilinx Platform Flash ISP configuration PROMs、Select third-party SPI PROMsSelect third-party BPI PROMsXilinx 9500/9500XL CPLD

Supported chips are divided into series:

Zynq-7000 series、Spartan-3E、Spartan-6 series、Spartan-7 series、 KU series、Artix-7 series、 Kintex-7 series、Virtex-5 series、 Virtex -6 series、Virtex -6 series、KU+ series、VU series、VU+ and other series chips, the above series are supported.

The following devices are not supported (older chips)

Xilinx 1700 and 18V00 ISP configuration PROMsXilinx FPGA eFUSE programming

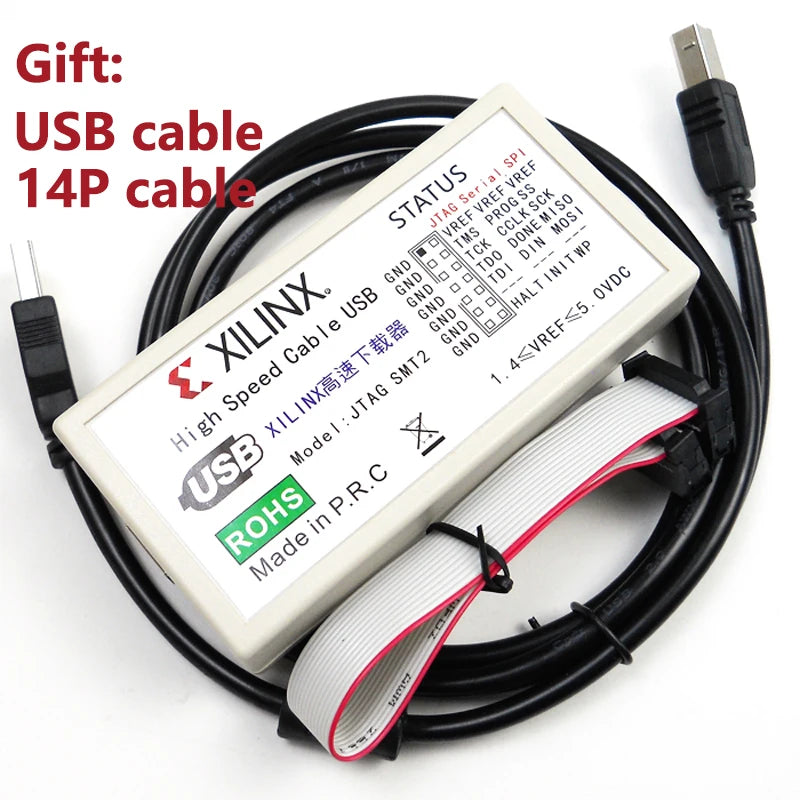

1 、XILINX host*1

2、square port USB cable*1

3、14P spacing 2.54mm gray cable*1
