SPECIFICATIONS

The characteristics of the XILINX IC high-speed downloader are:

Seamless support for ISE (including the latest 14.7), Chipscope, EDK, and other software.

Supports automatic detection and adaptation of target I/O voltage for Windows and Linux systems

It can program SPI interface flash PROM devices

To ensure quality, all components on this download line are guaranteed to be original and new products from regular channels, and we will never use any refurbished or second-hand devices. All products undergo 100% testing before being sold

Supports all XILINX devices, including: all Virtex FPGA devices (including all capacities of Virtex6), all Spartan FPGA devices (including all capacities of Spartan6), XC9500/XC9500XL/XC9500XV CPLD devices (various voltages), CoolRunner XPLA3/CoolRunner-II CPLD devices, XC18V00 ISP PROM series, Platform Flash XCF00S/XCF00P/XL PROM series, and XC4000 series FPGA

Overview of FY-XILINX IC Cable

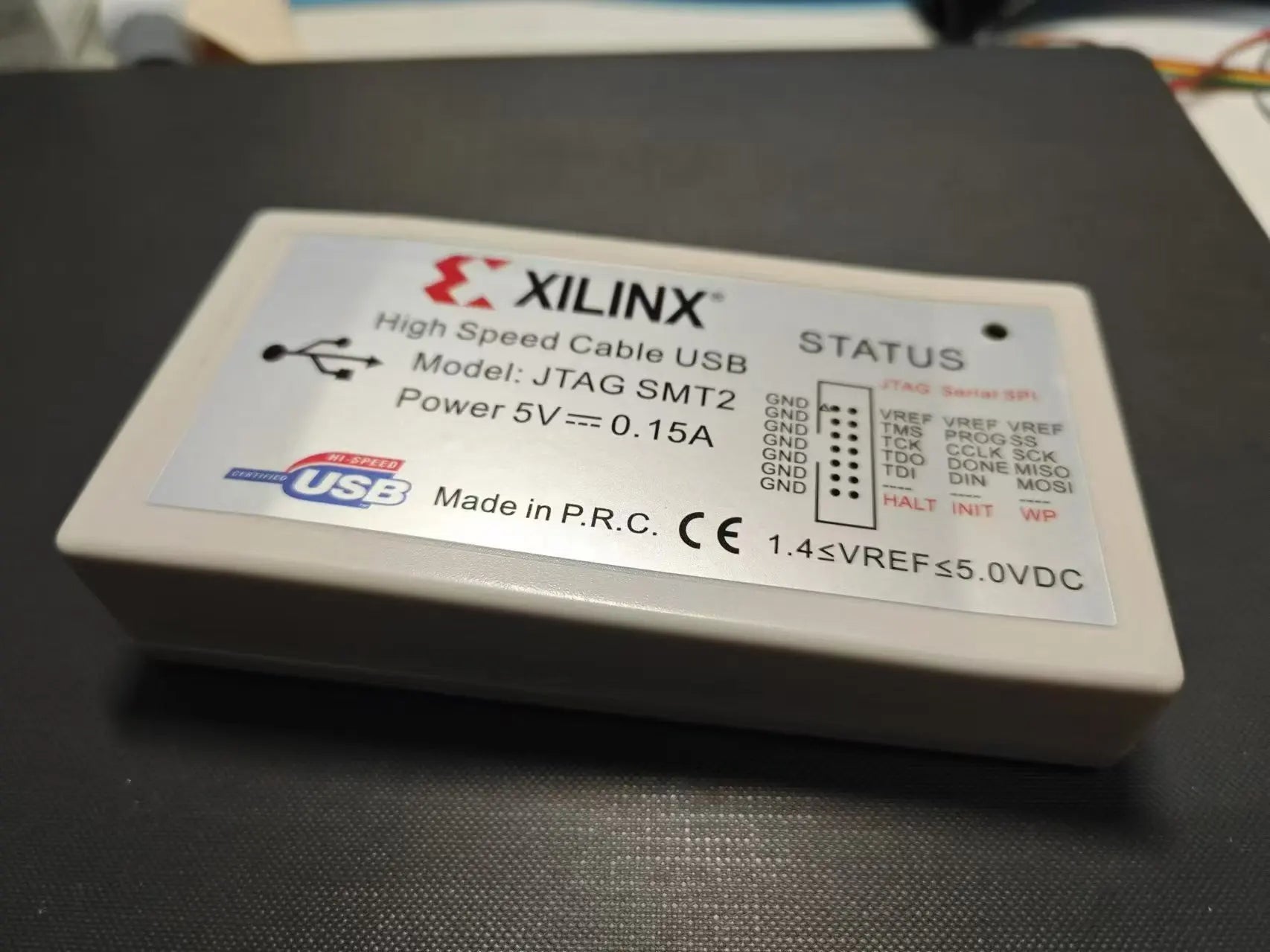

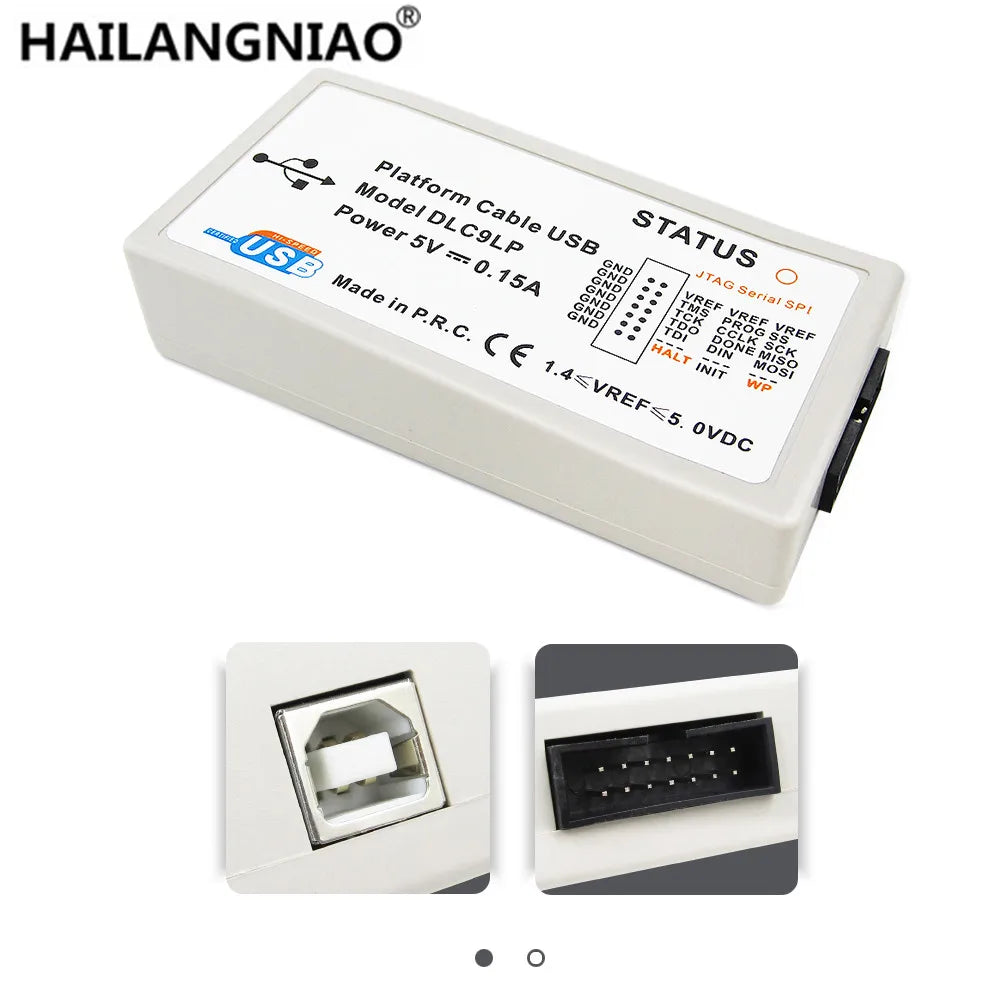

FY-XILINX IC CABLE is a high-performance download cable designed for programming and configuring XILINX CPLD, FPGA, and ISP PROM. It utilizes a USB interface and connects to a desktop or laptop computer via a high-speed shielded USB cable, eliminating the need for an external power supply. In serial mode, it provides a maximum configuration speed of up to 30Mb/s for FPGA devices.

For example, configuring an XC3S400 device with a 12M configuration clock takes only 0.5 seconds, while configuring a Virtex5-110T with a 6M configuration clock takes 8 seconds. As long as the connection line is in good contact, the configuration failure phenomenon that often occurs with parallel download lines is almost non-existent.

Using iMPACT software, device programming and configuration can be performed through boundary scan, either in serial or SPI mode. Additionally, the Platform Cable USB Compatible also supports indirect programming of Platform Flash XL and other memories via the JTAG port. Programming rates are selectable from 750kHz to 30MHz.

All Xilinx devices: 1.Support
Virtex FPGA families All
Spartan FPGA families All
CPLDs XC9500/XC9500XL/XC9500XV
XPLA3/ CoolRunner-II CPLDs CoolRunner
18V00 ISP PROMs XC
Platform Flash PROMs XCF00S/XCF00P
Series FPGAs XC4000
2 on Supported Windows and Red Hat Enterprise Linux
3 with Work impact chipscope pro and MicroBlaze embedded processer debuging
Target system using 5.0V TTL, LVTTL/LVCMOS 3.3V, 2.5V, 1.8V, 1.5V,, 4.support
5 to Apply Xilinx CPLD / chips FPGA download debugging.
6 JTAG Support, Serial Slave, download mode SPI, configure all Xilinx devices. can
7 Platform Xilinx with USB Cable fully compatible.
8 device Target to download the clock options up, to 24MHz.
9 iMPACT Support and ChipScope.
10 can Firmware be updated automatically.

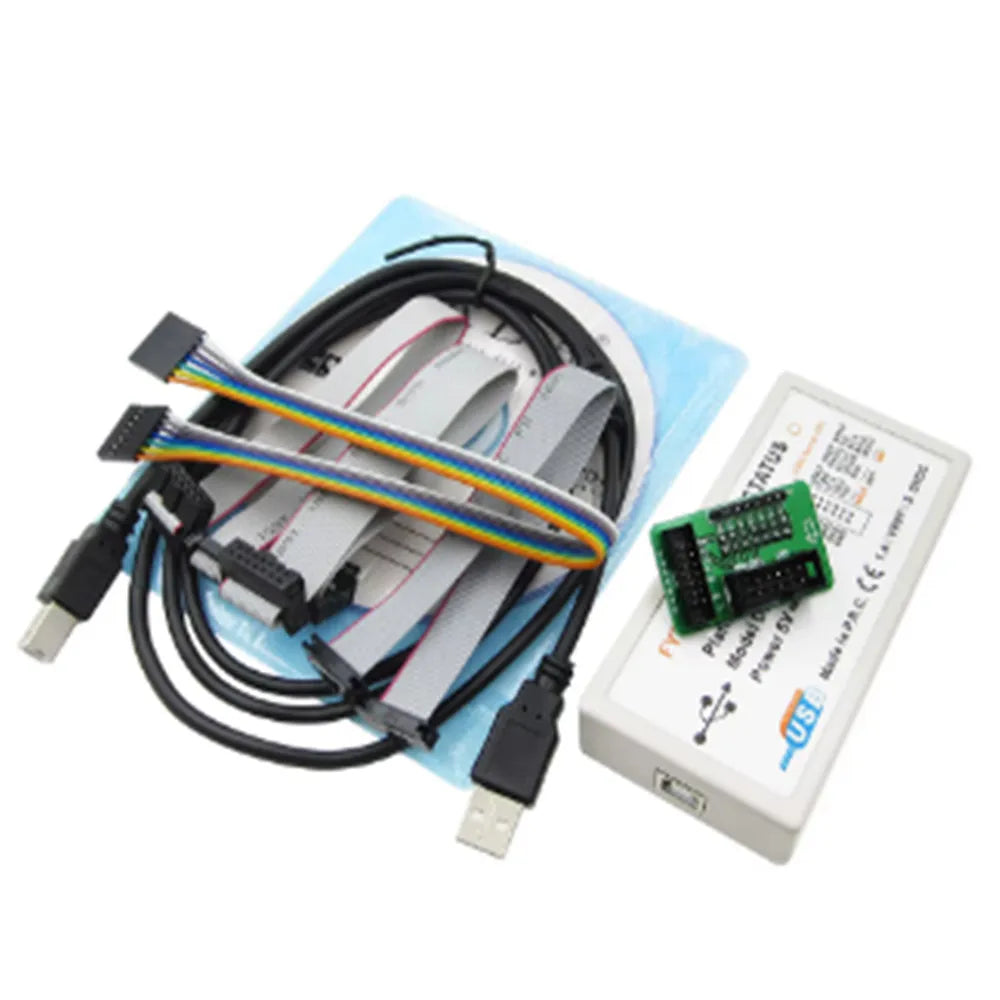

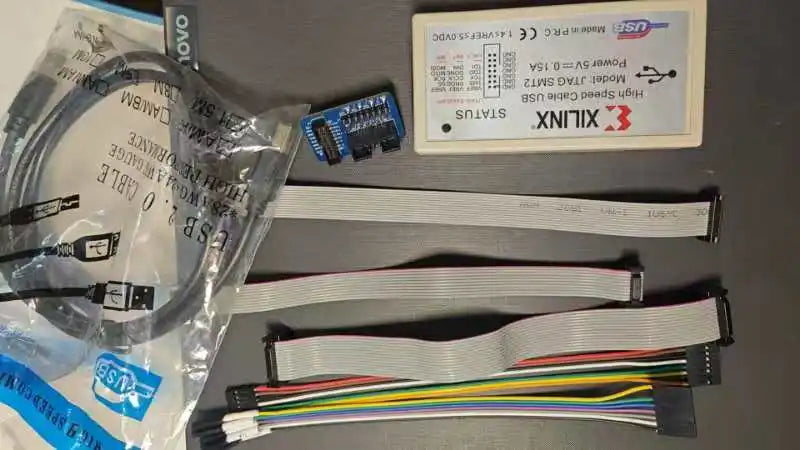

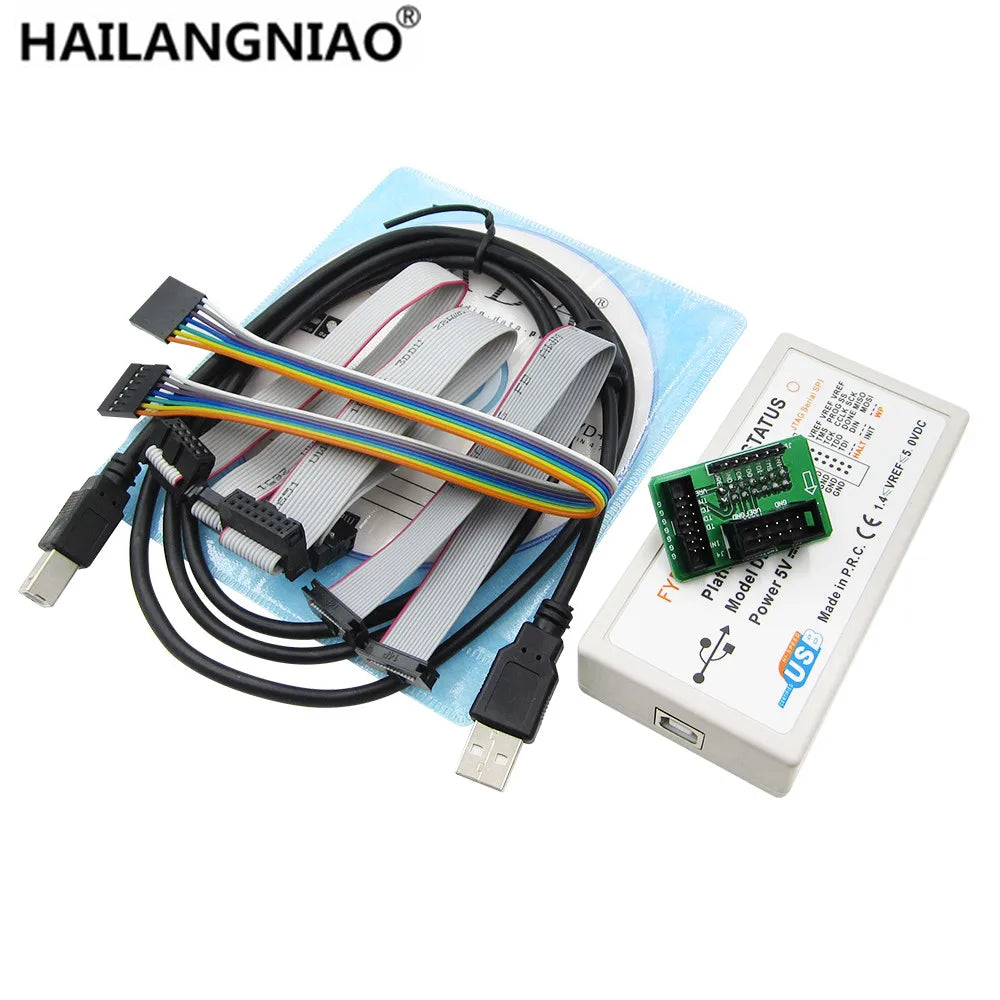

Included: Package
1 USB x Download and Programmer Adapter
1 6-pin x 2.54mm flat cable,
1 10-pin x 2.54mm pitch 15cm flat cable,
1 14-pin x 2.0mm pitch 15cm flat cable,
1 14-pin x 2.54mm pitch 15cm flat cable
7-pin fly duppont cables 1x

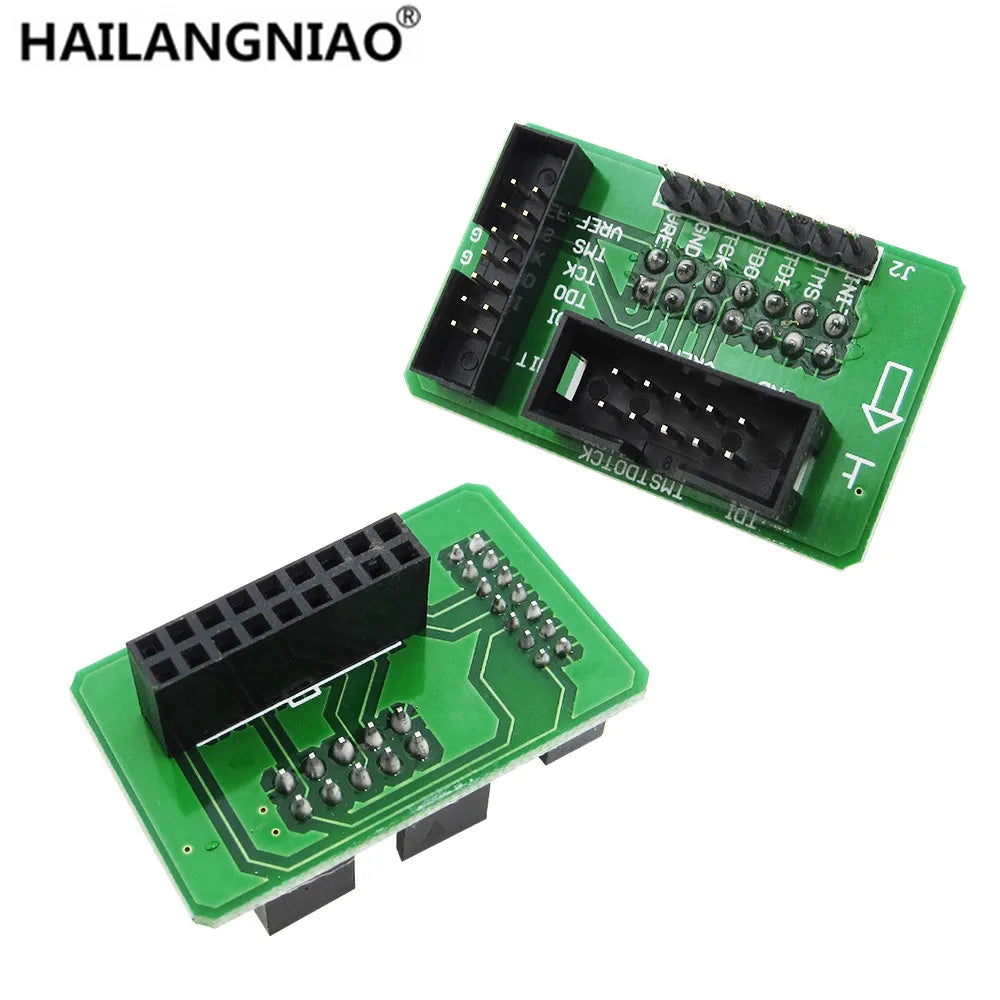

Cable adapter 1x
1 USB Cable x
