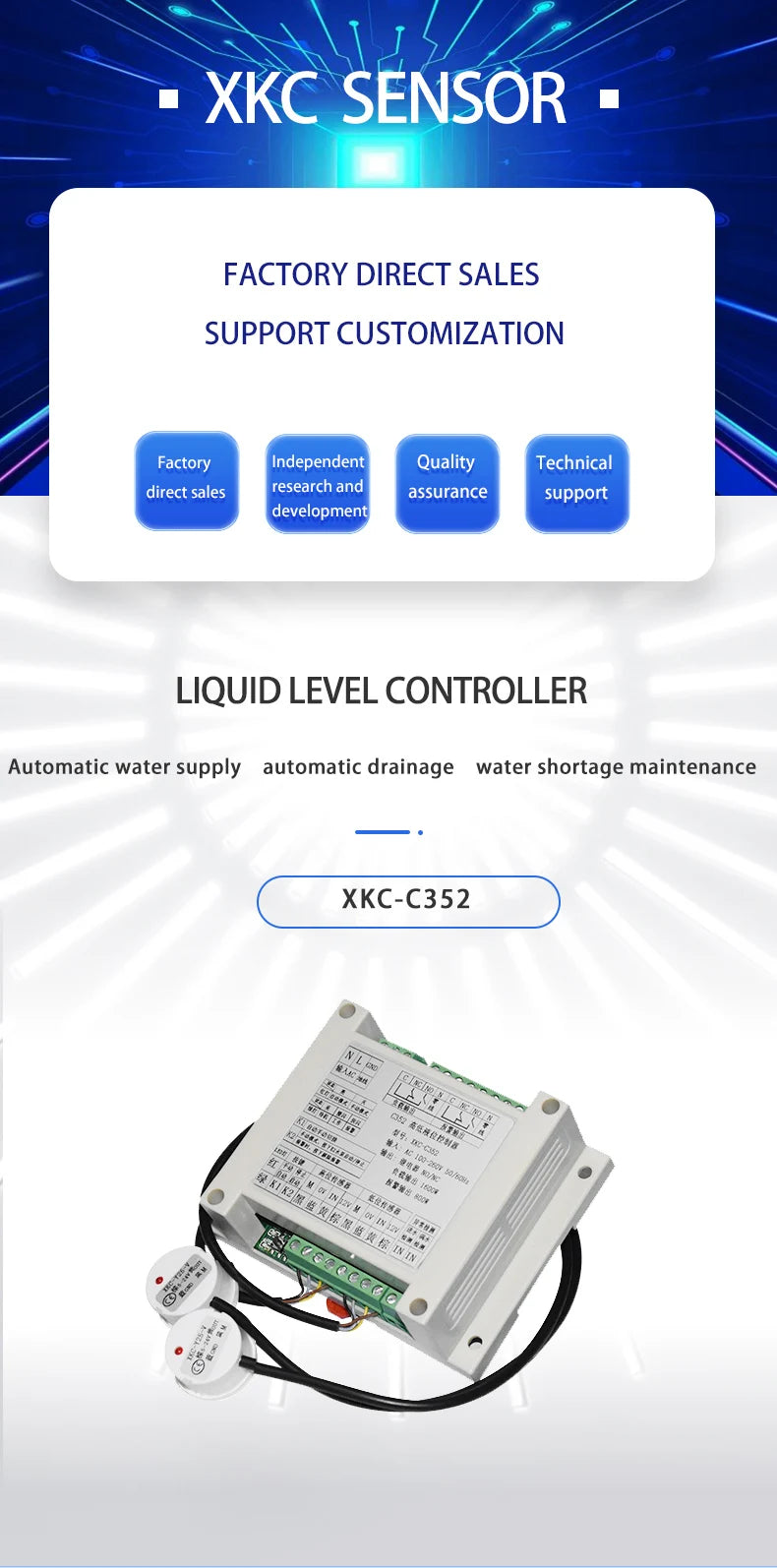

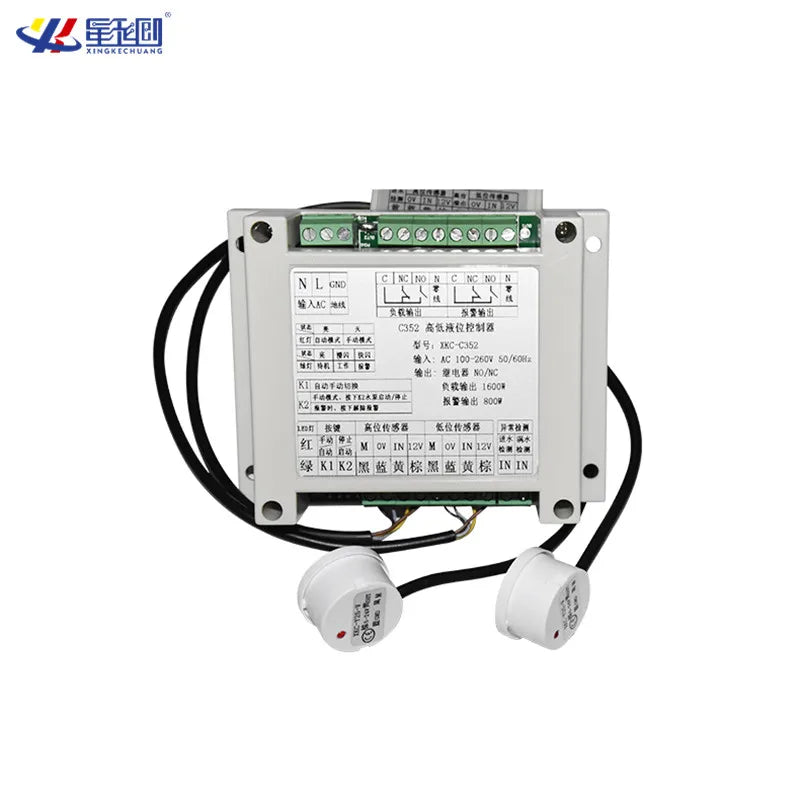

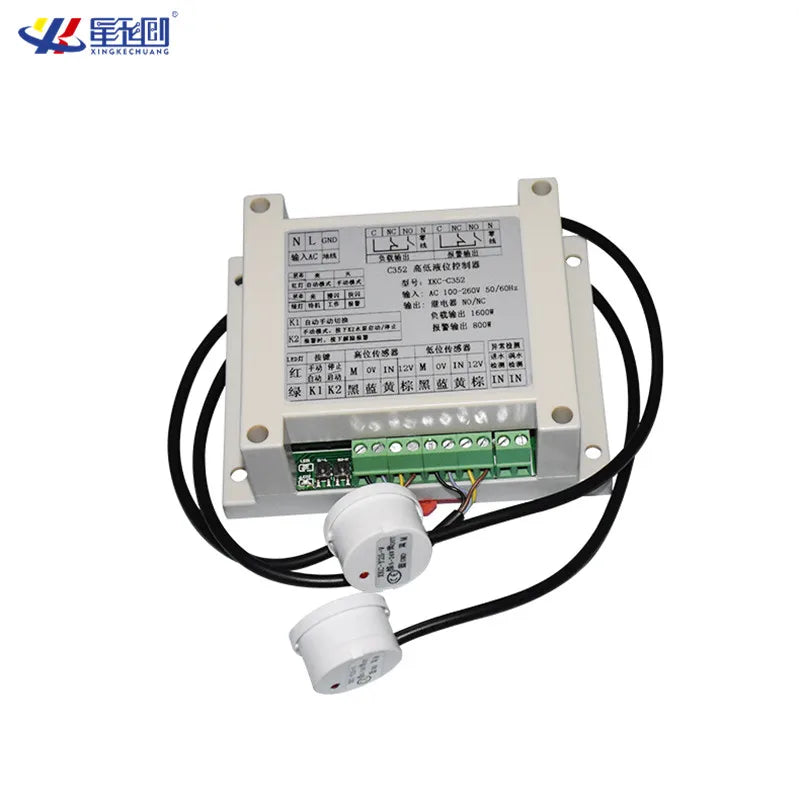

XKC-C352 Non-contact Level Controller Water Level Sensor Level Sensor Automatic Water Replenishment Water Tank Sensor

XKC-C352 Non-contact Level Controller Water Level Sensor Level Sensor Automatic Water Replenishment Water Tank Sensor

$141.12

$141.12 $0.00

Color C352-2P-2Sensors C352-3P-overflow C352-3P-ingress C352-4P-4Sensors C352-1P-1Sensor C352- No sensor

Description

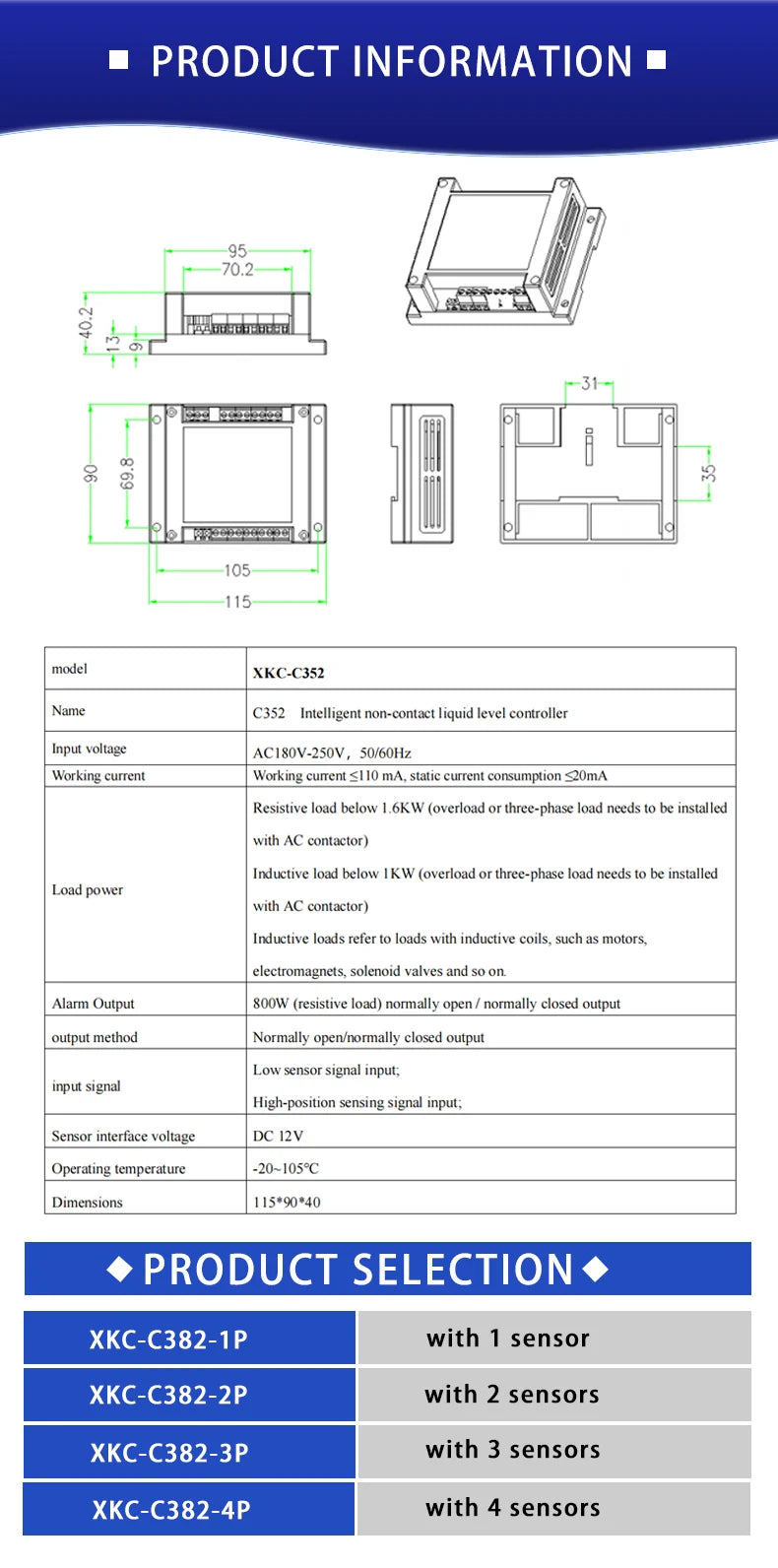

SPECIFICATIONS

Applicable tanks: Non-metallic tanks only

Applications: Water Pump,Water Tower,Water Tank automatic control; Automatic sterilizer,automatic handwash basin,intelligent closestool,Smart home etc.

Brand Name: XINGKECHUANG

Cables: 1 Meter(customized for others)

Choice: yes

Compatible Voltage: AC110-250V

Feature: Contactless Water Level Sensor

High-concerned chemical: none

Material: Polymer

Name: Water Level Controlle

Origin: Mainland China

Output: Switching Transducer

Set include: Optional-Controller/Controller+Sensors

Theory: Capacitance Sensor

Type: Humidity Sensor

Use: Level Sensor

is_customized: Yes

semi_Choice: yes

1、Product selection models

1.C352 (Without Sensor)

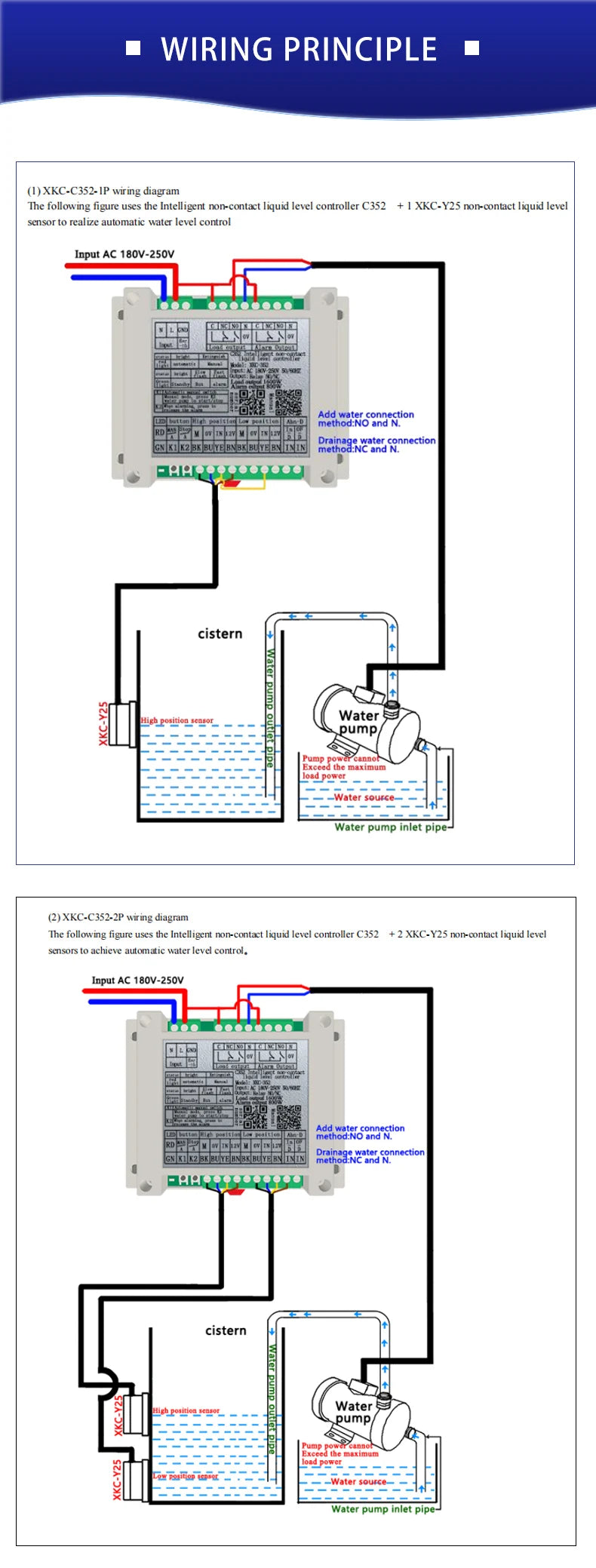

2.C352-1P (with 1 sensor)

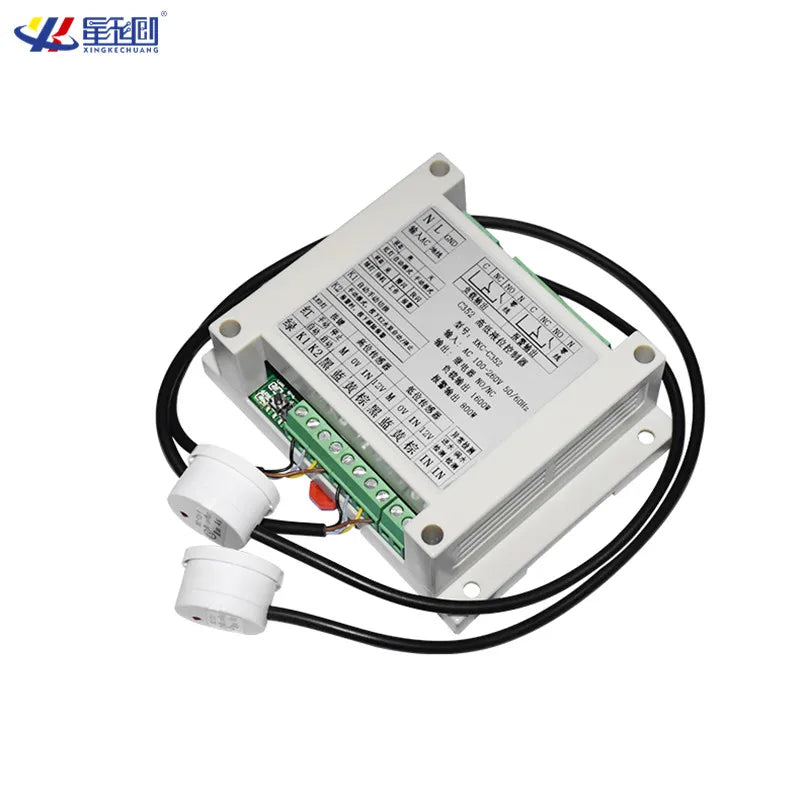

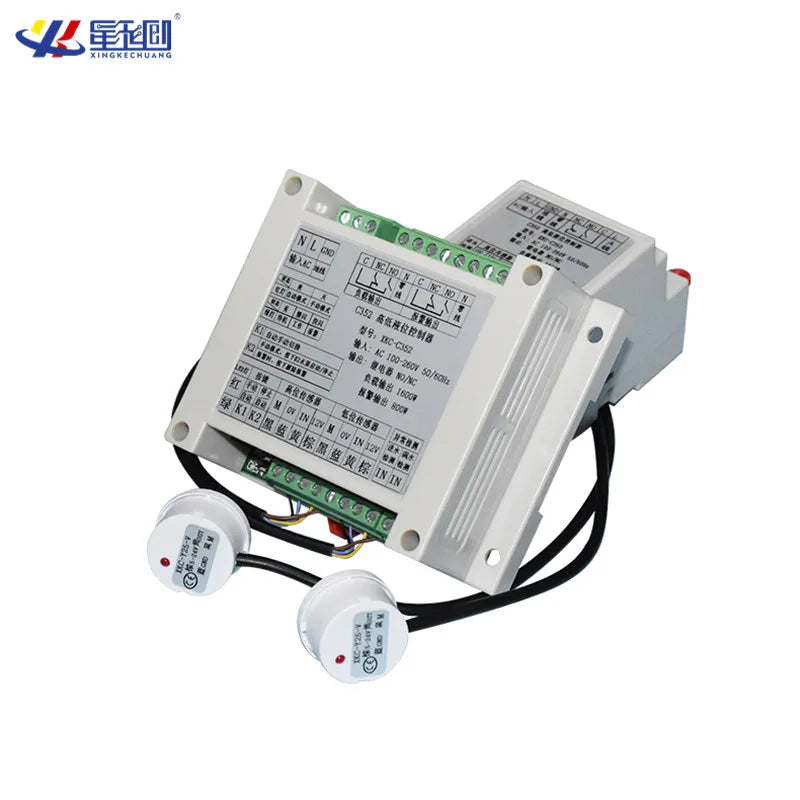

3.C352-2P (with 2 sensors)

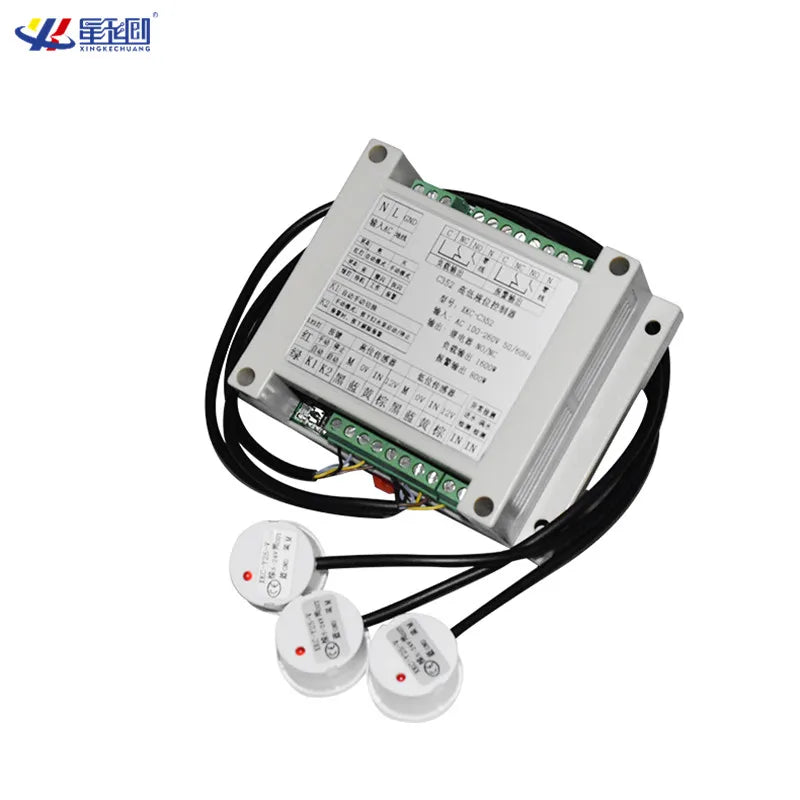

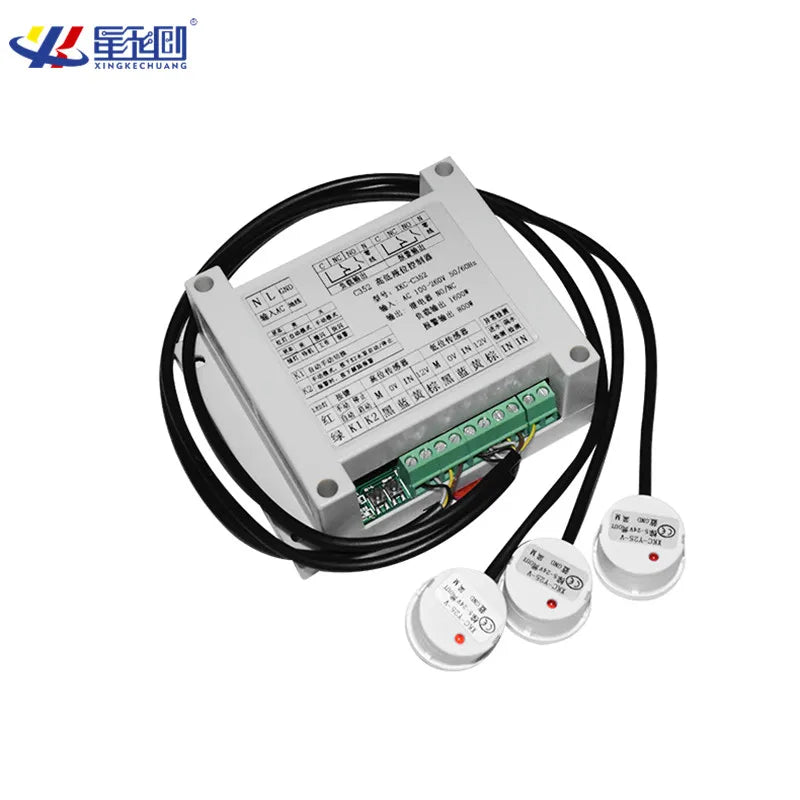

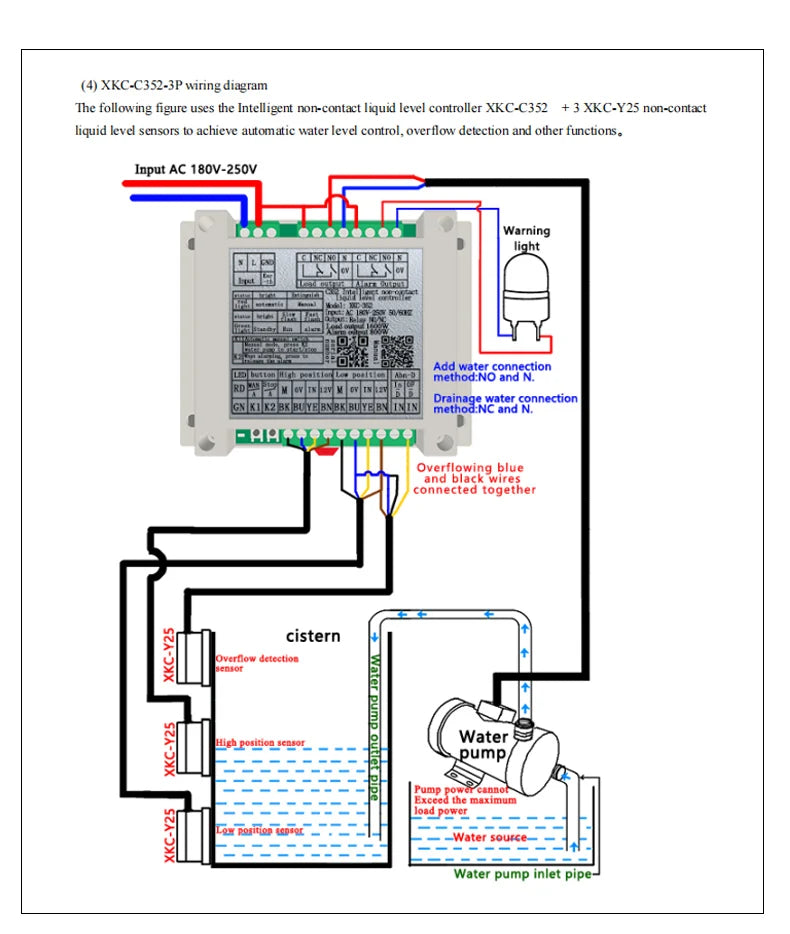

4.C352-3P-ingress protection(with 3 sensors)

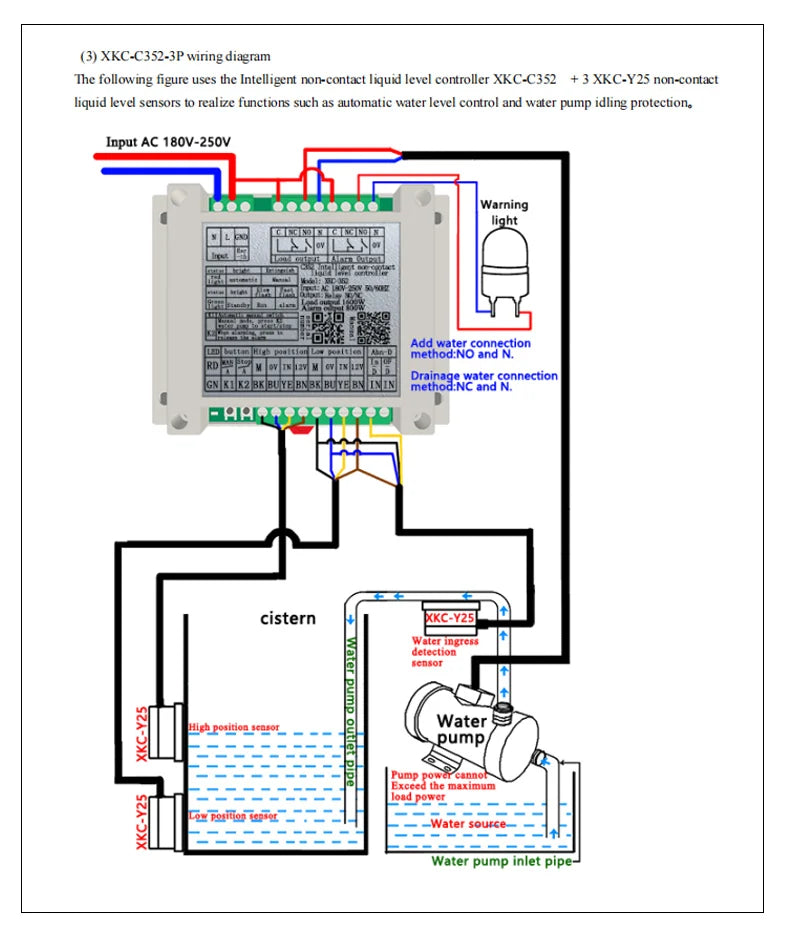

5.C352-3P-overflow protection(with 3 sensors)

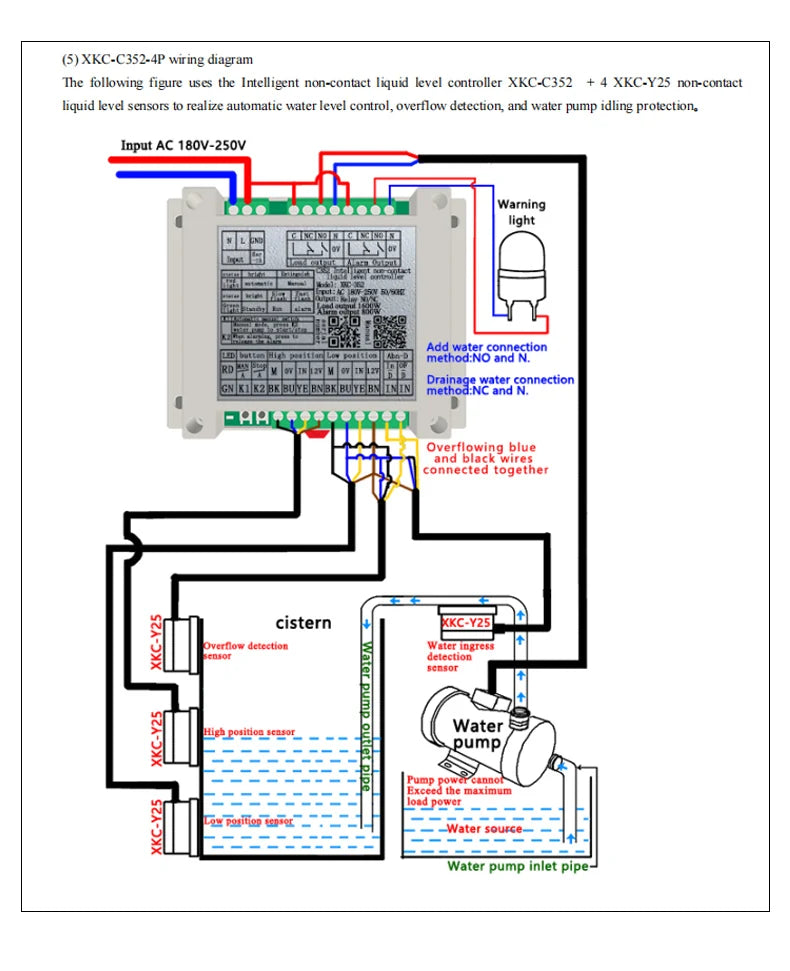

6.C352-4P-ingress & overflow protection(with 4Sensors)

2、Overview

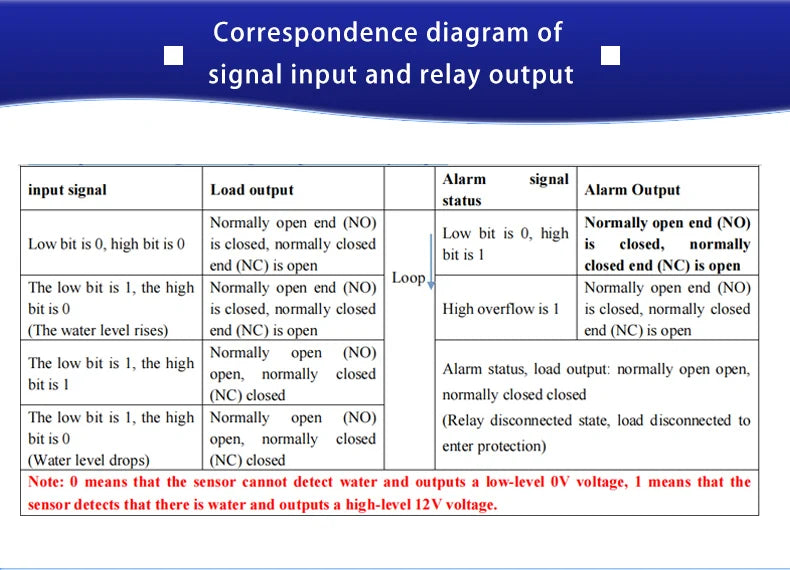

XKC-C352 high and low level controller and XKC-Y25-V liquid level detection head realize the function of liquid level high and low control: when the container liquid level is too low, the low liquid level alarm signal sent by the low liquid level sensor is triggered to trigger the C352 controller to close the relay to start the water pump Add the liquid level, when the liquid level reaches a certain height, the high liquid level sensor sends out a signal to trigger the C352 controller to disconnect the relay and automatically stop the water pump to work in a cycle. Thereby, the function of automatic control of the container liquid level is realized, and the container liquid level is kept stable.

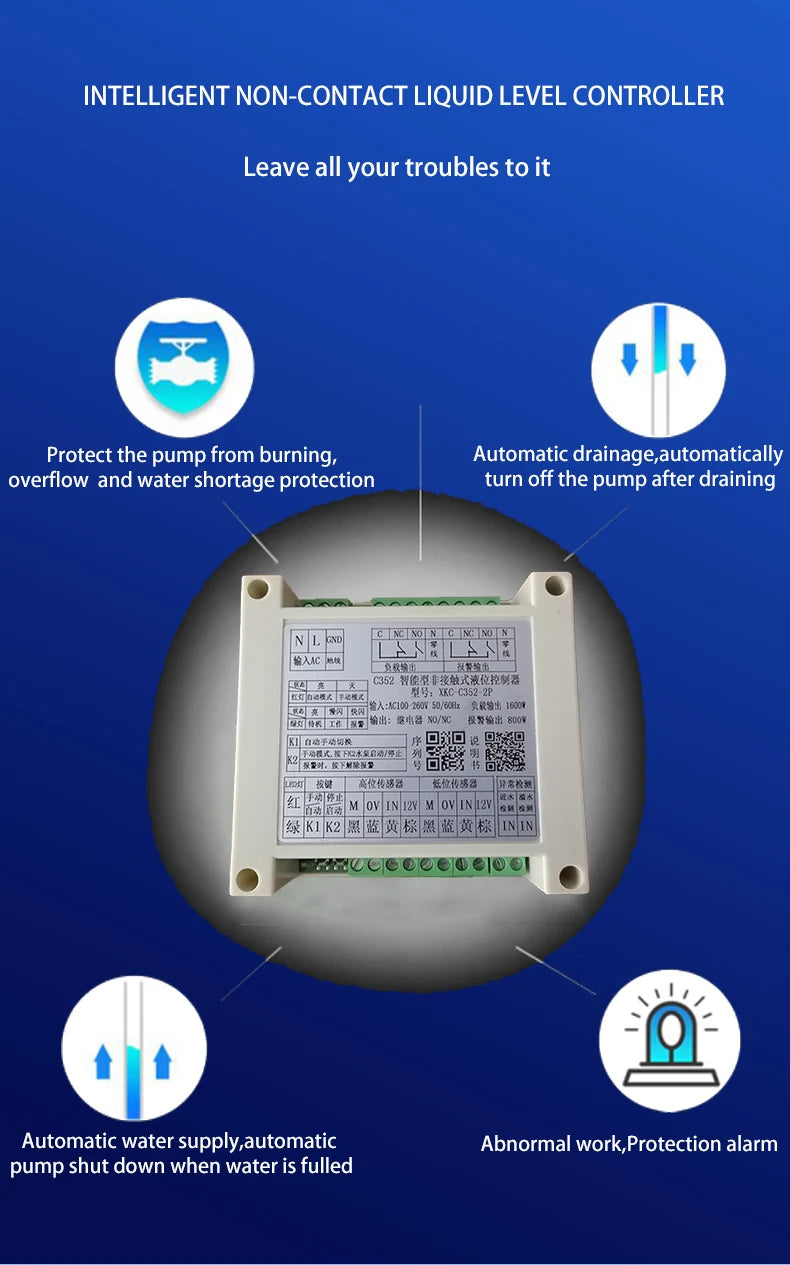

3、Product Features

1.AC110V~250V power supply
2. Relay dry node output, suitable for various load control

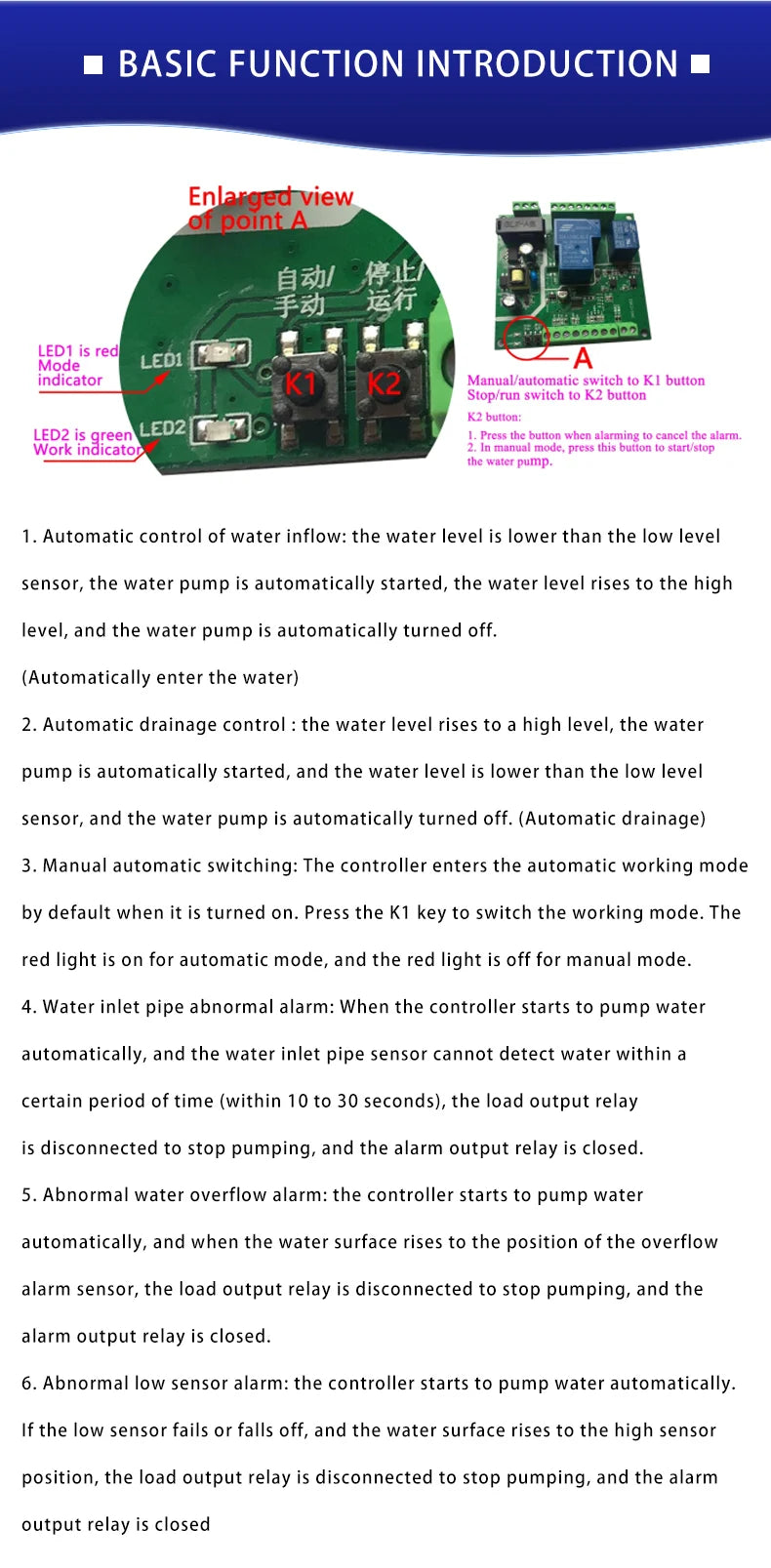

3. The control is diversified, and the pump can be controlled in manual or automatic mode
4. The installation is simple and convenient, it can be installed with screws or electric box tracks
