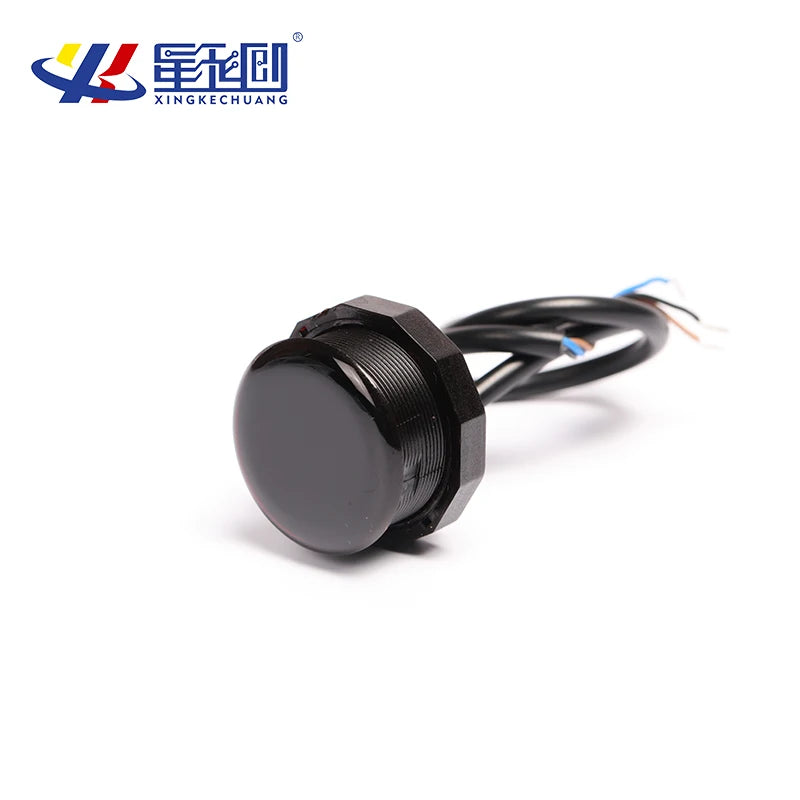

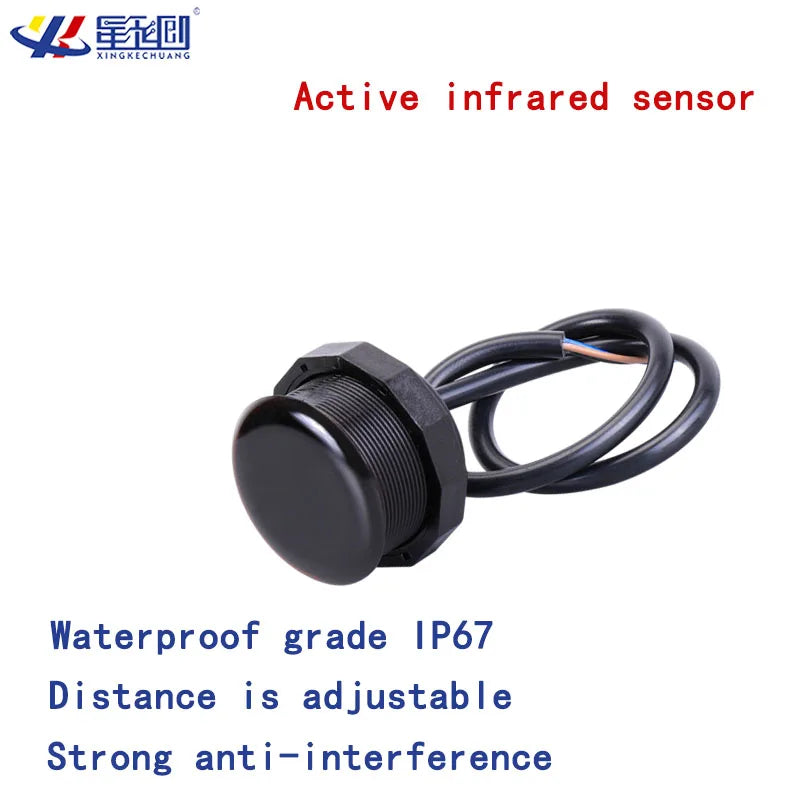

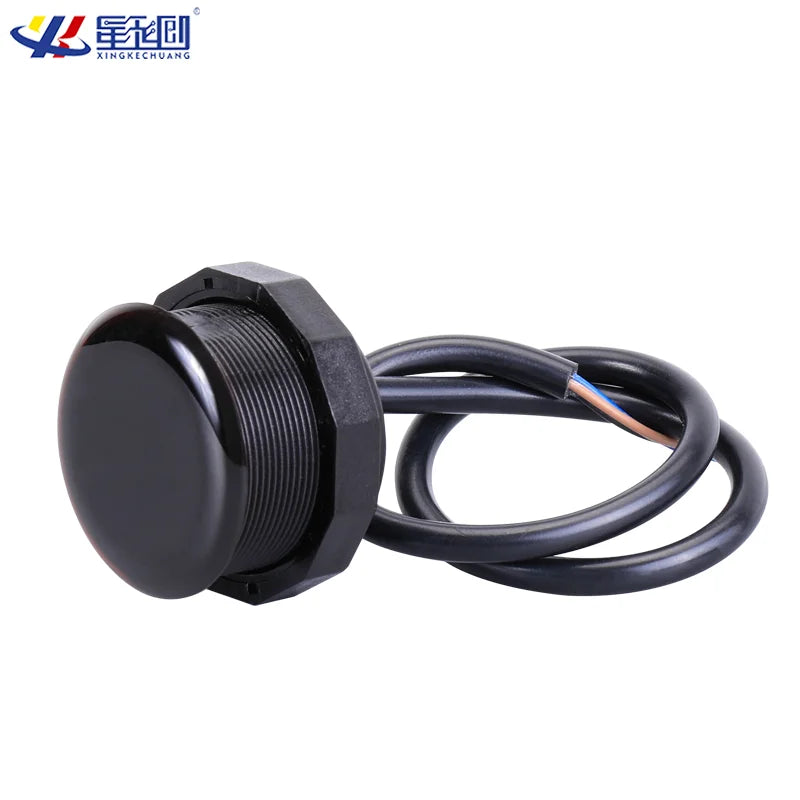

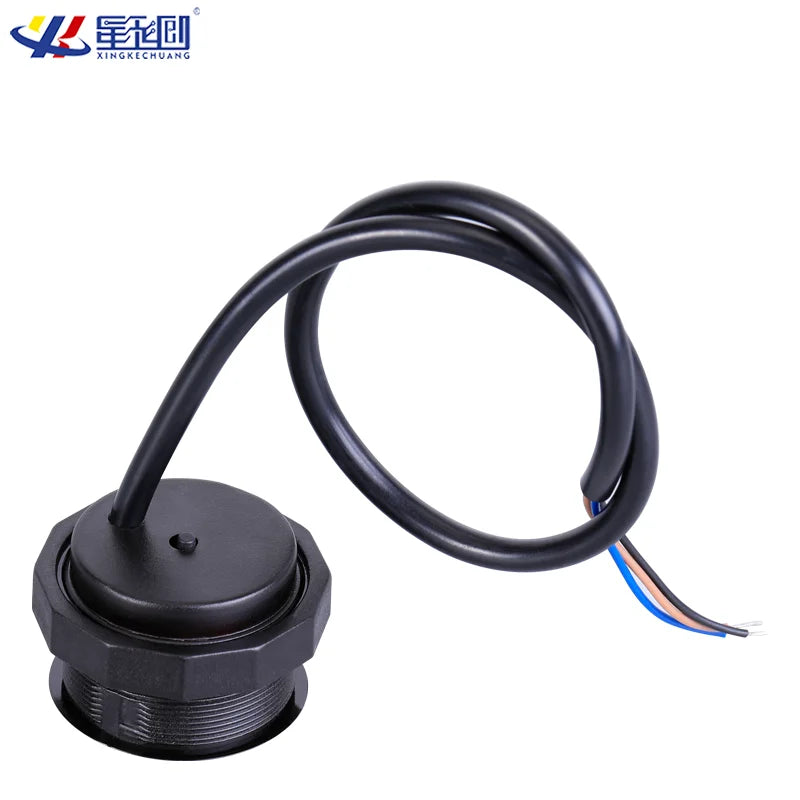

XKC-KE200 Sun-resistance Outdoor Used 5-150cm IR Switch Infared Motion Sensor

XKC-KE200 Sun-resistance Outdoor Used 5-150cm IR Switch Infared Motion Sensor

$47.61

$47.61 $0.00

Color XKC-KE200-V NO XKC-KE200-Relay NO XKC-KE200-Relay NC XKC-KE200-NPN NO XKC-KE200-NPN NC XKC-KE200-V NC

Description

SPECIFICATIONS

Brand Name: XINGKECHUANG

Choice: yes

High-concerned chemical: none

Material: Polymer

Origin: Mainland China

Output: Switching Transducer

Theory: Optical Sensor

Type: Optical-Electronics Sensor

Use: Ray Sensor

is_customized: Yes

semi_Choice: yes

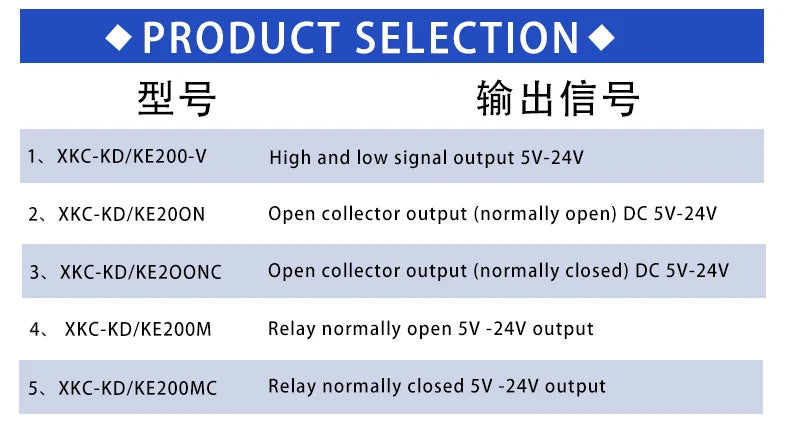

1、output method

1.XKC-KE200-Relay NO--------Relay normally open 5V -24V output
2.XKC-KE200-Relay NC----------Relay normally closed 5V -24V output
3.XKC-KE200-NPN NO-------open collector output (normally open) DC 5V-24V
4.XKC-KE200-NPN NC--------open collector output (normally closed) DC 5V-24V
5.XKC-KE200-V---------High and low signal output (positive output) 5V-24V

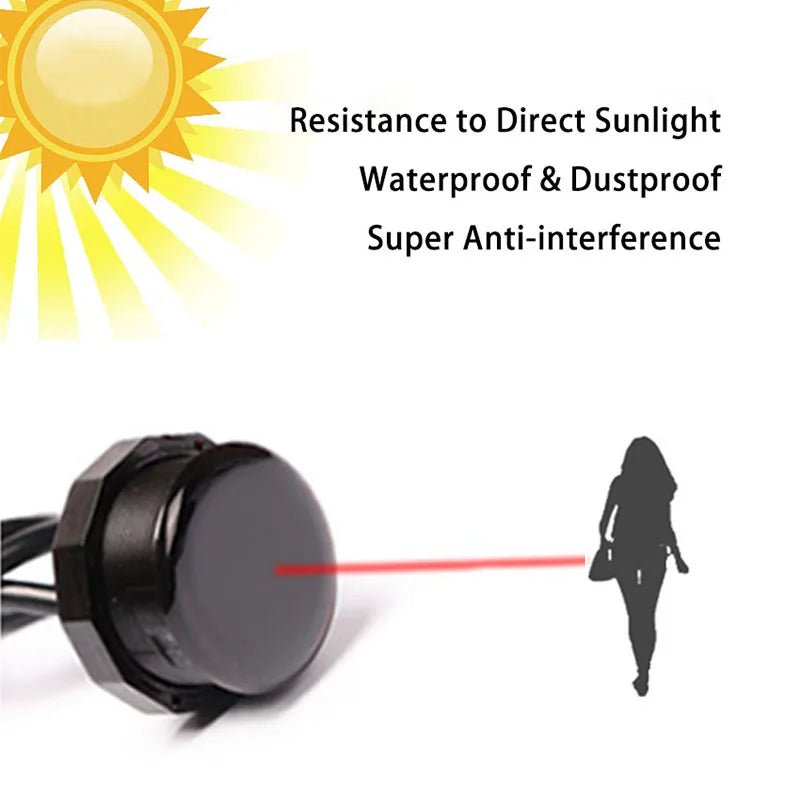

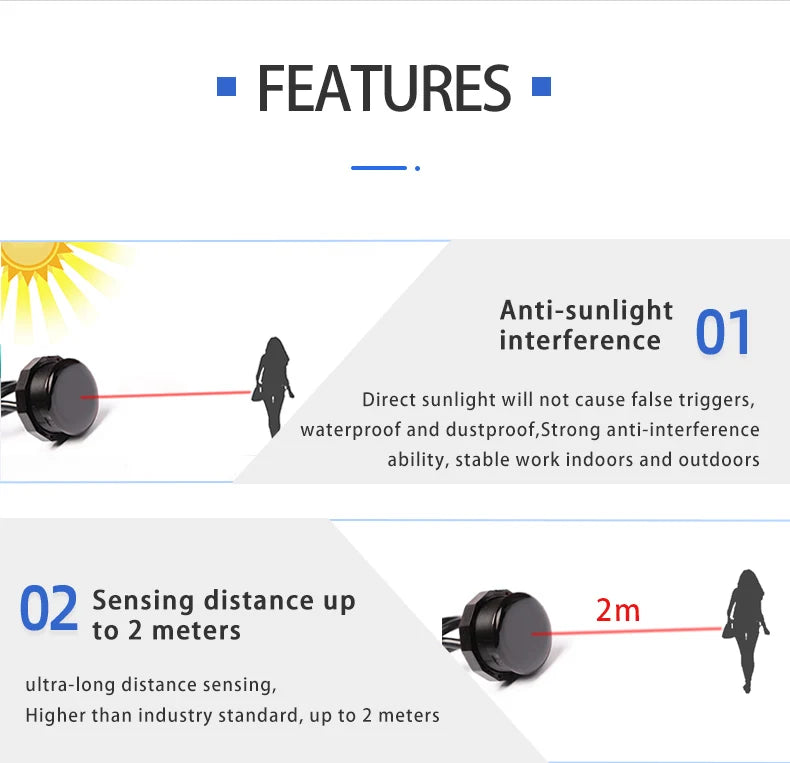

XKC-KE 200 is an intelligent non-contact induction switch, integrating infrared reception and

control, equipped with anti-sunlight interference function, the sensing distance under sunlight can

reach 150cm, and compatible with indoor and outdoor use; the sensor uses infrared light, when the

object, in the front of the sensor, the sensor immediately enters the sensor state, so as to control the

output signal; if the person or object leave the sensing range, and remove the output signal to achieve

the purpose of intelligent control (reverse output can also be customized).

Applications:

It can be used for: security alarm, induction light, intelligent trash can, mirror light box, advertising

machine, shoe cleaning machine, induction water dispenser, vending machine, faucet, shower head and

other functions.

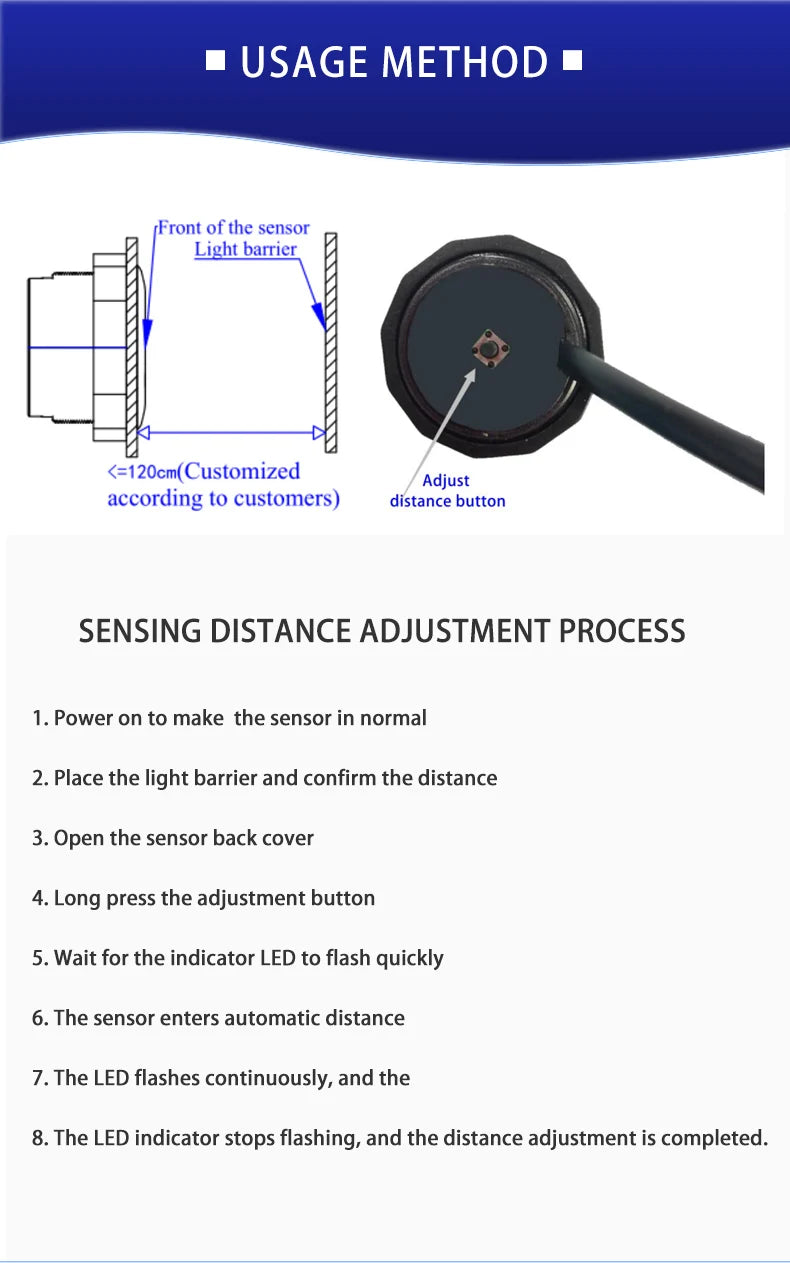

Instructions for Use: Based on the working principle of infrared diffuse reflection, the induced

distance determined by the sensor is offset by the intensity of the ambient light and the color of the
