SPECIFICATIONS

Brand Name: DIY NOW

Choice: yes

Condition: New

Dropship: Support

High-concerned chemical: none

Key Word: Sensor Switch Module

Material: Polymer

Origin: Mainland China

Output: Switching Transducer

Theory: Capacitance Sensor

Type: Liquid Level Switch,Humidity Sensor

Use: Humidity Sensor

is_customized: Yes

semi_Choice: yes

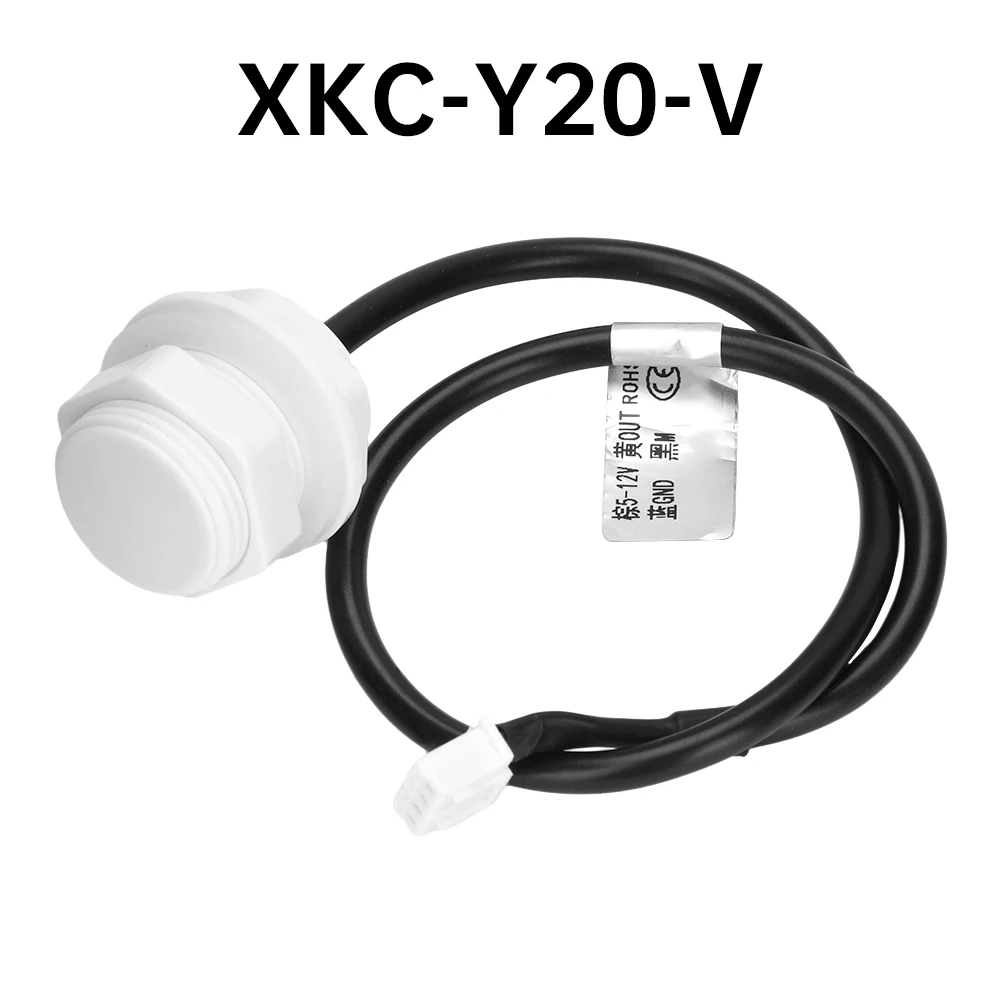

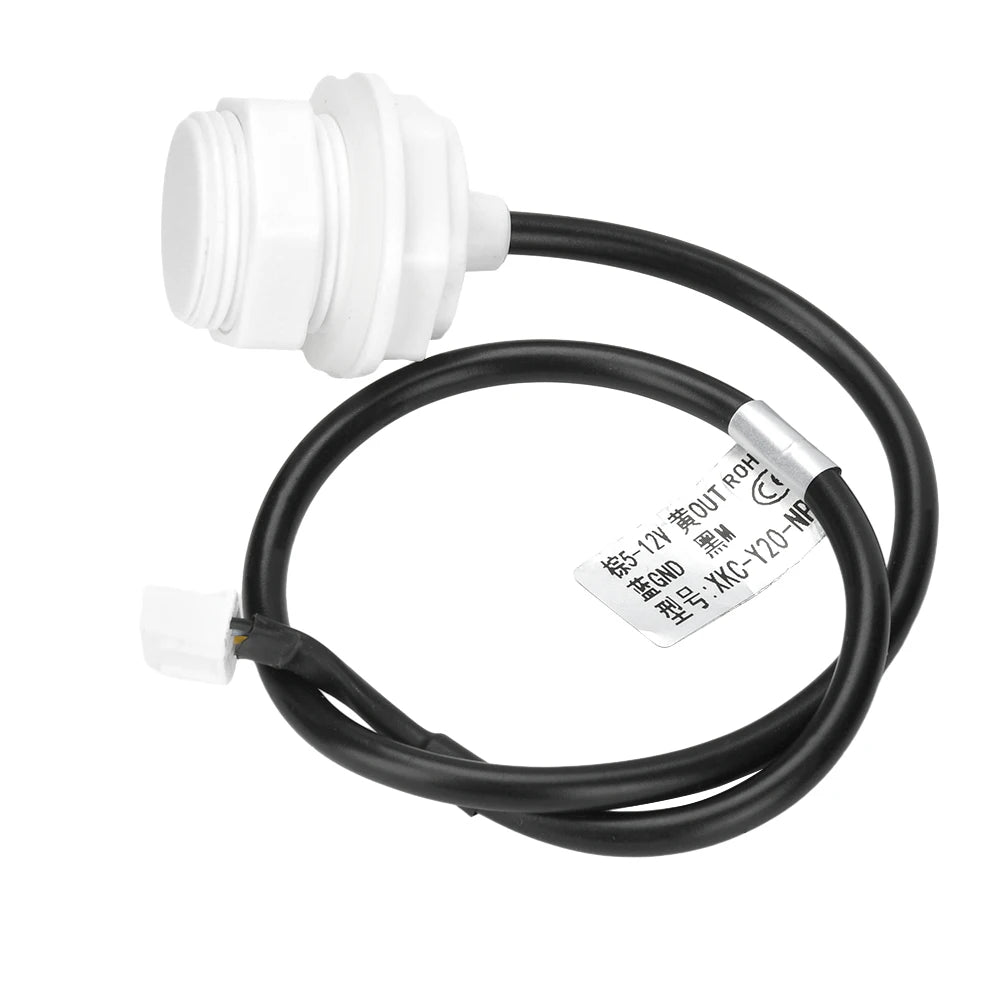

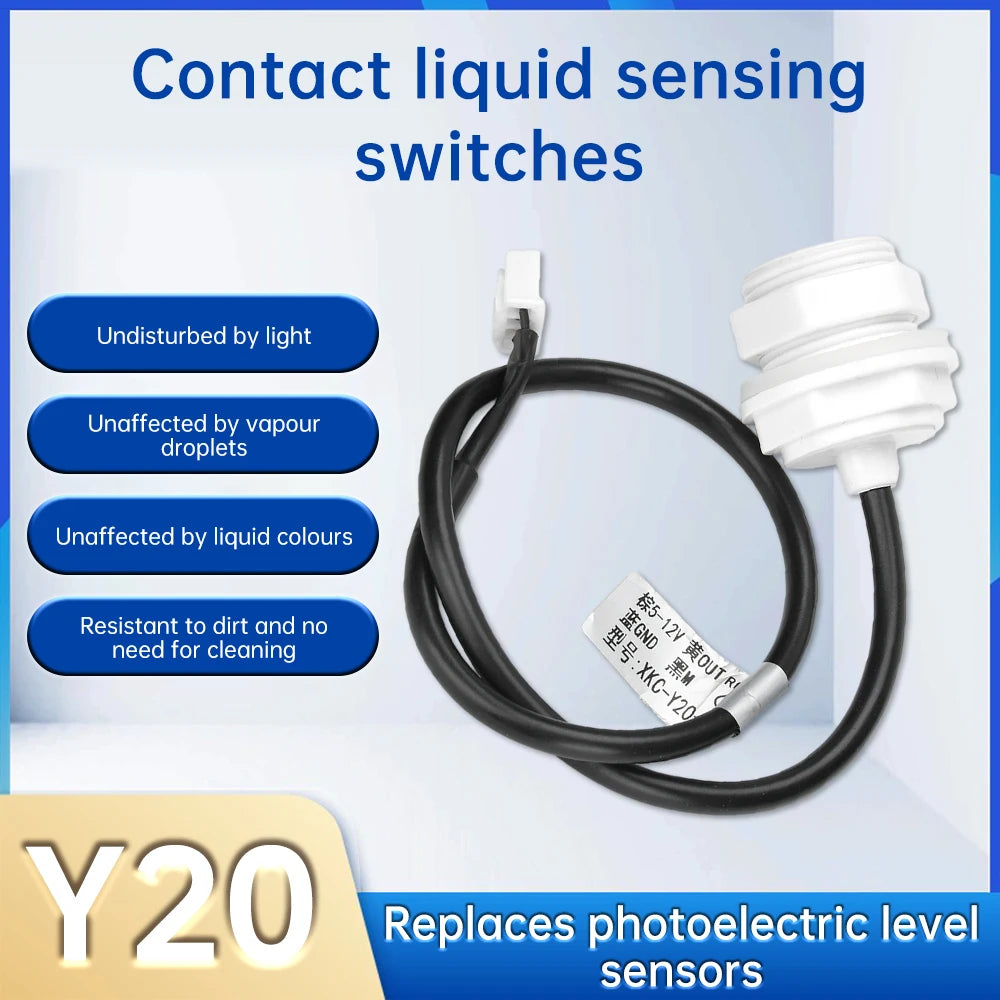

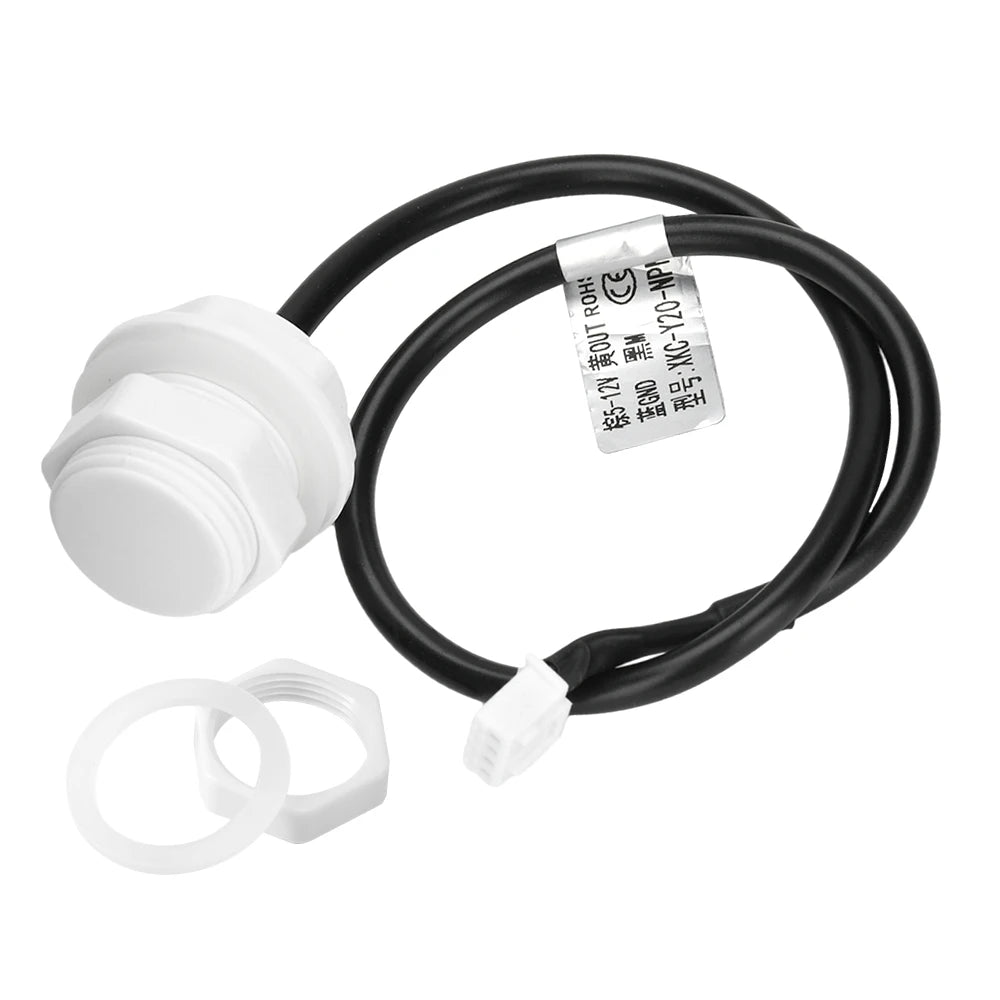

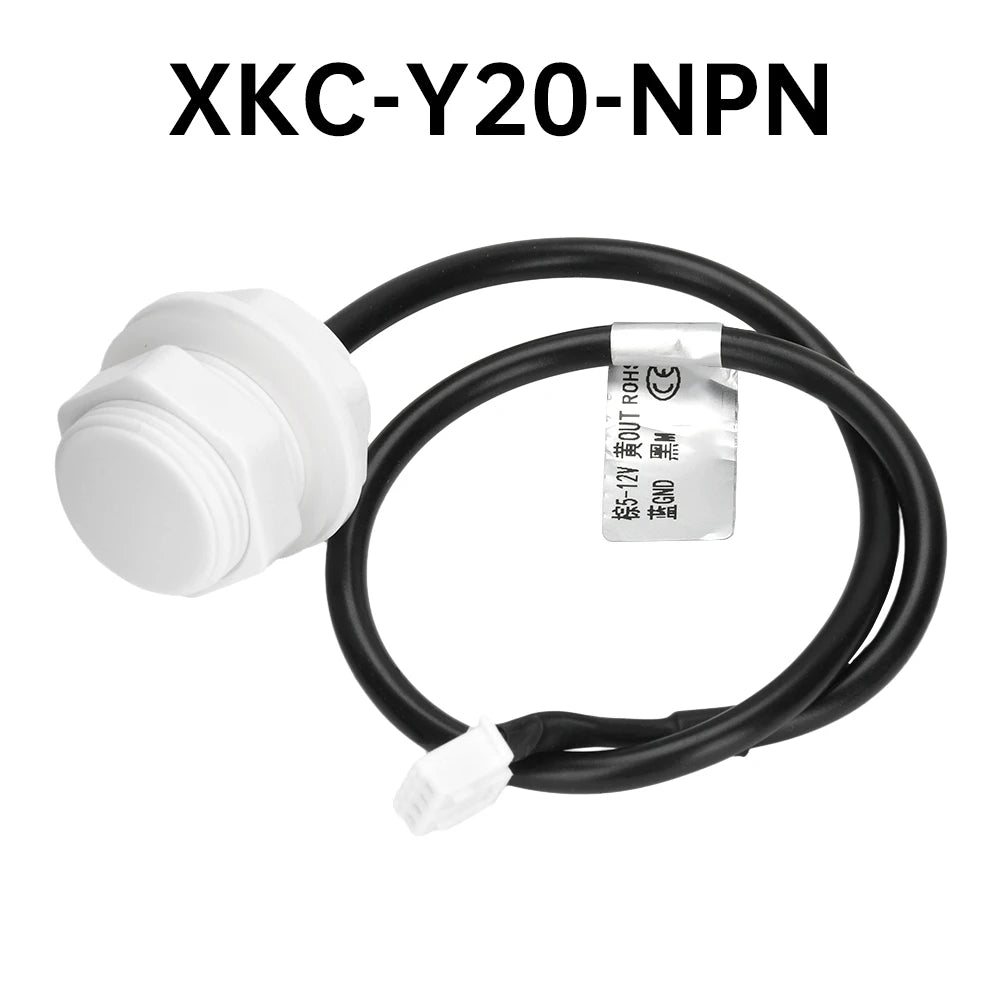

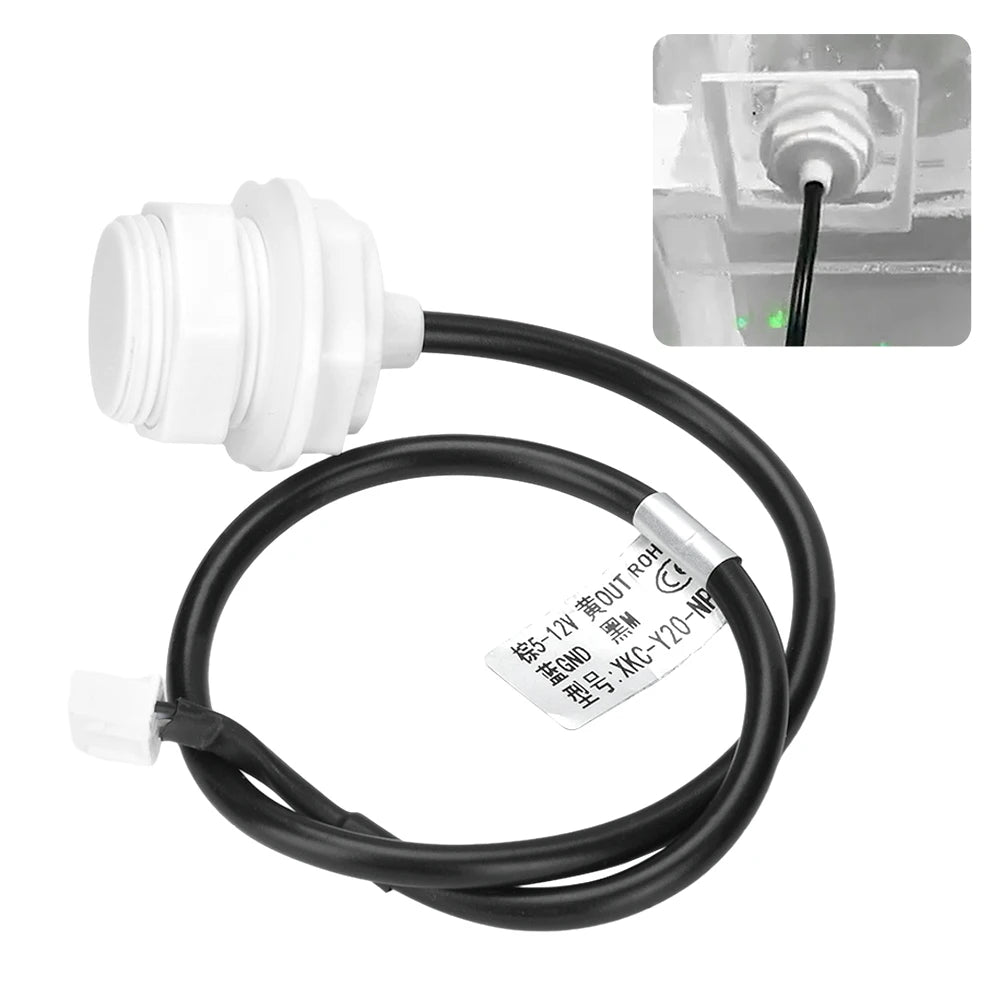

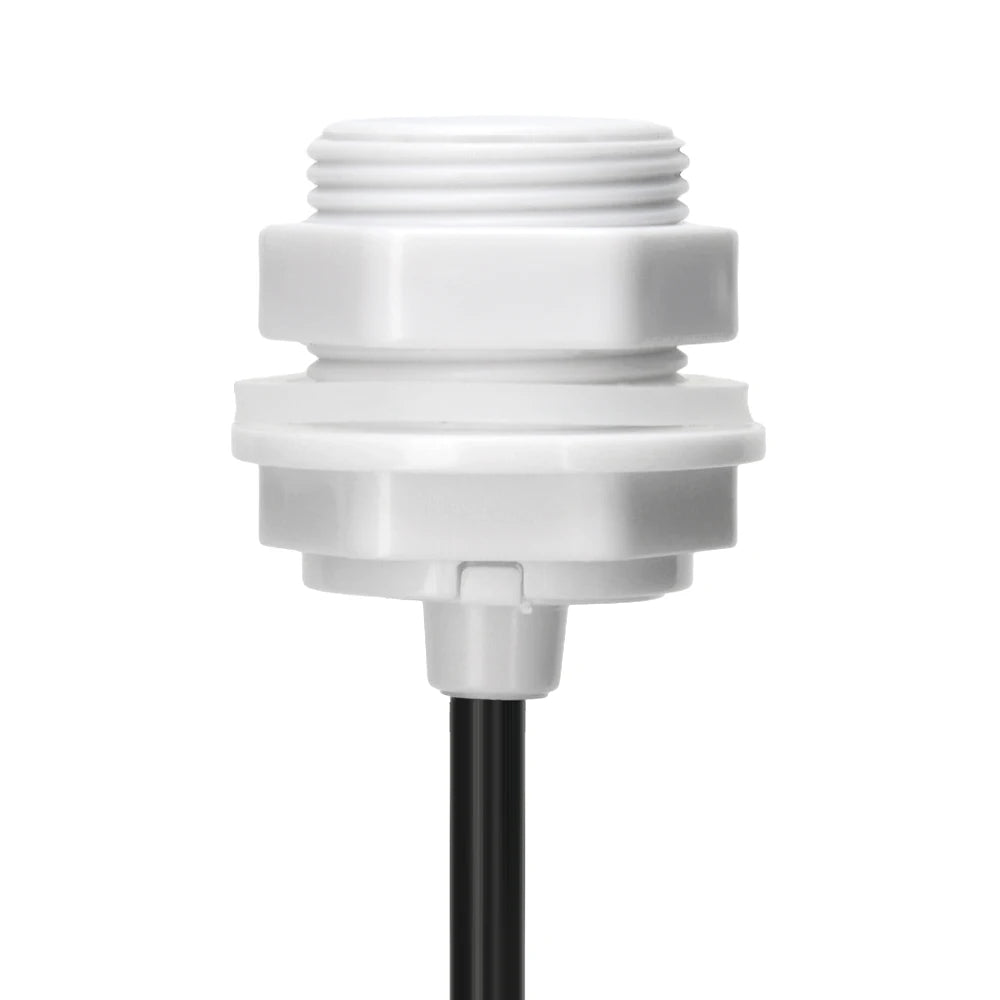

XKC-Y20-V/ XKC-Y20-NPN Low Cost Capacitive Contact Typle Liquid Level Switch Level Sensor for Both Metal and Non-metallic Tank

Features

1. Supports high and low level output and NPN signal output.

2. Accurate and stable liquid level detection, can detect cold, hot and boiling liquids.

3. Pure electronic circuit structure, non-mechanical working mode, stable performance, long continuous service life.

4. Steam and water droplets do not affect detection, sensitivity can be adjusted, and all 5-12V power adapters on the market are compatible.

5. XKC-Y20 contact liquid level sensor can detect non-metallic containers such as glass, plastic, ceramics, tiles, bricks, tiles, cement, wood, and metal containers such as copper, iron, stainless steel, and aluminum alloy.

Product parameters

Product name: Y20 contact liquid level sensor

Input voltage: DC5-12V

Output mode: high and low level (V)/NPN

Power supply ripple requirement: ≤200mV

Current consumption: ≤10mA

Output current: ≤100mV

Actual initialization: ≤500mS

Response time: ≤500mS

Humidity: 5%~100%

Liquid level accuracy: ±10mm

Wire length: about 30cm

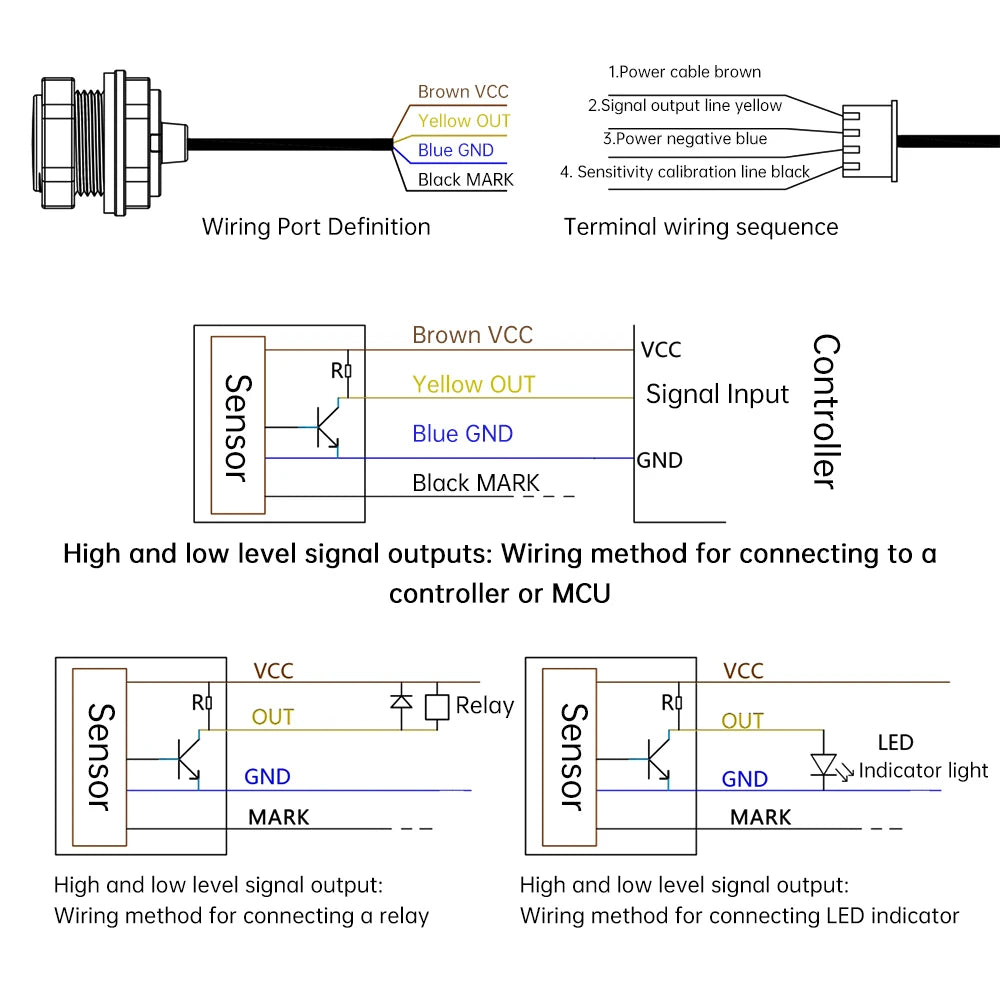

Wire segment definition: brown (VCC), yellow (OUT), blue (GND), black (MARK)

Note

V high and low level output: high and low level output can drive MCU, microcontroller IO port (cannot drive PLC/relay coil and other loads)

NPN low level output: low level output with induction, disconnected without induction.

Package list

Liquid level sensor*1
