SPECIFICATIONS

Brand Name: XINGKECHUANG

Choice: yes

High-concerned chemical: none

Material: Polymer

Origin: Mainland China

Output: Switching Transducer

Theory: Capacitance Sensor

Type: Humidity Sensor

Use: Level Sensor

is_customized: Yes

semi_Choice: yes

Product Overview:

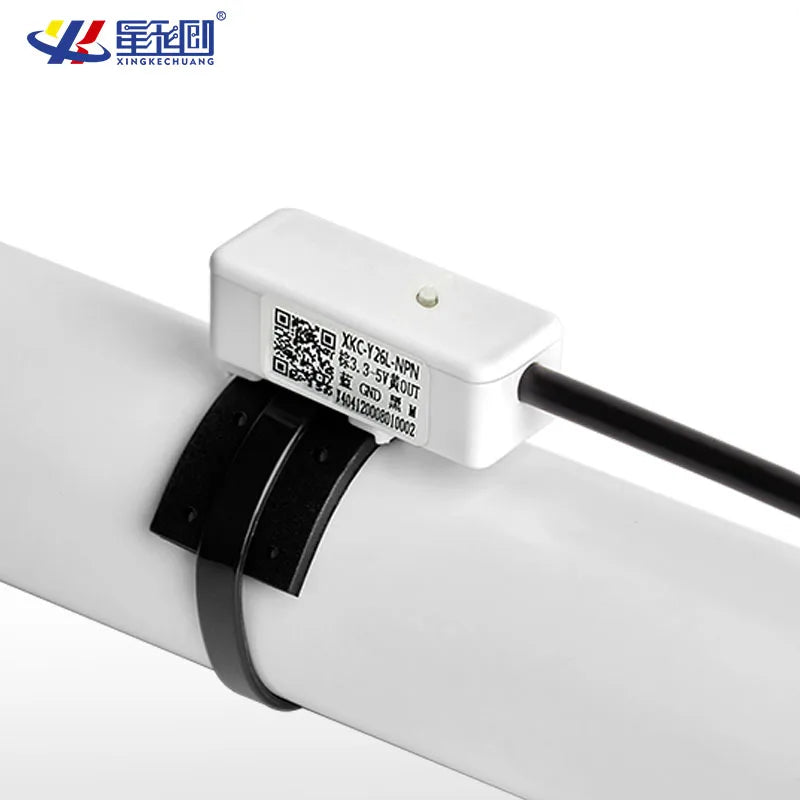

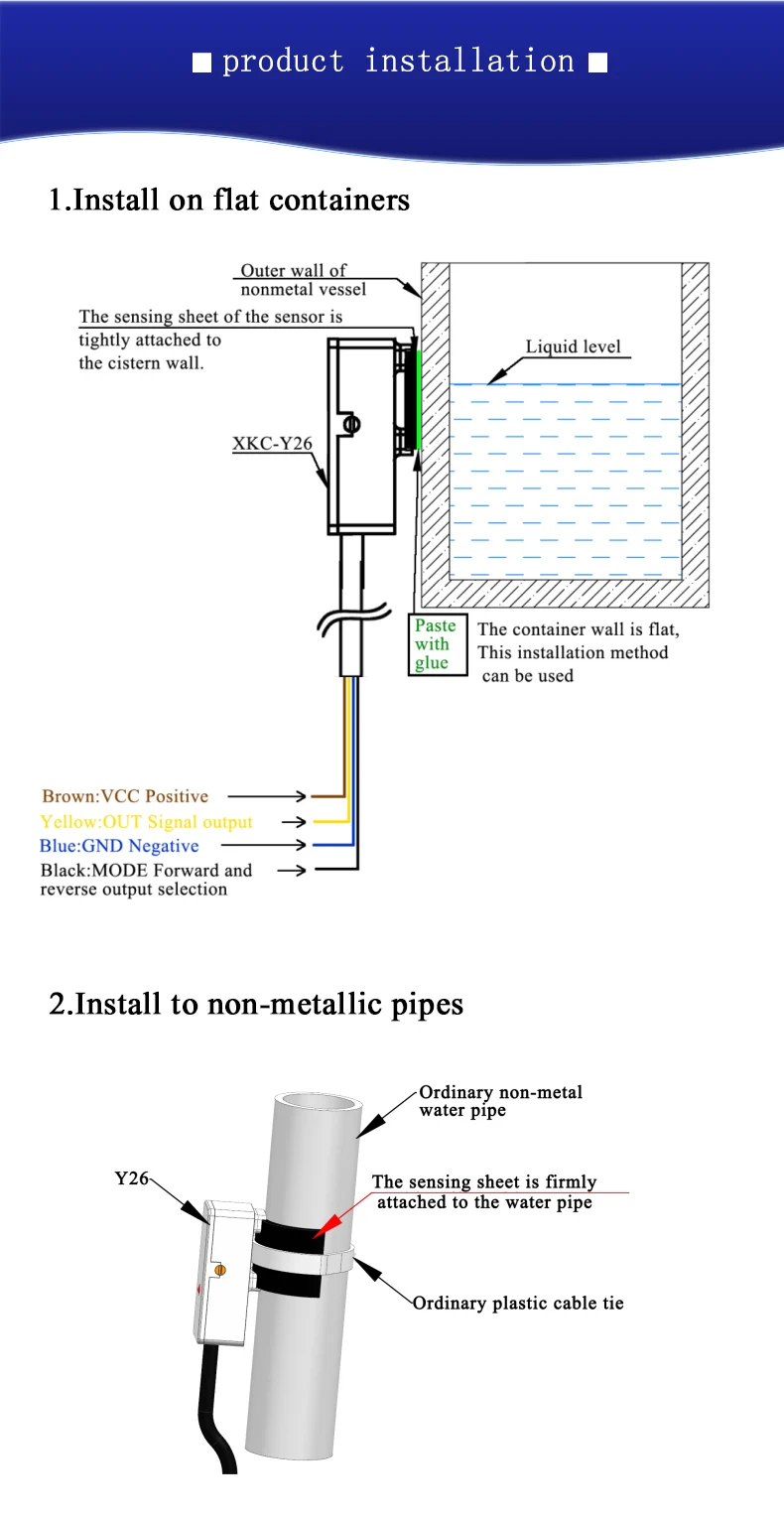

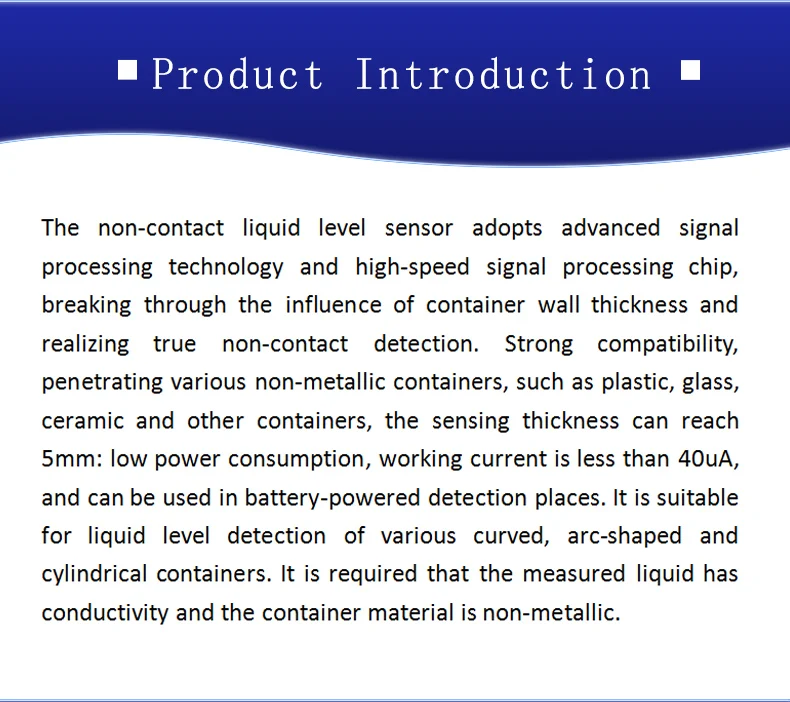

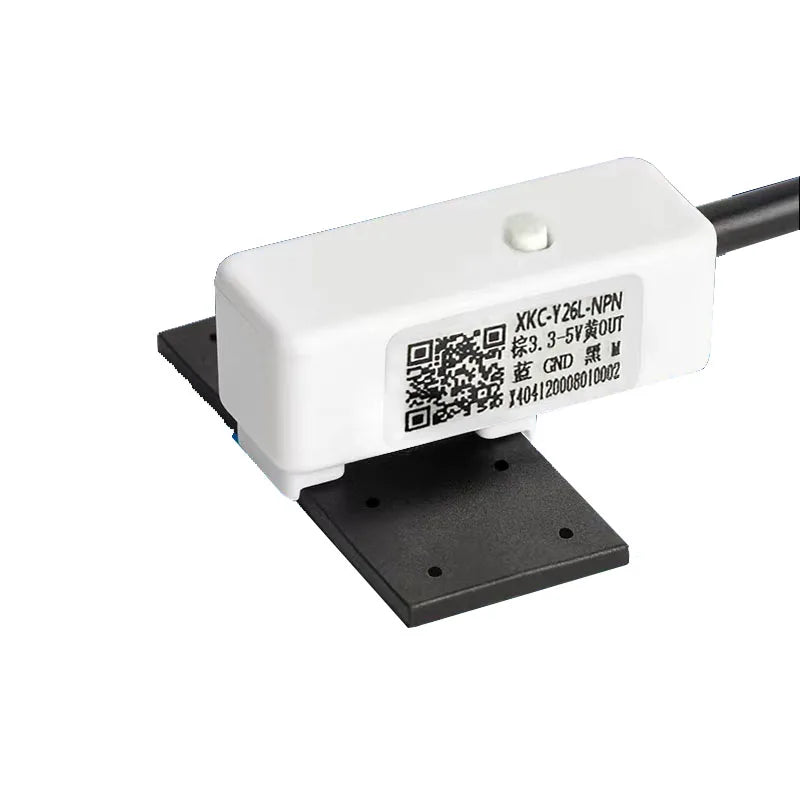

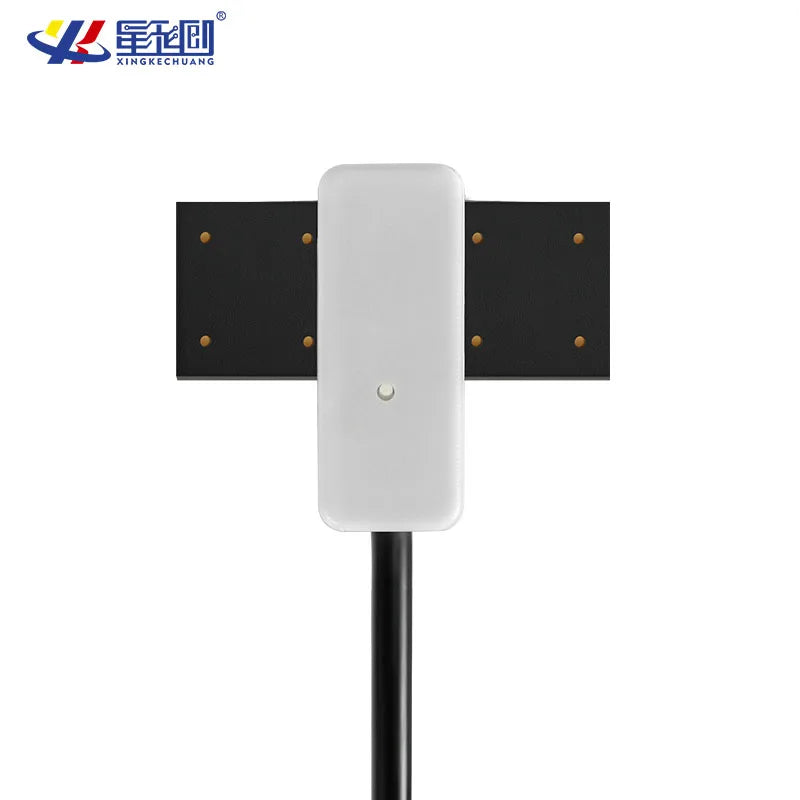

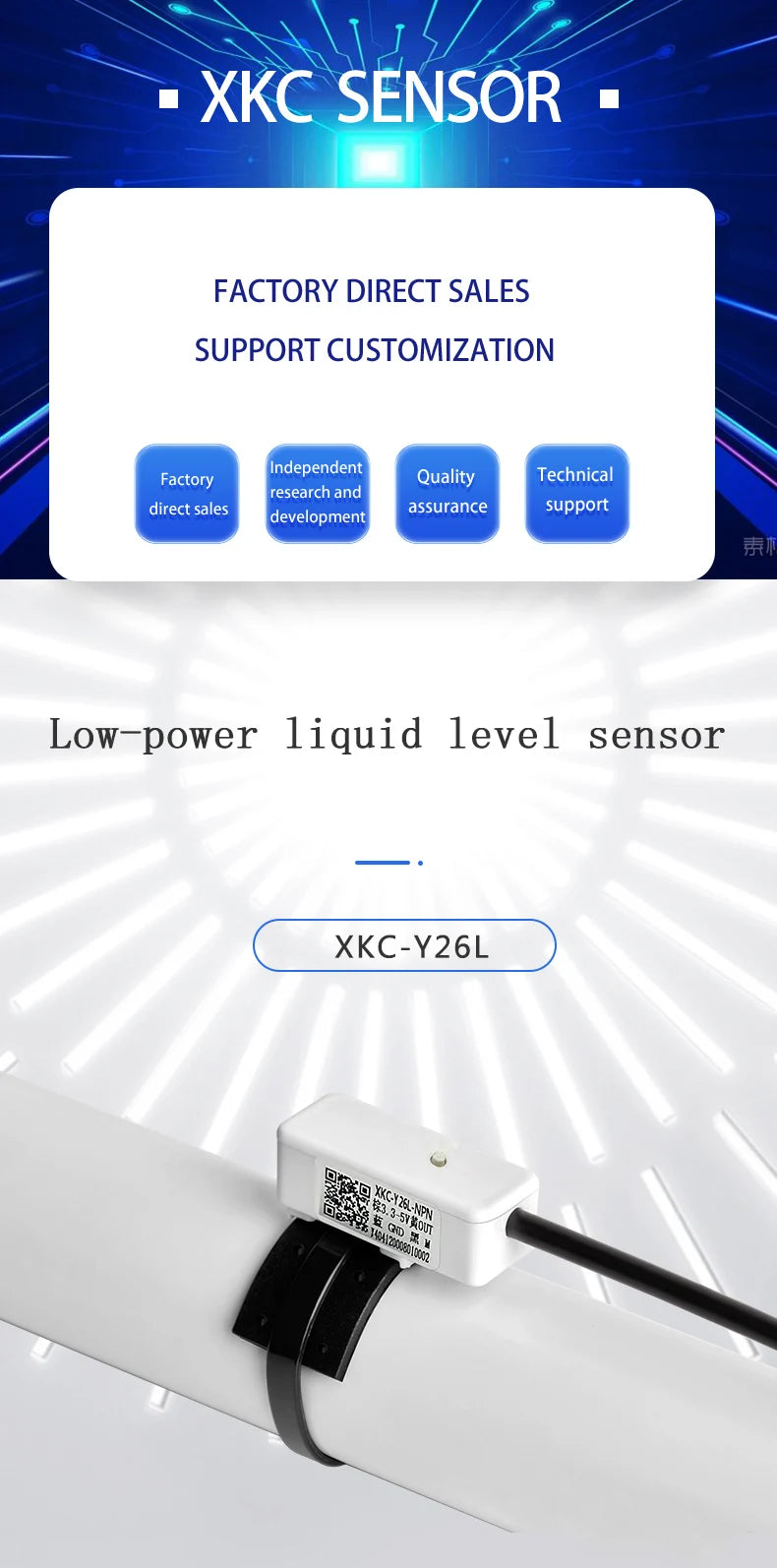

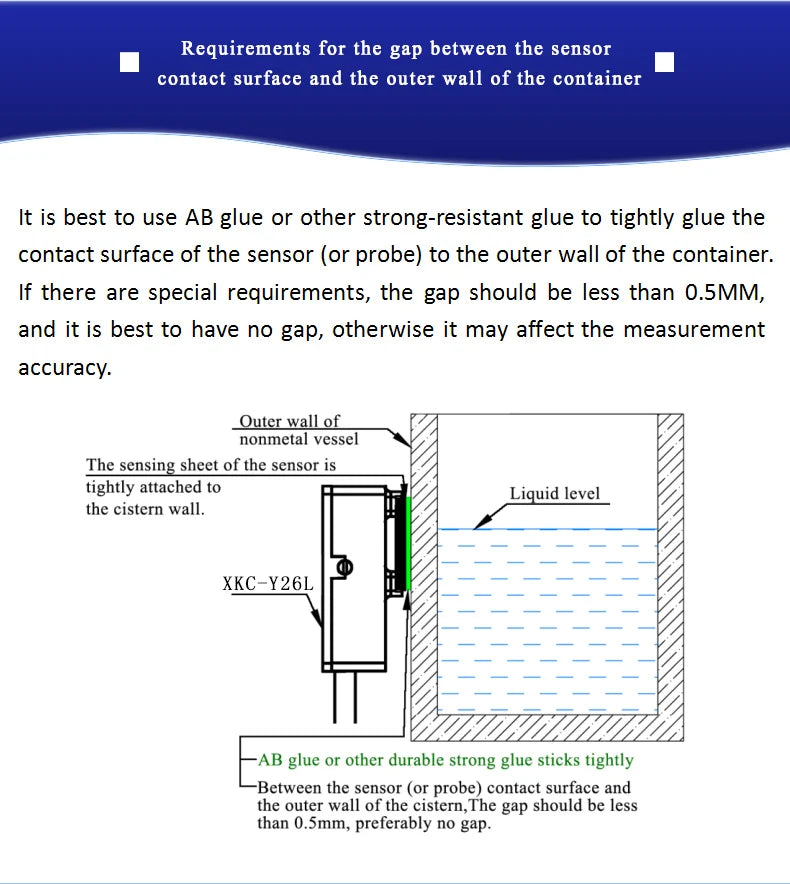

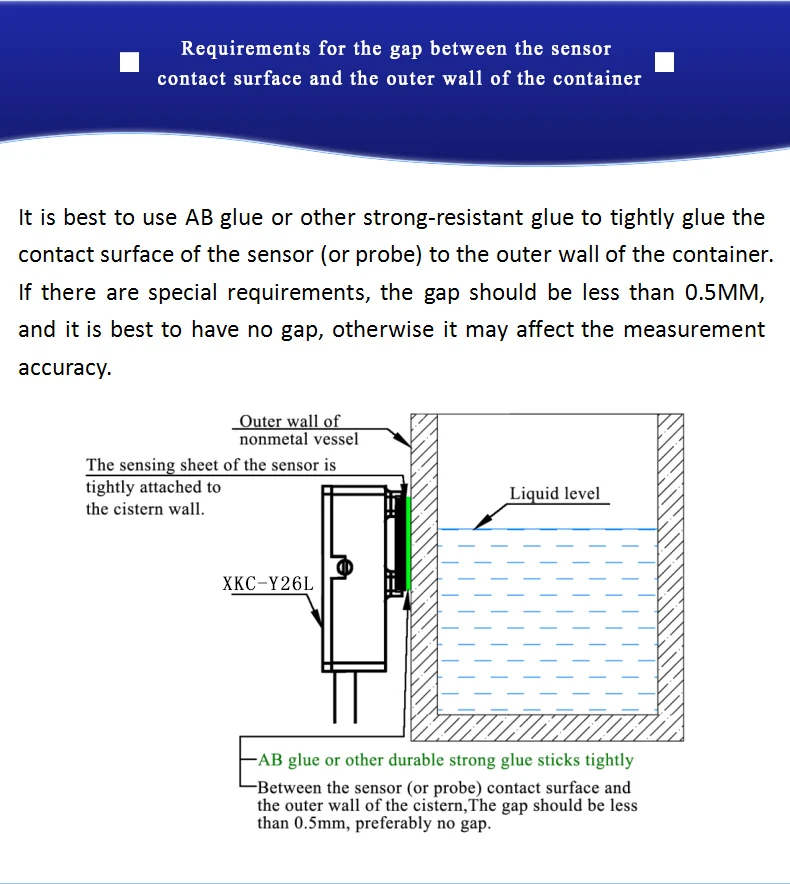

XKC-Y26L is an intelligent non-contact liquid level sensor specially developed for non-metallic pipeline liquid level detection. This product adopts advanced signal processing technology and high-speed signal processing chip, breaking through the influence of container wall thickness and realizing true non-contact detection of liquid level height in closed container. XKC-Y26L (probe) is installed above and below the outer wall of the container to be measured (high and low liquid level). Non-metallic containers do not need to be opened, easy to install, and do not affect production. It can detect the liquid level of various liquid toxic substances, strong acids, strong alkalis and various liquids in high-pressure closed containers. XKC-Y26L has no special requirements for the material of liquid medium and container, and can be widely used.

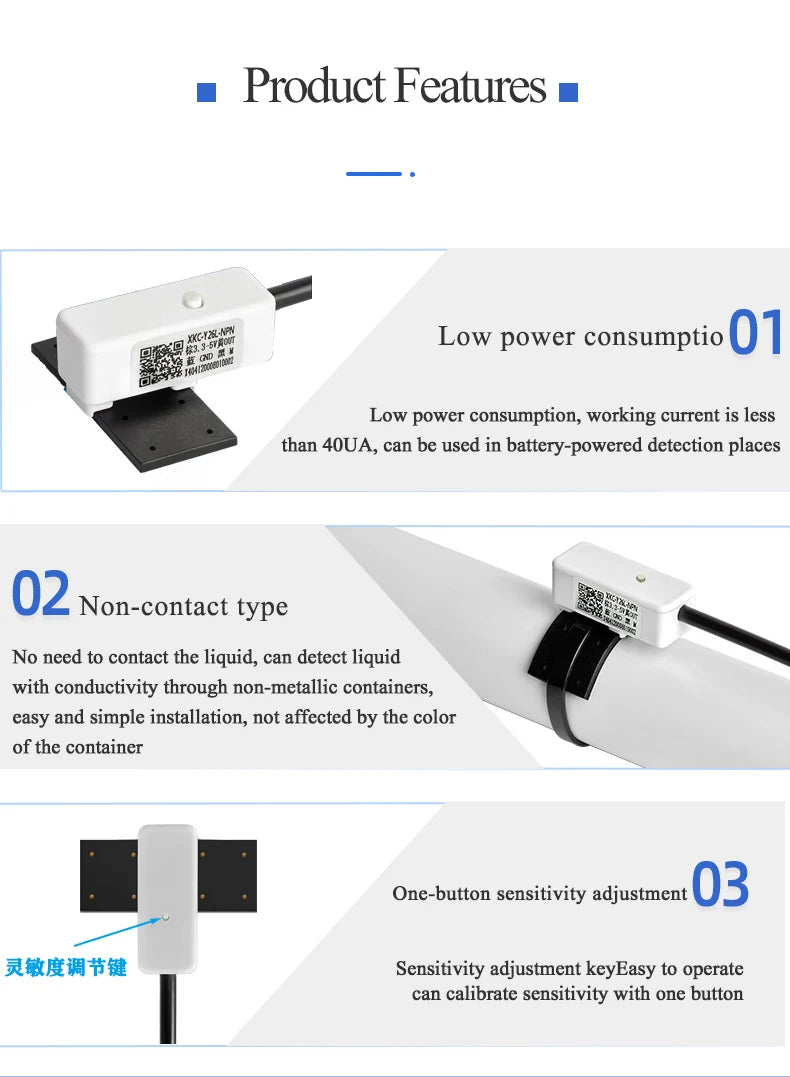

Product Features:

1. XKC-Y26L non-contact liquid level sensor is suitable for various non-metallic containers. The product detects liquid by penetrating the non-metallic container and the outer wall of the pipe through the detection signal, without direct contact with the liquid. It will not be corroded by corrosive liquids such as strong acids and alkalis, and will not be affected by scale or other debris. It can detect whether there is liquid inside the container or pipe.

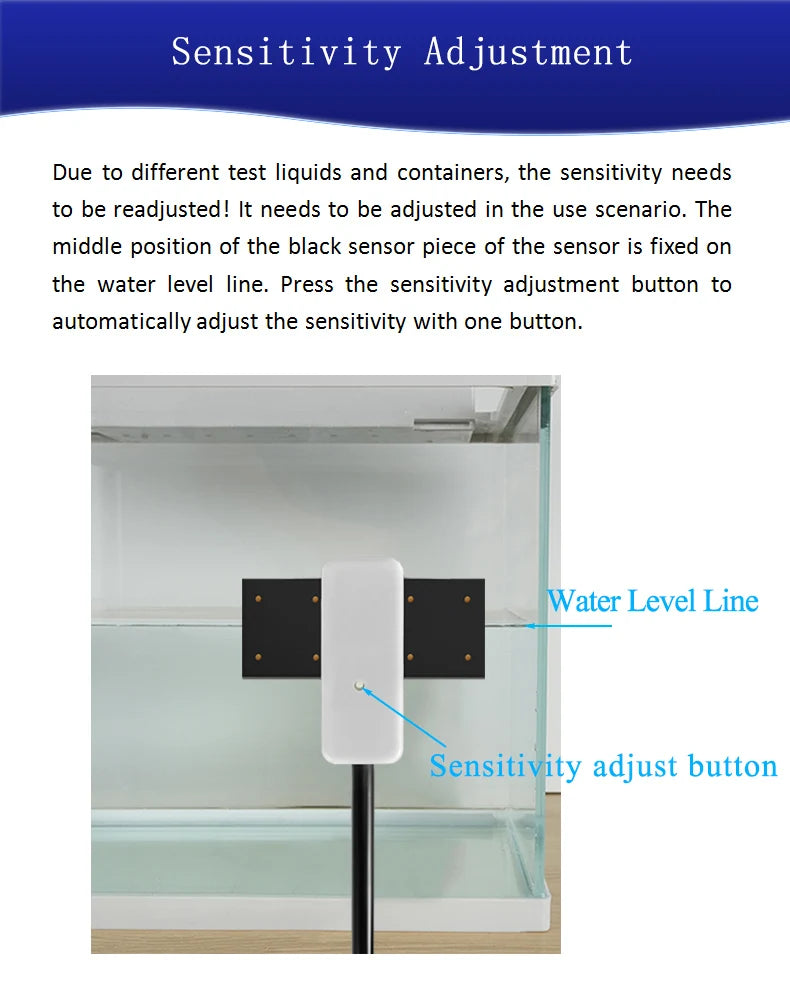

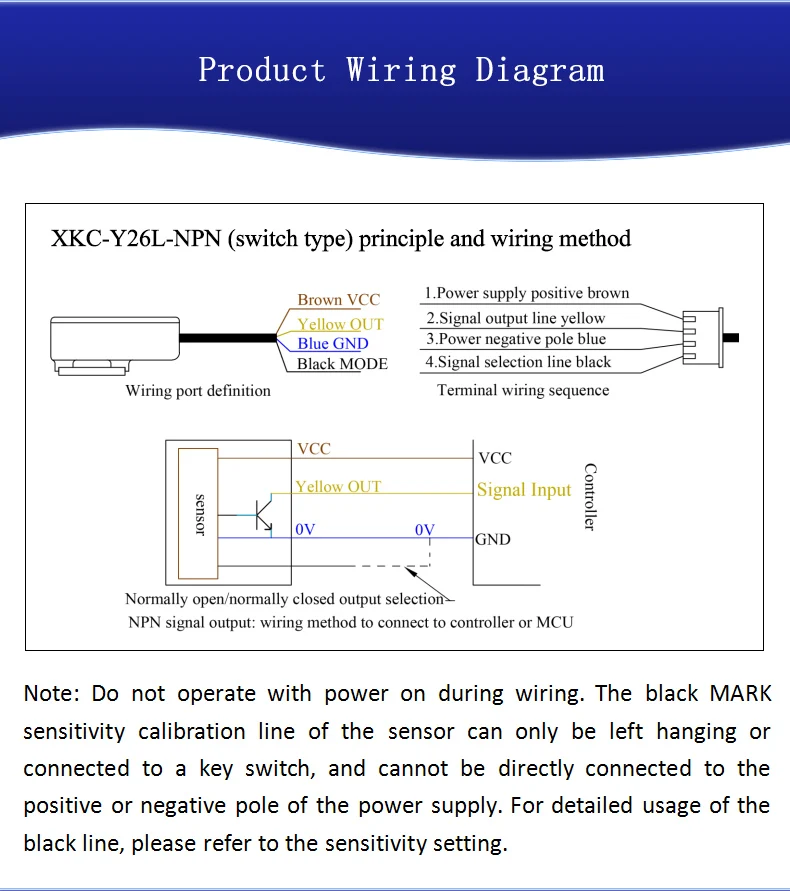

2. The product is designed with intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, and can realize multi-point series wiring control mode.

3. The detection liquid level is accurate and stable, and cold, hot and boiling liquids can be detected.

4. Pure electronic circuit structure, non-mechanical working mode, stable performance, and long service life.

5. High stability, high sensitivity, strong anti-interference ability, not affected by external electromagnetic interference, special treatment is made for power frequency interference and common mode interference.

6. Wide range of applications, strong sensing capability, can penetrate and detect the liquid level in various non-metallic containers and pipes, such as plastic, glass, ceramic and other containers, the sensing tube wall thickness can reach 10mm; it can be applied to the liquid level detection of various irregular containers or pipes such as curved, arc, cylindrical, etc.

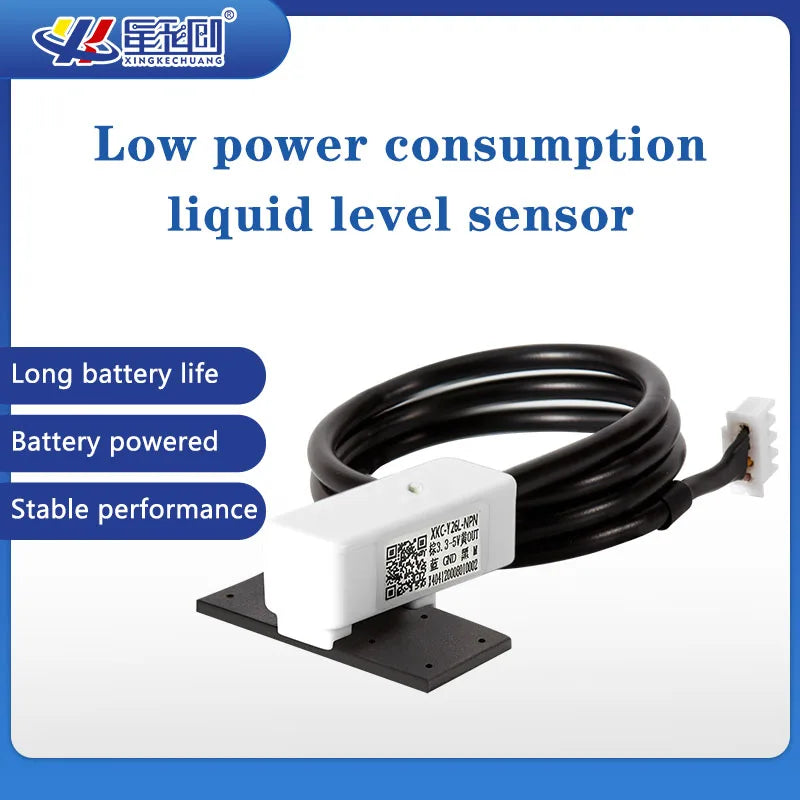

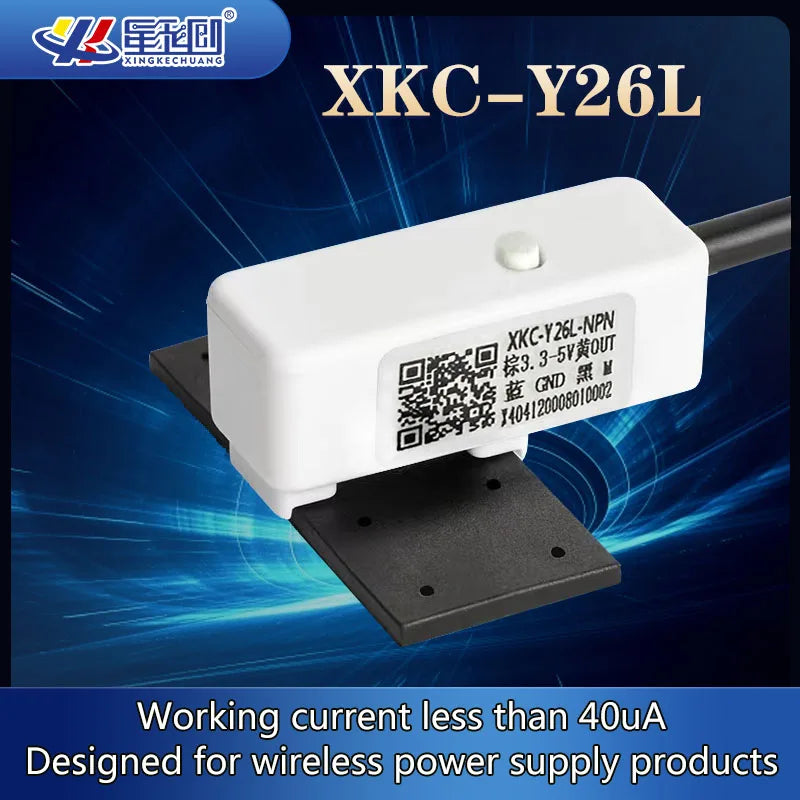

7. Low power consumption, the working current is less than 40uA, and it can be used in battery-powered detection places.

Working principle:

The intelligent non-contact liquid level sensor uses the inductive capacitance of water to detect whether there is liquid. When there is no liquid approaching the sensor, due to the existence of distributed capacitance on the sensor, there is a certain static capacitance between the sensor and the ground. When the liquid level slowly rises and approaches the sensor, the parasitic capacitance of the liquid will be coupled to the static capacitance of the sensor, making the capacitance value of the sensor larger. The capacitance signal of the change is then input to the control IC for signal conversion, and the changed capacitance is converted into the analog change of the circuit signal. Then the MCU calculates and judges the degree of this change. When this change exceeds a certain threshold, it is judged that the liquid level has reached the sensing point.
