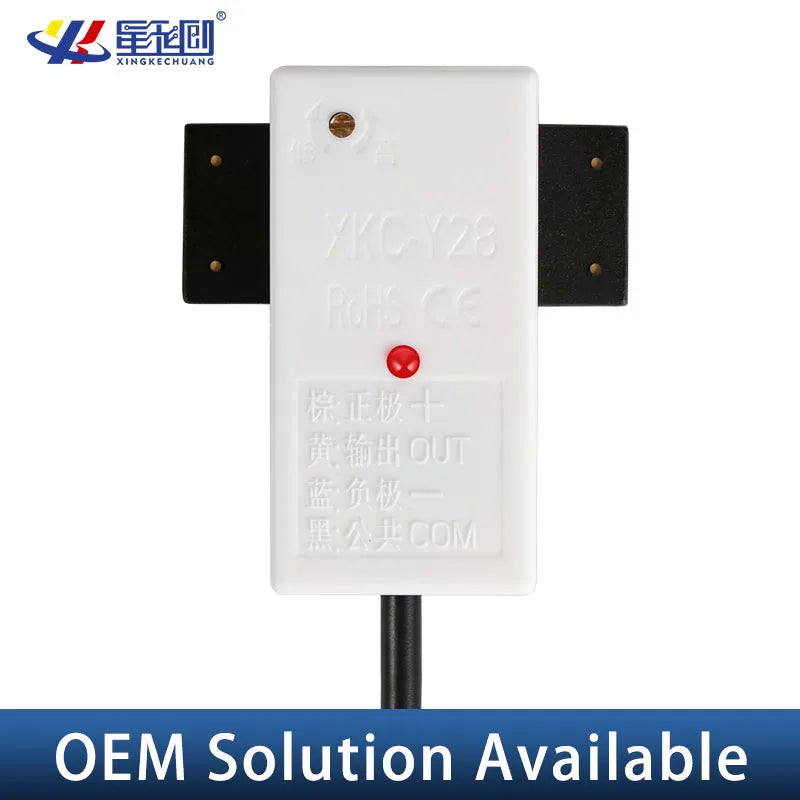

XKC-Y28 Liquid Level Sensors Capacitive Level Touchless Compilable Sensor Switch for 12mm+ Flat Containers and Pipelines
XKC-Y28-24V NC
$80.15
Sale price
$80.15
Regular price
$0.00
Skip to product information
XKC-Y28 Liquid Level Sensors Capacitive Level Touchless Compilable Sensor Switch for 12mm+ Flat Containers and Pipelines
$80.15
Sale price
$80.15
Regular price
$0.00
Description

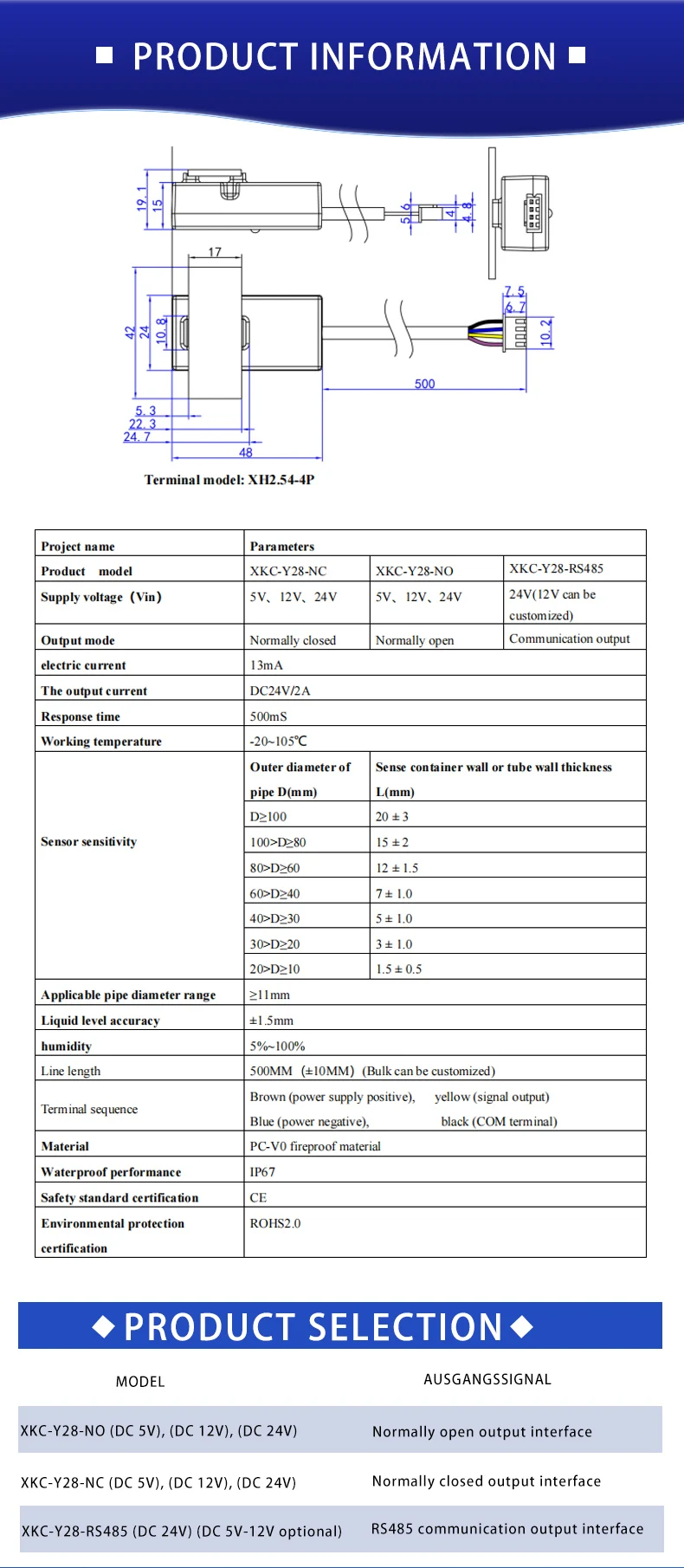

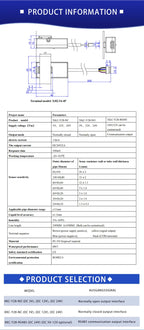

SPECIFICATIONS
Brand Name: XINGKECHUANG
Choice: yes
High-concerned chemical: none
Material: Polymer
Model Number: XKC-Y28
Origin: Mainland China
Output: Switching Transducer
Theory: Capacitance Sensor
Type: Humidity Sensor
Use: Level Sensor
is_customized: Yes
semi_Choice: yes
1st. Overview
The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) adopts advanced signal
processing technology and high-speed signal processing chip, which breaks through the influence of the container wall
thickness and realizes the true non-contact of the liquid level in the closed container. Contact detection. The liquid level

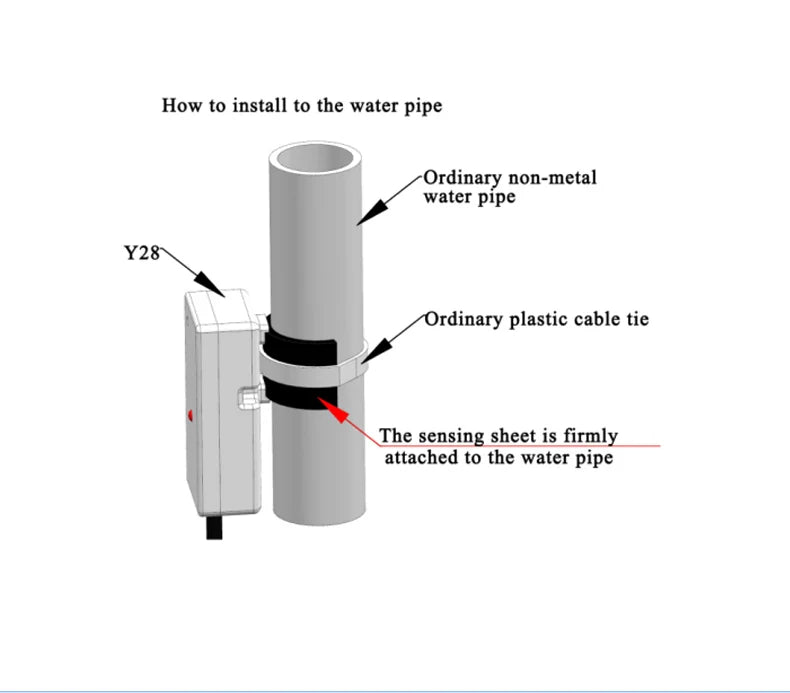

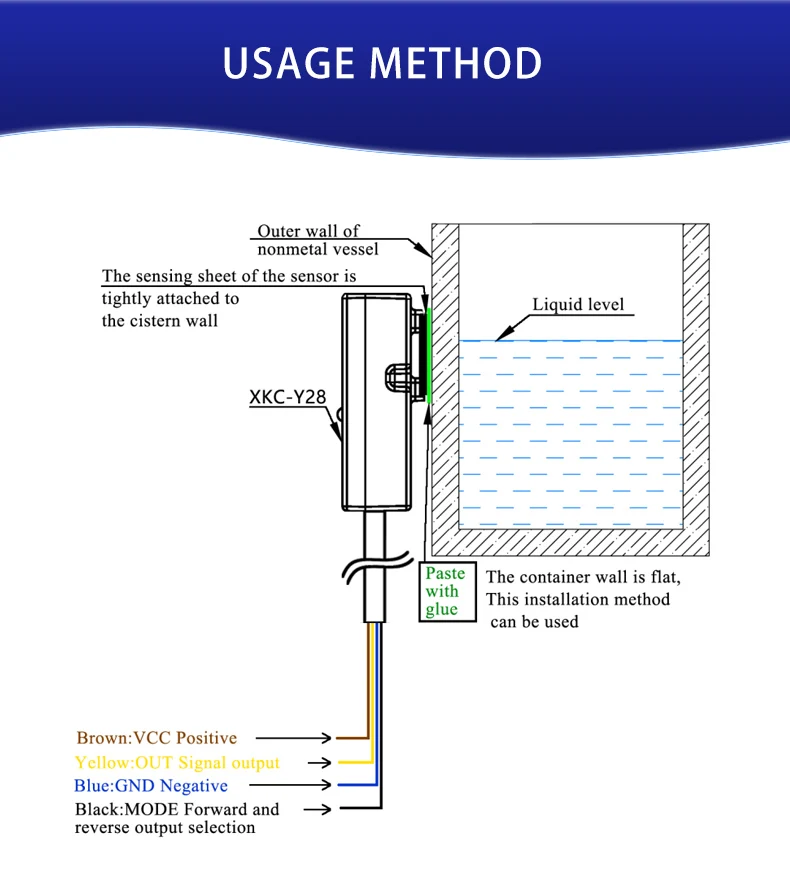

sensor (probe) is installed on the upper and lower sides of the outer wall of the container to be tested (the high and low
levels of the liquid level). The non-metallic container does not need to be opened, and the installation is simple and does
not affect production. It can detect the level of various toxic substances, strong acids, strong alkalis and various liquids in
high-pressure airtight containers. The liquid level sensor has no special requirements for the material of the liquid
medium and container, and can be widely used.

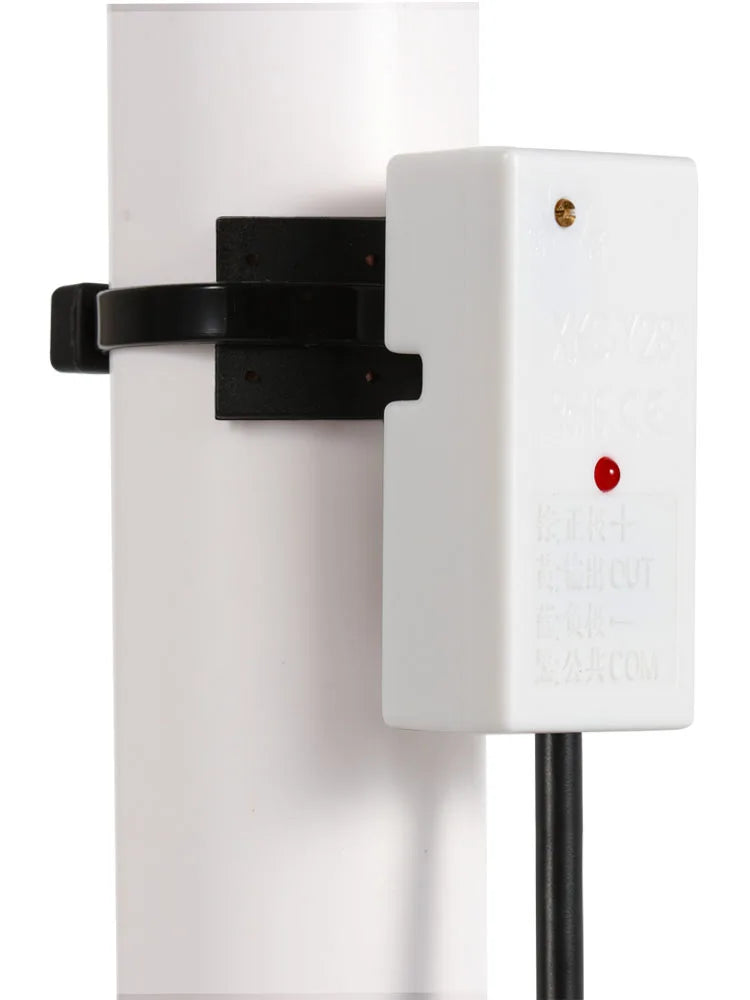

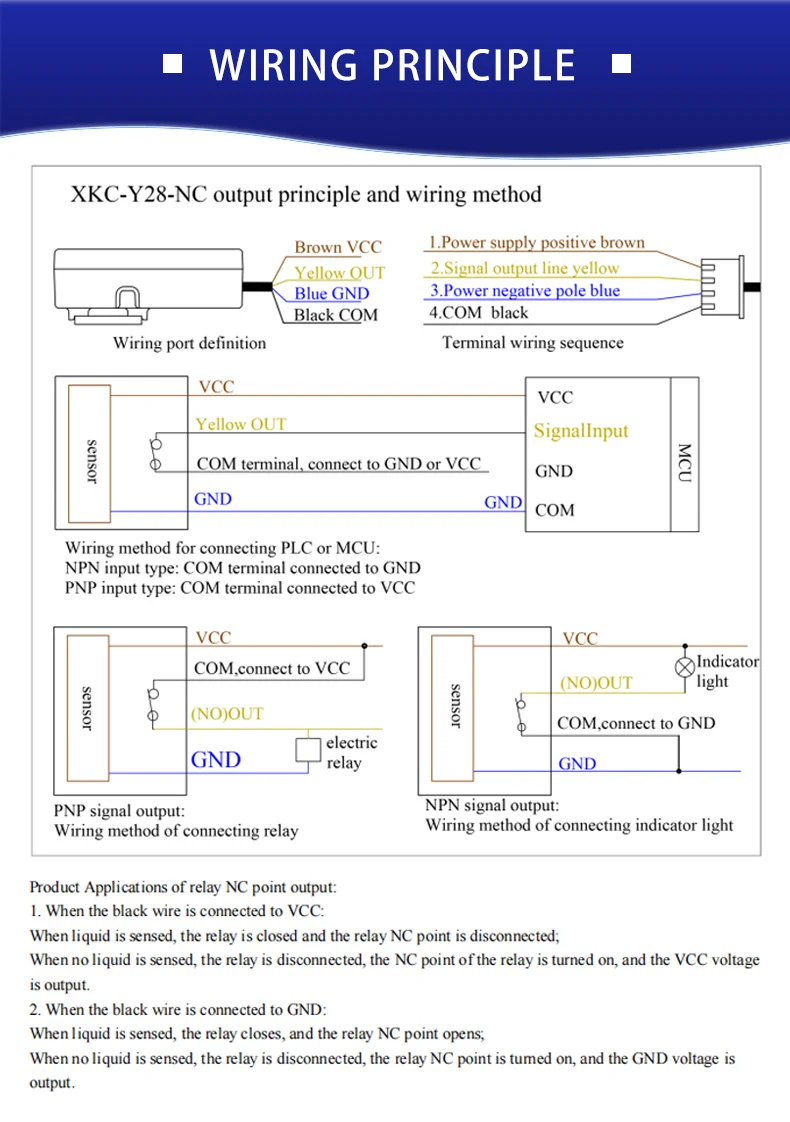

XKC-Y28-NO/NC/ RS485 products are specially developed for non-metallic pipes (pipe outer diameter D≥11MM) or flat

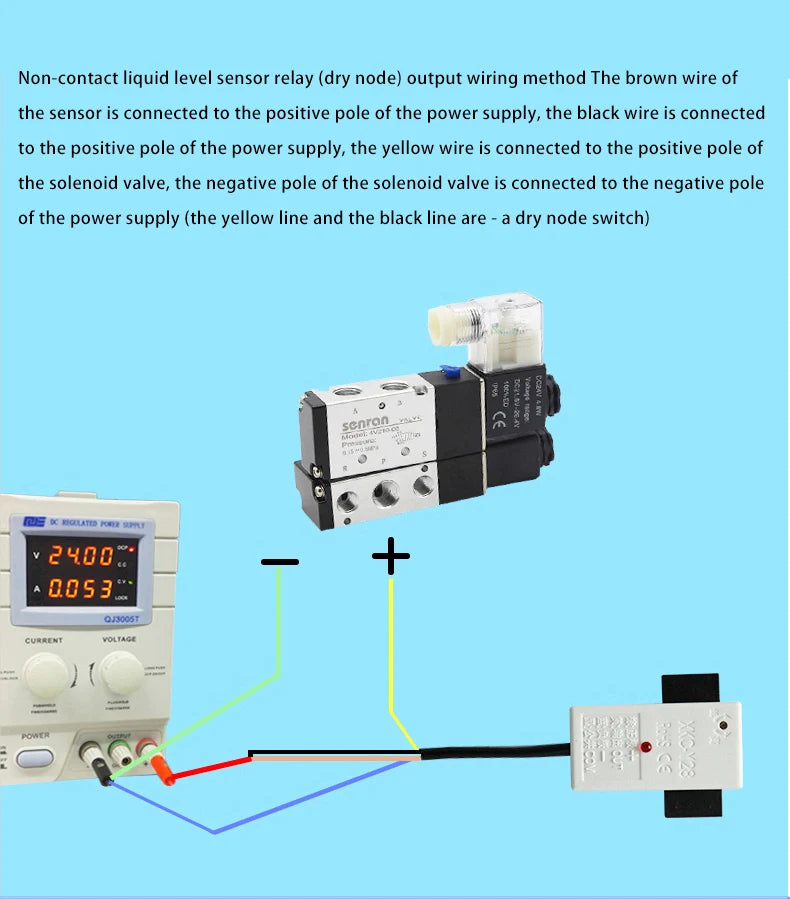

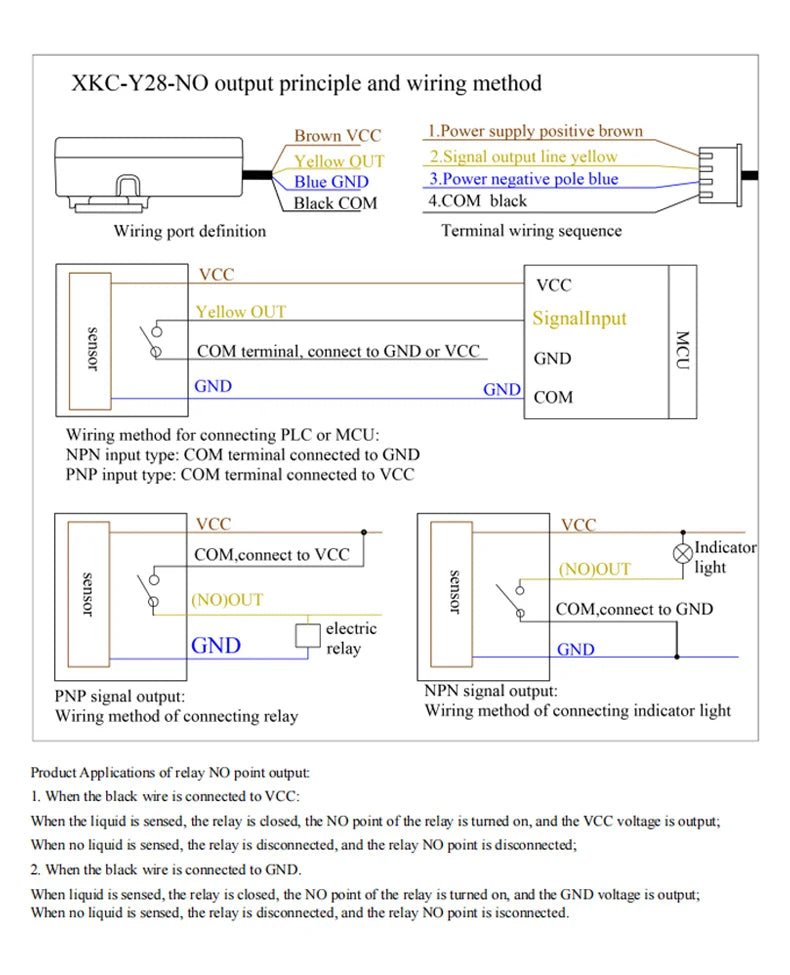

container liquid level detection. They are relay normally open output and relay normally closed outputand RS485
interface output.
2nd.Product Features
1. XCK-Y28-NO/NC/ RS485 sensor, suitable for non-metallic pipes (pipe outer diameter D≥11MM) or flat containers
without direct contact with liquids,
It will not be corroded by strong acids or alkalis and other corrosive liquids, and will not be affected by scale or other
debris. It can be completed to detect whether there is liquid inside the container or pipeline.
2. Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can
realize multi-point series connection.
3. The detection is accurate and stable, and the boiling water level can be detected.
4. Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.
5. High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special
treatment for power frequency interference and common mode interference, to be compatible with all 5V, 12V, 24V
power adapters on the market.
6. Strong compatibility, penetrating various non-metallic container pipes, such as plastic, glass, ceramics and other
containers, the induction pipe wall thickness can reach 20mm; suitable for all kinds of curved, arc, cylindrical containers
or pipes Liquid level detection.
7. The voltage can be selected (5V, 12V, 24V), suitable for connecting various circuits and product applications.
3rd.Product Applications
The intelligent non-contact liquid level sensor uses the inductive capacitance of water to detect whether there is liquid.
When there is no liquid close to the sensor, the sensor has a certain static capacitance to the ground due to the distributed
capacitance on the sensor. When the liquid level slowly rises and approaches the sensor, the parasitic capacitance of the
liquid will be coupled to this static capacitance, making the capacitance value of the sensor larger, and the changed
capacitance signal is then input to the control IC for signal conversion. The capacitance is converted into a change of a
certain electrical signal, and then a certain algorithm is used to detect and judge the degree of this change. When the
change exceeds a certain threshold, it is considered that the liquid level has reached the sensing point

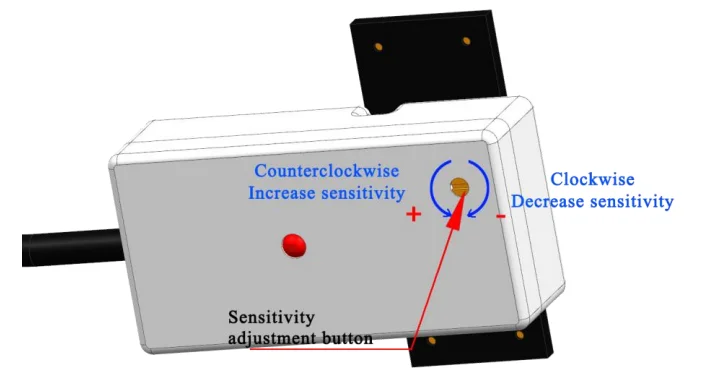

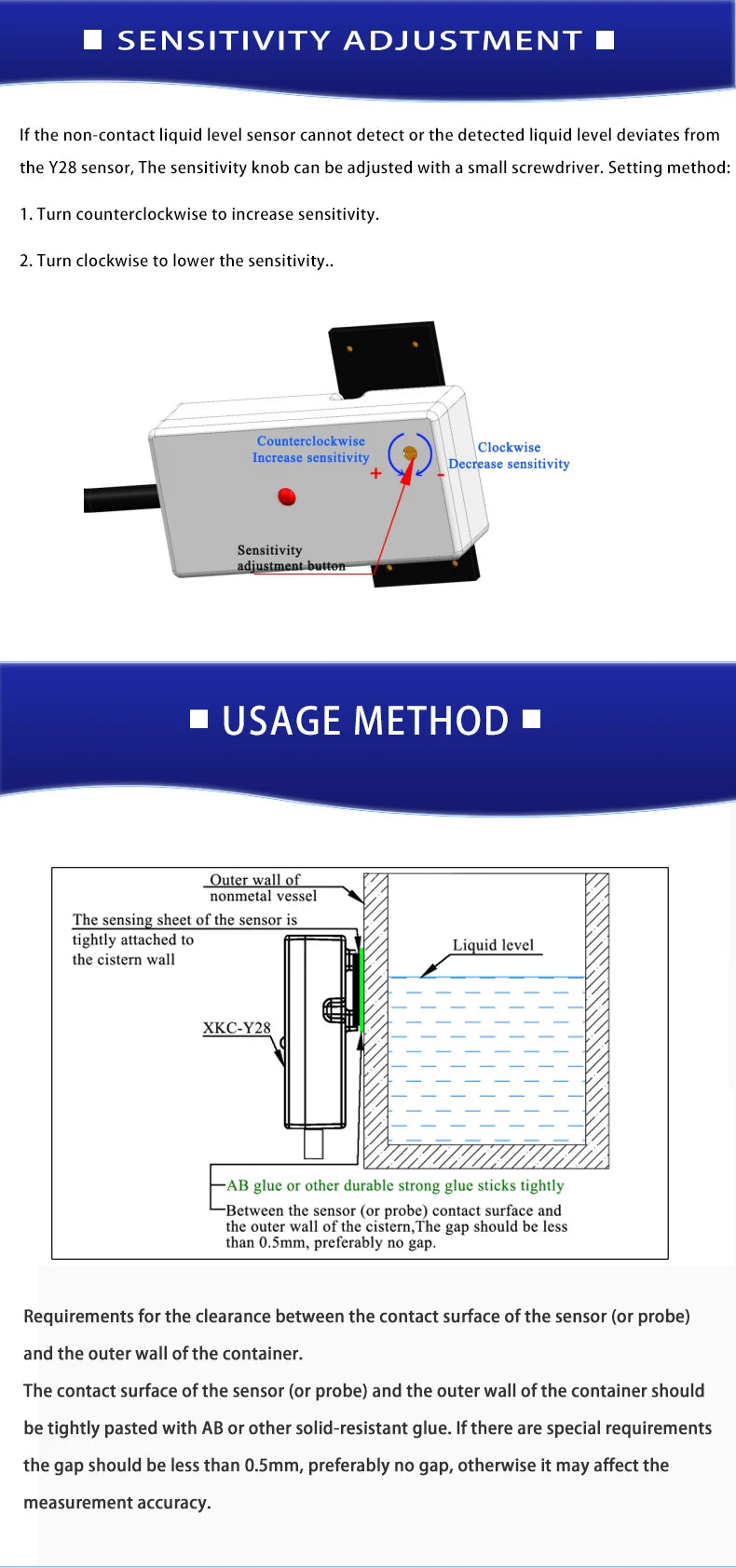

4th. Sensitivity adjustment:
If the non-contact liquid level sensor cannot detect or the detected liquid level deviates from the Y28 sensor, The
sensitivity knob can be adjusted with a small screwdriver. Setting method:
1. Turn counterclockwise to increase sensitivity.
2. Turn clockwise to lower the sensitivity.
