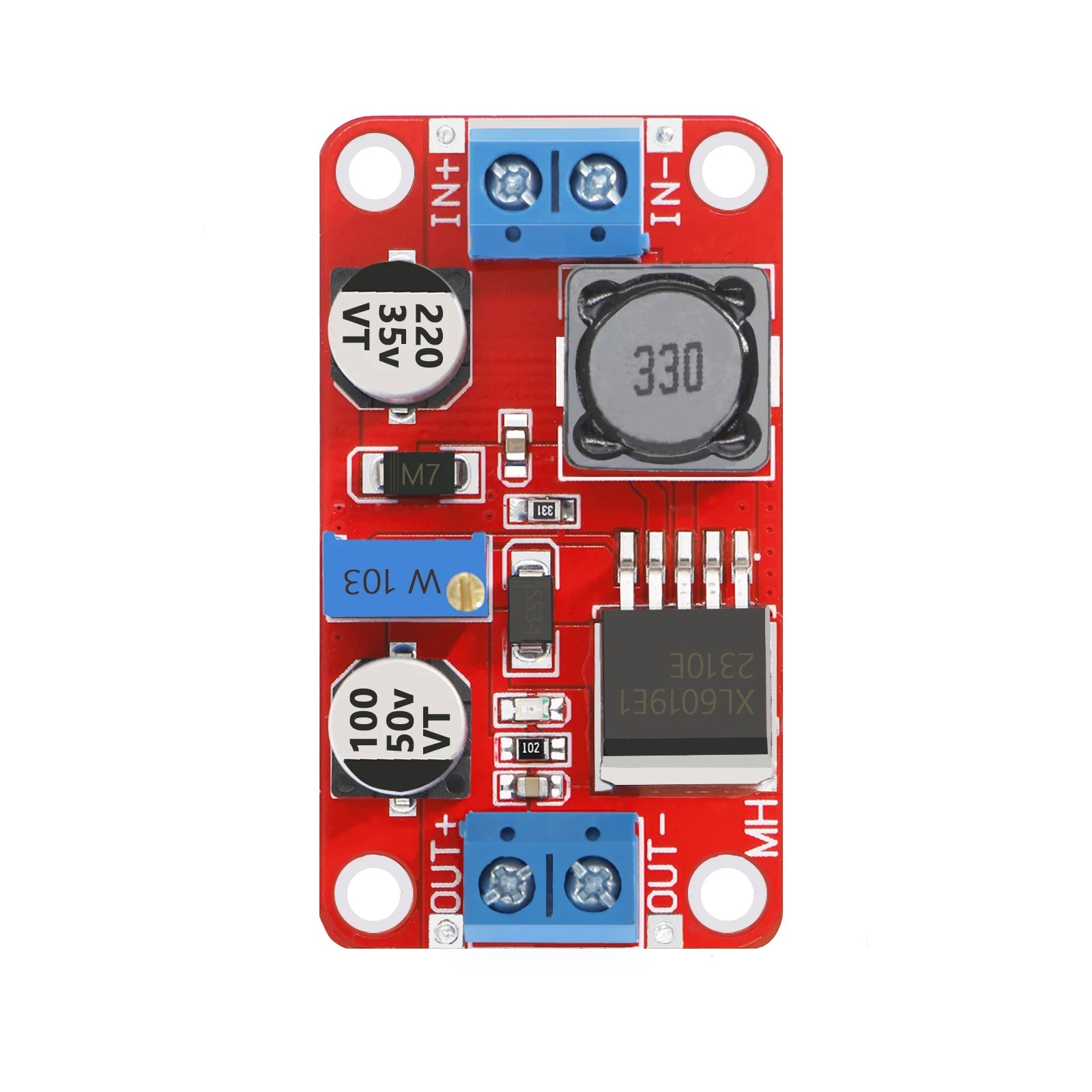

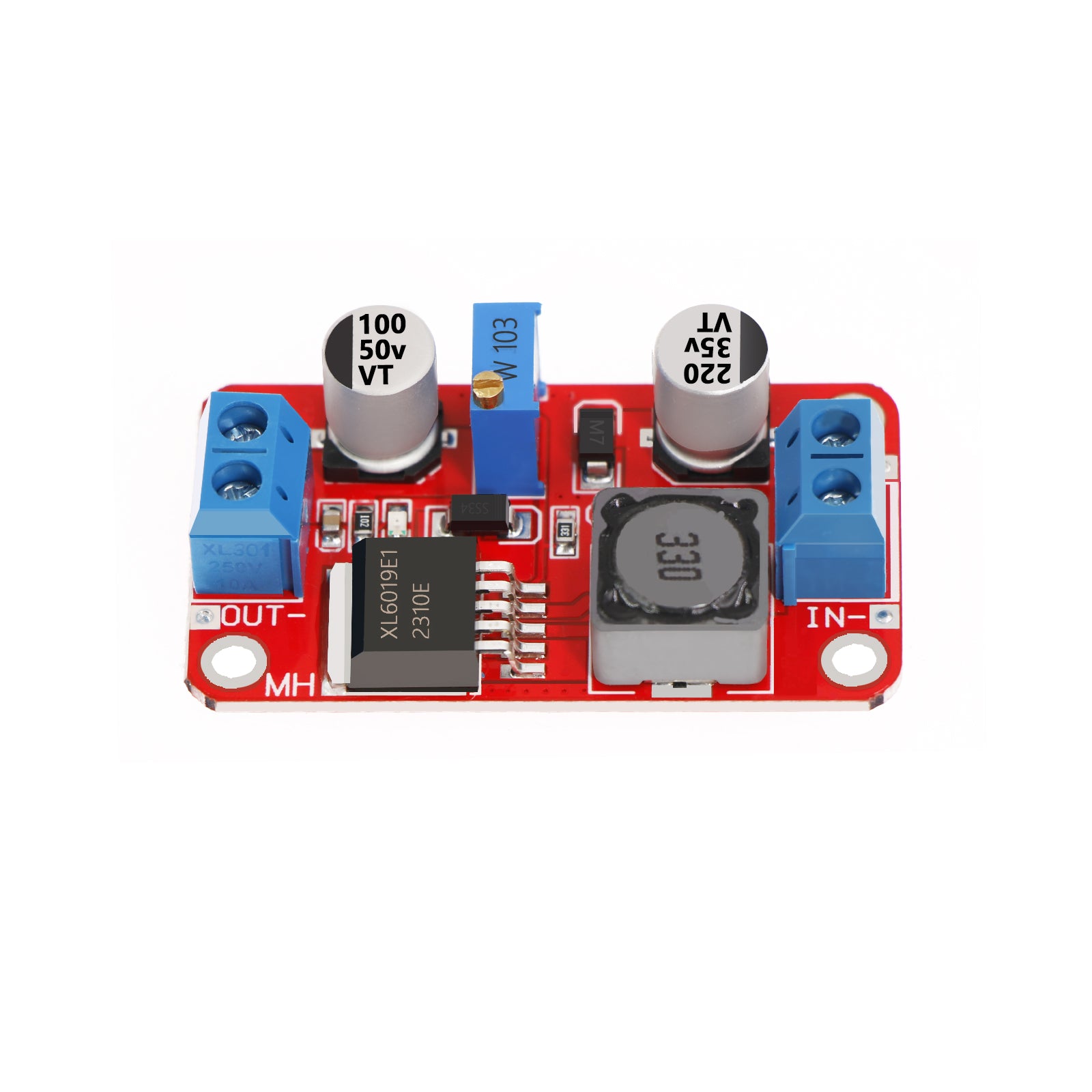

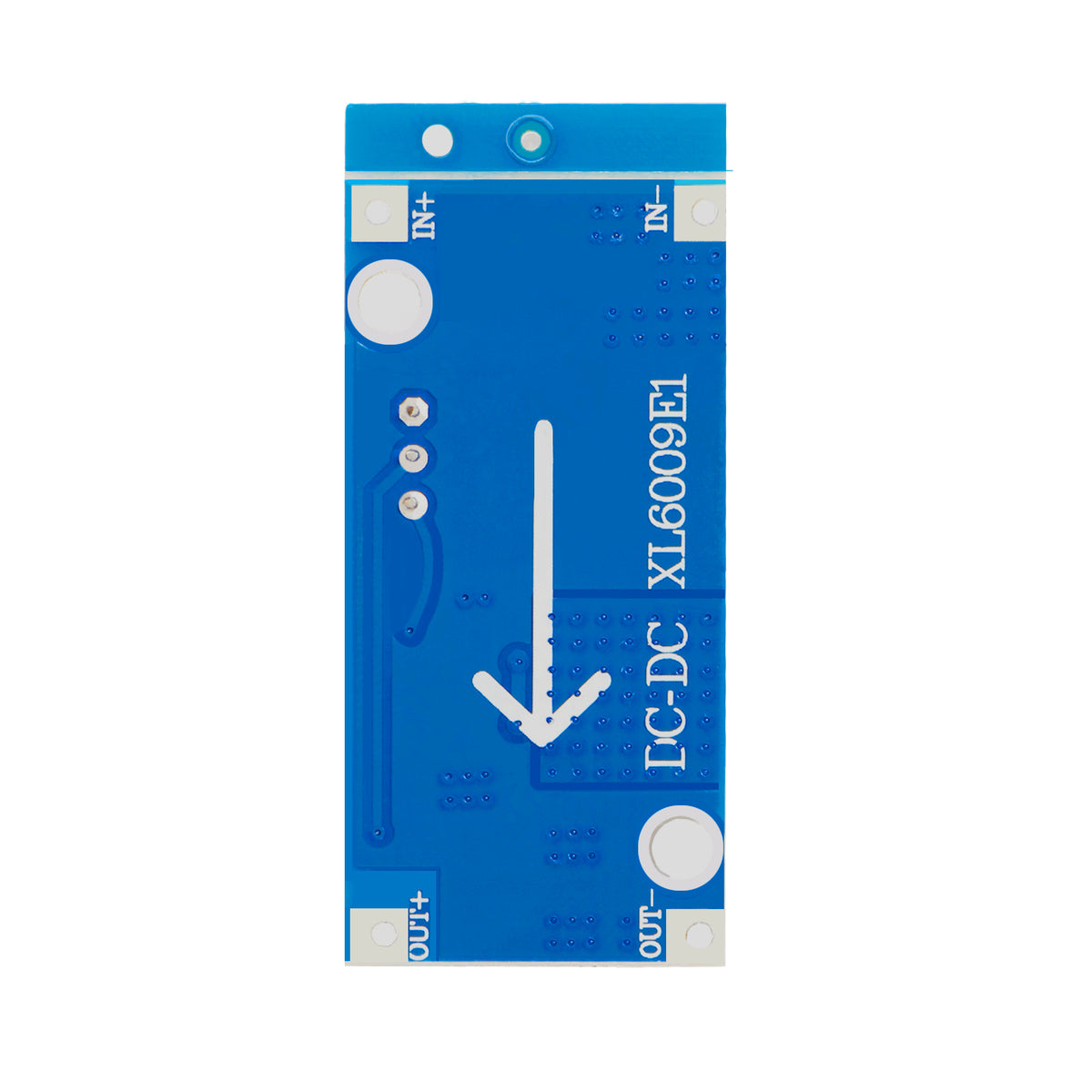

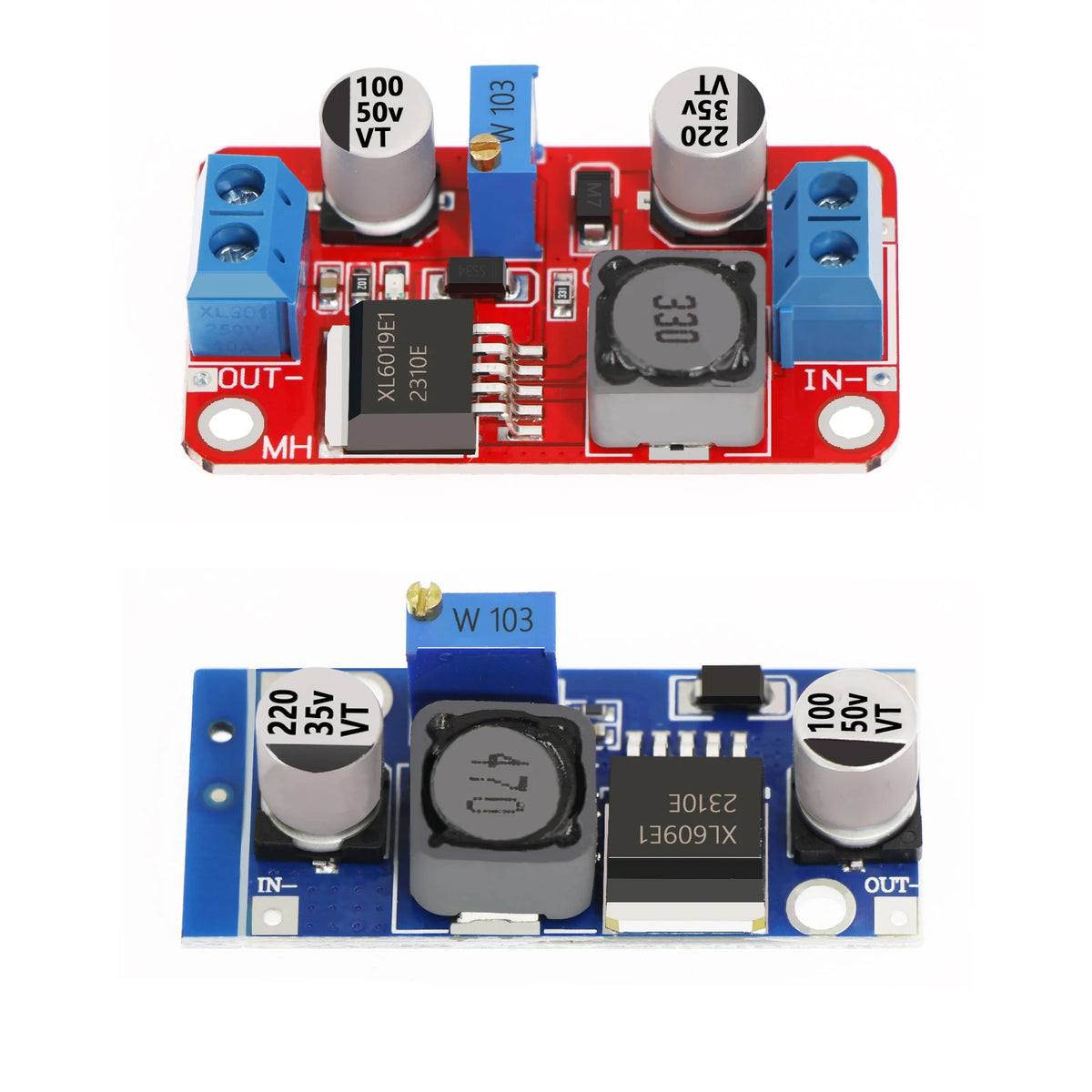

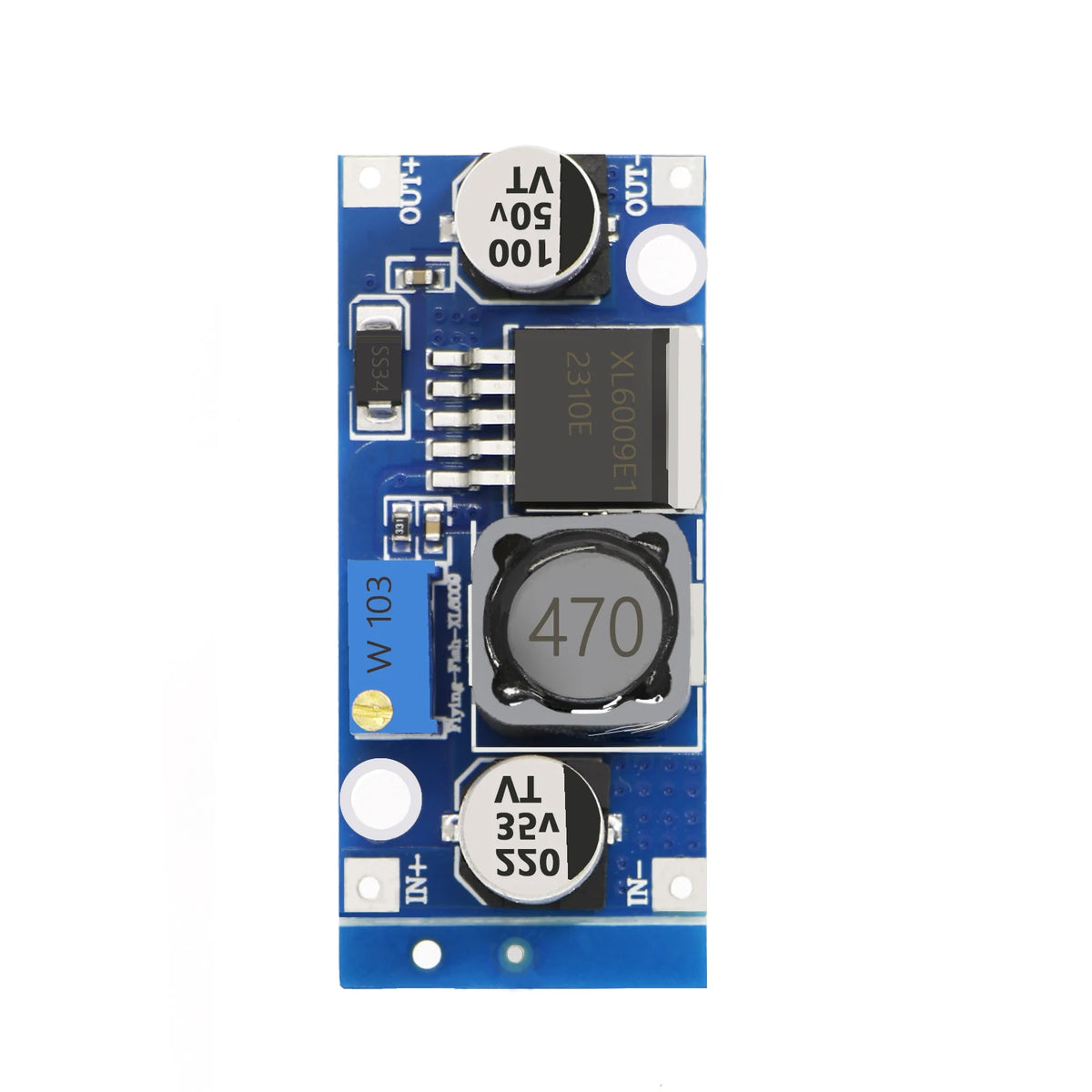

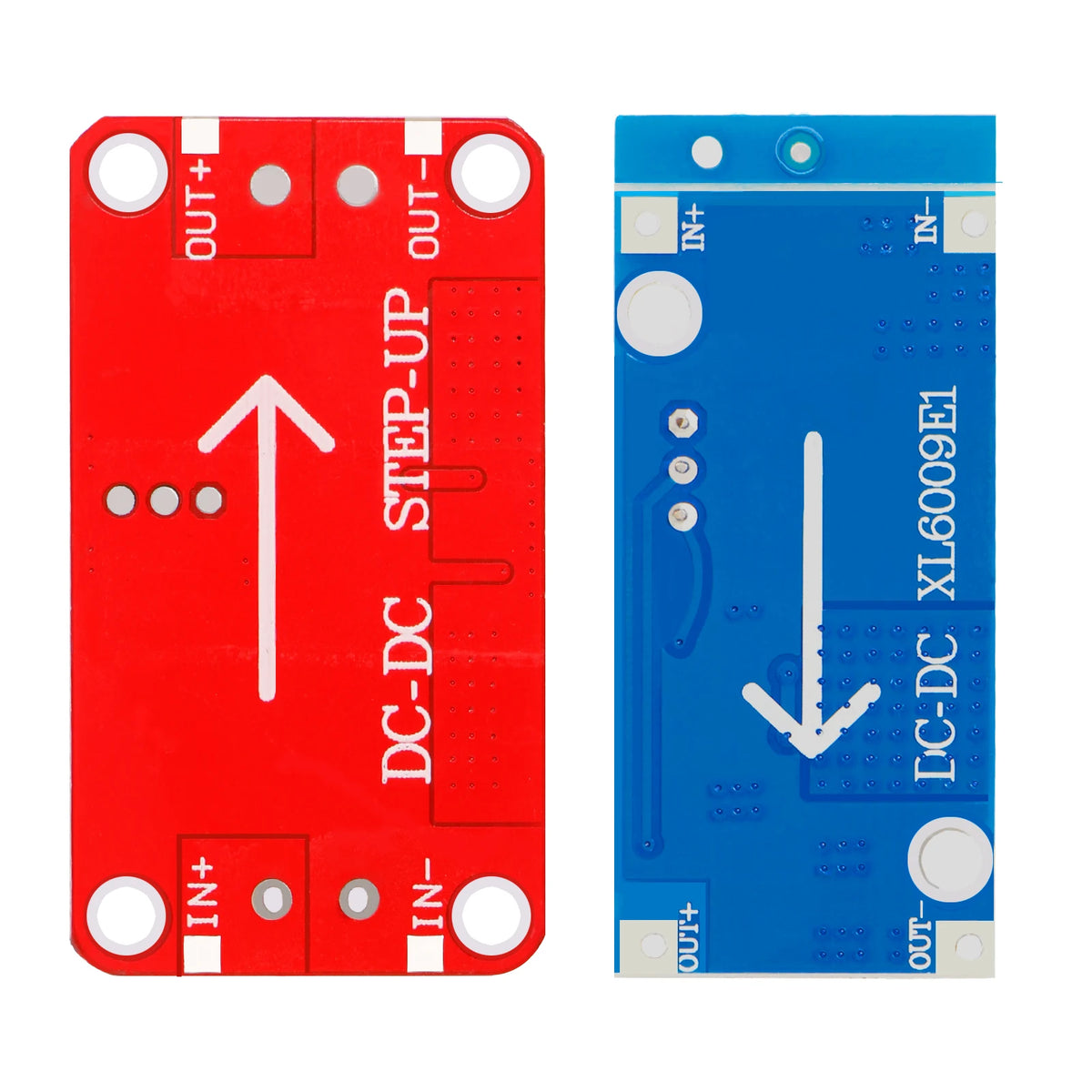

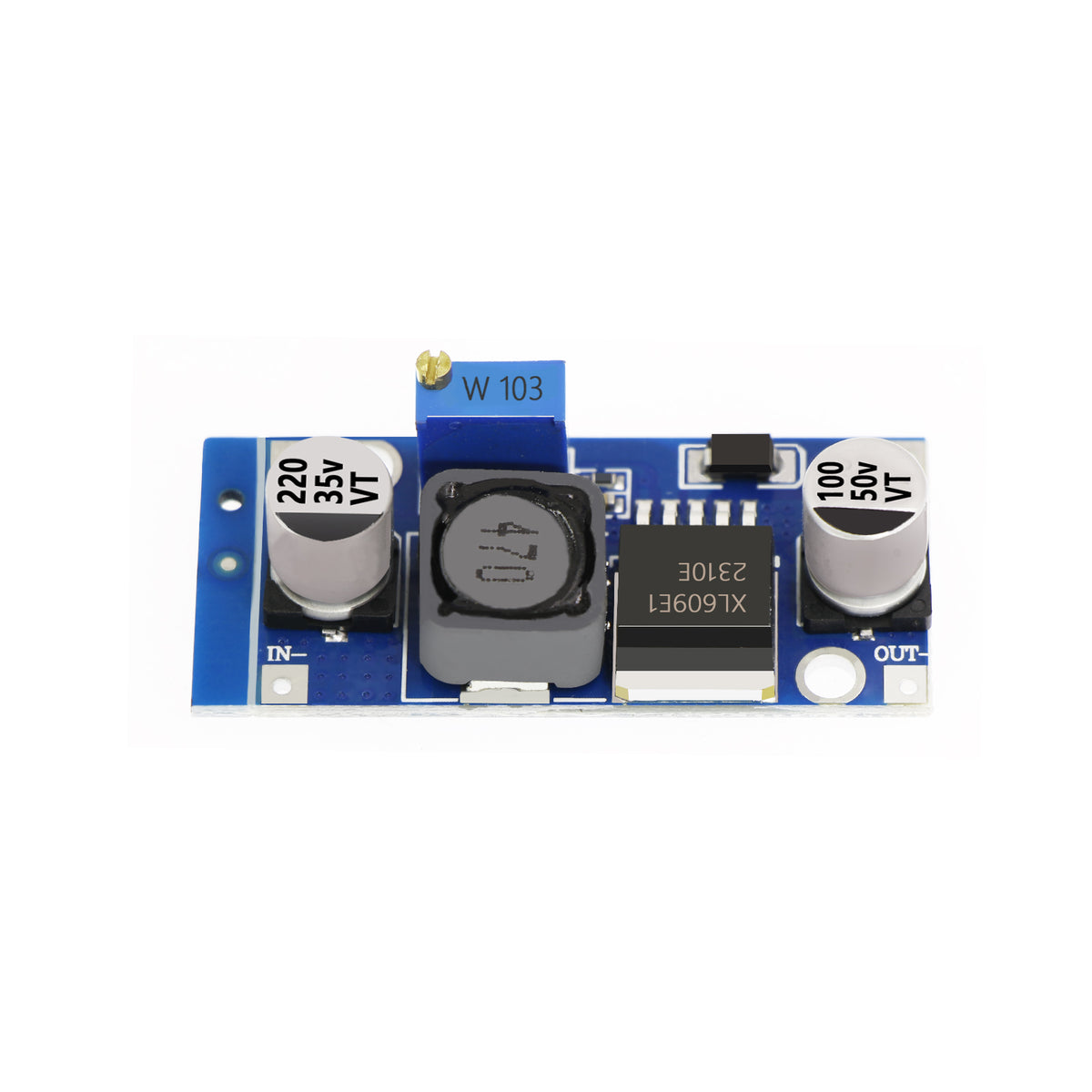

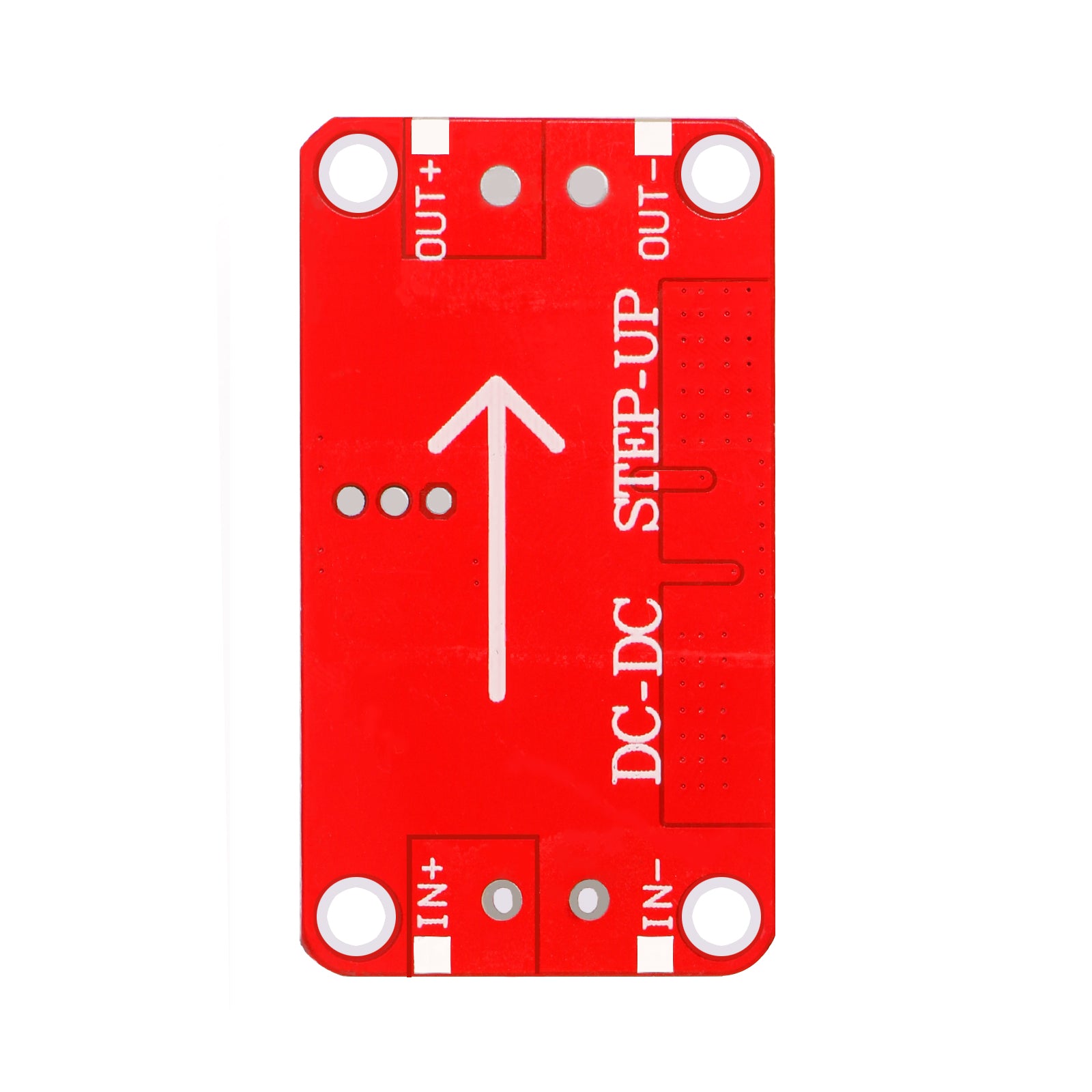

XL6019 DC-DC Adjustable Step Up Power Module 5A High-Power Boost Volt Converter 3V-35V To 5V 6V 9V 12V 24V

XL6019 DC-DC Adjustable Step Up Power Module 5A High-Power Boost Volt Converter 3V-35V To 5V 6V 9V 12V 24V

$11.28

$11.28 $0.00

Description

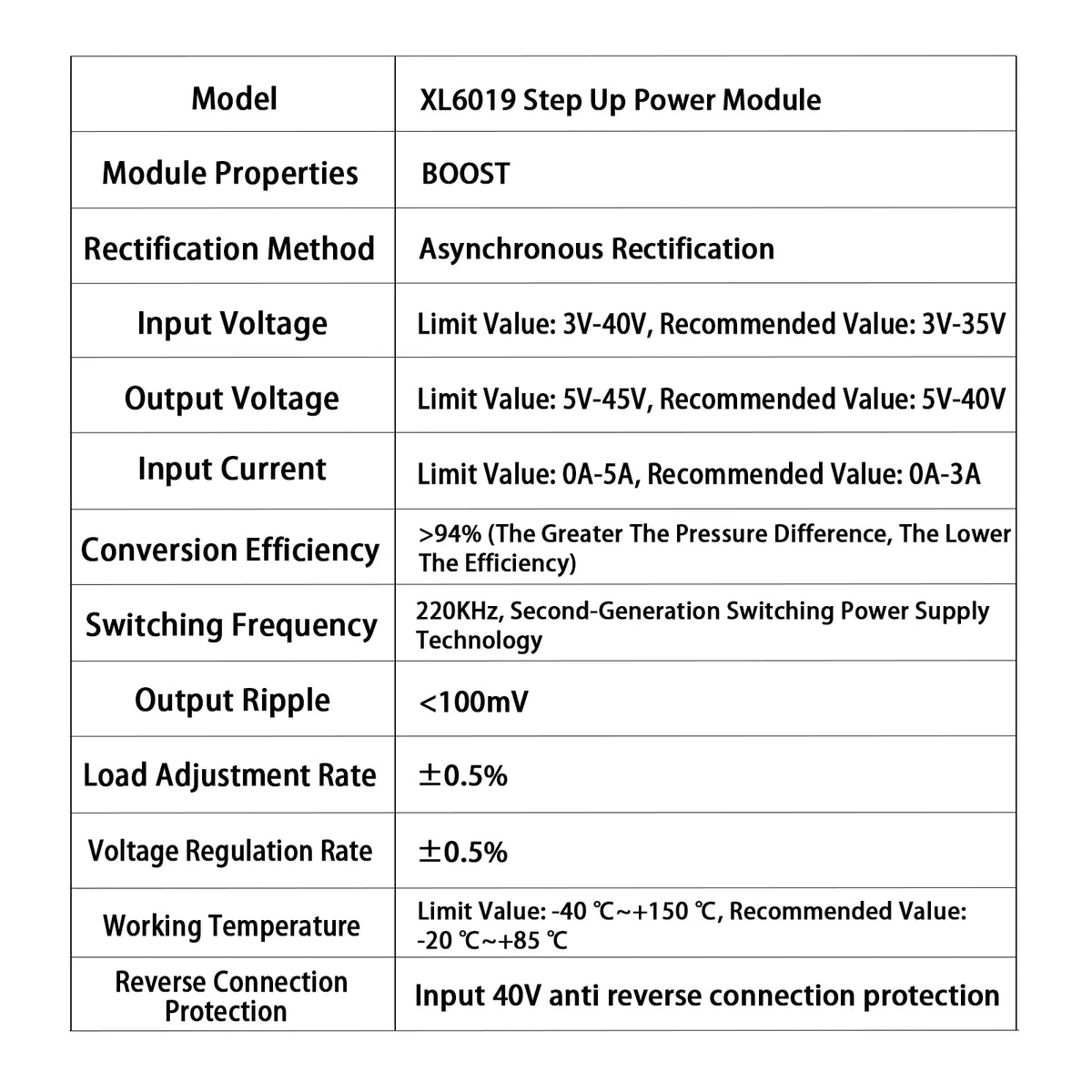

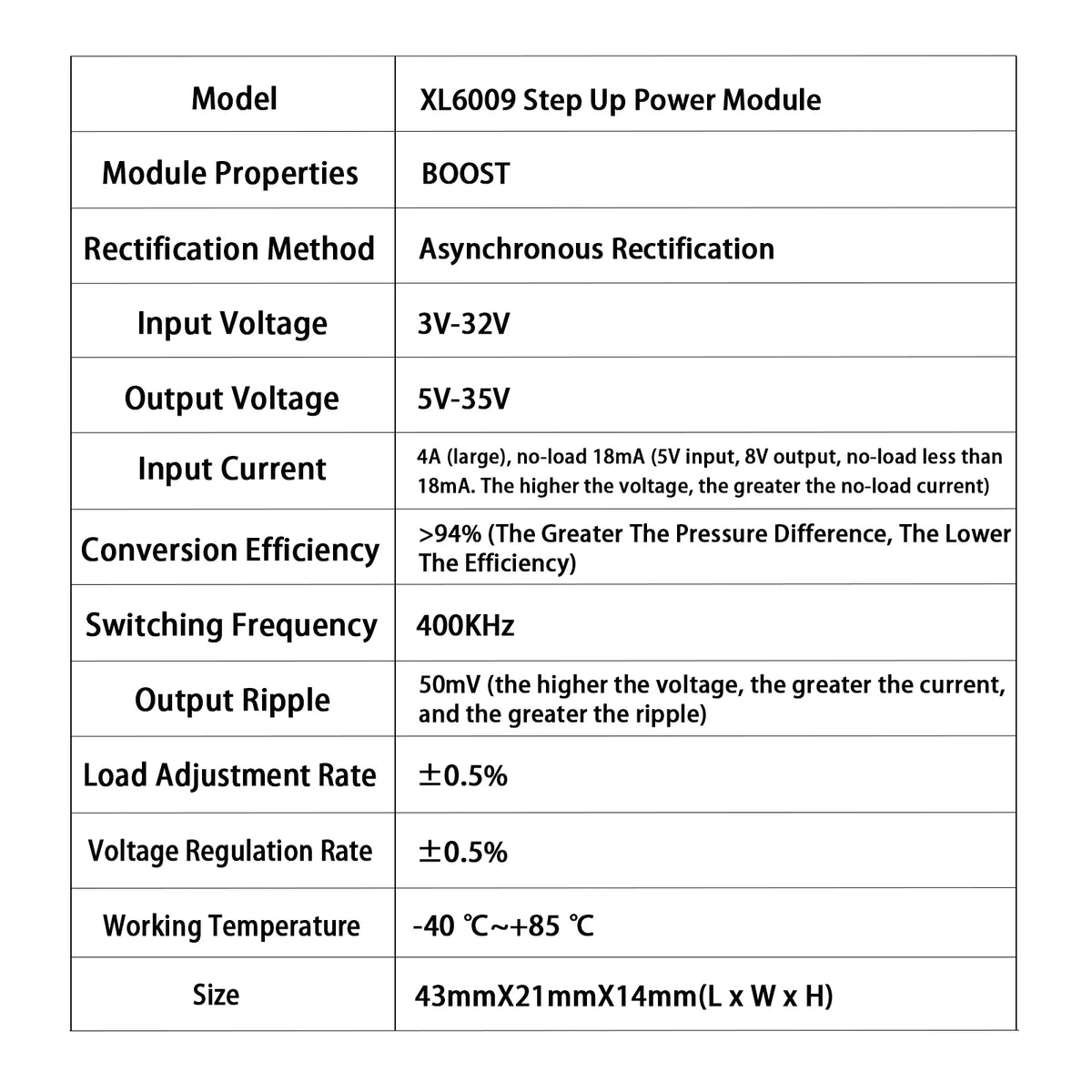

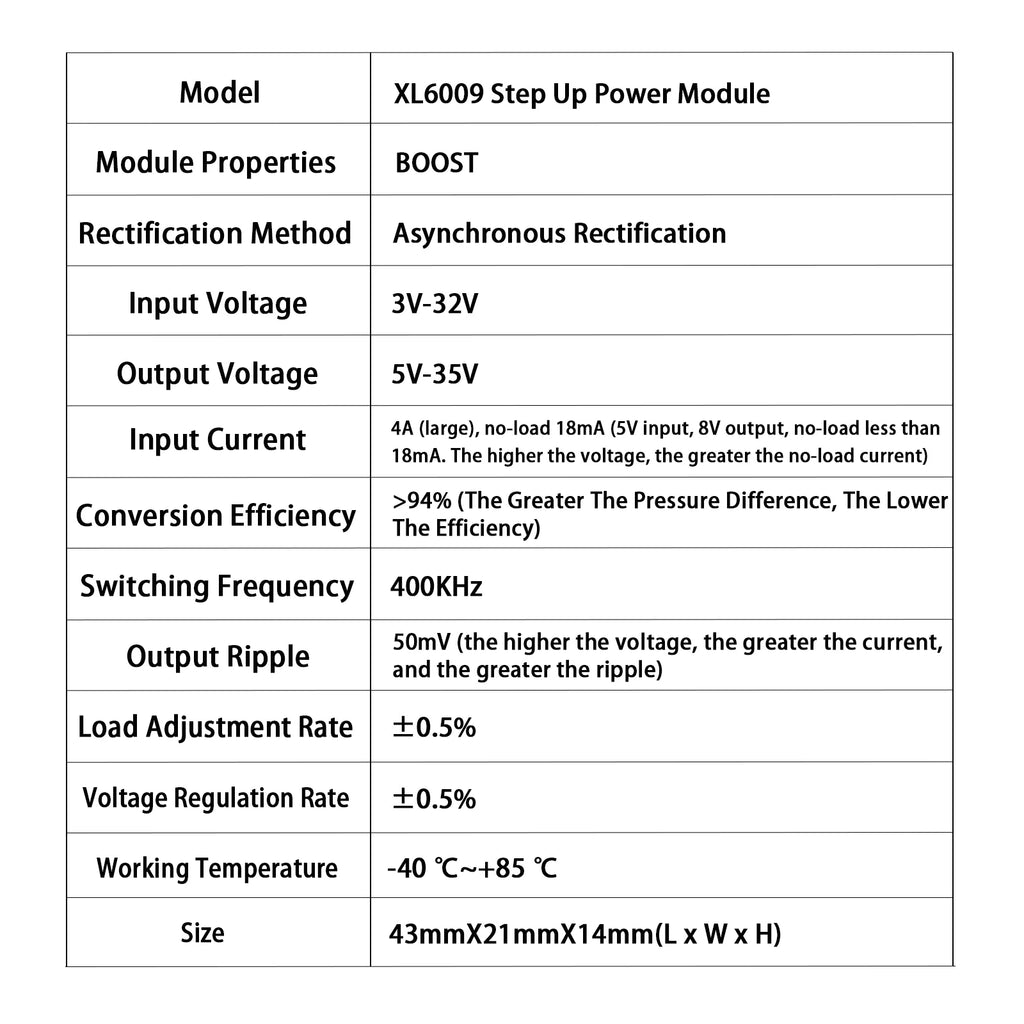

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Input Current: 0-5A

Input Voltage: 3-35V

Origin: Mainland China

Output Voltage: 5-40V

Switching Frequency: 220KHz

Type: Module,XL6019 Boost

Characteristic:
Wide input voltage range from 3V to 35V
1.25V output voltage sampling voltage
SW built-in overvoltage protection function
Fixed 220KHz switch frequency
Maximum 5A switching current
More than 94% conversion efficiency
EN pin TTL shutdown function
Excellent linearity and load adjustment rate
Built-in power MOS
Built in frequency compensation function
Built-in soft start function
Built-in thermal shutdown function
Built-in current limiting function
TO263-5L Packaging

XL6019 Description:
XL6019 is a single-chip integrated circuit designed specifically for boost and boost voltage. It can operate in the input voltage range of DC3V to 35V, with low ripple and built-in power MOS. XL6019 has a built-in fixed frequency oscillator and frequency compensation circuit, simplifying circuit design.
The PWM control loop can adjust the duty cycle to change linearly from 0% to 90%. Built in overcurrent protection function and EN pin logic level shutdown function.

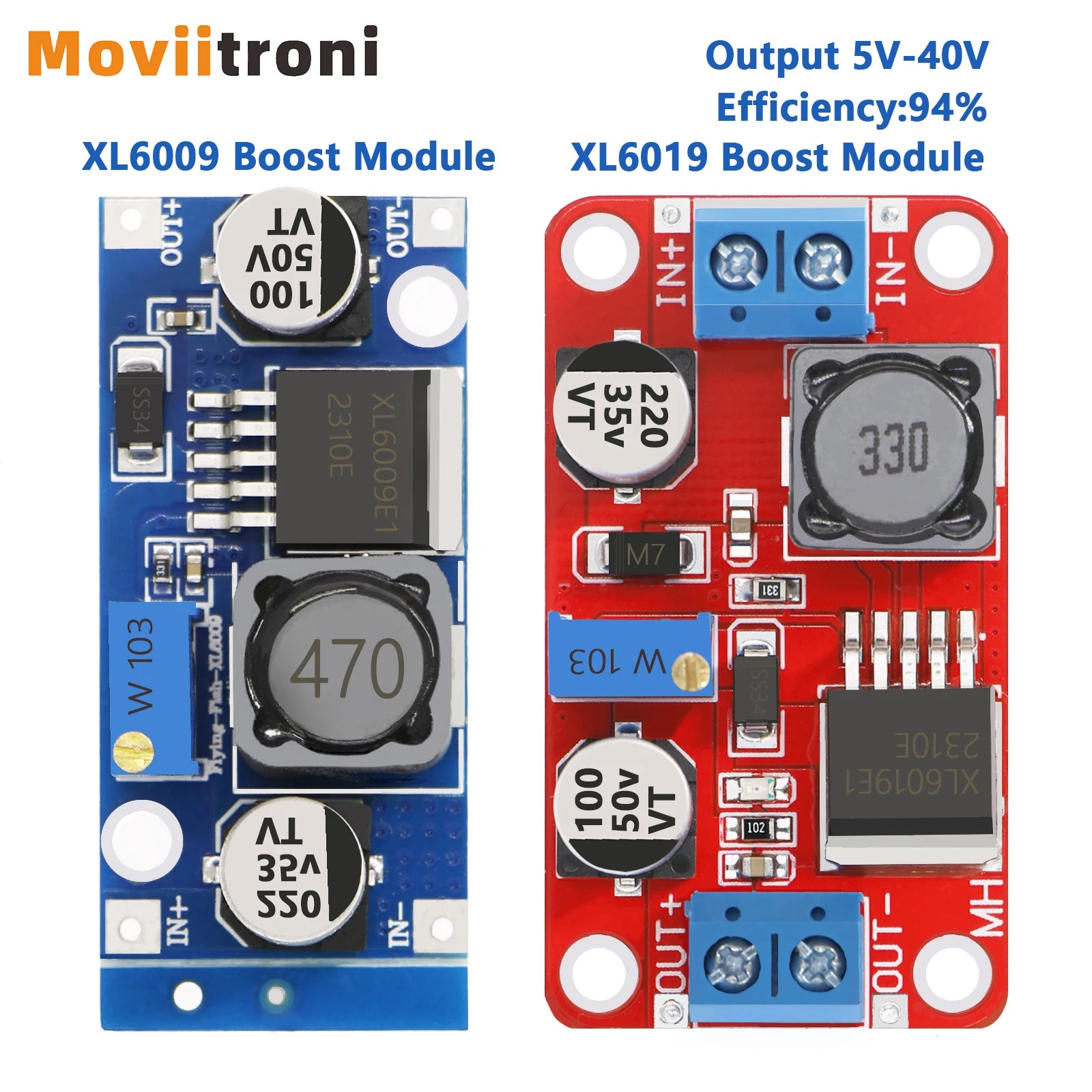

Characteristics of Booster Module:
1. Adopting a conventional BOOST fully integrated constant voltage output scheme, with internal integration of MOSFETs, fewer peripheral devices, and low system cost;
2. Wide voltage range input, with input voltage up to 35V;
3. Adjustable output voltage, up to 40V;
4. Built in over temperature protection and over current protection, a complete set of reliable protection circuits with high reliability;
5. The system conversion efficiency can exceed 90%, making it convenient for thermal design;
6. TO263-5L standard packaging, suitable for boost applications within 30W.

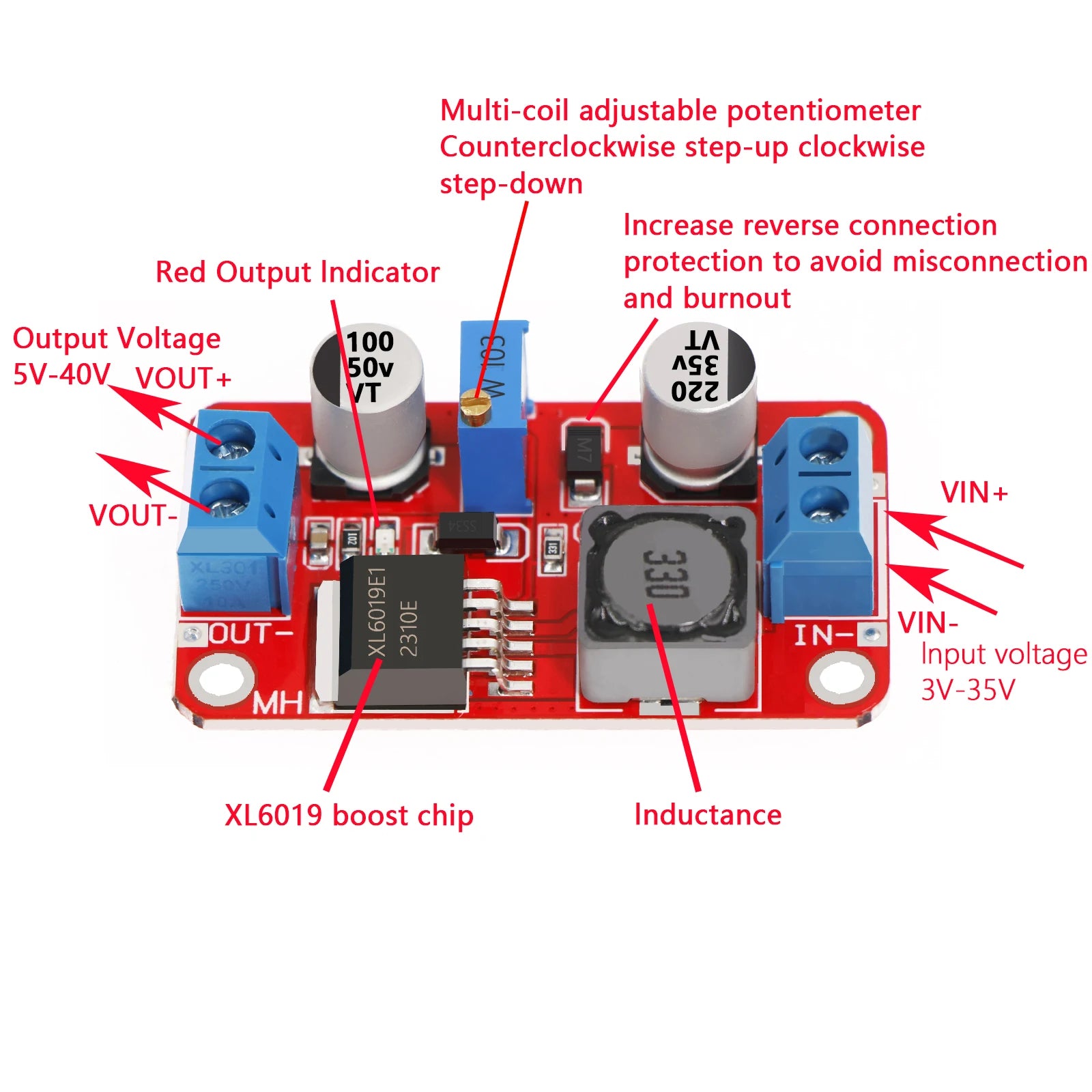

Module Usage Method:
1. Connect the power supply (3-35V), the power indicator light is on, and the module is working normally.
2. Adjust the blue potentiometer knob (usually rotate counterclockwise to increase voltage and clockwise to decrease voltage) and use a multimeter to monitor the output voltage until voltage is required.

Precautions:
1. It is recommended to use a current of less than 2.5A for long-term work, and add a heat sink (output of over 10W); As it is a boost module, to ensure stable output, please maintain a minimum voltage difference of 1.5V.

Application Case:
1. Car mounted regulated power supply, simply connect the input end of this module to the car cigarette lighter for power supply, and you can adjust the potentiometer. The output voltage can be adjusted from 5V to 30V, providing power for many devices such as your phone, MP3, MP4, PSP charging, etc. It is very simple and convenient.
2. Supply power to electronic devices. When the device requires 5V-35V power supply and the corresponding voltage power supply is in hand, this module can easily adjust the power and voltage to the required voltage to solve the problem.
3. System working voltage testing. When doing projects, this module can be used to debug various voltage testing system working voltage ranges, which is very easy and convenient.
