SPECIFICATIONS

Applications: Widely used in model aircraft, model cars, model ships, lamps, household appliances, electric solar panels caravan boats.

Brand Name: bytebattle

Certification: CE,RoHS,UL

Choice: yes

Conductor: Tin plated copper

Conductor Material: Copper

Conductor Type: Stranded

Connector: XT90H-Male/XT90H-Female

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: none

Insulation: Silicone

Insulation Material: Rubber

Length: 1m~10m

Model Number: XT90H-Male to O-Ring Terminal with 12AWG Silicone Cord (1m~10m) XT9

Origin: Mainland China

Rated Voltage: 600 V

Structure: Without modular telephone connectors

Temperature Range: -76 to 392 °F

Terminal: M8 Ring Terminal

Use: Not Telecommunication

Voltage: 81-600V（include600V）

Wire gauge: 10 AWG (Outside diameter: 5.4 mm Core diameter: 1050/ 0.08 mm, withstand current 43 A)12AWG:(OD: 4.5mm Core Diameter: 680/0.08mm, Withstand Current 30A)

Gauge:10AWG(OD: 5.4mm Core Diameter: 1050/0.08mm, Withstand Current 43A )

              12AWG:(OD: 4.5mm Core Diameter: 680/0.08mm, Withstand Current 30A )

Insulation: Silicone

Conductor: Tinned Copper

Test Voltage: 2000 V

Rated Voltage: 600 V

Temperature Range: Efficient operation in extreme temperatures from -76 to 392 °F

12AWG 10AWG Silicone Wire Insulated with silicone and fine twisted core, the wire is very flexible and easy to strip and solder. Efficient - Ultra-low impedance, ultra-flexible, flexible, flame retardant and high temperature resistant. Ideal for wire bending applications such as test cables. Can be terminated with circuit board jumper pins and heat shrink sleeves.

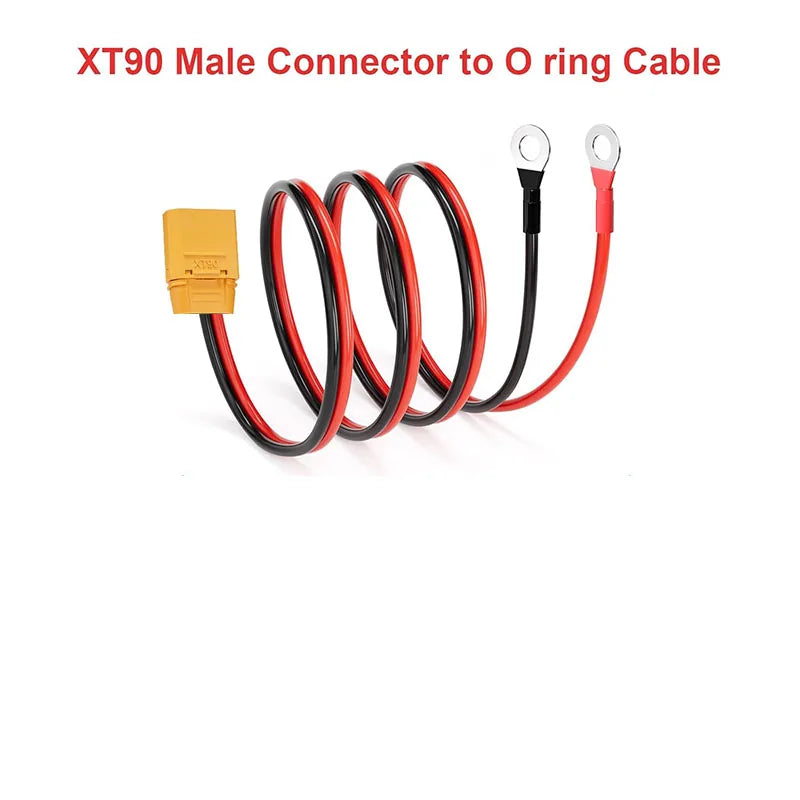

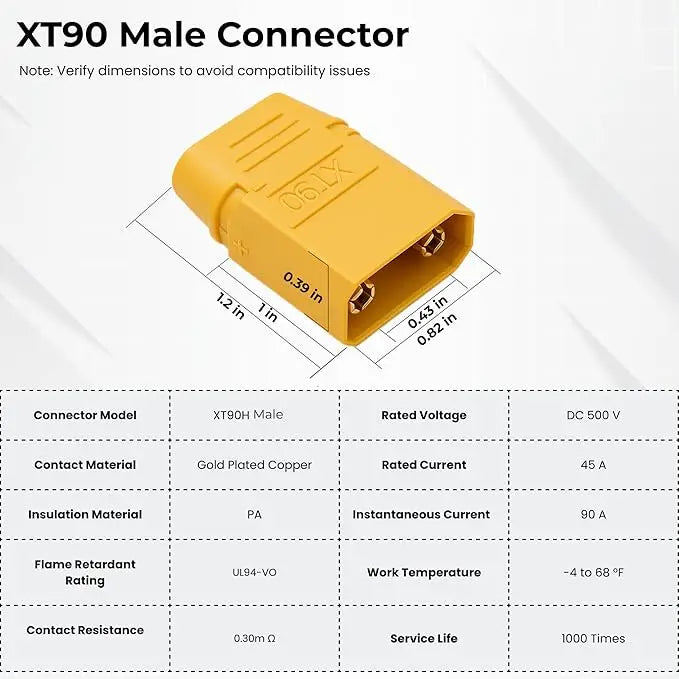

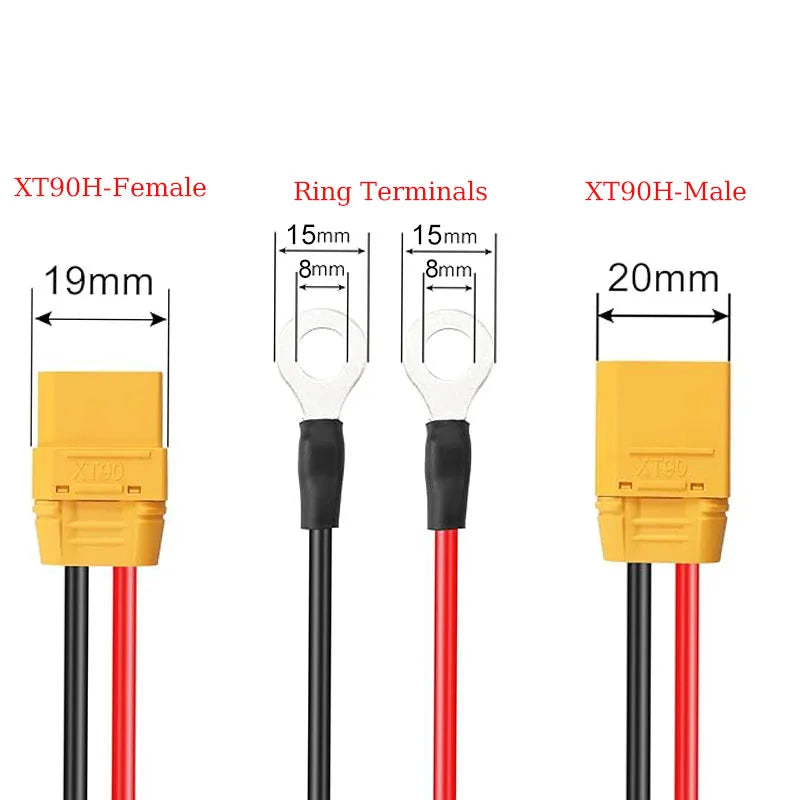

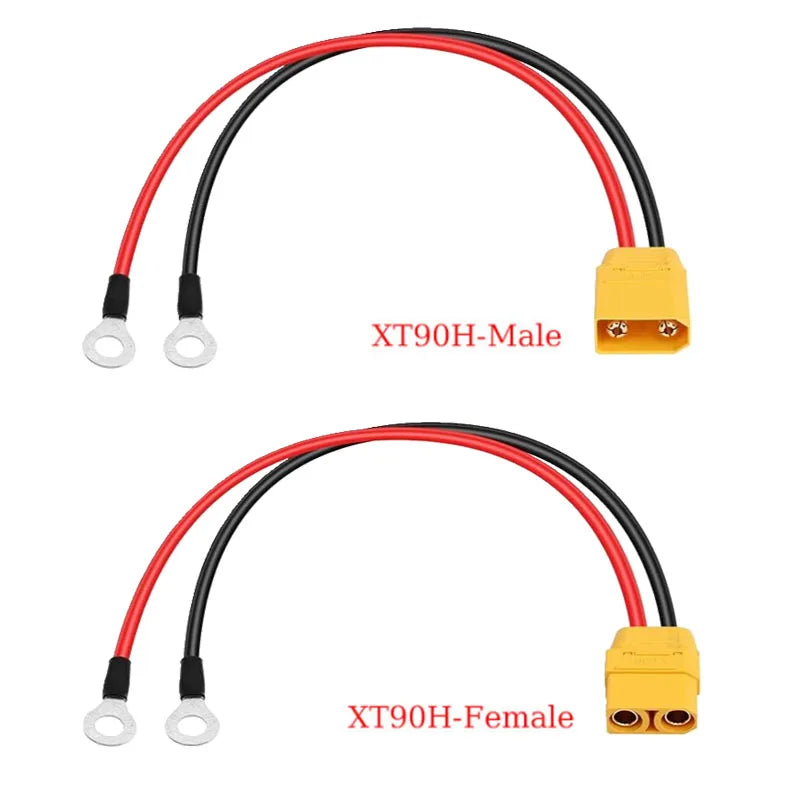

Connector A: XT90H-Male, XT90H-Female;

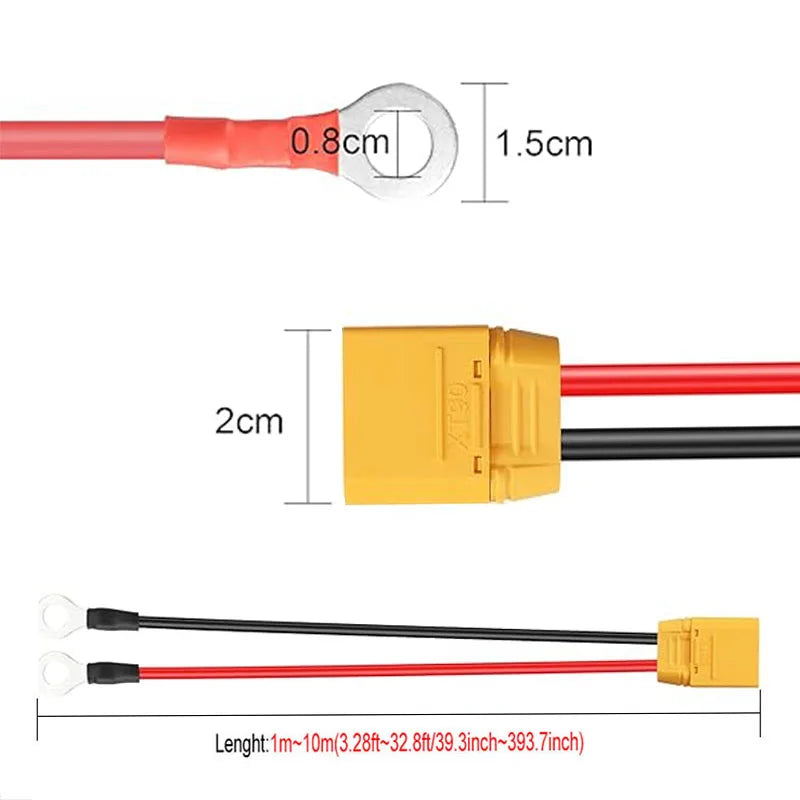

Connector B: O-Terminal I.D.: 8 mm, O.D.: 15 mm.

Function:O-ring terminal connector is a round lug cable that can be screwed onto the battery to provide an interface for plugging into chargers, DC sockets, etc.
