SPECIFICATIONS

Common sense you must know

XTOOL TS100 PRO only can work with XTOOL TPMS

it can't work with LAUNCH/THINKCAR/AUTEL or other brand TPMS!!!!!!

Different brand can't work together.

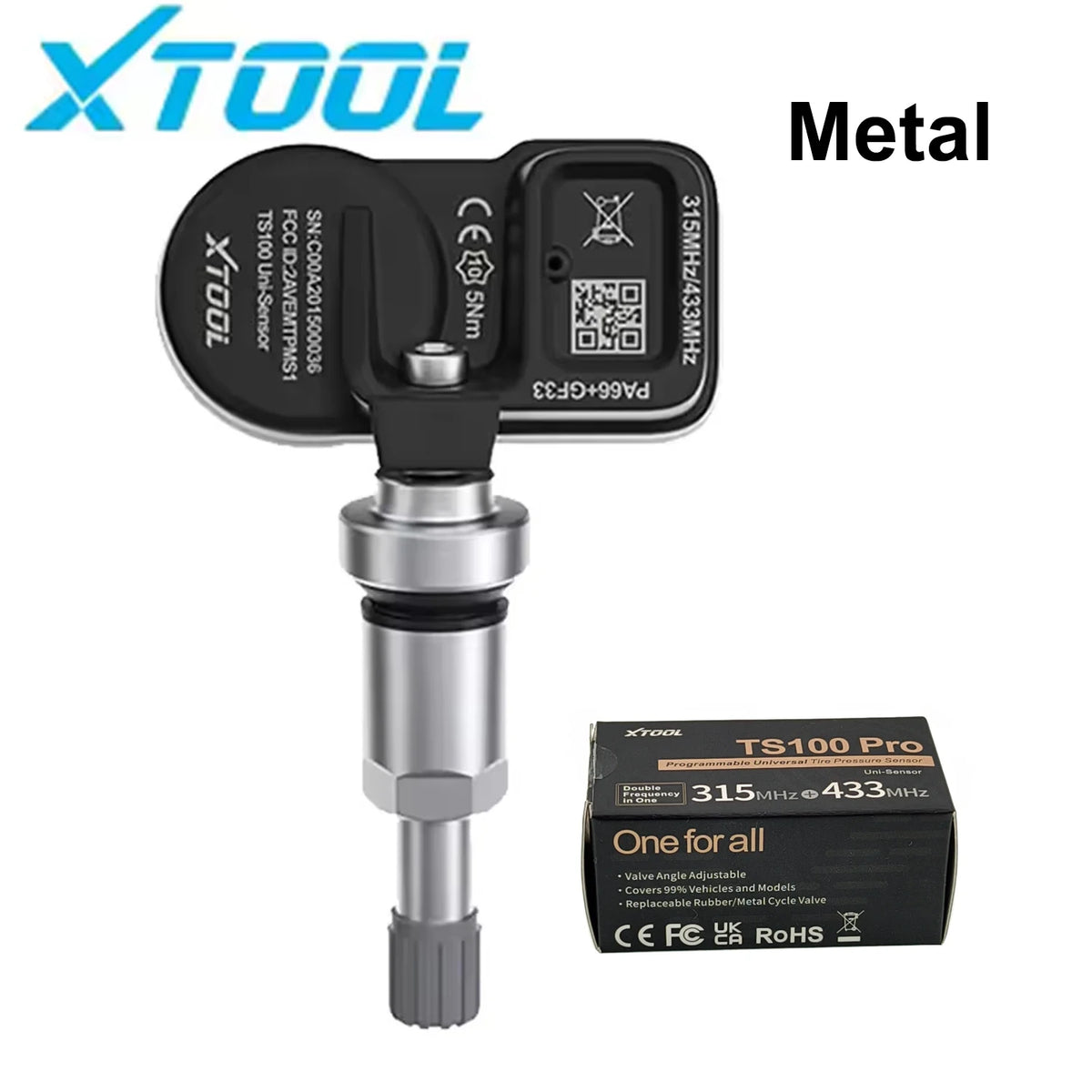

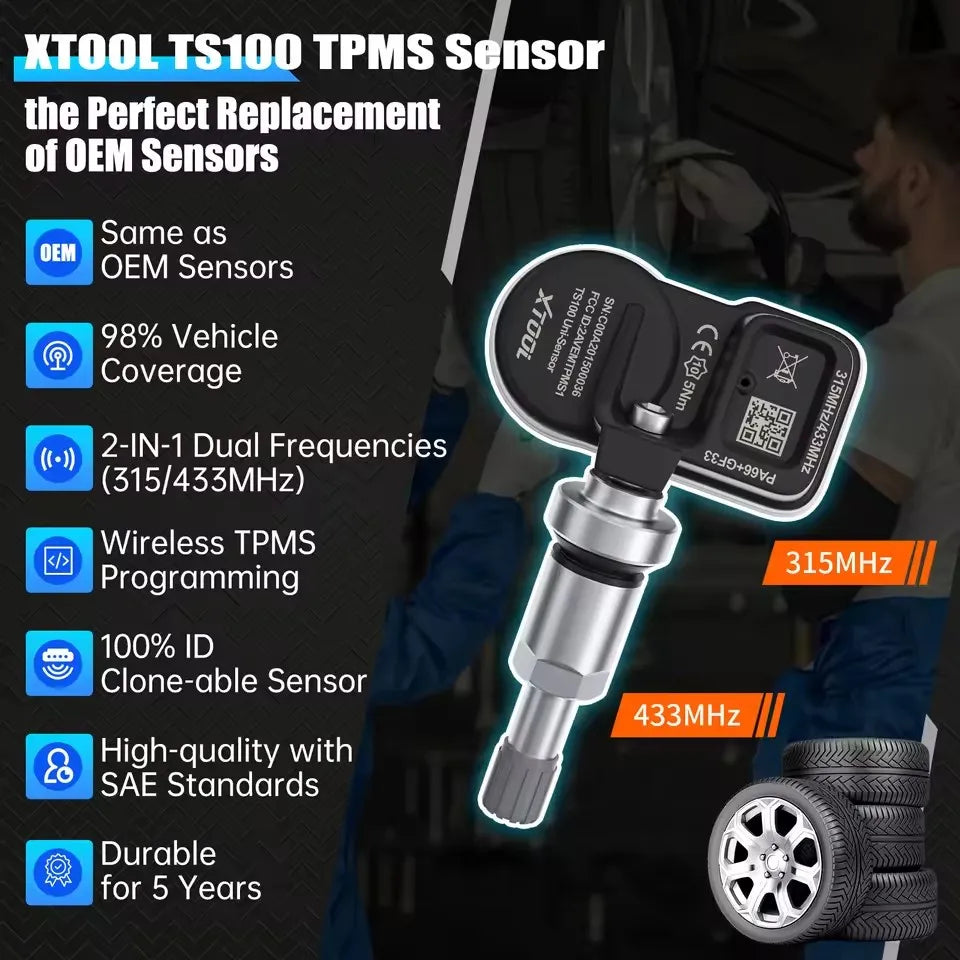

XTOOL TS100 Pro is a high-performance, universal programmable Tire Pressure Monitoring System (TPMS) sensor, engineered to match the TPMS needs of 99% of global vehicle models. It integrates dual-band communication, flexible installation, long-term durability and intelligent programming, and is a cost-effective and efficient solution for automotive repair shops, tire service centers and fleet management.

1. Wireless Communication

315MHz/433MHz dual frequency (full coverage of mainstream global TPMS bands);

support LF activation/cloning/programming

2. TPMS Monitoring---Improt NTM88 Chip----The end of the article provides a detailed introduction and advantages of the NTM88.

Pressure range: 0~900kPa; Pressure accuracy: ±10kPa

Temperature range: -40°C ~ +105°C

3. Mechanical Installation

Adjustable angle: 10°~45°

Mounting types: Snap-in / Clamp-in valve

Dimension: 46.1×16.2×25mm; Weight: 12g

4. Environmental Reliability

IP67 waterproof and dustproof rating

Continuous working temperature: -40°C ~ +105°C

5. Battery & Durability

Battery service life: ≥5 years

Housing material: PA66+GF30 (anti-aging/anti-impact)

6. Programmability

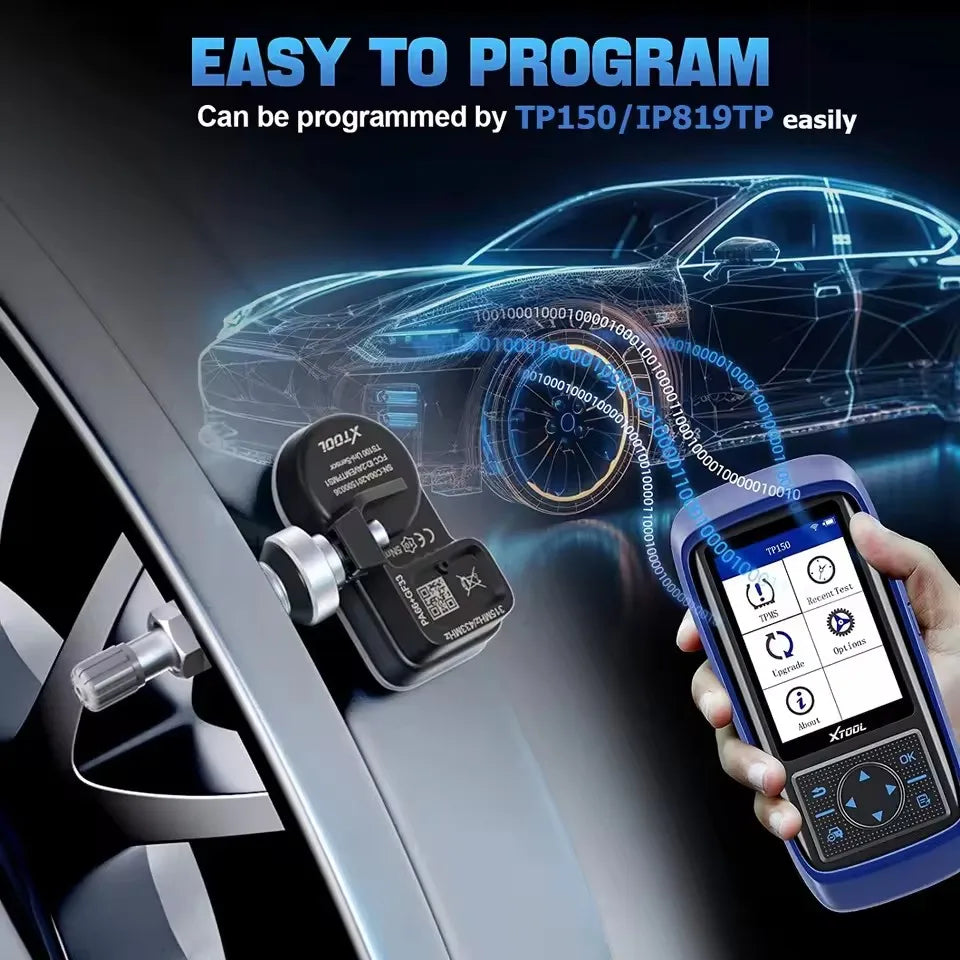

Support XTOOL TP150/IP819TP dedicated TPMS programmers;

unlimited erase/write cycles

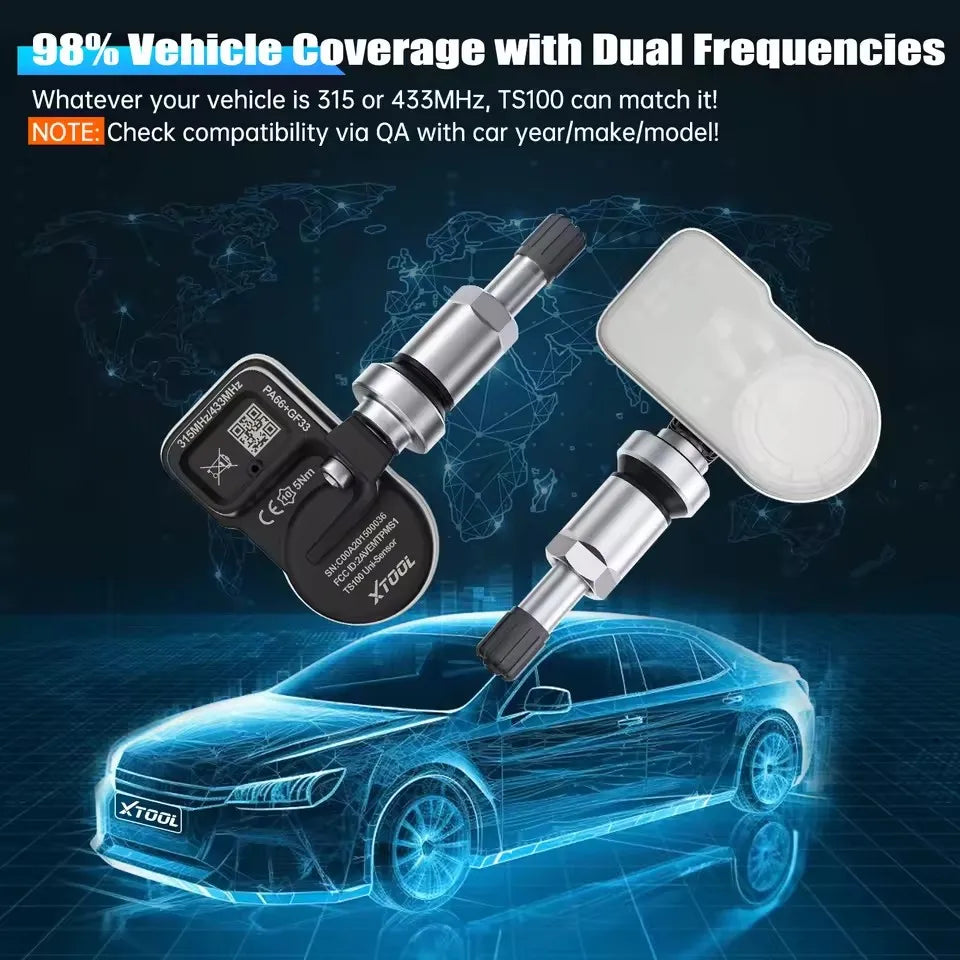

1. Universal Compatibility & Full-band Coverage, Reduce Inventory Costs

The TS100 Pro supports 315MHz and 433MHz dual-frequency RF transmission, covering the mainstream TPMS frequency bands of North American, European and Asian vehicle models. It is compatible with 99% of global OE and aftermarket TPMS systems, and can realize one-click OE ID cloning and parameter matching. A single sensor can replace multiple model-specific TPMS sensors, which greatly reduces the inventory pressure of repair shops and tire centers, and simplifies the spare parts management process. In addition, the product is continuously updated with software to adapt to the latest vehicle models and TPMS protocols, extending the product life cycle.

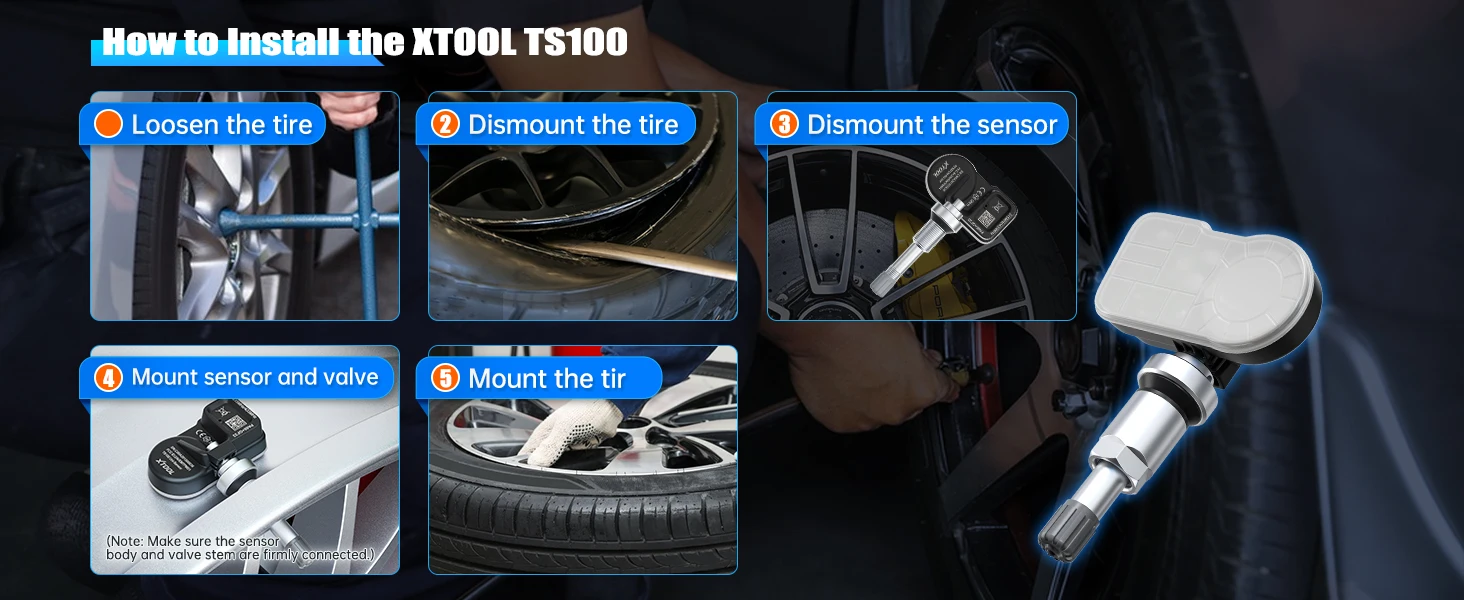

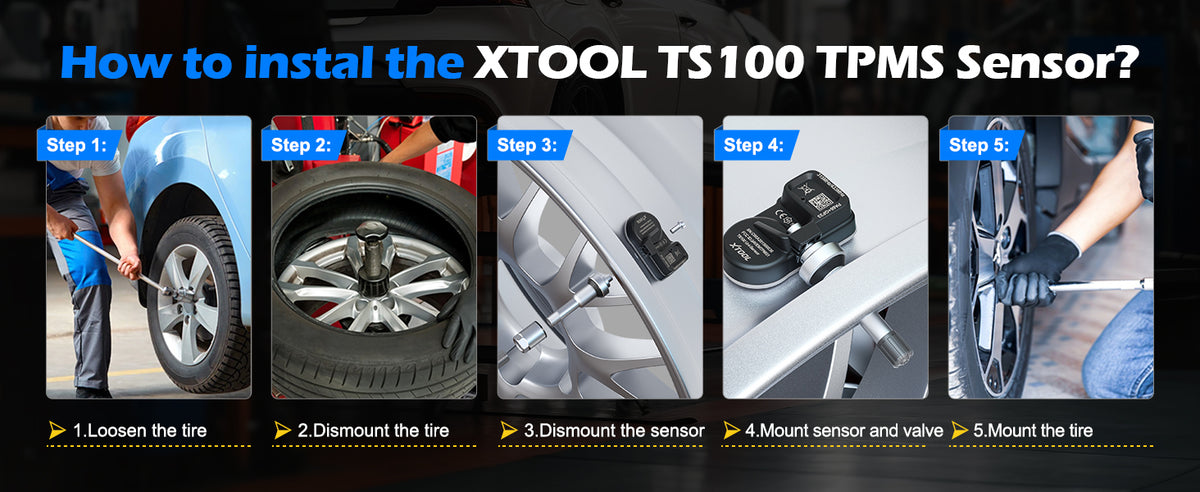

2. Flexible & Humanized Installation Design, Adapt to Various Wheel Hubs

10°~45° adjustable sensor angle: The sensor body can be fine-tuned at multiple angles, which can avoid signal interference caused by the shielding of special-shaped wheel hubs and ensure stable RF signal transmission and reception.

Snap-in + Clamp-in dual mounting methods: It is compatible with two mainstream valve stem types of passenger cars and light commercial vehicles, with simple and fast installation, no additional accessories required, and improved maintenance efficiency.

Compact and lightweight design: The 12g ultra-light body and small size do not affect the dynamic balance of the tire, and avoid abnormal vibration and noise of the tire after installation.

3. Automotive-grade Reliability & Long Battery Life, Lower After-sales Risks

IP67 waterproof and dustproof: It can resist high-pressure water washing, road water splashing and dust accumulation, and is suitable for various harsh road and working environments.

High-strength housing: Adopting PA66+GF30 engineering plastic with glass fiber reinforcement, it has excellent anti-aging, anti-corrosion and anti-vibration performance, and can withstand the long-term mechanical vibration of the tire during driving.

≥5-year long-life battery: Equipped with automotive-grade high-temperature resistant lithium battery, the low-power design ensures long-term stable power supply, avoids frequent sensor replacement caused by battery depletion, and reduces the after-sales maintenance cost of users and service providers.

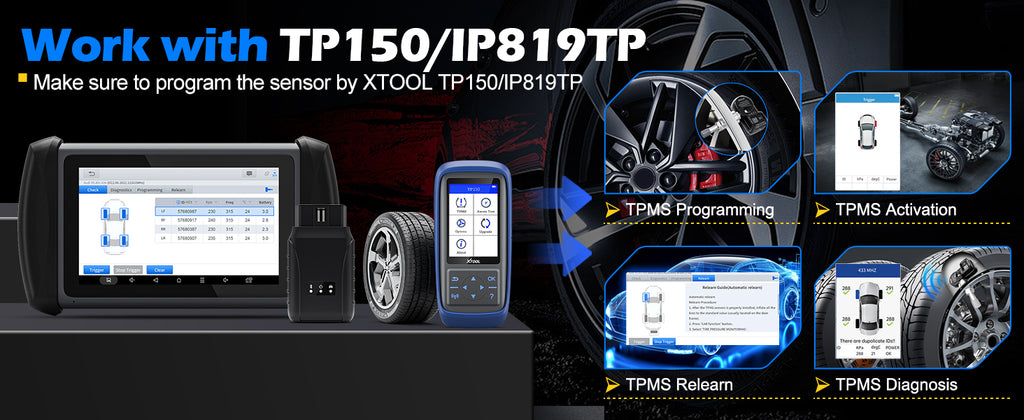

4. Unlimited Programmability & Professional Tool Matching, Improve Maintenance Flexibility

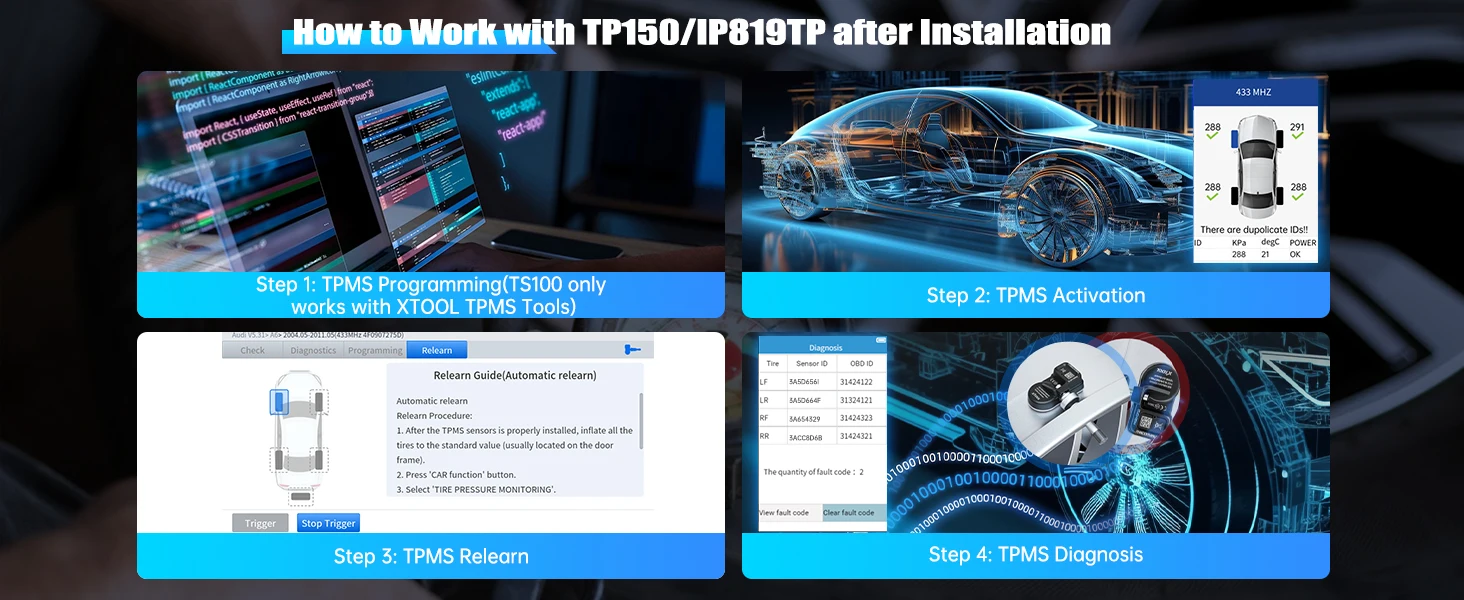

The sensor supports unlimited erase and write cycles, which can be repeatedly programmed and cloned for different vehicles, realizing the reuse of the sensor and reducing the consumable cost of the repair shop. It is perfectly matched with XTOOL professional TPMS programmers (TP150/IP819TP), supporting one-click ID cloning, OE parameter configuration and TPMS system learning. The operation is simple and fast, which shortens the maintenance time of the TPMS system and improves the service efficiency of the store.

5. Accurate Real-time Monitoring, Safeguard Driving Safety

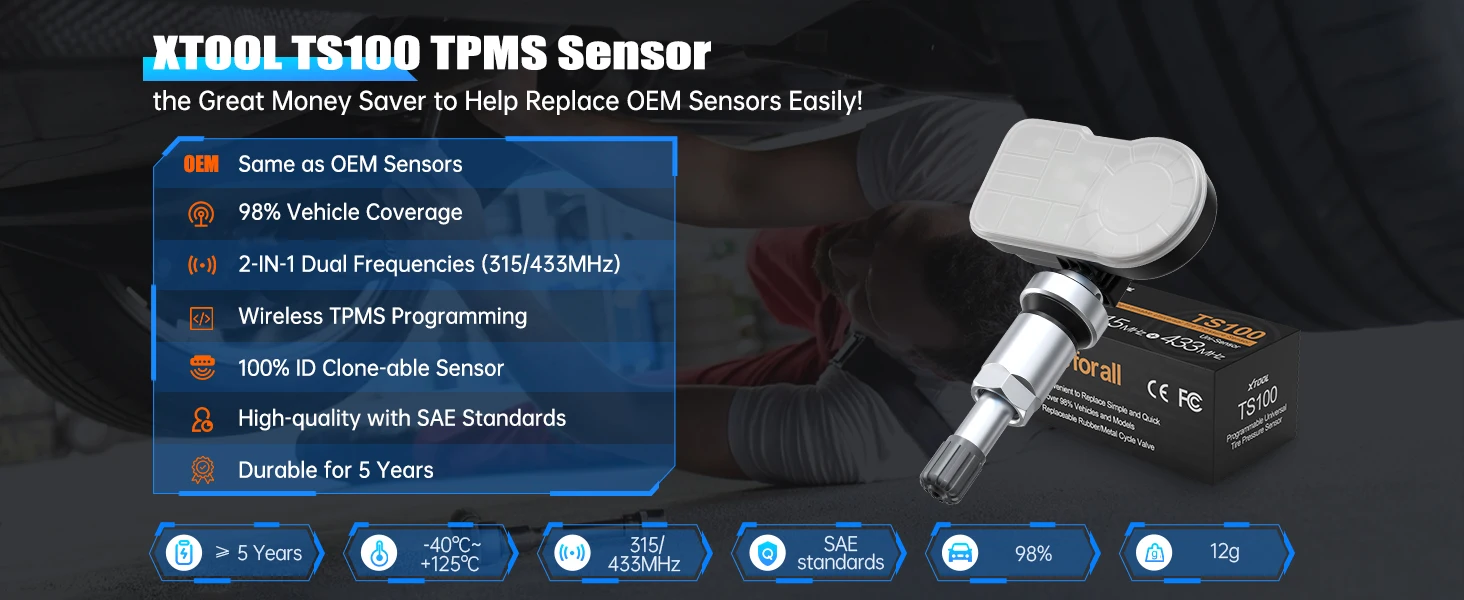

With high-precision pressure and temperature sensing chips, the TS100 Pro can realize real-time and accurate monitoring of tire pressure and temperature, and feed back the data to the vehicle's on-board TPMS receiver in time. When the tire pressure is too high, too low or the temperature is abnormally high, it can cooperate with the vehicle system to issue an early warning, effectively reducing the risk of tire blowout caused by abnormal tire pressure, and ensuring the driving safety of the vehicle and passengers.XTOOL TPMS TS100 Sensor combines both 315MHz + 433MHz frequencies into one TPMS sensor with the highest industry vehicle coverage. Built to match or exceed OEM sensors in frequency strength and durability, TS100 Sensors are 100% ID clone-able with no relearn required and offer latest model vehicle coverage because they quickly update with a XTOOL TP150 programming tool.

XTOOL 2-in-1 TPMS Sensor with 315MHz&433MHz Dual Frequency99% of Vehicles Support, Saving Bucks in Sensor Replacement

Key Advantages of NTM88 Chip

The NTM88 is a high-integration automotive-grade Tire Pressure Monitoring System (TPMS) sensor chip launched by NXP, featuring ultra-low power consumption, rich functional expansion, and mature industrial verification. Its core competitive advantages are as follows:

1. Ultra-low sleep power consumption for extended battery life

Boasting an industry-leading sleep current of only 180nA (@3.0V, 25°C), the chip significantly reduces power consumption of TPMS sensors in standby mode. It can extend the battery service life of tire-mounted sensors to 8-10 years in practical applications, effectively lowering after-sales maintenance costs for vehicles.

2. Large-capacity customer memory for advanced function development

Equipped with 16KB high-capacity dedicated customer memory, the chip can store a wealth of calibration data, vehicle information, and custom algorithms. It supports the development of advanced TPMS functions such as tire pressure anomaly prediction and dynamic pressure monitoring, meeting the functional customization needs of mid-to-high-end vehicle models.

3. Flexible pressure range options for diversified vehicle adaptation

It provides three fixed pressure range versions: 90~930kPa, 90~1130kPa and 90~1518kPa, which can be accurately matched with the tire pressure requirements of different types of passenger cars, realizing precise adaptation of vehicle models and avoiding the waste of performance caused by excessive range.

4. Rich peripheral interfaces for flexible system integration

Integrating 7 GPIOs, a standard SPI interface and 2-channel PWM output, the chip has more expandable peripheral connection capabilities. It can be easily integrated with external auxiliary components, supporting the development of complex TPMS system solutions and meeting the diversified integration needs of vehicle electronic systems.

5. Miniaturized package for space-saving installation

Adopting a compact QFN package with the size of 4mm×4mm×1.98mm, the chip features a small footprint on the PCB. It is perfectly adapted to the limited installation space inside the tire, and also helps to miniaturize the design of TPMS sensor modules.

6. Automotive-grade reliability with rigorous industrial certification

Compliant with the AEC-Q100 automotive electronic component reliability certification, the chip can work stably in the extreme temperature range of -40°C~+125°C. It has strong anti-interference and vibration resistance capabilities, fully meeting the harsh working environment requirements of automotive tire-mounted electronic components.

7.Dual-axis acceleration sensor for accurate tire positioning

Built-in a field-verified X/Z dual-axis acceleration sensor (with a partial model range of -175~+550g), it can accurately detect the motion state of the tire, realize reliable tire position identification and matching, and ensure the accurate monitoring of tire pressure and temperature data of each wheel.

8. Strong global ecosystem support and mature market verification

Backed by NXP's profound technical accumulation in the field of automotive semiconductors, the chip has a stable global supply chain and complete technical support services. It has been widely applied in mid-to-high-end passenger car models worldwide, with its performance and reliability verified by tens of millions of vehicle-mounted applications, and has high market recognition.

9. Programmable RF communication for wide protocol compatibility

Equipped with a programmable RF transmitter (supporting 315/434MHz mainstream TPMS frequency bands) and an LF receiver, the chip supports flexible configuration of RF communication parameters, and is compatible with most mainstream TPMS communication protocols in the global market, realizing seamless matching with different vehicle-mounted receiving systems.
