SPECIFICATIONS

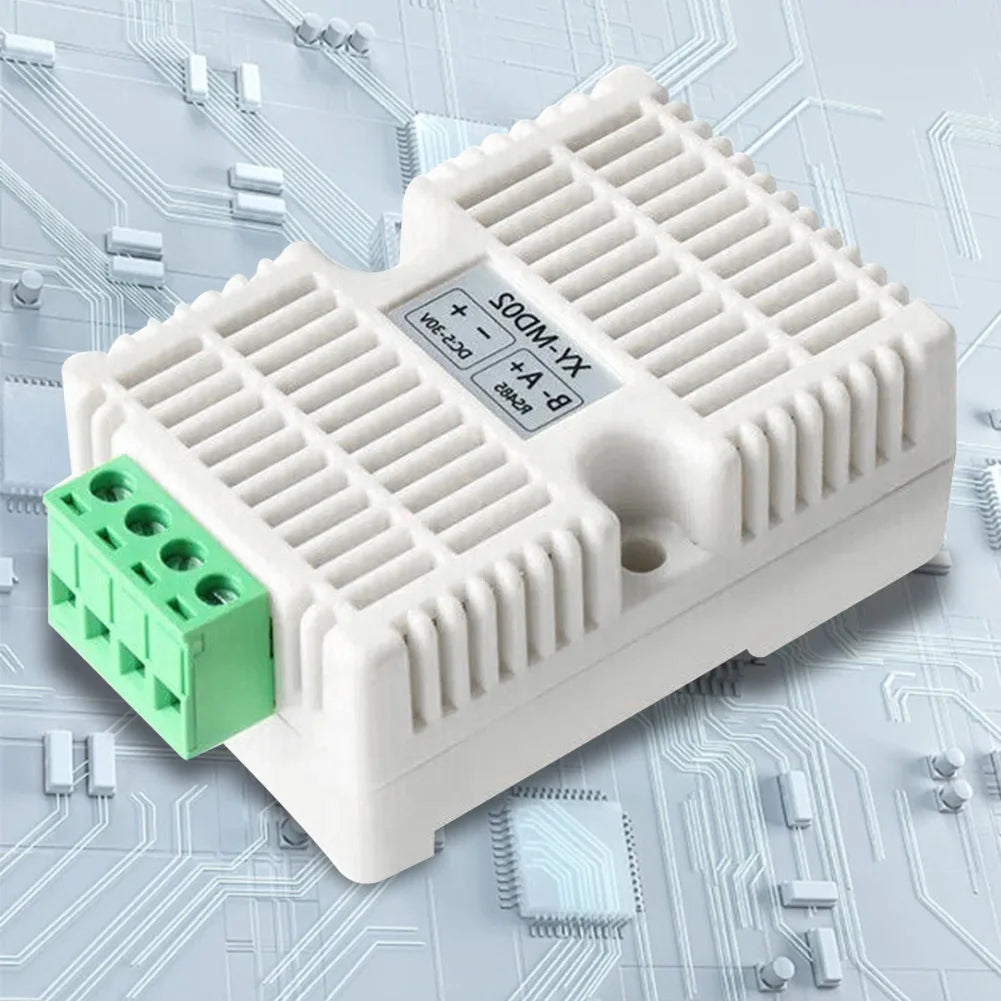

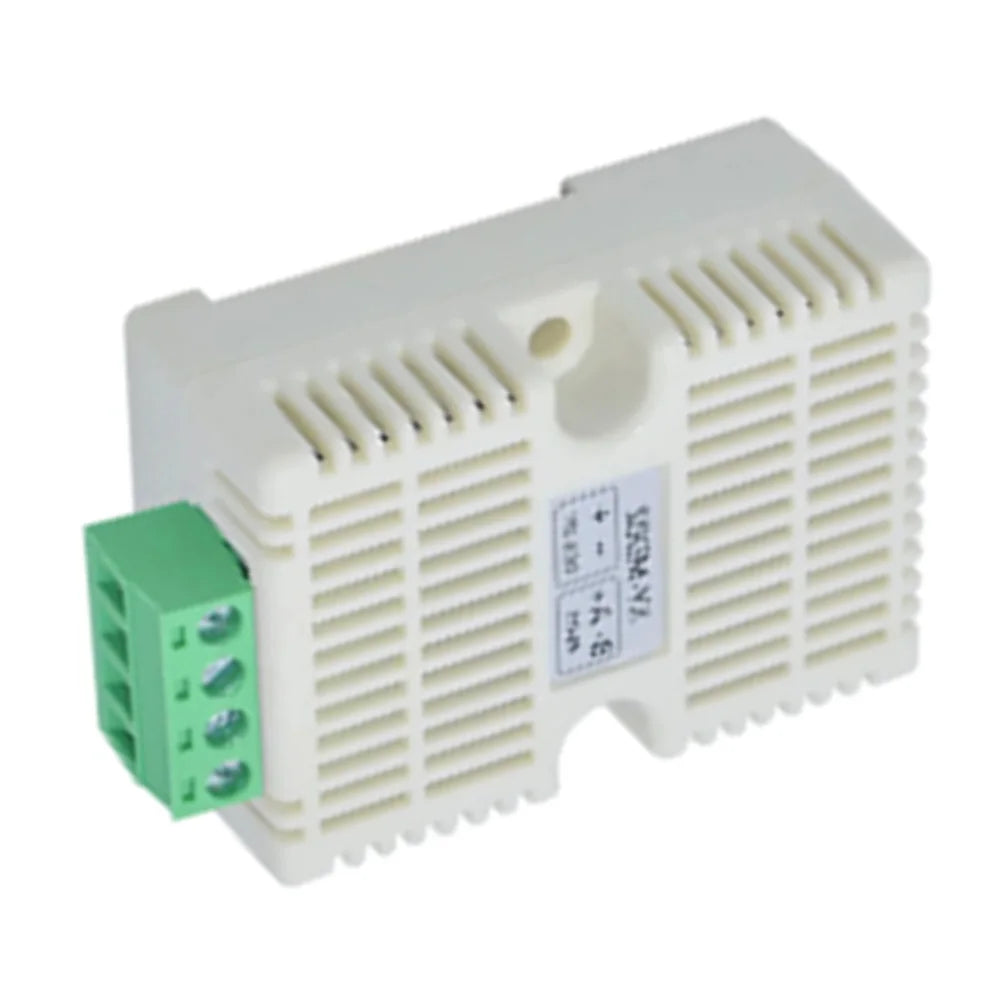

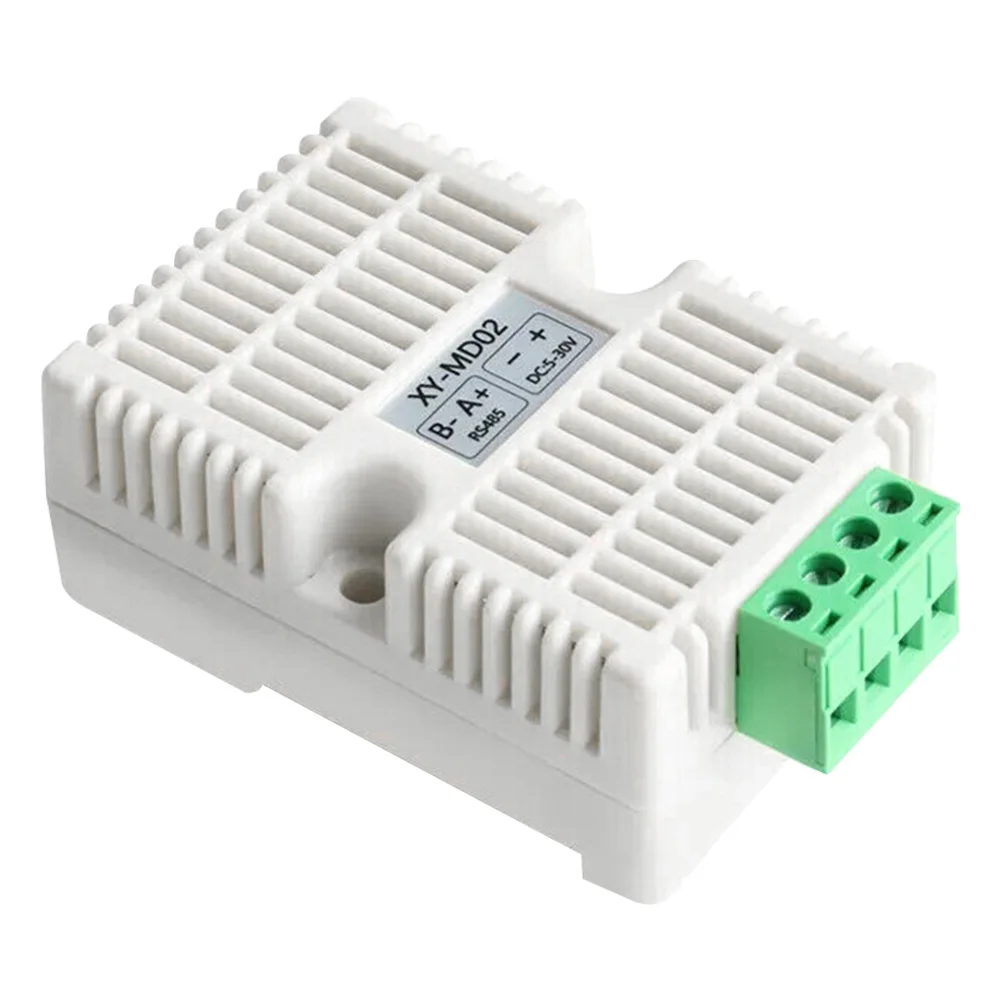

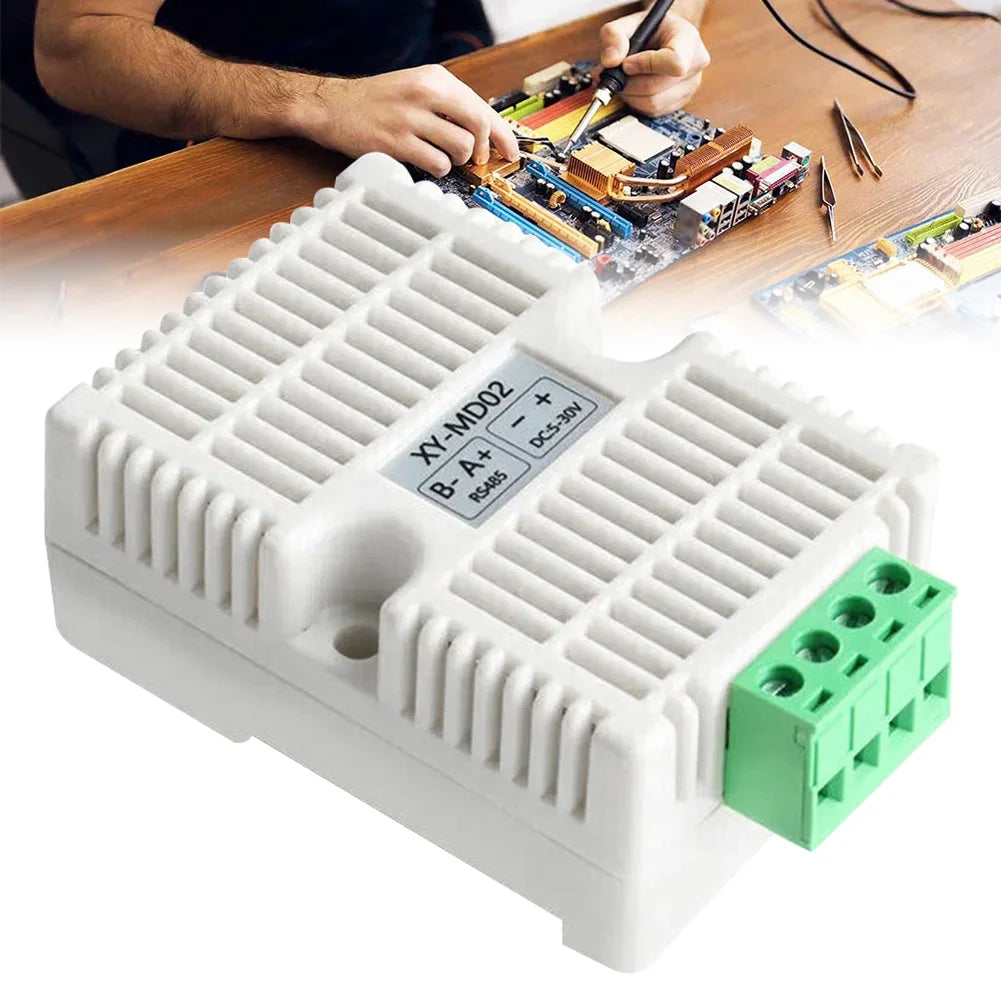

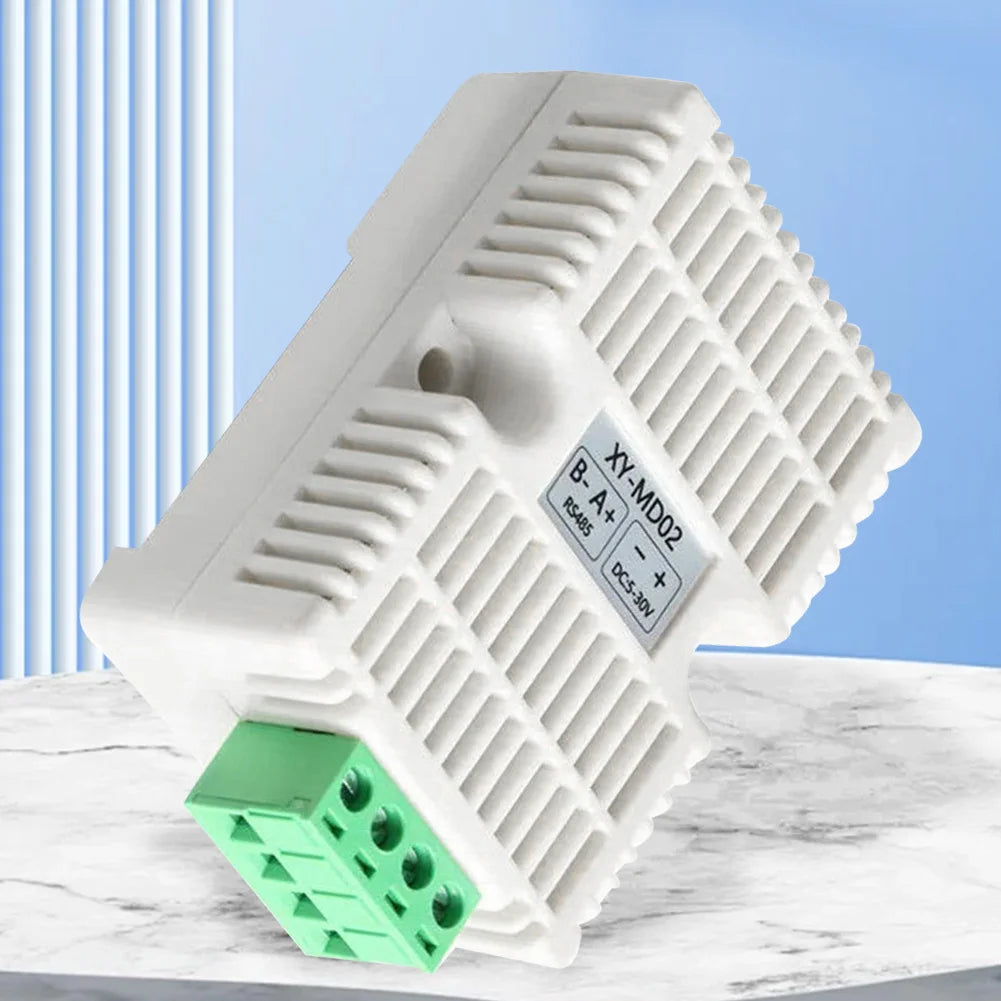

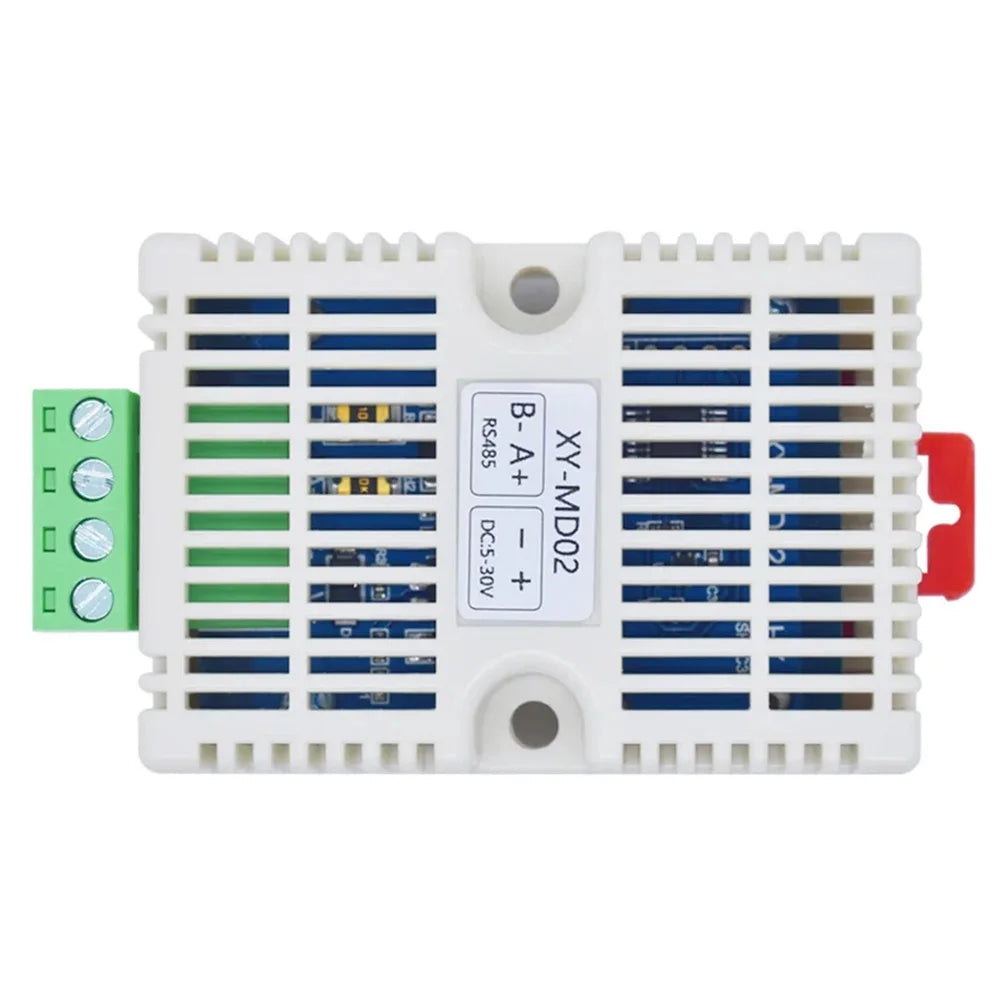

XY-MD02 Temperature and Humidity Transmitter RS485 Serial Communica Temperature Sensors Modbus RTU Acquisition Module Temperature and Humidity Monitoring SHT20
Feature:
1. Precision Climate Monitoring: Harness the power of accurate climate control with our advanced temperature and humidity transmitter, featuring the cutting-edge SHT40 sensor. This sensor not only offers reliability and precision, but also guarantees consistent data interchangeability for the most meticulous readings.
2. Extended RS485 Connectivity: Our communica temperature sensors redefine data transmission efficiency, offering an RS485 interface complete with protection. Enjoy the freedom to extend communication up to a kilometer, all while adhering to the industrial Modbus-Rtu protocol for steadfast data exchange.
3. Dual-Protocol Flexibility: Our acquisition module seamlessly integrates both MODBUS and standard protocols, equipping you with the versatility to select the best communication method for your operational requirements. Its standard protocol adds the advantage  of an automated data upload feature, enhancing user convenience.
4. Energy-Efficient : Designed to conserve power without compromising performance, our temperature & humidity sensor operates on low energy consumption. The broad voltage input range ensures compatibility with diverse power sources, making it a versatile and choice for any setting.

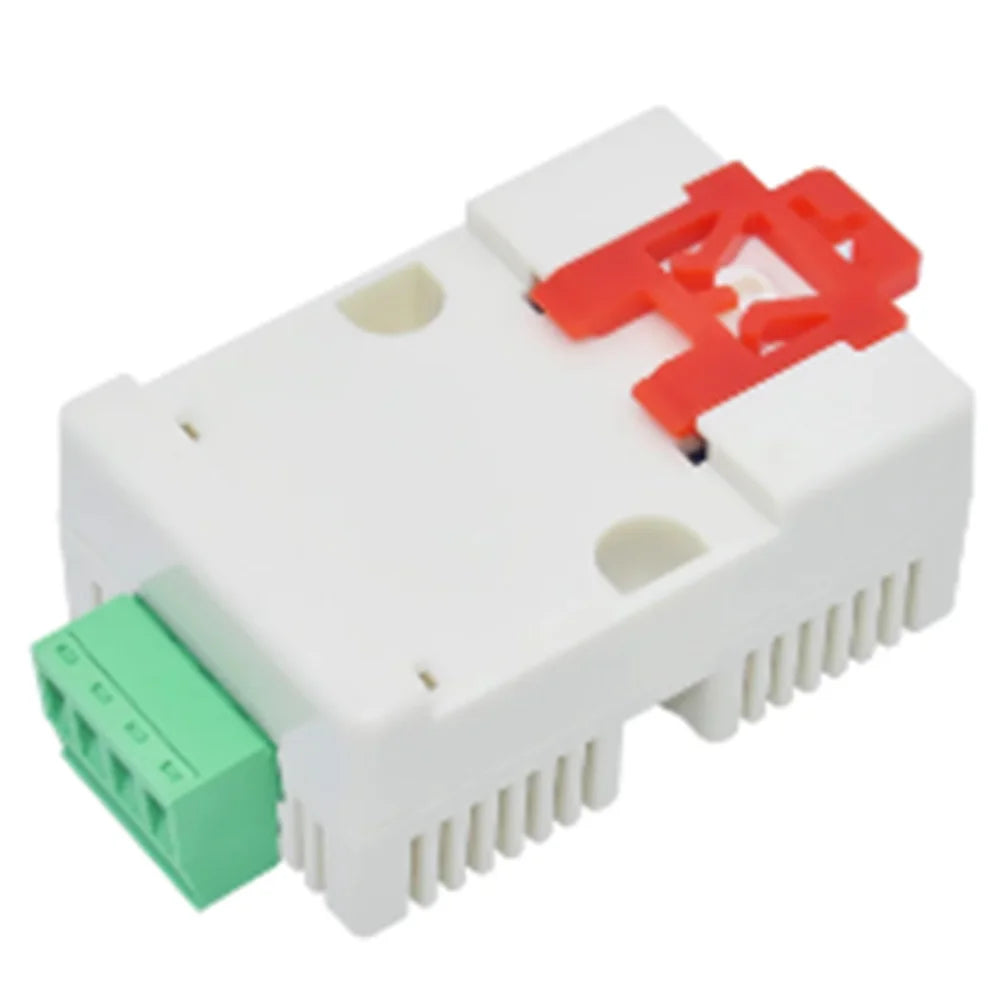

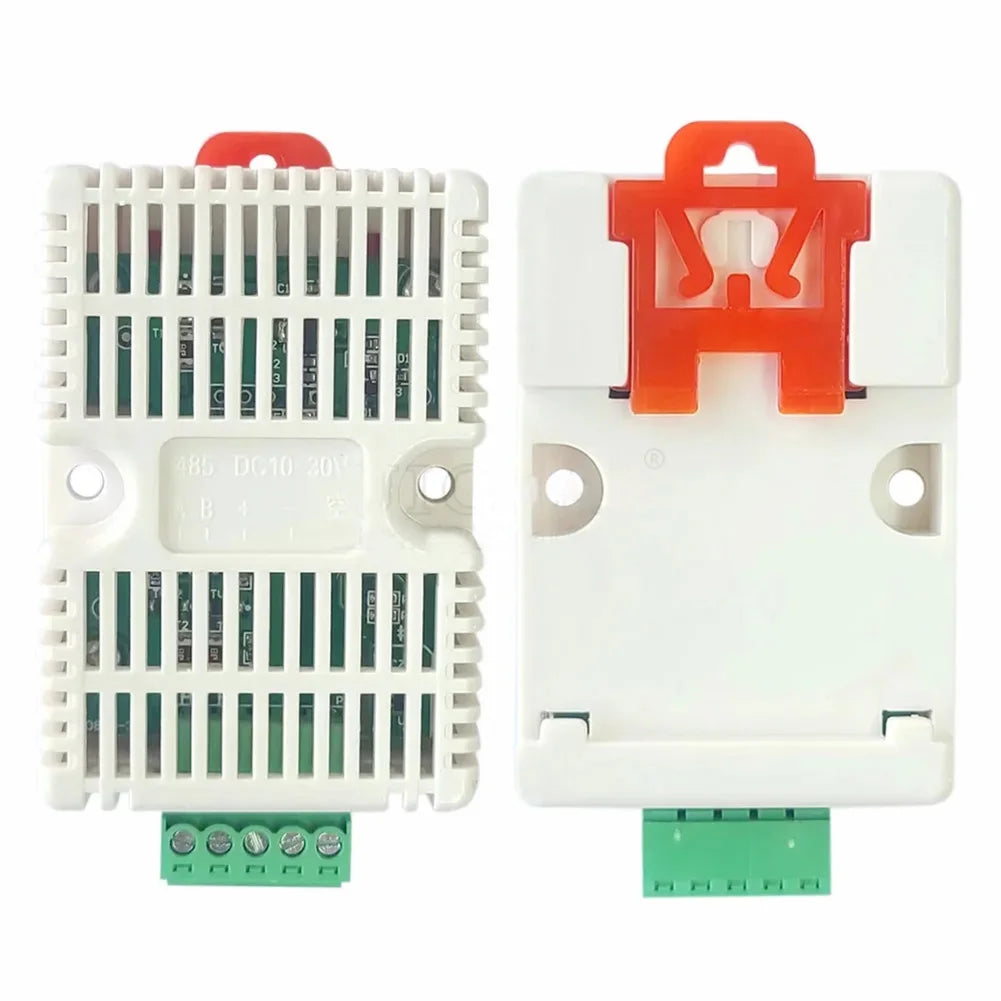

5. DIN35 Rail Installation: Our temperature humidity sensor module boasts a sleek design and is tailored for ease of installation. Directly mountable on the ubiquitous DIN35 rails, this compact device simplifies the setup process, offering a painless integration into your existing infrastructure.

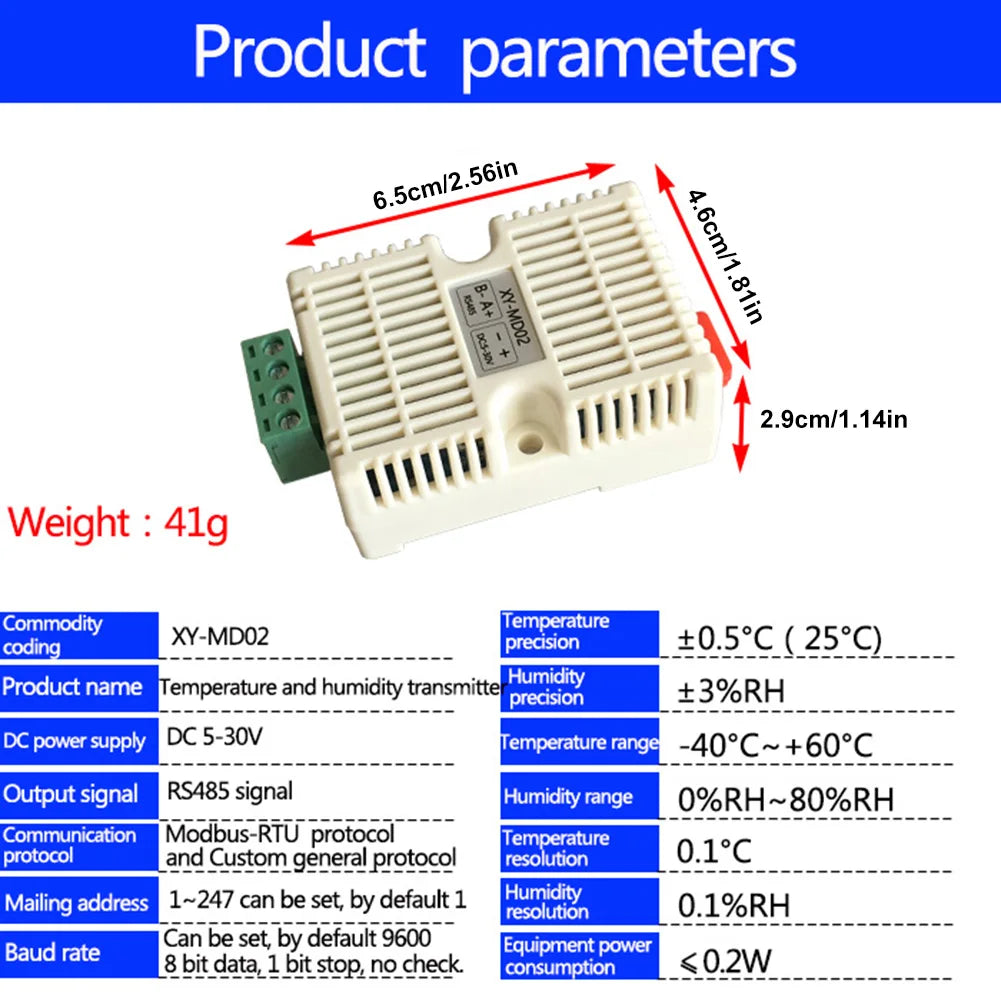

Specification:
Origin: Mainland China
Type: Module
Condition: New
DC power supply: DC5-30V
Output signal: RS485 signal
Temperature accuracy: ±0.5℃ (25℃)
Humidity accuracy: ±3%RH
Temperature range: 0%RH~ 80%RH
Temperature resolution: 0.1℃
Humidity resolution: 0.1%RH
Power consumption: ≤0.2W
Correspondence address: 1~247 optional. The default address is 1
Communication protocol: Modbus-RTU protocol and universal protocol
Baud rate: configurable, default 9600, 8-bit data, 1-bit stop, no calibration
Product size: 65.00x46.00x29.00mm
Product size: 2.56x1.81x1.14inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

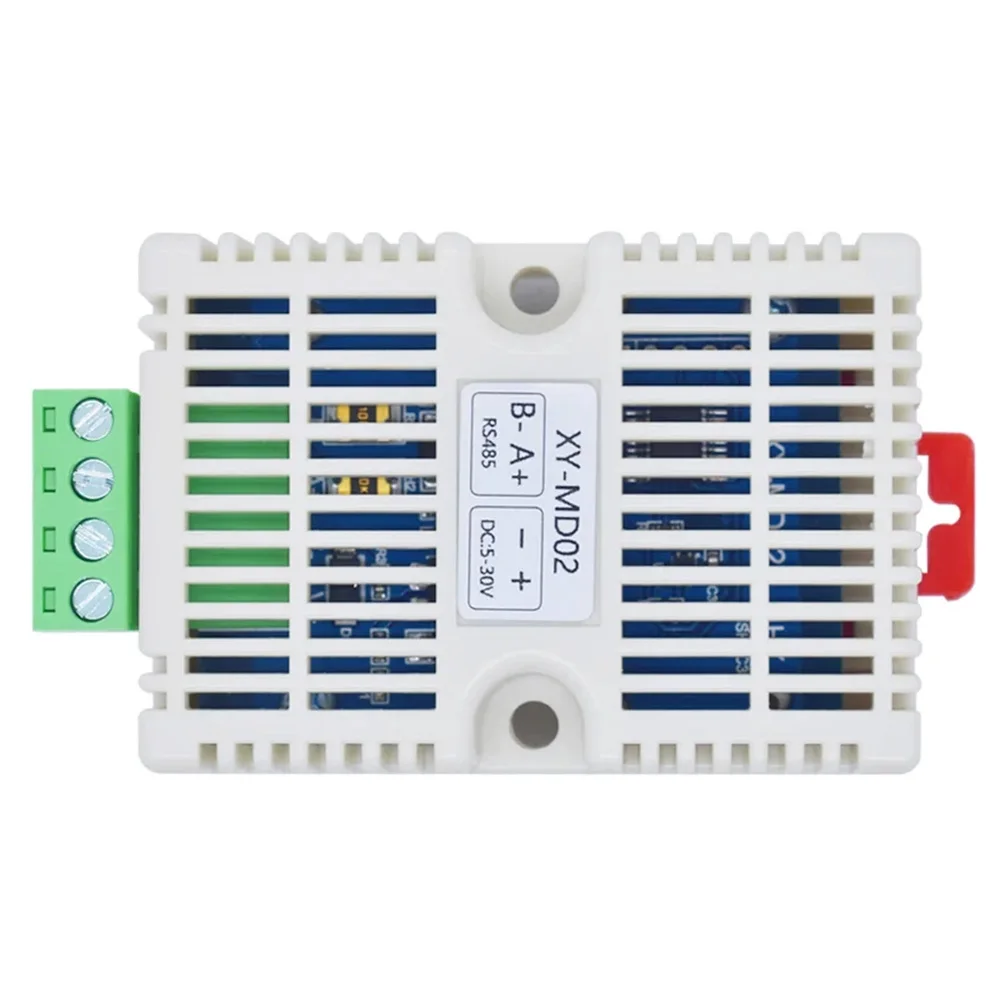

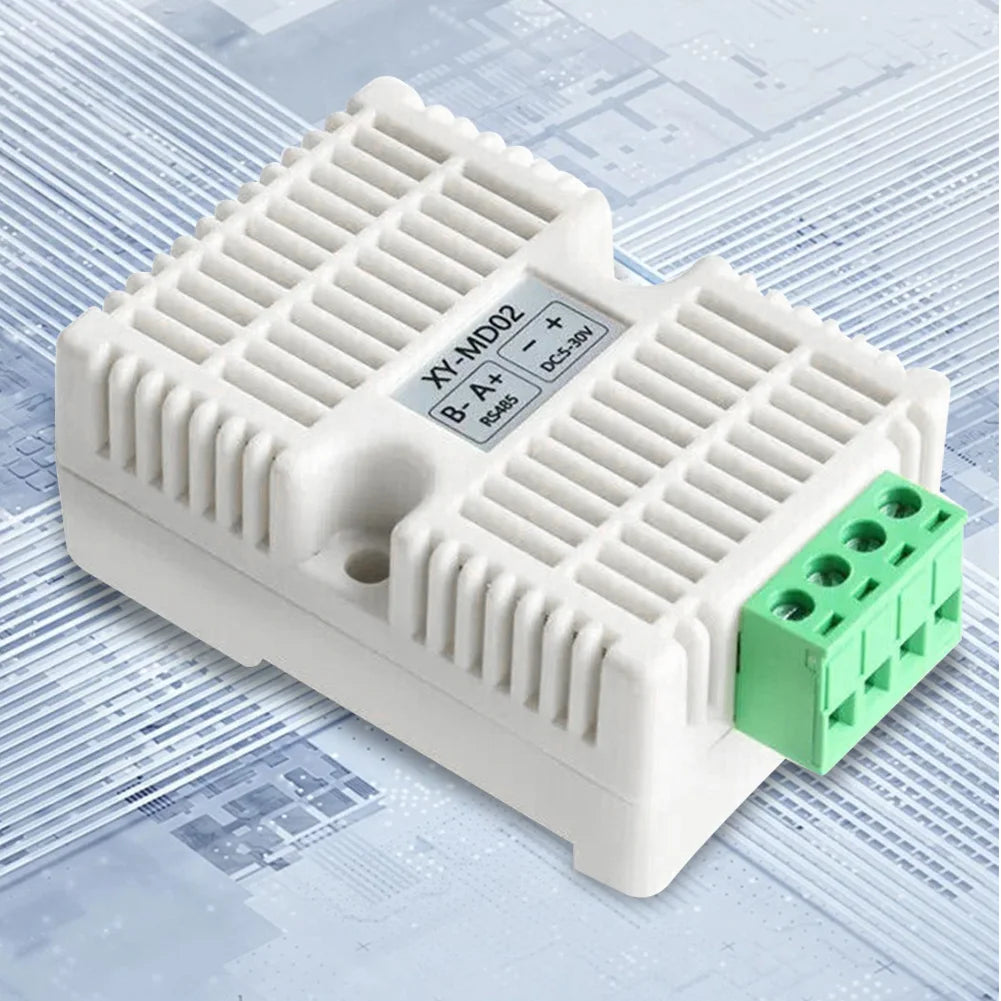

1 x XY-MD02 Temperature and Humidity Transmitter
