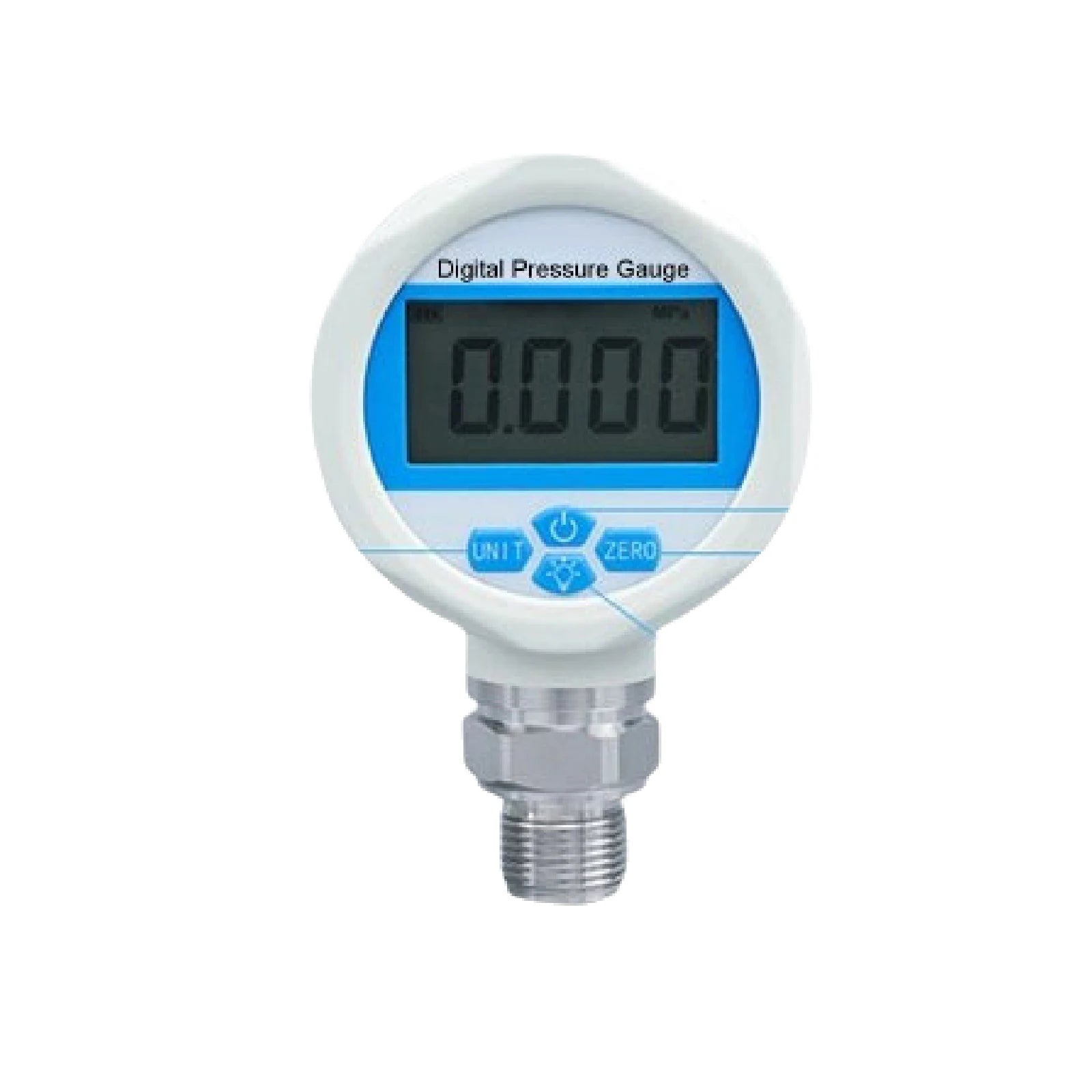

SPECIFICATIONS

Accuracy: ±0.5%FS

Brand Name: CERTEON

Dial diameter: 60mm

High-concerned chemical: none

Mounting threads: M20*1.5,G1/2,G1/4,NPT1/2,NPT1/4,M14*1.5

Operating temperature: -10°C-70°C

Origin: Mainland China

Power supply: 1.5V AA battery

Pressure range: -100kPa-0-100MPa

Pressure type: Gauge pressure

Protection grade: IP54

Semi-finishedproduct: No

Notice:

Due to shipping restrictions, batteries are not included in shipments to certain regions. Please prepare the required batteries yourself to ensure normal use of the product. Thank you for your understanding.

1.NOTE

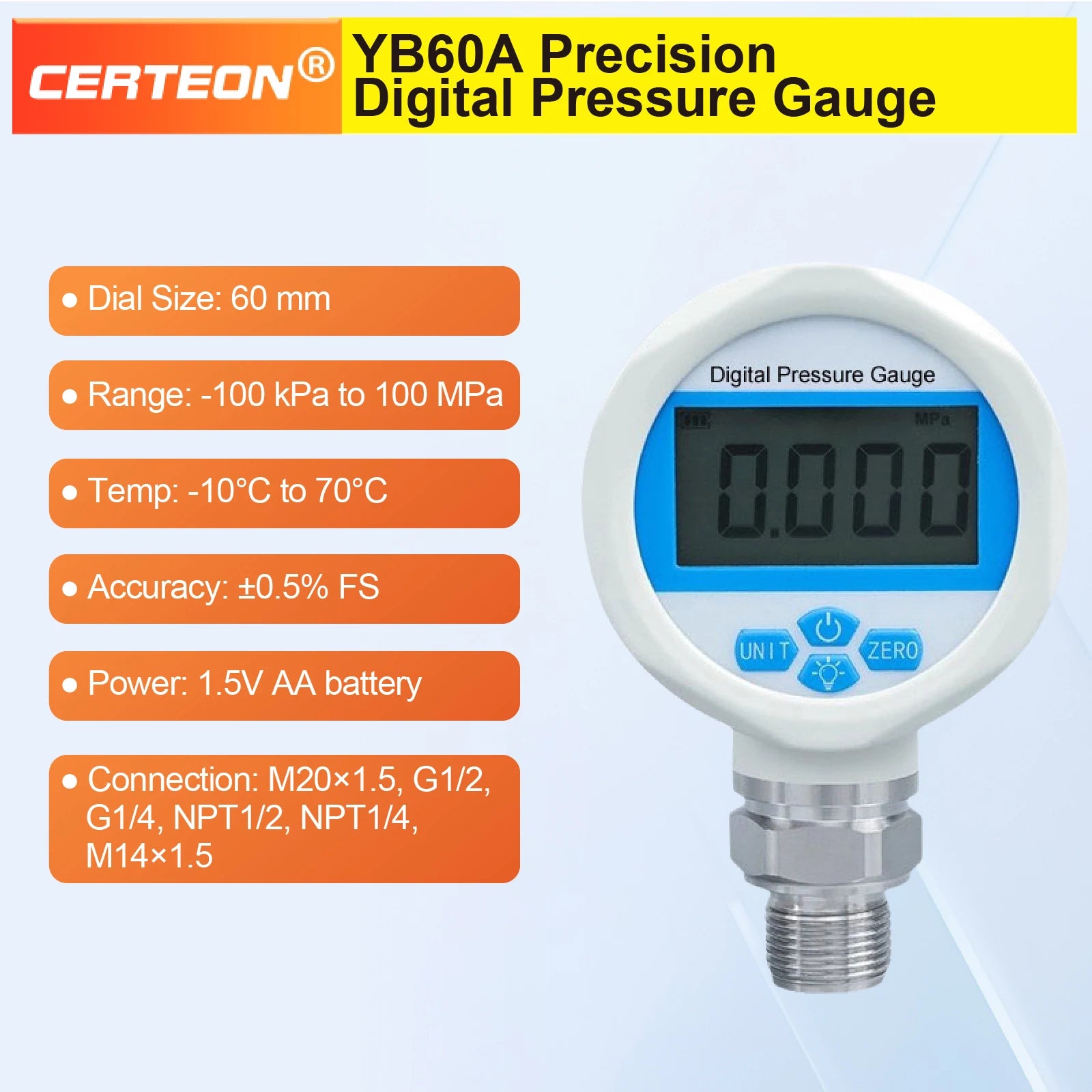

Default Configuration

Dial Size: 60 mm LCD Display

Pressure Type: Gauge Pressure

Absolute pressure version available upon request.

Mounting Thread Options:M20 × 1.5/G1/2/G1/4/NPT1/2/NPT1/4/M14 × 1.5

Custom thread connections are available.

Pressure Range:-100 kPa to 0 to 100 MPa

Operating Temperature:-10°C to +70°C

Accuracy:±0.5% FS

Protection Rating:IP54

Power Supply:1 × 1.5V AA Battery

Display Units:Supports 11 selectable pressure units including kN, MPa, kPa, bar, psi, mbar, mmHg, kg, m, mm, and Pa.

Optional Customization

Pressure Type:Absolute Pressure

Thread Connections:G1/2, G1/4, NPT1/2, NPT1/4, M14 × 1.5

Accuracy:±0.2% FS

Some configurations may not be fully listed due to page limitations. Please contact us for customization details or any product questions.

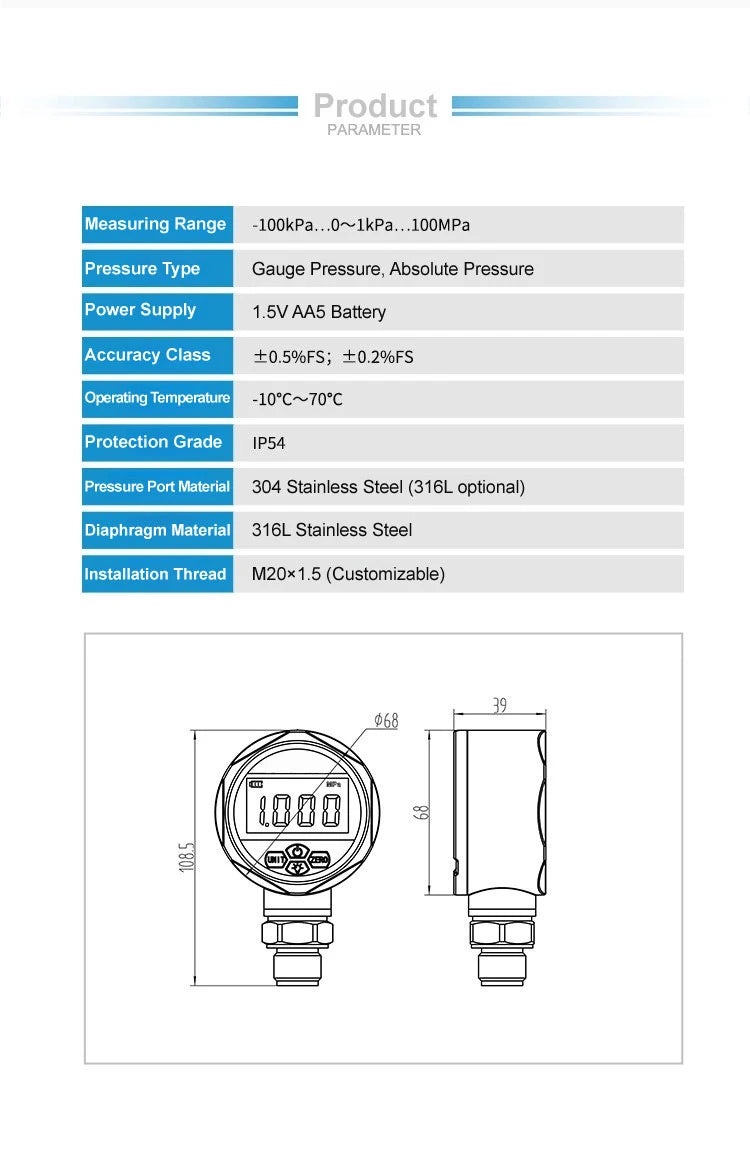

2. Parameters

3. Features

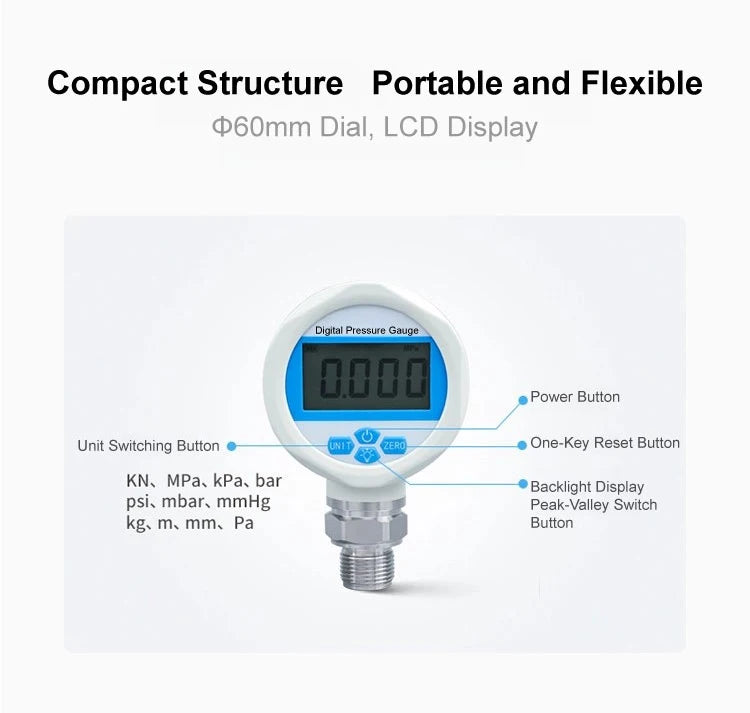

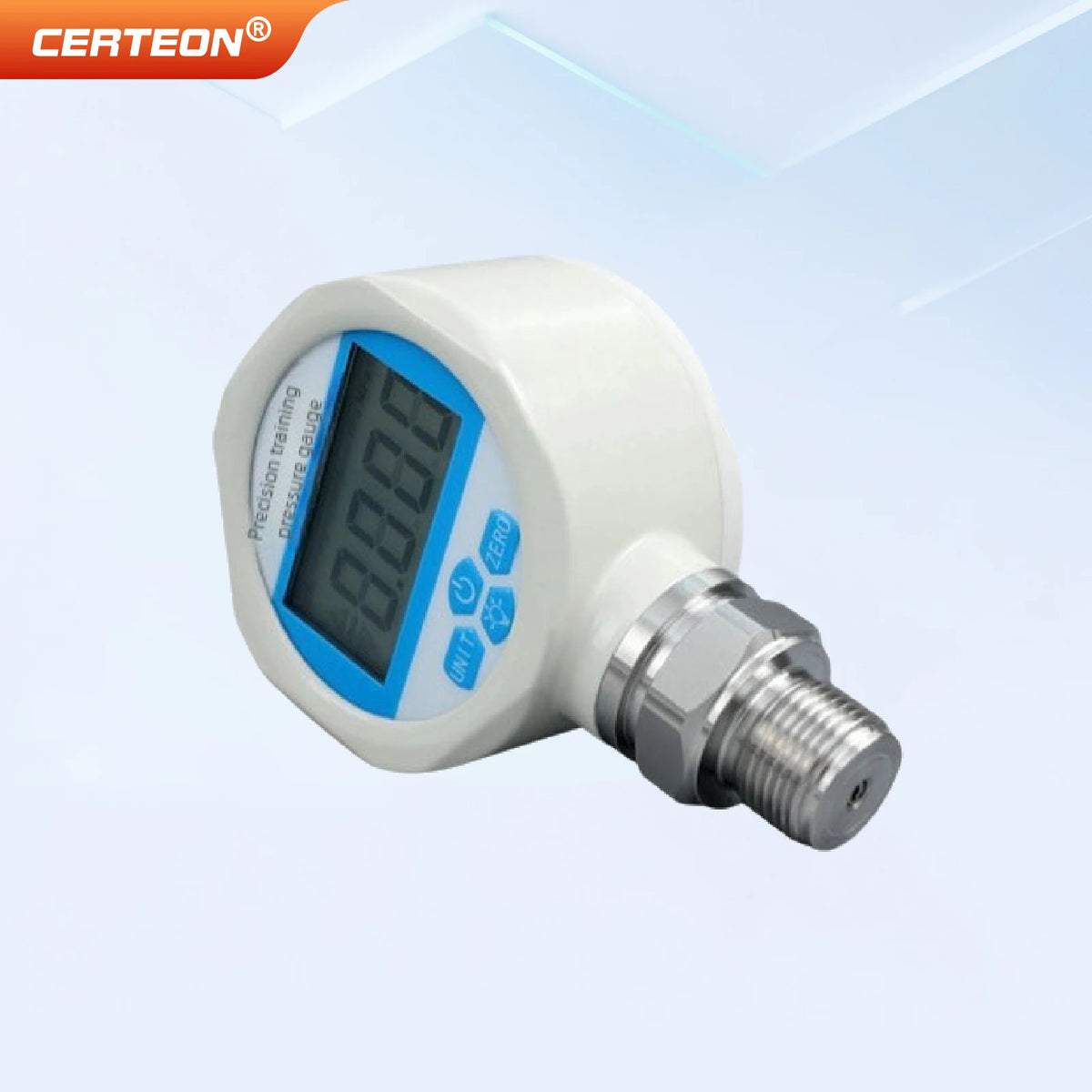

Compact Design for Easy Installation

Featuring a compact and lightweight structure, this digital pressure gauge is easy to install, operate, and transport. It is especially suitable for equipment and systems with limited installation space.

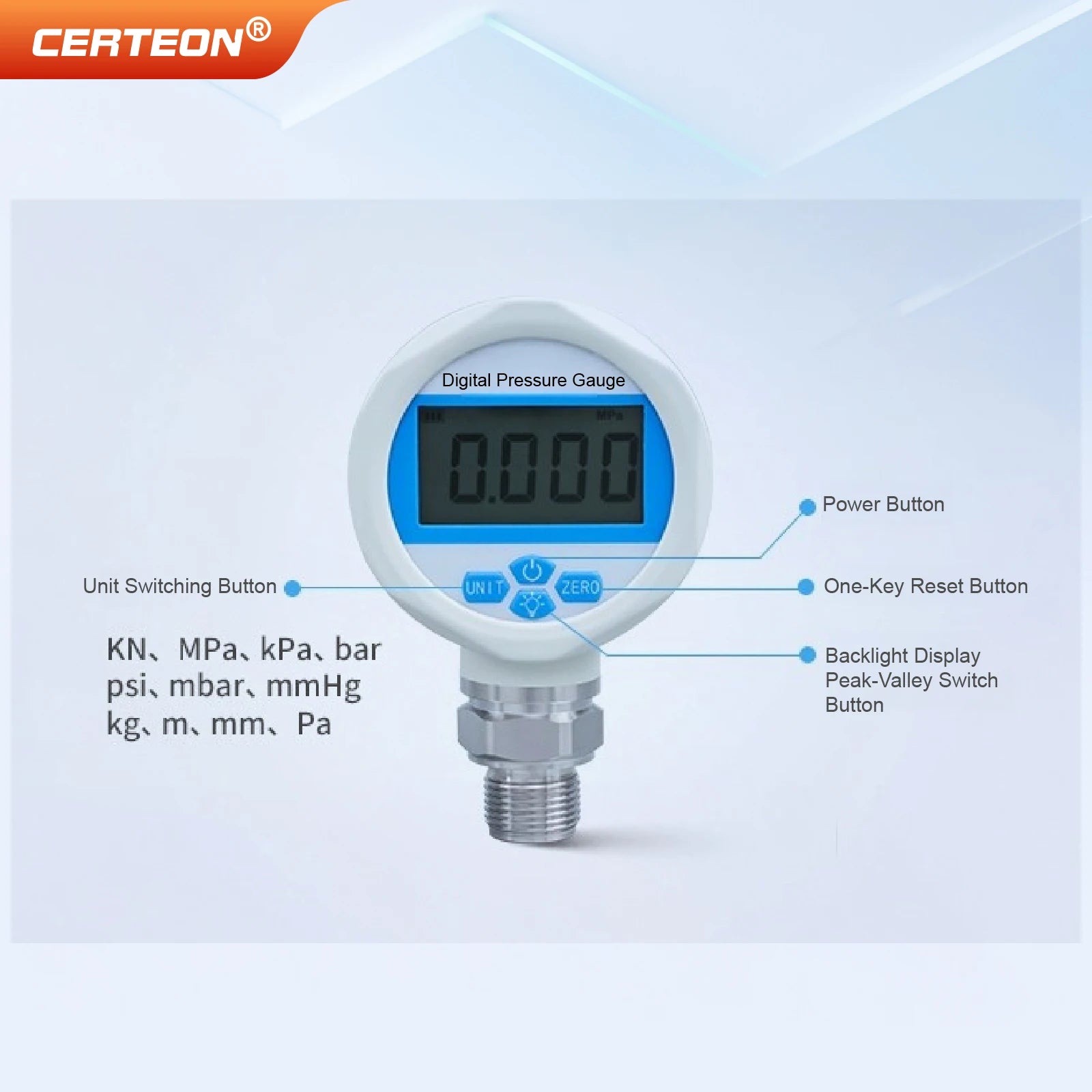

11 Selectable Pressure Units

The large LCD display supports 11 commonly used pressure units, allowing users to switch units quickly and conveniently to meet various international measurement standards and application requirements.

Battery-Powered, No Wiring Required

Powered by a standard 1.5V AA battery, the gauge operates independently without external power supplies or wiring. This simplifies installation, reduces maintenance requirements, and lowers overall operating costs.

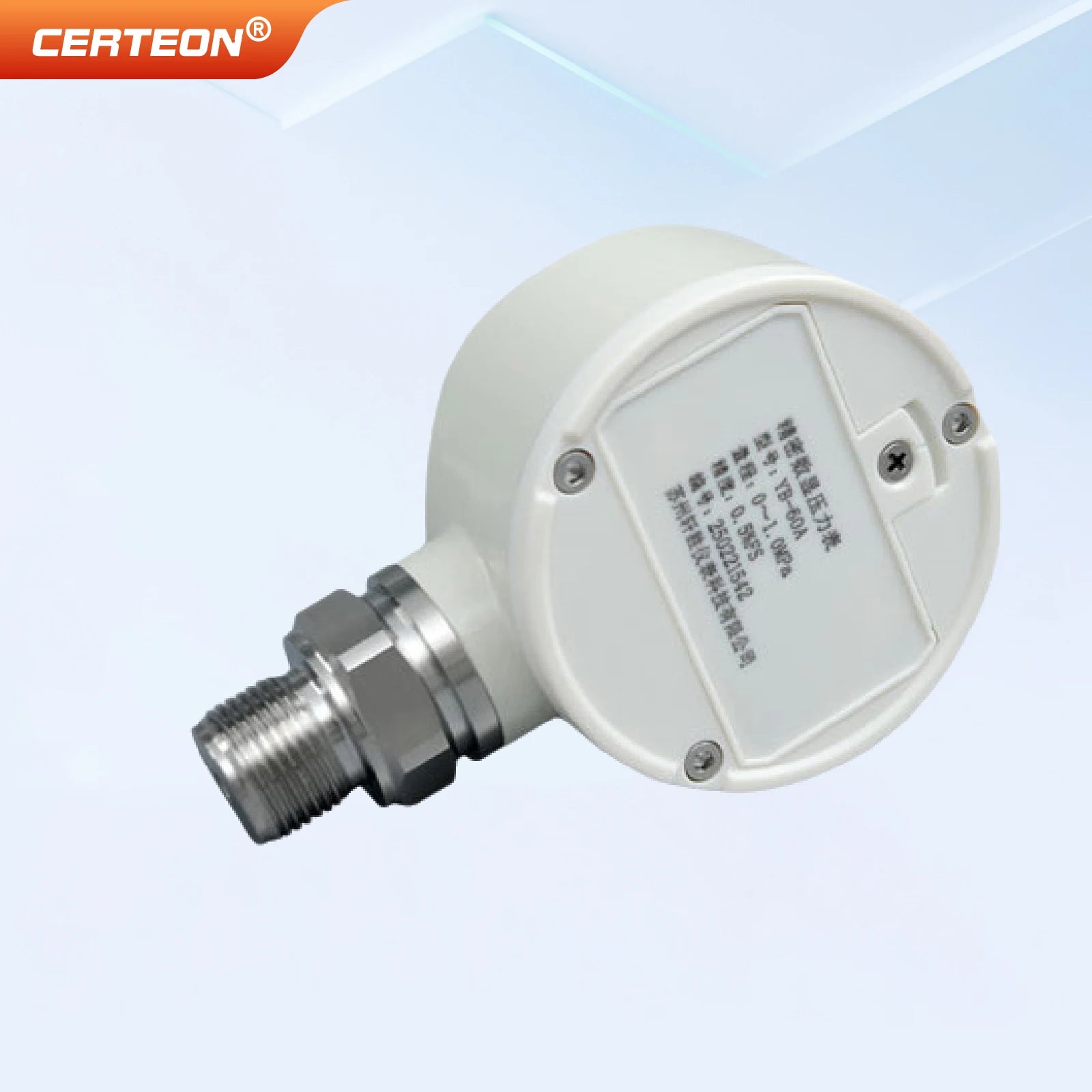

Durable Stainless Steel Construction

The pressure connection is manufactured from high-quality 304 stainless steel, while the sensing diaphragm is made from corrosion-resistant 316L stainless steel. This combination ensures excellent durability, reliability, and long service life in demanding industrial environments.

Reliable IP54 Protection

The IP54-rated enclosure effectively protects against dust ingress and water splashes, ensuring stable and dependable performance in industrial field applications.

High Measurement Accuracy

Available with ±0.5% FS standard accuracy and optional ±0.2% FS high-accuracy configuration, providing reliable pressure monitoring for a wide range of industrial processes.

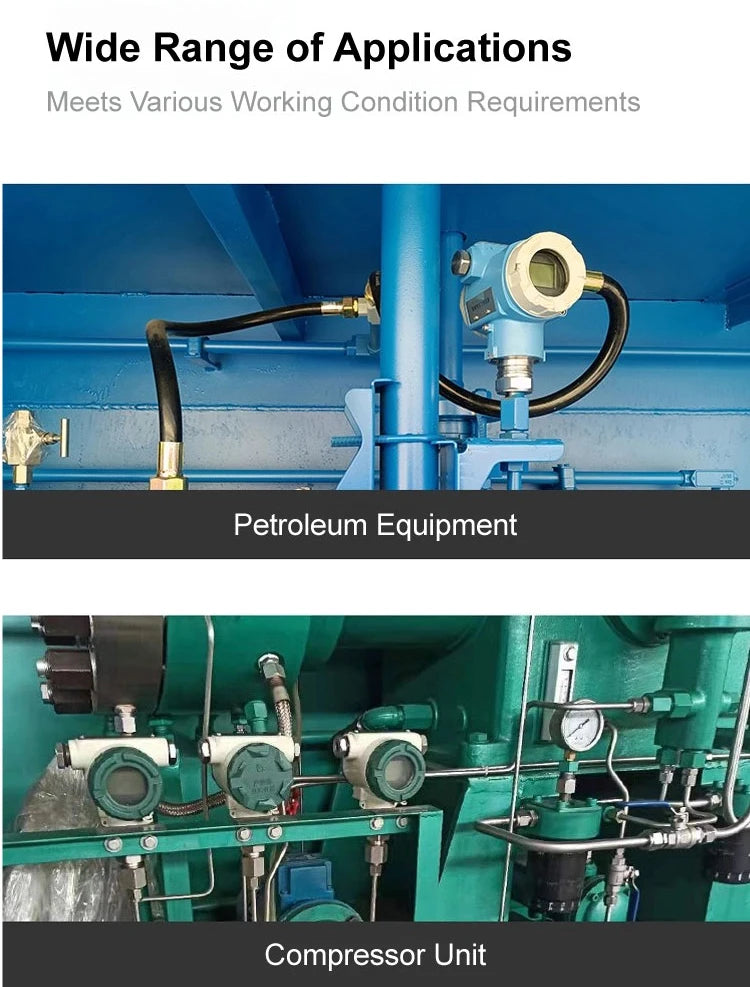

4. Applications

This digital pressure gauge is widely used in:

Petroleum and Oil Equipment

Air Compressor Systems

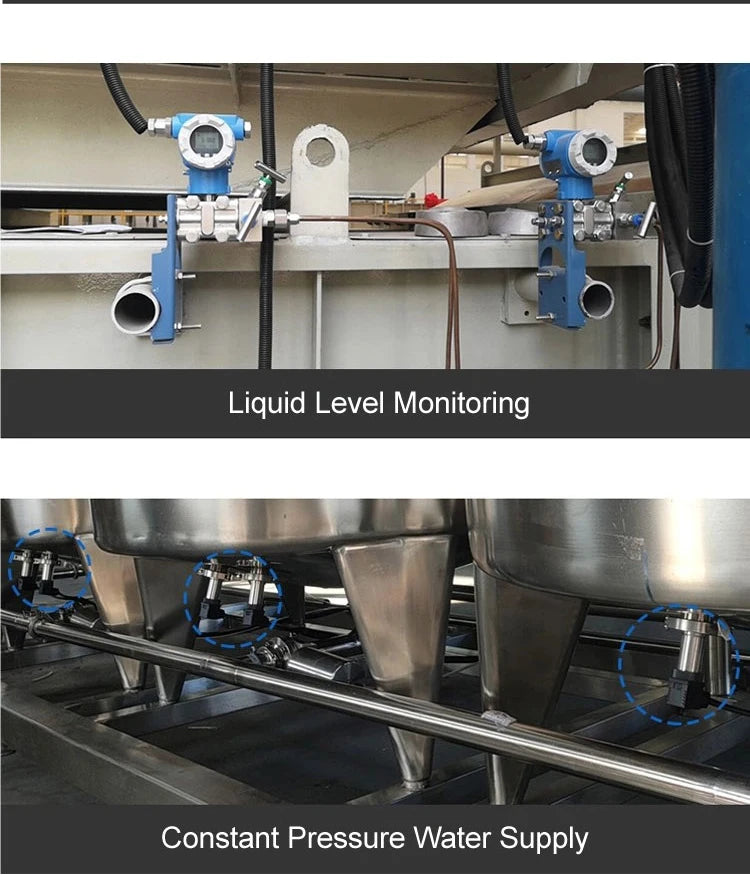

Liquid Level Monitoring

Constant Pressure Water Supply Systems

Industrial Process Control

Gas Pressure Measurement

Liquid Pressure Measurement

General Industrial Automation Systems

5. FAQs

Q1: Does the pressure gauge require external wiring or an external power supply?

A1: No. The gauge is powered by a standard 1.5V AA battery and operates independently without external wiring or power connections, making installation fast and convenient.

Q2: Can the pressure gauge be used in outdoor or industrial environments?

A2: Yes. The IP54-rated housing, combined with its stainless steel construction, provides excellent resistance to dust, water splashes, and corrosion, making it suitable for a wide range of industrial applications.

Q3: Is the gauge suitable for measuring water, air, oil, and other media?

A3: Yes. The 316L stainless steel diaphragm is compatible with a variety of gas and liquid media, including water, air, oil, and many common industrial fluids.
