SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Origin: Mainland China

Introduction

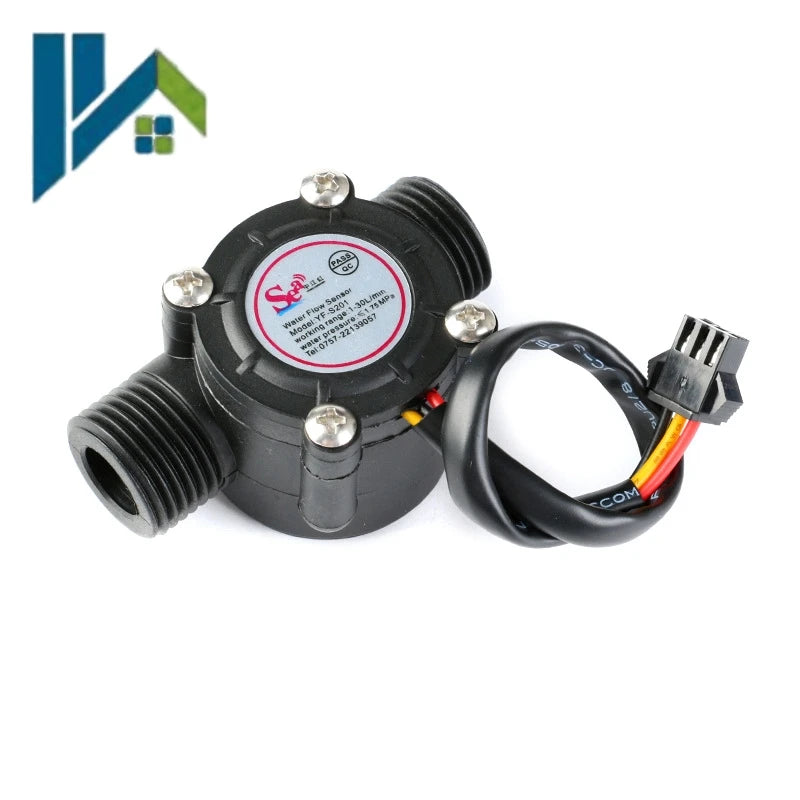

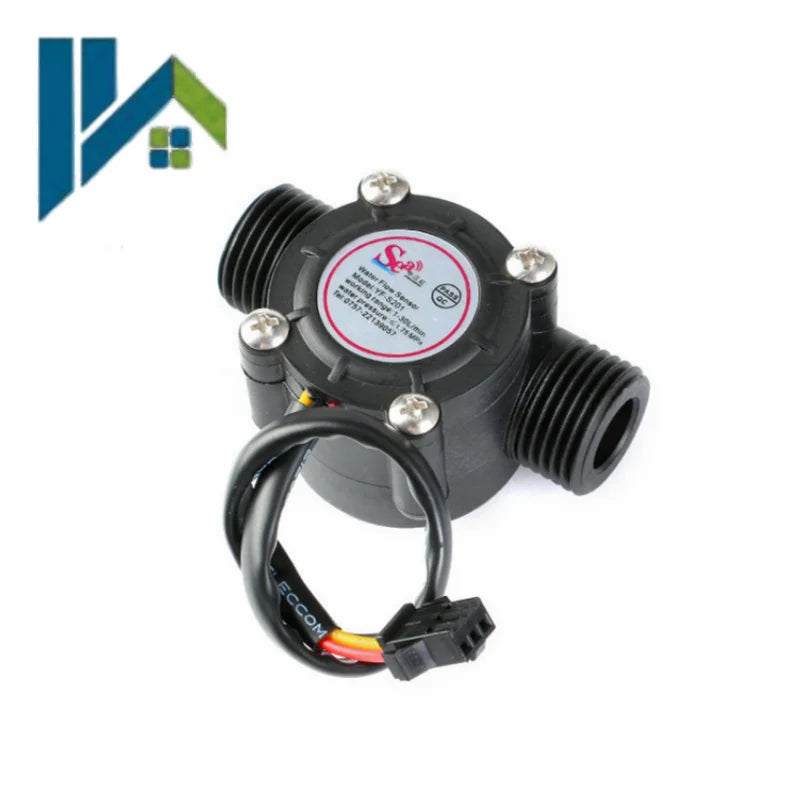

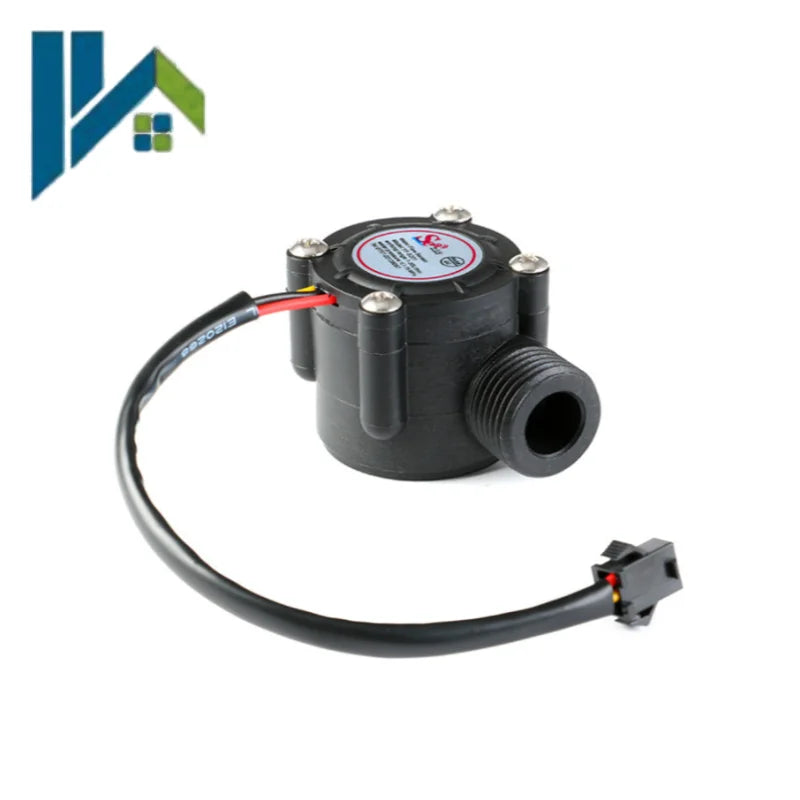

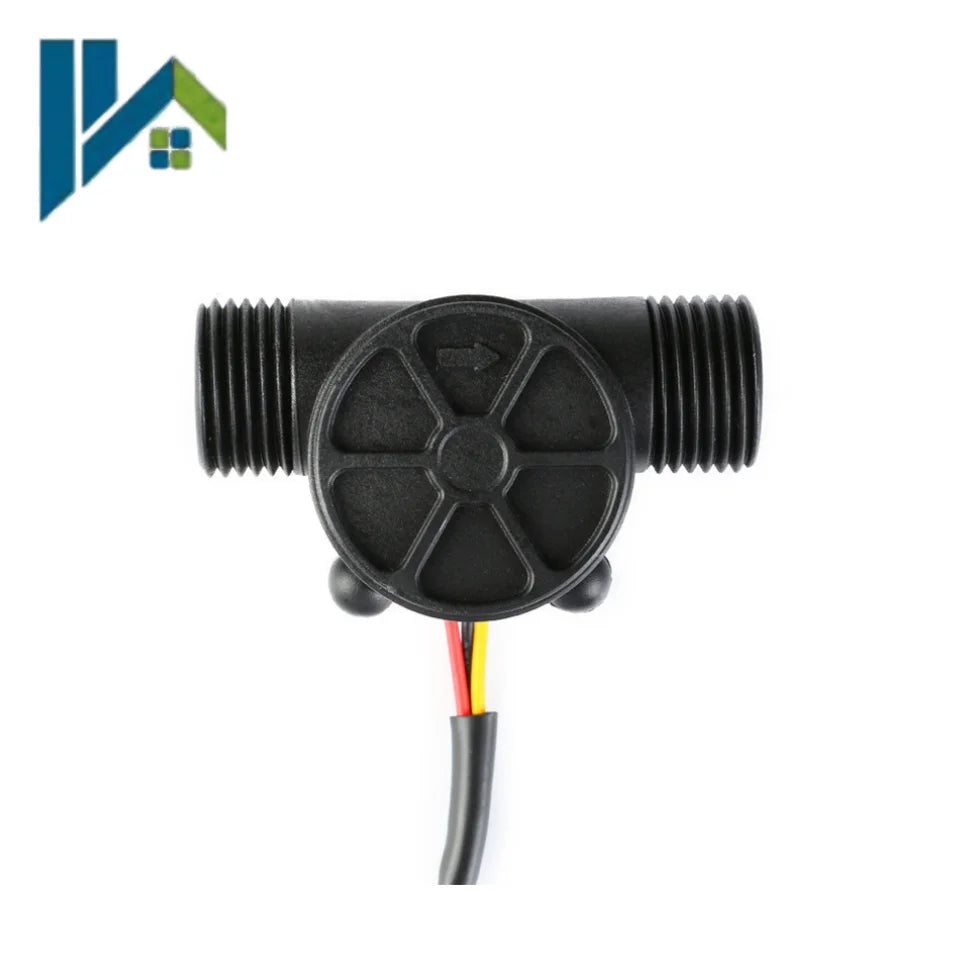

YF‑S201 is a Hall‑effect water flow sensor with G1/2(1/2 inch) threaded interface. It detects water flow speed by internal turbine rotor and outputs pulse signal. The pulse frequency corresponds to water flow volume. Support flow range 1‑30L/min. It can work with Arduino and other microcontrollers. Widely applied in water heater, water dispenser, water vending machine and various water flow monitoring DIY systems.

Features

✅ Standard G1/2 (1/2 inch) male thread connection, easy pipe installationAlibaba.co...

✅ Hall‑effect principle, digital pulse output signal

✅ Flow rate range:1‑30 L/min

✅ Wide working voltage DC 3.5‑24V

✅ Max pressure resistance up to 1.75MPa

✅ 3‑wire output, simple connection with MCU

✅ Suitable for water heater, water dispenser, vending machine and DIY water metering project
