YHDC SCT023R Input 100A/200A/300A/400A Output 50mA/80mA/100mA Accuracy 0.5% Split Core Current Transformer

YHDC SCT023R Input 100A/200A/300A/400A Output 50mA/80mA/100mA Accuracy 0.5% Split Core Current Transformer

$73.71

$73.71 $0.00

Color 100A 200A 400A 300A

Output Voltage 80mA 50mA 100mA

Description

SPECIFICATIONS

Brand Name: YHDC

Certification: CE

Coil Number: current transformer

Coil Structure: Split core current transformer

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: SCT023R

Origin: Mainland China

Phase: SINGLE

Use: Current

is_customized: Yes

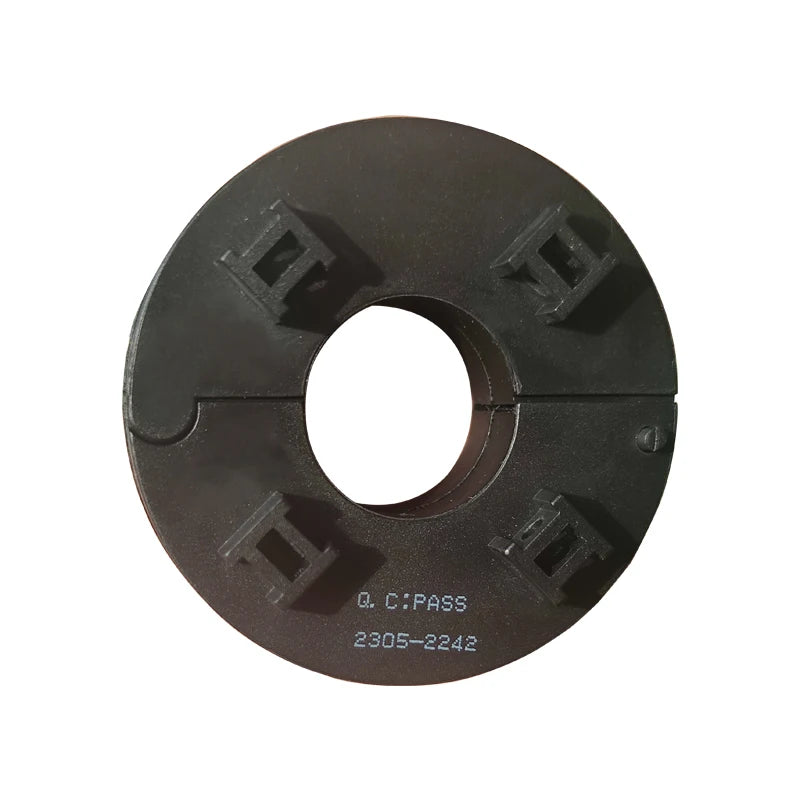

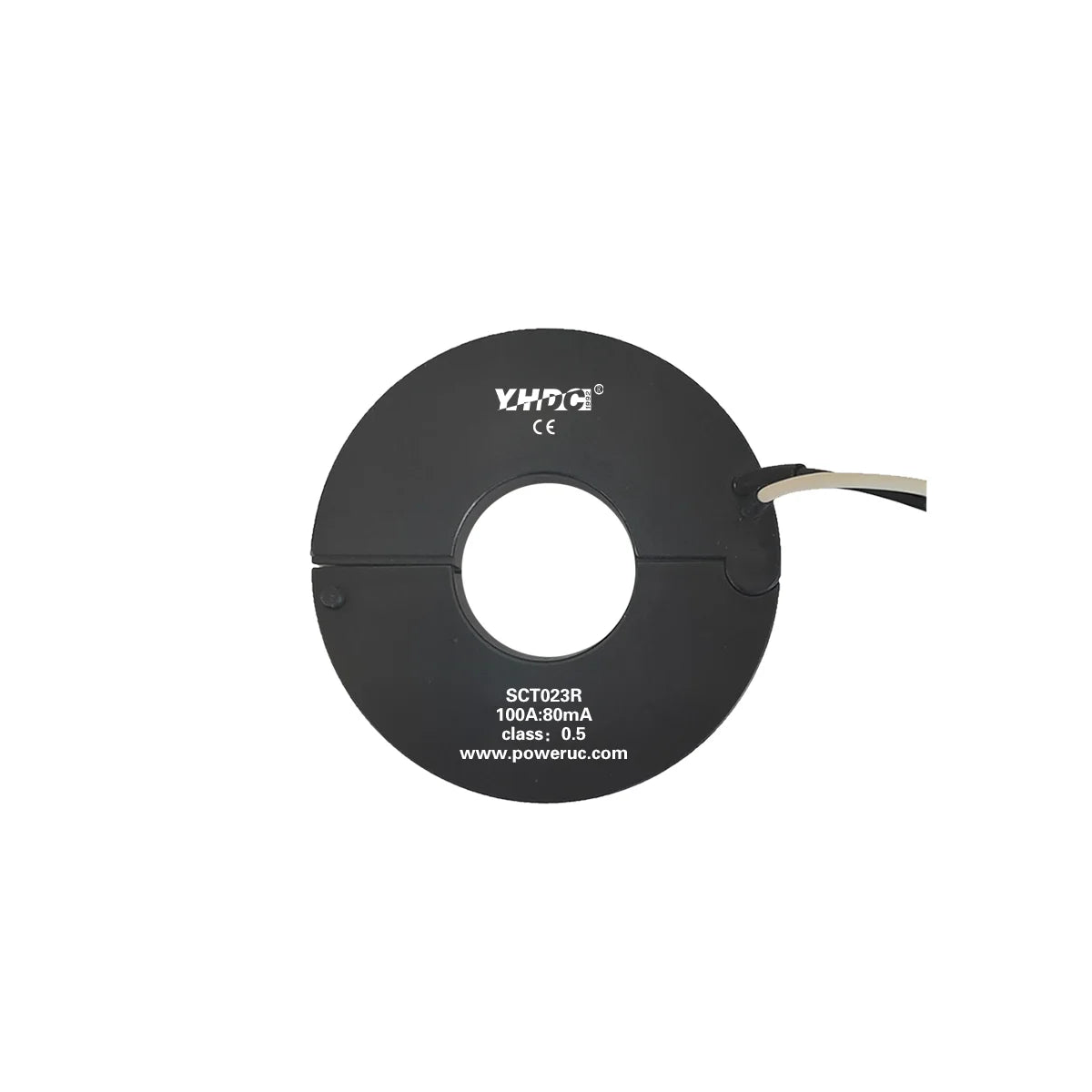

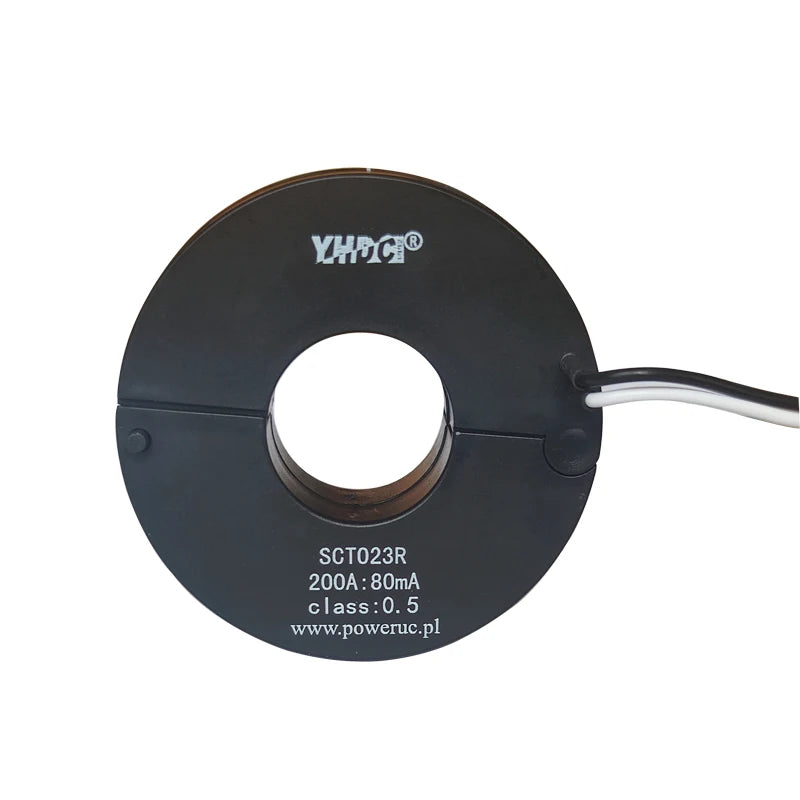

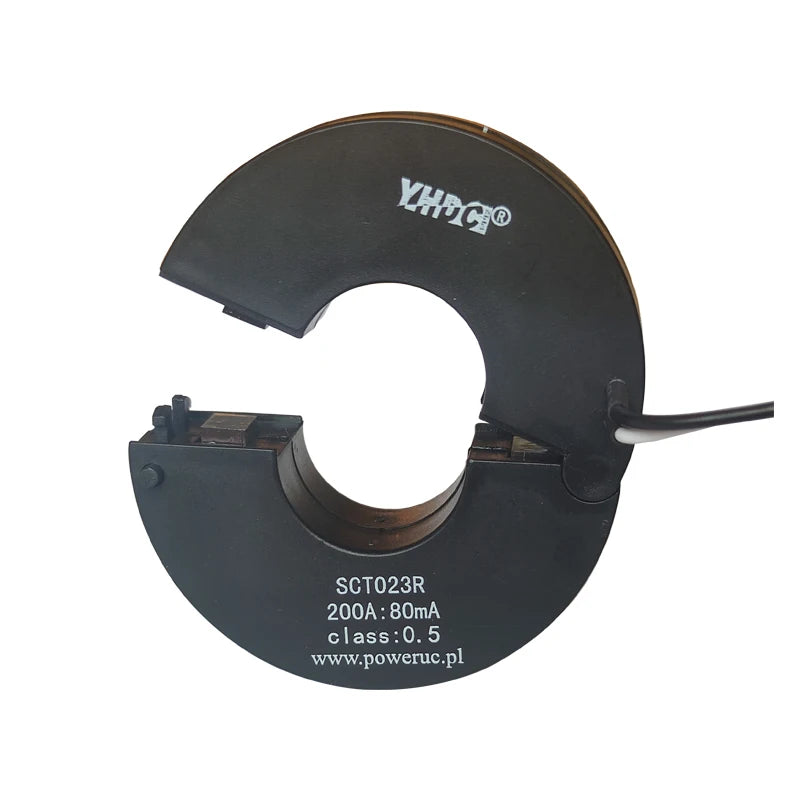

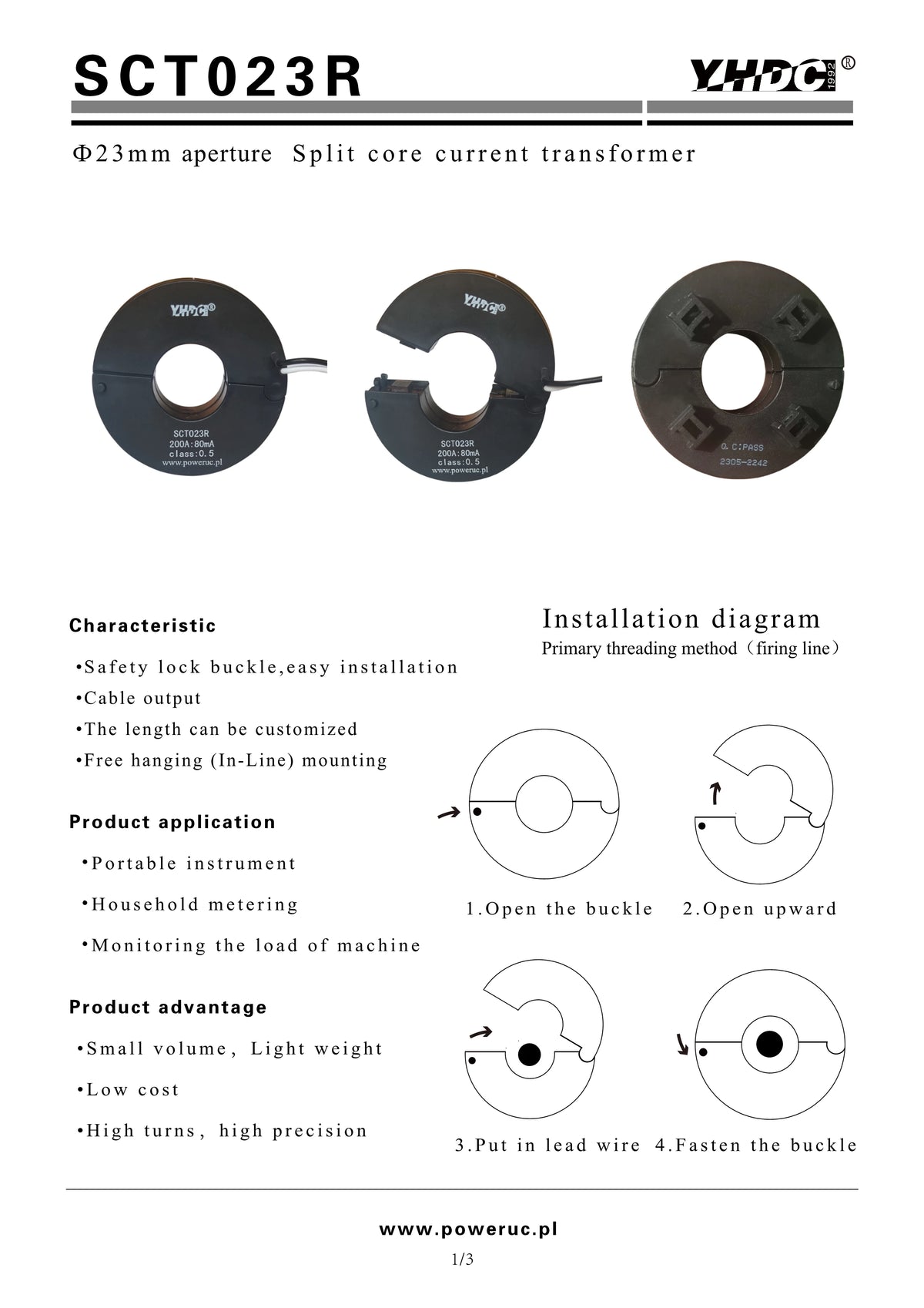

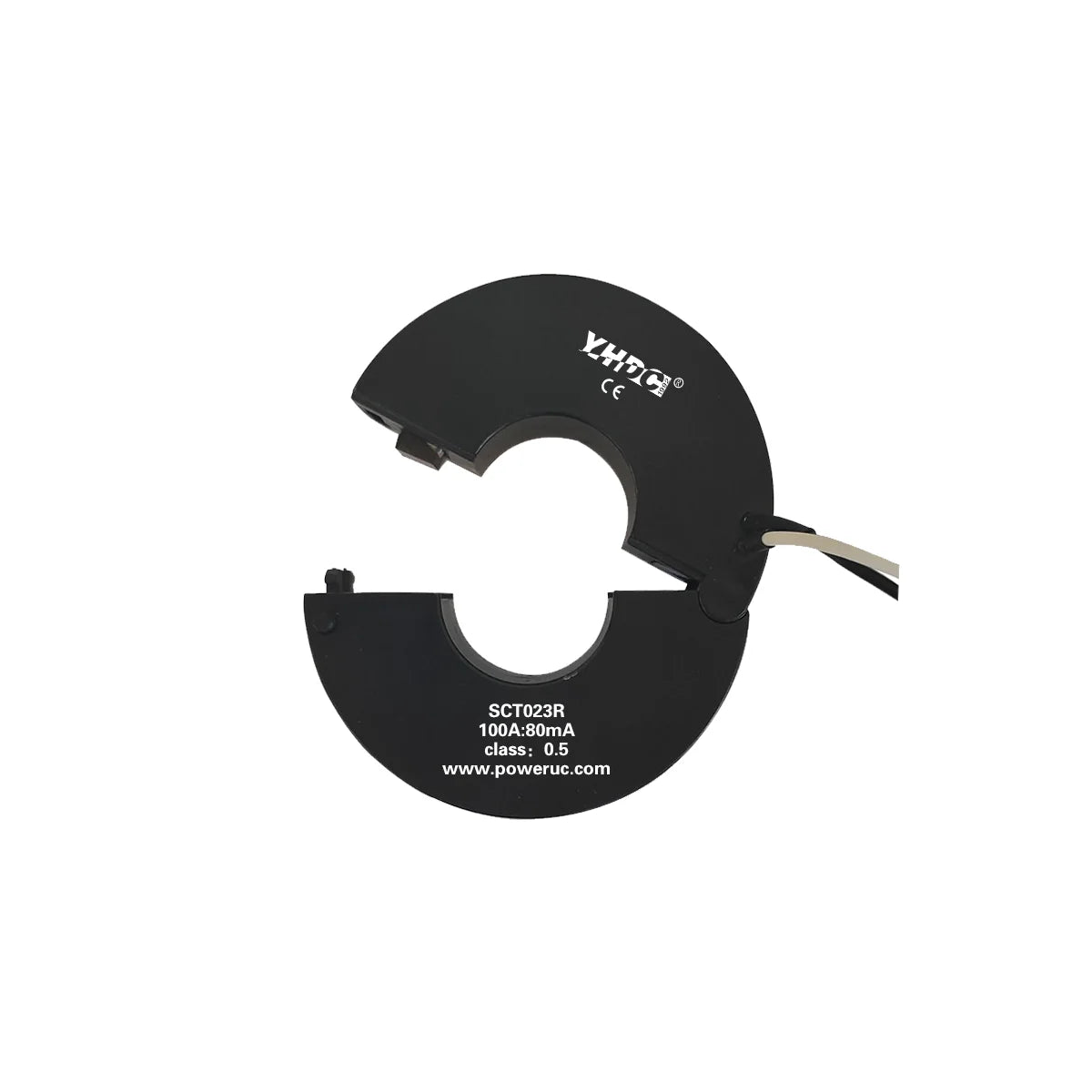

YHDC Manufacturer of SCT023R split-core current transformer

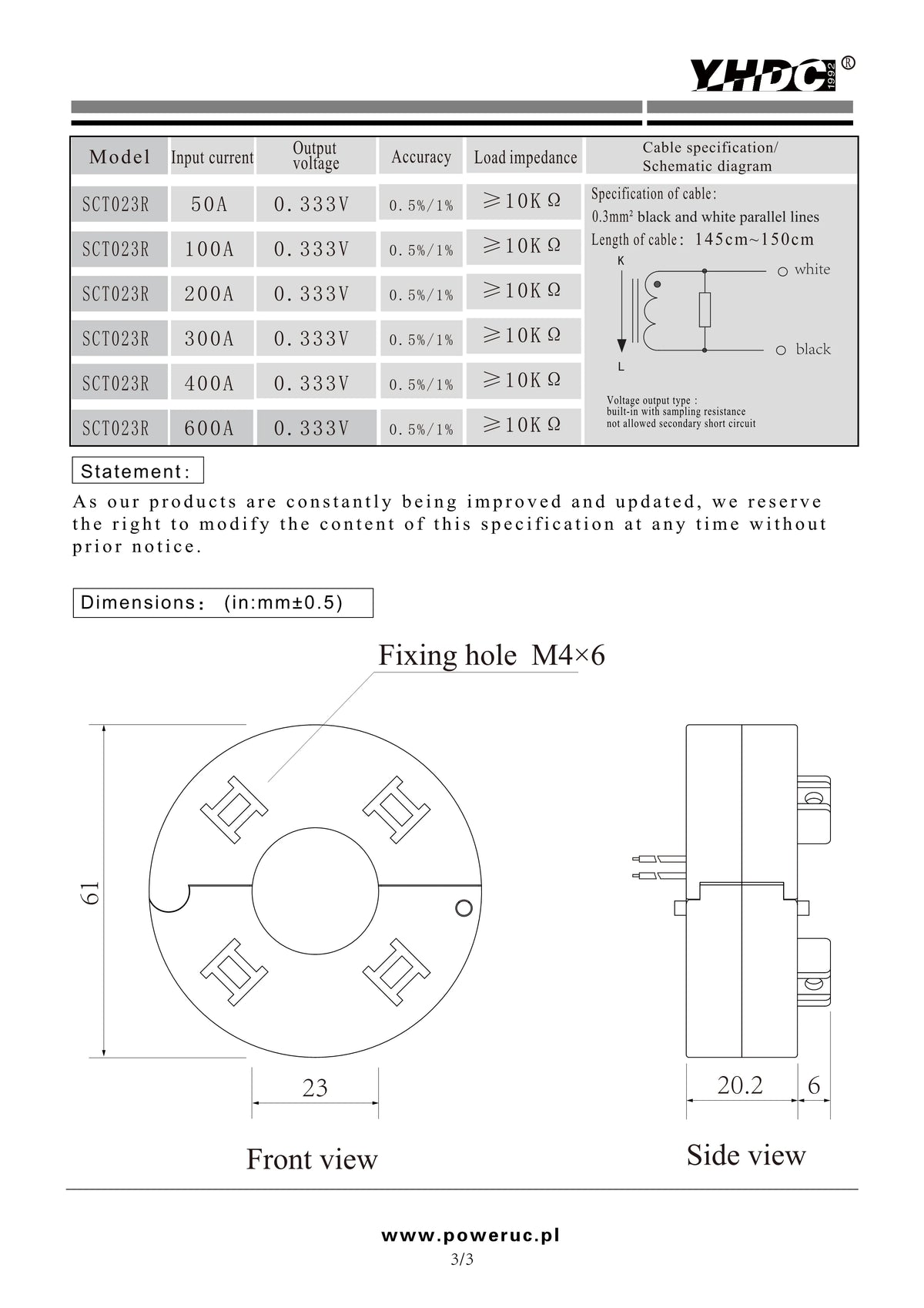

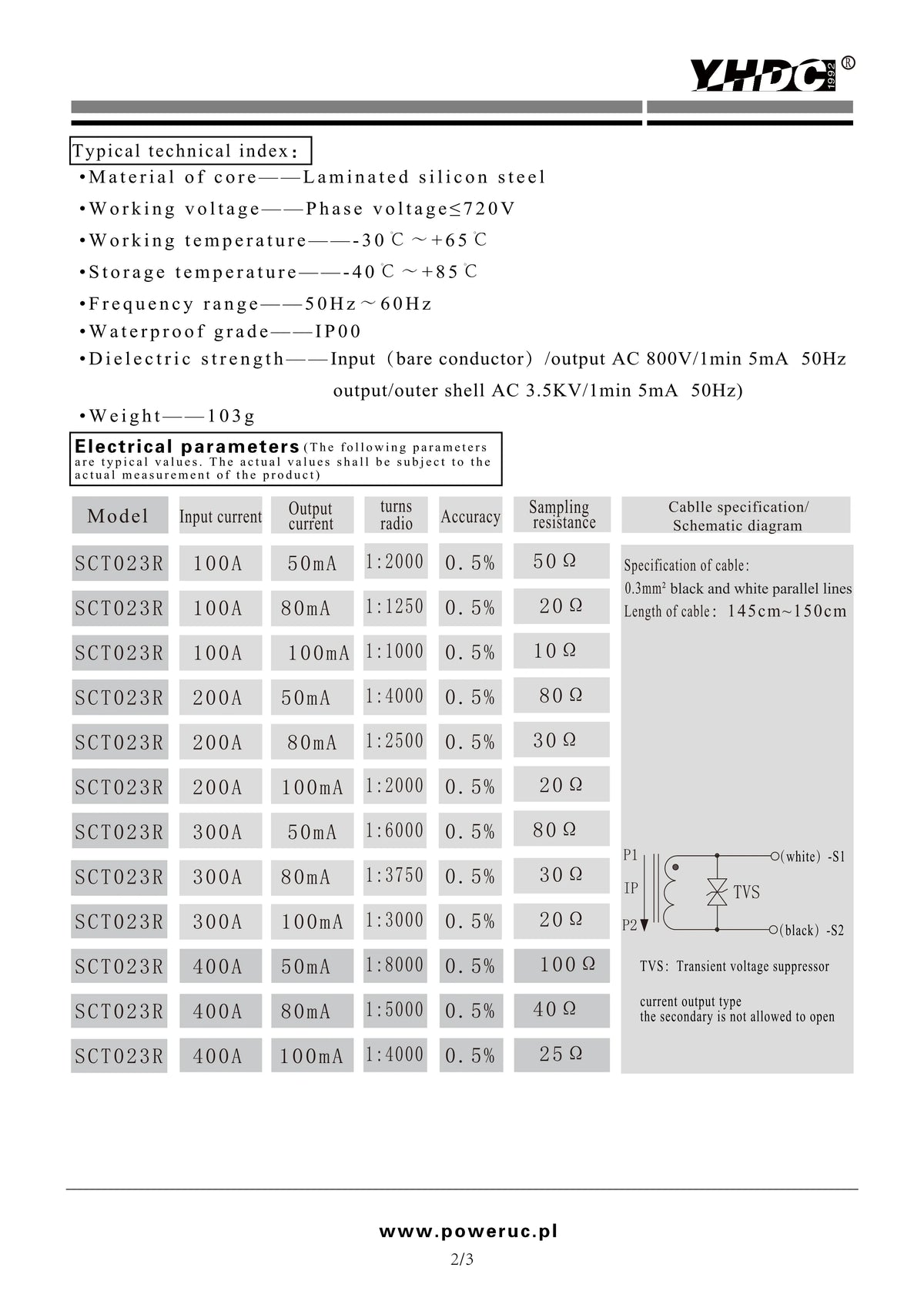

Technical parameters:

Model：SCT023R

Rated Input(Effective value):100A 200A 300A 400A

Rated output: 50mA/80mA/100mA

Accuracy: 0.5%

Fire resistance property: UL94-V0

Material of core: Laminated silicon steel

Work voltage:720V

Work temperature: -30℃～+65℃

Storage temperature: -40℃～+85℃

Frequency range: 50Hz～60Hz

Waterproof grade: IP00

Dielectric strength: AC 3.5KV/1min

Weight: 103 g

If you need other parameters,please leave a note in the order.Thanks.

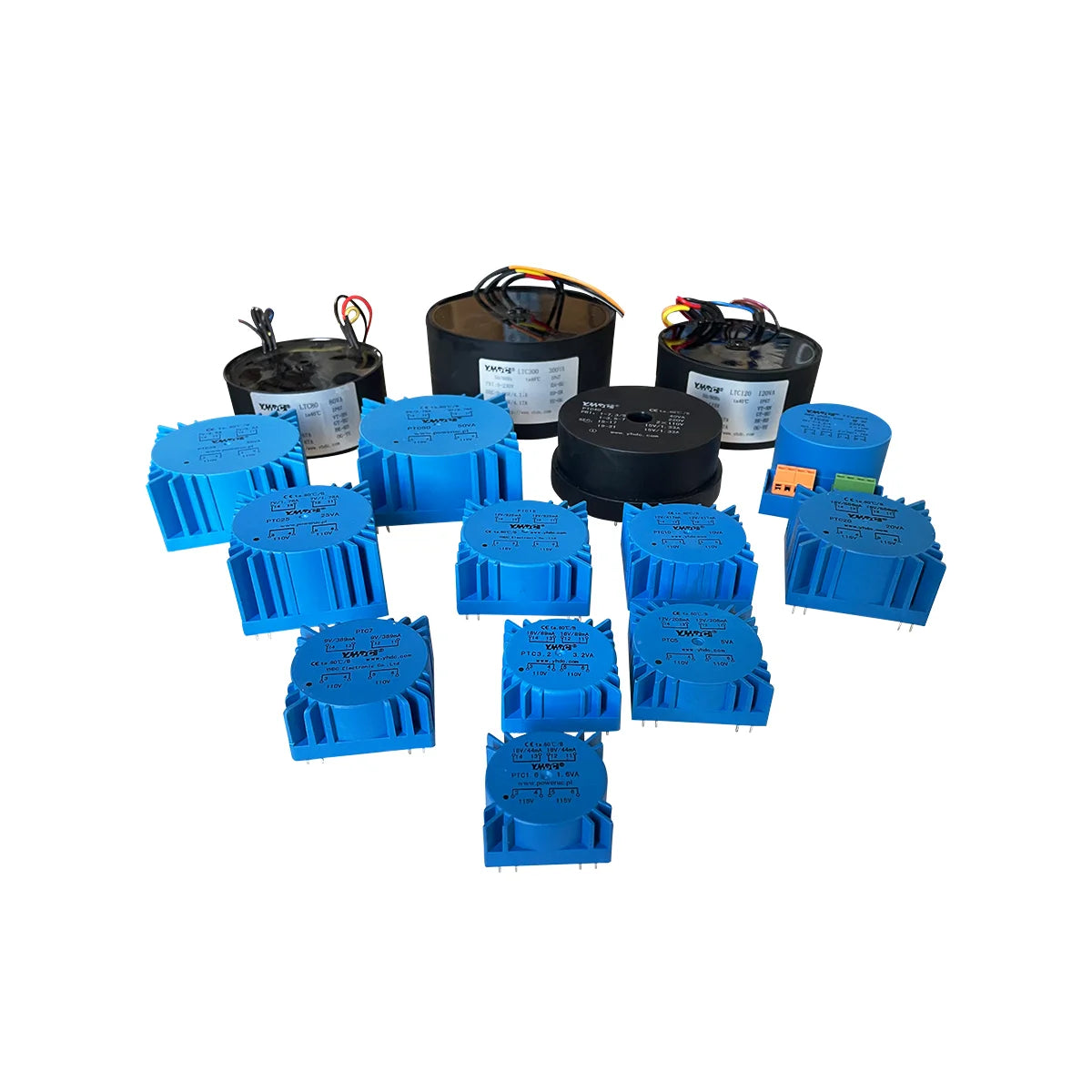

Main Product:

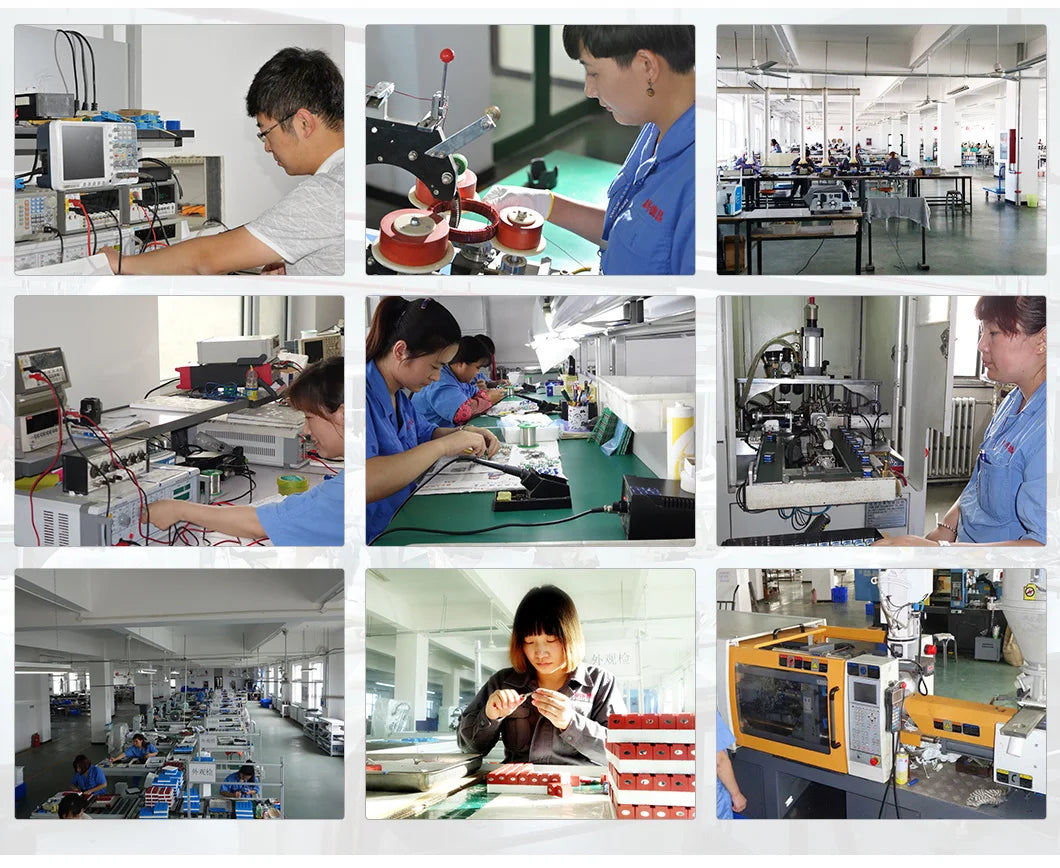

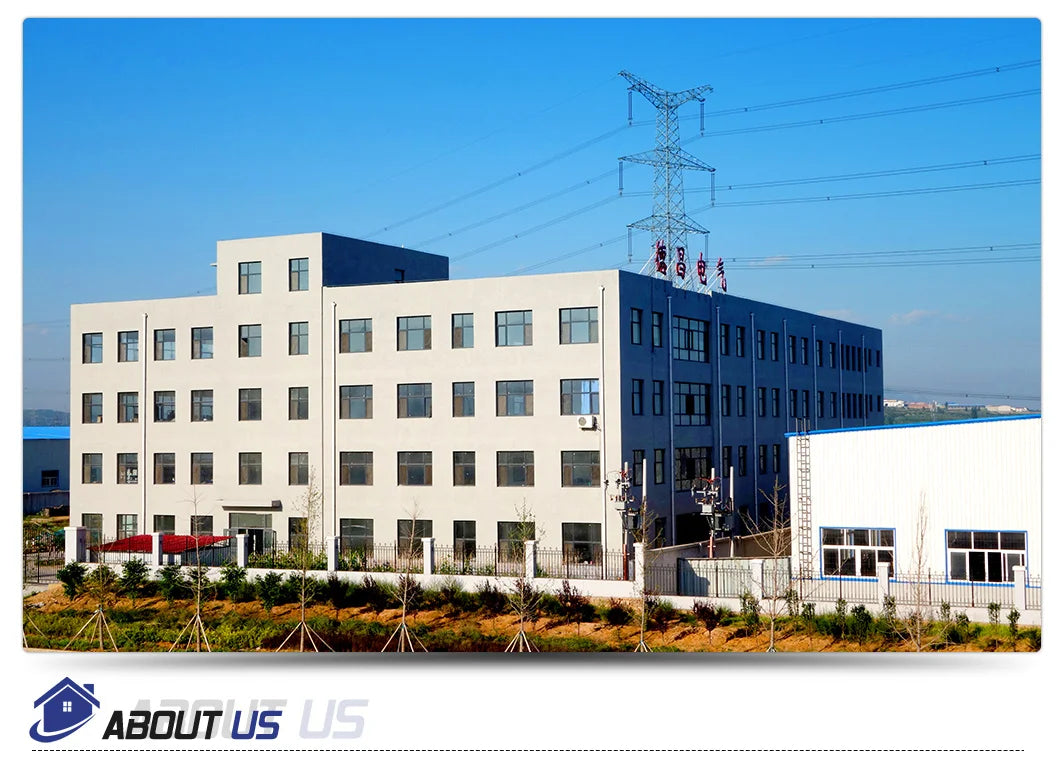

Company Profile:

YHDC was established in 1992 and is a leading manufacturer of electromagnetic components and devices. Our products are widely used in industrial equipment, precision instruments and meters, aerospace, medical, railway, electric power, wind power and other high end industries that require high performance and reliability. The product range includes power transformers, current transformers, SCR trigger transformers, DC current sensors, residual/leakage current transformers and sensors, and Rogowski coils. YHDC's R&D team is constantly developing new high performance devices every year . The company is equipped with mold manufacturing and injection molding workshops . Over the years , we have designed and developed hundreds of products, including non standard products according to customer requirements. Focus on the design and manufacture of high-quality products, adapt to severe environments, long term reliable operation , and a service life of up to 20 years. YHDC has a number of patents, which are widely used in power, Internet of Things and other industries.

Our Advantages:

We value our customers Timing Reply in 24 hours, showcasing our passion and patience. According customers' require- ment recommend the suitable product. We provide 1 year warranty, If you have any problems during use, our technical team will provide technical support.

Certifications:

Exhibition:

Packaging & Shipping:

Package:

· All our CT will be well packed with box in a carton.
· You can design your own label and package
· Can be netural packing or OEM. Shipping
· Products are shipped via DHL/ FedEx /UPS /TNT, etc. (door to door), or air & sea shipment for larger qty.
