Description

SPECIFICATIONS

Brand Name: YIDIELE

Choice: yes

Function: Momentary

Model Number: YD-AZ

Origin: Mainland China

Rating: 10A/250VAC

semi_Choice: yes

Note: If Need Large Quantities, Click the photo below to check for better price

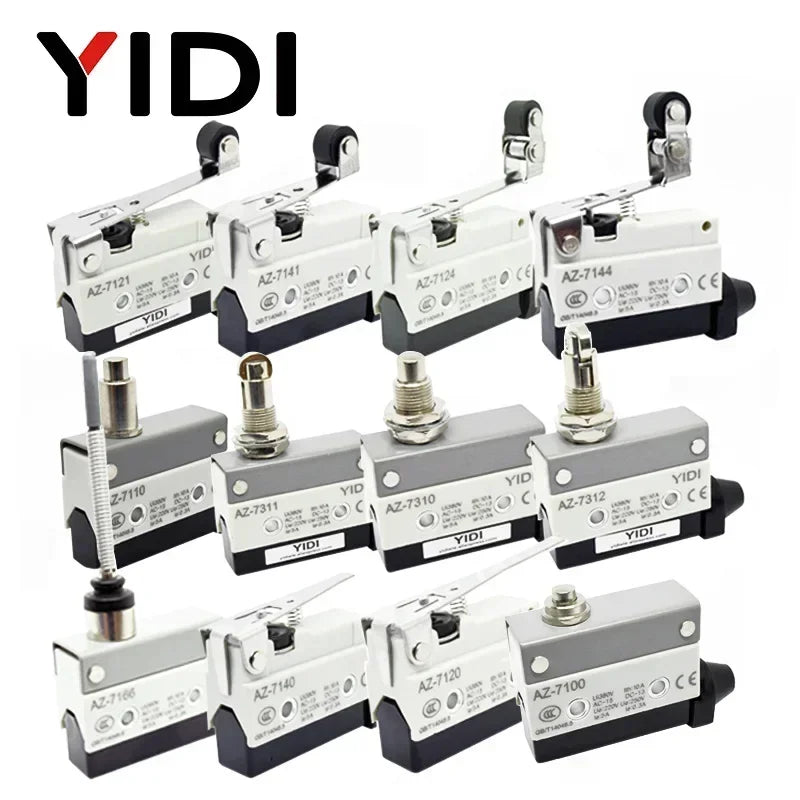

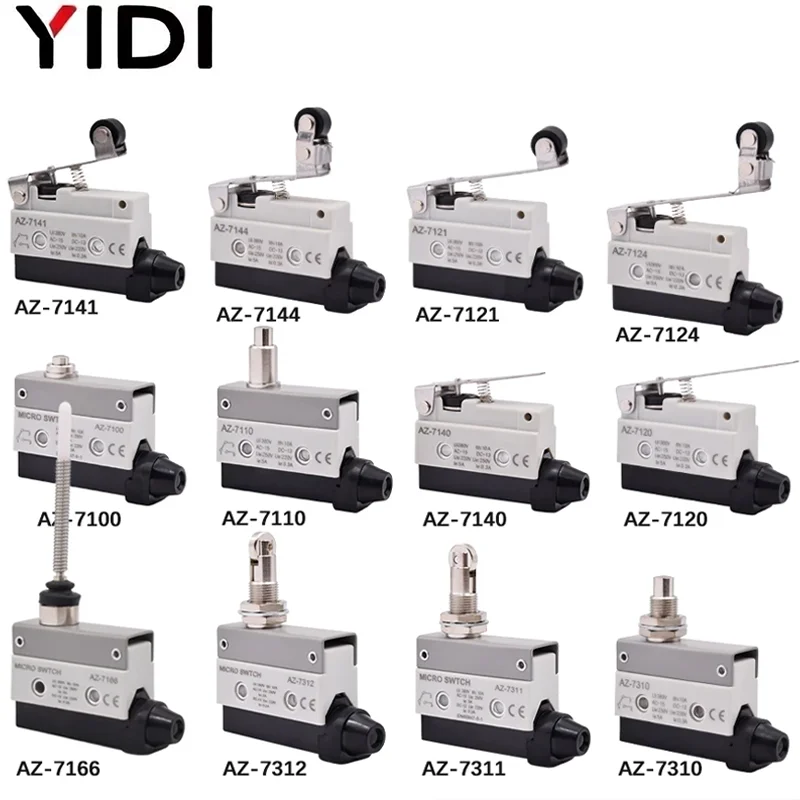

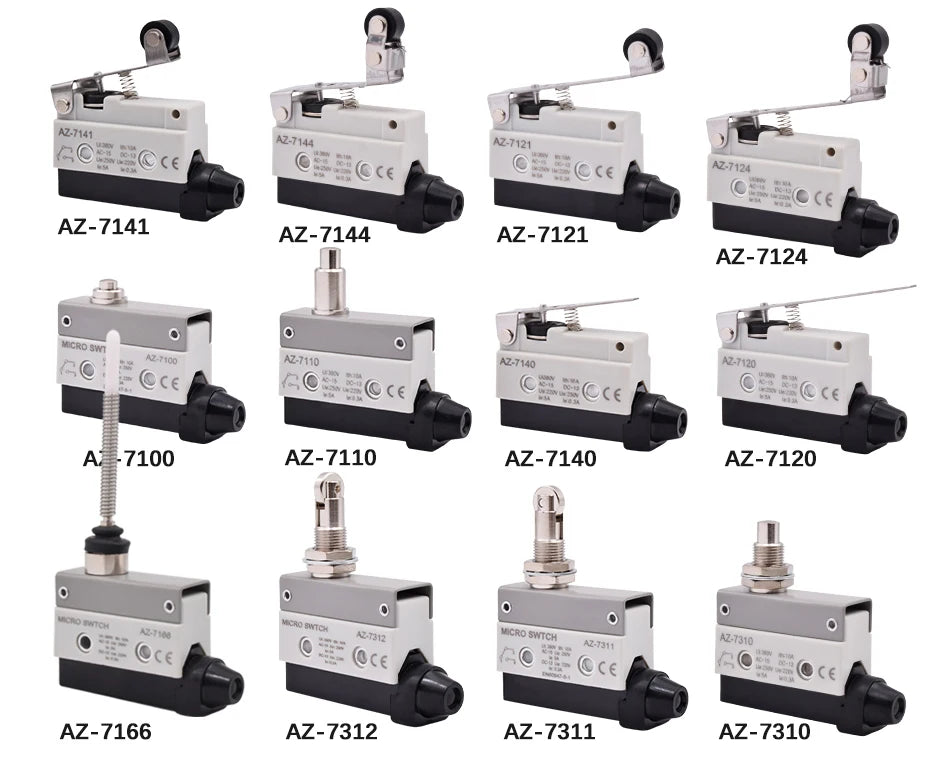

YIDI 10A 250VAC Waterproof Microswitch Travel Micro Limit Switch Small Horizontal Roller Lever AZ-7120 AZ-7121 AZ-7124 AZ-7140 AZ-7141 AZ-7144 AZ-7310 AZ-7311 AZ-7312 AZ-7100 AZ-7110 AZ-7166 TZ-7141

Mounting Way

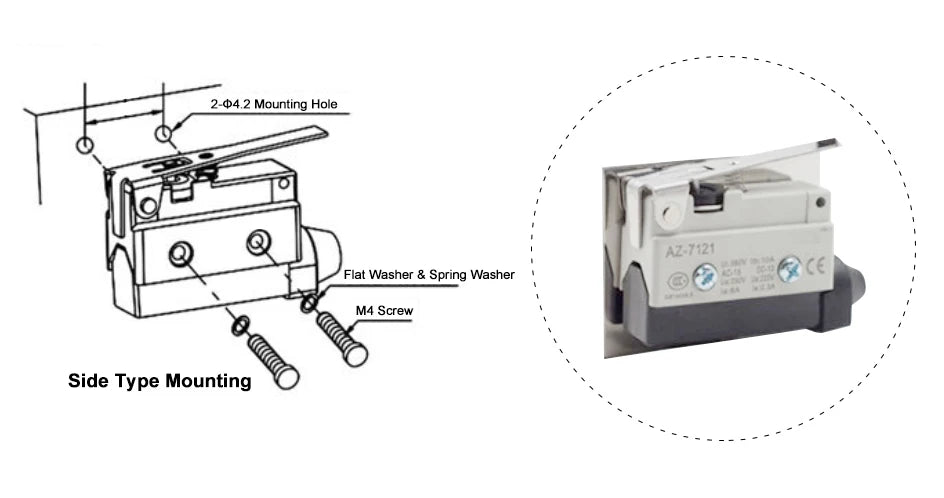

1. Side Type Mounting

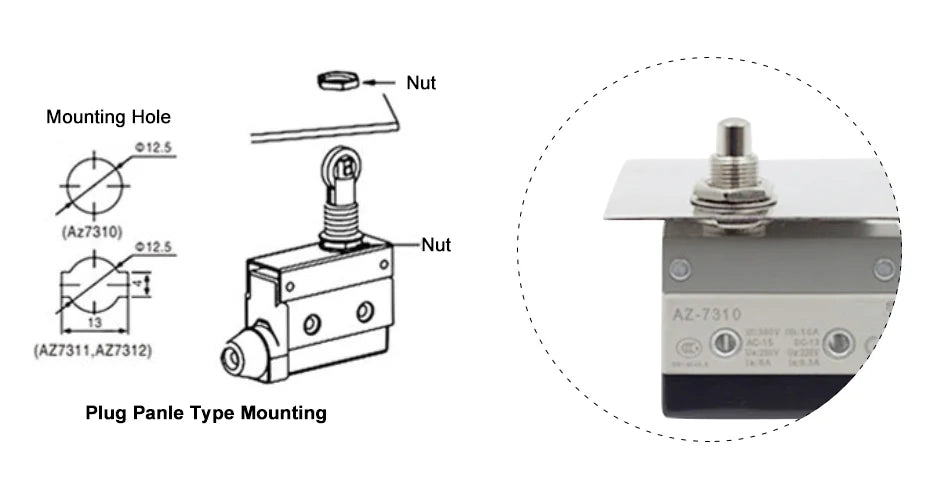

2. Plug Panel Type Mounting

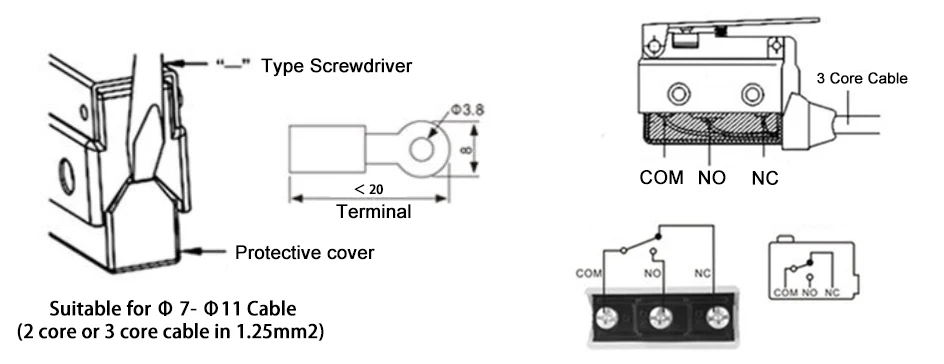

Wiring Way

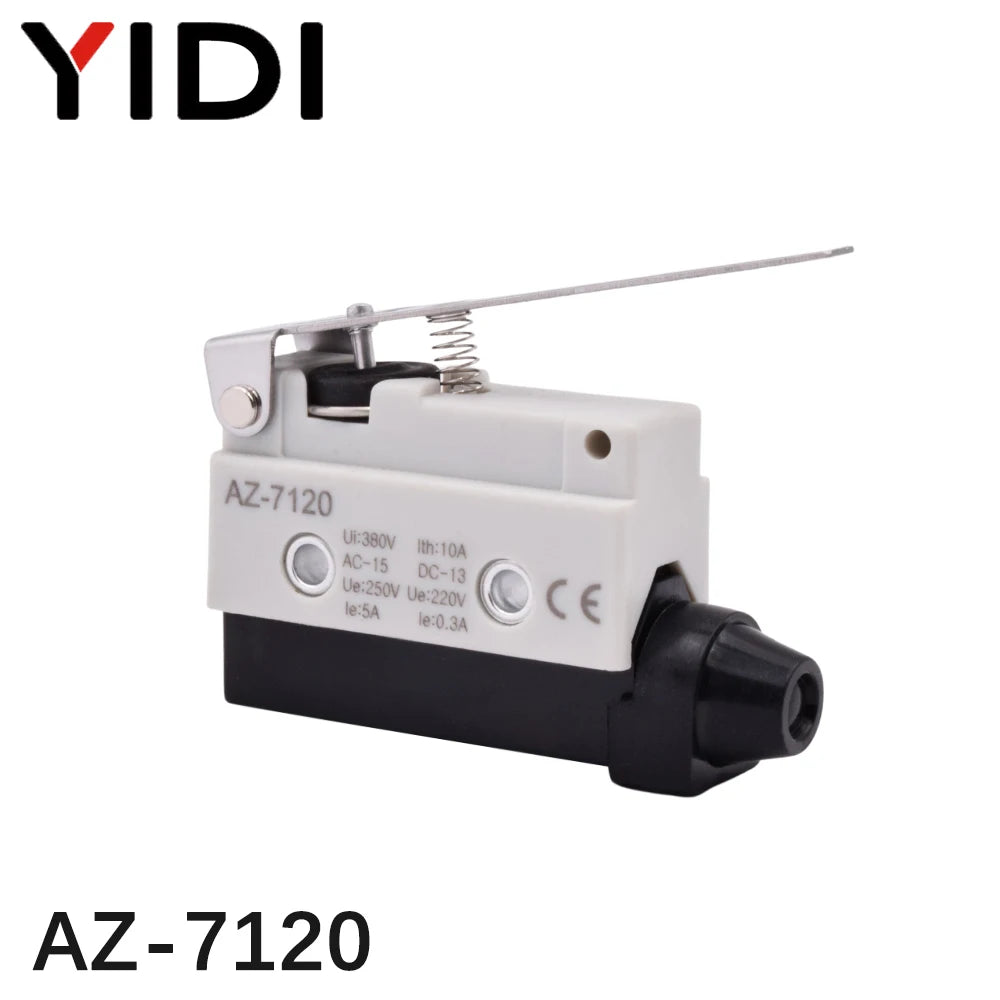

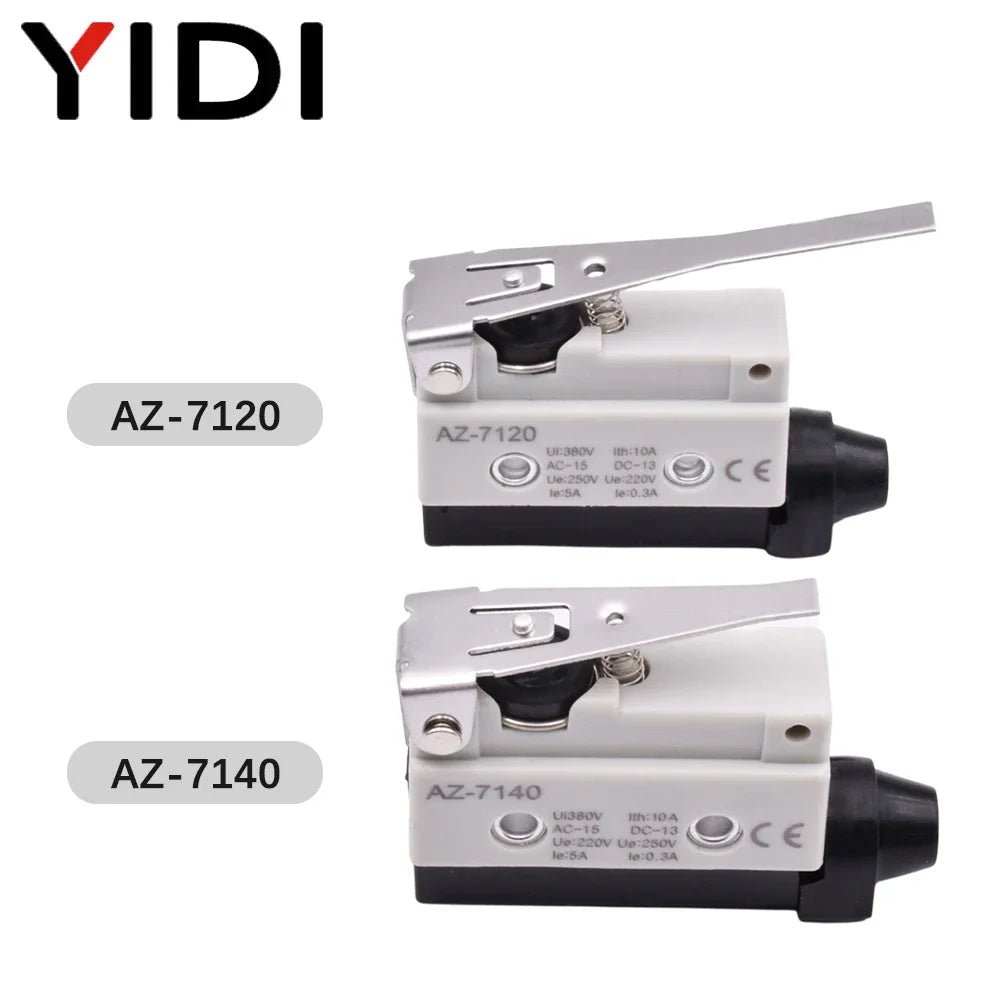

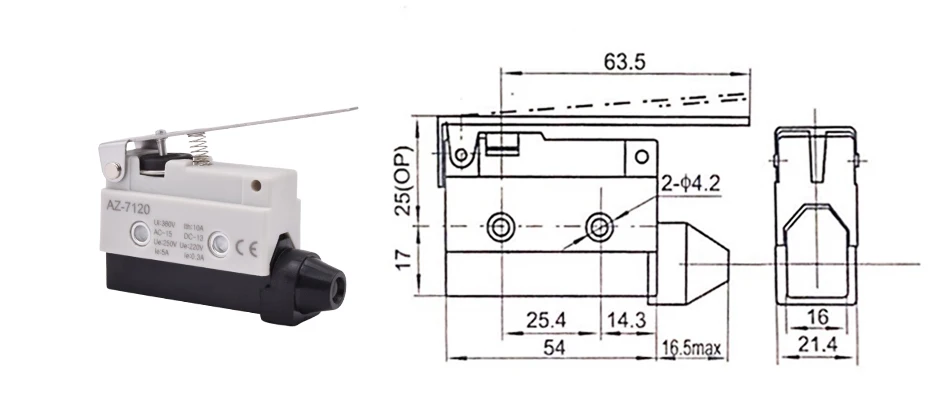

1. AZ-7120 10A 250VAC Long Lever Micro Limit Switch Waterproof Dustproof

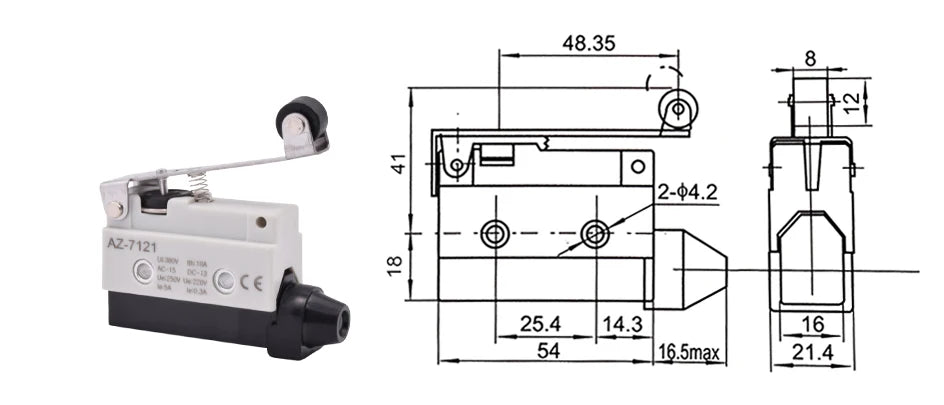

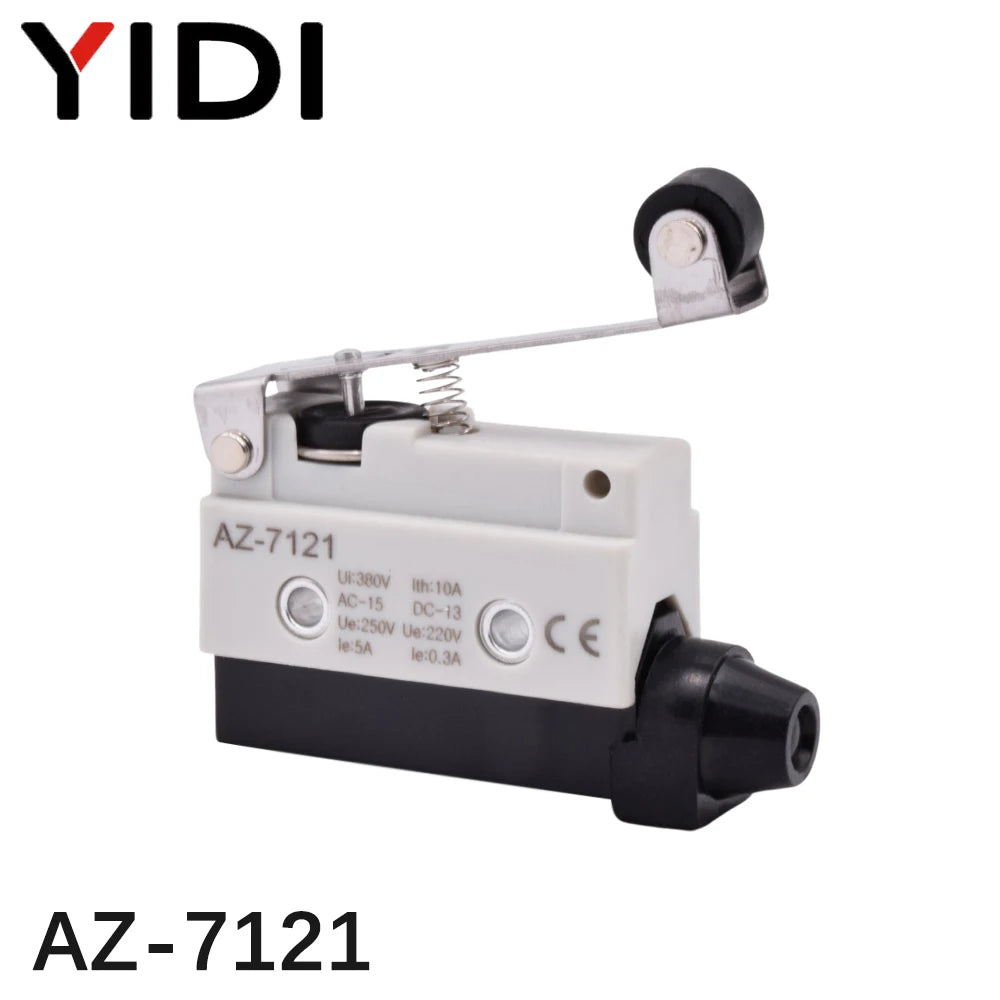

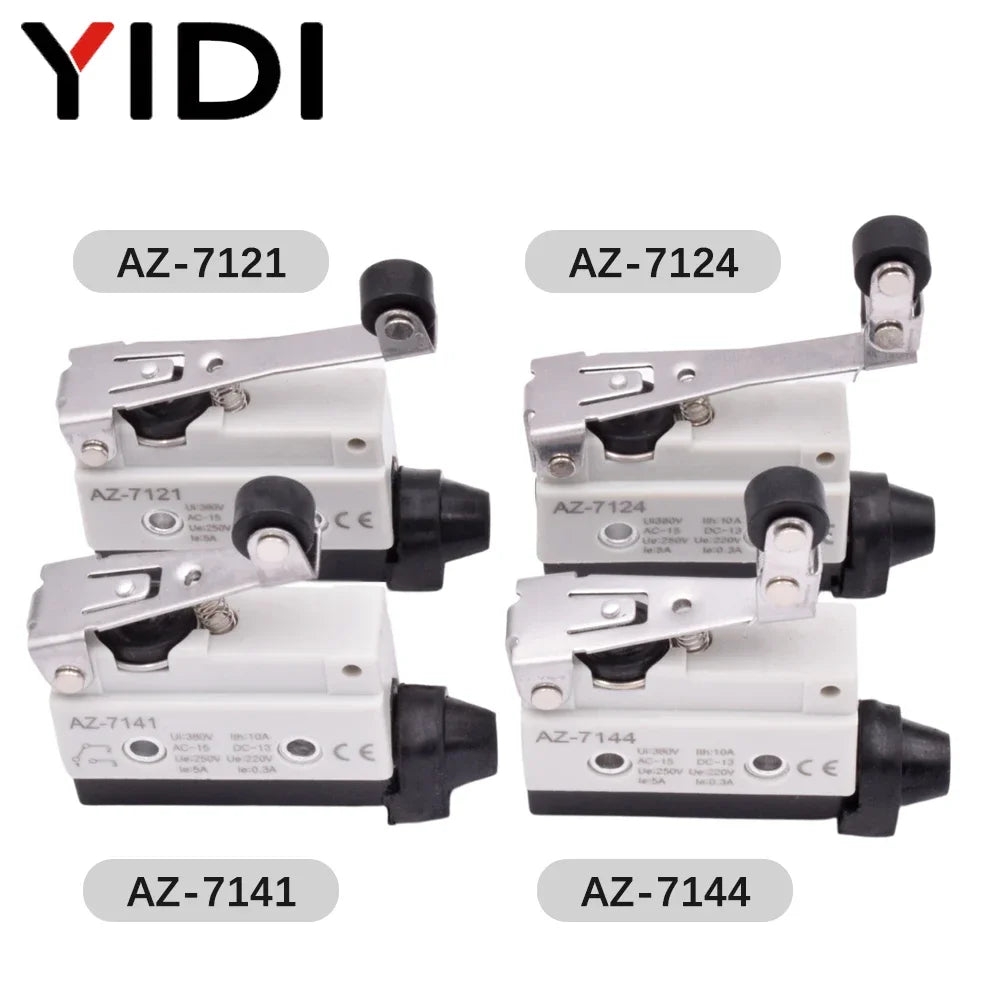

2. AZ-7121 TZ Waterproof Micro Travel Limit Switch Roller Lever

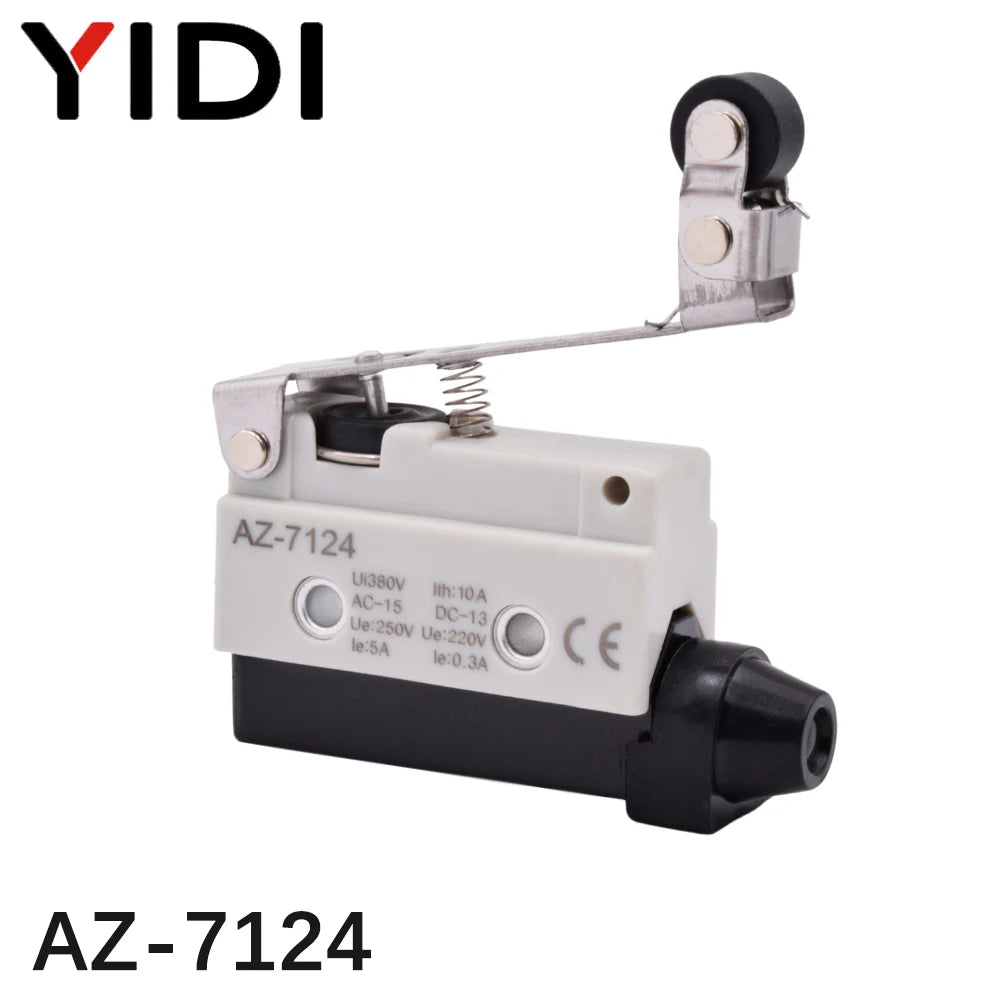

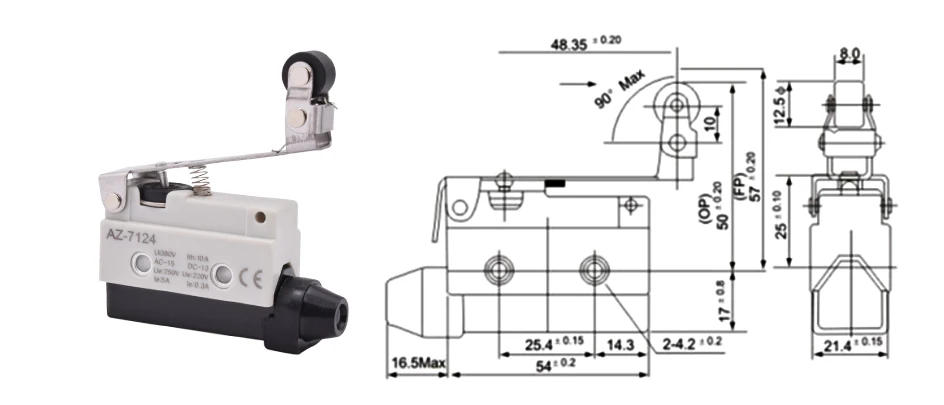

3. AZ-7124 Rotary Roller Limit Micro Travel Switch Waterproof Dustproof

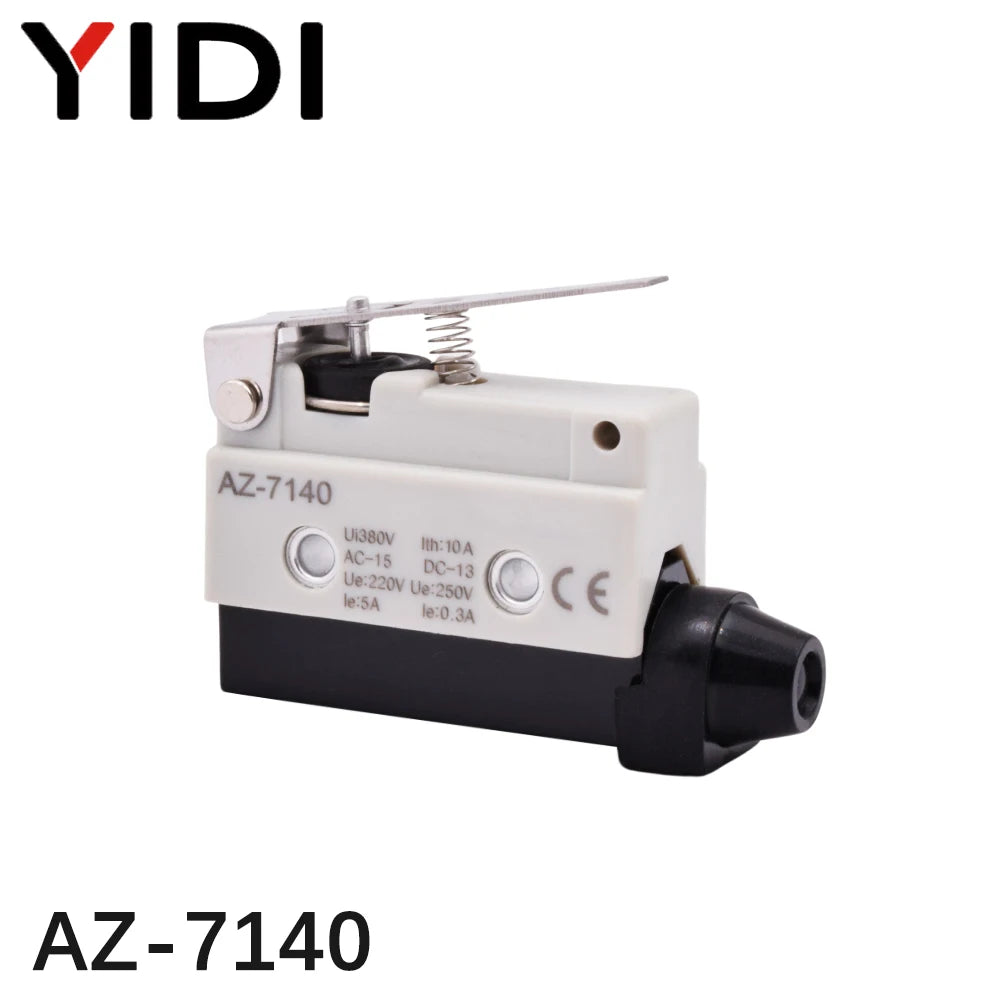

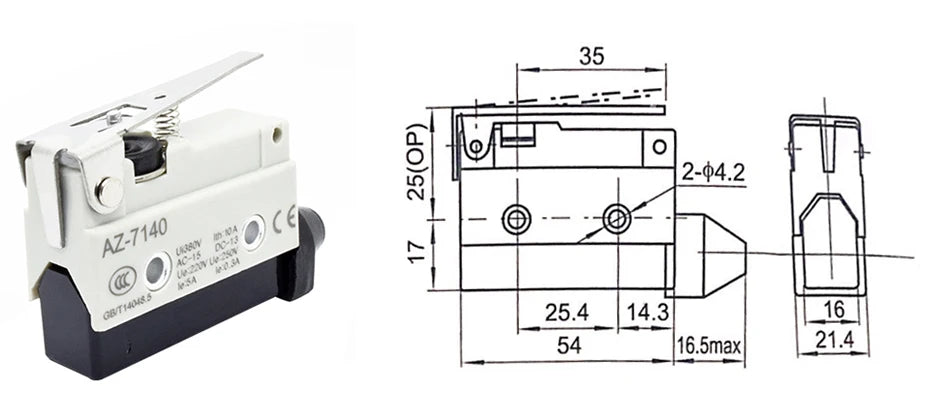

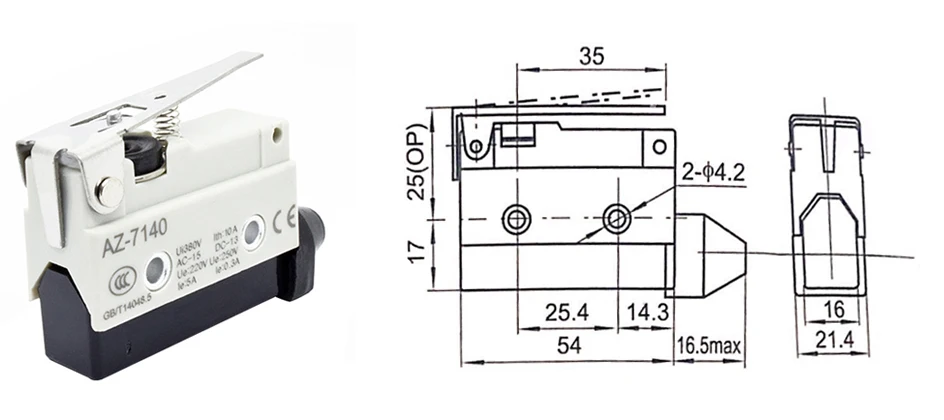

4. AZ-7140 Waterproof Short Lever Stroke Limit Micro Switch

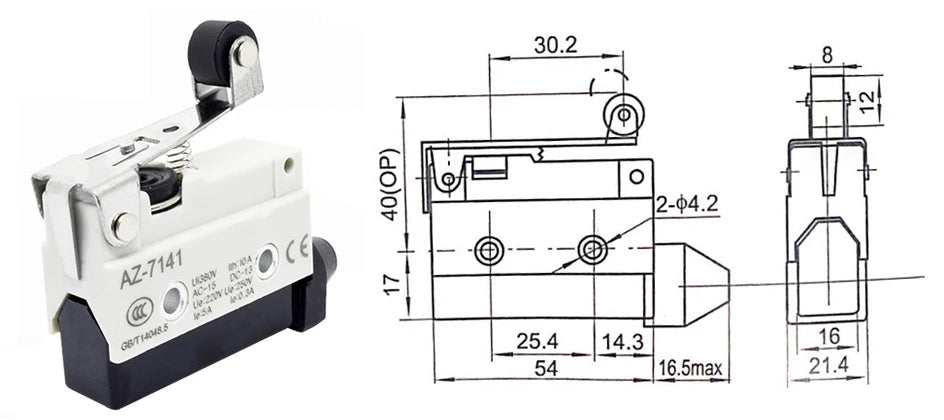

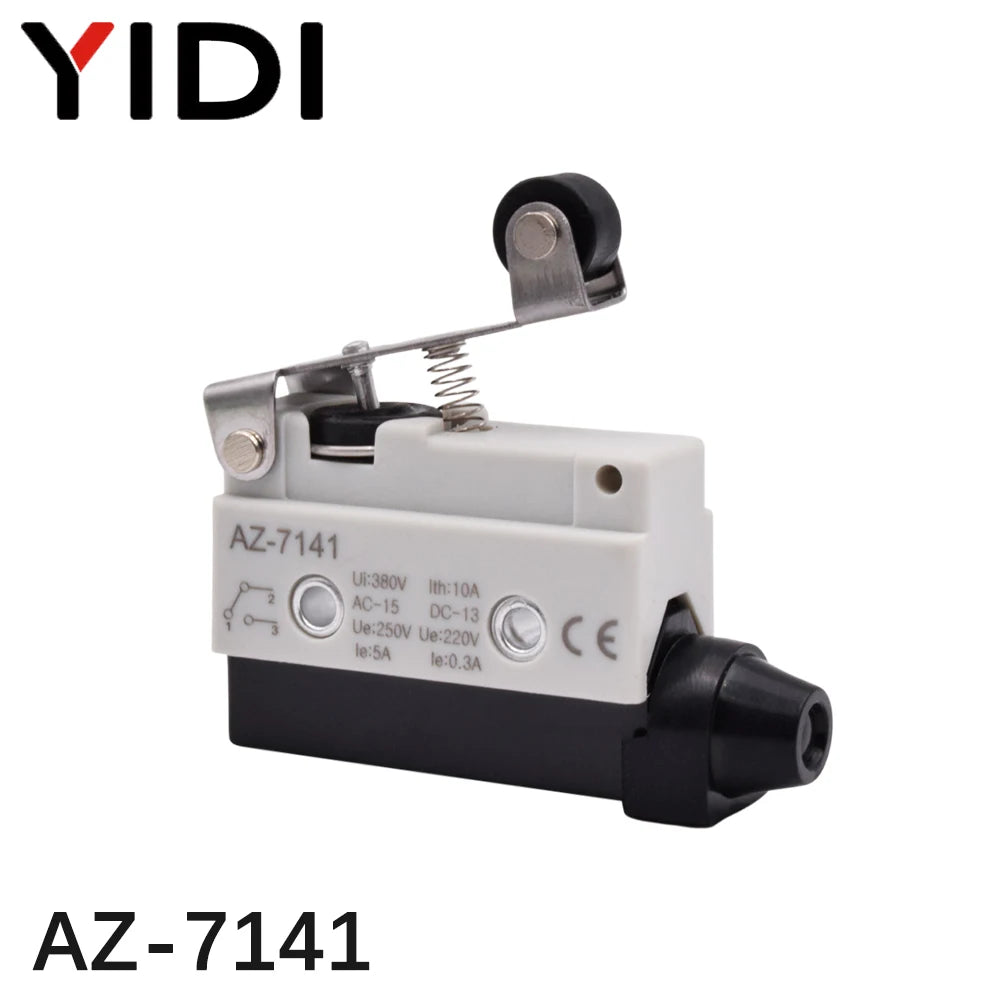

5. AZ-7141 Short Lever Roller Micro Limit Switch

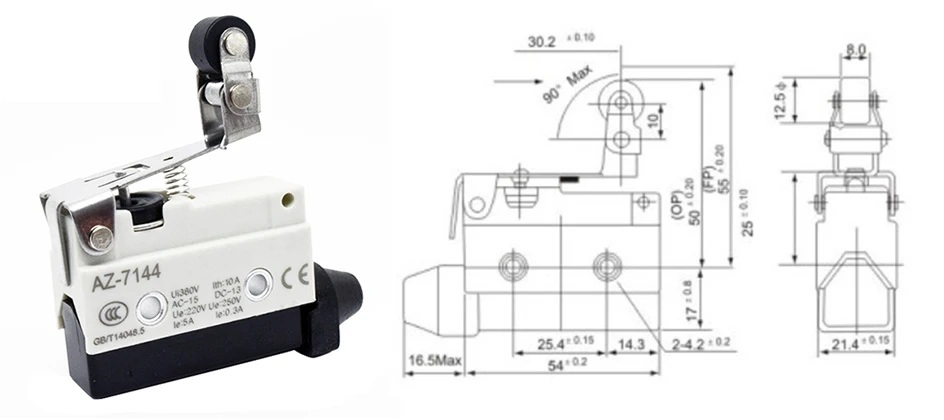

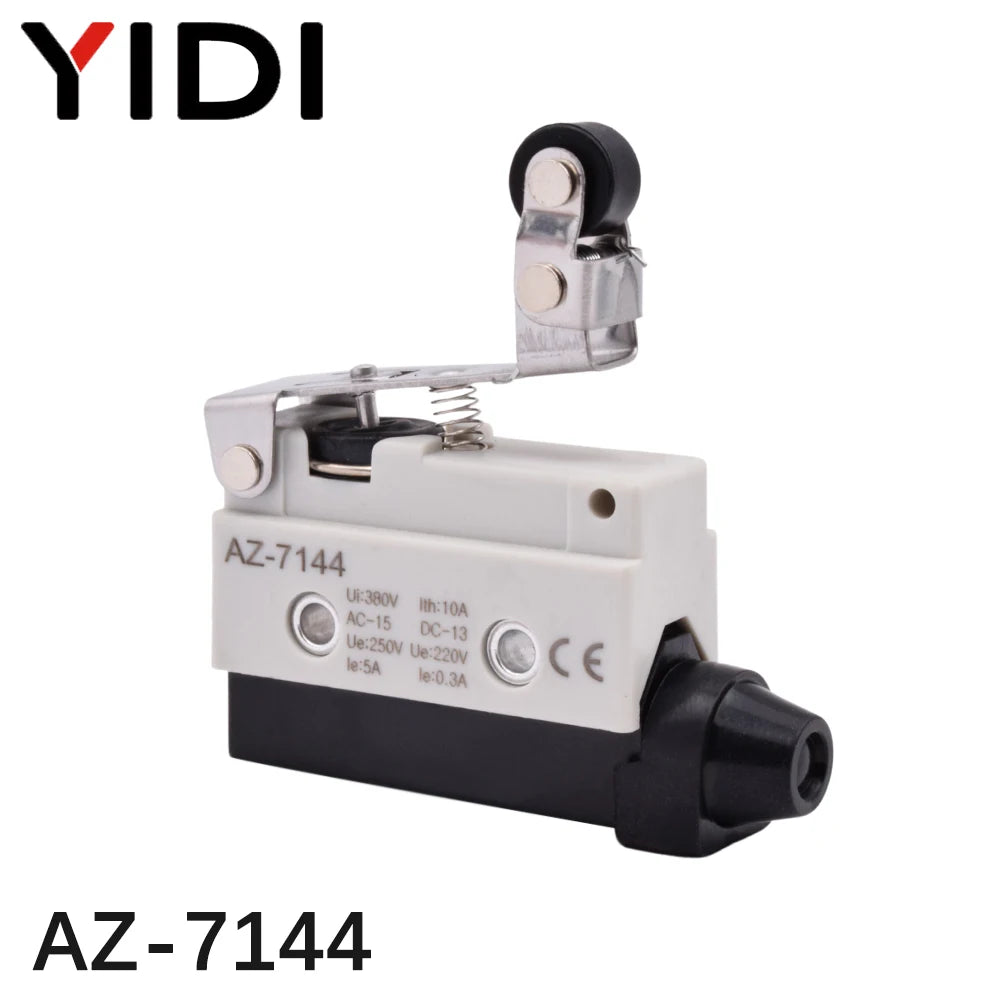

6. AZ-7144 Short Lever Roller Rotary Limit Travel Micro Switch C NO NC

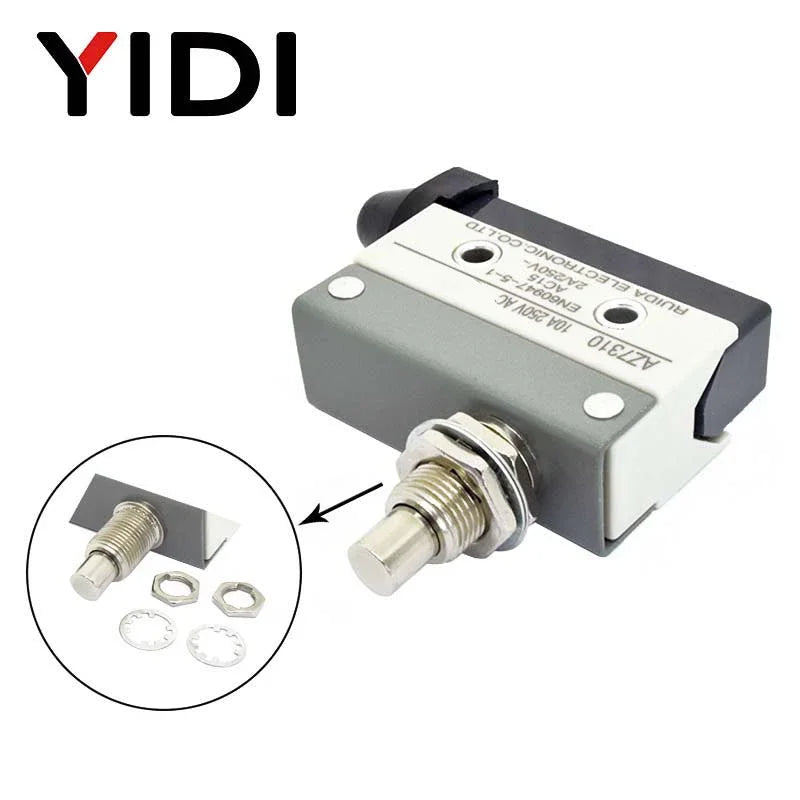

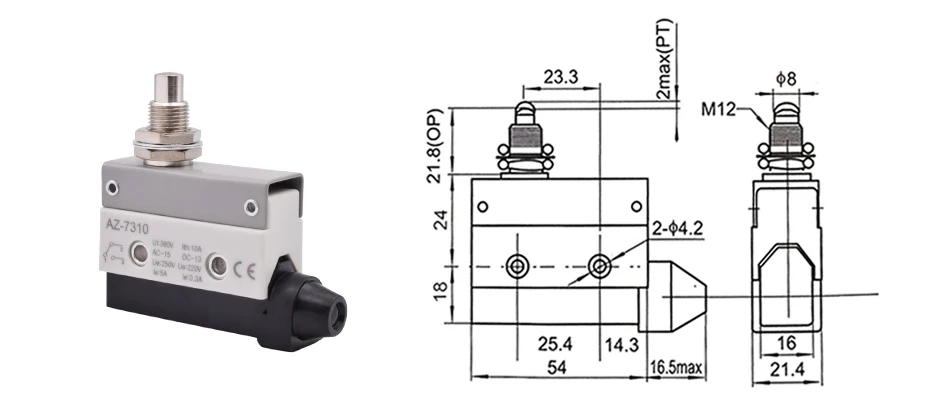

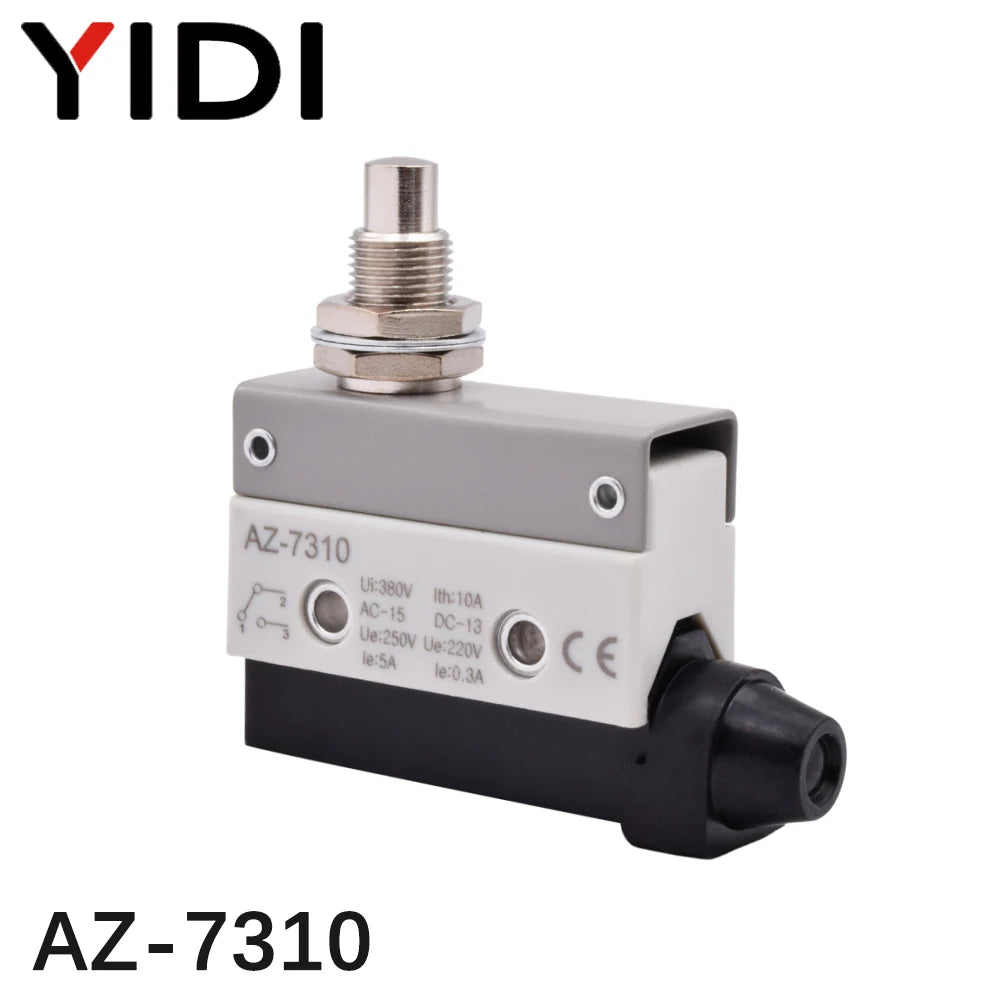

7. 10A 250VAC AZ-7310 Dustproof Microswitch Limit Travel Switch Push

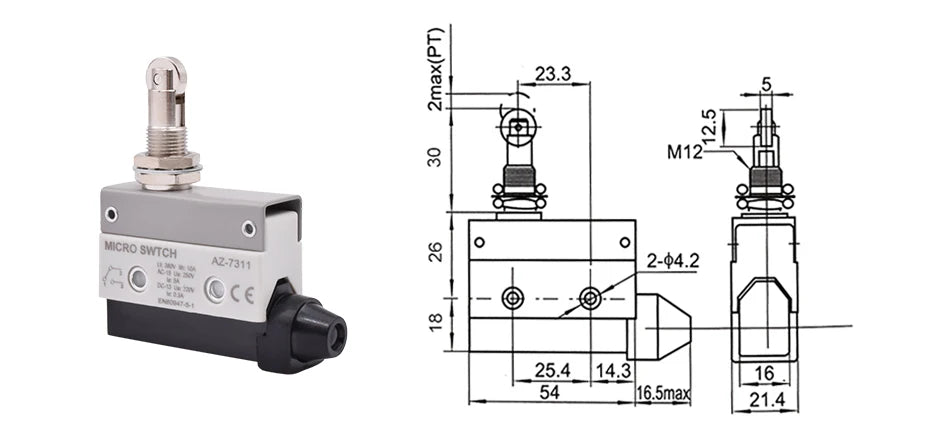

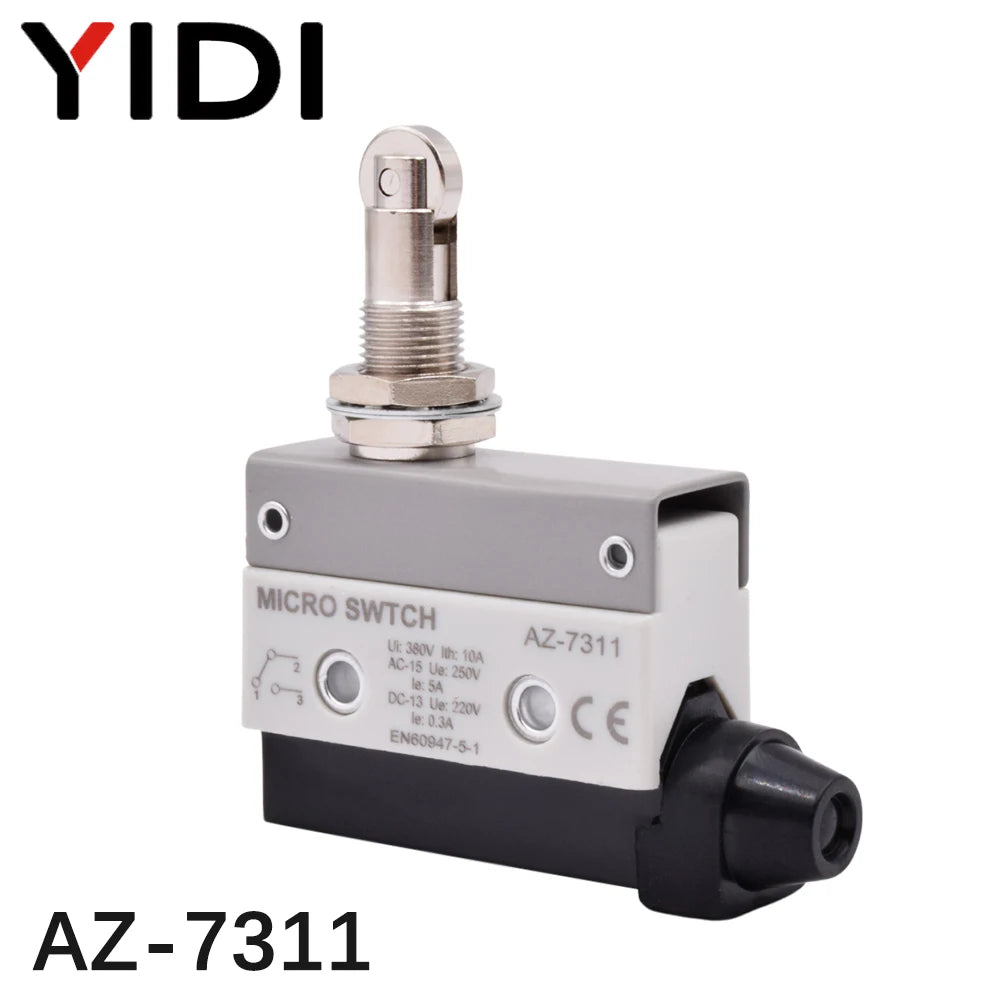

8. AZ-7311 10A 250VAC Rotary Micro Limit Switch Waterproof Dustproof

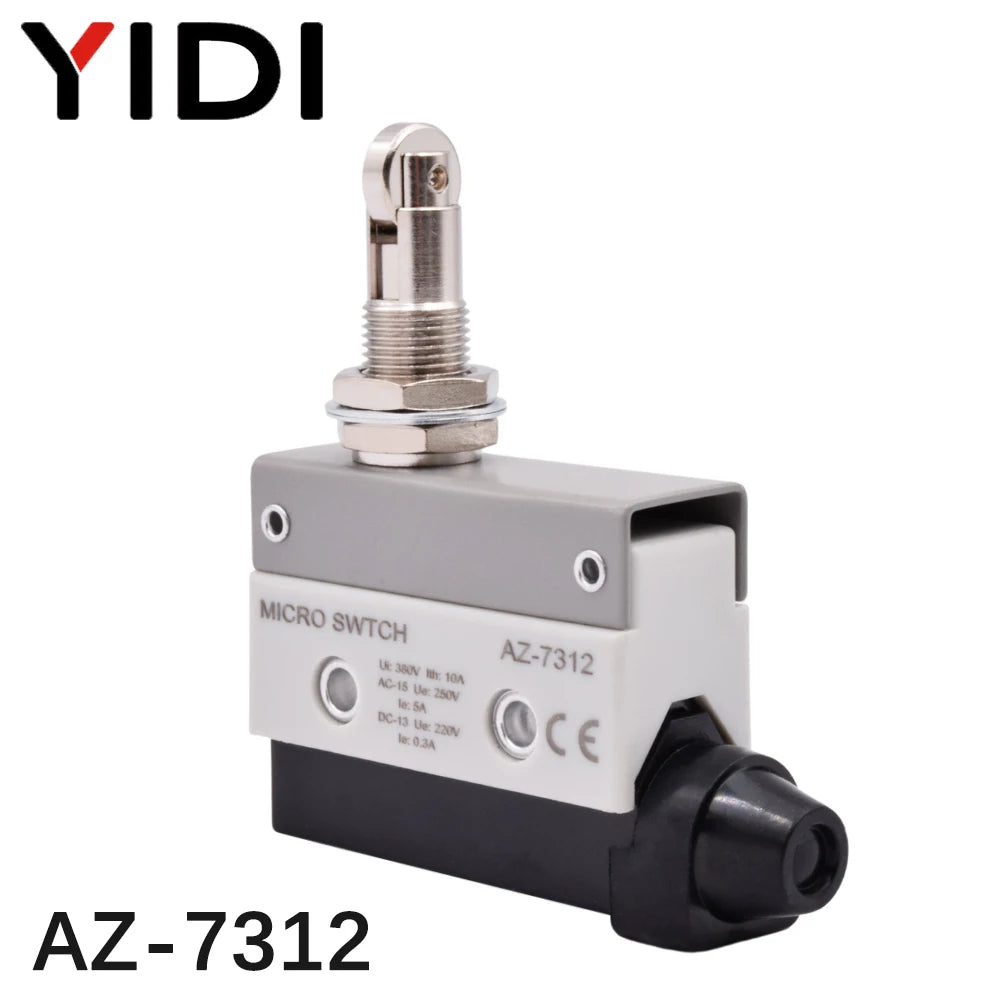

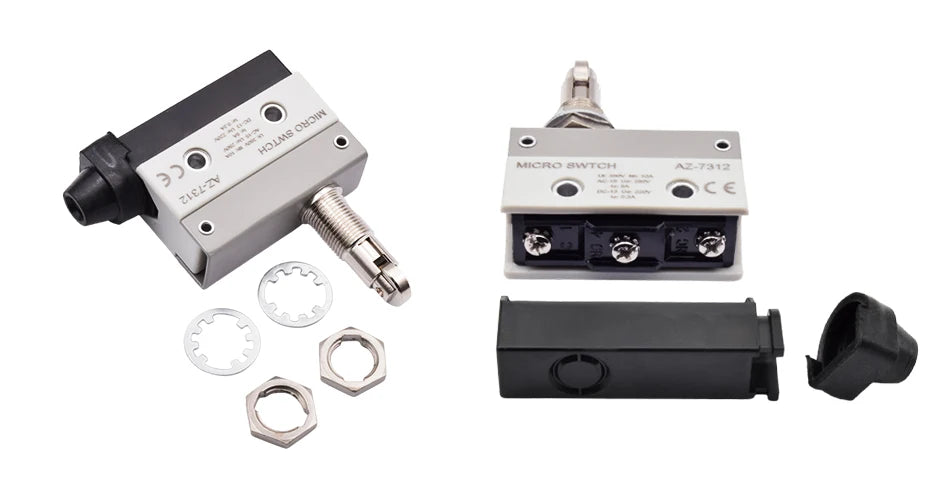

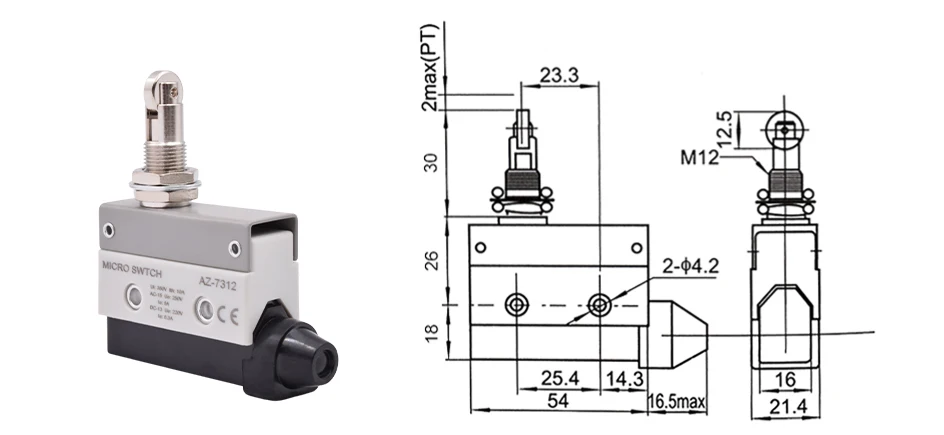

9. AZ-7312 Waterproof Travel Limit Switch Small Horizontal Stroke switch

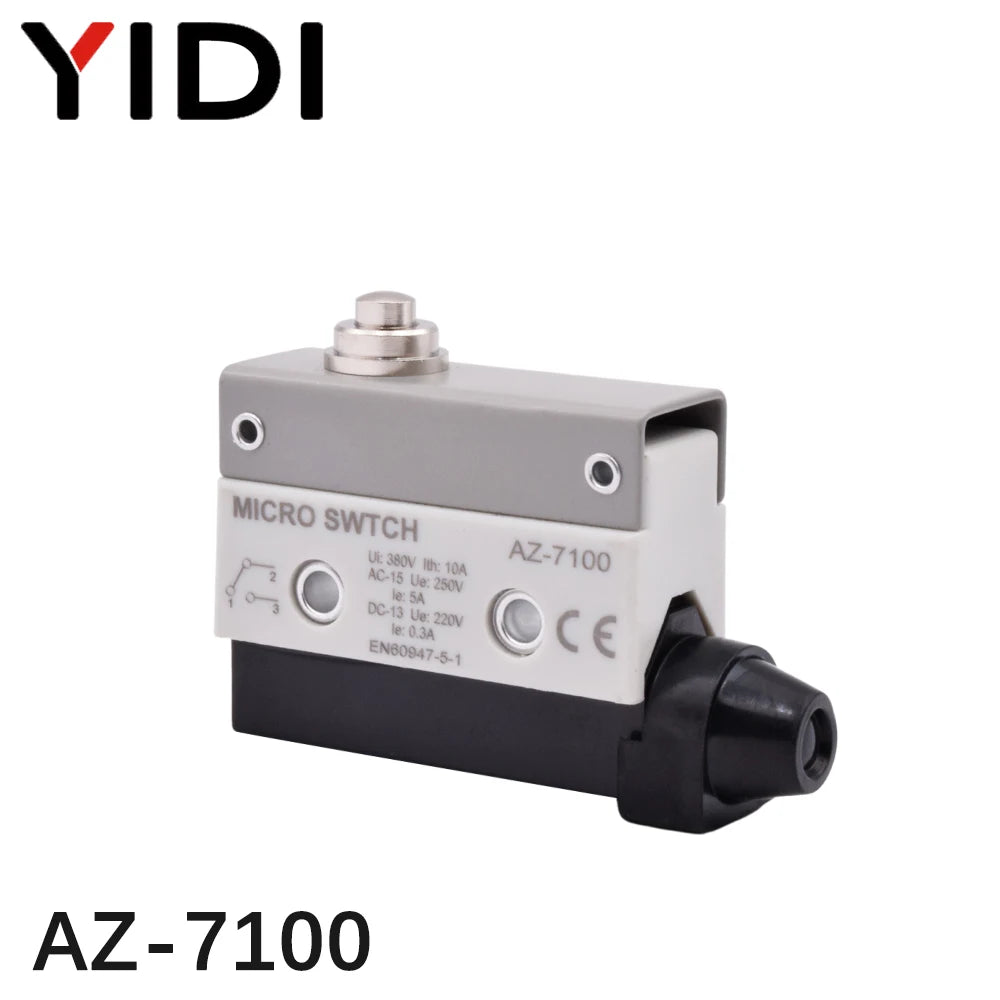

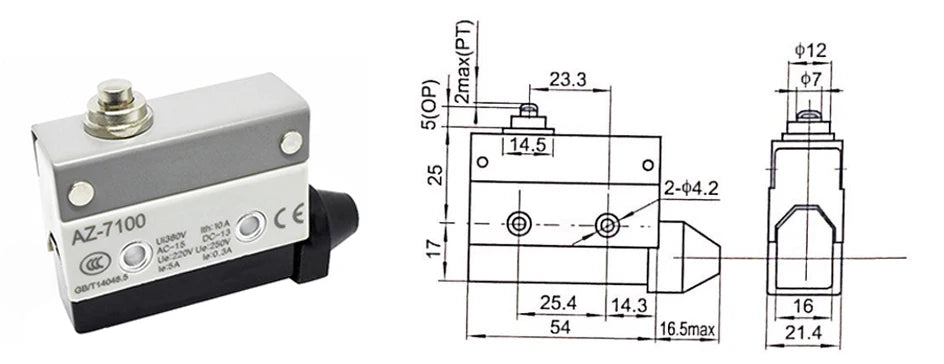

10. AZ-7100 TZ Waterproof Micro Travel Limit Switch Push Button

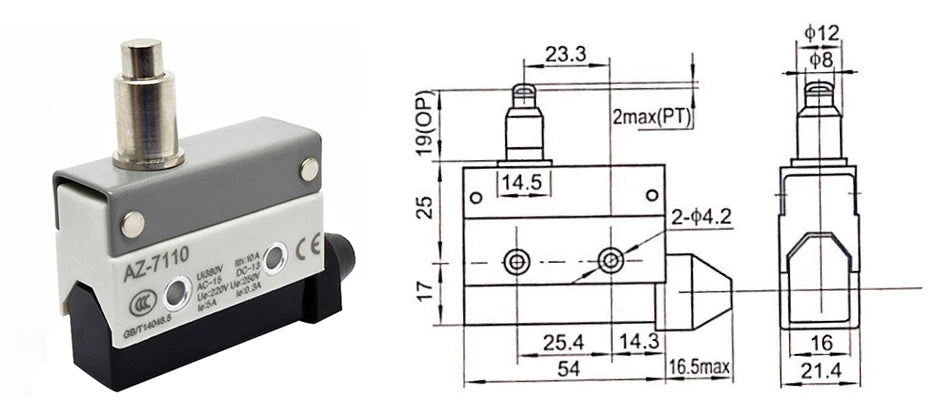

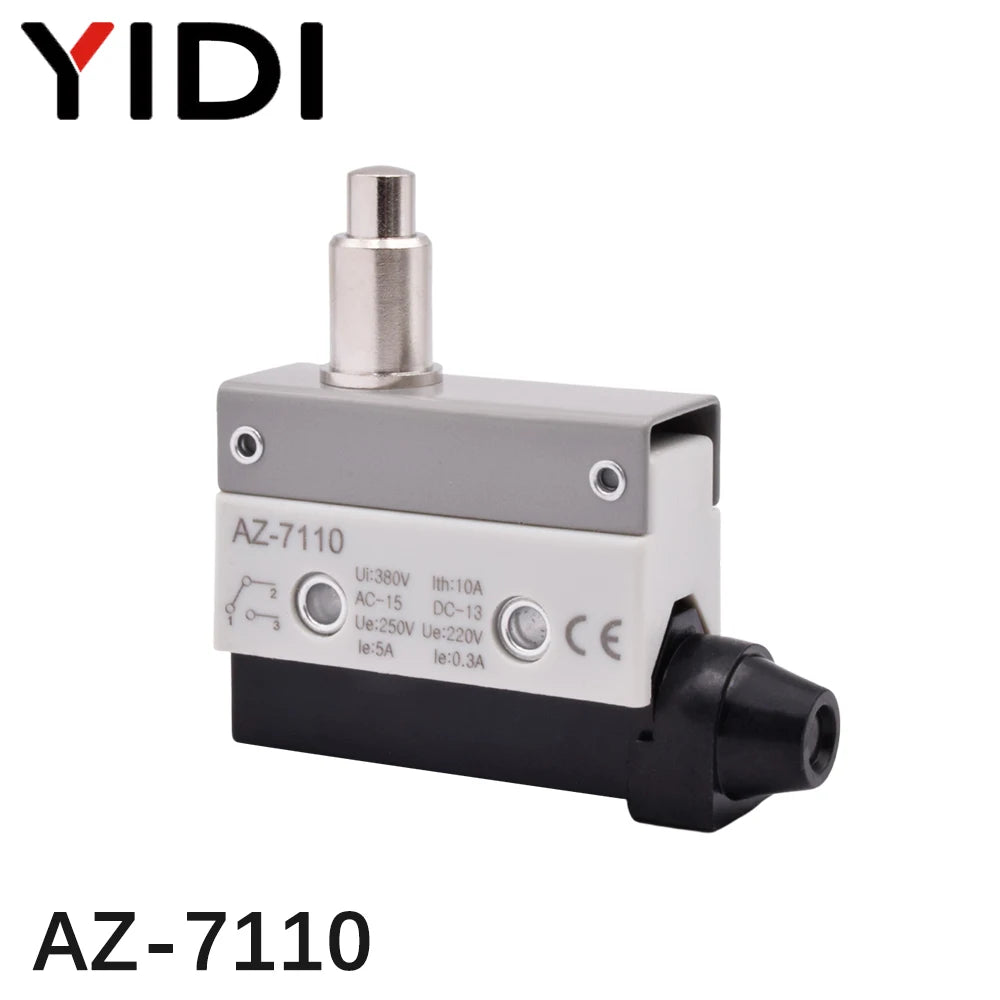

11. 10A 250VAC AZ-7110 Dust proof Microswitch Limit Travel Switch Push Switch

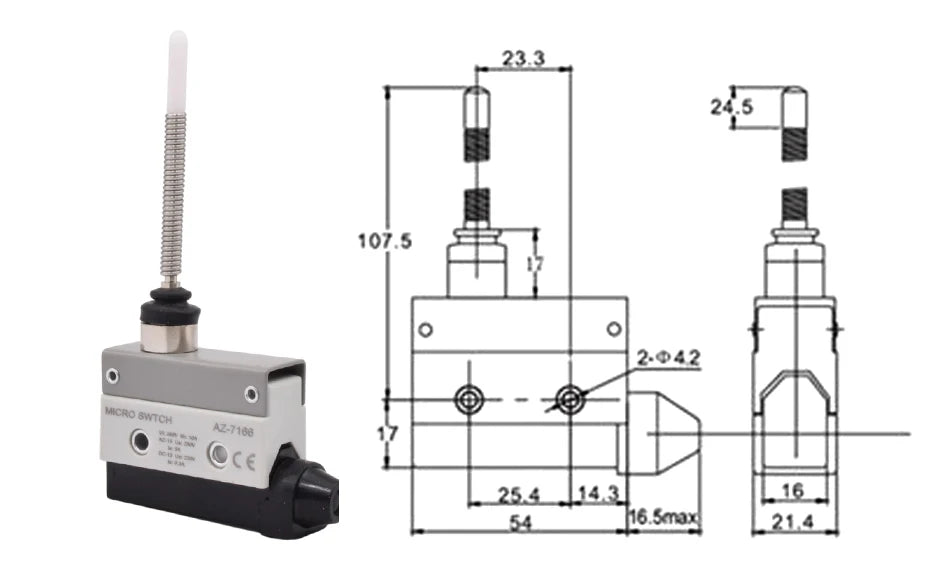

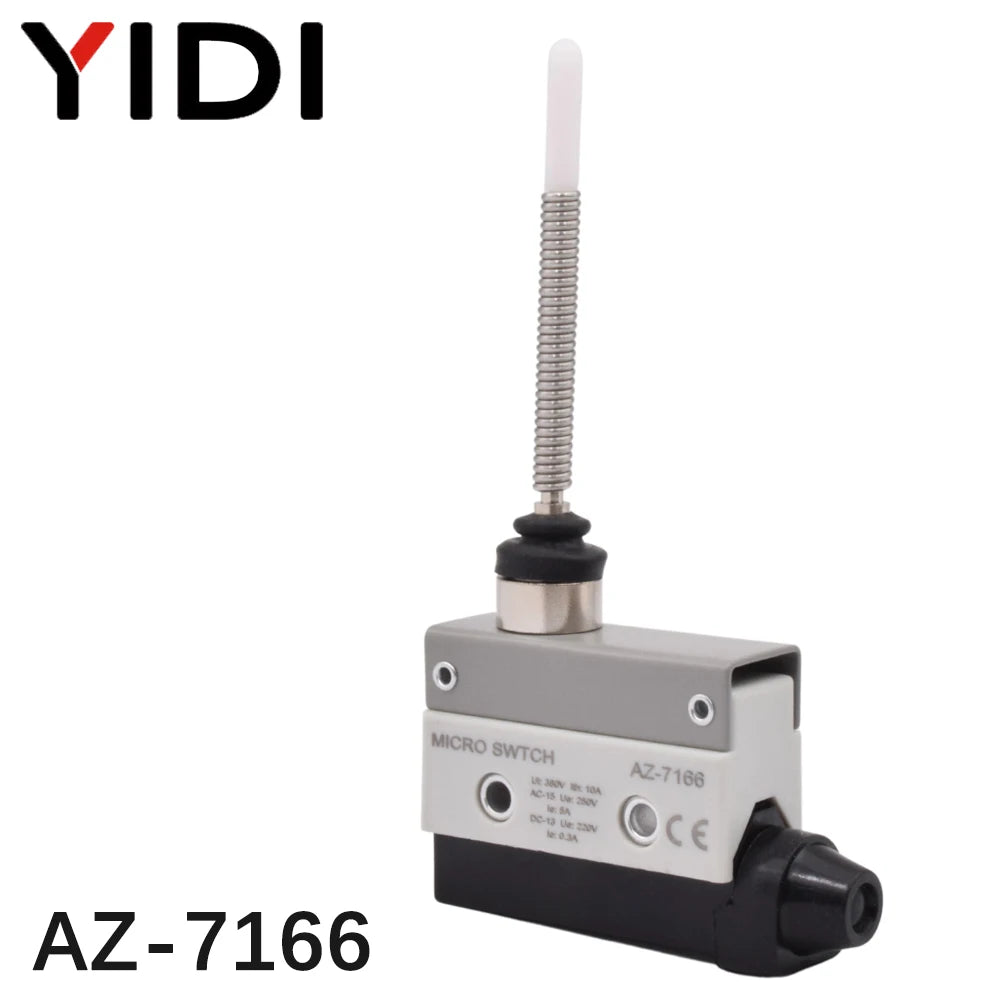

12. AZ-7166 Waterproof Dustproof Limit Travel Switch
