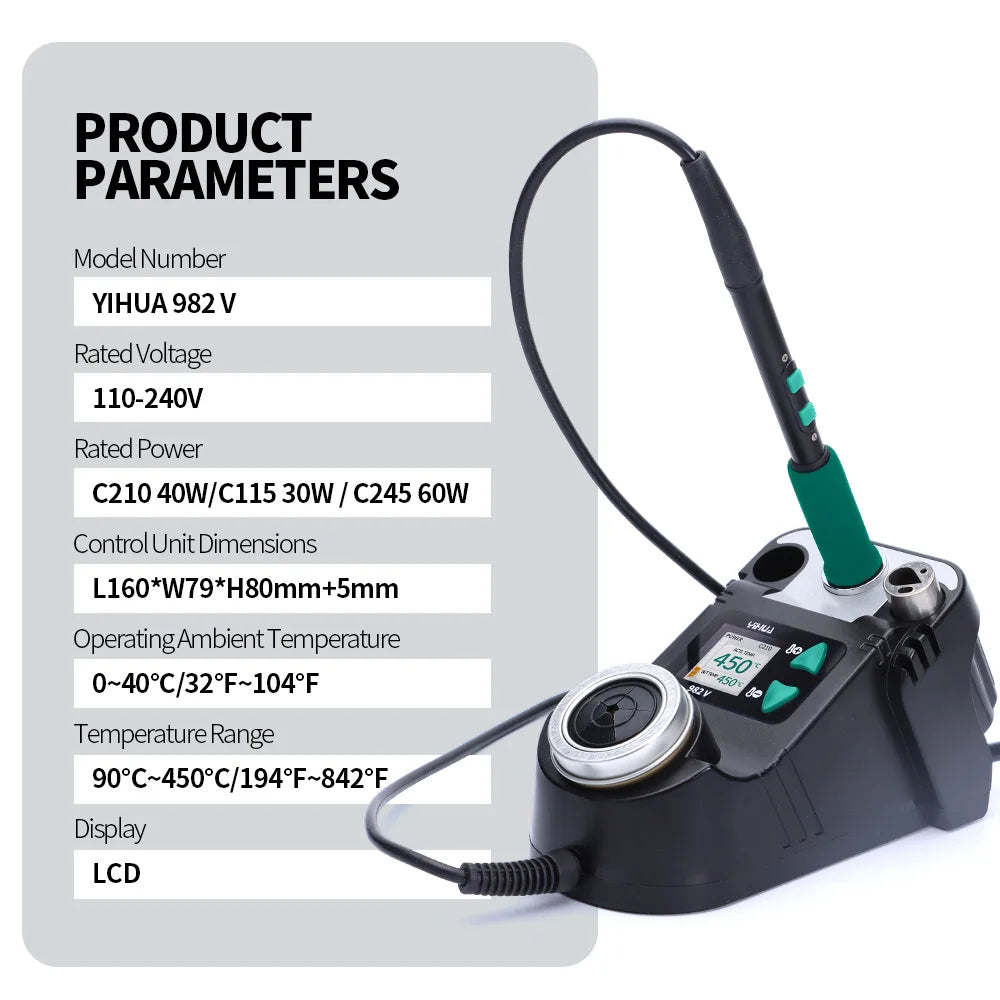

SPECIFICATIONS

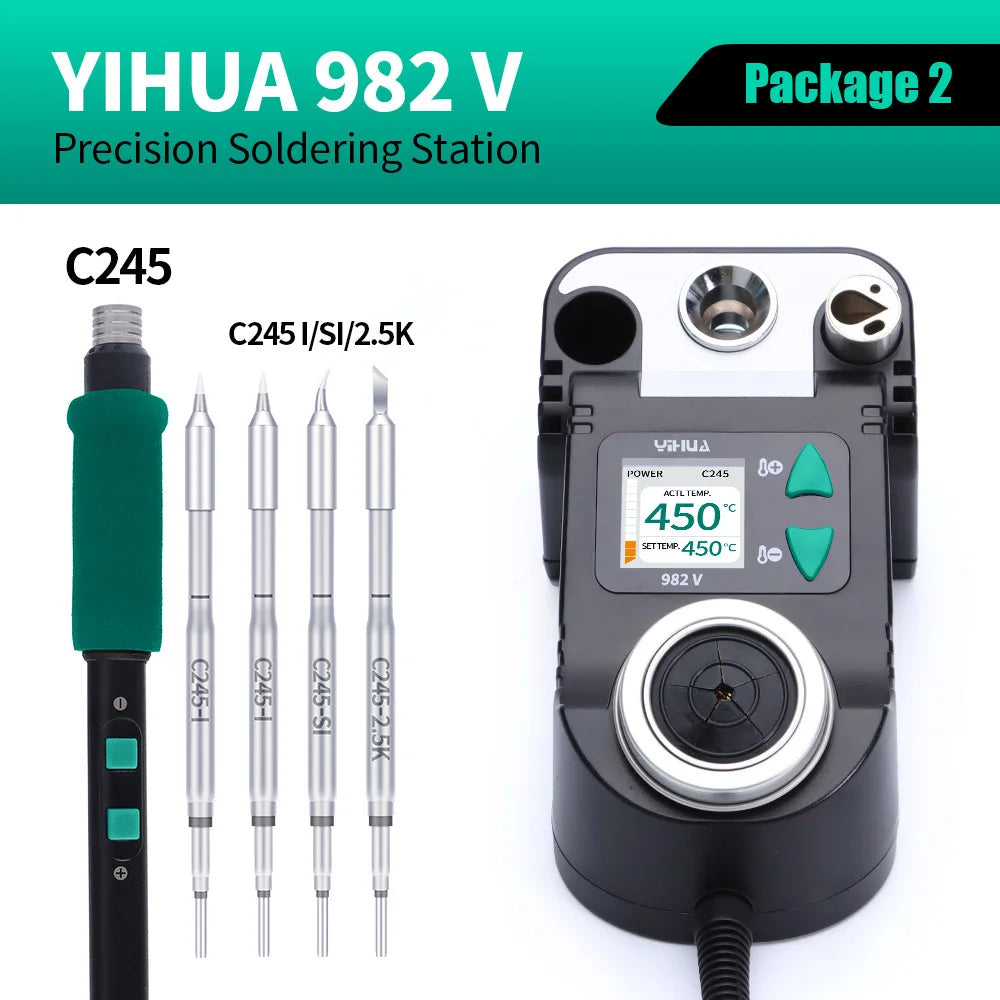

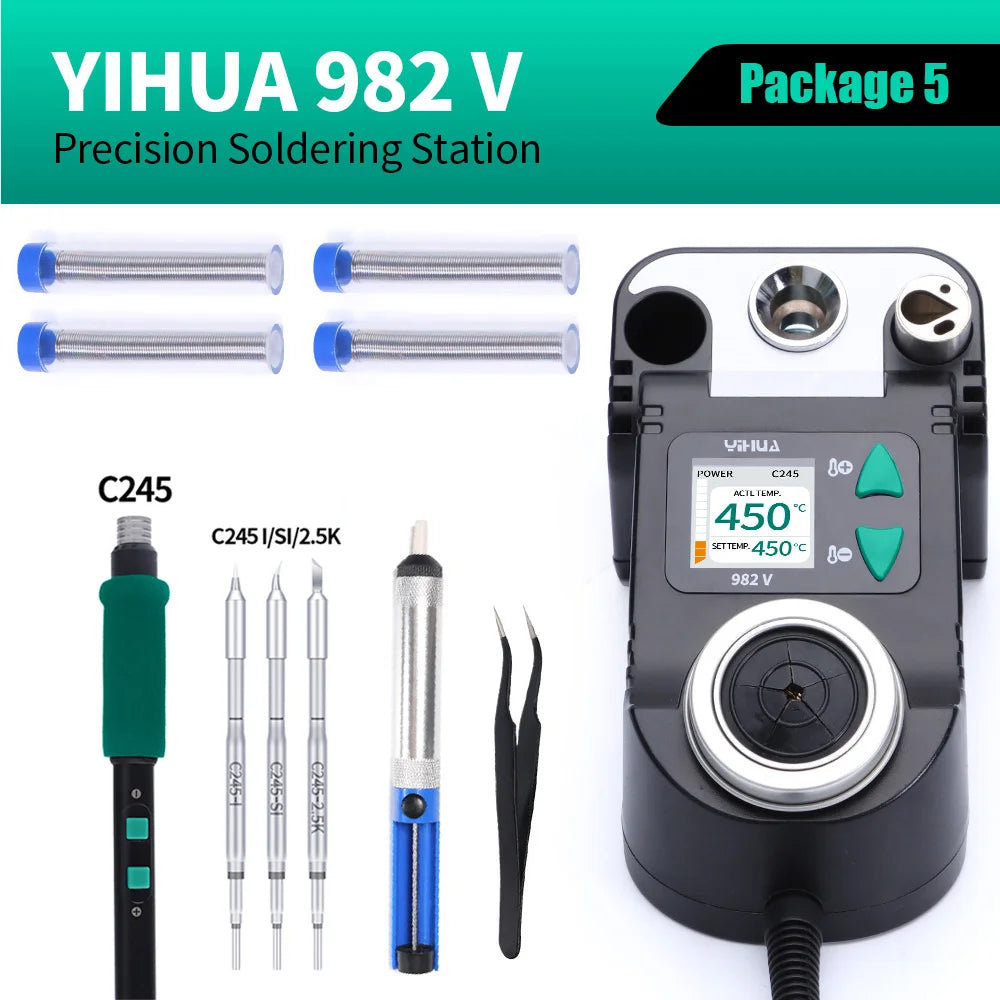

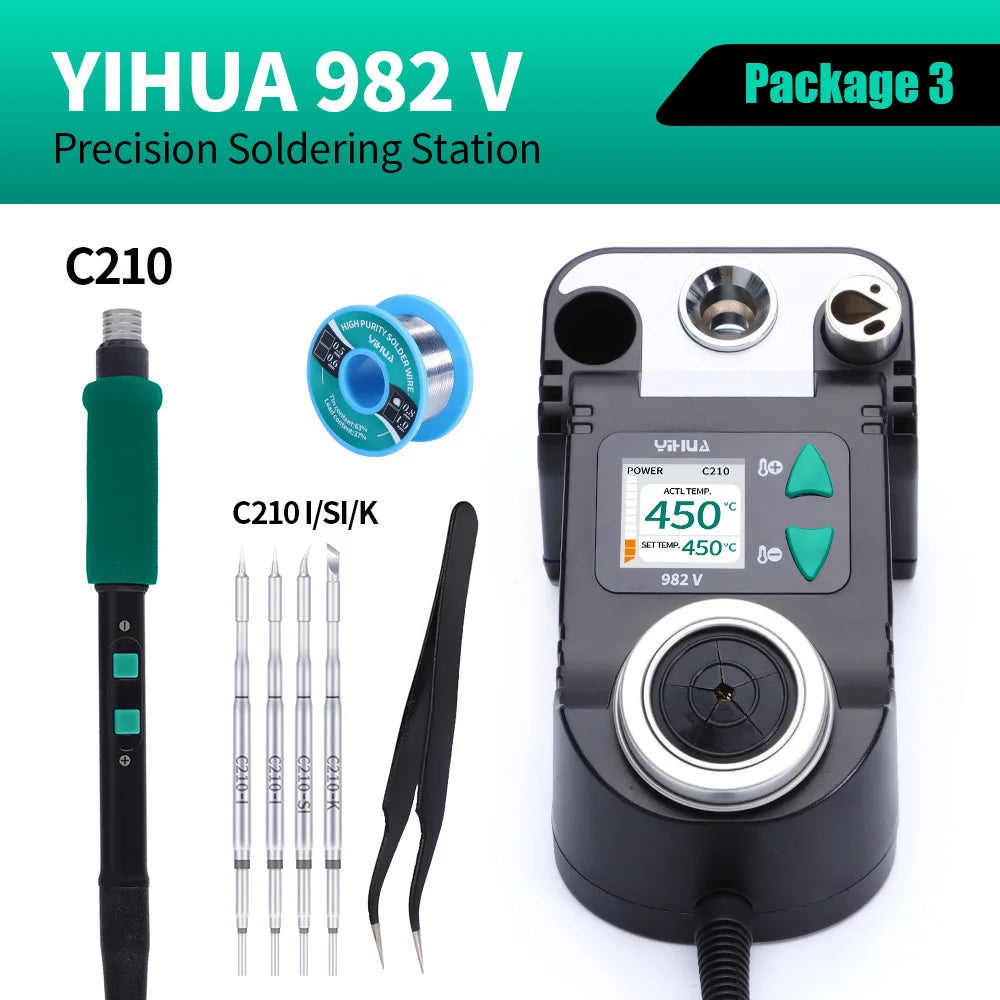

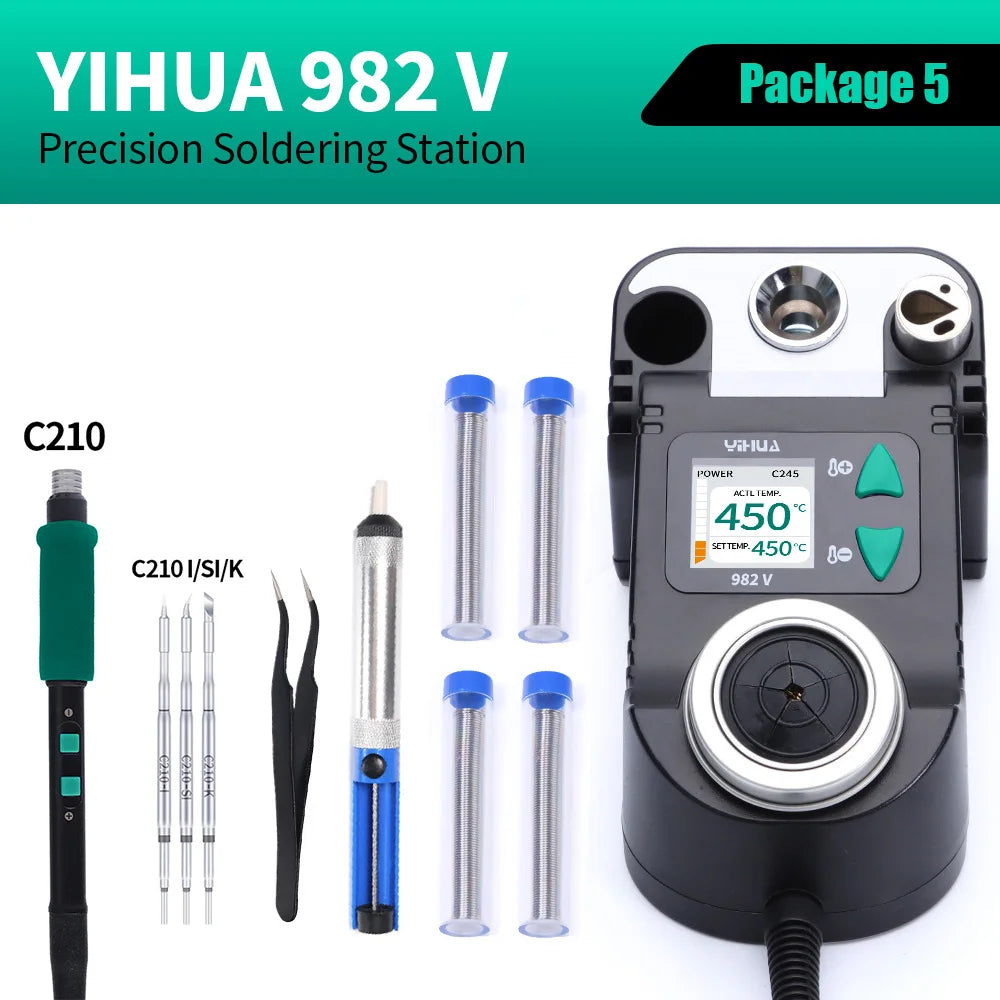

YIHUA 982-V Soldering Station

Rated Voltage           110-240V

Rated Frequency       50-60Hz

Rated Power              40W (210 Heating Element)     60W(245 Heating Element)

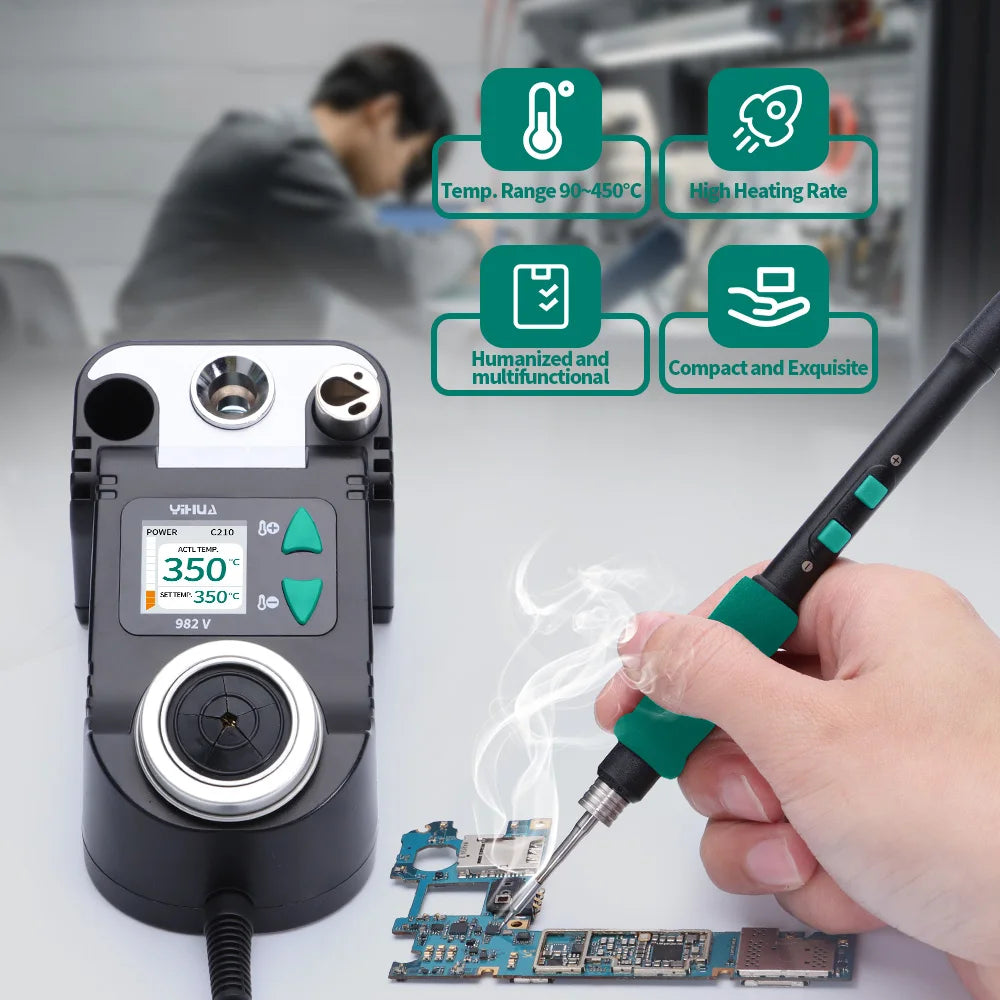

Temperature Range  90°C~450°C/194°F~842°F

Display                       LCD

Tip To Ground

Resistance                  <2 ohms

Operating Ambient

Temperature              0~40°C/32°F~104°F

NOTE:

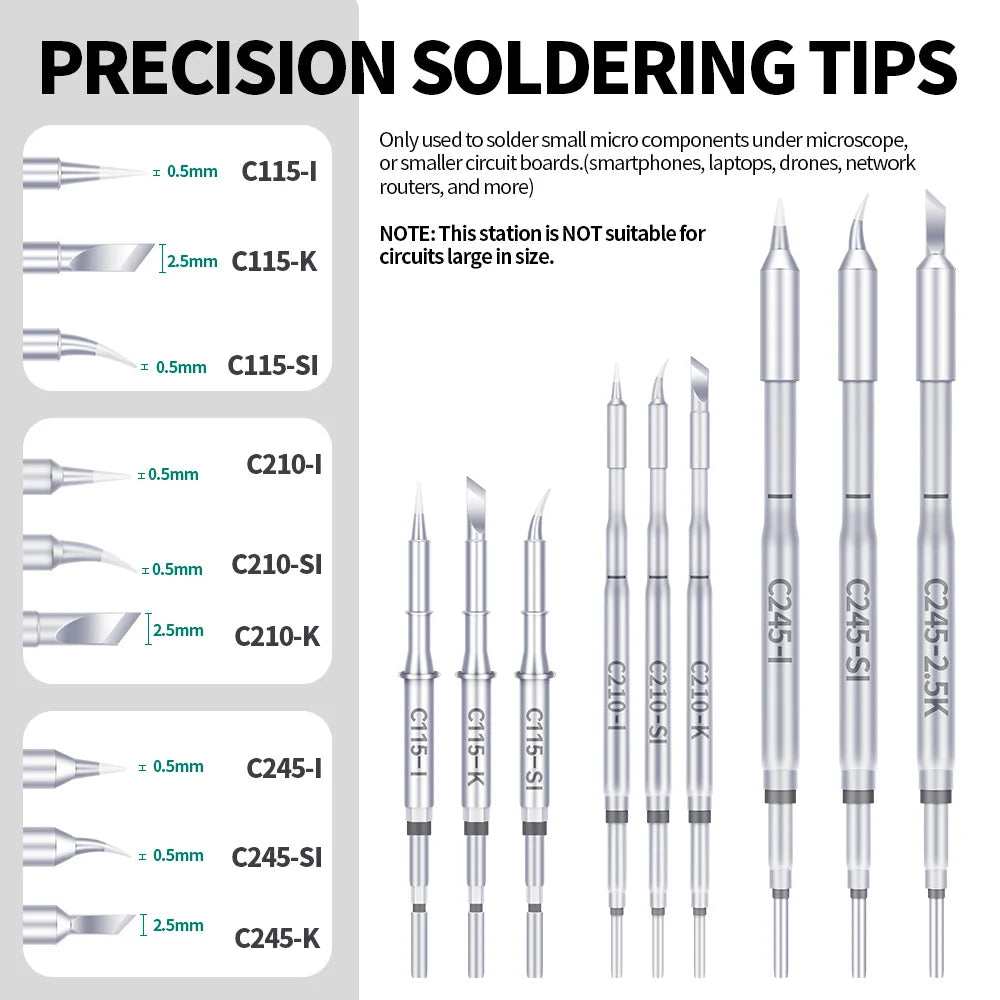

This unit is onlysuitable for users who solders small micro components under microscope, or small circuit boards (smart phones, laptops, drones, network routers, and more)

Features

High quality-price ratio!

♦Fast Heating Fine Tip

♦All-in-one Design

Energy-saving!

♦Automatic Standby and Sleep Mode

Precise

♦Digital Temperature Correction

Portable & Convenient!

♦Small and Light

<All-in-one Design>

soldering iron/ soldering iron holder/ cleaning ball/ soldering iron heating cores storage are intergrated in one unit.

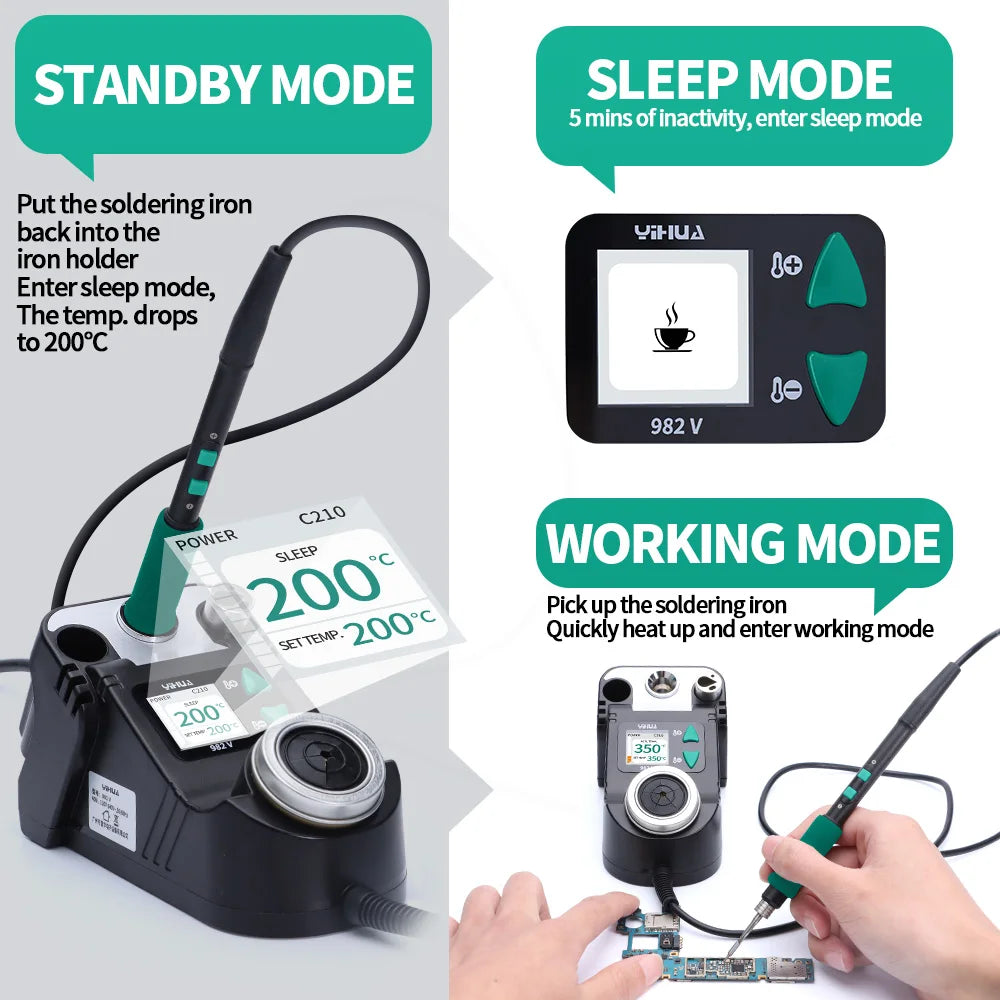

<Auto sandby & Sleep Mode>

Put the soldering iron back in to the iron holder, soldering iron will cool down to 200℃ ( standby), without any operation in 5 minutes, the solder iron enters sleep mode.

To wake up the soldering iron, users can pick up and shake the handle or press any one of the buttons.

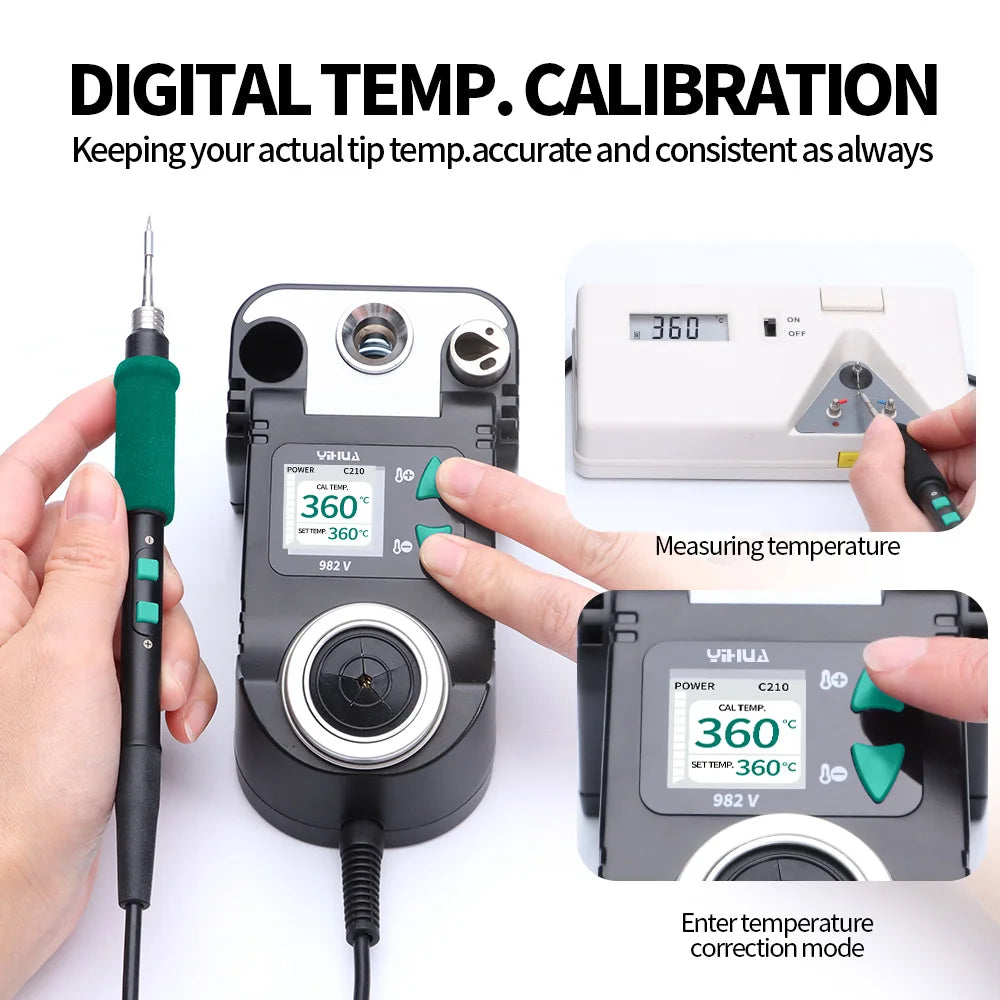

<Digtal temperature calibration>

Temperature inaccuracy caused by operating room temperature change and replacing new heating cores can be corrected and welding work would be more precise.

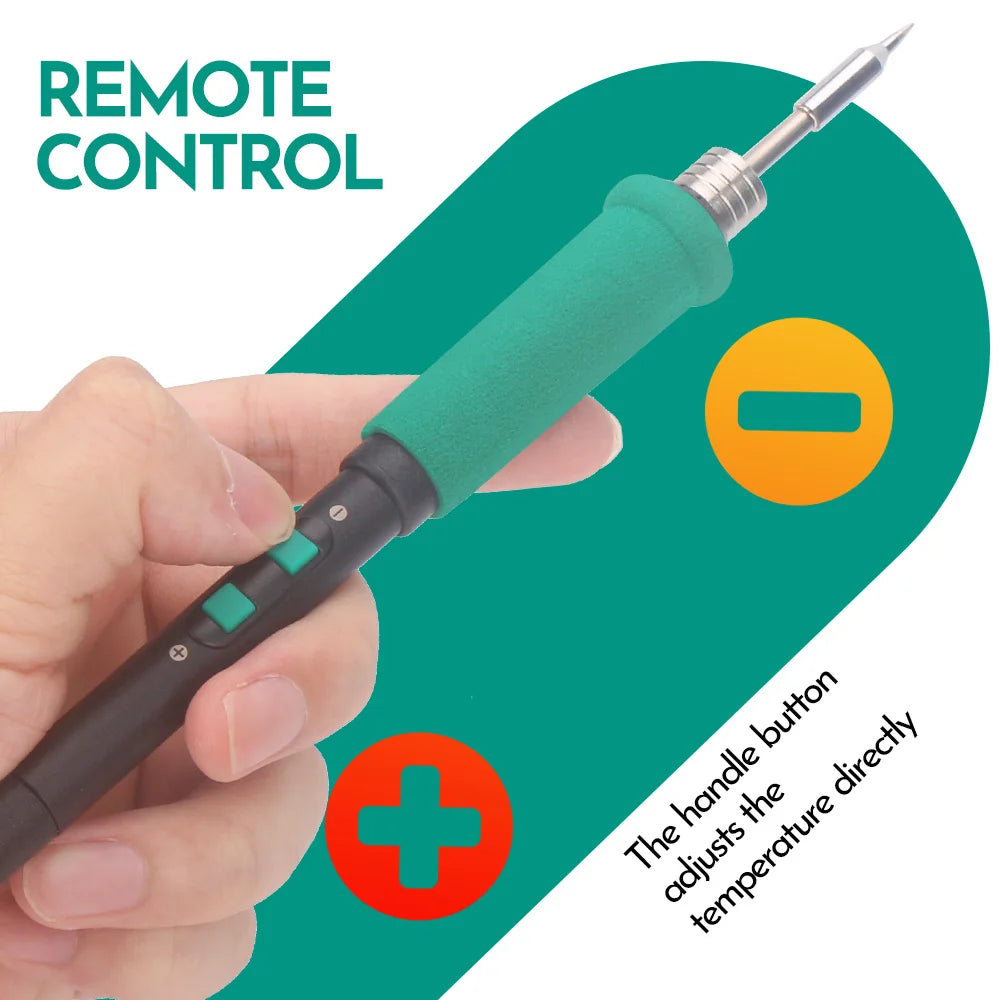

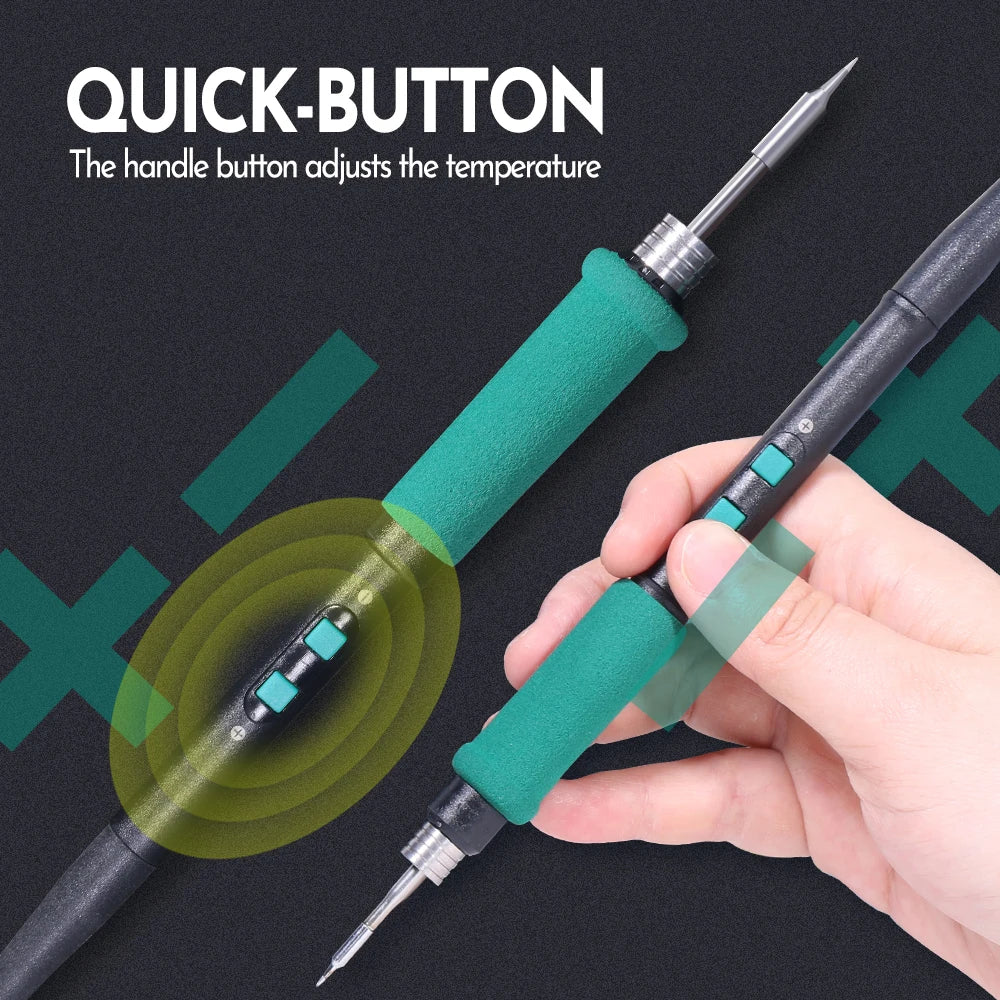

<Remote control>

Temperature adjusting buttons on the handle allow users to change target temperature more quickly and conveniently.

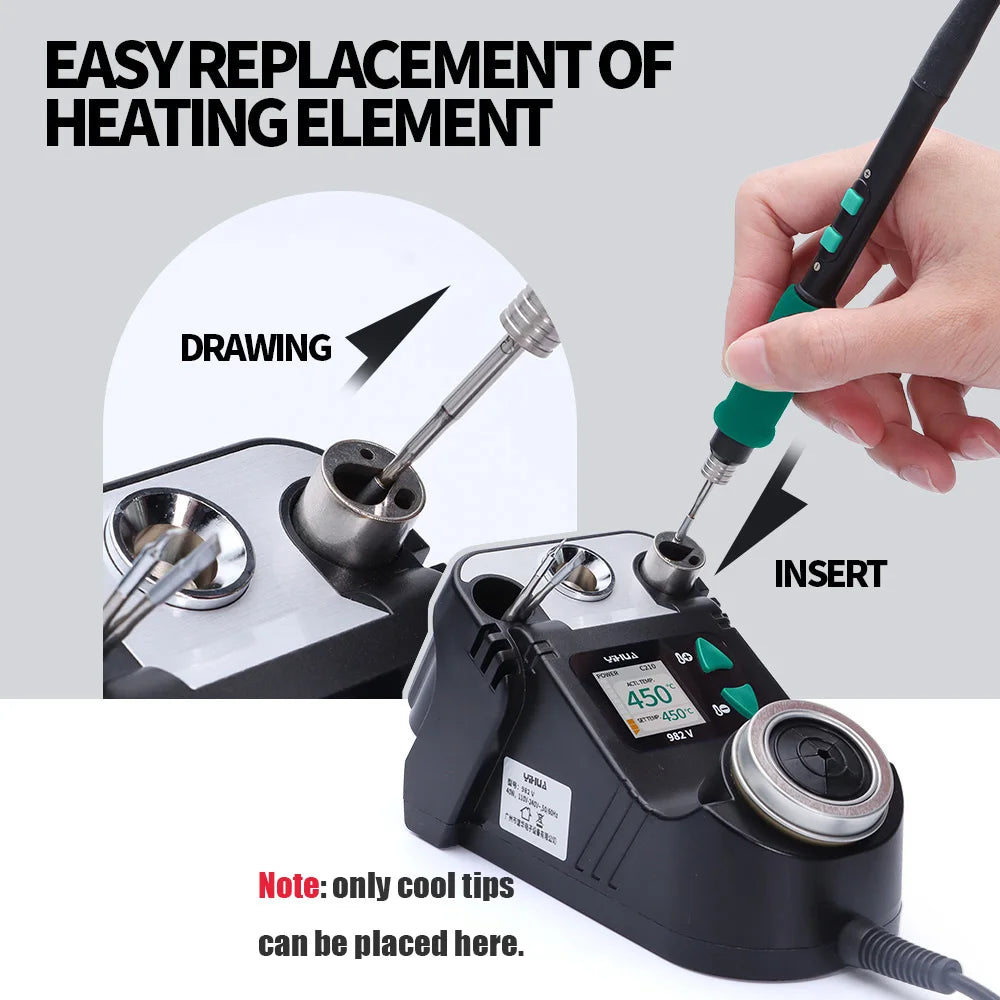

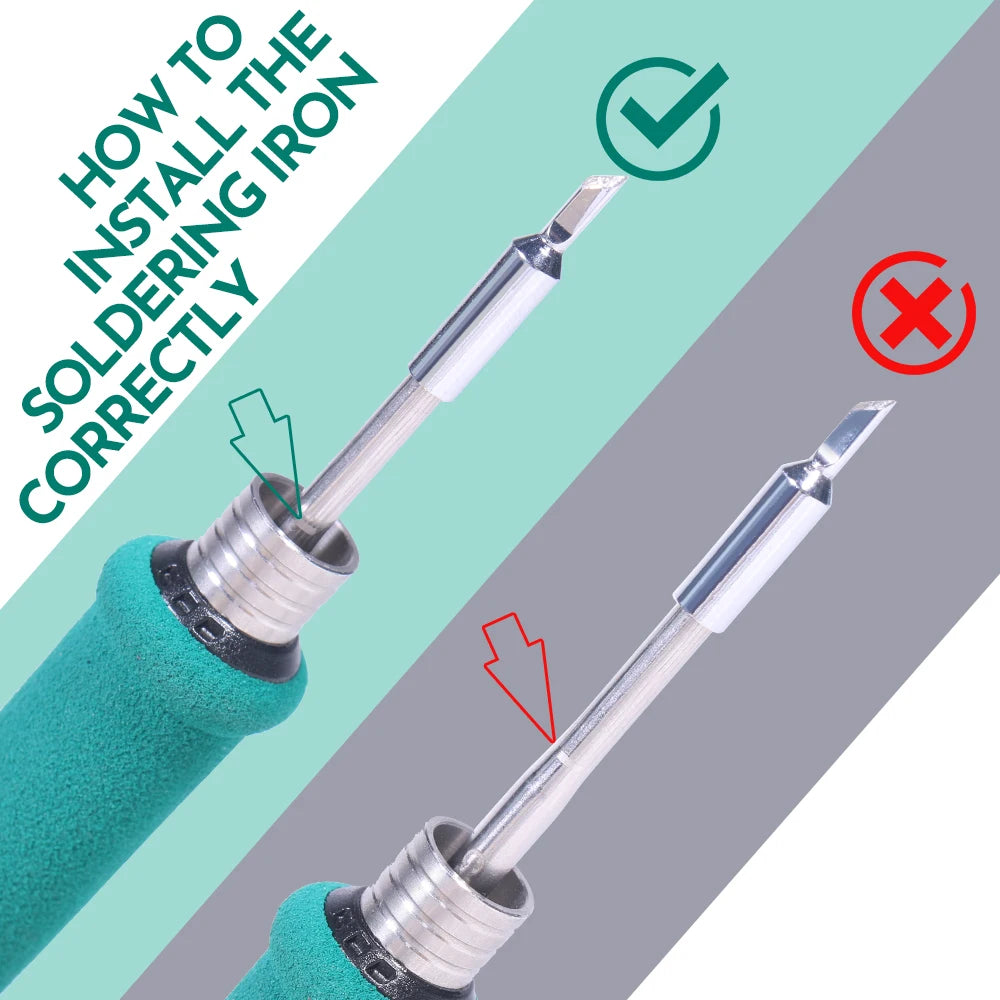

<Easy Tip Change>

This station has a built-in metallic rack for easy change for the soldering iron tips.

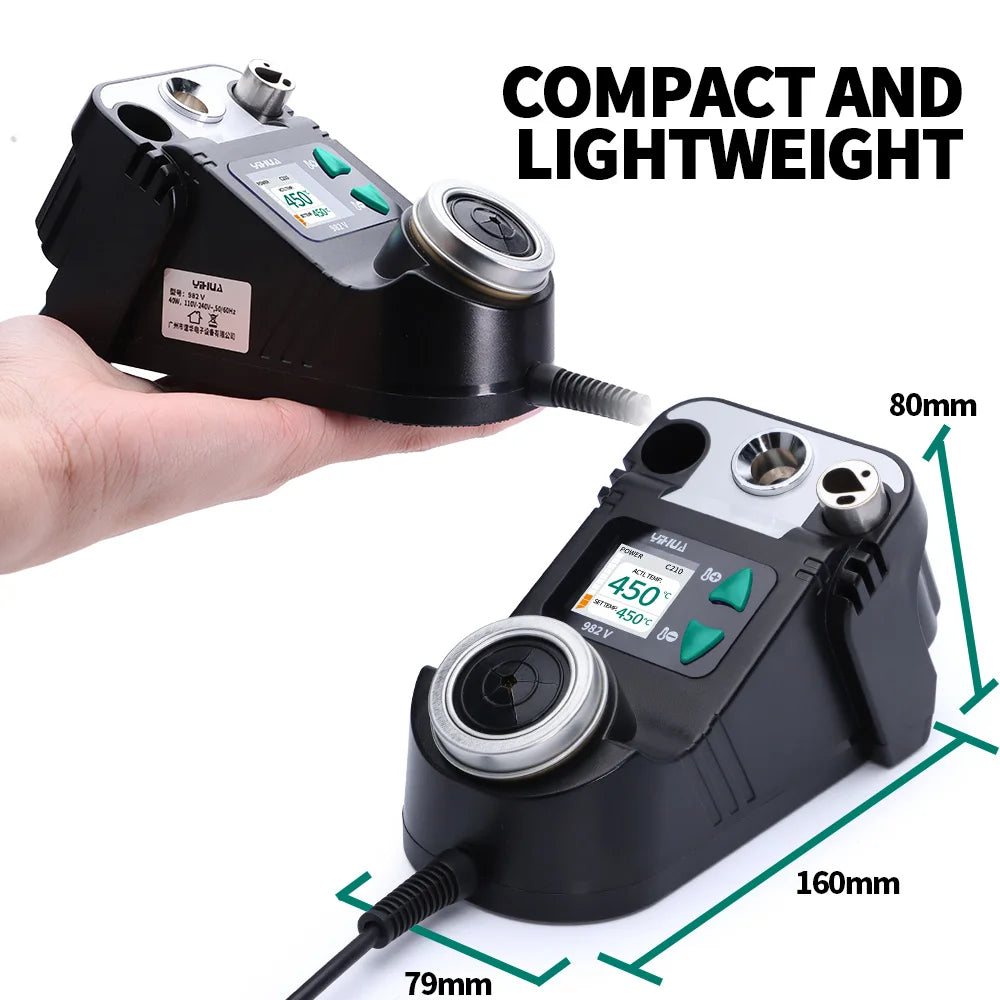

<Portable Design>

The soldering station can be held with one hand, portable to carry.

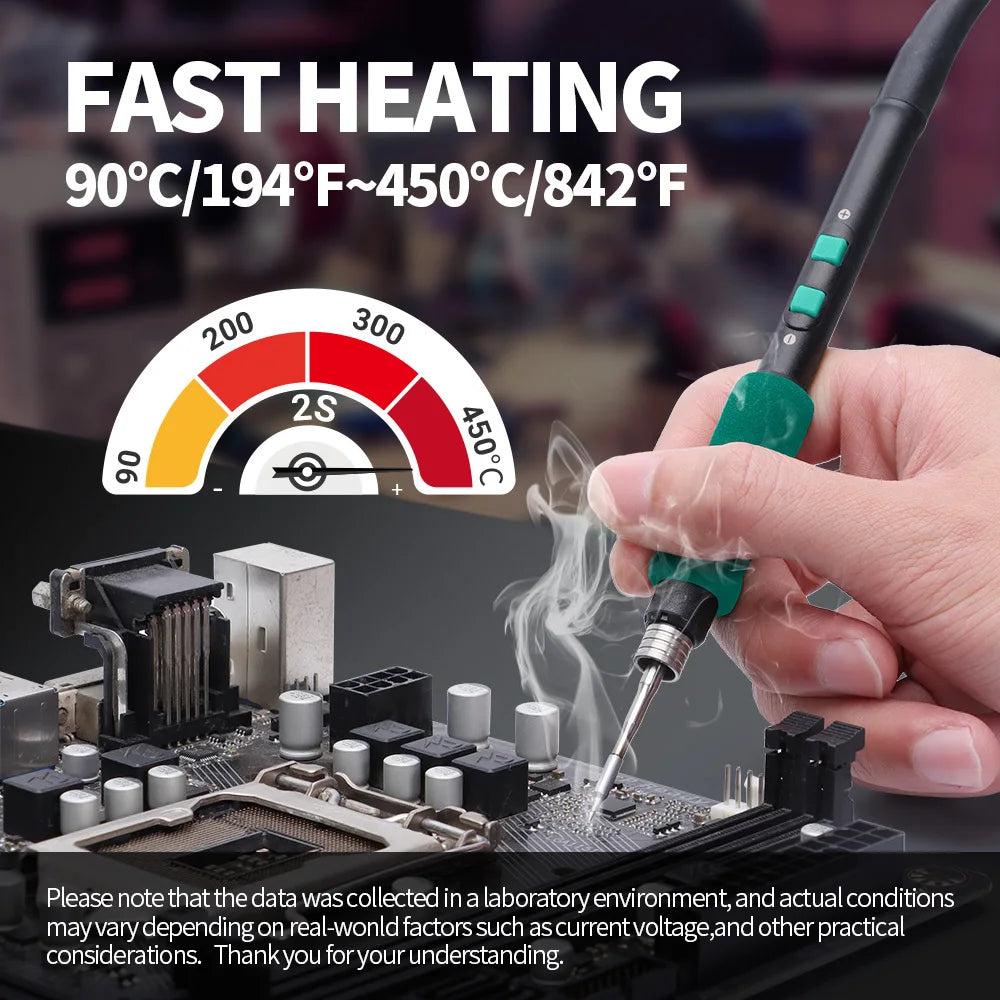

<Fast Heating Fine Tip>

C210/C245 rapid heating elements can get from room temperature to soldering temperature within 2-4 seconds.
