YJCO 300W×2 TPA3255 HIFI Digital Amplifier Bluetooth 5.1 SBC AAC APTX HD Decoder Bass Treble Control for Home Theater D325B

YJCO 300W×2 TPA3255 HIFI Digital Amplifier Bluetooth 5.1 SBC AAC APTX HD Decoder Bass Treble Control for Home Theater D325B

$373.10

$373.10 $0.00

Description

SPECIFICATIONS

Brand Name: YJCO

Certification: CE

Channels: 2 (2.0)

Choice: yes

High-concerned chemical: none

Maximum Power Per Channel: Above 200W

Model Number: D325B

Origin: Mainland China

Package: Yes

Parts: Amplifier board

semi_Choice: yes

Package:

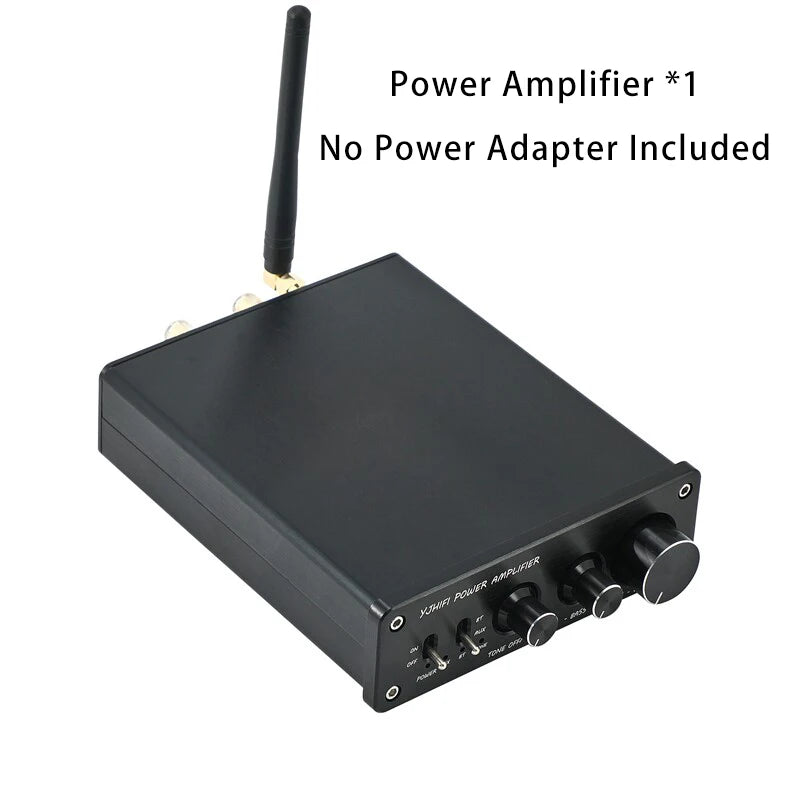

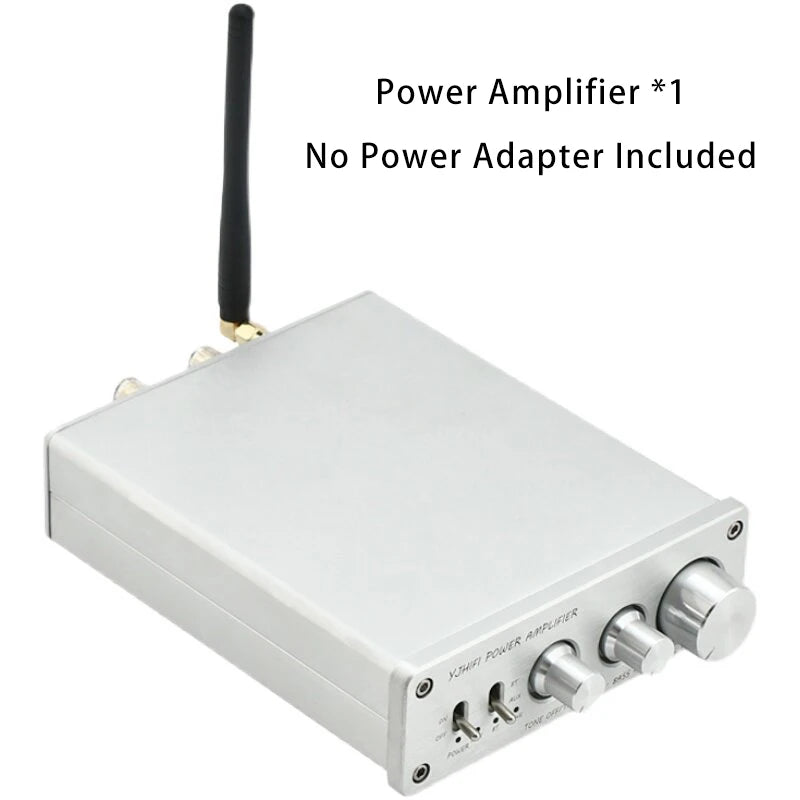

Power Amplifier *1
No Power Adapter Included

Instructions:

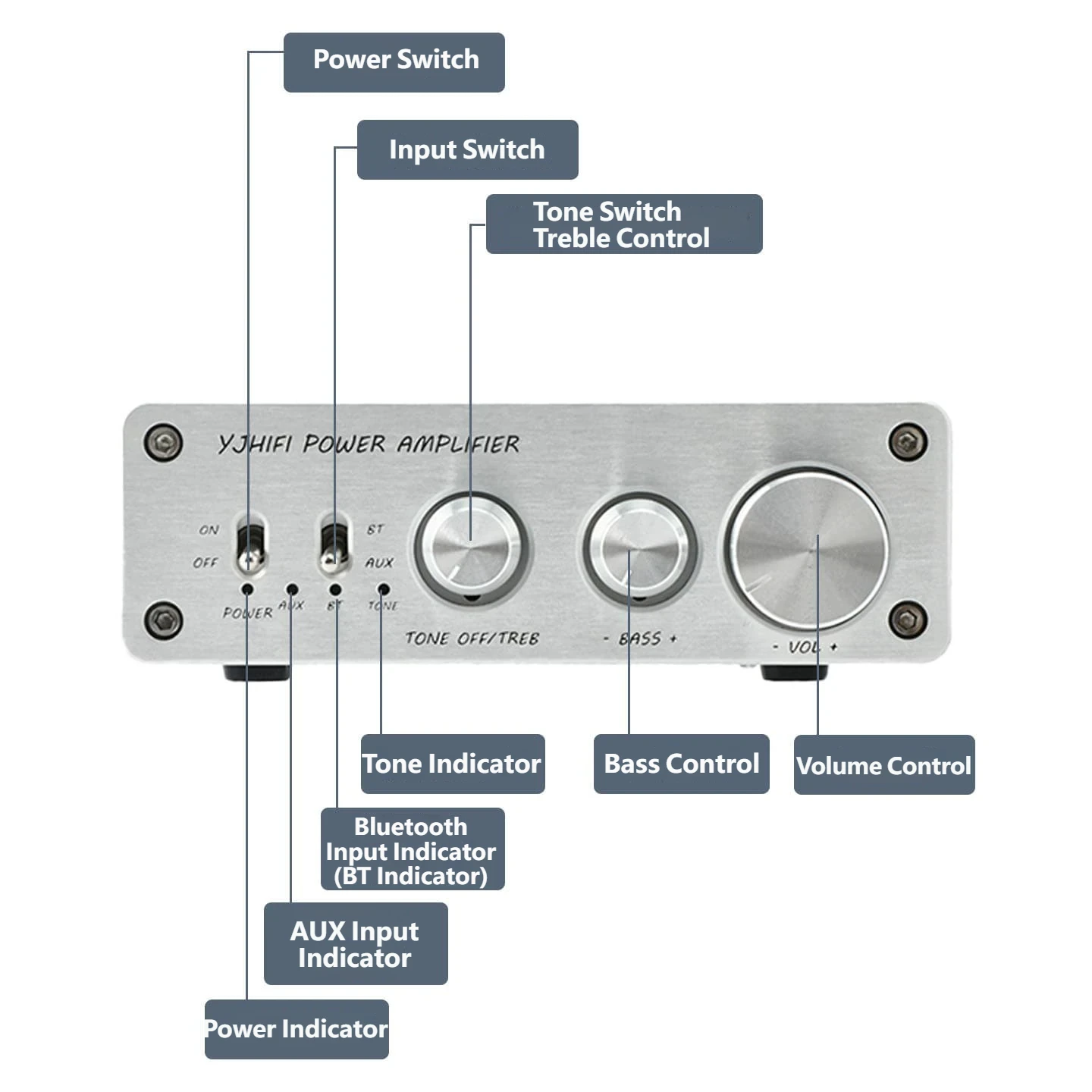

1.The D325B switches between RCA and Bluetooth inputs via the front panel switch:
￮Toggle the switch up for Bluetooth input: The BT indicator will light up. Turn on your phone's Bluetooth, search for the device named "YJHIFI", and connect to pair with the amplifier.
￮Toggle the switch down for RCA input: The AUX indicator will light up.
2.The D325B offers two selectable modes: Direct Mode and Tone Mode:
￮To enter Direct Mode: Turn the treble control knob fully counter-clockwise until you hear a "click". The TONE indicator on the panel will turn off.
￮To enter Tone Mode: Turn the treble control knob clockwise from the minimum position. The TONE indicator will light up.

Specificatons:

Model: D325B

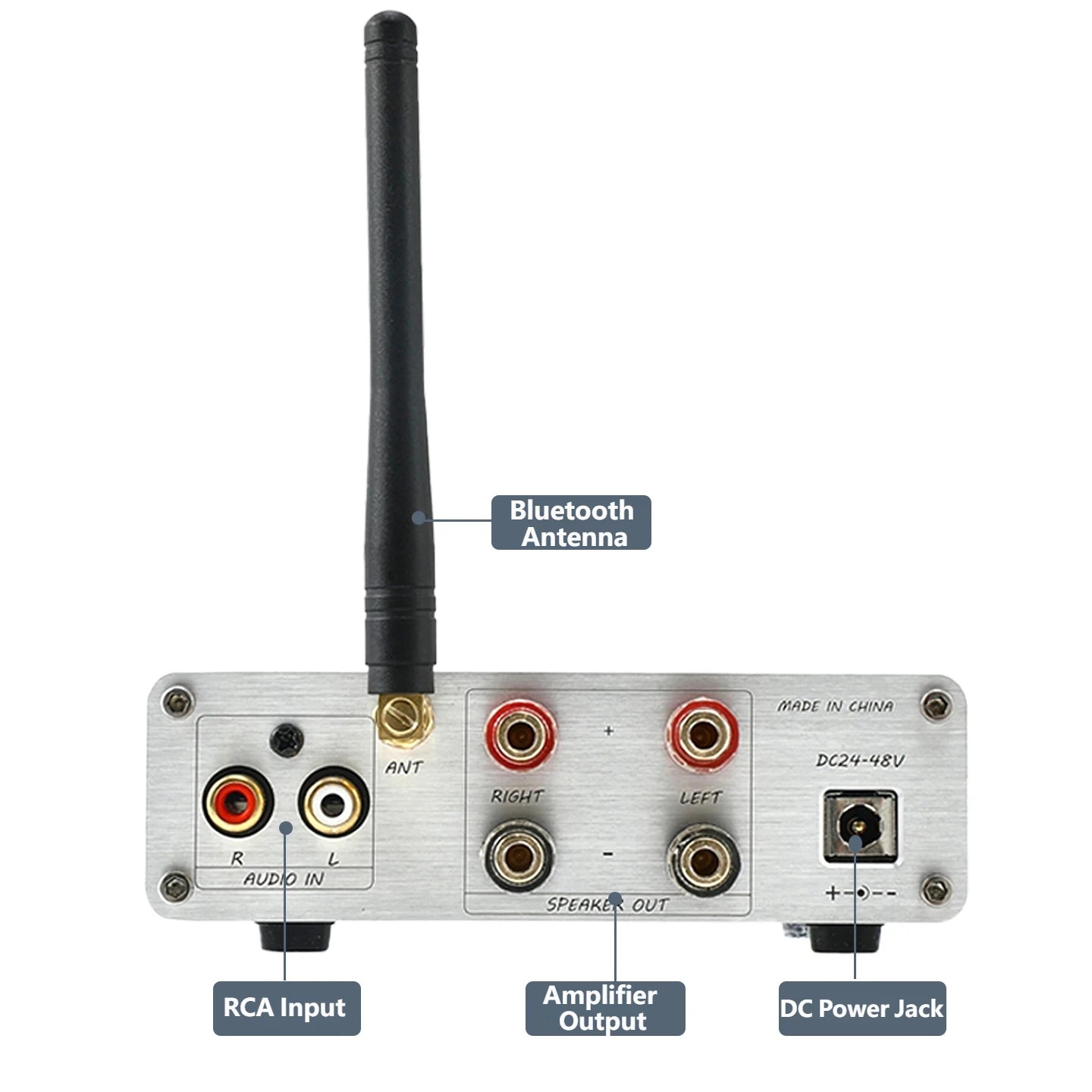

Inputs: 1 × RCA, Bluetooth
Outputs: 2 × Crystal Binding Posts
Operating Voltage: DC 24V-48V (5.5×2.5)
Standby Power Consumption: 0.5W
Bluetooth Chip: QCC3034
Bluetooth Codecs: SBC/AAC/APTX/APTX-LL/HD (16-24bit, 44.1kHz)

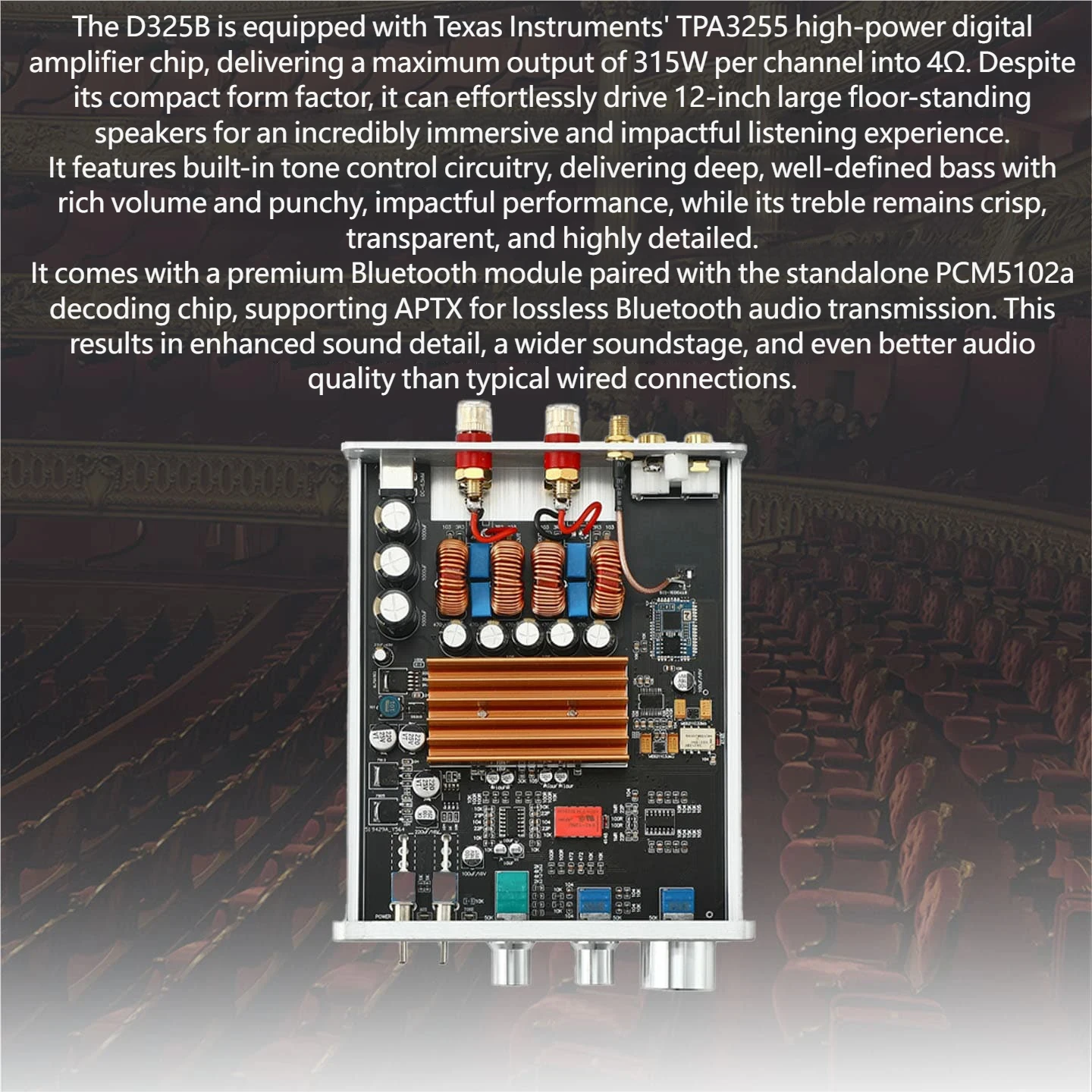

Amplifier Chip: TPA3255 × 1
Max Output Power: 300W/4Ω × 2, 150W/8Ω × 2
Total Harmonic Distortion (THD): <0.01%
Signal-to-Noise Ratio (SNR): 105dB
Frequency Response: 20Hz-20kHz @ 1kHz ±0.3dB

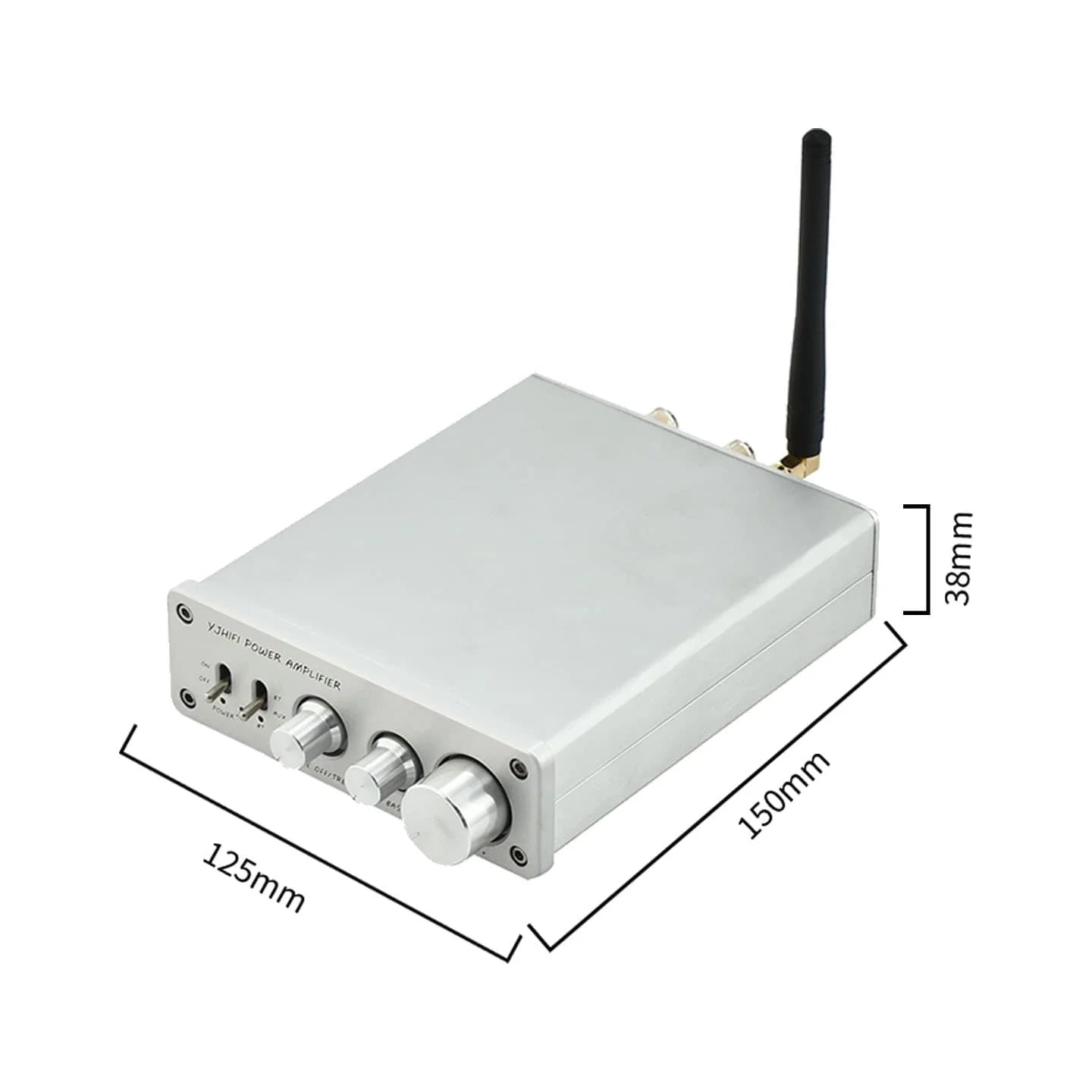

Product Dimensions: 125 × 150 × 38 mm
Weight: 650g
