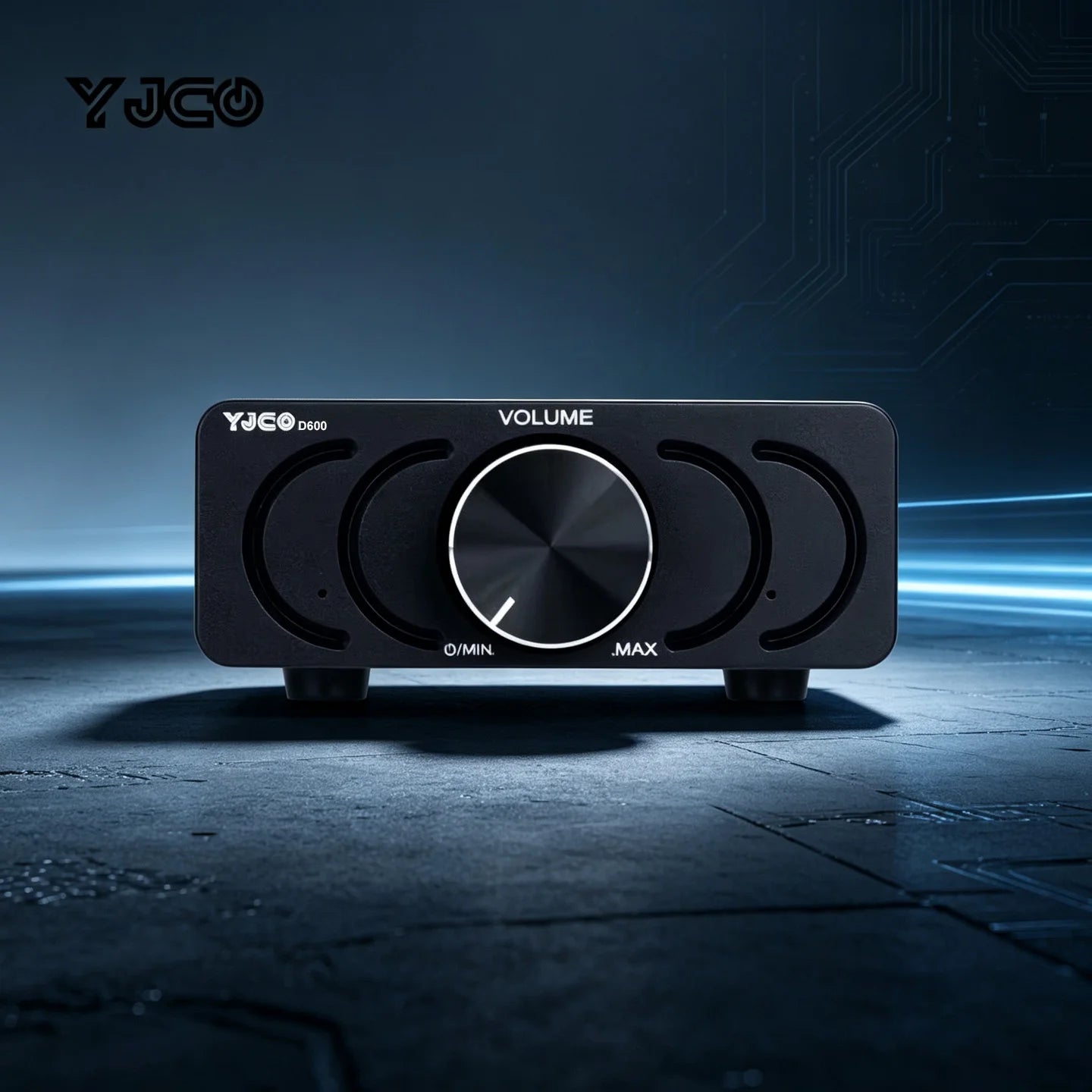

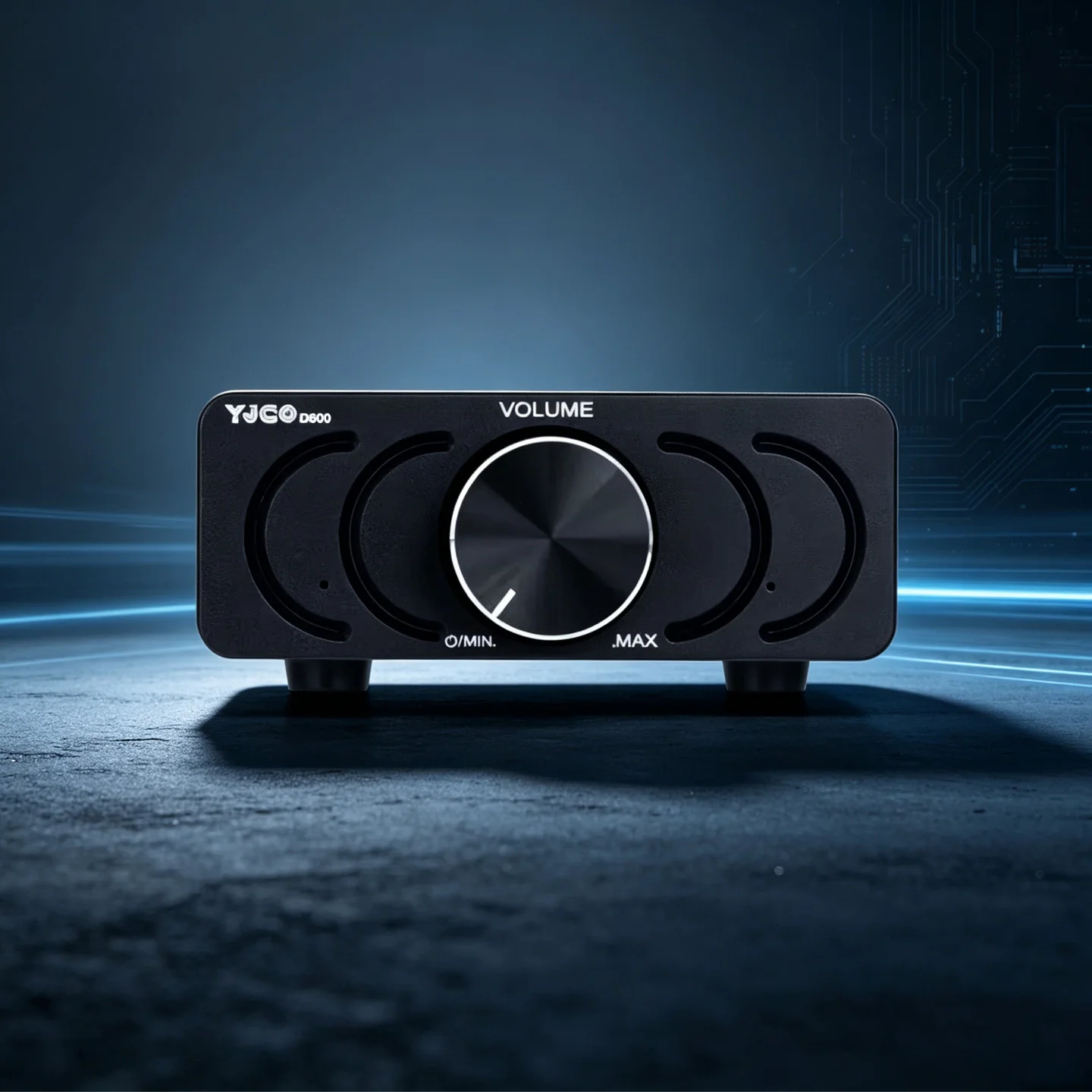

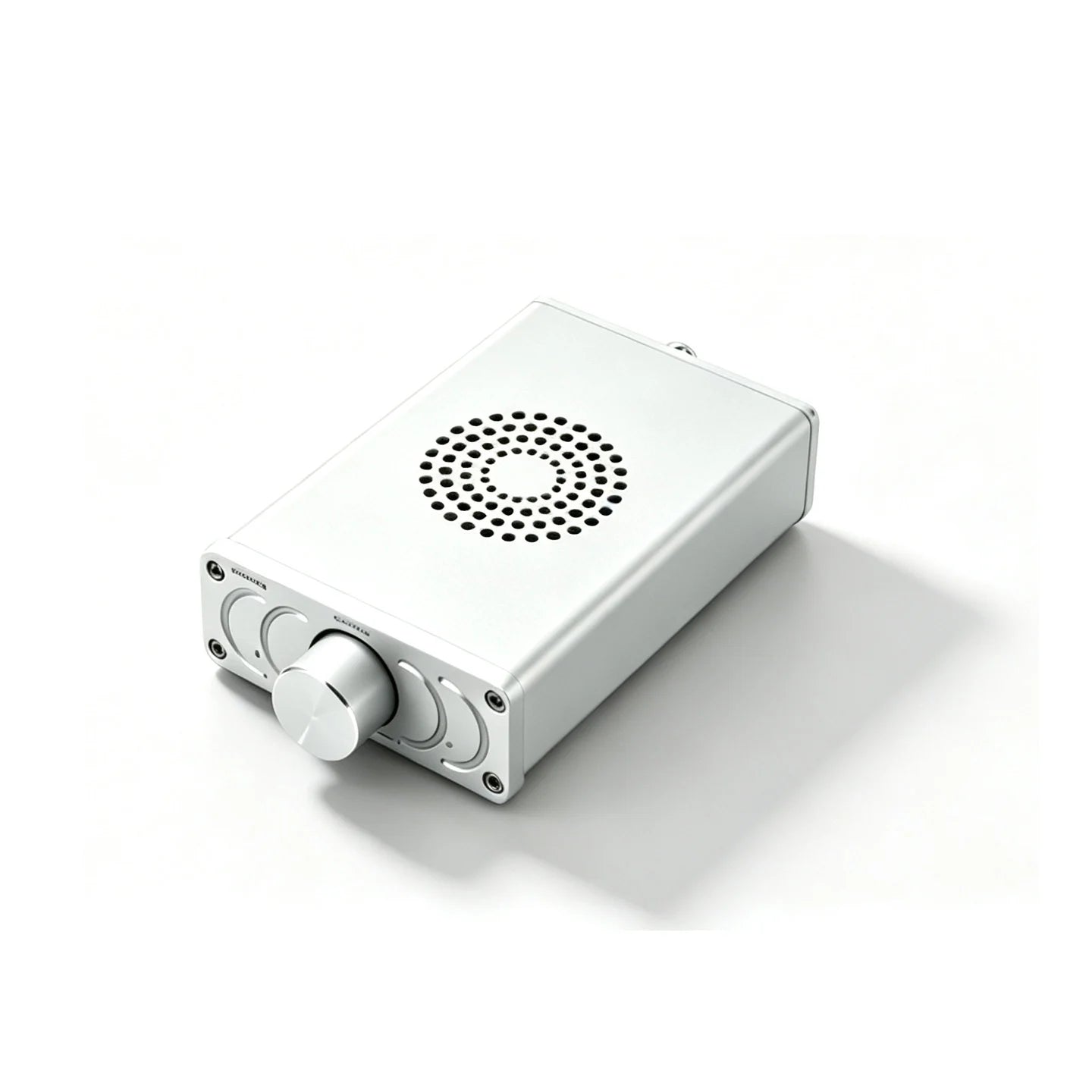

YJCO D600 TPA3255 Mono Amplifier 600W DC24-48V HiFi Digital Audio Amp RCA 3.5mm Input Subwoofer Power Amplifier SNR110dB

YJCO D600 TPA3255 Mono Amplifier 600W DC24-48V HiFi Digital Audio Amp RCA 3.5mm Input Subwoofer Power Amplifier SNR110dB

$210.11

$210.11 $0.00

Description

SPECIFICATIONS

Audio Output Type: Speakers

Brand Name: YJCO

Certification: CE,RoHS

Channels: 1

Choice: yes

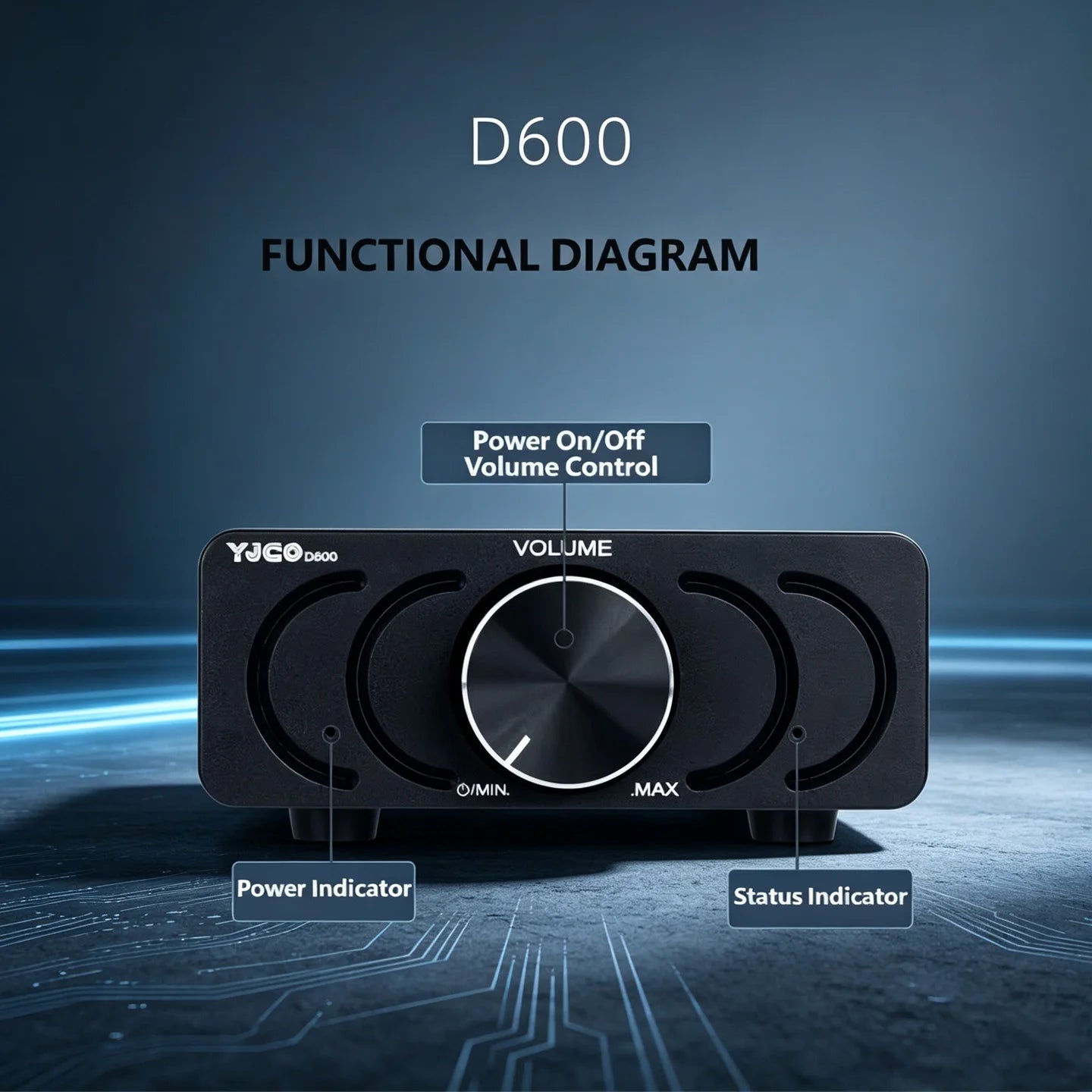

Control Method: Push button

High-concerned chemical: none

Material: Metal

Maximum Power Per Channel: Above 200W

Model Number: D600

Number of channels: 1

Origin: Mainland China

Output Power: 600W

Package: Yes

Parts: Amplifier board

Surround sound channel configuration: Others

Package:

Power Amplifier *1
No Power Adapter Included

Instructions:

1. The D600 operates on DC 24V-48V. Higher voltage yields greater output power. Do not exceed 48V, as this will permanently damage the unit.
2. The DC power connector is a 5.5*2.5mm barrel plug, with center-positive polarity.

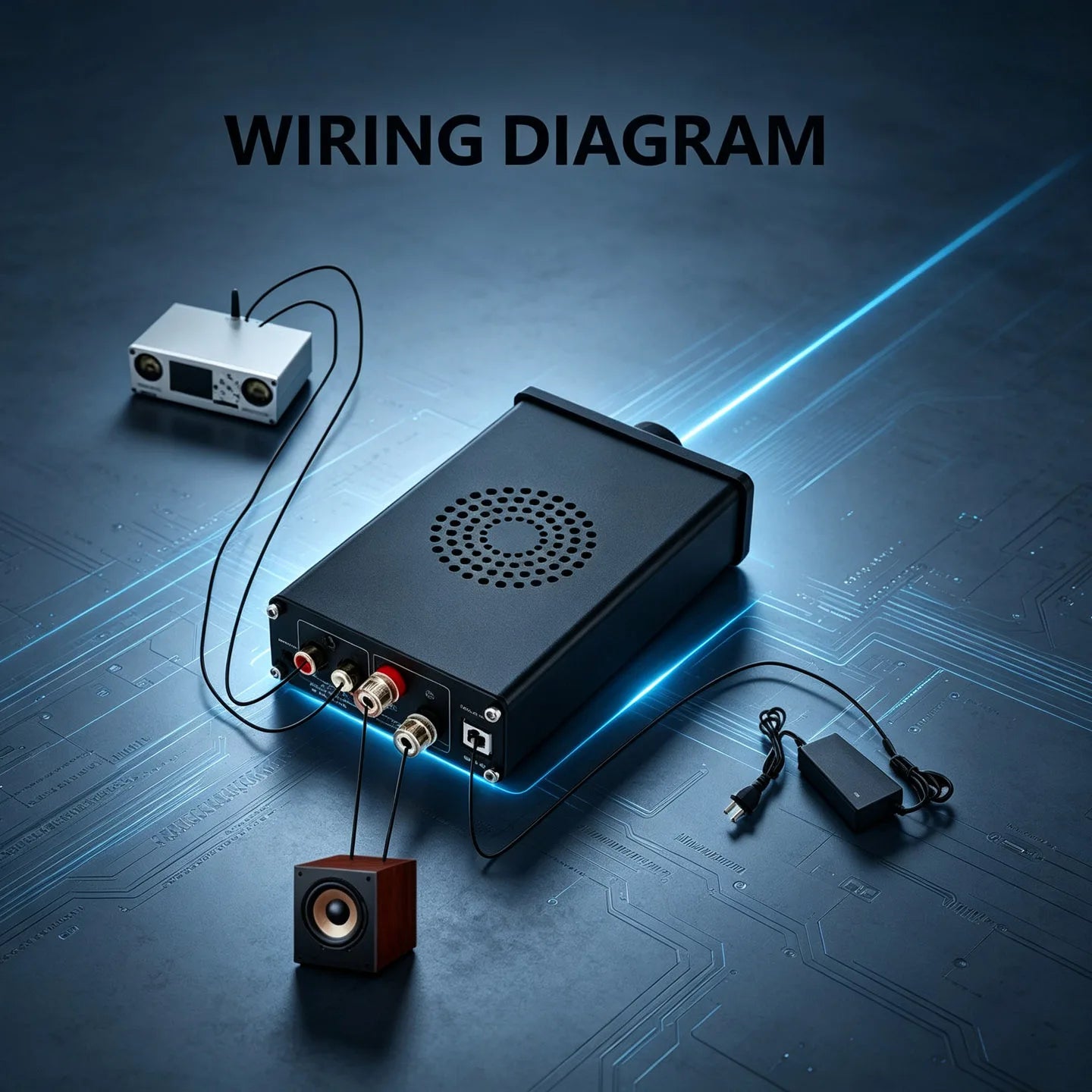

3. The output is only intended for passive speakers and passive subwoofers. Do not connect it to active speakers, active subwoofers, or constant-voltage (70V/100V) speakers.

Specifications:

Model: D600

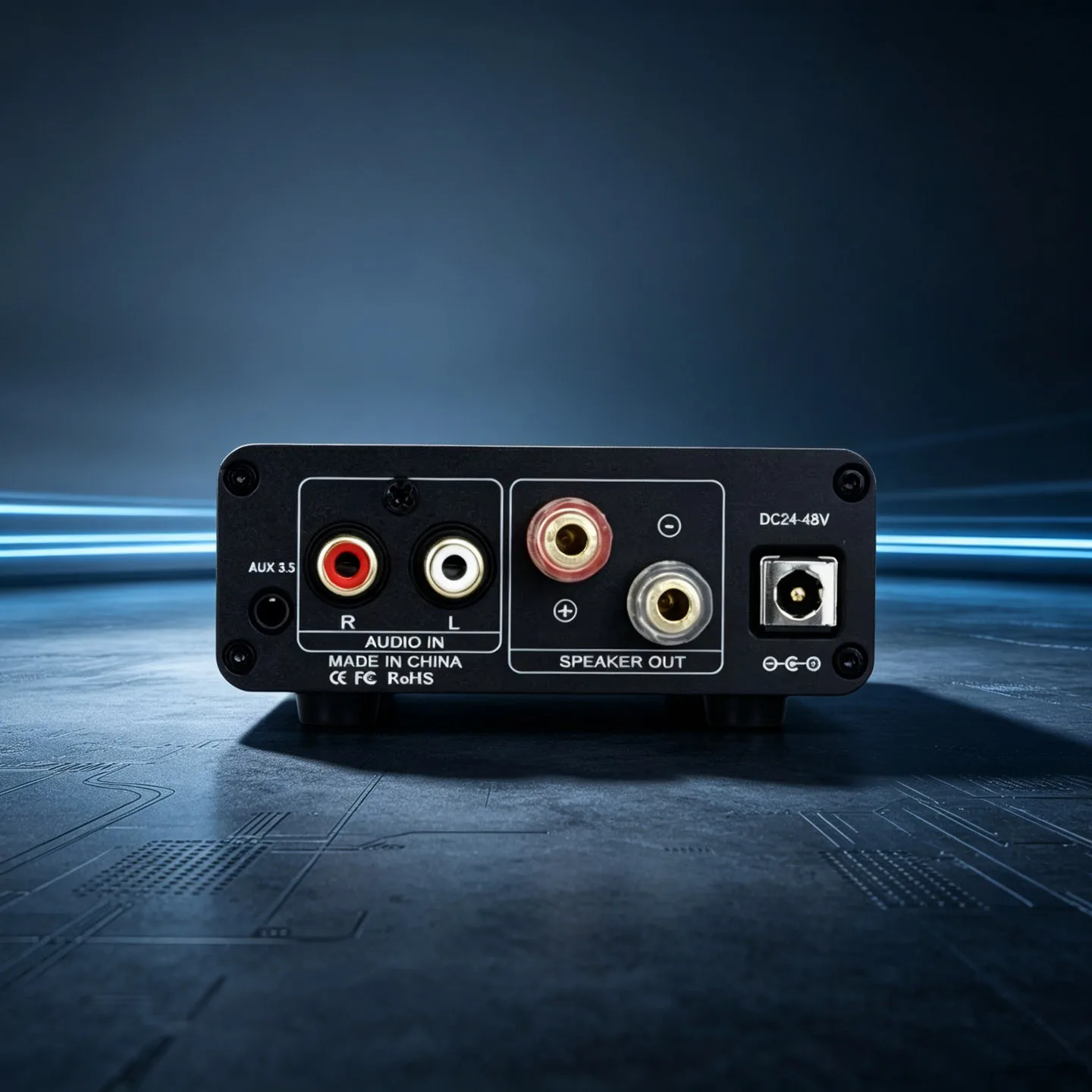

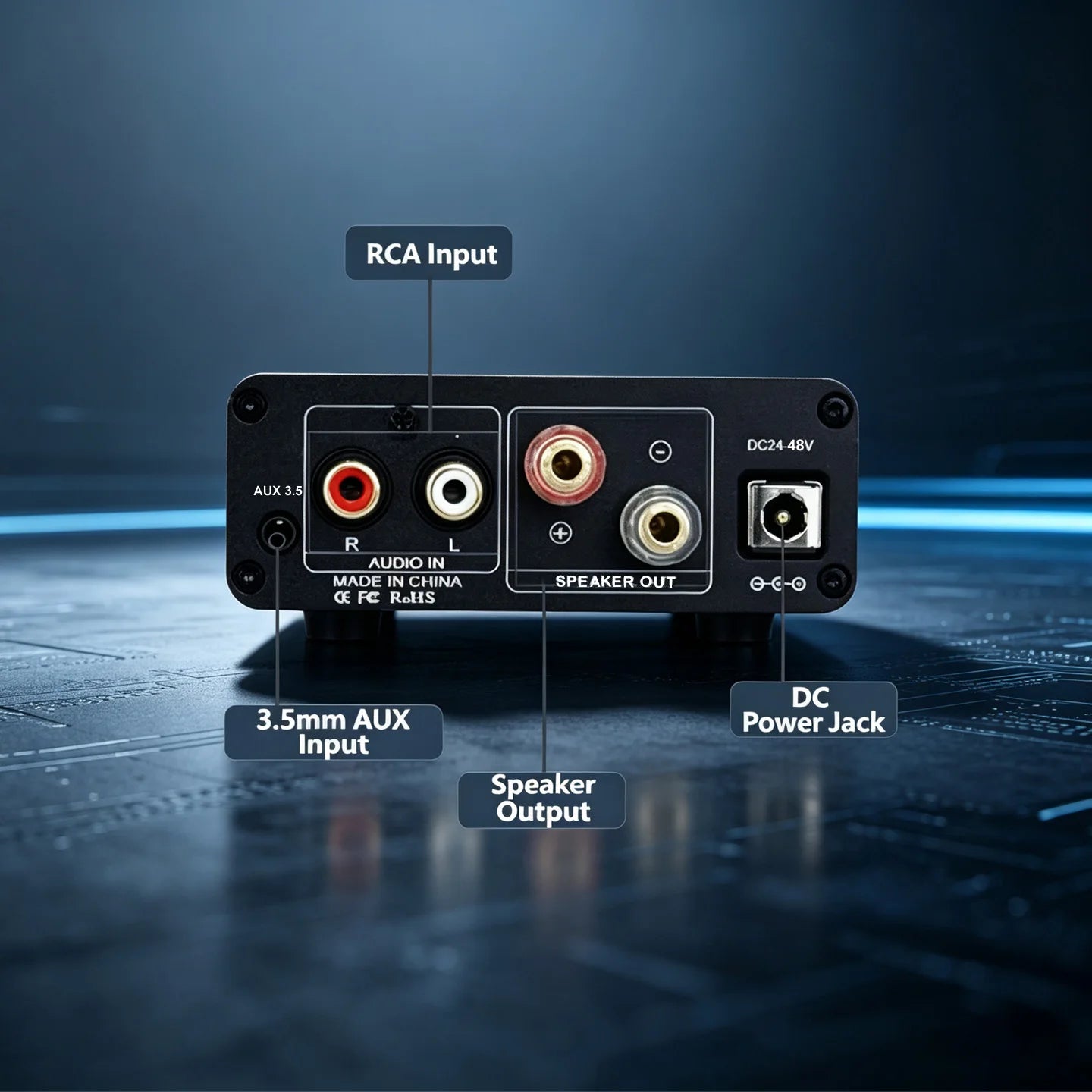

Input: RCA, 3.5mm AUX
Output: 1 set of binding post connectors
Operating Voltage: DC 24V-48V
Standby Power Consumption: 1W

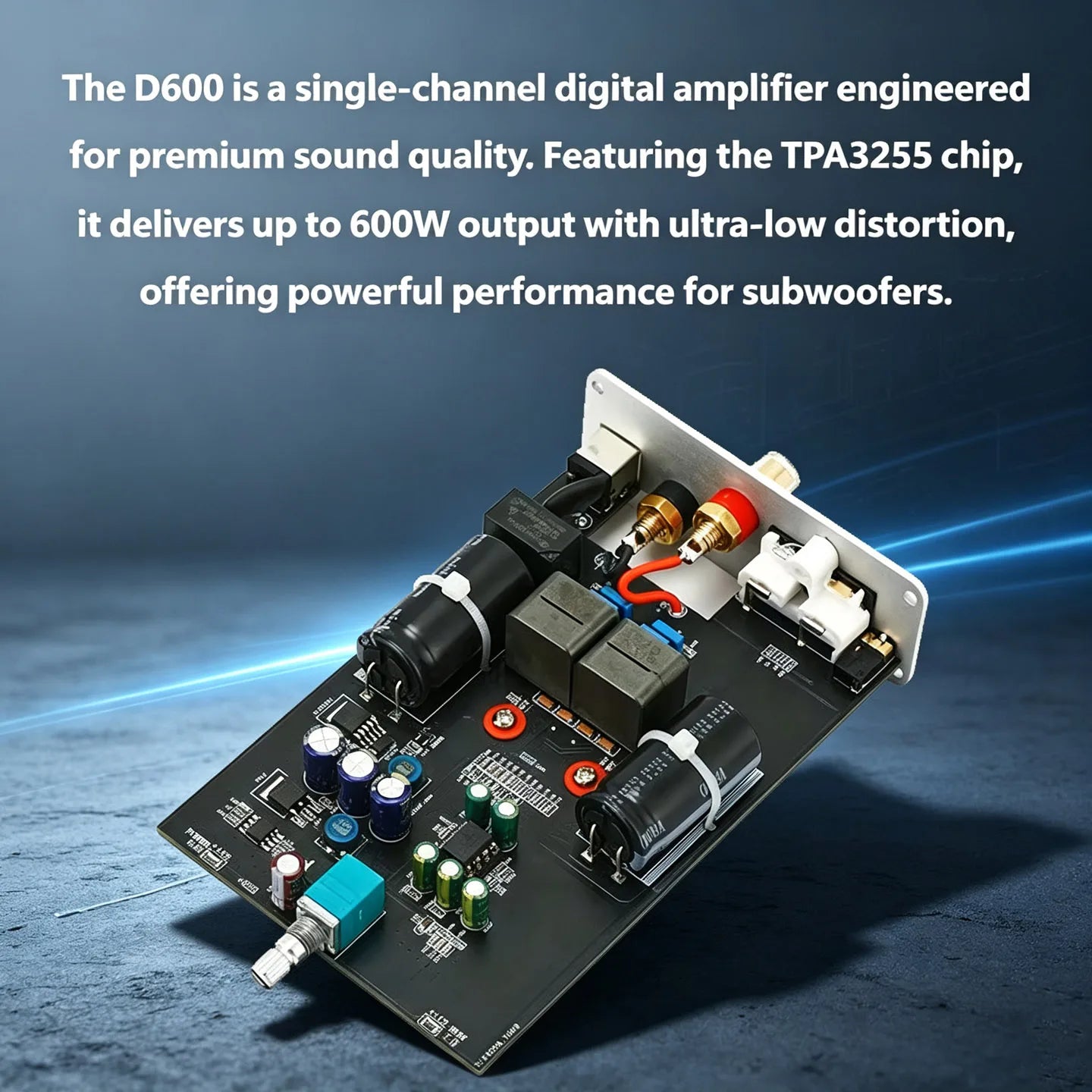

Amplifier Chip: 1 × TPA3255
Output Power: 600W × 1 / 2Ω
Total Harmonic Distortion (THD): <0.02%
Signal-to-Noise Ratio (SNR): 110dB
Frequency Response: 20Hz-20kHz @ 1kHz ±0.3dB

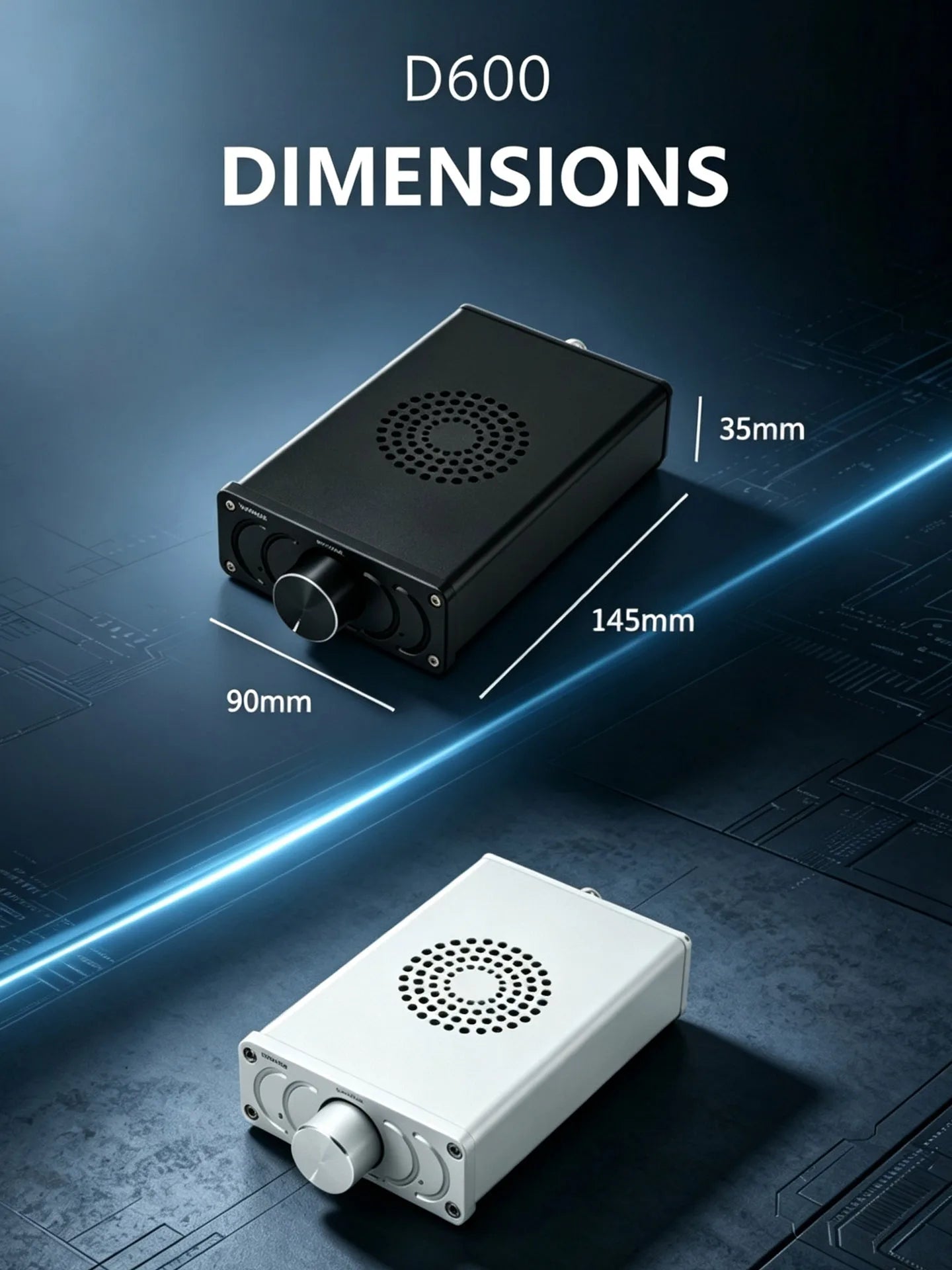

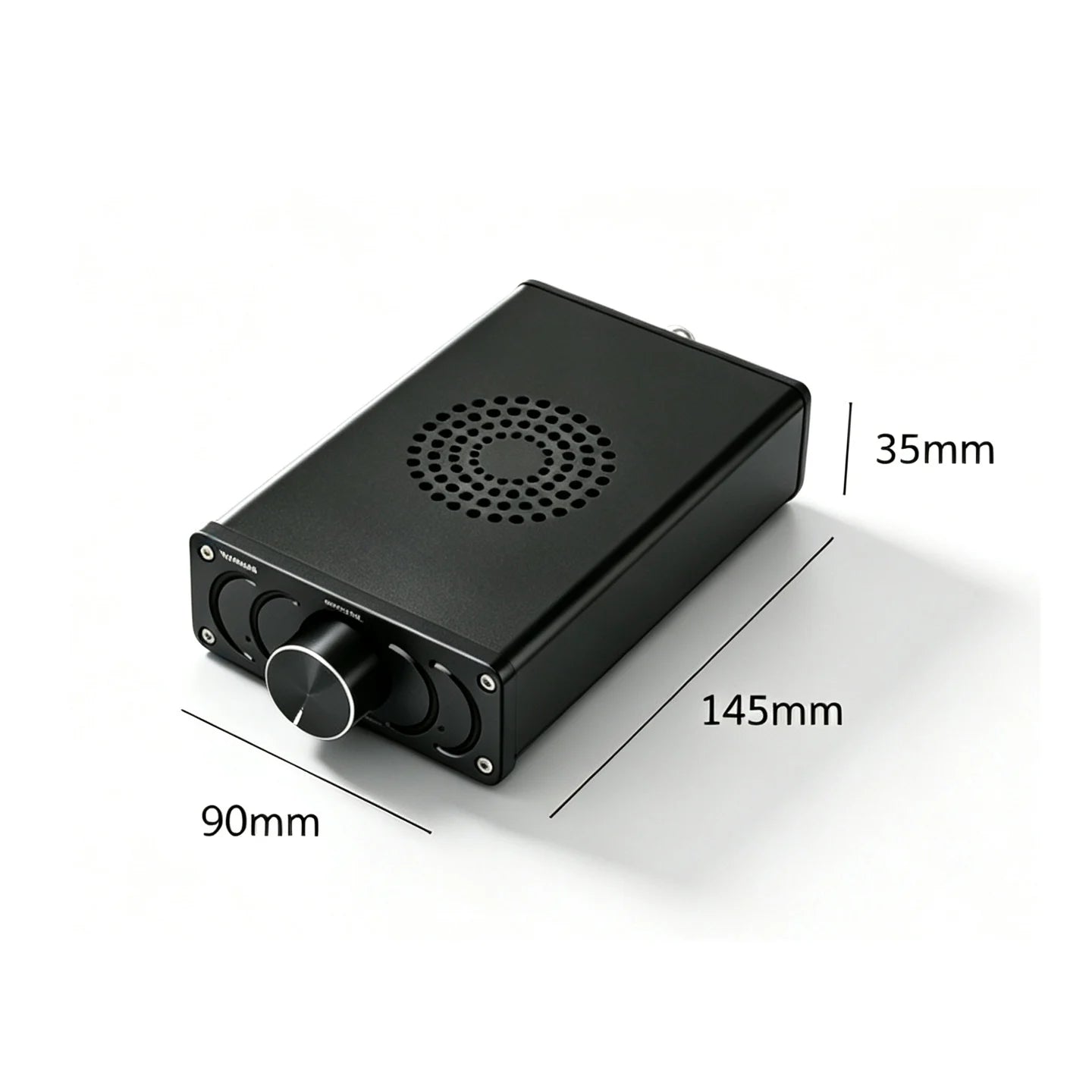

Dimensions: 90mm × 145mm × 35mm
Weight: 350g
