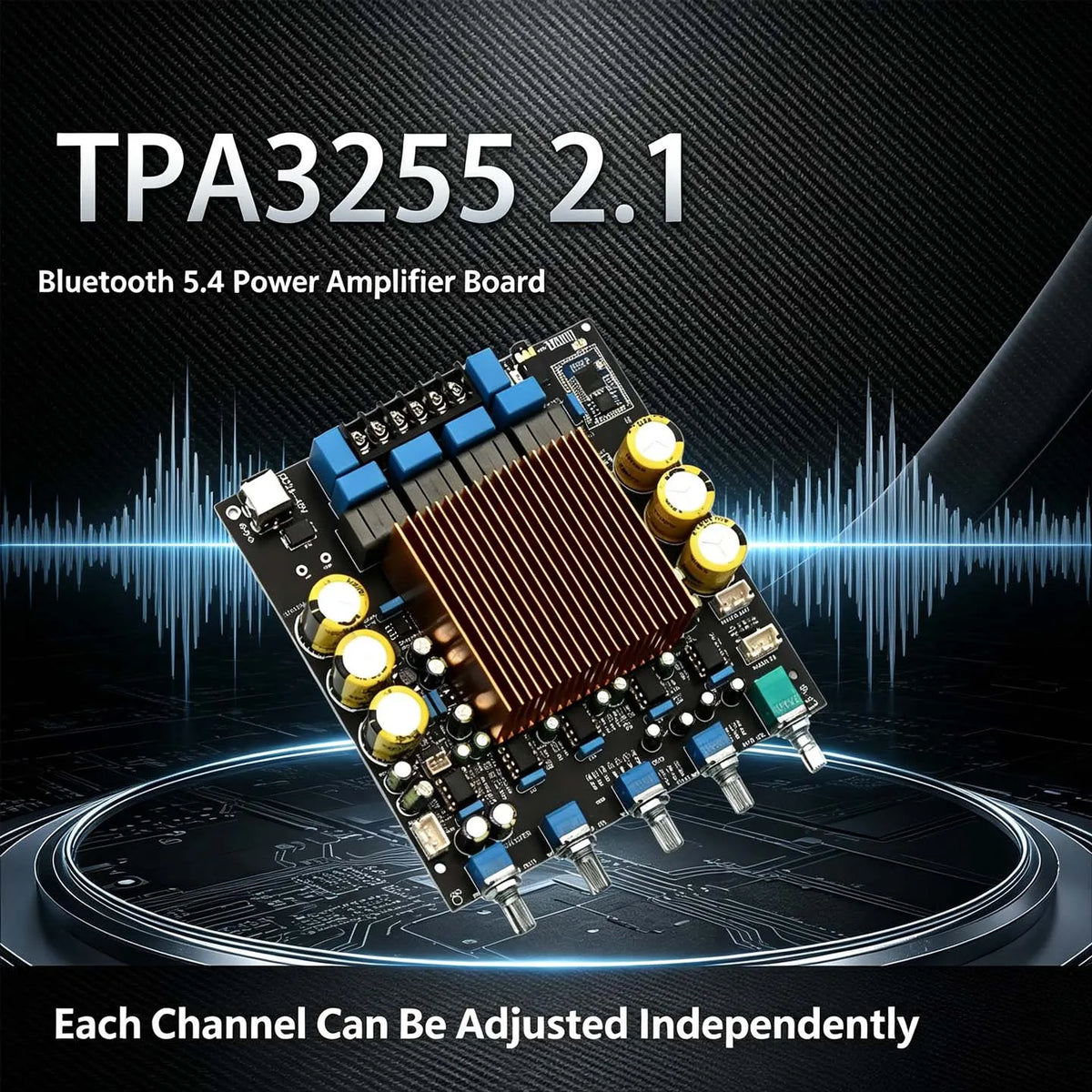

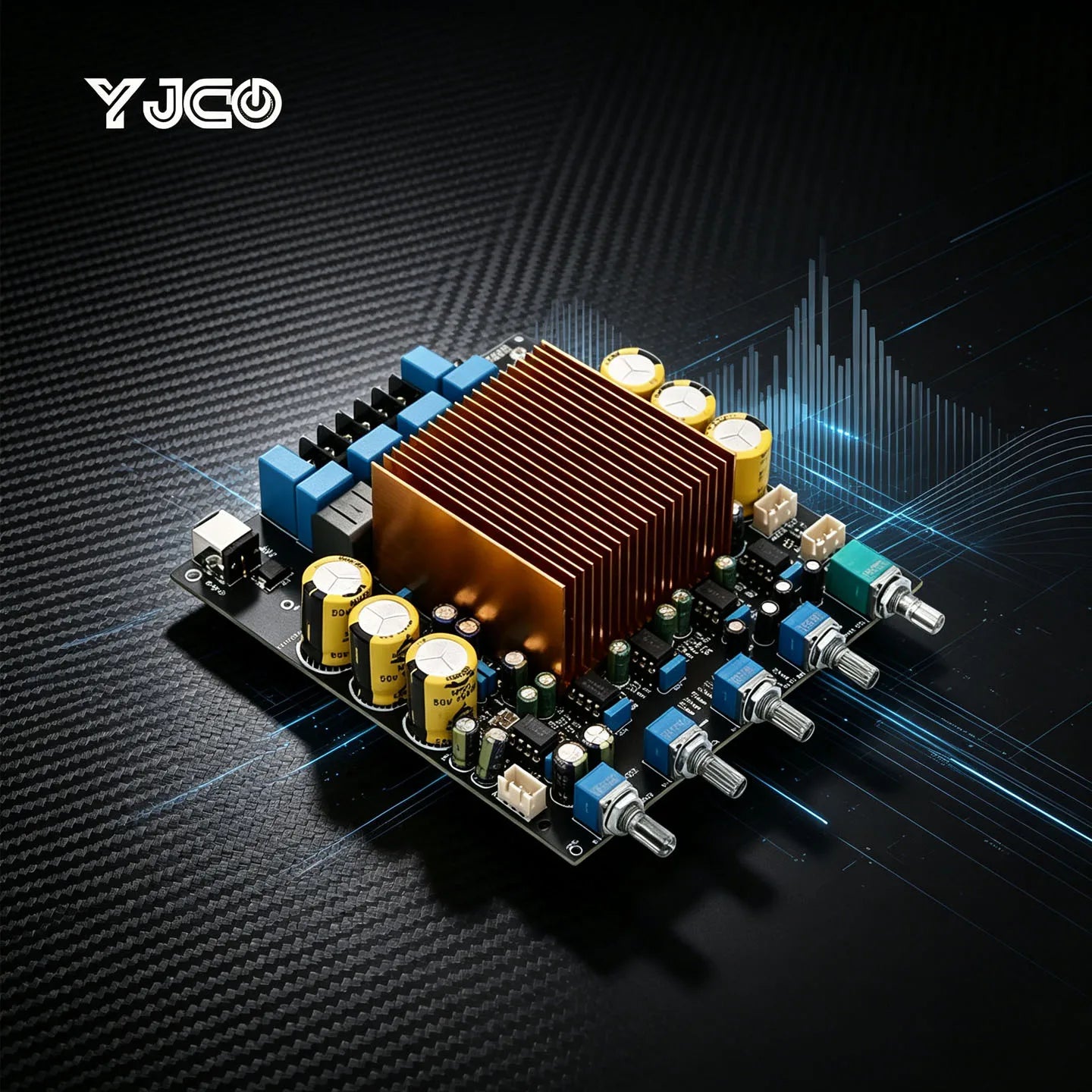

YJCO TPA3255 HIFI 2.1 Amplifier Board QCC3084 Bluetooth 5.4 24Bit/96K LDAC AptX HD 300W×2/4Ω+600W/2Ω Subwoofer Output Audio Amp

YJCO TPA3255 HIFI 2.1 Amplifier Board QCC3084 Bluetooth 5.4 24Bit/96K LDAC AptX HD 300W×2/4Ω+600W/2Ω Subwoofer Output Audio Amp

$325.56

$325.56 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Item: Amp Board

Origin: Mainland China

Package:

Amp Board*1

Notes:

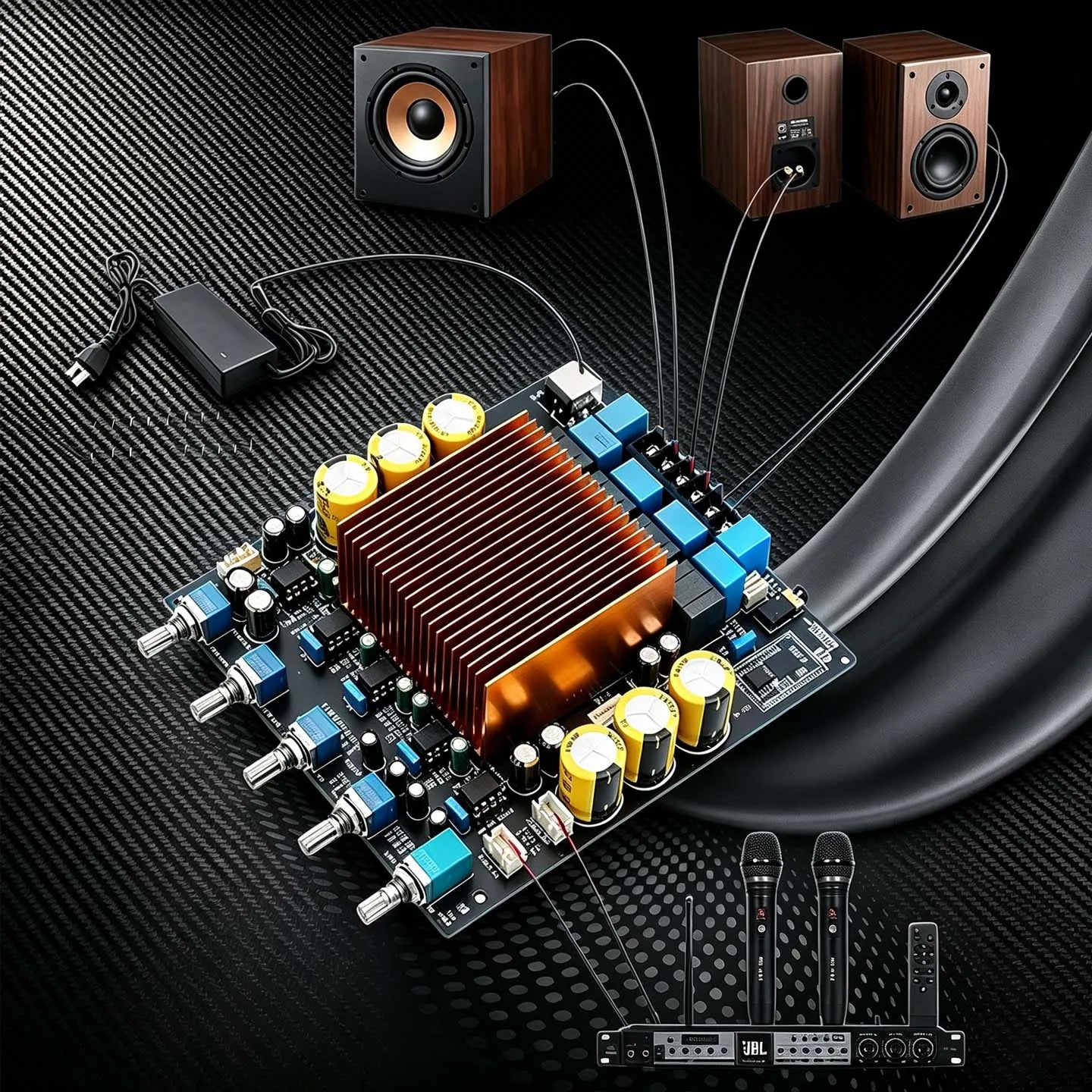

1. The amplifier board output must only be connected to passive speakers. Do NOT connect it to active speakers or constant-voltage speakers.
2. The amplifier board is powered by DC 24V–48V. Higher voltage yields higher output power, but the input voltage must never exceed 48V. Also, the positive and negative terminals of the power supply must not be reversed, as this will permanently damage the amplifier board.
3. The negative terminals of the left and right channel outputs of the amplifier board must not be connected together, as this will cause the amplifier to burn out.
4. The Bluetooth name is "YJHIFI". The device will automatically switch to Bluetooth input mode when your phone connects to it.

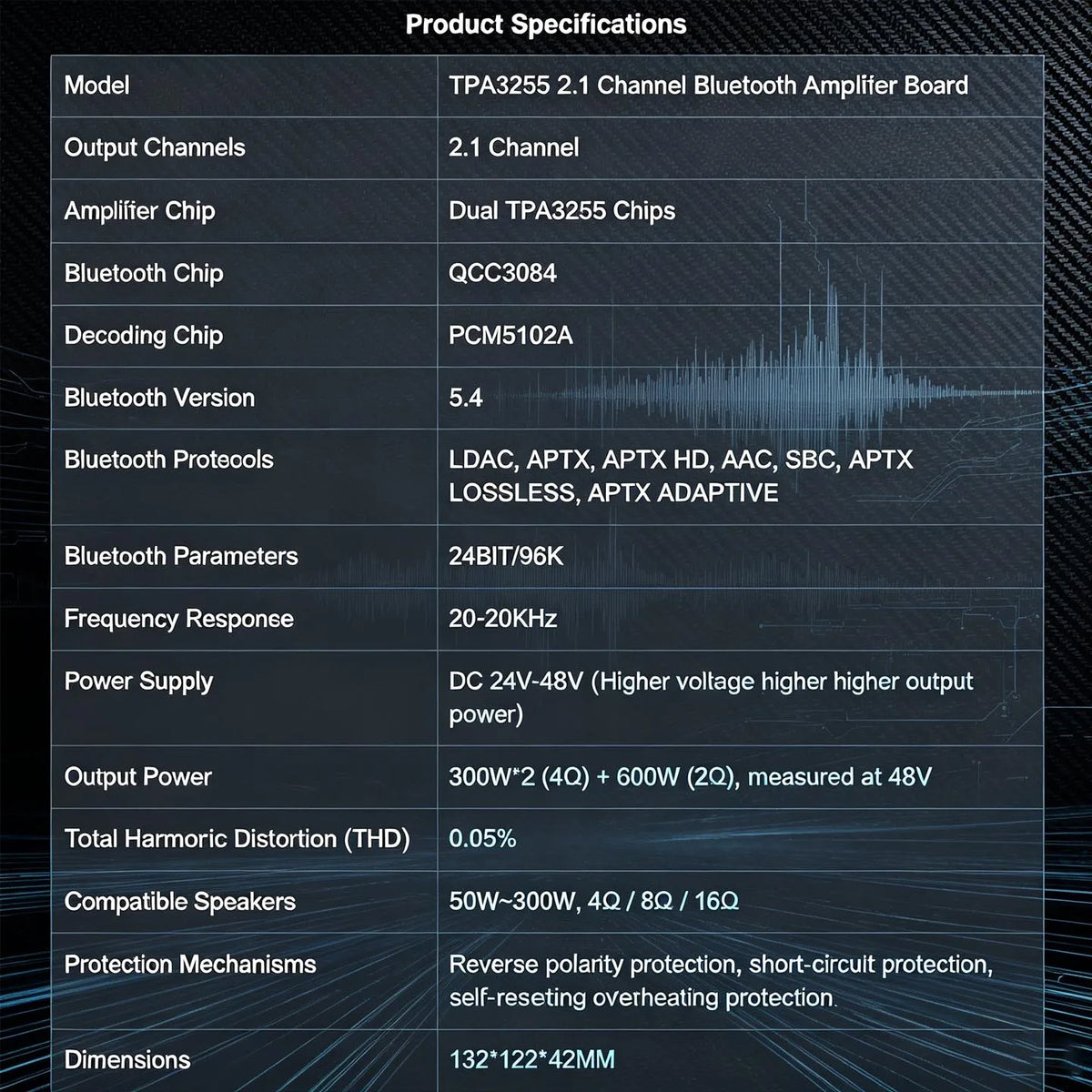

Specificaitons

Model: TPA3255 2.1 Channel Bluetooth Amplifier Board
Output Channels: 2.1 Channel

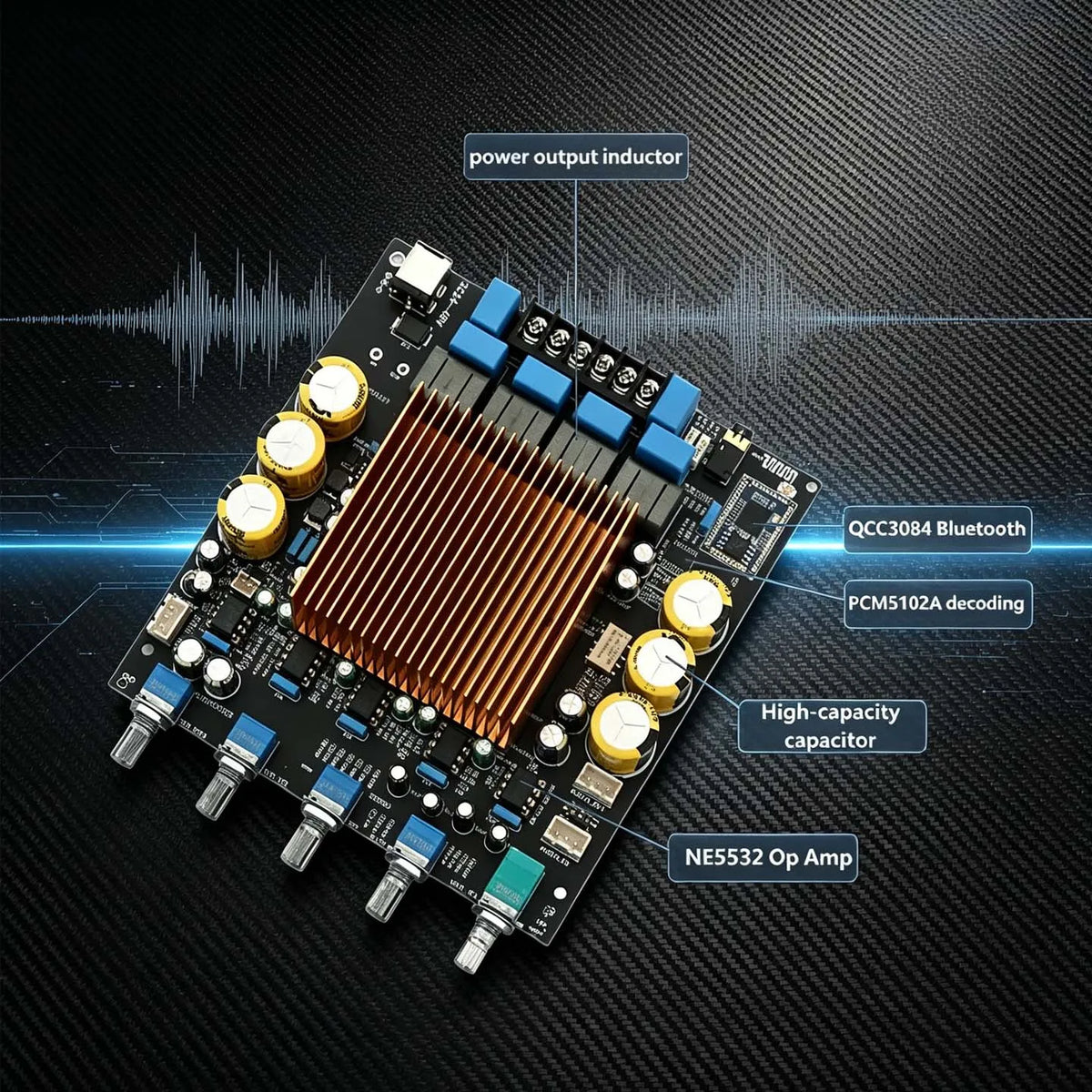

Amplifier Chip: Dual TPA3255 Chips
Bluetooth Chip: QCC3084
Decoding Chip: PCM5102A
Bluetooth Version: 5.4
Bluetooth Protocols: LDAC, APTX, APTX HD, AAC, SBC, APTX LOSSLESS, APTX ADAPTIVE
Bluetooth Parameters: 24BIT/96K
Frequency Response: 20-20KHz
Power Supply: DC 24V-48V (Higher voltage yields higher output power)
Output Power: 300W*2 (4Ω) + 600W (2Ω), measured at 48V
Total Harmonic Distortion (THD): 0.05%
Compatible Speakers: 50W~300W, 4Ω / 8Ω / 16Ω
Protection Mechanisms: Reverse polarity protection, short-circuit protection, self-resetting overheating protection

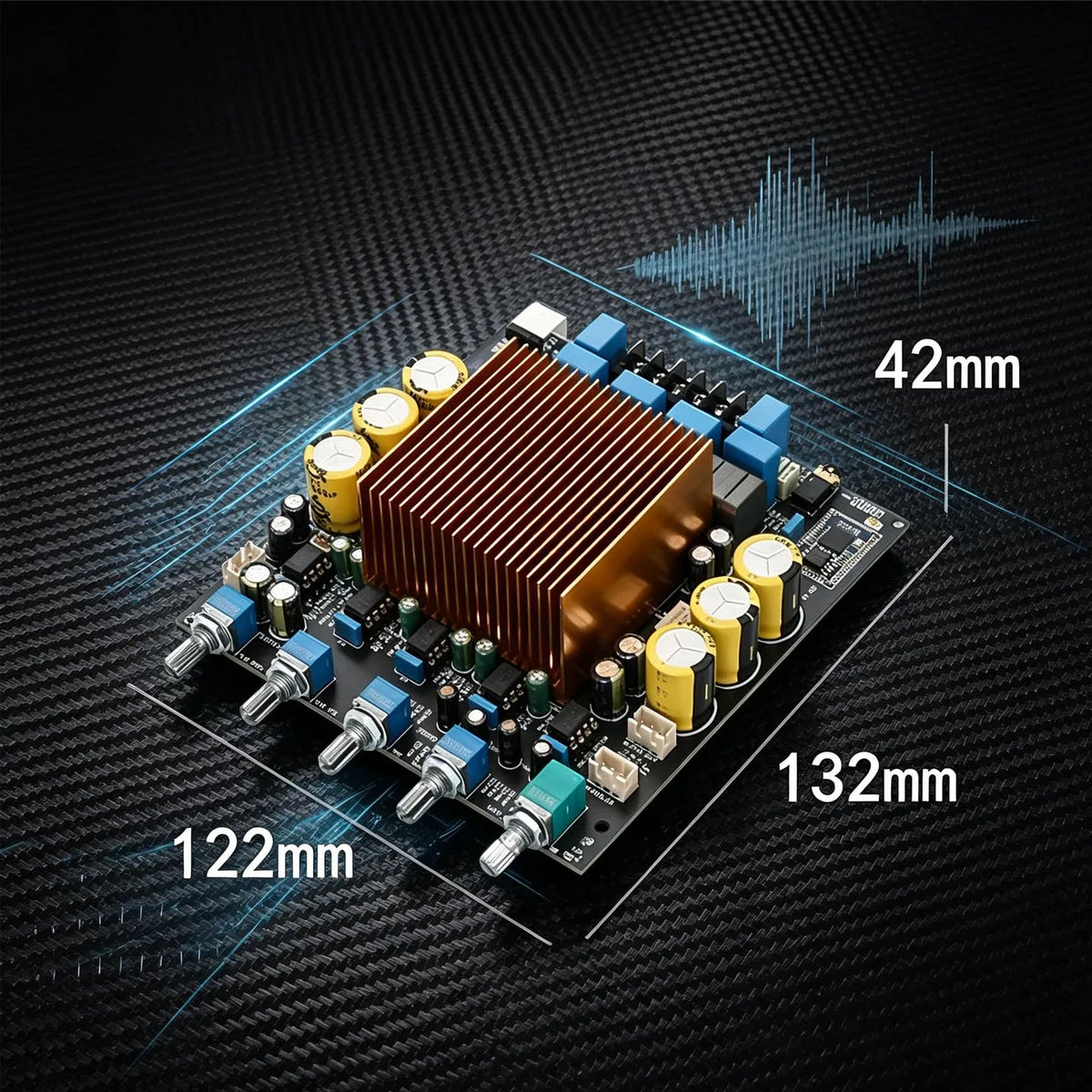

Dimensions: 132*122*42mm
