SPECIFICATIONS

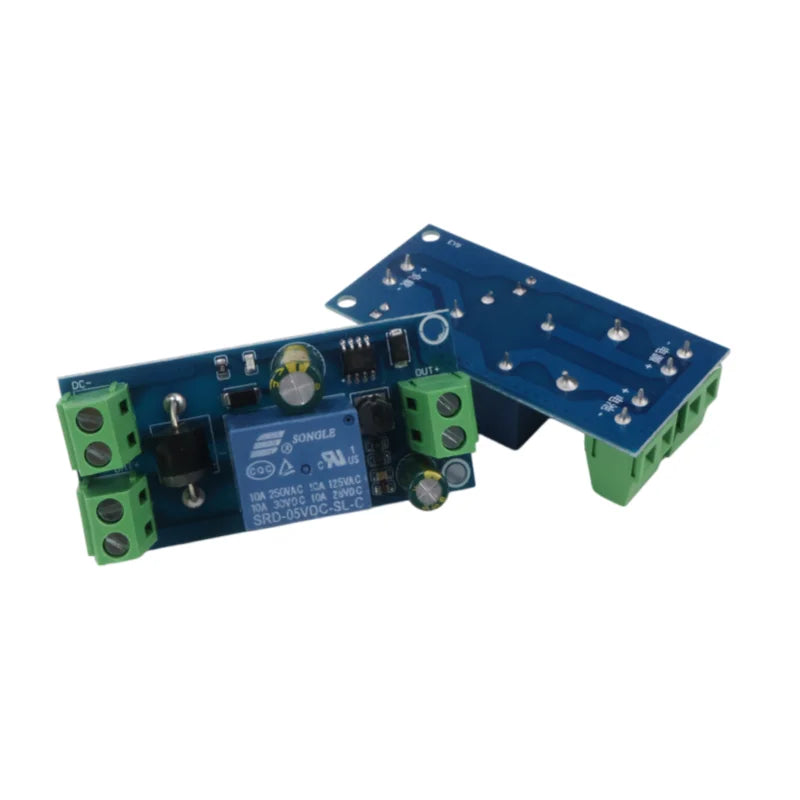

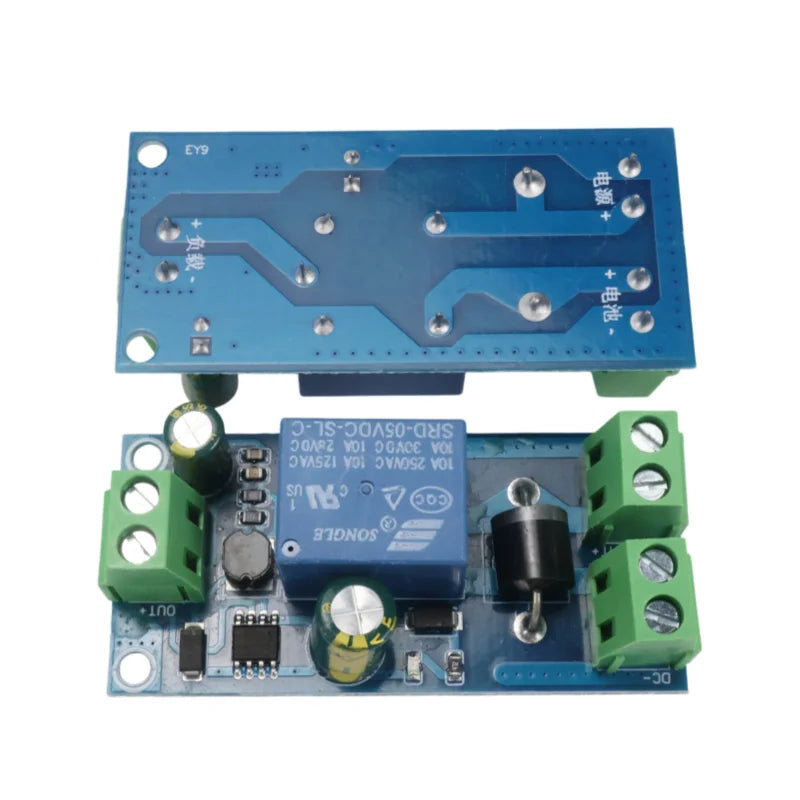

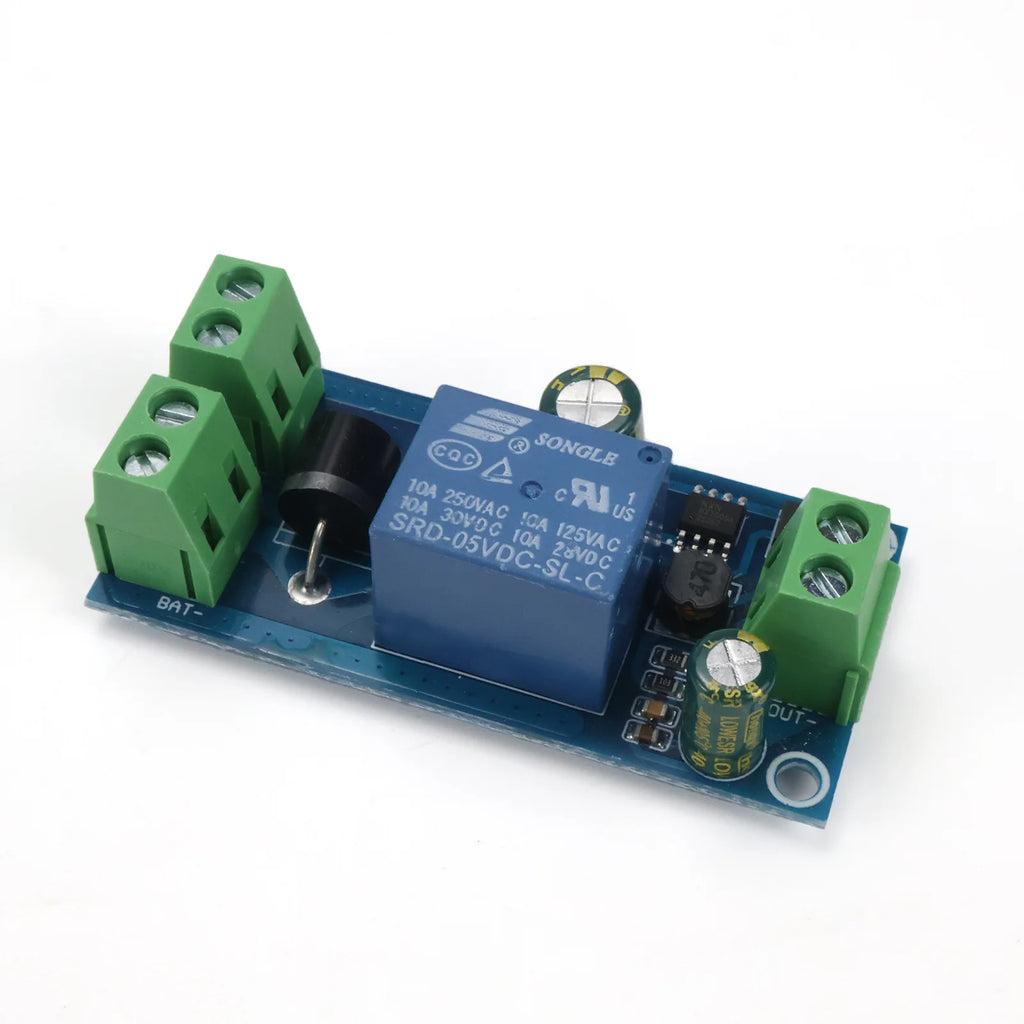

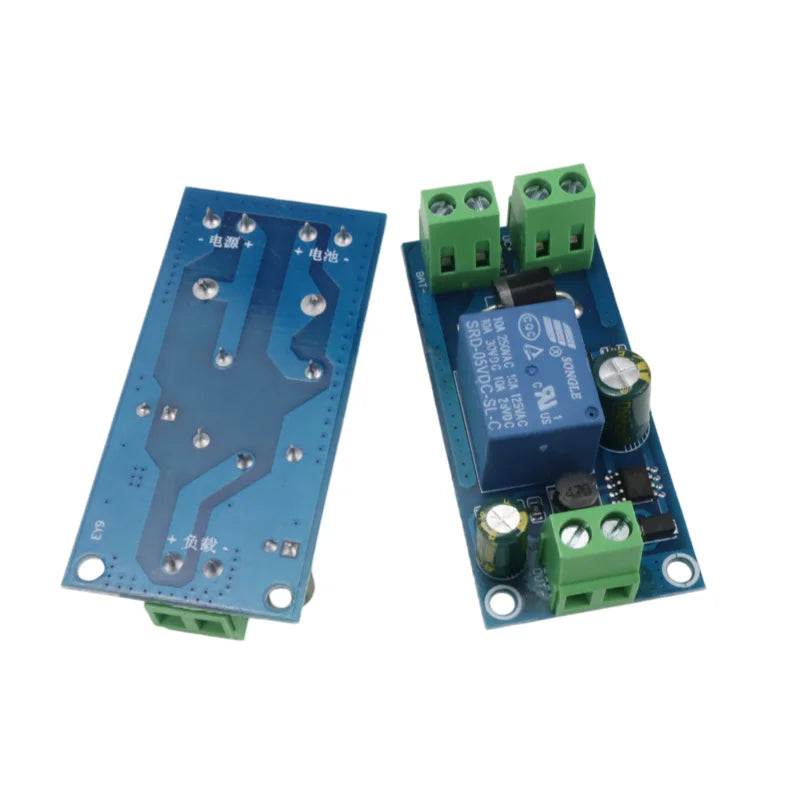

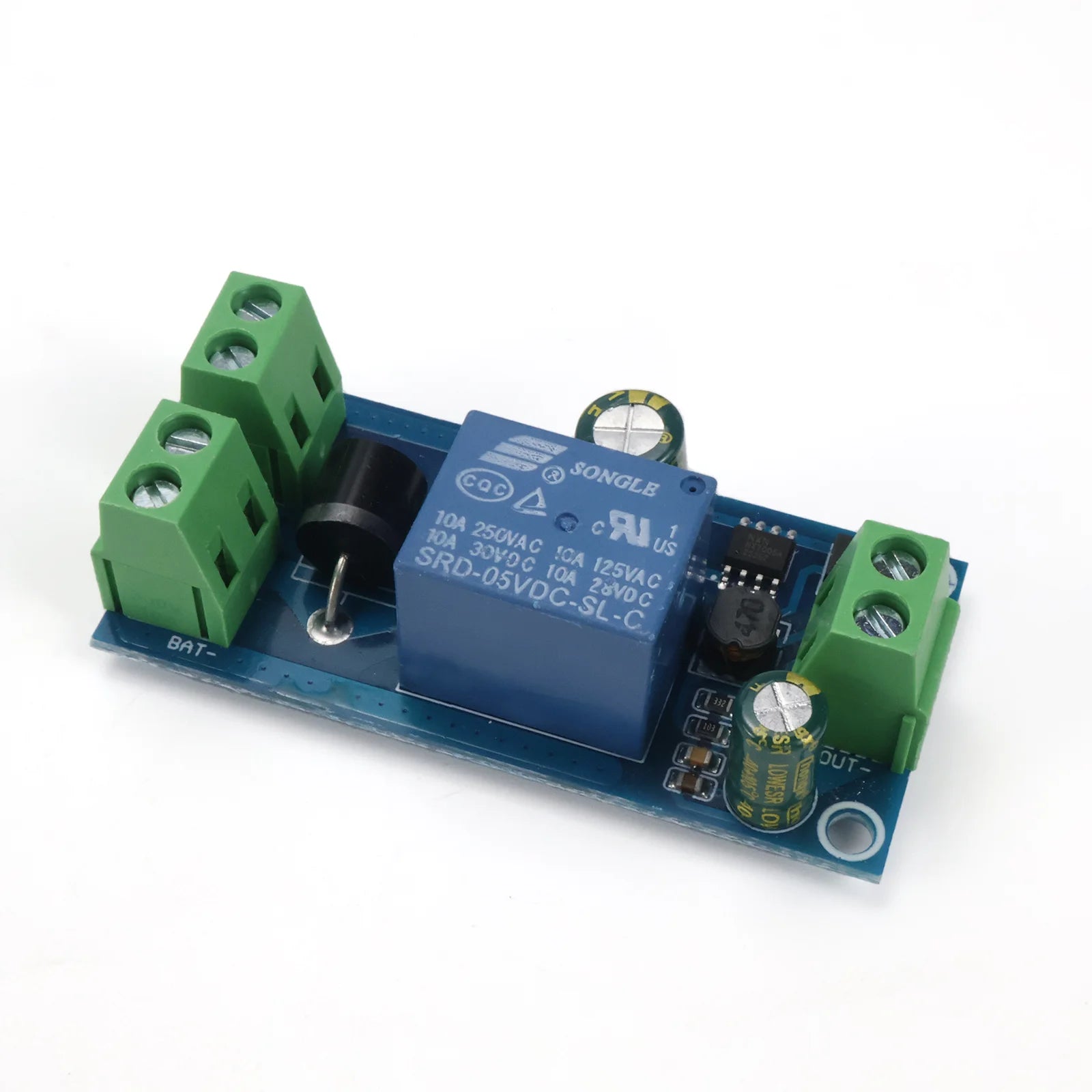

YX850 Power Failure Automatic Switching Standby Battery Module UPS 5V-48V 10A Emergency Converter for Lithium Battery

Key Features & Benefits

🔄 Auto Switch: Prefers DC input (adapter) – if fails, automatically switches to battery (BAT).

🔋 Wide Voltage: 5V-48V compatible – works with 12V, 24V, 36V, 48V systems.

💪 10A Load: Drives routers, cameras, alarms, motors.

🛡️ Protections: Reverse polarity, overcurrent.

🧩 Compact: 50×30×18mm, mounting holes.

📍 Applications: UPS for routers, CCTV, door access, alarms, pumps, LED lighting.

Product Description

Worried about power outages? YX850 automatic switch module keeps your devices running. Monitors DC input – when power fails, it instantly switches to battery. Wide 5-48V range, 10A max load. Ideal for routers, cameras, alarms. No battery charging – use with external charger.

⚡ Quick Start Guide & Important Tips

🔹 What It Does & What You Need
✅ This module does:

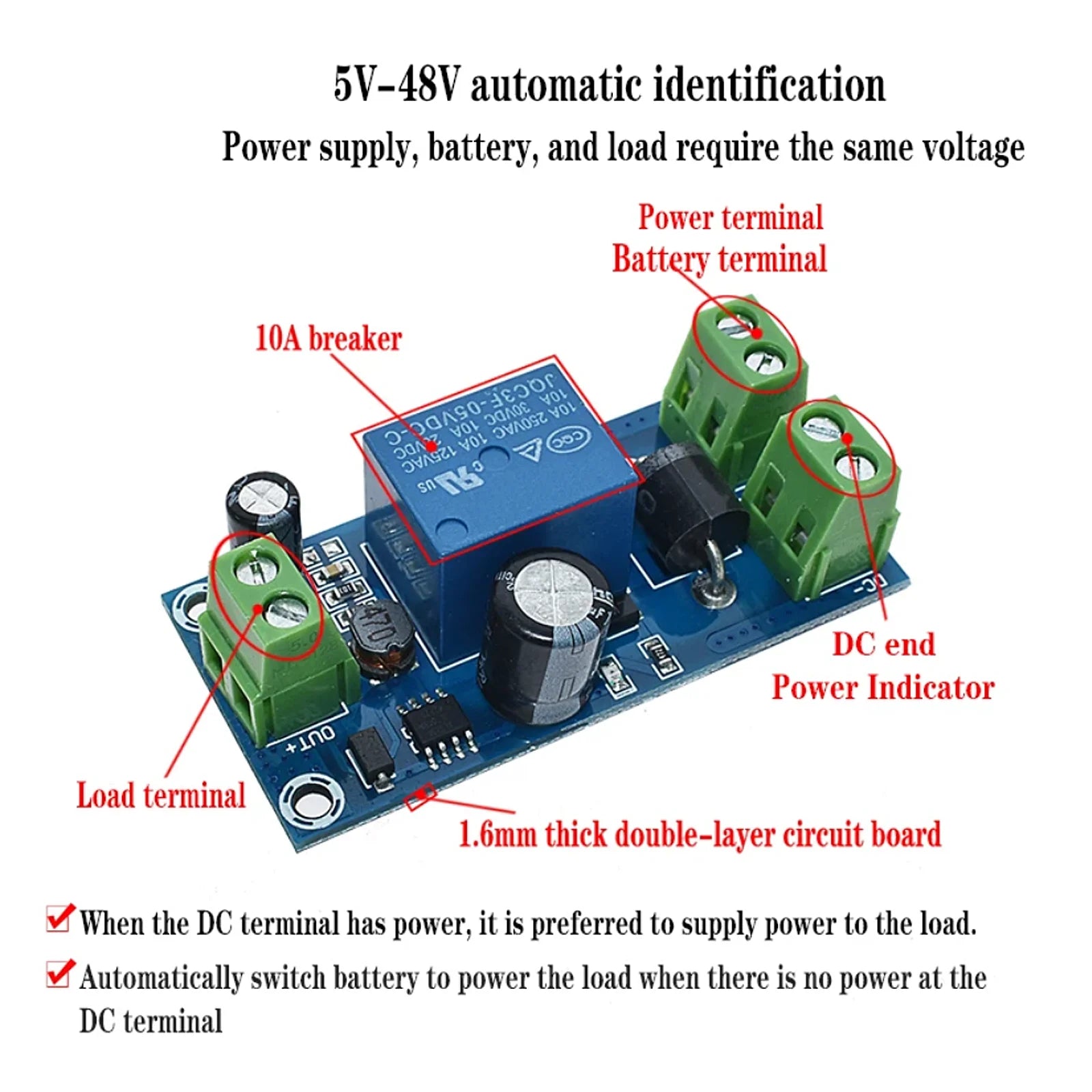

Priority to DC input; auto switch to battery on failure

5-48V, 10A load

Protects battery from over‑discharge (with external protection)
❌ This module does NOT: Charge battery (need separate charger), provide instant seamless switching (brief power loss)
🔧 You will need: Main DC supply (5-48V), backup battery (same voltage), load device
📦 Package includes: YX850 module × (as per SKU)

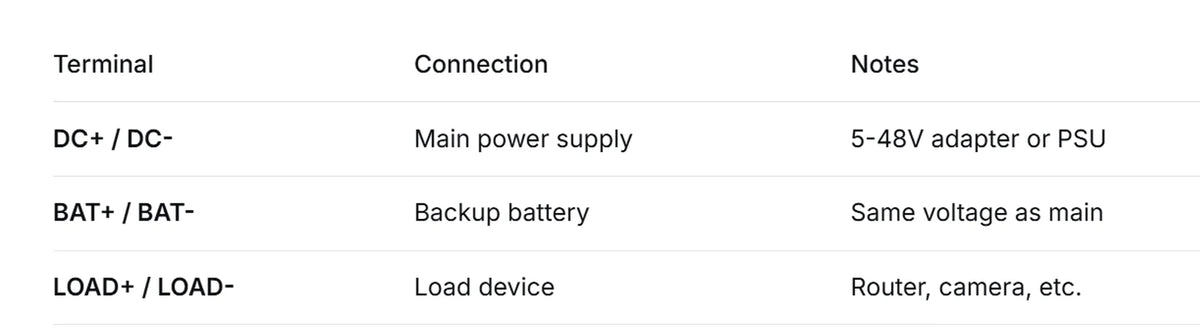

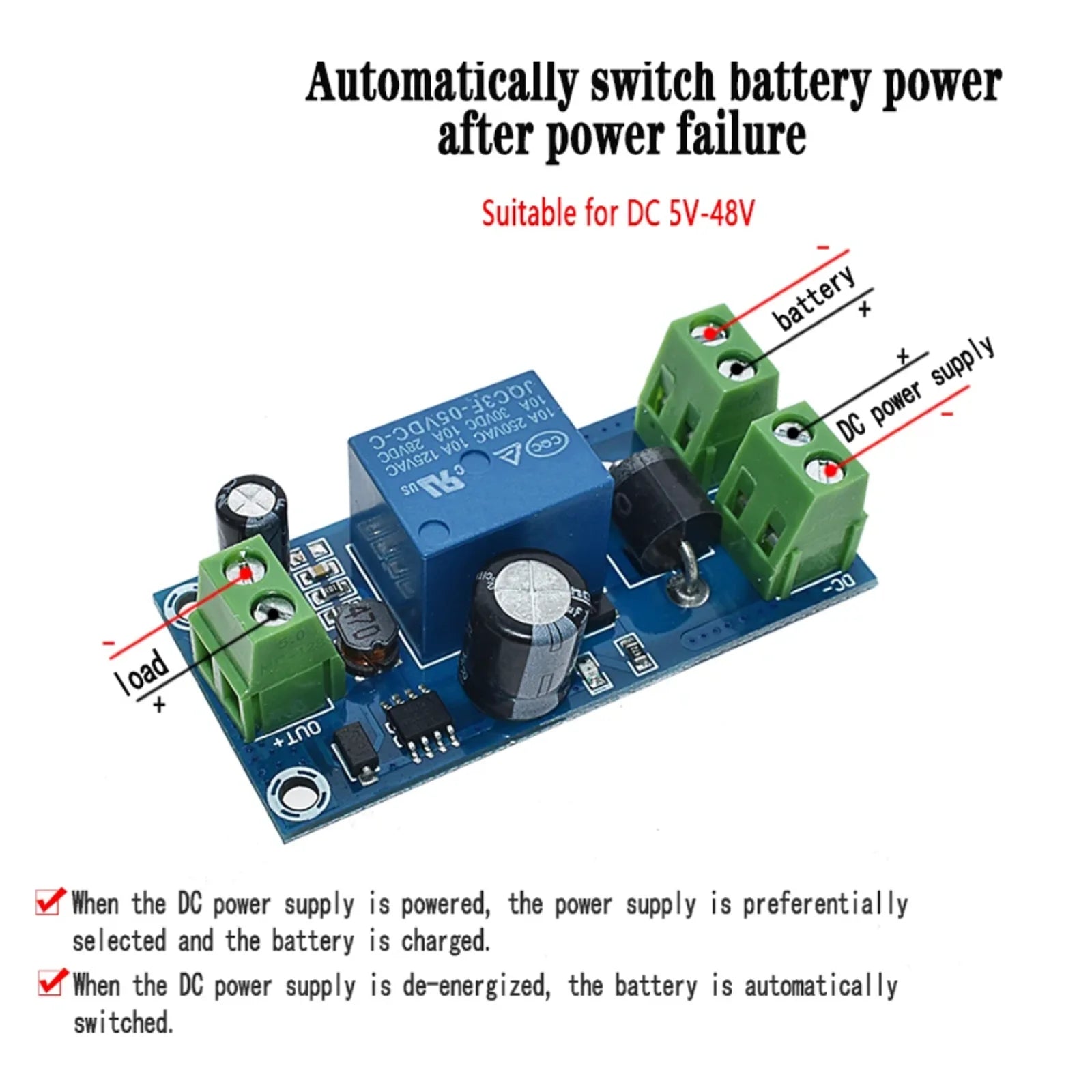

🔹 Wiring & Usage

⚠️ Important:

Voltage match: Battery voltage must equal main power voltage.

Switch time: Brief power loss (ms to seconds) – may reset sensitive devices. Test first.

Battery charging: Not included – use external charger.

Current limit: ≤10A continuous.

Polarity: Do not reverse.

Heat: Ensure ventilation at high load.

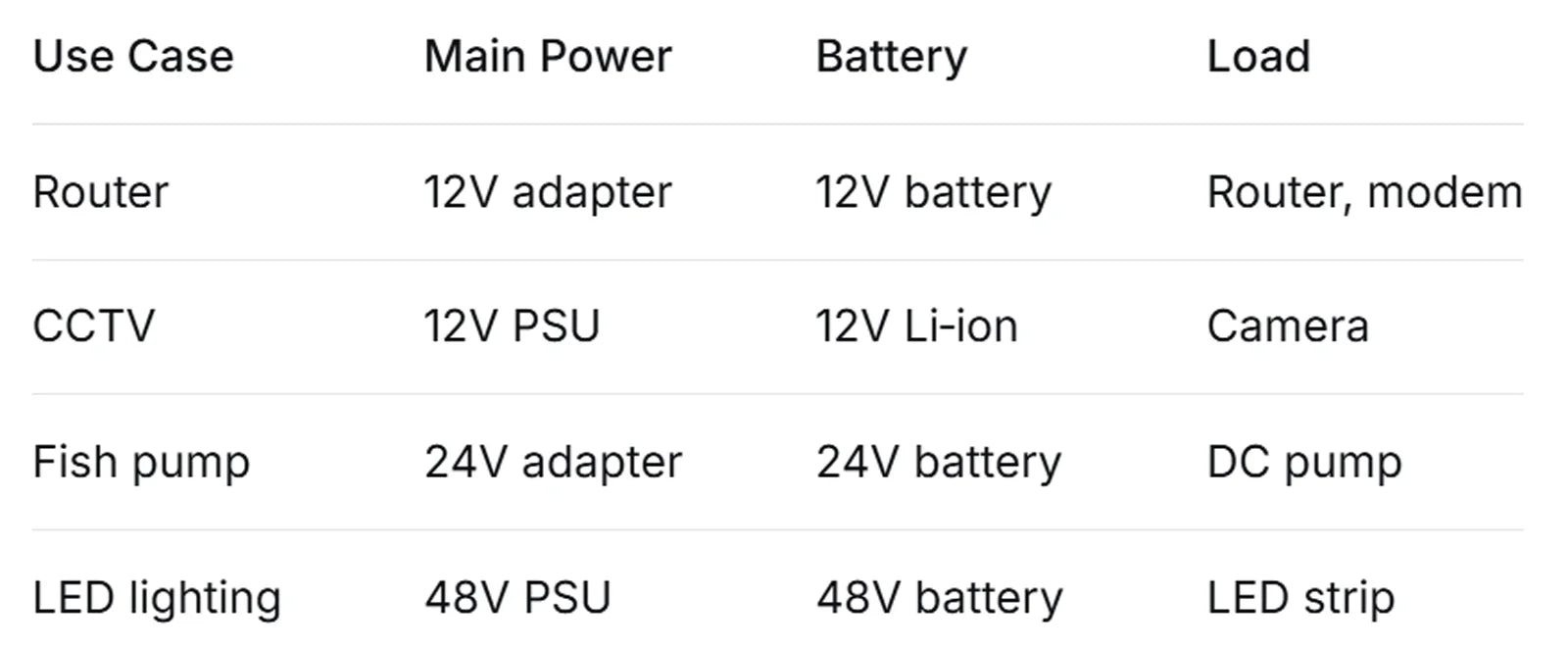

Application Examples

🔹 Common Questions

❓ Will my device restart?
Depends on device tolerance. Routers and cameras usually survive. Test before critical use.

❓ Does it charge the battery?
No. Use a separate charger.

❓ Can I use 5V?
Yes – main and battery both 5V.

❓ 10A continuous?
Yes, 10A continuous. Higher peaks possible but not recommended.

❓ Battery voltage lower than main?
No – must be same voltage.

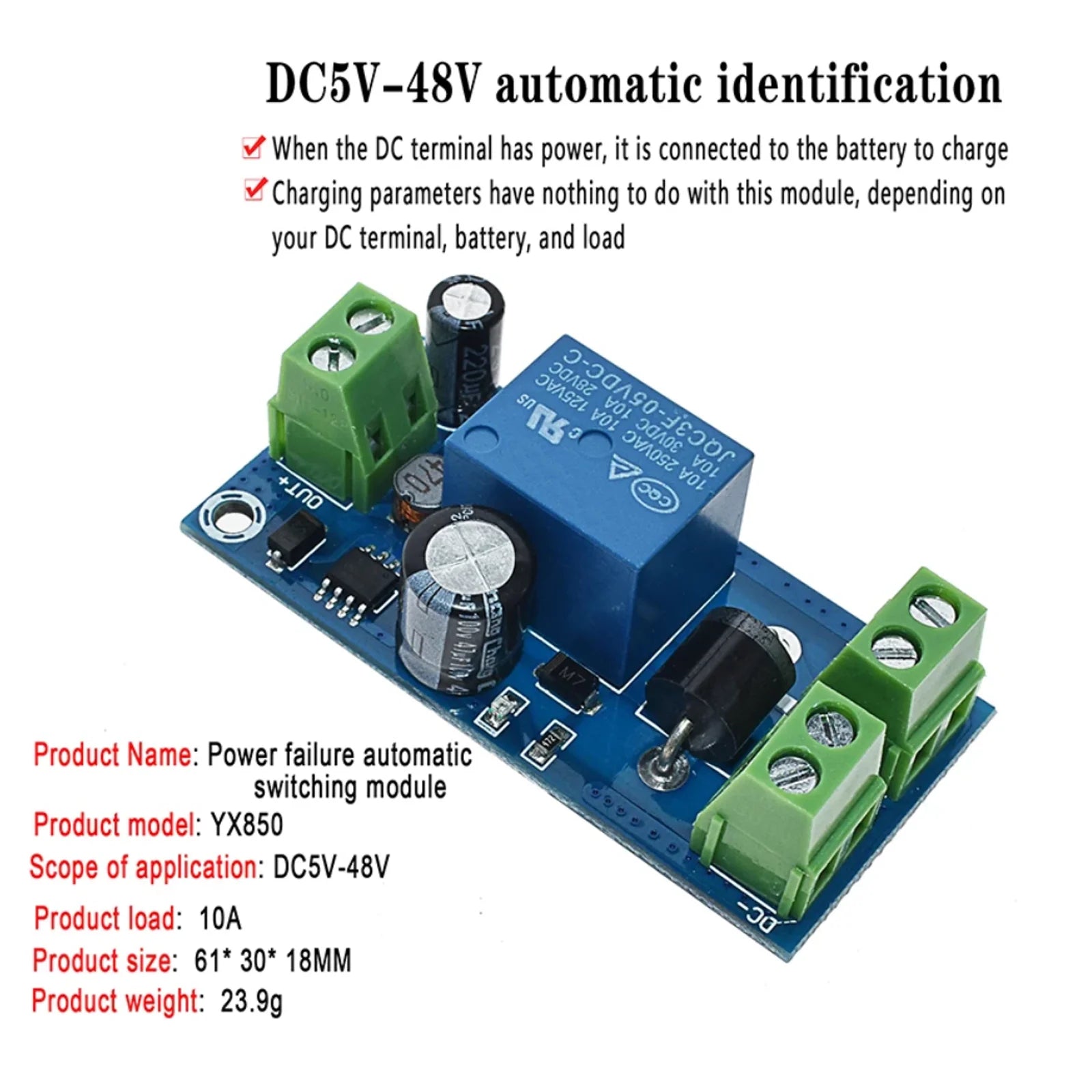

Specifications

Model: YX850 / X804

Voltage Range: DC 5V – 48V (main & battery must match)

Load Current: 10A max continuous

Switch Time: Milliseconds to seconds (brief power loss)

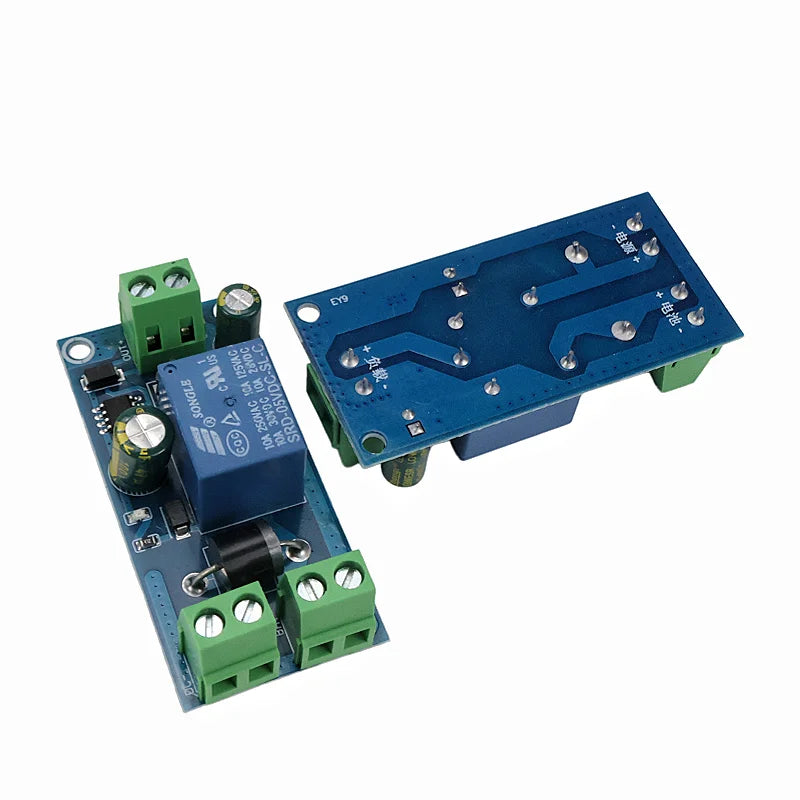

Terminals: DC, BAT, LOAD (all +/-)

Mounting Holes: 2×3mm (23mm spacing)

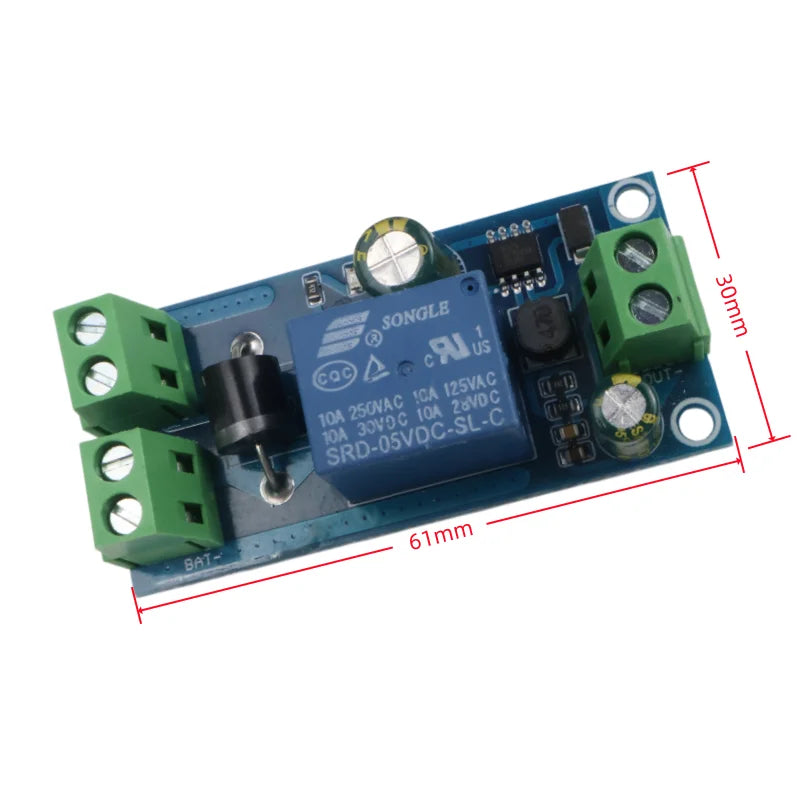

Dimensions: 60×30×18mm

Weight: ~23g

Note: Manual measurement, allow 1‑3mm error. Colors may vary.
