SPECIFICATIONS

Product selling point:

: 9.5mm black barrier terminal block

: Standard 30A binding post, stable and firm, reliable quality

: Output capacity: AC 250V/30A, DC 30V/30A or less

: Using industry-quality ultra-small optocoupler, strong anti-interference ability,

: stable performance

Specification:

: Product model: YYG-2

: Optional power supply: 5V-12V-24V

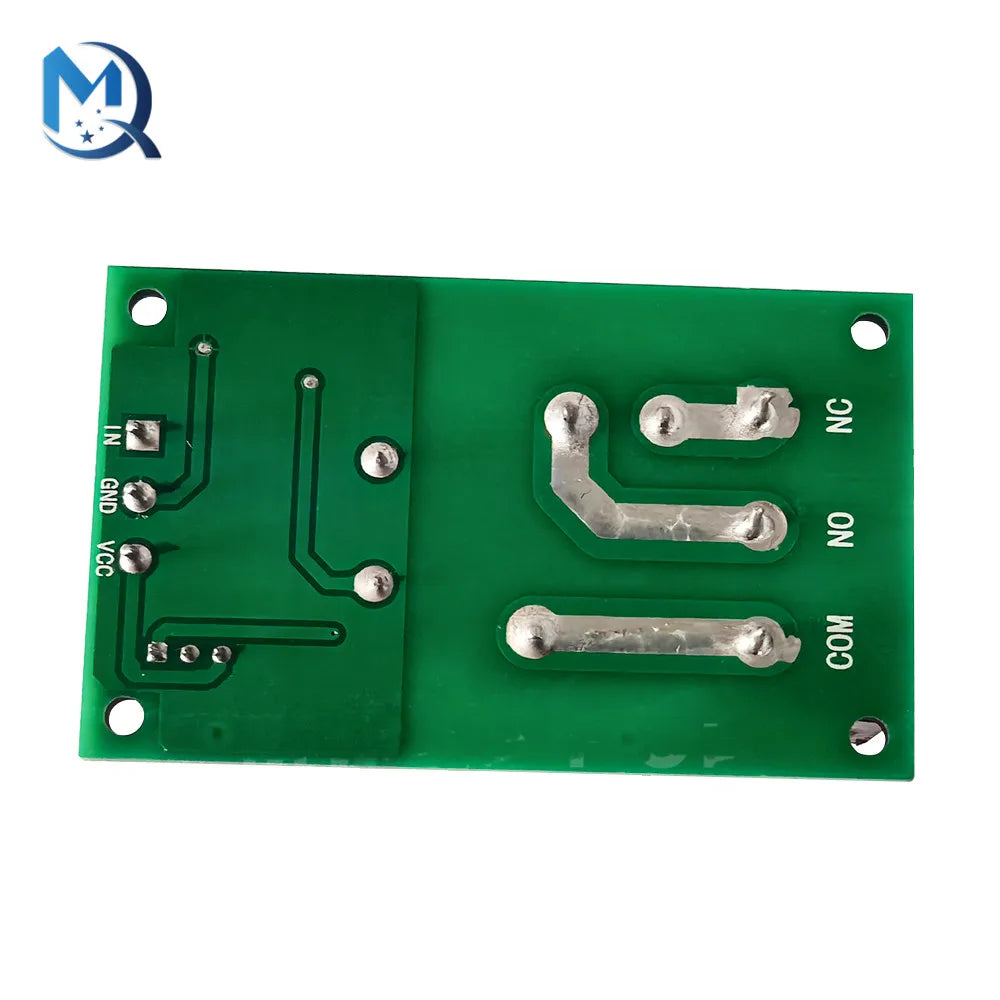

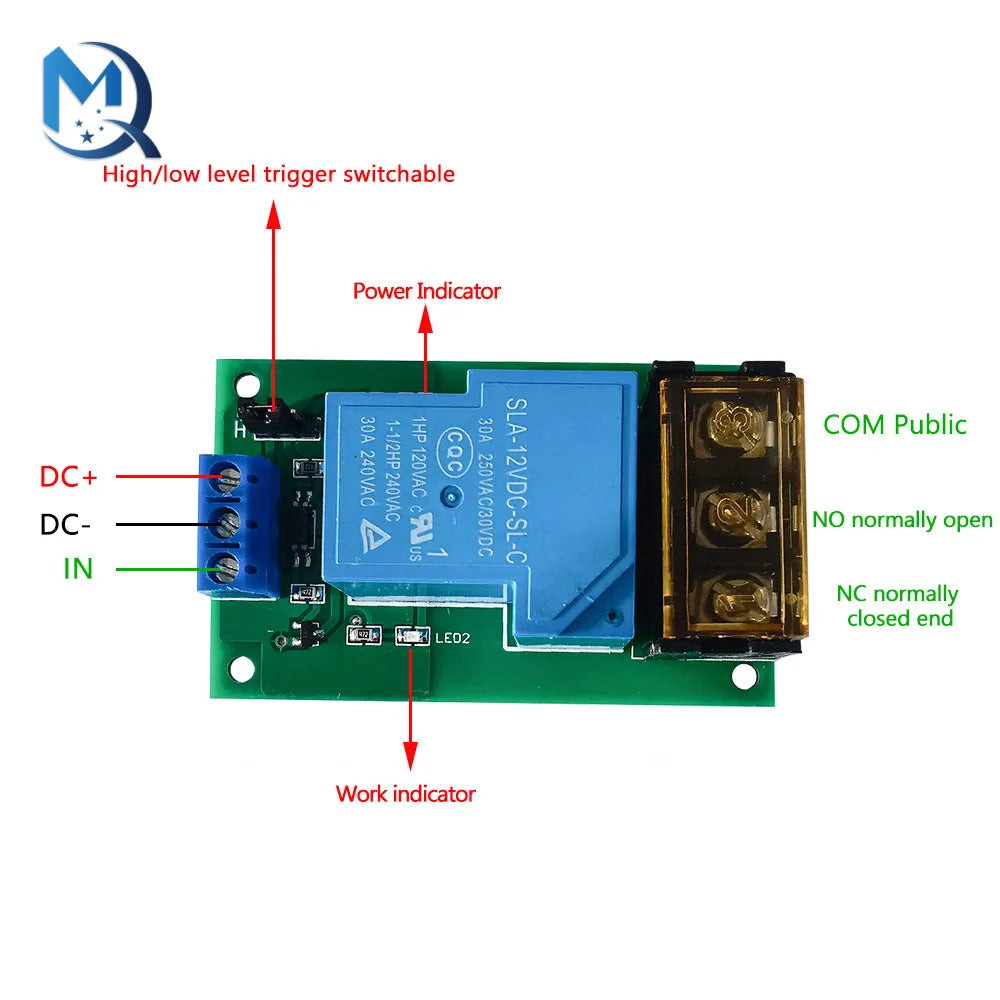

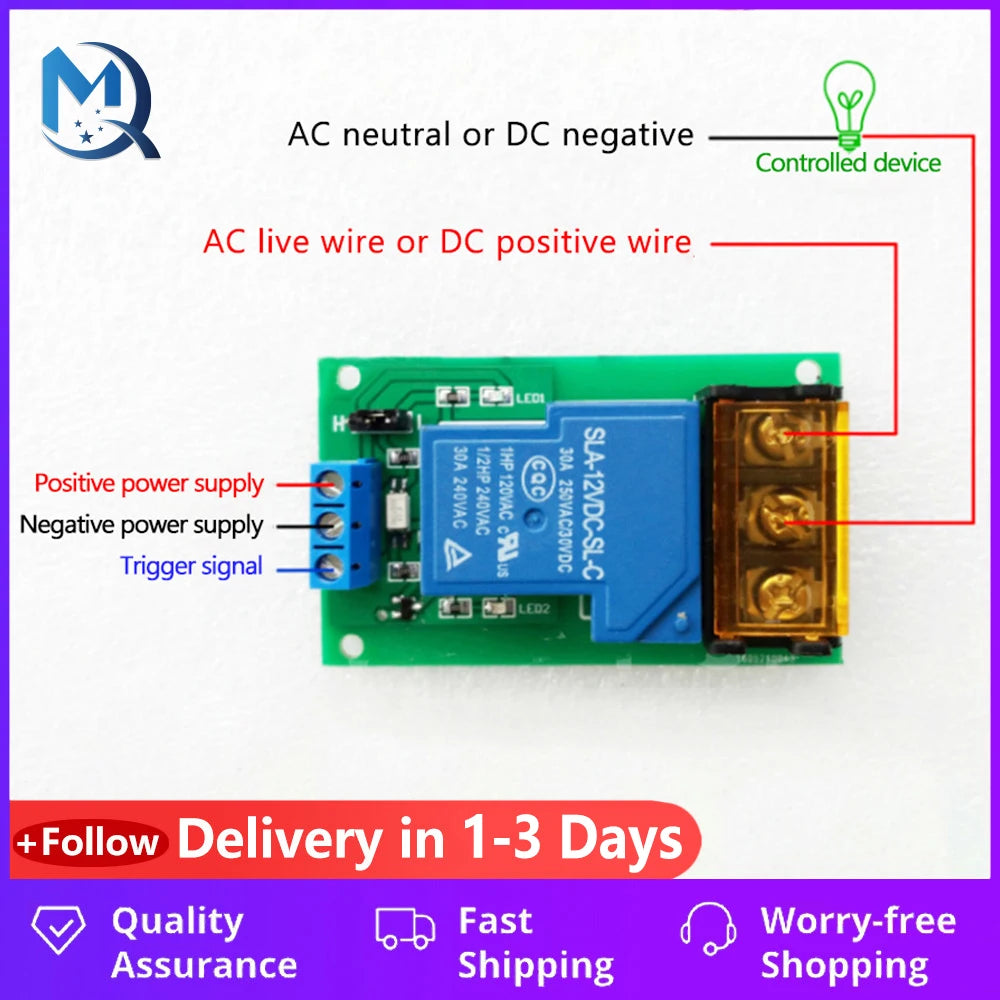

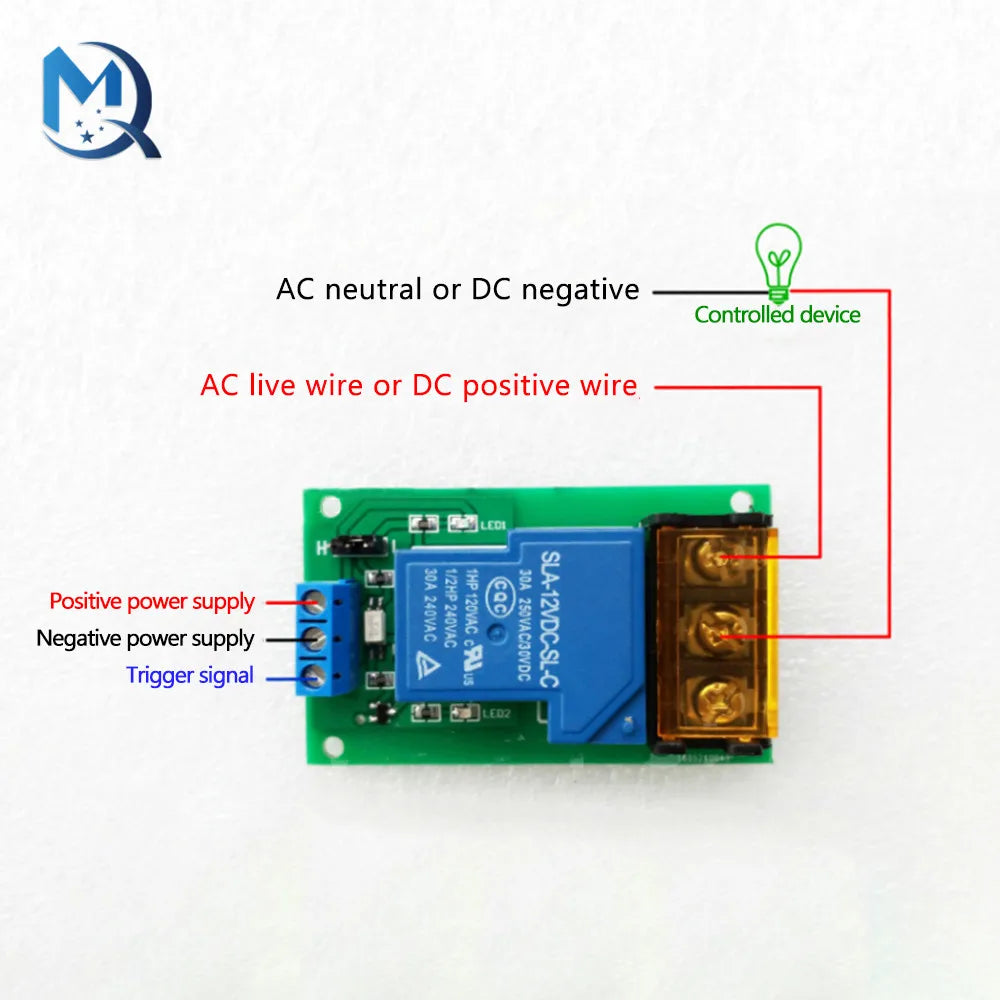

Module interface description:

: DC+ : Positive pole of external DC power supply

: DC- : Negative pole of external DC power supply

: IN: Signal input terminal (supports arbitrary switching of high and low levels)

: NO: Relay normally open interface, the relay is suspended before closing, and short-circuited with COM after closing

: COM: Relay common interface

: NC: Relay normally closed interface, short-circuit with COM before the relay picks up, and hangs after picking up

Package Contents:

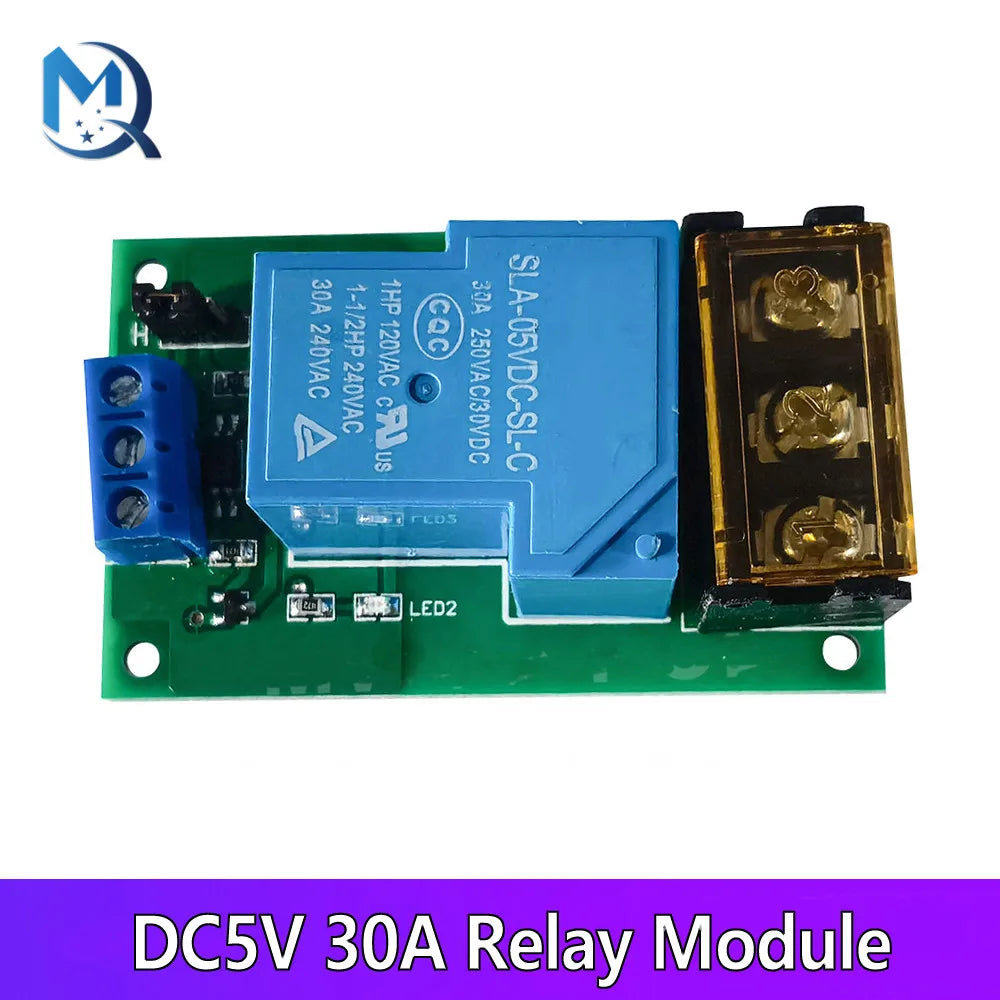

: Type A 5V 30A relay module *1

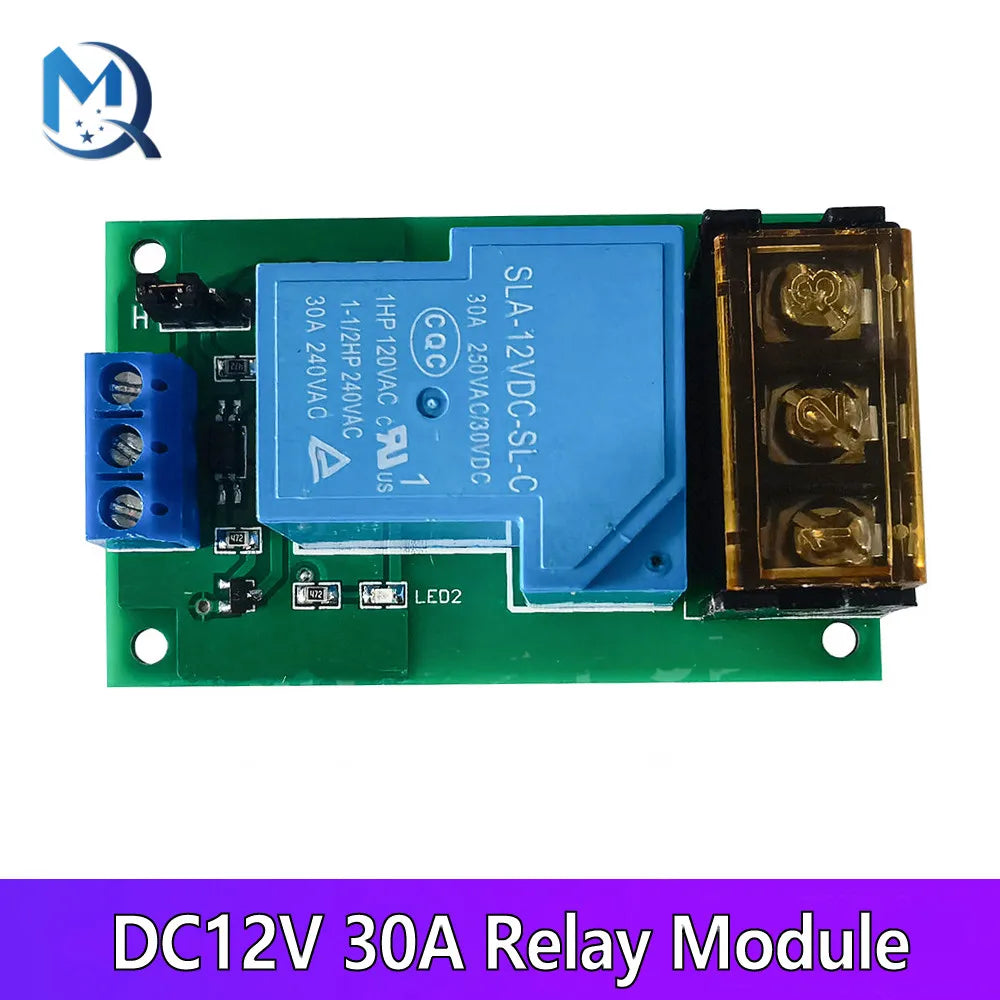

: Type B 12V 30A relay module *1

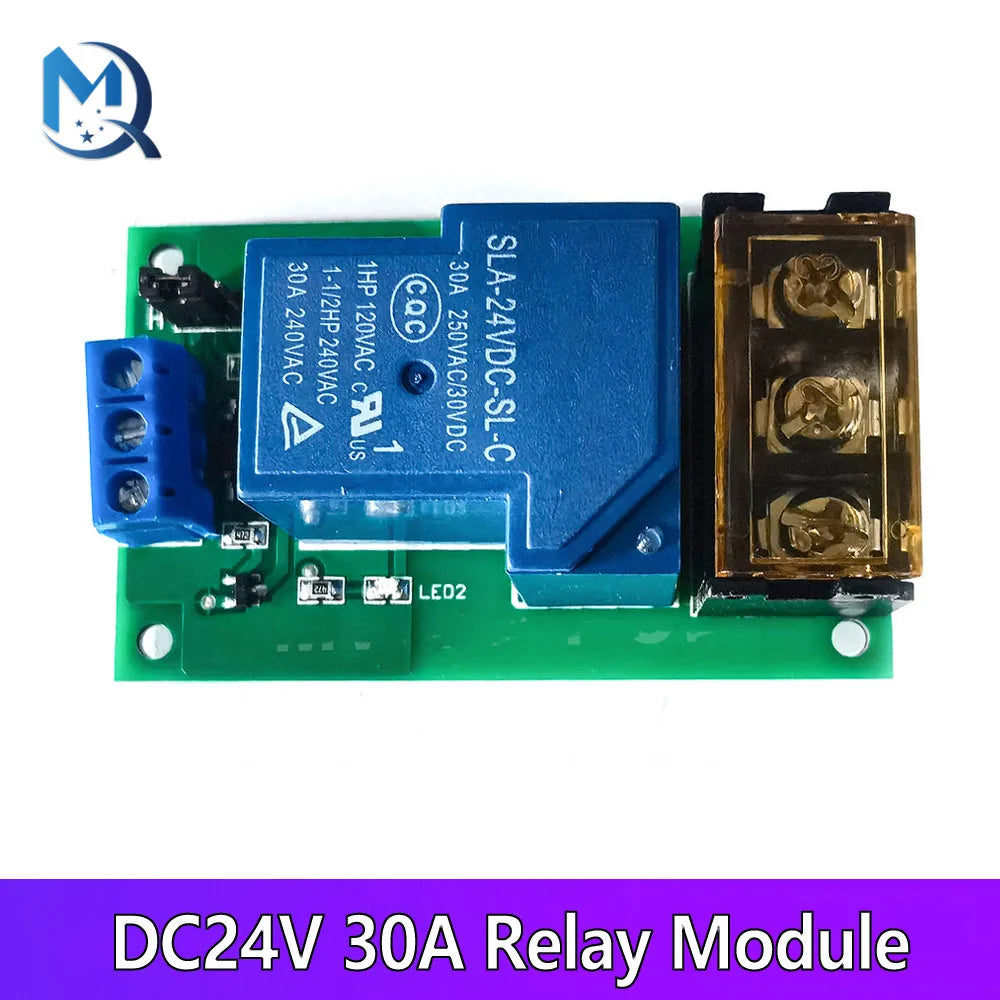

: Type C 24V 30A relay module *1

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
