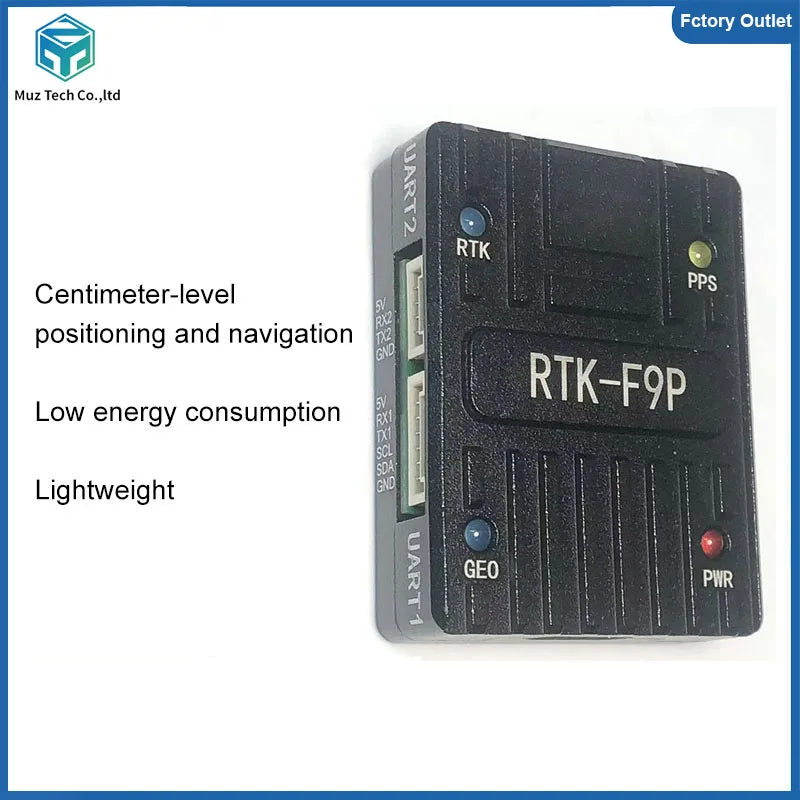

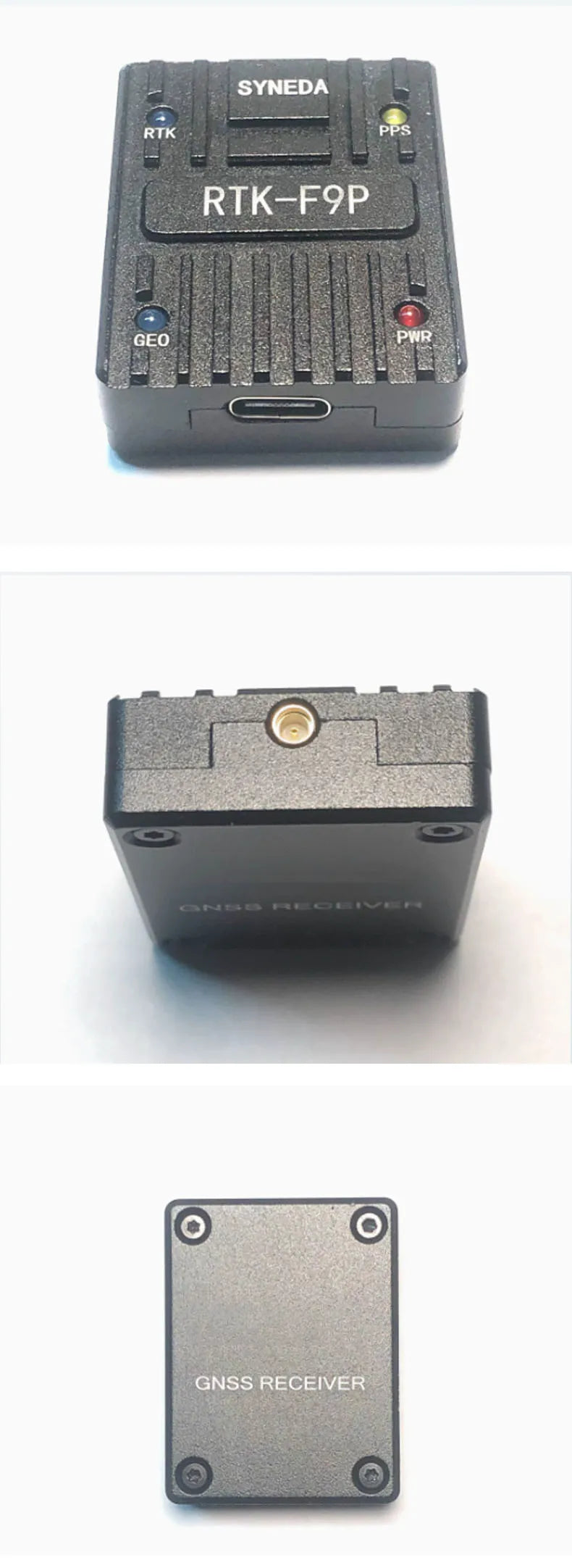

ZED-F9P-01B/02B/04B High Precision GNSS RTK Module GNSS/GPS Board entimeter-level Differential Positioning Drone Develop Board

ZED-F9P-01B/02B/04B High Precision GNSS RTK Module GNSS/GPS Board entimeter-level Differential Positioning Drone Develop Board

$967.36

$967.36 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Operating Temperature: -40℃-85℃

Origin: Mainland China

Quantity: 1

Supply Voltage: 5-16V DC

Type: Receiver

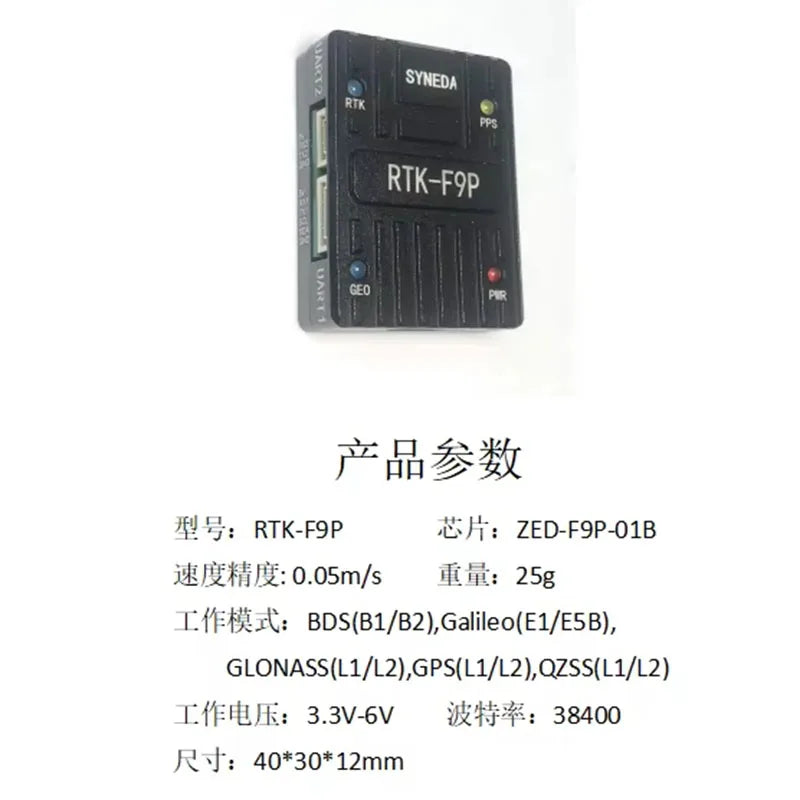

Model	RTK-F9P	Speed Accuracy	0.05m/s
Chip	ZED-F9P-01B	Weight	25g
Work mode	BDS(B1/B2), Galileo(E1/E5B), GLONASS(L1/L2) GPS(L1/2), ZSS(L1/L2)
Working voltage	3.3V-6V	Baud rate	38400

Size	403012mm	Channel	184

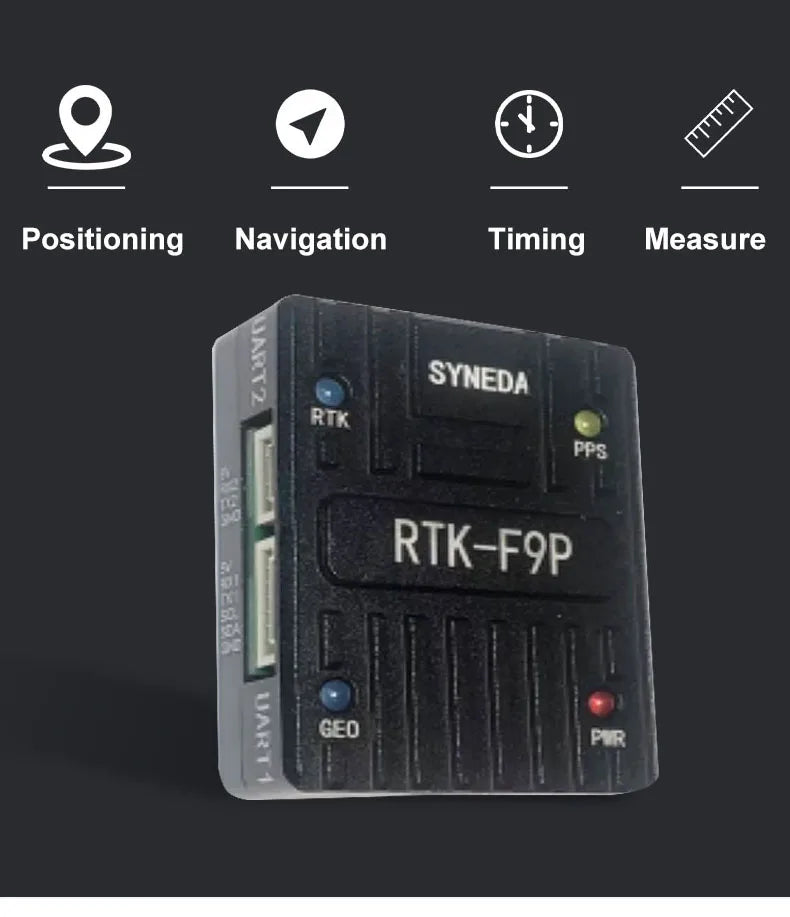

Applicable	Positioning / Navigation / Measurement
Single Point Positioning	Flat surface 1.5 meters, elevation 1.5 meters
RTK(RIS)	Plane: 0.01 + 1 ppm CEP, Elevation: 0.01 + 1 ppm CEP
Time precision	30ns	Electricity	90mA/5V
Cold/Hot Startup	35s/2s	Product Compass	OMC5883L
Speed update rate		0.25Hz - 20Hz, default 1Hz
Baud rate		4800bps - 921600bps, default is 38400bps
Product voltage		DC 3.3V - 6V, recommended 5V
Output protocol		NEMA0183,UBX,RTCH3.3

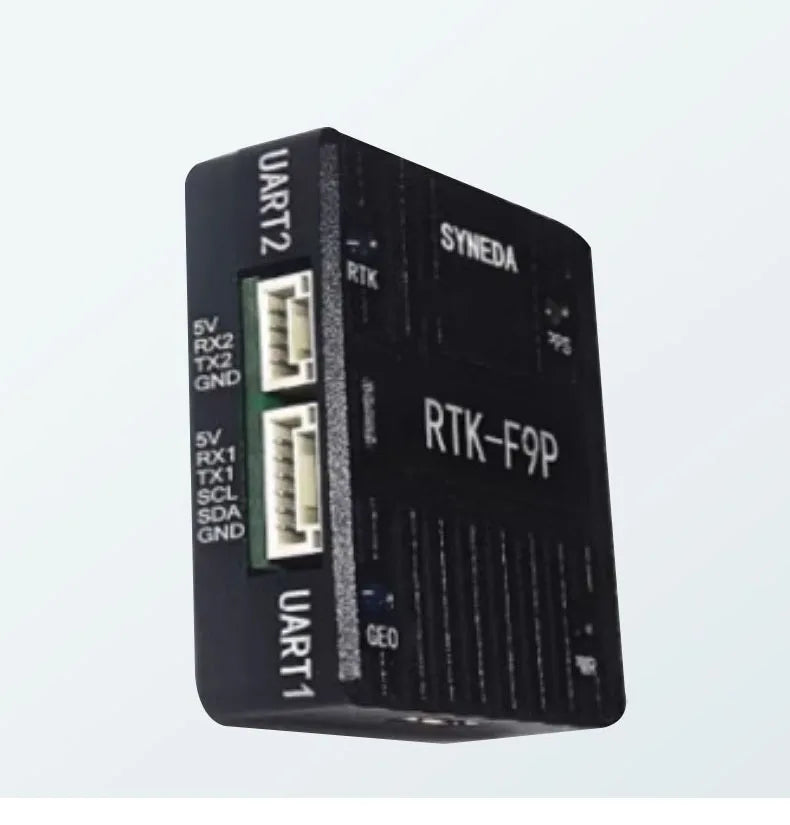

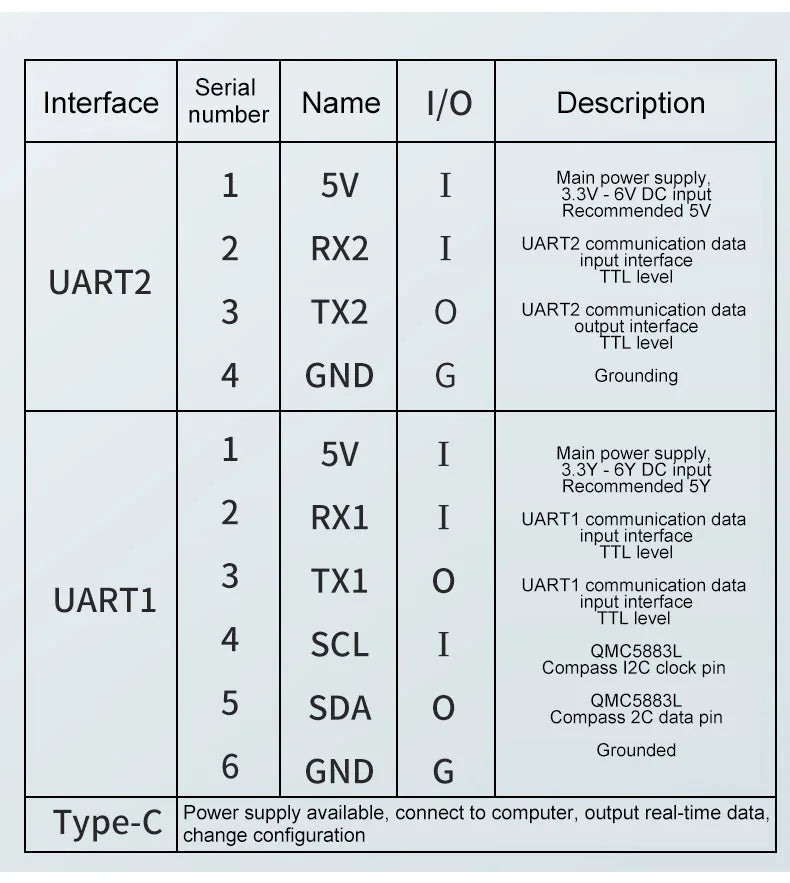

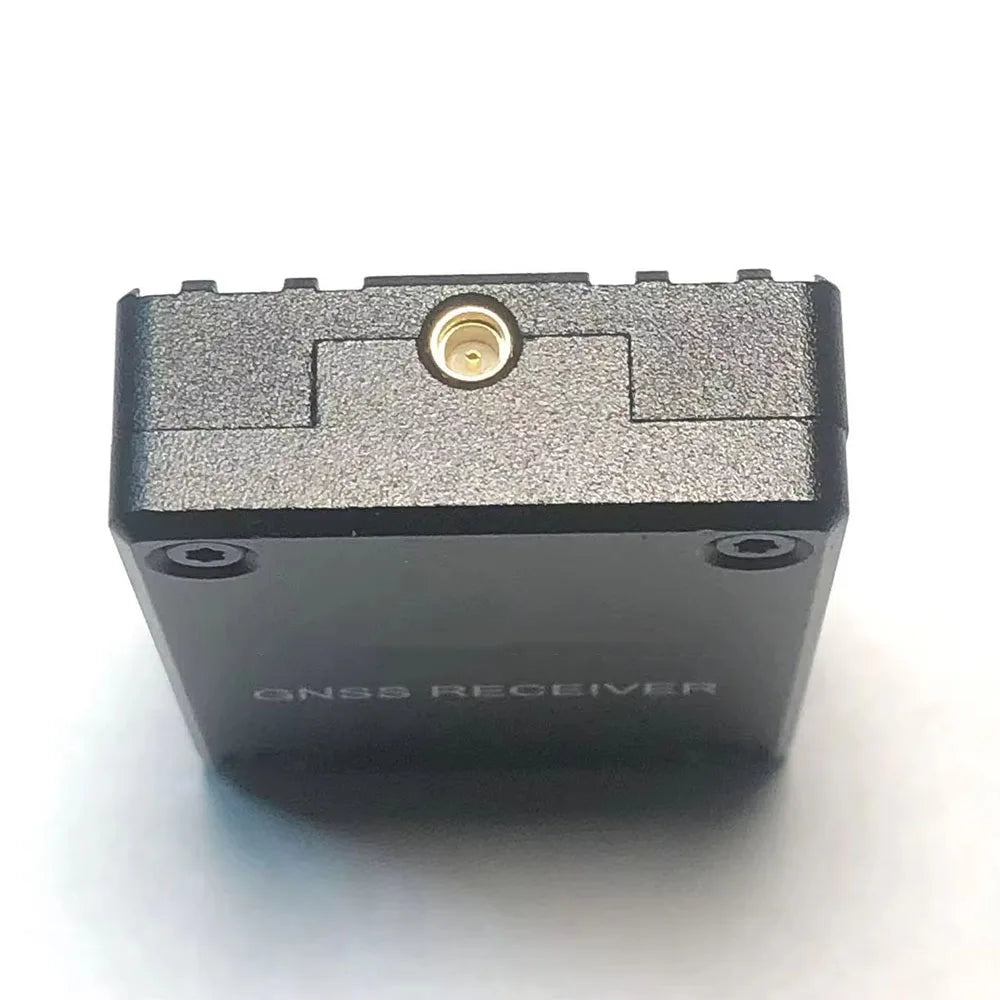

Connector		11.25 inch spacing 6P with locking base · 11.25 inch spacing 4 with locking base 1* USB interface Type-C · 1* MCX-KE-JE female socket

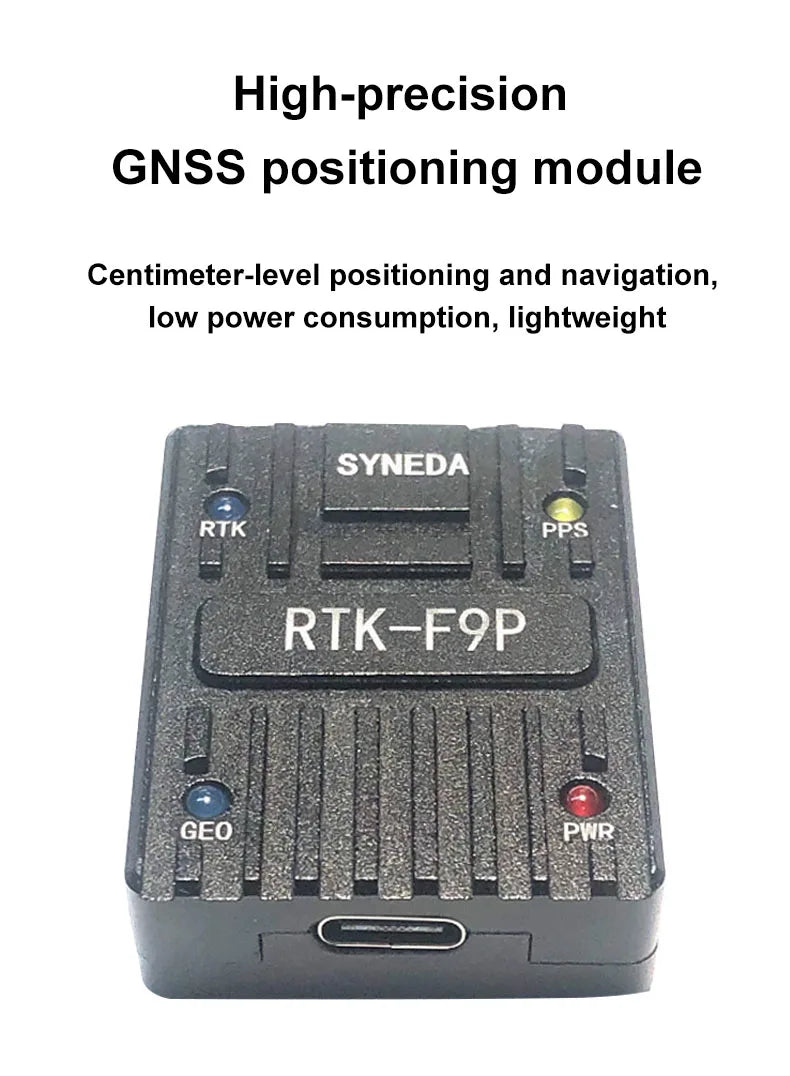

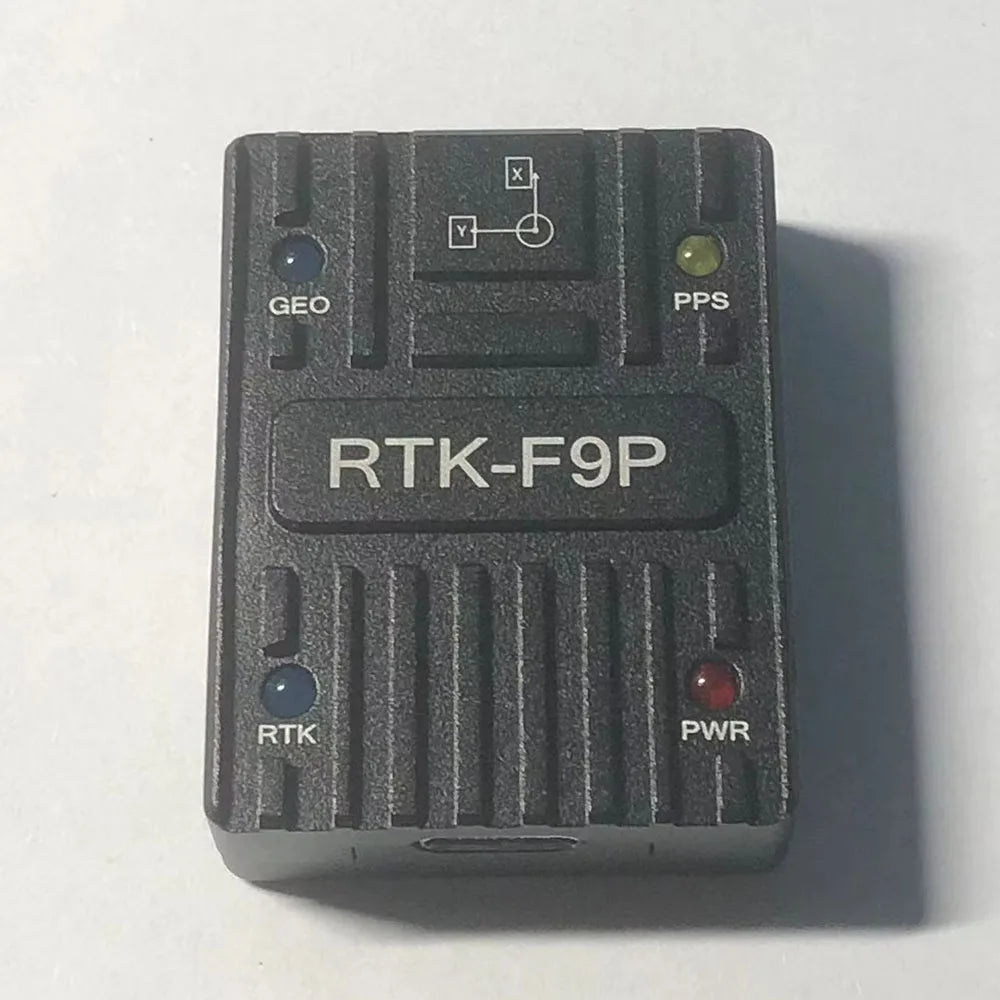

LED lamp		1. The red PWR light remains on continuously, indicating that power is being input. 2. The yellow PPS light is on, and the positioning light is not on. The 3D positioning yellow light flashes. 3. The blue RTK light is on. The mobile terminal does not enter the RTK mode, and the blue light remains on constantly. When it enters the RTKFixed mode, the blue light flashes. 4. The blue GEO light is on. The red light is flashing upon power-up, indicating that data is being output from this port.
