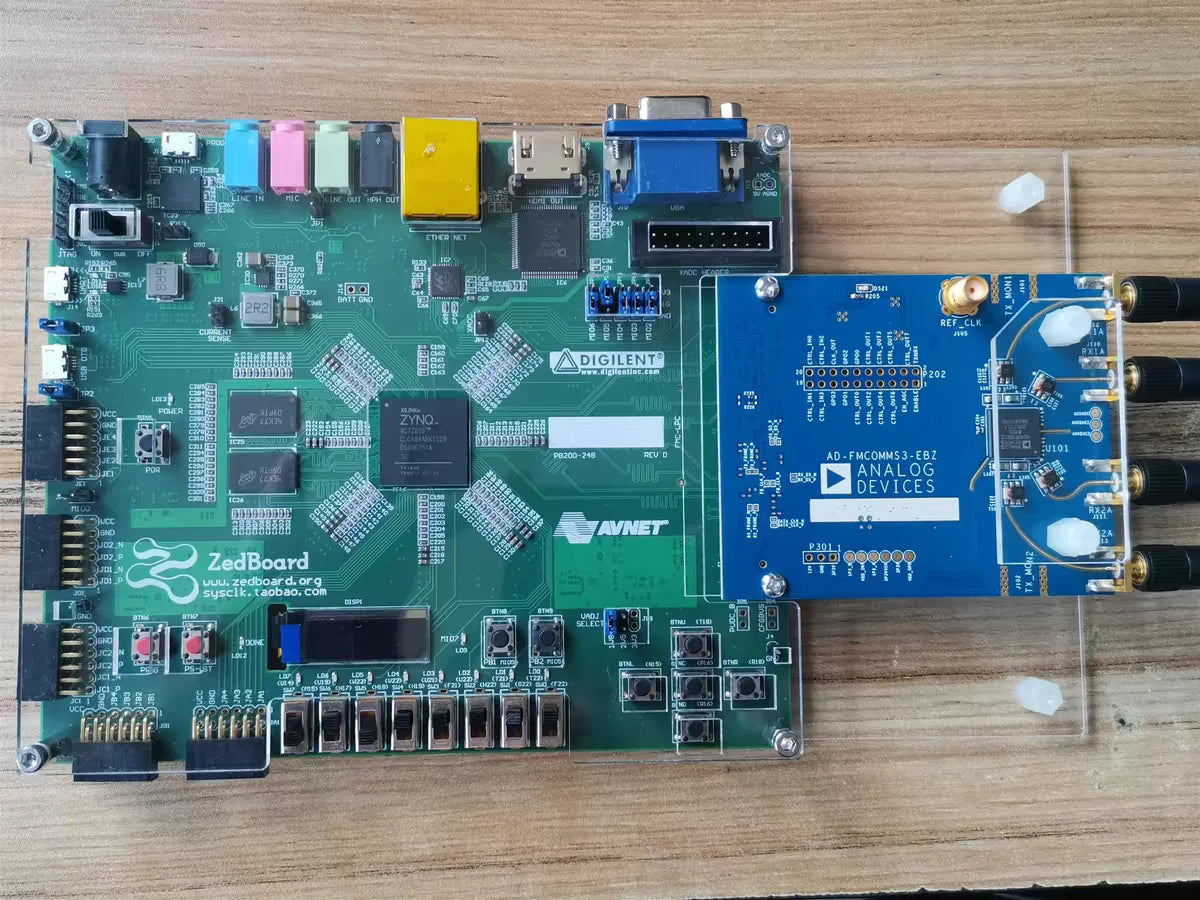

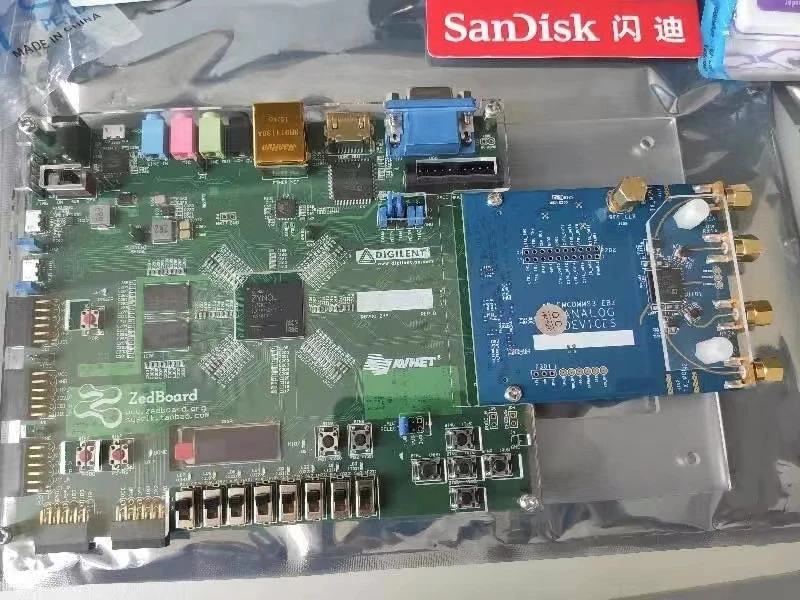

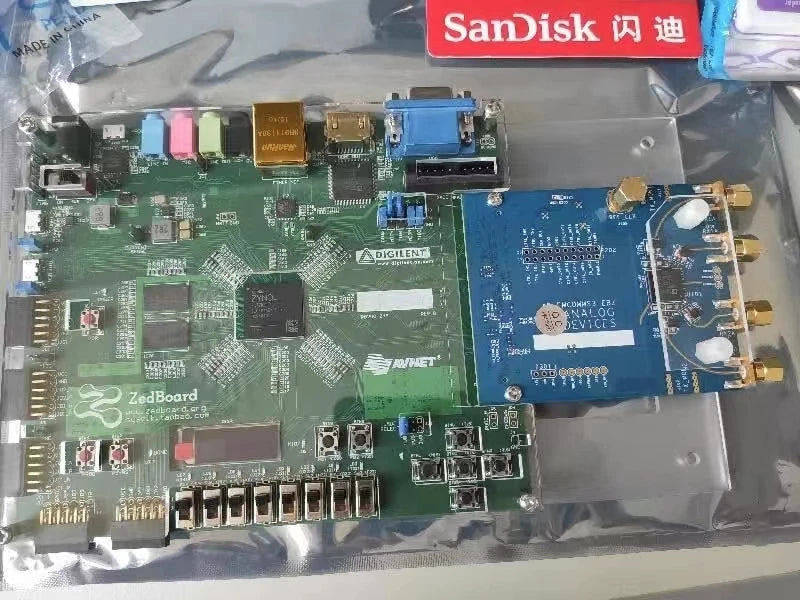

Zedboard+AD9361 RF Daughter Board Module AD-FMCOMMS3-EBZ Official Software Radio SDR Support OPENWIFI

As usual, new products are on the shelves with huge discounts. If you need them, please place an order directly, you won’t go wrong!

The product on this webpage is actually a collection of two products, Zedboard and FMCCOMMS3. The information, materials and videos provided can also be referred to their respective links.

Click here to see the Zedboardpage, and theFMCCOMMS3page.

Description:

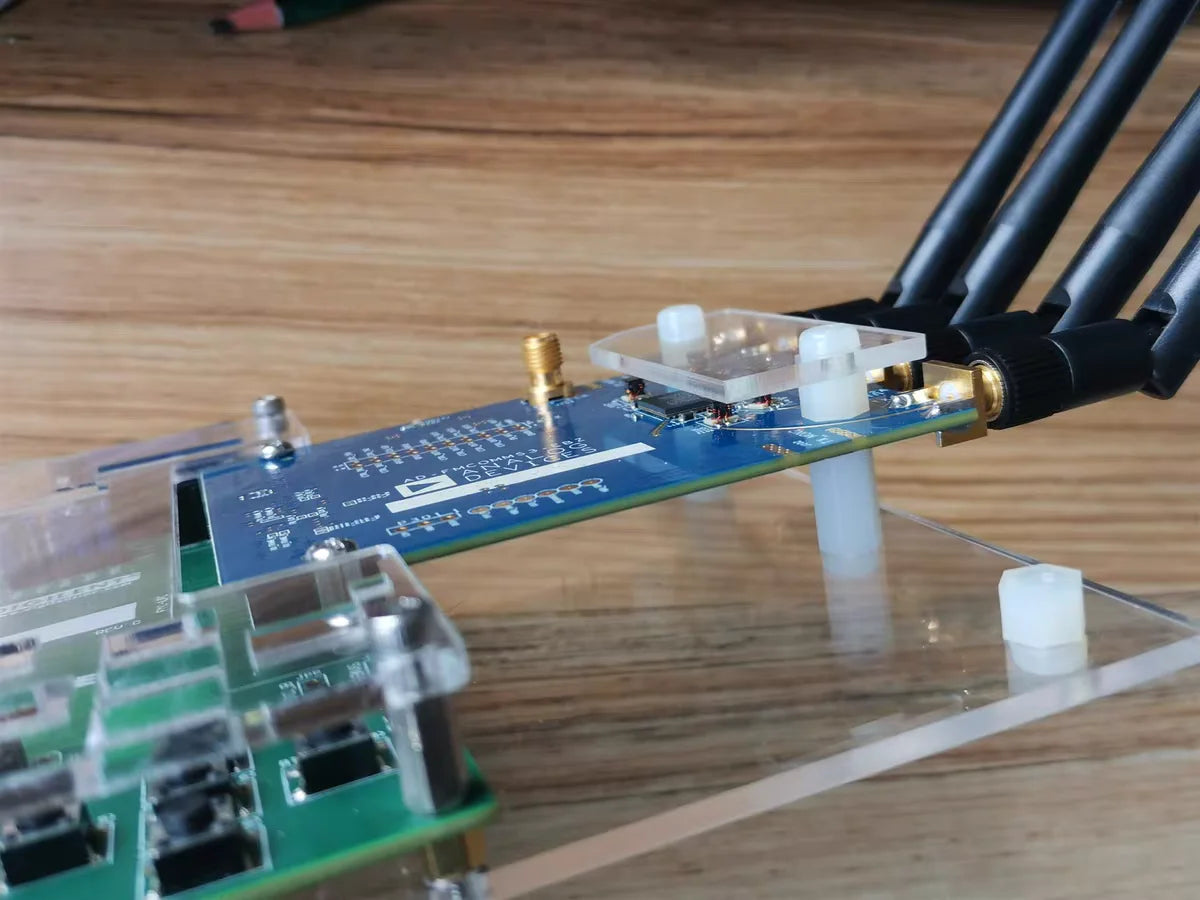

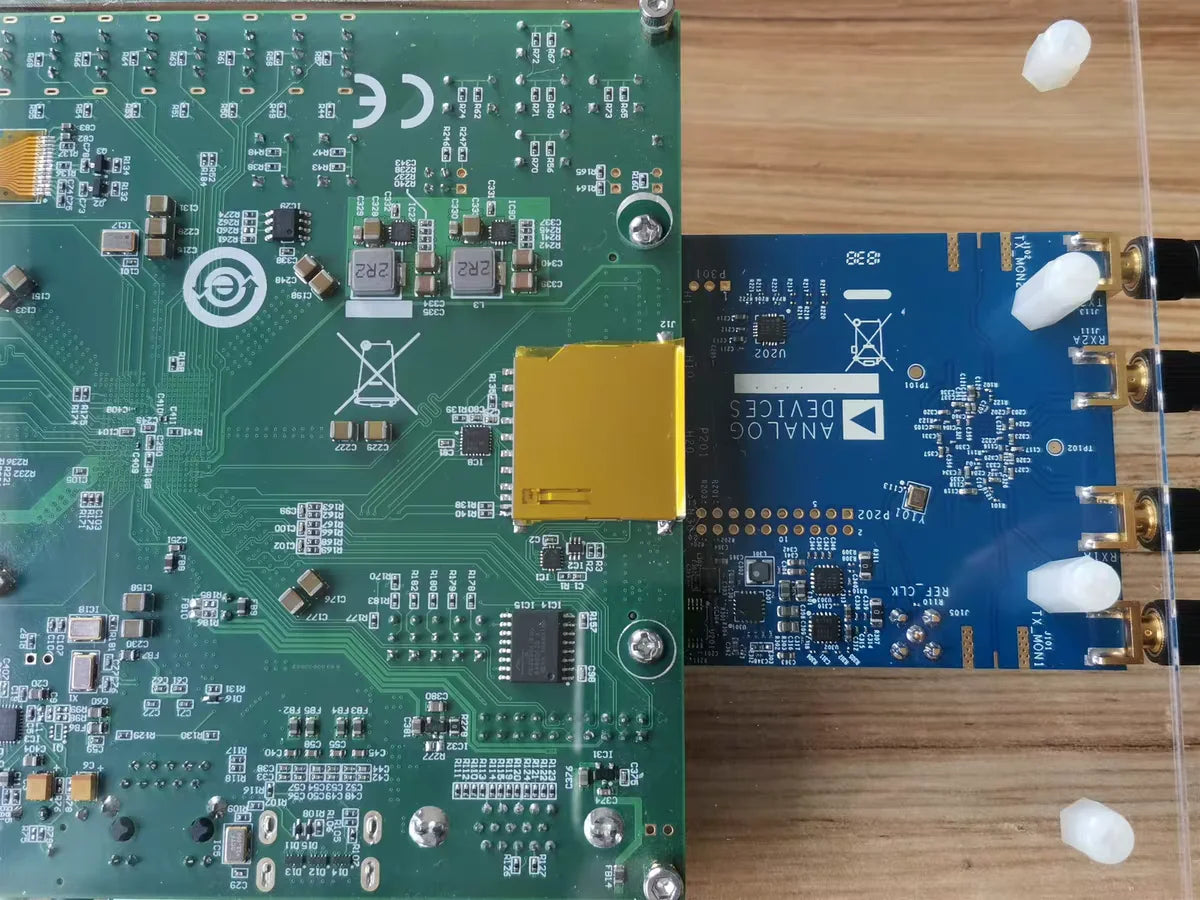

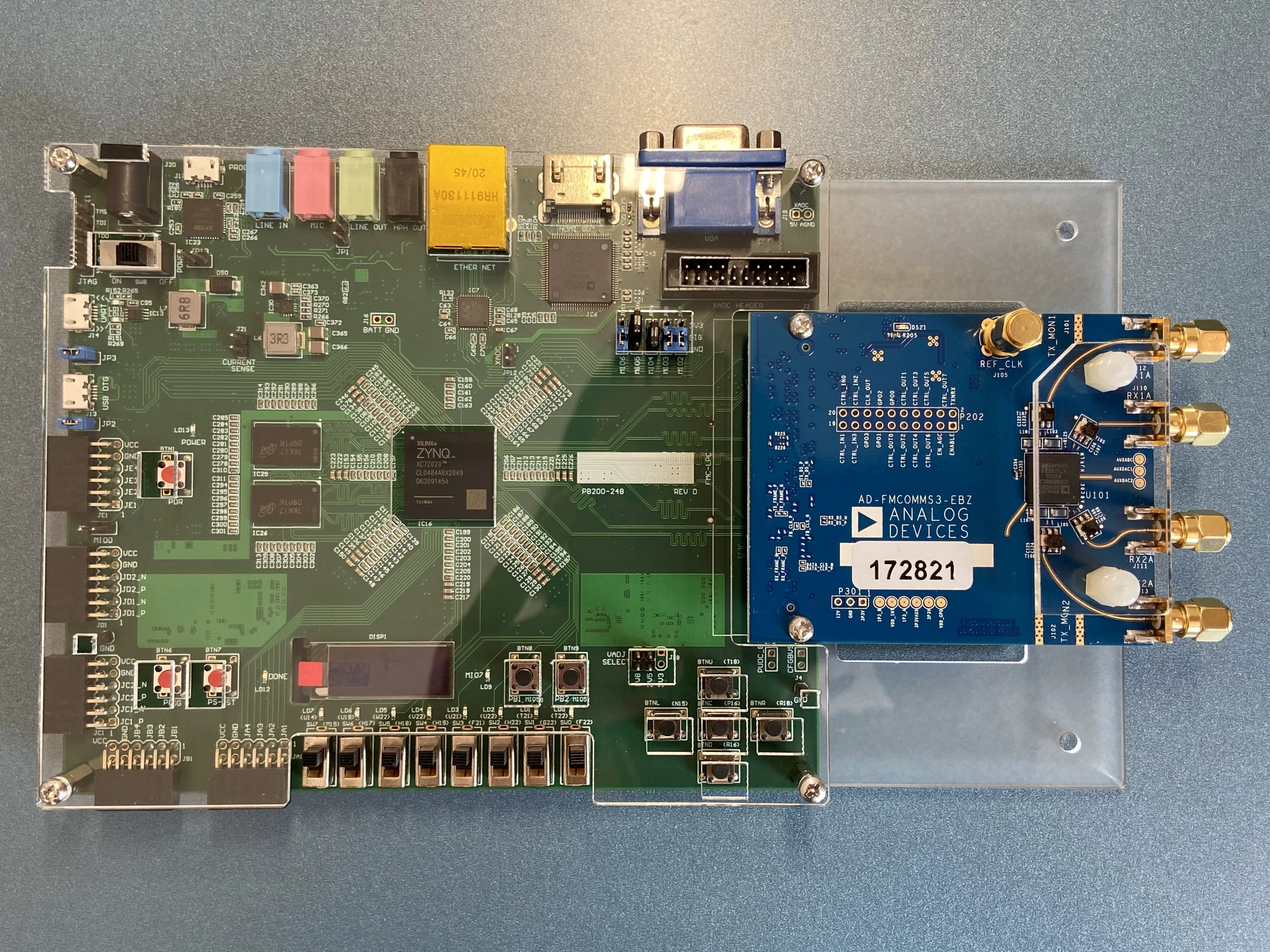

-Compatible with official zedboard, including FMC connector

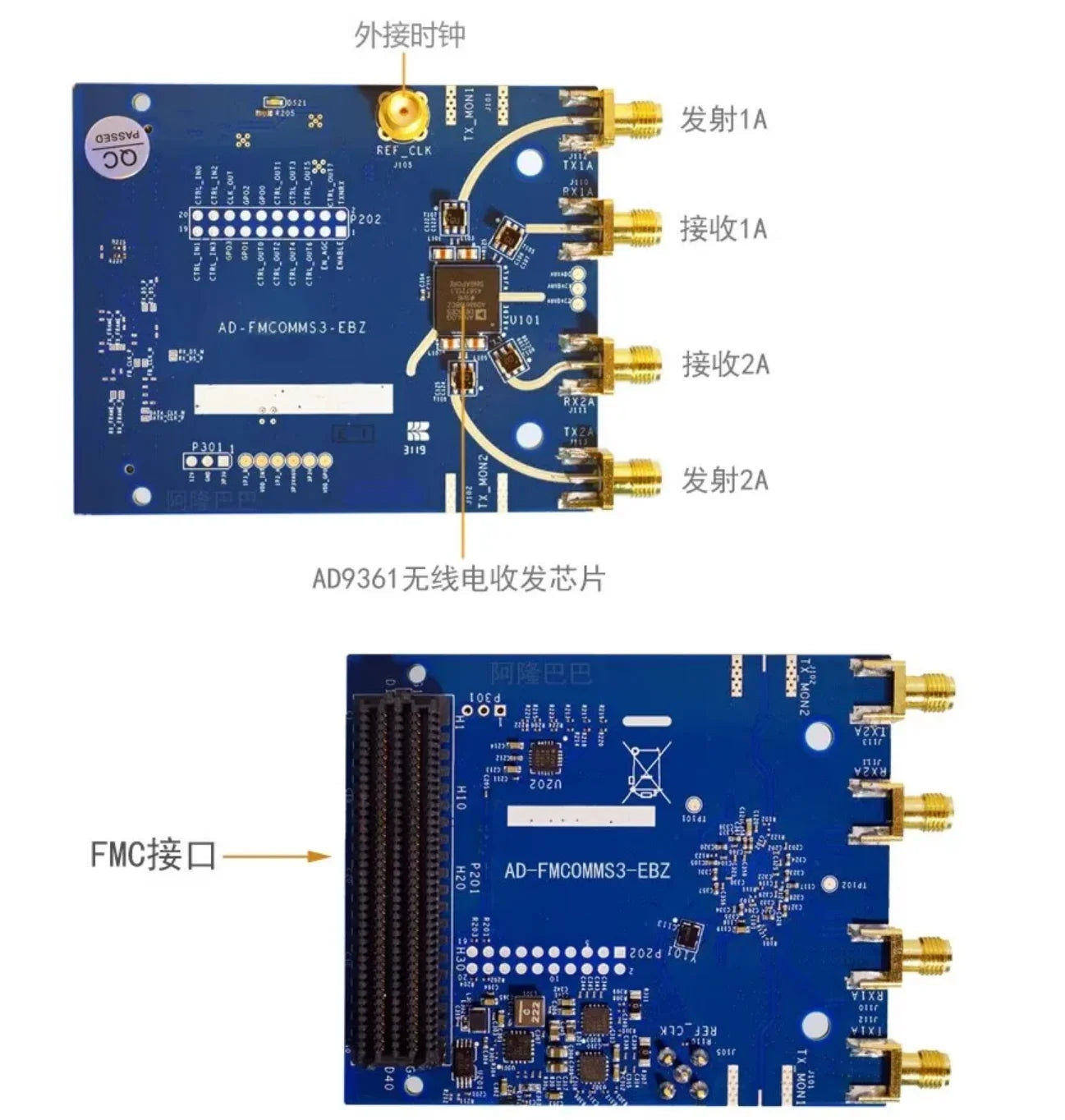

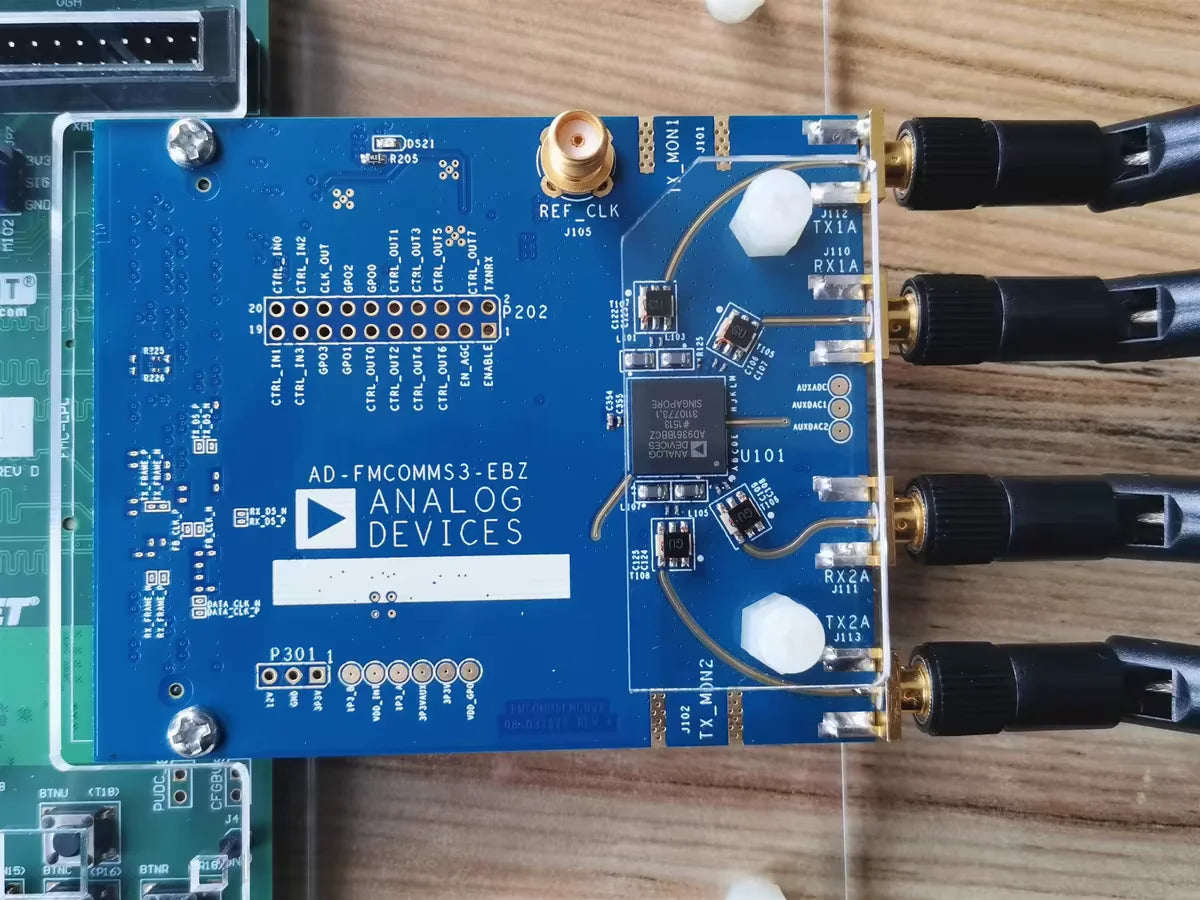

- AD-FMCOMMS-EBZ card is a high-speed analog FMC module, designed to showcase AD9361, a high-performance, highly integrated RF agile transceiver designed for RF, such as 3G and 4G base stations and SW software defined radios . Now most software radio product development and RF chip verification use this board.

 Features:
- RF 2 × 2 transceiver with integrated 12-bit DAC and ADC
- TX frequency band: 47 MHz to 6.0 GHz
- RX frequency band: 70 MHz to 6.0 GHz
- Support TDD and FDD operation
- Tunable channel bandwidth: <200 kHz to 56 MHz
- Dual-channel receiver: 6 differential or 12 single-ended inputs
- Excellent receiver sensitivity with a noise figure of 2 dB (800 MHz LO)
- RX gain control
- Real-time monitoring and control signal for manual gain
- Independent automatic gain control
- Dual transmitters: 4 differential outputs
- High linearity broadband transmitter
- TX EVM: ≤−40 dB
- TX noise: ≤−157 dBm/Hz noise floor
- TX monitor: dynamic range ≥66 dB, accuracy = 1 dB
- Integrated fractional-N frequency synthesizer
- 2.4 Hz maximum local oscillator (LO) step size
- Multi-device synchronization
- CMOS/LVDS digital interface

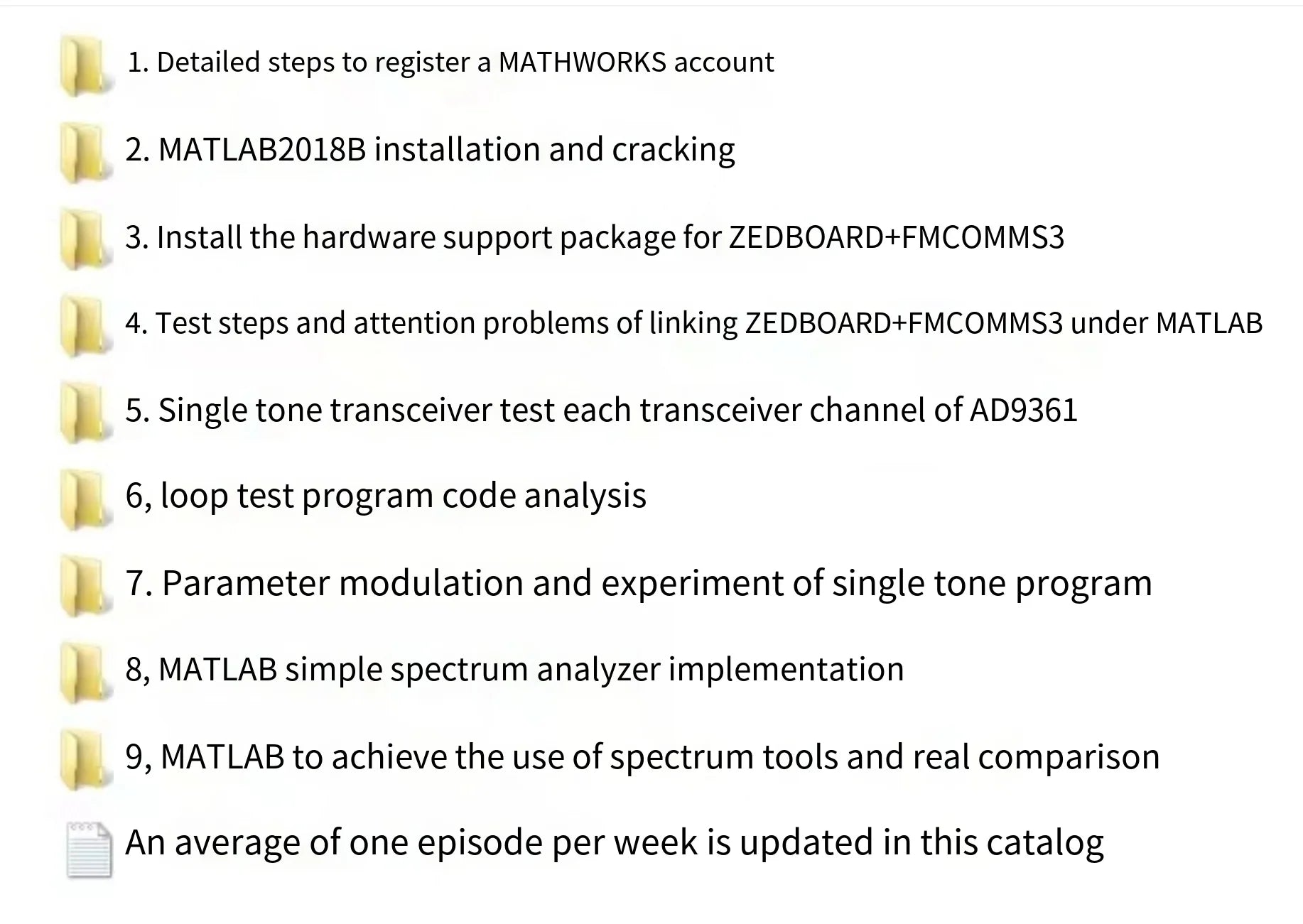

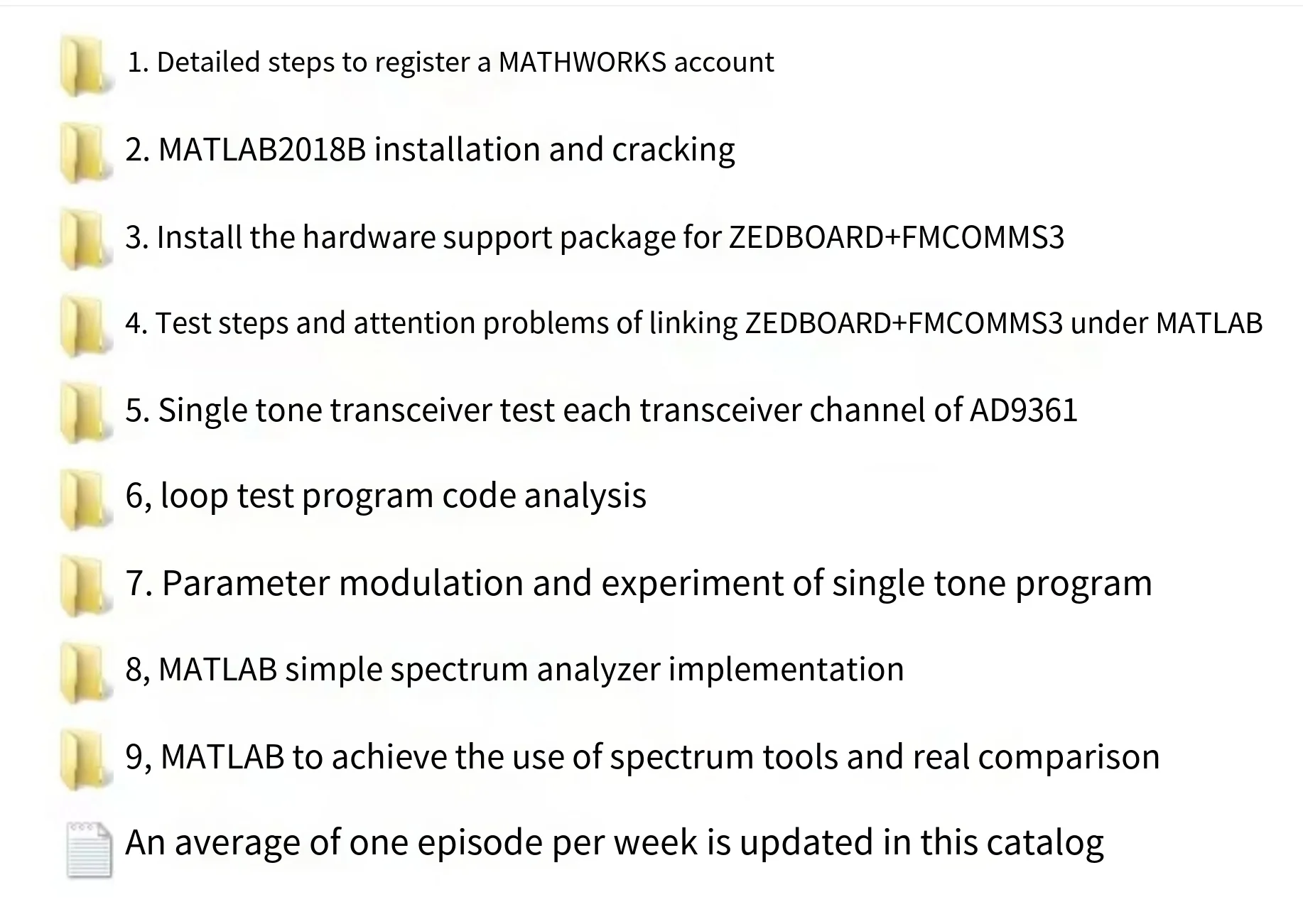

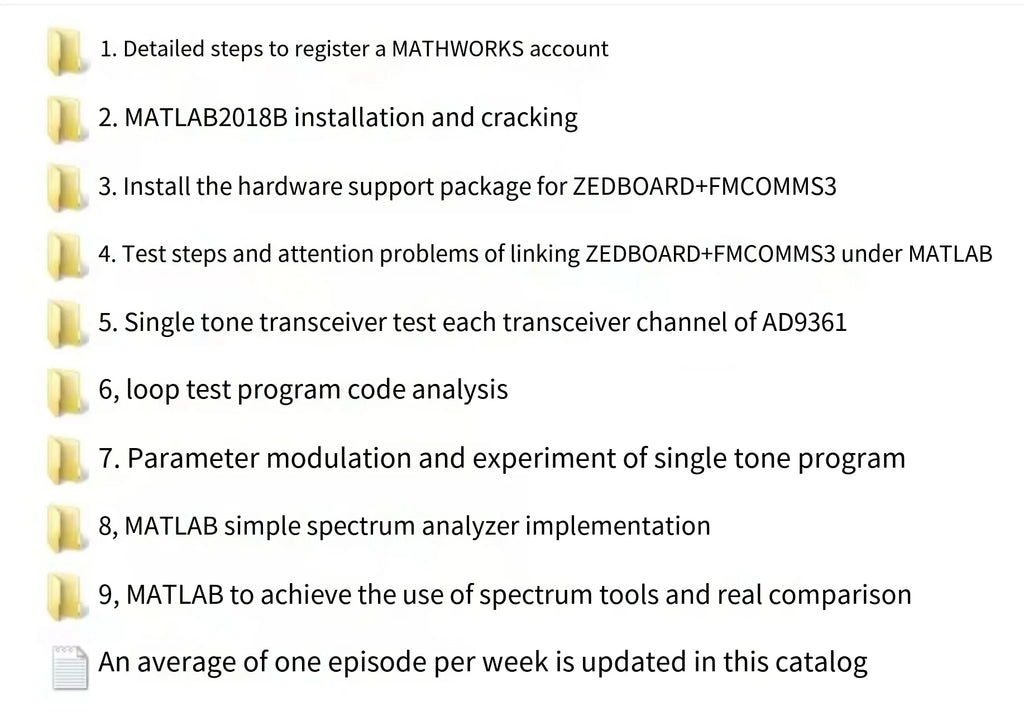

This platform's MATLAB-based video tutorials include corresponding projects and files: (one video is updated on average every week, and the network disk directory with the same address is provided)

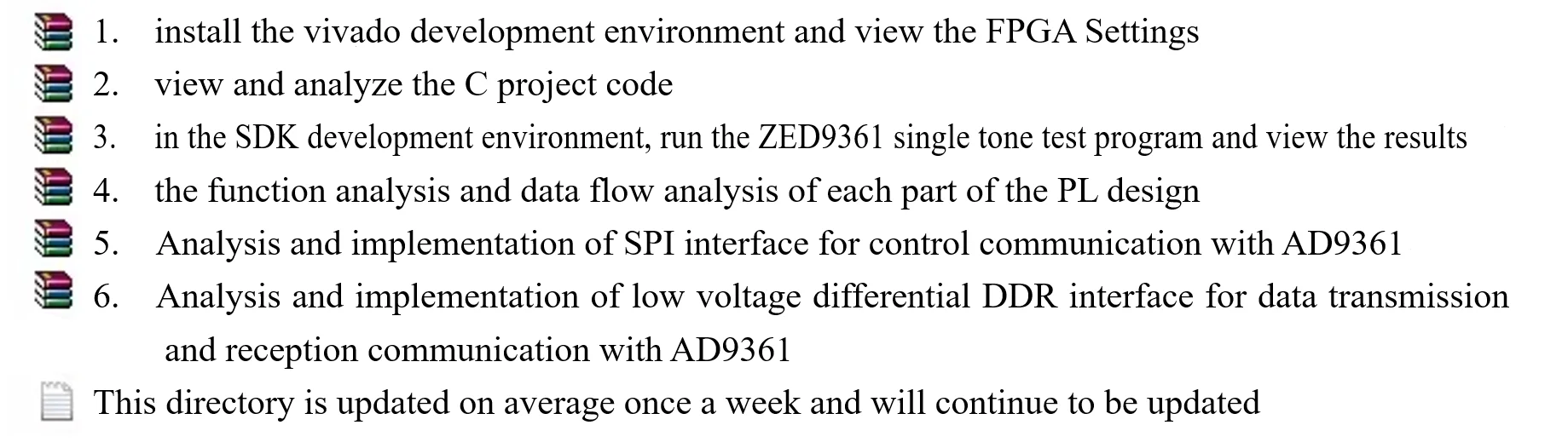

This platform is based on the video tutorial of the VIVADO example officially provided by ADI, including the corresponding projects and files (on average, one video is updated every week, and the network disk directory with the same address is provided):

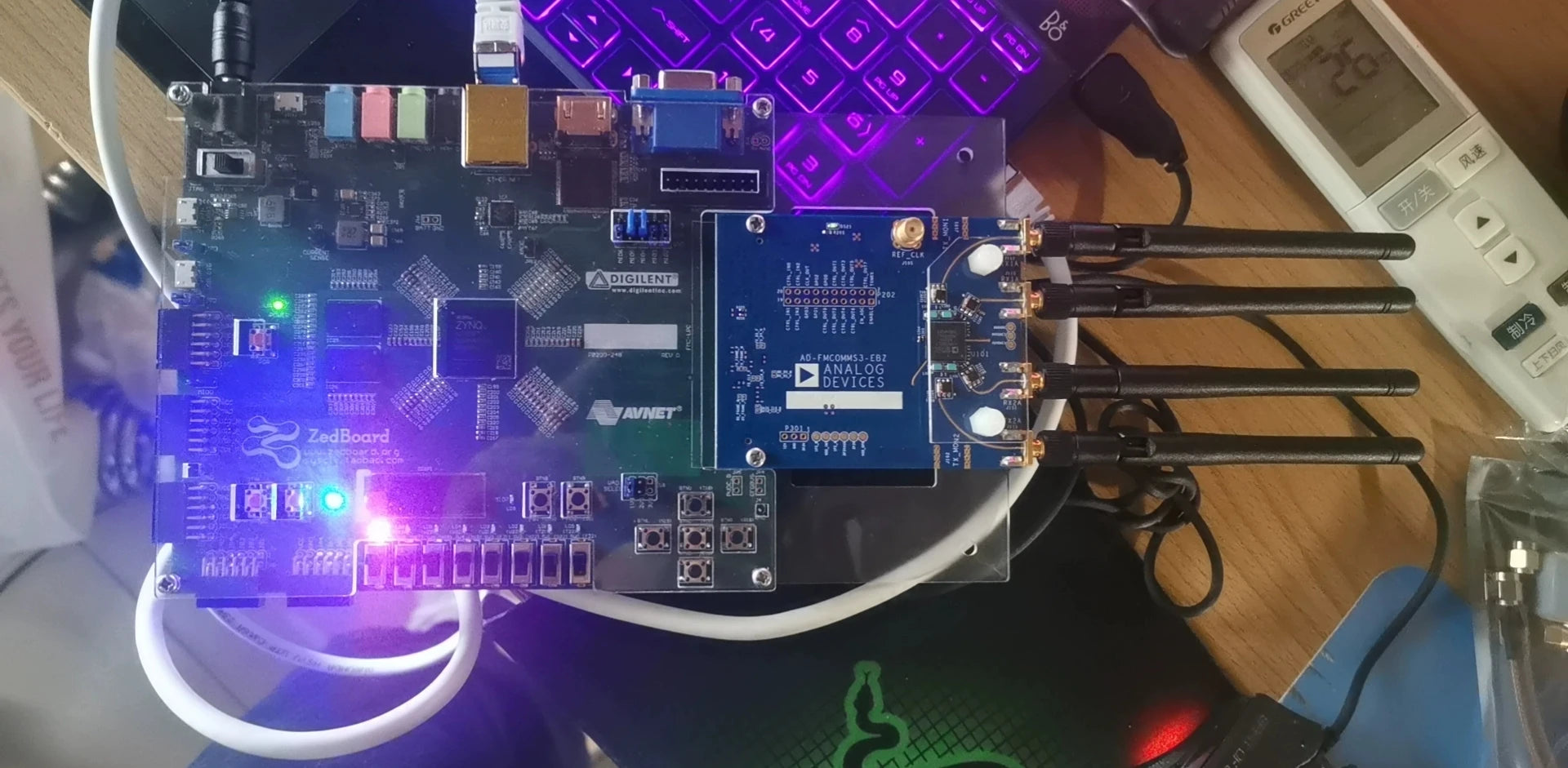

Implementation effect diagram:

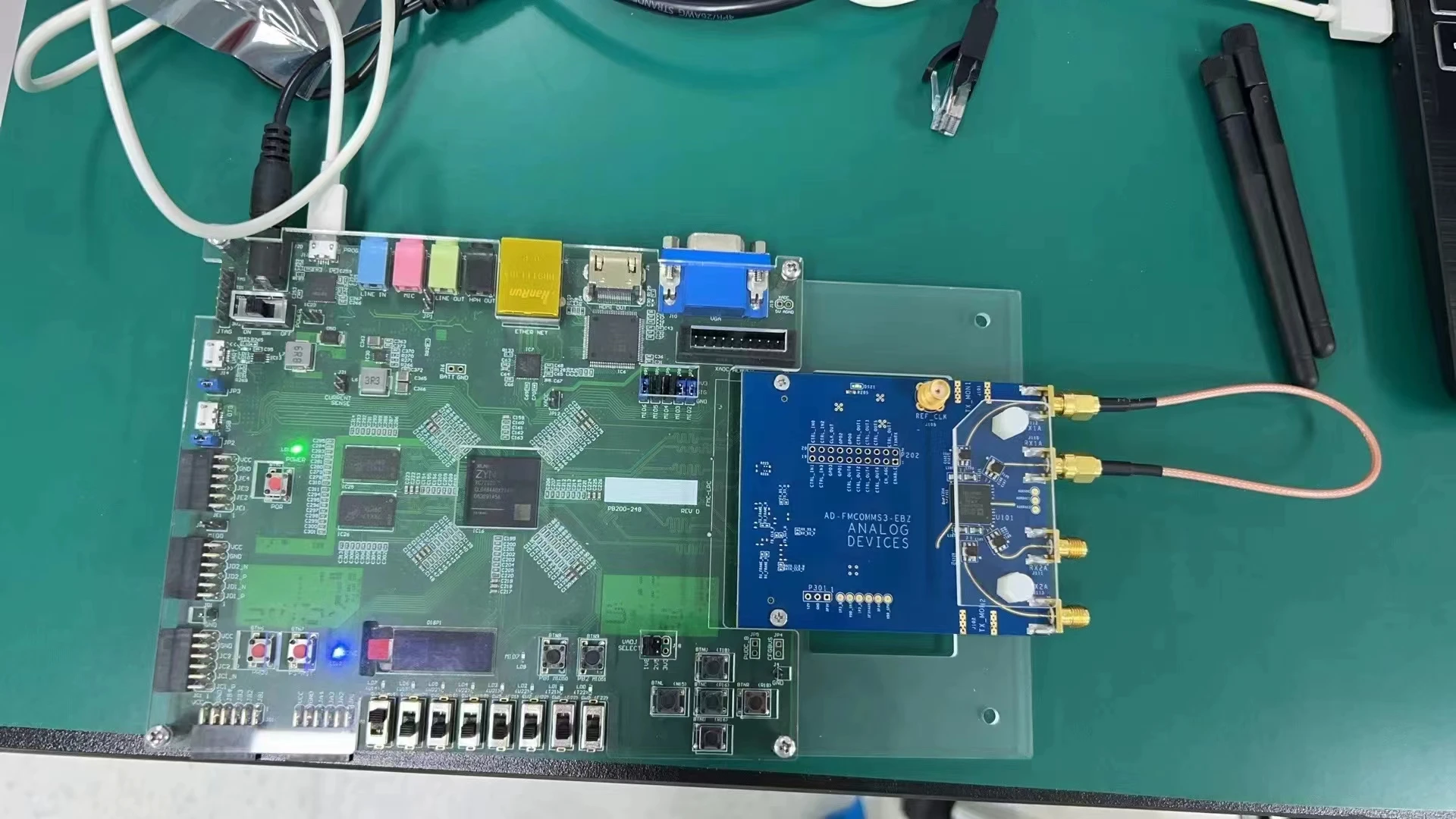

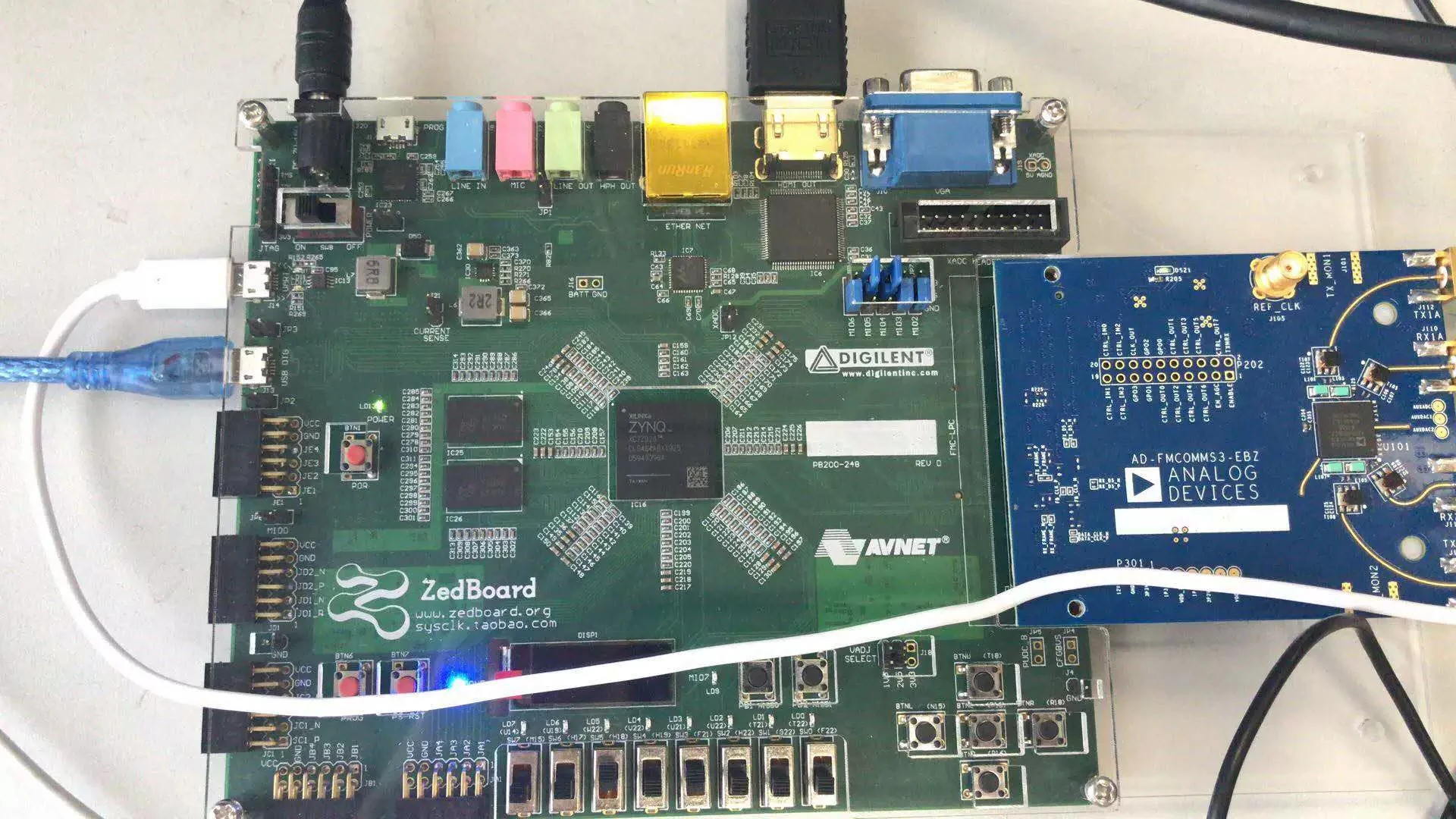

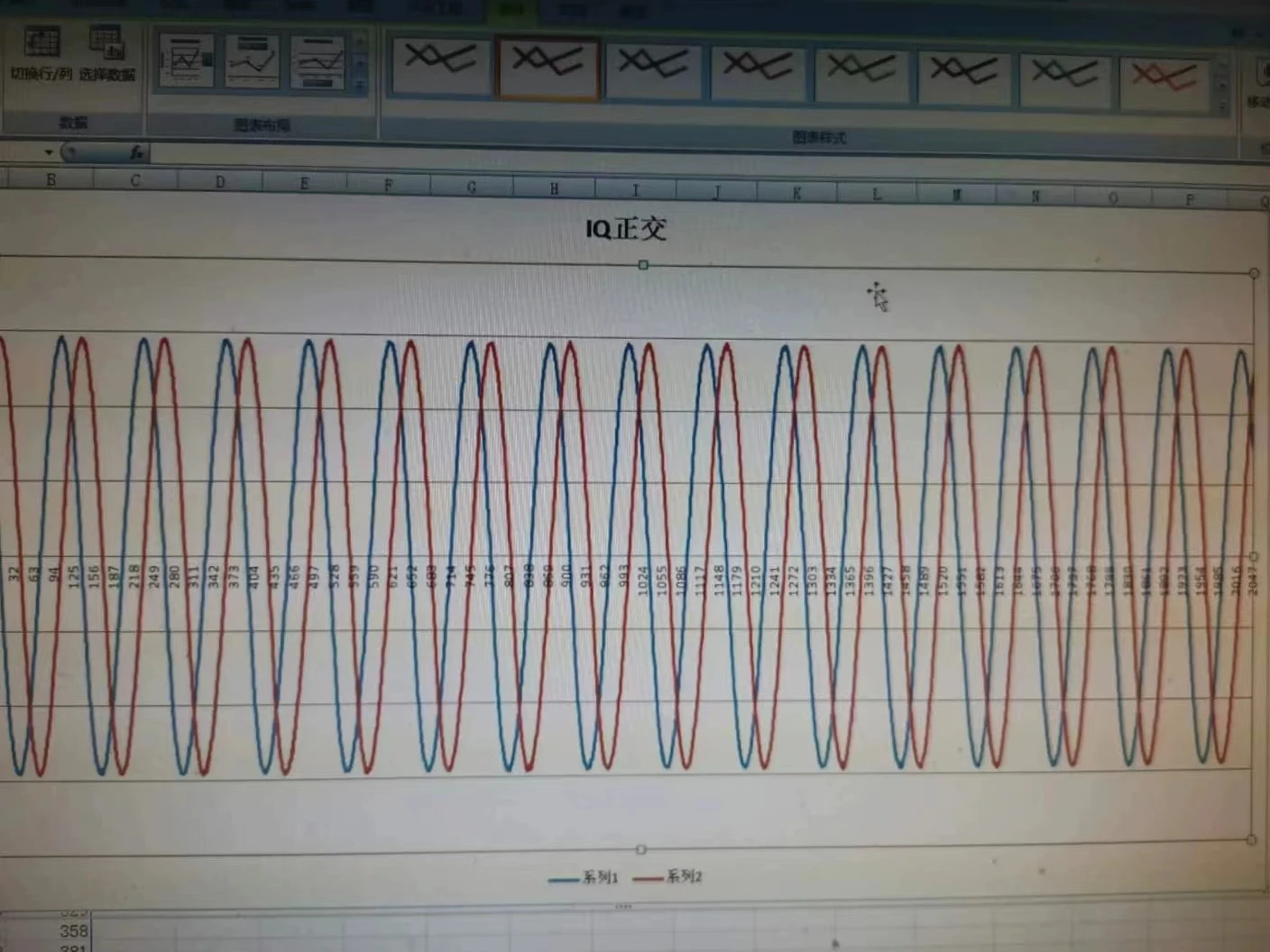

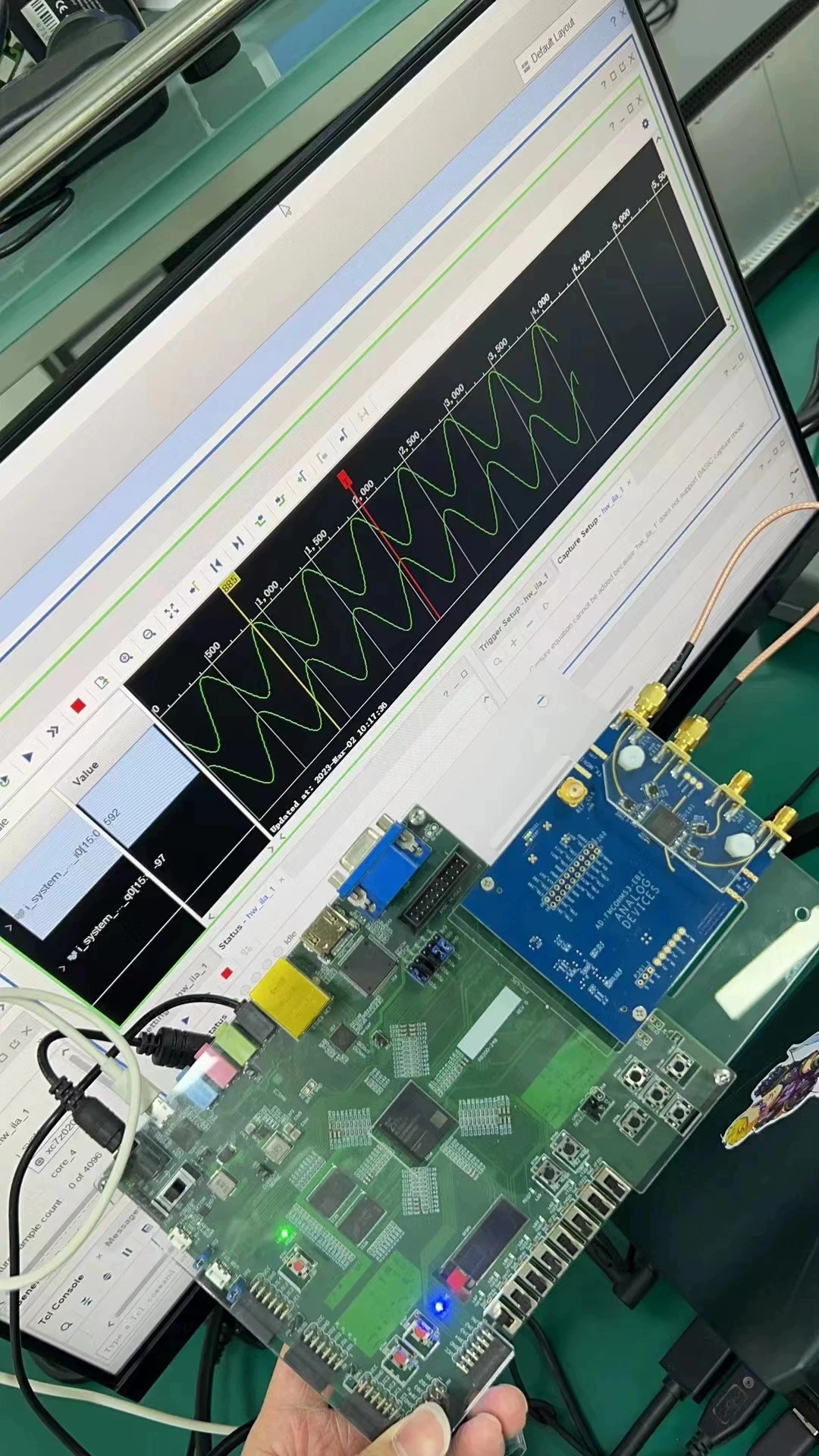

The following two figures show a single-tone loopback experiment using the routines we provide.

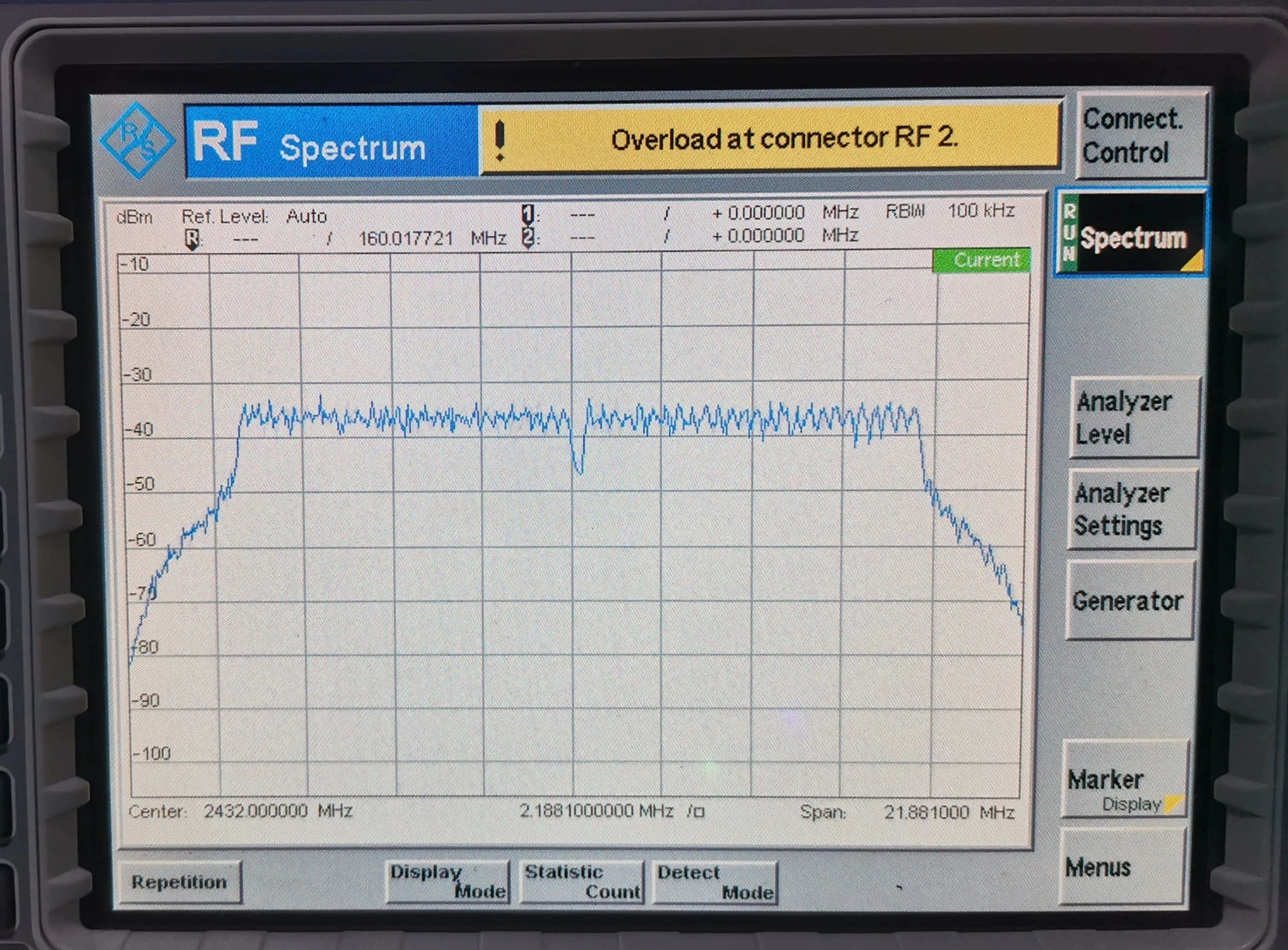

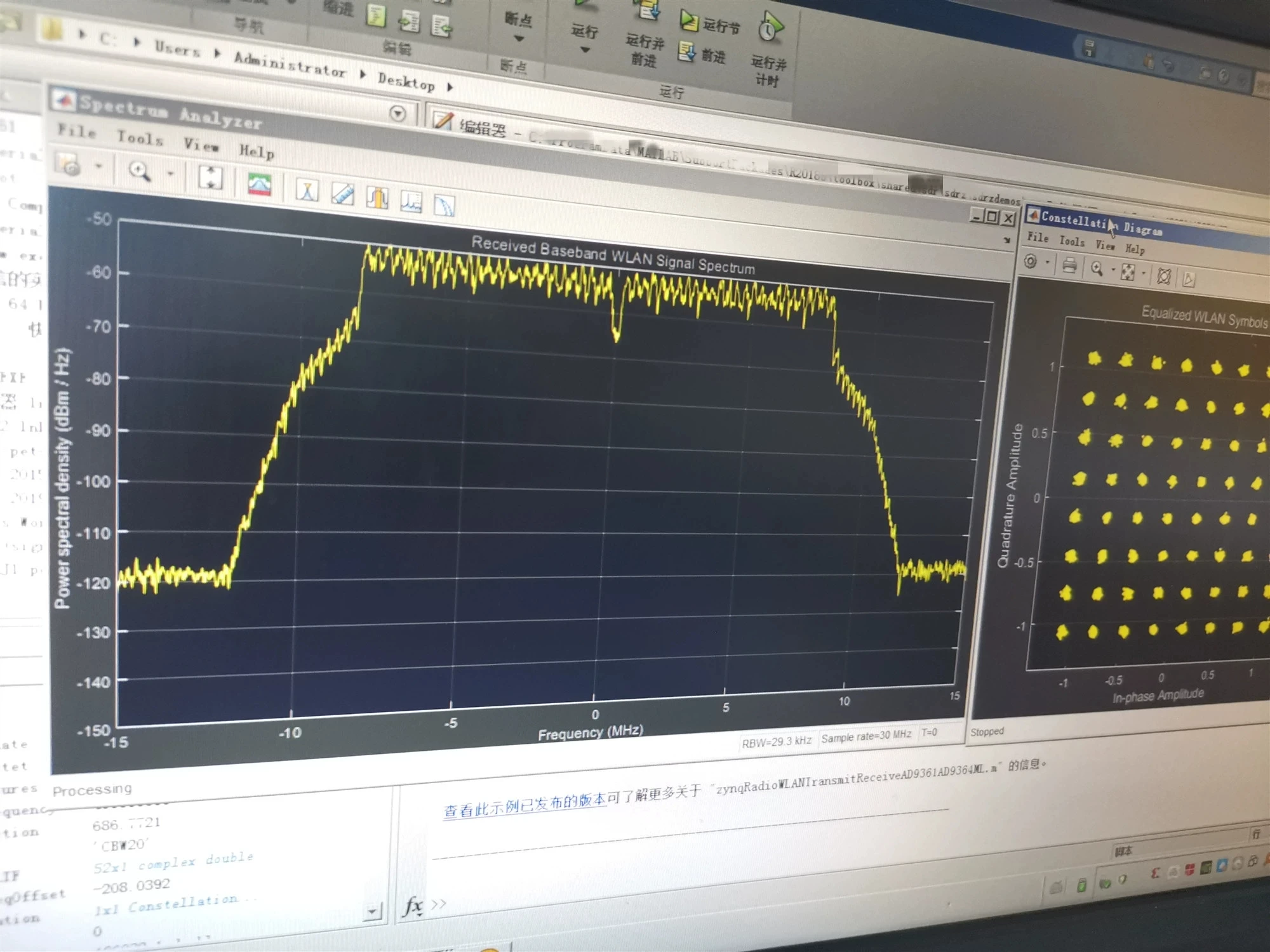

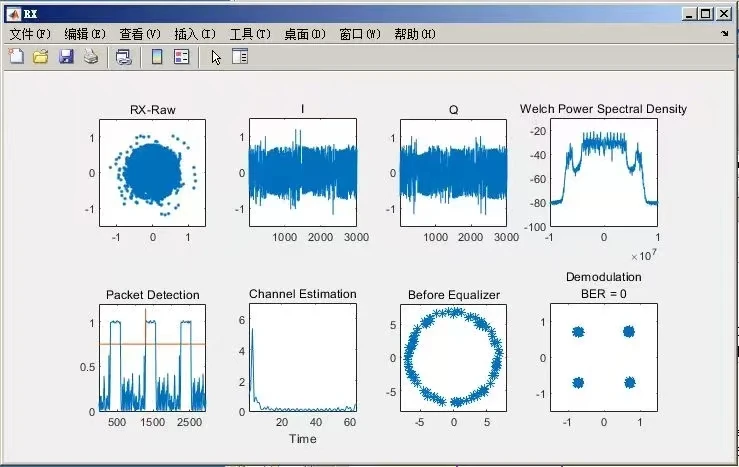

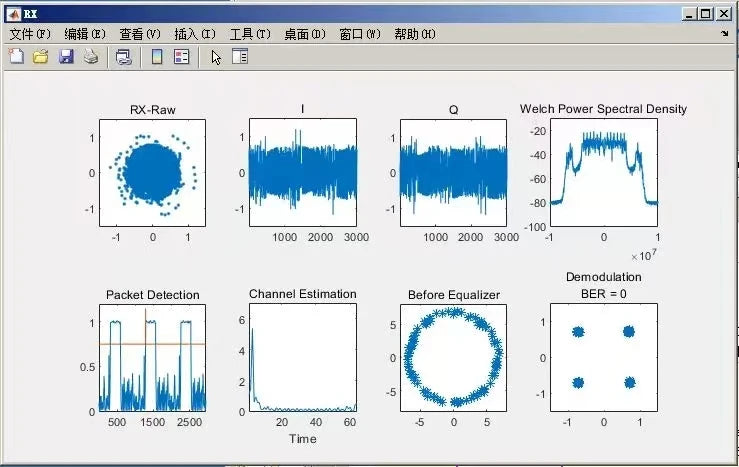

The figure below shows the scenario where a user connects to MATLAB to conduct an OFDM experiment.

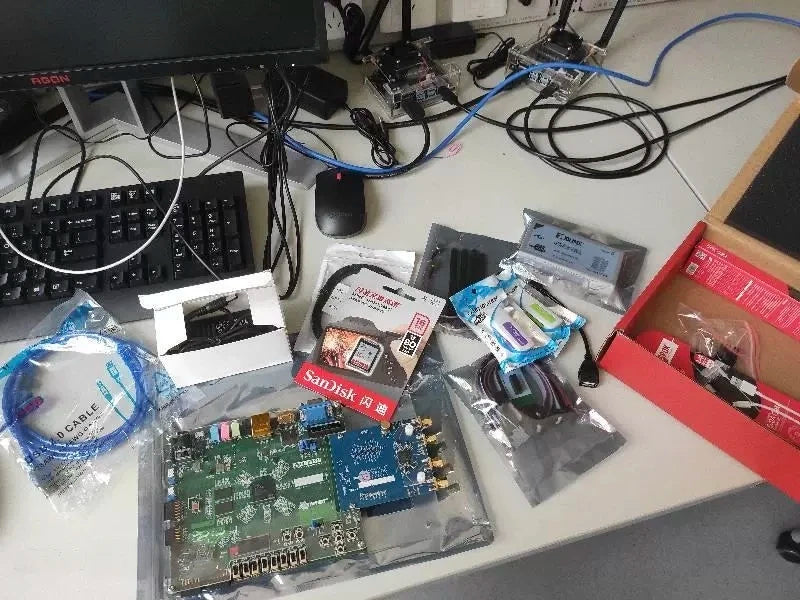

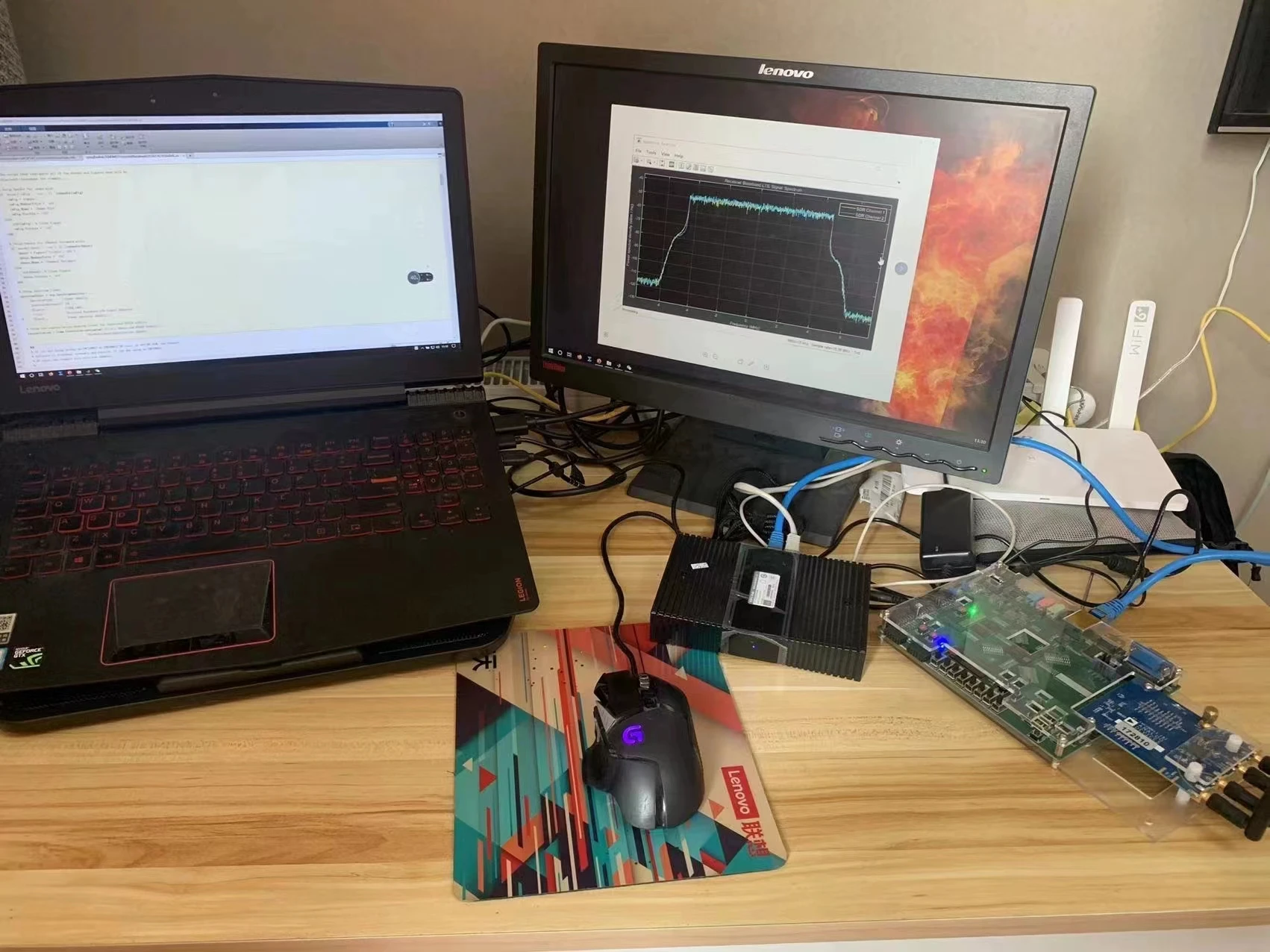

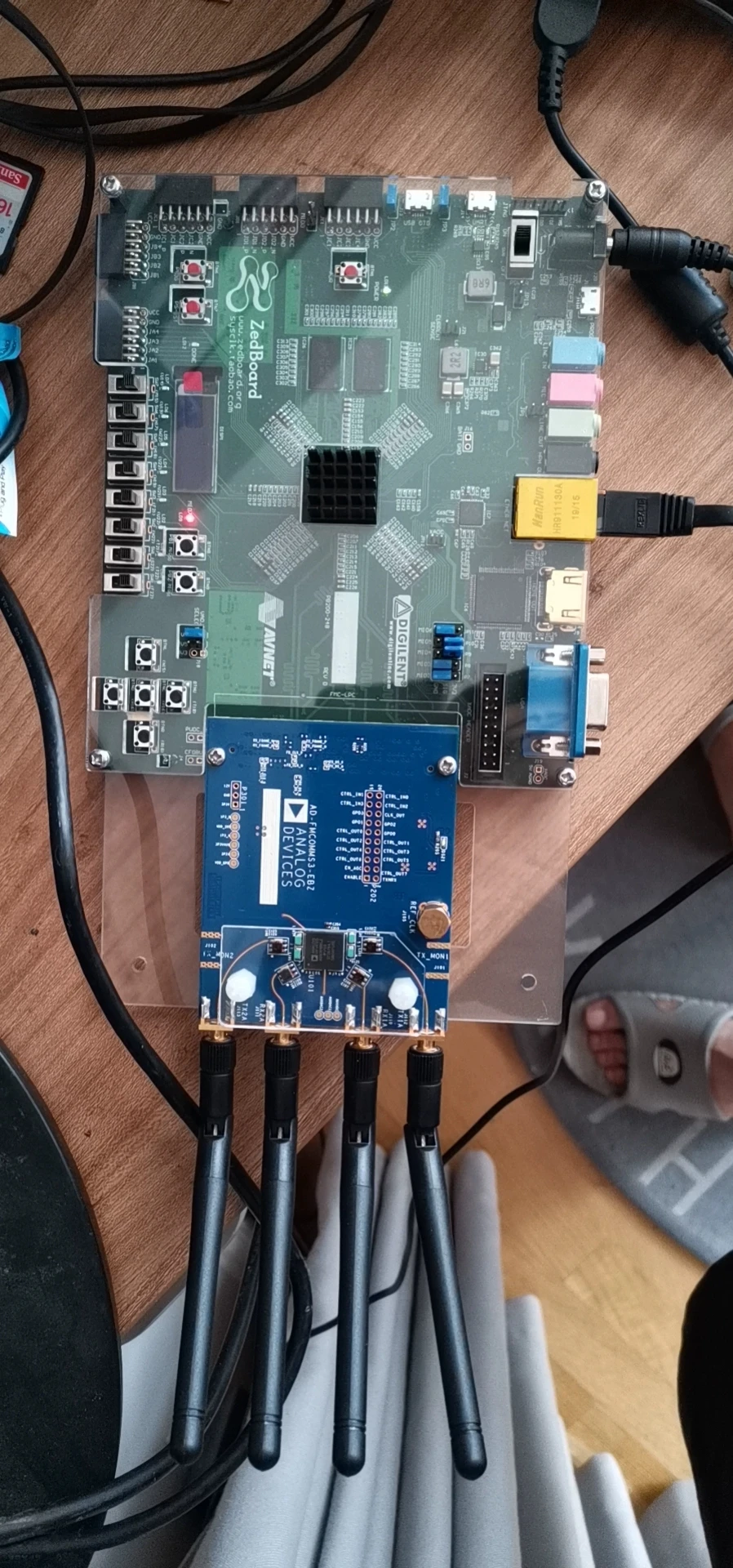

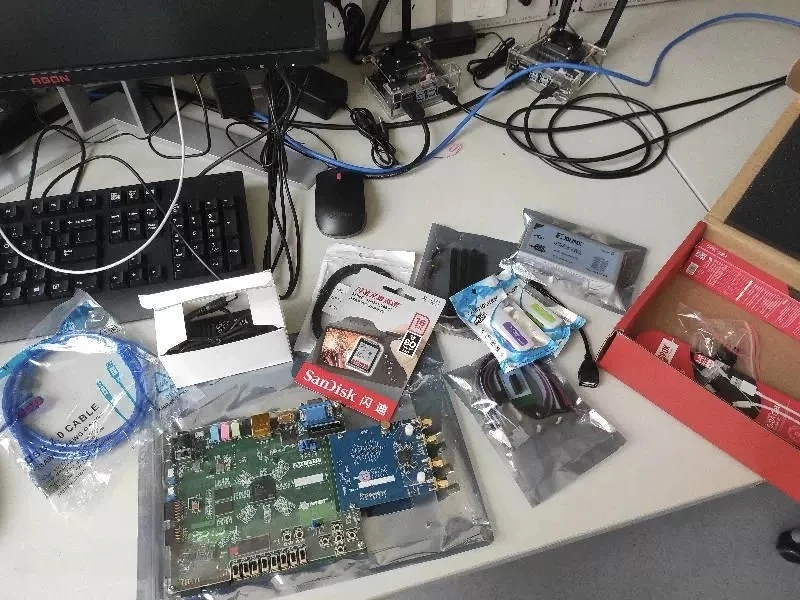

The following is a user usage scenario diagram:
