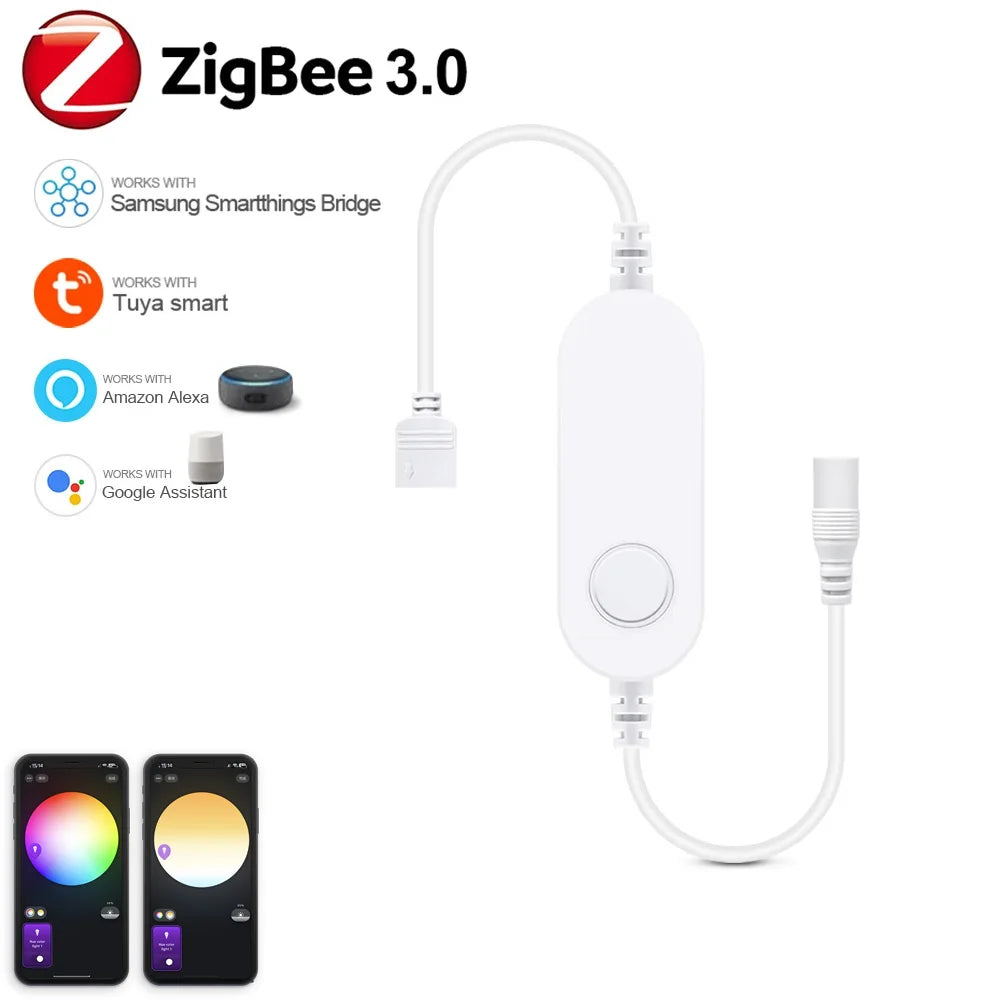

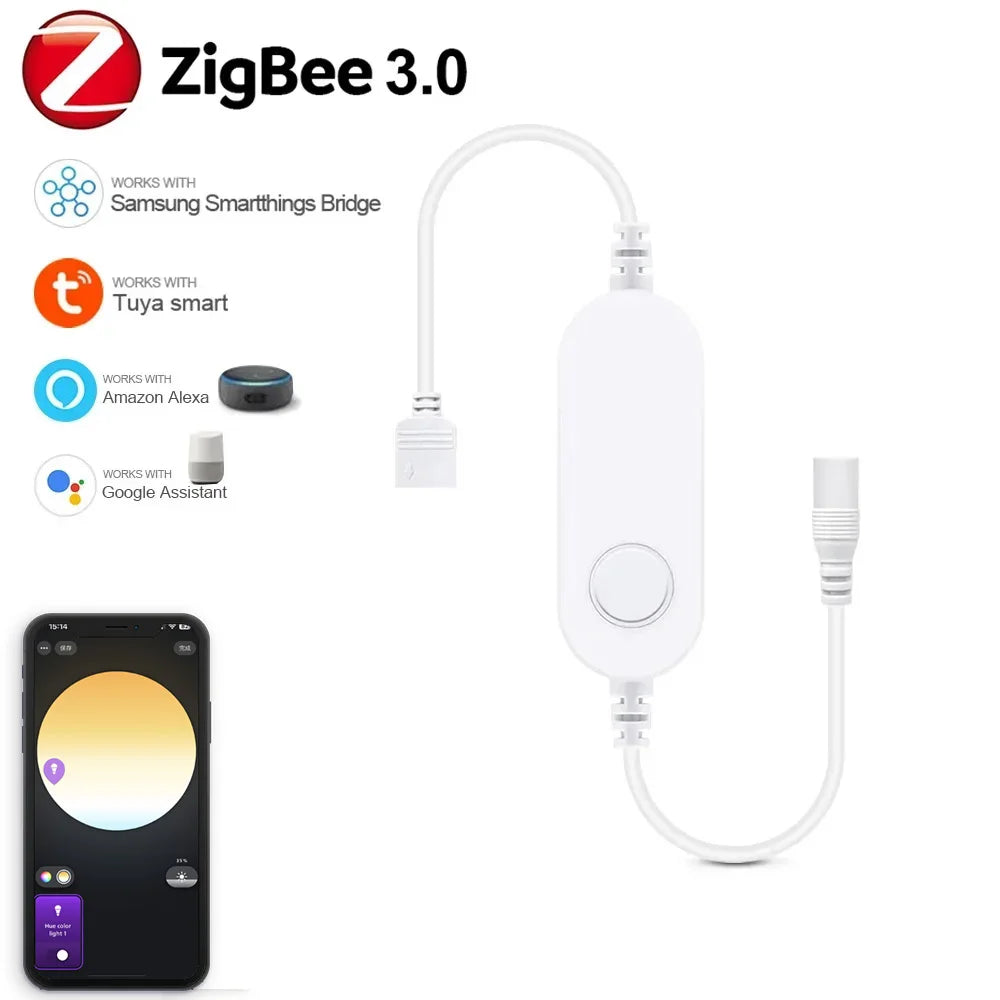

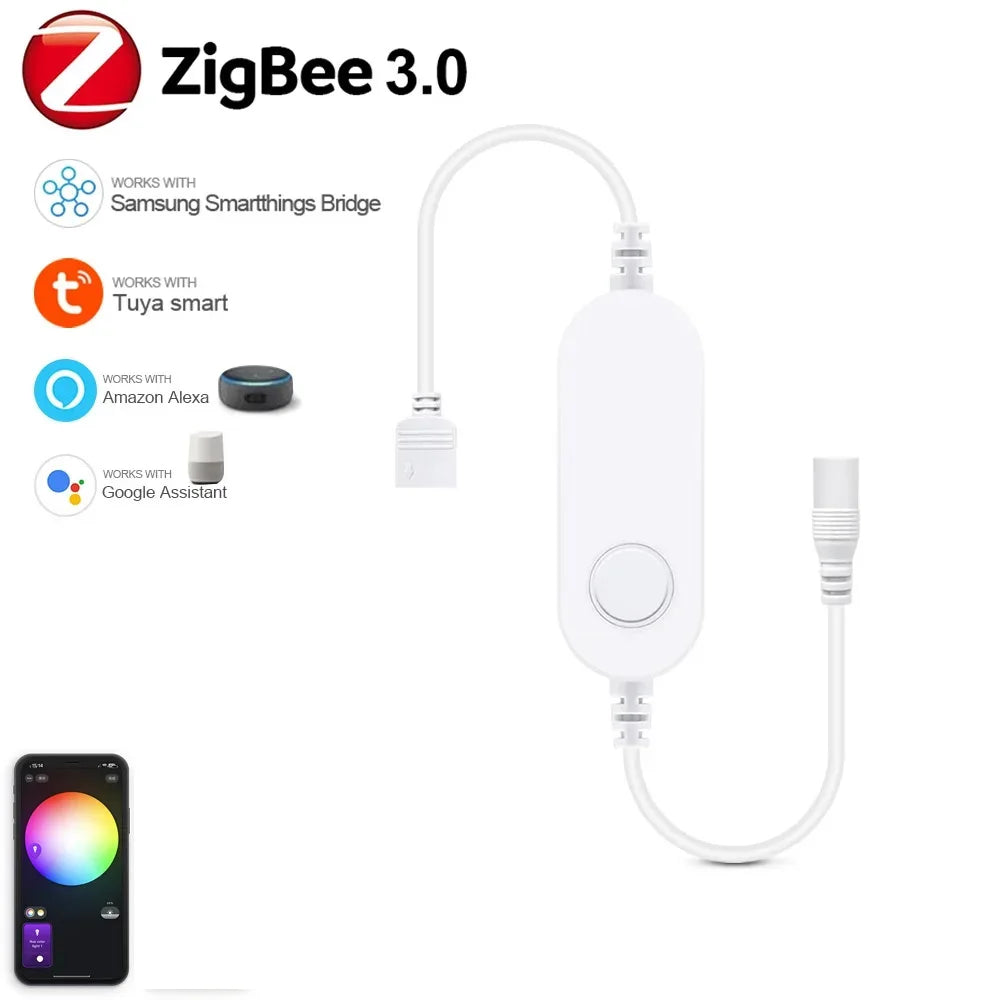

Zigbee 3.0 Smart LED Controller DC5V 12V 24V Dimmer Single Color CCT RGB RGBW RGBCCT LED Strip for Tuya Alexa SmartThings 2mqtt

Zigbee 3.0 Smart LED Controller DC5V 12V 24V Dimmer Single Color CCT RGB RGBW RGBCCT LED Strip for Tuya Alexa SmartThings 2mqtt

$37.04

$37.04 $0.00

Color for DC Single color for 4Pin CCT for 4Pin RGB for 5Pin RGBW for 6Pin RGBCCT

Description

SPECIFICATIONS

Applicable Lights: 5050

Brand Name: YSRSAI

Certification: CCC,ce,GS,UL

Choice: yes

Color: White

Connection Mode: zigbee

Controled Method: app/voice

Feature: Need work with zigbee gateway

Feature 2: Work with tuya zigbee

Feature 3: Work with Z2mqtt

Feature 4: Work with Smartthings

Feature 5: Work with Alice/Alexa/Home assistant

Features: smart

For LED Light: 5050 3528 5630 COB

High-concerned chemical: none

Is Smart Device: Yes

Item Type: RGB controler

Material: ABS

Max. Load Power: 5A

Model: Single color/CCT/RGB/RGBW/RGBCCT

Model Number: RGB RGBCCT

Origin: Mainland China

Power Source: DC

Remote Distance: 30m

Size: 64*24*12mm

Type: Zigbee led controller

Voltage: 5-24V

Warranty: 1year

Wattage: 5A

voltage: DC5V 12V 24V

Note:

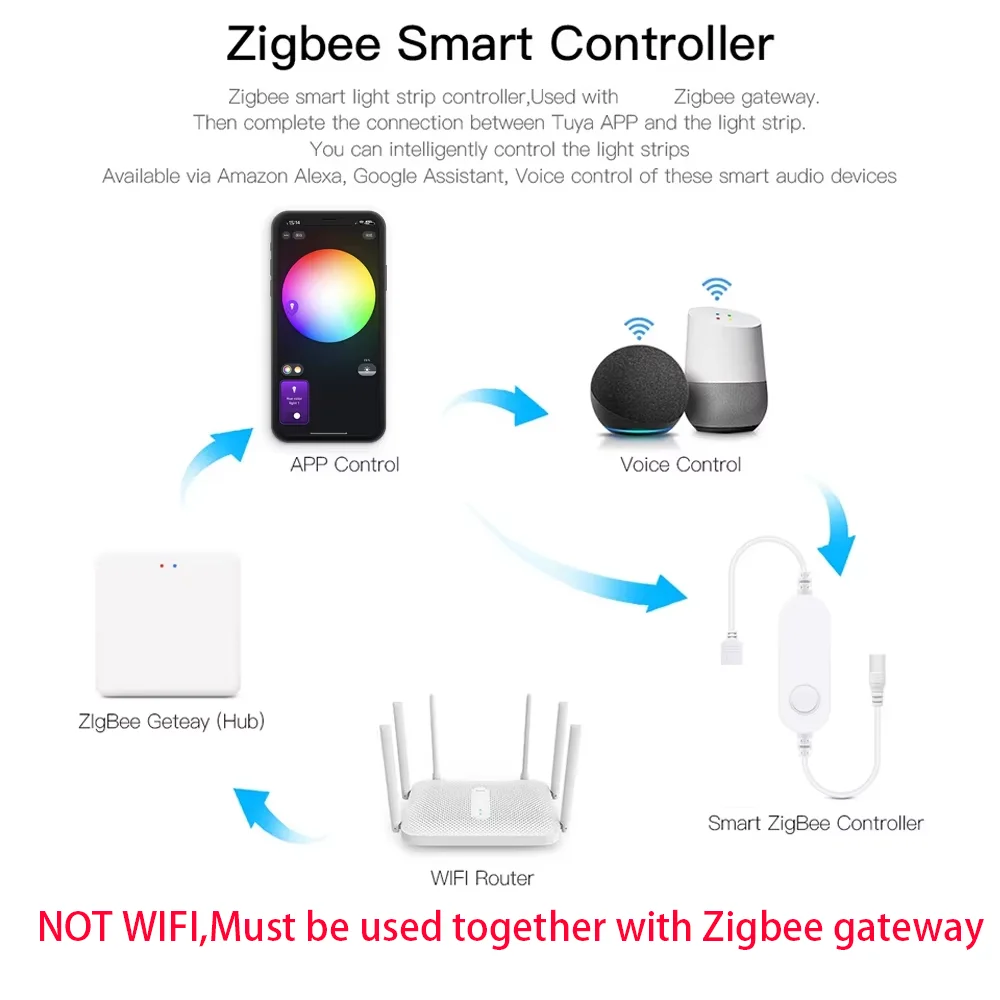

1. ZigBee hub is required!

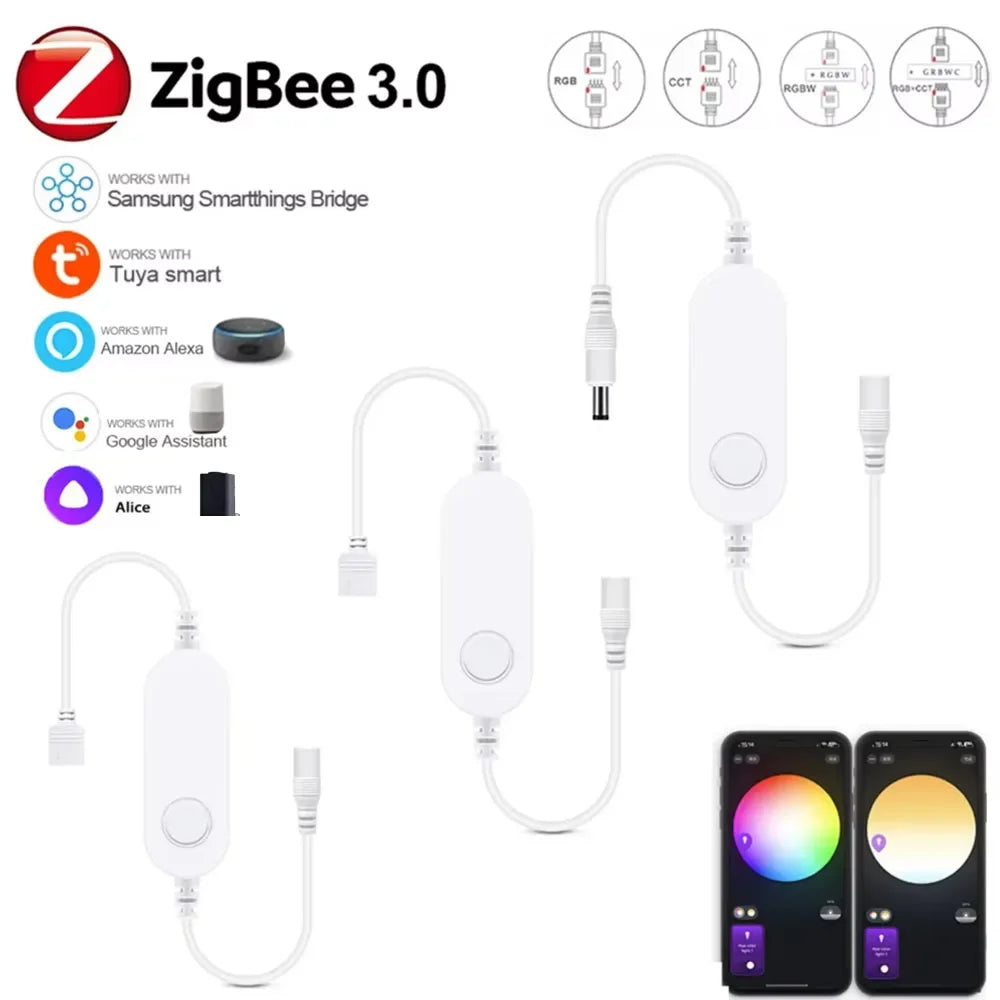

2. work with zigbee,Tuya Zigbee,Amazon ECHO Plus , O*sr*am,SmartThings, Home Assistant , Zigbee2MQTT ....Support voice control Alice,Alexa,google home.

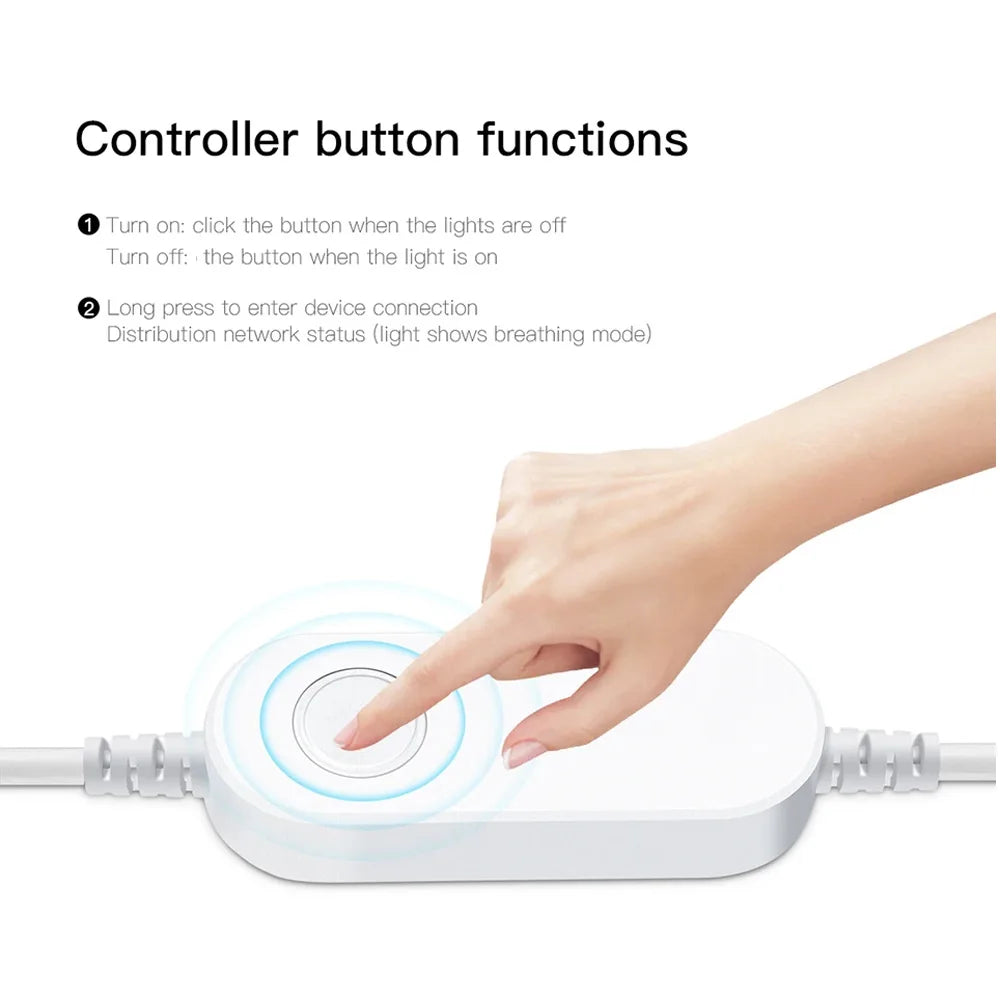

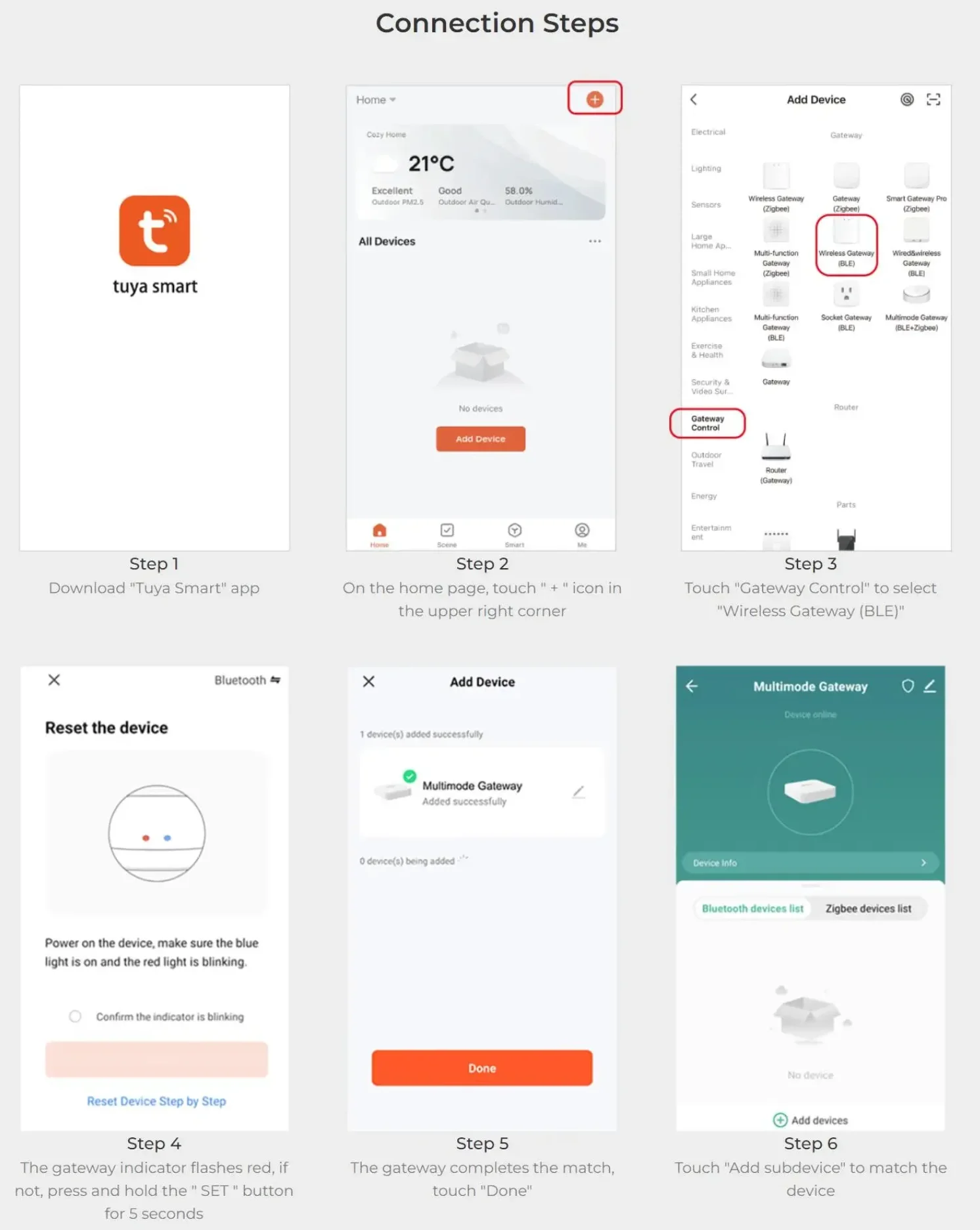

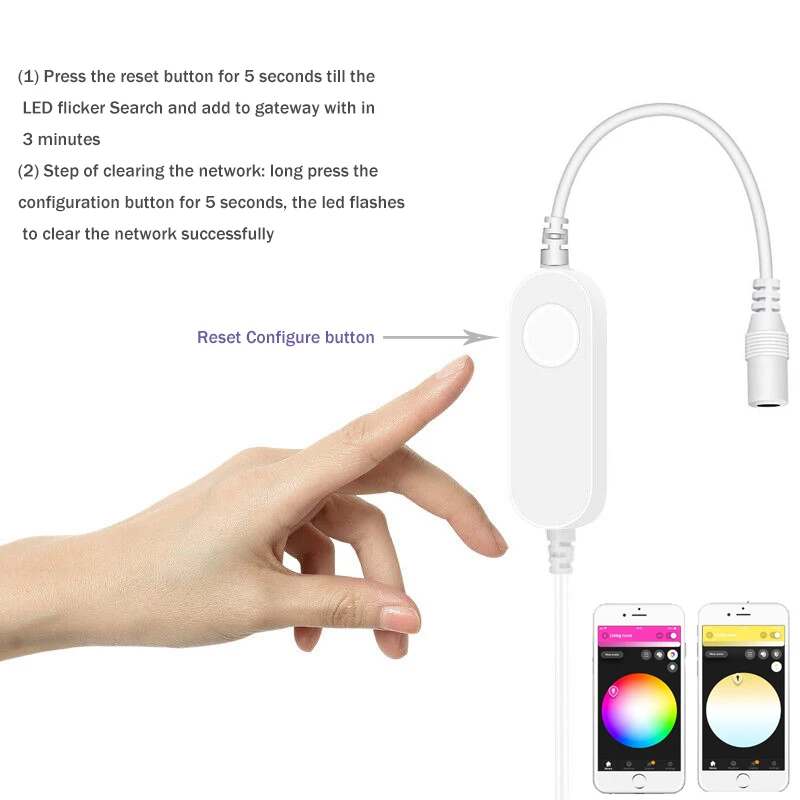

3. Match method: long press the button until the led gradient flicker,or take on off the power 5 times.

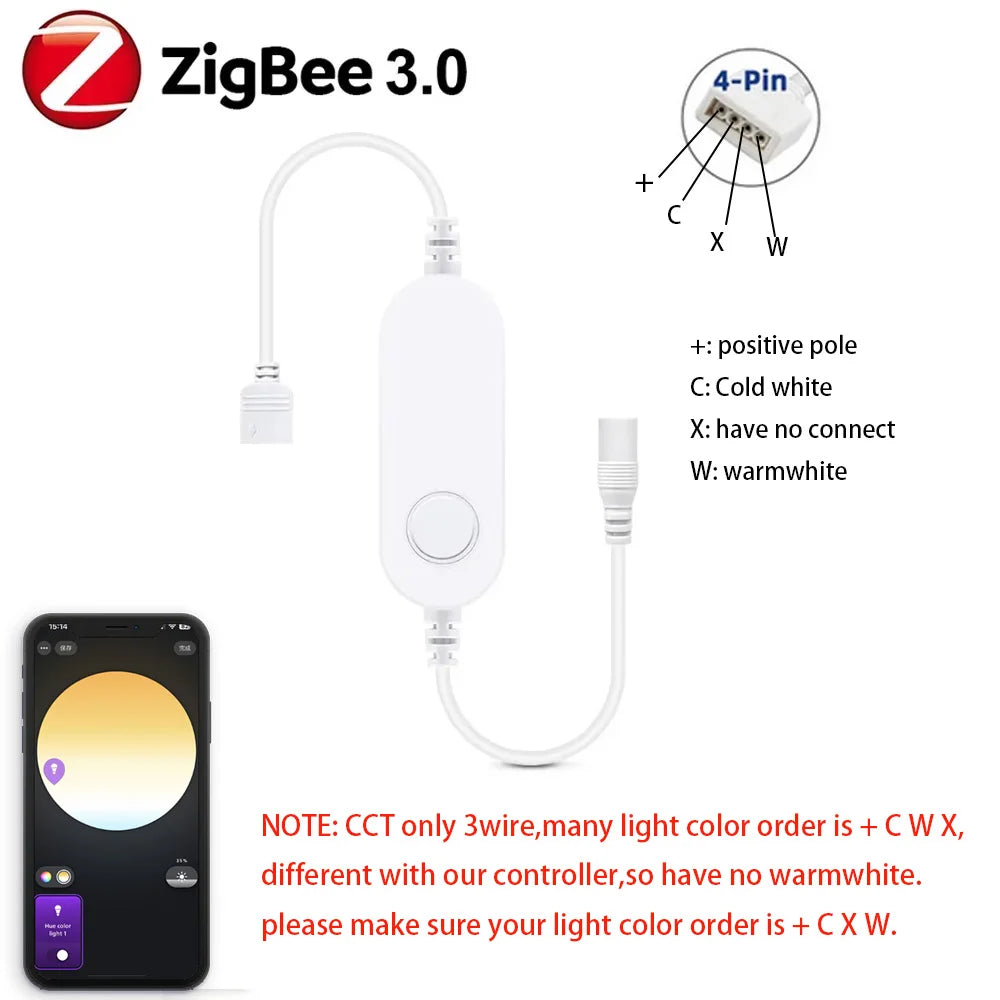

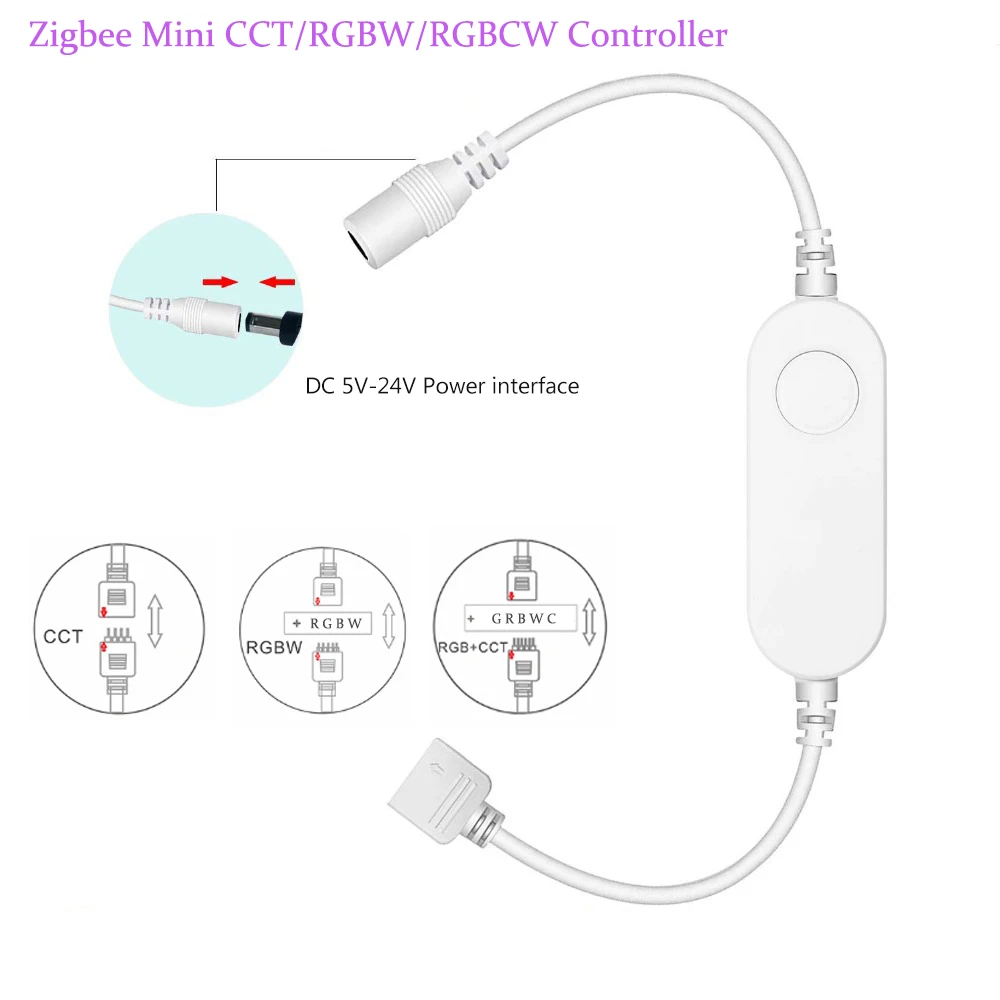

4. CCT color order is +C X W ,RGBCCT color order is + G R B W C ,you need check your light first.

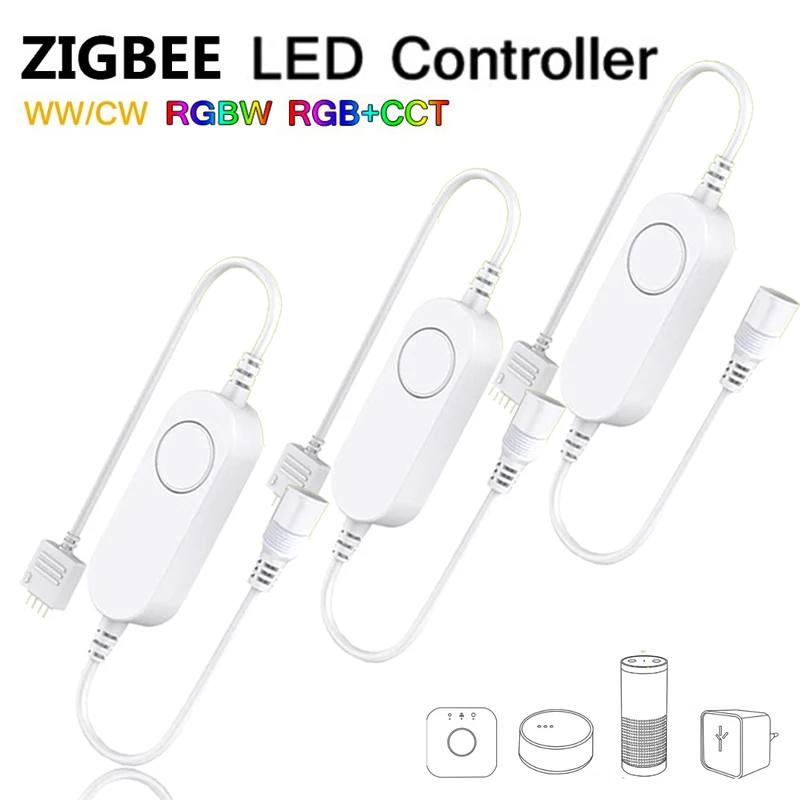

ZIGEBB LED Controller:

Support 5V-24V input, maximum current 5A dual output

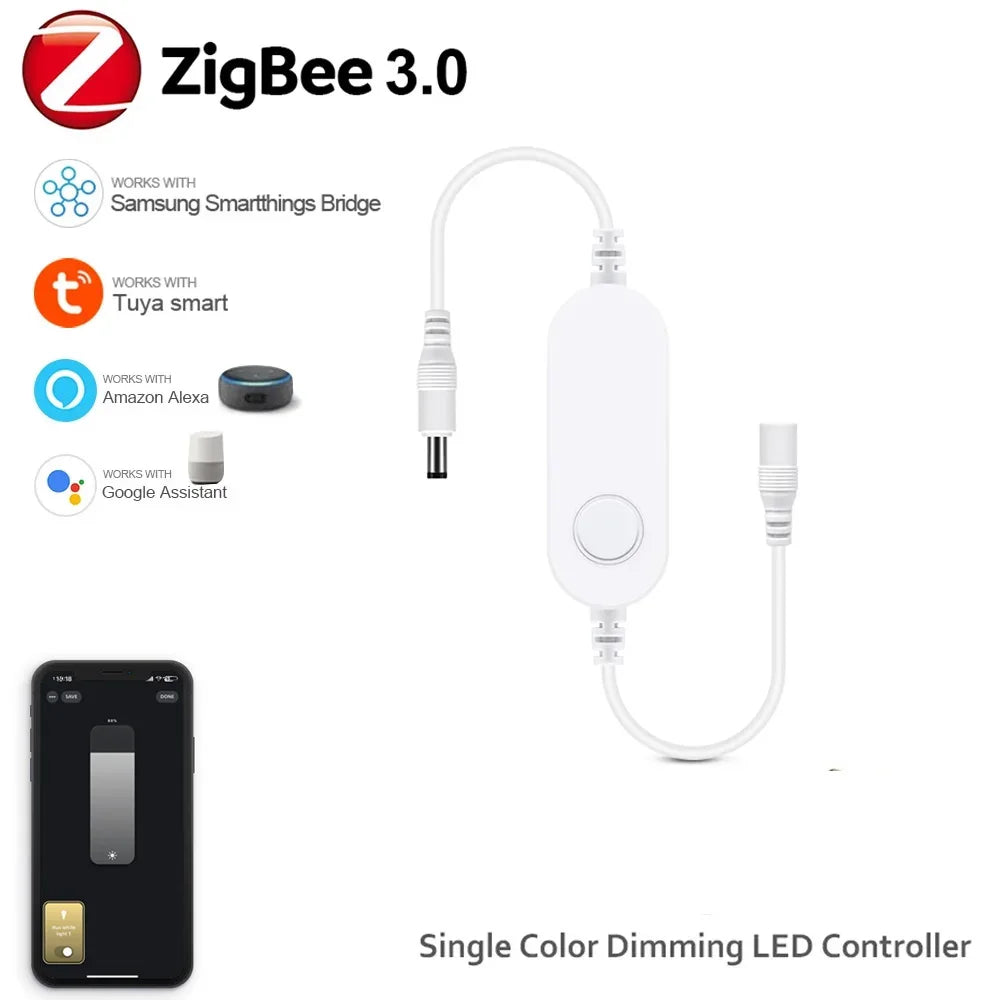

This new generation of Single color dimming /CCT/RGBW/RGBCCT controller
works with the ZigBee 3.0 standard and is therefore compatible with
many common ZigBee hubs/gateways,
With this controller all common
types of LED products operating on 5-24V Volt basis can be controlled.
This makes it suitable for LED strips, LED mounting beams, LED outdoor
or pool lighting.

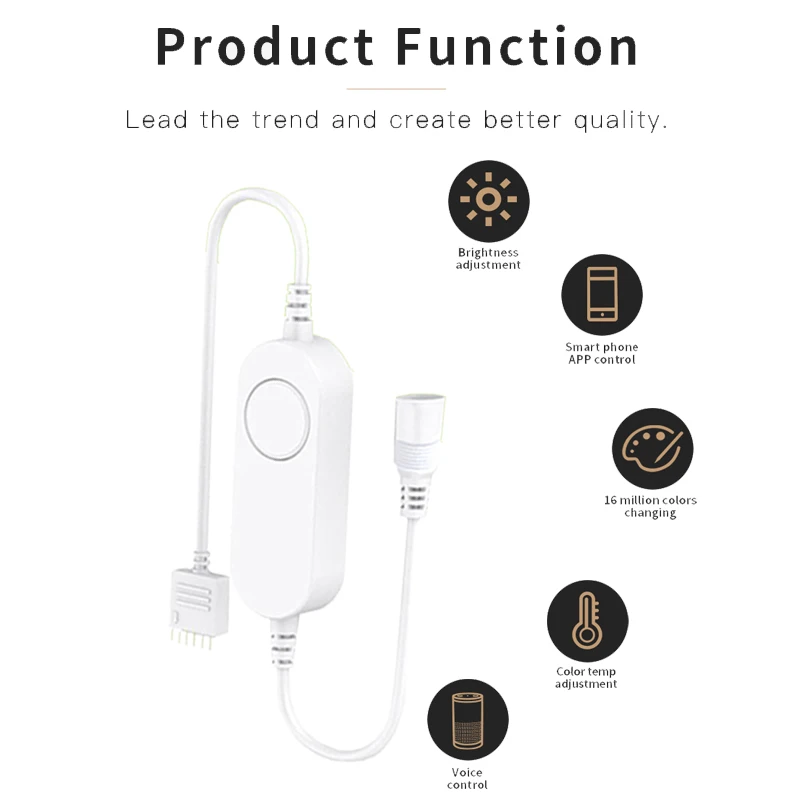

RGB CCT Wirelessly dimmable.
16 Millions of colors to choose.

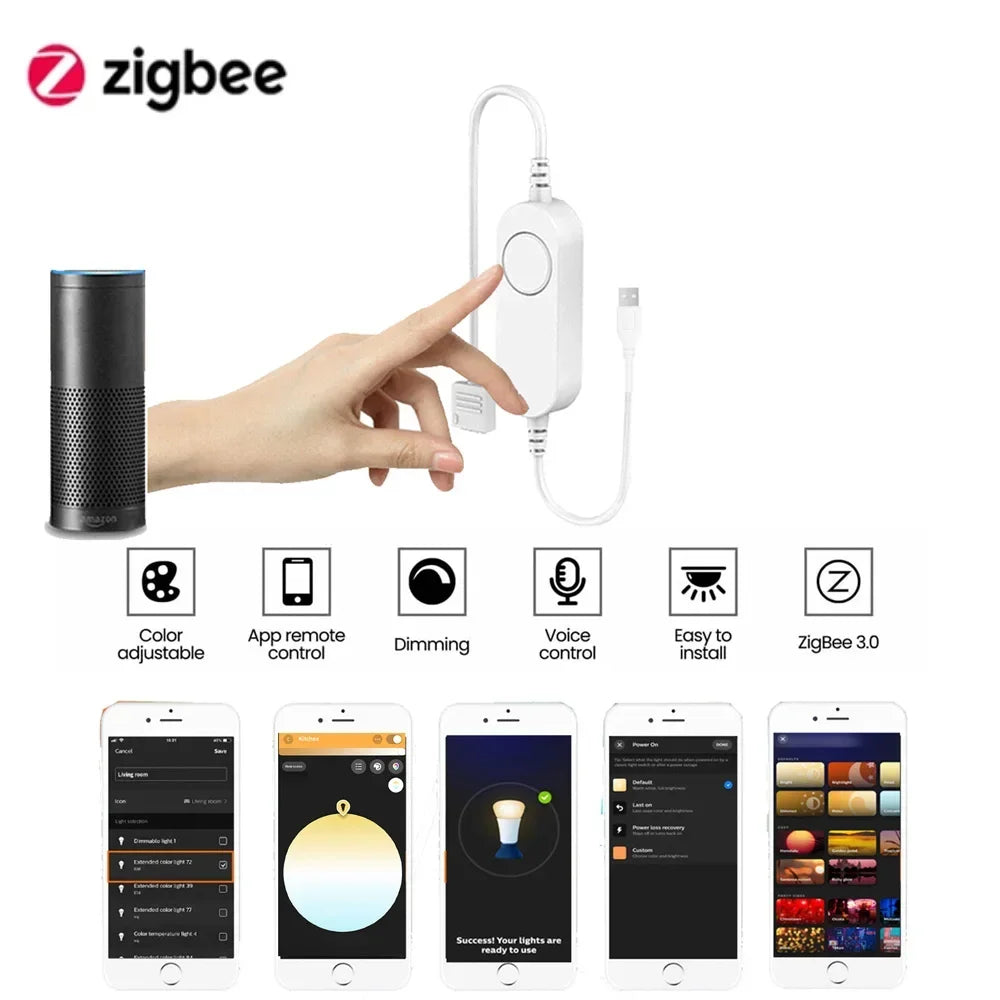

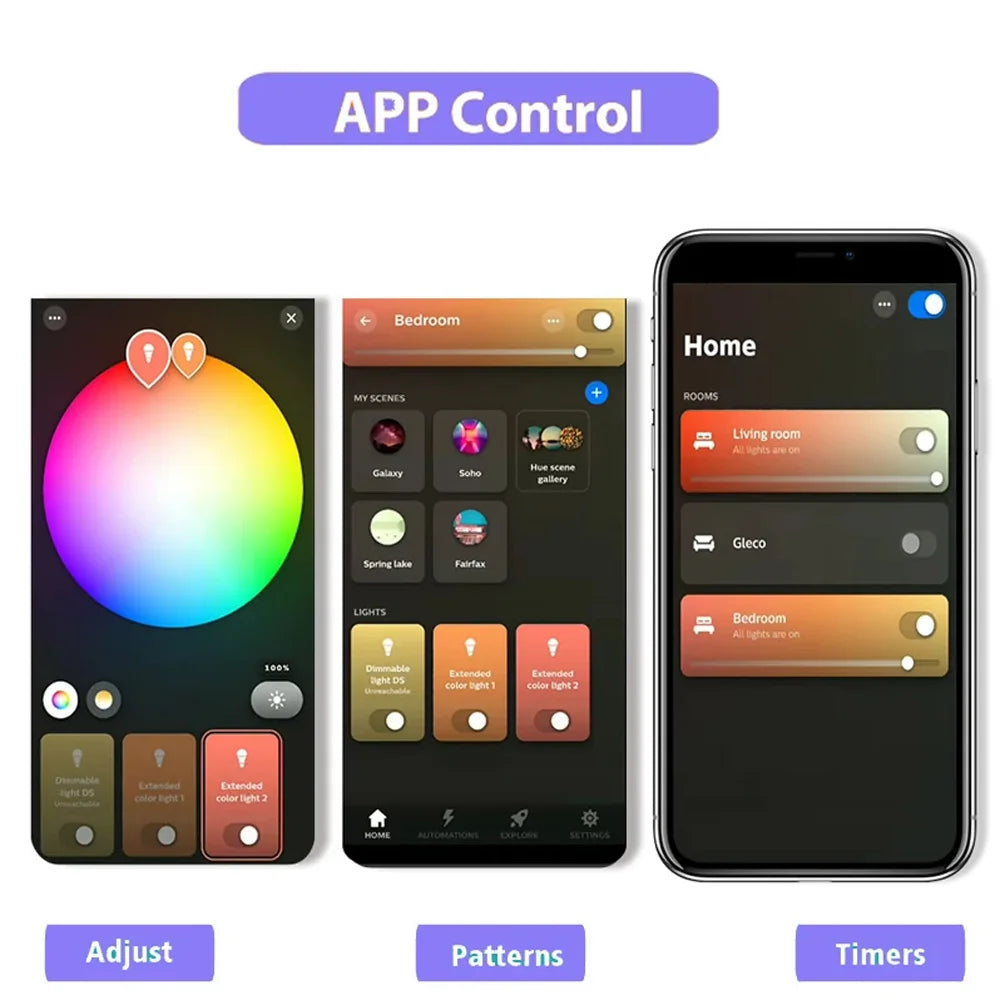

Voice control, Smartphone APP control.

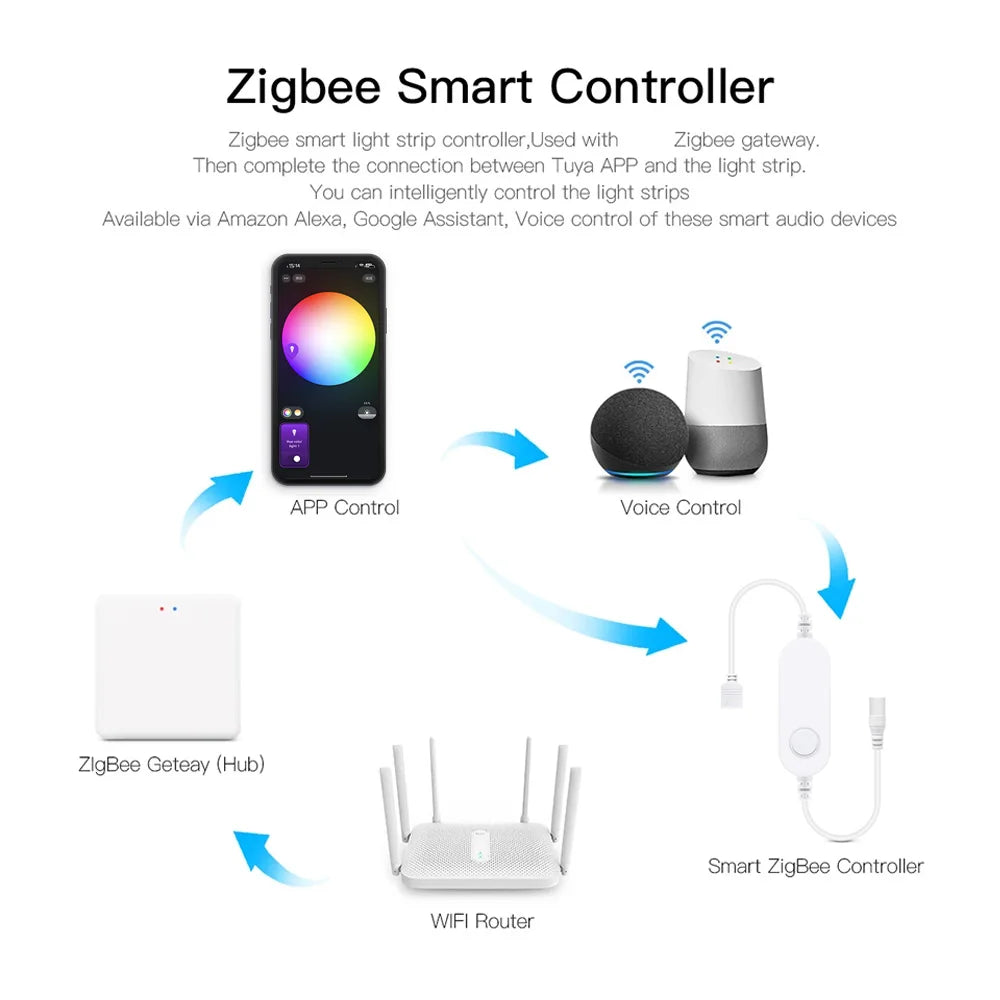

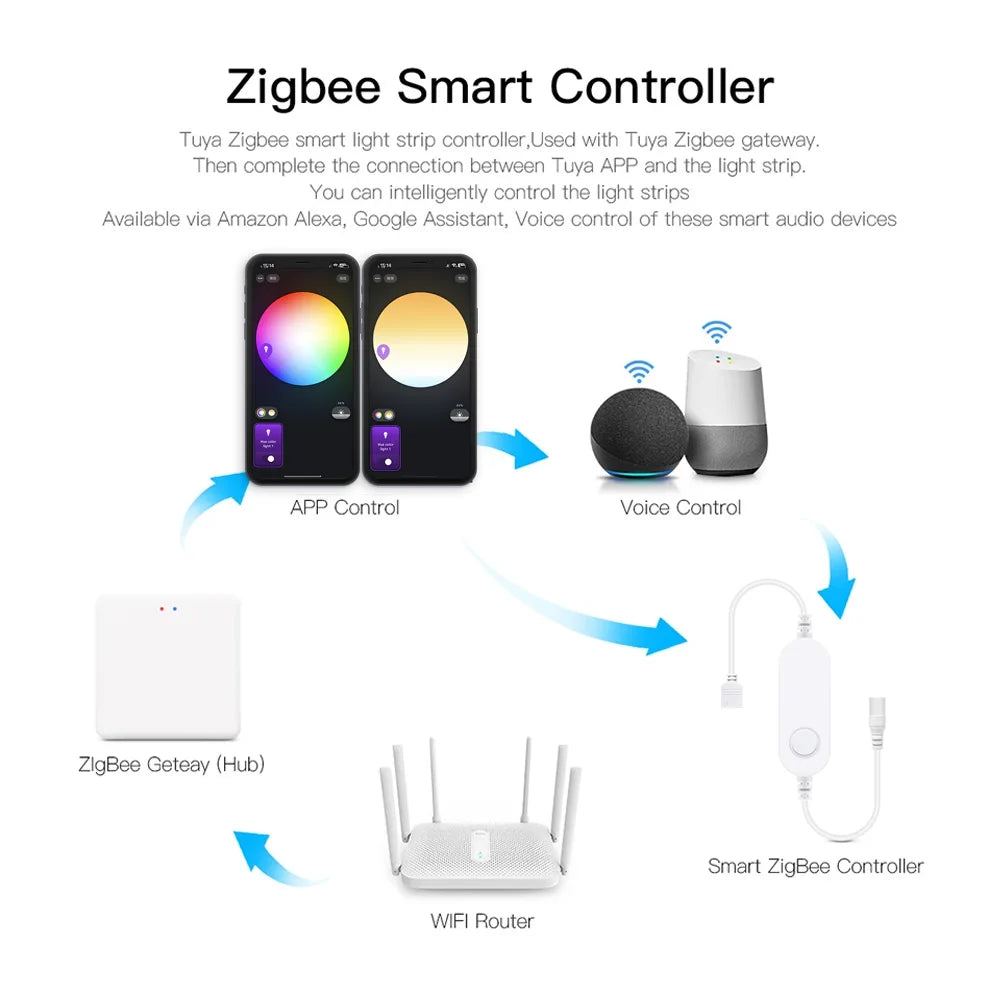

Please kindly note that our zigbee devices require related gateways.

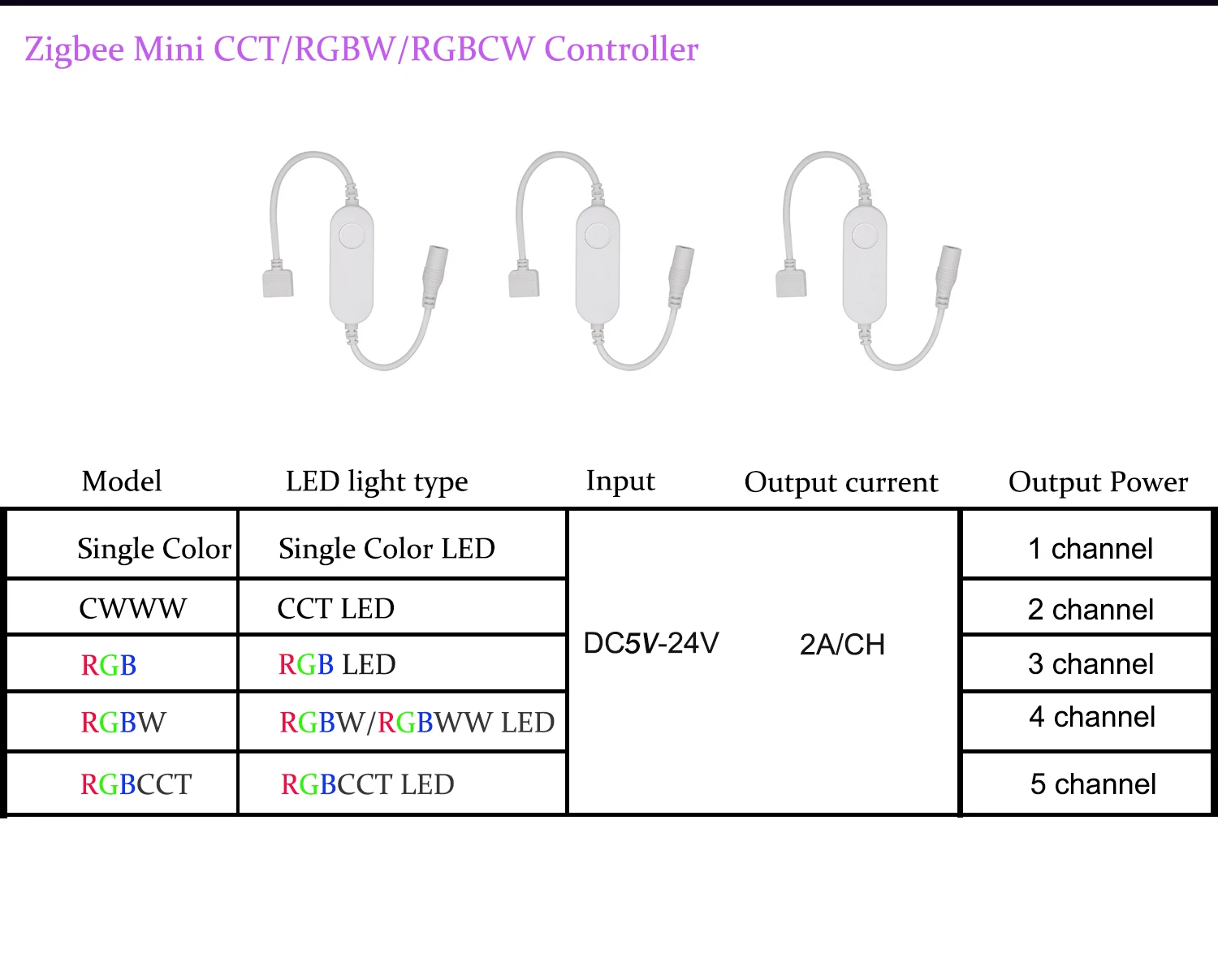

Specification:

Model No.:YSR-MINI-Z01
Voltage: DC5V-24V
Output: Max. 3A/Channel, Total output Max.5A
Product Name:ZIGBEE Strip Controller(Dimmer/CCT/RGB/RGBW/RGBCW)

Size:28*24*11.5mm
Weight: 50g
Operating Temperature:-20-60°
USB cable length : 0.5M
Support mobile: Android/IOS

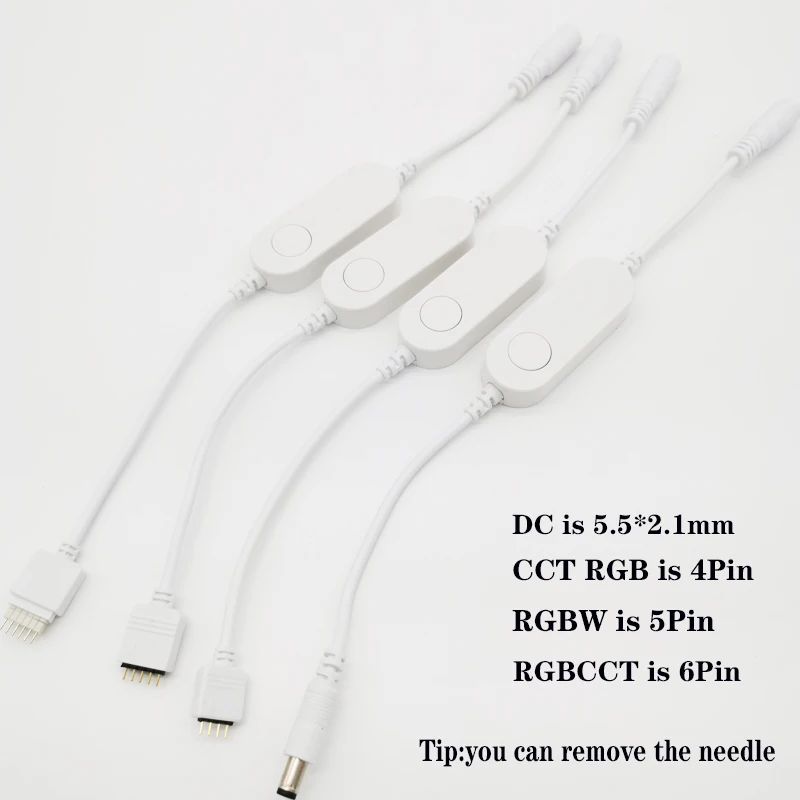

Note: 1. 6PIN RGBCCT Controller Needle Pitch is 2mm,width is 12mm.check your led strip connector.

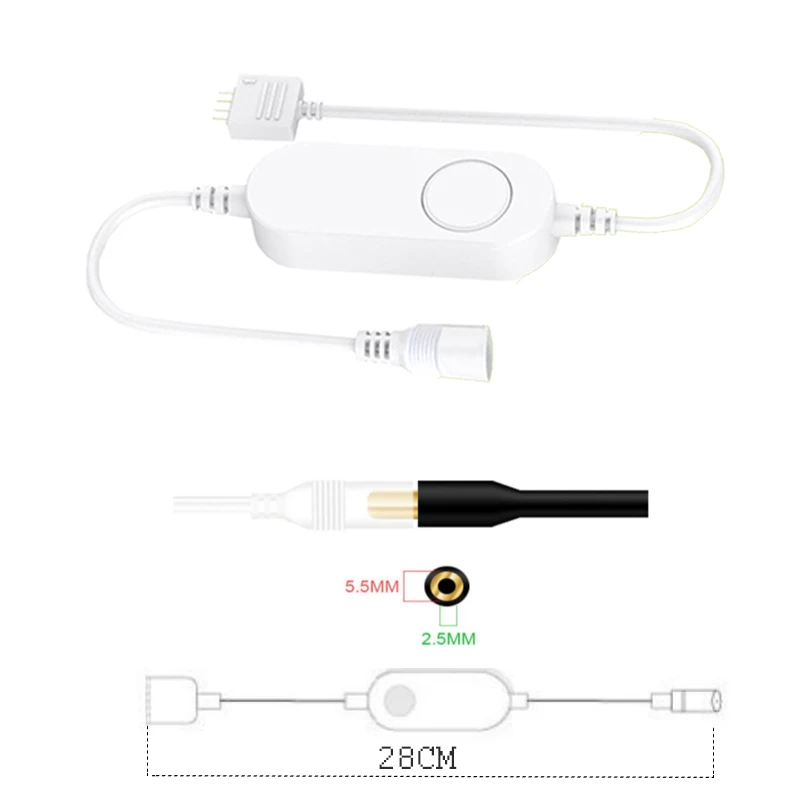

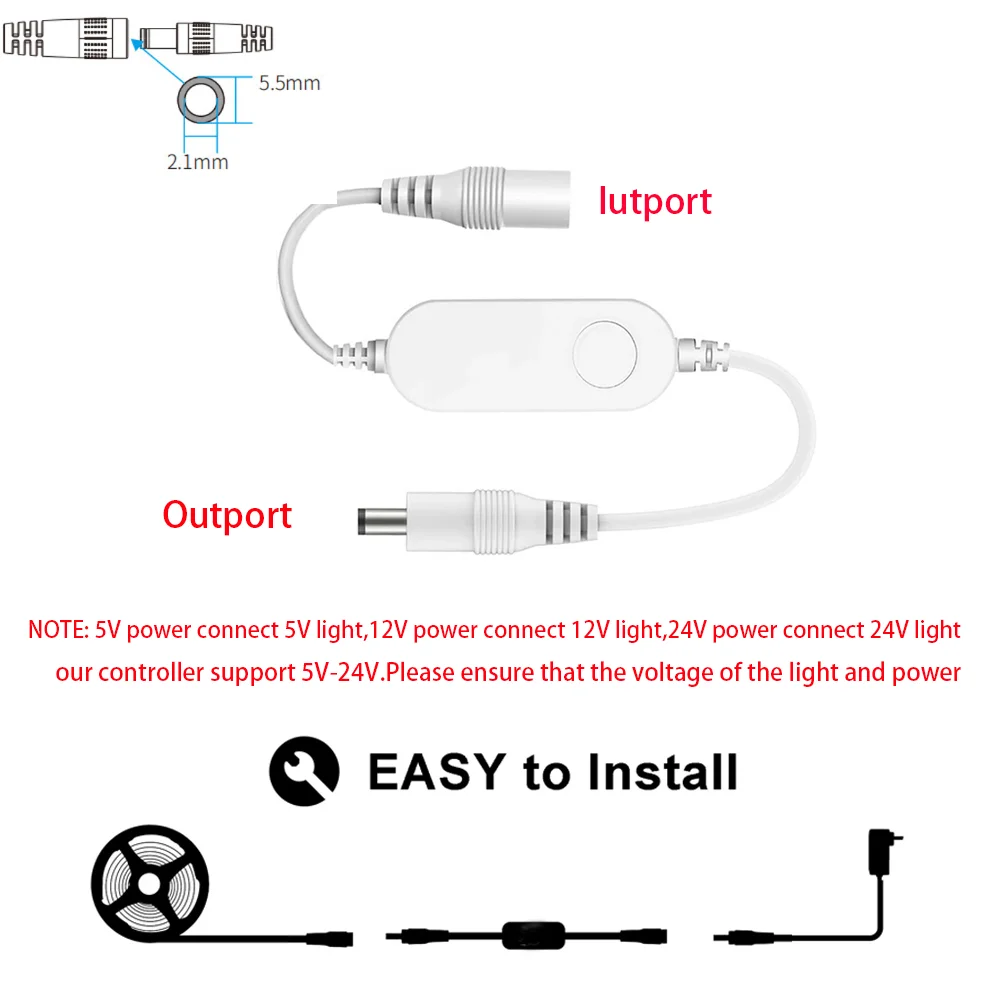

2. DC dimmer connector size is 5.5mm*2.1mm.

Package

1pcs* Zigbee LED Controller
