SPECIFICATIONS

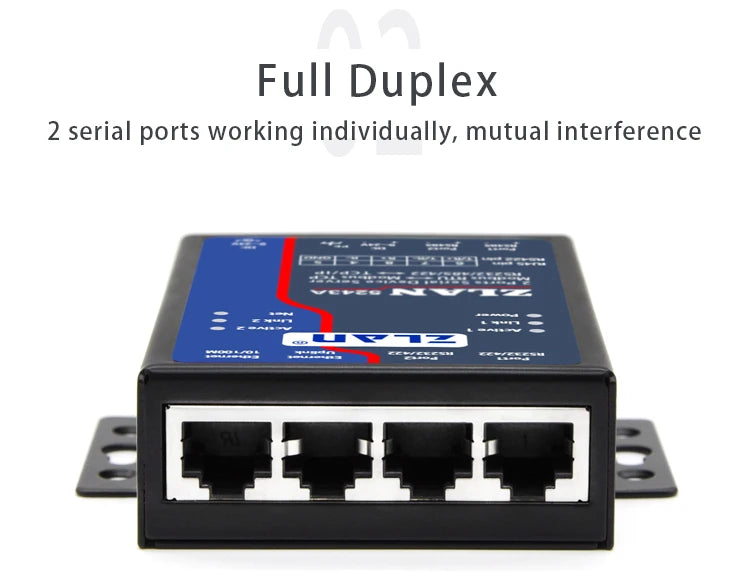

1)       Support full duplex, high speed converting, and no packet lost.

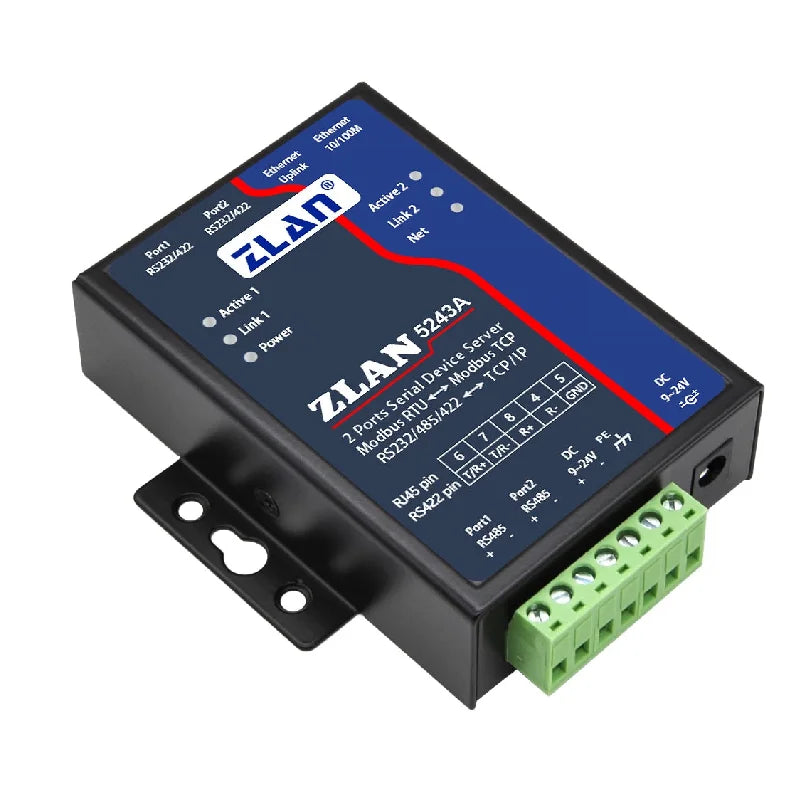

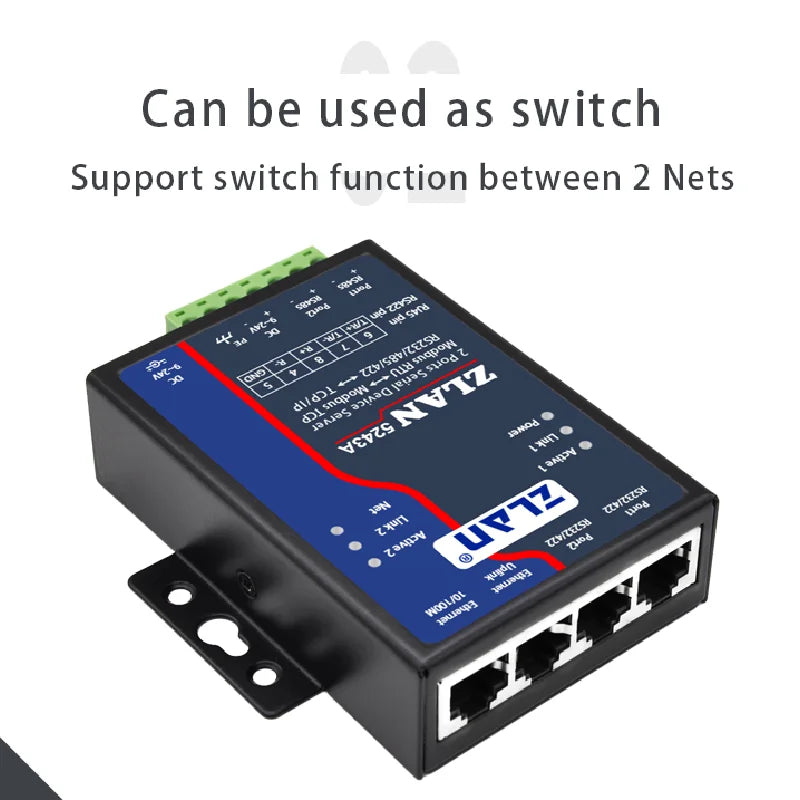

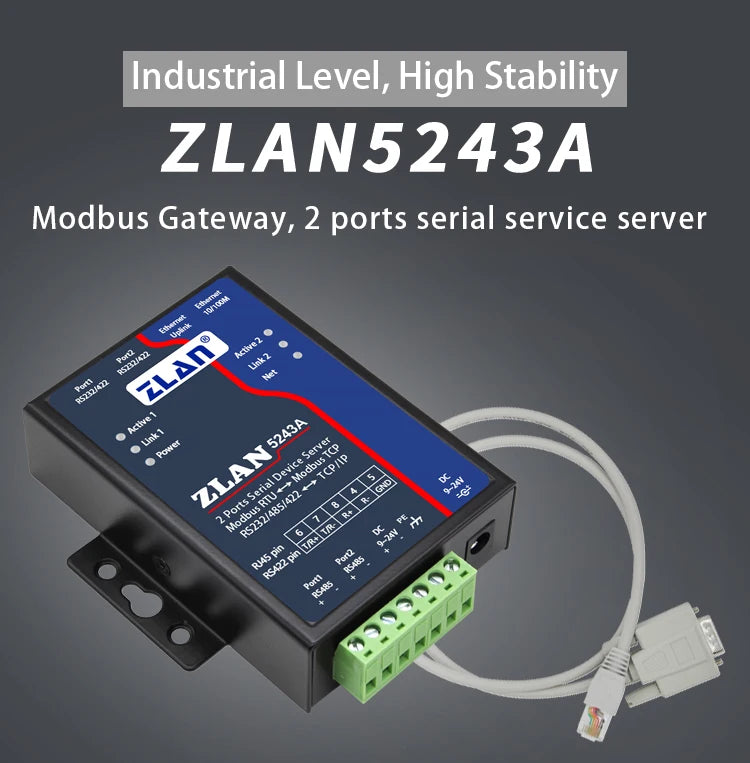

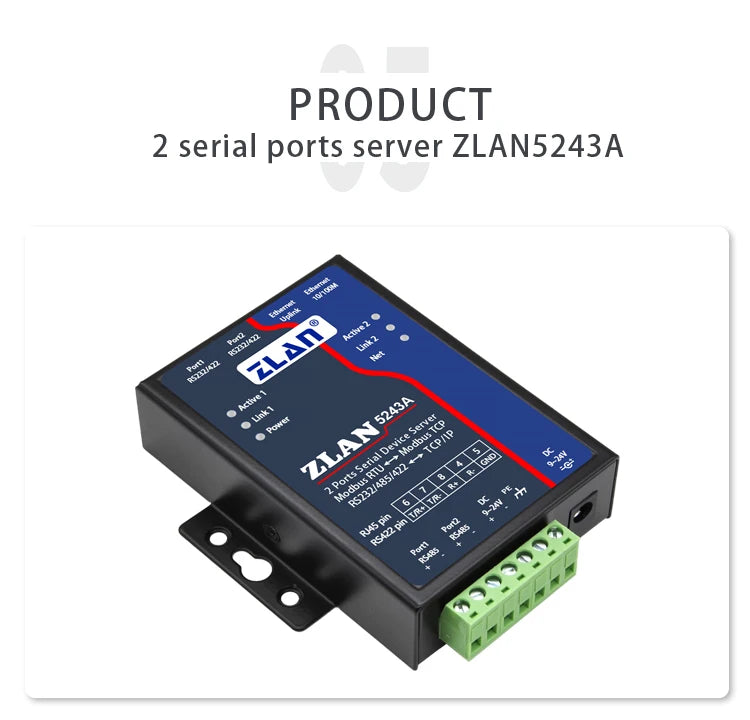

ZLAN5243A is 2 ports serial device server of cost-effective, full-duplex, no packet lost. It support simultaneously converting between Ethernet &Serial with large bulk of data with no pause, and also no data is lost.

2)       Hight cost performance.

ZLAN5200 is designed by concept of intensification, after ensure the stability. It highly takes the cost of networking upgrading in count

3)       Support TCP Server, TCP Client, UDP mode, and if communicating with ZLVirCom (our software), it automatically change to Real Com Driver Mode.

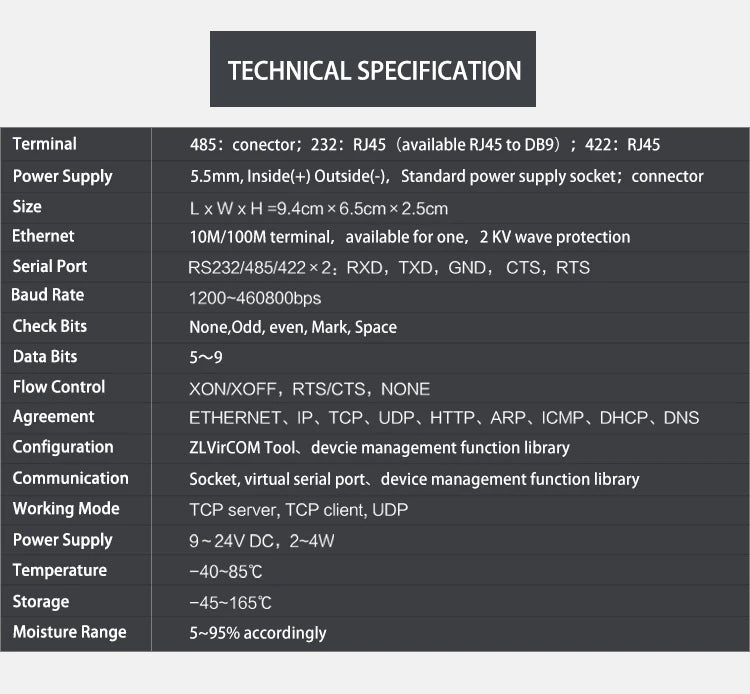

4)       Support band rate 1200~460800bps, data size 5~9bits, parity of None, Odd, Even, Mark, Space. Support CTS/RTS hardware flow control.

5)       Embedded with 485 lightning protection function.

6)       Equipped freely with our Windows Virtual Serial & Device Management Tool ZLVirCom. It supports virtual serial and searching device or modifying parameters with ZLVircom.

7)       Provide device management library (Window DLL library). It will help user to develop program with VC, VB, Delphi, C++ Builder. User need only use read() or write() function to communicate with ZLAN5200.

8)       The innovative disconnecting detecting method. Whether it running in TCP Server mode or TCP Client mode, once network is disconnected by some reason, the disconnecting detecting method will detected it and reestablished the connecting.

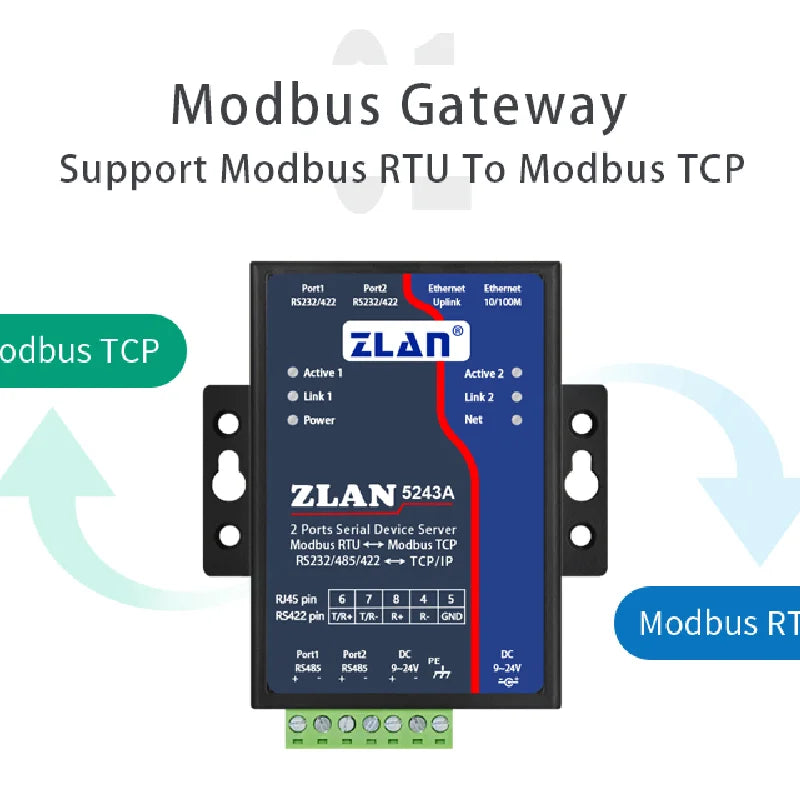

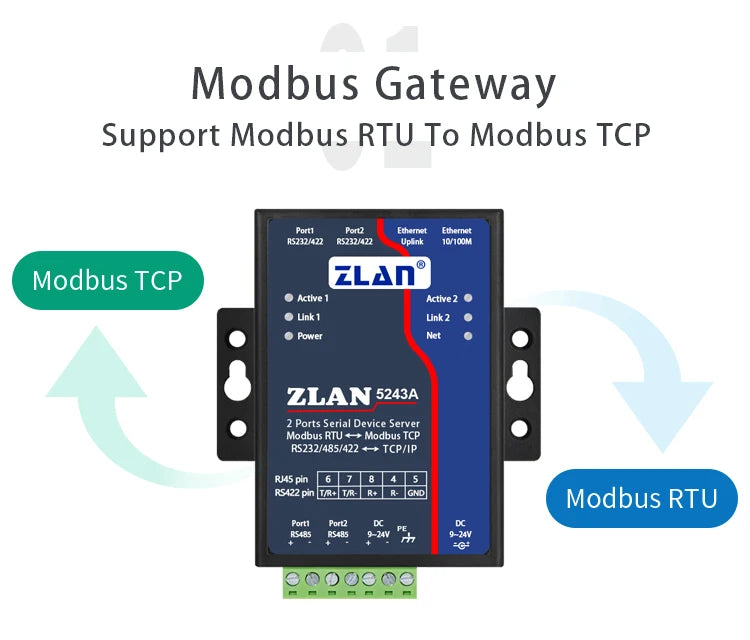

9)       Suitable for Modbus RTU networking upgrading. It is compatible with the software of SCADA/HMI software of Beijing Sunway ForceControl Technology Co. Ltd; Also it support directly transform Modbus TCP to Modbus RTU.

10)   With build-in Web server, its parameters can be modified by web browser.

11)   Support DHCP, easy for IP management and solve IP confliction.

12)   Support DNS. It fulfills the need of access data server through domain name.

13)   Support up to 100 TCP connections communicate with network modules at the same time.

14)   Flexible serial data framing setting. It fulfills all kinds of serial data frame requirement.

15)   UDP mode support dynamic destination address mode. It helps for multi-user mange one serial server.

16)   Real Com Driver mode support using the 9-th bit to facilitate communication with milt-device. (the 9-th bit being 0 means data frame and 1 means address frame).

17)   Support searching serial servers and modifying parameters through Internet remotely

18)   Support parameter modifying protection, preventing modifying by accident. Support running with default parameters.

19)   Build-in 2 KV electrical plus protection in RJ45.

20)   High protection of electromagnetic interference, with its high electromagnetic interference protection SECC external shell.
