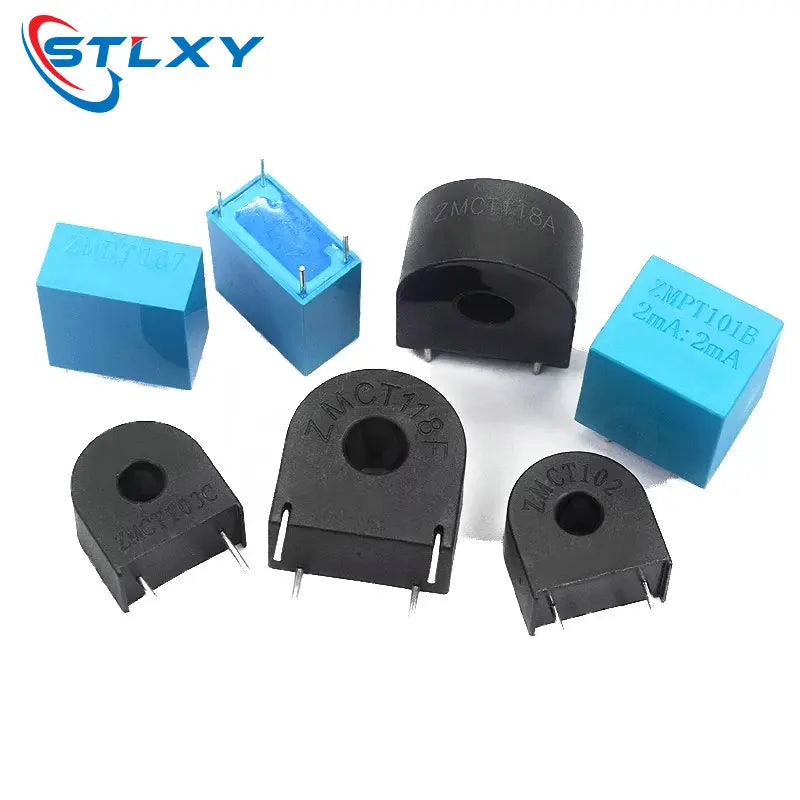

ZMPT107/101B ZMCT102/103/118 5A/5MA 2mA 2mA/2mA Precision Phase voltage transformer Output Voltage Sensor
ZMPT107 2mA 2mA / 20 Pcs
$88.60
Sale price
$88.60
Regular price
$0.00
Skip to product information
ZMPT107/101B ZMCT102/103/118 5A/5MA 2mA 2mA/2mA Precision Phase voltage transformer Output Voltage Sensor
$88.60
Sale price
$88.60
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Choice: yes
Coil Number: Autotransformer
Coil Structure: Toroidal
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: ZMPT107/101B ZMCT102/103/118 5A/5MA 2mA 2mA/2mA Precisio
Origin: Mainland China
Phase: SINGLE
Use: Current
is_customized: Yes

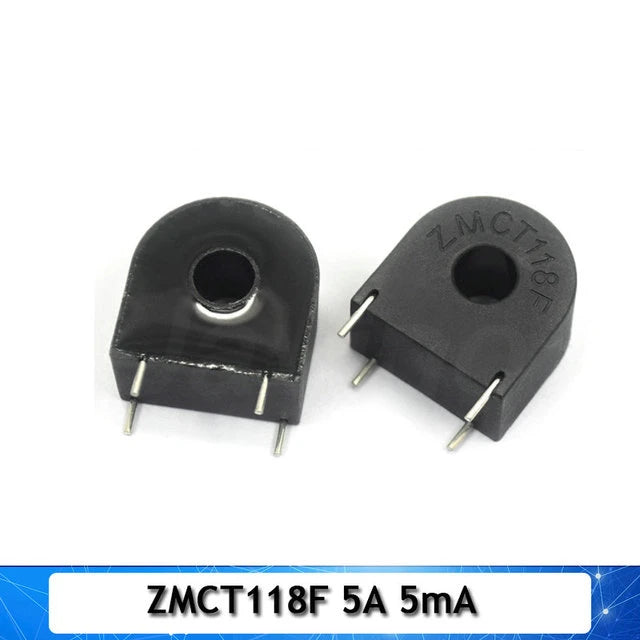

Feature:
Product model: ZMCT118F
Rated Input Current: 5A
Rated output current: 5mA
Ratio: 1000:1
Phase (when the rated input) : <= 15(100 ohm)
The linear range: 0-30A(100 ohm)
Linearity :0.3%
Isolation voltage: 4500V
Uses: For precise Current and power measurement
Sealing material: epoxy resin
Installation method: printed board installation
Working temperature: -40 to +85 degrees
Shell material: ABS

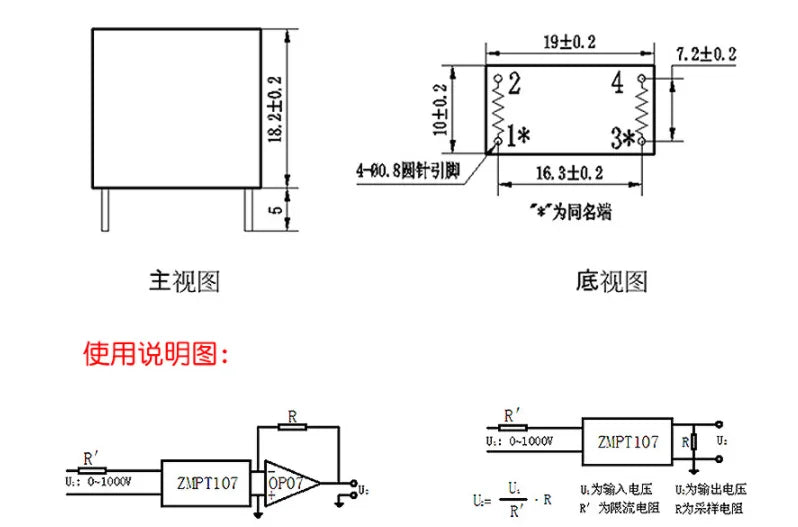

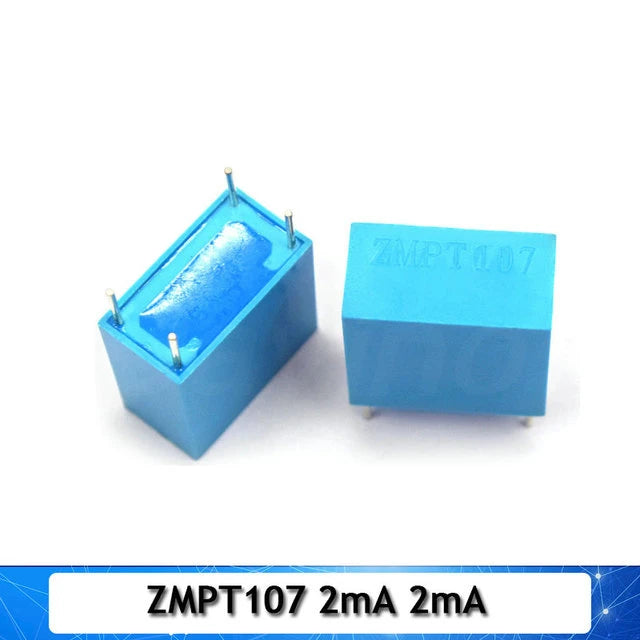

Feature:
Product model: ZMCT107
Rated Input Current: 2mA
Rated output current: 2mA
Ratio: 1000:1000
Phase (when the rated input) : <= 45(100 ohm)
The linear range: 0-10mA(100 ohm)
Linearity :0.3%
Isolation voltage: 3000V
Uses: For precise Voltage and power measurement
Sealing material: epoxy resin
Installation method: printed board installation
Working temperature: -40 to +60 degrees
Shell material: ABS

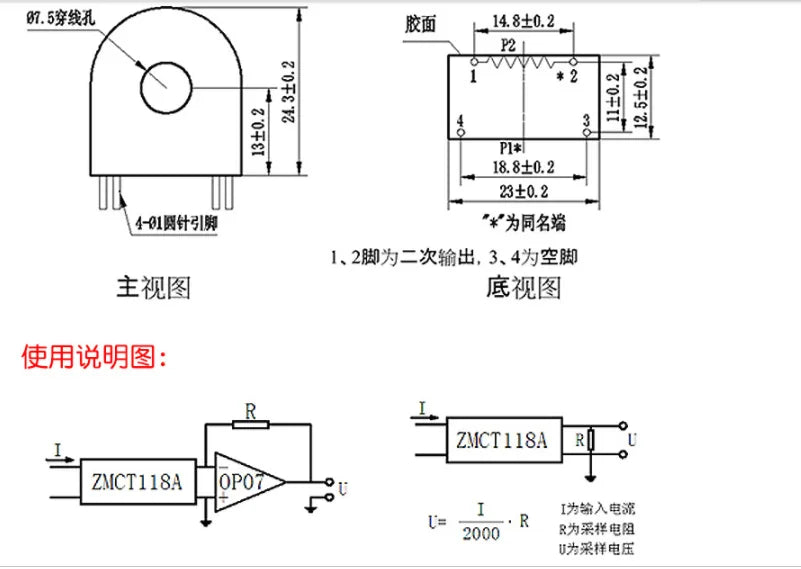

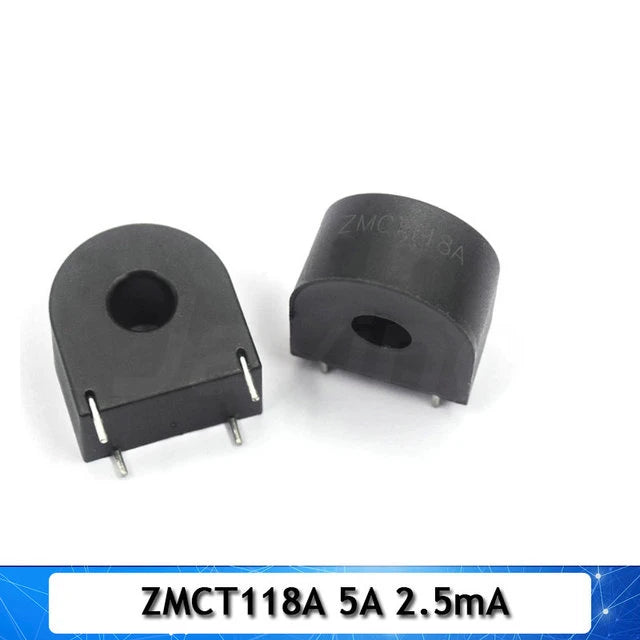

Feature:
Product model: ZMCT118A
Rated Input Current: 5A
Rated output current: 2.5mA
Ratio: 2000:1
Phase (when the rated input) : <= 15(100 ohm)
The linear range: 0-40A(100 ohm)
Linearity :0.1%
Isolation voltage: 4500V
Uses: For precise Current and power measurement
Sealing material: epoxy resin
Installation method: printed board installation
Working temperature: -40 to +85 degrees
Shell material: ABS
.

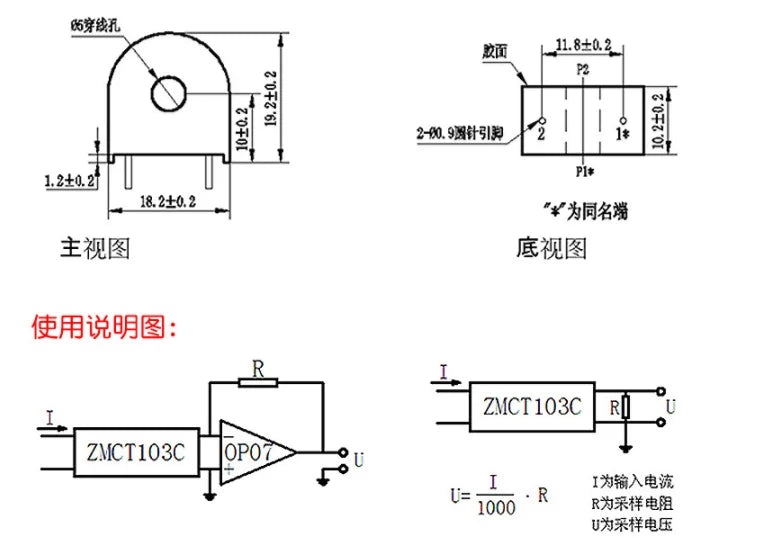

Feature:

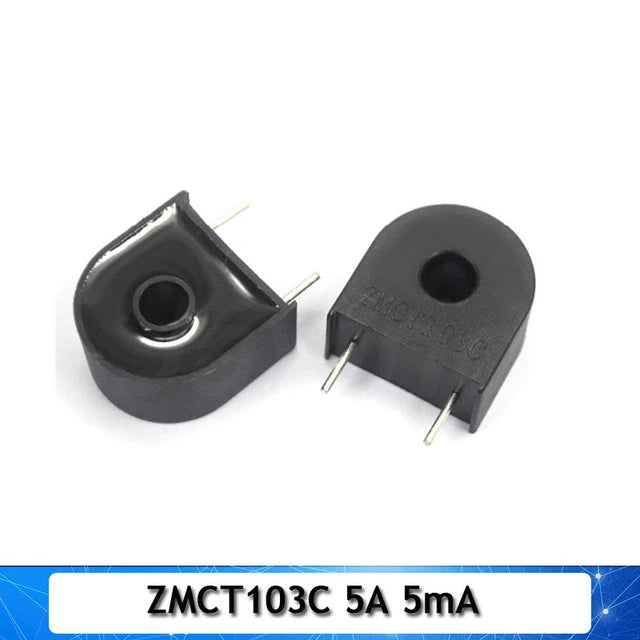

Product model: ZMCT103C
Rated Input Current: 5A
Rated output current: 5mA
Ratio: 1000:1
Phase (when the rated input) : <= 15(100 ohm)
The linear range: 0-15A(100 ohm)
Linearity :0.2%
Isolation voltage: 4500V
Uses: For Current and power measurement
Sealing material: epoxy resin
Installation method: printed board installation
Working temperature: -40 to +85 degrees
Shell material: ABS

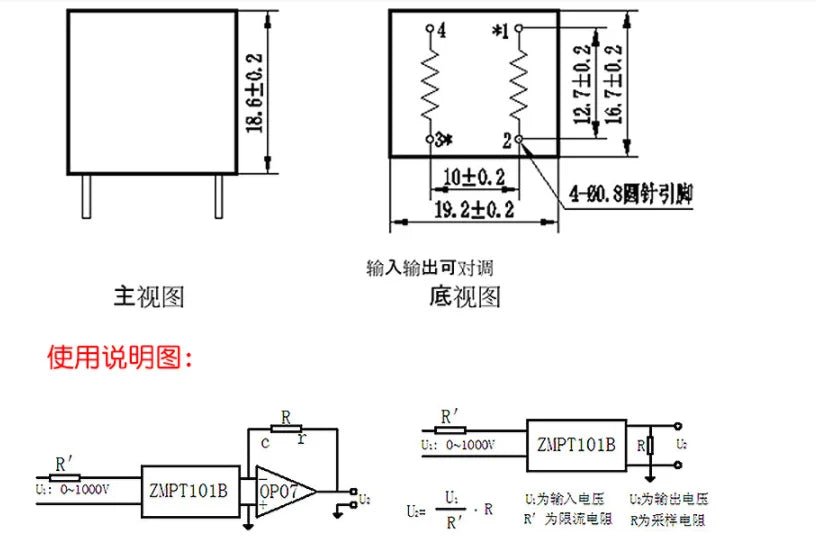

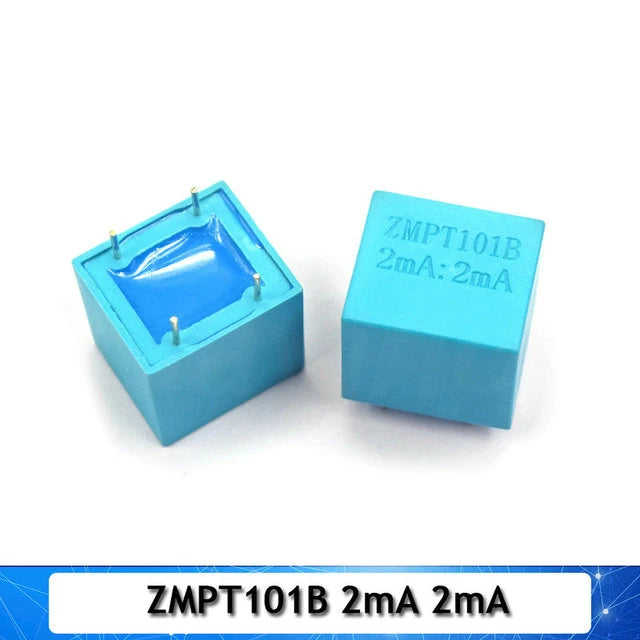

Feature:
Product model: ZMPT101B
Rated input current: 2mA
Rated output current: 2mA
Change ratio: 1000:1000
Phase difference: ≤20'
Linear range: 0~1000V 0~10mA
Linearity: ≤0.2%
Allowable error: -0.3≤f≤0.2%
Isolation withstand voltage: 4000V
Uses: accurate measurement of voltage and power
Sealing material: epoxy resin
Installation method: printed board installation
Working temperature: -40 to +60 degrees
Shell material: ABS
