SPECIFICATIONS

Assembly Required: no

Brand Name: ZoeRax

Choice: yes

High-concerned chemical: none

Model Number: ARC7-QBGD

Origin: Mainland China

Package: Yes

Type: Network Ethernet Cables

ZoeRax CAT8 CAT7 CAT6A Shielded Connector with Strain Relief Boots, Non-Pass Through RJ45 Ethernet Ends 3-Prong 50u Gold Plated 8P8C Modular Plugs for FTP/STP Cable

• ✅TWO-PIECE DESIGN: ZoeRax cat8 cat7 cat6a rj45 modular connector terminates shielded twisted pair cable for making a custom-length Cat 6A Ethernet cable; Each RJ45 connector with a load bar which makes the installation easier.

• ✅DIY RJ45 CABLE shielded connector terminates shielded twisted pair solid cable for making custom length Ethernet patch cords; Supports CAT8 CAT7 CAT6A STP/FTP 23 AWG round solid or stranded wire, for wire core OD 1.35~1.45mm. The wire OD of cables with the same AWG specifications may vary depending on the manufacturer. Please ensure wire OD MUST meet the requirements. (Flat cable not supported due to difficult installation)

• ✅SUPERIOR TRANSMISSION: Meets CAT6a performance requirements per ANSI/TIA-568-B.2-10 for a Gigabit Ethernet channel-compliant network. 50-micron gold-plated contacts on 8P8C network connectors provide faster speed with less interference.

• ✅SUPERIOR CONSTRUCTION of STP wire connectors with metal housing and gold-plated contacts to suppress alien crosstalk and provide a secure connection; Crimp-style plugs terminate the solid or stranded cable with three-point staggered contacts to provide a secure connection

• ✅Package Contains: CAT8 CAT7 CAT6A Shielded Connectors with lord bars and Cable Cap -transparent (The plug cable cap is compatible with cable OD 7~8mm). With an 18-month guarantee and a high standard of customer service, use it without concern.

Scope of Application

The modular plugs accept 23 to 26 AWG shielded or unshielded cable. The insulated conductor outside diameter need to be less than or equal to 1.45 mm

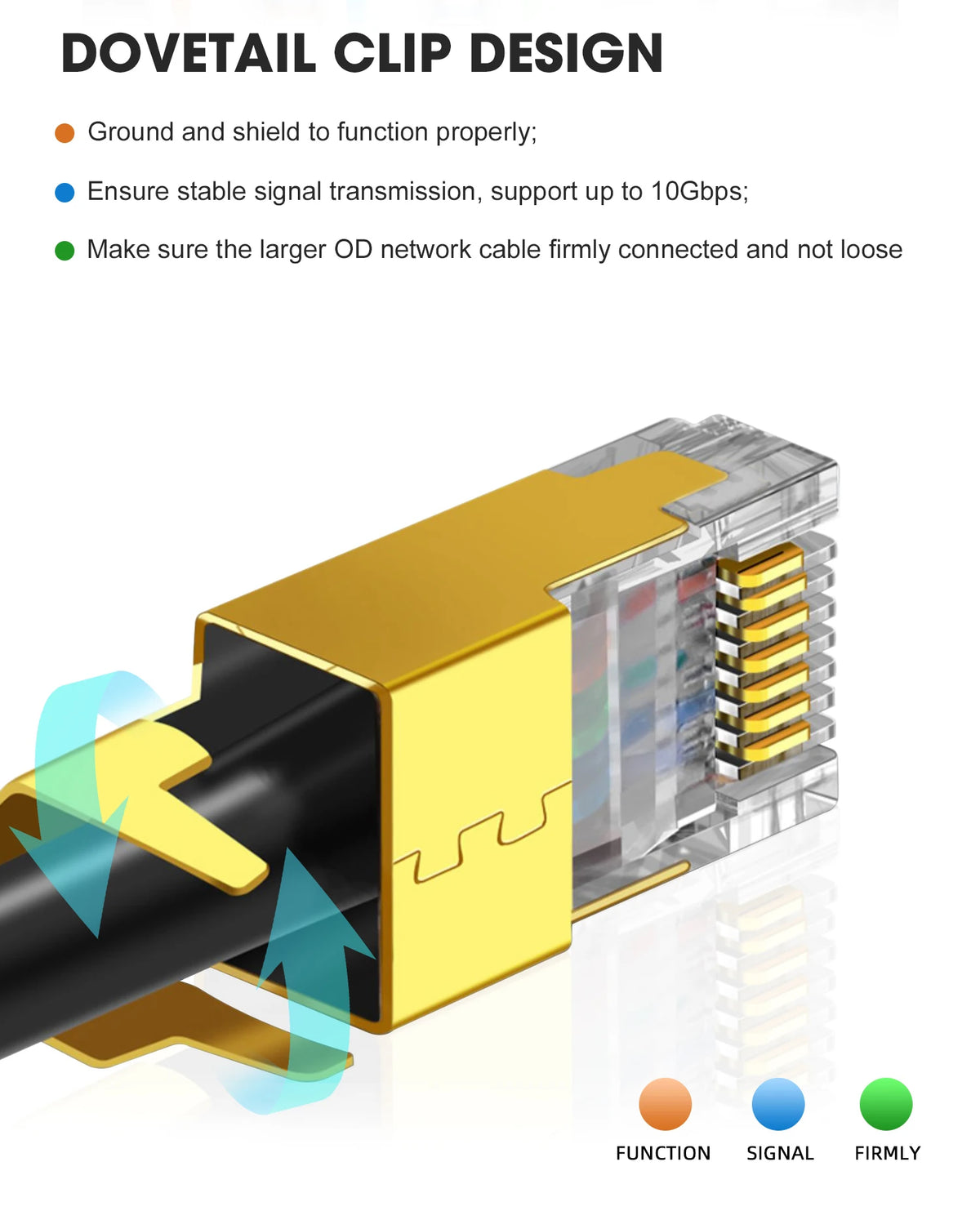

Dovetail Clip Design
Ground and shield to function properly; Ensure stable signal transmission, support up to 10Gbps; Make sure the larger OD network cable firmly connected and not loose.

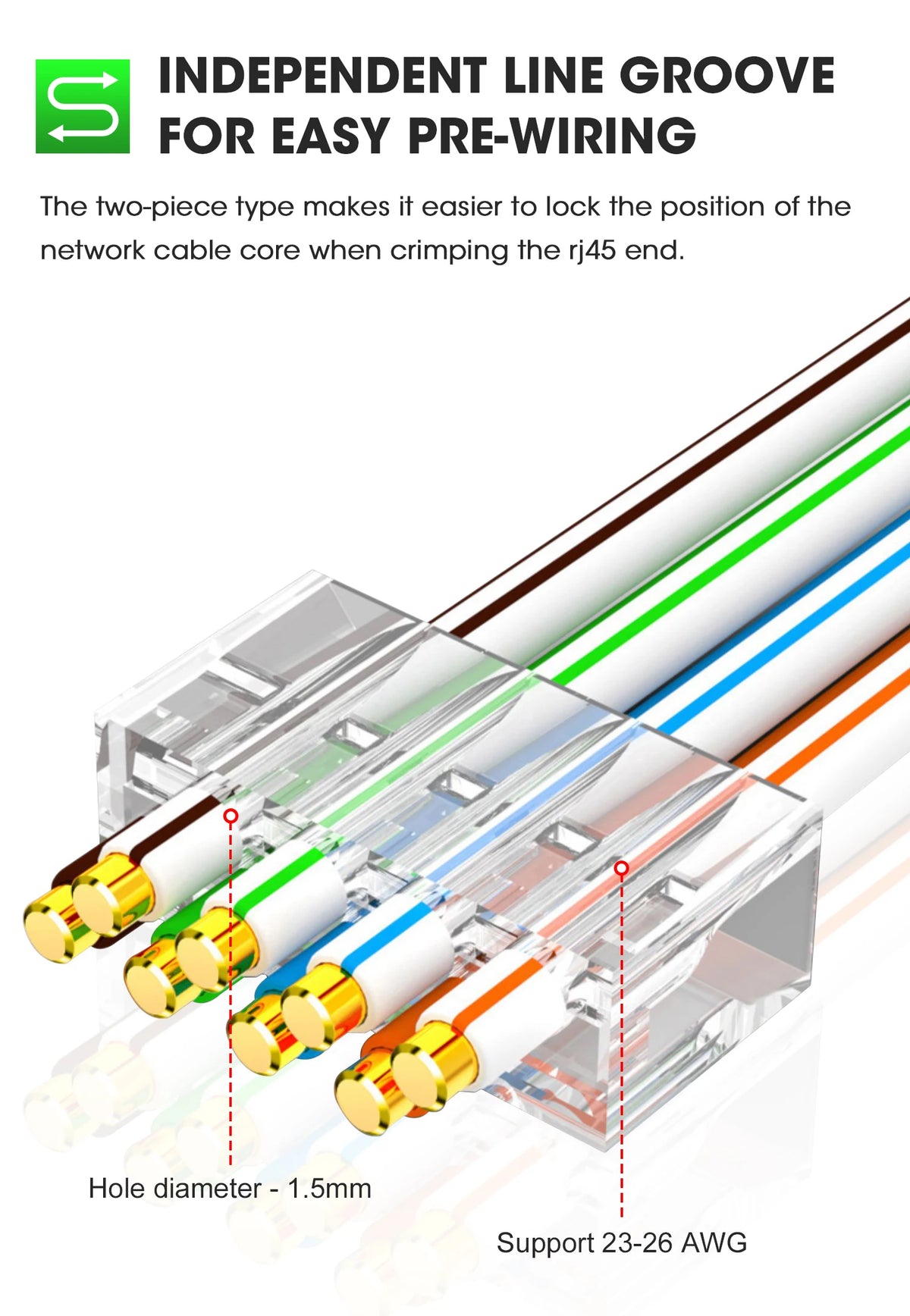

Independent Line Groove for Easy Pre-wiring
The two-piece type makes it easier to lock the position of the network cable core when crimping the rj45 end.

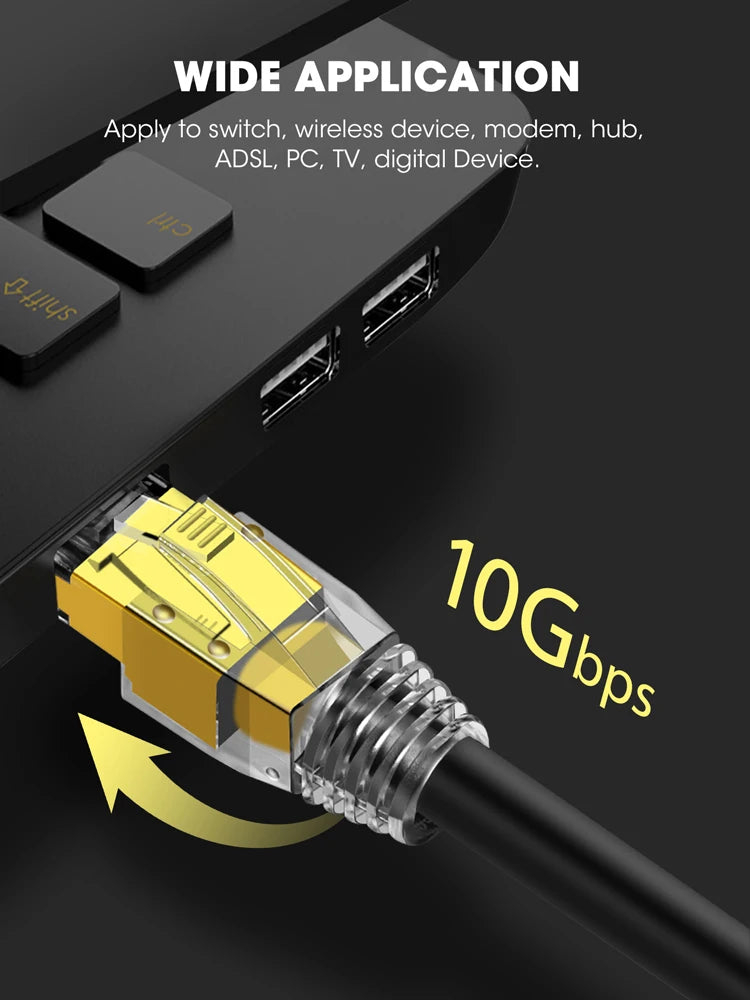

Wide Application
Apply to switch, wireless device, modem, hub, ADSL, PC, TV, digital Device.

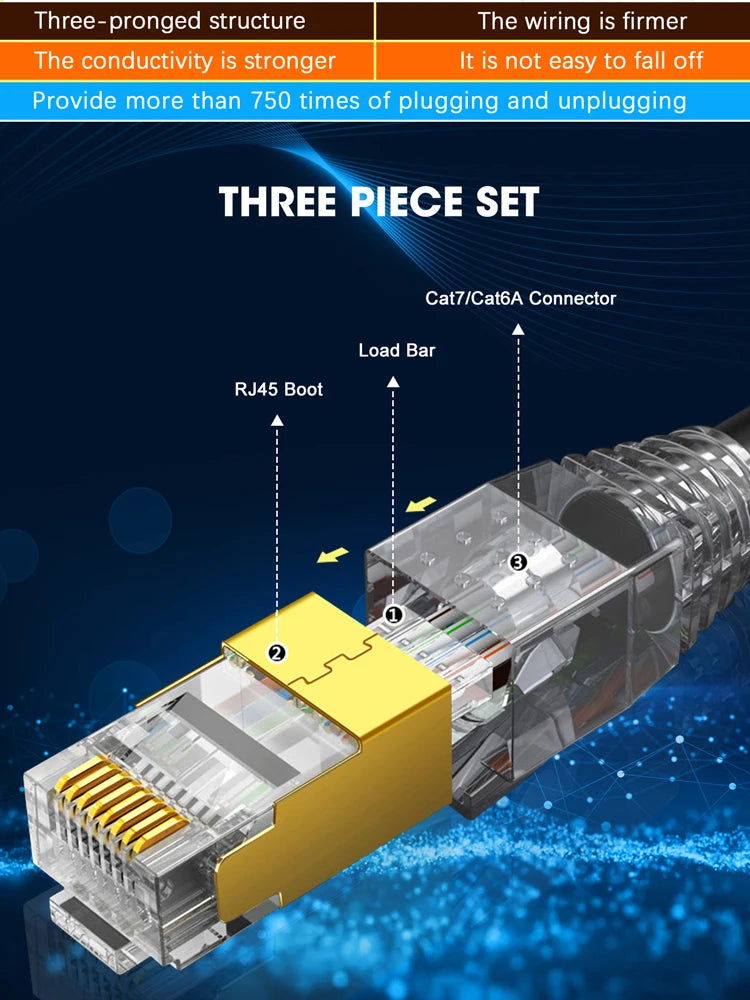

3 Prong Connector
Three-pronged structure, the wiring is firmer, the conductivity is stronger, and it is not easy to fall off. Provide more than 750 times of plugging and unplugging.

PACKAGE & AFTER-SALE SERVICE

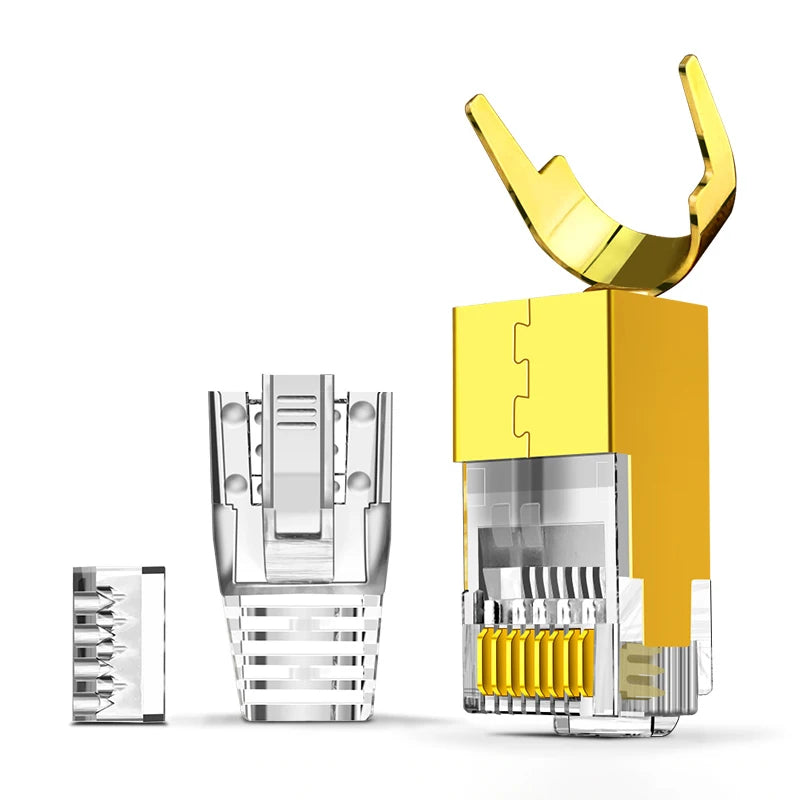

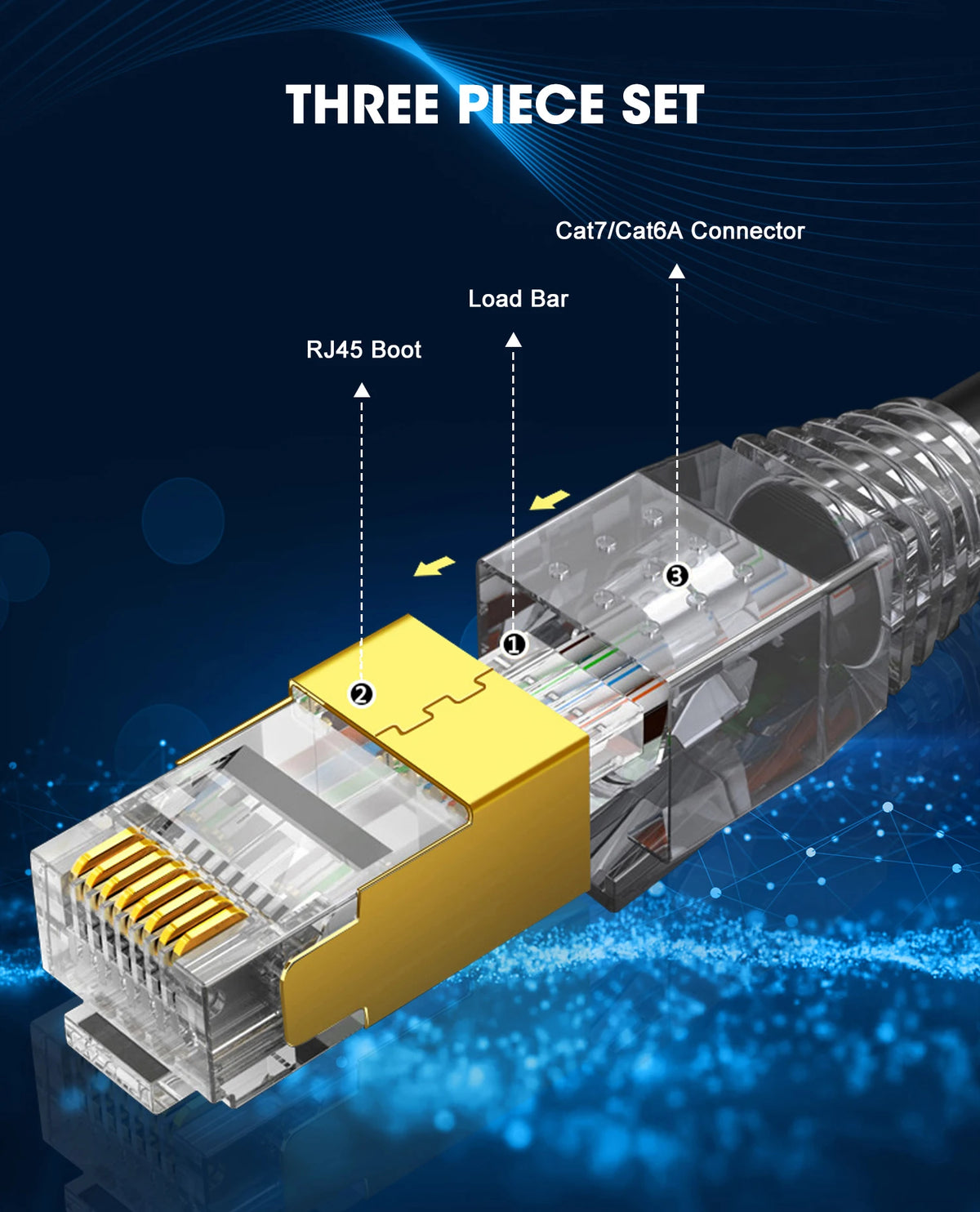

Cat7/Cat6A cable connector, Load Bar, Cable Boot

High-performance Shielded Housing
The cat 7 connector adopts pure copper Gold-plated shell, shielding interference, signal transmission is more stable and faster

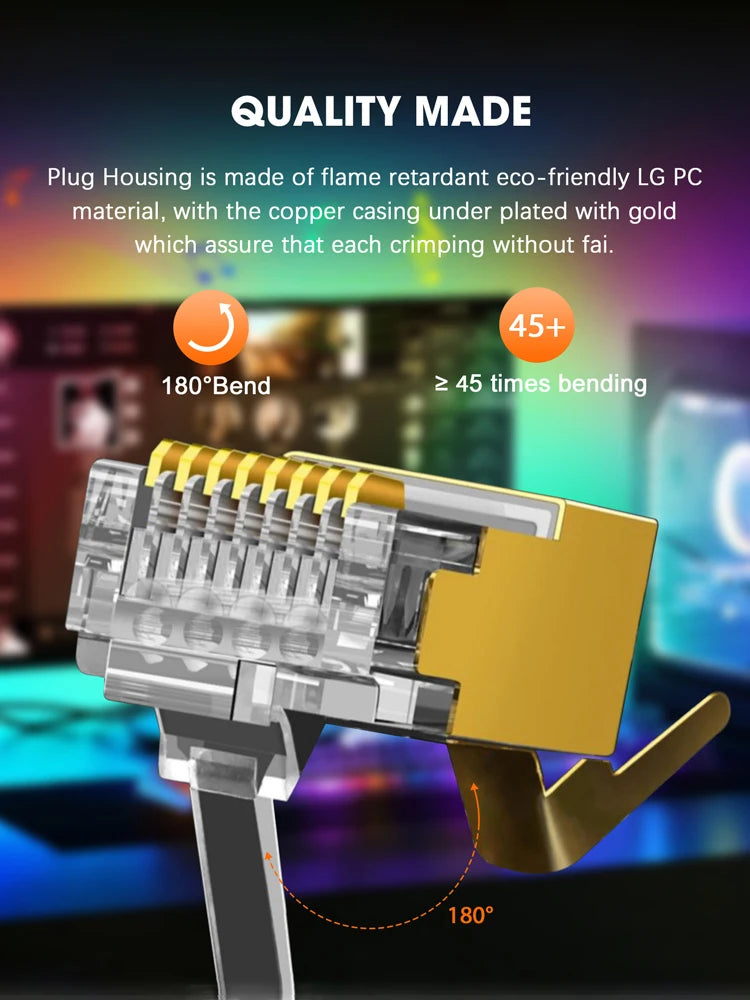

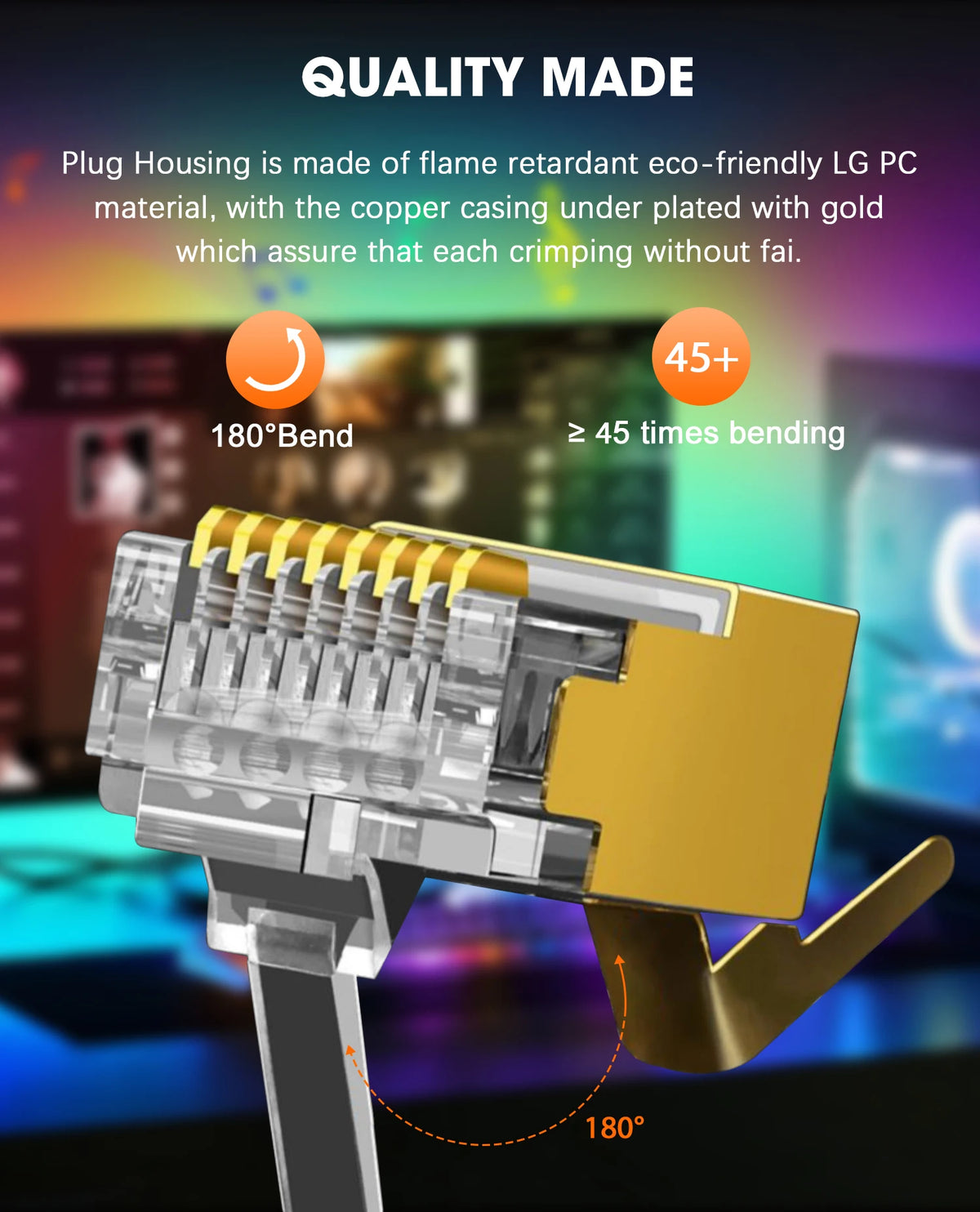

Quality Made
Plug Housing is made of flame retardant eco-friendly LG PC material, with the copper casing under plated with gold which assure that each crimping without fail
