SPECIFICATIONS

Brand Name: ZoeRax

Certification: CE

Choice: yes

High-concerned chemical: none

Interface Type: Ethernet,RJ-45,Port RJ-45

Max. LAN Data Rate: 1000Mbps

Origin: Mainland China

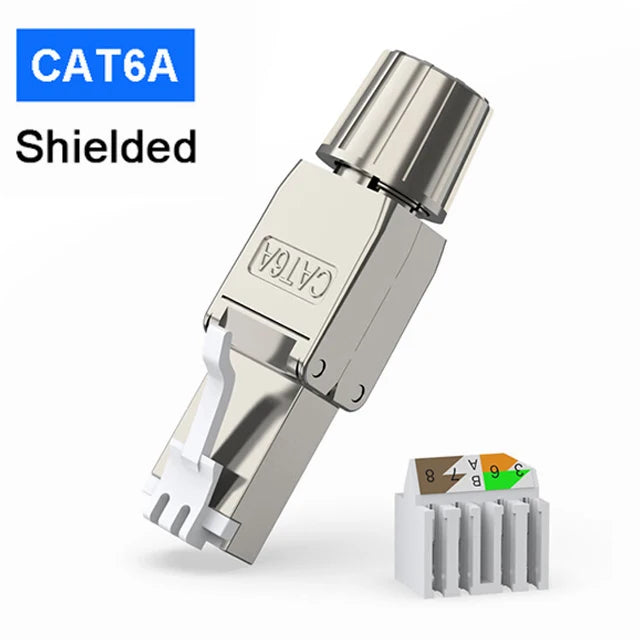

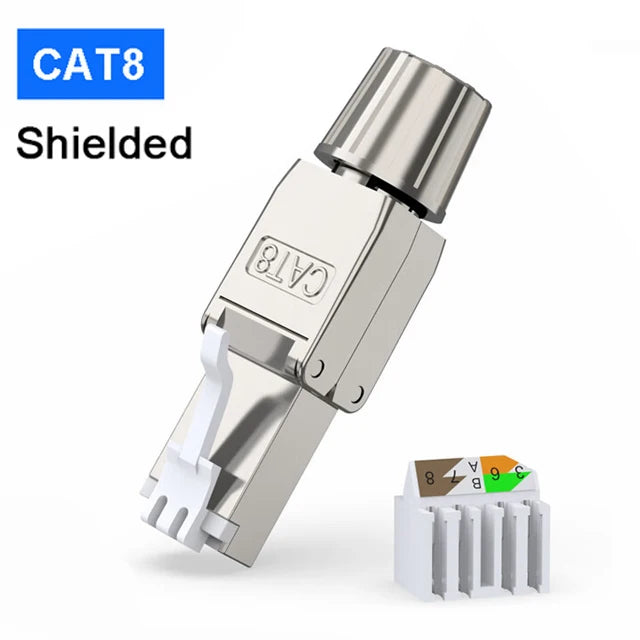

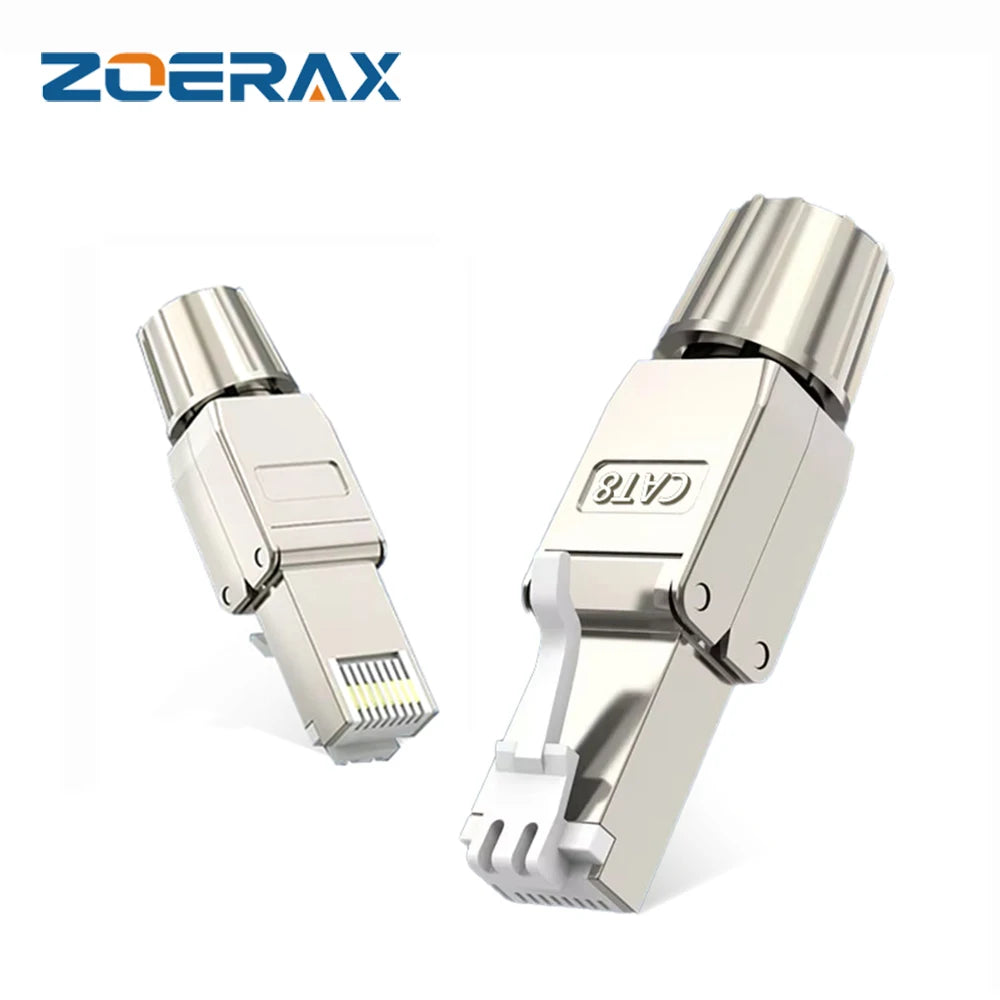

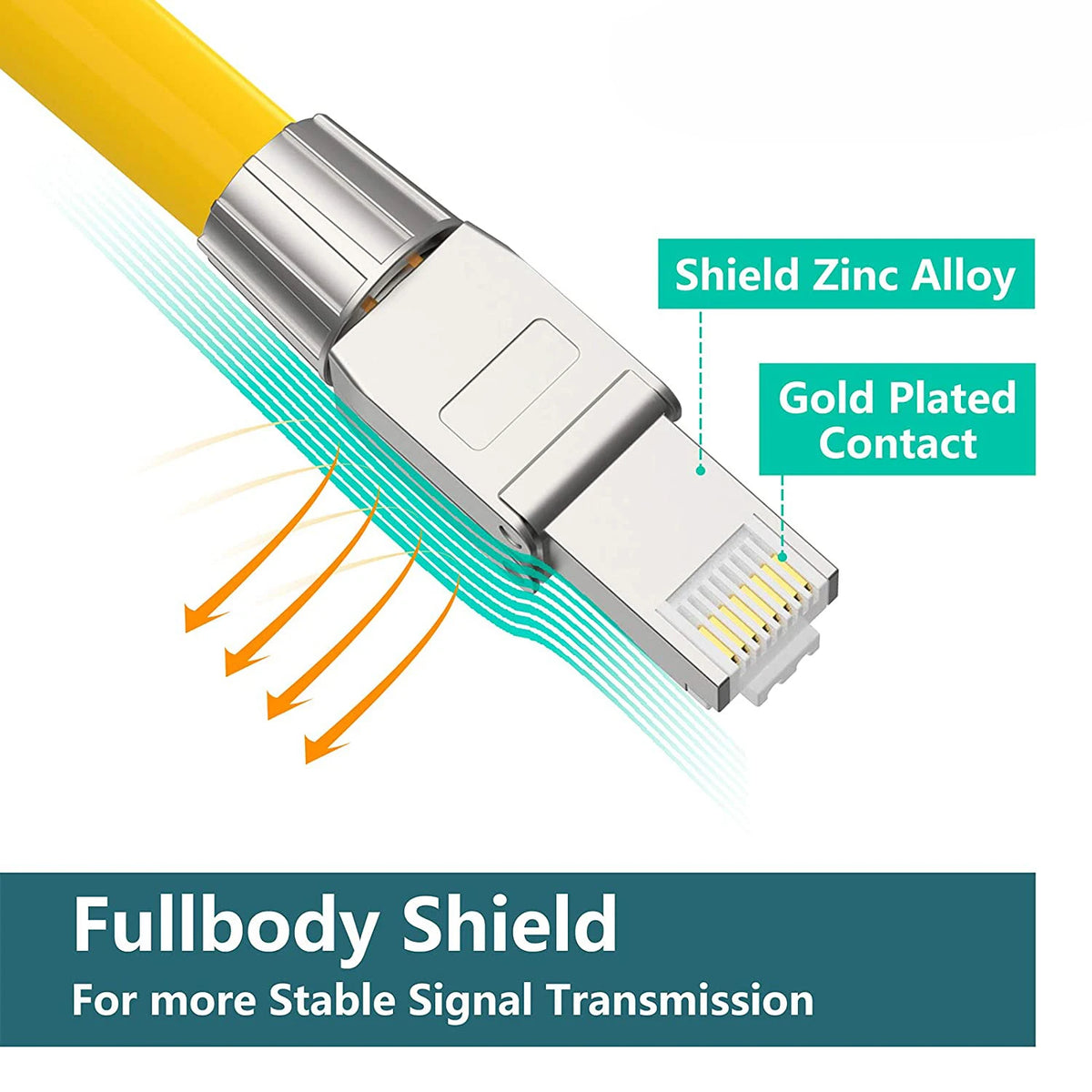

ZoeRax 2PCS RJ45 Cat8 Cat7 Cat6A Toolless Field Termination Plug, Shielded (STP), PoE++ (4PPoE), Modular RJ45 Male Connector

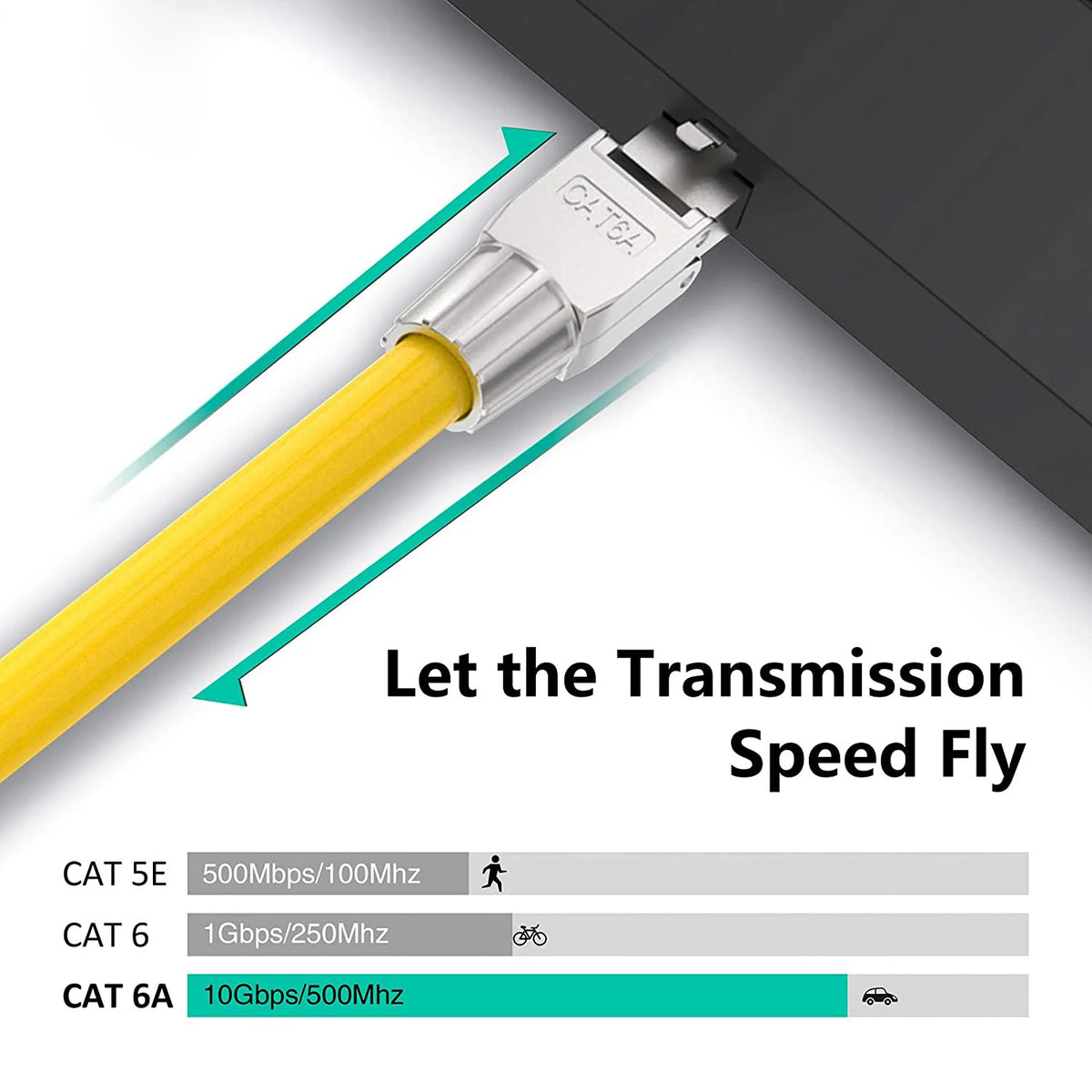

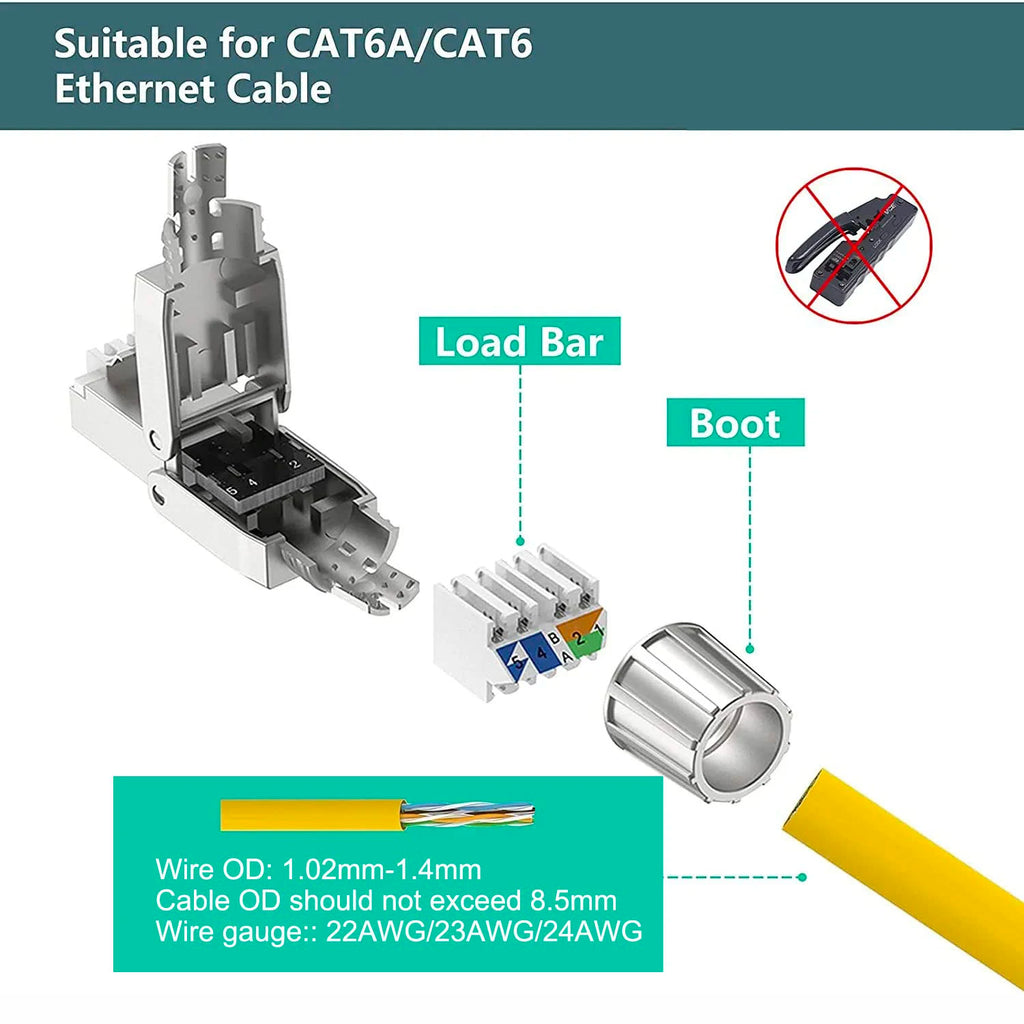

• ✅MAXIMUM PERFORMANCE. Component level rated. Suitable for 10 Gigabit (10/100/1000/10000 Mb/s) up to 328 feet. Compatible with 22 to 26AWG solid or stranded copper conductors. Supports PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W. Press-Fit Technology makes our product more reliable and increases transmission performance. Tested up to 600 MHz. Self adjusting spring in the strain relief neck assures the cable shield is in contact with the metal housing, providing resilient grounding.

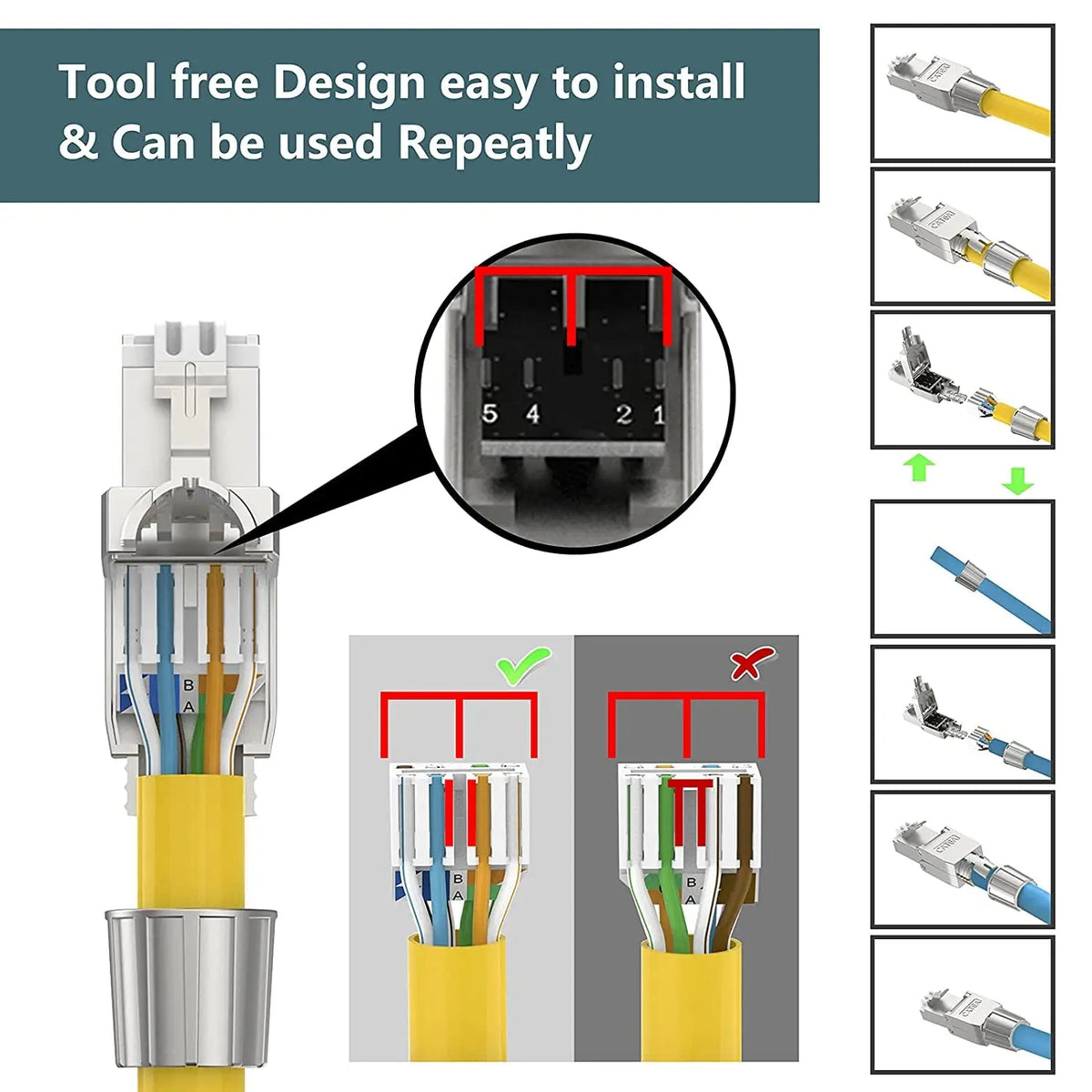

• ✅EASY TO USE. Self terminating means no more punch down tools required. Our 90 degree tool less design provides maximum snap-shut confidence. The dual level termination holder cap is marked with highly visible colors for easy T568A or T568B wiring and helps keep conductor pairs separate. Integrated anti-disconnect slide lock prevents accidental disconnections. The lock may also be removed to prevent tampering. Cut-to-fit strain relief boot supports ∅5.80 - 7.80mm cable jackets.

• ✅VERSATILE. 100% compatible with any RJ45 female Ethernet port. Ultra durable metal construction. Integrated full circumference strain relief neck provides additional termination protection from conductor stress pre and post installation. No more ruined terminations due to handling. Compatible with our trueCLOSE tool and F/UTP Ethernet cables. Fully backward compatible with Cat5e and Cat6. Also works with unshielded (U/UTP) cables.

• ✅QUALITY GUARANTEED. ANSI/TIA 568 2.D Certified by ZoeRax. CE Listed. TUV RoHS-2 Certified, US TAA compliant, ISO/IEC Certified. Tested in the real world by real installers. Backed by our FOREVER WARRANTY.

• ✅2PIECE. Each field termination plug includes a dual level conductor guide holder, nylon tie, cut to fit universal boot, plus full instructions. These durable and time saving component level field termination plugs are sure to make your install hassle-free.
