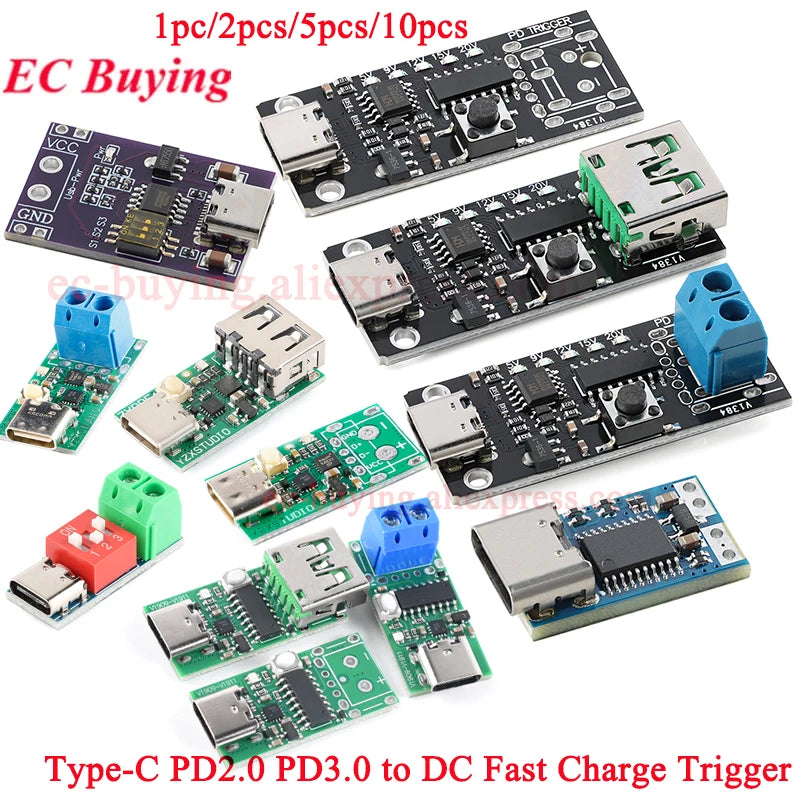

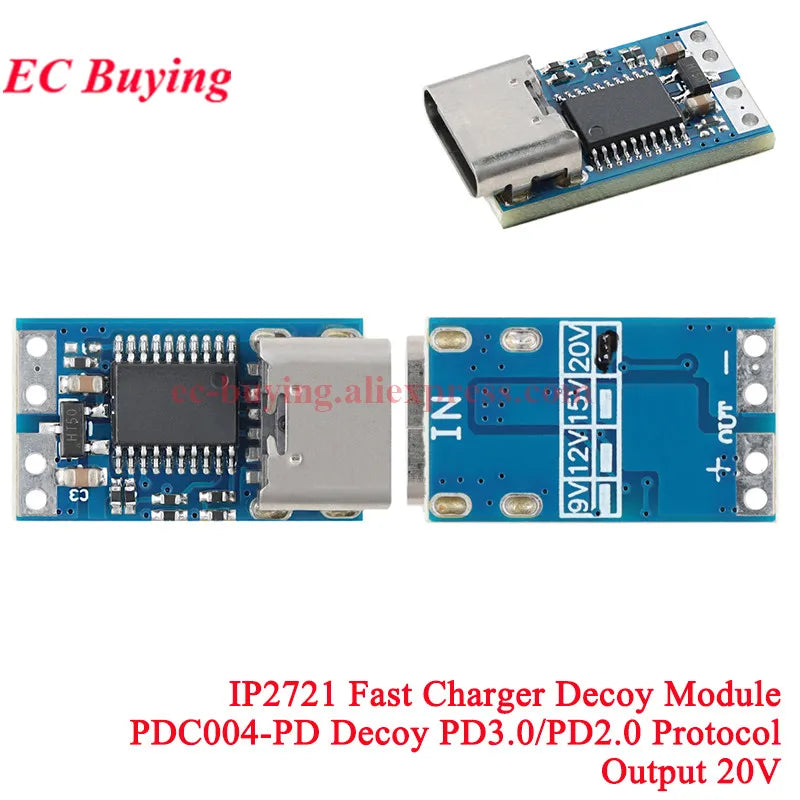

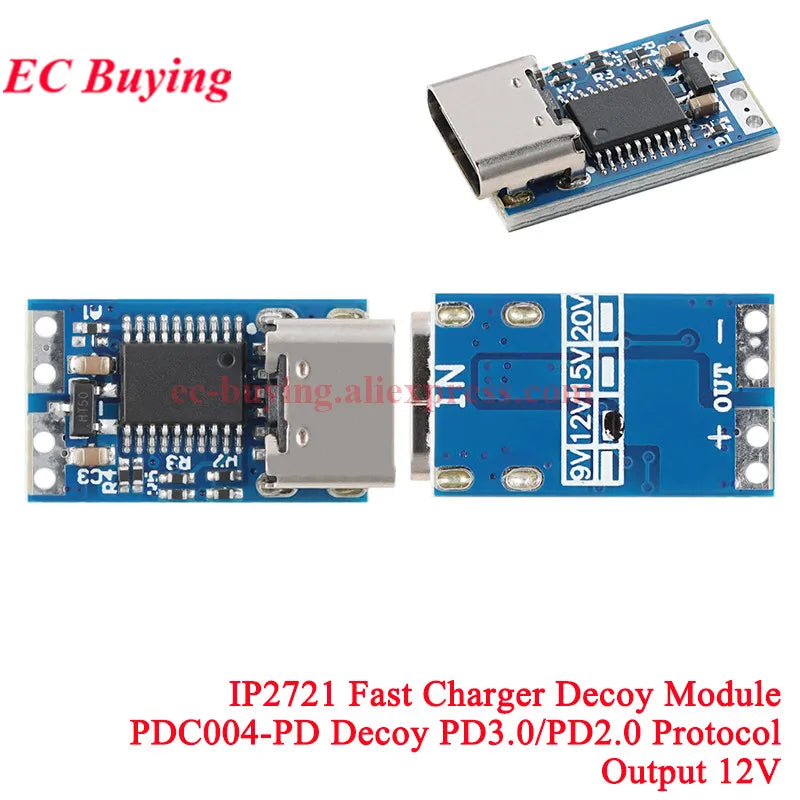

SPECIFICATIONS

Product features and parameters

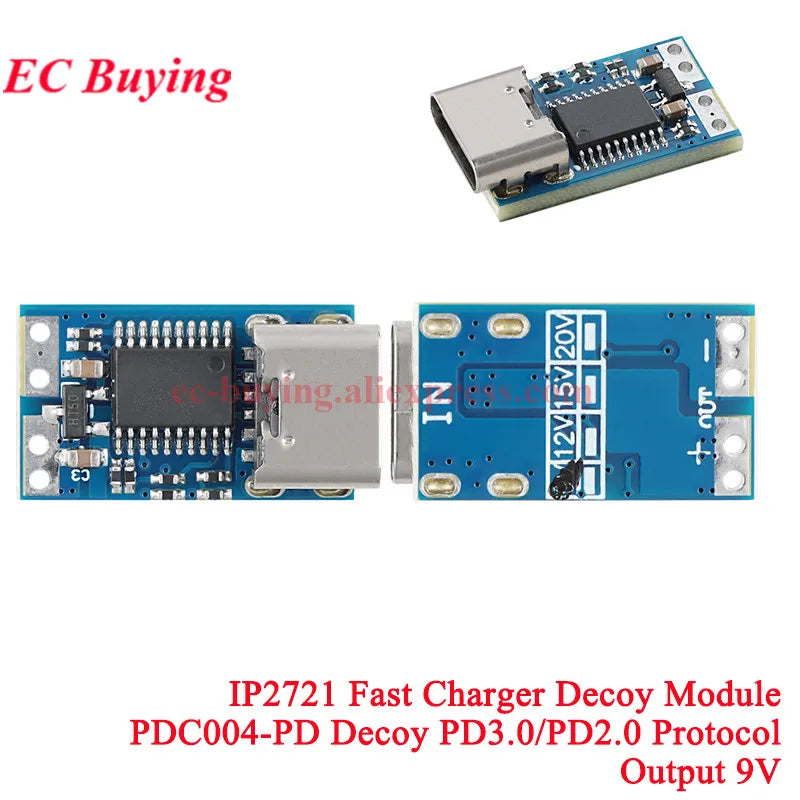

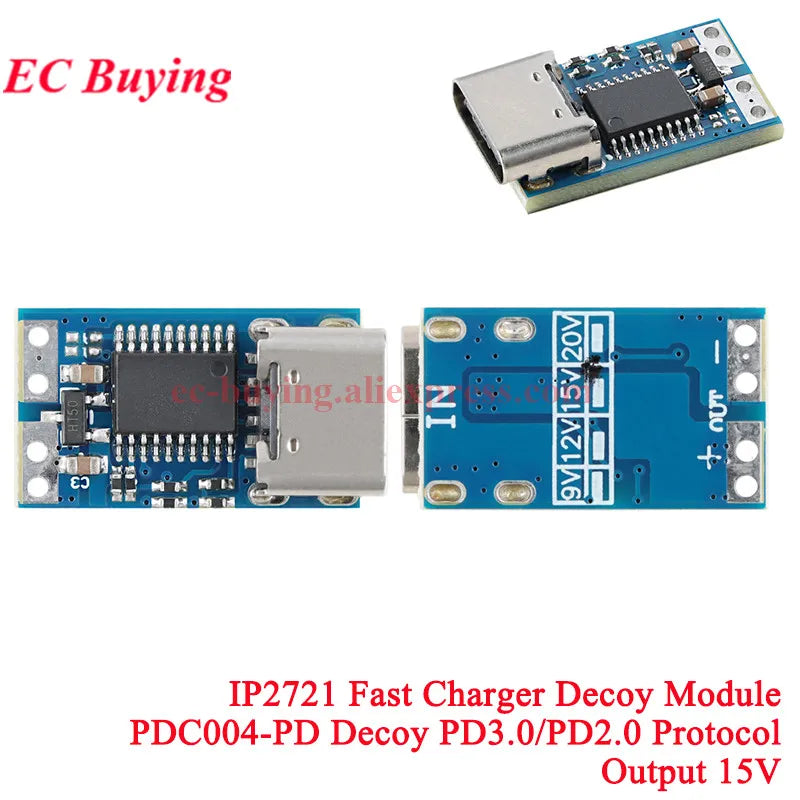

Type-C interface, with high current and low loss.

8-bit processor, low power consumption, no heat generation.

The output voltage can be selected from 9V/12V/20V, and the voltage can be set from 4.2V to 20V.

C port can pass 5A current

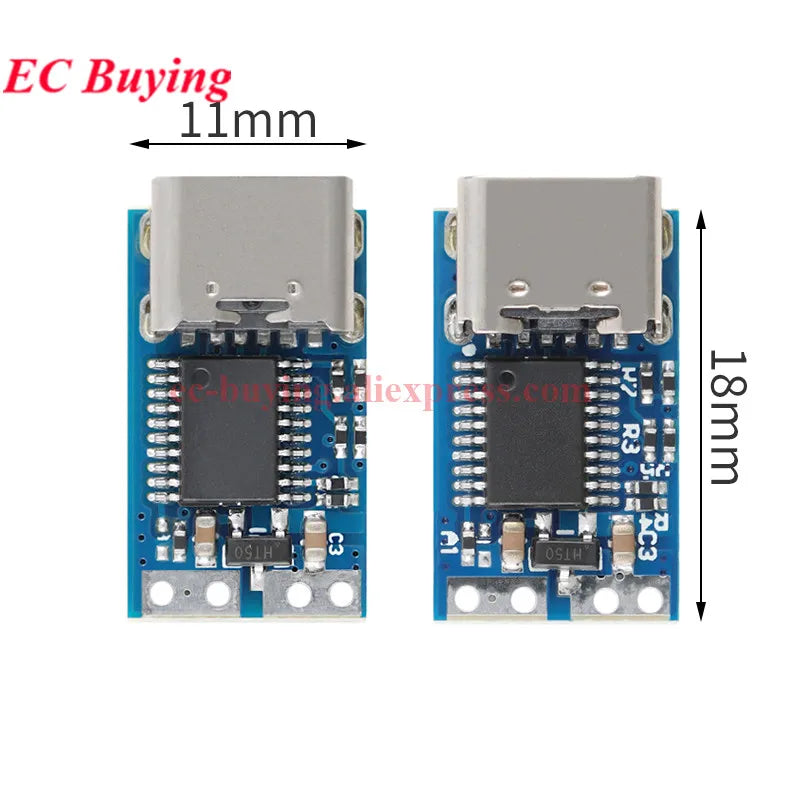

23 * 12mm ultra small volume, reserved positioning slot.

Bring a lure indicator light. When the protocol handshake is successful, the light will turn on.

PD decoy supports PD3.0/2.0, BC1.2 and other boost and fast charging protocols, supports up to 100W power, and provides over-temperature, over-voltage protection and other functions. The voltage can be adjusted by the dial switch, and the maximum output voltage is 20V.

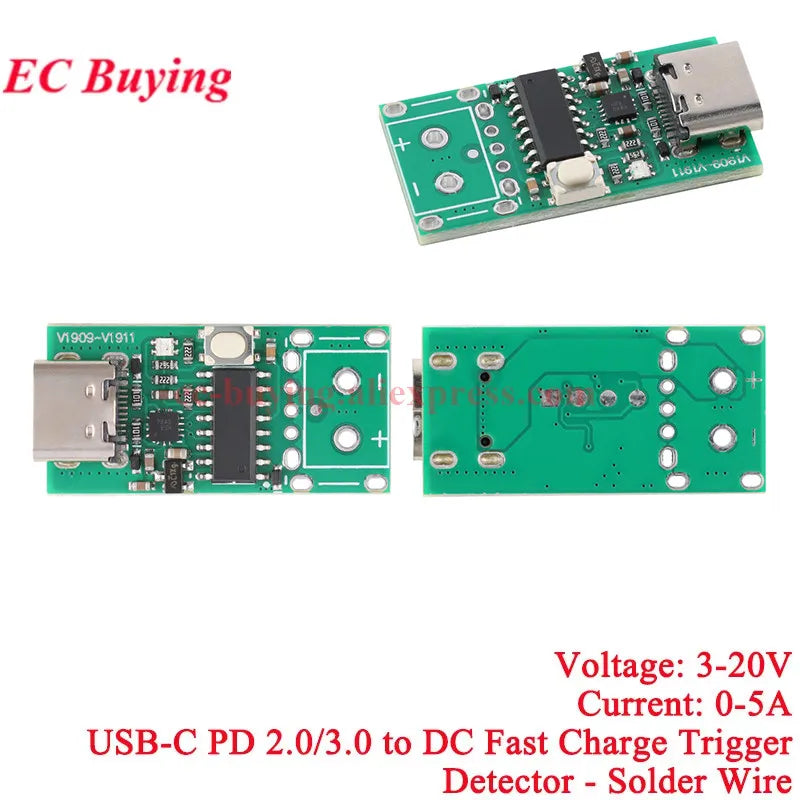

Features:

1: stable performance

2: Simple installation

3: Wide application

4: Safe and reliable

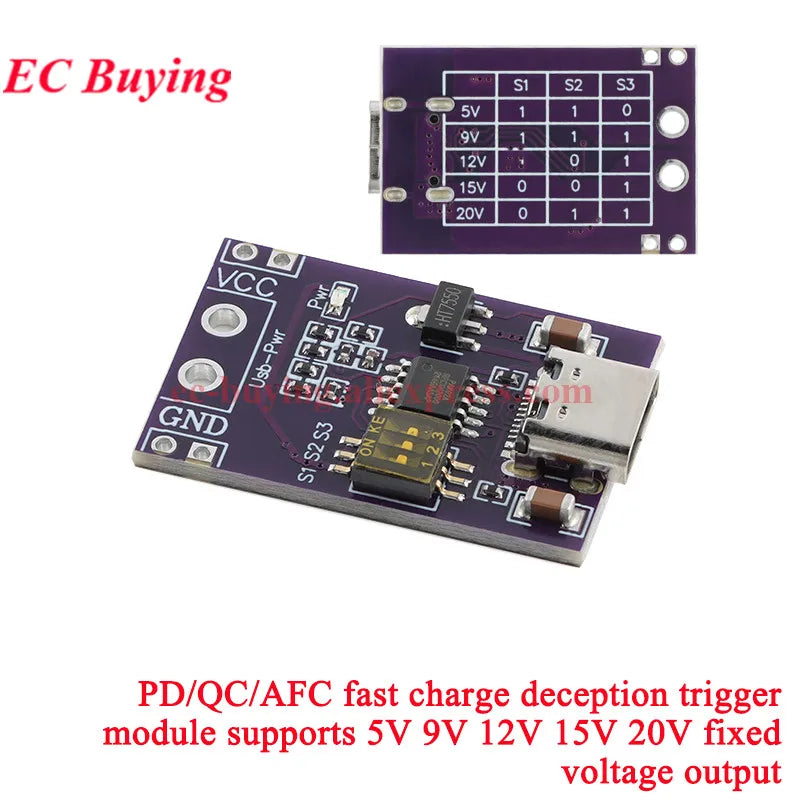

5: Support 5V 9V 12V 15V 20V fixed voltage output

Support induced:

5V, 9V, 12V, 15V, 20V voltage

Fast charge support protocol: PD2.0/PD3.0, QC2.0/QC3.0, AFC

Support voltage: 5V, 9V, 12V, 15V, 20V (voltage step is not supported)

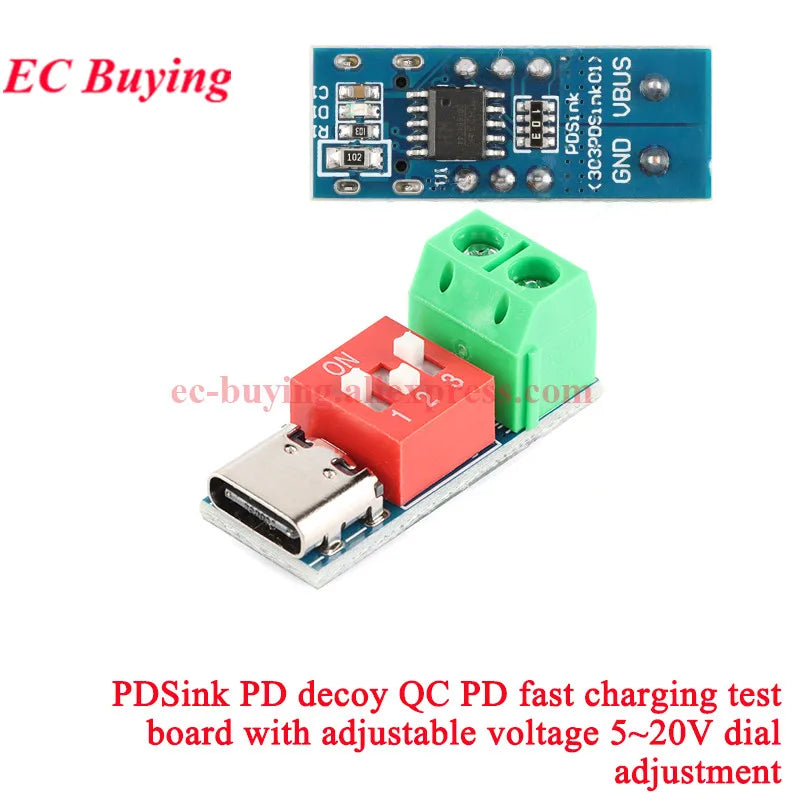

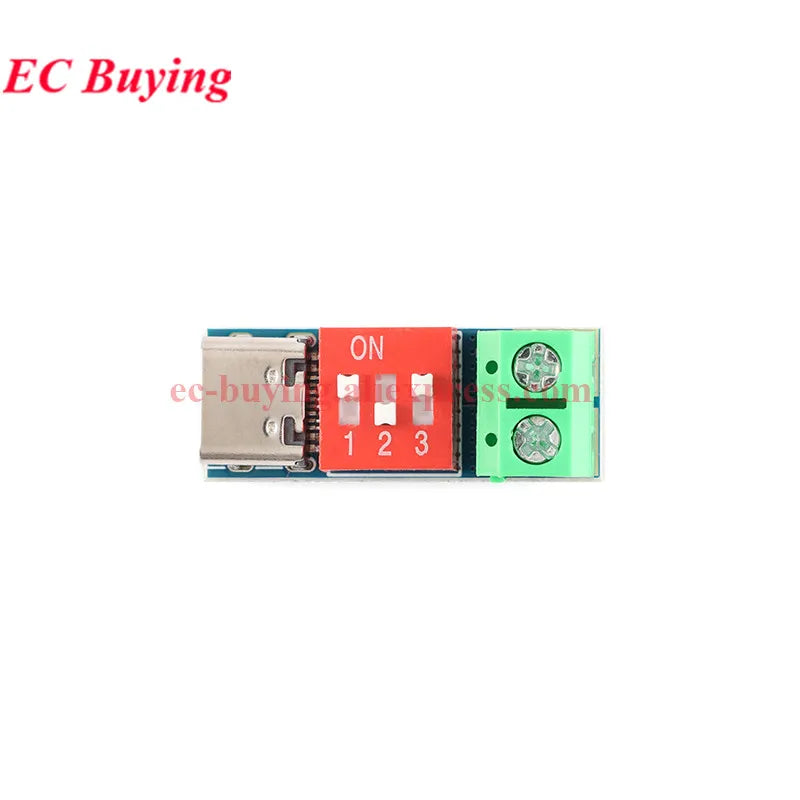

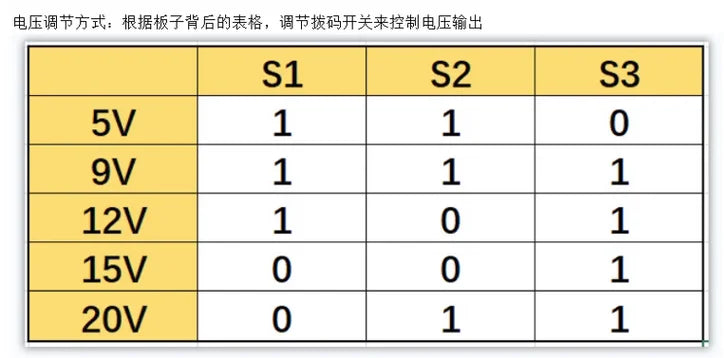

Voltage adjustment method: According to the table on the back of the board, adjust the DIP switch to control the voltage output

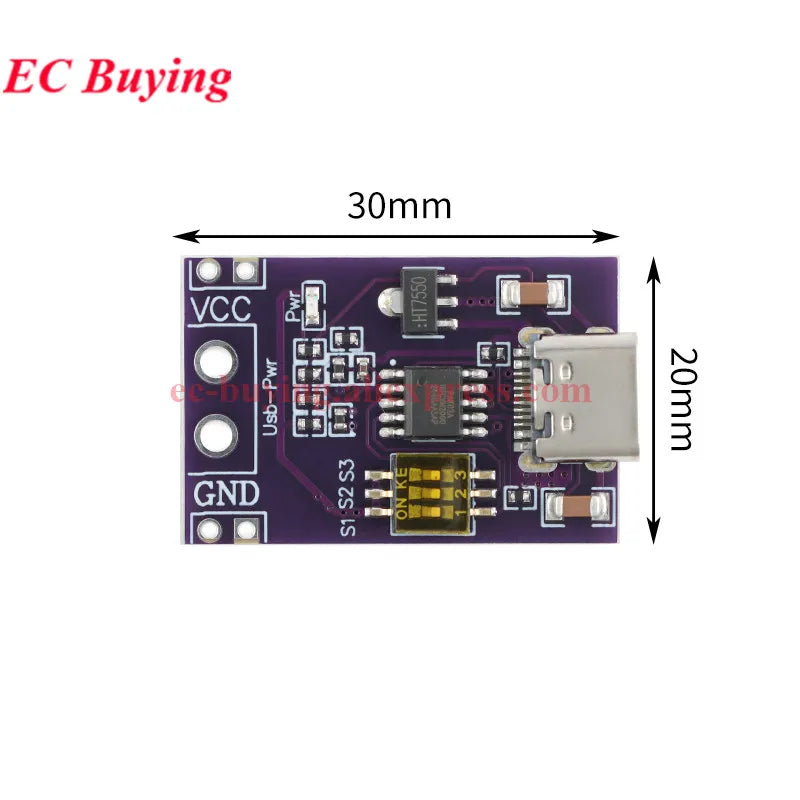

Size: 3.1*2*cm

1. After adjusting the DIP switch, because there is no voltage indicator, it is recommended to use a multimeter to measure the voltage before connecting to the application circuit.

2. If the DIP switch is not adjusted according to the table, the module will output any one of the above voltages.

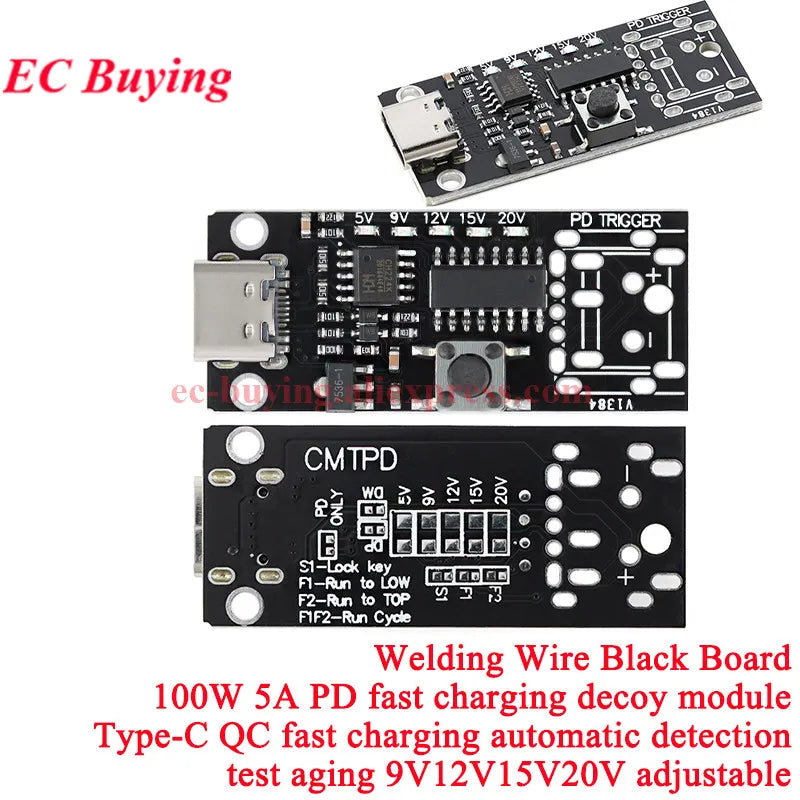

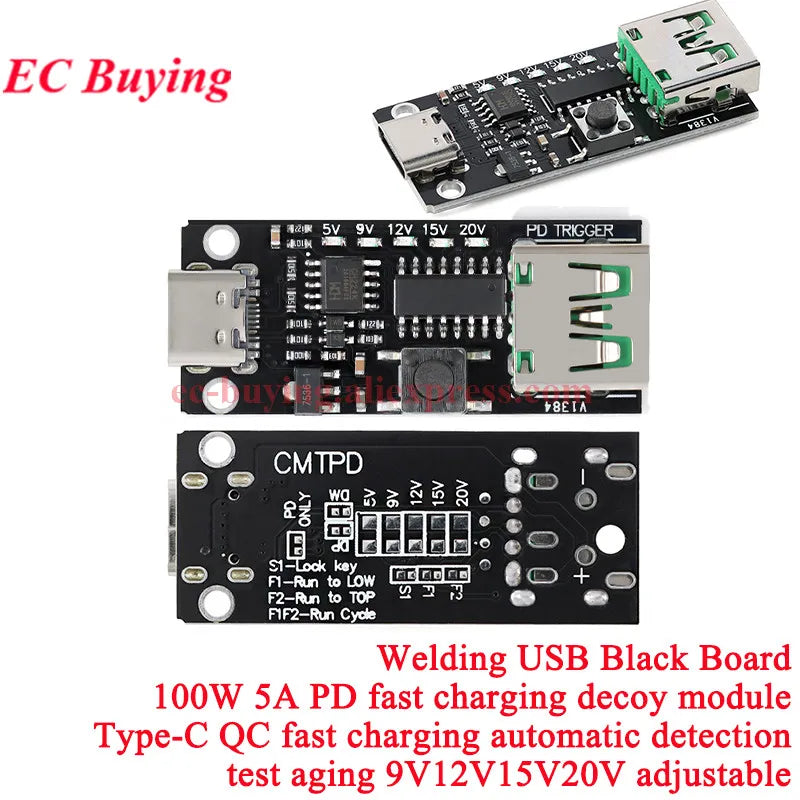

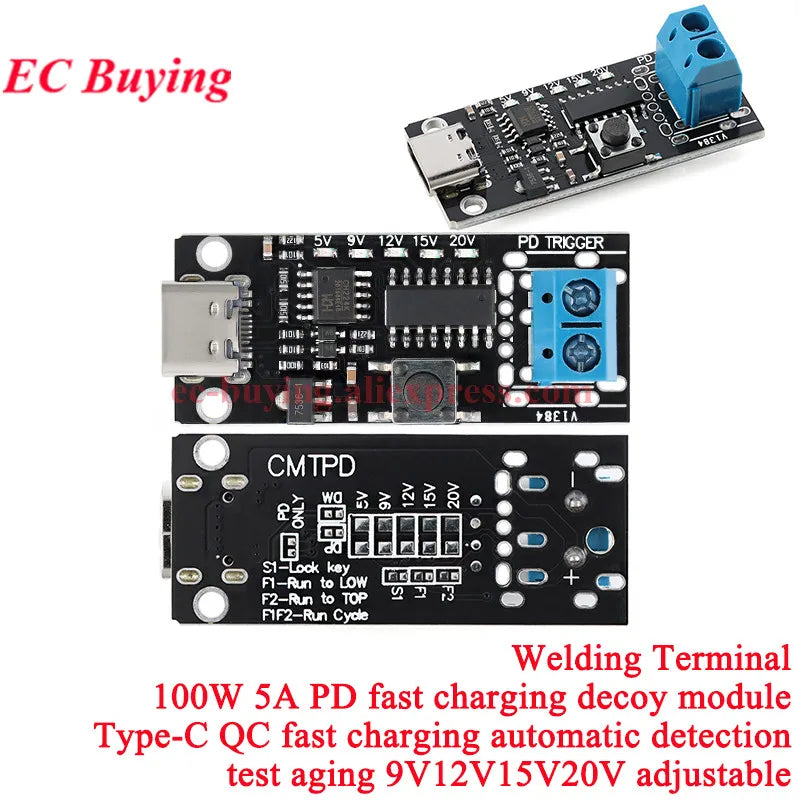

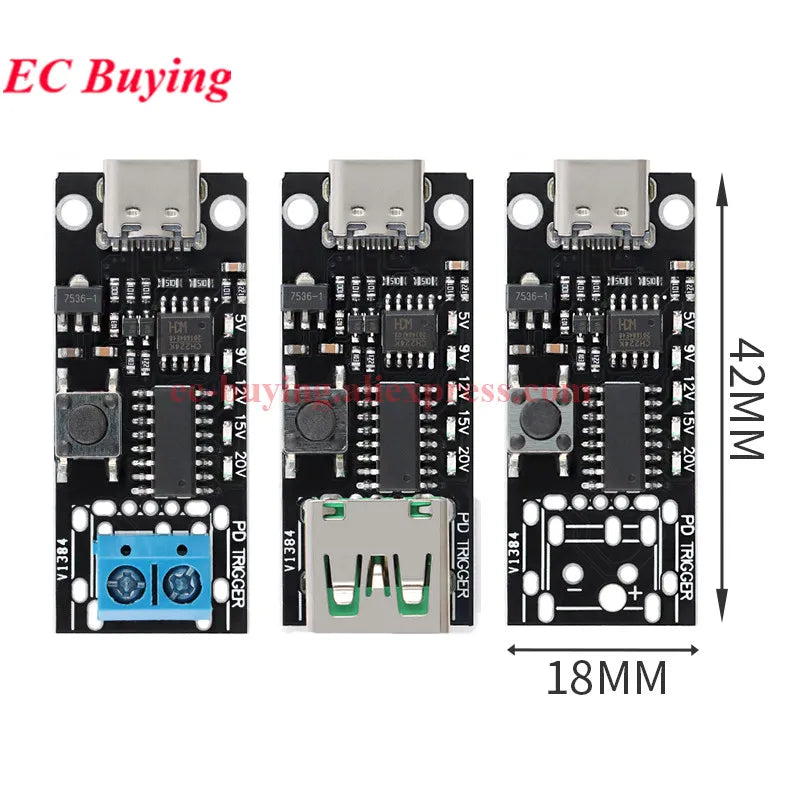

Support PD3.0, PD2.0, QC, FCP, AFC voltage decoy output, mode free switching, can also be set to support only PD.
Support 5V/9V/12V/20V decoy output (specific range and your power supply).
With key lock function to prevent misoperation (so as not to damage the load equipment by missetting voltage)
5V/9V/12V/20V fast setting. LED indication output.
The parameters are automatically saved and the last decoy setting is executed by powering on again.
Ultra-low power consumption, high current, support 100W output.
Max 20V5A output (actual value according to your power supply).
The type-c is integrally formed, strong and durable.
Support selection to automatically poll to the highest voltage and hold, automatically poll to the highest voltage, and then hold to 5V, infinite loop and other test functions.
Test jump time adjustable.
Suitable for aging test, the module can withstand more than 30V.
Each voltage can correspond to the external 1 a key fast switching.

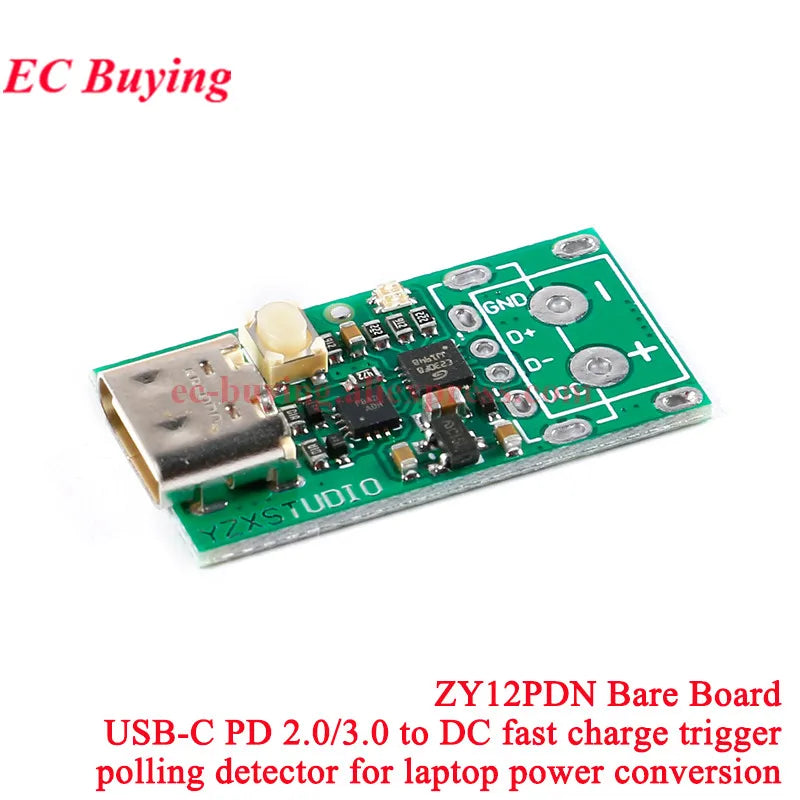

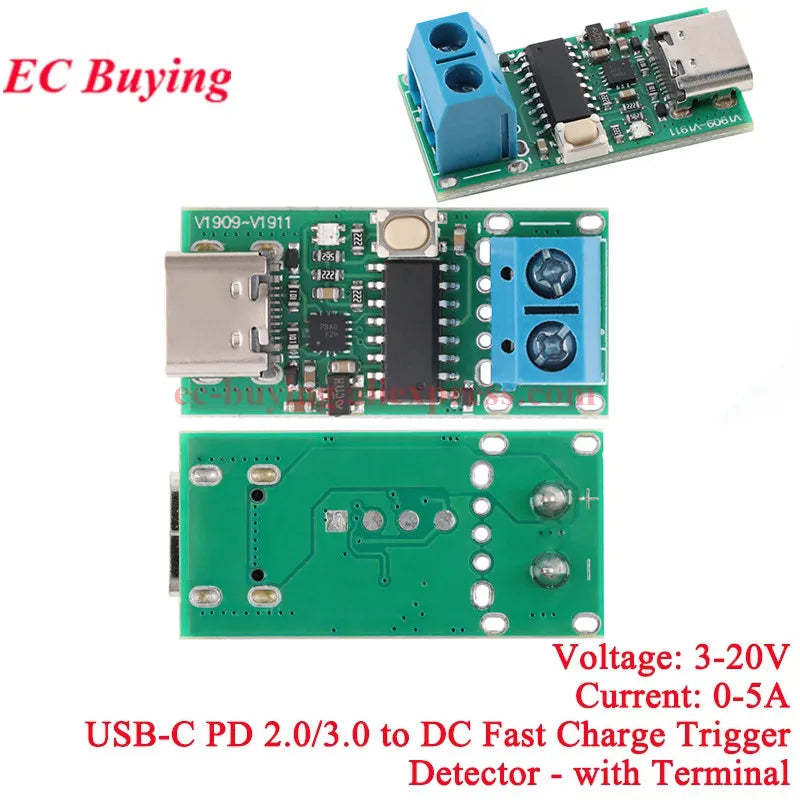

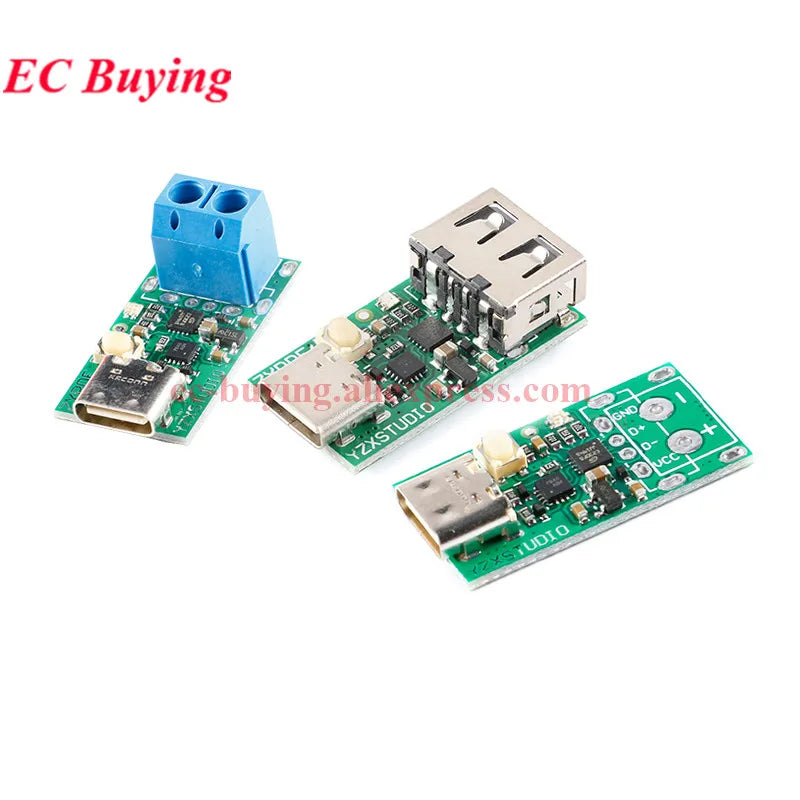

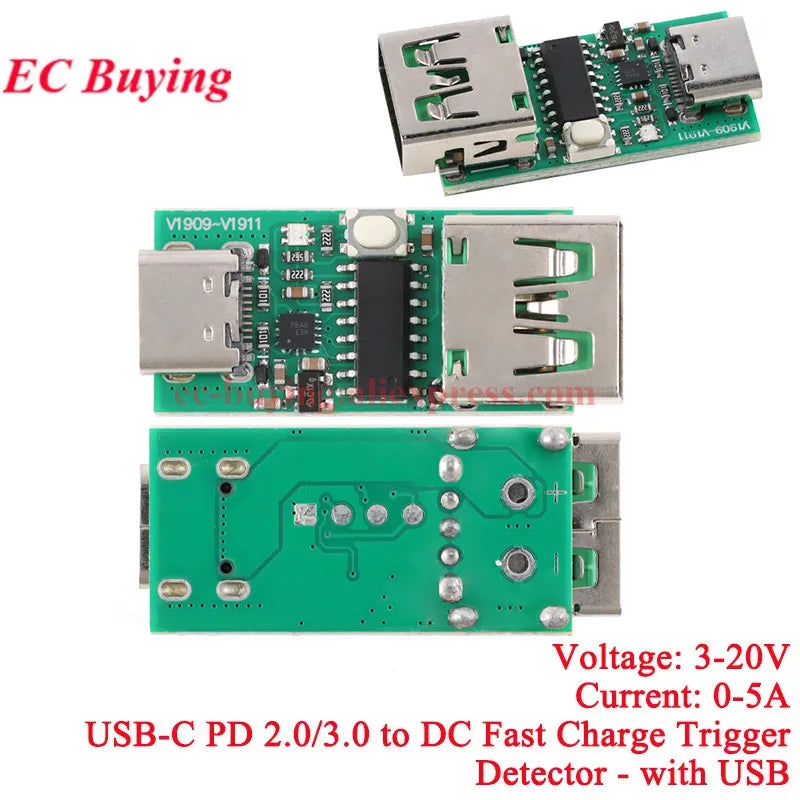

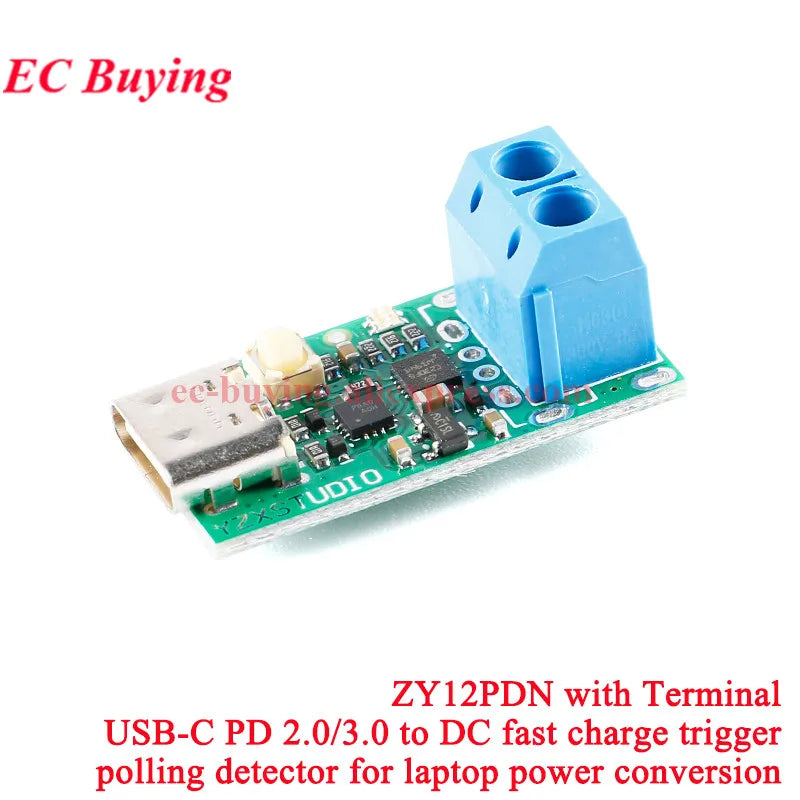

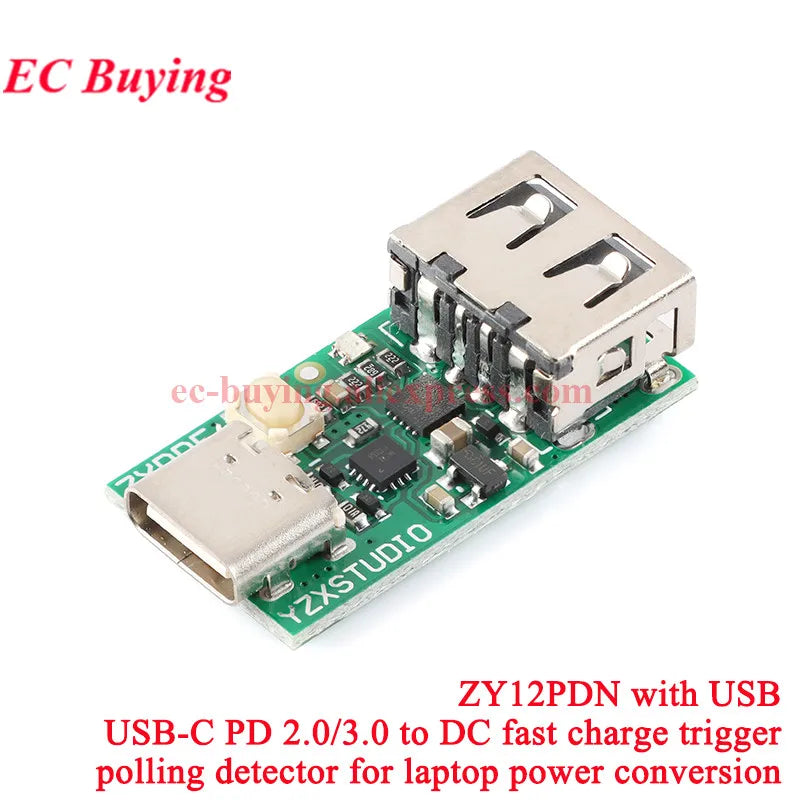

ZY12PDN deceives the quick charge trigger module, and the PD trigger uses hardware protocol IC, which is more compatible than non-soft solutions. The maximum power is supported to 100W, with excellent compatibility. The version with USB uses a 5A high-current PAL female socket with low internal resistance. Large-volume ceramic capacitor filter, TVS anti-surge and anti-reverse connection, Japanese ALPS touch switch, pay attention to stability. With USB welding position and 5.08 screw terminal welding position, it is convenient to make Type-C to DC adapter cable. Small size, after welding the DC line heat shrinkable tube, you can use PD mobile power to charge your laptop.
