AC EMI Power Line Filters for Audio and Industrial Equipment
AC electromagnetic interference (EMI) filters address conducted high-frequency noise on an AC supply. This collection includes single-phase audio and general equipment boards, housed or bolt-on filters, and three-phase motor/servo supply filters. It does not describe one universal filter: the selected phase arrangement, voltage, current, grounding and enclosure must match the installation. Some listings also describe DC-offset blocking or surge components, functions that should not be confused with EMI attenuation.
Product formats and boundaries
- Three-phase industrial filters: CW4B-10/20/30A-S variants are labelled three-phase three-wire 380 VAC; CW7N-20A-R through CW7N-200A-R variants are offered for three-phase servo/inverter applications. Compare exact model documentation for phase and neutral configuration, line frequency, operating voltage, continuous current, leakage current and earth requirements. An inverter input filter is not automatically rated for its PWM motor output.

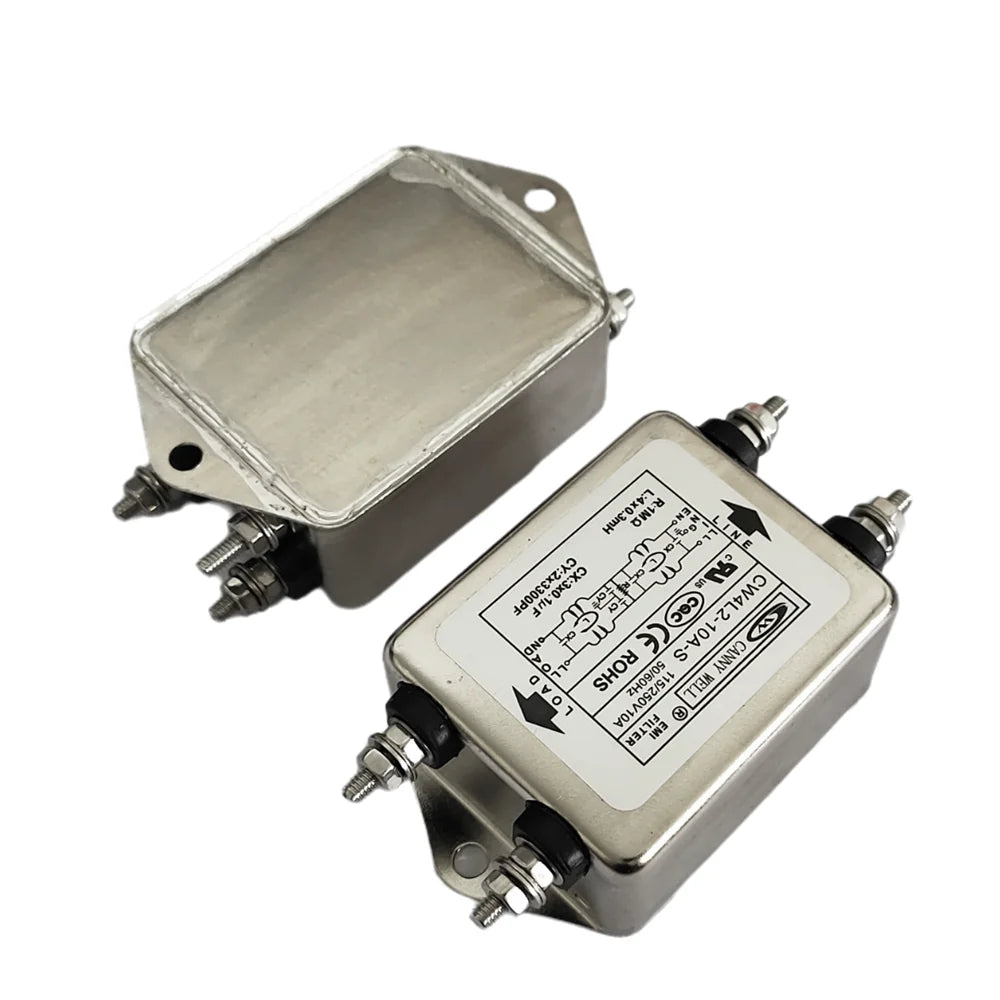

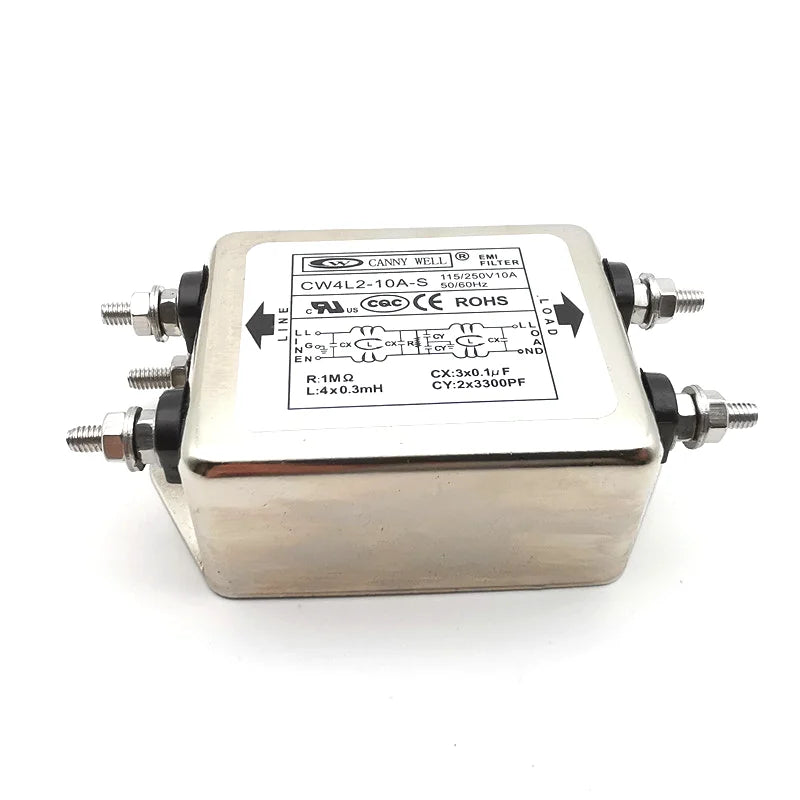

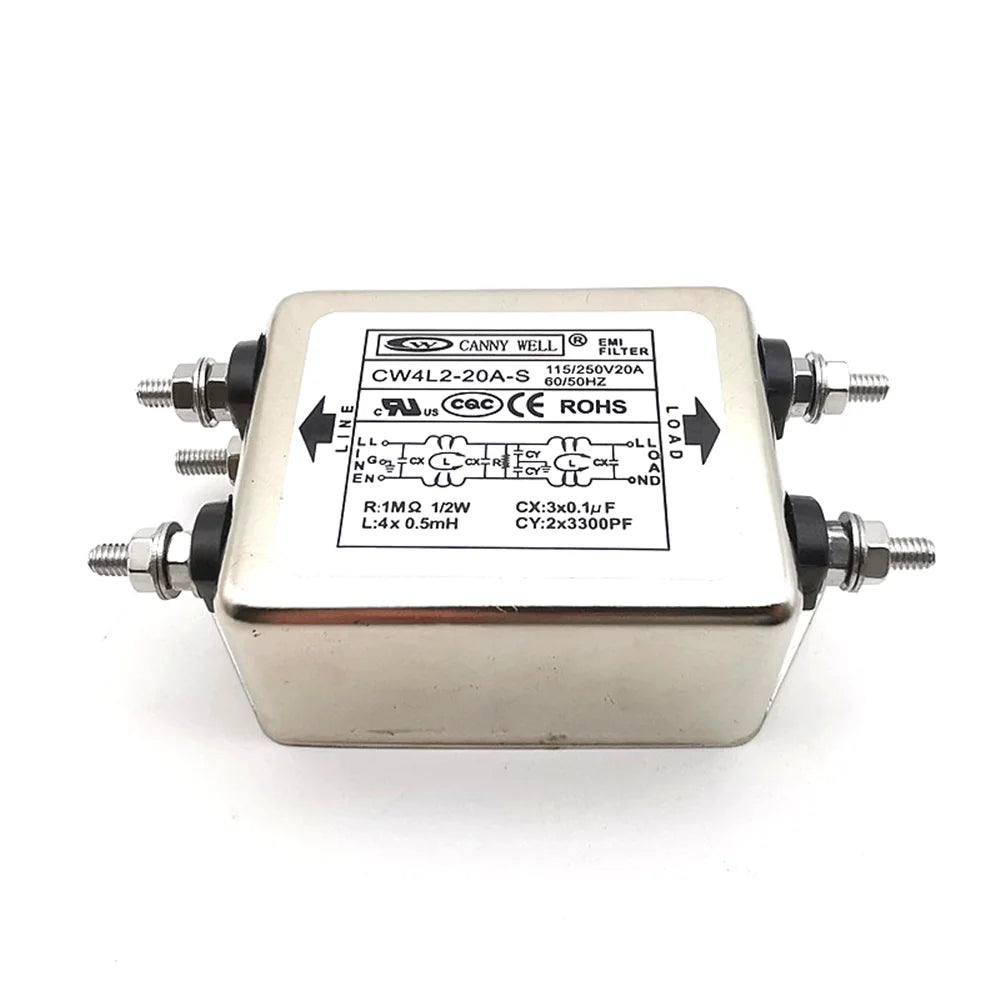

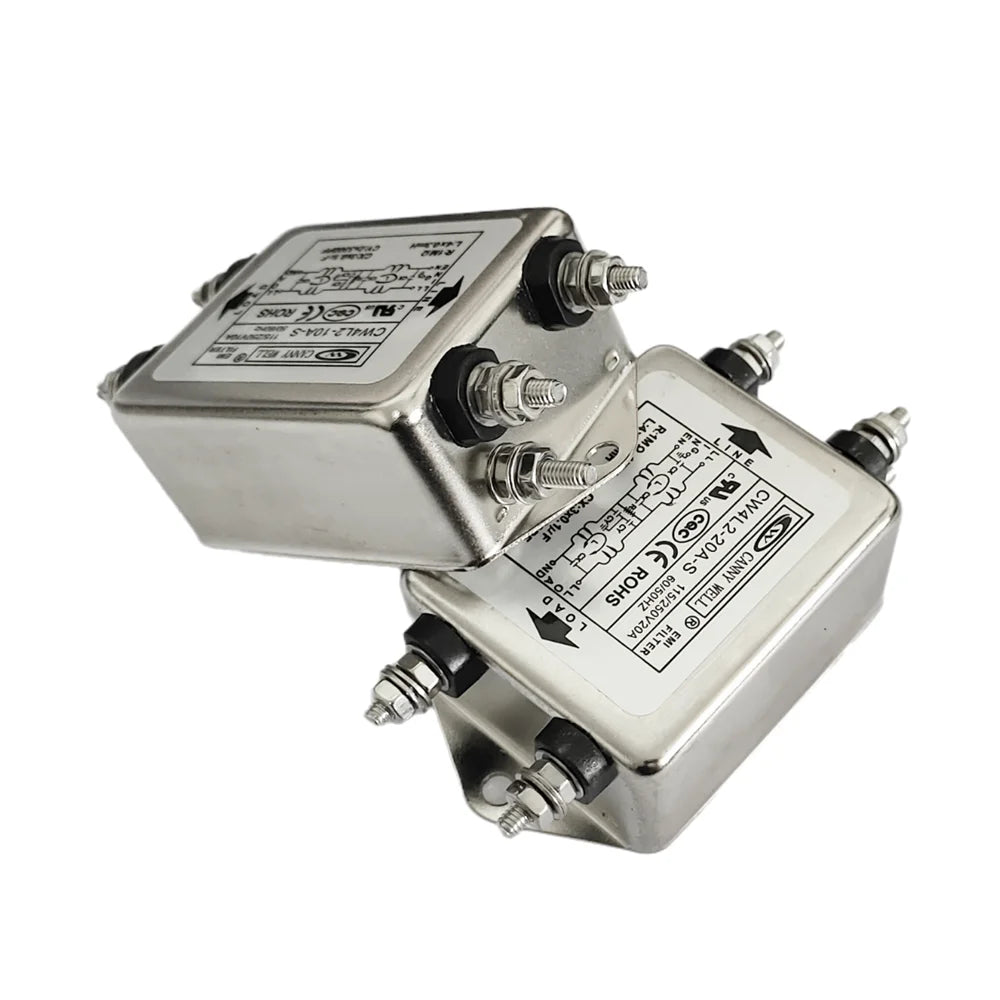

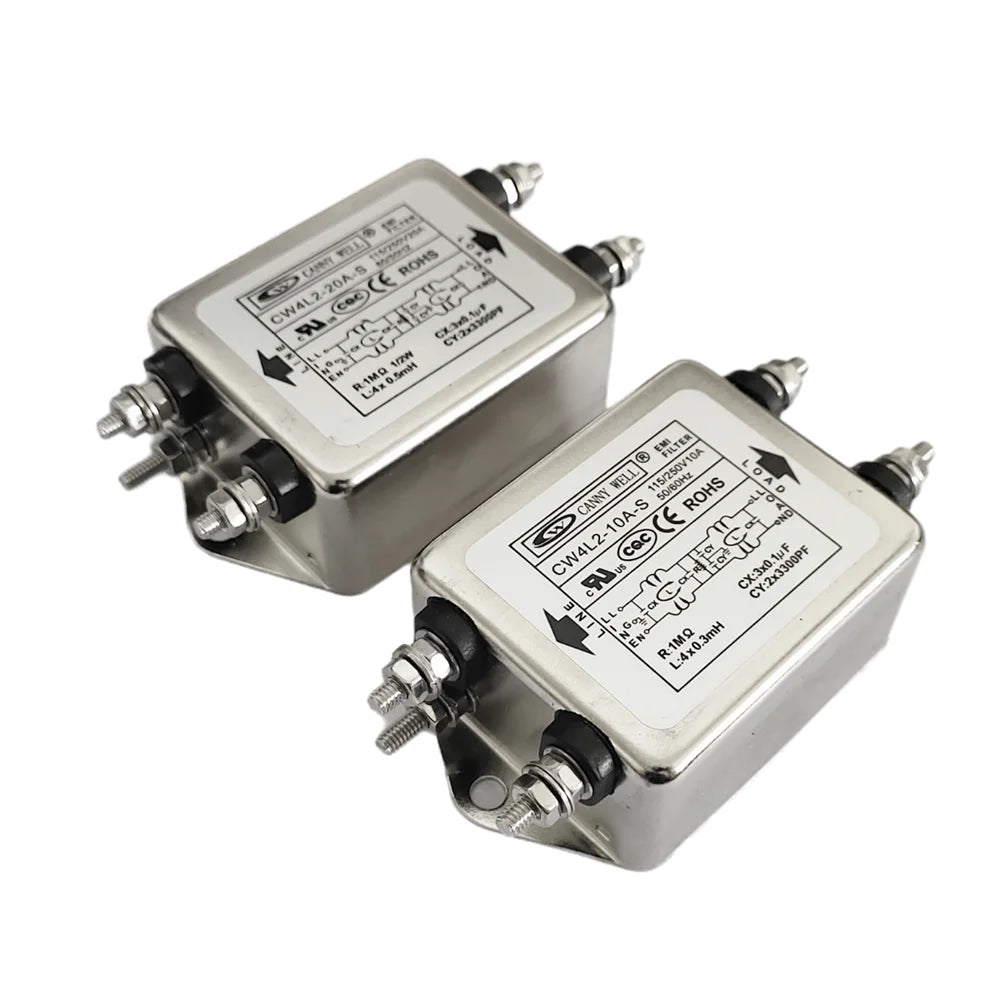

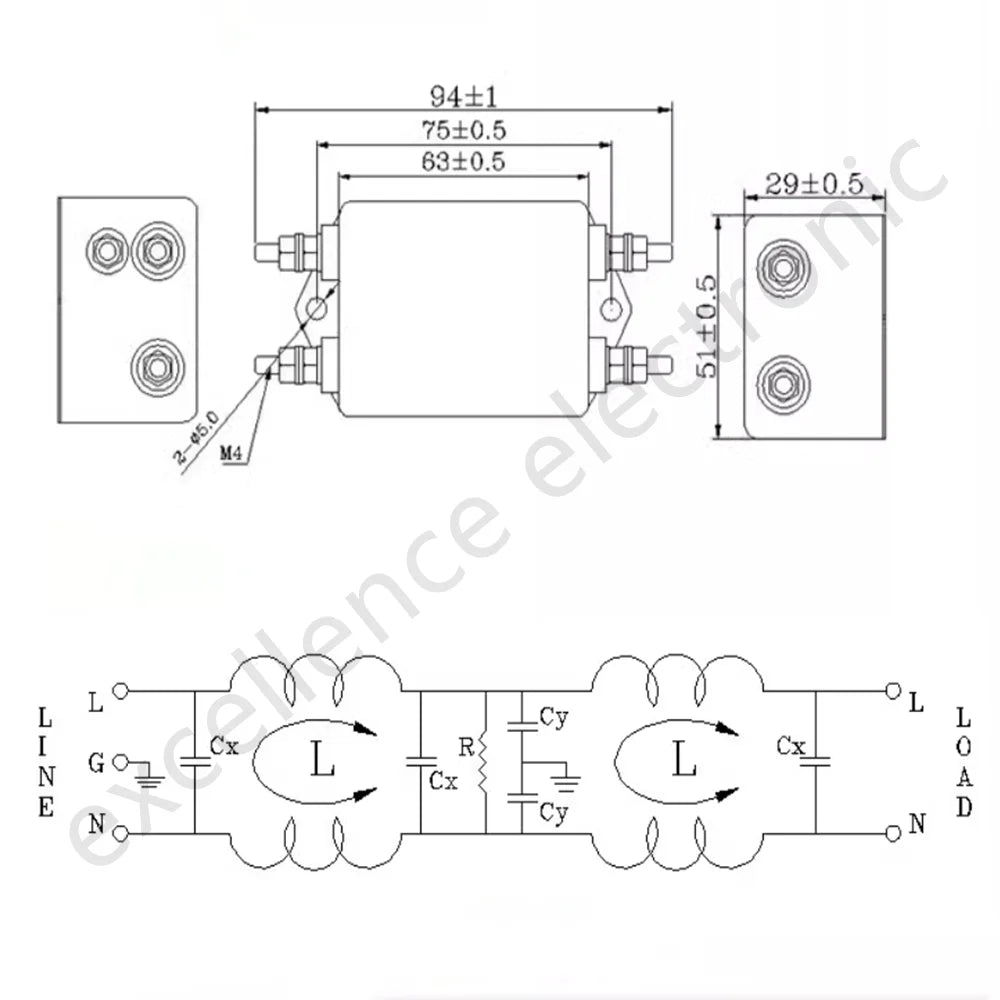

- Single-phase bolt-on filters: CW4L2-10A-S and CW4L2-20A-S variants list 115/250 VAC, 50/60 Hz and bolt-terminal mounting with a stated 75 mm mounting-hole distance. Treat listing figures for leakage, withstand voltage or insertion loss as model-specific claims requiring a part datasheet and the relevant test conditions, not blanket figures for every board here.

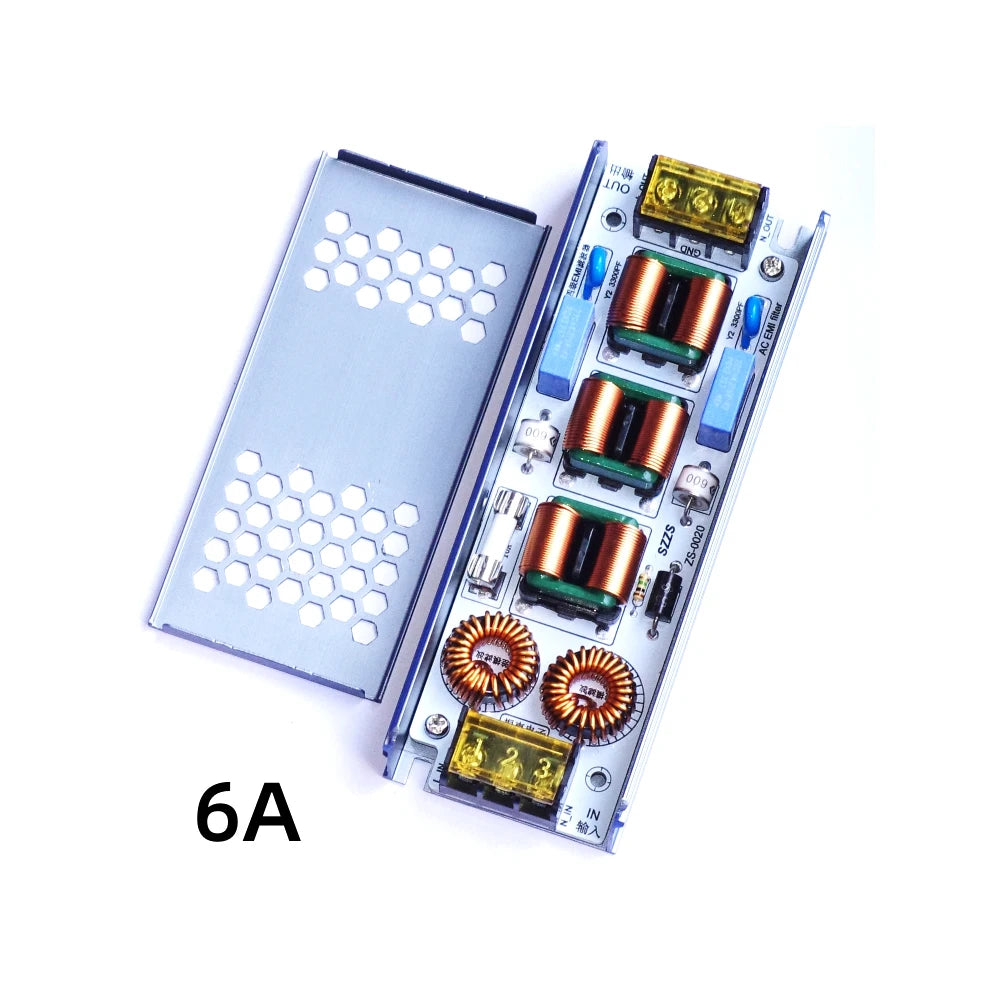

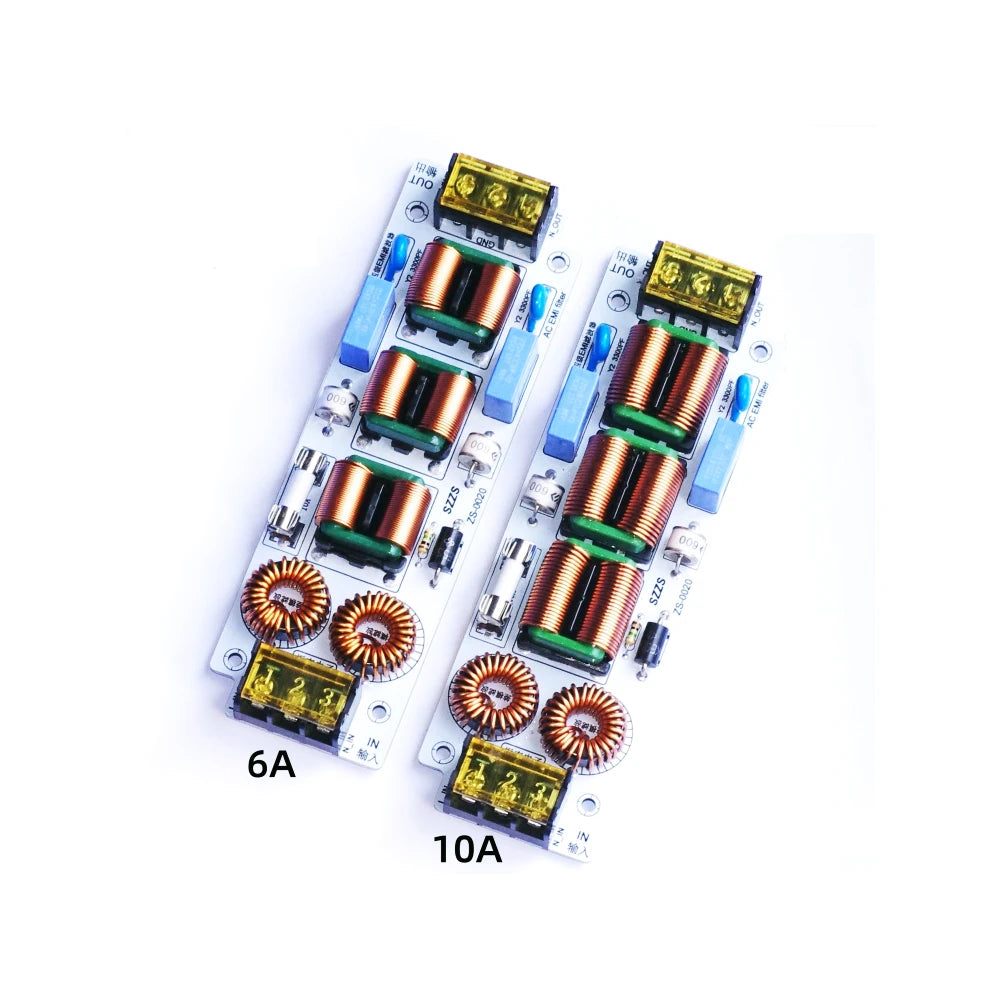

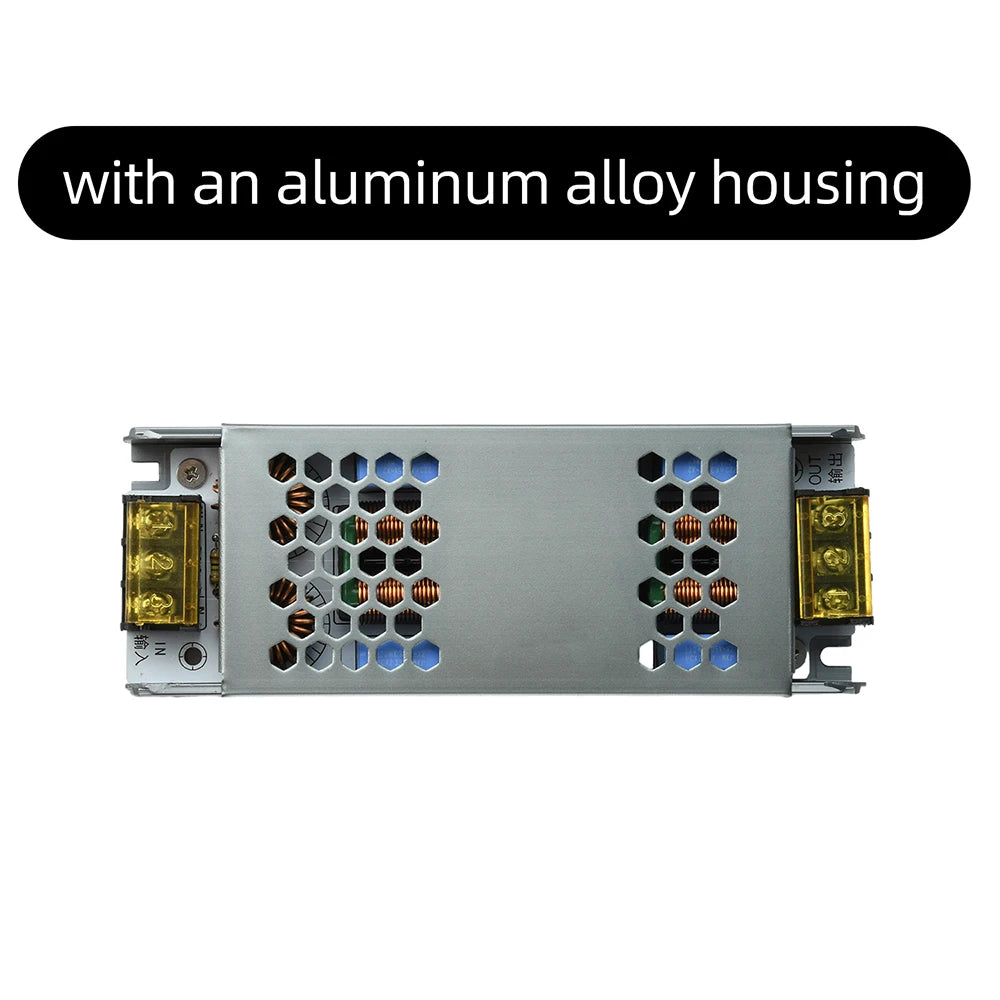

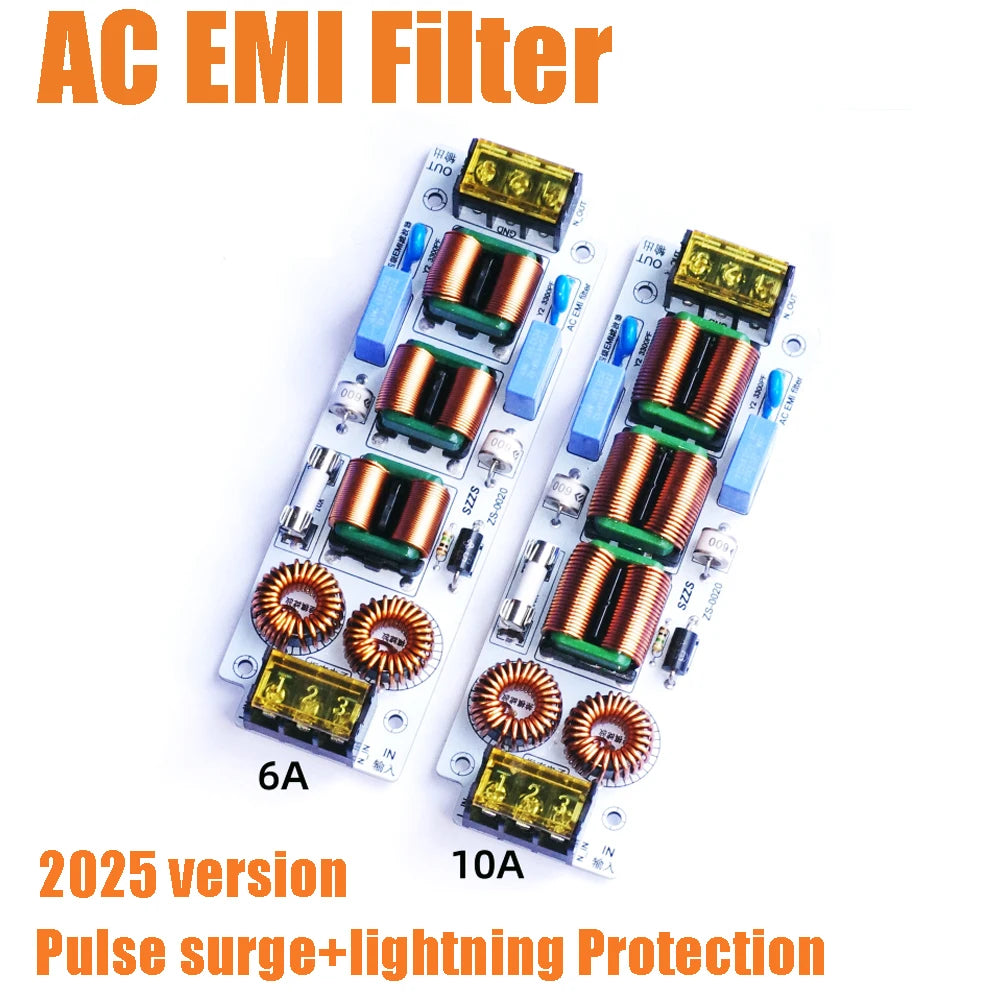

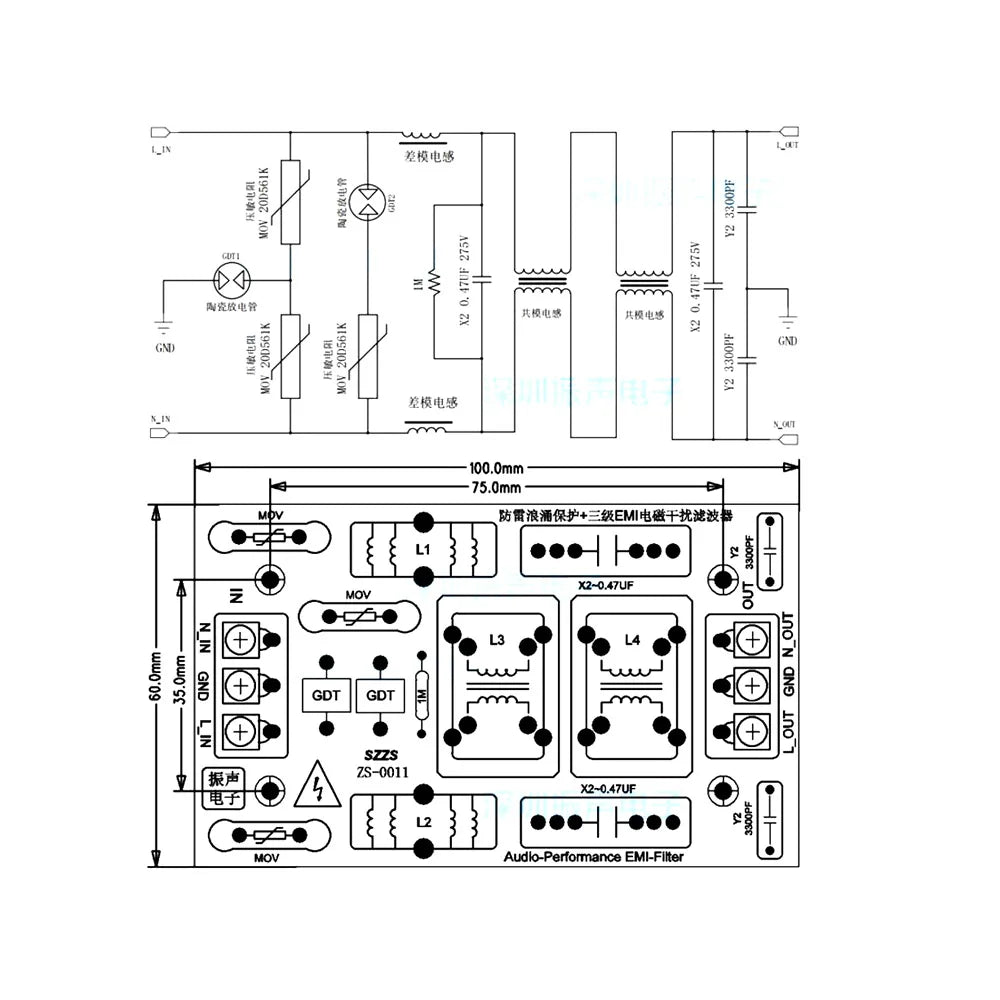

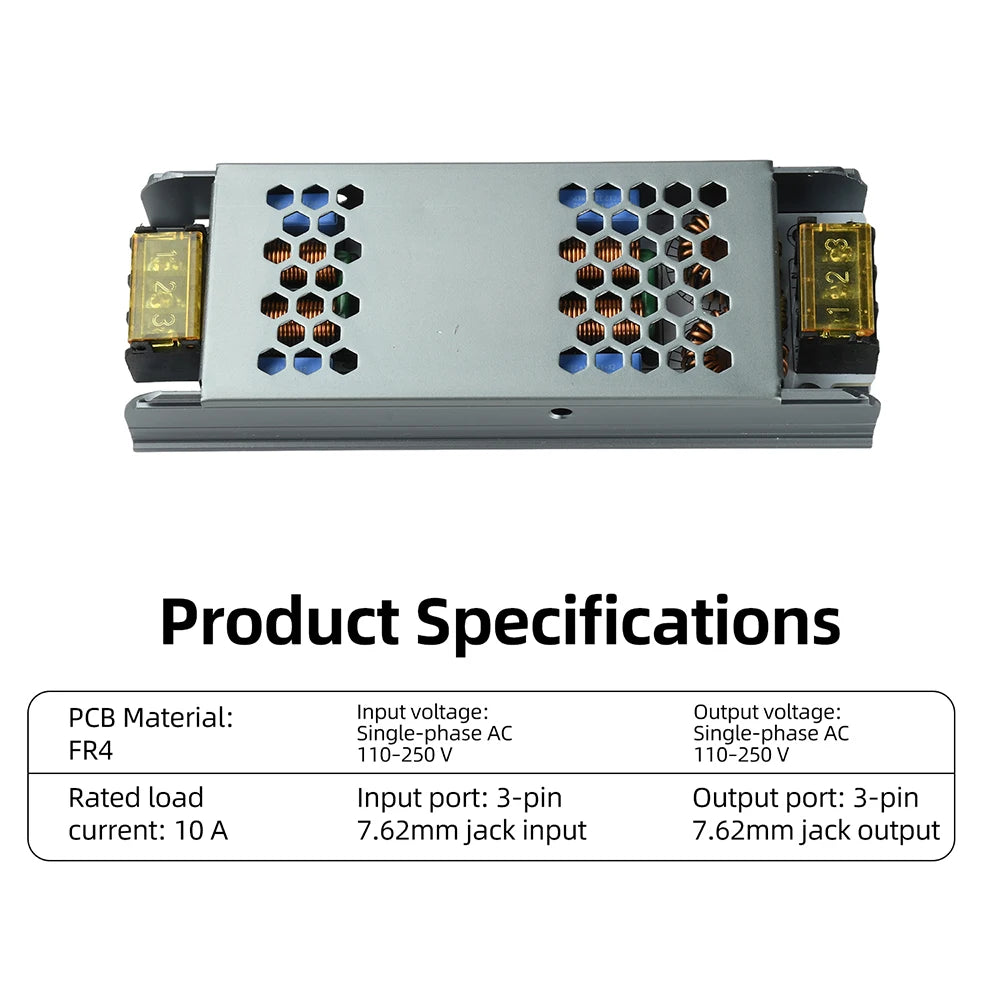

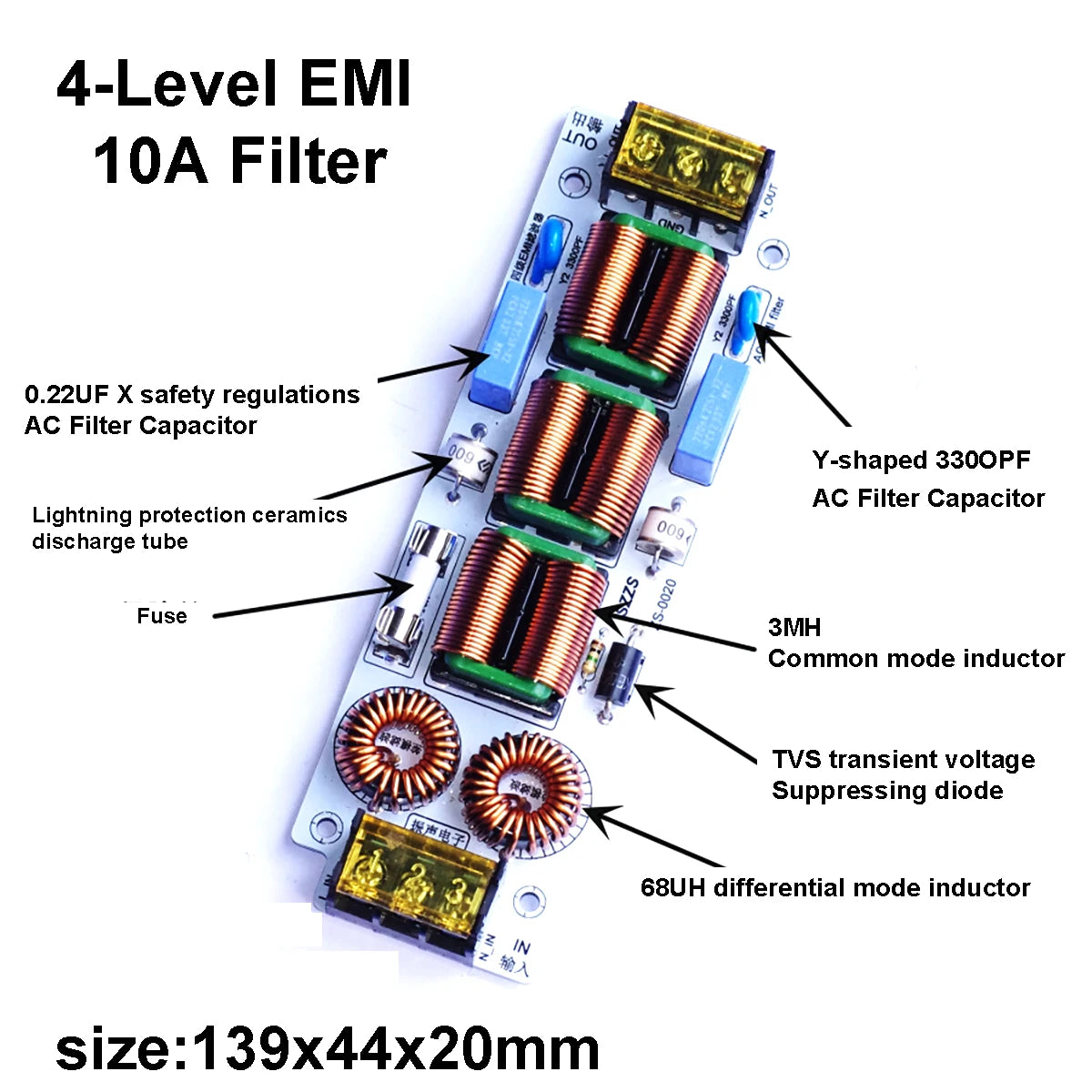

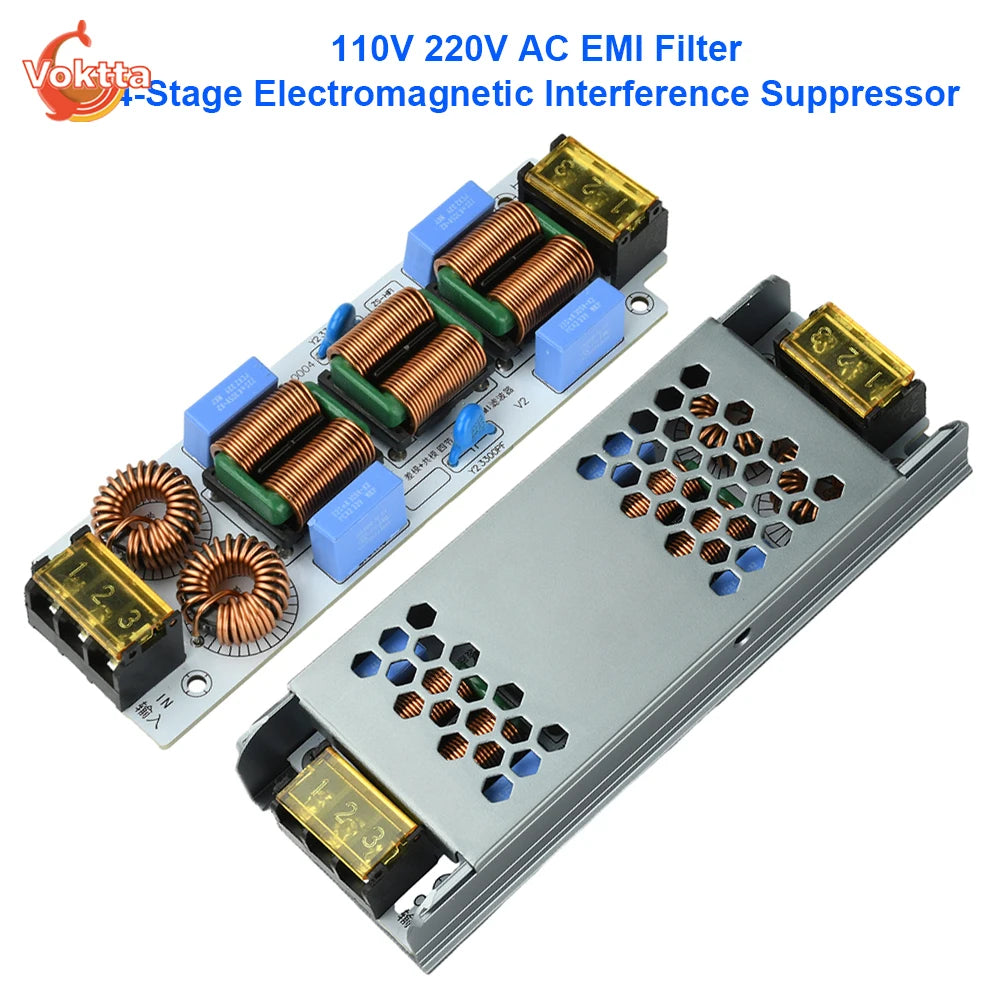

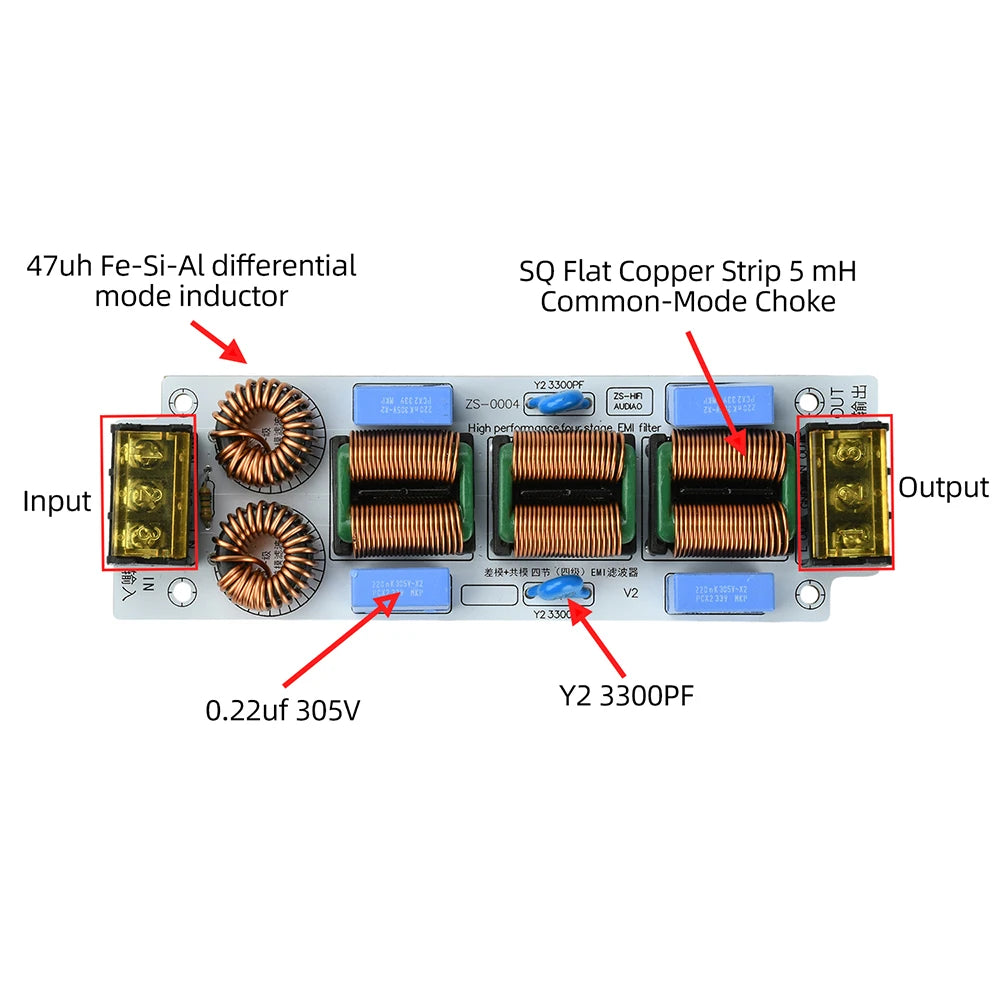

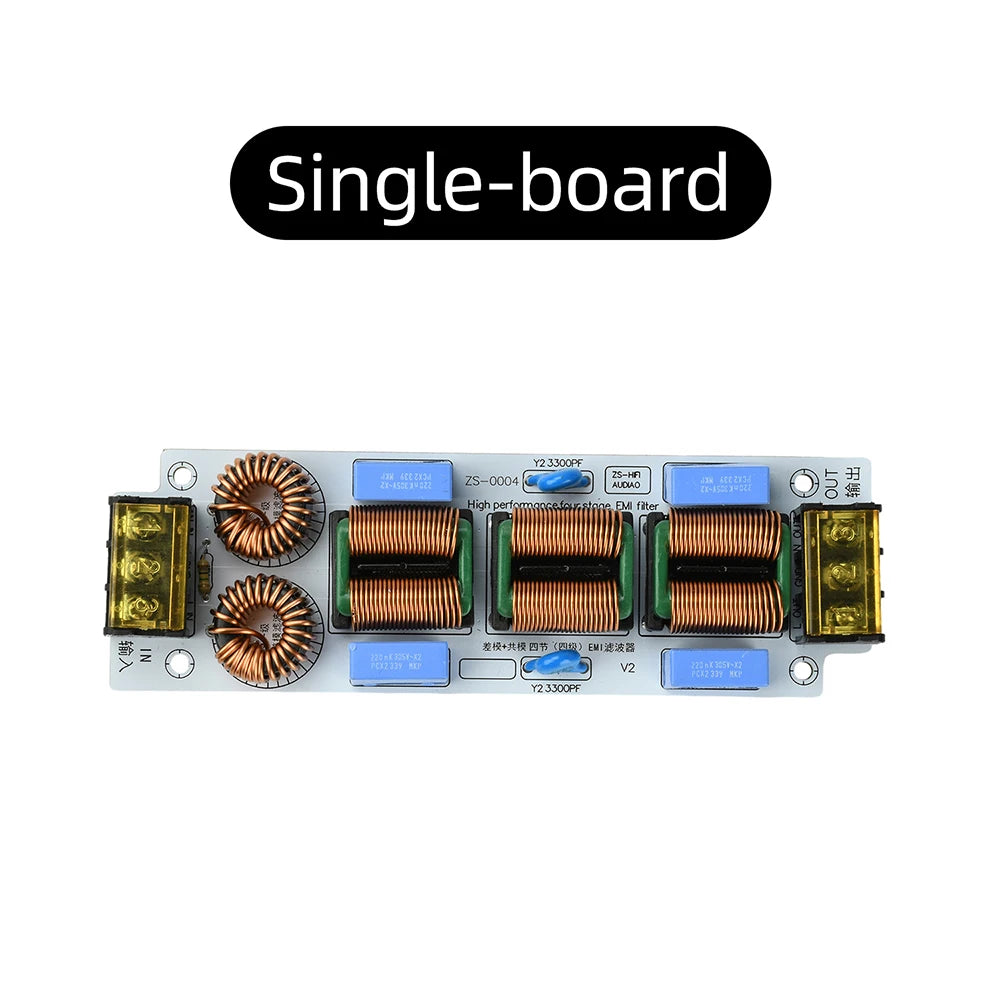

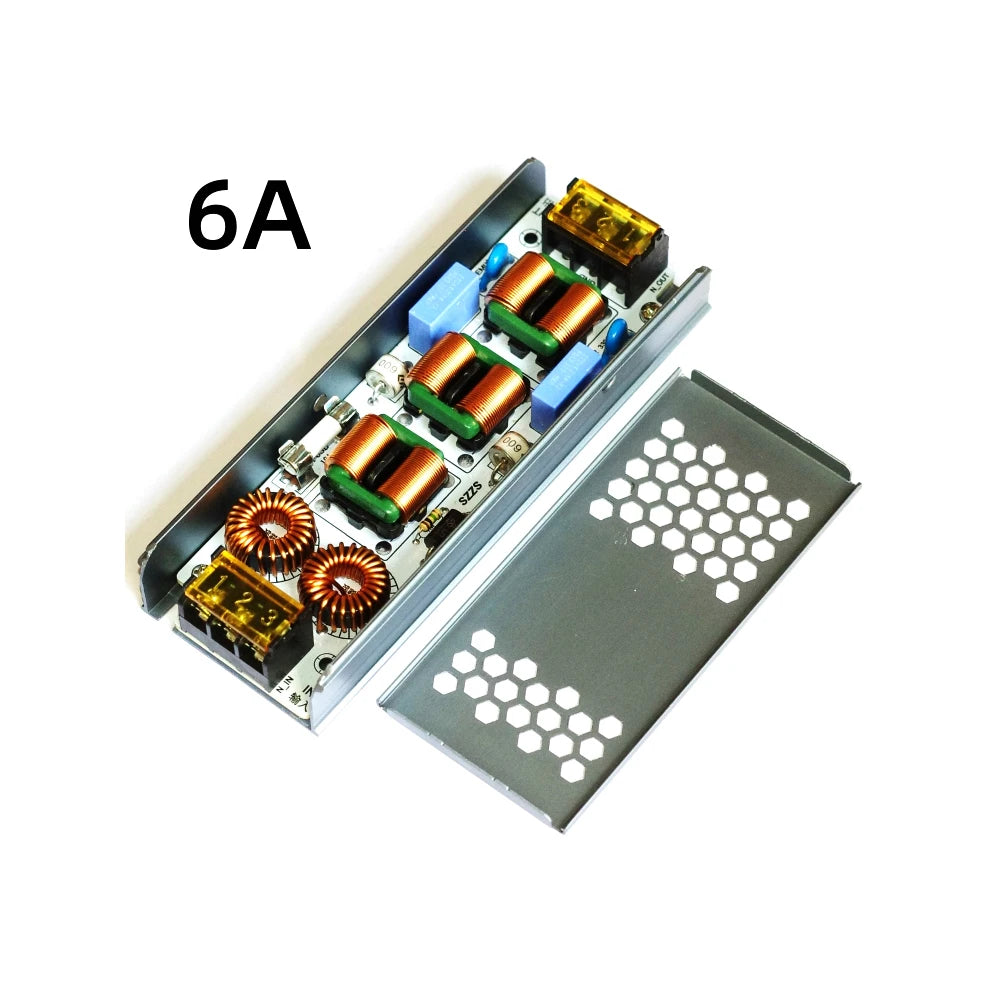

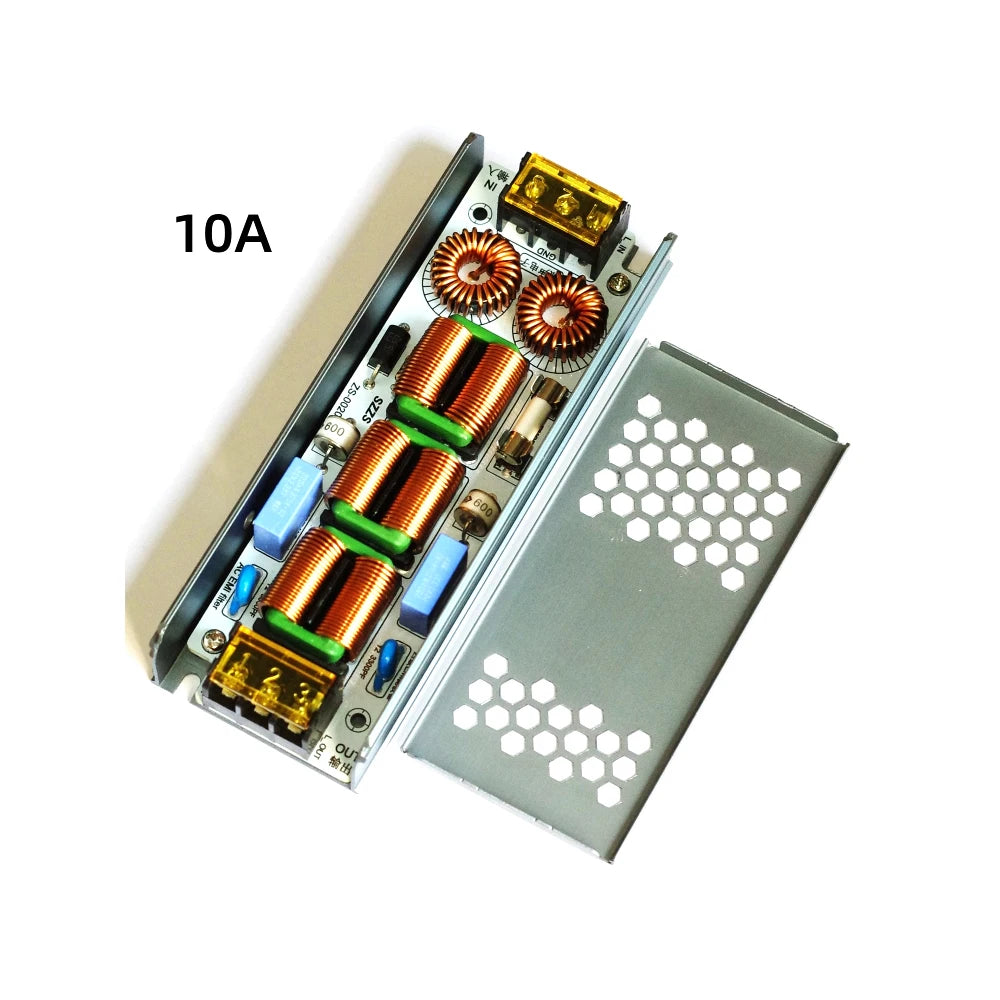

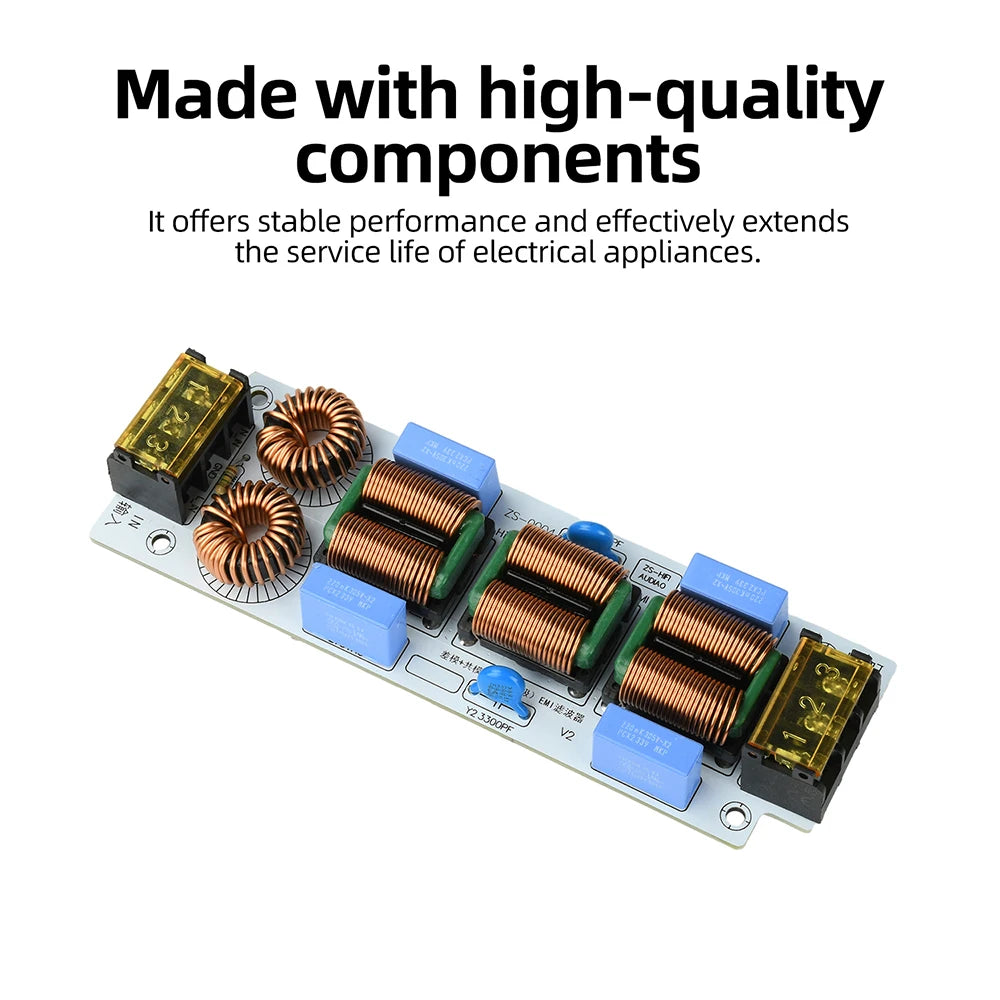

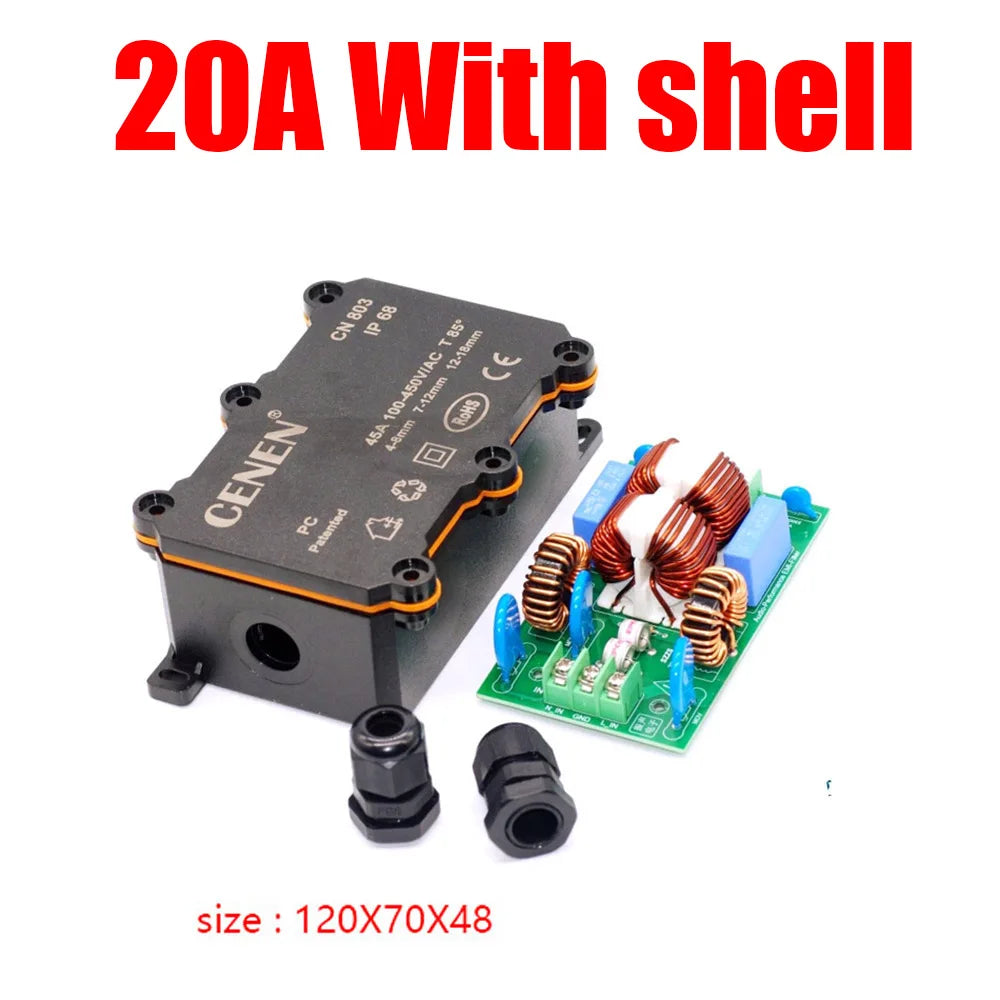

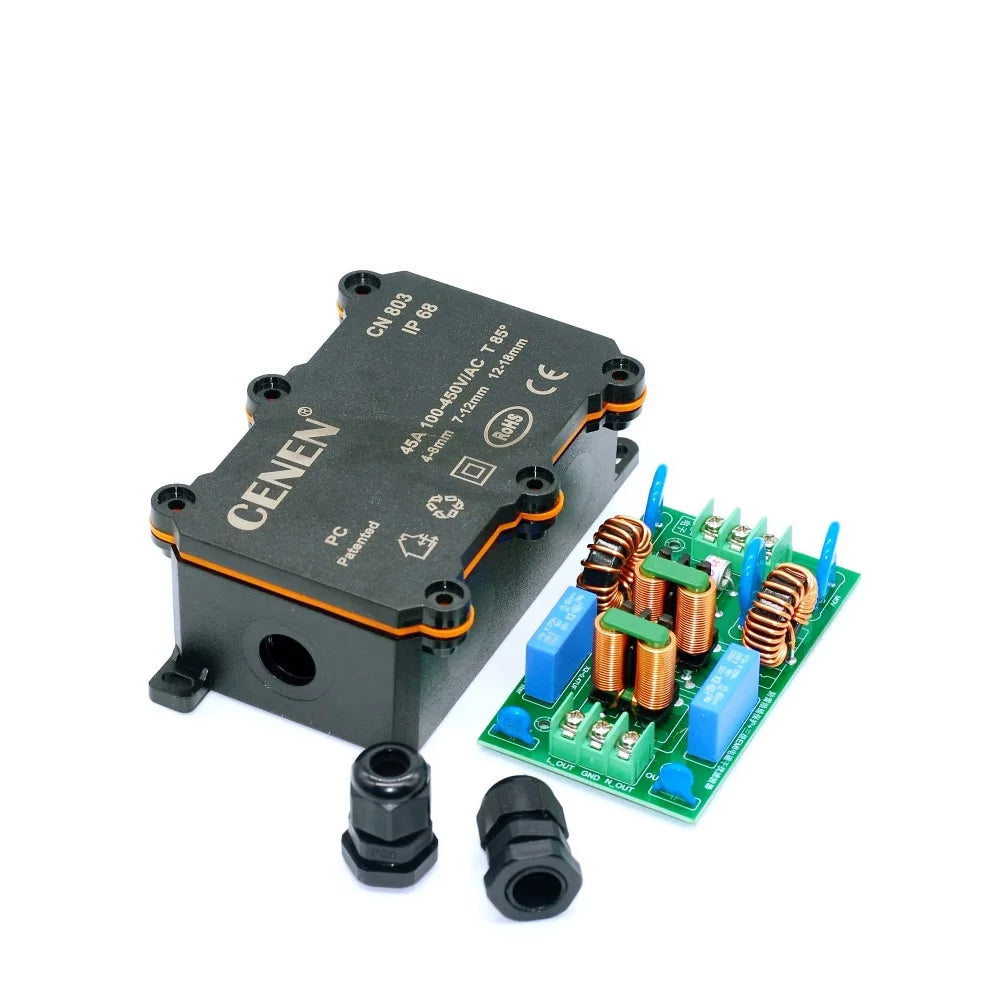

- Audio amplifier and equipment boards: listings describe 4/10/20 A AC boards with differential- and common-mode stages, 6/10 A multi-stage choices, a 20 A open board, and 15/20 A variants with or without a shell. Other listings offer a single Black 20A or Black 10A option, despite shared descriptions naming several currents; one 4/10/20 A listing also has an “ONLY PCB board” option, which is not an assembled filter. Check the actual selected option and package contents before ordering.

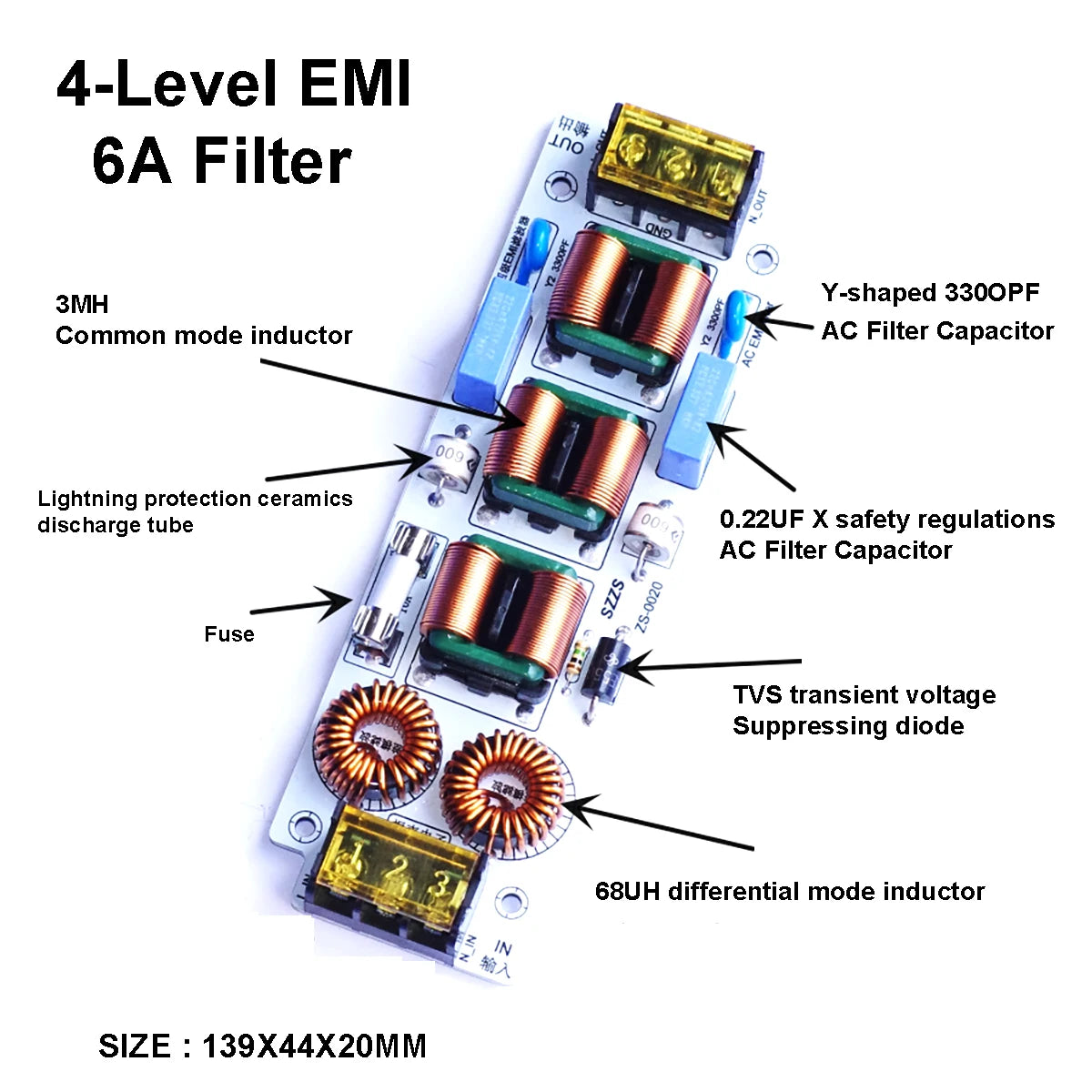

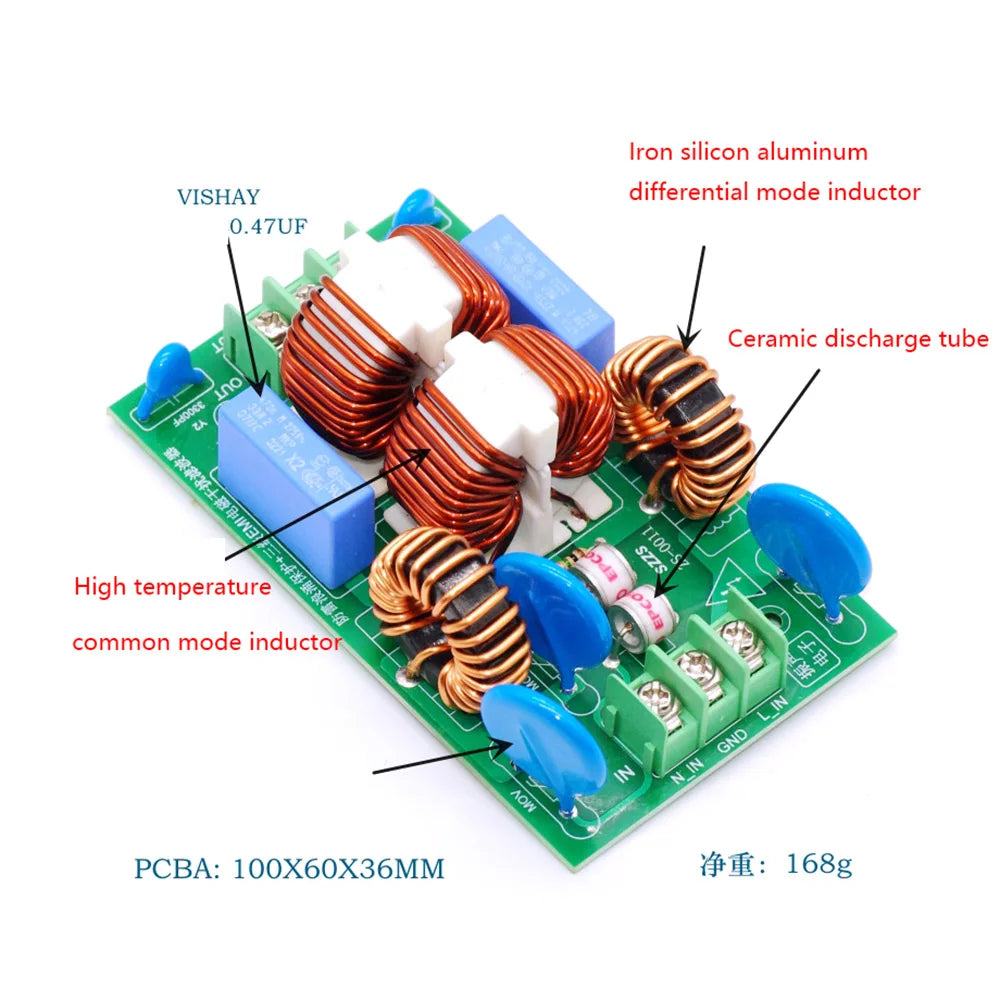

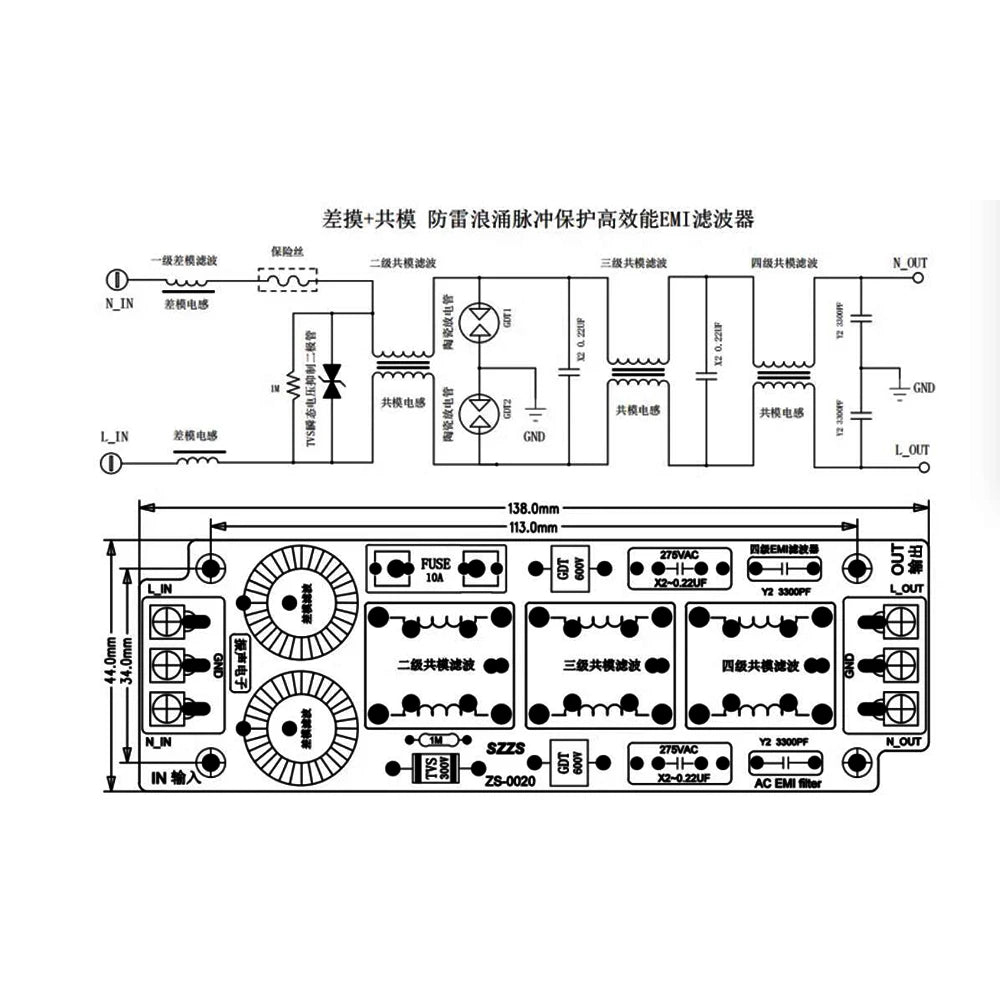

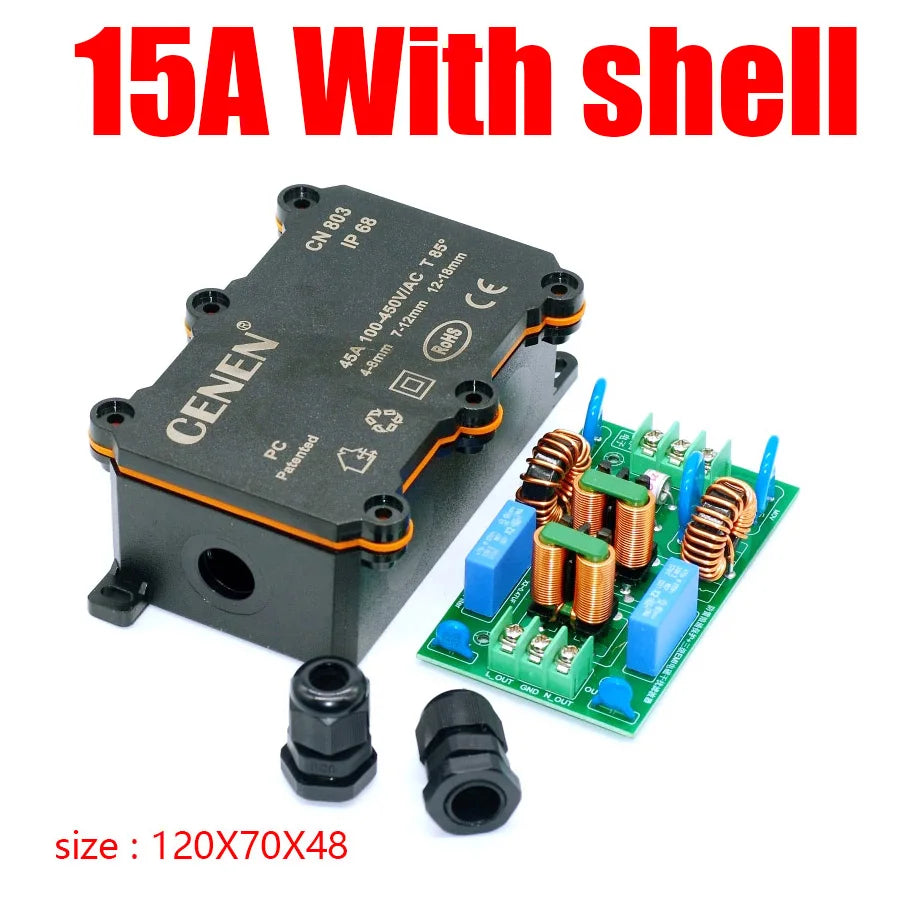

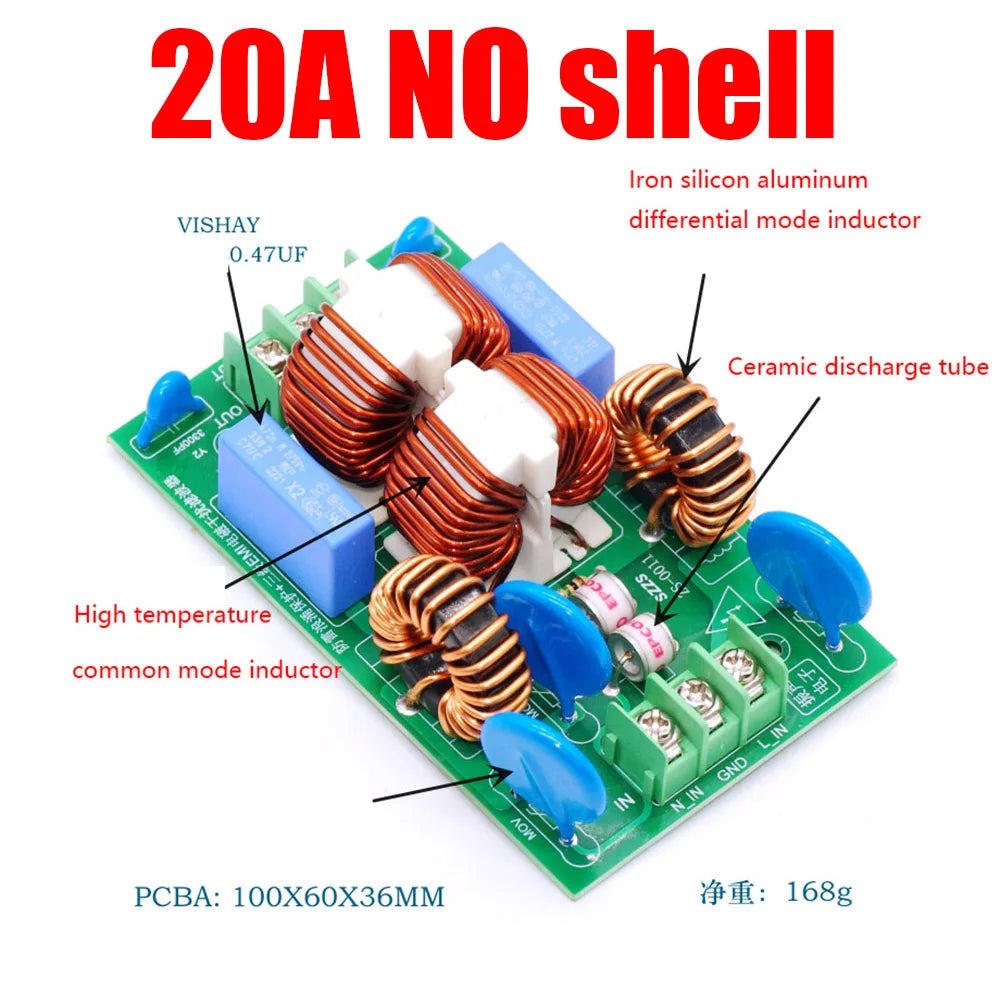

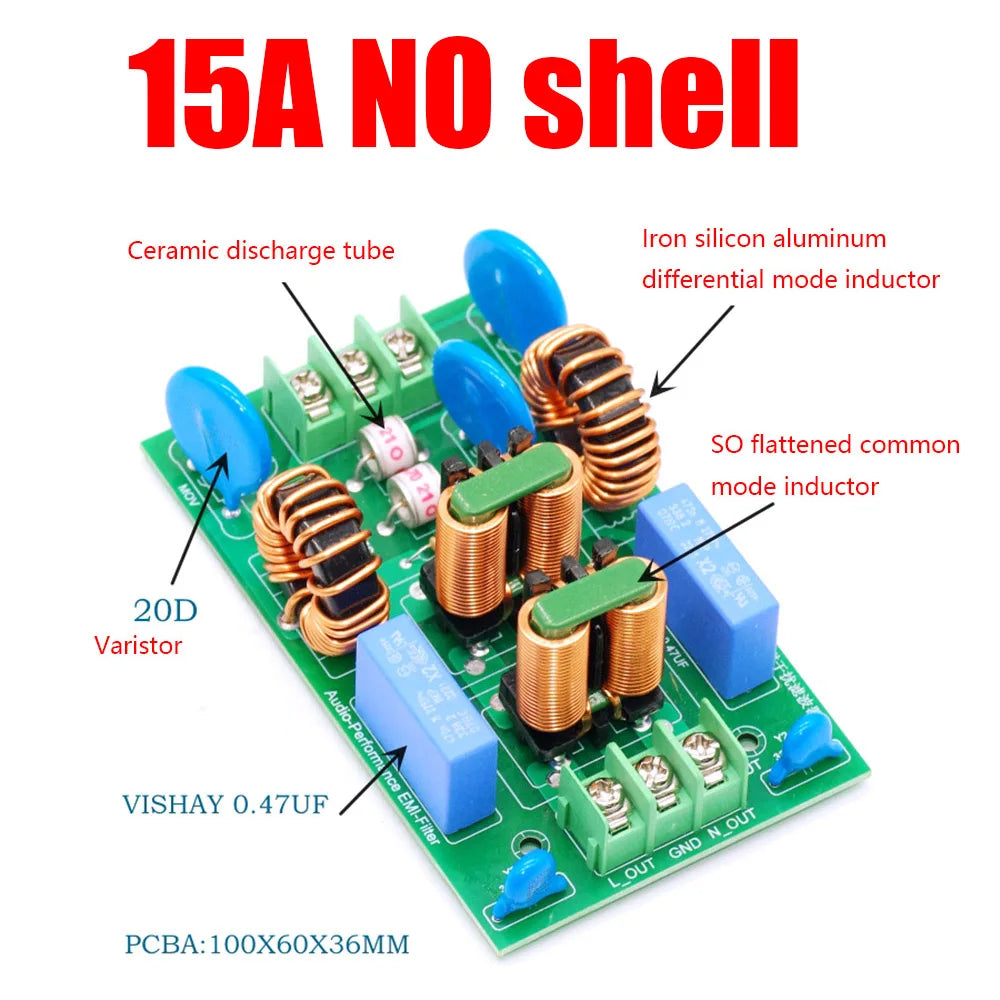

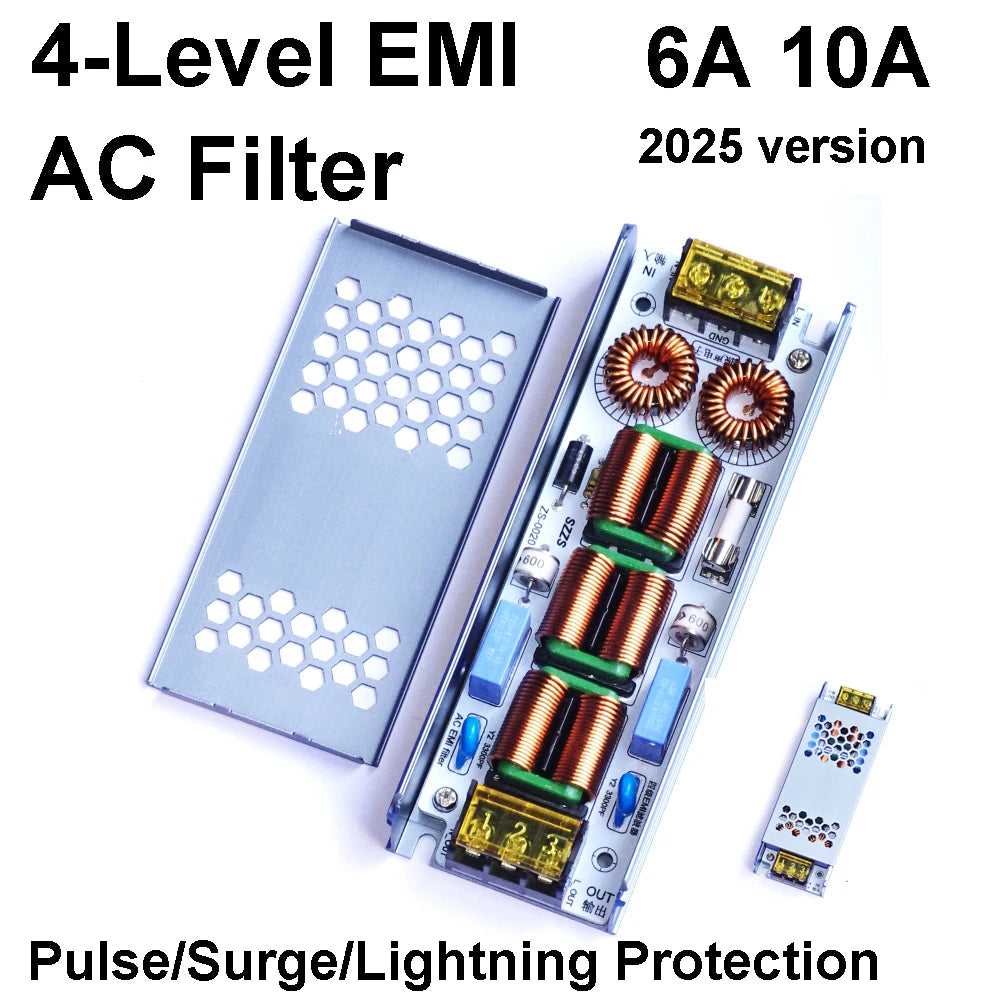

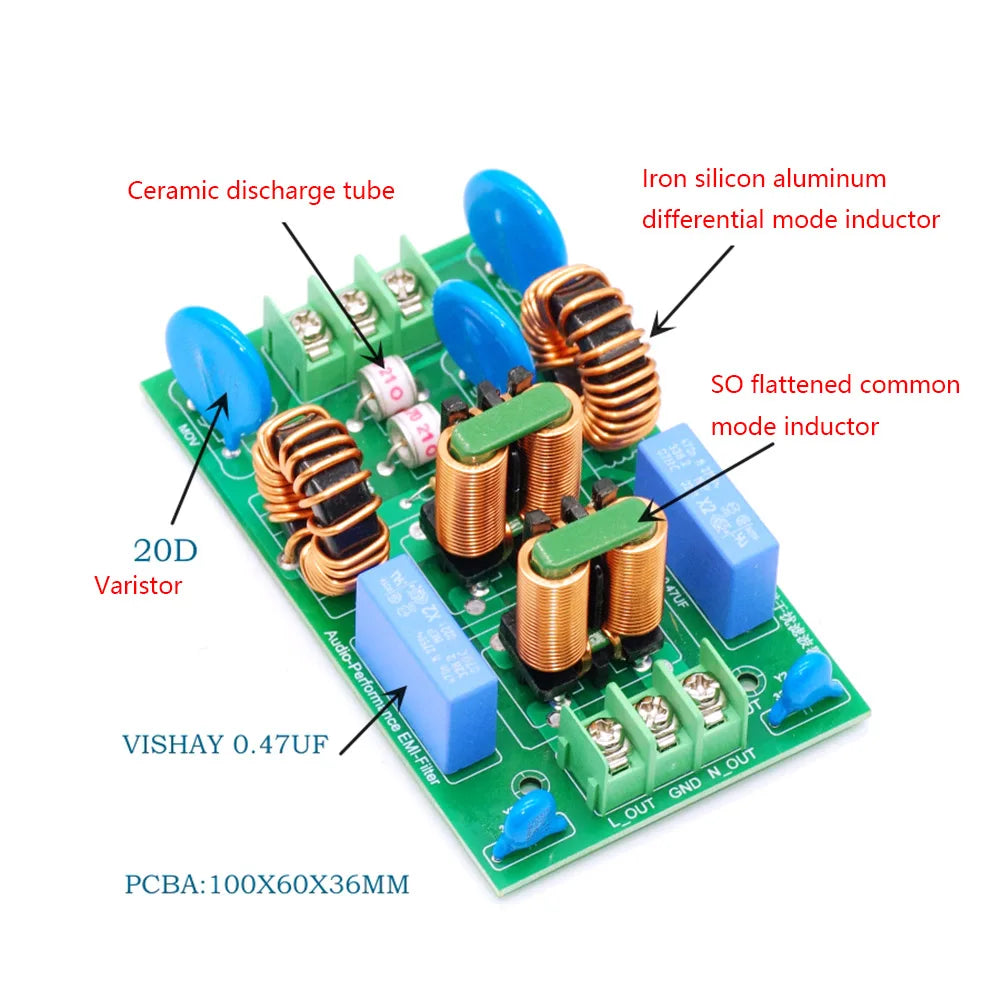

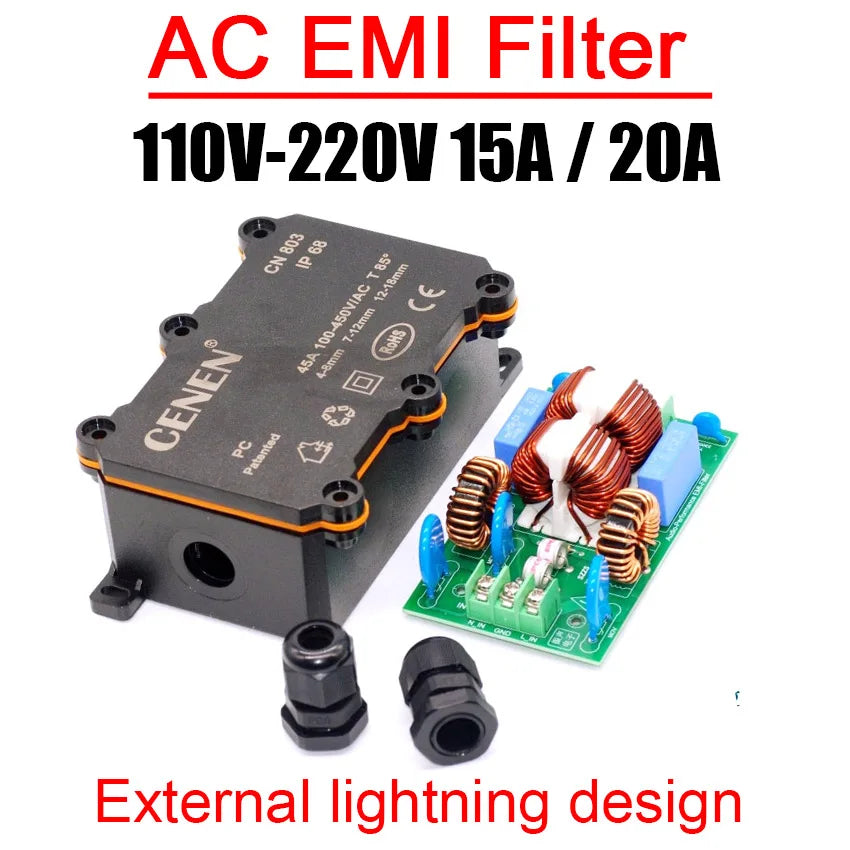

- DC-offset and claimed surge functions: several audio boards describe diode-and-capacitor DC-blocking stages intended for transformer-related hum. This is not galvanic isolation and does not promise to fix a ground loop or improve audio quality. Some 6/10 A and 15/20 A listings describe TVS, varistors, discharge tubes or a fuse; EMI filtering, overcurrent protection and surge protection are different functions. Do not infer a certified lightning-protection level or installation approval from the title or component list.
Selection steps
- Identify the supply: single- or three-phase AC, nominal and worst-case voltage, frequency, neutral/earth arrangement and whether the filter is for a drive input, an audio supply or another load.

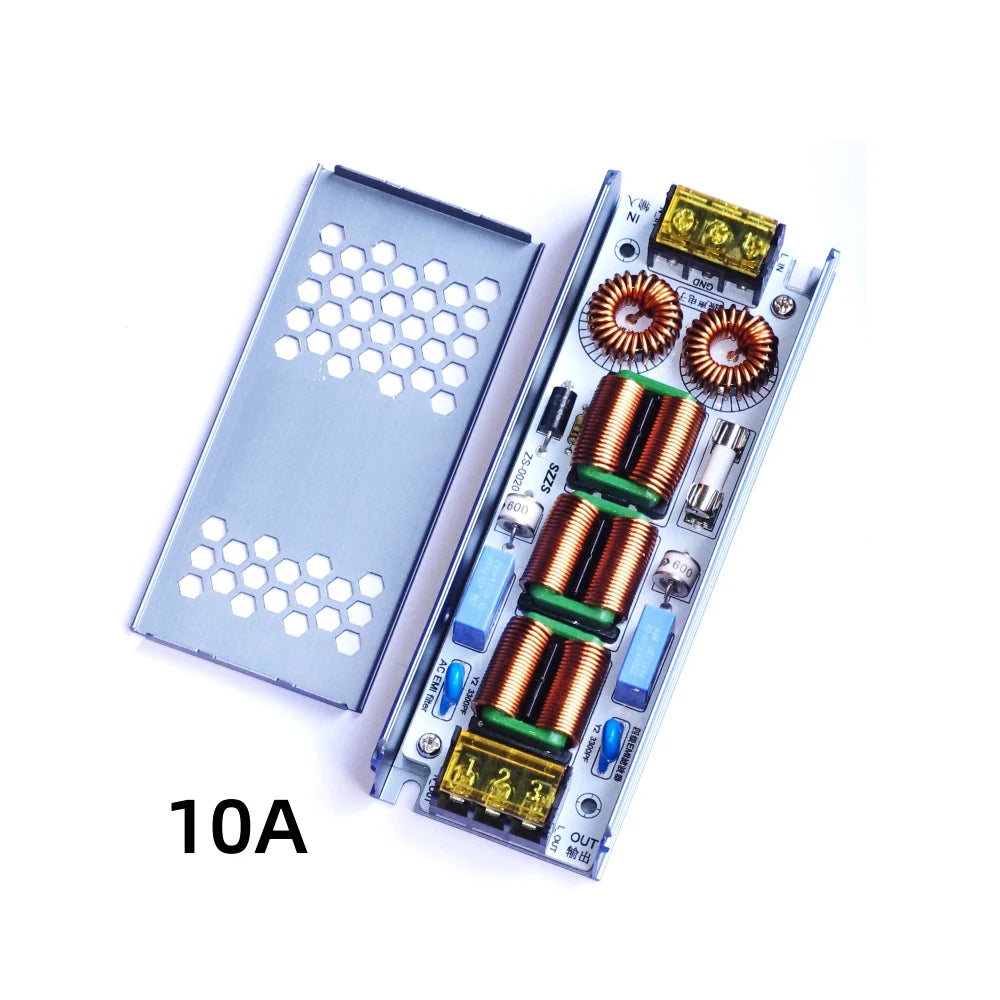

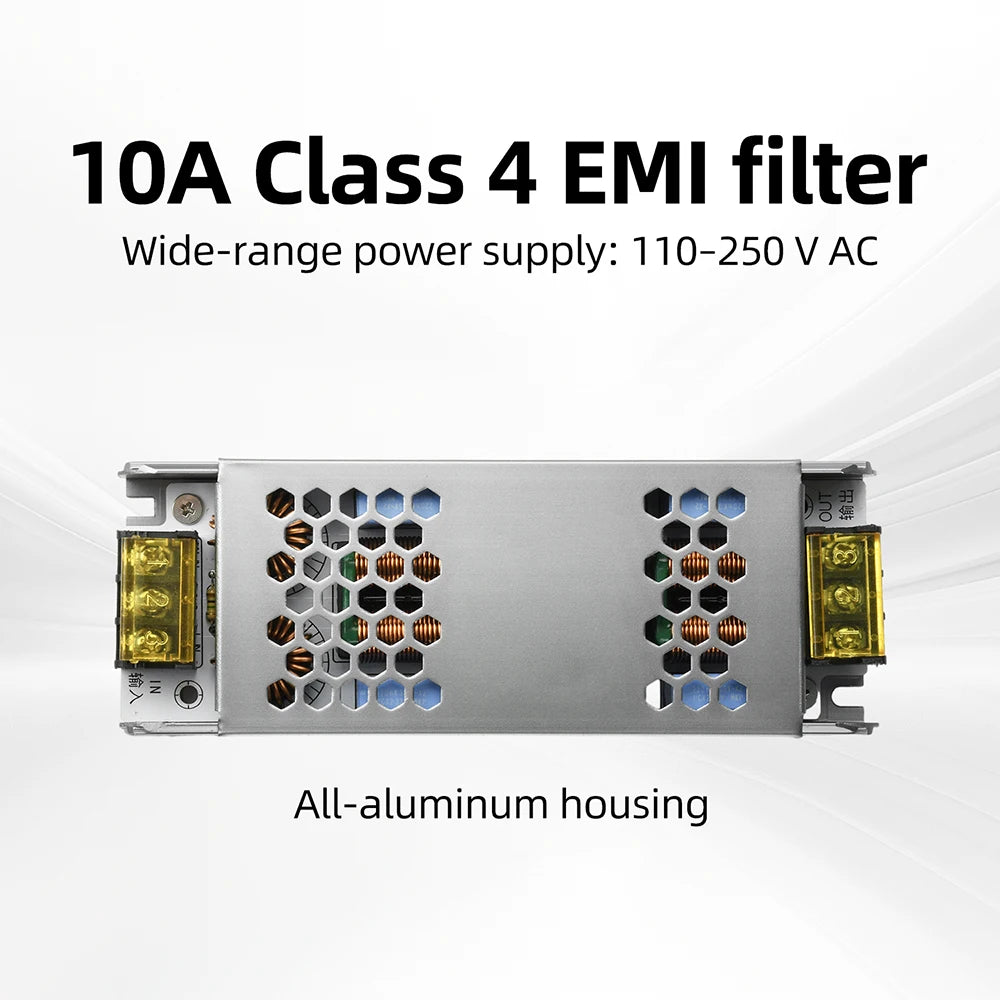

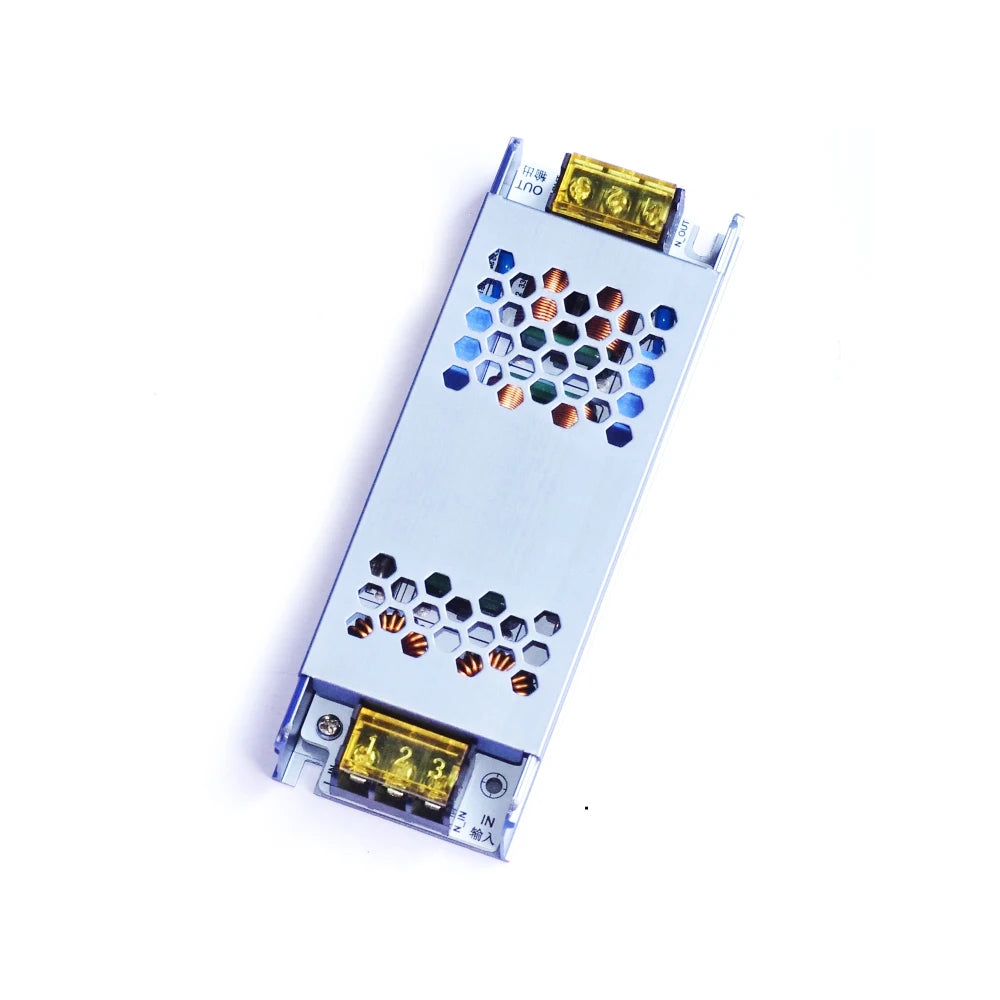

- Choose the exact current and form factor. Distinguish bare board, board with case, bolt-on metal can and loose PCB option; verify dimensions, terminals and whether any enclosure is genuinely suitable for the intended environment.
- Check documented insertion loss at relevant conducted-noise frequencies and source/load impedances. Published curves often use standardized test impedances and will not predict identical attenuation in every installation.
- Verify protective-earth continuity, leakage limits, insulation, thermal derating and applicable equipment-level compliance with part-specific documents. Keep any mains work with qualified personnel following local requirements and the equipment manufacturer's instructions.
Buying checklist
Record phase count, AC voltage and frequency, continuous and peak current, noise spectrum, allowable leakage, protective-earth arrangement, mounting dimensions, terminal type, enclosure needs and exact selected variant. For audio hum, diagnose the source first: mains DC offset, a ground loop and high-frequency conducted EMI call for different remedies.
Frequently asked questions
Can I put a three-phase filter on a single-phase amplifier?
Do not choose by current alone. Use a documented circuit and phase configuration appropriate to the equipment, with verified voltage, grounding and safety specifications.
Does a four-stage label guarantee better filtering than two stages?
No. Compare part-specific insertion-loss curves under stated measurement conditions and the actual interference frequencies.
Does a board titled “lightning protection” replace a surge protective device?
No. A seller's title or component list is not evidence of a tested surge-protection rating or suitability for a lightning-exposed installation.
Will an EMI filter remove amplifier hum?
Only if the source and filter response align. Ground-loop hum and transformer buzz due to DC offset need distinct diagnosis; neither is automatically cured by a generic EMI board.
