CH341A BIOS Programmers, Clips and Flash Adapters

CH341A programming hardware: choose the tool, clip and voltage path separately

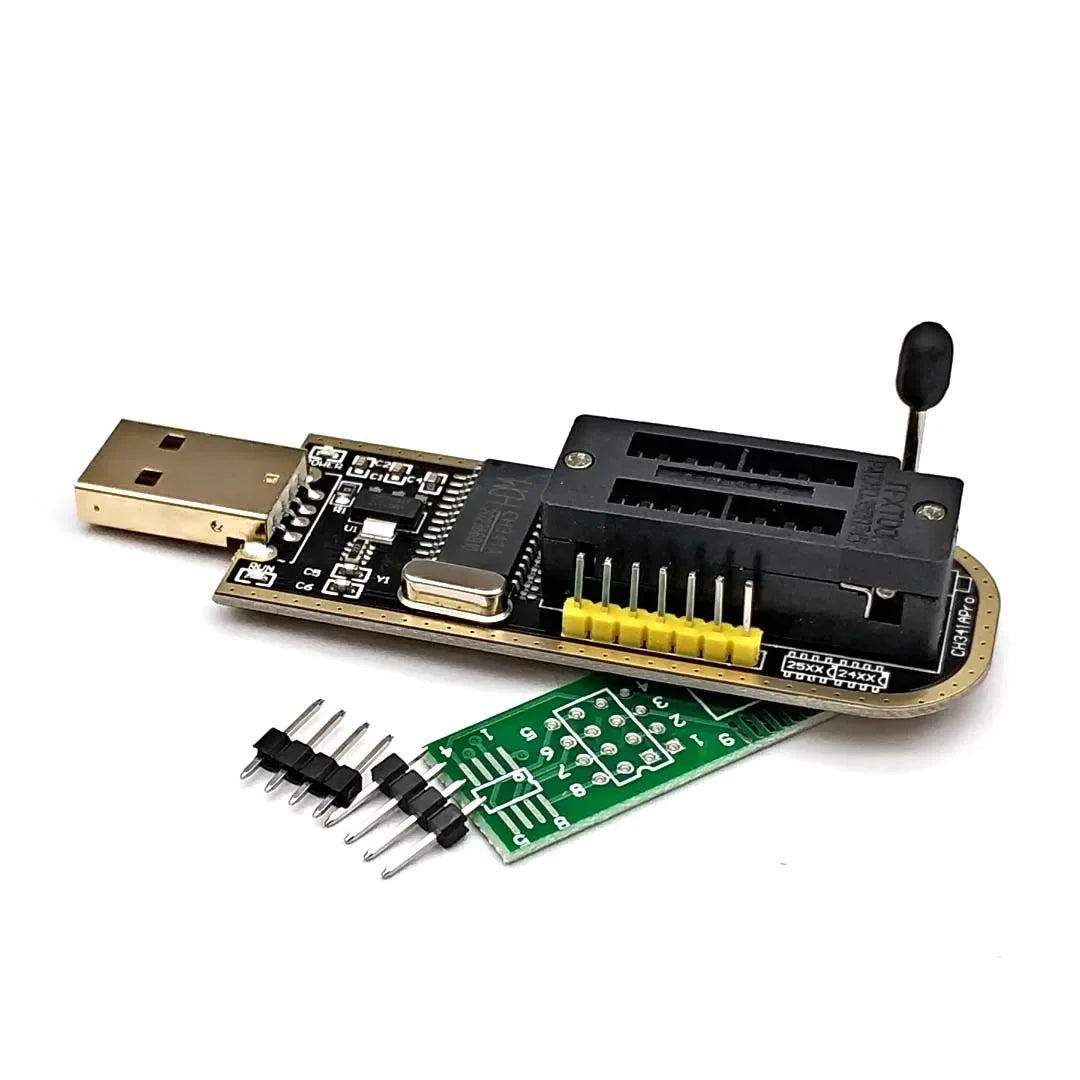

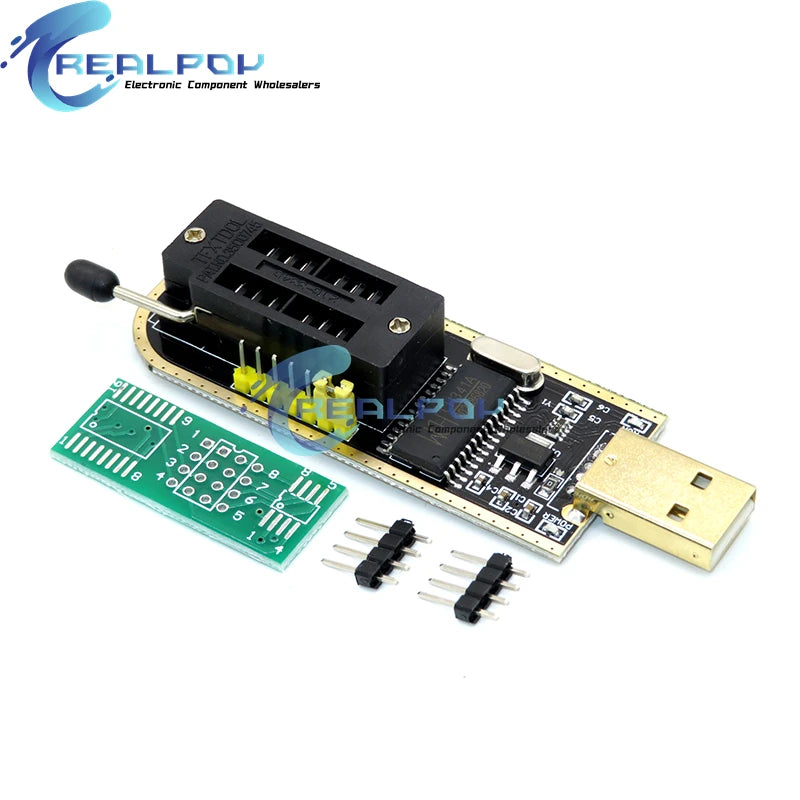

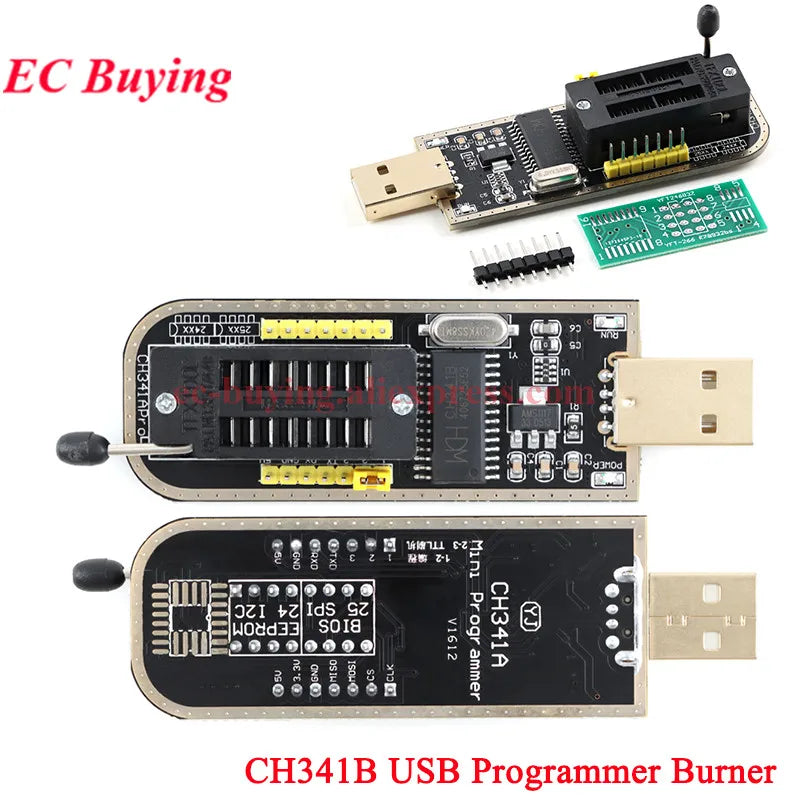

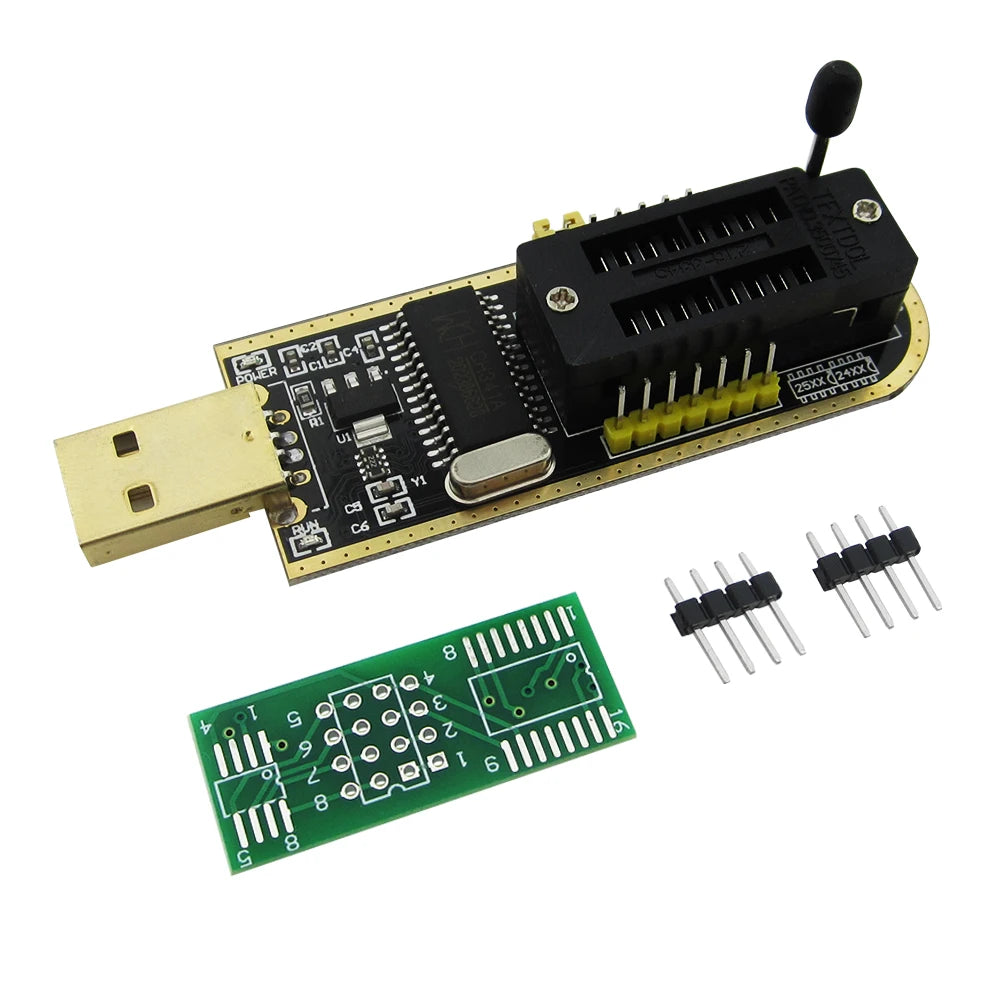

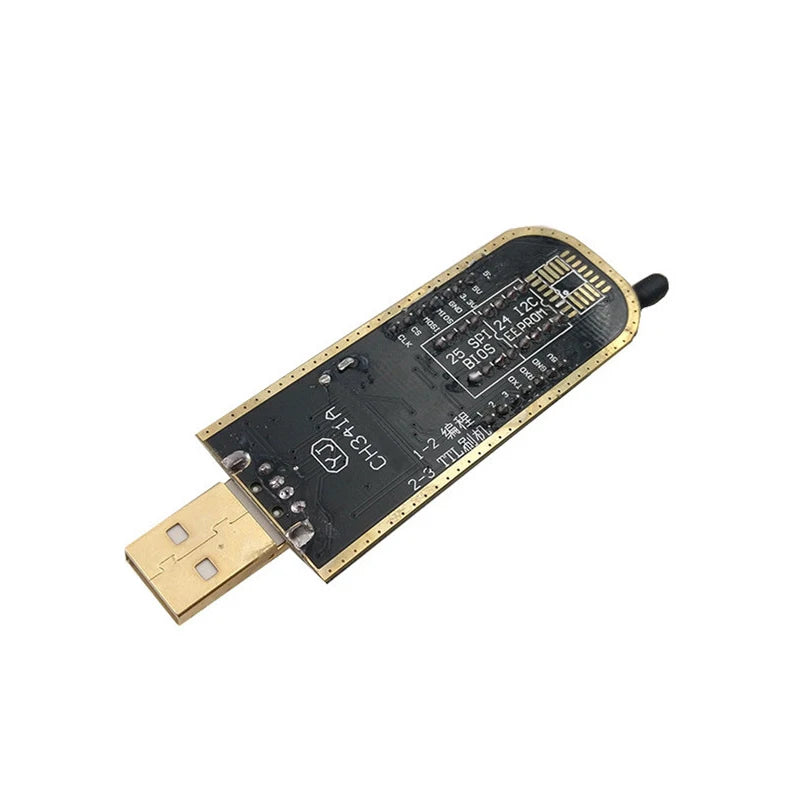

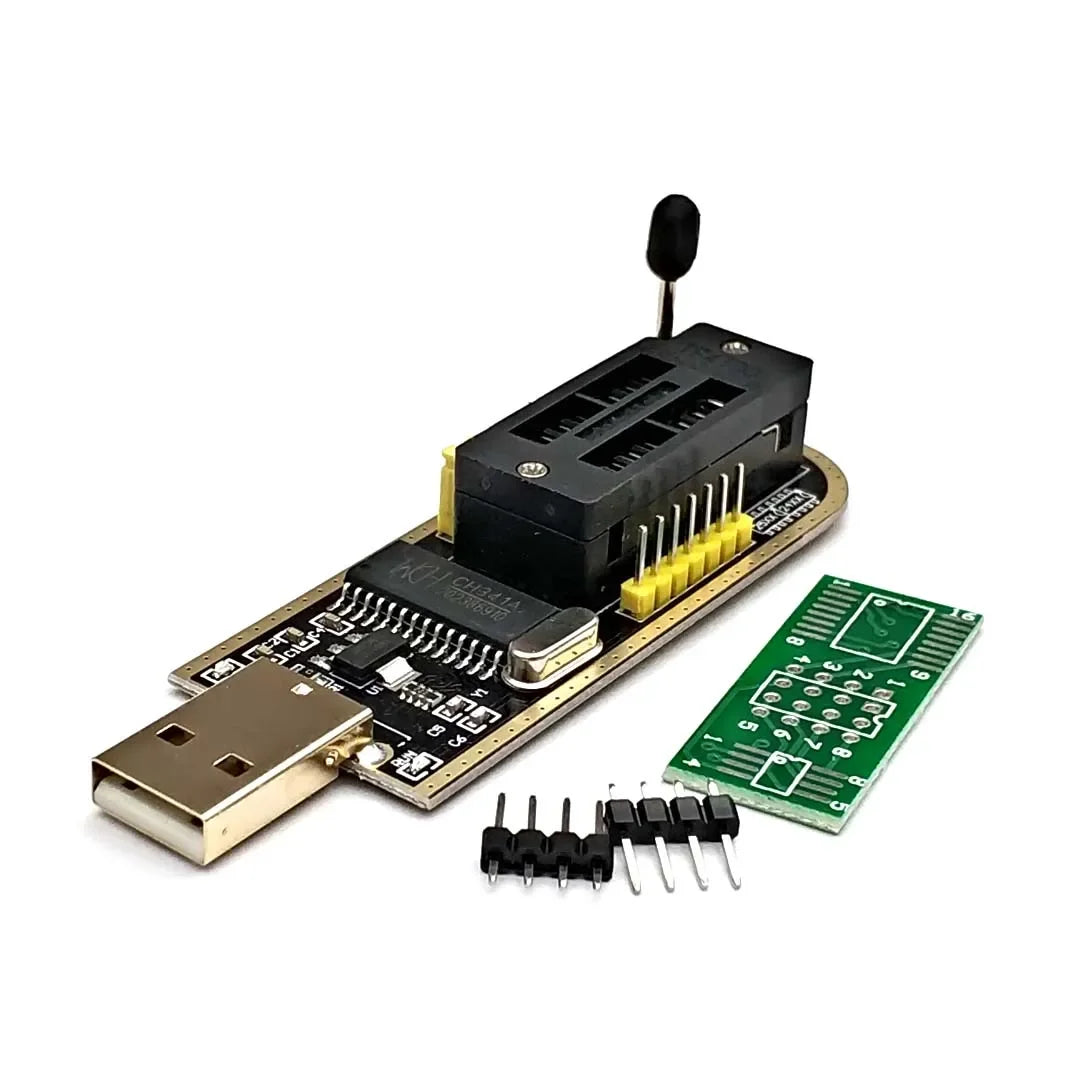

This collection includes CH341A and CH341B USB boards for compatible serial-memory work, selected programmer kits, SOIC/SOP test clips, 1.8 V adapters, package converters and probe leads. It also contains CH347, FT232H, XTW100, RT809H, T48, CH341T, CJMCU-341 and bare CH341/CH375 IC choices. A listing mentioning CH341A is not necessarily a CH341A programmer: many options are accessory-only. Identify the actual selected variant and the exact target chip before purchase. These tools are for qualified electronics work, not universal devices that can unlock, repair or authenticate every board.

Which product are you actually buying?

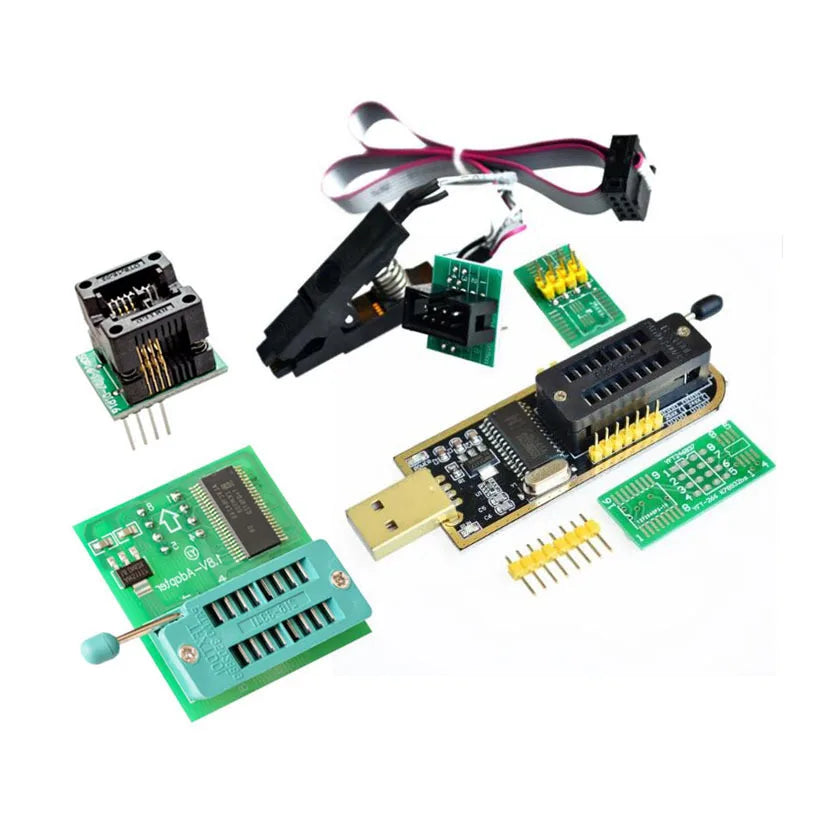

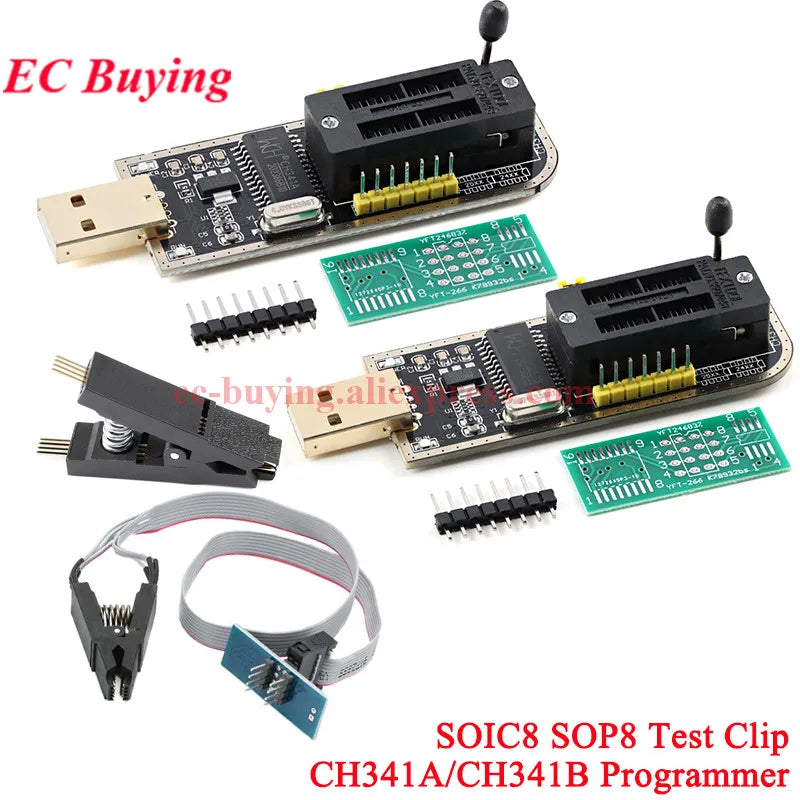

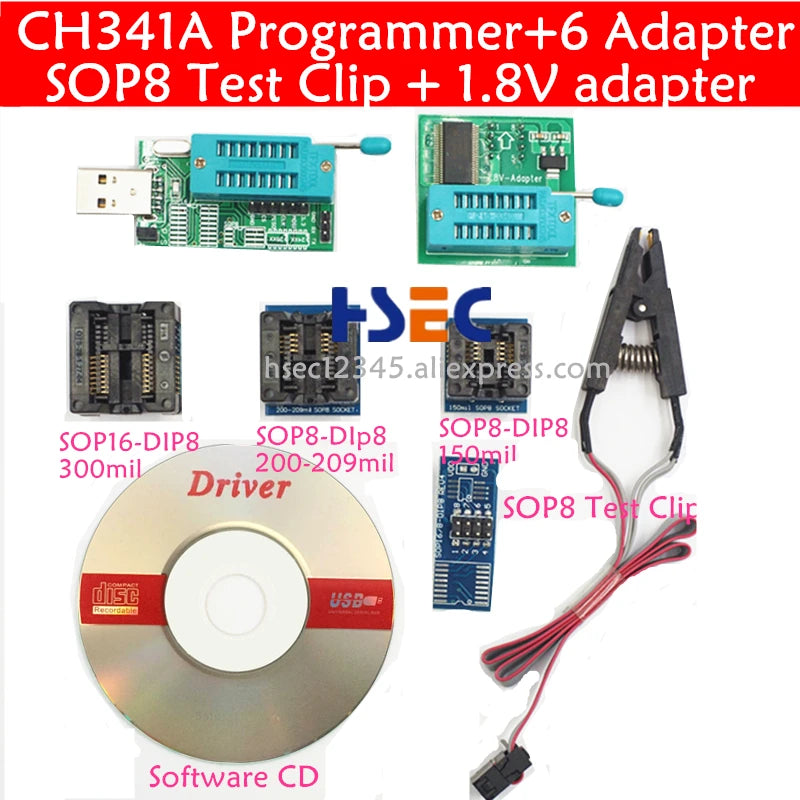

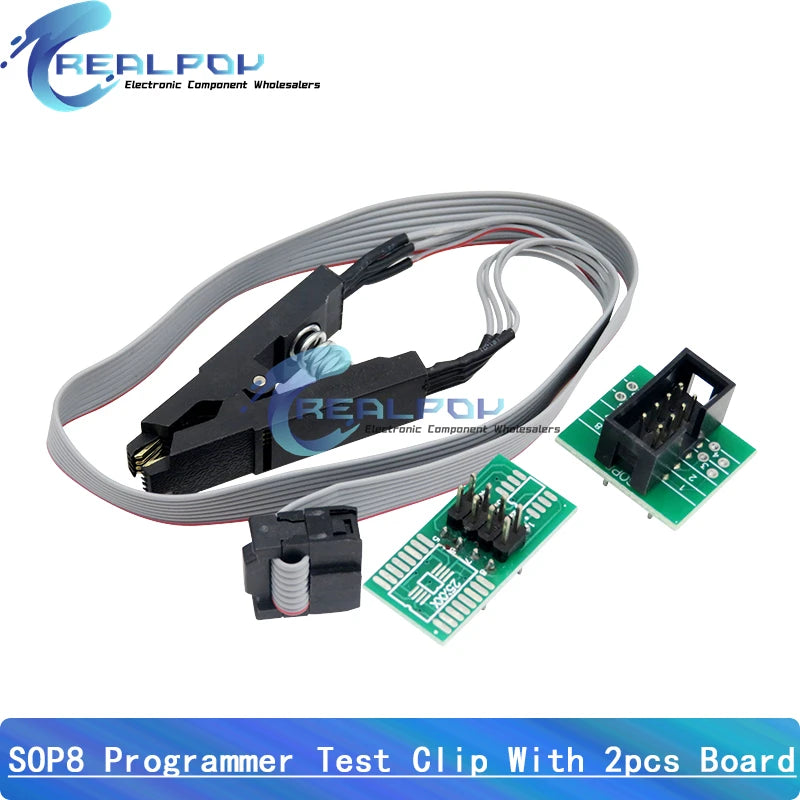

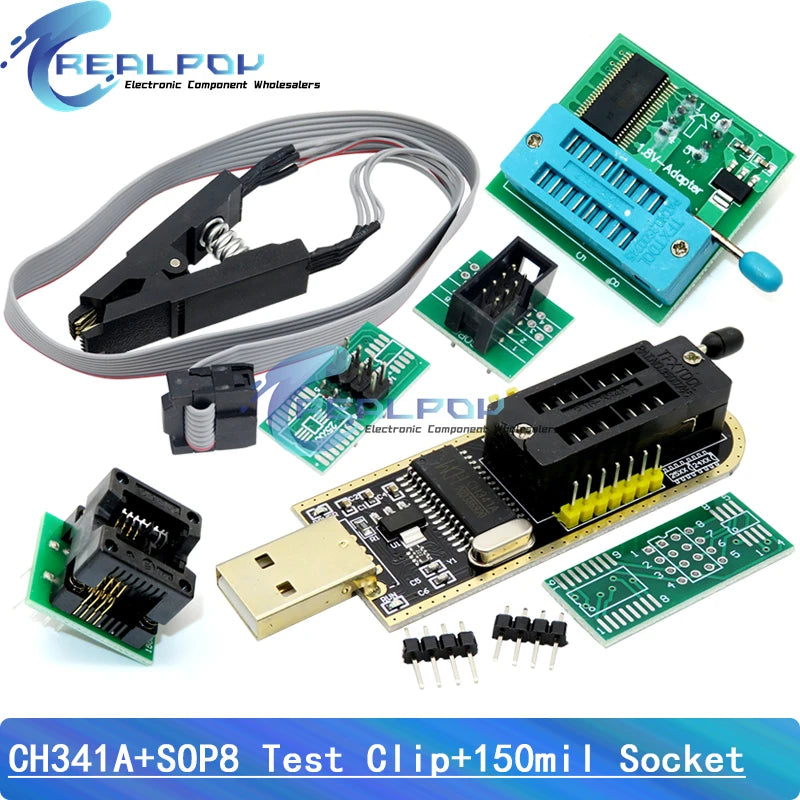

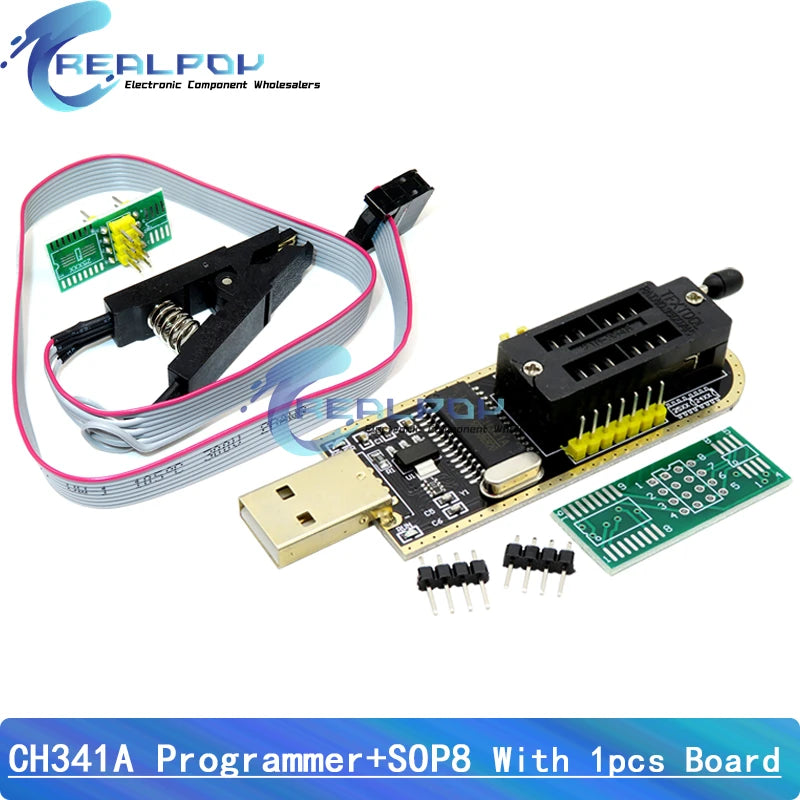

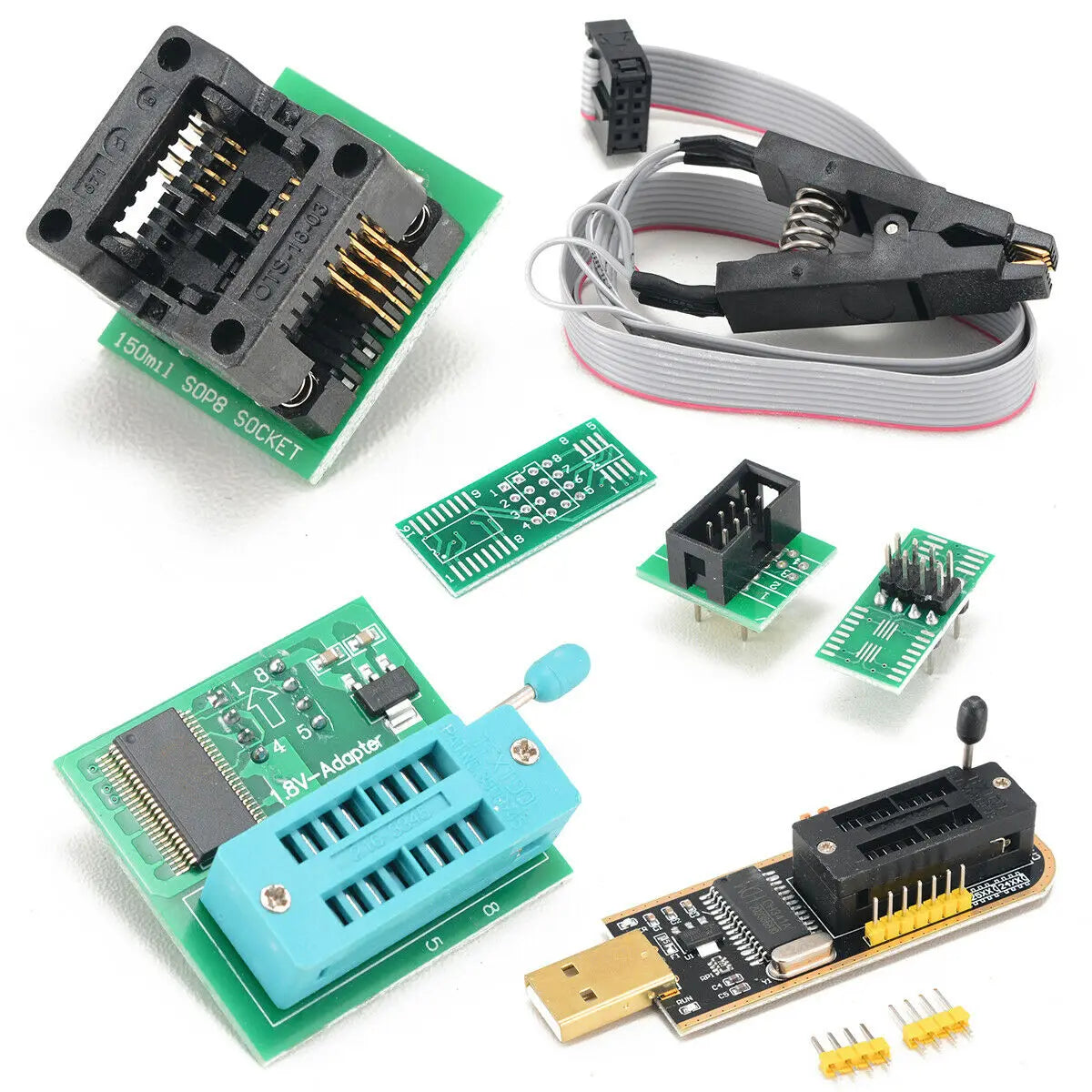

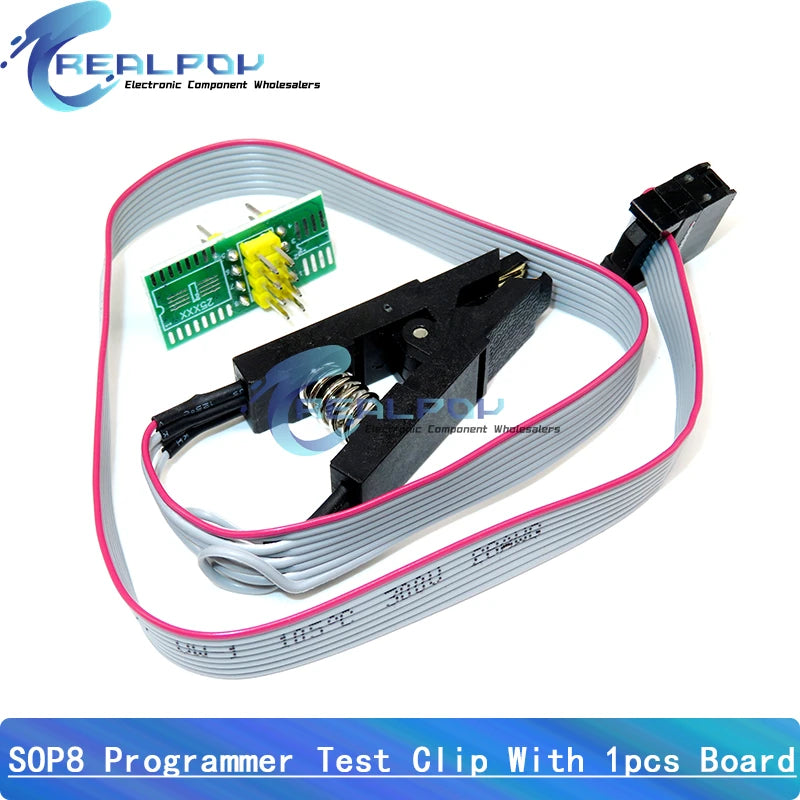

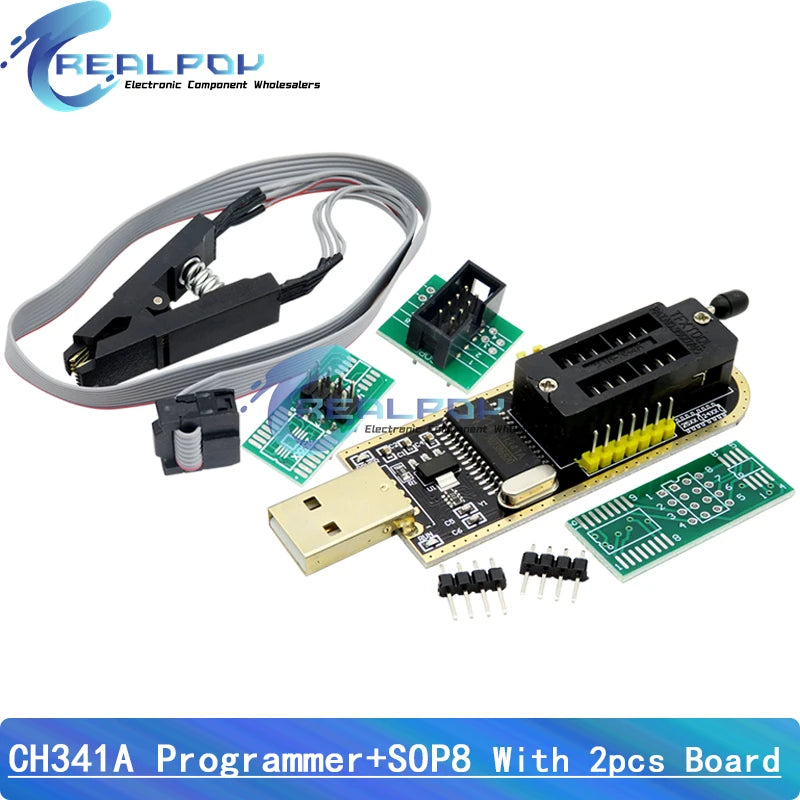

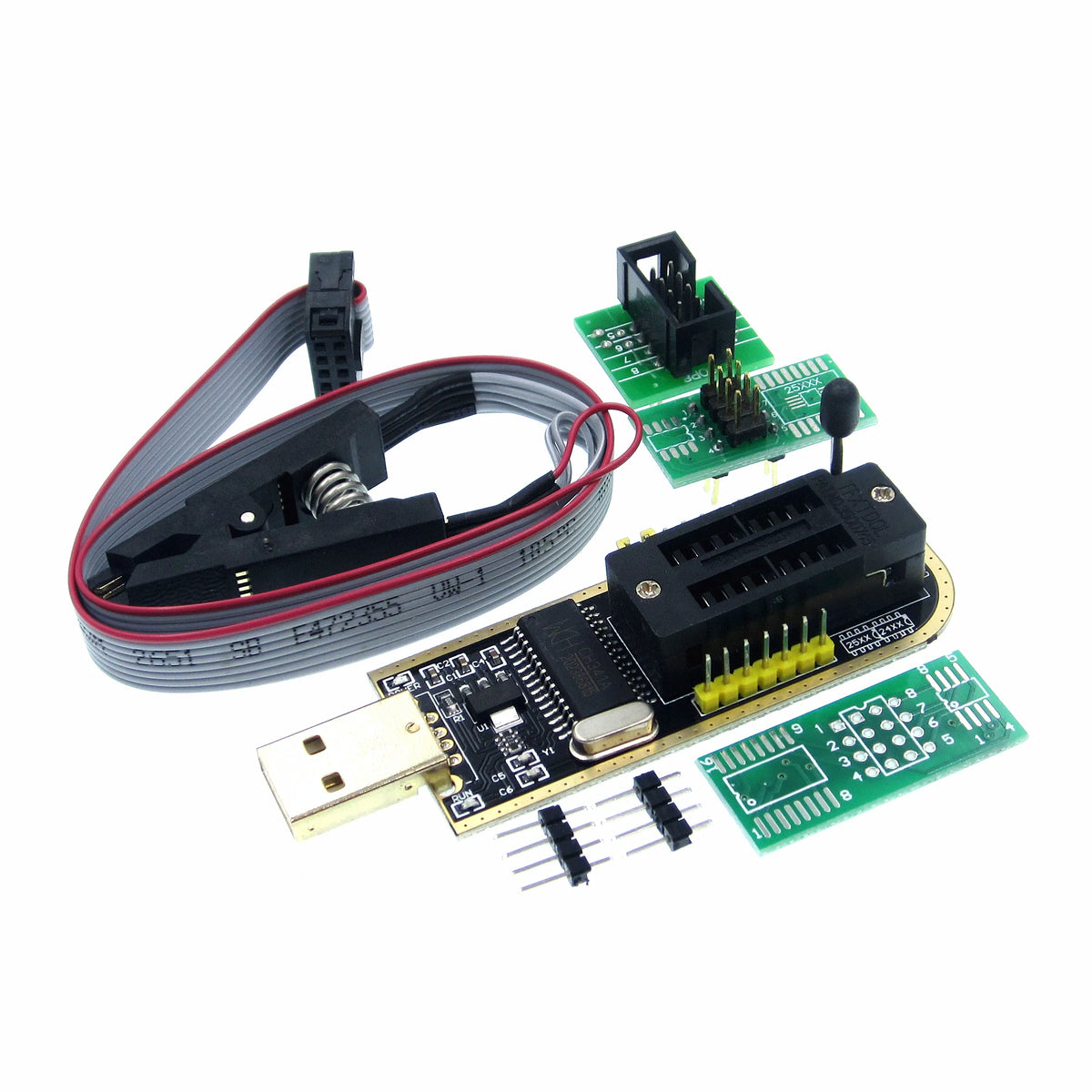

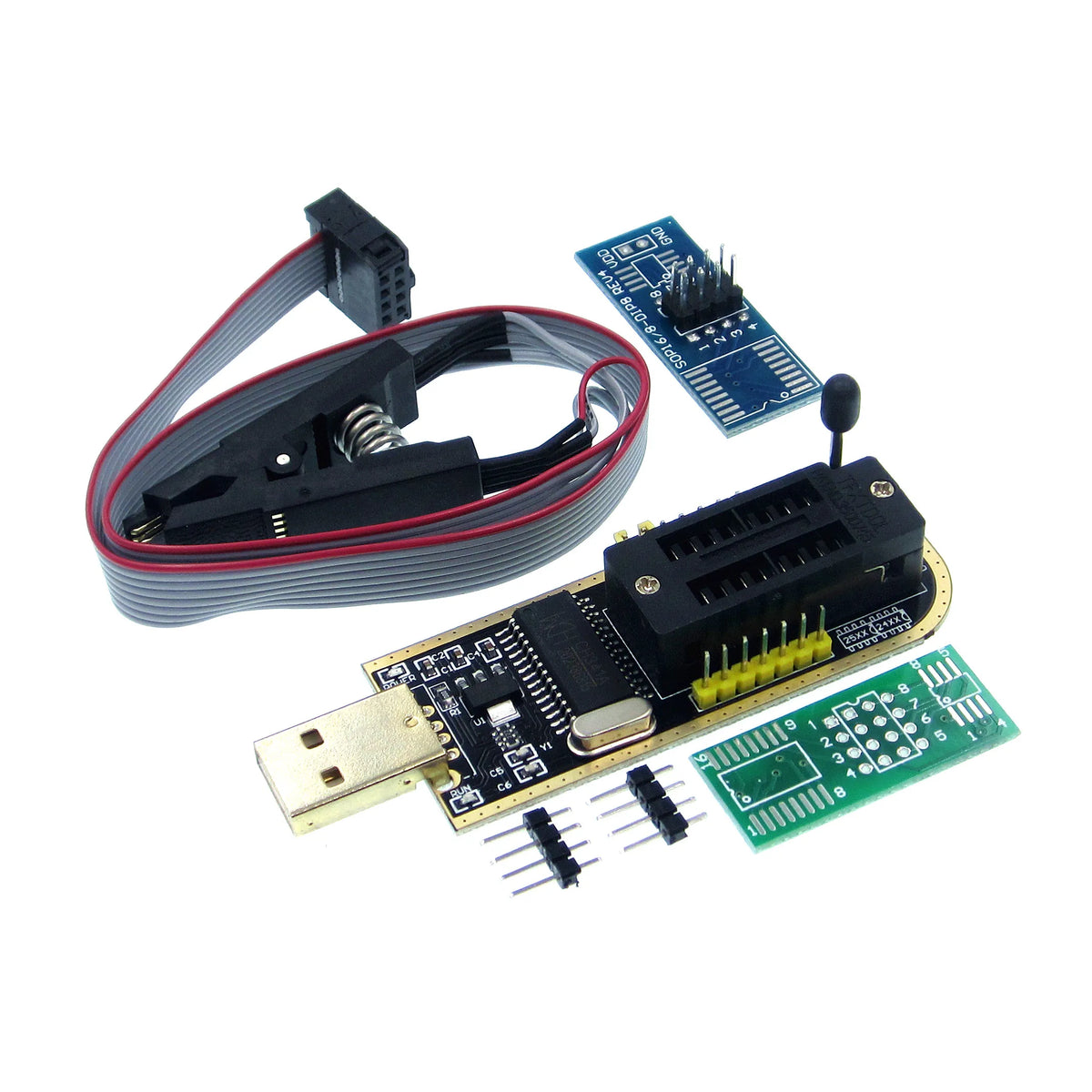

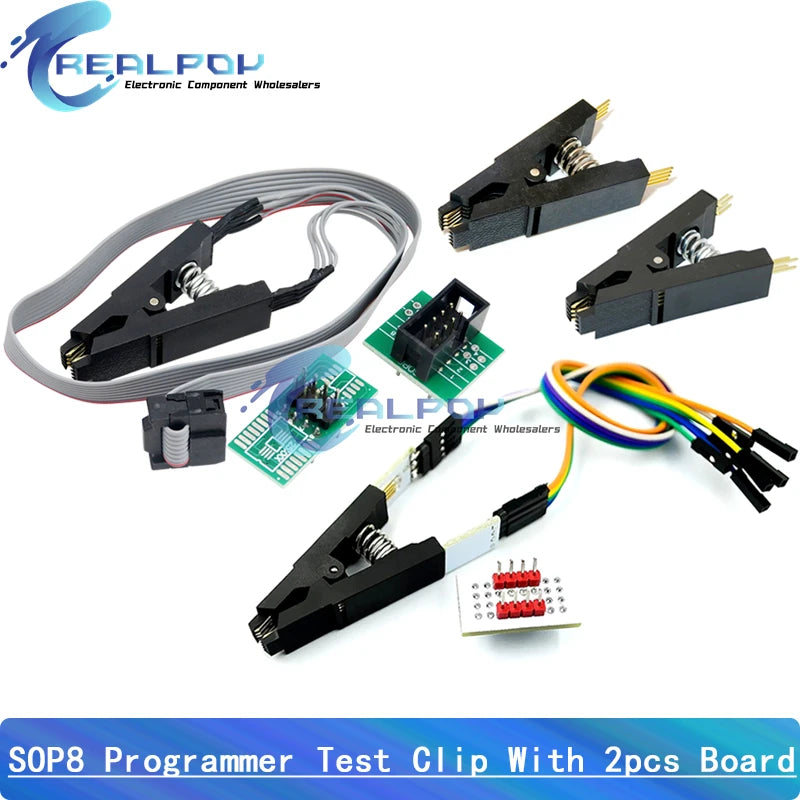

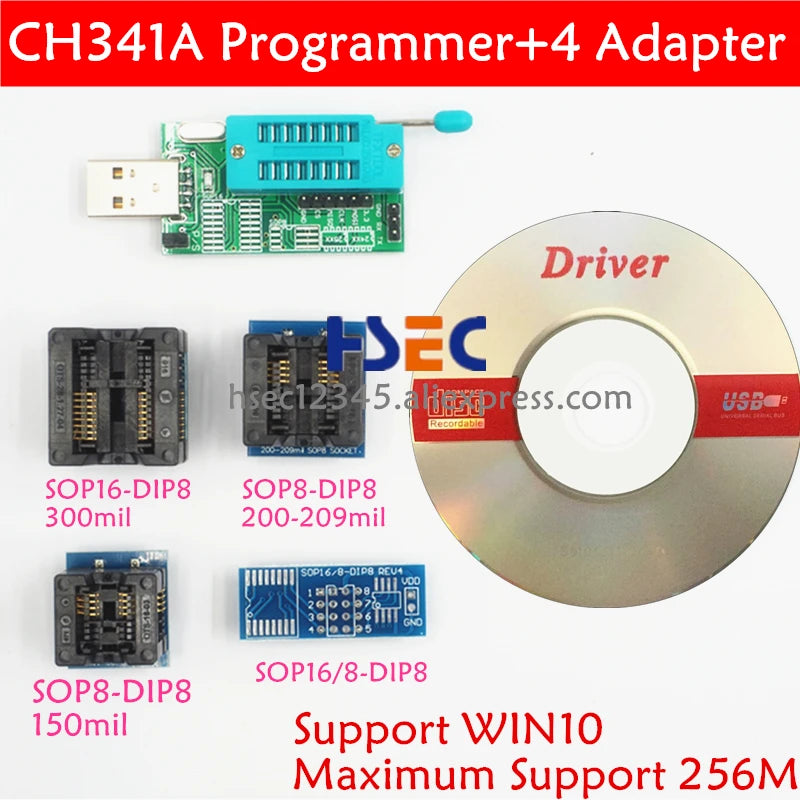

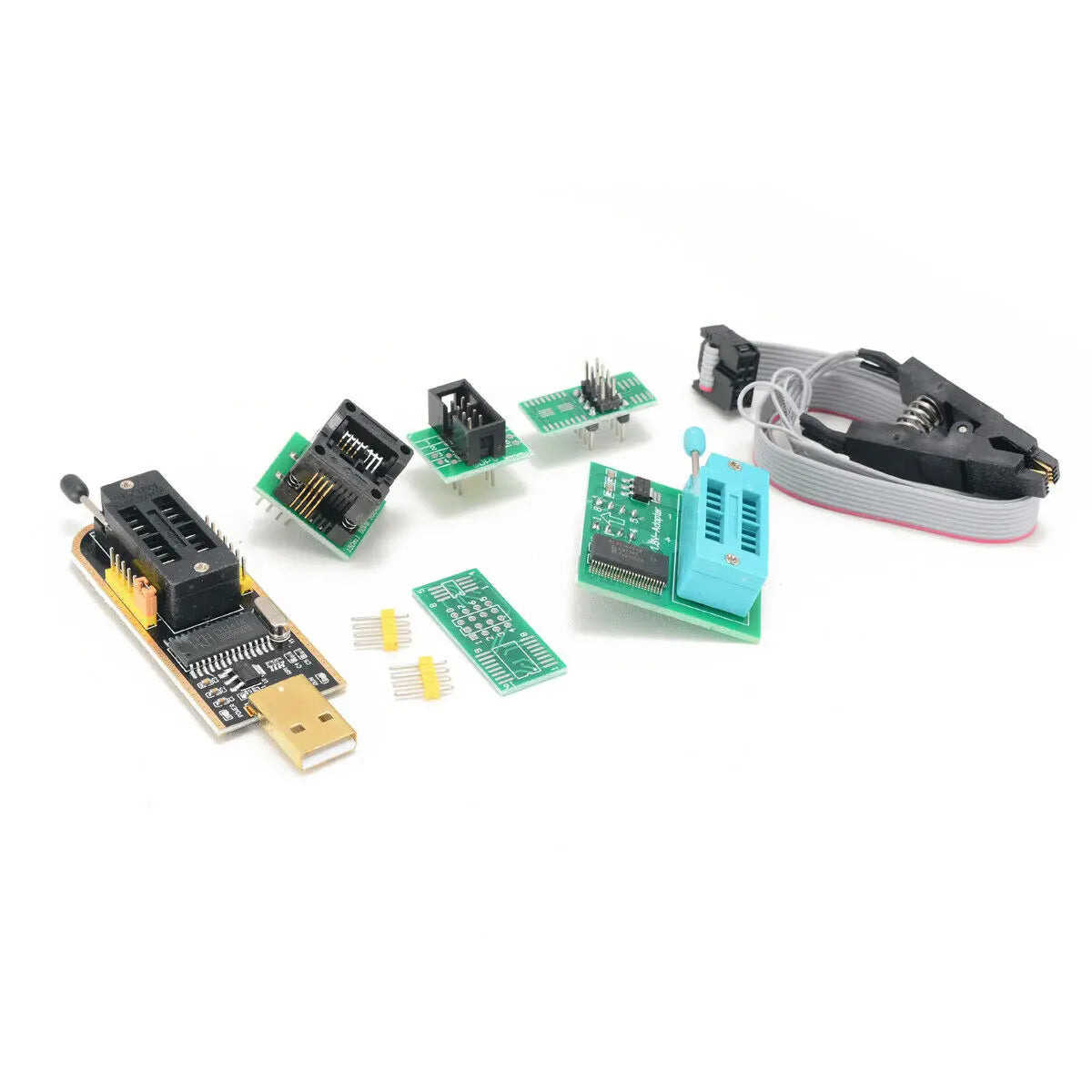

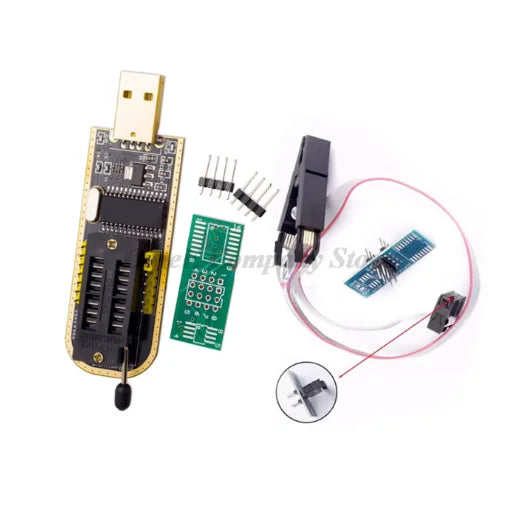

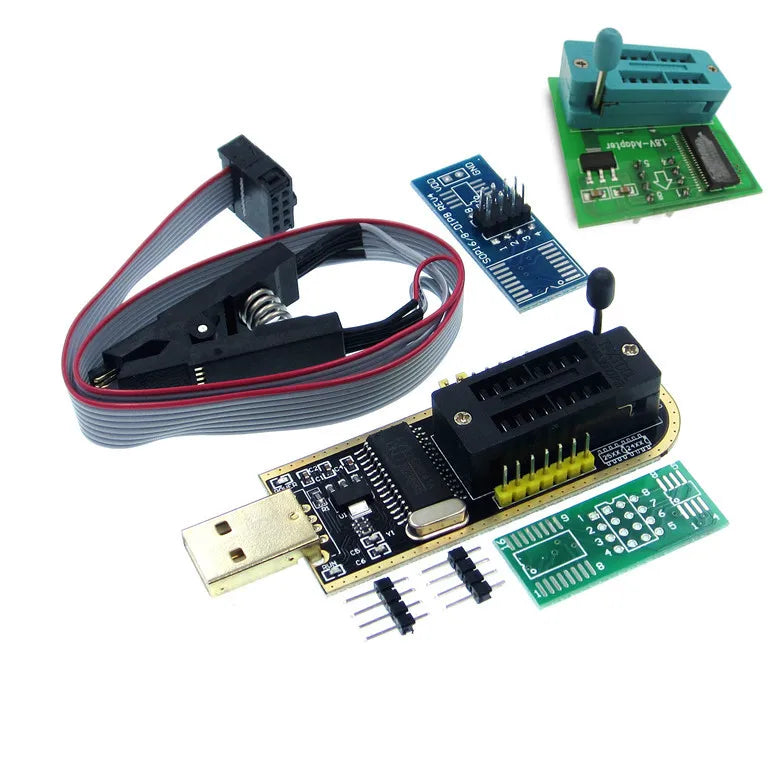

Many multi-choice listings combine 'CH341A', 'CH341B', '1 SET', 'SOP8 test clip', '1.8V Adapter', 'SOP8-150mil', 'With 1pcs Board', 'With 2pcs Board' and 'CH341A And 2 Board'. Those are different deliverables. A variant labeled 'SOIC8 SOP8 Test Clip', 'Clip', 'SOP8 Flash Chip', 'SOP8 Adapter 10pcs' or 'adapter motherboard' is not evidence that a USB programmer is in the package. Conversely 'CH341A only' need not include a clip, voltage converter or software media. One XTW100 listing separately offers XTW100, CH341A programmer, adapter motherboard, SOP8 test clip, SOP8-to-DIP8 board and 'Programmer set'. The ECU-themed listing offers SOP8, EEPROM board adapter and Full variants; the first two must not be described as complete kits. When selecting 'Style A/B', 'D/A/C/B', numbered styles, a color, 'DIY' or 'As Shown', check the photographed and enumerated contents for that specific option.

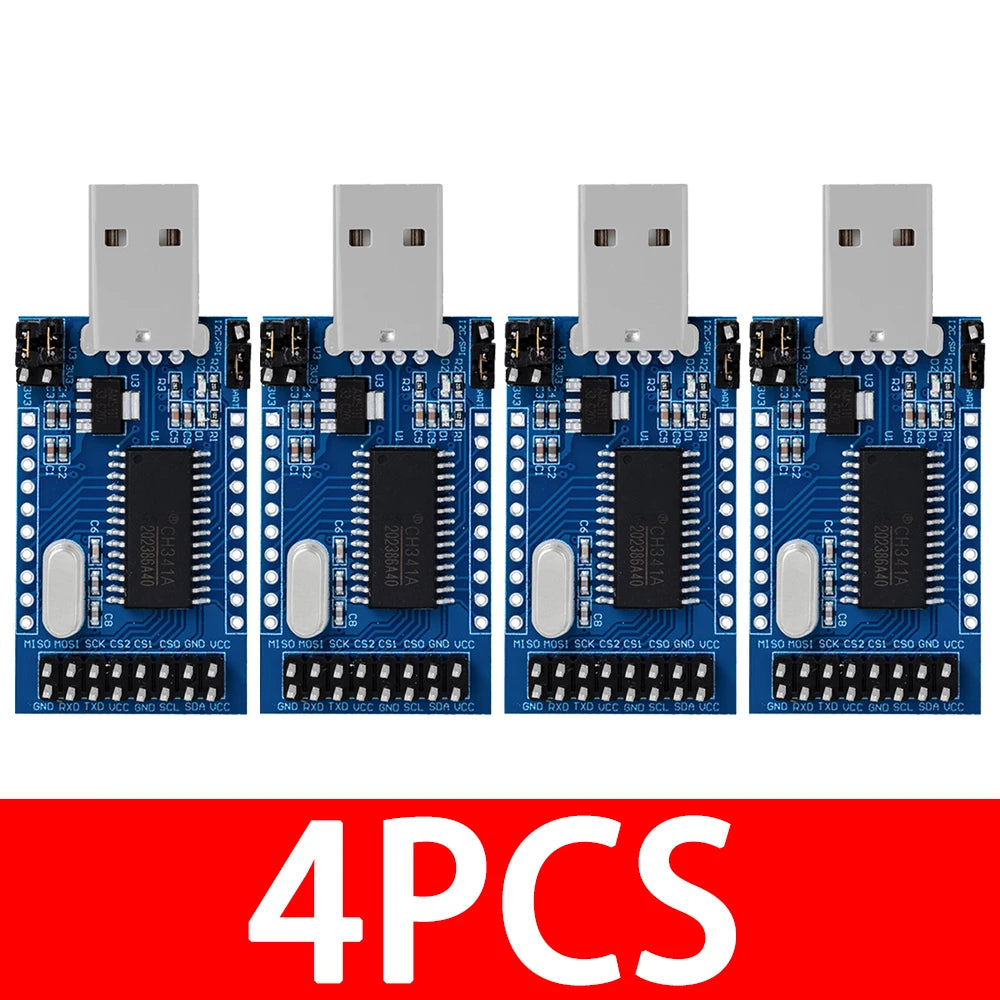

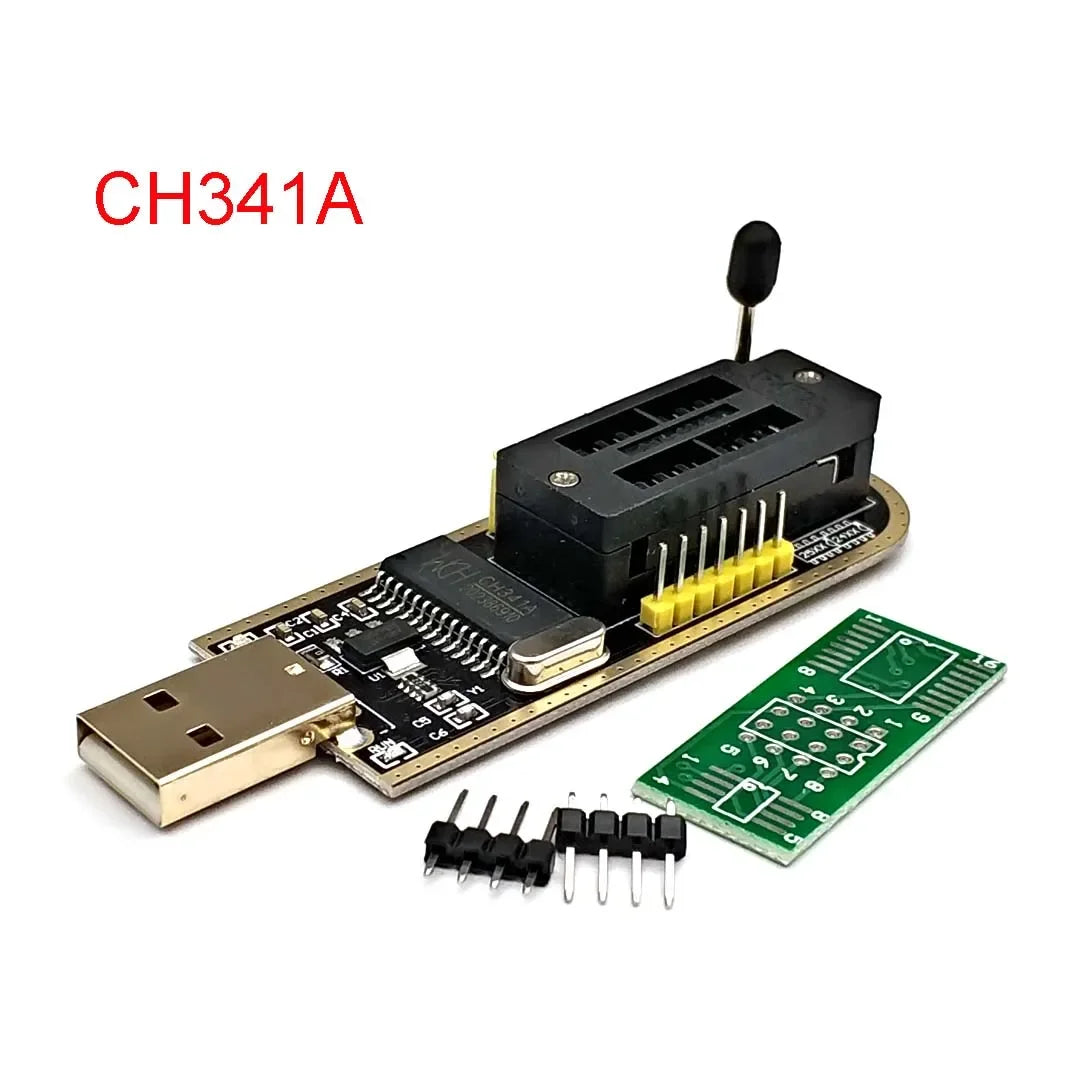

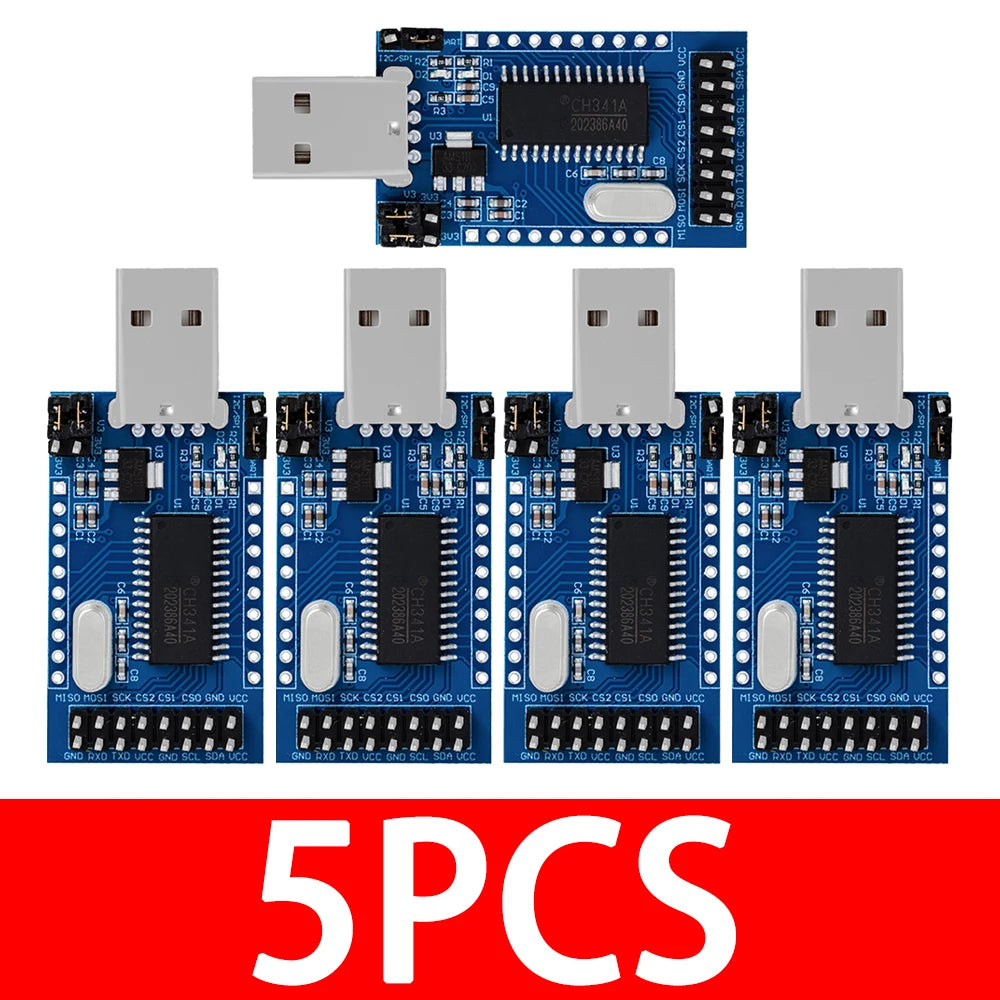

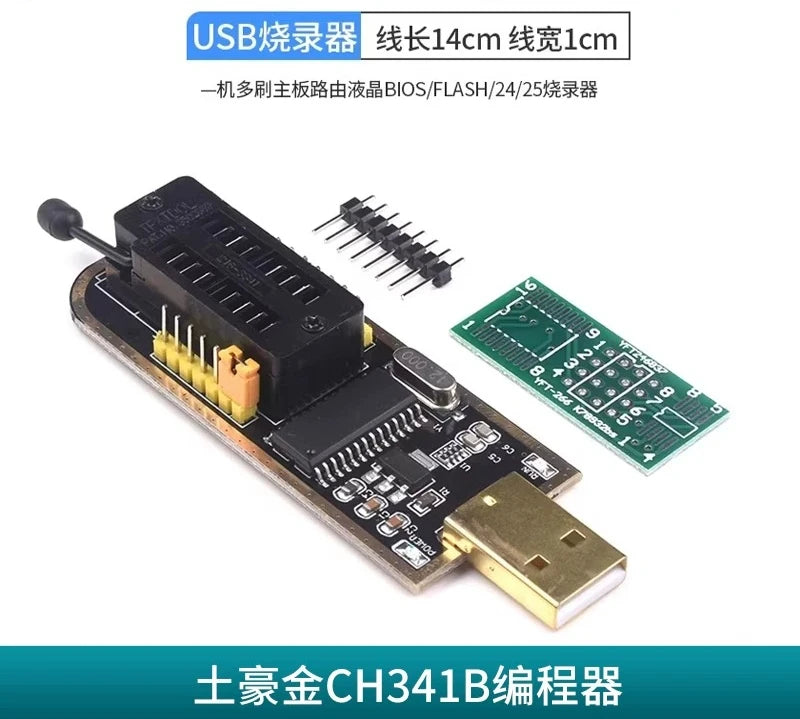

Some options are one, two or five units of the same CH341A board rather than one kit with five adapters. The CH341A/B model options should not be conflated with CH347 hardware. A separate listing offers bare CH341A, CH341B, CH375A or CH375B SOP-28 chips; these are IC components, not ready-to-use USB programmers. The XZZ mobile-phone charging-chip module offers IP15P U2, IP16P U2 and XZZ CH341A options: it is a specialized repair accessory, not proof that ordinary BIOS-flash software supports phone charging ICs.

Match the memory protocol and software support

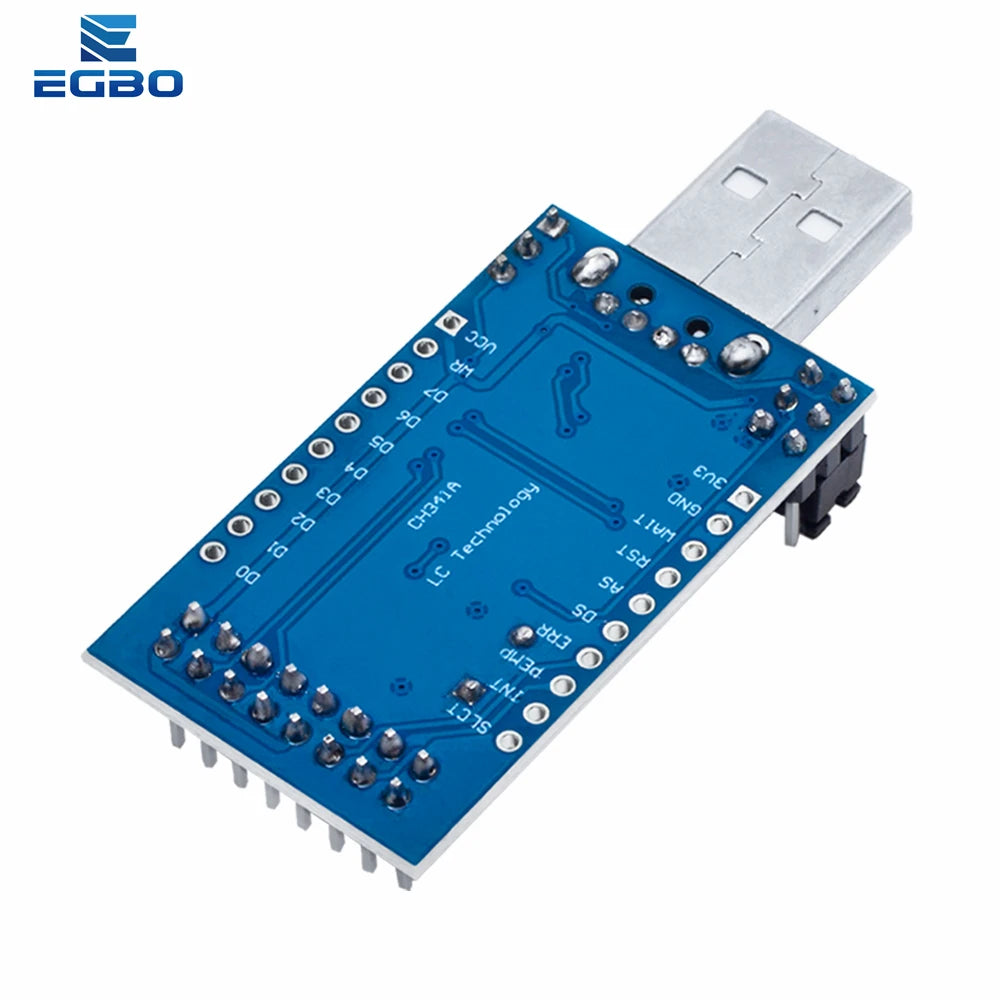

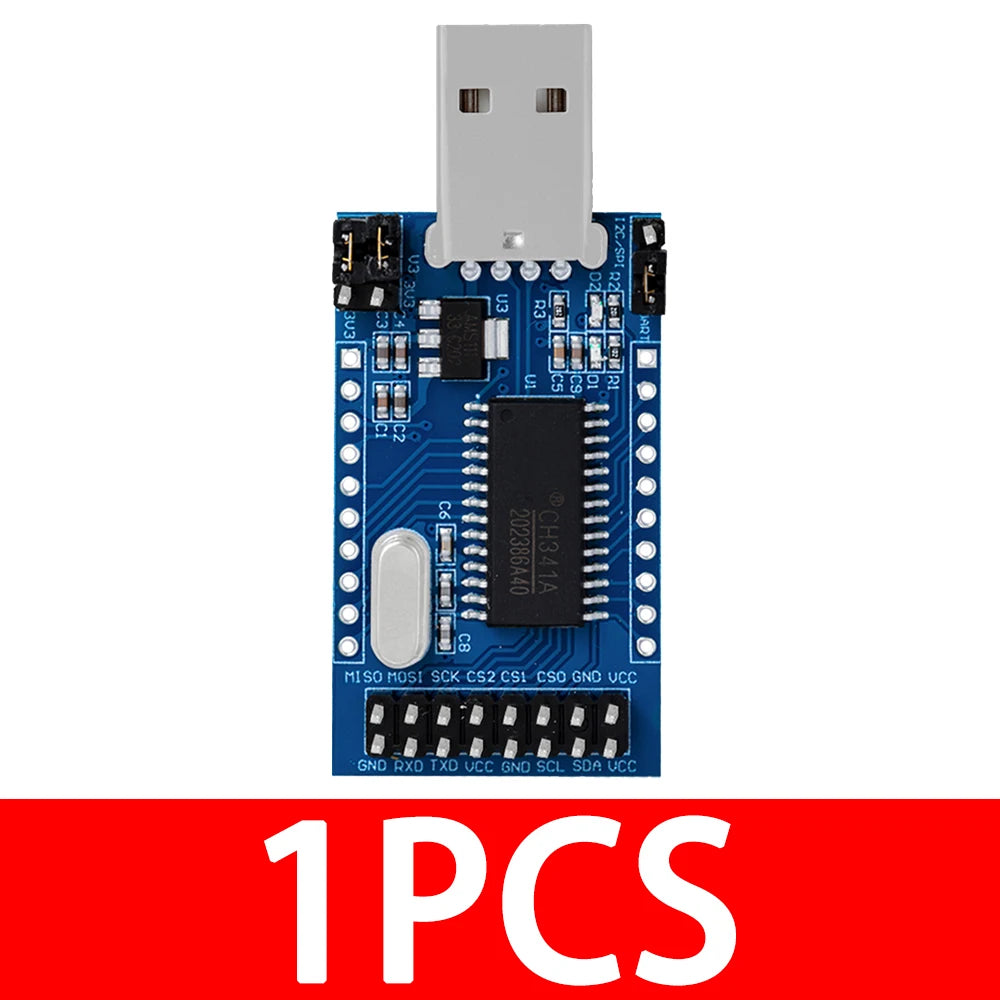

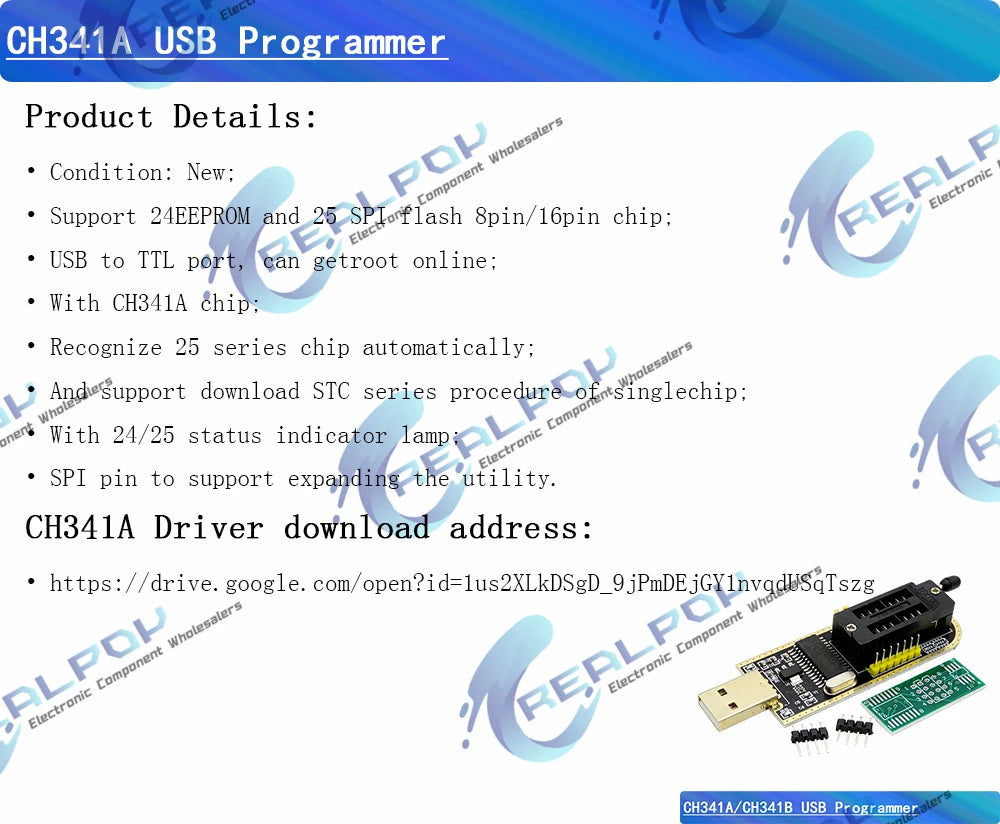

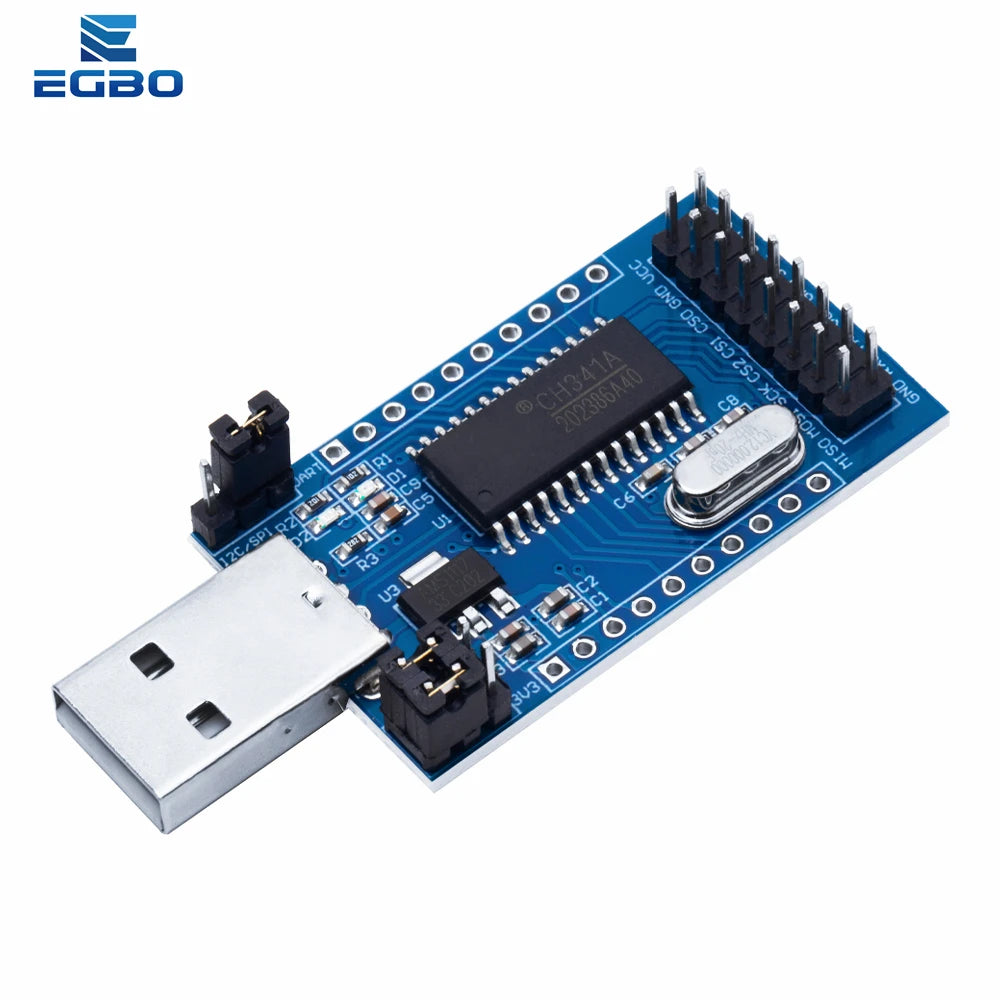

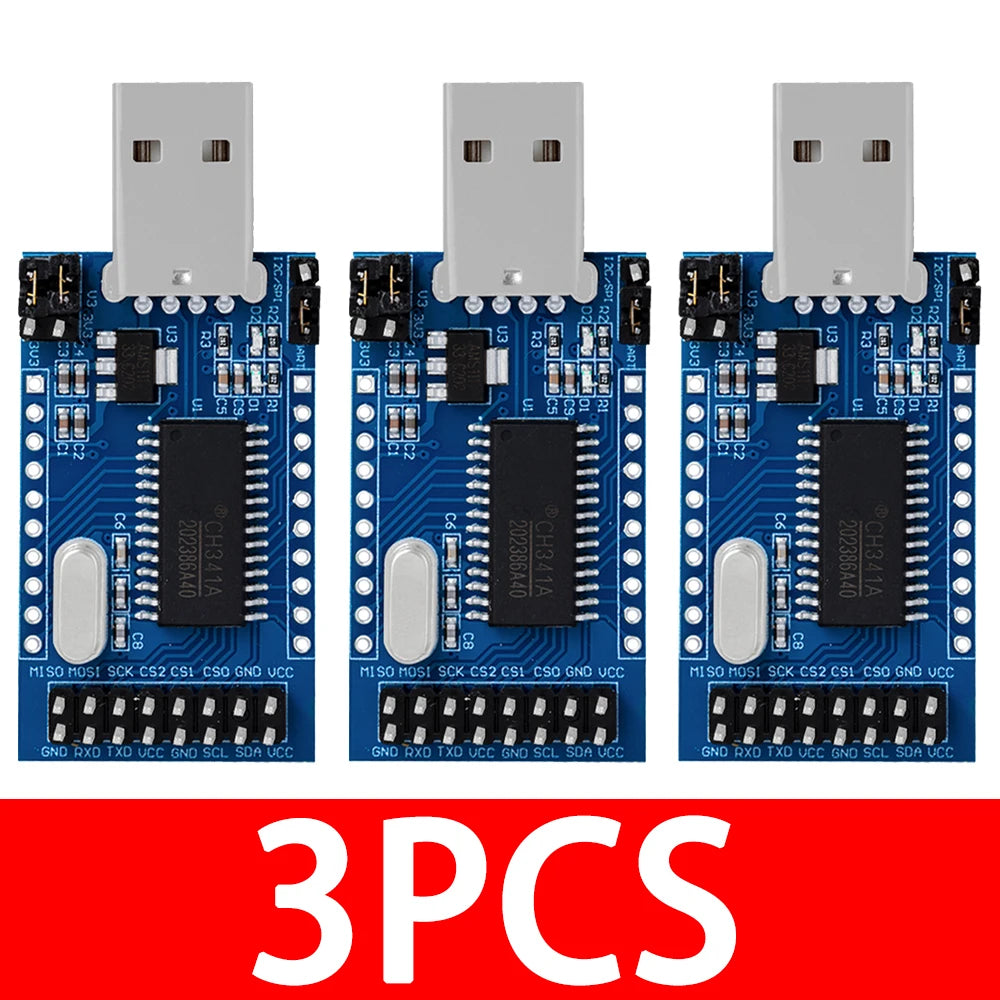

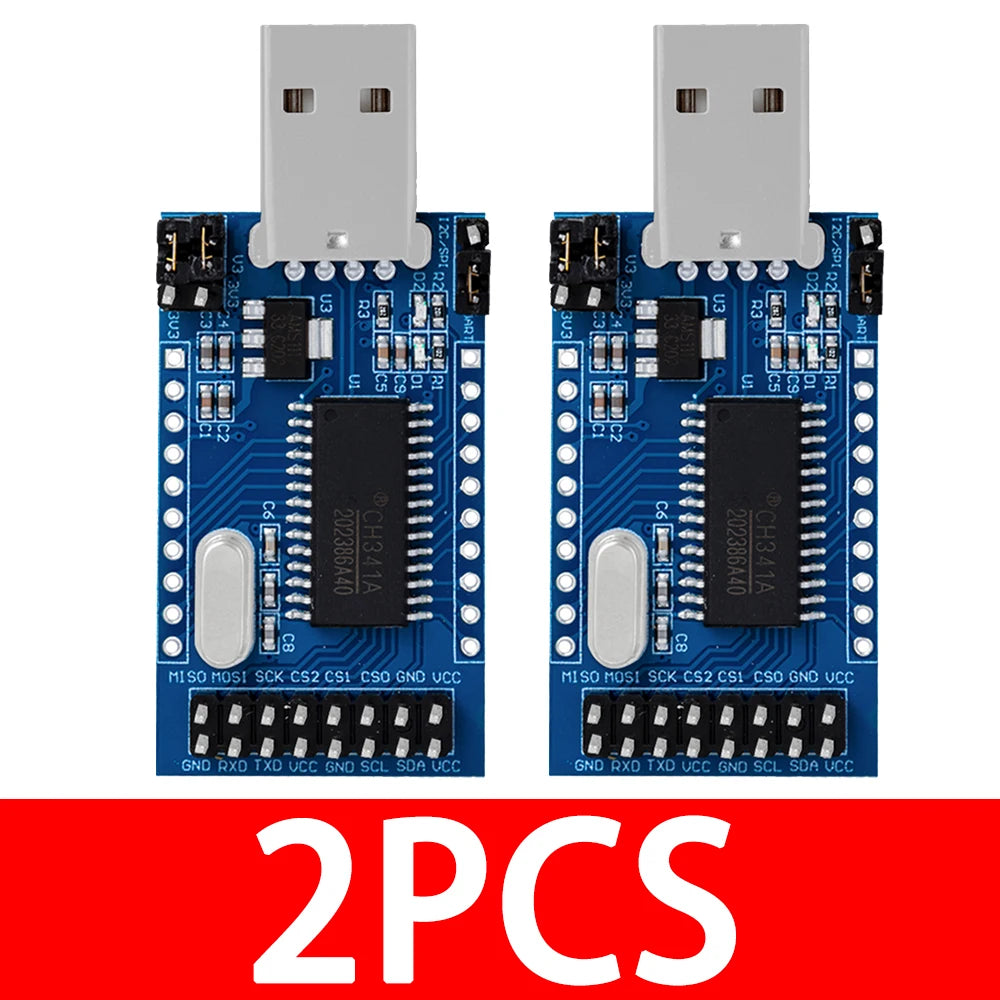

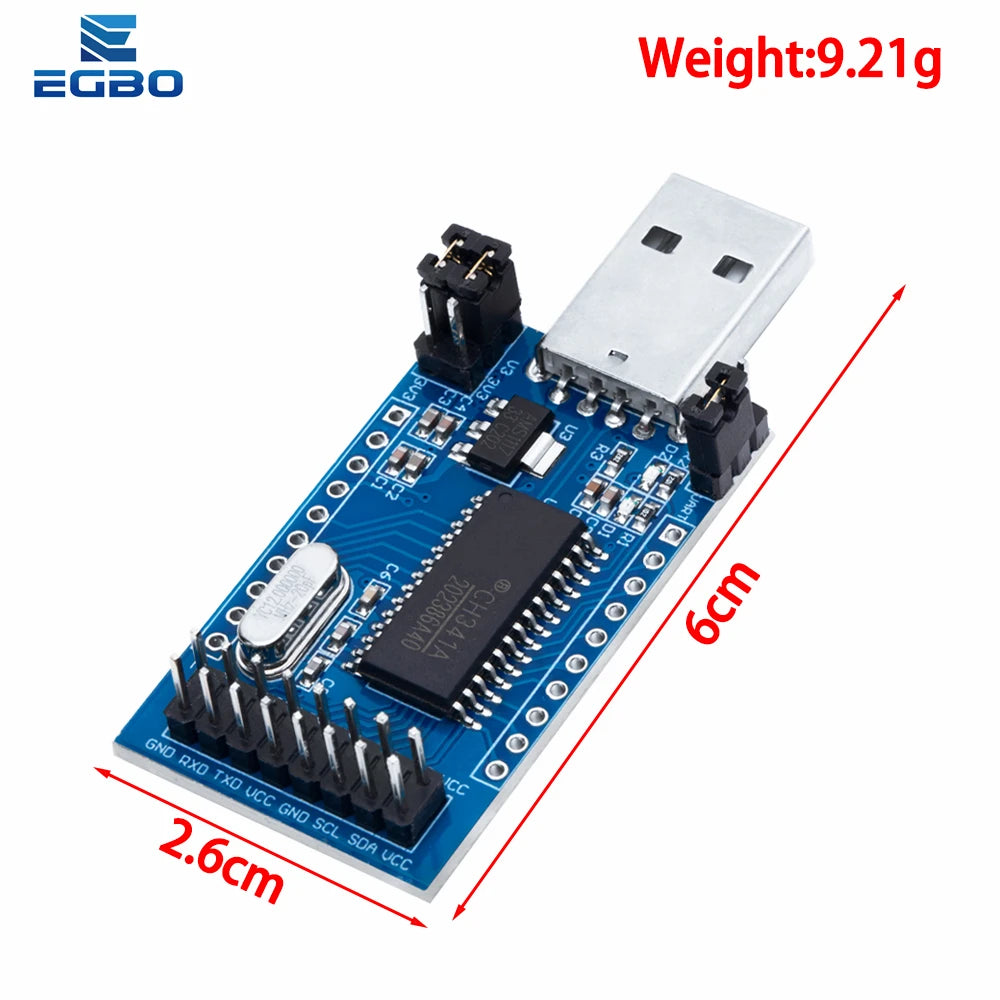

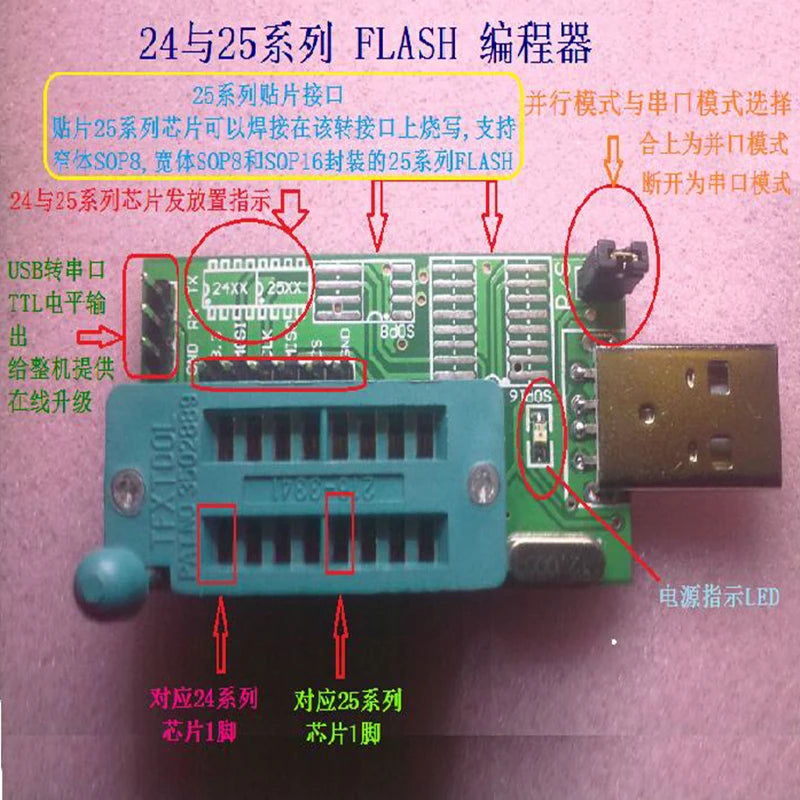

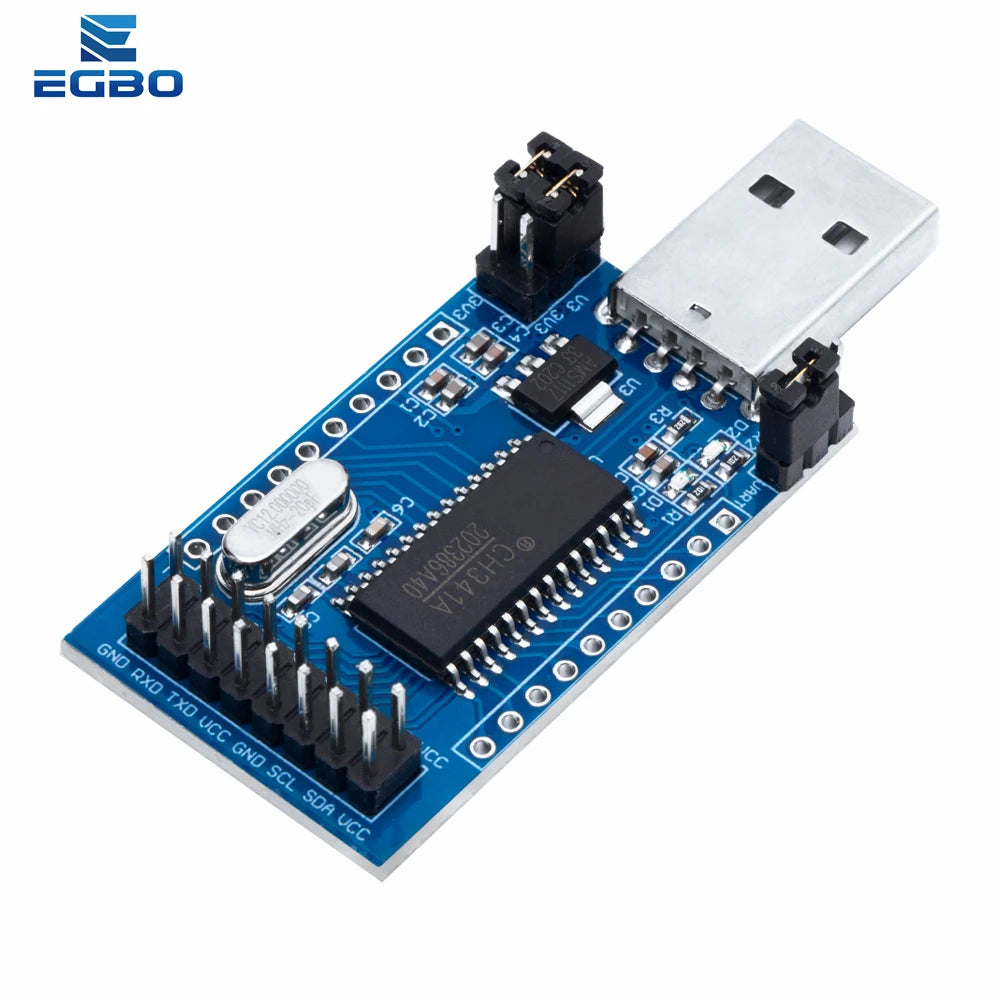

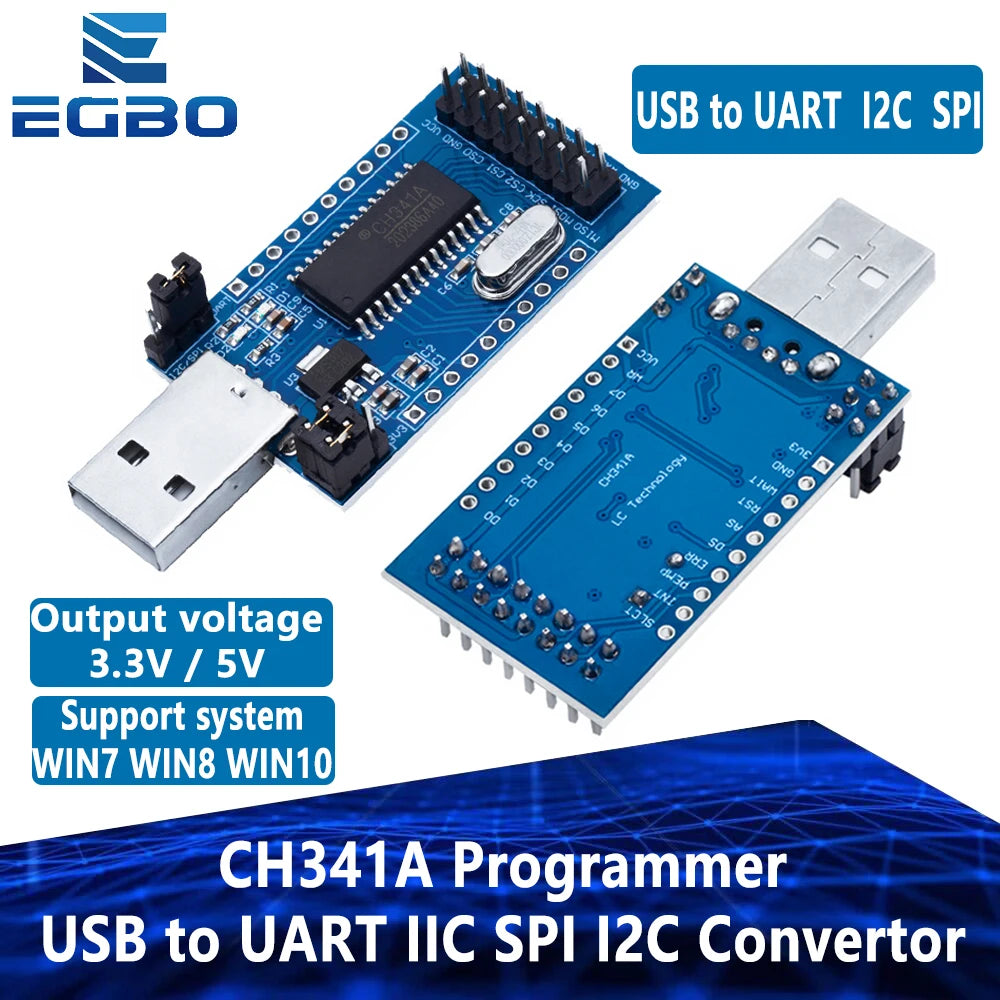

24Cxx devices commonly use I²C EEPROM commands, while many 25-series parts are SPI NOR flash; 93Cxx EEPROM has a different serial protocol. The '24/25/93' claim in a title is not a verified supported-device list for every chip suffix, memory density, command mode or configuration. Compare the full target part number with current programmer software, the board revision and the wiring or socket specification. The tool may provide a USB-to-I²C, SPI, UART or parallel interface in other modes, but an interface capability is not a guarantee that a particular memory device can be read or written safely. A CH341A USB-to-UART/IIC/SPI/EPP converter listing is a general interface module; it need not supply a memory socket, clip or turnkey BIOS software. The CJMCU-341 RS232/RS485/RS422 module is a serial converter, not equivalent to a flash programmer.

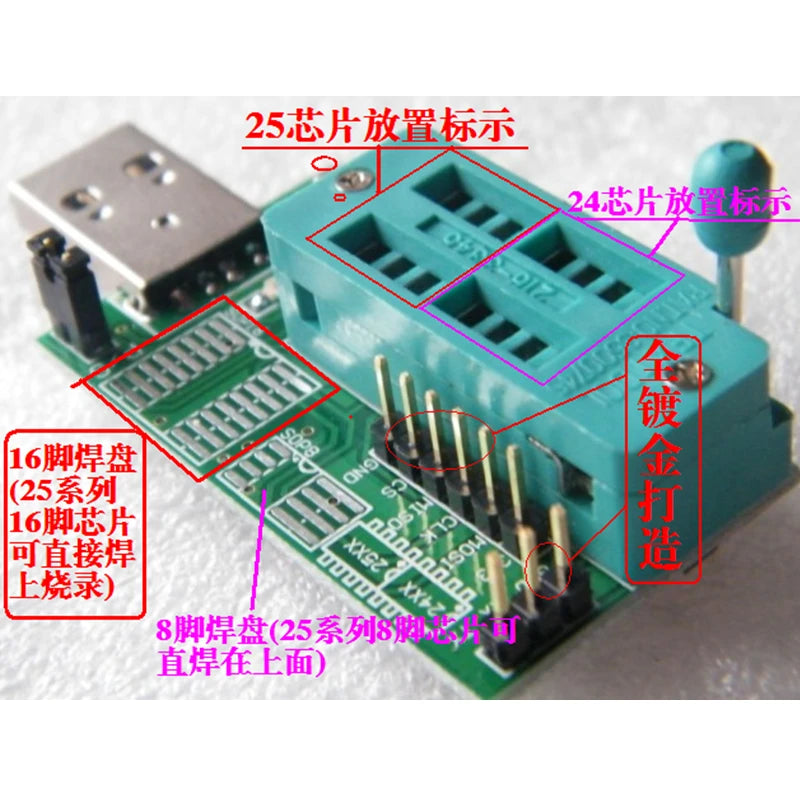

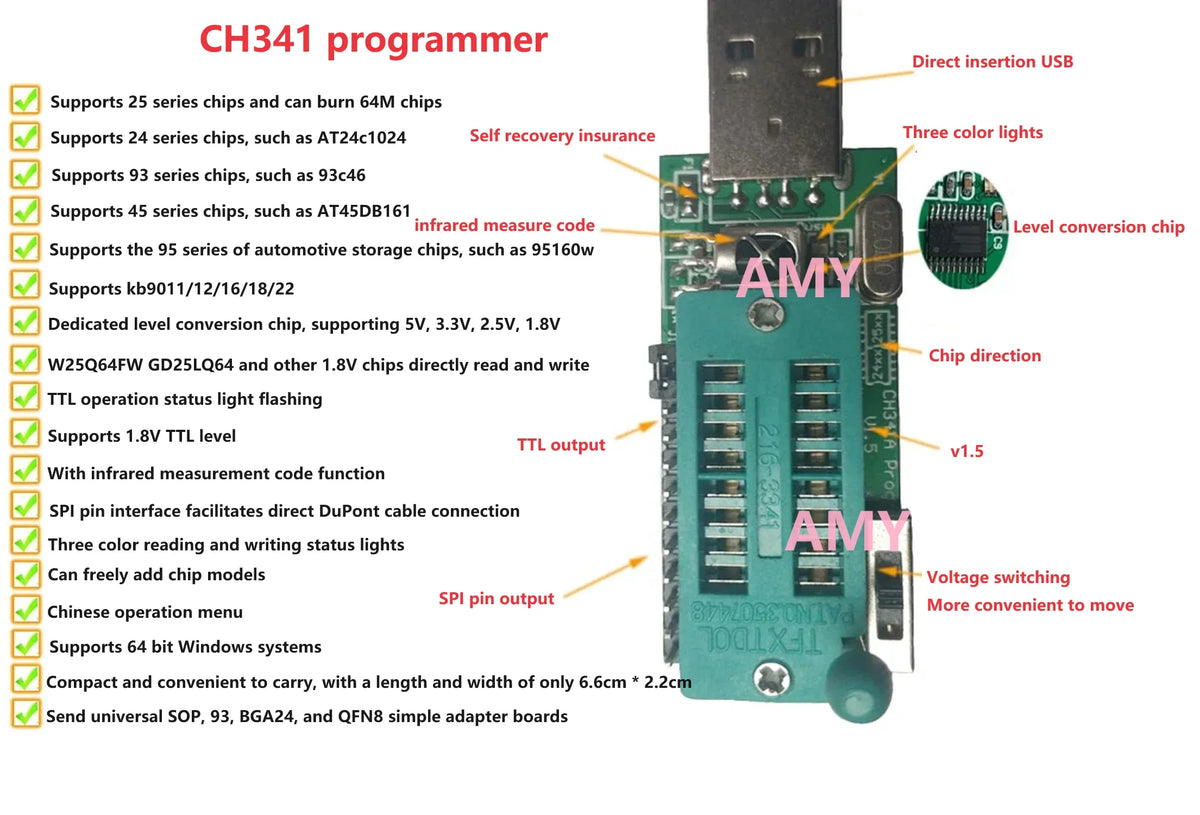

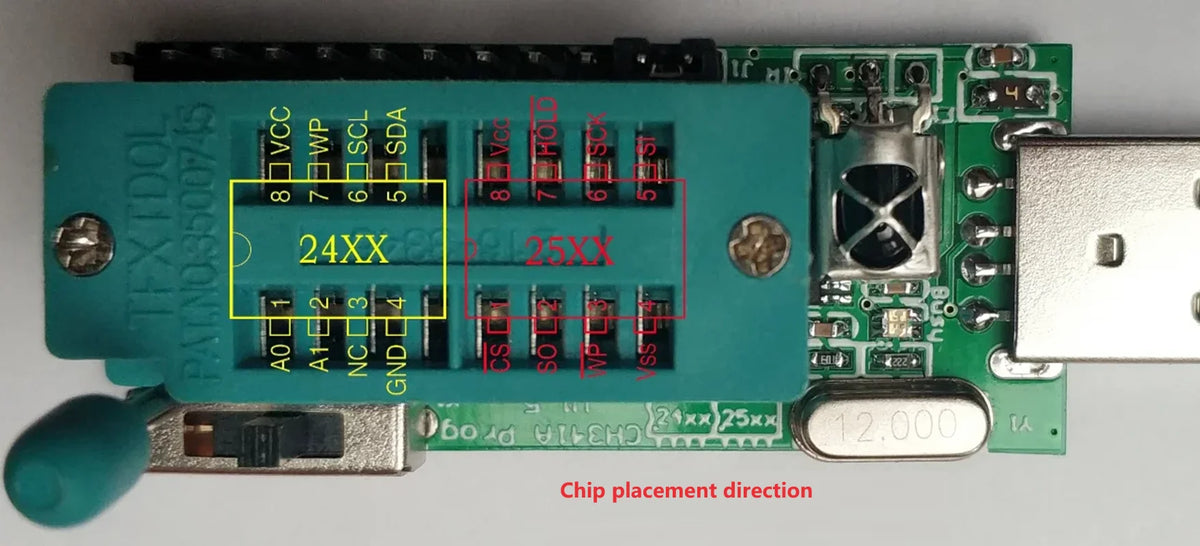

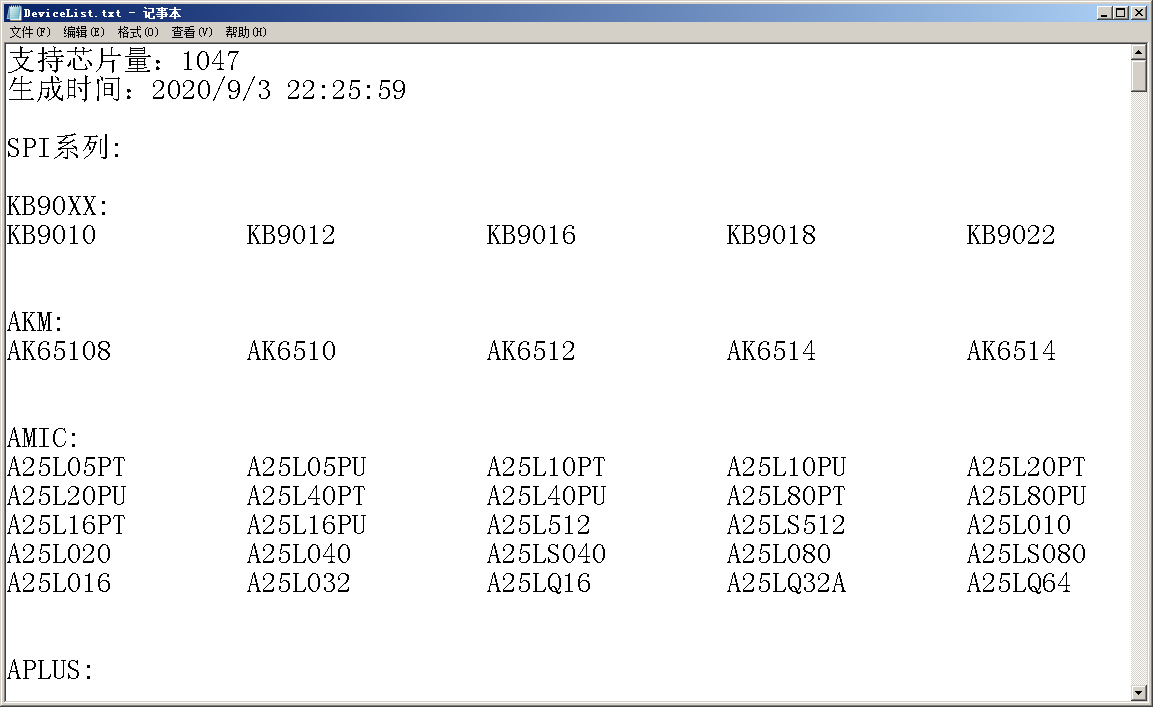

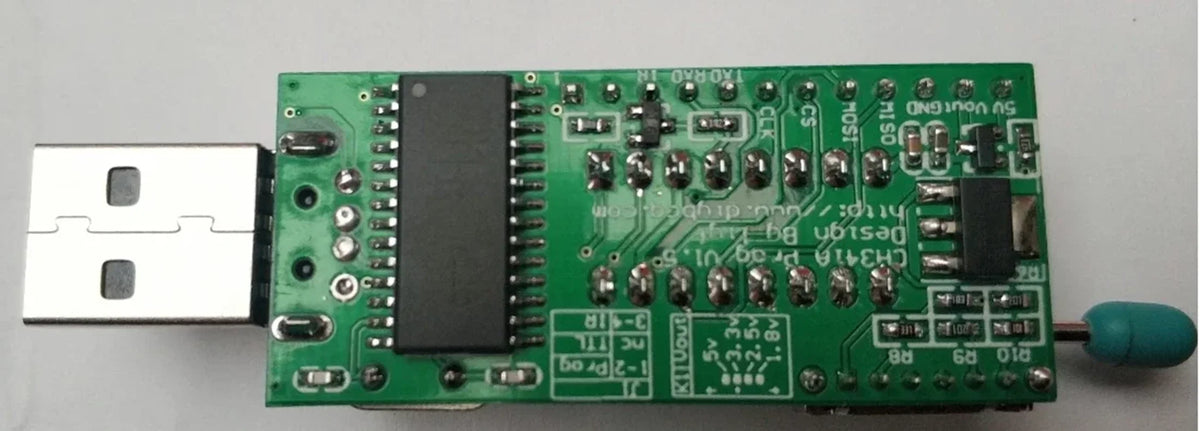

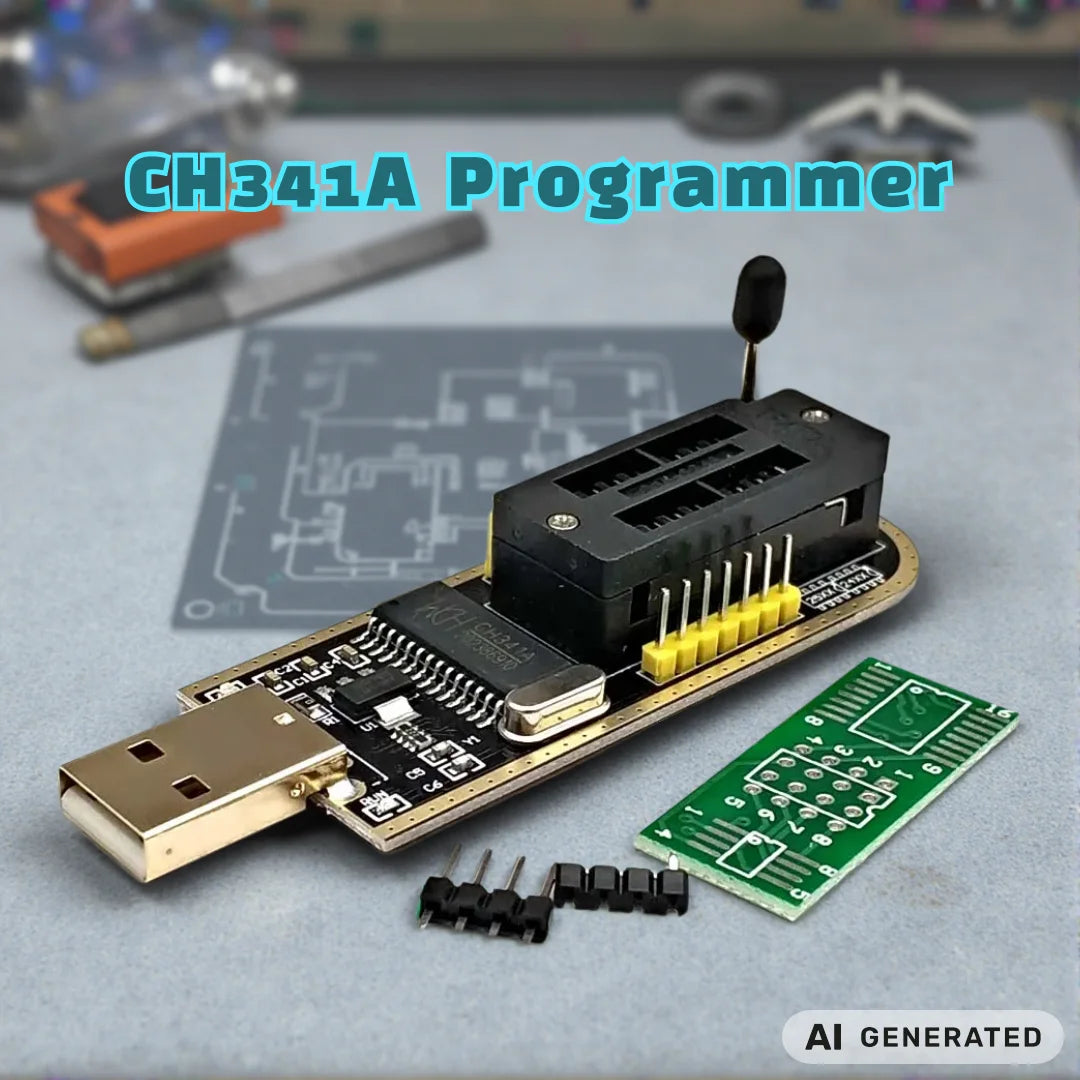

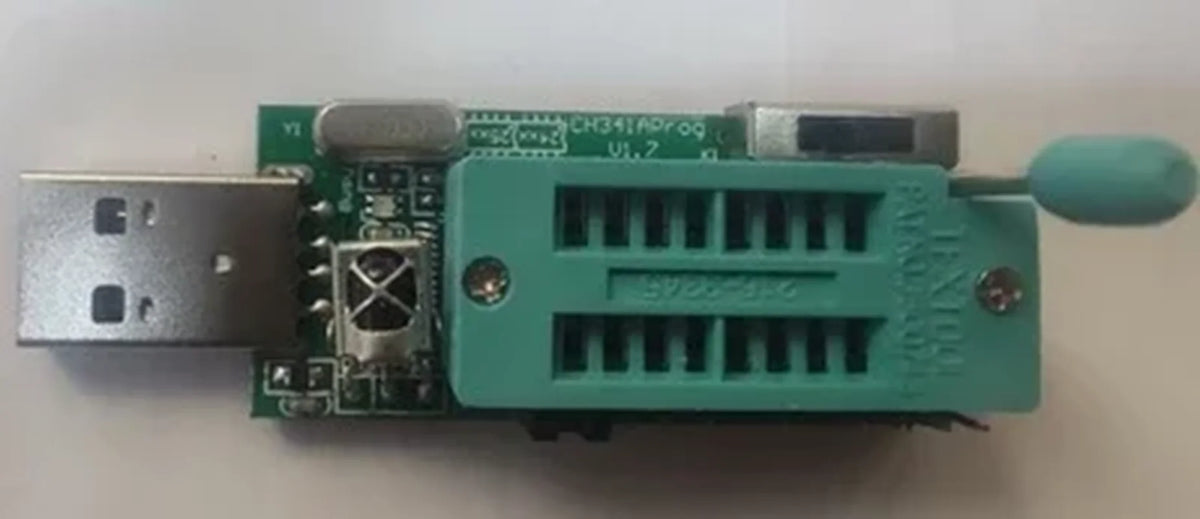

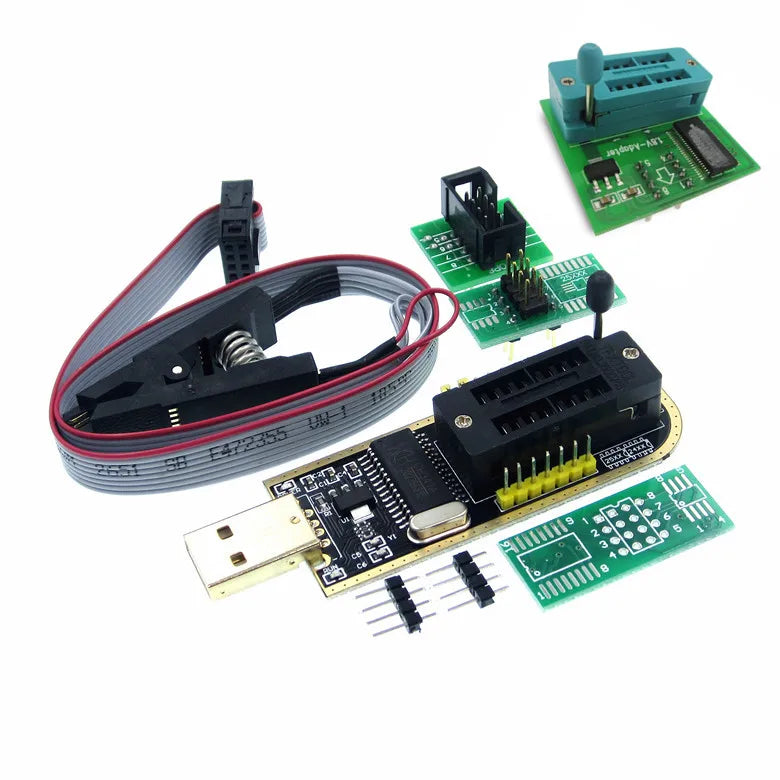

CH341A V1.7 listings claim an integrated 1.8 V level shifter for examples such as W25Q64FW, W25Q128FW and GD25LQ64. Treat that as a claim about a particular assembled revision, not a guarantee for all CH341A boards or chips. CH347 'automatic' versus 'toggle' and CH347 with or without a 1.8 V option are distinct variants. FT232H, T48 and RT809H listings are different programmers with their own software, supported devices and socket ecosystems; 'replace CH341A' or 'superior' in a heading does not establish identical pinout or workflow. RT809H Standard and Premium may differ in included accessories. Verify current device lists, software provenance, computer OS support and firmware versions before buying, rather than relying on outdated driver links or universal-programmer counts in supplier descriptions.

Voltage and target-board safety

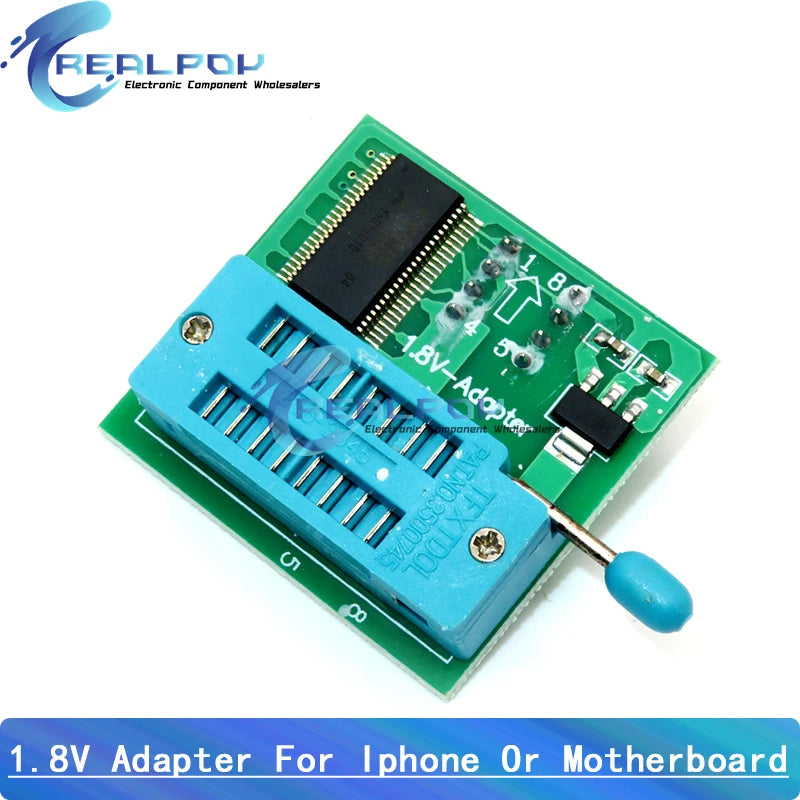

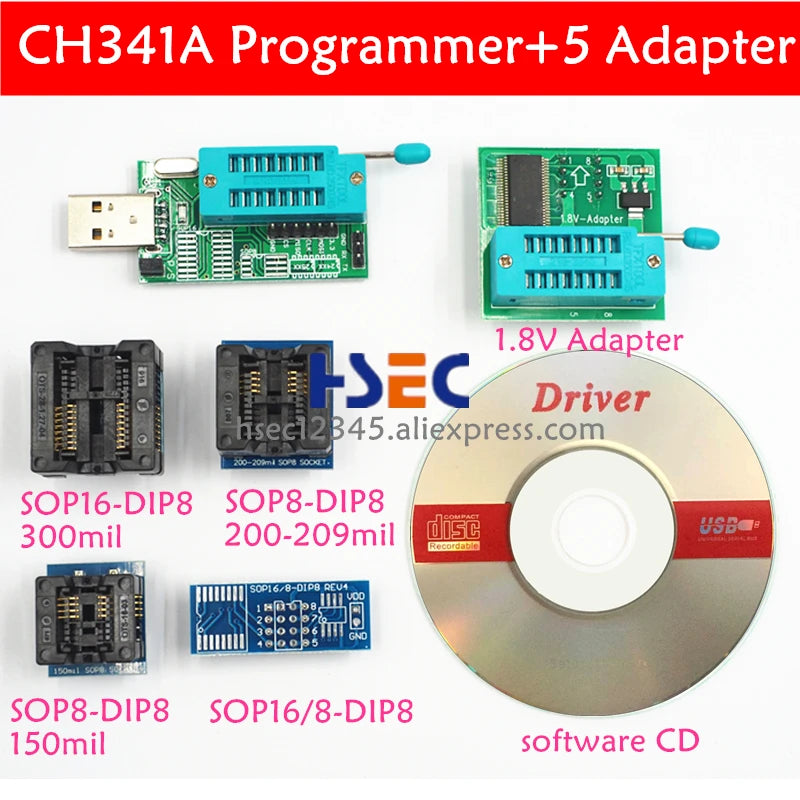

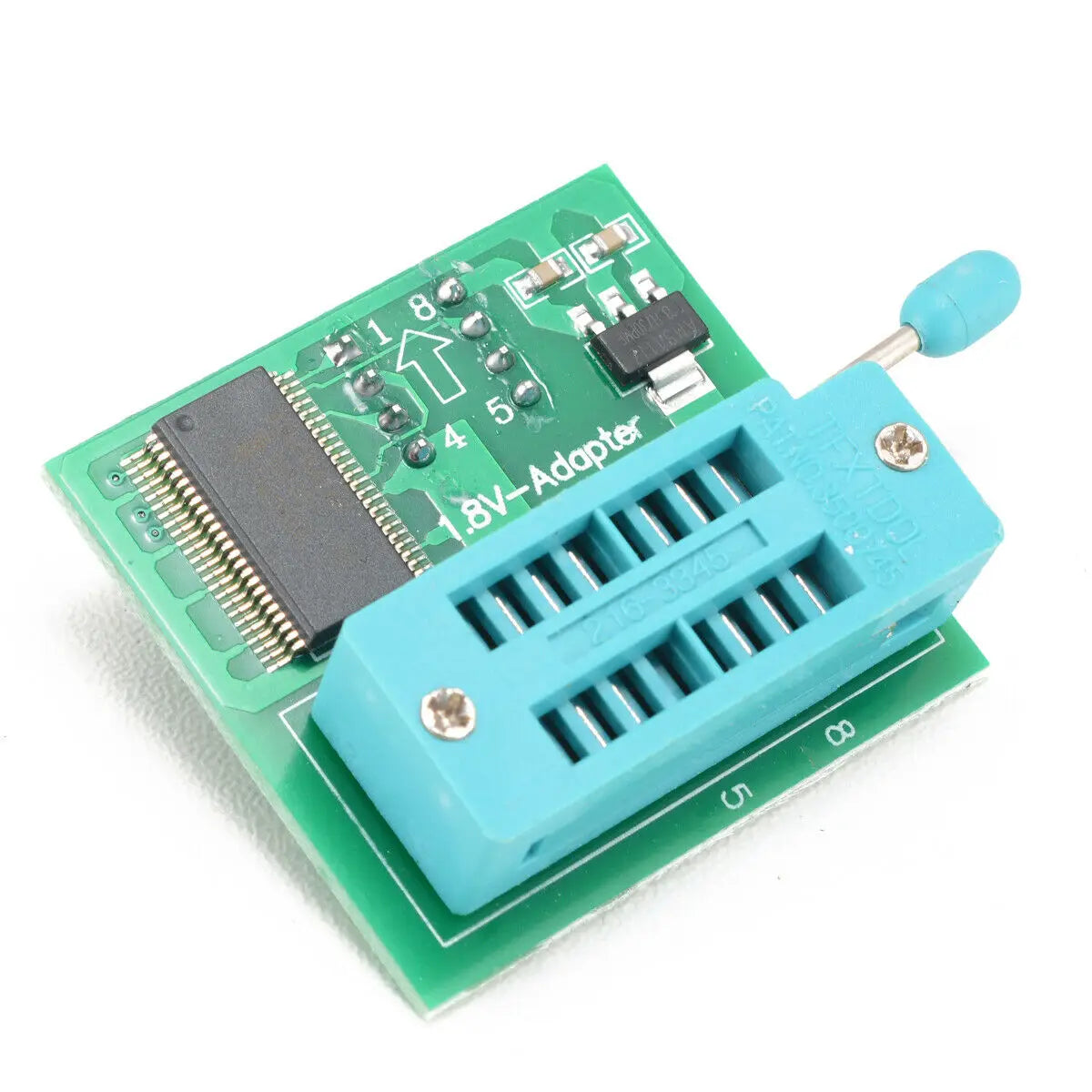

A target chip's VCC and I/O limits govern the programming interface. Verify the exact chip suffix and measure the actual selected programmer board's supply and signal levels with appropriate equipment before connection. A 1.8 V SOP8-to-DIP8 adapter is not storage and does not automatically make every 3.3 V or 5 V programmer safe: its level translation, chip supply, pin map and host-board backfeed path all need to be correct. Listings advertising 1.8/2.5/3.3 V support, 'auto-detect' or 3.3-to-5 V outputs require validation for the actual board revision and every signal. A phone or motherboard mention is not a compatibility guarantee. Never apply programmer power to a live board without evaluating power-domain contention and isolation.

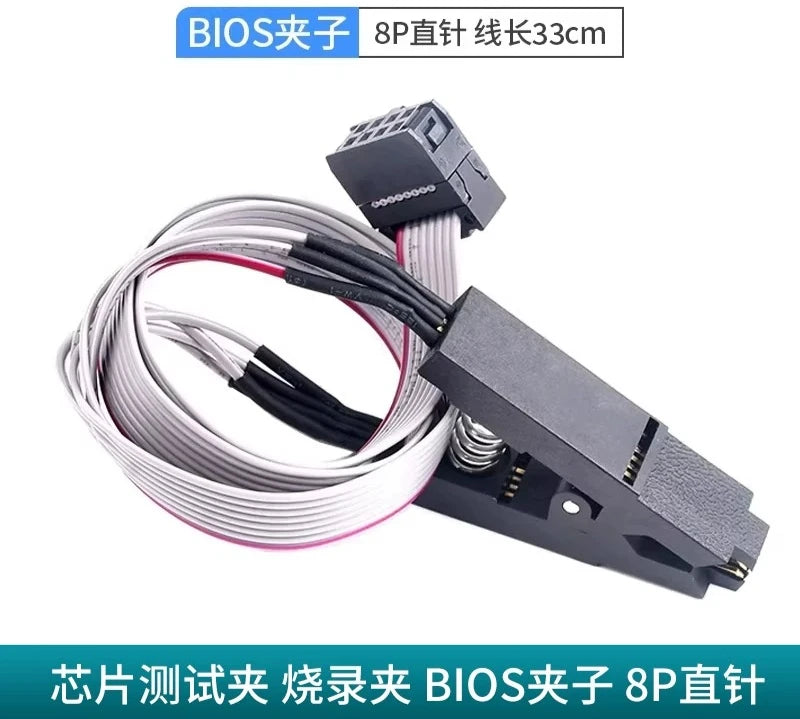

An in-circuit clip can be affected by other components on the same bus, target power rails, pull-ups and protection circuitry. A read that changes between attempts is not a trustworthy backup. Some chips may need removal and an appropriate off-board socket by a qualified technician. Do not assume a programmer can defeat hardware write protection, encryption or secure boot. Before modifying firmware, save and compare multiple independent reads and preserve board-specific serial numbers, calibration, licenses and security data. A successful write-and-verify step does not guarantee a board will boot or that the firmware image is appropriate.

Package adapters, clips and probe geometry

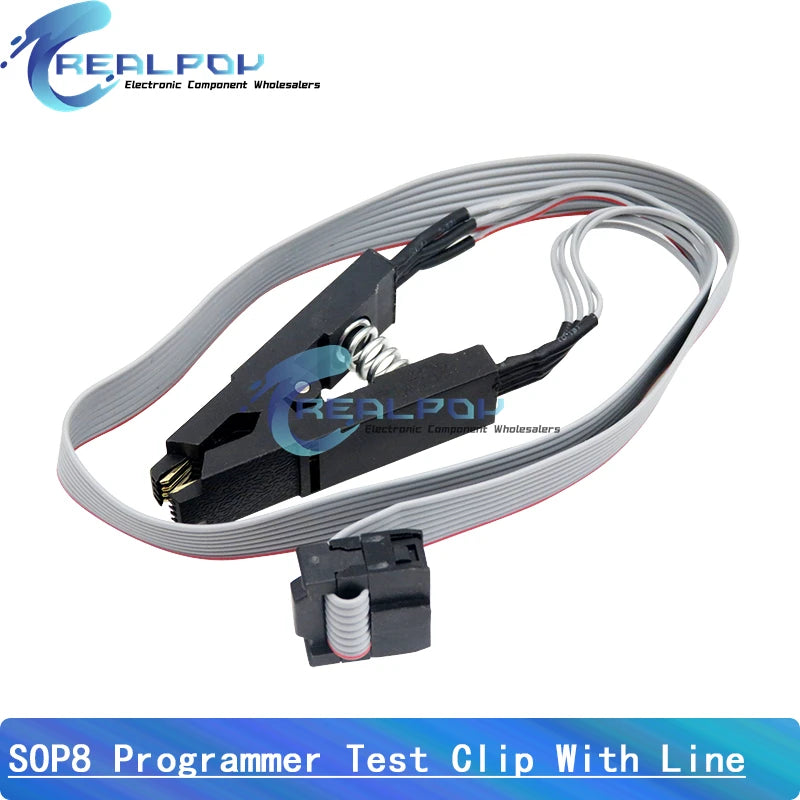

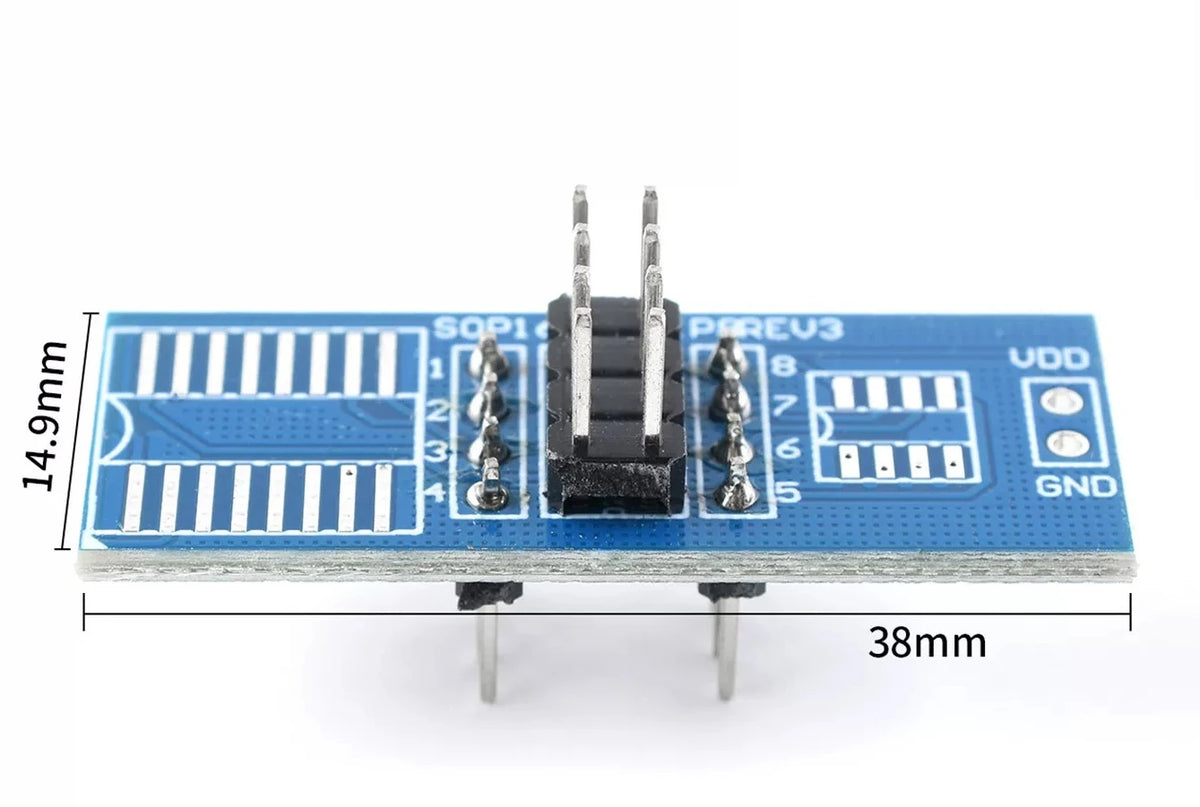

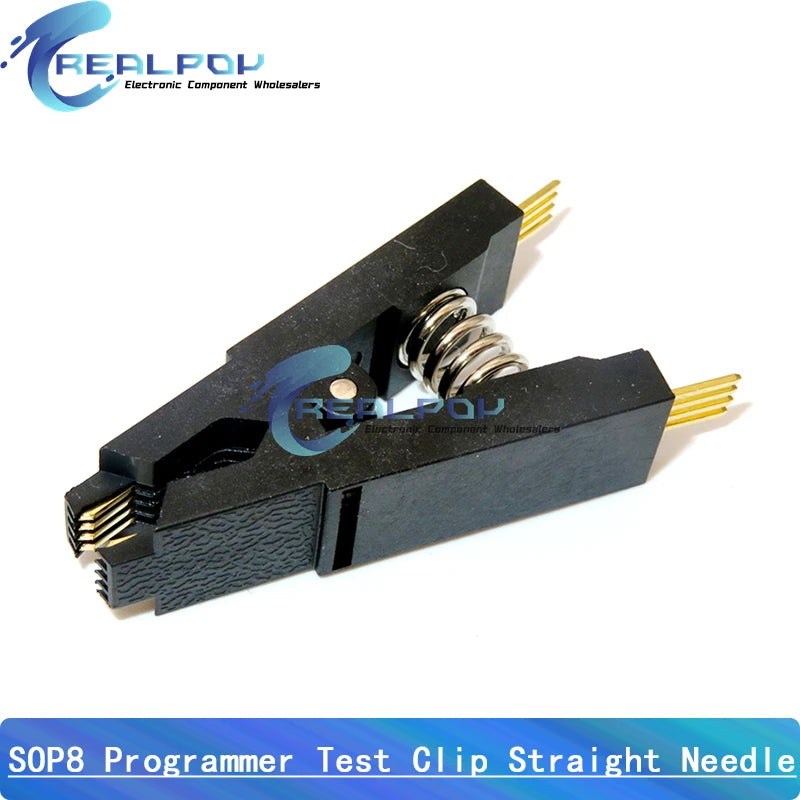

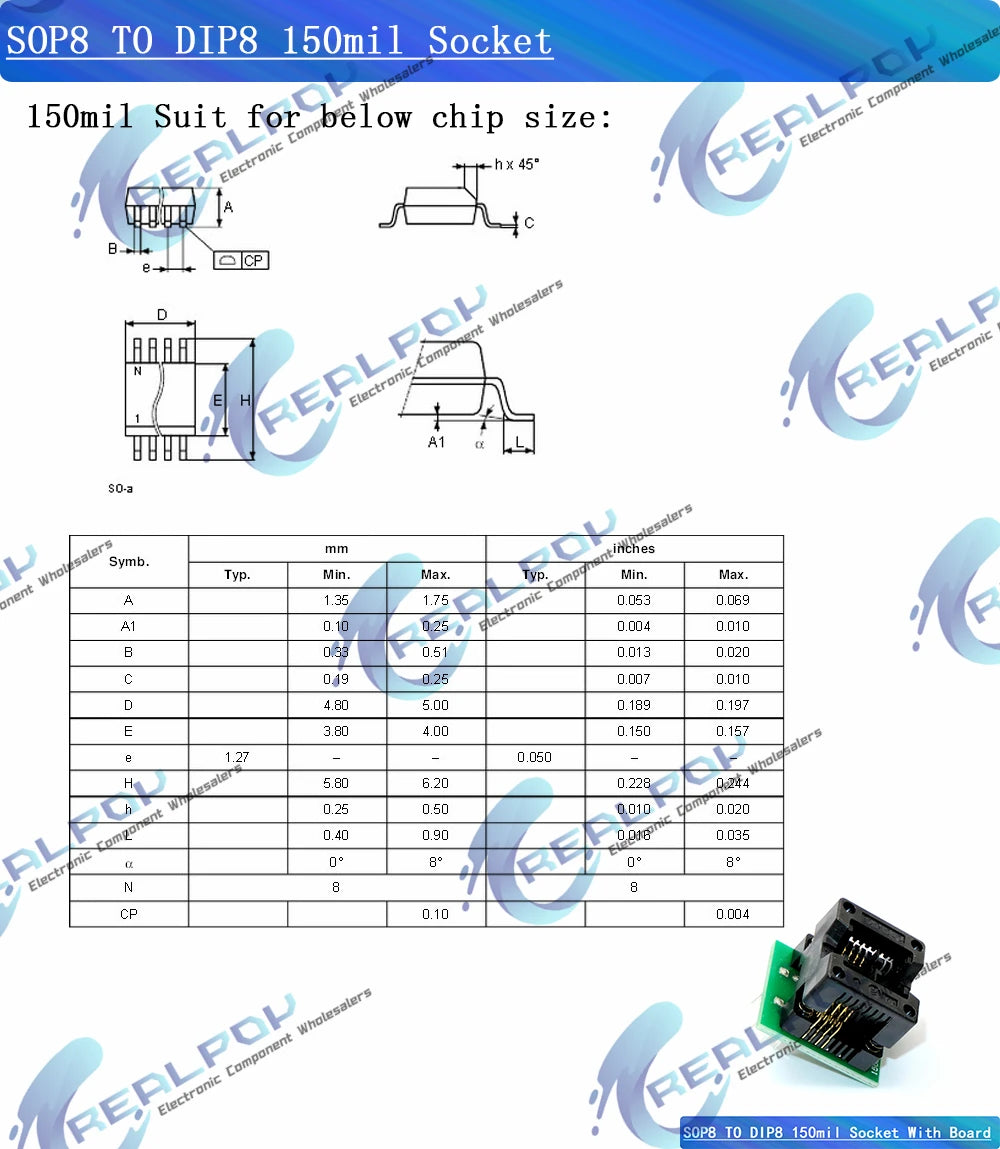

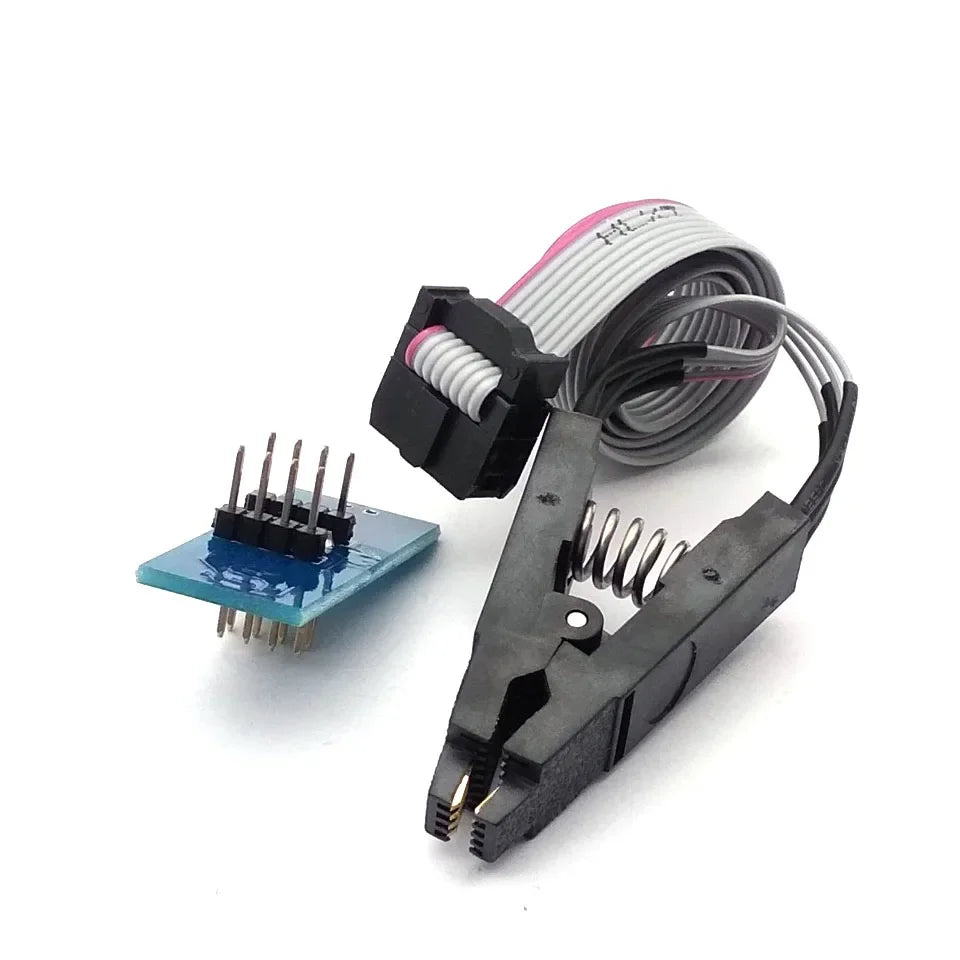

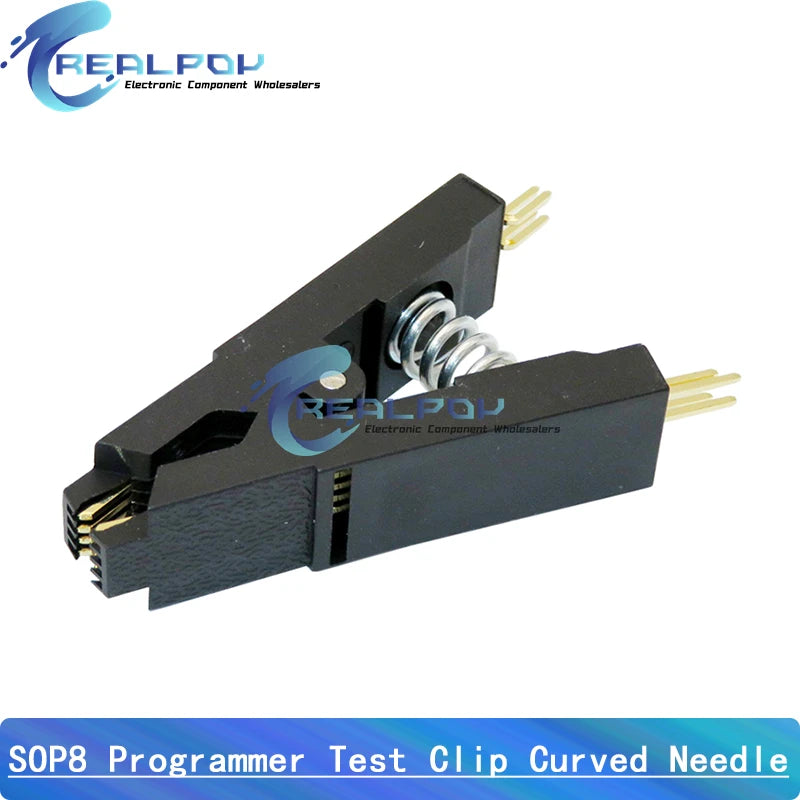

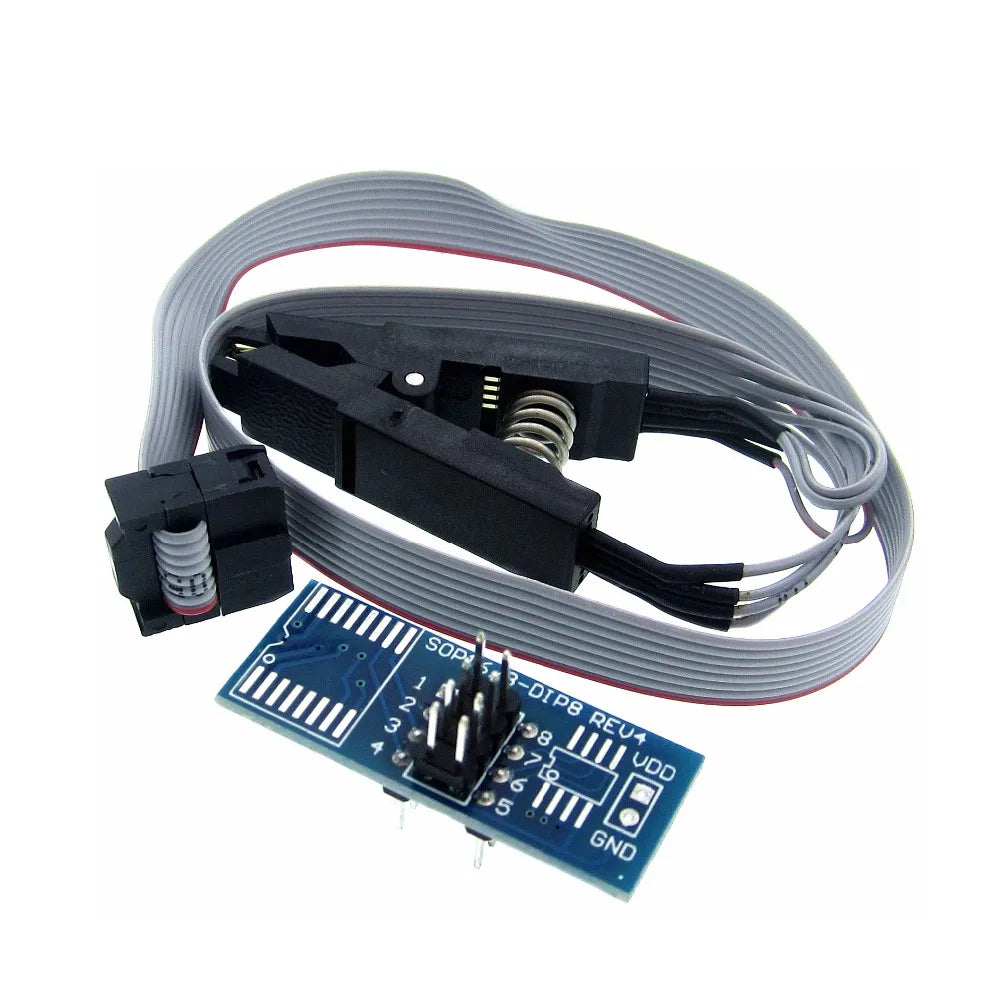

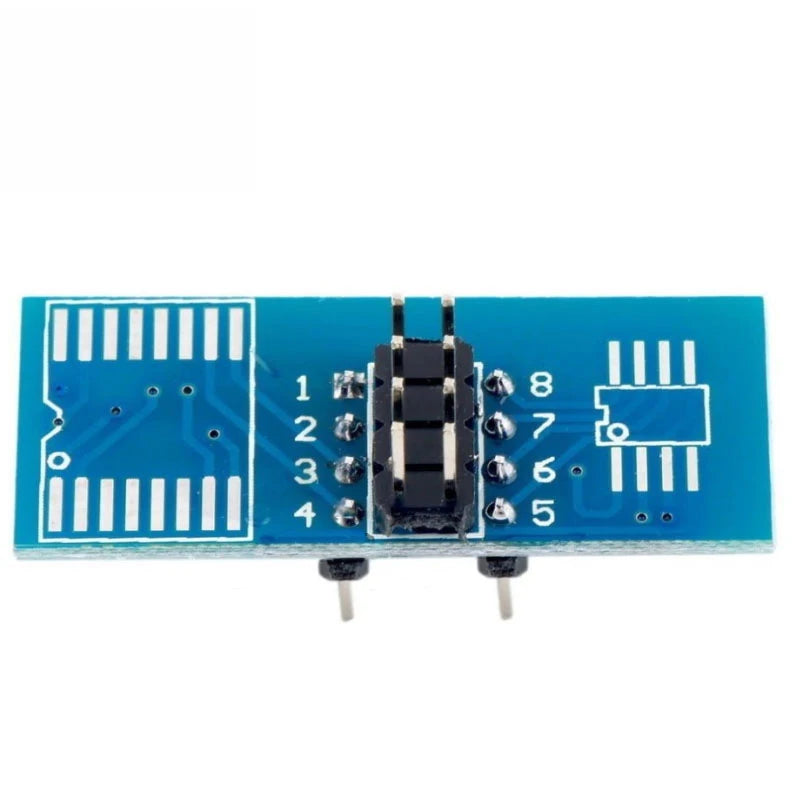

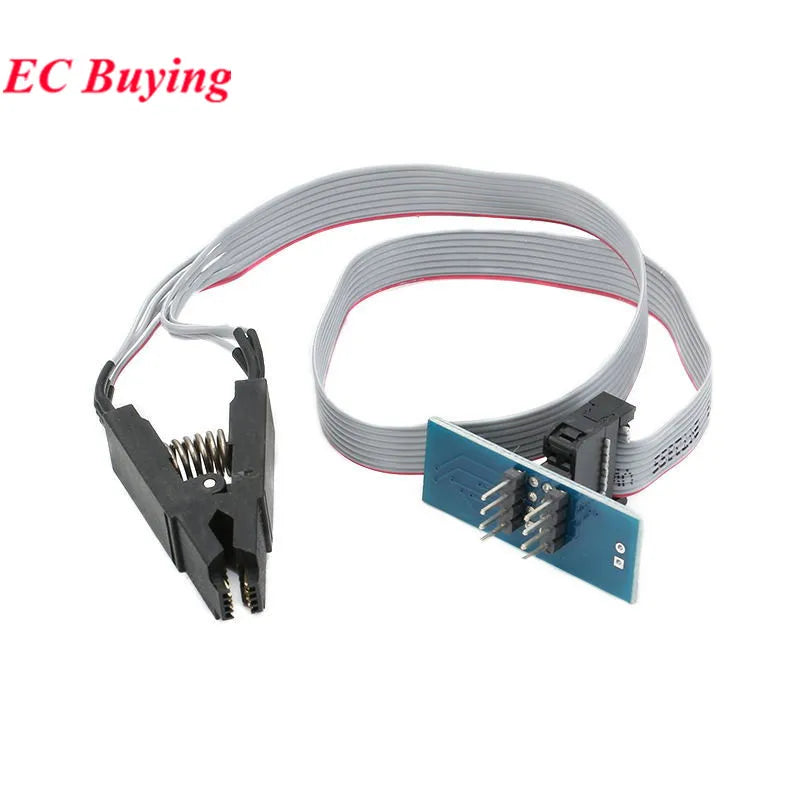

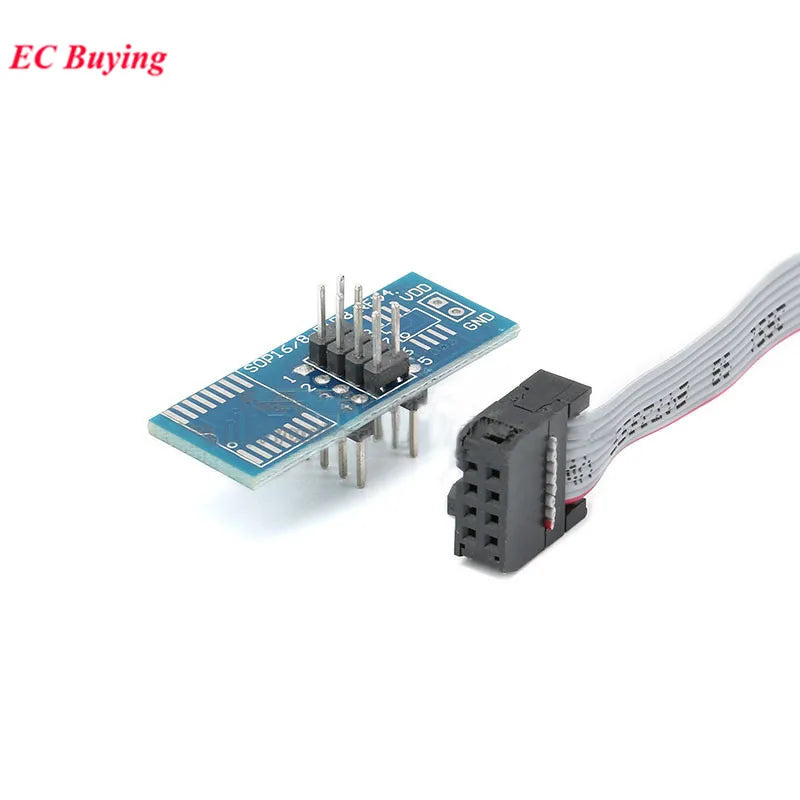

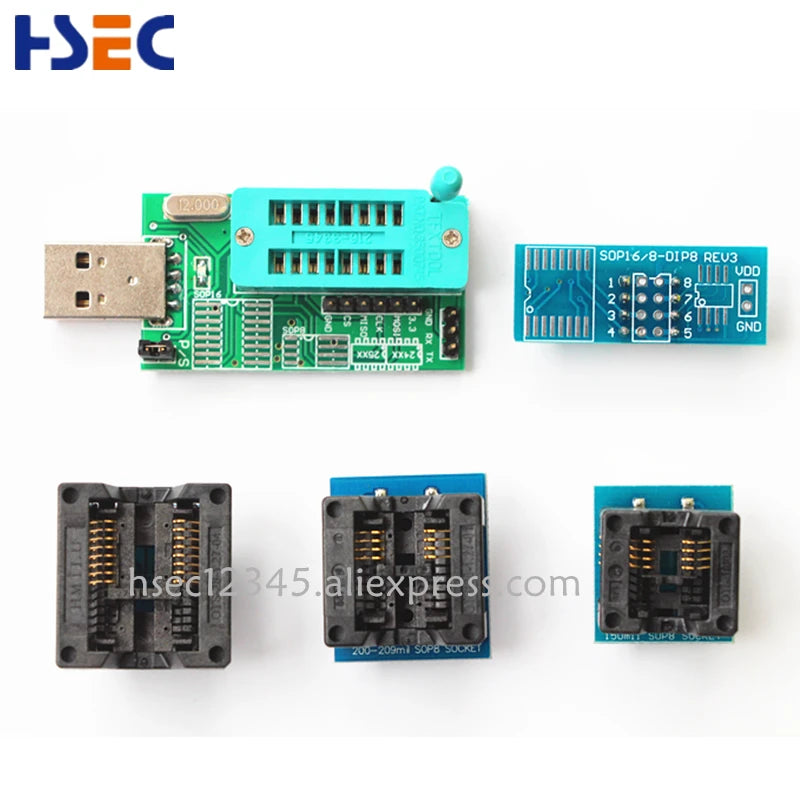

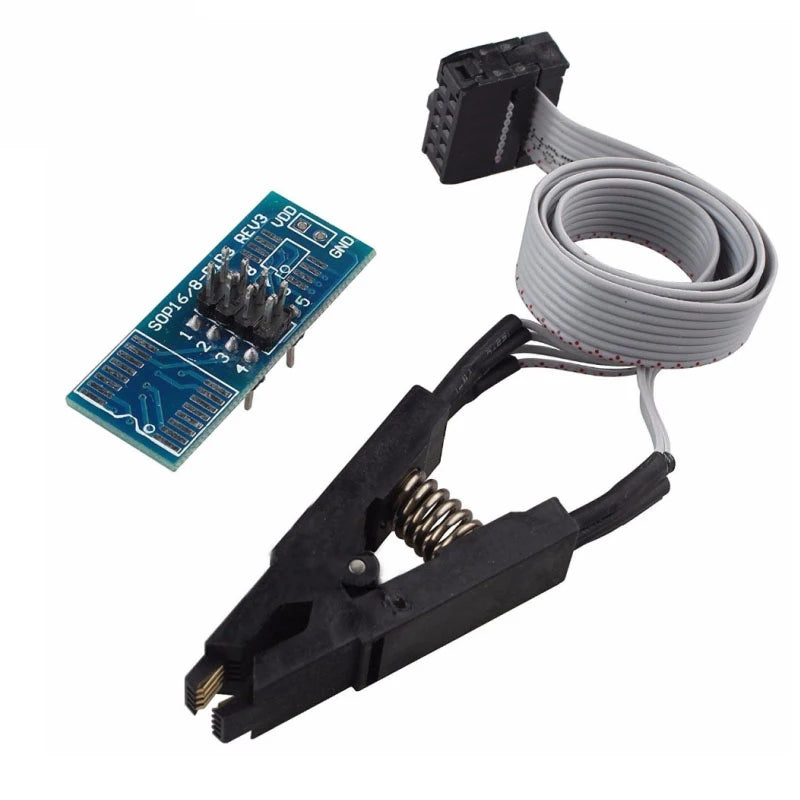

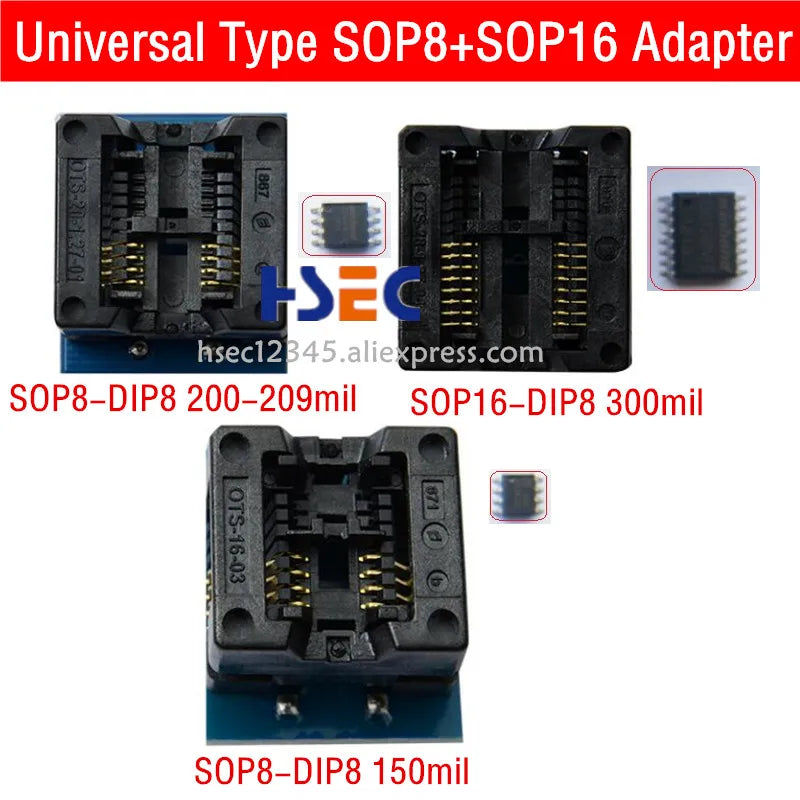

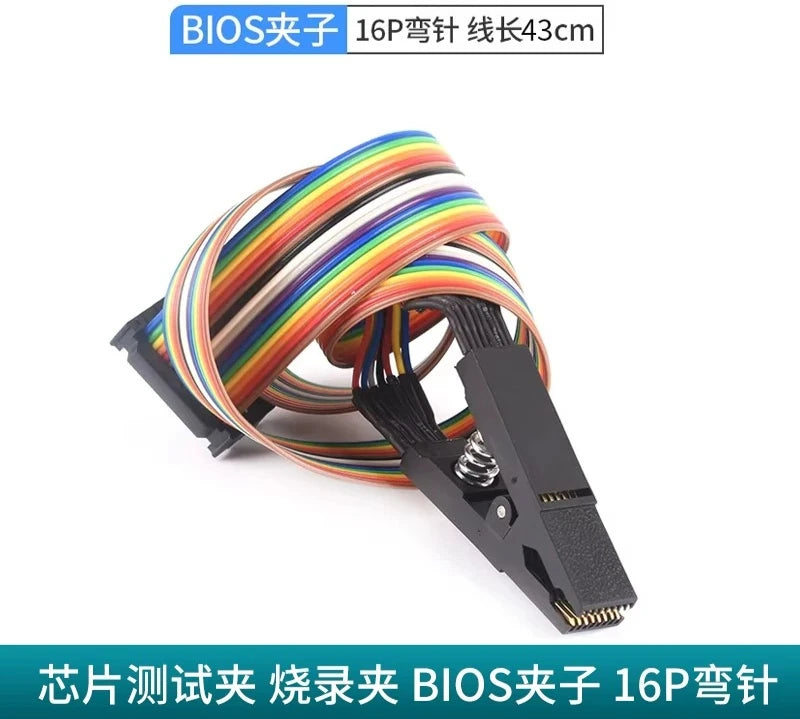

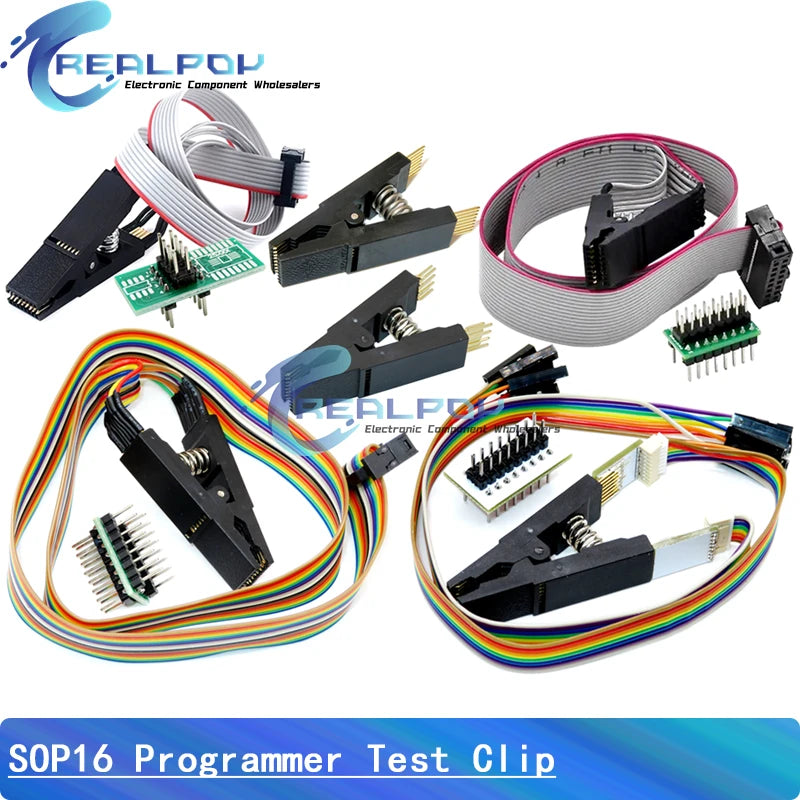

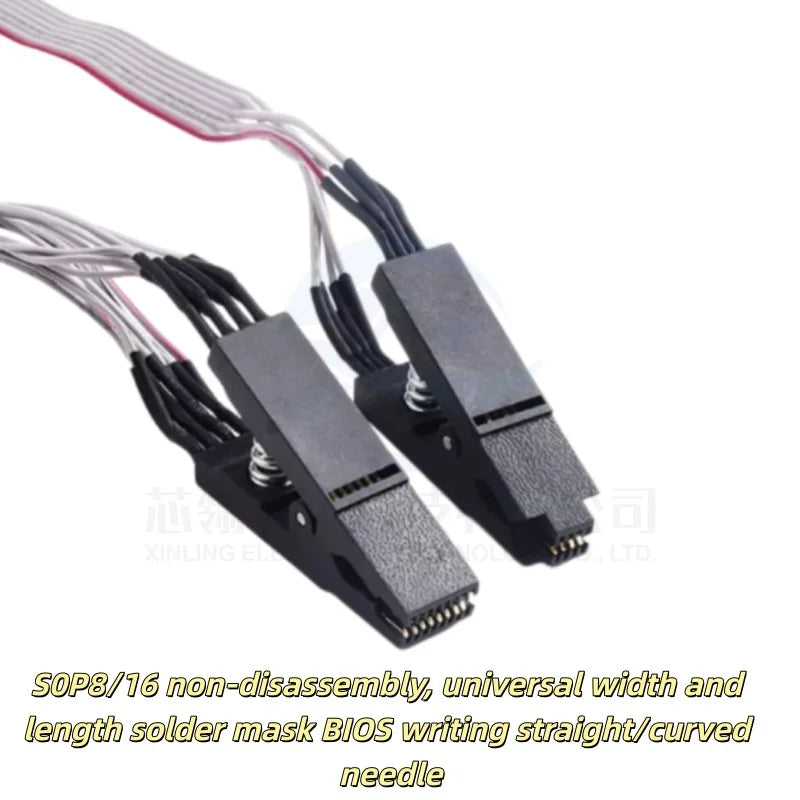

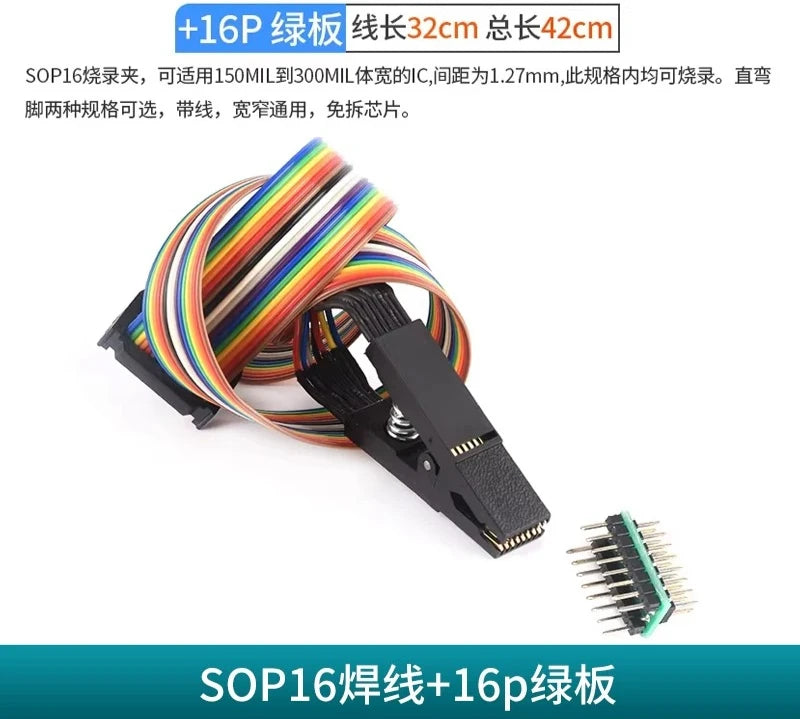

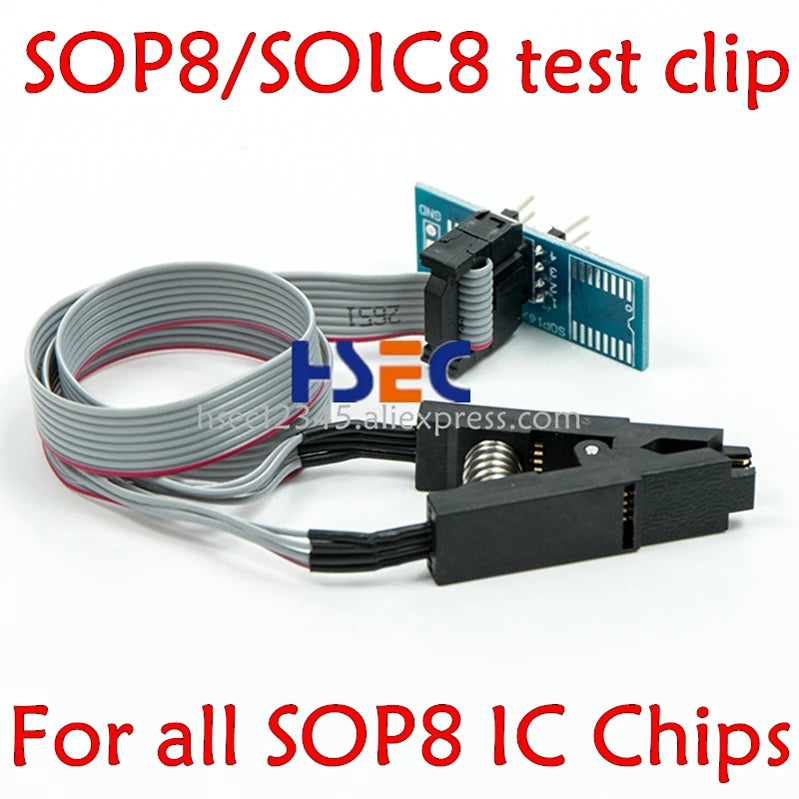

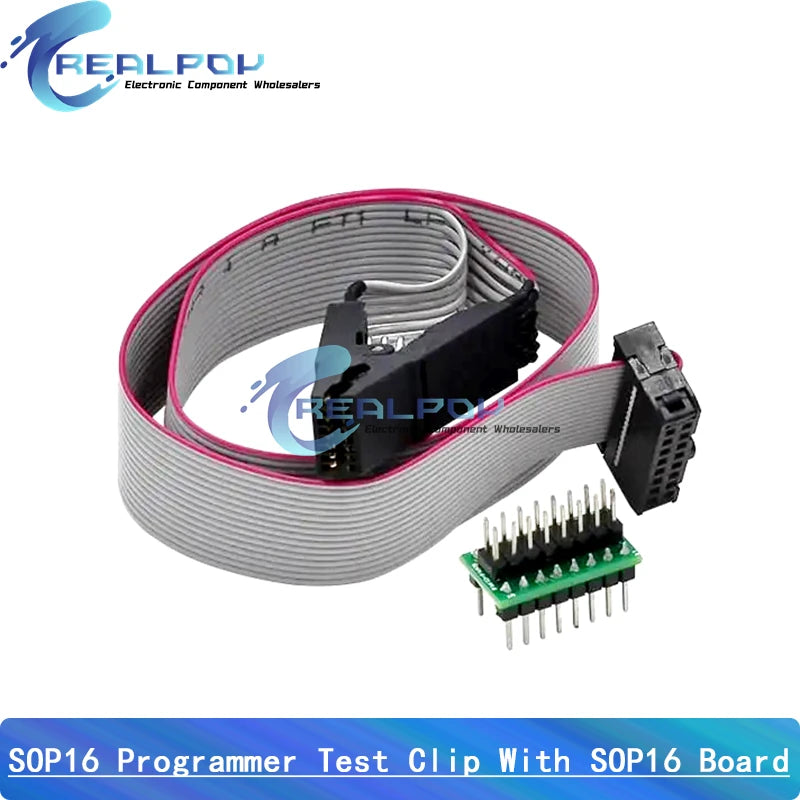

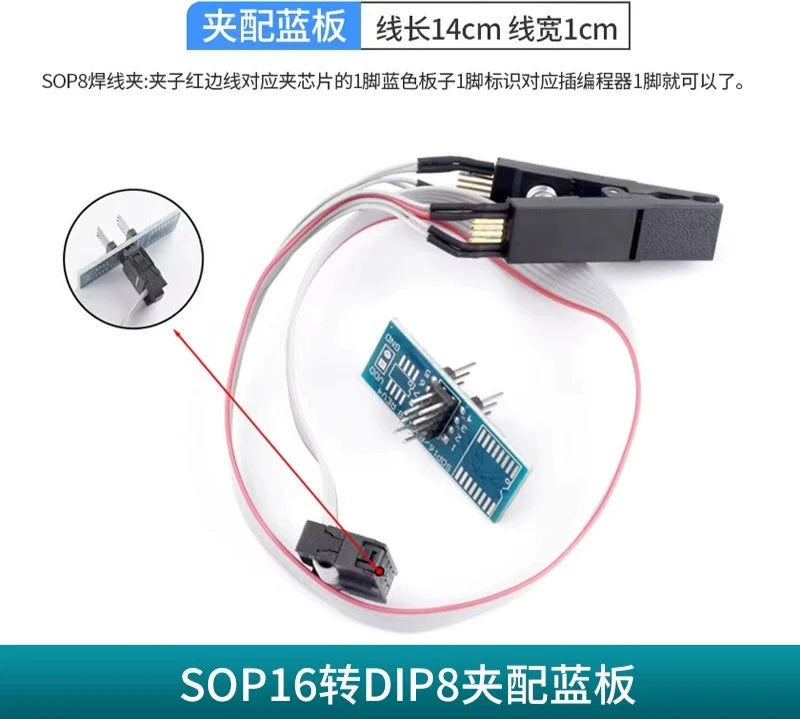

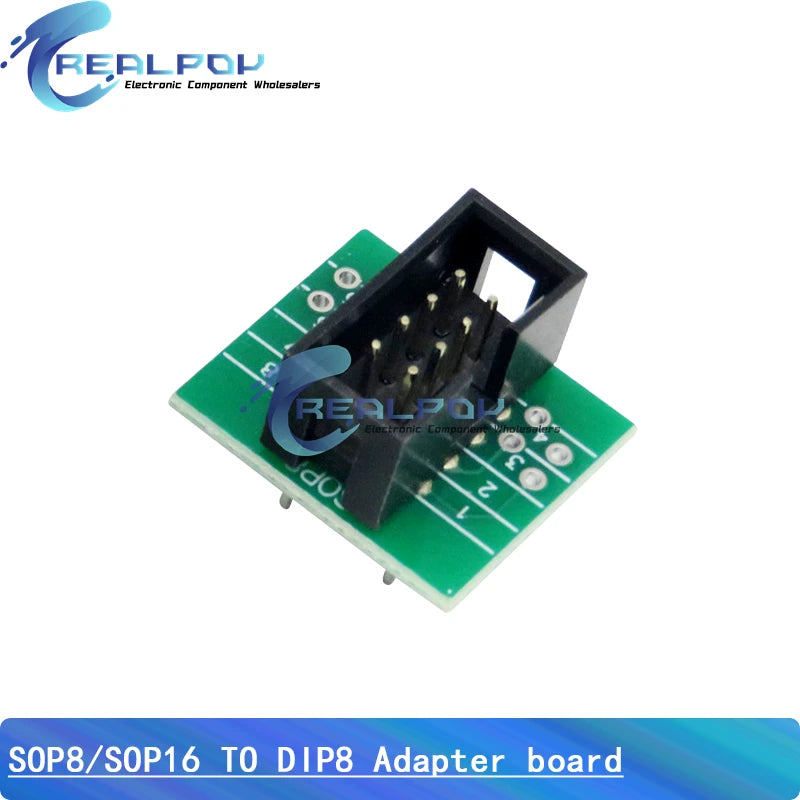

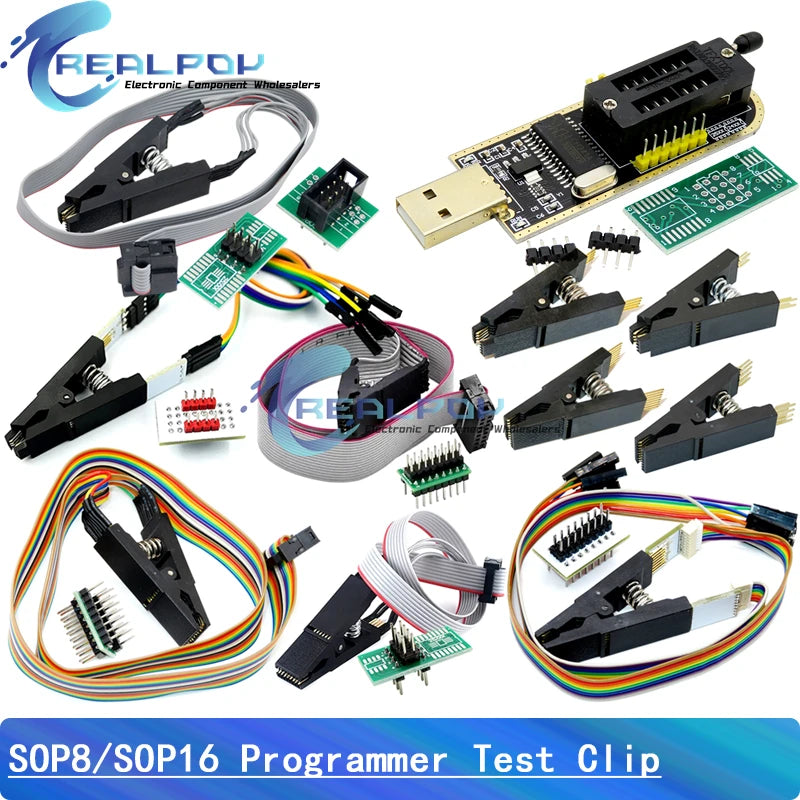

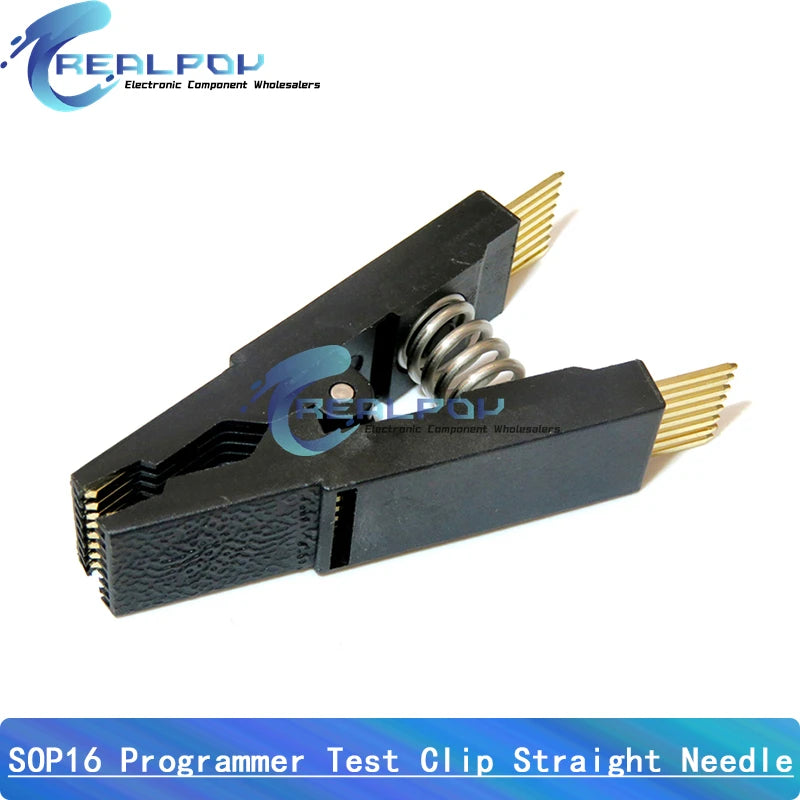

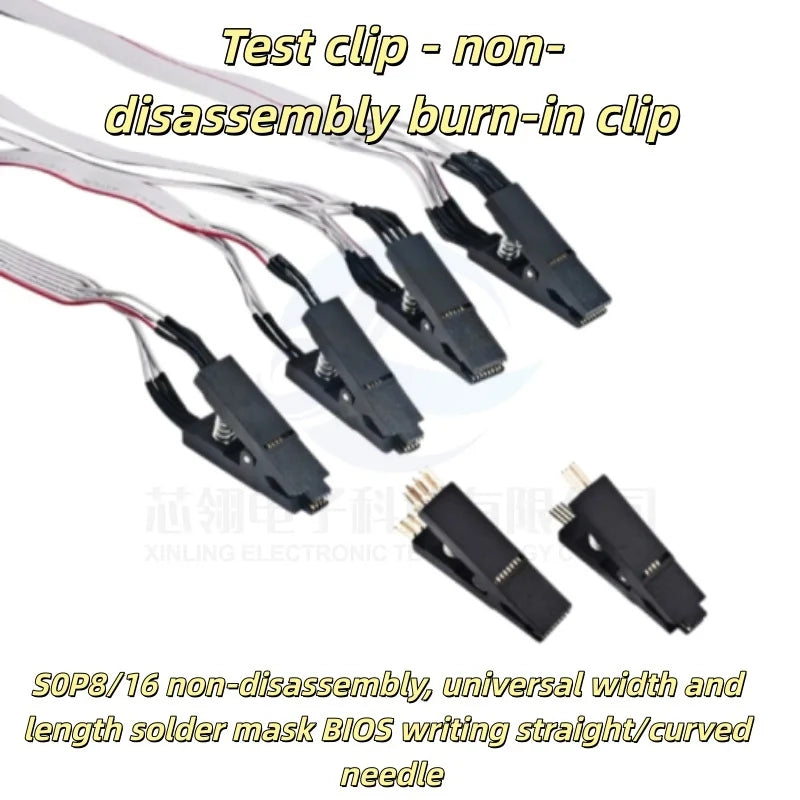

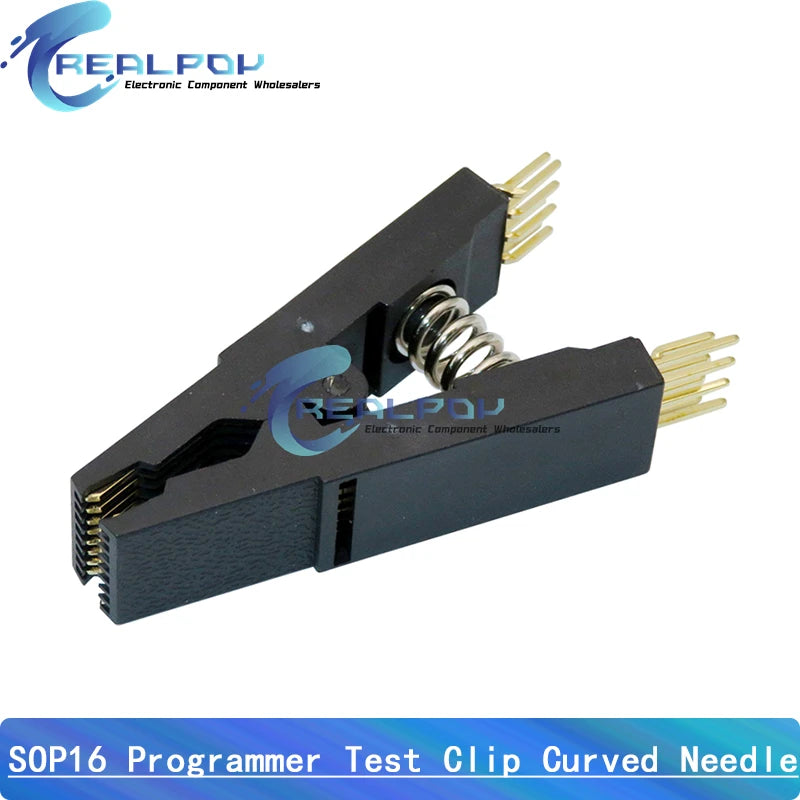

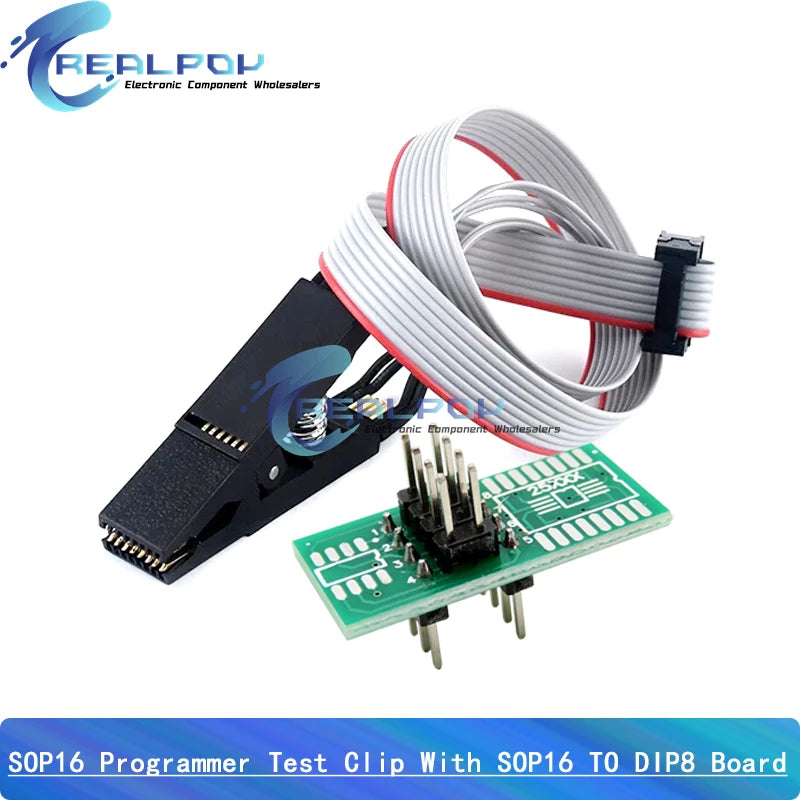

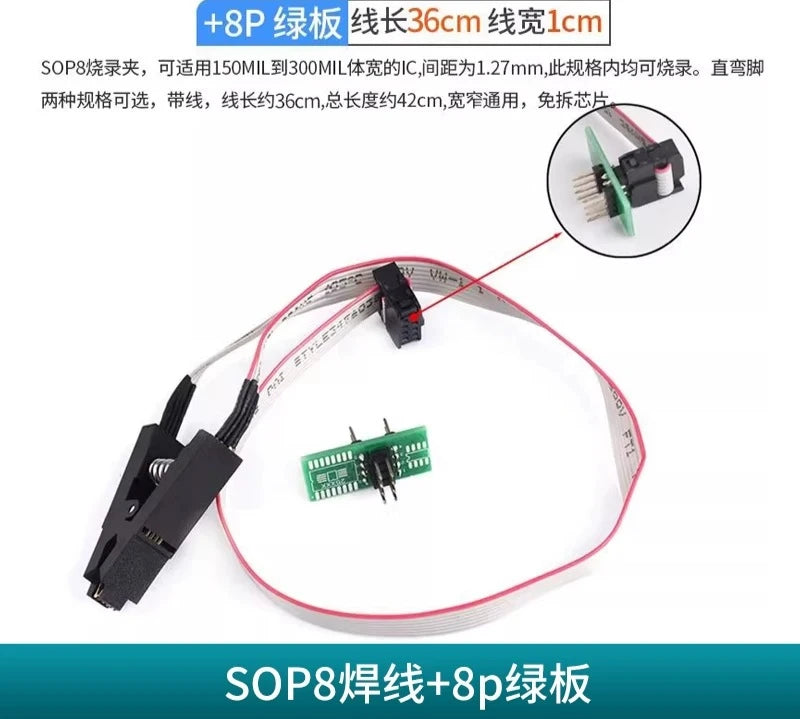

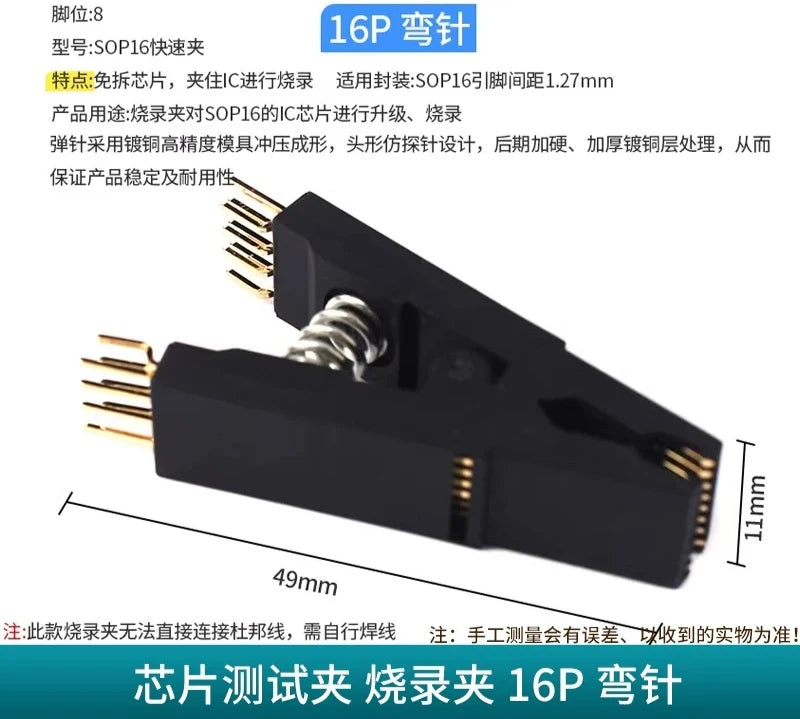

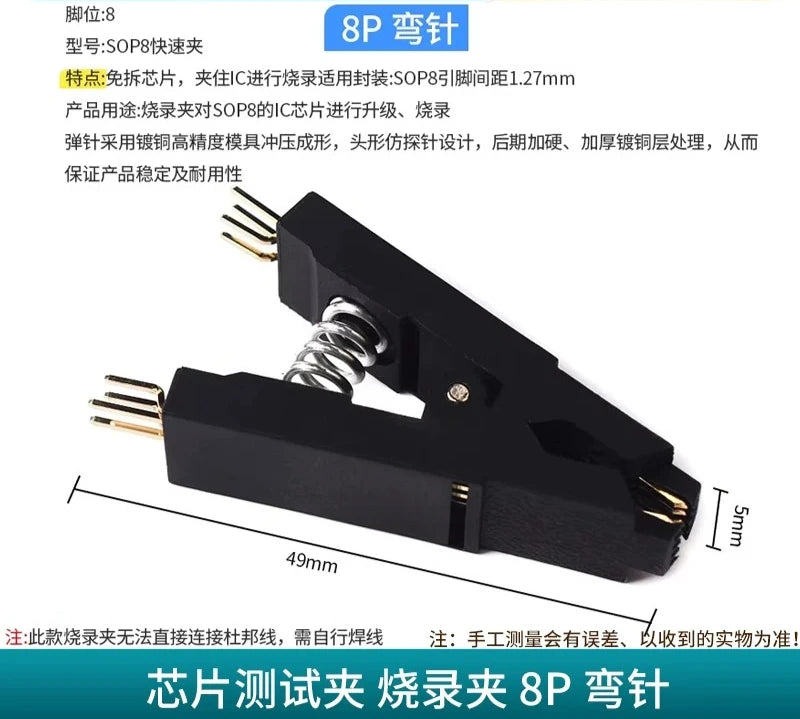

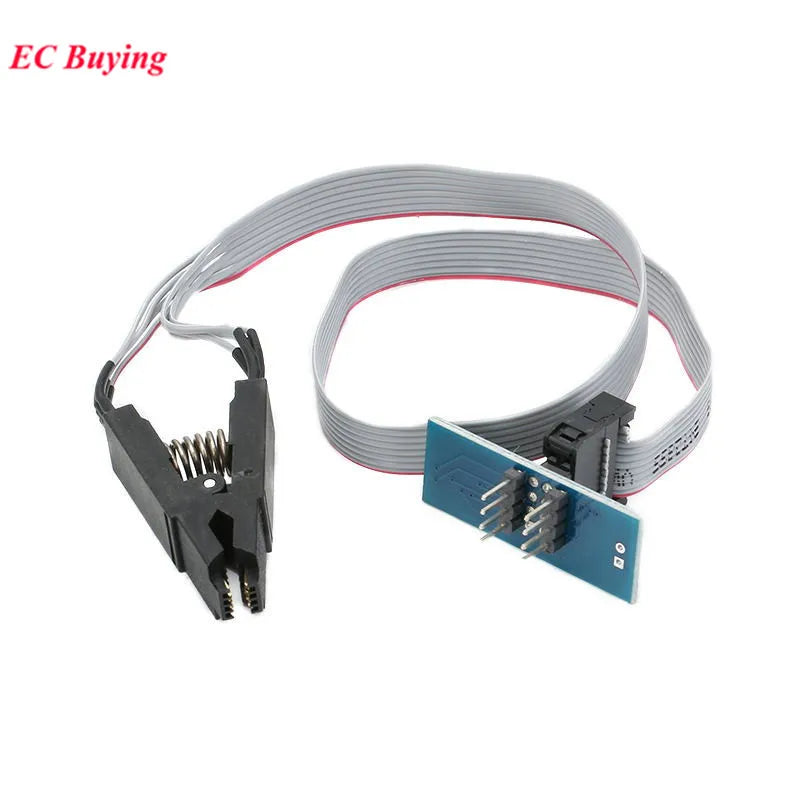

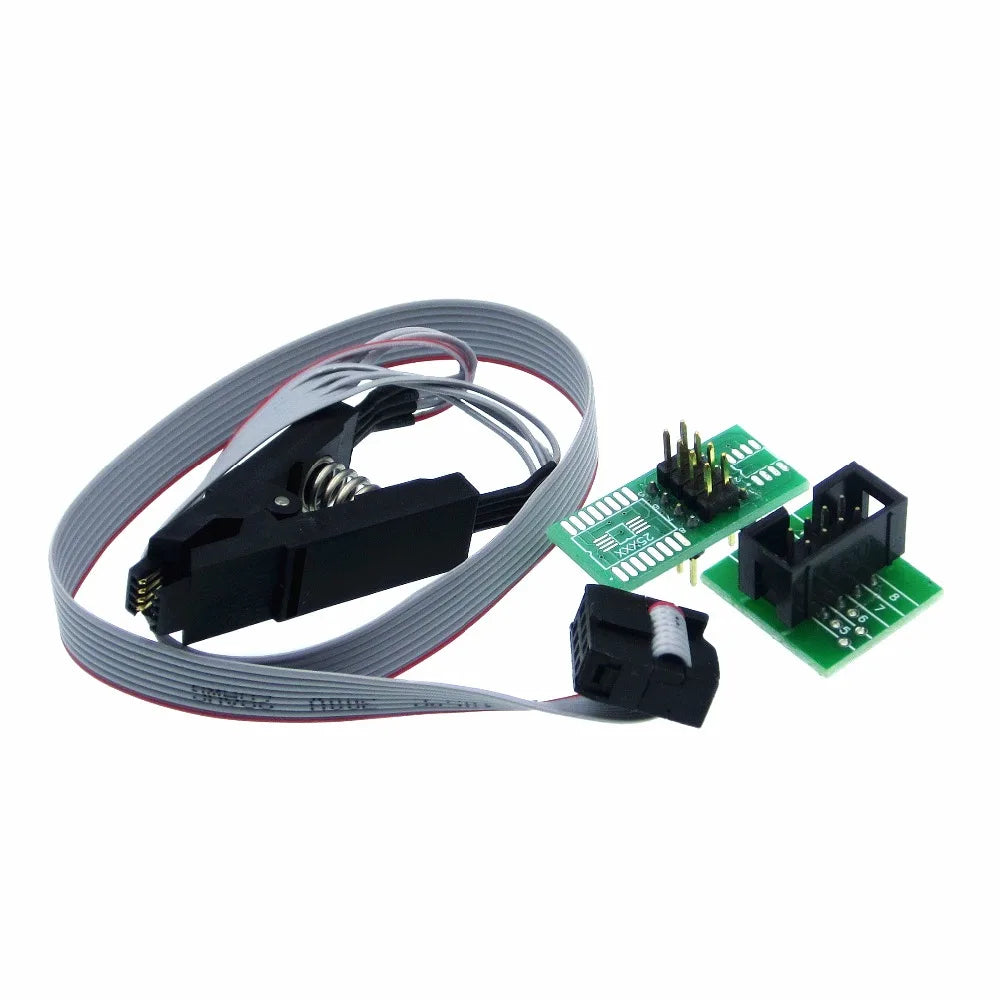

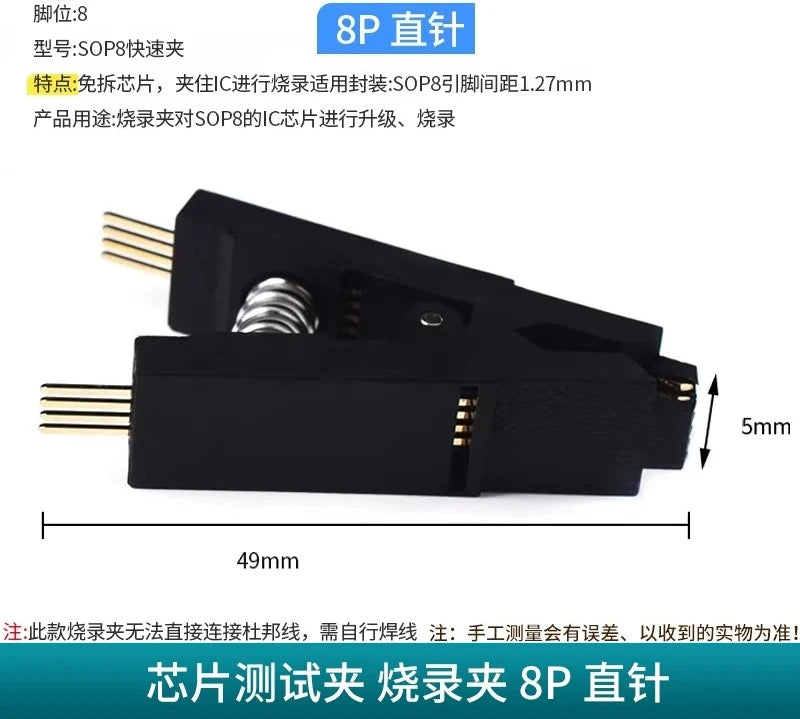

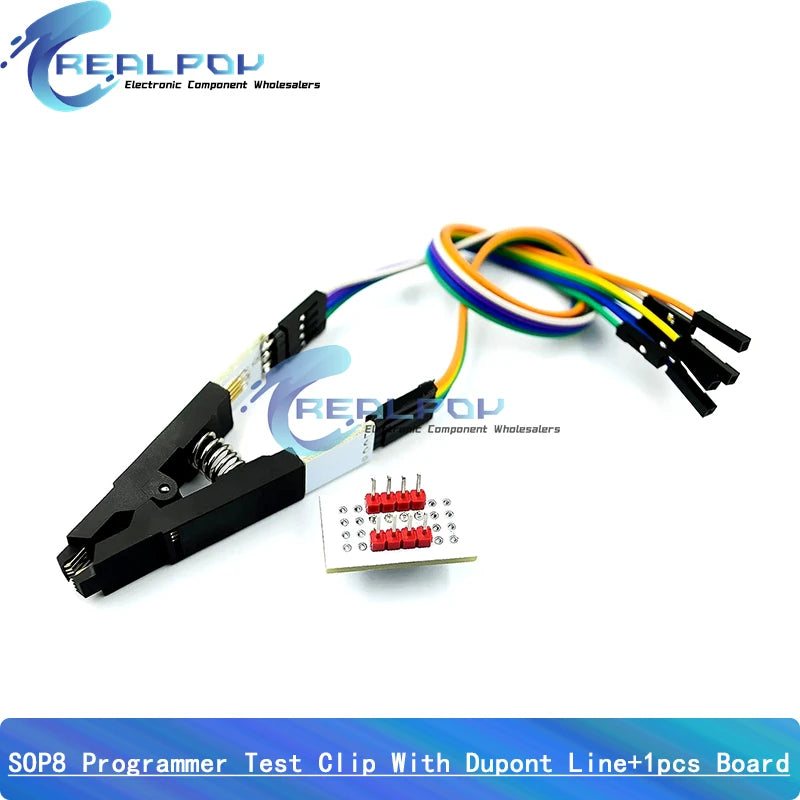

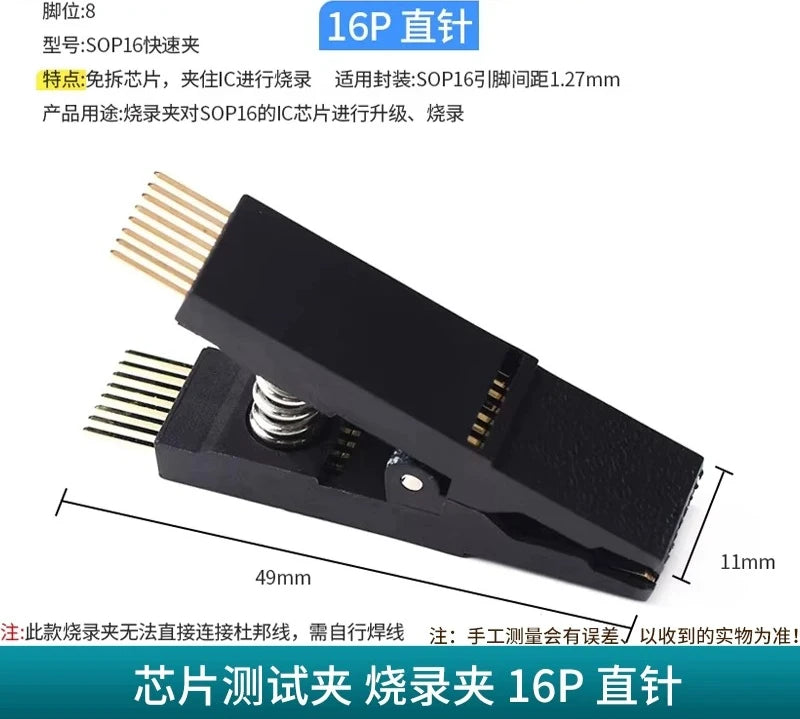

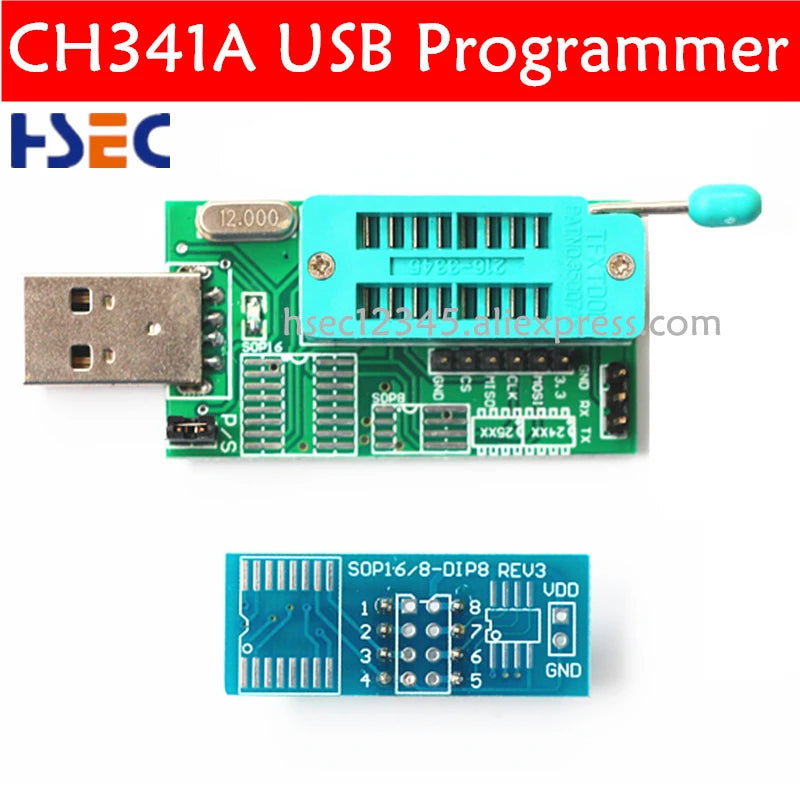

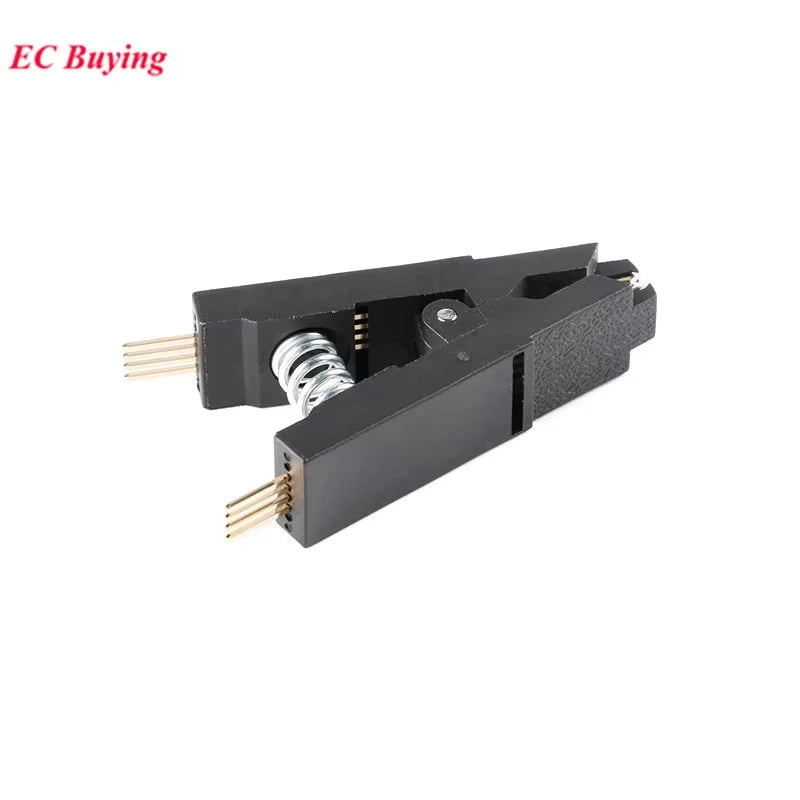

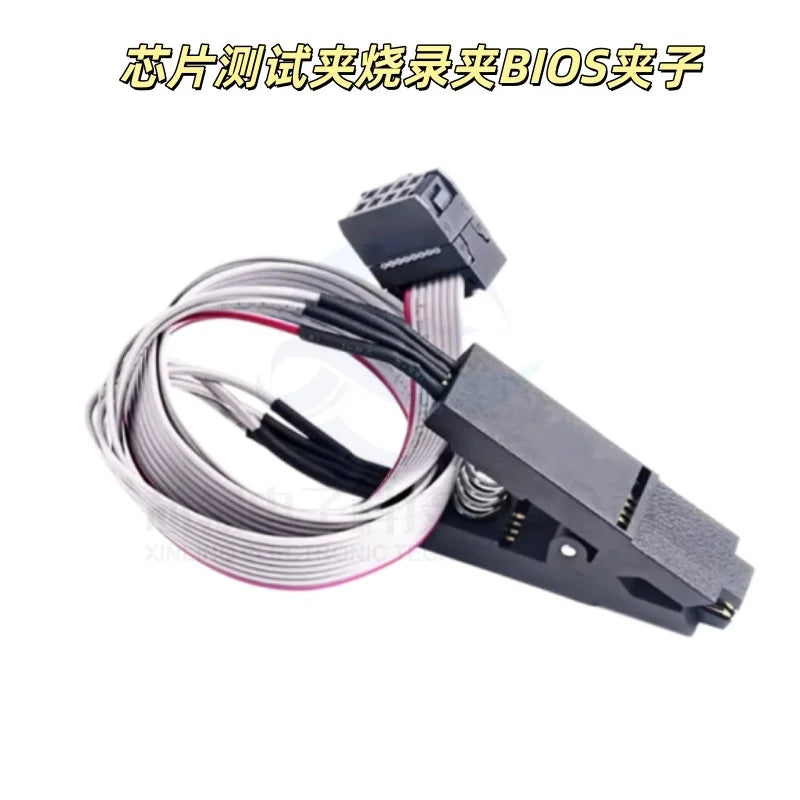

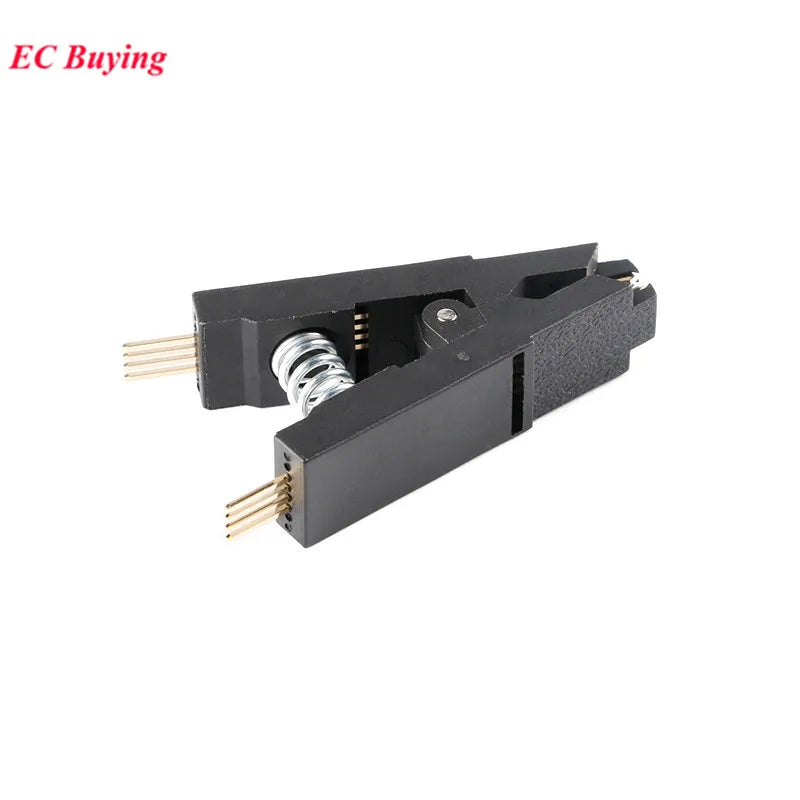

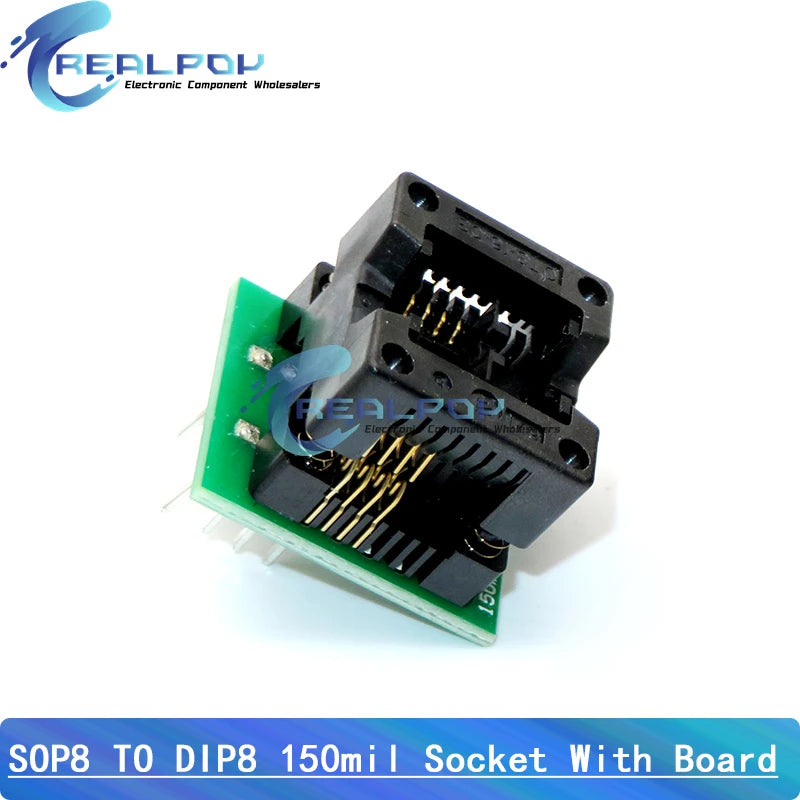

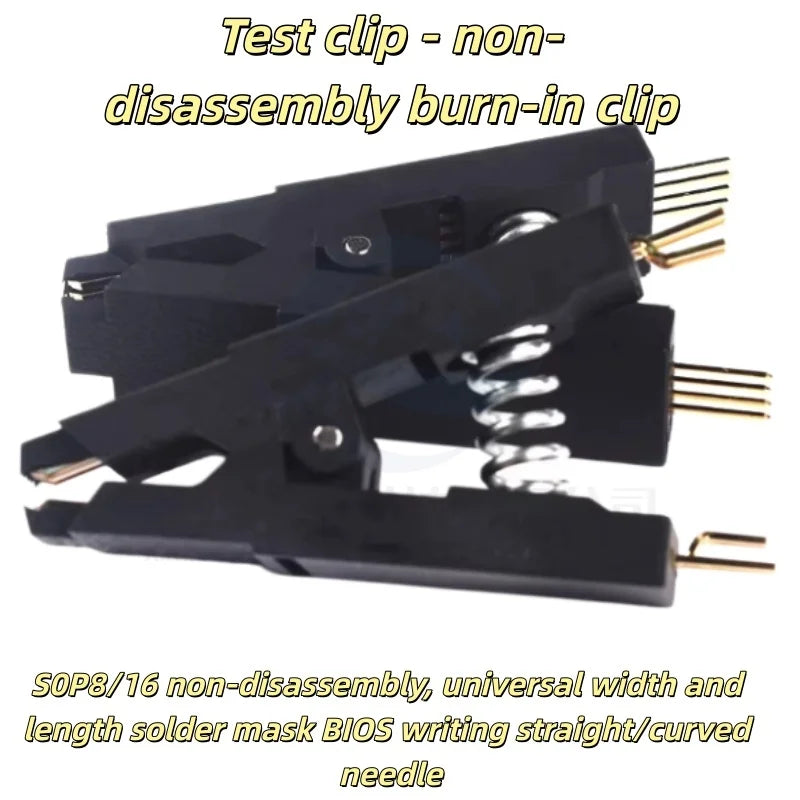

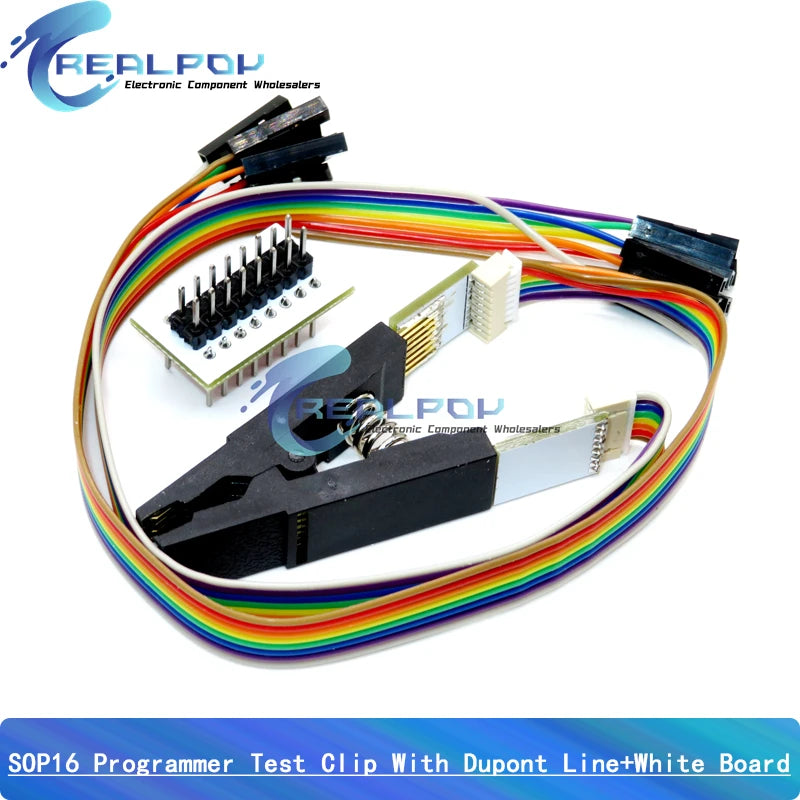

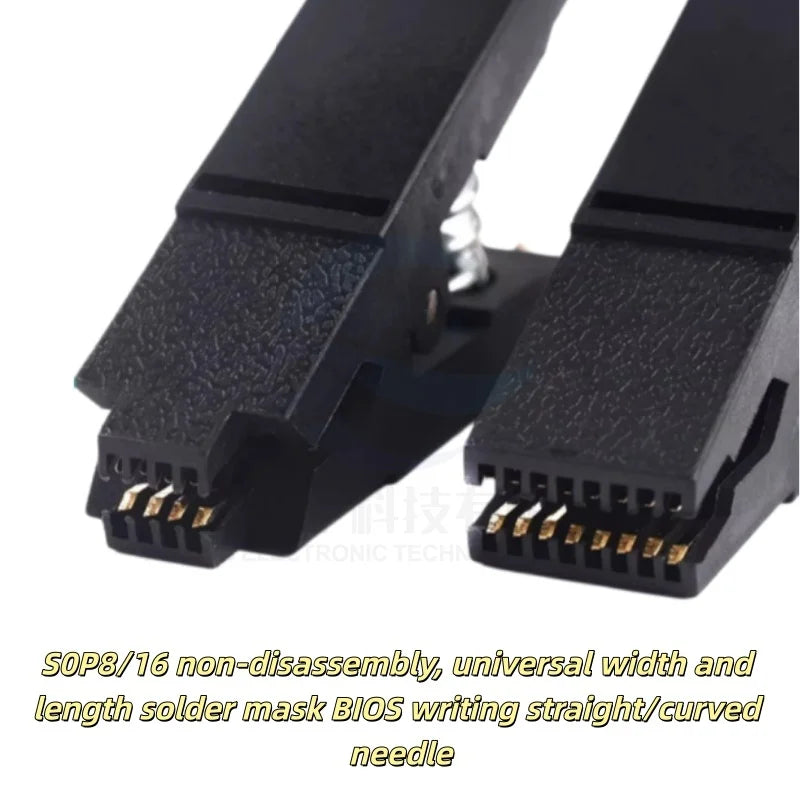

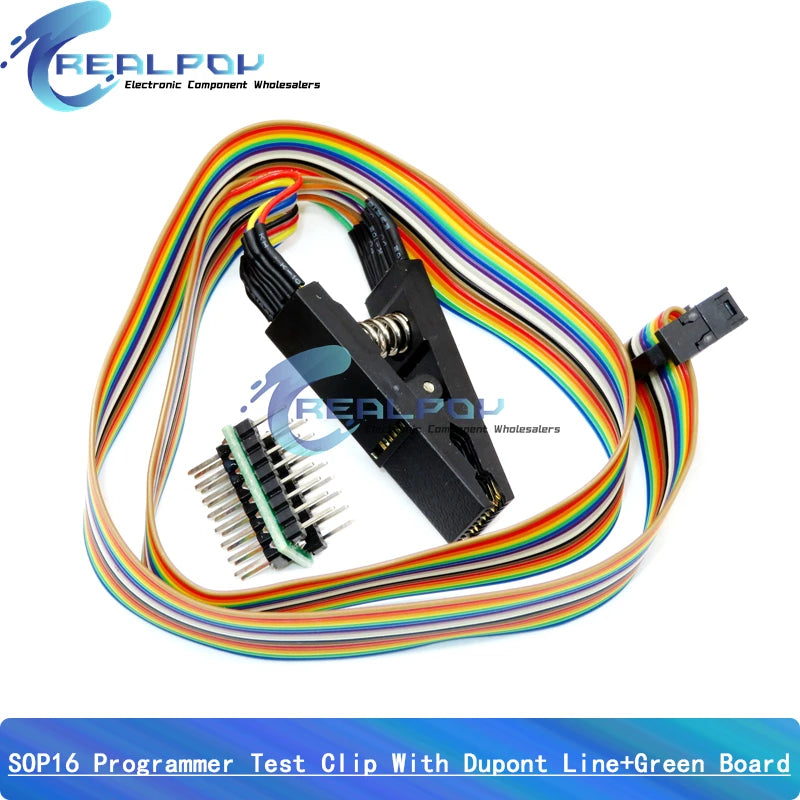

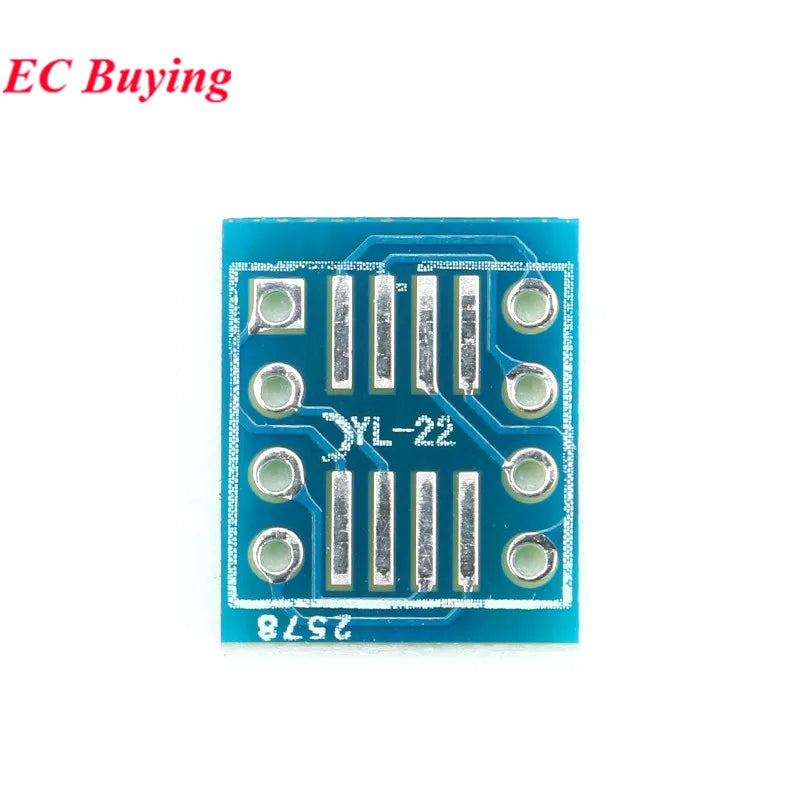

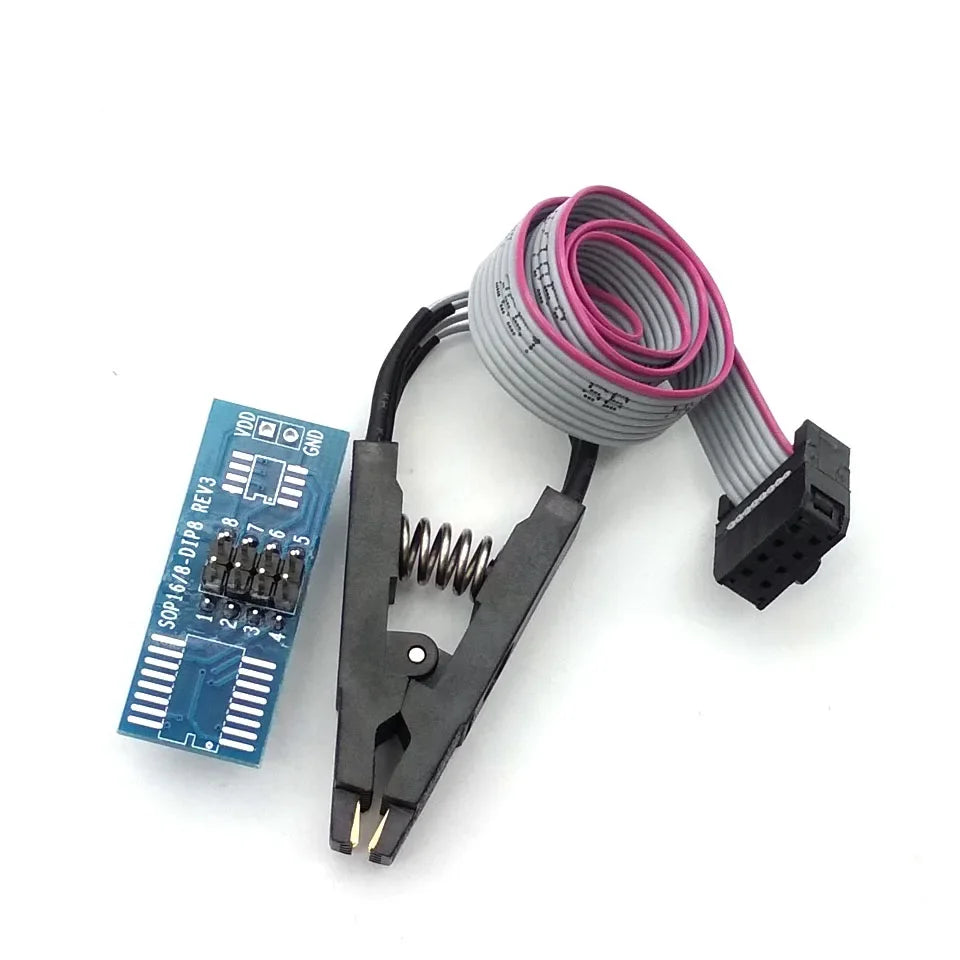

SOIC/SOP-8 150-mil narrow and 200/208/209-mil wide packages need different sockets or probe jaws. The listing spelling '150Mile'/'200 Mile' describes body-width choices, not distance. Separate probe variants identify MSOP8 2.8 × 2.9 or 3 × 3 mm, TSSOP8, QFN8 5 × 6 or 6 × 8 mm, DIP8, SOP14 and SOP16 150/300-mil configurations. A small leadless QFN or WSON cannot be treated as a SOIC clip target. Check actual pin pitch, body width, exposed-pad orientation, contact alignment and socket wiring. SOP16 clip variants with Dupont leads, straight or curved needles, adapter board or a 'Kit 1/2' are different assemblies. An SOP8-to-DIP8 carrier, SOP8/SOP16-to-DIP8 adapter and SOIC8 ribbon clip do not have identical pin routing simply because each ends at eight pins.

Practical buying checklist

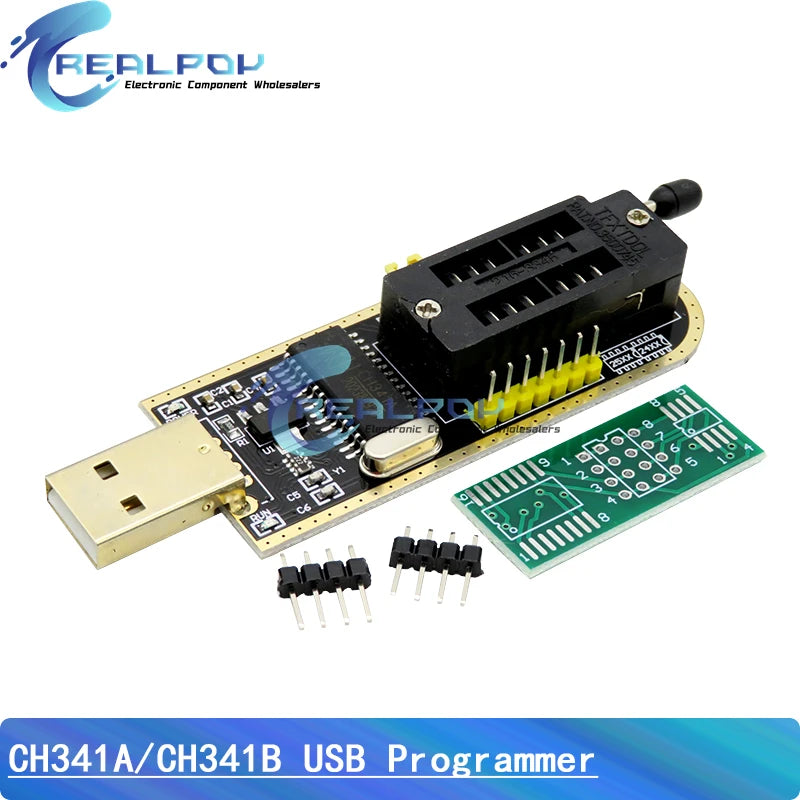

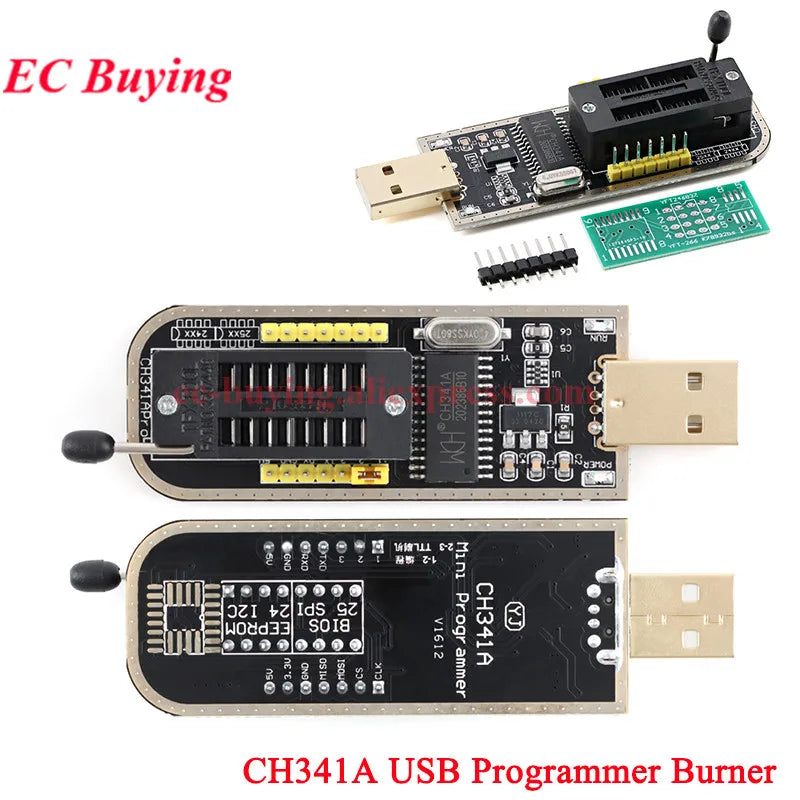

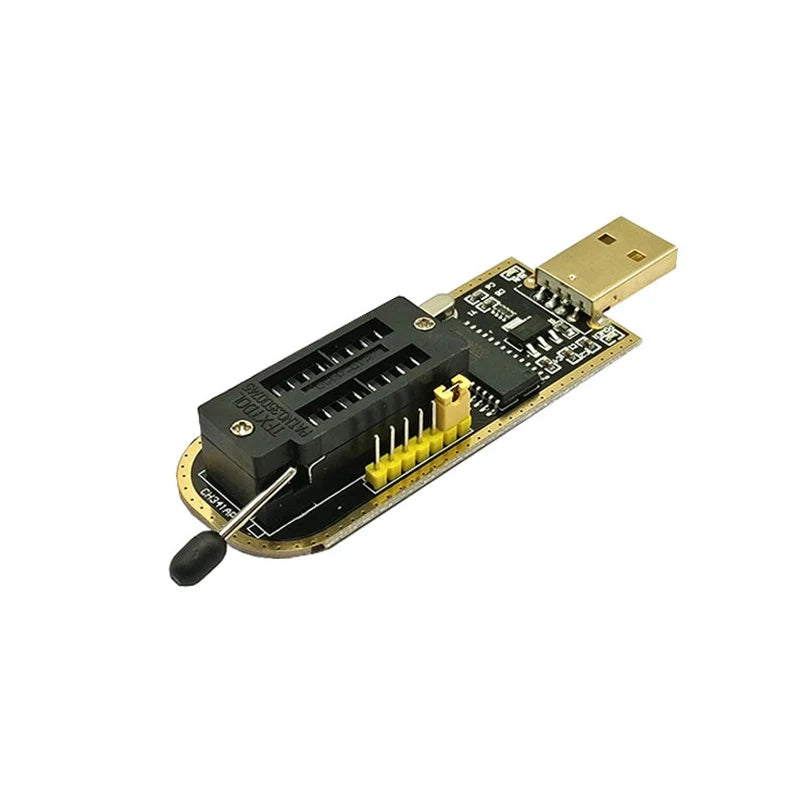

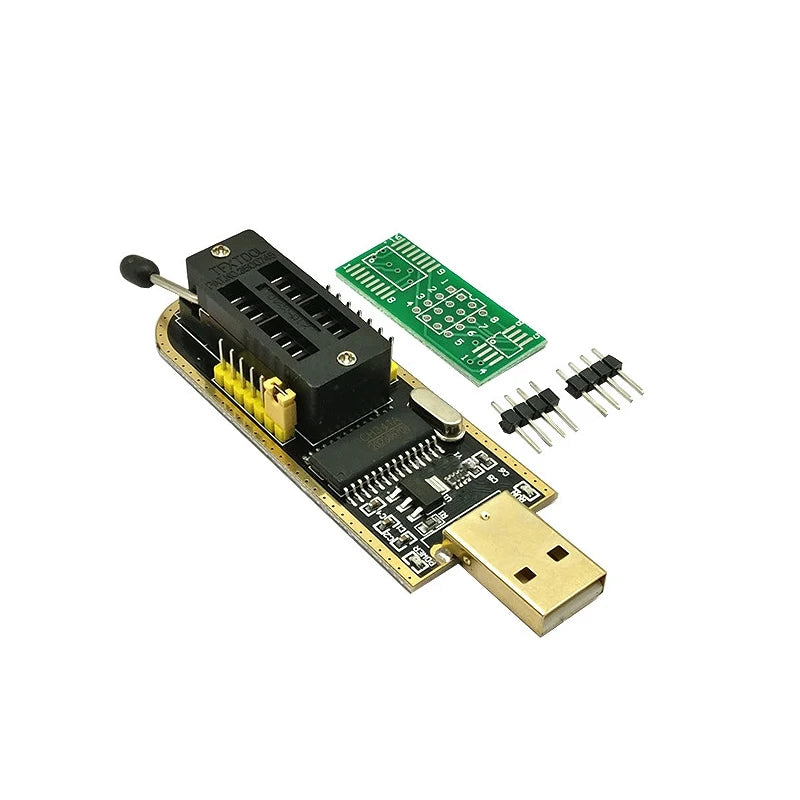

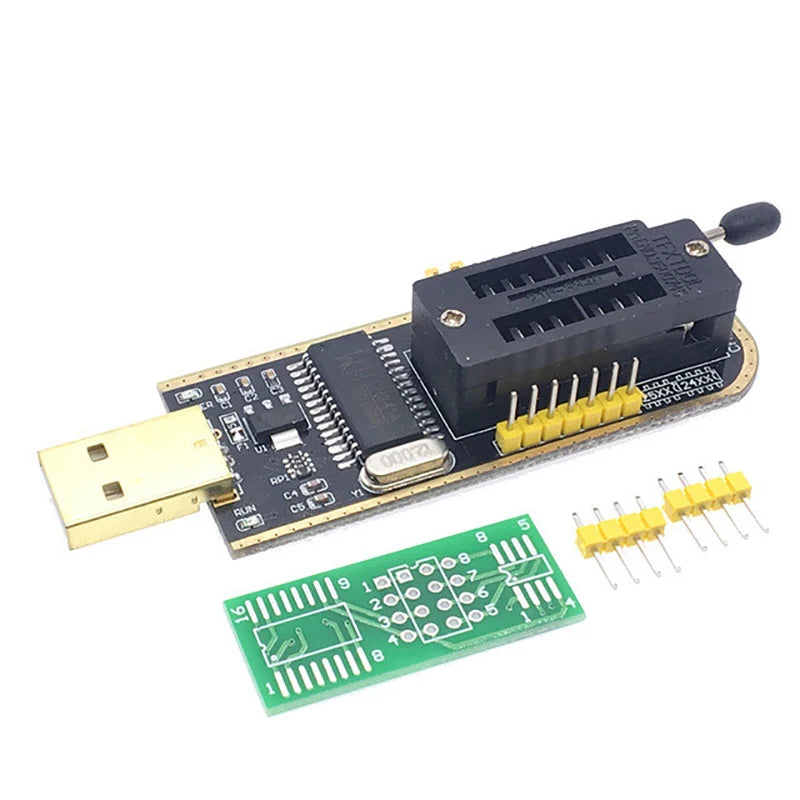

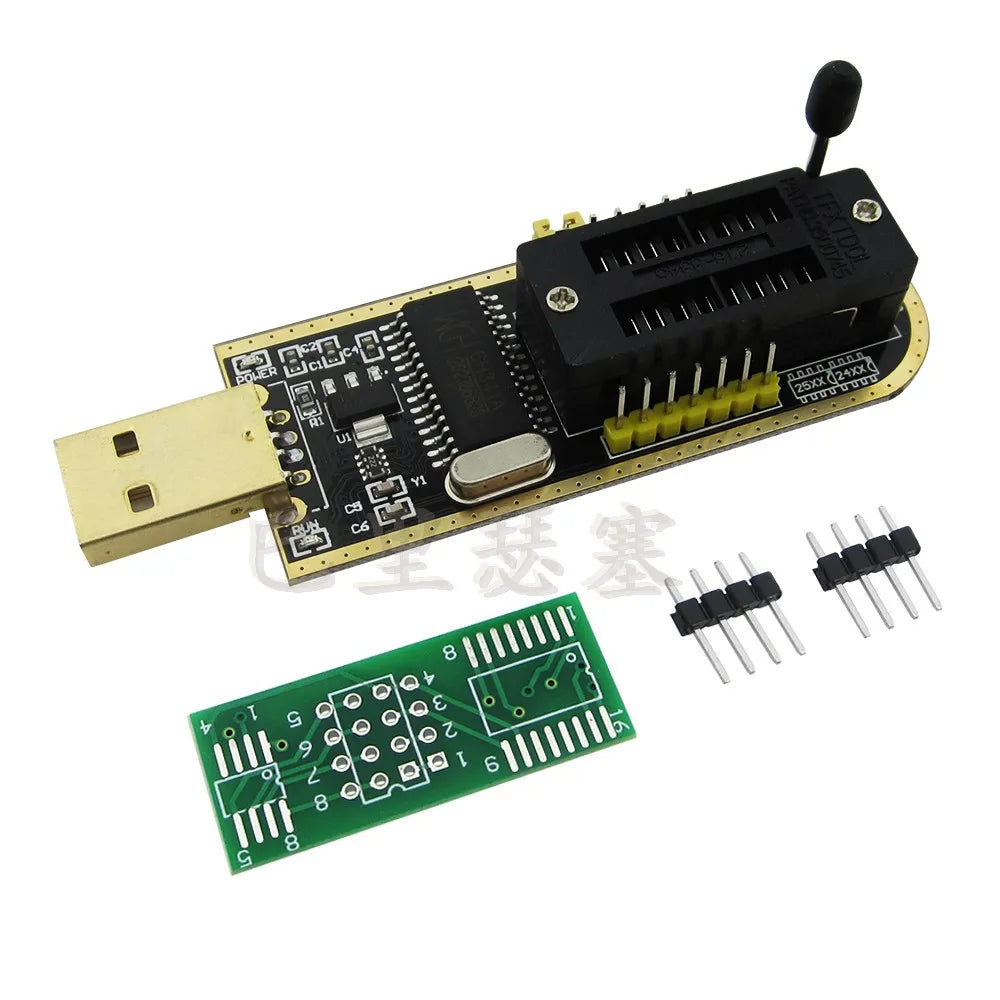

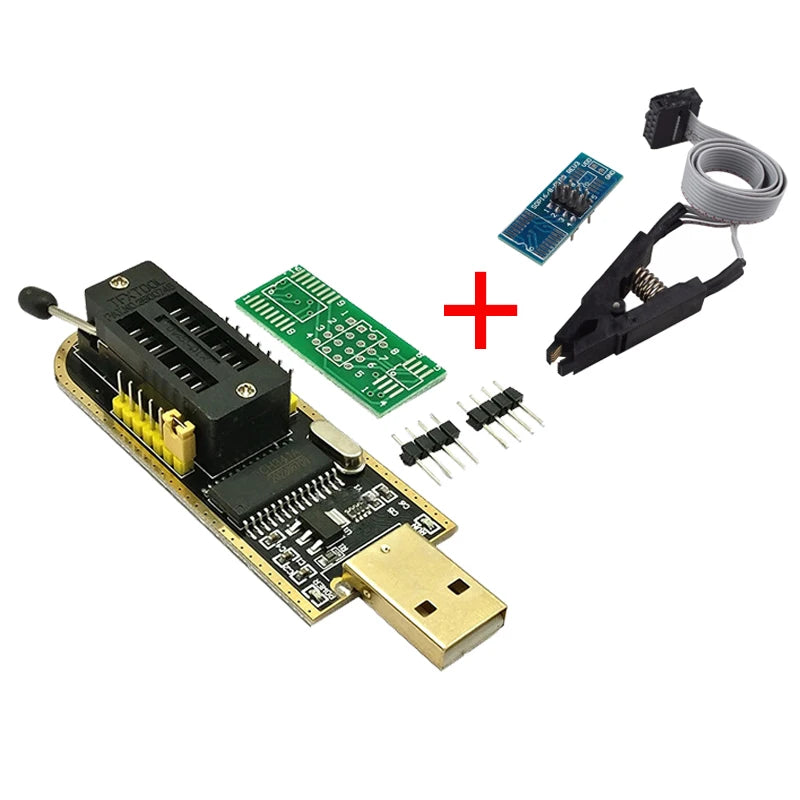

1. Identify whether the selected option is a complete CH341A/B board, another programmer model, a standalone IC, test clip, adapter, probe lead or complete set.
2. Read the exact option label and confirm all contents: programmer, clip, socket width, ribbon cable, voltage converter and host connection are not implied by the product title.
3. Look up the target memory's full part number, protocol, package, pinout, VCC, I/O thresholds and protection scheme in authoritative documentation.
4. Verify current programmer software supports the exact device and the operating system; download software from a trusted source and assess security before installation.
5. Confirm programmer and adapter output levels and target-board power state before use. Match physical socket dimensions and pin 1 independently.
6. Make stable read-only backups and compare their checksums before any erase or write. Follow a device-specific recovery plan rather than relying on generalized BIOS instructions.
7. Request evidence for seller claims about testing, certifications, origin, supported chips or warranties where those matter. This collection does not independently certify them.

Frequently asked questions

Does every CH341A listing include a programmer and clip? No. Many selected variants are clip-only, adapter-only or board-only; choose a specifically enumerated set if you need one.

Can a CH341A program all 24, 25 and 93-series chips? No universal support follows from the family number. Check the exact part, protocol, voltage and current software device list.

Is a 1.8 V adapter enough for any 1.8 V flash? Not by itself. Confirm translation on every signal, chip supply, wiring and target-board isolation.

Will a 150-mil clip fit a 208-mil SOIC8? Not reliably. Select for actual package width and pin geometry.

Is a CH341A USB-to-UART board the same as a BIOS programming kit? Not necessarily. Interface boards and memory-programmer sets have different hardware and accessories.

Can a clip read a chip while its motherboard is powered? Do not assume that is safe or reliable. Assess target rails, contention and isolation first.

Does 'Programmer set' prove support for eMMC or NAND? No. Those protocols need device-specific hardware and software; compare the actual selected tool and current compatibility list.

Yoeruyo groups programmer boards and related workbench accessories here for comparison. Choose by exact task, target chip, voltage and selected kit contents rather than treating shared CH341A search terms as interchangeability.
