SPECIFICATIONS

Battery Included: no

Brand Name: Vadias

Certification: CE,FCC

Feature 1: -50-100℃ to 4-20mA temperature sensor

Feature 10: 0-100℃ to RS485 temperature transmitter

Feature 2: 0-200℃ to 0-10V temperature sensor

Feature 3: -50-200℃ to 4-20mA temperature sensor

Feature 4: 0-50℃ to 4-20mA temperature sensor

Feature 5: 0-100℃ to 4-20mA temperature transducer

Feature 6: -50-200℃ to 0-10V temperature sensor

Feature 7: -50-100℃ to RS485 temperature transmitter

Feature 8: 0-100℃ to RS485 PT100 temperature sensor

Feature 9: 0-100℃ to 0-10V temperature transmitter

High-concerned chemical: none

Origin: Mainland China

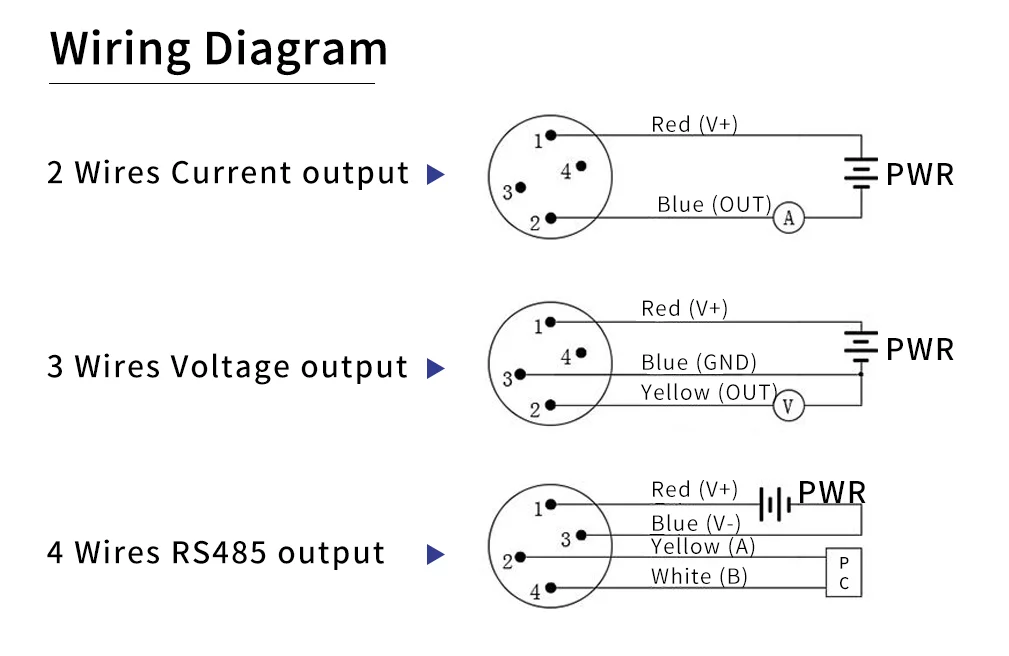

Output signal: 4-20mA,0-10V,0-5V,RS485

Power Source: DC

Power supply: DC24V

Probe diameter: 6mm default

Product name: SBWR Temperature sensor

Semi-finishedproduct: No

Use: Industrial

measuring type: PT100

probe lengh: 20mm,50mm,60mm,80mm,100mm

thread size: M20*1.5 default,G1/2,G1/4

For bulk orders, OEM/ODM customization, or technical support, please send us a message via AliExpress Chat.

Our sales team will reply to you within 24 hours with detailed quotations and support.

Thank you for your inquiry!

Notes:

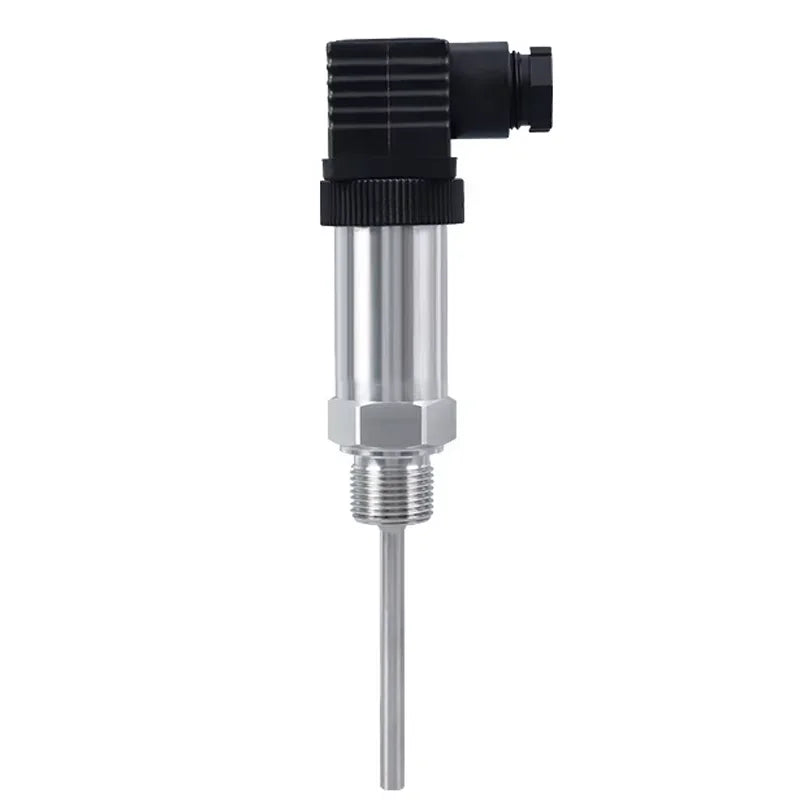

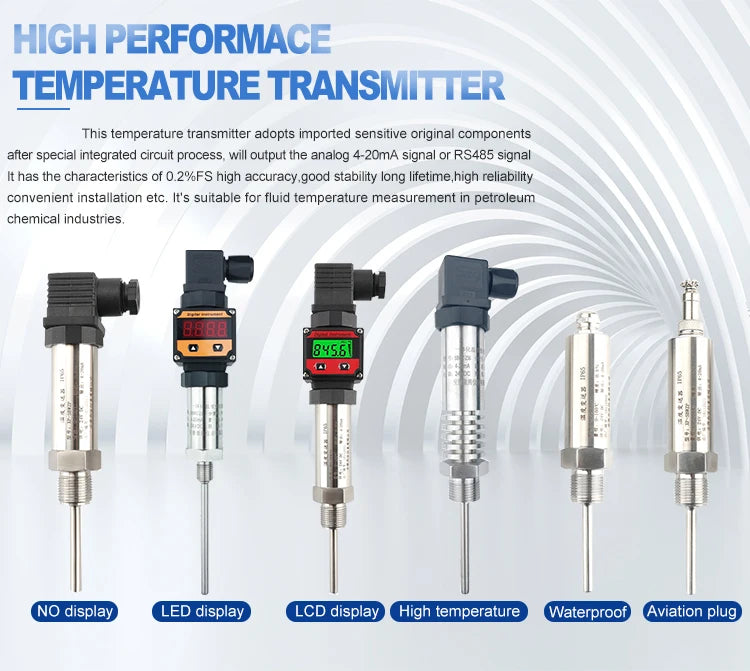

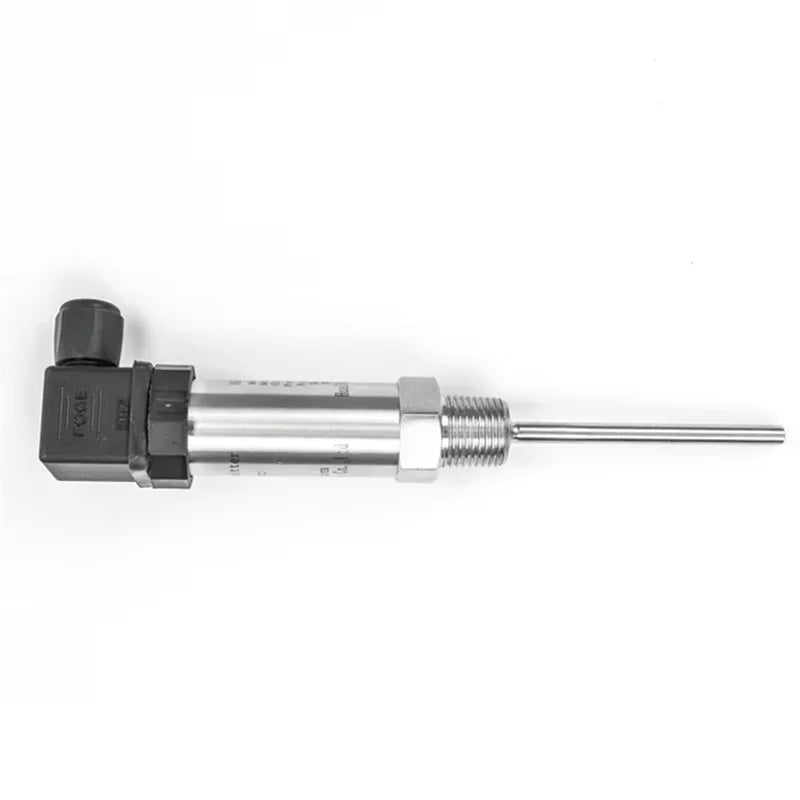

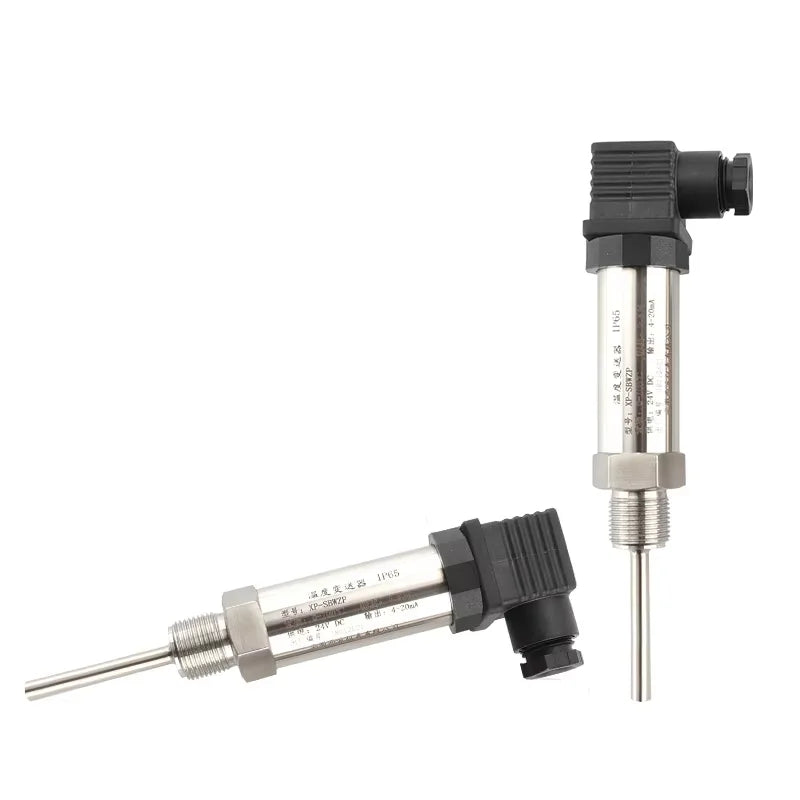

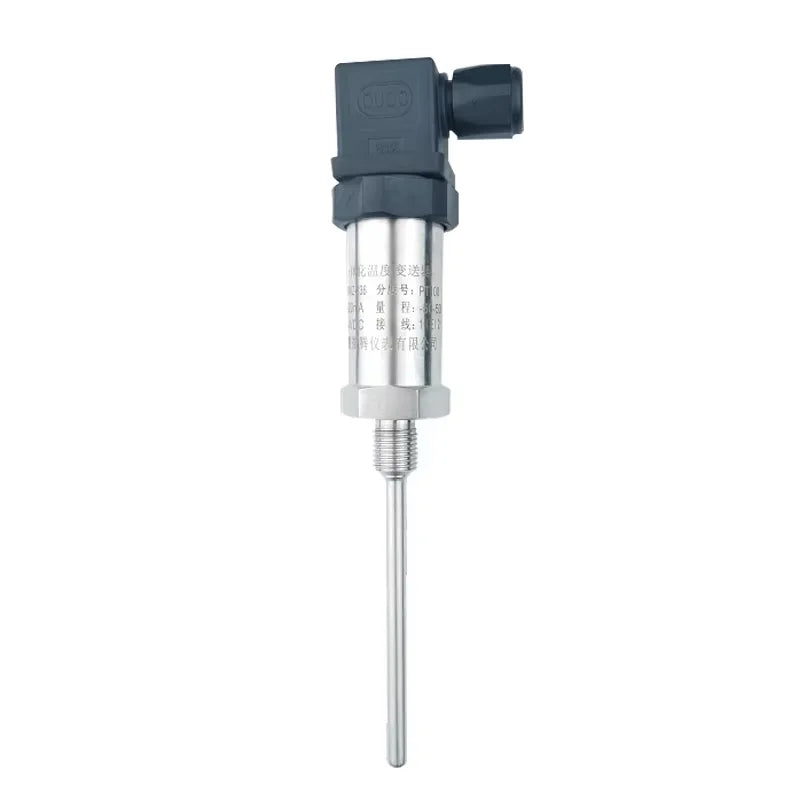

PT100 SENSOR MODULE TEMPERATURE SENSOR 4-20MA 0-10V Hirschmann Connector  INTEGRATED  TEMPERATURE TRANSMITTER

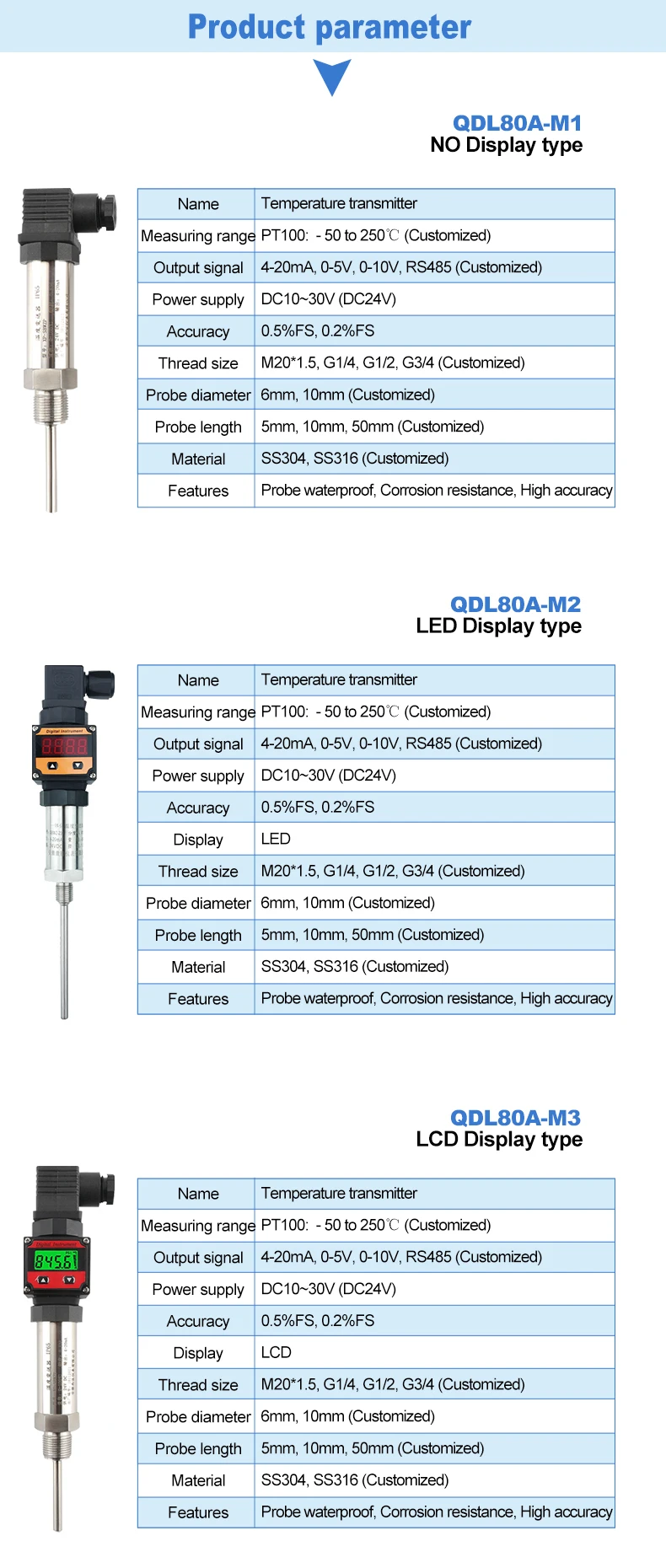

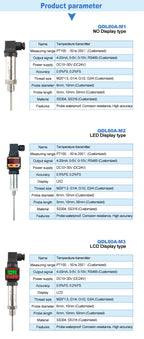

Specification

SBWR

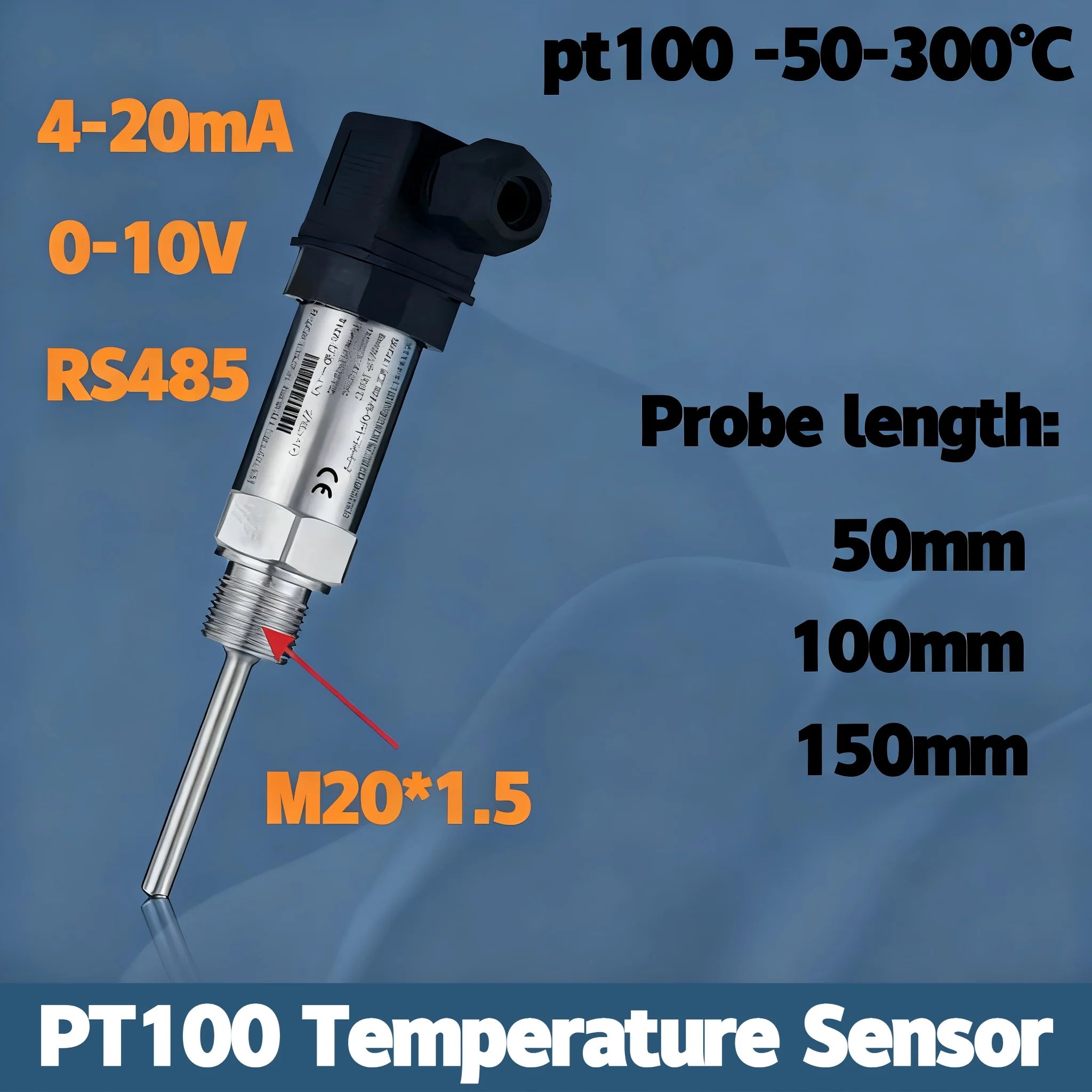

1.Pt100 Temperature Transmitter

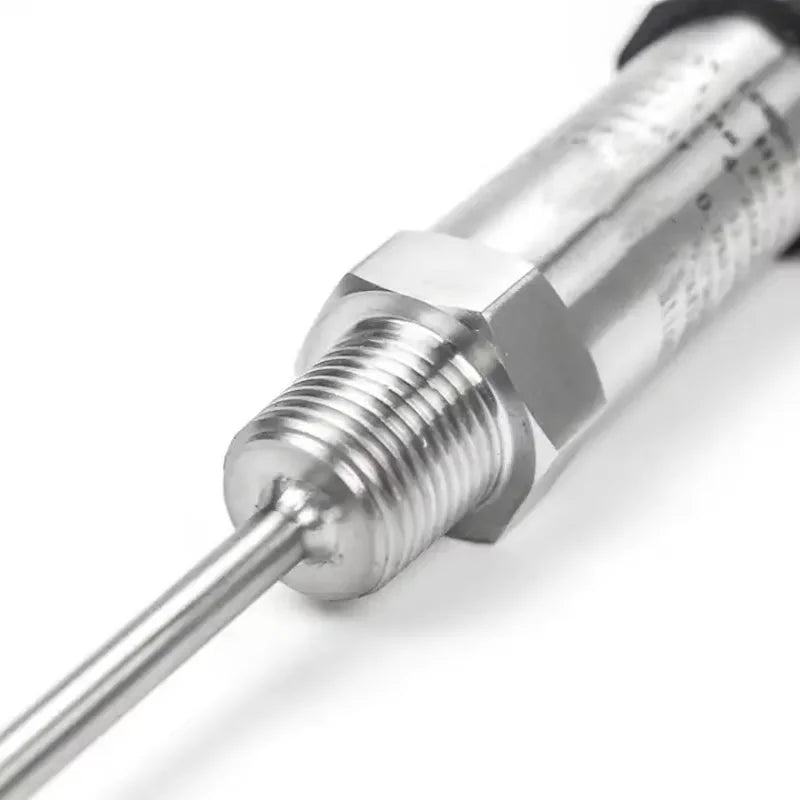

2.Thread: M20*1.5  default
3.Output: 4-20mA or 0-10V
4. Power Supply: 24VDC

5.Probe diameter:6mm default

6.probe lengh:50mm,100mm,150mm,200mm Can be Customized

This PT100 temperature transmitter adopts thermocouple or resistance as the temperature measuring element it is normally matched with display,recording and regulating instrument to measure the temperature (from -50 to 250 Centigrade)of liquid,steam,gas and solid during various production process.

The thermocouple (resistance) measure the changes of thermal power (resistance) when working,which will produce unbalance signal through the temperature transducer's bridge,and the signal will be amplified and converted into 4-20mA DC signal to the instrument,then the instrument will display the corresponding temperature value.

It can be widely used in automation temperature control system,such as metallurgy,machinery,petroleum,electricity chemical industry,light industry,textile,building materials and so on.
