SPECIFICATIONS

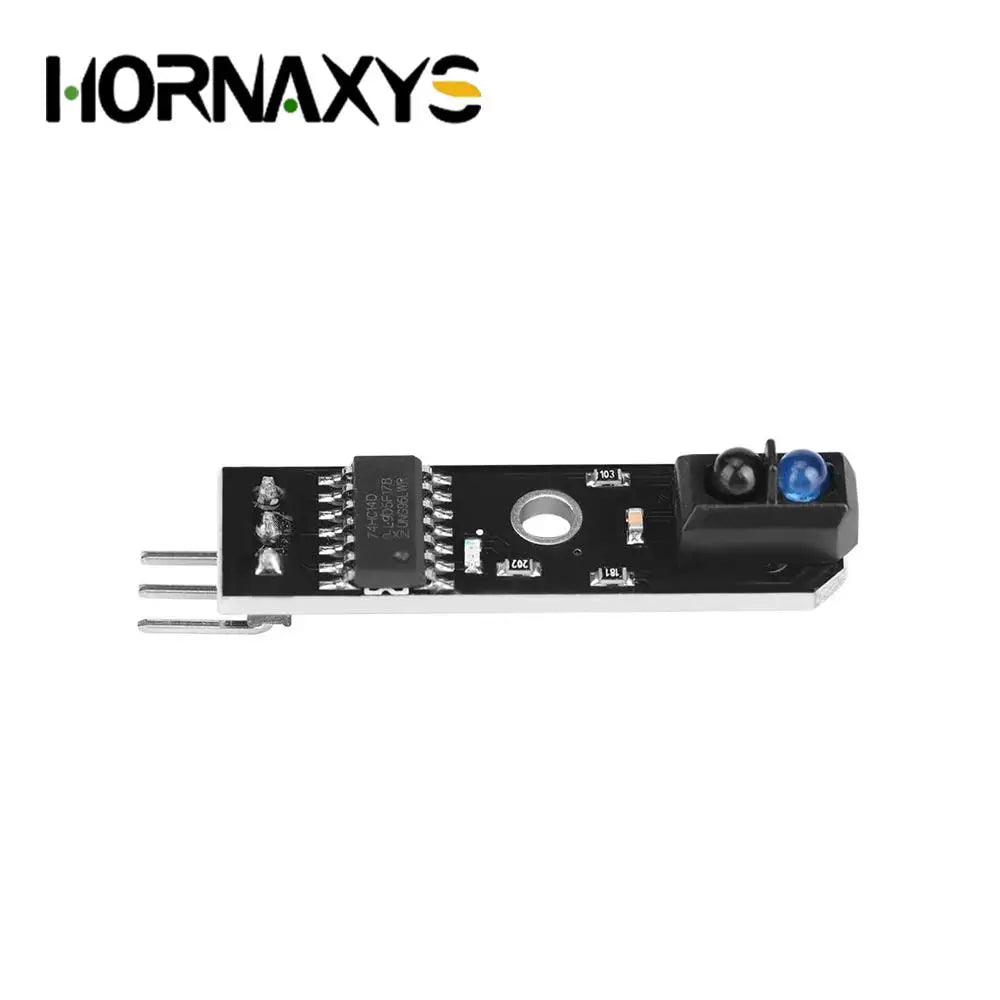

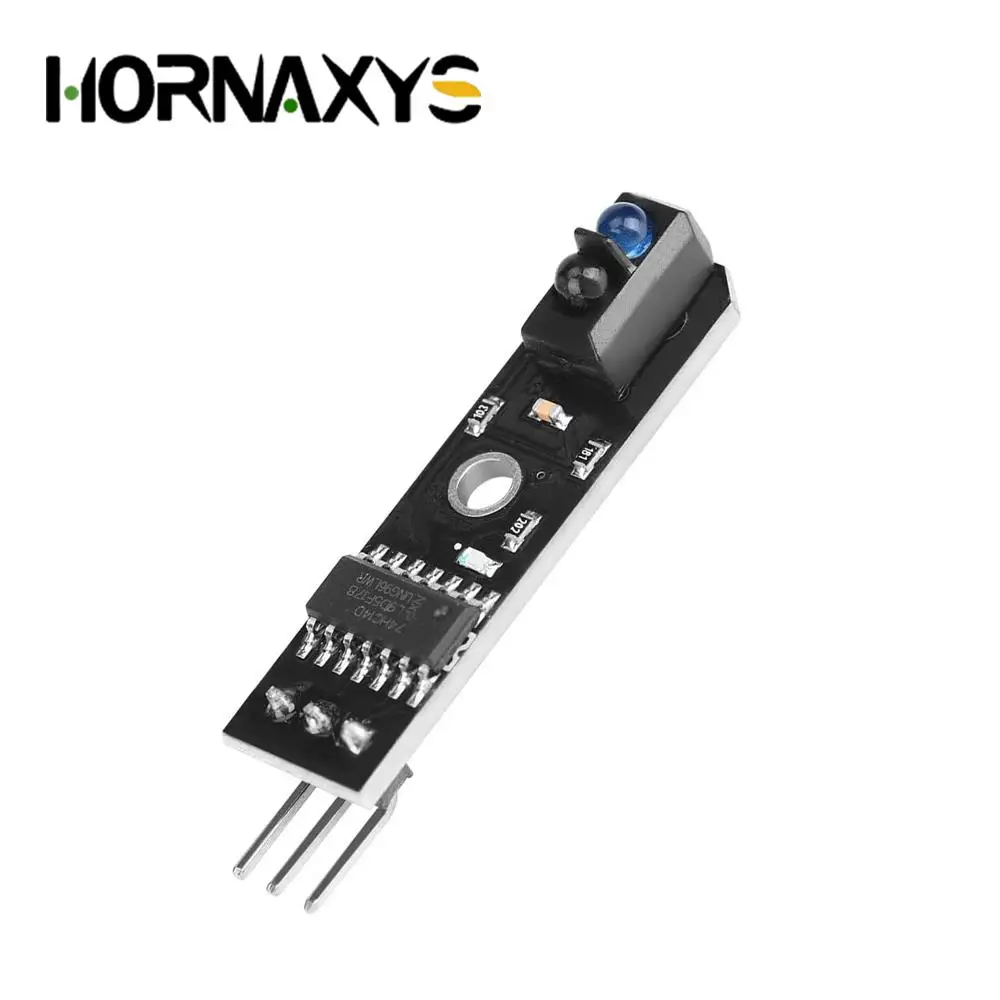

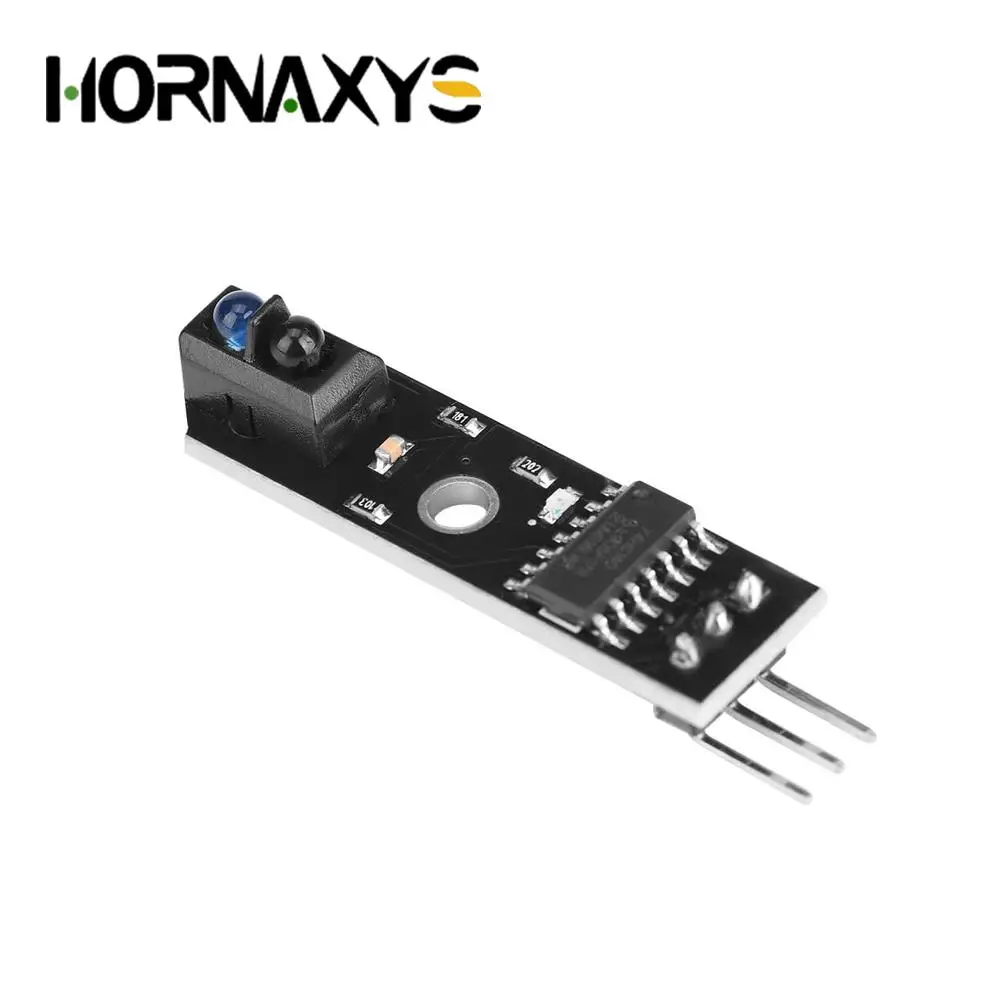

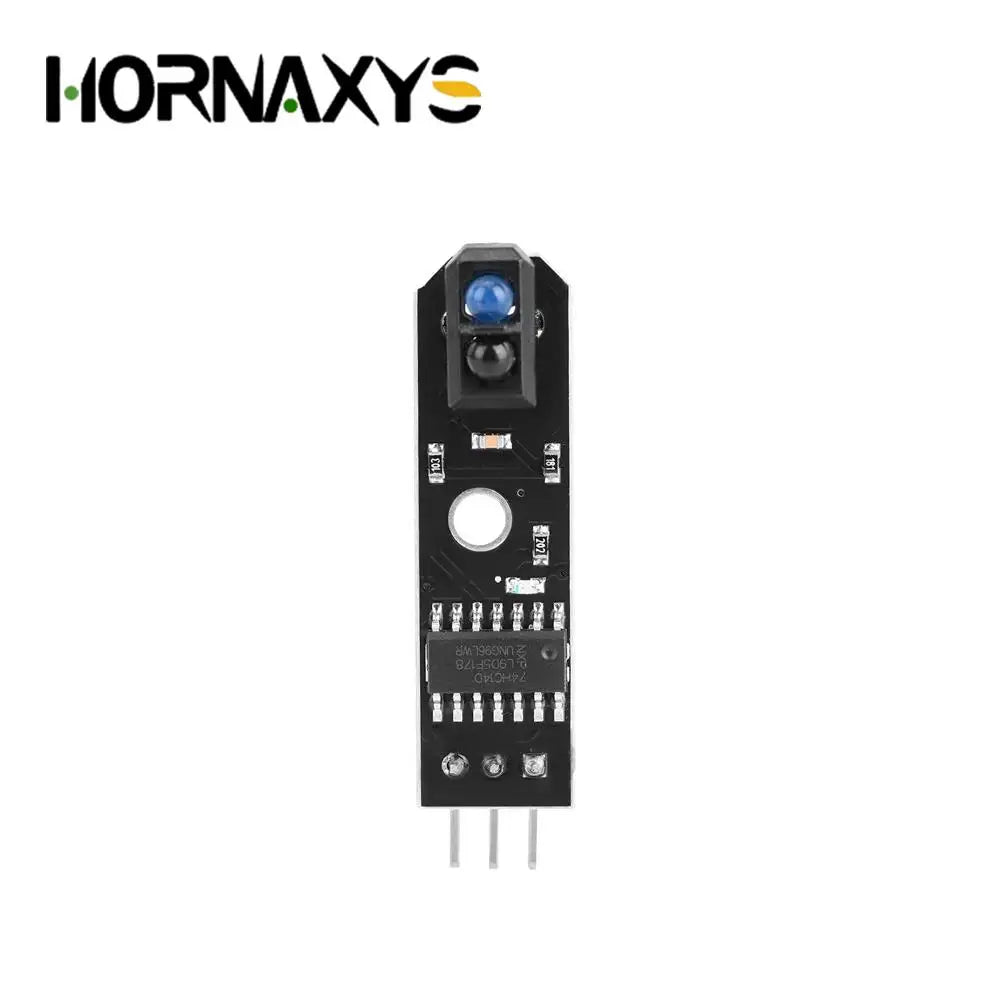

1-10PCS TCRT5000 3PIN Tracking Module IR Infrared Line Reflection Track Follower Sensor TCRT5000 Obstacle Avoidanc For Arduino

Product Usage:

1. the meter pulse data sampling

2. fax machine shredder paper detection

3. obstacle detection

4. black and white line detection

Product description:

1. using TCRT5000 infrared reflection sensor

2. Detection reflection distance: 1mm~25mm

3. working voltage: 5V

4. the output form: digital signal (0 and 1)

5. with fixed bolt holes for easy installation

6. small board PCB size: 3.5cm x 1cm

7. single weight: 4.5g

8. Build-in TCRT5000 Sensor NSOR

9. Applicable to a variety of platforms including for Arduino / AVR / ARM /PIC

Features:

The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back but the intensity is not large enough, the infrared receiving tube is always in the off state, and the output end of the module is low level, indicating The diode is always off; when the detected object appears in the detection range, the infrared light is reflected back and the intensity is large enough, and the infrared receiving tube is saturated. At this time, the output end of the module is high, indicating that the diode is illuminated.

Wiring:

1. VCC: Connect the positive pole of the power supply (5V)

2. GND: connected to the negative power supply

3. OUT: high / low level switching signal (digital signal 0 and 1

Package Included:

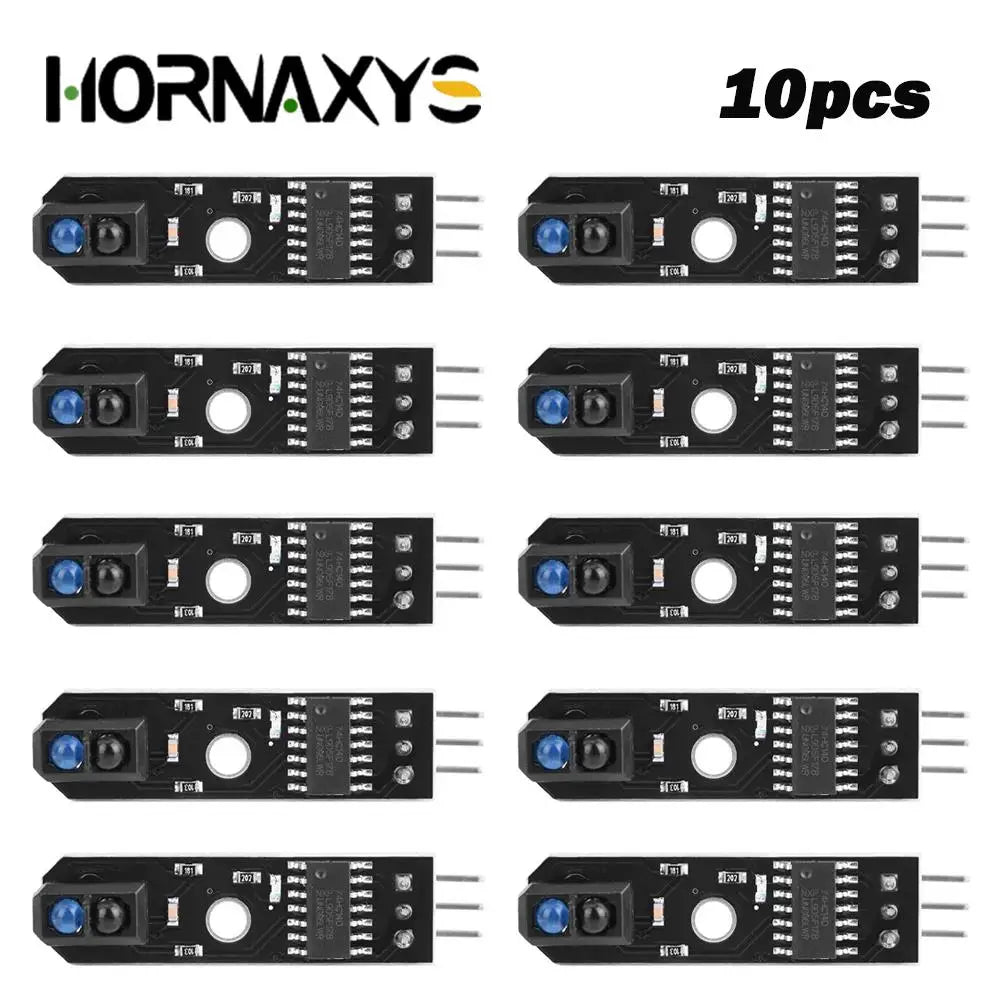

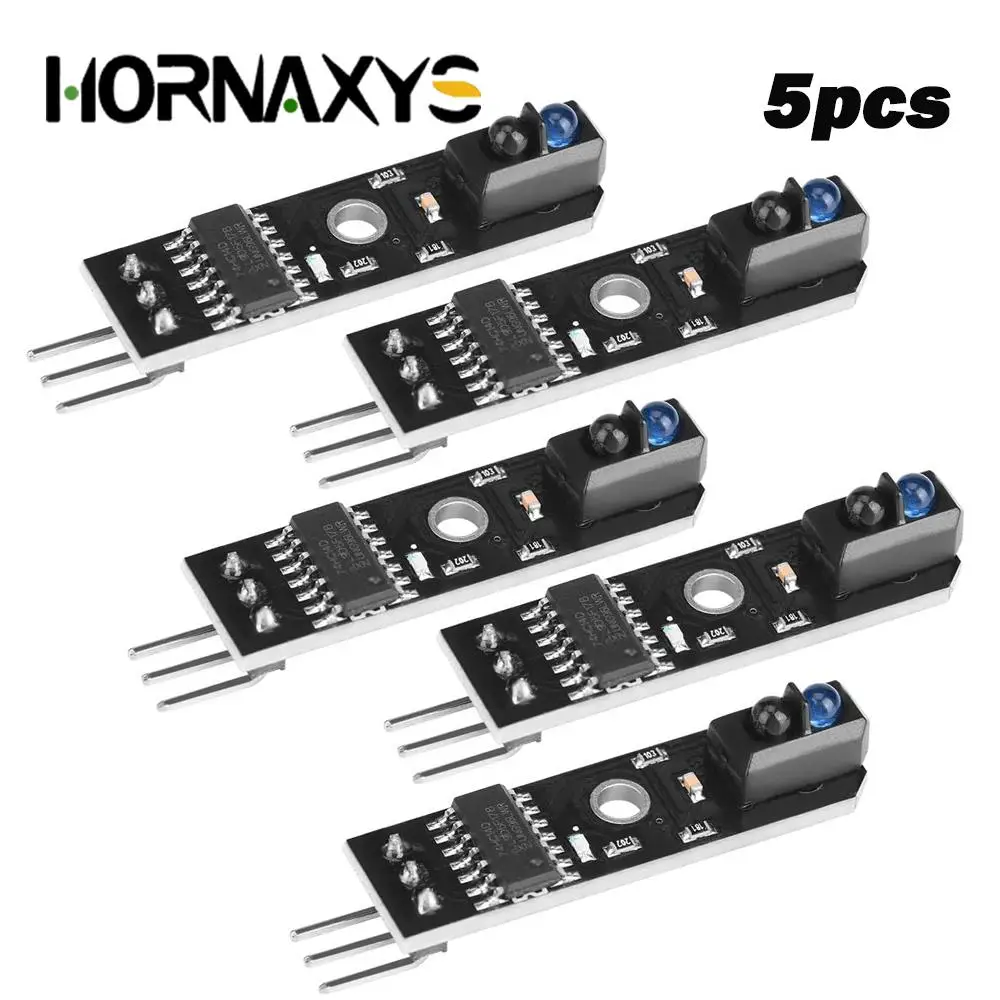

1/5/10 x IR Infrared Line Track Follower Sensor TCRT5000 Obstacle Avoidanc For Arduino
