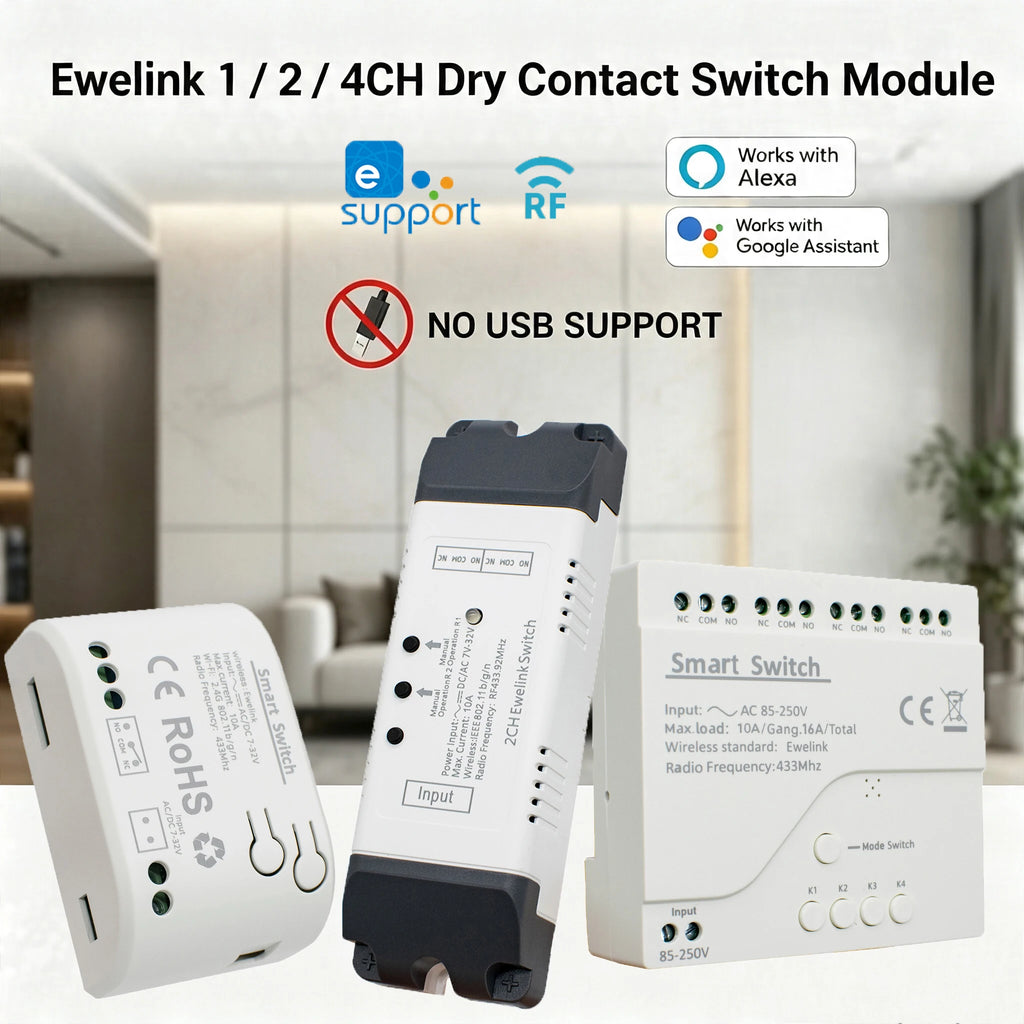

1/2/4CH EWeLink WIFI Smart Switch 7-32V 85-250V 220V Wireless Remote Control Relay Module For Garage Door Access Alexa Google

1/2/4CH EWeLink WIFI Smart Switch 7-32V 85-250V 220V Wireless Remote Control Relay Module For Garage Door Access Alexa Google

$39.52

$39.52 $0.00

Bundle 1CH AC 85-250V 1CH AC DC 7-32V 4CH AC 85-250V 4CH AC DC 7-32V 2CH AC 85-250V 2CH AC DC 7-32V

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Channel: 1/2/4

Choice: yes

Communication method: Wi-fi

Compatibility: All Compatible

Feature 1: Garage door open/closed with APP message push

Feature 2: Garage door open/close by phone/APP

Feature 3: Garage door open/close by schedule

Feature 4: Garage door open/close by voice

Features: Voice control,Time switch,APP control

High-concerned chemical: none

Model Number: EWELINK Smart Life Relay Module

NOTE: Does not support USB 5V

Origin: Mainland China

State of Assembly: Ready-to-Go

Voice Control: Google Assistant, Alexa

Voltage: AC DC 7-32V / AC 85V-250V

Wireless Protocol: WiFi 2.4GHz(NOT support 5GHz)

Use For

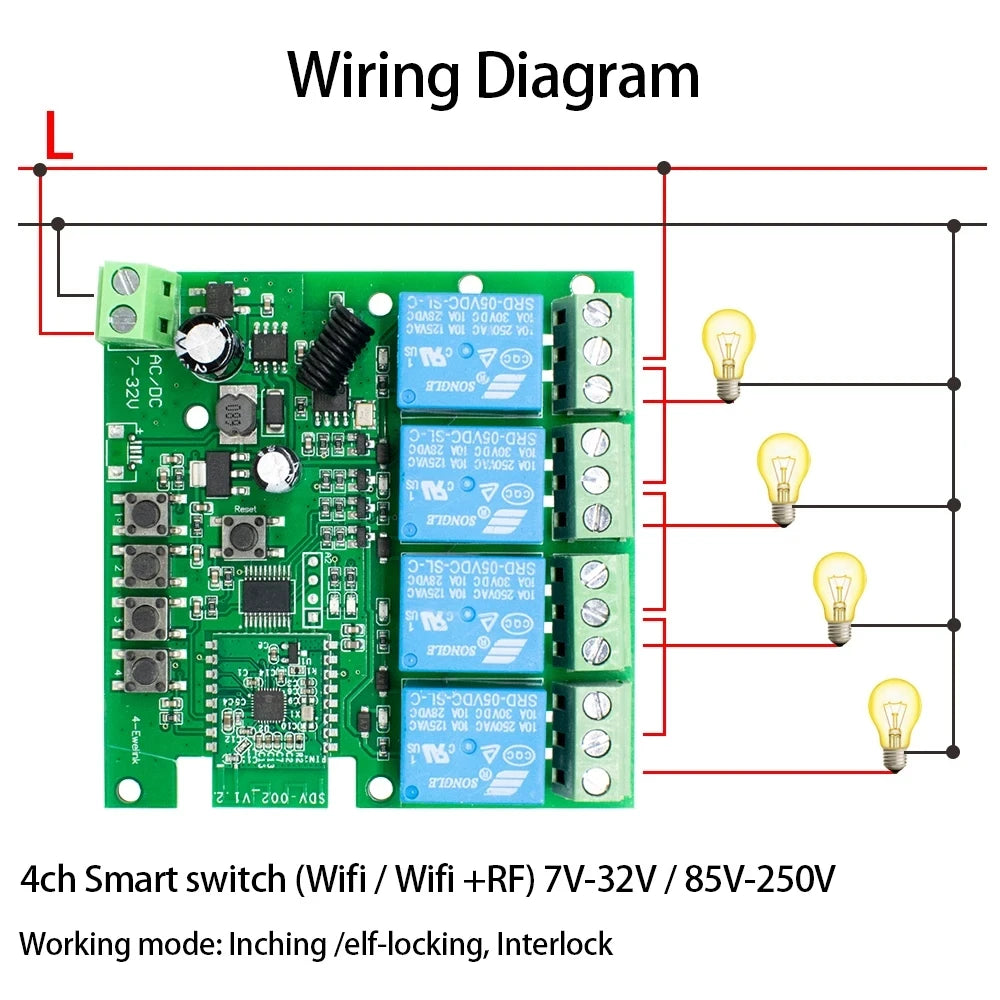

1.Remotely give a pulse signal to turn on/off Lights,Lamps.PC and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access

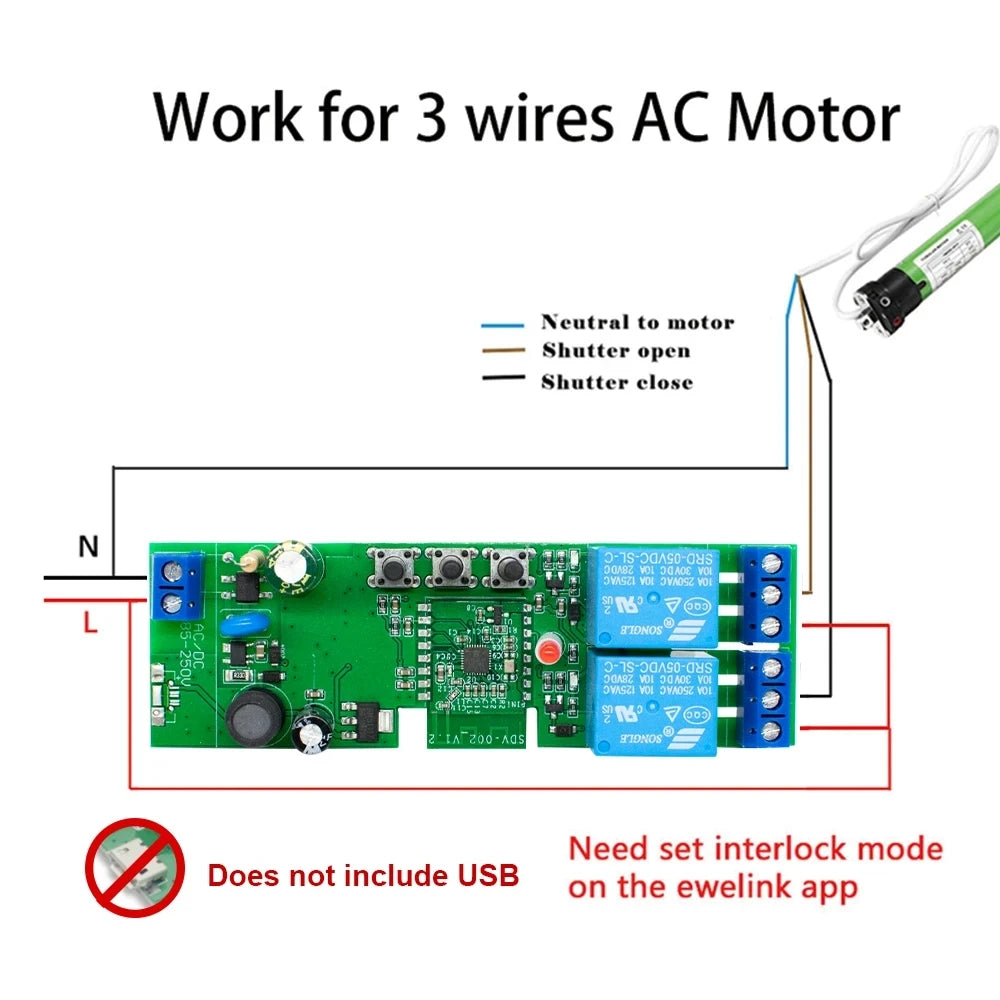

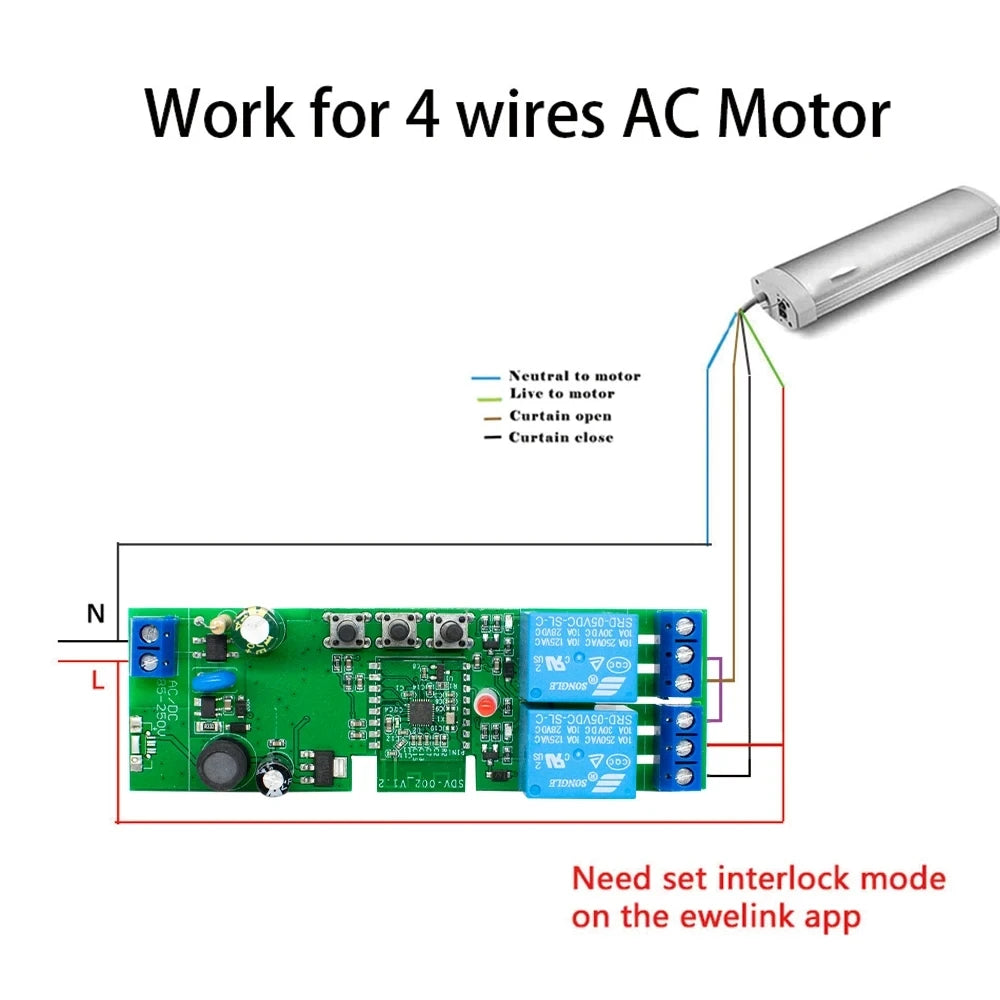

3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse

Note

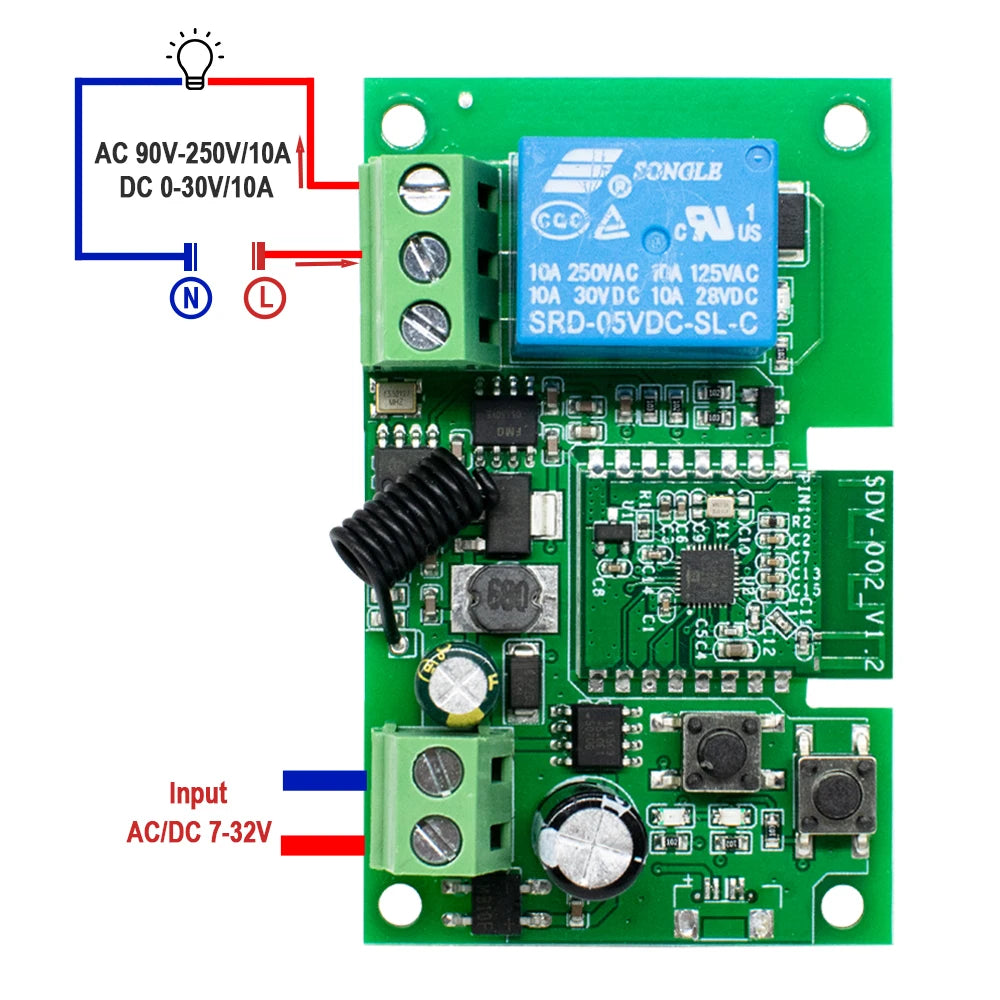

The relays is passive output(dry contact), No matter how many power you supply in the input, the output don't have any voltage, you also need to supply power in output.
The power supply in the input just can make PCB board work.
If you do not supply power in output, the connectted device can't work.

Two Working Mode

1.Self-locking : each channel could be switched on/off seperately.You can turn on/turn off all channel at the same time.
automatically .

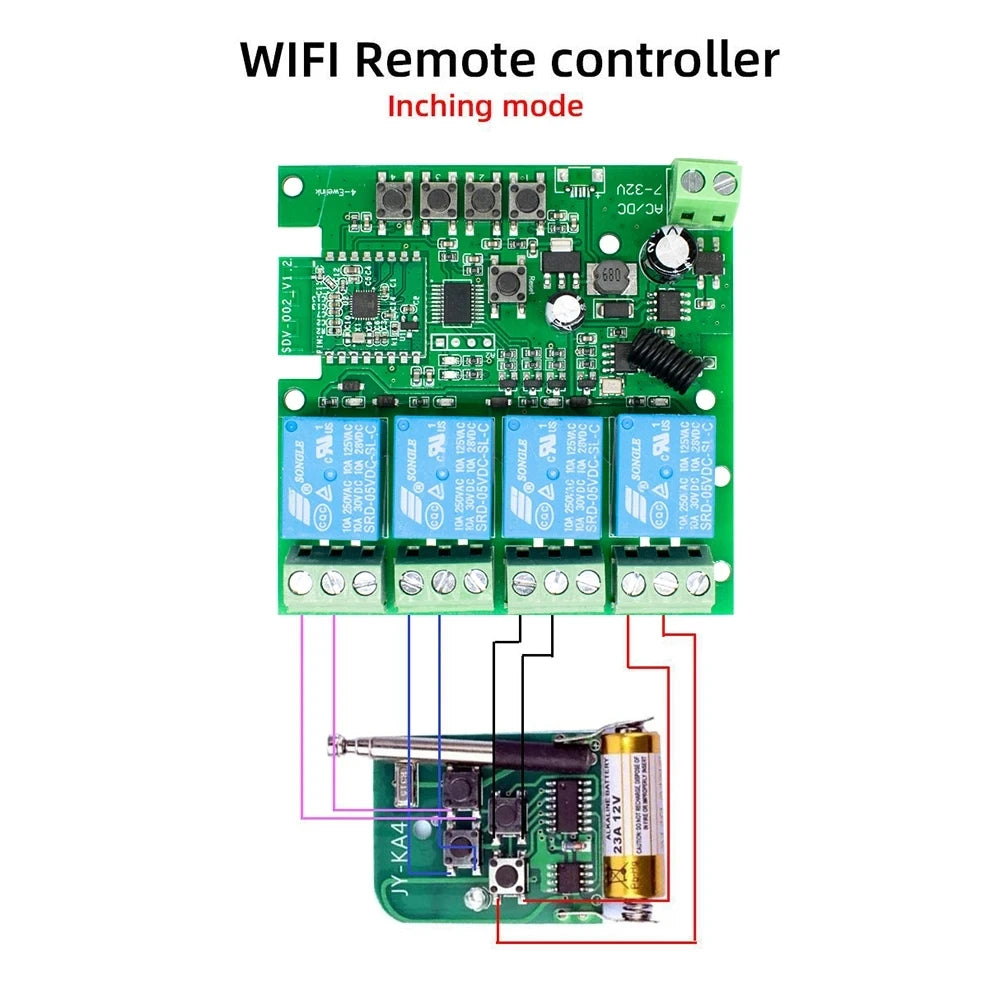

2.Inching mode : Switch on one channel,the channel will be automatically closed after 0.5seconds .Other channel is same as the channel.

If you need to change the mode,you need to press the mode button

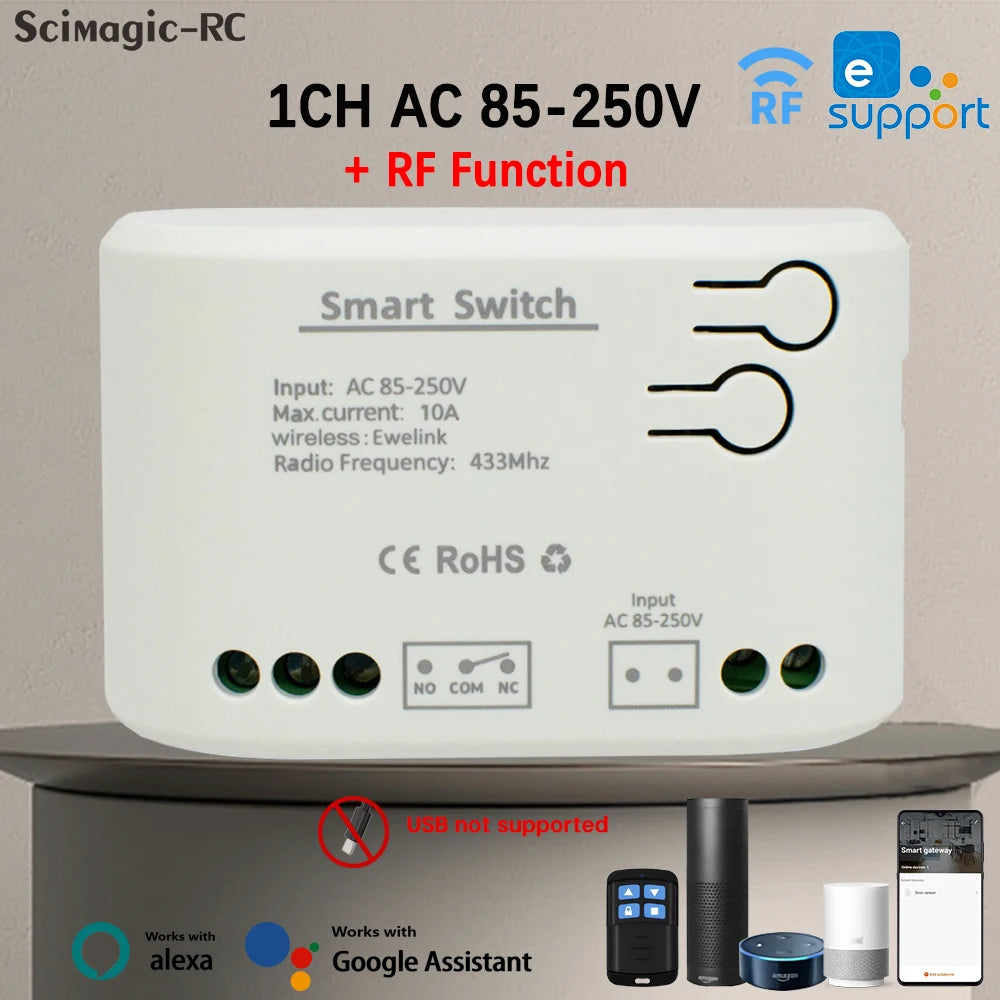

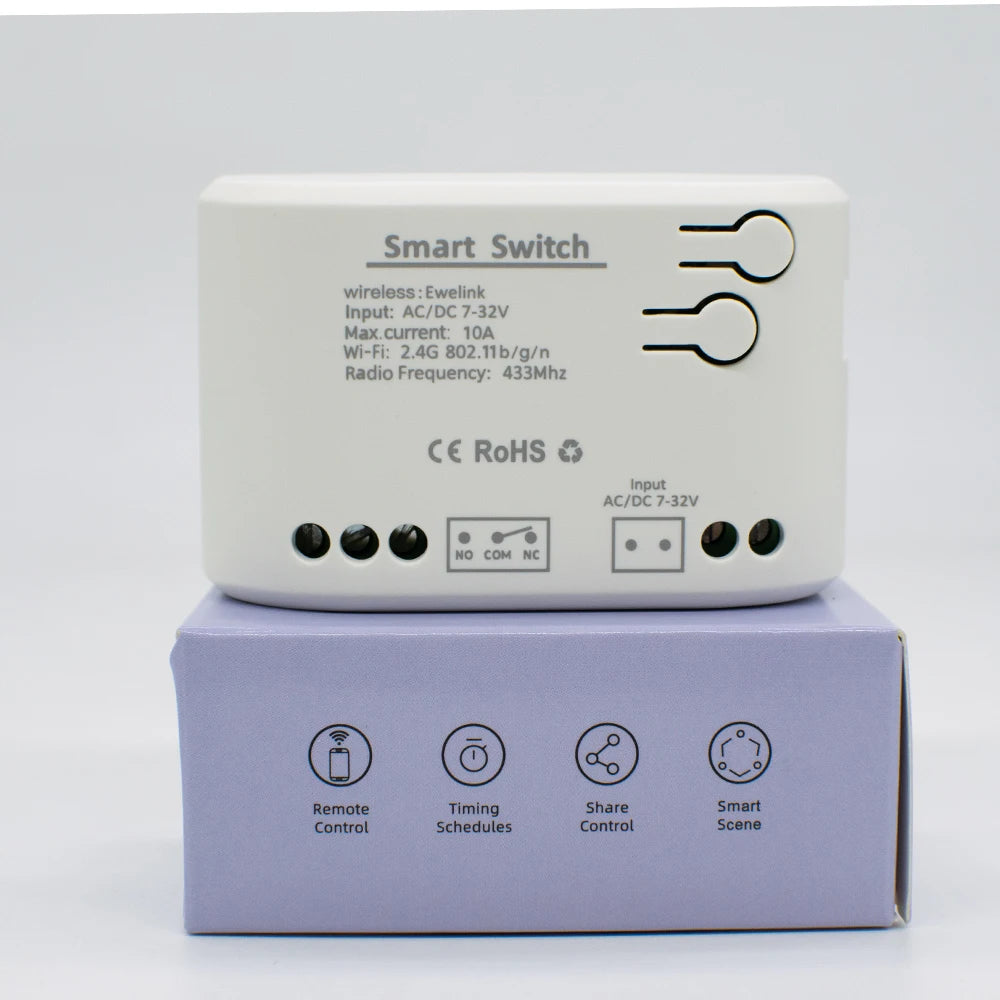

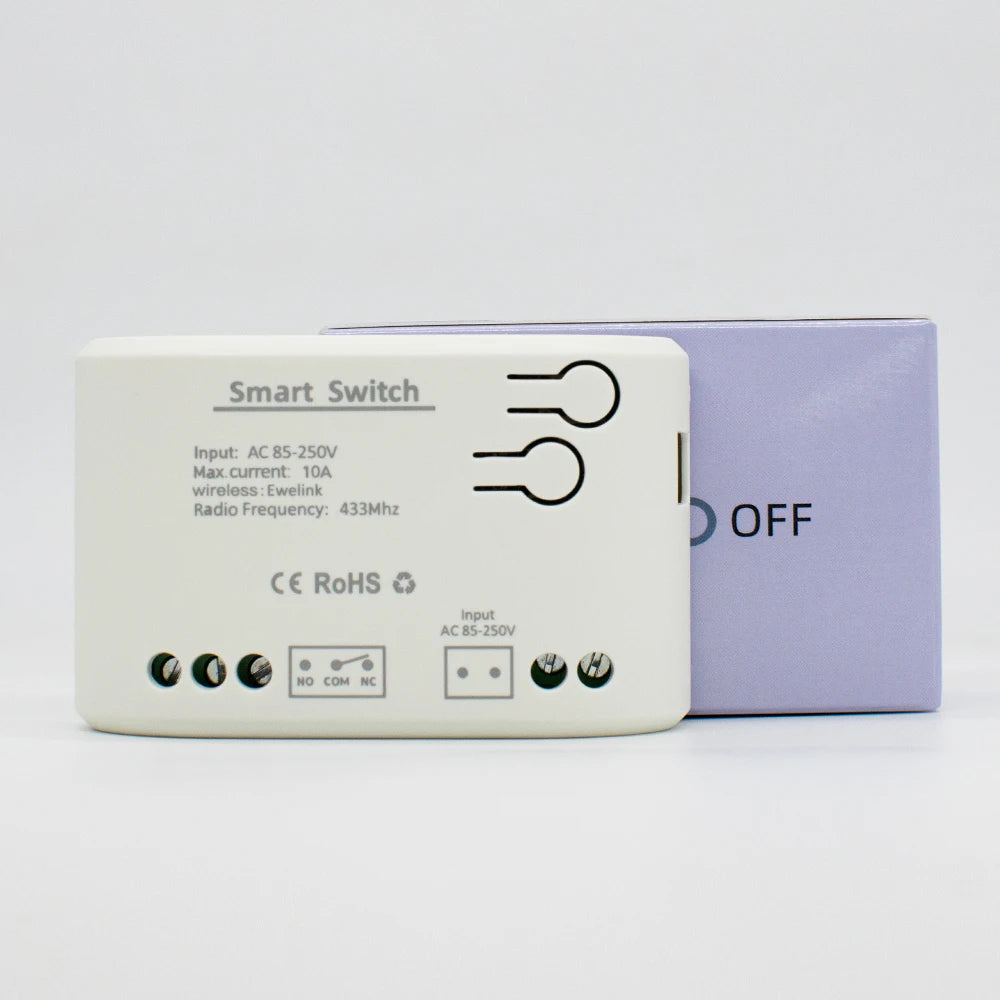

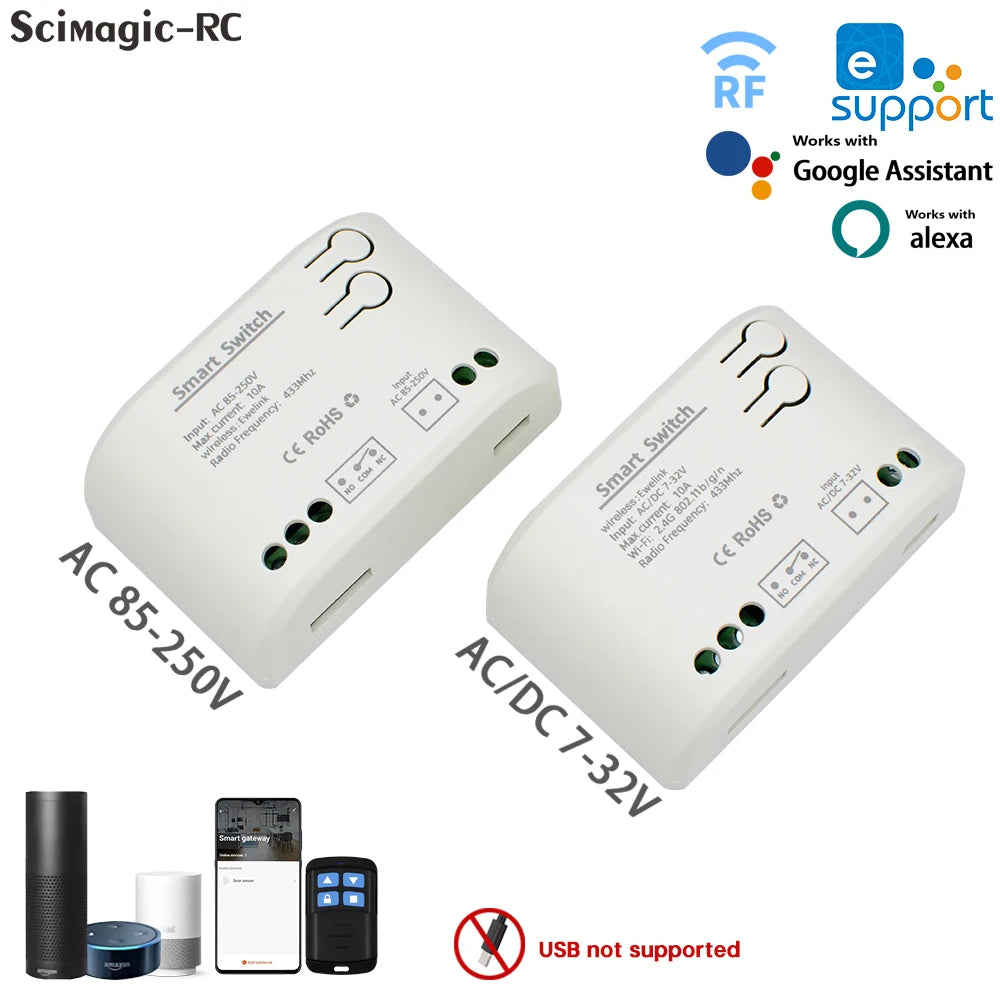

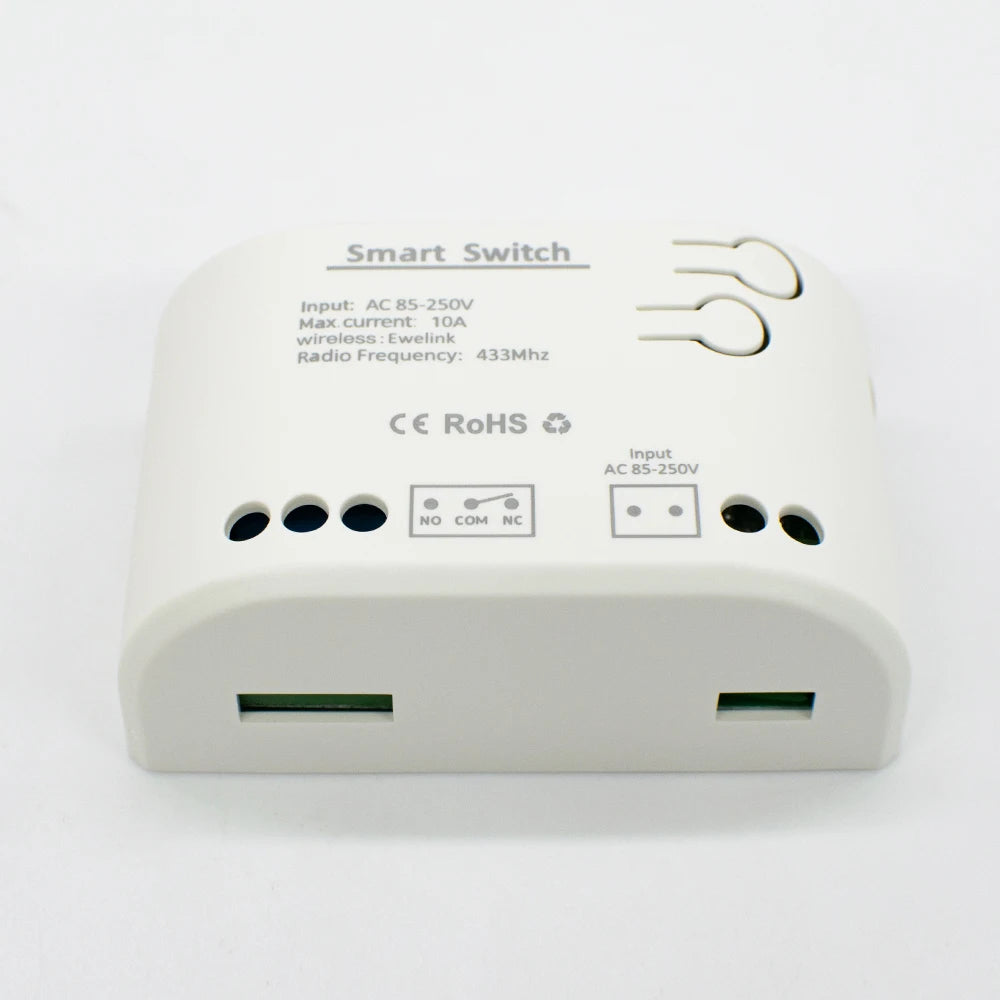

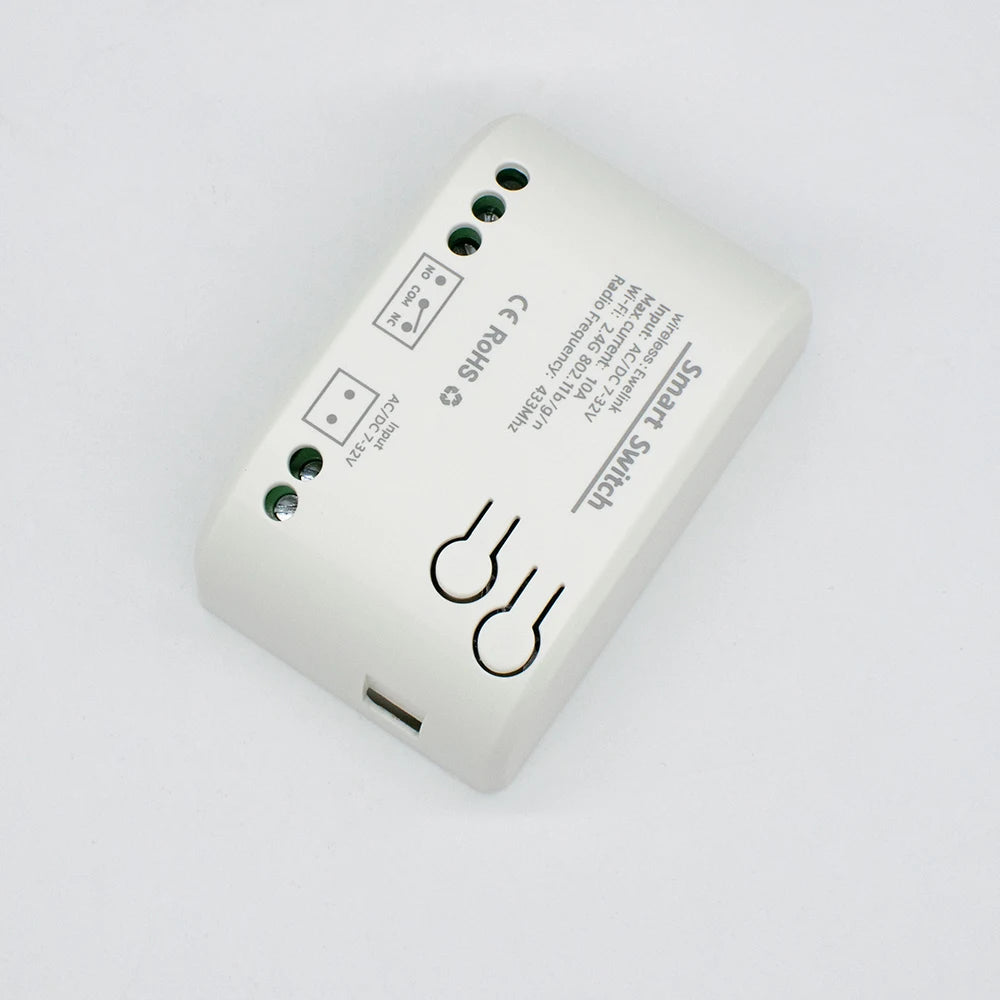

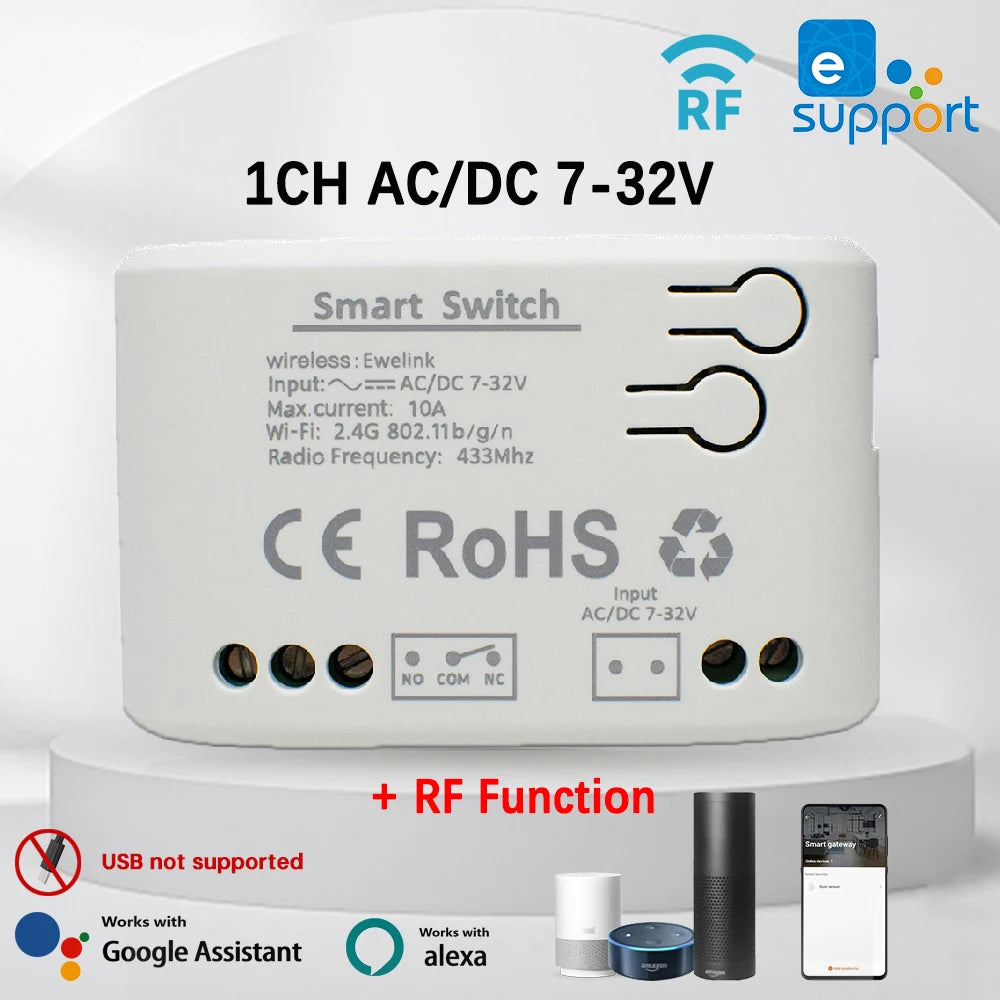

1CH Properties:

Input voltage: DC/AC 7-32V or AC 85-250V
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.

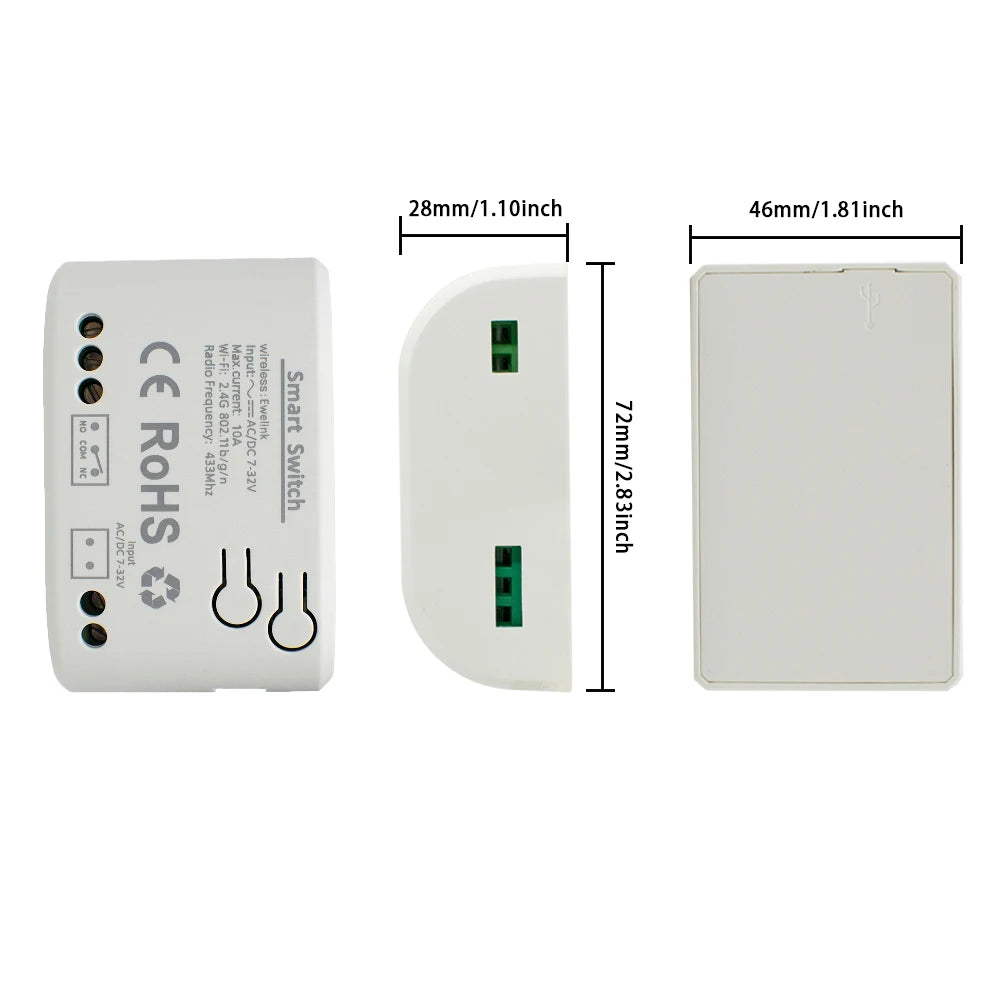

Size : 72*46*28mm
Description:

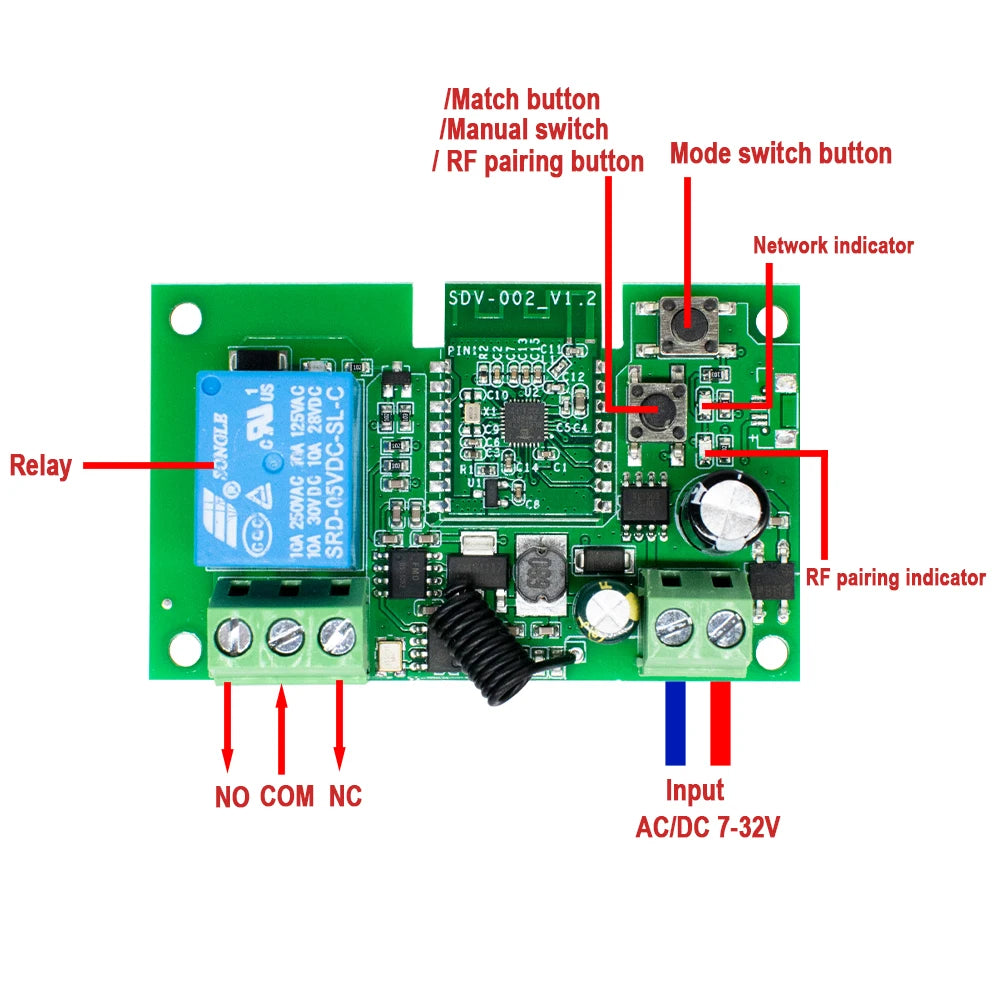

NC NO COM Output:Passive Output(Dry contact)
Working frequency: 50-60Hz
RF433 Frequency
Working temperature: -20-70℃
Wifi standards/ protocol :IEEE 802.11b/g/n, WIFI 2.4Ghz

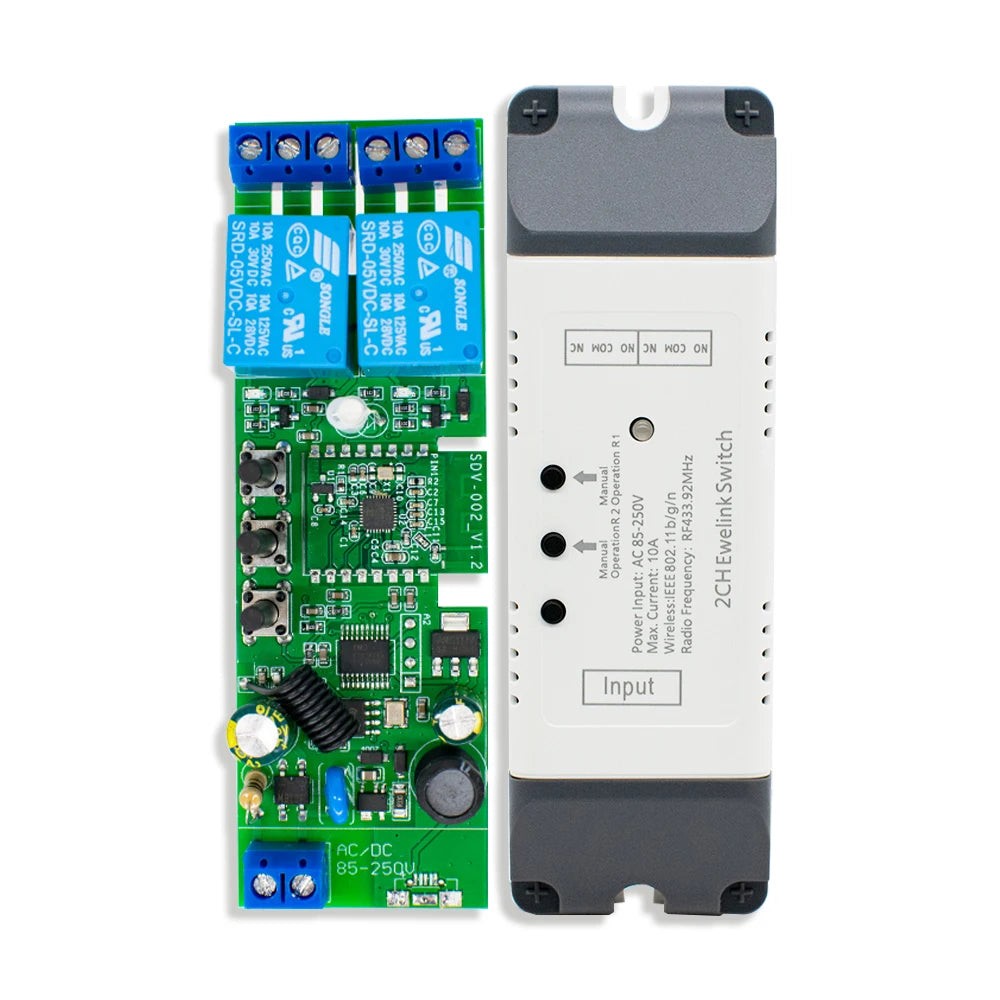

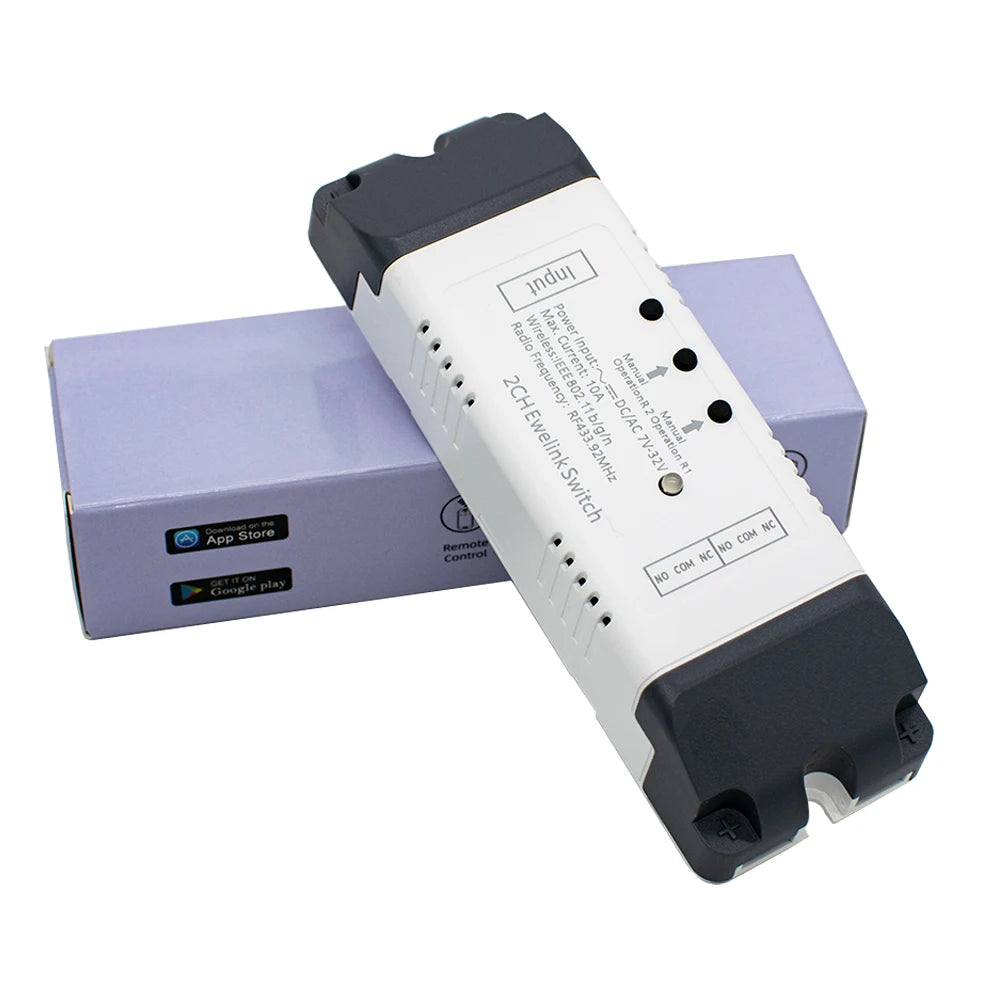

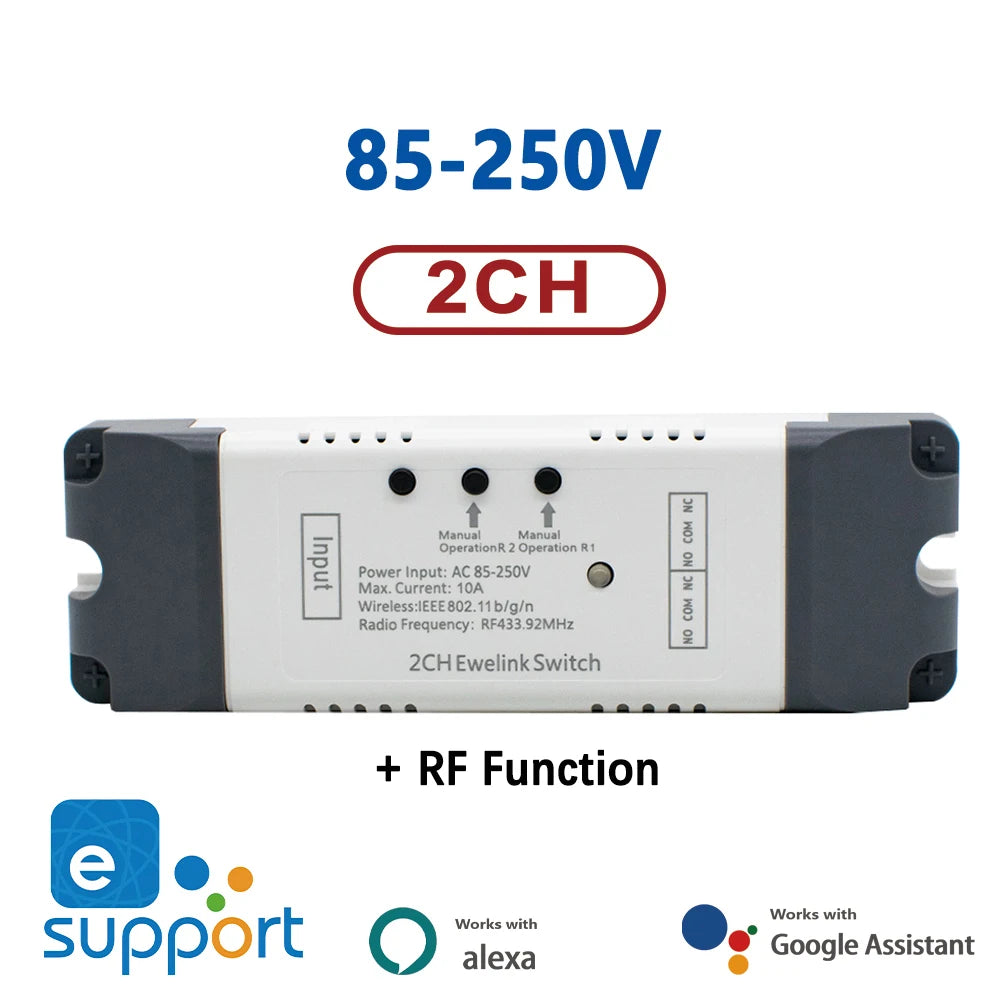

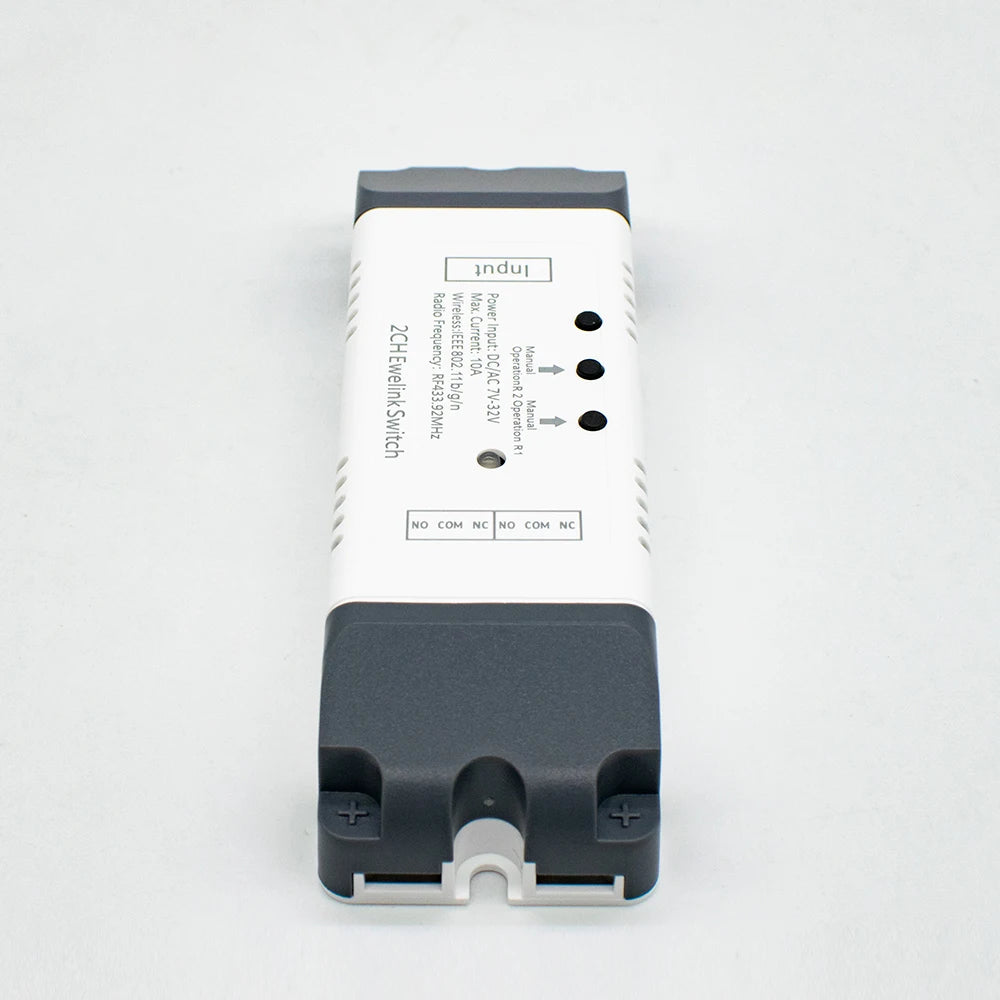

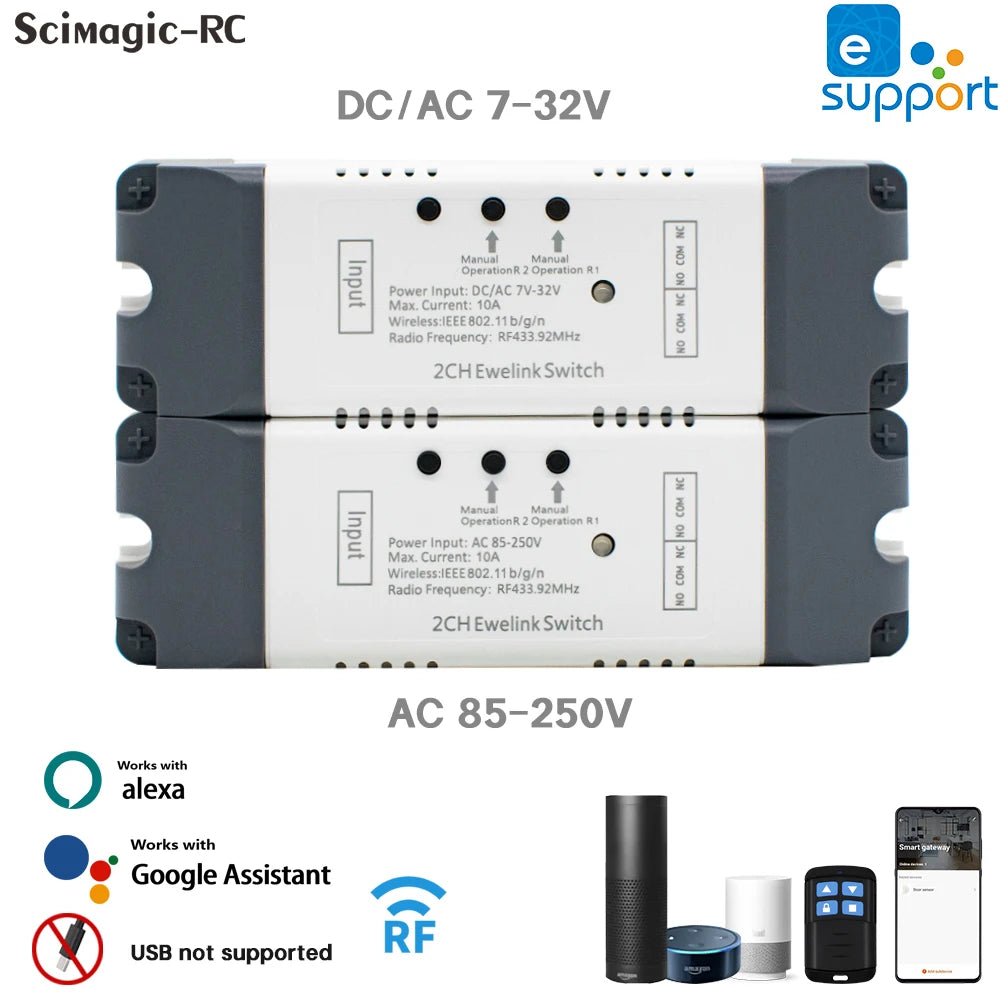

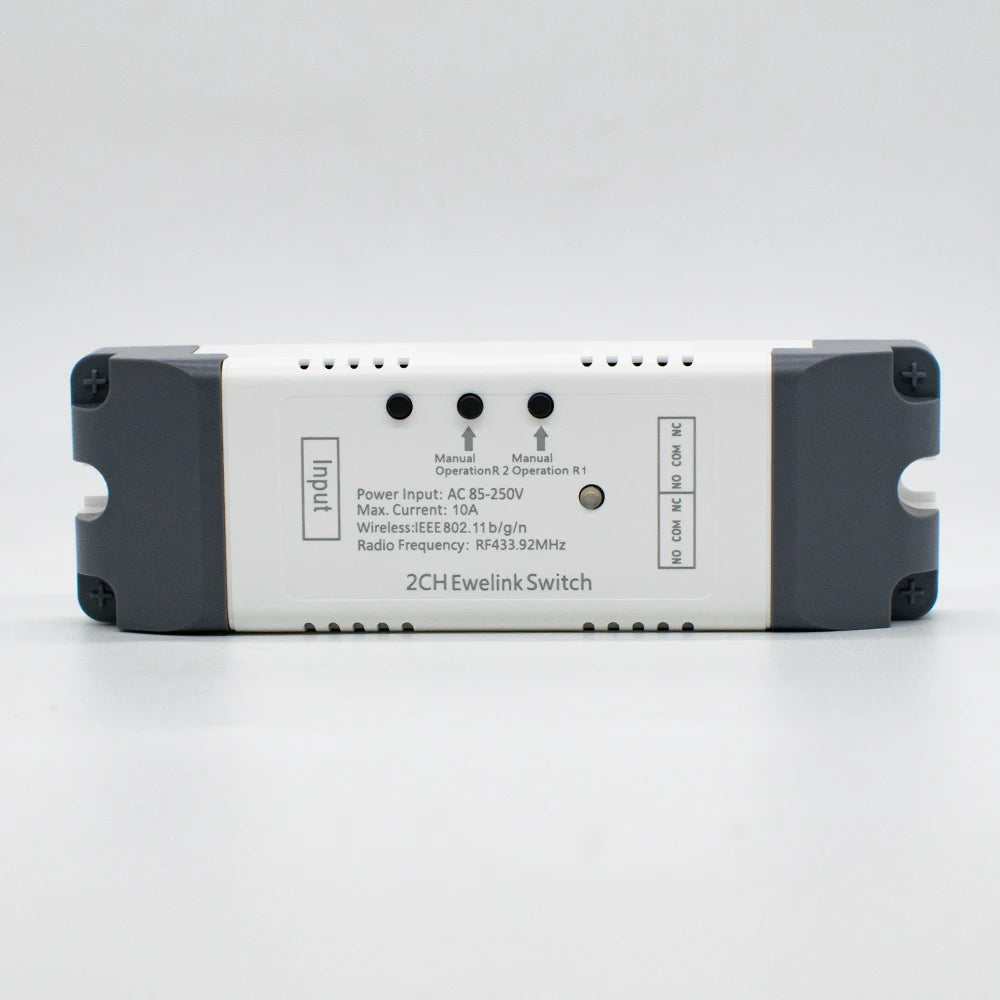

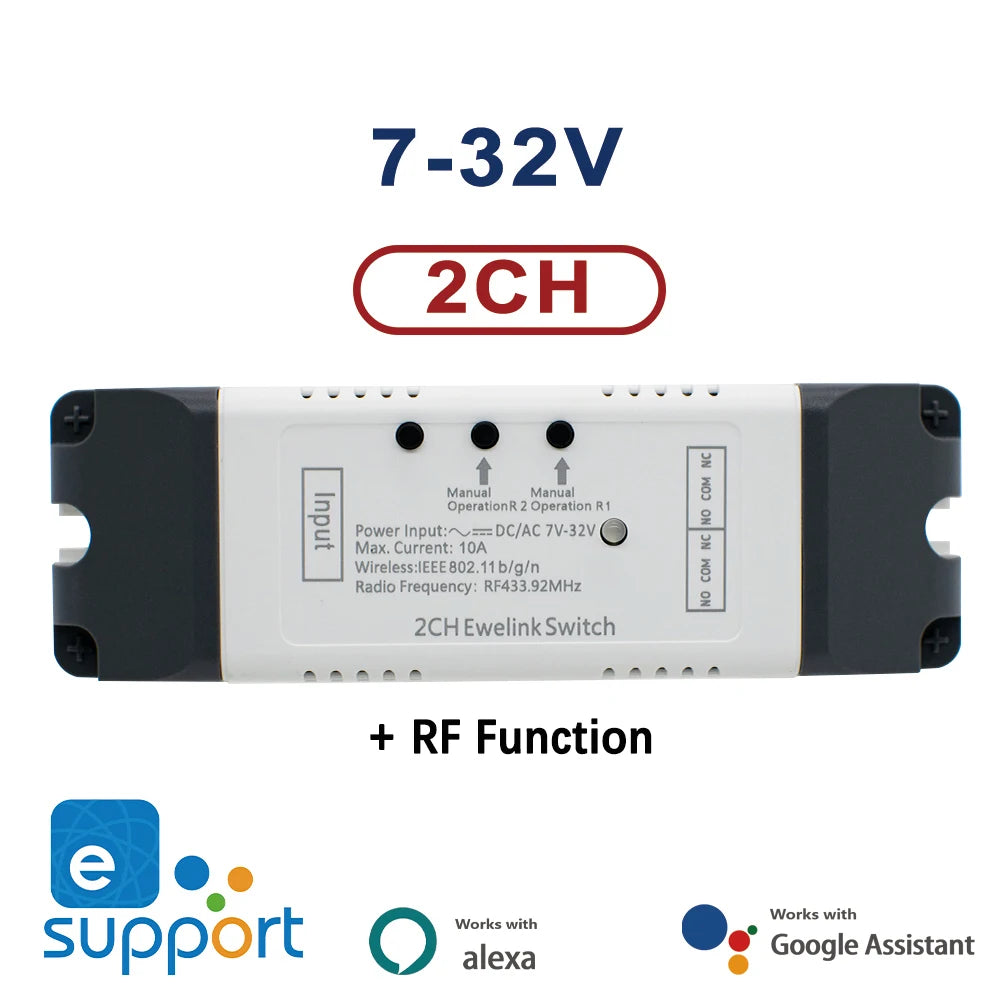

2CH Properties:

lnput voltage: DC/AC 7V~32V or AC 85-250V
Output: Signal output only, no voltage output.
Max.load:2200W / 10A/gang
Wireless:Wi-Fi 2.4ghz b/g/ n
Frequency radio: 433
Working temperature: -40°C~70℃

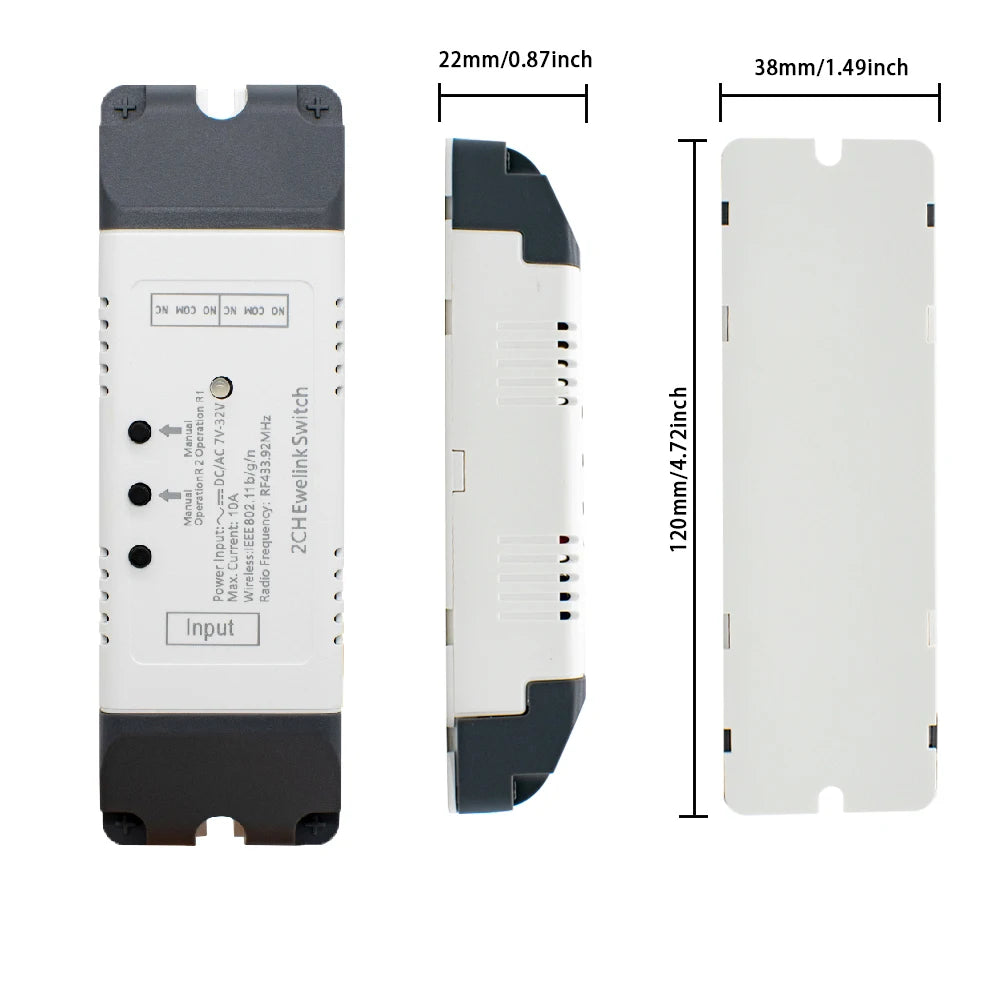

Size: 120*38*22mm

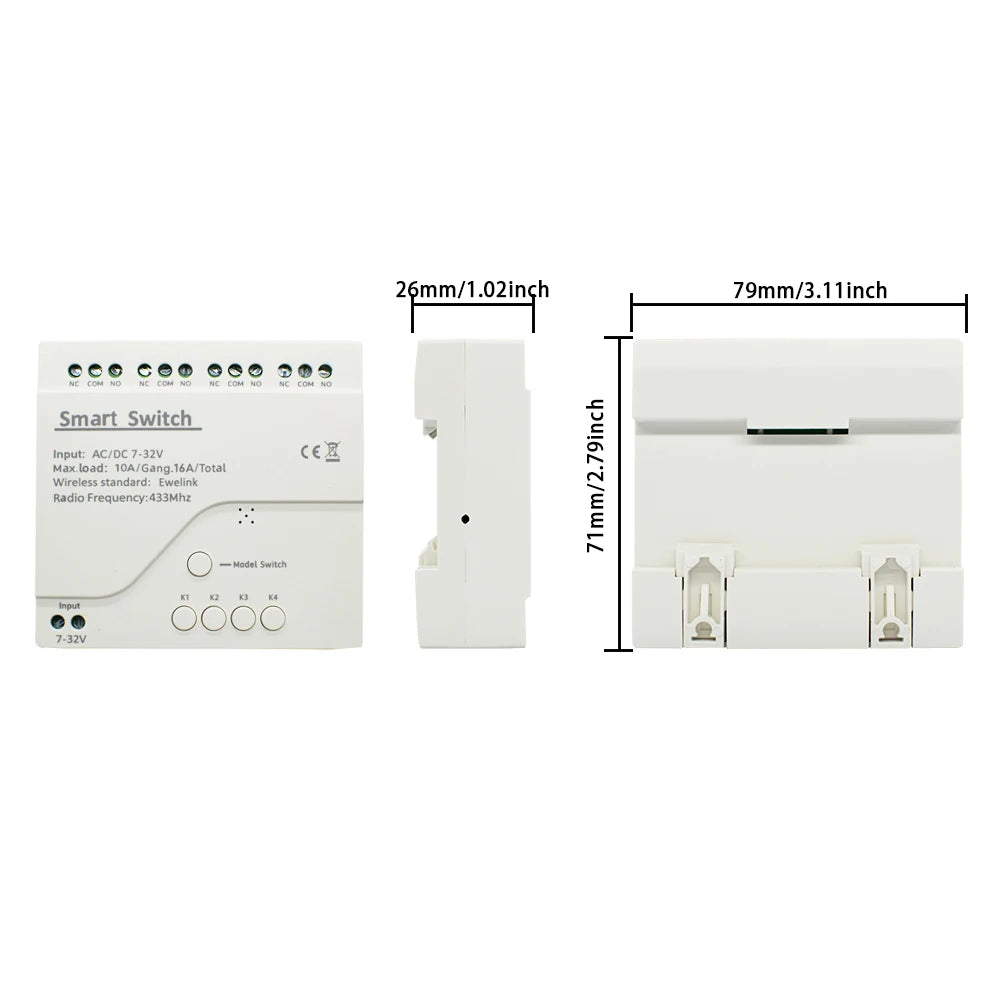

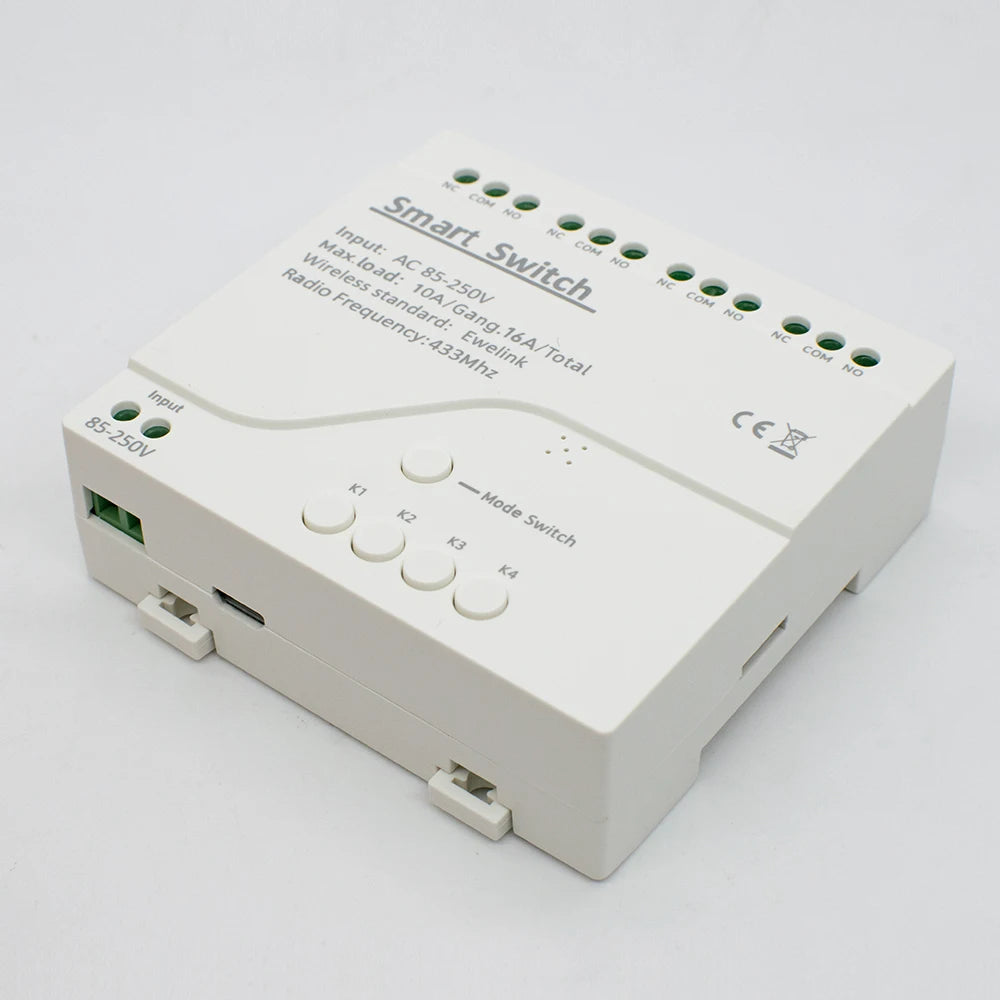

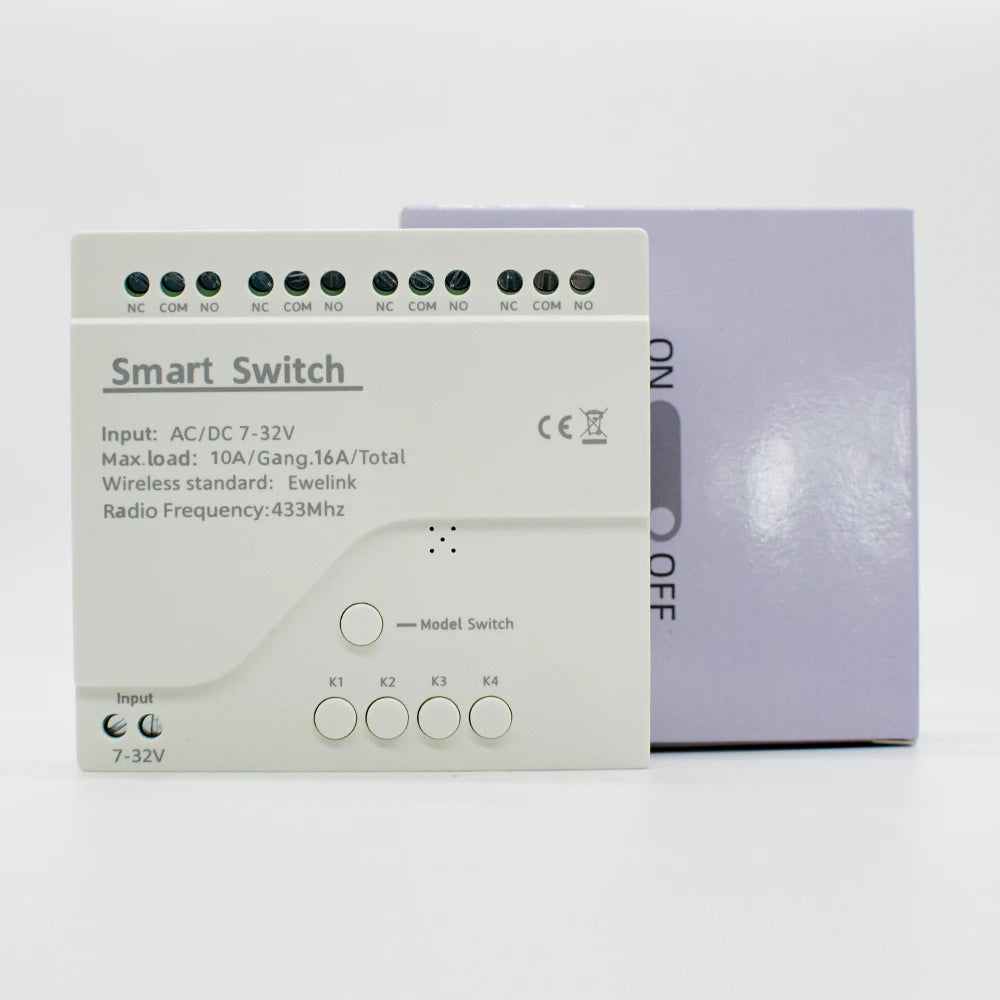

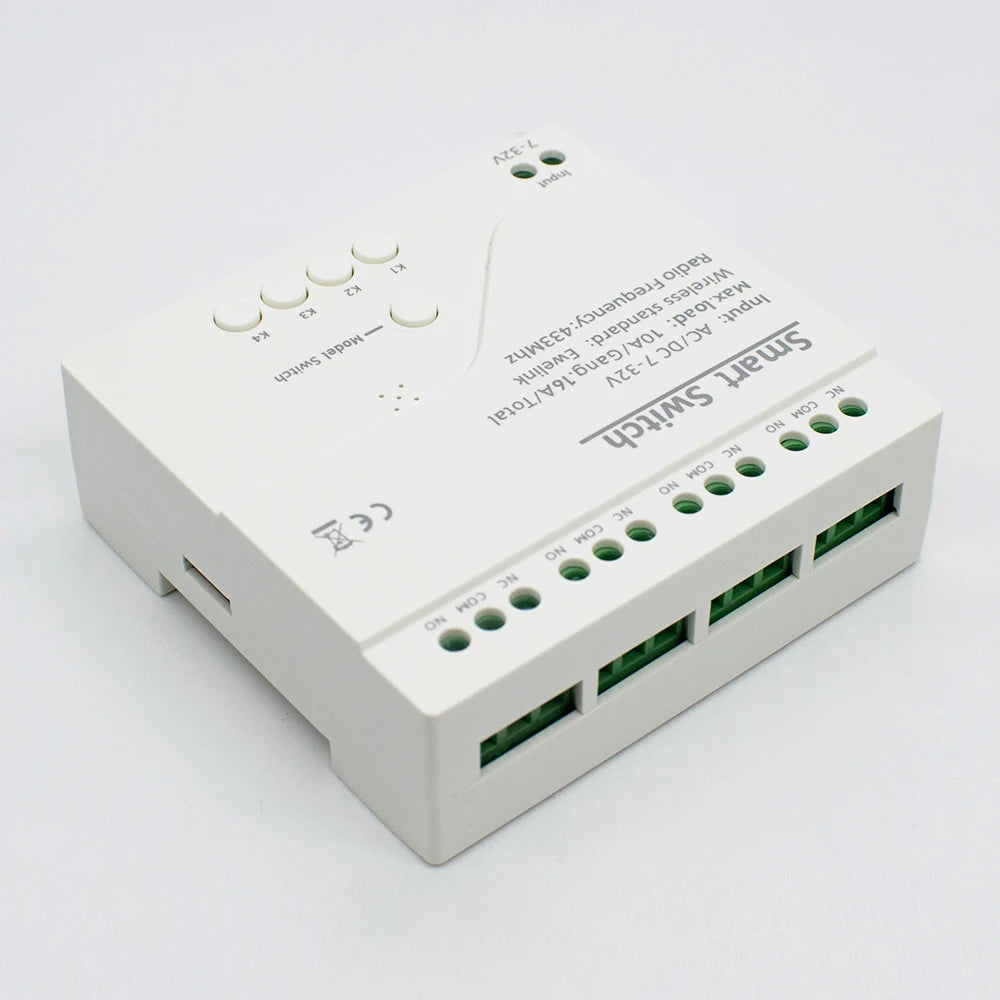

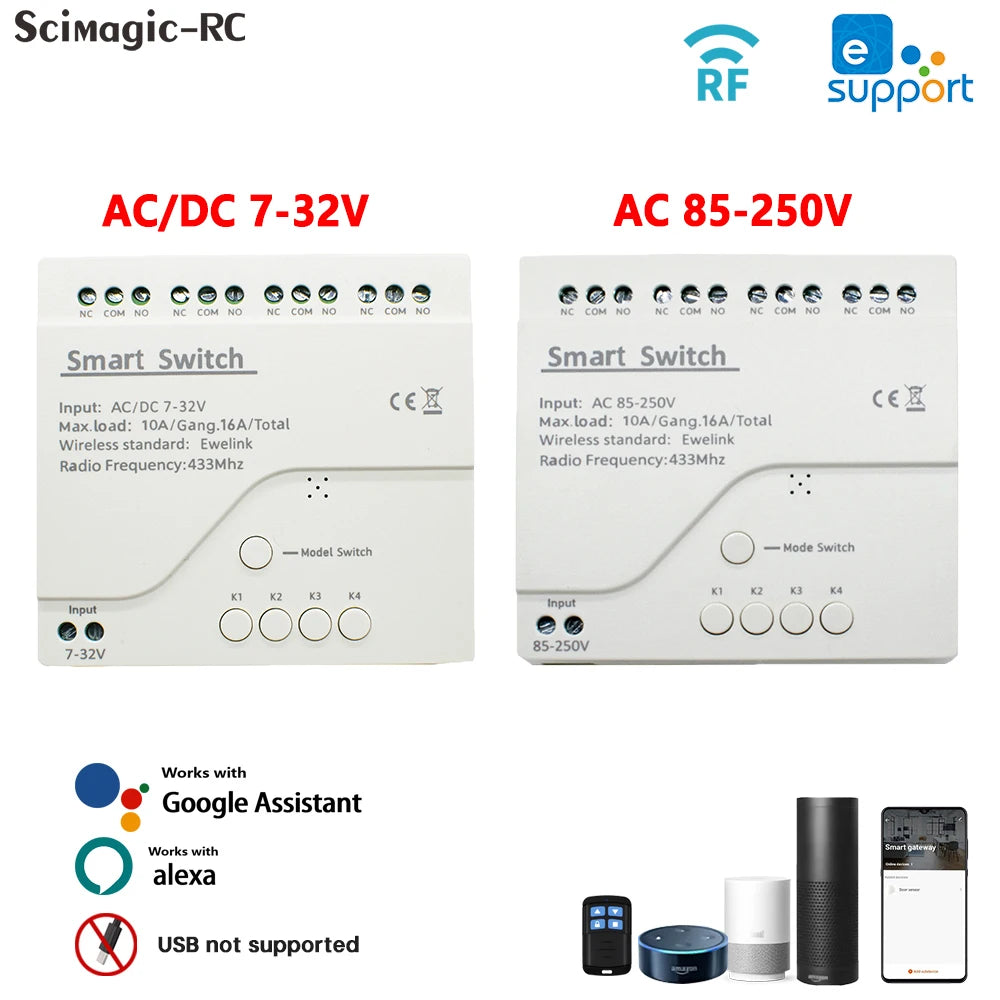

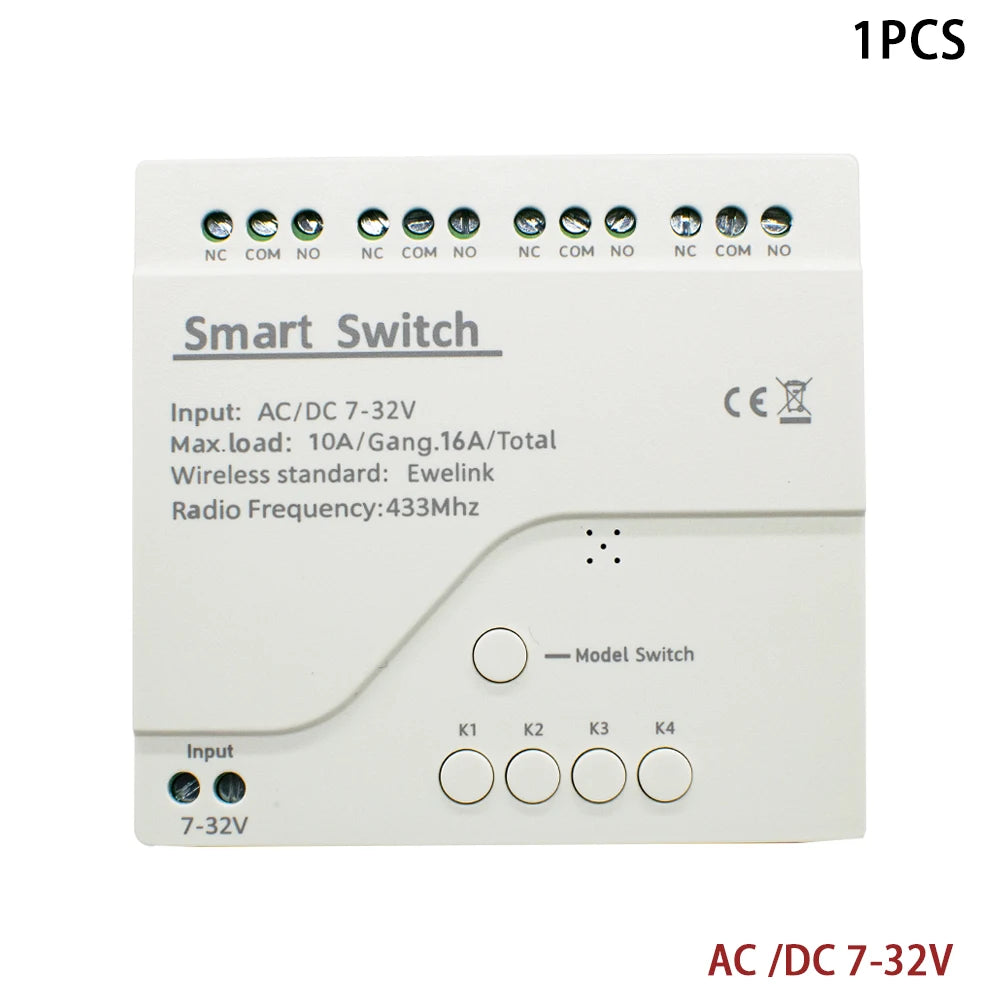

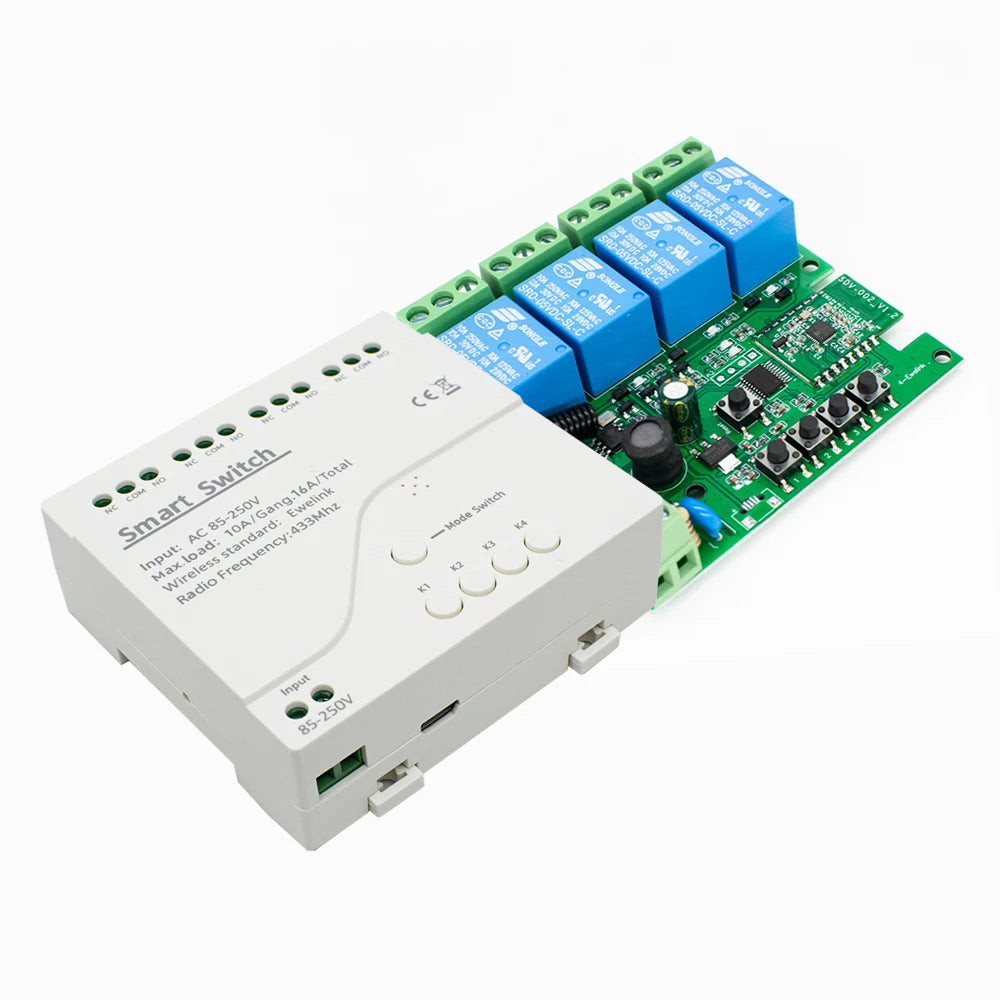

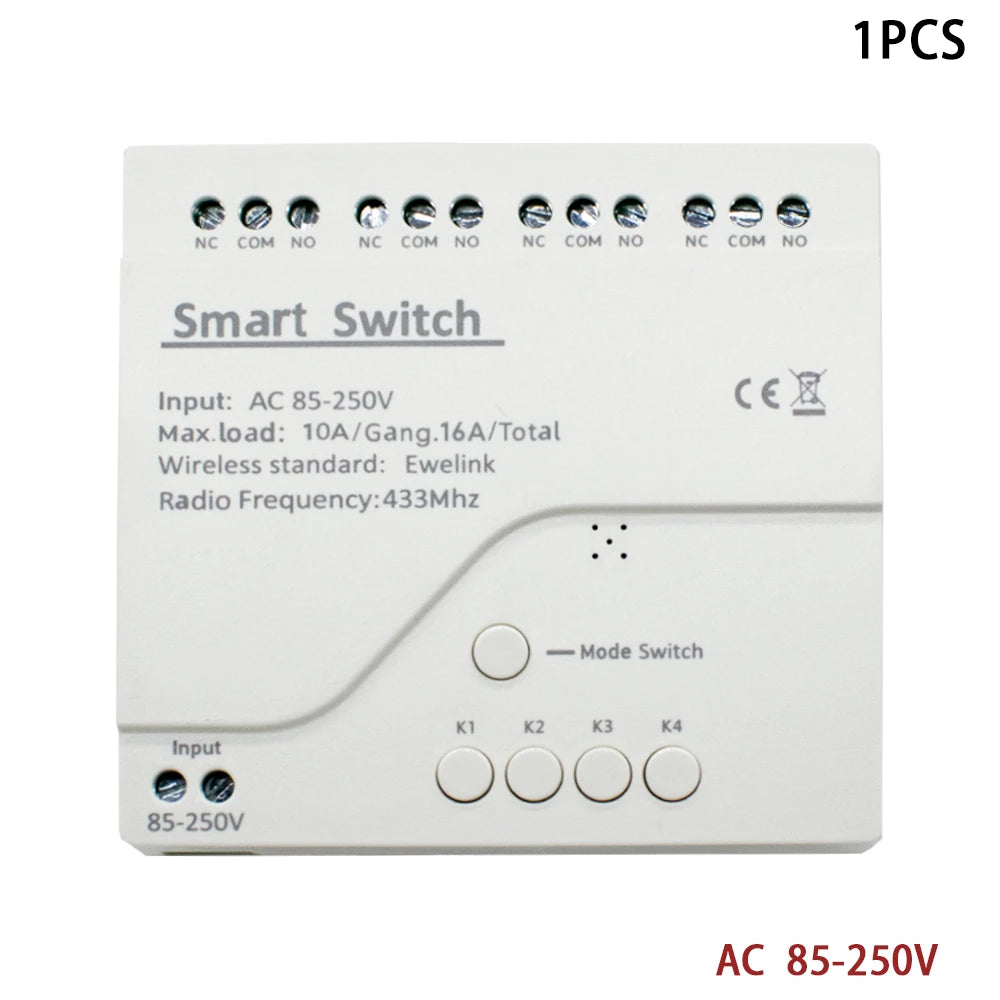

4CH Properties:

LEDs: 3 LEDs(indicate working mode, wifi status, relay on/off status respectively)
Supports to control different voltage ranges
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max Wattage: 2200W
Relay lifespan: ≥ one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Working mode: inching /self-locking
Wireless Standard: 2.4GHz, 802.11 b/g/n
Mobile App: EWeLink on Android/IOS
Application: access control, turn on PC, garage door, etc.
Computer application: Remote control computer boot
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH

Features:

*App Support: Free iOS and for Android mobile App eWeLink.

*Sync Status: Real-time device status provided to App.

*Remote ON/OFF: Turn 2 electrical devices on/off remotely from anywhere.

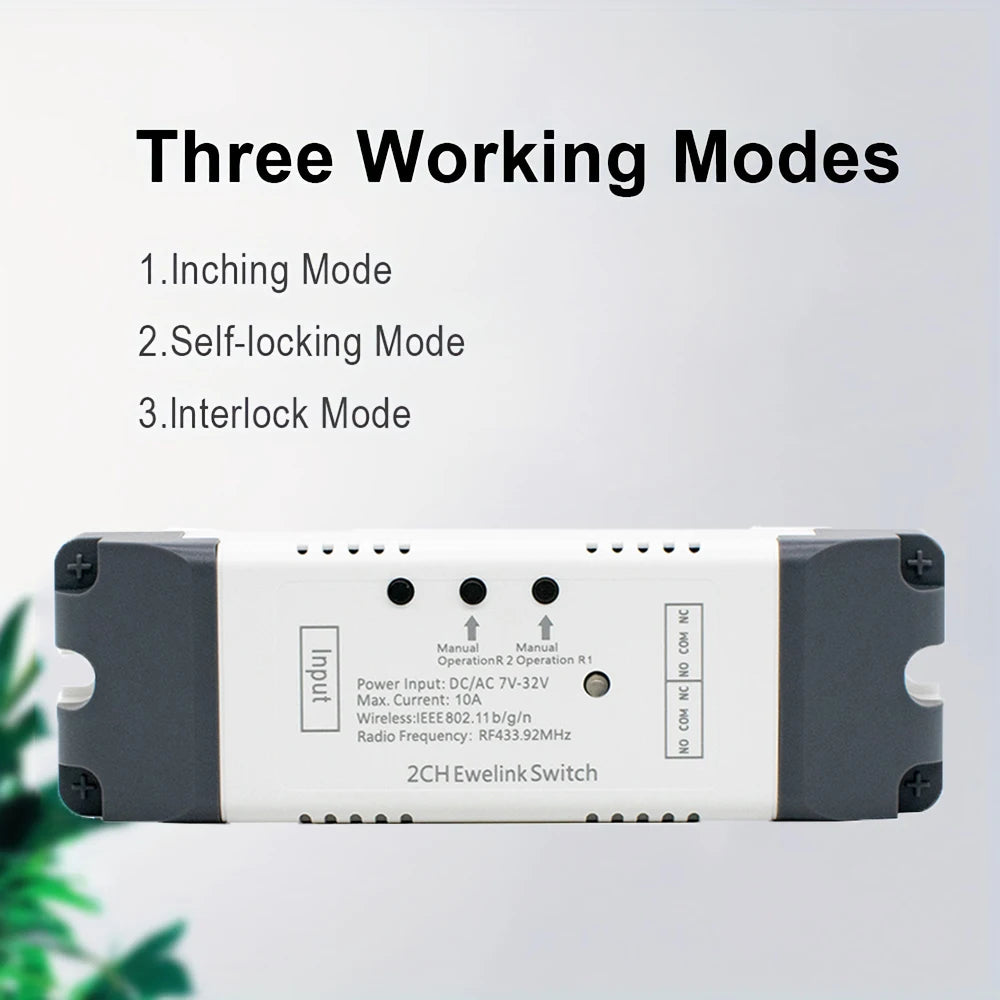

*3 Working Modes: Switch among interlock/self-locking/inching modes.

*Independent control: Control each gang separately in APP eWeLink.

*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, etc.

APP Remote Control

Just tap on evWeLink App to turn on a light anytimeand anywhere.A lighted house anticipates your arrival

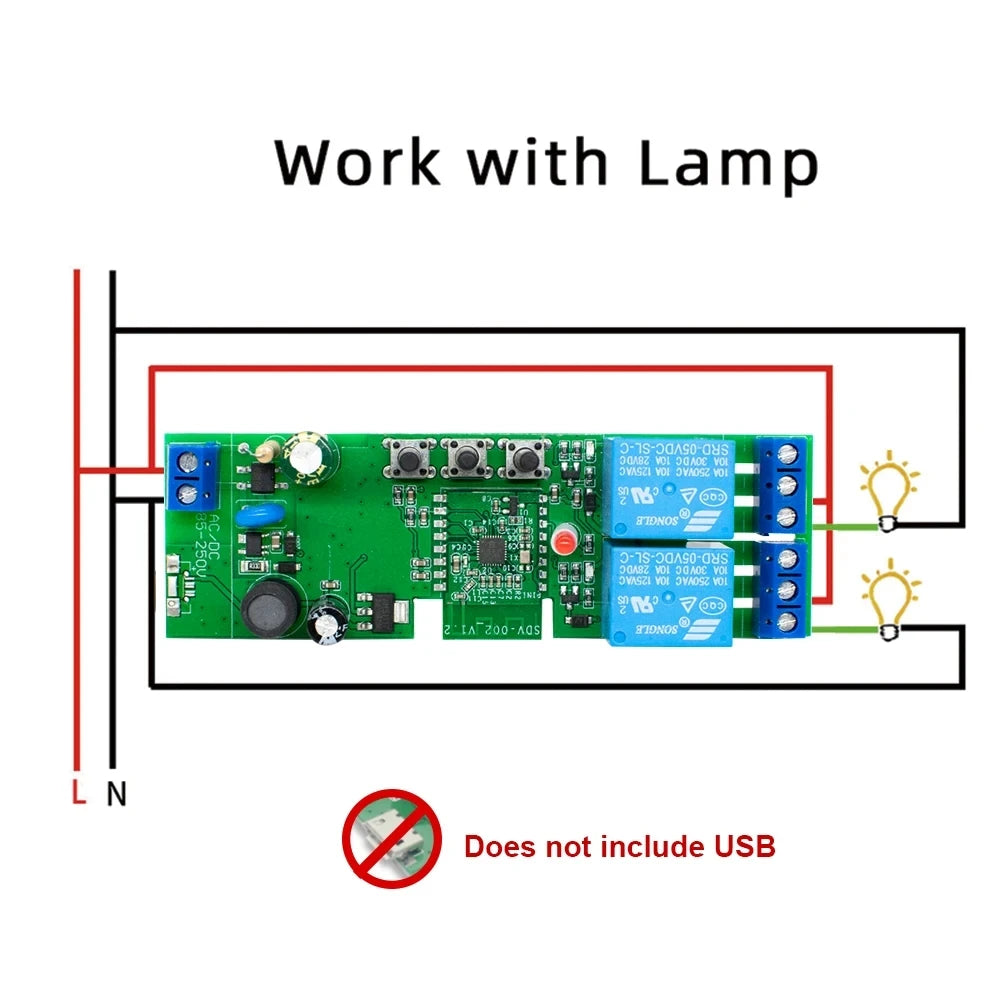

Run 2 Devices Separately - Self-locking Mode

Allow you to turn on or off 2 connected lights independently

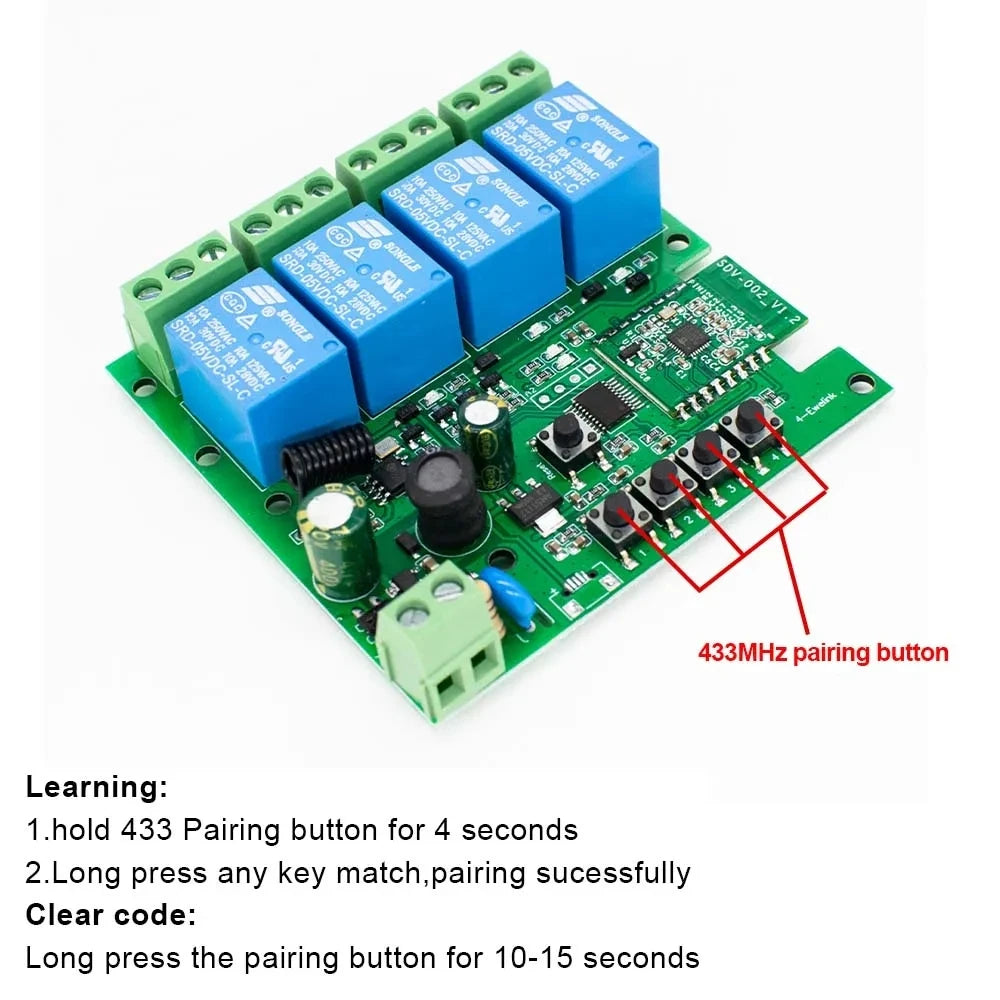

RF433 Remote Control

Timer & Schedule

Timed control of multiple lights on and off

Free hands via easy voice control with Alexa and Google Home.

Share Control

Share control of your home appliances to yourfamily or friends so that they can also controlthe devices remotely

Note:

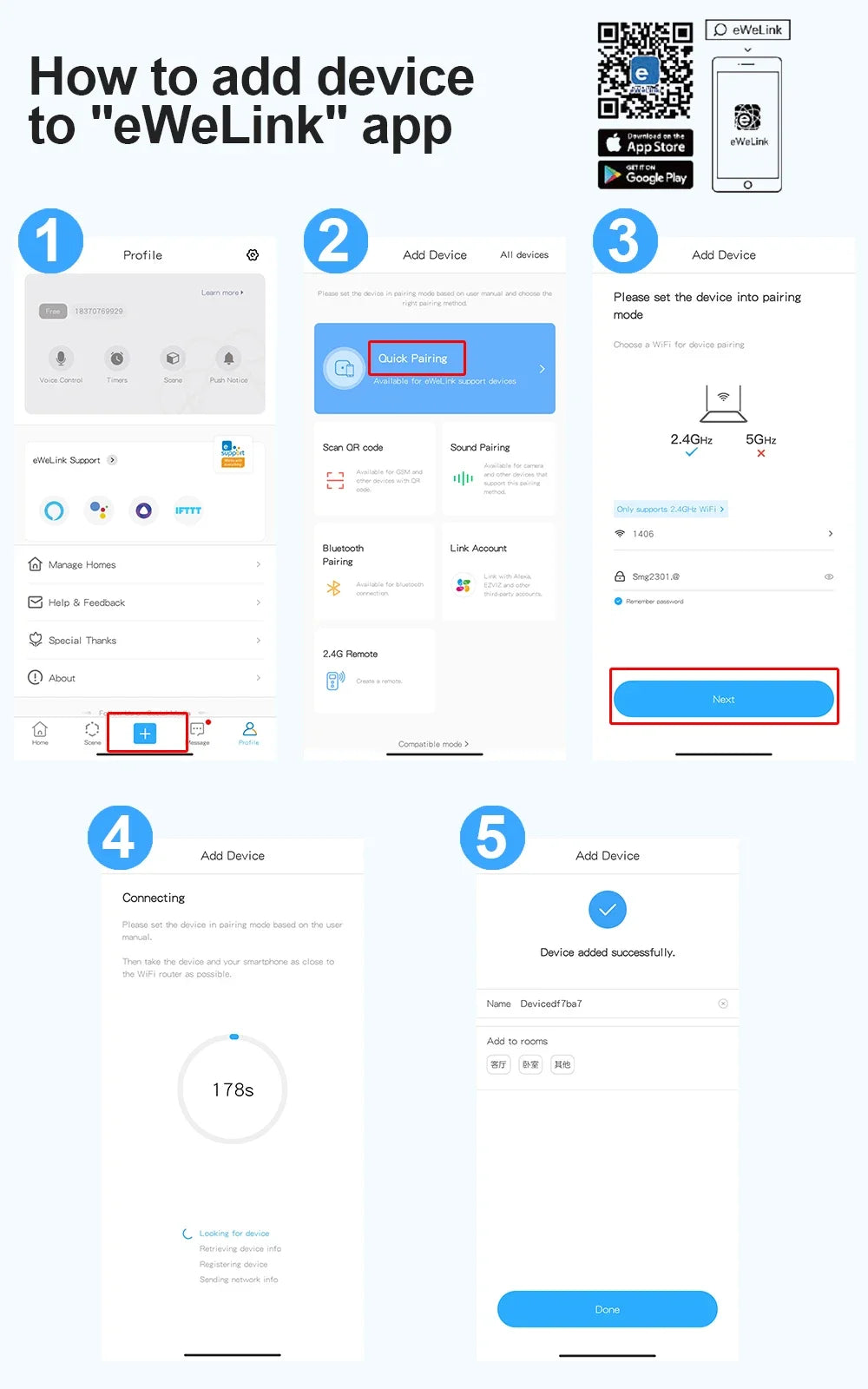

Your have the correct wif password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.

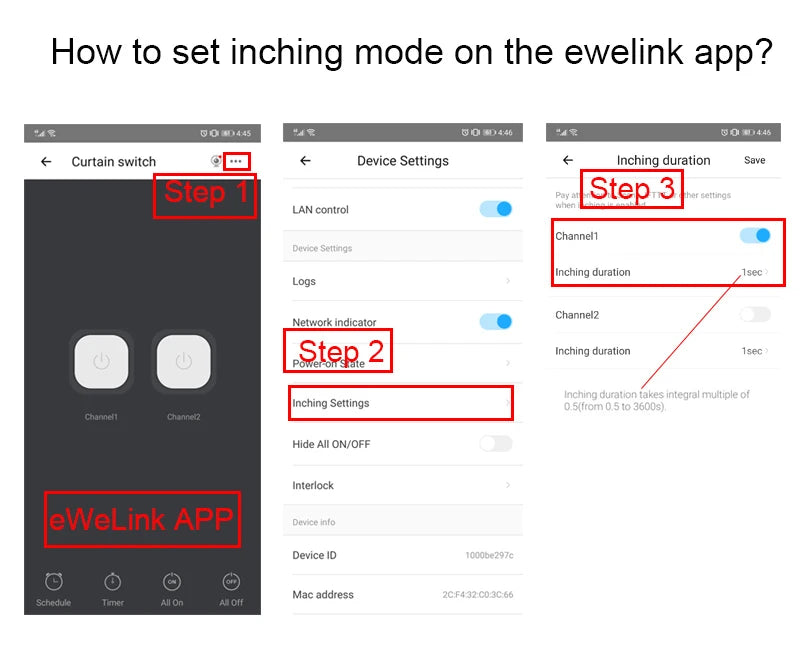

Default inching time 1s , you can set inching time from 1s to 3600s in APP ( Ewelink ).
