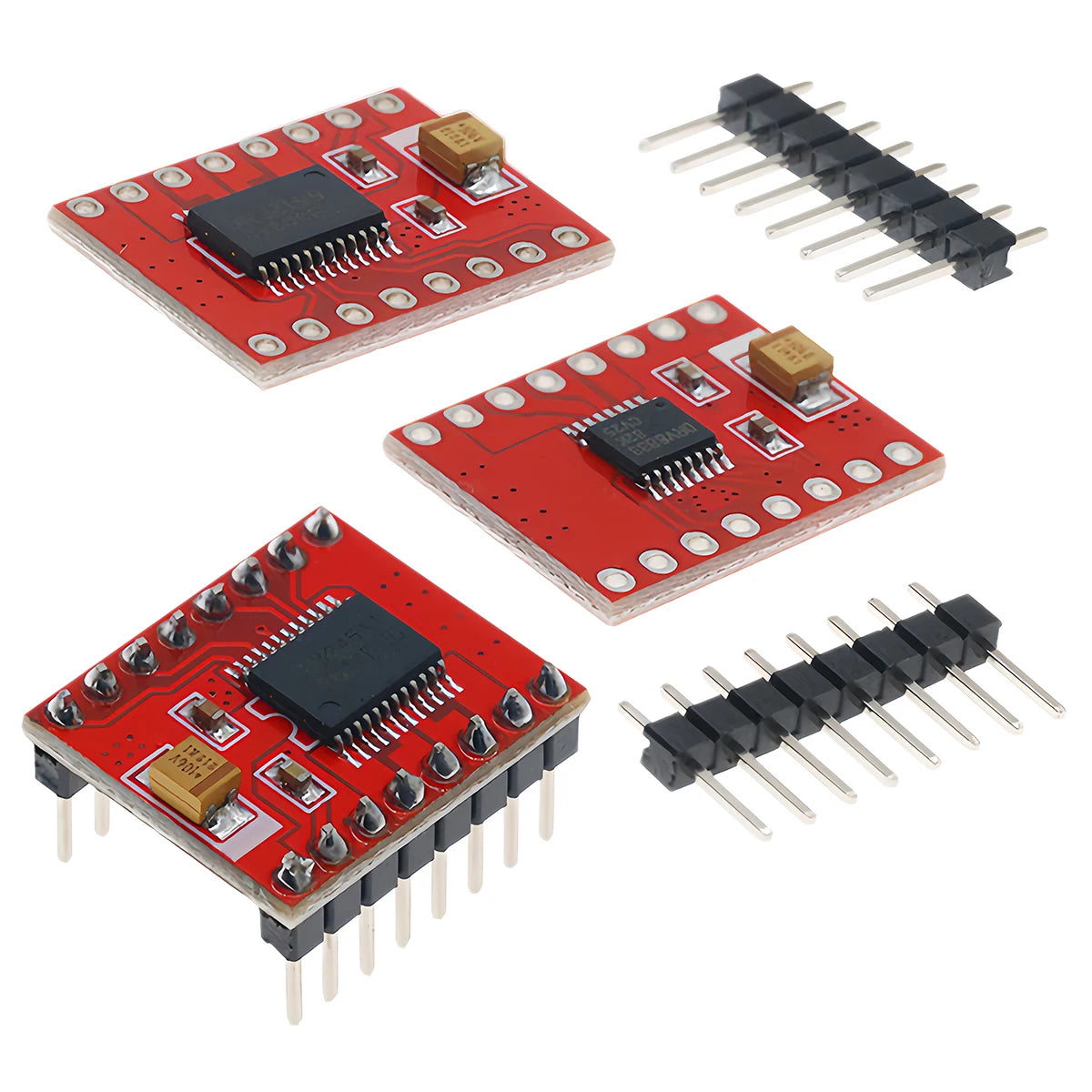

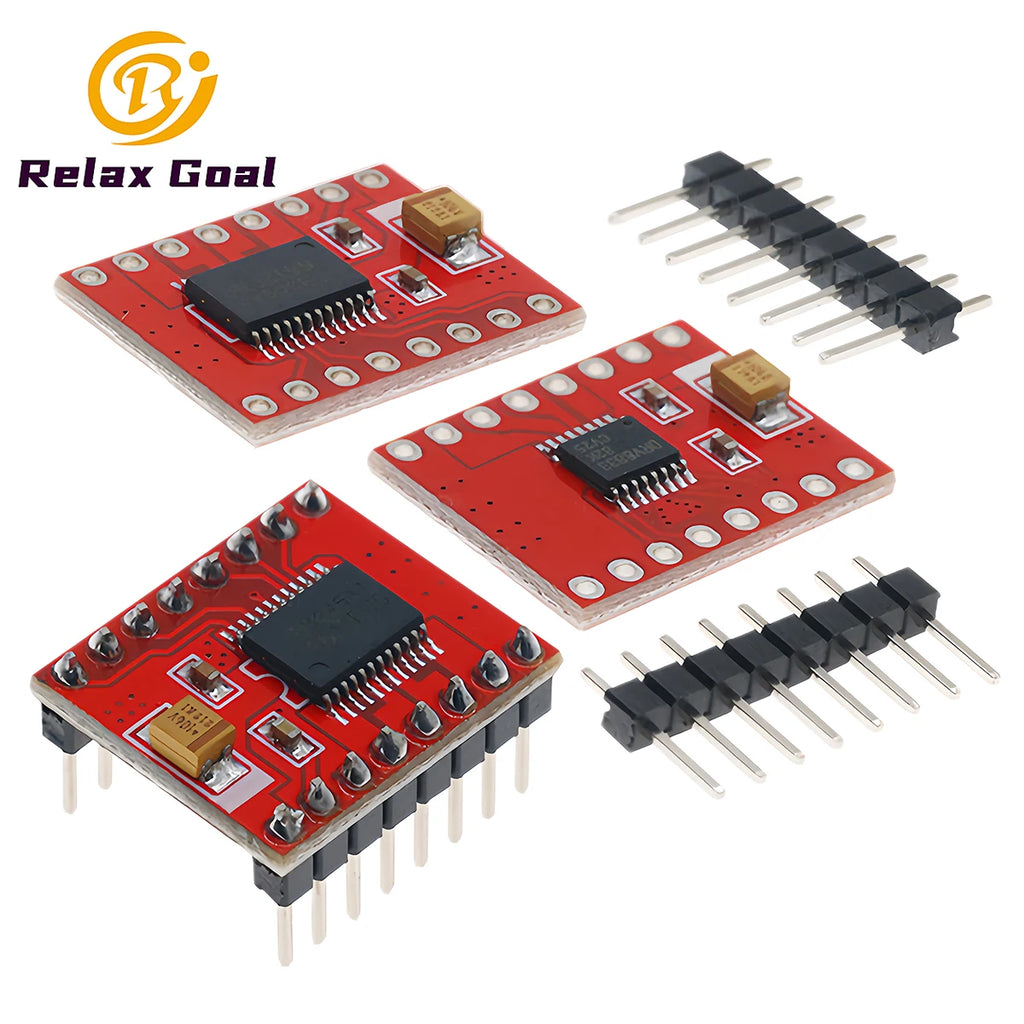

1-3PCS TB6612 DRV8833 Dual Motor Driver 1A TB6612FNG DC Motor Drive Module for Arduino Microcontroller Better than L298N

1-3PCS TB6612 DRV8833 Dual Motor Driver 1A TB6612FNG DC Motor Drive Module for Arduino Microcontroller Better than L298N

$14.16

$14.16 $0.00

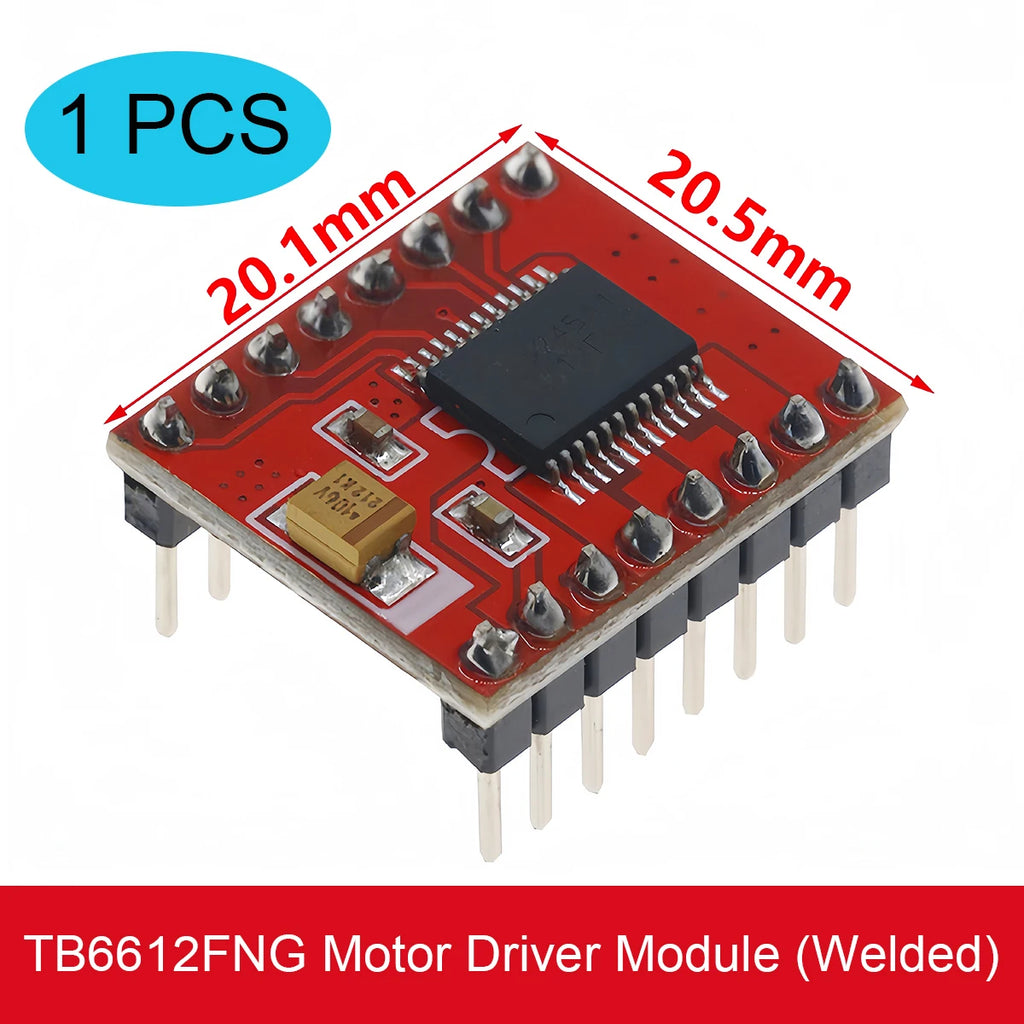

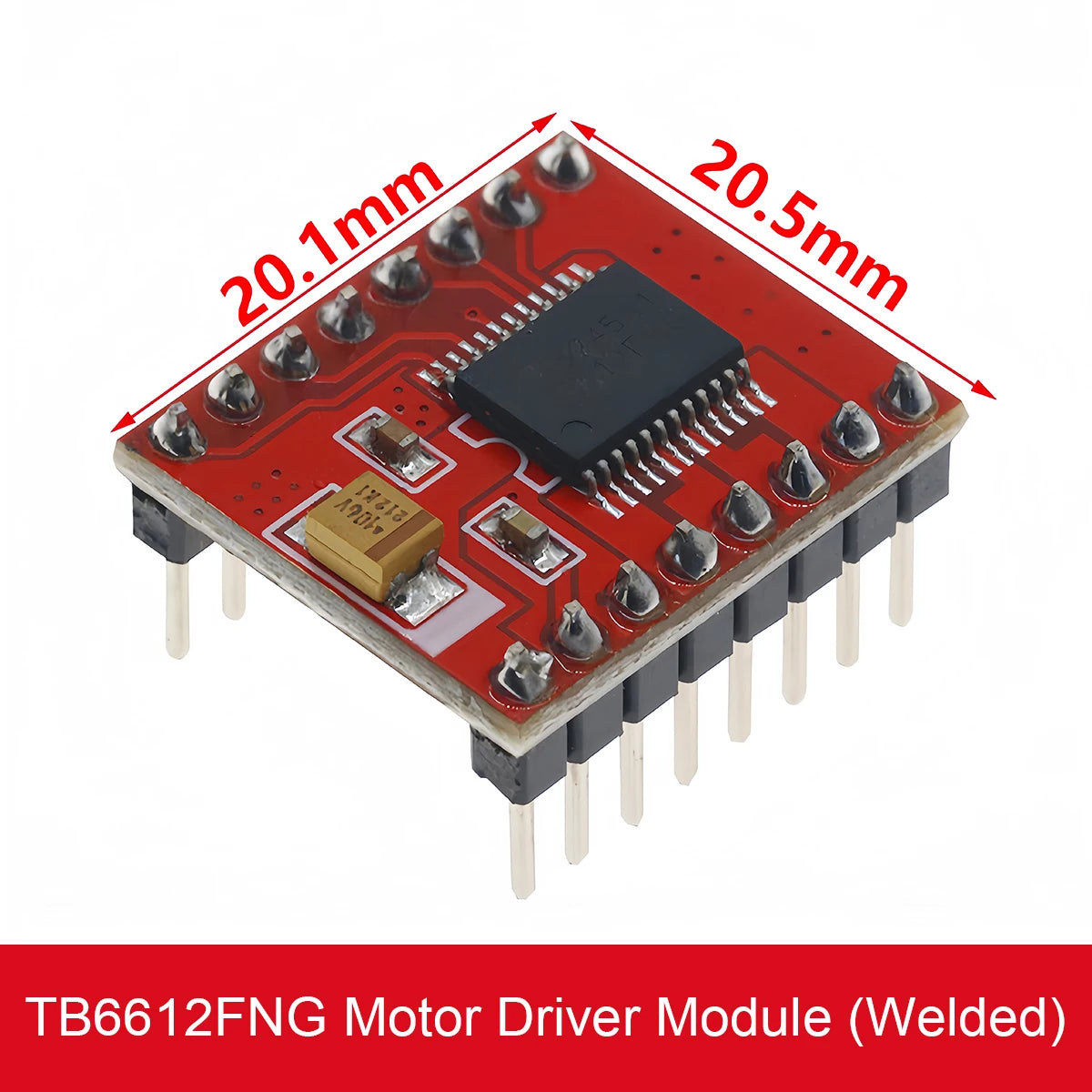

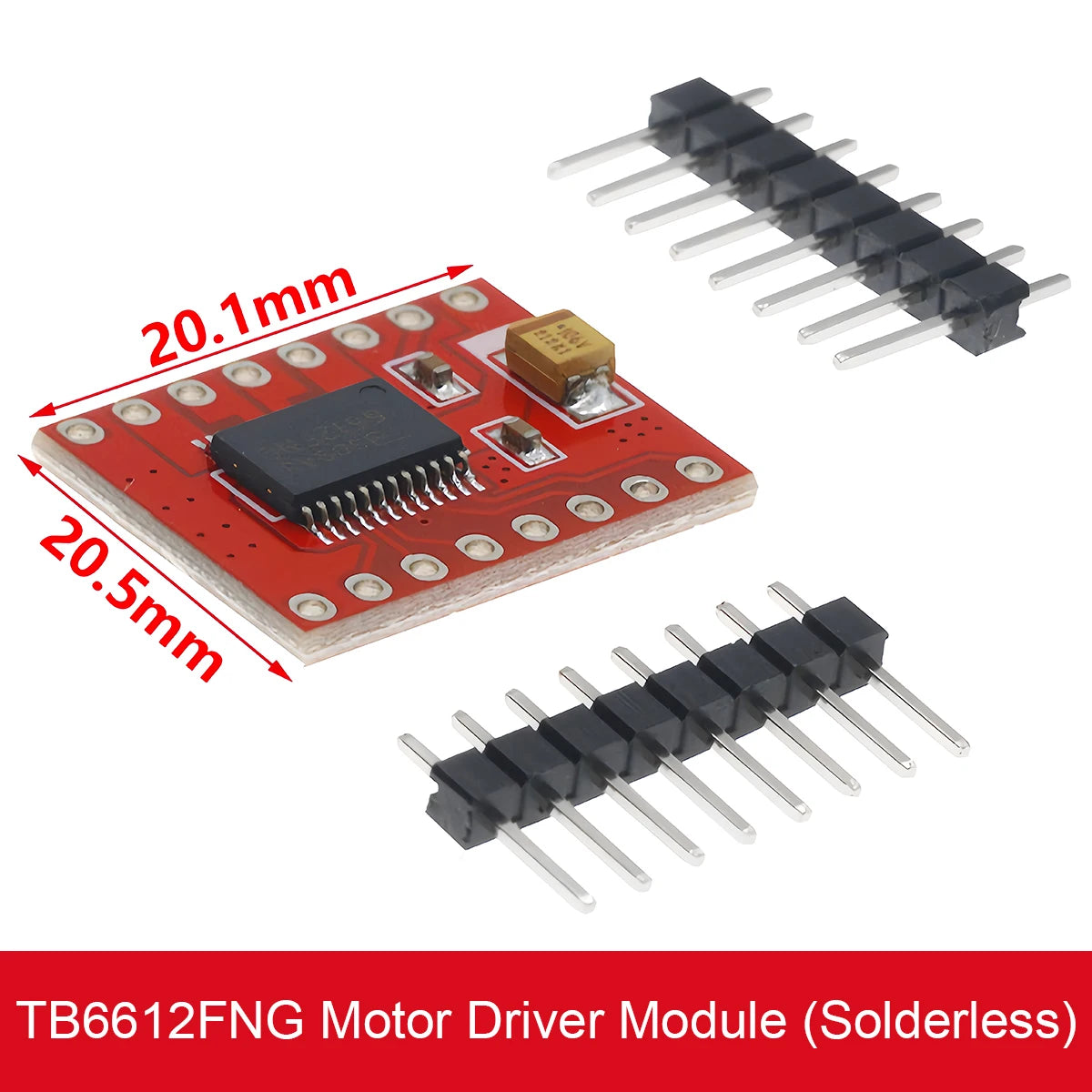

Color TB6612FNG Solderless TB6612FNG Welded 1 PCS - DRV8833 3 PCS - DRV8833

Description

SPECIFICATIONS

Application: Computer

Brand Name: OLNYLO

Condition: New

Dissipation Power: -

High-concerned chemical: none

Operating Temperature: Standard

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: 2.7V-10.8V

Type: Voltage Regulator

is_customized: Yes

1-3PCS TB6612 DRV8833 Dual Motor Driver 1A TB6612FNG DC Motor Drive Module for Arduino Microcontroller Better than L298N

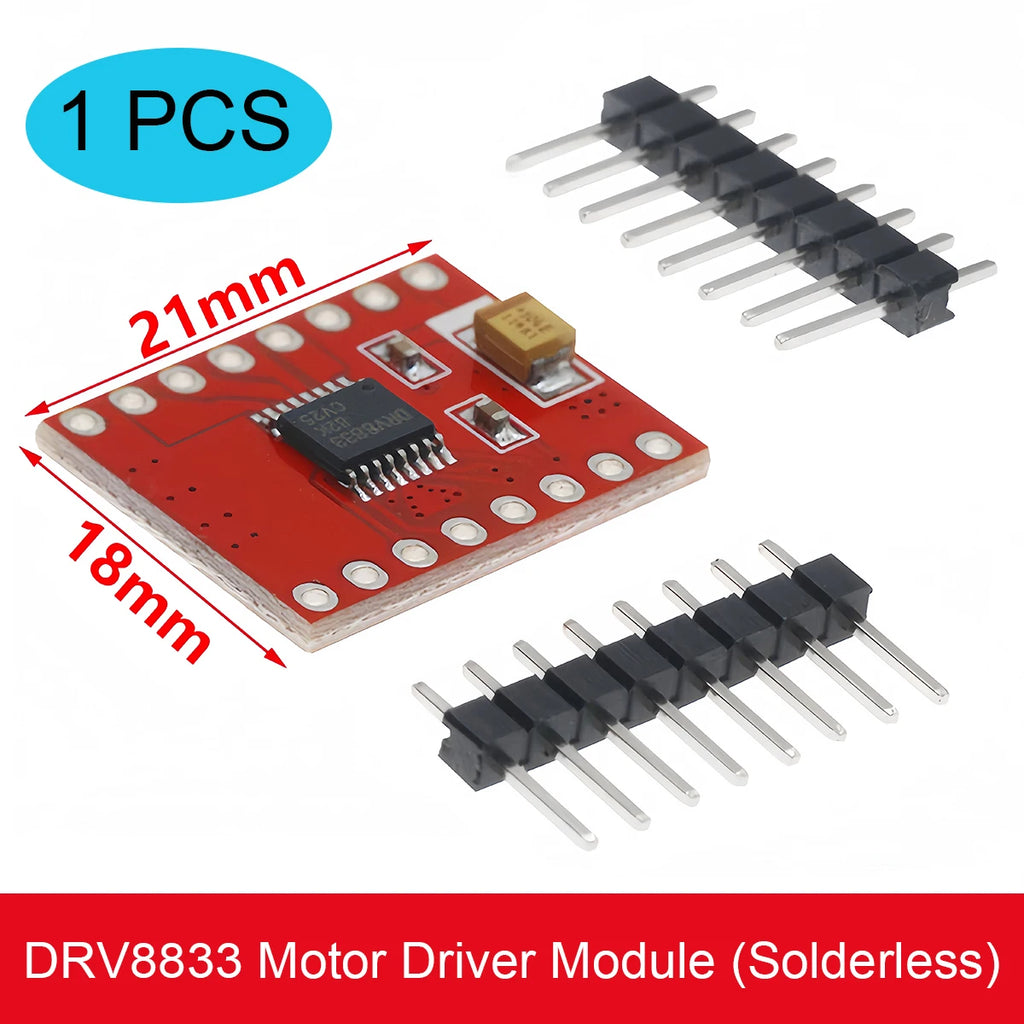

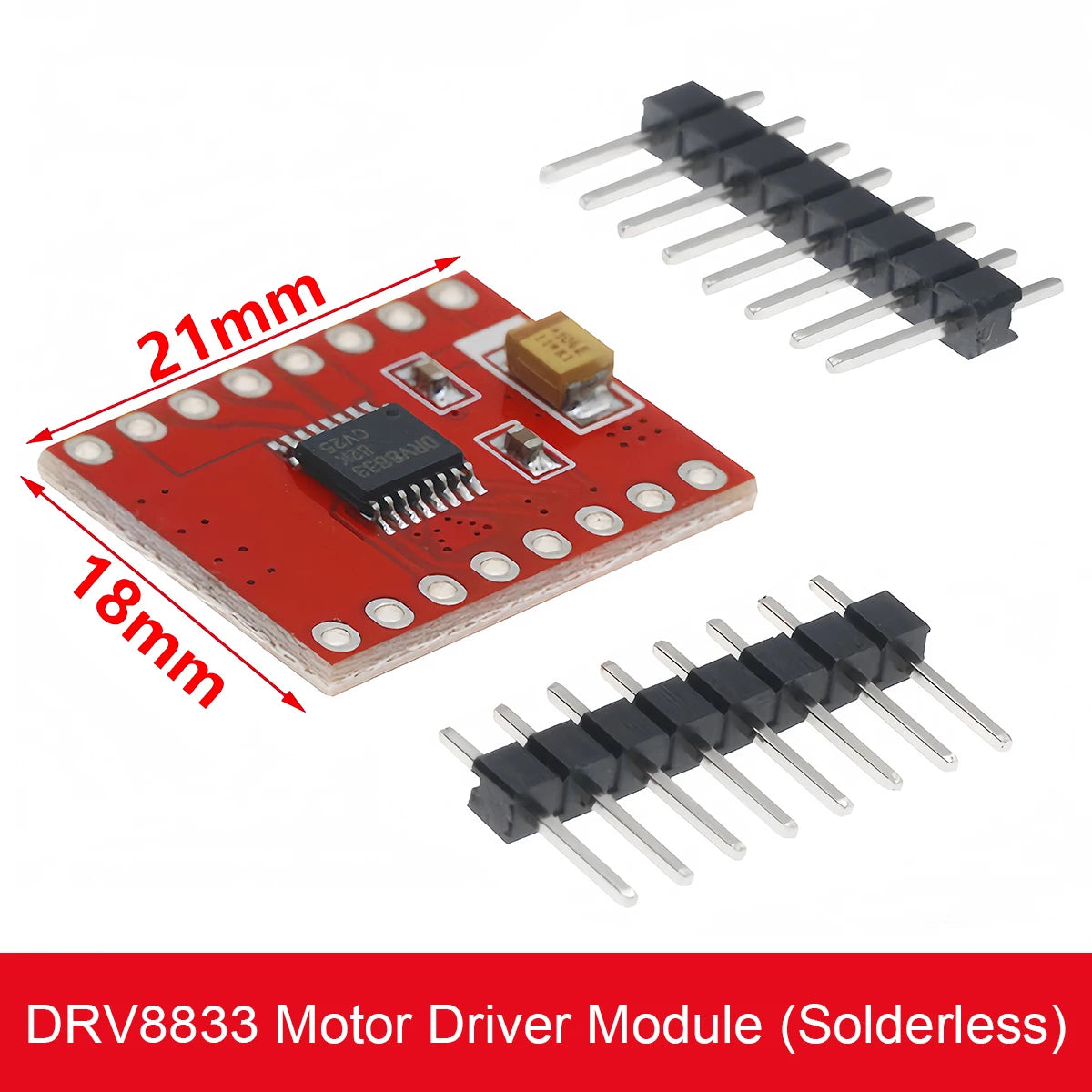

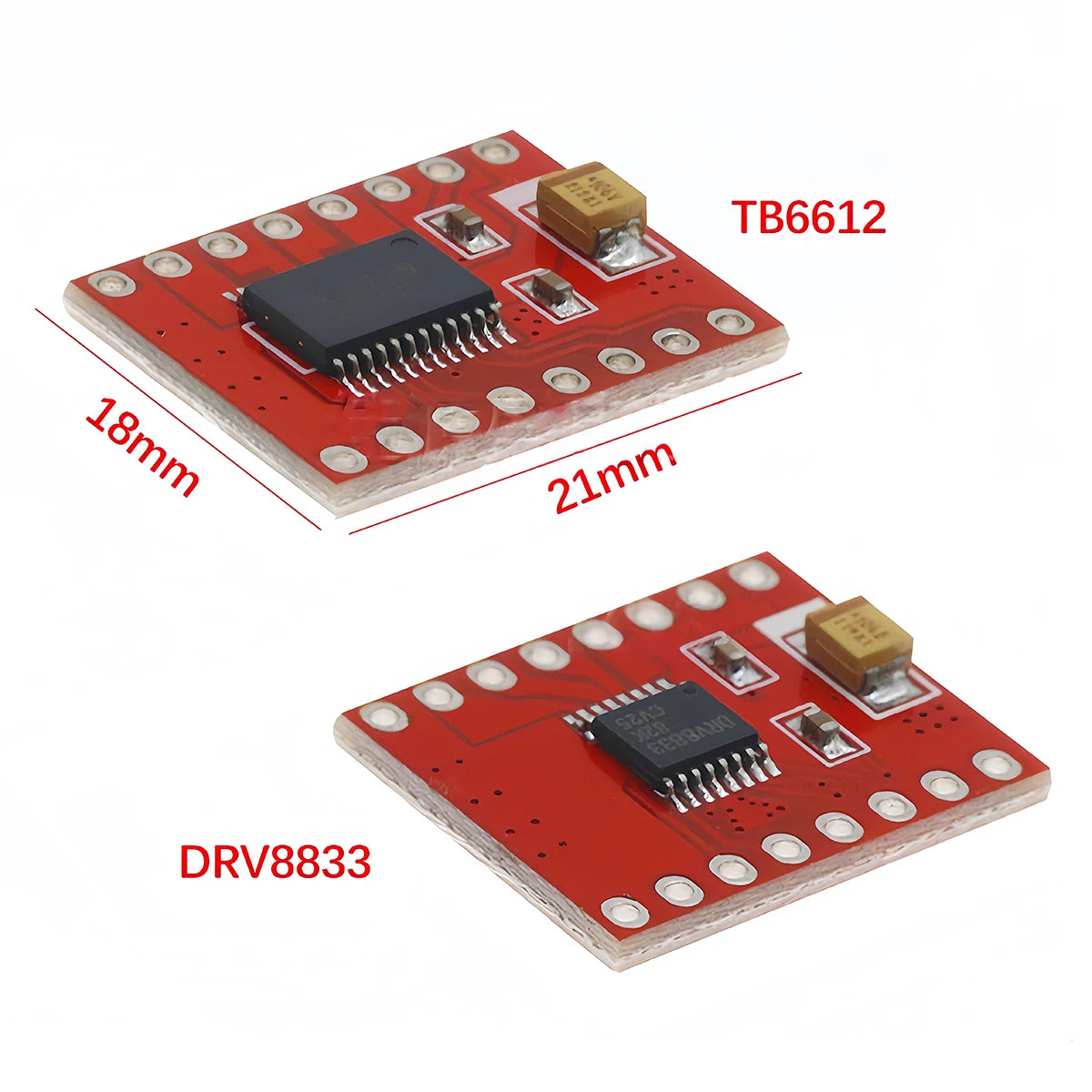

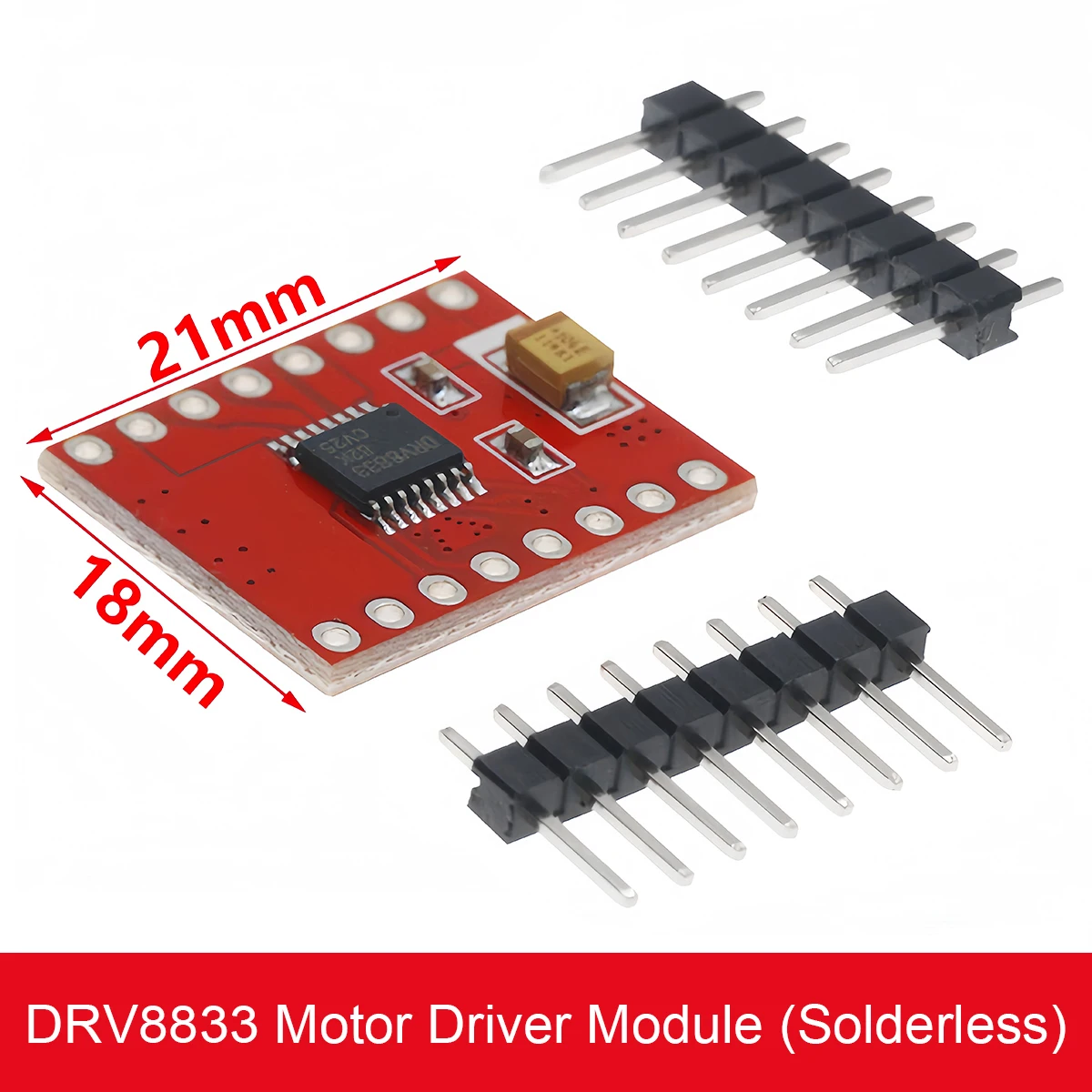

The DRV8833 motor drive module can directly replace the TB6612 drive module, and the pins are basically fully compatible.

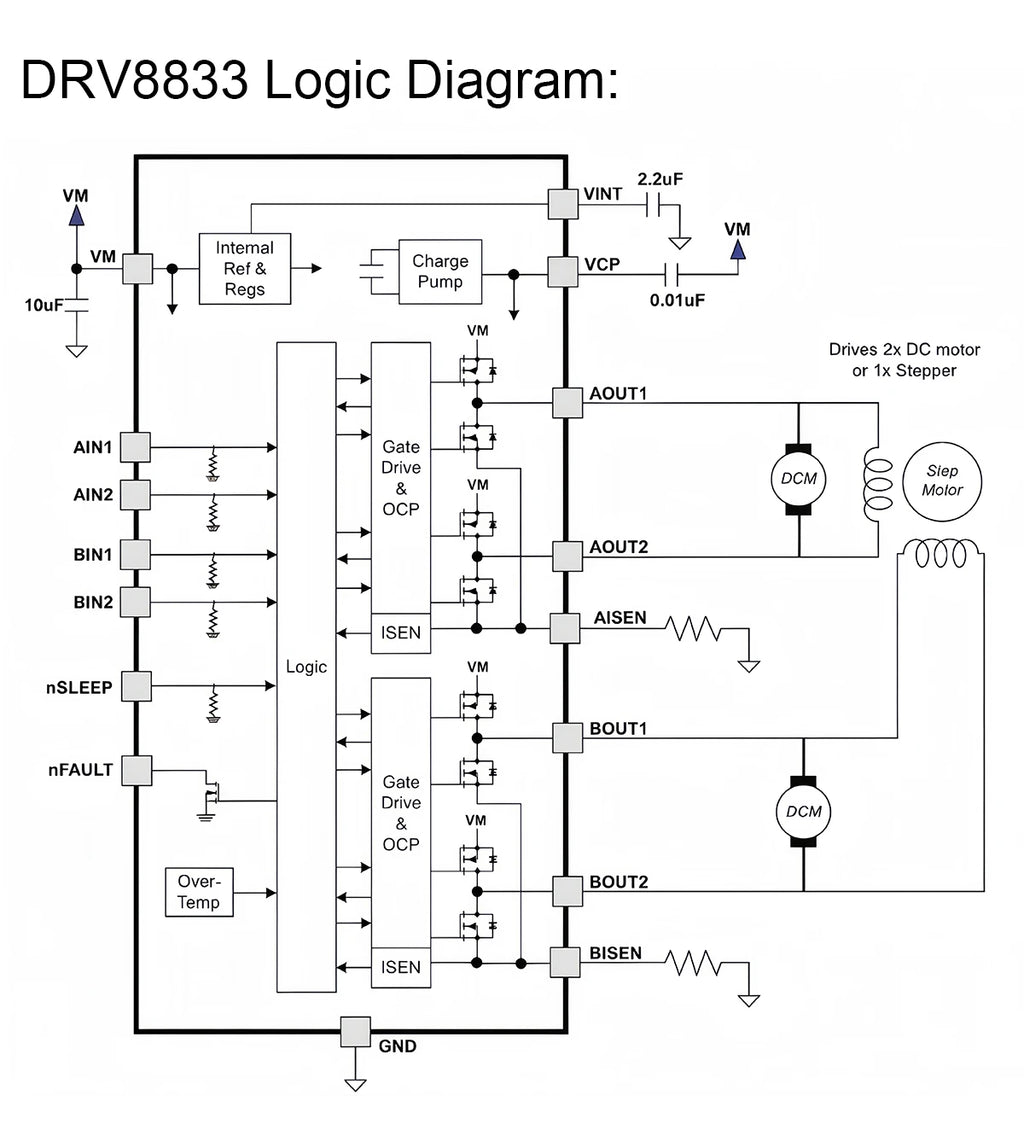

Usage of DRV8833:

Feature introduction:

Input voltage: 2.7V - 10.8V

Single H bridge output current: 1.5A, can drive 2 DC gear motors.

Built-in overcurrent protection, short circuit protection, undervoltage lock and overheat protection. With low power sleep mode.

Usage: It can drive DC motors and 4-wire stepper motors below 1.5A.

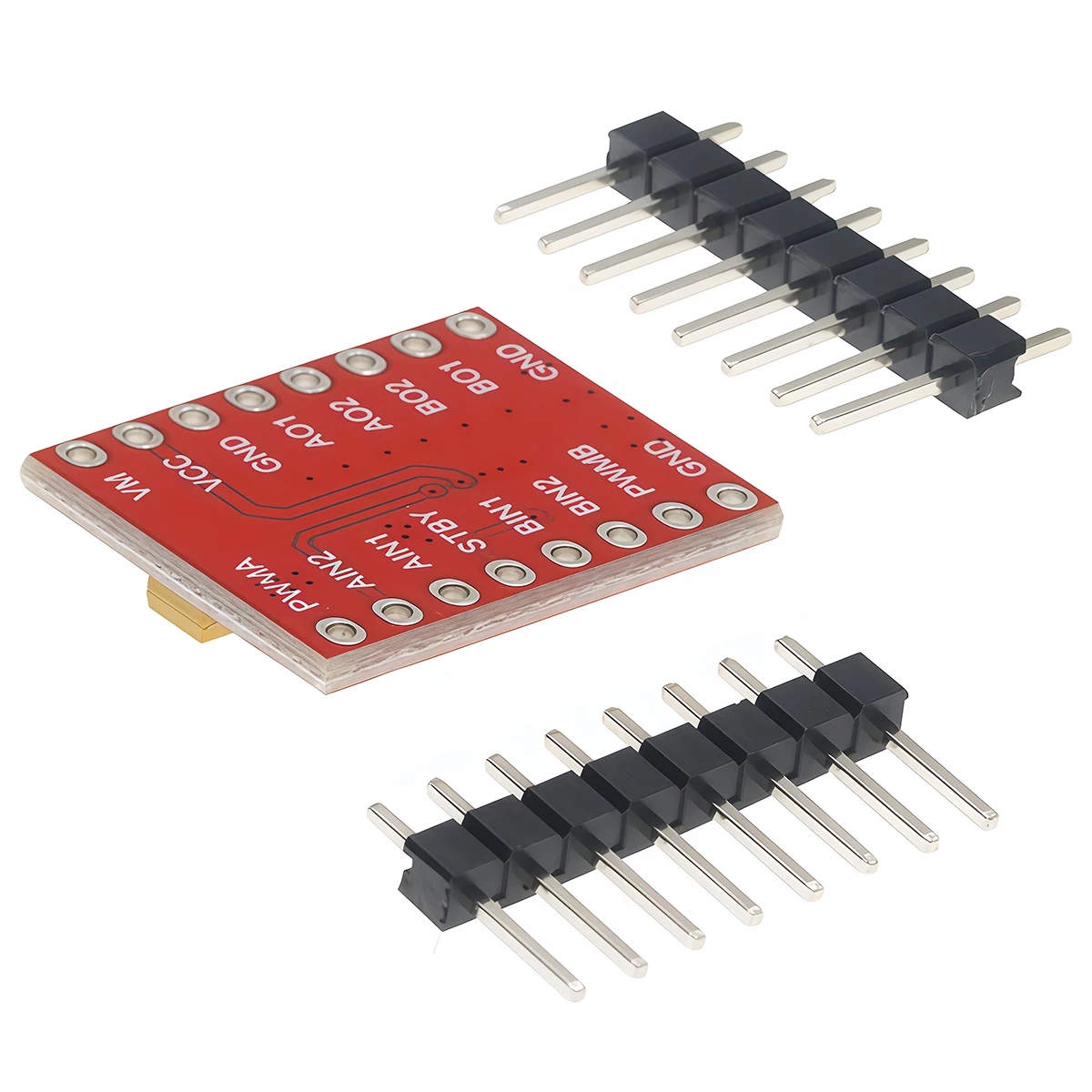

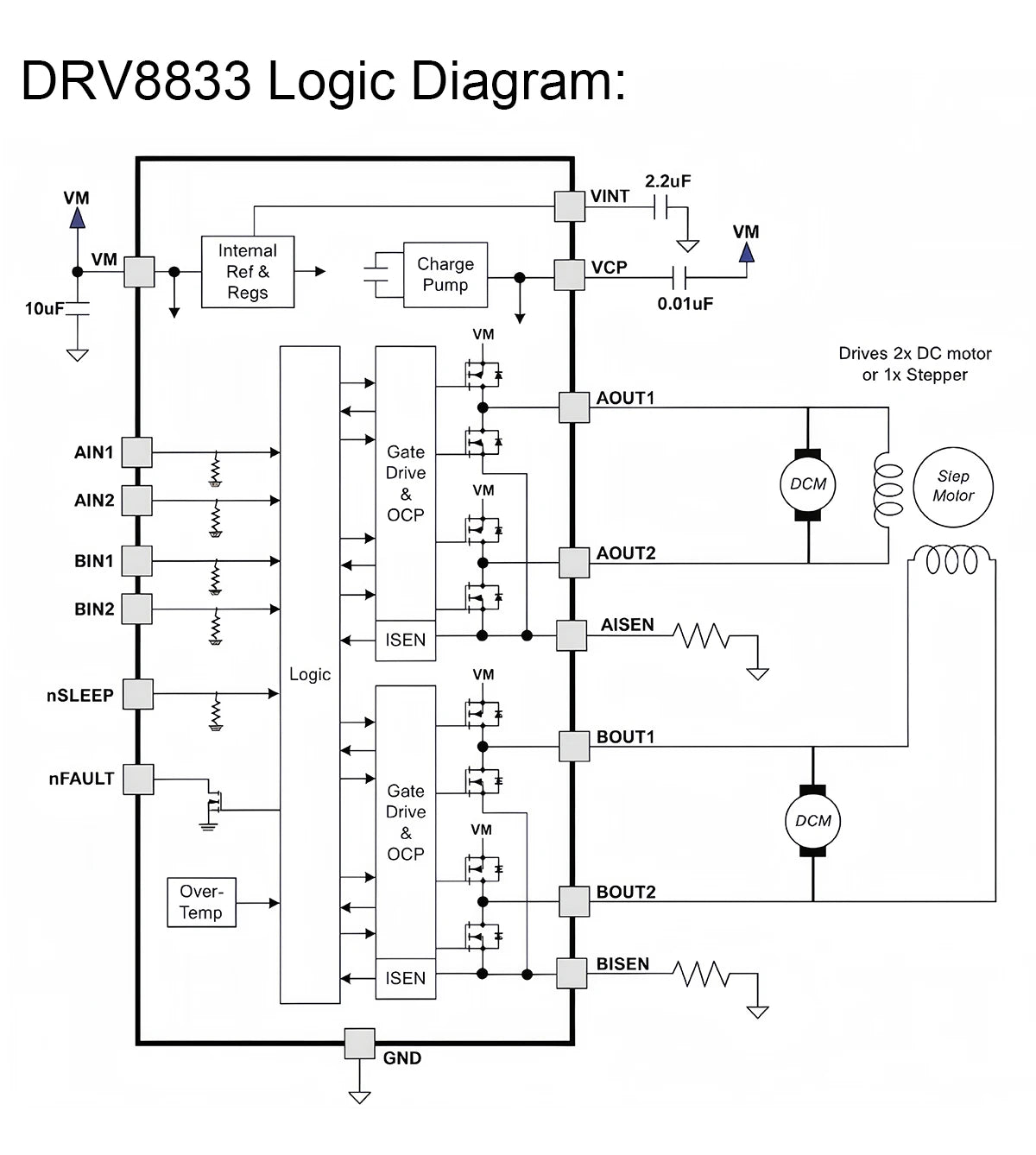

Pin description:
ANI1: Logical input control port of AO1, level 0-5V.
AIN2: Logical input control port for AO2, level 0-5V.
BNI1: Logical input control port of BO1, level 0-5V.
BIN2: Logical input control port of BO2, level 0-5V.
AO1 and AO2 are 1 H-bridge output ports, which are connected to two feet of a DC motor.
BO1 and BO2 are 2-way H-bridge output ports, which are connected to two feet of another external direct motor.
GND: Ground.

VM: chip and motor supply pin, voltage range 2.7V - 10.8V.

STBY: Grounded or suspended chip does not work, no output, connected to 5V work; Level 0-5V.

NC: Empty foot
