1/3pcs Wired Indoor PIR Microwave Motion Sensor Detector Dual Tech Pet Immune Anti-theft Burglar Alarm with Anti-tamper Switch
1pc / China Mainland
$127.85
Sale price
$127.85
Regular price
$0.00
Skip to product information
1. DRO Micro radar and dual PIR detection technology.
1/3pc Wired indoor anti-pet microwave PIR motion sensors ( bracket, screws, English manual included).
1/3pcs Wired Indoor PIR Microwave Motion Sensor Detector Dual Tech Pet Immune Anti-theft Burglar Alarm with Anti-tamper Switch
$127.85
Sale price
$127.85
Regular price
$0.00
Description
SPECIFICATIONS
Anti White Light: >10000LUX
Brand Name: NONE
Certification: CE
High-concerned chemical: none
Model Number: ATM-40D
Origin: Mainland China
Smart home platform: Other
anti-pet weight: 25 KG
detection angle: 100 degrees
detection distance: 12Mx12M
feature: with tamper swith
product name 1: wired anti-pet microwave pir motion sensor
product name 2: wire pir motion sensor for Home Burglar Security Alarm
1/3pcs Wired Indoor PIR Microwave Motion Sensor Detector Dual Tech Pet Immune Anti-theft Burglar Alarm with Anti-tamper Switch
Feature:
1. DRO Micro radar and dual PIR detection technology.
2. Adopts multi-grades intelligent signal processing software, full analysis and processing of all kinds of false alarm.
3. Adopts micro power-consumption 8 digits CMOS single chip control.
4. Digital analysis of pet immunity.
5. Microwave anti-masking, which can detect the attempt of blocking microwave or PIR channel up to 20cm.
6. 3 colors LED display,which can display PIR, MW, anti-masking and trouble signal separately.
6. 3 colors LED display,which can display PIR, MW, anti-masking and trouble signal separately.
7. Unique anti-masking and trouble output.
8. Selectable AND/OR modes for different environments.
9. MW range adjustable.
10. Selectable high/low sensitivity.
11.Unique full-range temperature compensation technology.
12. Anti strong EMI interference.
13. Selectable EI control mode.
Parameter:
Operation voltage current: 9-16V/DC 20mA

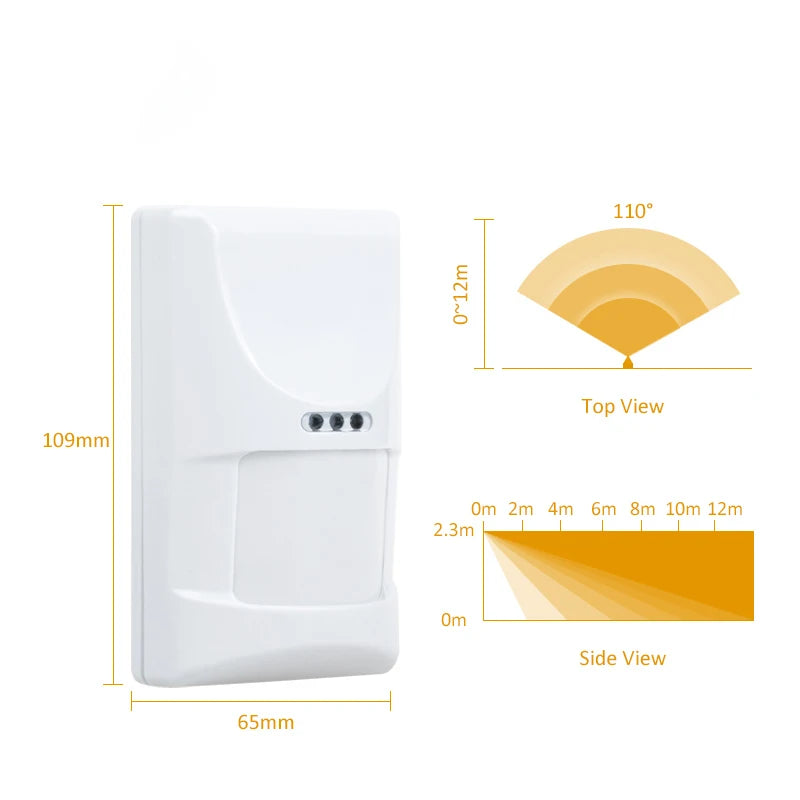

Detection distance : 12m 100°
Installation height : 1.5m-2.4m
Mw frequency : 10.525GHz
sensitivity : L/H for option
RFI/EMI protection : >30V/m 500MHz
Alarm output: 100mA/24V
Anti-mask /trouble output: 100mA/24V
Tamper output : 300mA/24V
Operation temperature : -20°C-+40°C
Operation humidity： 5%-95%(RH)
Anti white light: >10000LUx
operation mode : EI,Dual-tech or Single-tech alarm modes for option
Detection speed: 0.2m/s to 3.5m/s
Pet immunity: 25KG
Detection distance : 12m 100°
Installation height : 1.5m-2.4m
Mw frequency : 10.525GHz
sensitivity : L/H for option
RFI/EMI protection : >30V/m 500MHz
Alarm output: 100mA/24V
Anti-mask /trouble output: 100mA/24V
Tamper output : 300mA/24V
Operation temperature : -20°C-+40°C
Operation humidity： 5%-95%(RH)
Anti white light: >10000LUx
operation mode : EI,Dual-tech or Single-tech alarm modes for option
Detection speed: 0.2m/s to 3.5m/s
Pet immunity: 25KG

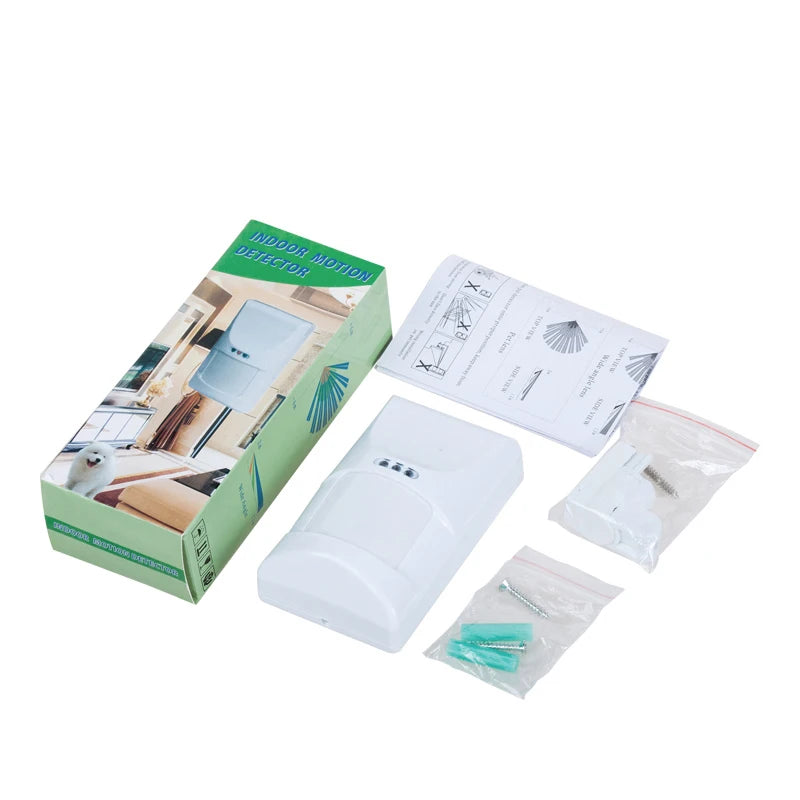

Package Content:
1/3pc Wired indoor anti-pet microwave PIR motion sensors ( bracket, screws, English manual included).
Note:
This wired microwave pir motion sensor can not work alone, it works with all home alarm host which has wired port.
