Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

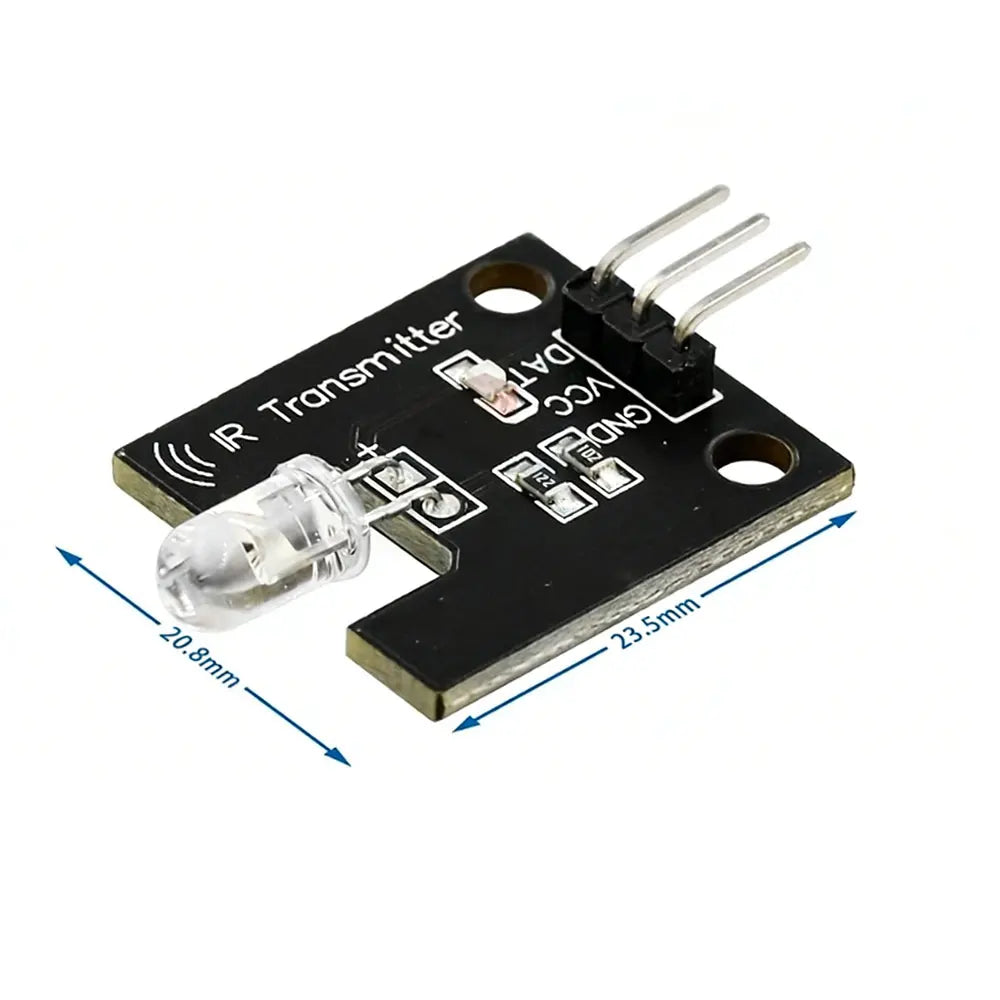

1 Way Transmitter specification:

Supply voltage: 5V

Working environment: -25 ~ + 85 °

Storage temperature: -30 ~ + 100 °

Wavelength: 940nm

Module size: 13.7mm × 27.8mm

Module weight: 1g

Signal type: digital signal

Infrared center wavelength: about 850nm-940nm

Infrared emission angle: about 20 degrees

Infrared emission distance: about 1.3 meters (5V 38Khz)


2 Way Transmitter specification:

Size: 28 * 22mm

Weight: 3g

Voltage: 5V

Port: Digital level

Modulation: Direct transmission No modulation

Launch head: 2

Launch distance: 1-3m

Wavelength: 940nm

Double tube direct launch, through the program to carry out waveform modulation

With the launch signal to indicate the LED, easy to observe the debugging

Applicable to infrared communication, infrared remote control

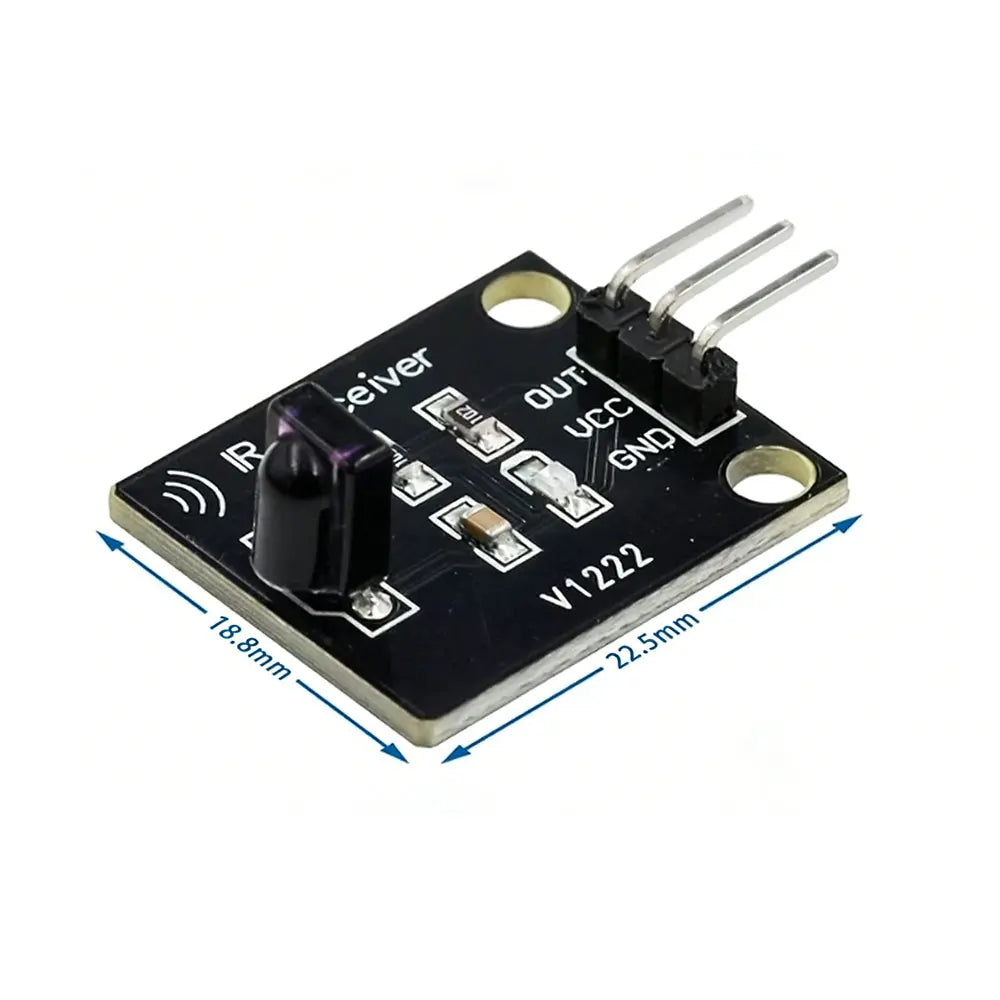

IR Receivr module    specification   :

1. Adopt 1838 remote control receiver with high sensitivity

2. Working voltage 5V

3. Output form: digital output

4. There are 2 fixing holes for easy installation. Aperture 3.1mm

5. With data indicator

6. PCB size: 23.5*21.5mm

Wiring instructions:

1.DAT digital output interface

2.VCC 5V DC power supply positive

3.GND 5V DC power supply negative
