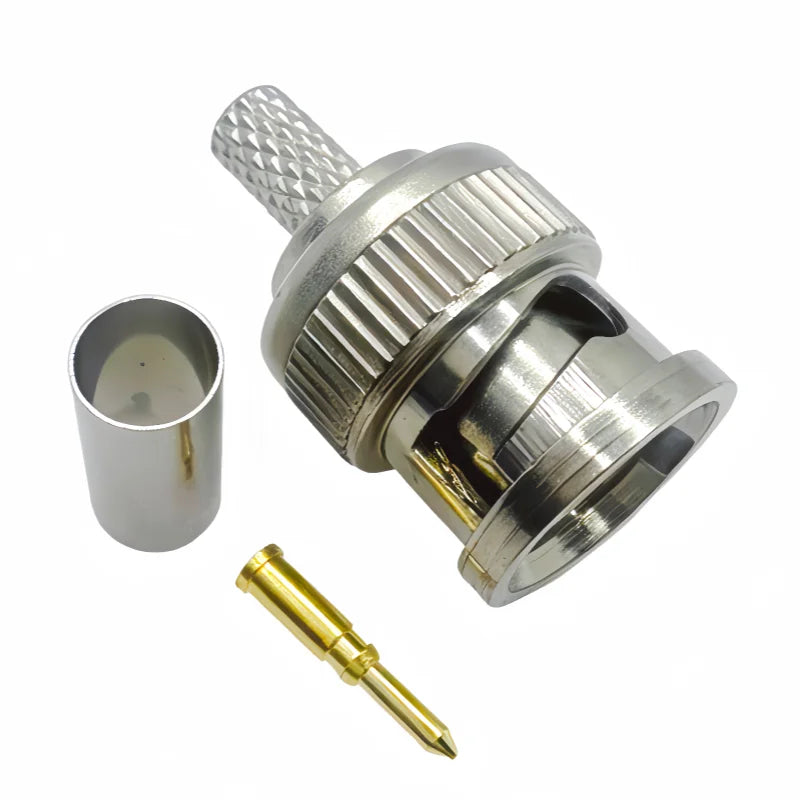

1/5Pcs/lot BNC Male RF Connector Plug Crimp For RG58 LMR195 Cable Straight Nickelplated 50Ohm Wholesale

1/5Pcs/lot BNC Male RF Connector Plug Crimp For RG58 LMR195 Cable Straight Nickelplated 50Ohm Wholesale

$10.24

$10.24 $0.00

Description

SPECIFICATIONS

Body Plating: Nickelplated

Brand Name: NONE

Cable type: RG58 LMR195

Certification: CE,FCC,RoHS

Does it include a Battery?: No

Does it include wireless functionality?: No

EAN Code: -

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Genger: Male plug

High-concerned chemical: none

Impedance: 50 Ohm

Material: Brass

Model Number: BNC male connector

Mounting: Cable mount

Origin: Mainland China

Plating: Nickelplated

Style: Straight

Voltage: 1000 V

电压: 1V 2V 4V 5V 12V 12V 等或自定义

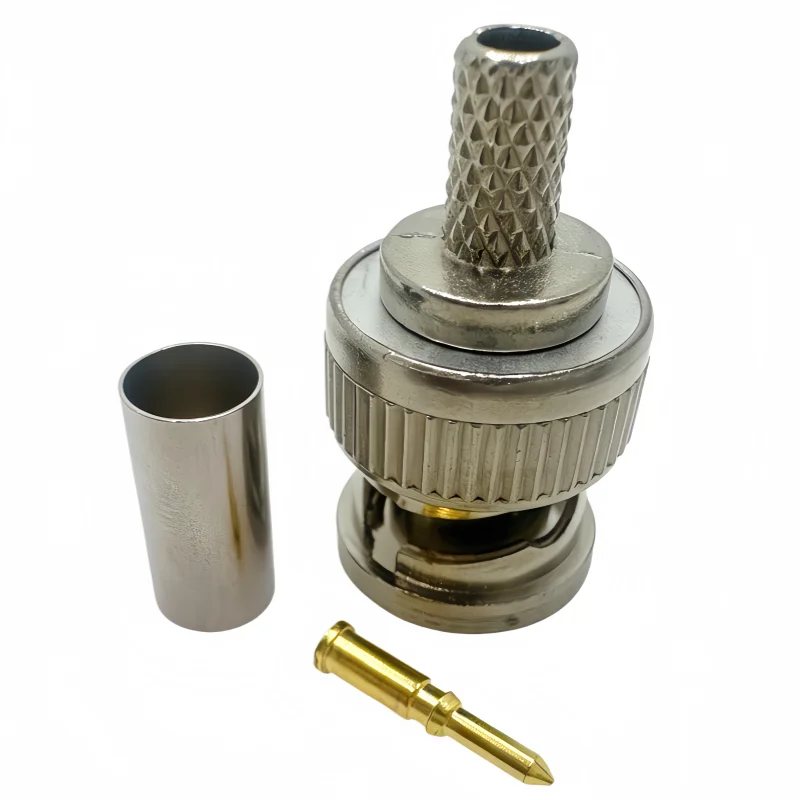

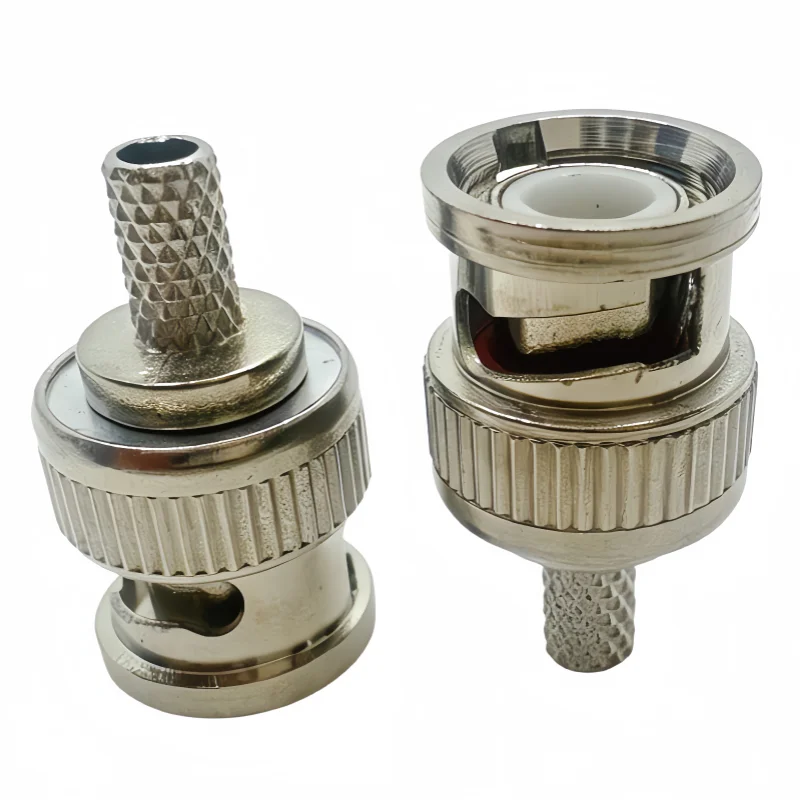

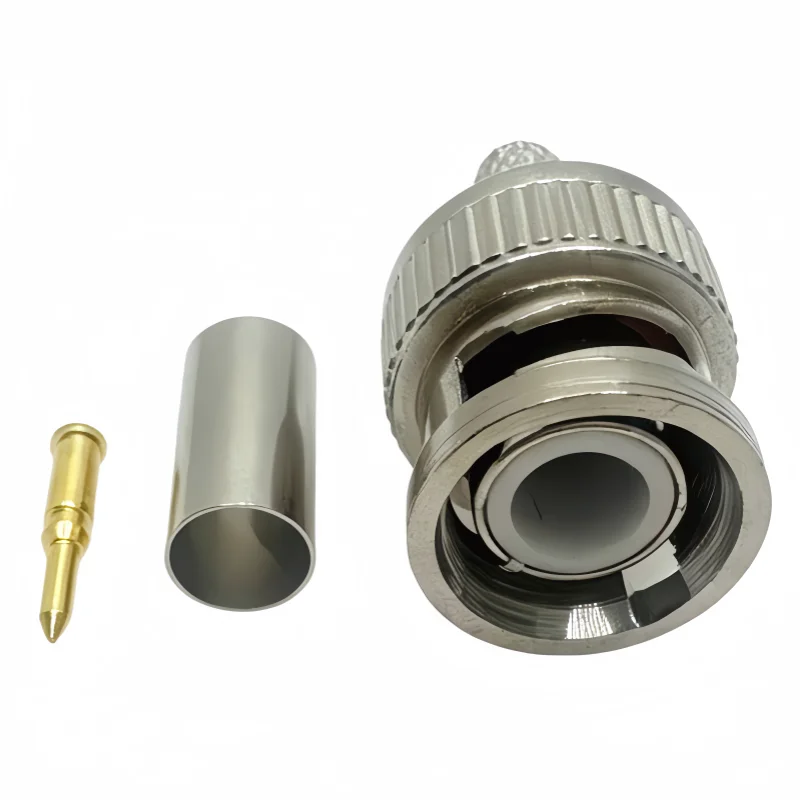

BNC Male Plug RF Coax Connector Crimp for RG58 LMR195 Cable Straight for CCTV Radio

10pcs of this connector at a wholesale price in our shop

Description:

BNC connectors are mostly used for CCTV fields

Product Series:	BNC	Connector Body Style:	Straight
Product Type:	Cable mount	Connector Material:	Brass
Application:	Crimp	Contact Plating:	Nickel
Attachment/Affixment:		Contact Termination:	Solder
Body Plating:	Nickelplated	Gender:	male
Body Termination:	Crimp	Impedance:	50 Ohm
Cable Type:	RG58,RG142,LMR195

Type BNC are widely used in connection with the RF coaxial cables in computer field, network of wireless, medical equipment and electronic instrument.

Major Technical Characteristics		MATERIAL & PLATING
Temperature Range:	-55~+155°C(PE Cable -40~+85°C)	MATERIAL & PLATING
Impedance:	50Ω, 75Ω	Body	brass	Nickel plated
Frequency Range:	DC~4GHz	Body	brass	Nickel plated
Working Voltage:	500V r.m.s at sea level	Resilient contact	Tin bronze	Gold or silver plated
Withstanding Voltage:	1500V r.m.s at sea level	Resilient contact	Tin bronze	Gold or silver plated
Contact resistance:	a)Center Contact ≤1.5m Ω b)Outer Contact ≤1m Ω	Pin contact	brass	Gold or silver plated
Insulation resistance:	≥5000MΩ	Socket contact	Beryllium-copper	Gold or silver plated
Center Conductor retention force:	≥0.57N	insulator	PTFE
Insertion Loss	≤0.20dB/3GHz	Crimp ferrule	Copper alloy	Nickel plated
Voltage Standing Wave Ratio:	Straight ≤1.22/ 3GHz Right angle ≤1.30/3GHz	O-ring sealing	6146 silicone rubber
Durability(mating):	≥500times(cycles)	O-ring sealing	6146 silicone rubber
