100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm

100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm

10K Ohm
$26.87
$26.87 $0.00
Skip to product information
100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm
  • 100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm
  • 100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm
  • 100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm
  • 100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm
  • 100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm
  • 100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm
100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm
100PCS RM065 RM-065 Trimpot Trimmer Potentiometer Variable Resistor 100R 200R 500R 1K 2K 2.2K 3K 5K 10K 20K 50K 100K 500K 1M Ohm
$26.87
$26.87 $0.00
Resistance
Description

SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

High-concerned chemical: none

Max. Operating Voltage: 50V

Operating Temperature: B100R B200R B500R B1K B2K B2.2K B3K B5K B10K B20K B50K B100K B500K B1M

Origin: Mainland China

Rated Power: 0.1W

Resistance Tolerance: ±30%

Technology: Carbon Film

Type: Trimming Potentiometer

is_customized: Yes

semi_Choice: yes

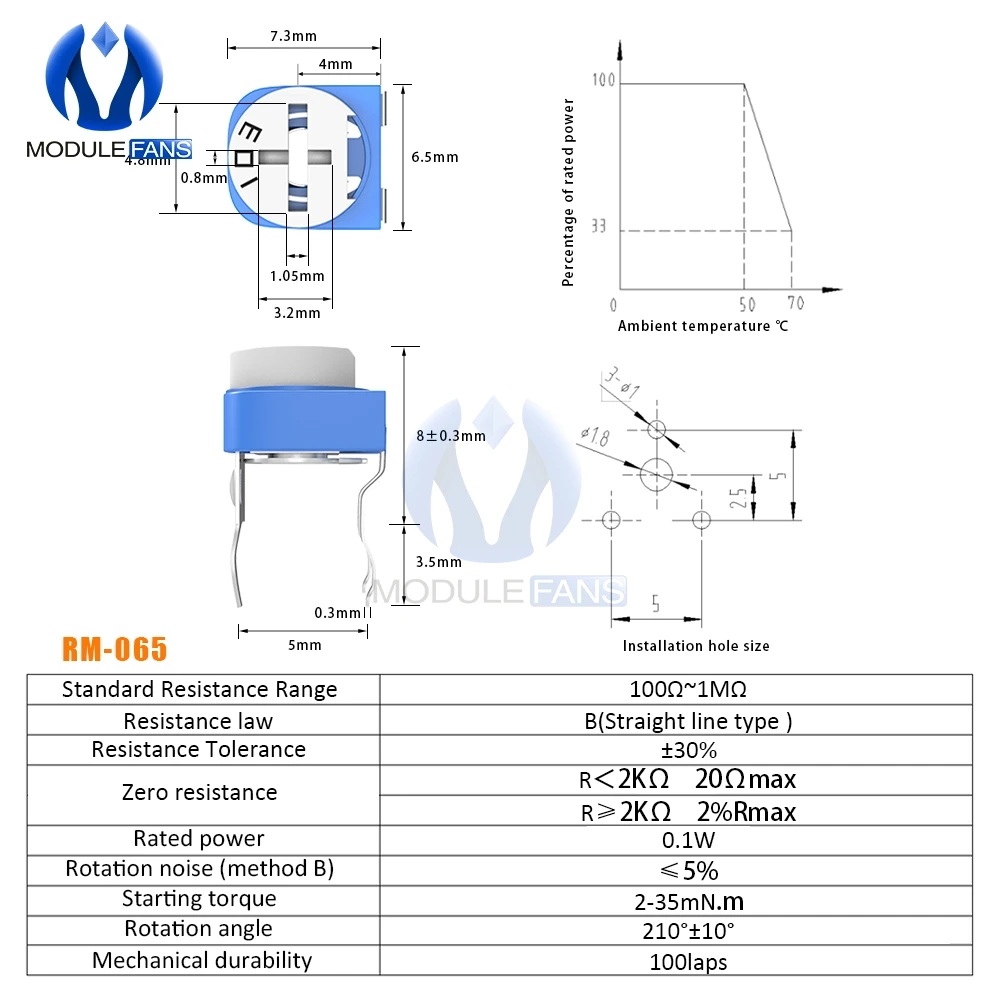

Specification:

Model number: RM065 WH06-2

Technology: Carbon Film Resistance

range (Ohms): 100Ω, 200Ω, 500Ω, 1KΩ, 2KΩ, 2.2KΩ, 3KΩ, 3.3KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ, 200KΩ, 500KΩ, 1MΩ

Resistance Tolerance: ± 30%

Rotation angle: 210 ° ± 10 °

Starting torque: 2-35mN.m

Mechanical strength: resistance film can withstand 1kg pressure does not break

Resistance change characteristics: B

Maximum use voltage: 50V

Rate Power: 0.1W

Residual resistance: no more than 5% of the nominal resistance, the maximum does not exceed 20Ω

Rotational life: no-load rotation after 100 laps, the maximum resistance change of ± 15%

Load life: load rated power 3 hours, the maximum resistance change of ± 5%
