Description

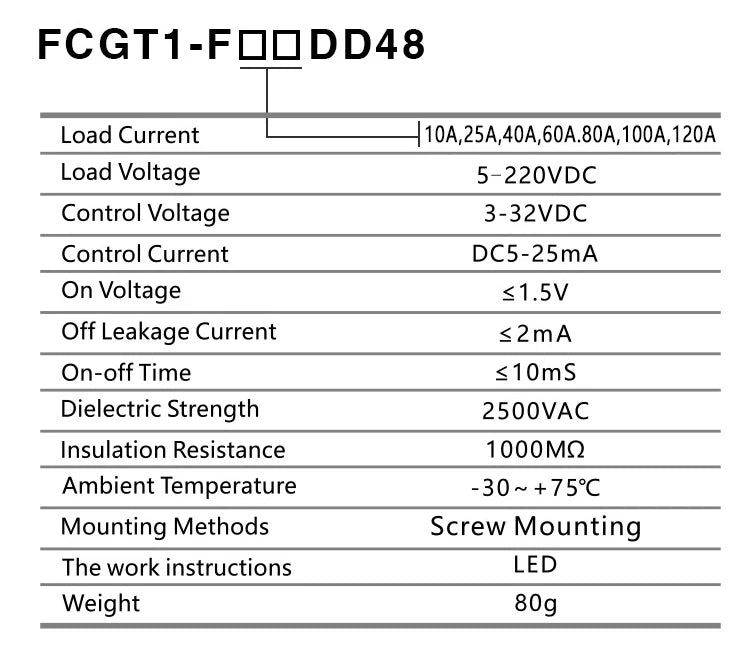

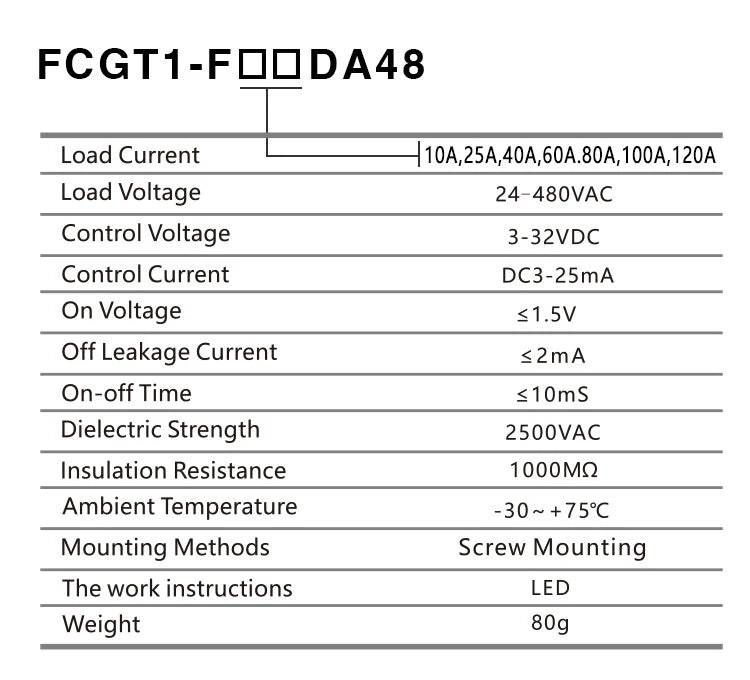

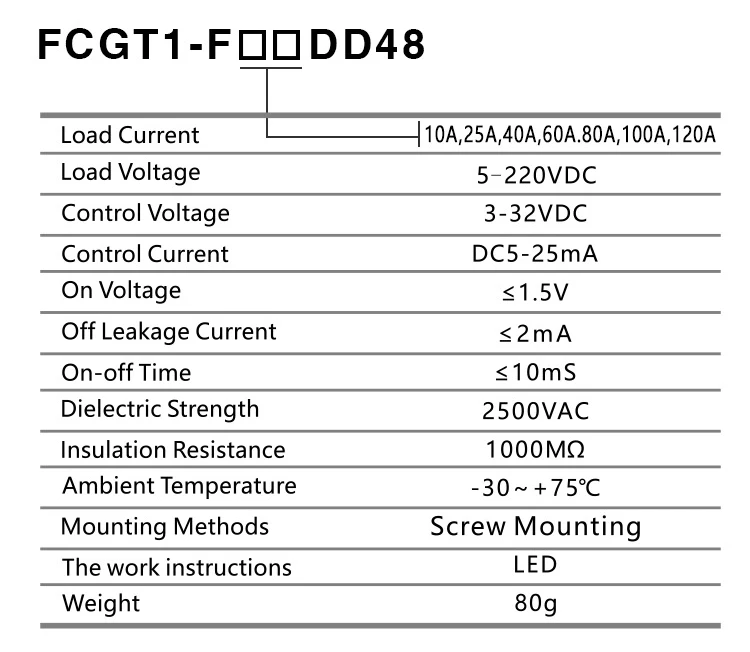

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Contact Load: High Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: FCGT-FDA48

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Theory: Solid State Relay

Use: General Purpose

Voltage: 480V

is_customized: no

semi_Choice: yes


60A-100A single phase heat sink


60A heat sink Click to buy


100A heat sink Click to buy

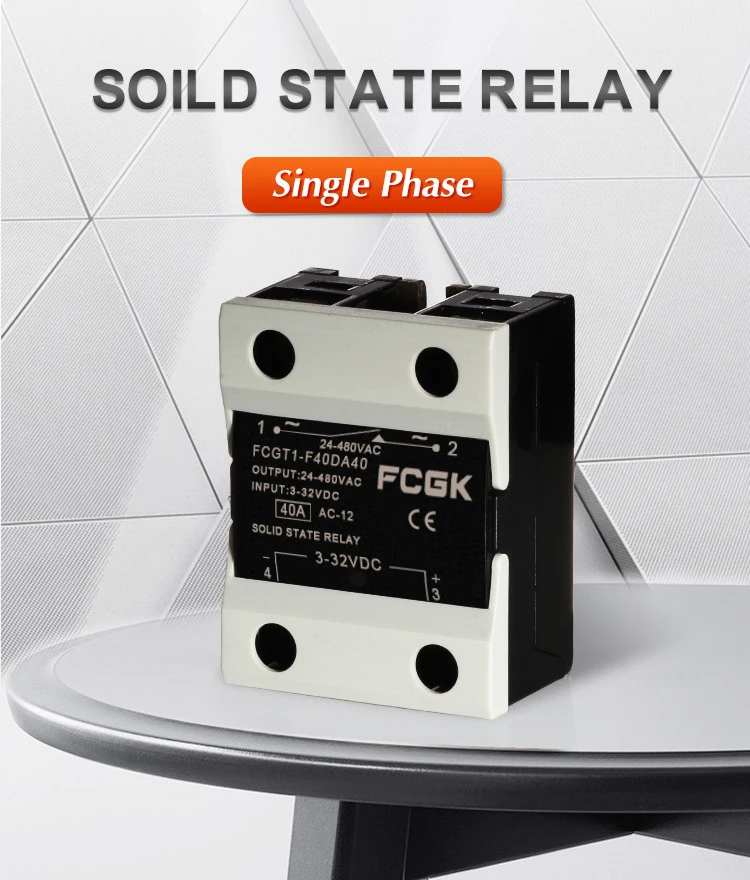

single phase Solid State Relay

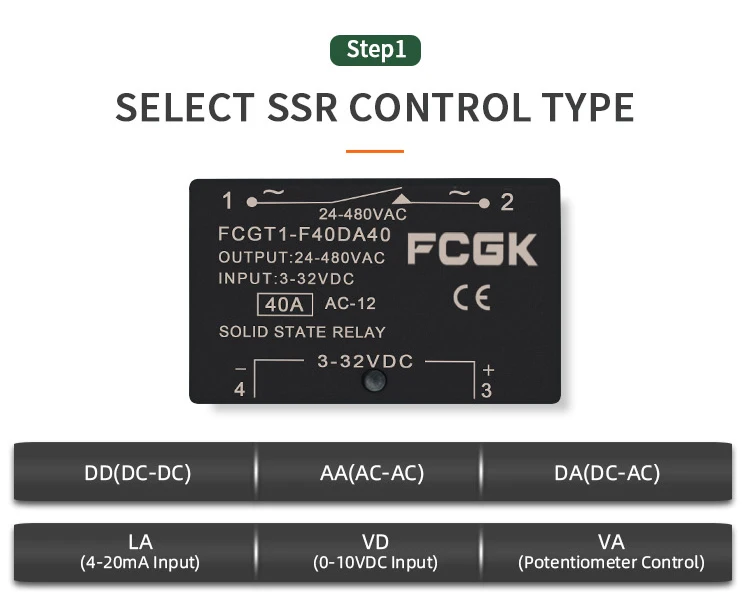

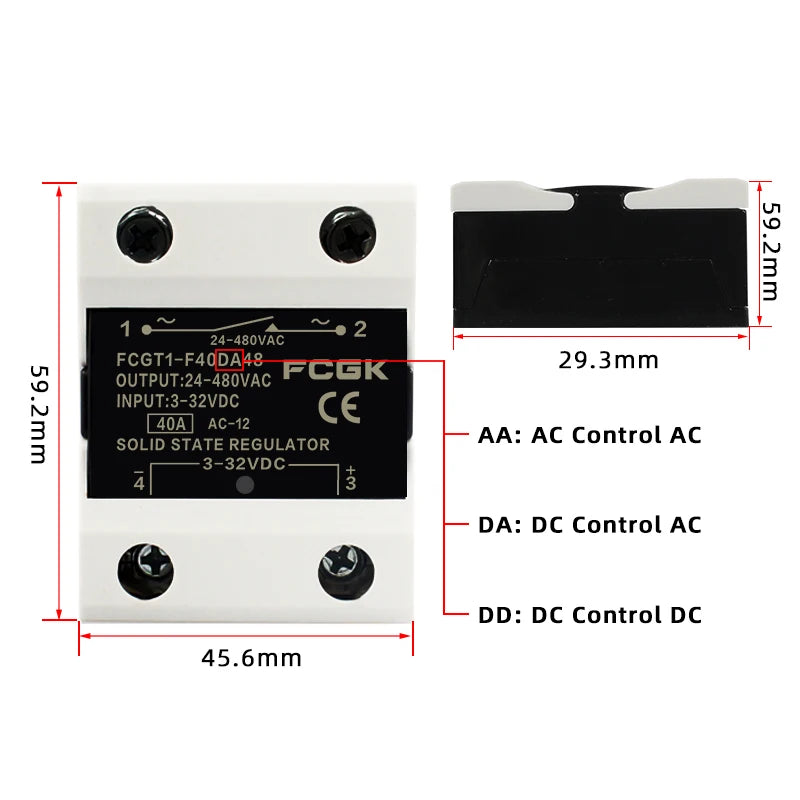

STEP 1: Choose a correct control Mode

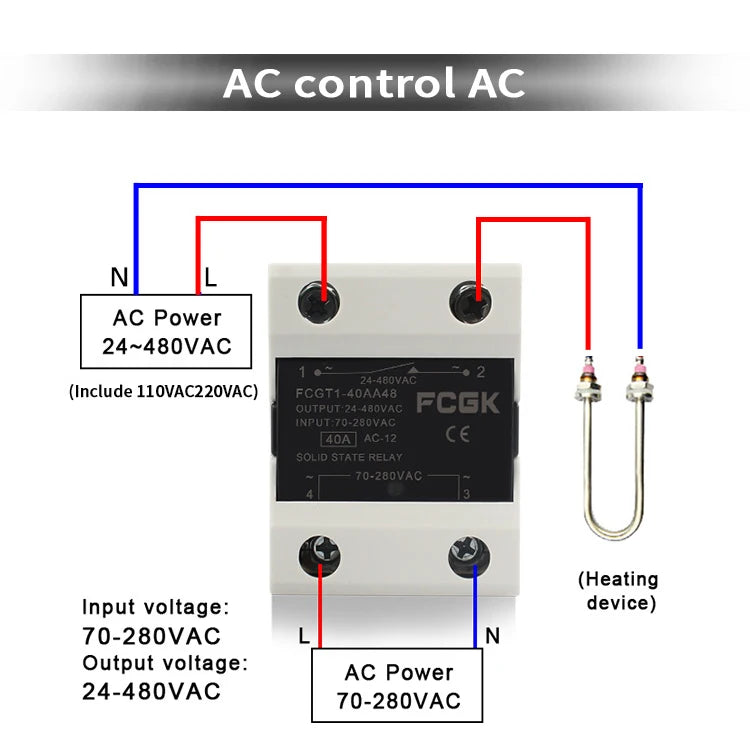

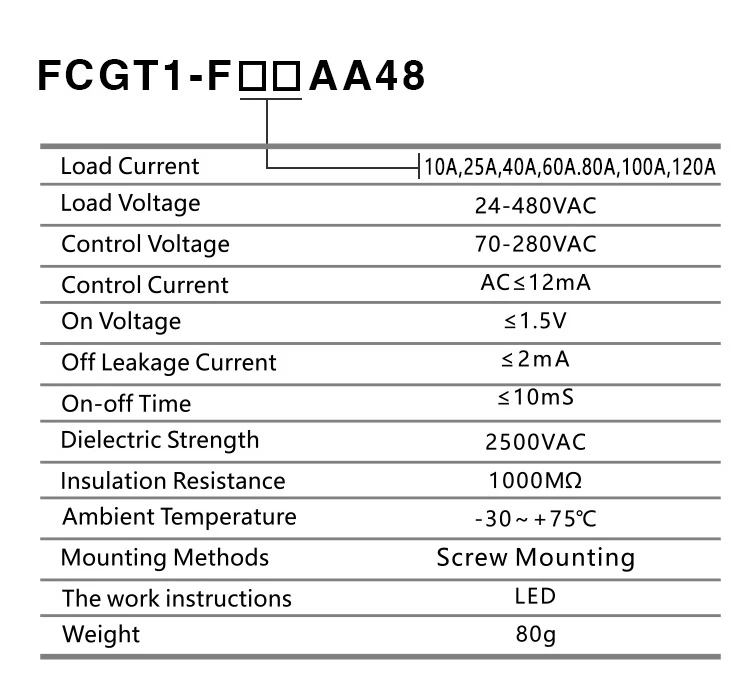

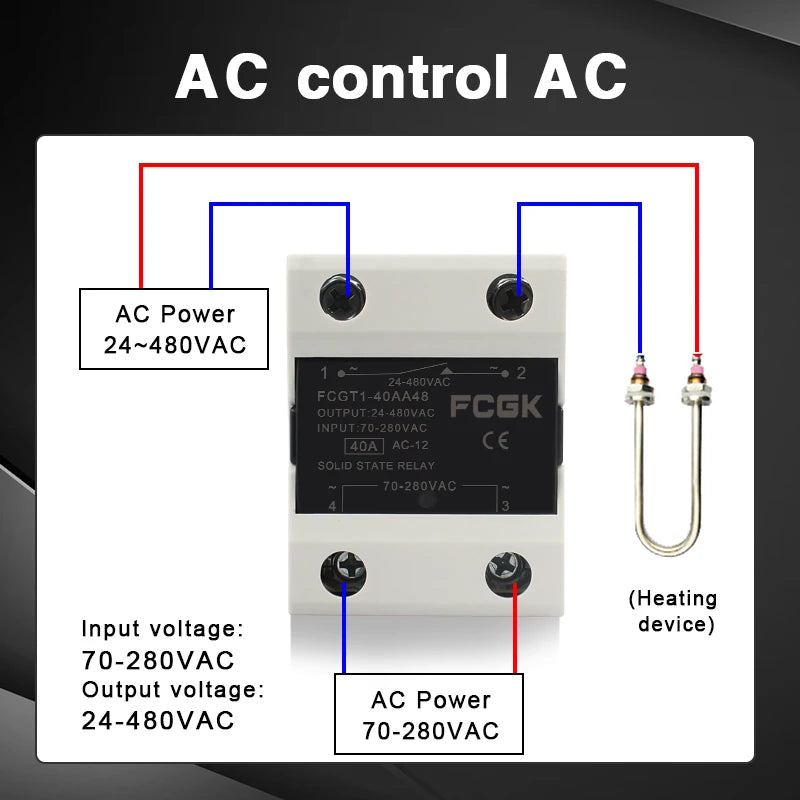

AA- AC Control AC

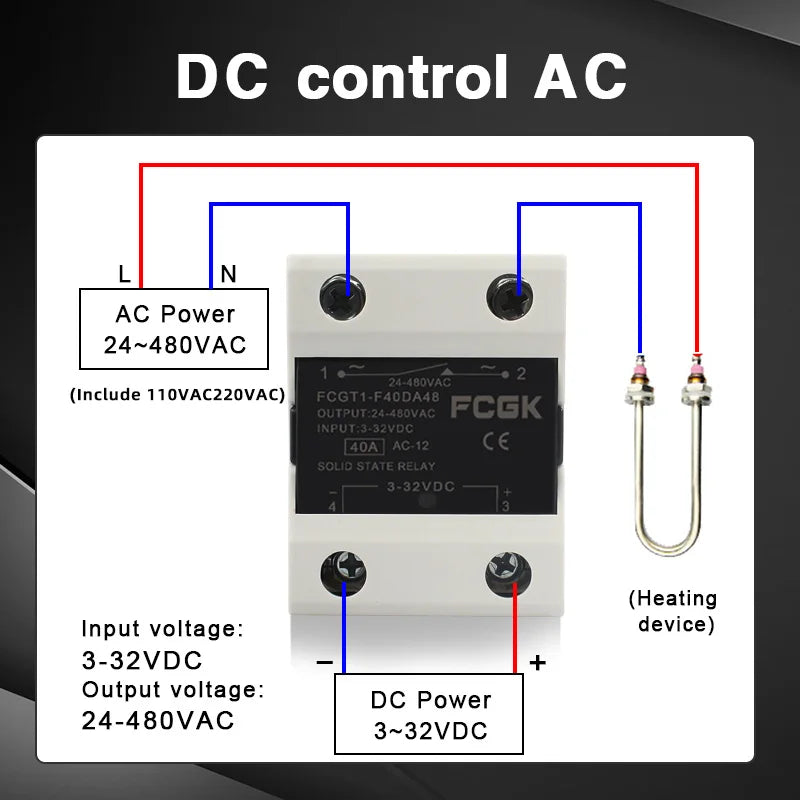

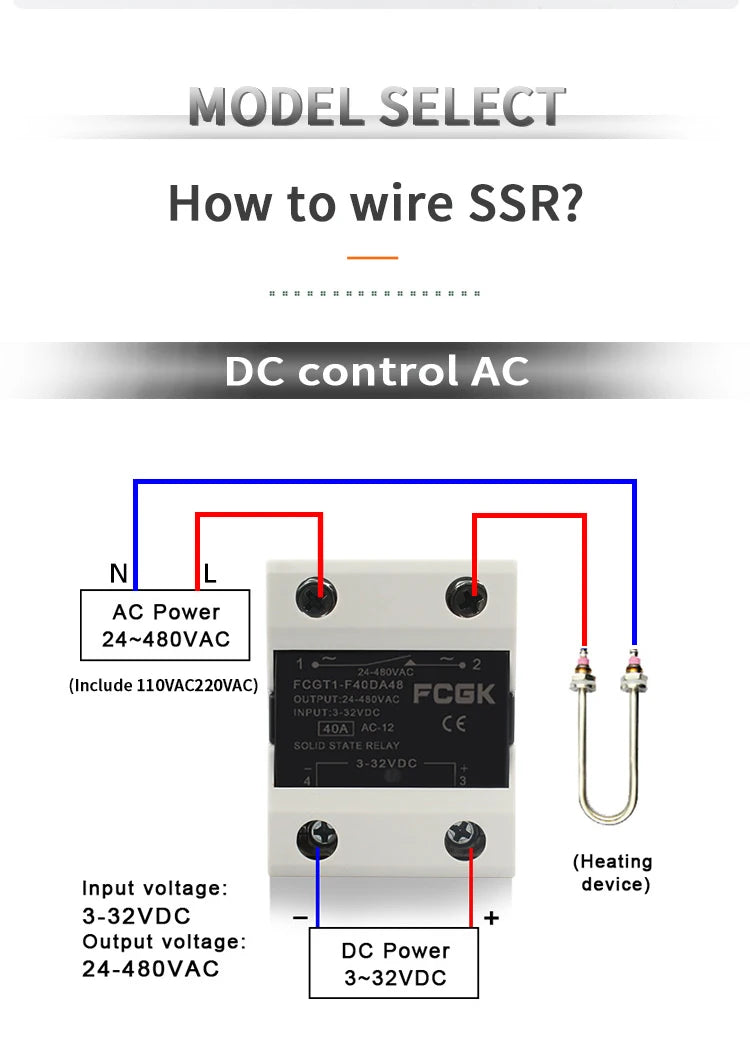

DA- DC Control AC

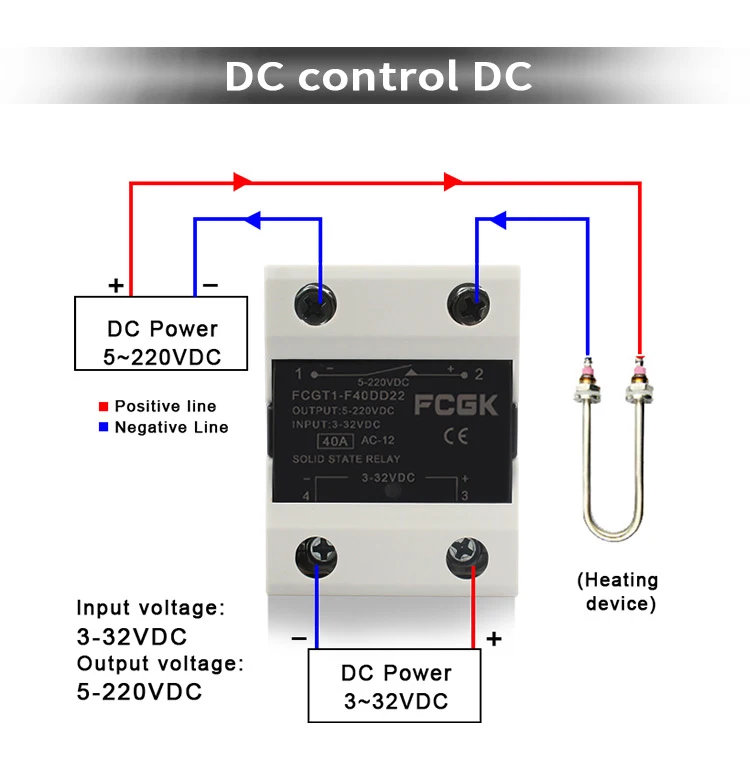

DD- DC Control AC

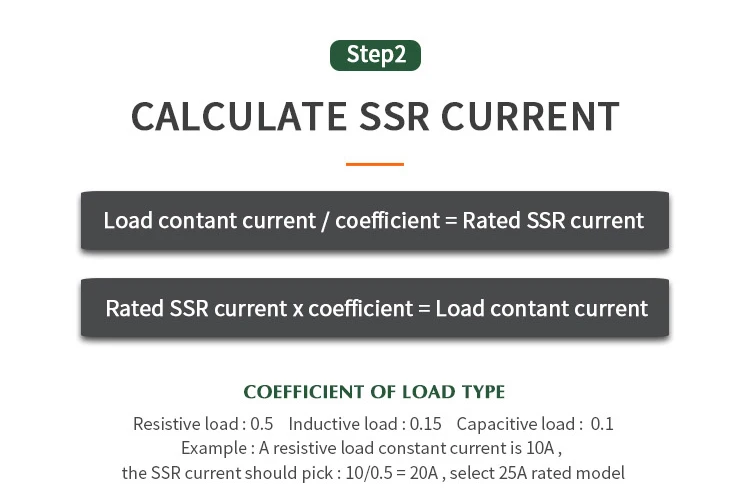

STEP 2: Choose a correct type

Calculate ssr current :

Load constant current / coefficient = Rated SSR current

Rated SSR current x coefficient = Load contant current

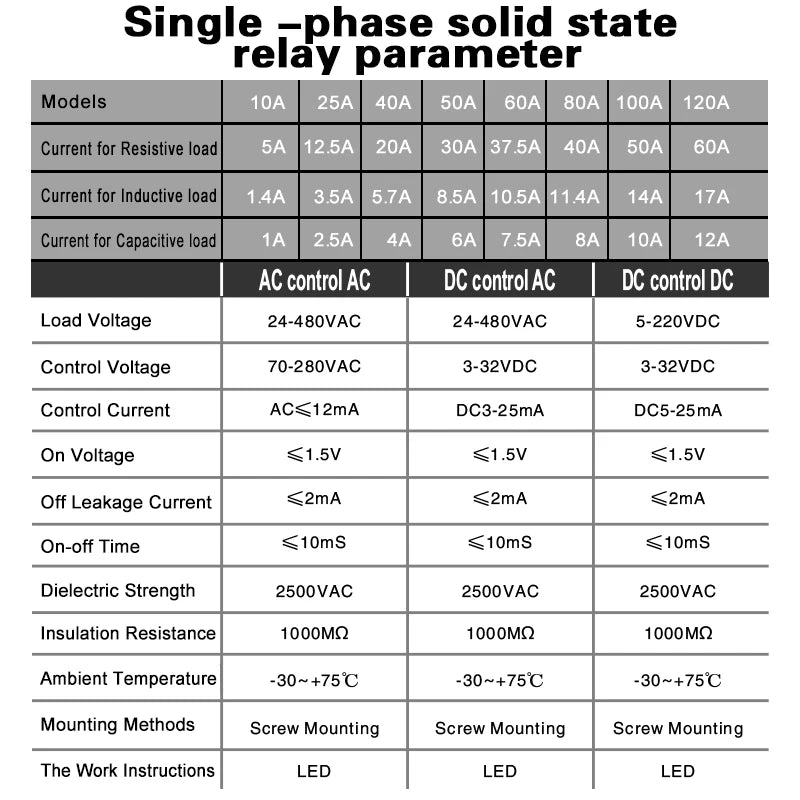

Coefficient of Load type:

Resistive load : 0.5

Inductive load : 0.15

Capacitive load : 0.1

Example : A resistive load constant current is 10A,

the SSR current should pick : 10/0.5= 20A , select 25A rated model

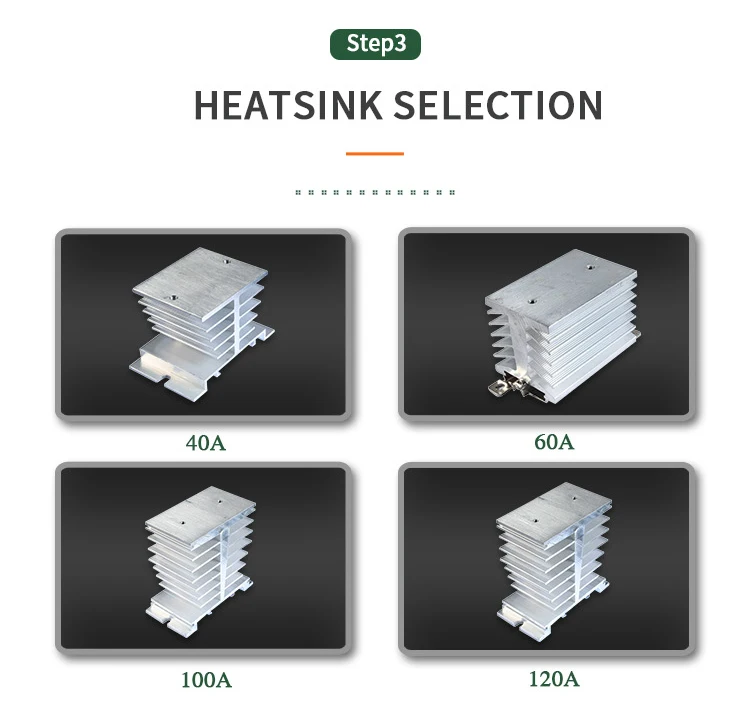

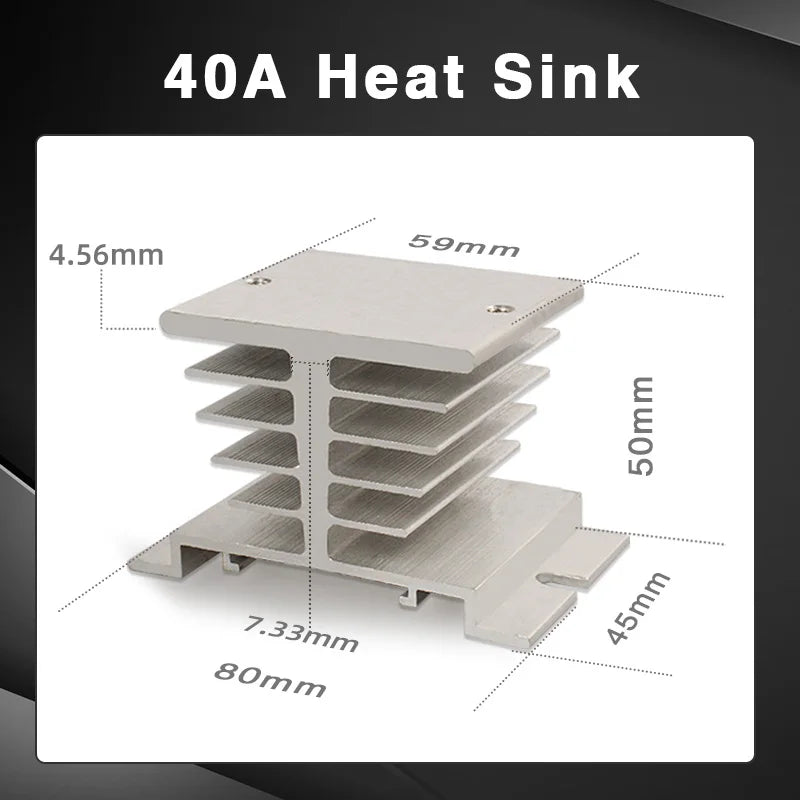

STEP 3: Choose a suitable heat sink.


During the usage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
