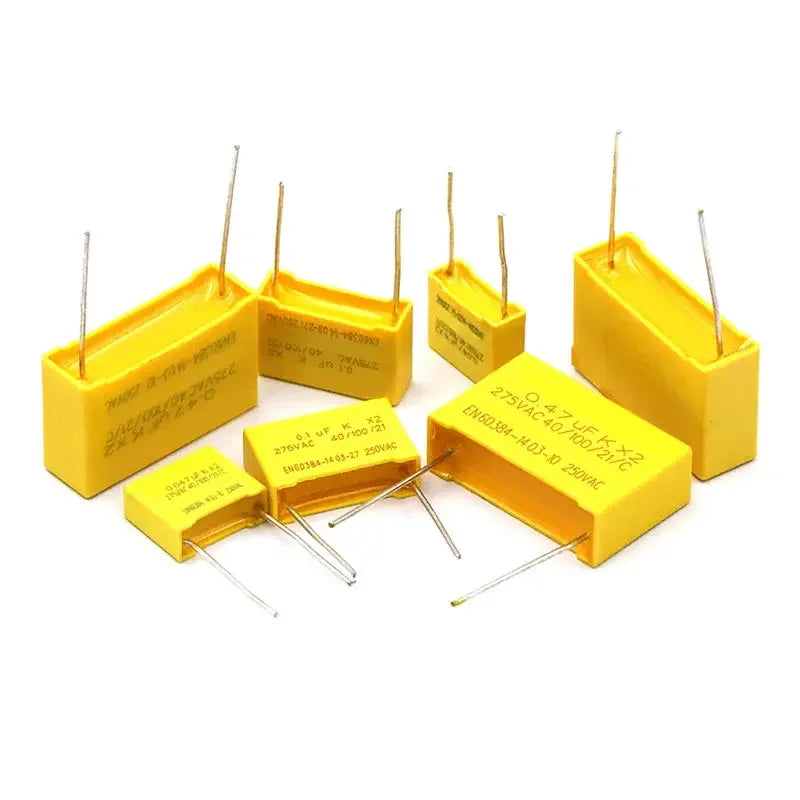

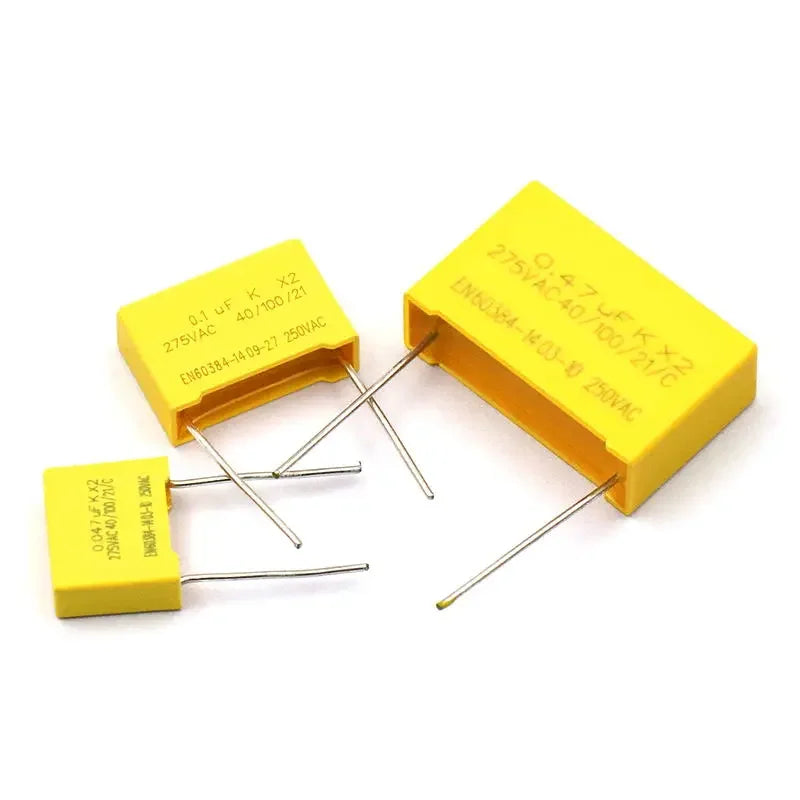

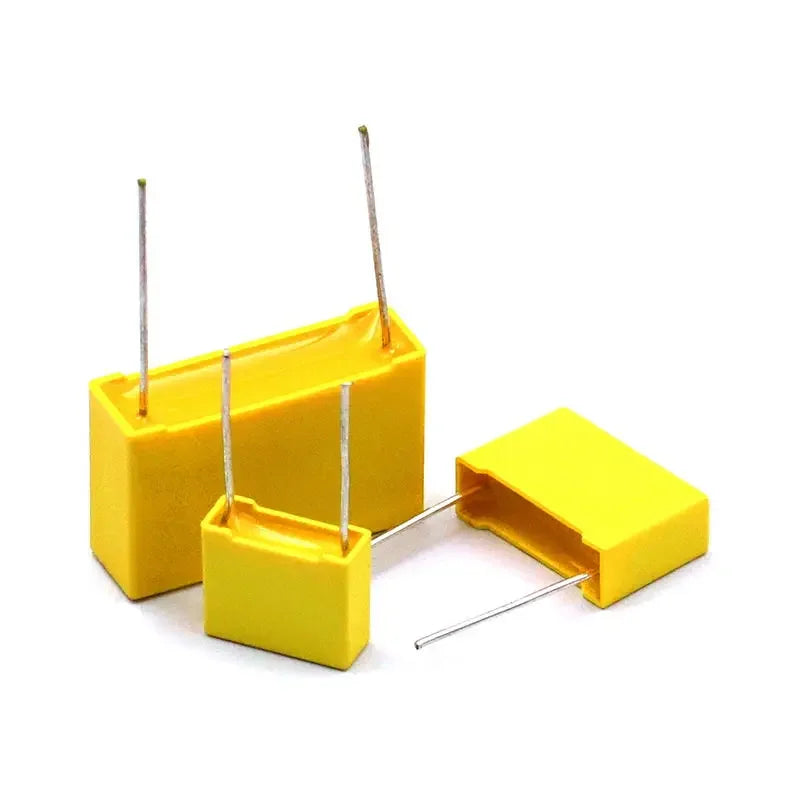

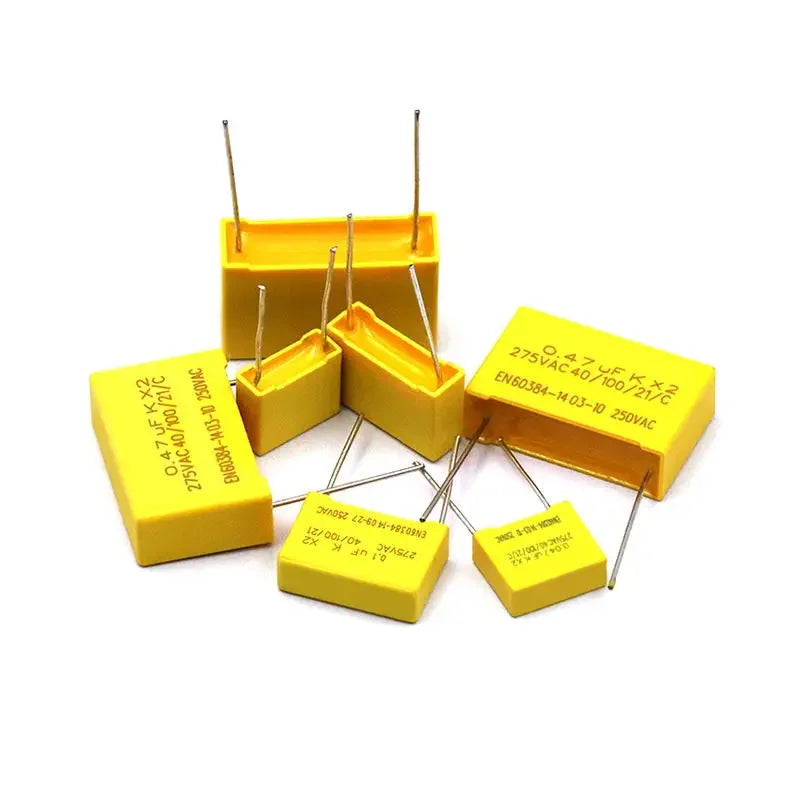

SPECIFICATIONS

Product features
Low high frequency loss
Withstand AC peak surge impact
Strong overcurrent capability
Small capacity and loss attenuation
Small size, long service life, plastic shell package
Good consistency in appearance

Function of safety gauge capacitor
Safety capacitor refers to the capacitor that will not cause electric shock and endanger personal safety after the capacitor fails.
Safety capacitors are usually only used for filtering in anti-interference circuits. They are used in the power filter and play the role of power filter,
Filter common mode and differential mode interference respectively.

Product specification classification
Foot distance 10mm:
X2 275V 0.01uF
X2 275V 0.047uF
X2 275V 0.1uF
X2 275V 0.22uF
0.001UF (102K)
0.0022UF (222K)
0.0047UF (472K)
0.022UF (223K)
0.033UF(333K)
0.068UF (683K)
0.15UF (154K)
0.33UF (334K)

Foot distance 15mm
X2 275V 0.1uF
X2 275V 0.22uF
X2 275V 0.33uF
X2 275V 0.47uF
0.15UF (154K)
0.68UF (684K)

Foot distance 22mm
X2 275V 0.47uF
0.22UF(224K)
0.33UF (334K)
0.56UF (564K)
1UF (105K)
1.2UF (125K)

① Capacity conversion: 1uF = 1000nf = 1000000pf,
The last number of the model represents several zeros, and the unit is pf;
For example, 224 stands for 220000pf = 0.22uf
(there is no difference between the rated voltage 275VAC and 280VAC / 310vac, but the printing requirements of different countries are different.)

② The performance of different volumes is different. The larger the volume, the better the withstand voltage. The specific requirements depend on the circuit.

③ Foot distance is the distance between two pins, in mm;
The foot distance only affects the installation and does not affect the performance. Enough space is enough.

Precautions for product use
When capacitors are used to eliminate noise in power supply crossover circuits, not only normal voltage but also abnormal pulse voltage (such as lightning) must be considered,
This may cause the capacitor to smoke or catch fire. Therefore, capacitors with safety certification must be used, and DC capacitors are not allowed to be used as cross line capacitors.
For the capacitor for electromagnetic interference of class x2 power supply, it shall be suitable for the occasion where the capacitor will not cause electric shock hazard in case of failure. For example, if the power supply is connected across lines, it can withstand 2.5KV pulse voltage.

Product technical parameters
Climatic conditions: - 40 ~ + 110 ℃ / 56d
Rated voltage: 300VAC; 275VAC; 320VAC
Capacity error: J ± 5%, K ± 10%, m ± 20%
Capacity range: 0.0022 μ F-4.7 μ F 20℃; 1V test voltage
Withstand voltage: terminal to terminal: 4.3ur or 2100vdc; 5S terminal and housing: 2000vac 5S without breakdown or flying fox
Loss angle: ≤ 0.0015 10kHz Cr ≤ 1.0 μ F ≤0.0020 1KHZ CR＞l. 0 μ F 20℃; 1V test voltage
Insulation resistance or time constant: Cr ≤ 0.33 μ F IR≥30000MΩ CR＞0.33 μ F IR≥10000S(MΩ. μ F) Charging voltage: 100V (measured after charging at 20 ℃ for 1min)
Steady state damp heat: temperature: 40 ± 5 ℃ humidity: 93% RH duration: 56 days no visible damage, clear signs IR: ≥ 50% of rated value capacitance: △ C / C ≤ 5%
Loss angle (1kHz): increase ≤ 0.0020
Durability test: + 110 ℃, continuous 10000 hours applied voltage: 1.25 * rated voltage insulation resistance IR: ≥ 50% of rated value capacitance: △ C / C ≤ 10%

Product application scope
It is widely used in electric tools, lighting, air ducts, water heaters, electronic instruments and electronic equipment, switches and other household appliances.
