SPECIFICATIONS

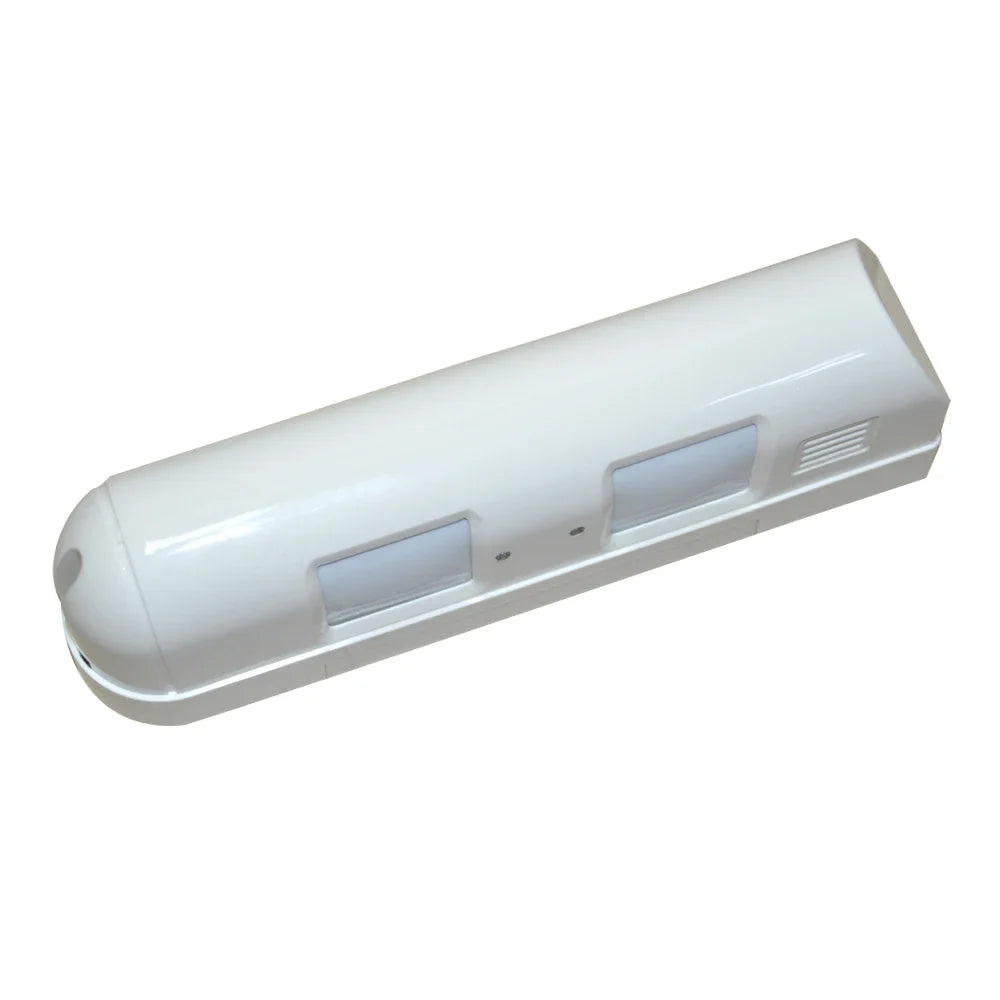

12-28vdc 2 side 4 infrared detector outdoor waterproof wire PIR motion sensor anti block max 24m curtain pir NC/NO signal

Specification:

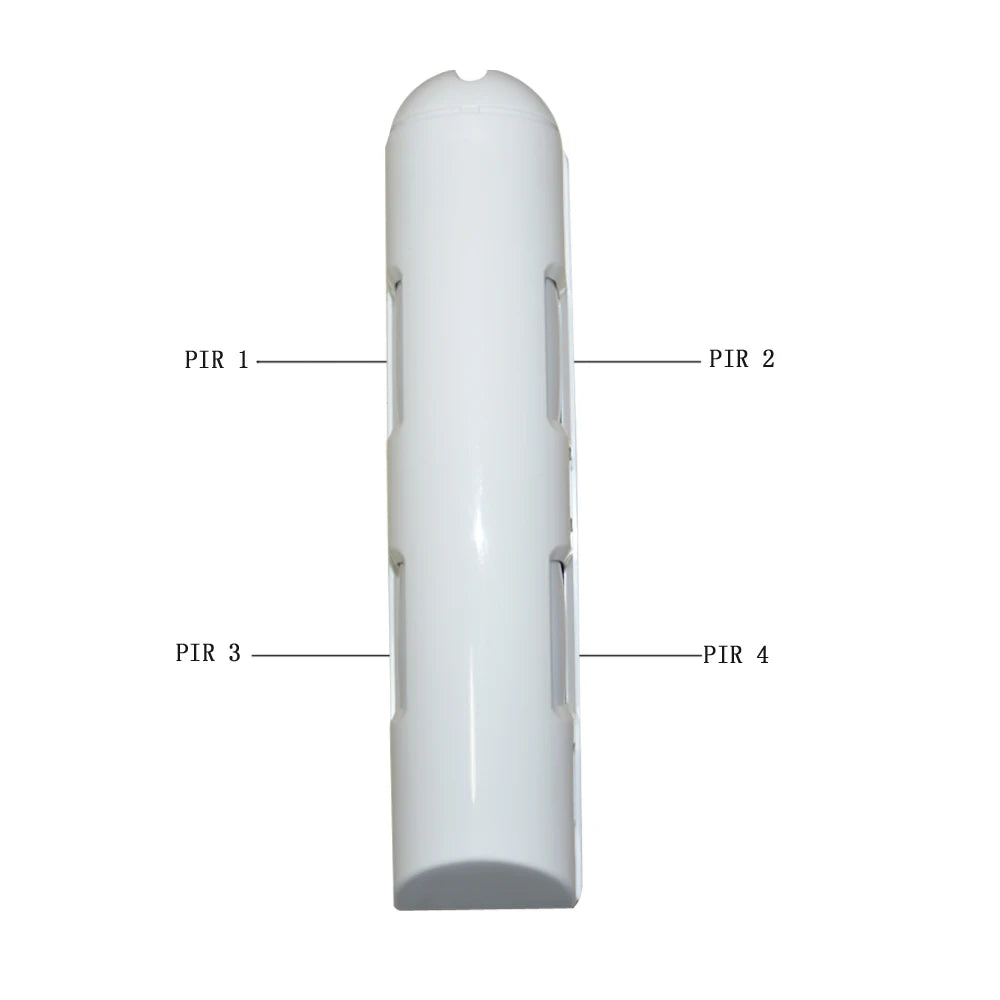

1.2 independent dual-element PIR detection to form up 4-zones detections
2. Adopt intelligent multi-grade signal processing software to analyze and manage various factors to reduce false alarm
3. Professional water proof design, suitable for outdoor operation
4. Double layer filtering system
5. Digital analysis pet immunity up to 30kg

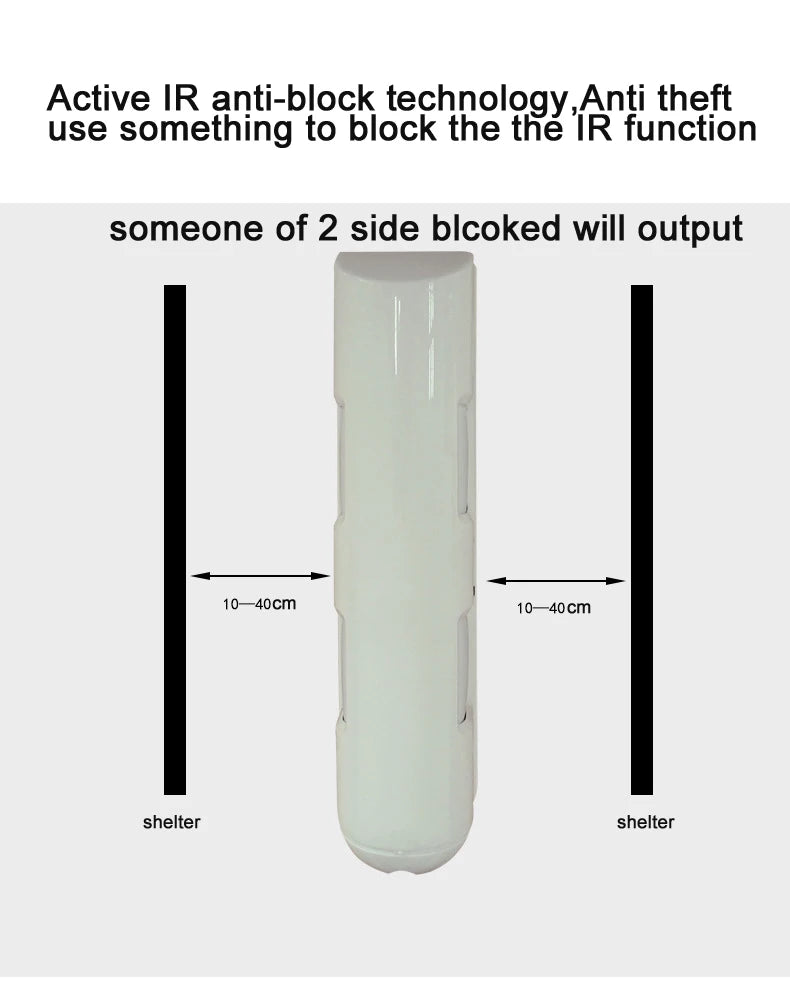

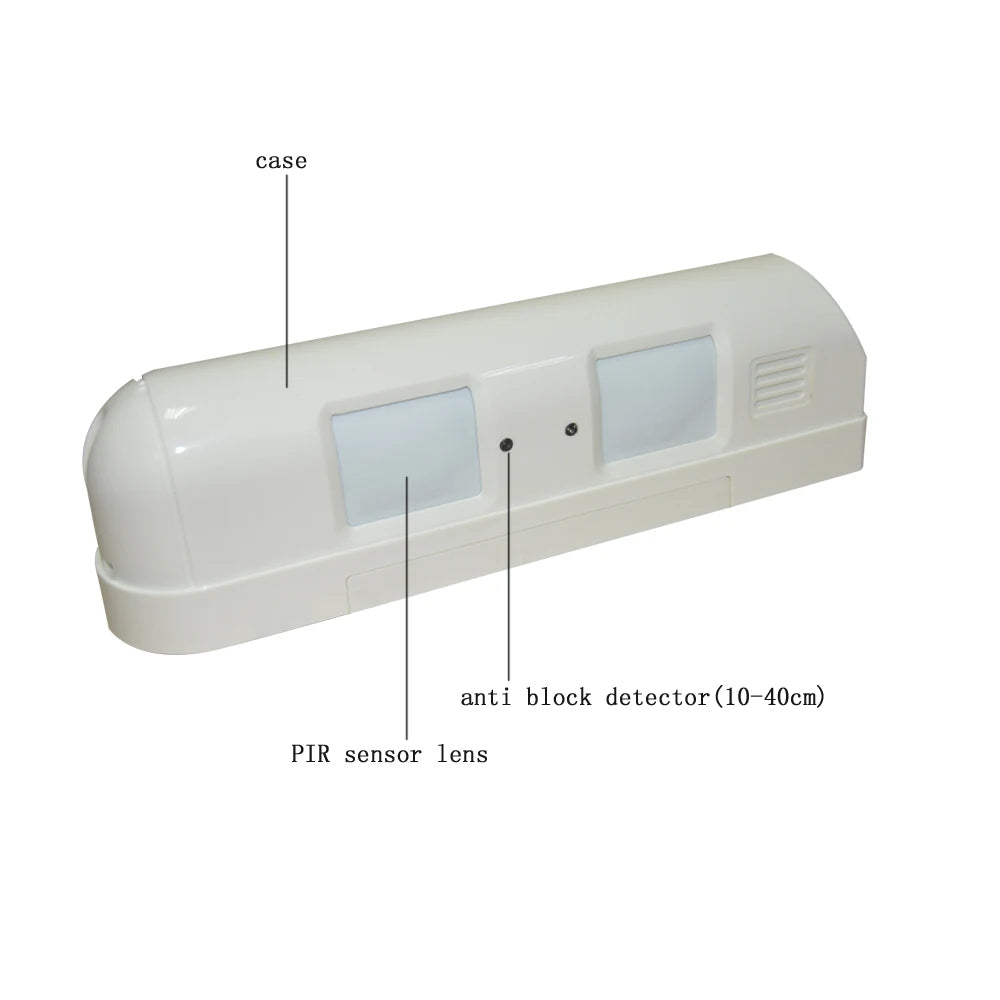

6.Active infrared anti-mask technology, can detect the attempt of mask on PIR channel

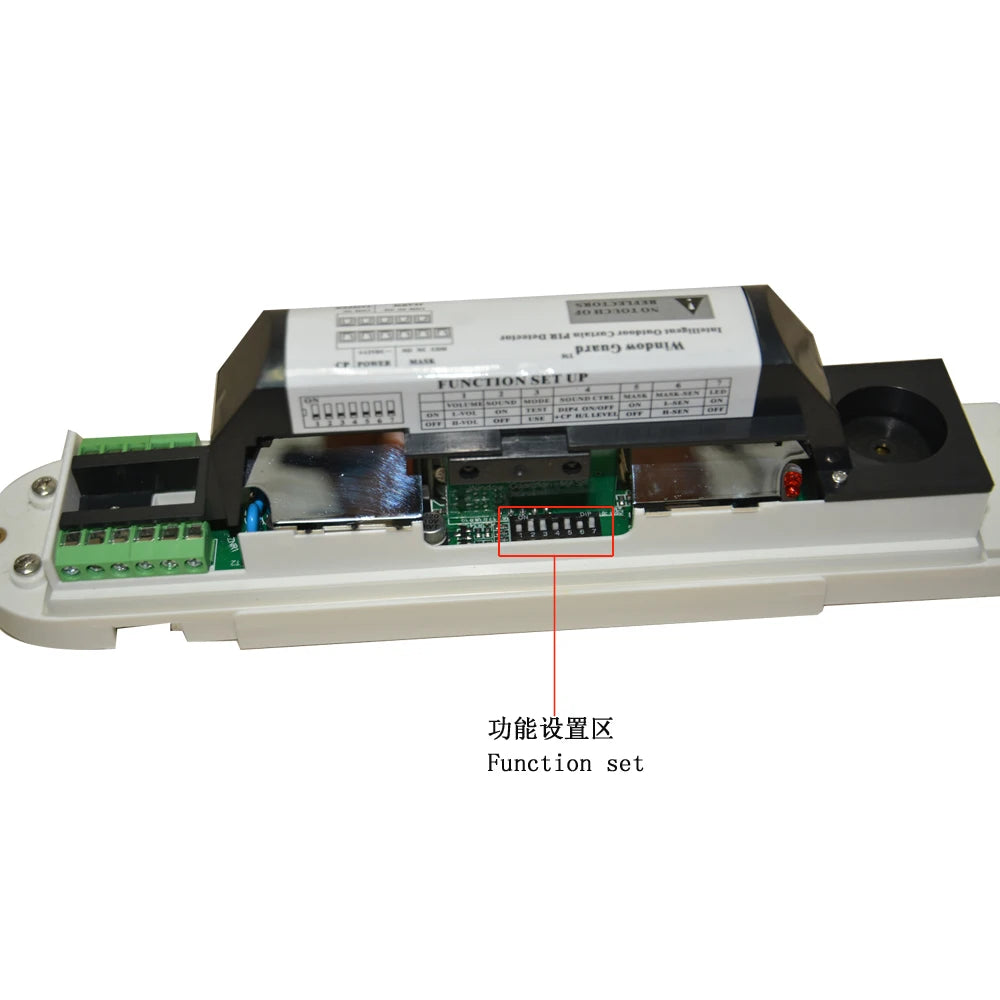

7. High/middle/low sensitivities optional
8. Unique anti-mask, alarm signal output
9.Audio alarm to prevent vicious intrusion
10. IP55 water proof design, unique full range temperature compensation technology

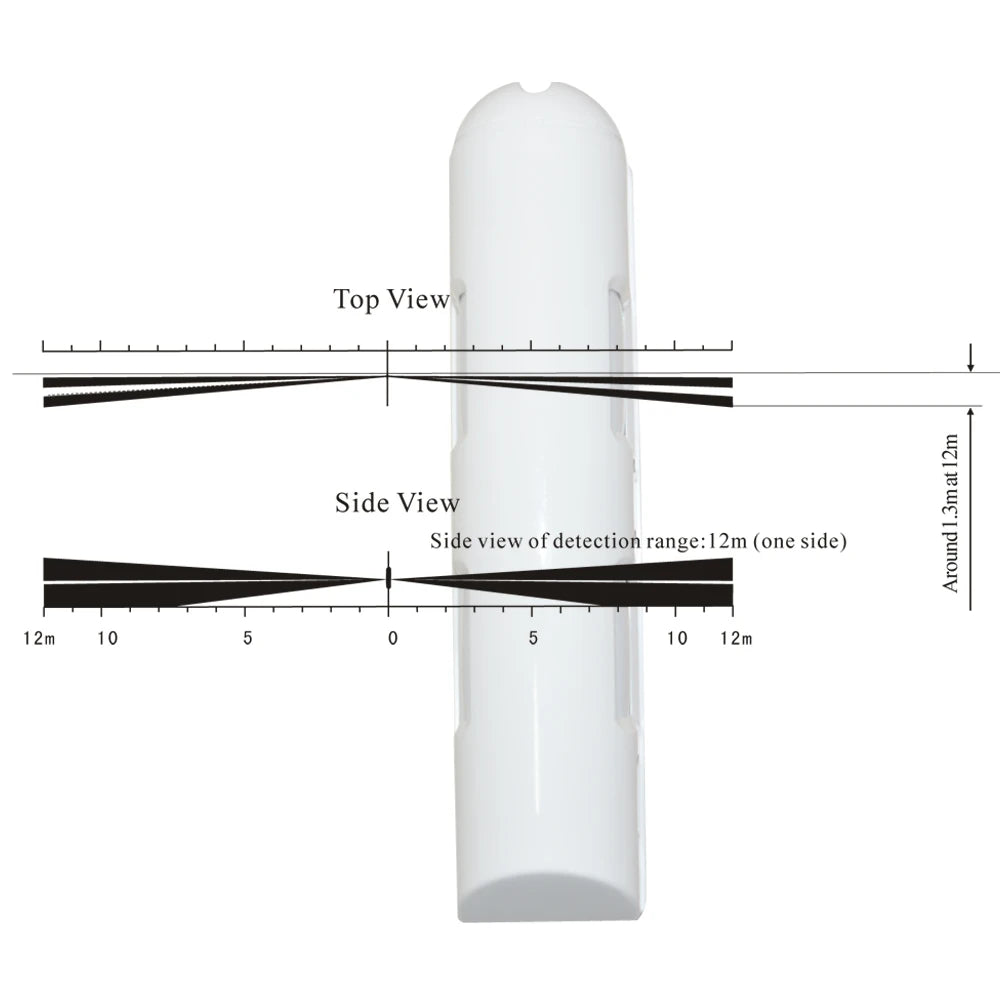

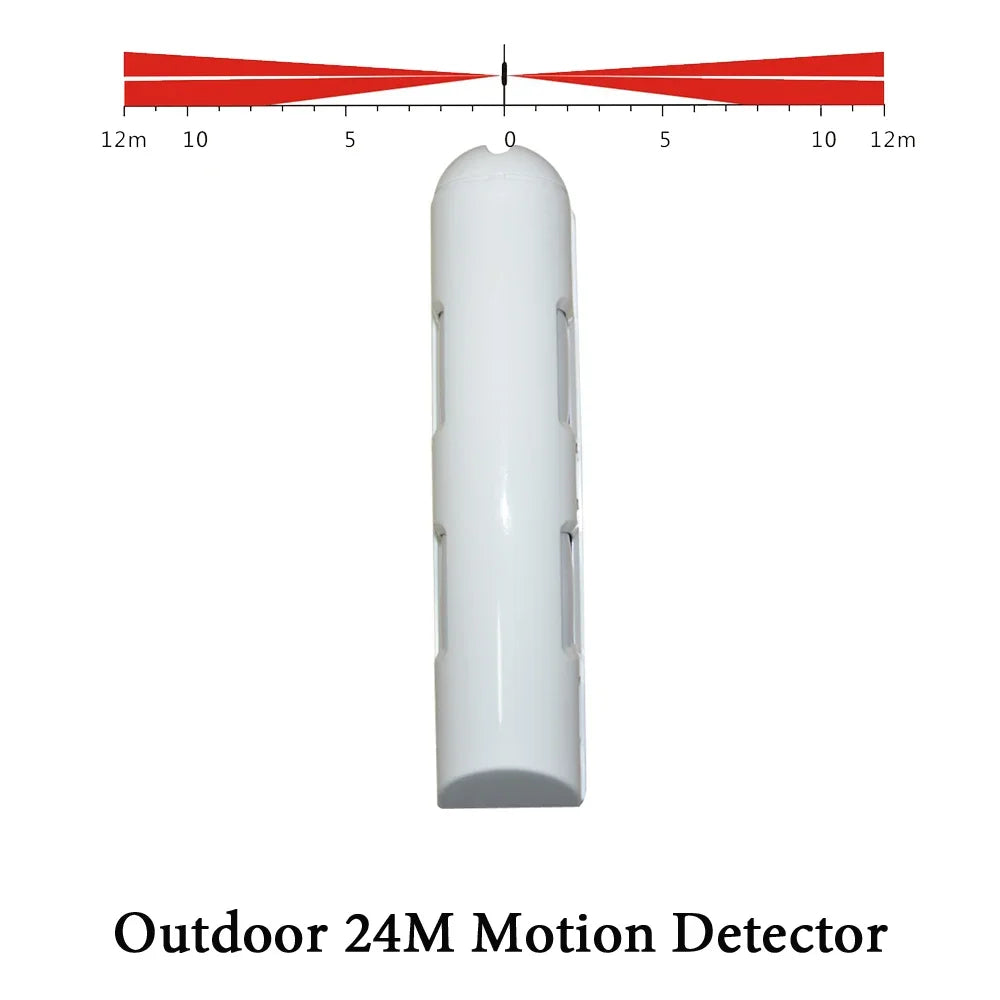

11. Detection range: 12m on each side, total 24m
Technical:
Detection way Passive infrared
Coverage range 24m(12m each side)
Detection zones 4zones(2zones each side)
sensitivity 0.6m/s
Detectable speed 0.3-2.0s
Input power 12-28vdc
Power consumption 80mA(max)
Alarm period 1.0-3.0s
Relay output NC/NO optional
Tamper switch NC when front cover removed

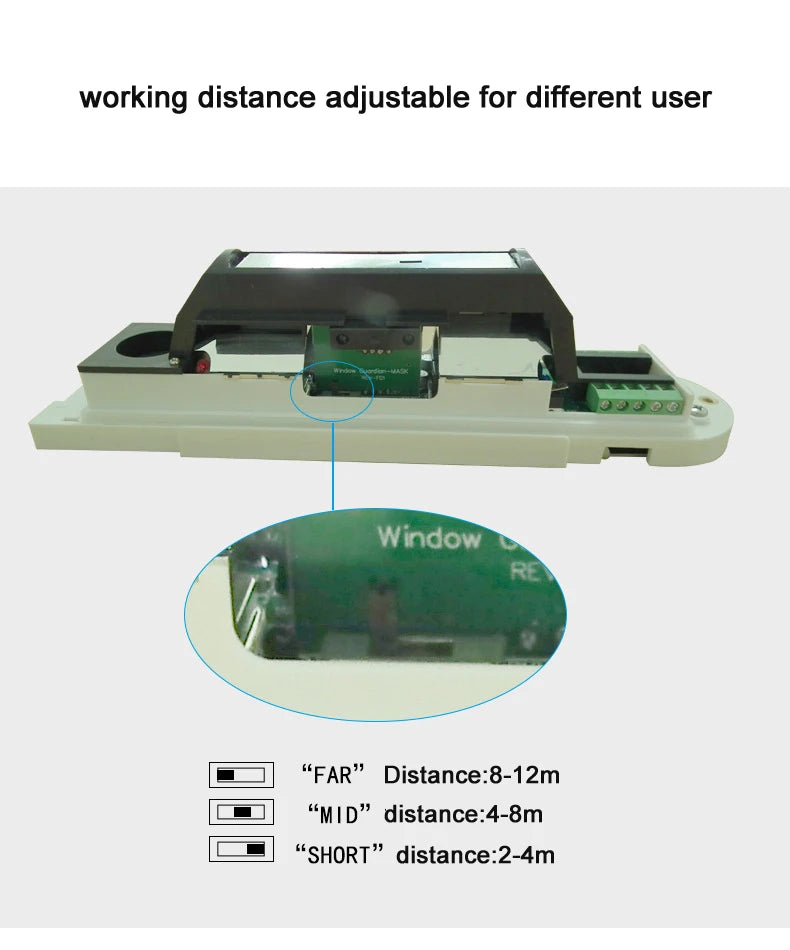

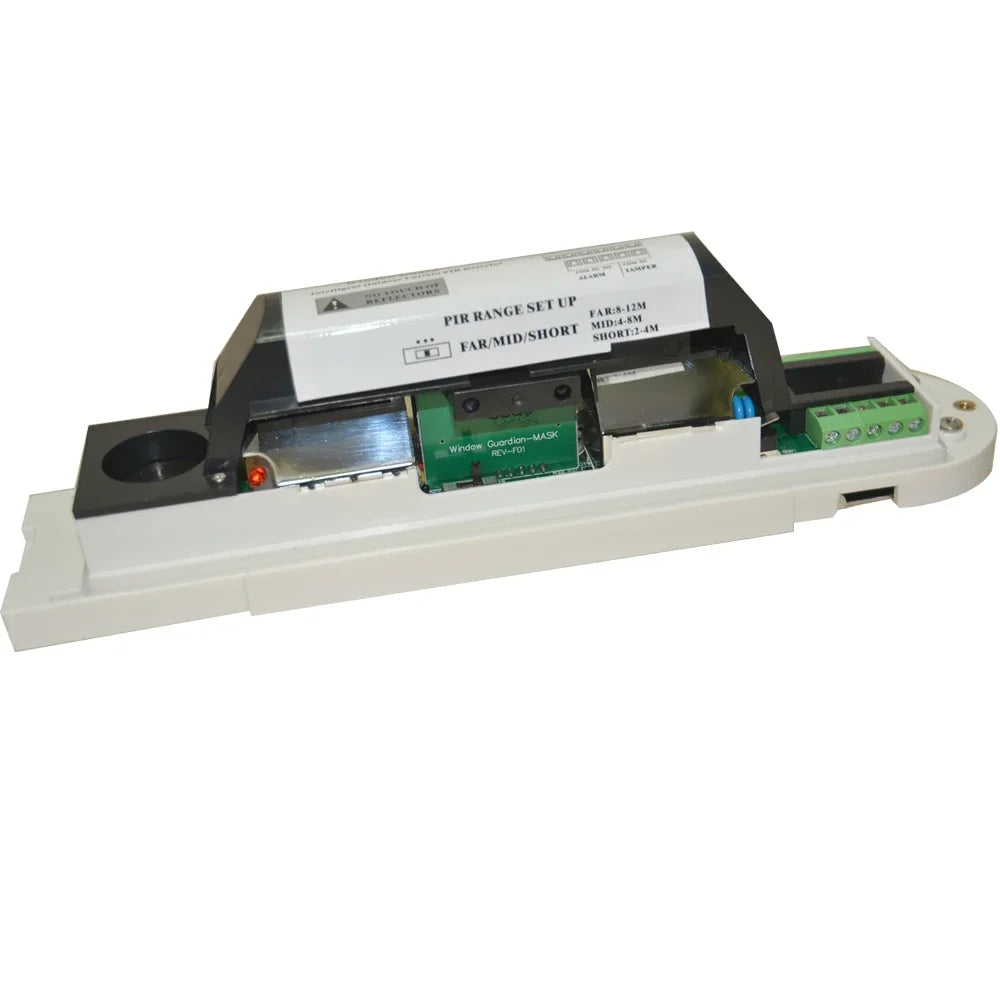

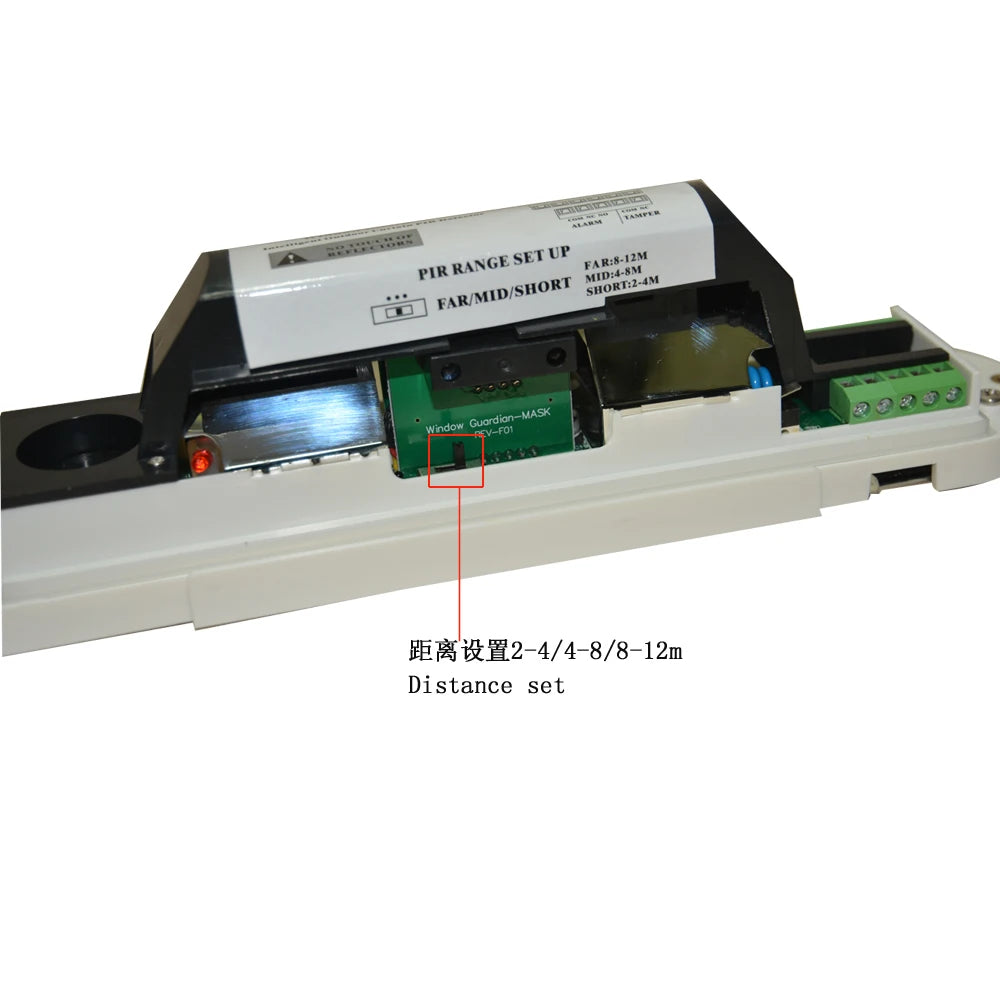

Range detection mode On/off
Warm up time Around 45s
Audio alarm volume Around 70db at 1m
Alarm led Blinks during warm up and alarm period
Operation temperature -20 to 50 degree
Environment humidity 95%max
Anti RF interference No alarm below 20v/m

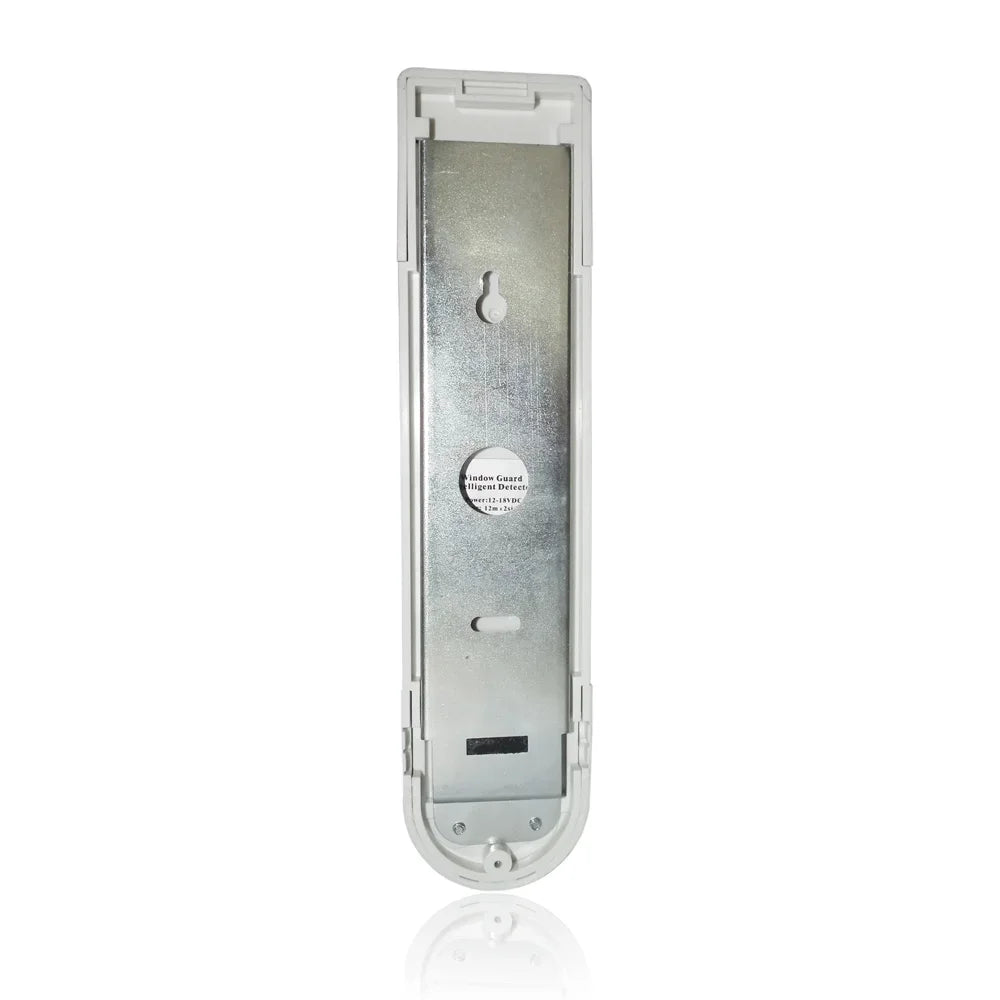

installation Wall
Installation height 0.8-1.2m
weight 395g

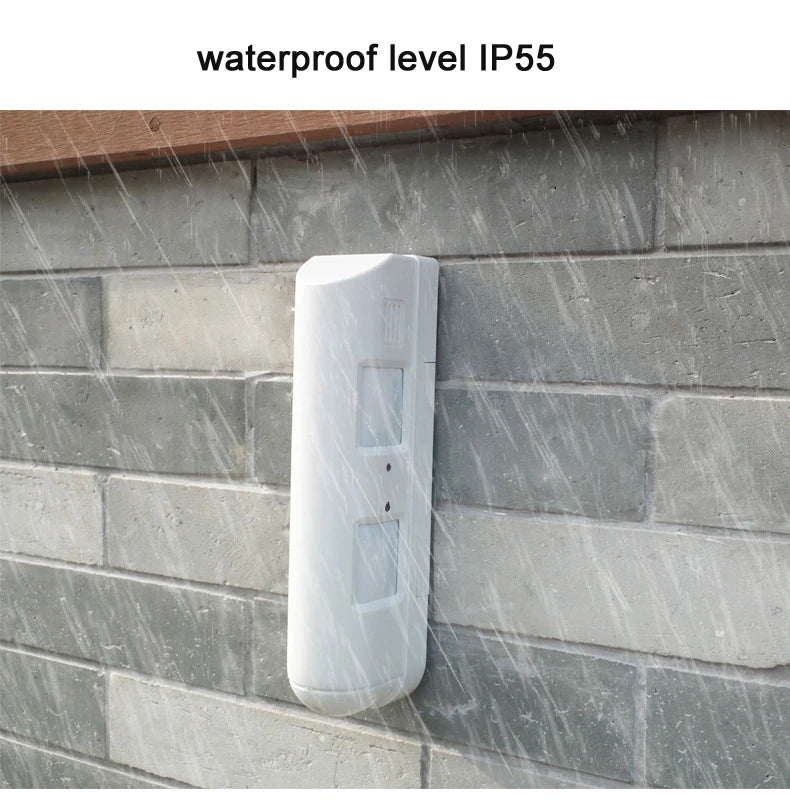

Waterproof level IP 55
