SPECIFICATIONS

Application: RF, Lighting,soldering

Brand Name: DexMRtiC

Certification: CE,RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Genger: Male plug

High-concerned chemical: none

Impedance: 50 Ohm

Material: Brass

Model Number: BNC male connector

Mounting: Cable mount

Origin: Mainland China

Place of Origin: Guangdong, China (Mainland)

Product: BNC coax connector

Style: Straight with nut solder cup

Voltage: none

semi_Choice: yes

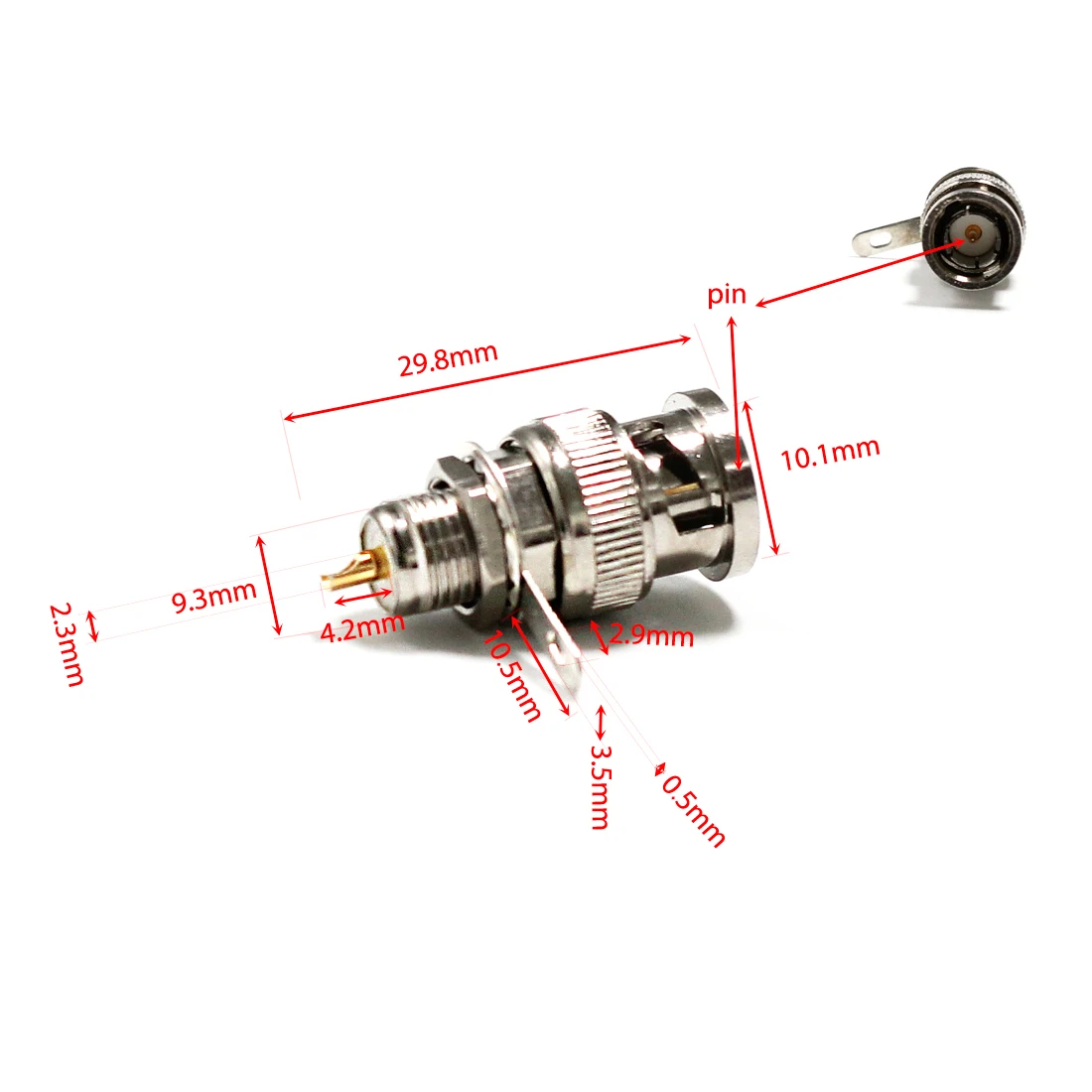

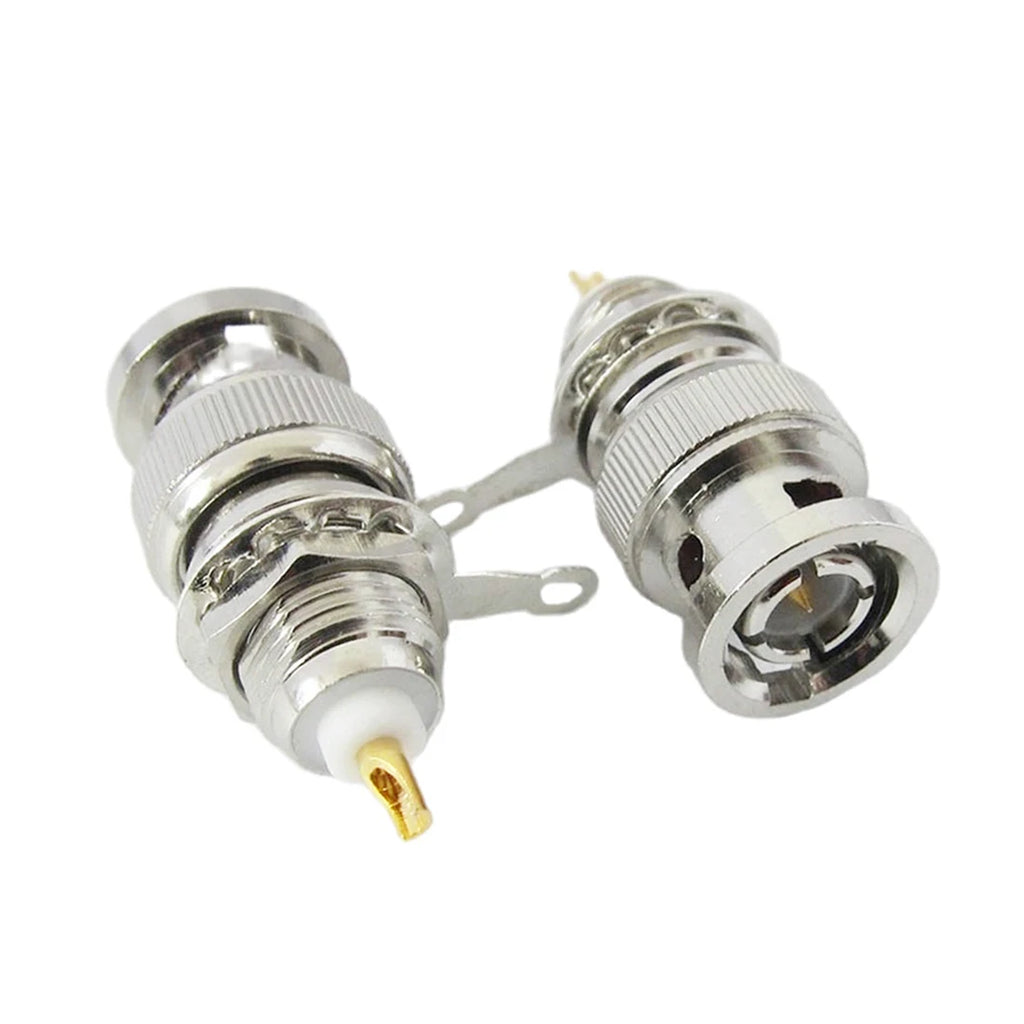

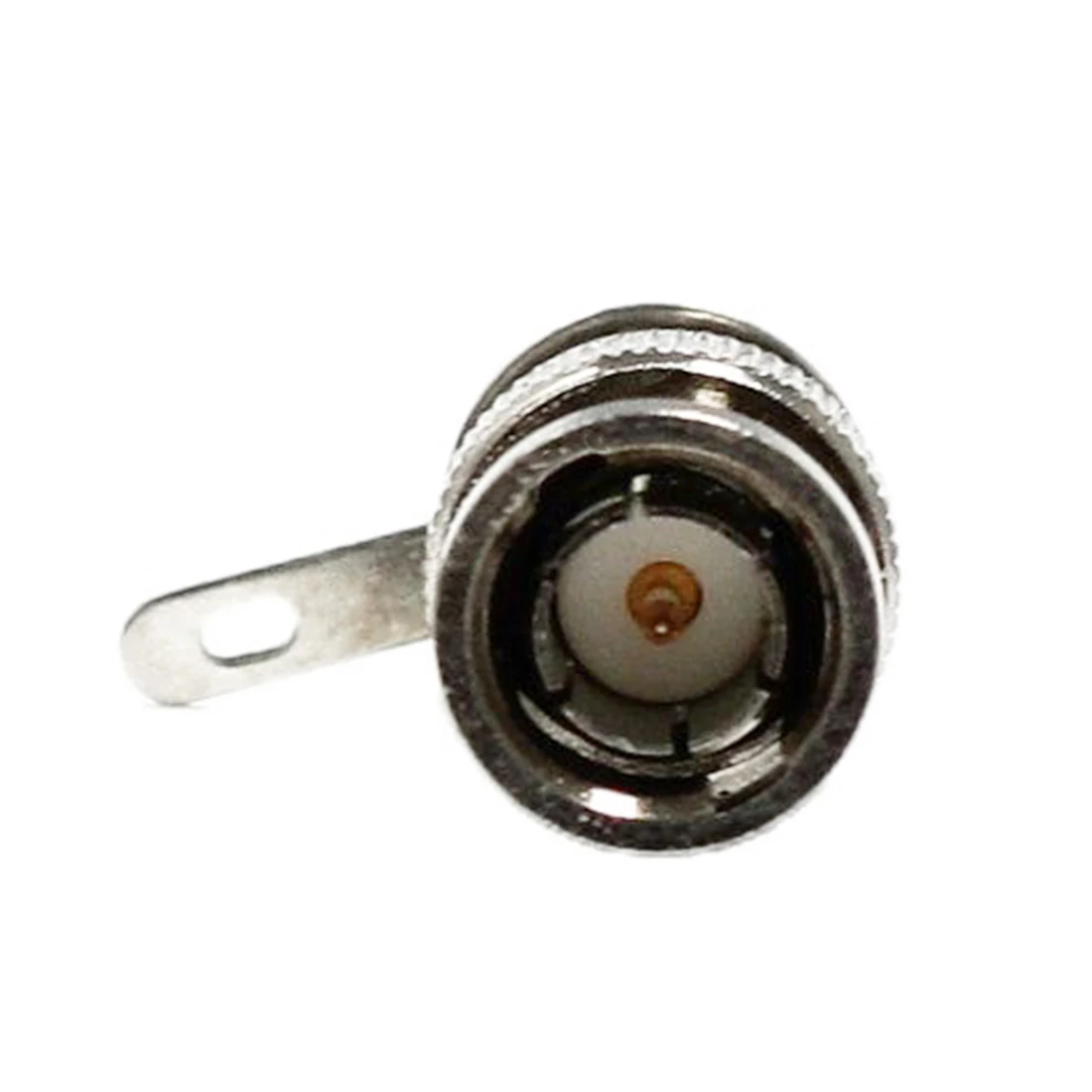

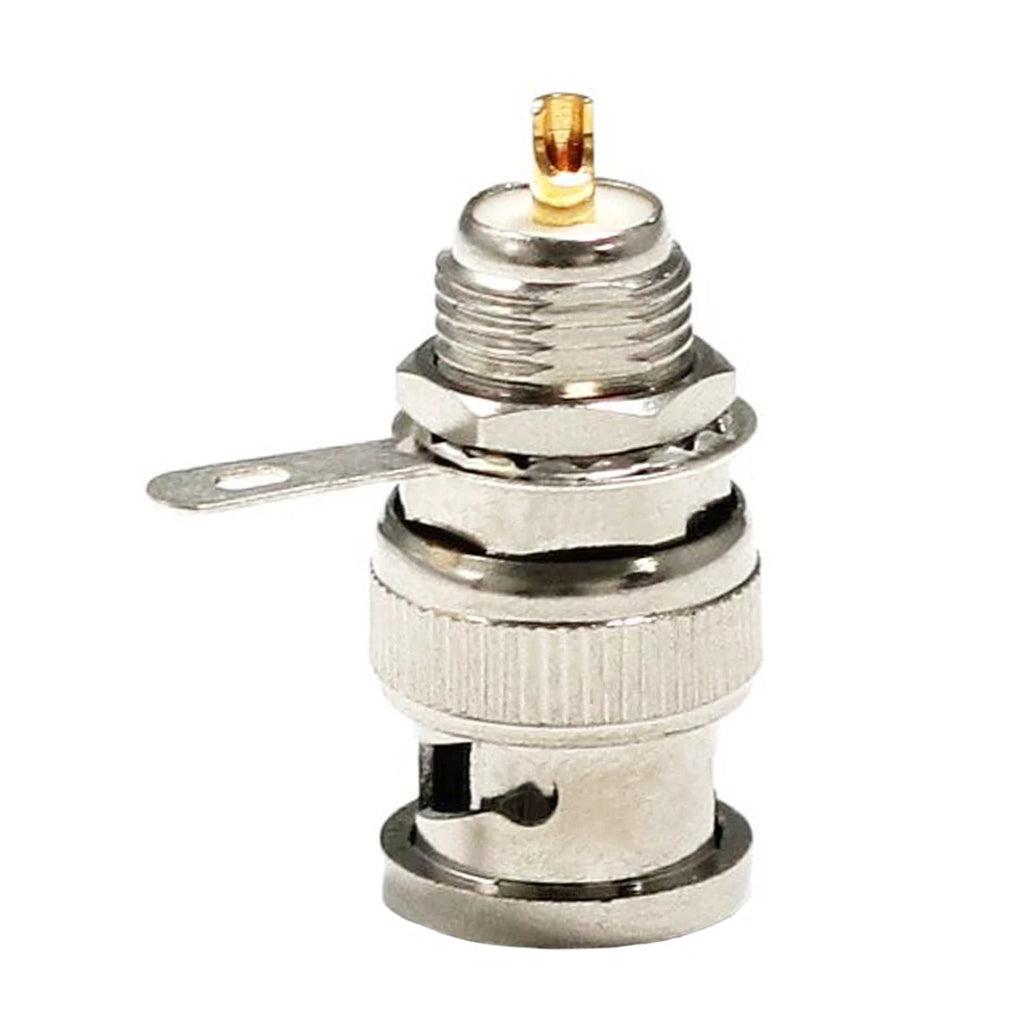

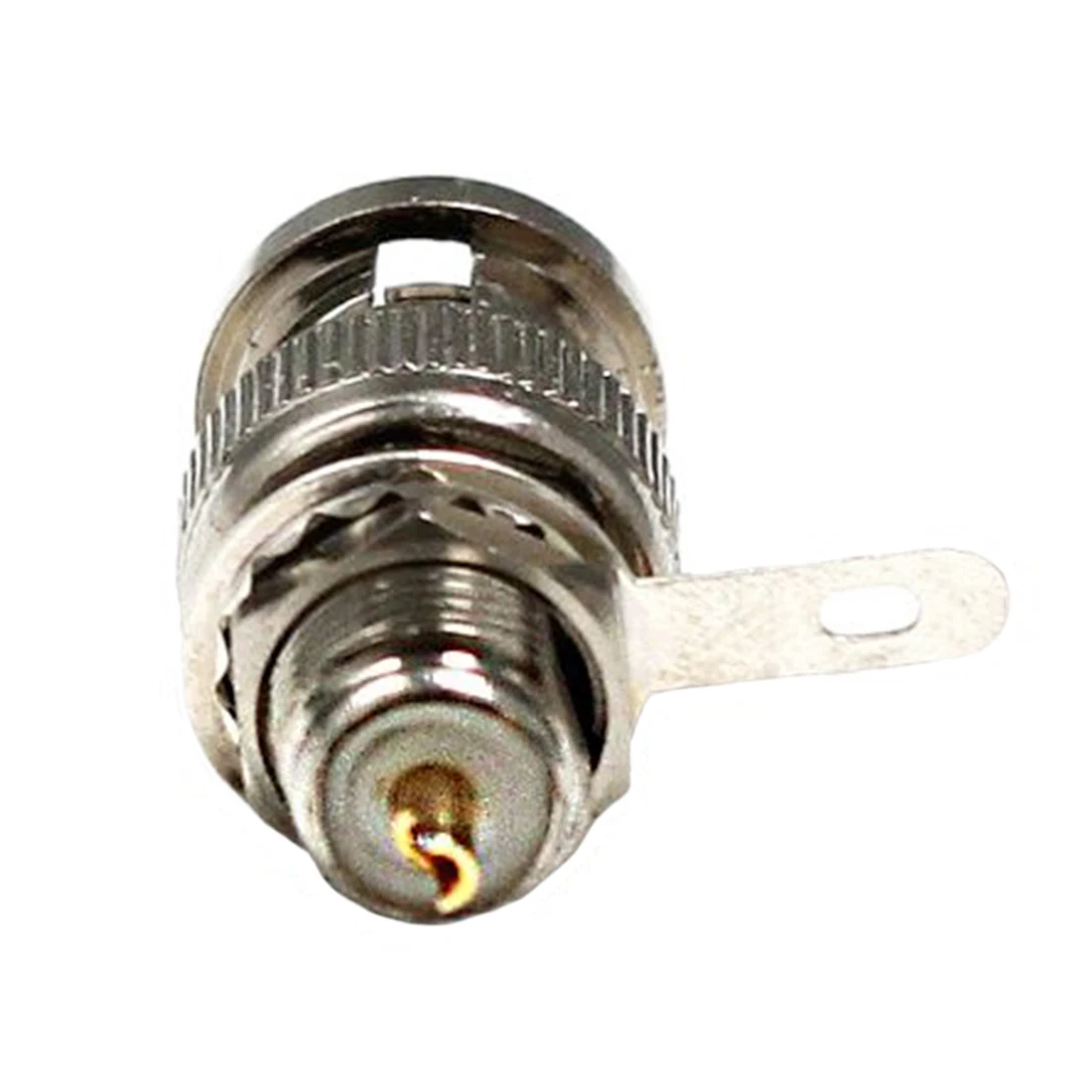

1pc BNC Male Plug RF Coax Connector Straight front Panel Mount with Nut Solder Cup Terminal

Description:

BNC connectors are mostly used for CCTV fields

Product Series:	BNC	Connector Body Style:	straight
Product Type:	Cable mount	Connector Material:	Brass
Application:	Solder	Contact Plating:	Nickel
Attachment/Affixment:	panel mount with nut solder cup	Contact Termination:	Solder
Body Plating:	Nickelplated	Gender:	male
Body Termination:	Solder	Impedance:	50 Ohm
Cable Type:

Type BNC are widely used in connection with the RF coaxial cables in computer field, network of wireless, medical equipment and electronic instrument.

Major Technical Characteristics		MATERIAL & PLATING
Temperature Range:	-55~+155°C(PE Cable -40~+85°C)	MATERIAL & PLATING
Impedance:	50Ω, 75Ω	Body	brass	Nickel plated
Frequency Range:	DC~4GHz	Body	brass	Nickel plated
Working Voltage:	500V r.m.s at sea level	Resilient contact	Tin bronze	Gold or silver plated
Withstanding Voltage:	1500V r.m.s at sea level	Resilient contact	Tin bronze	Gold or silver plated
Contact resistance:	a)Center Contact ≤1.5m Ω b)Outer Contact ≤1m Ω	Pin contact	brass	Gold or silver plated
Insulation resistance:	≥5000MΩ	Socket contact	Beryllium-copper	Gold or silver plated
Center Conductor retention force:	≥0.57N	insulator	PTFE
Insertion Loss	≤0.20dB/3GHz	Crimp ferrule	Copper alloy	Nickel plated
Voltage Standing Wave Ratio:	Straight ≤1.22/ 3GHz Right angle ≤1.30/3GHz	O-ring sealing	6146 silicone rubber
Durability(mating):	≥500times(cycles)	O-ring sealing	6146 silicone rubber
