SPECIFICATIONS

Band Width: Oscilloscope probe

Battery Included: no

Brand Name: RUIBOZHI

Certification: CE

Choice: yes

DIY Supplies: Electrical

Digital Channels: 1

Display Resolution: Others

Display Size: None

High-concerned chemical: none

IS Battery Demountable: No

Max Waveform Capture Rate: 30,000wfm/s

Model Number: P6100

Origin: Mainland China

RUIBOZHI Model: P6100

Real Time Sampling Rate: Others

Record Length: Oscilloscope probe

Semi-finishedproduct: No

semi_Choice: yes

Note：

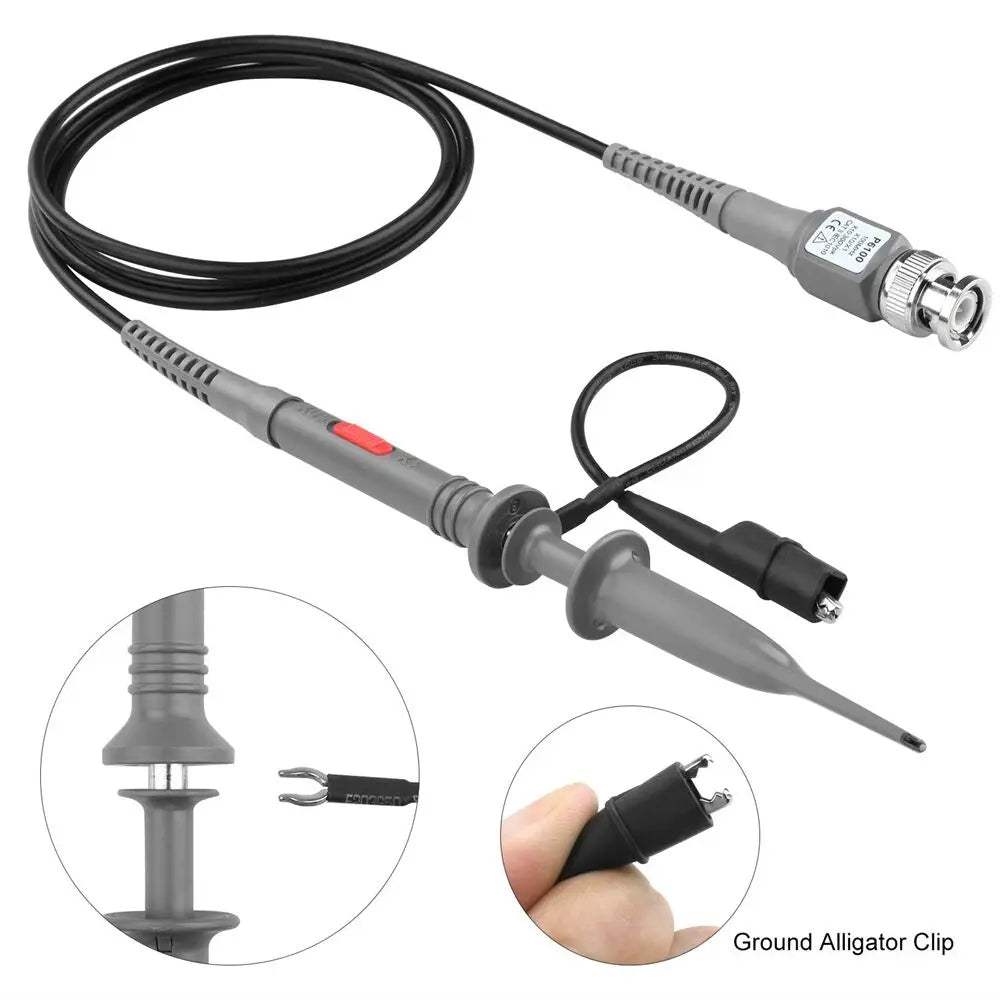

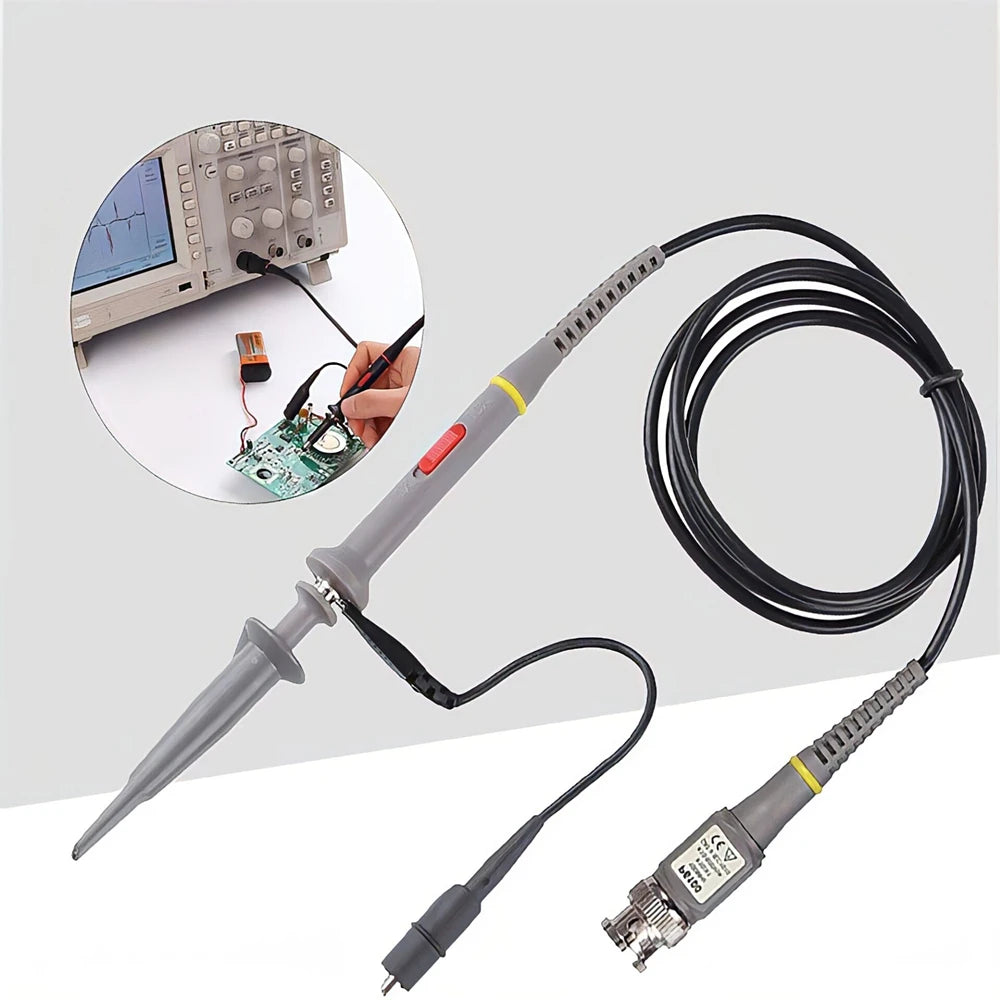

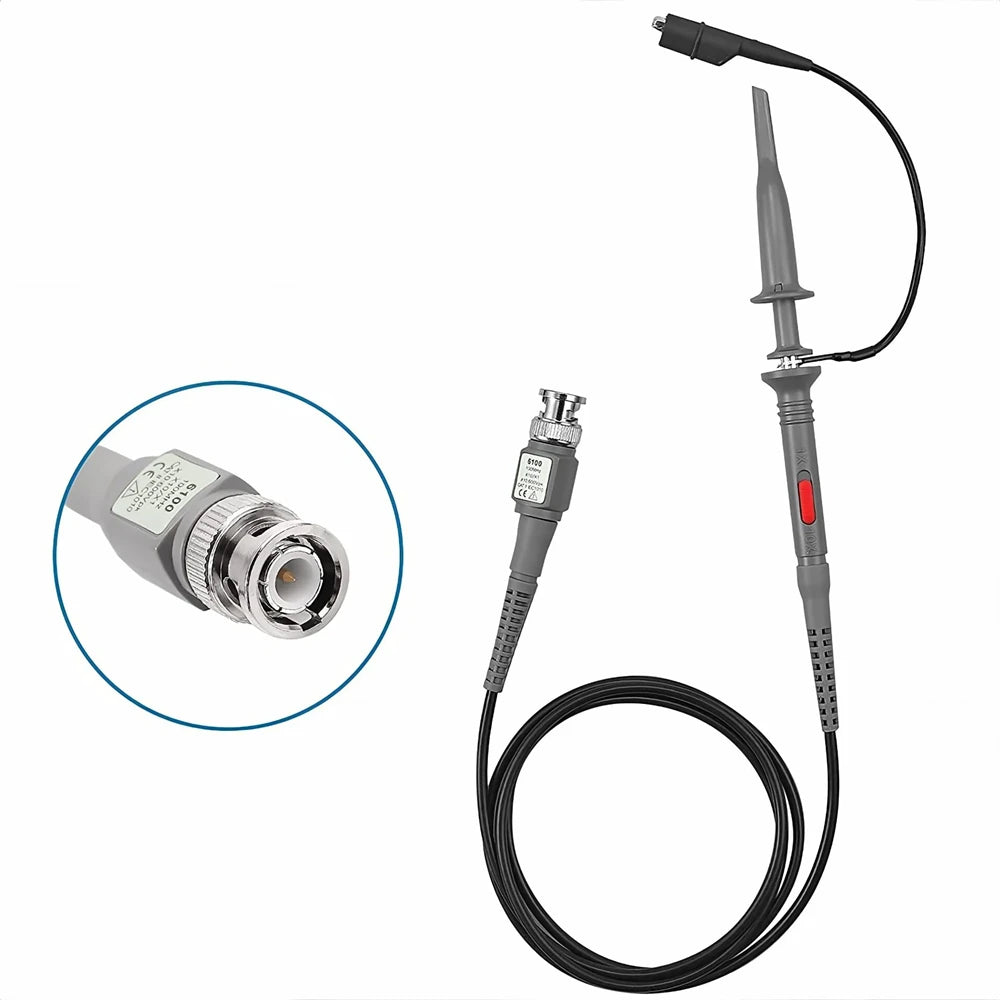

1PCS P6100 Oscilloscope Probe

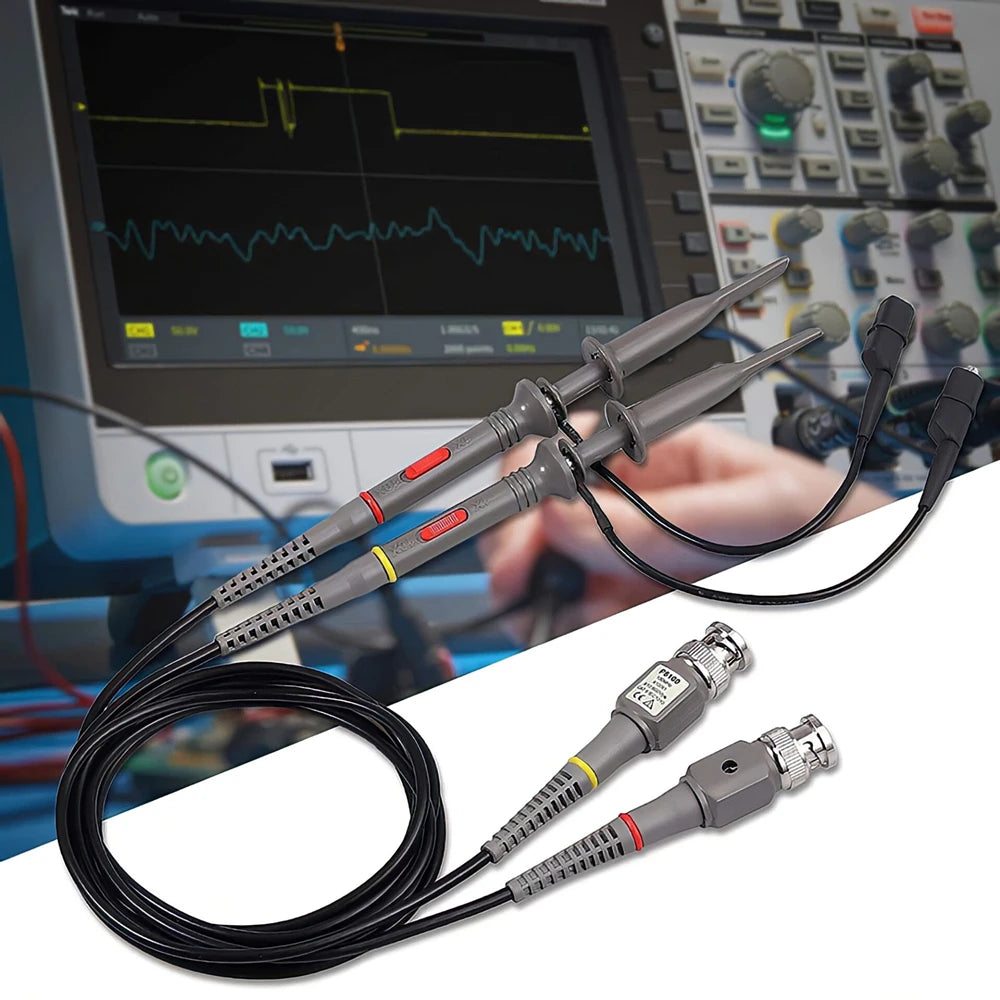

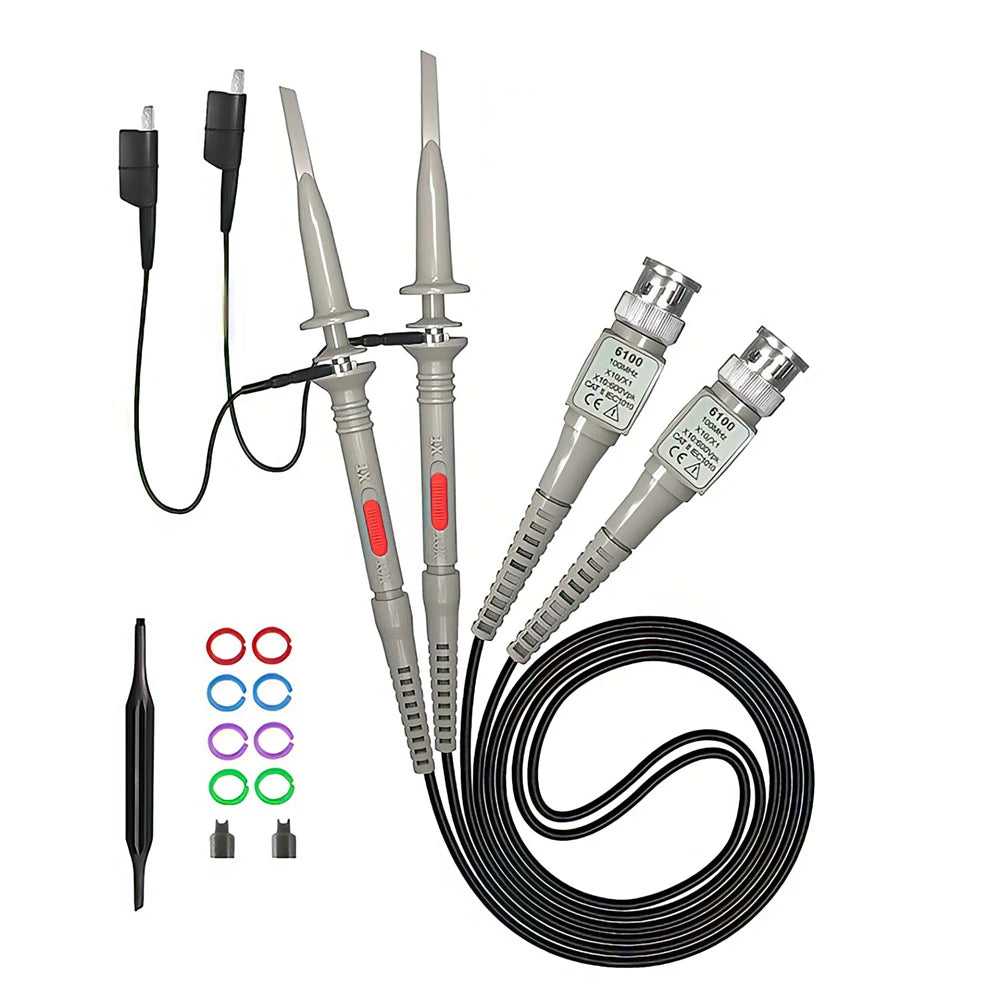

2PCS P6100 Oscilloscope probe with accessories （ one set ）
Model: P6100
Bandwidth: DC-6MHz DC-100MHz (actually 80 MHz)

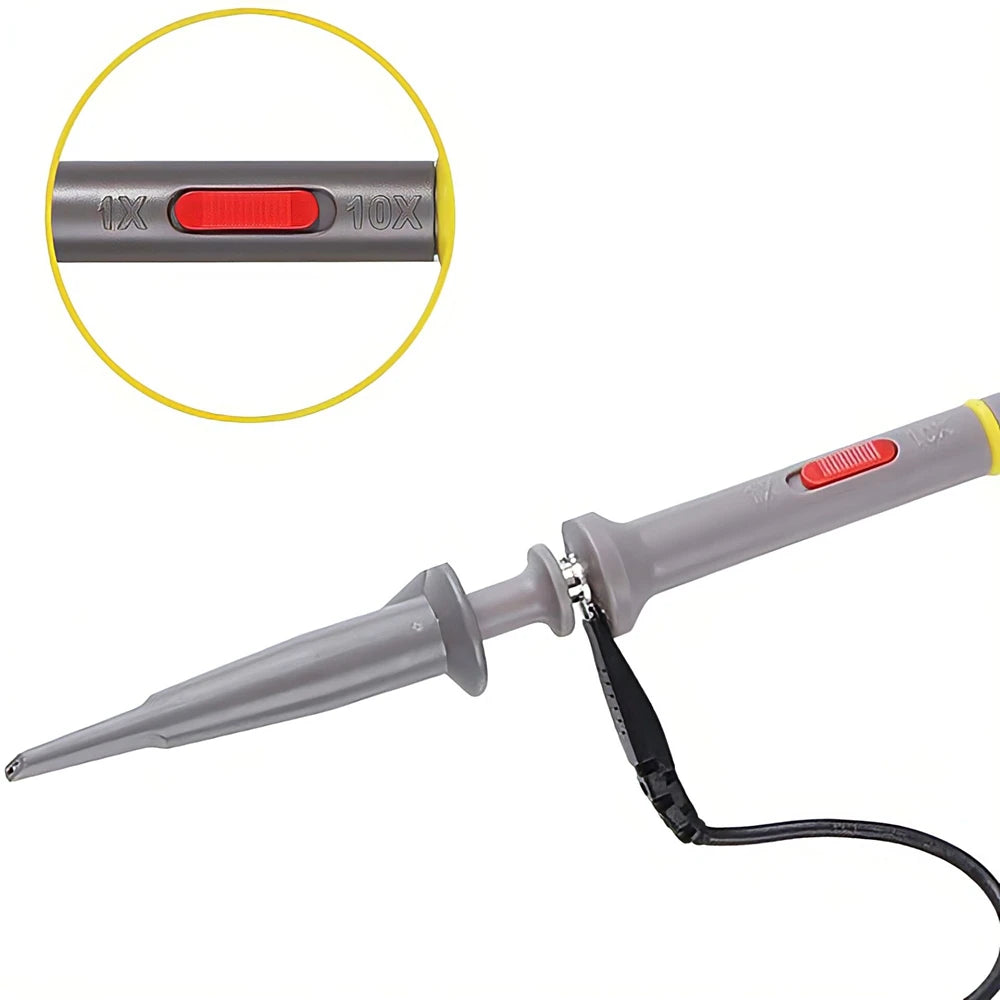

Attenuation Ration: 1: 10
Input Resistance: 1 M: 10 M
Input Capacity: 1X: 85pF-120pF 10X: 18.5pF-22.5pF

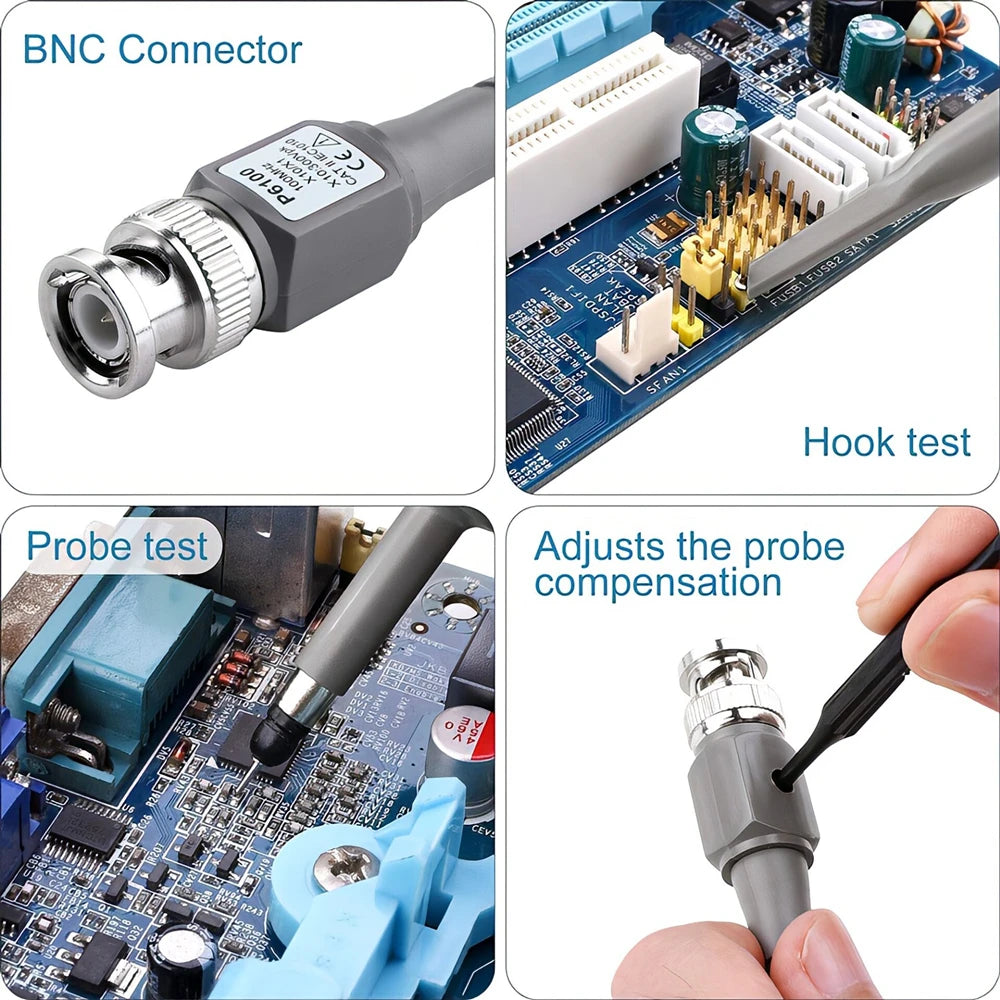

Compensation range: 10pF-30pF
Rise Time: Less than 3.5ns
Operating voltage: 1X: Less than 200vDC + AC Peak 10X: Less than 600vDC + AC Peak
Cable length: 120 cm
Temperature opertation: -10 Celsius ~ + 50 Celsius
Nonopertating: -20 Celsius ~ + 75 Celsius
Humidity:5% (relative humidity)
Cable length: 120 cm
Net weight: 80g
Color: Grey

Notes:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
