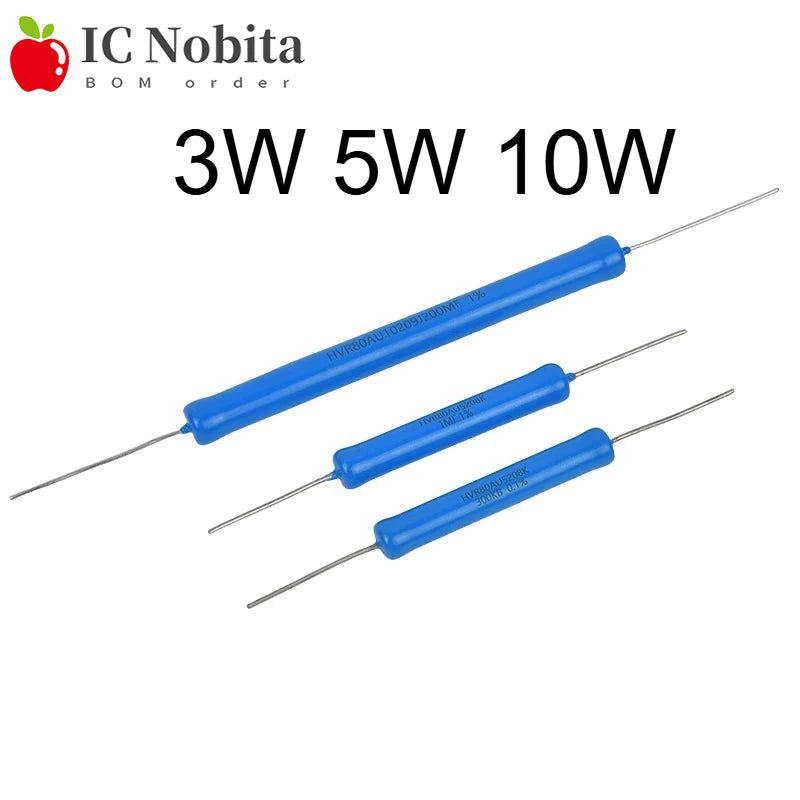

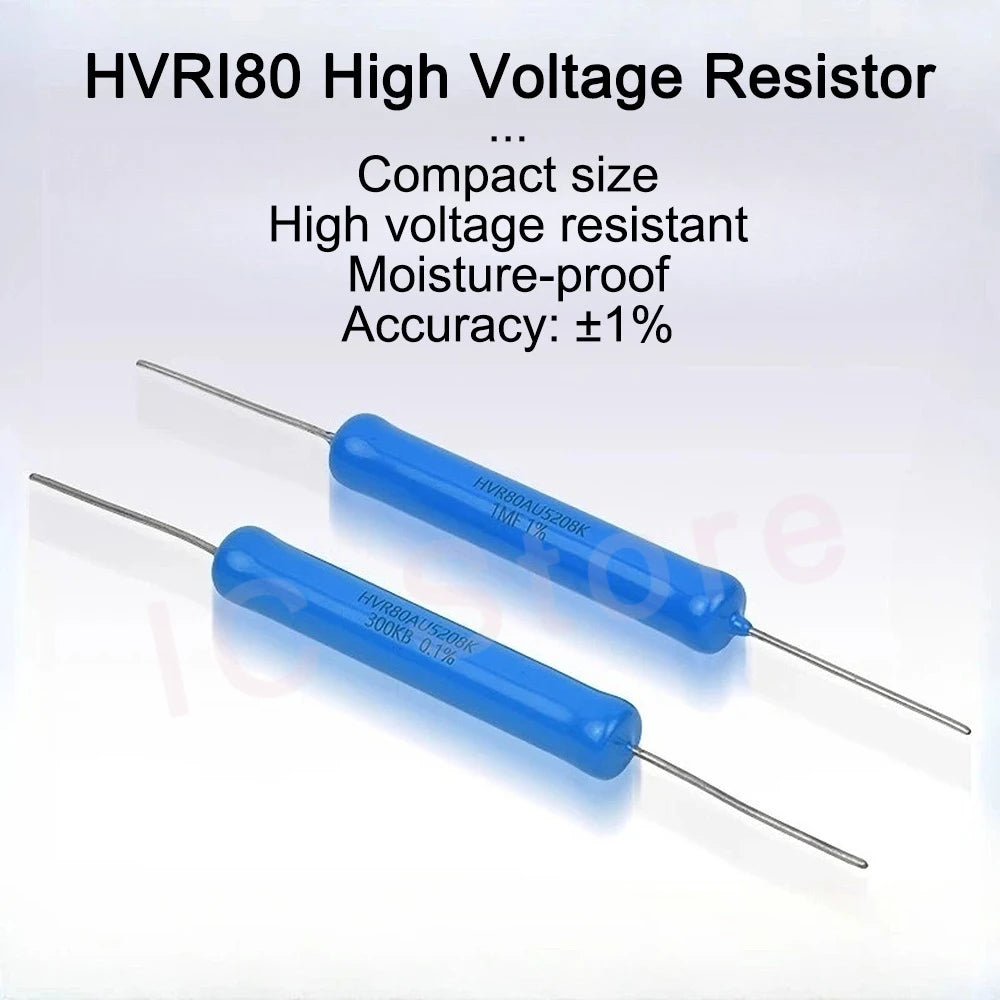

1PCS HVR80 1% 3W 5W 10W High Voltage Insulation Resistor 10K 1M 500M for Withstand Voltage Test Calibration Certification
1M / 10W 9x100mm
$46.58
Sale price
$46.58
Regular price
$0.00
Skip to product information
1PCS HVR80 1% 3W 5W 10W High Voltage Insulation Resistor 10K 1M 500M for Withstand Voltage Test Calibration Certification
$46.58
Sale price
$46.58
Regular price
$0.00
Description
SPECIFICATIONS
Accuracy: 1%
Brand Name: NONE
Condition: New
High-concerned chemical: none
Origin: Mainland China
Resistance Tolerance: 1%
Type: Fixed Resistor

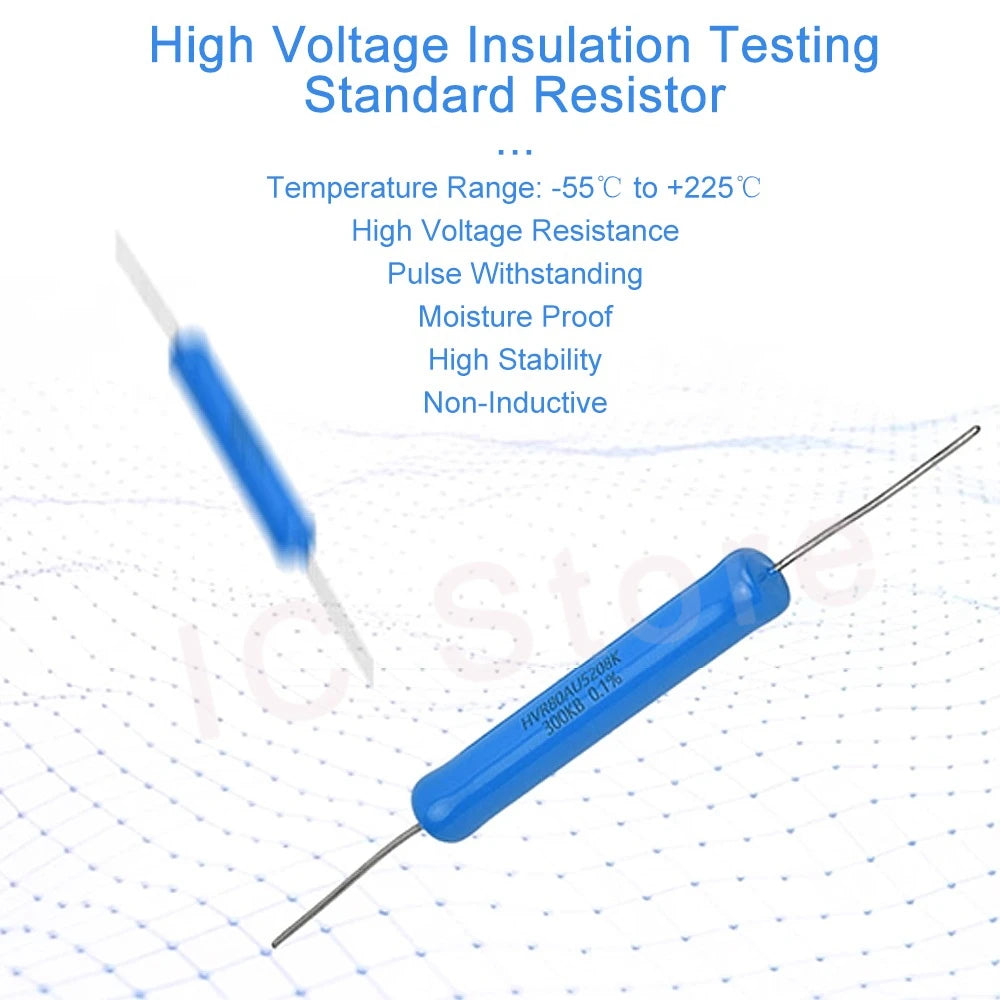

Characteristics
-
Temperature Range: -55℃ to +225℃
-

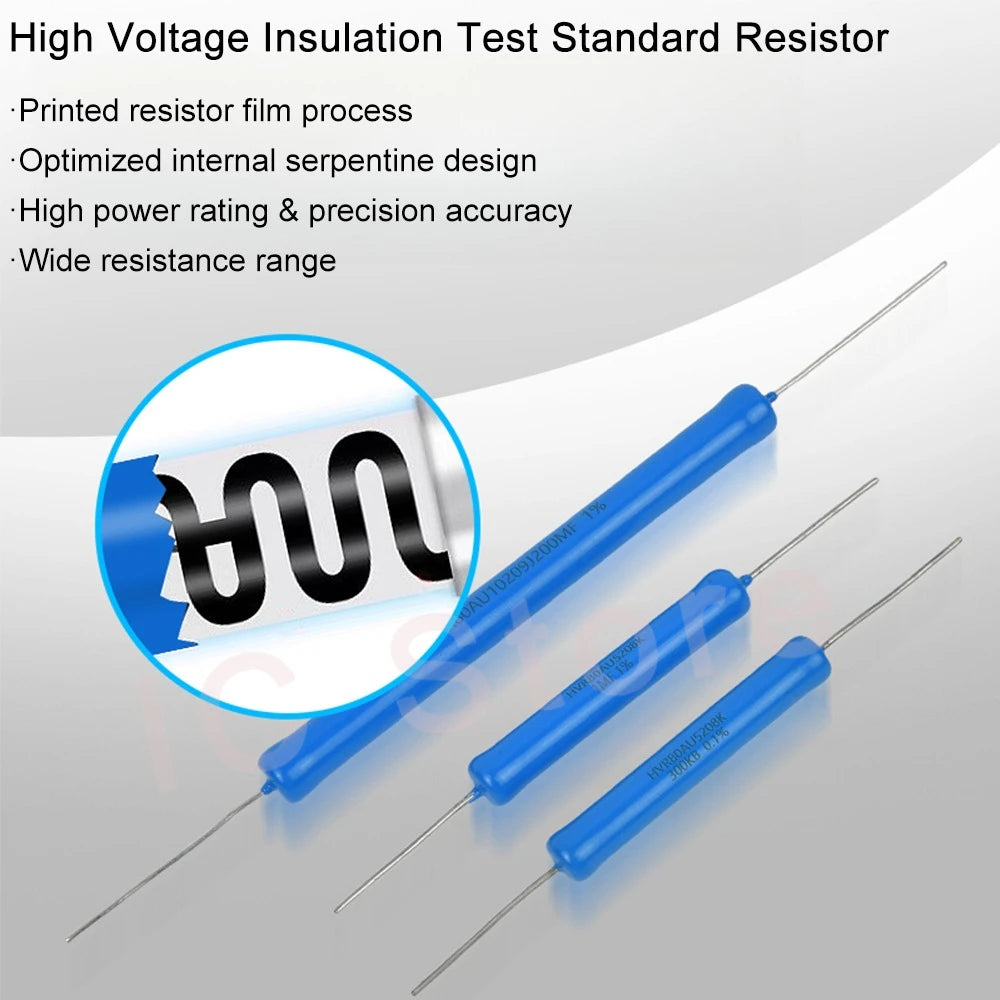

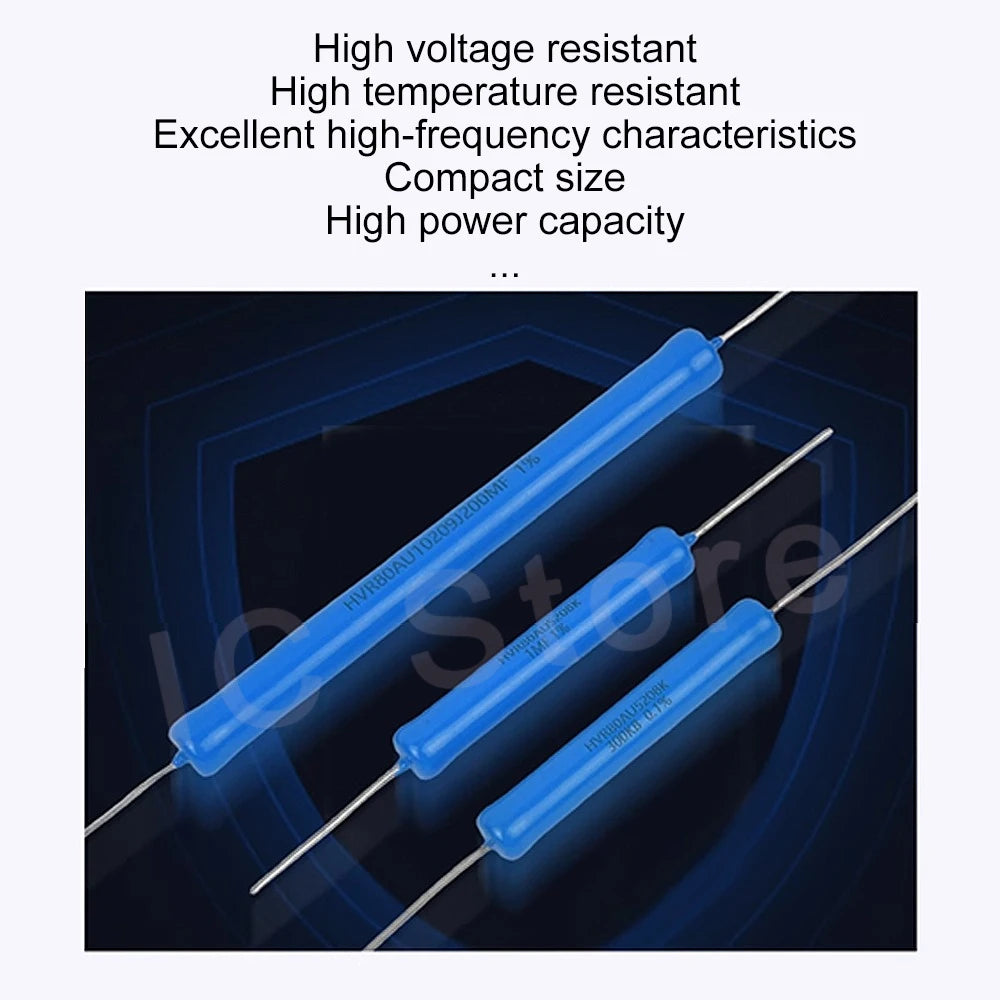

High Voltage Resistance, Pulse Withstanding, Moisture Proof
-
High Stability
-
Non-Inductive
Technical Specifications
The M721 High Voltage Resistor offers high voltage resistance, pulse withstanding, and moisture-proof characteristics. Its applications include:
-
High-voltage power equipment
-
High-voltage power supplies
-
Electrostatic devices
-
Spray coating equipment
-
High-voltage resistor-capacitor units
-
Vacuum equipment
-
Voltage divider circuits
-
High-voltage test equipment
-
High-voltage instruments and meters

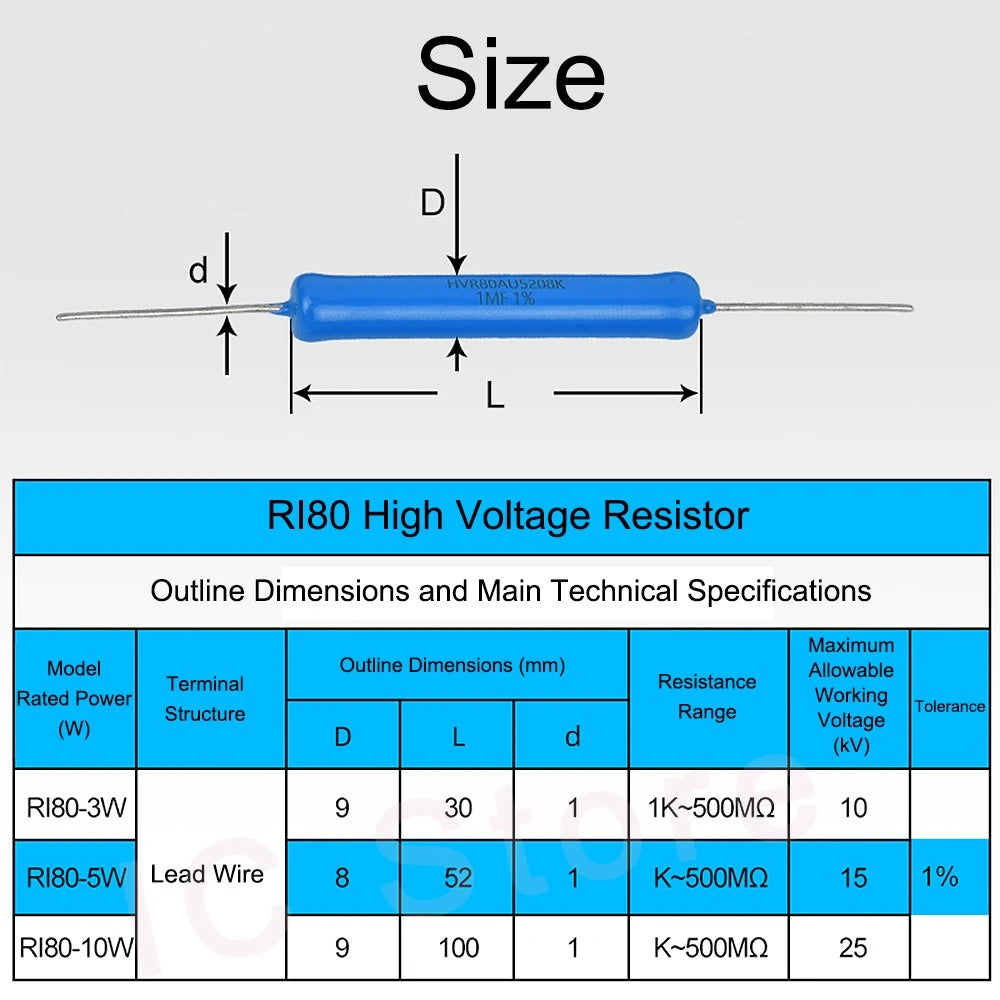

Notes Specifications
| Voltage Resistance Formula U=√P·R=√5X1000 | P: Rated Power, R: Resistance Value |
|---|---|
| Available Tolerance Ranges | F (±1%), J (±5%), K (±10%), M (±20%) |
Main Technical Parameters

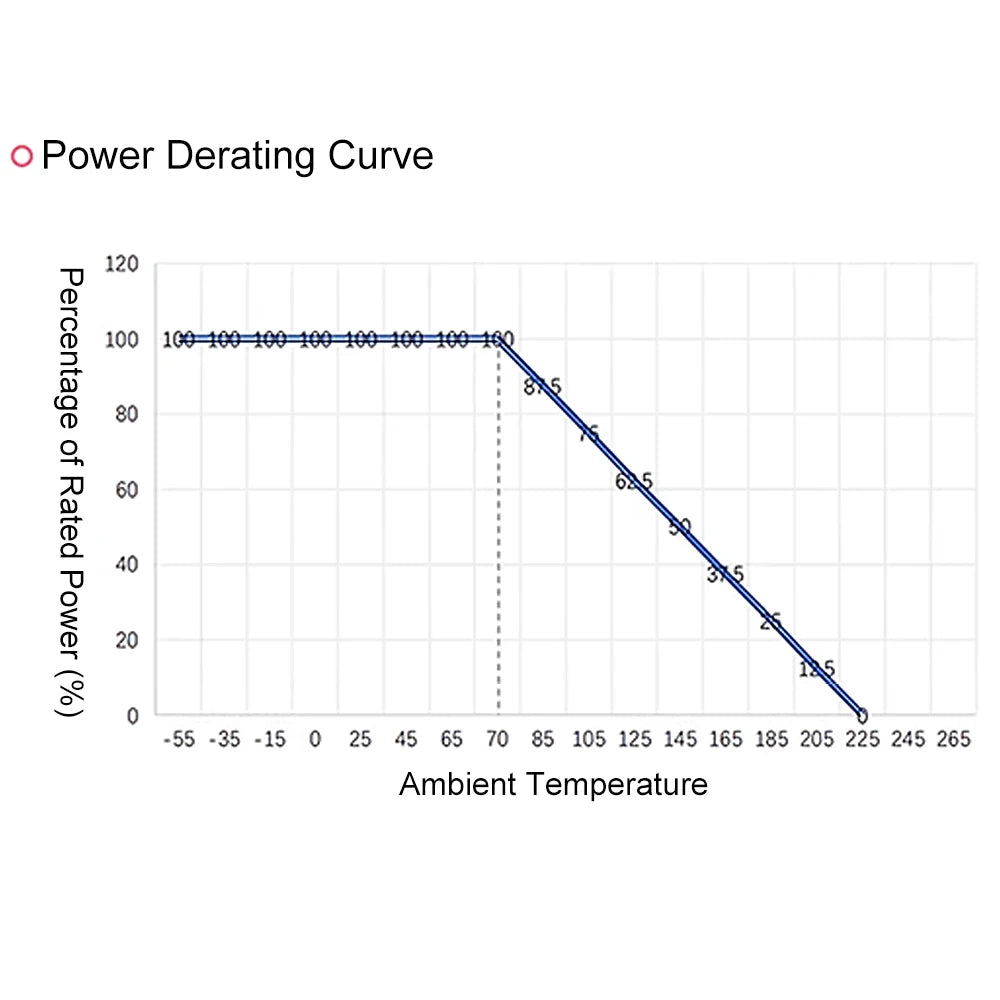

| Test Item | Performance Requirement | Test Method |
|---|---|---|
| Temperature Coefficient of Resistance (TCR) | ≤ 200 (10×10⁻⁶/℃) | -55℃/+20℃ and 20℃/+155℃ |
| Solderability | Solder shall flow freely and wet the leads | 235 ± 5℃ for 2 ± 0.5s |
| Solder Heat Resistance | ΔR ≤ ± (0.5%R + 0.05Ω) | 260 ± 5℃ for 10 ± 1s |
| Damp Heat, Steady State | ΔR ≤ ± (2%R + 0.05Ω) | +40 ± 2℃, 95-98% RH for 240h |
| Rapid Temperature Change | ΔR ≤ ± (1%R + 0.05Ω) | -55℃/+125℃, 5 cycles |
| Vibration | ΔR ≤ ± (1%R + 0.05Ω) | 10-500Hz, 98m/s² (10g) |
| Long-term Load | ΔR ≤ ± (5%R + 0.05Ω) | +40 ± 2℃, at rated voltage (VR) for 1000h |
| Terminal Strength | ΔR ≤ ± (0.5%R + 0.05Ω) | 10N bending force, 2 times |
| Power Derating | ≤ 210℃ | Load reduces to 0 when ambient temperature reaches 300℃ |
