2026 NEW MEATROL MEATROL Contact Rogowski Coil Flexible Current Transformers Rogowski Coil

2026 NEW MEATROL MEATROL Contact Rogowski Coil Flexible Current Transformers Rogowski Coil

$204.62

$204.62 $0.00

Description

SPECIFICATIONS

Brand Name: NONE,MEATROL

Cable length: 2 meter

Calibrated Accuracy: ±0.5%(temperature drift:300ppm/C)

Coil length: 350mm

DIY Supplies: Electrical

Description: Rogowski coil

Electronic: No

High-concerned chemical: none

Linearity: 0.2% (from 2% to 100% of rated)

Manufacturer Part Number: y-fct

Origin: Mainland China

Output: 85mV/kA@50Hz

Place of Origin: Shanghai, China

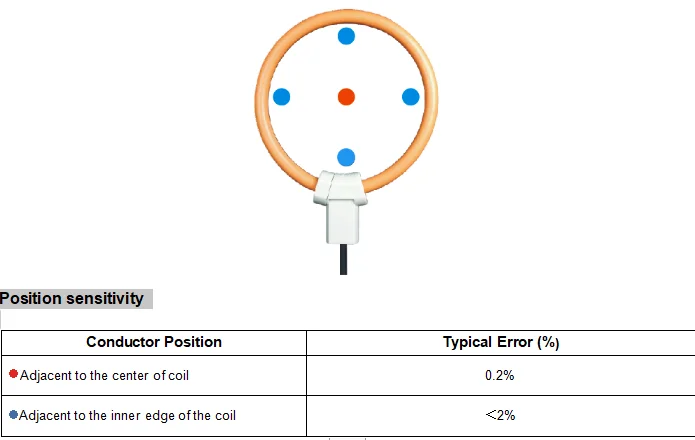

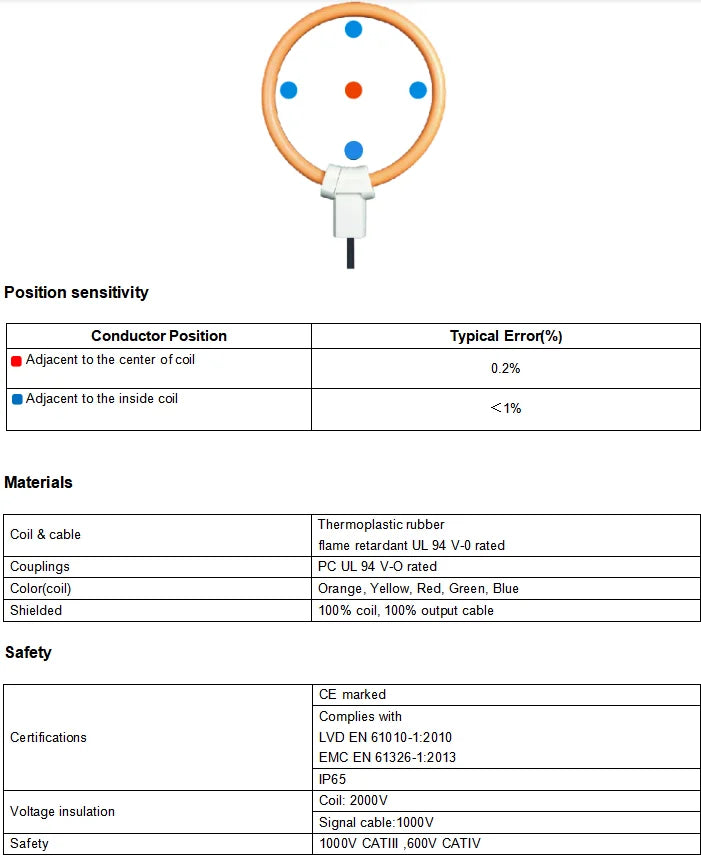

Position error: ±1%

Rated input: 1000A

Ratio: 85mV/kA@50Hz

Section: 8mm

Theory: Faraday's Law of Electromagnetic Induction

Type: Current Transformer

Usage: detect and measure the electric currents

Weight: 120g

Window size: 50mm

Hi there! Thanks for stopping by our store. We're a dedicated team from China, excited to share our quality products with you. Due to the time difference, we might be sleeping when you're awake. Please feel free to leave us a message, and we'll get back to you as soon as possible. For a quick chat or to ask about discounts, you can also add us on WhatsApp: +86 19897629901. A little exclusive treat for you: the first two customers who add our WhatsApp each day are eligible to apply for a special discount! We believe in honest business and stand behind our products. Our goal is 100% customer satisfaction, so please feel free to place your order with confidence. Have a great day!

Product Description

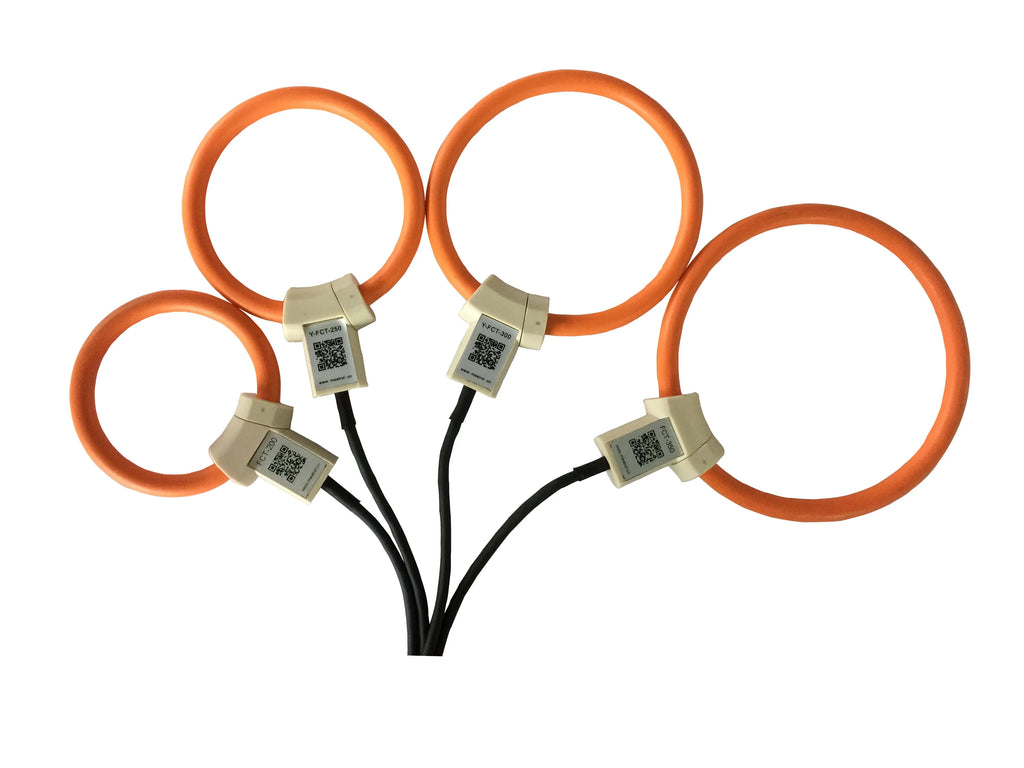

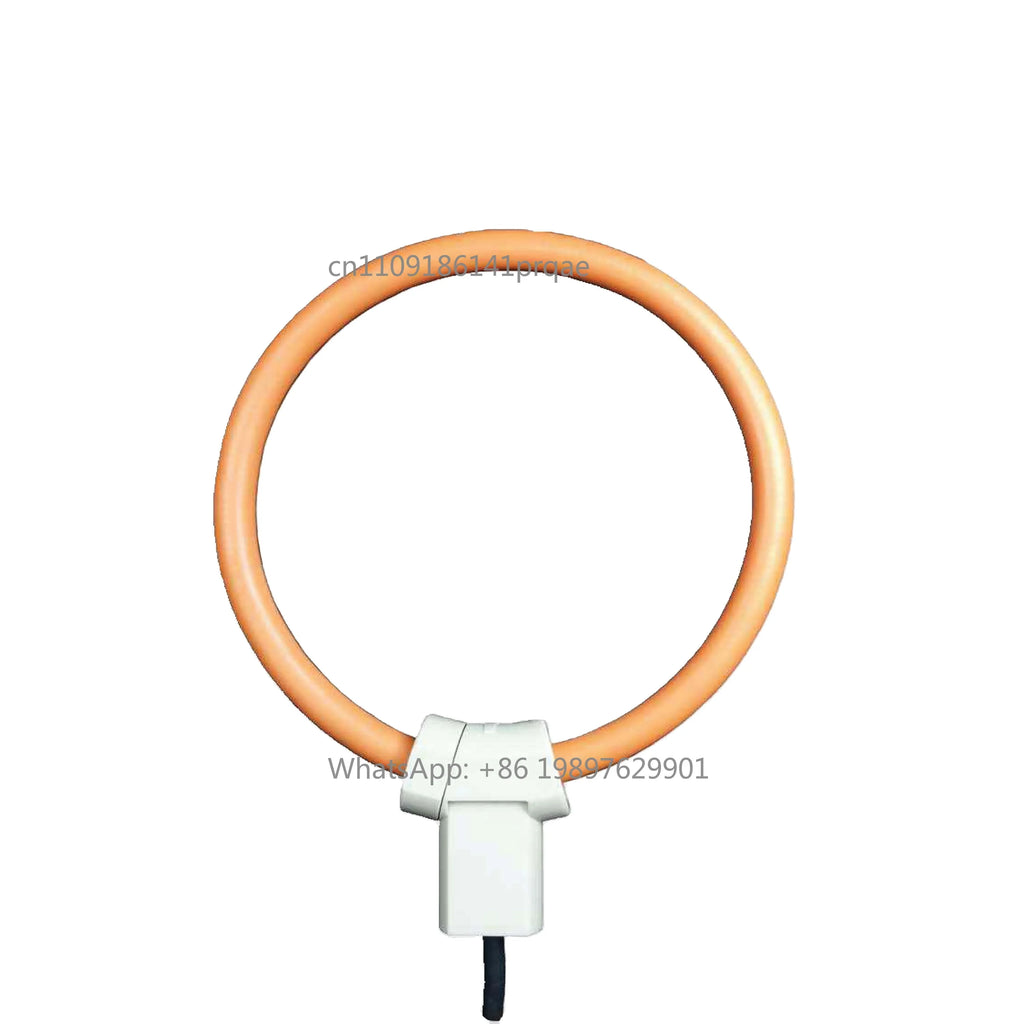

Y-FCY is a felxible current transducer based on Rogowski principle,particularly suitable for measurement in combination with portable devices.Y-FCT coils are available in different sizes and can be supplied according to customer's design,they fore they can be used in all those applications,inwhich traditional are fitting due to its size and /or weight

Direction for use

• Calibrated to 0.5%

• 6mm section easy to install

• Two layers shielded

• Lower zero drift down to 0.1mV

Applications

Measuring devices,

lab instrumentation 

Power monitoring & control systems 

DC ripple measurement Harmonics

transients monitoring 

Power meter,Power analyzer sensor

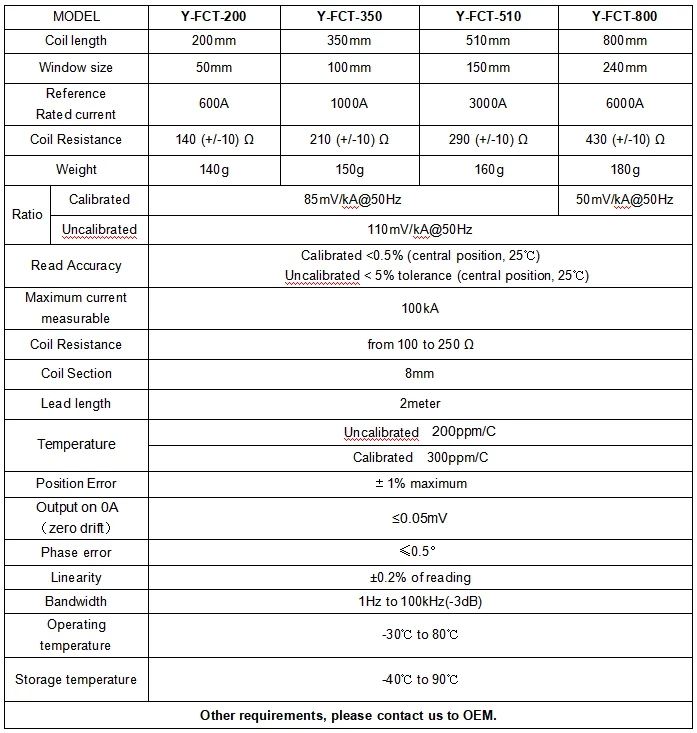

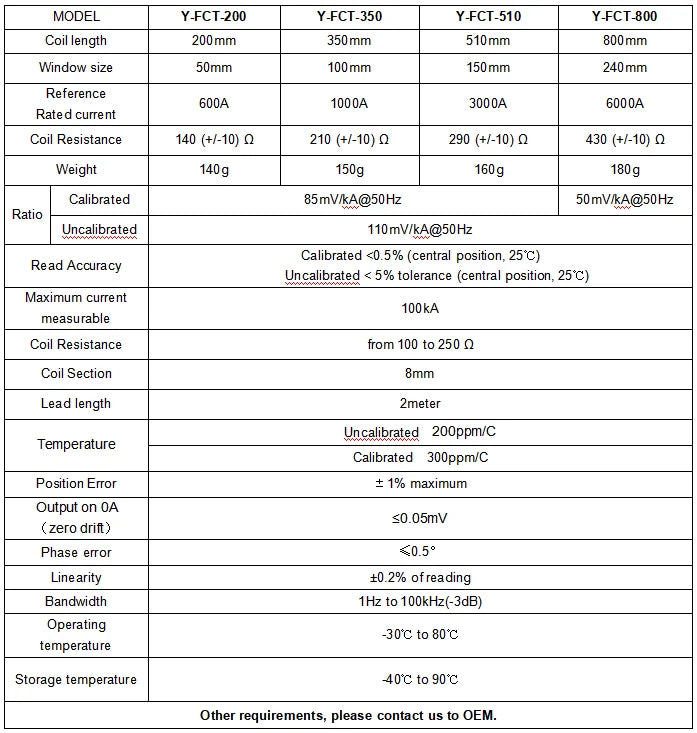

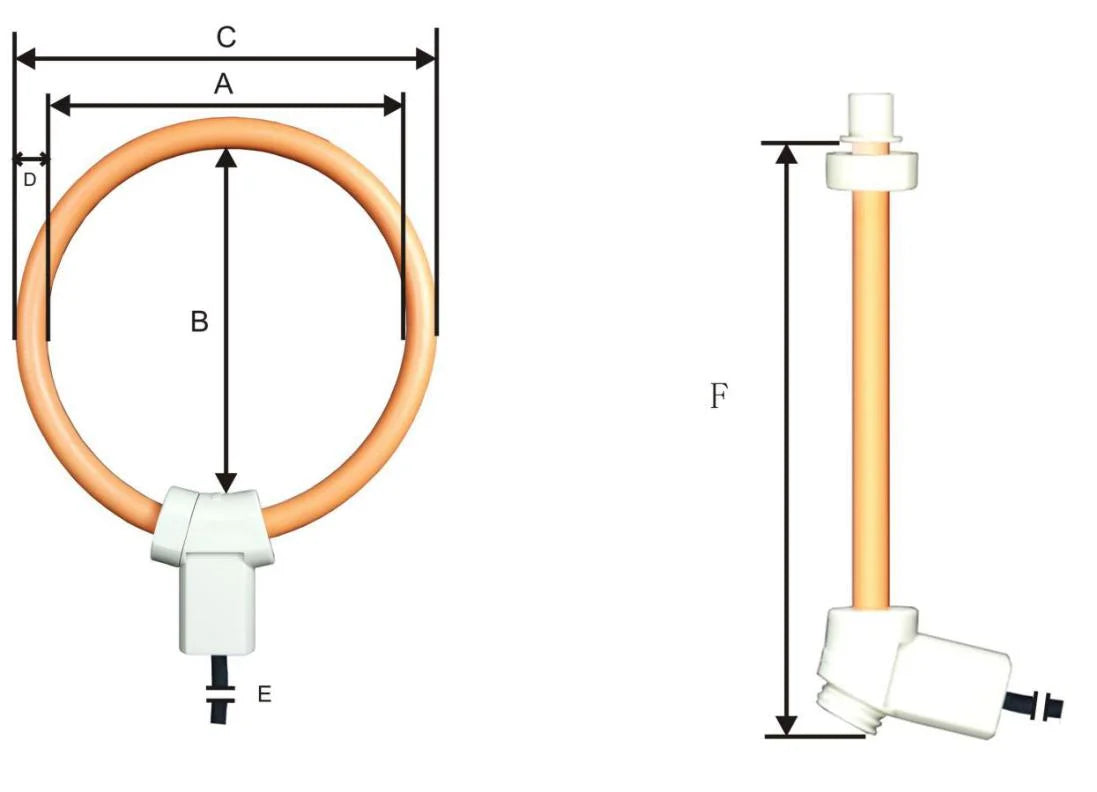

Size Information

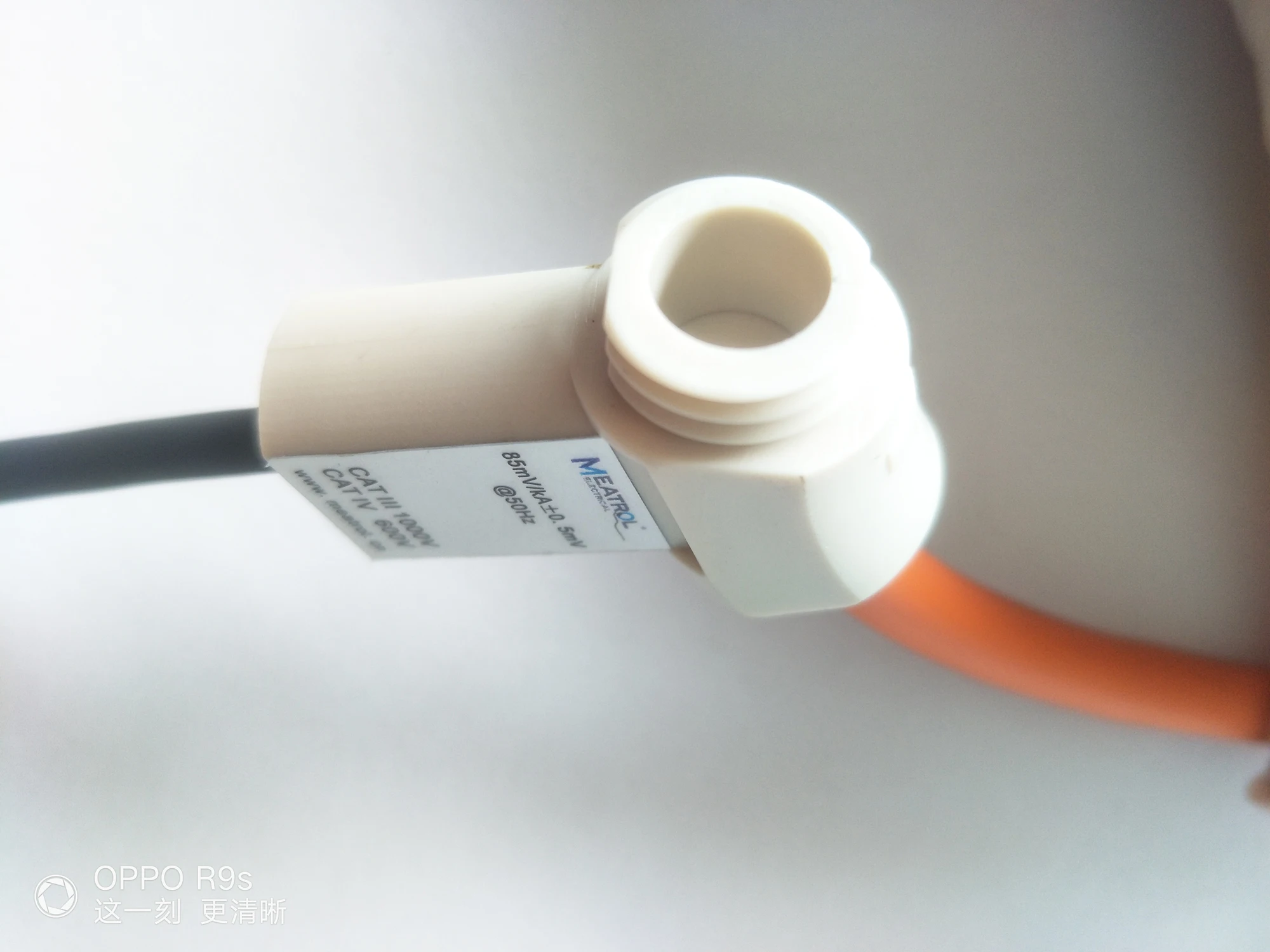

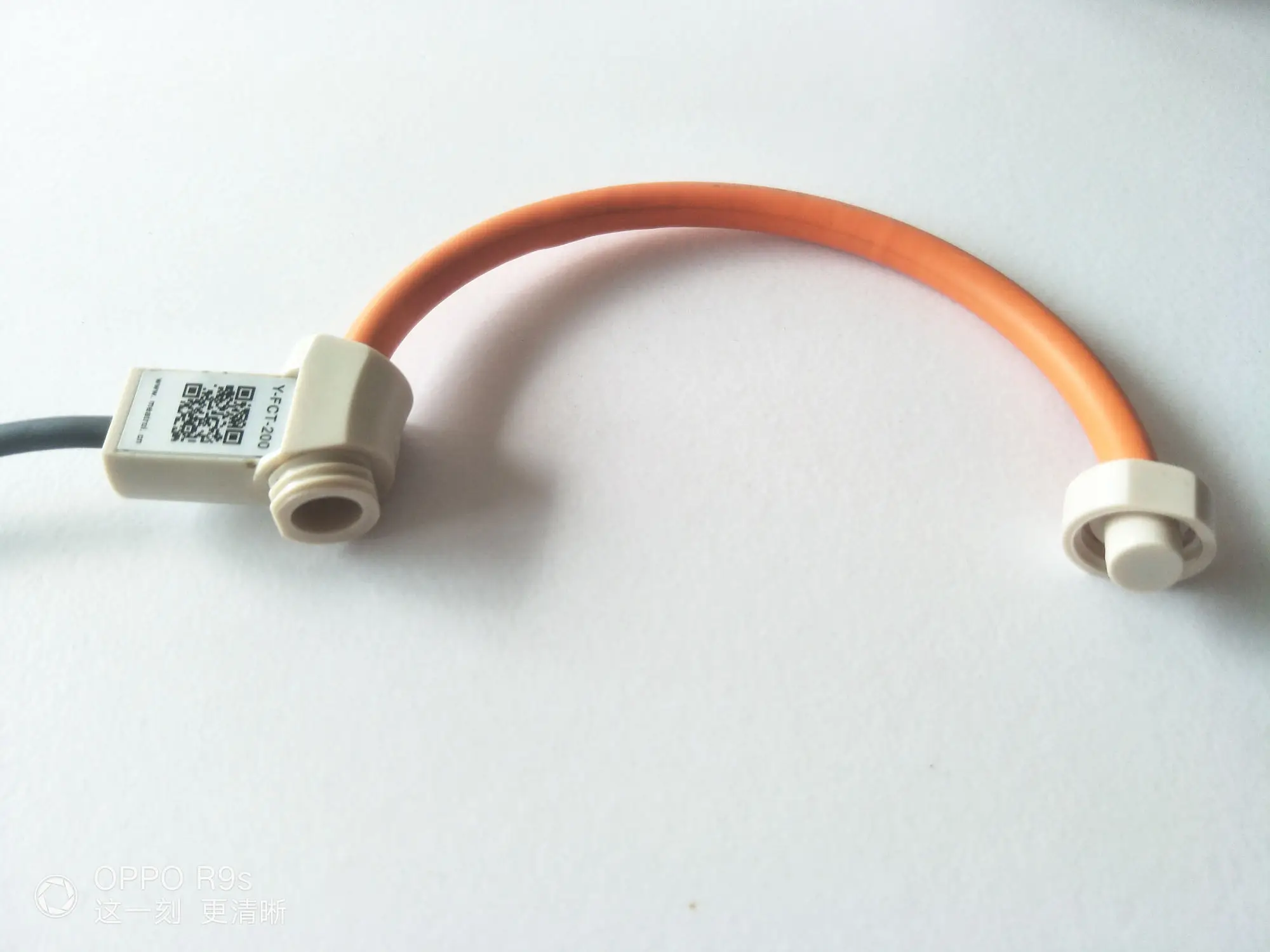

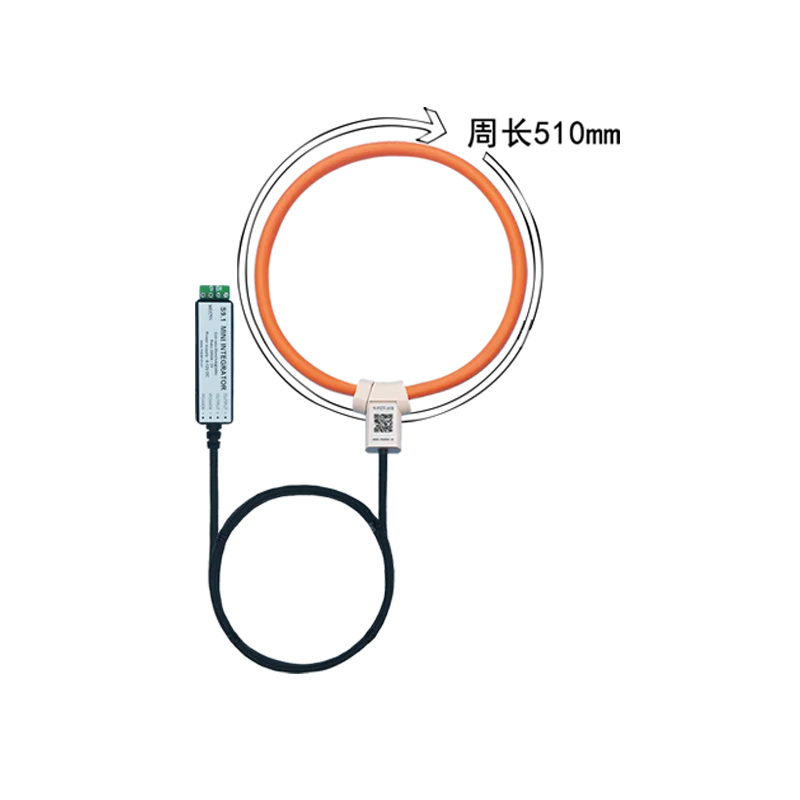

Details Images

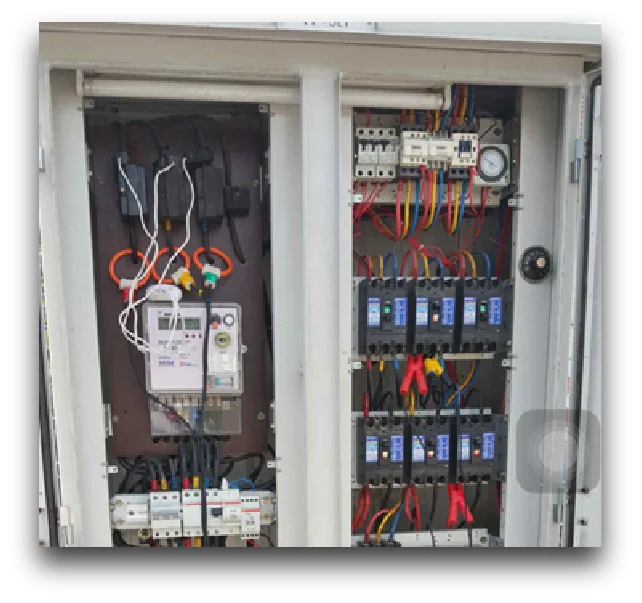

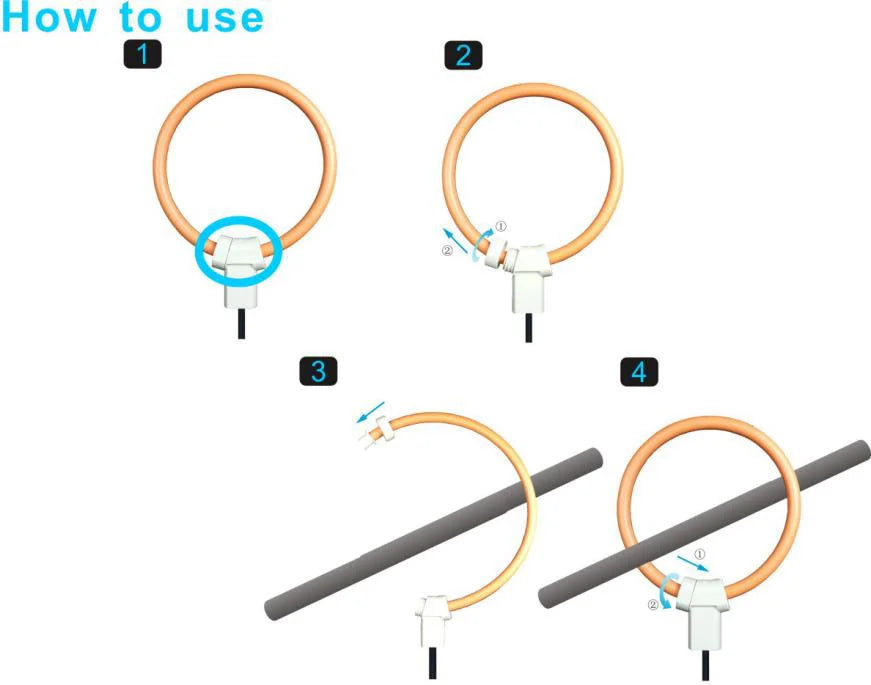

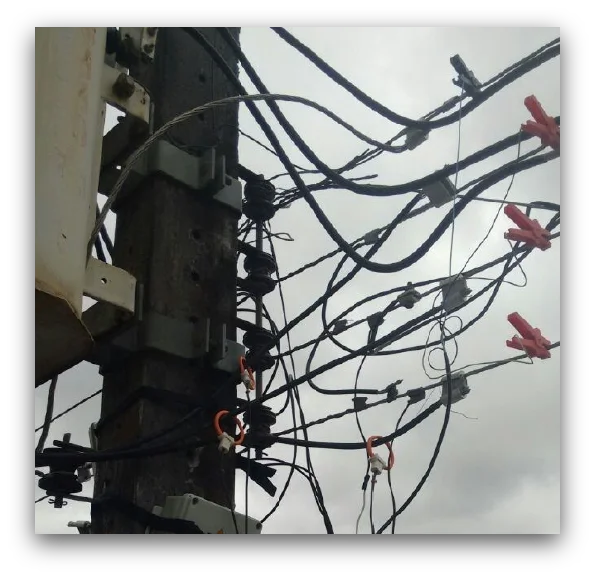

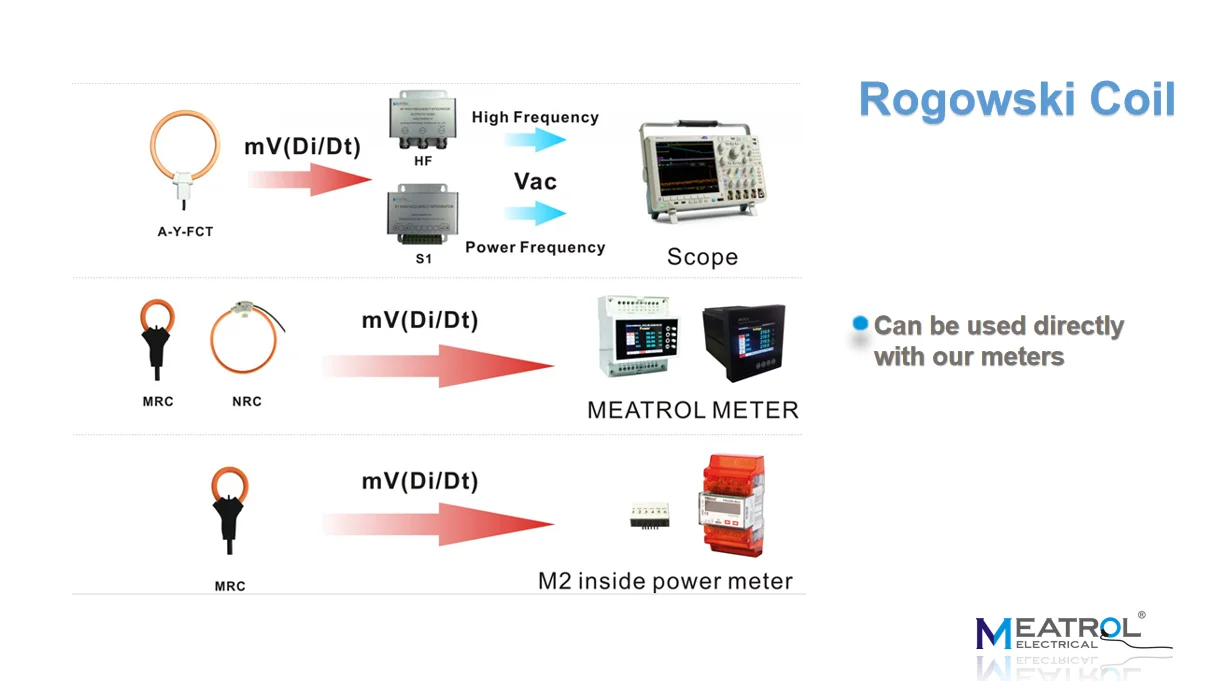

How to use

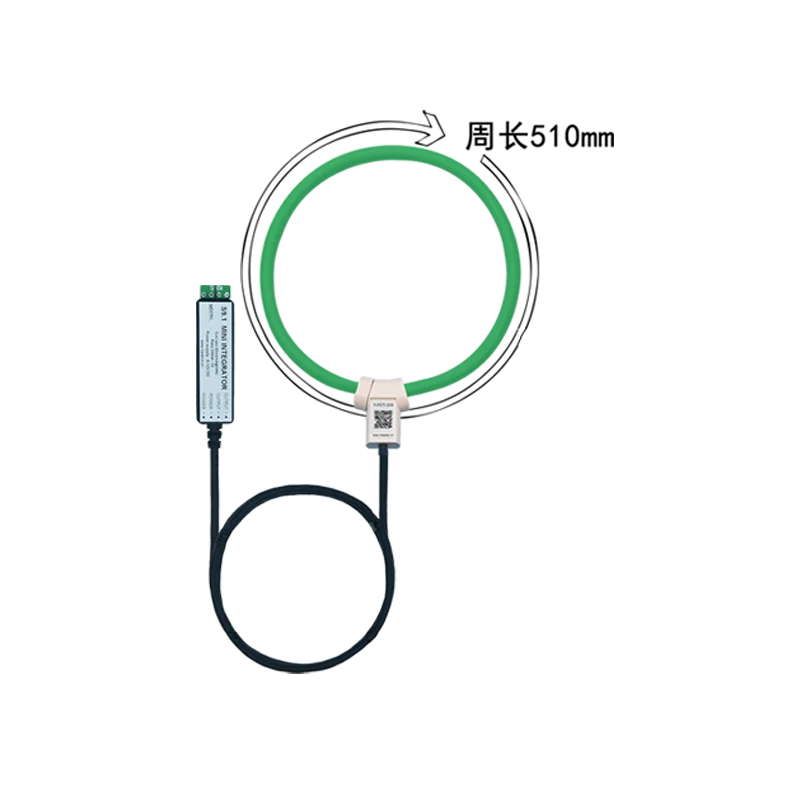

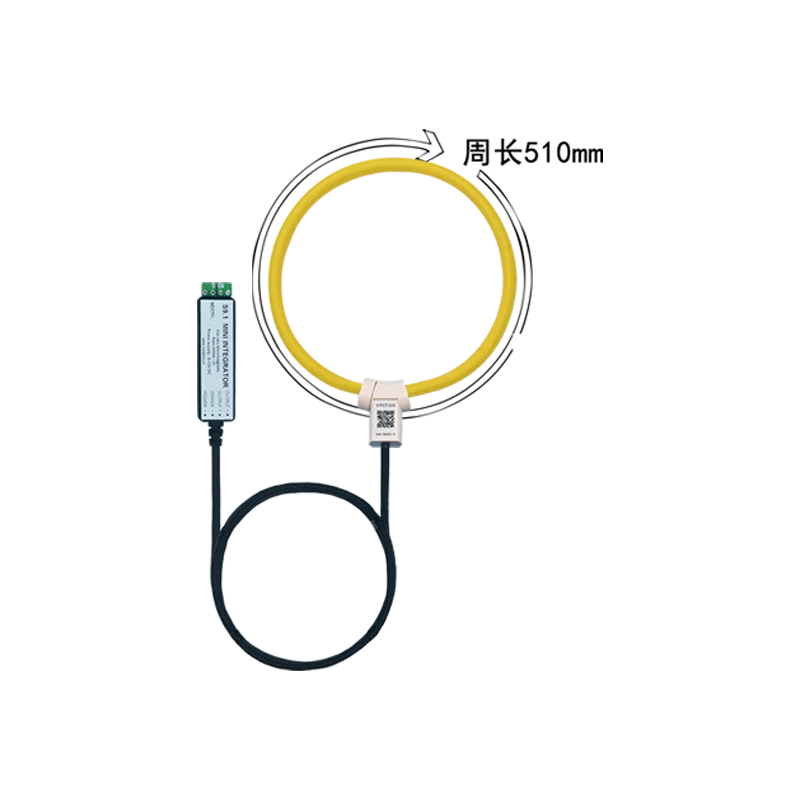

Related Products

After Sales Service

Safety and warning notes

In order to guarantee safe operation of the
transducer and to be able to make proper use of all features and functions,please read these instructions thoroughly!Safe
operation can only be guaranteed if the transducer is used for the purpose it has been designed for and within the limits of the
technical specifications.Ensure you get up-to-date technical information that can be found in the latest associated datasheet
under www.rogowski.cn

Company Introduction

SHANGHAI PINYAN M&C TECHNOLOGY CO., LTD. founded in 2009.Brand name MEATROL ELECTRICAL,located in the High Technoloy zoon of Minghang district,Shanghai. For a long time,we researched all function,application,feature of Rogowski coil and created the full-automatic winding machine especilly for rogowski.We have series coils for differnt application according to our rich experience. Our main products include flexible Rogowski coil, rigid Rogowski coil, split core current sensor, all kinds of output type integrator, powermeter, power analyzer and so on. We are good at all kinds of application for current measurement like power meter,power analyzer, High frequency waveform analysis, pulse current test, power transformer monitor, mA current measurement, harmonic tests, wind power generation, welding current monitor, frequency conversion and leakage protection,electric furnace etc.

FAQ

What does Rogowski do?

Rogowski coil is a uniform winding coil which has low magnetic conductivity due to without air core. It can be used in similar circumstances to current transformers but for many applications they have considerable advantages: Rogowski coil is a uniform winding coil which has low magnetic conductivity due to without air core. It can be used in similar circumstances to current transformers but for many applications they have considerable advantages:
