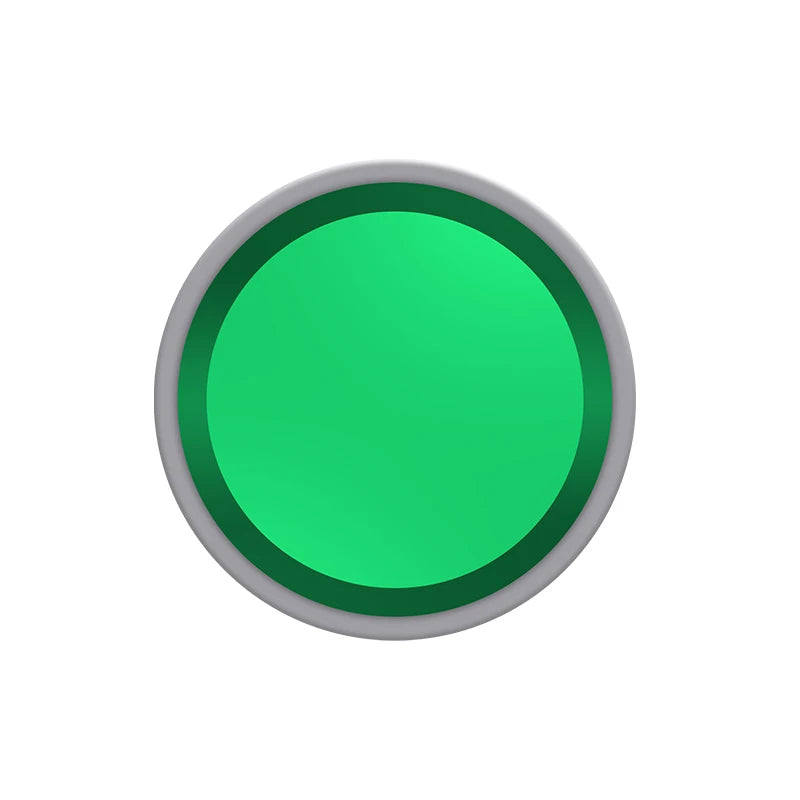

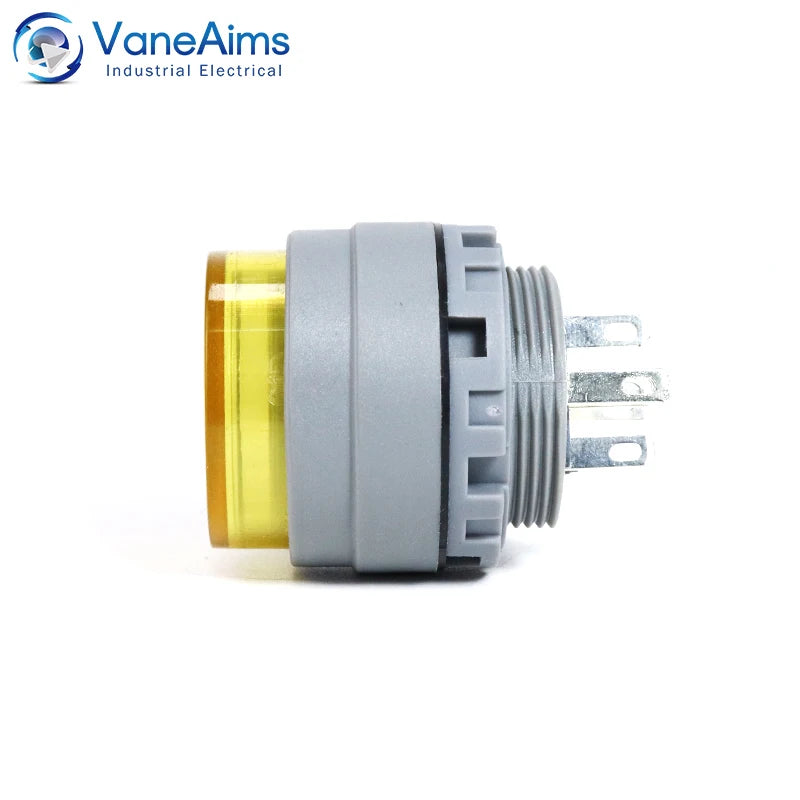

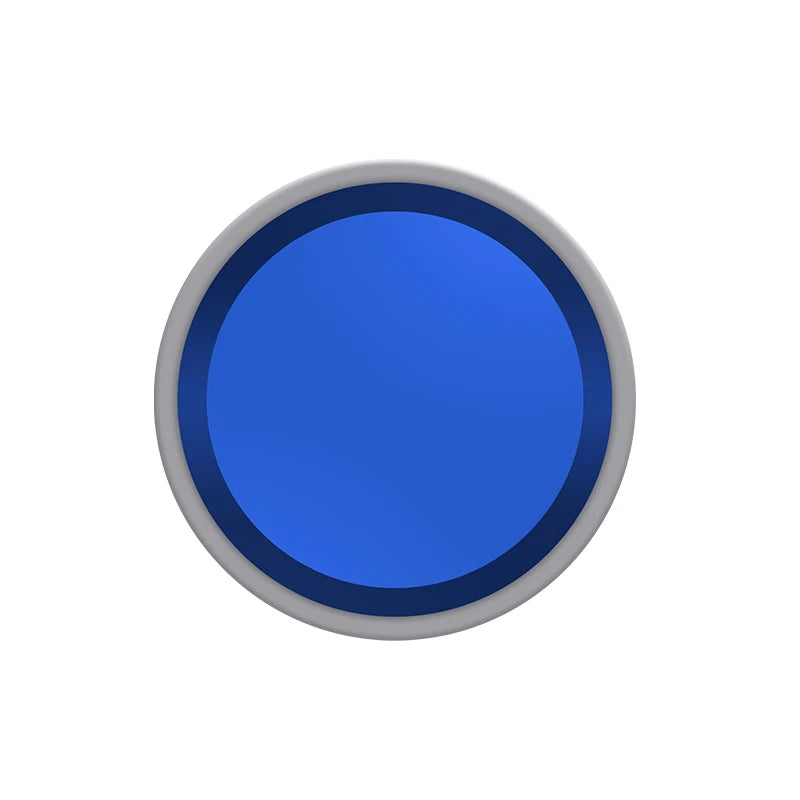

22mm Ultra Short Push Button Momentary Self Reset Latching Locked Waterproof LED Light Push Button Switch On Off 5v 12v 24v
Yellow LED / 22mm-1NO1NC / 12-24v|Latching Self locked
$16.29
Sale price
$16.29
Regular price
$0.00
Skip to product information
Latching (with fixation): Press the button to fix the lock, and then press again to unlock it. For example, LED Switch is latching type, you can use it to control LED light, press on, press again off.
22mm Ultra Short Push Button Momentary Self Reset Latching Locked Waterproof LED Light Push Button Switch On Off 5v 12v 24v
$16.29
Sale price
$16.29
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: VaneAims
Current: 5A
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Features: Ultra Short Model
High-concerned chemical: none
Is Smart Device: no
Item Type: SWITCHES
Material: Plastic
Model Number: FXB-SPB1-10
Origin: Mainland China
Product name: 22mm Plastic Ultra Short Button
Switch Type: Push Button Switch
welding feet number: 5 pin
with/without led light: with led light
Product Parameter
Brand: VaneAims;
Model: FXB-SPB1-10;
Waterproof Level: IP65;

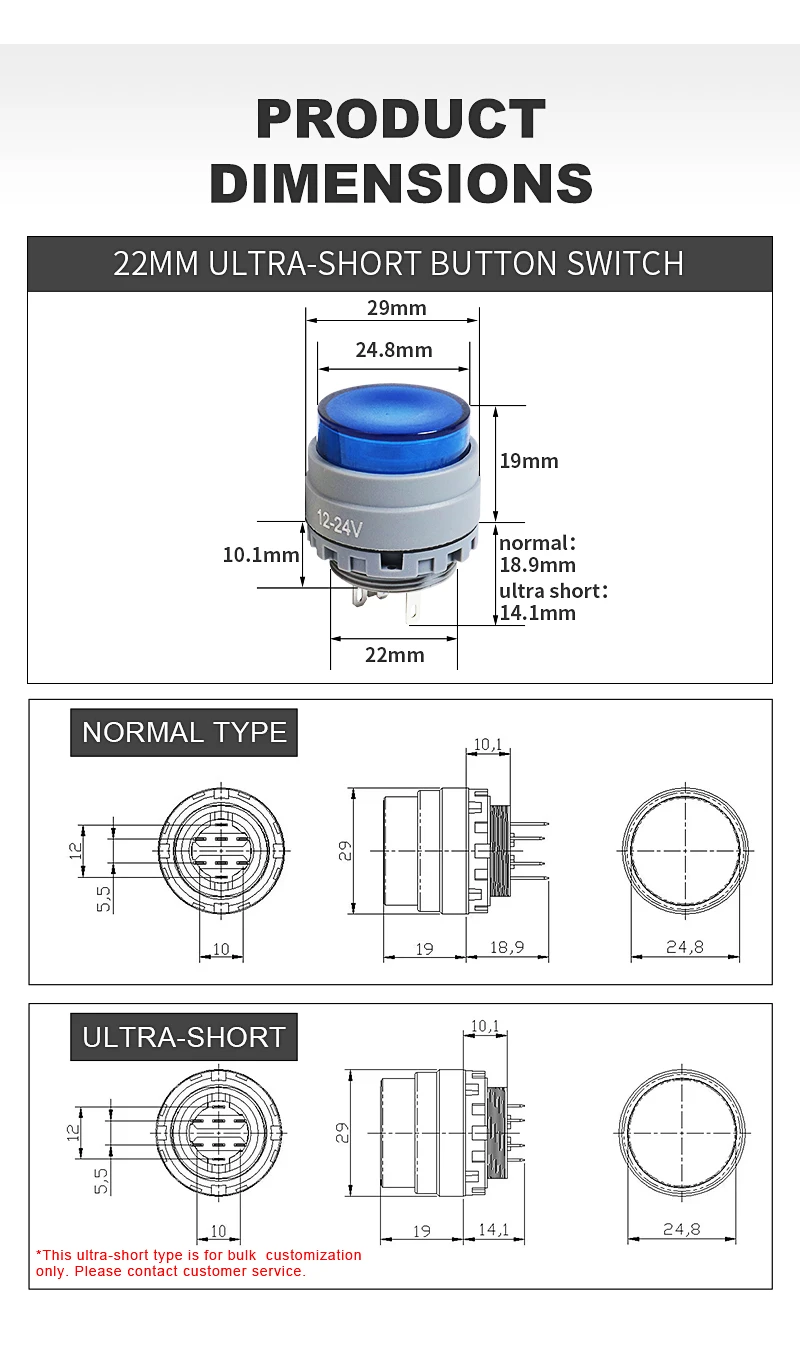

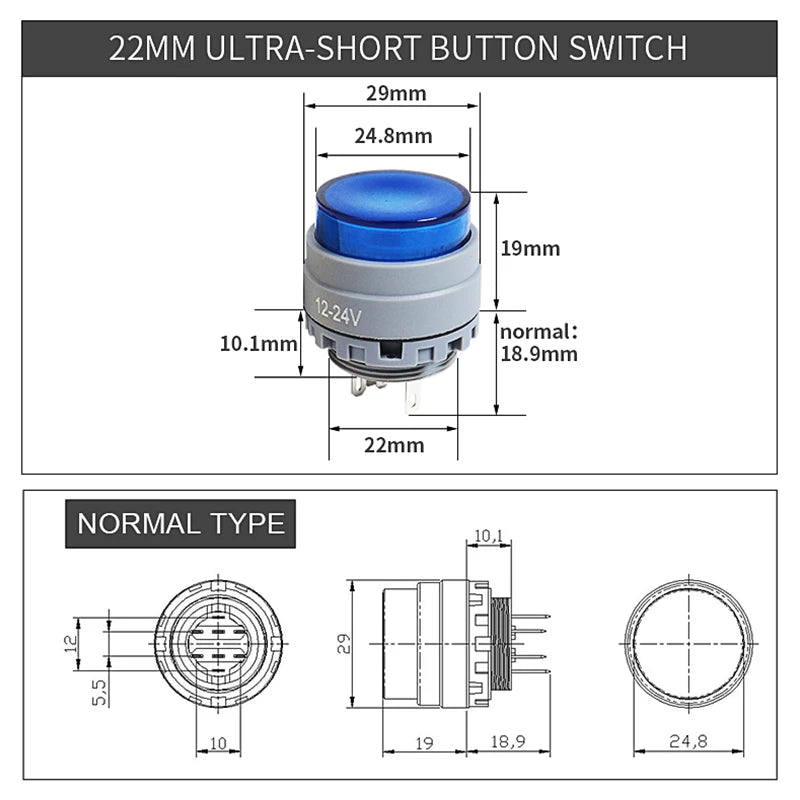

Mounting Diameter: 22mm;
Switch Combination: 1NO1NC;
Voltage: 3-6v, 12-24v (AC/DC is universal);

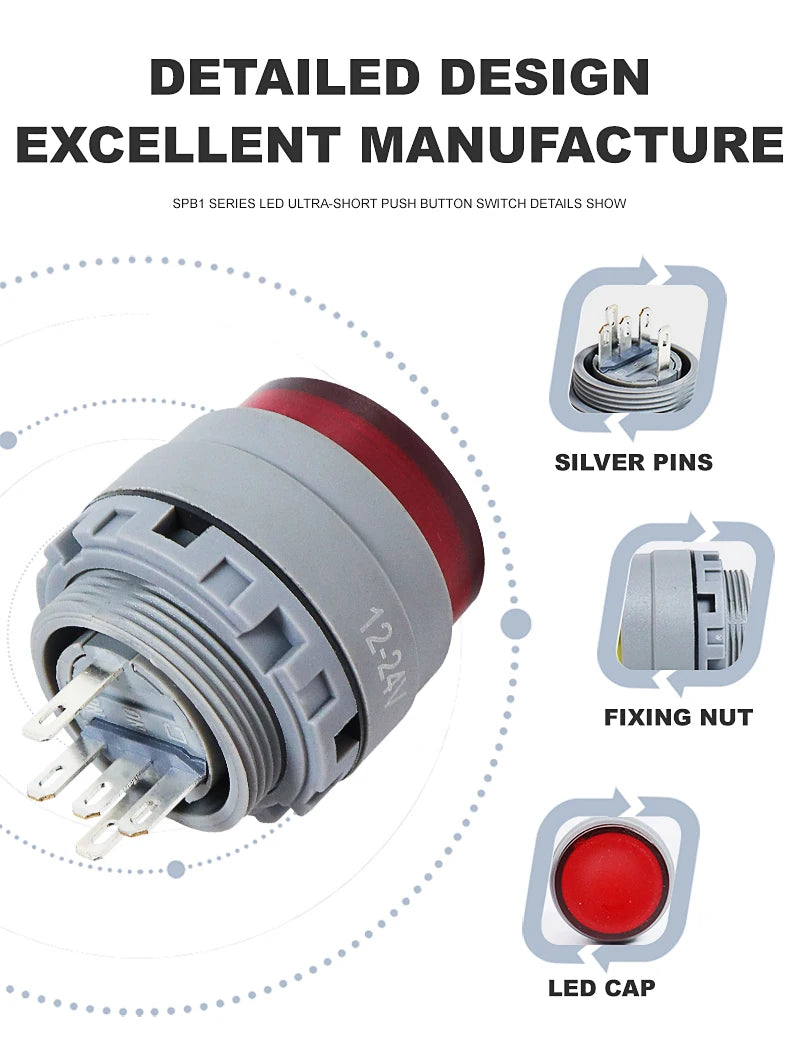

Welding feet number: 5pin (including 2pcs led contact and 1pcs NO contact, 1pcs NC contact, and 1pcs common contact);
Operation Type:
Momentary (without fixation) :Press the button to power on, remove the hand, and the button will automatically reset and power off. For example, Horn Button and Doorbell Button are momentary type.
Latching (with fixation): Press the button to fix the lock, and then press again to unlock it. For example, LED Switch is latching type, you can use it to control LED light, press on, press again off.
The one sold in the link is the normal model.
*This ultra-short type is for bulk customization only. Please contact customer service.
