24GHz Microwave Radar Motion Sensor 200m Vehicle Detection 1–250km/h Speed Monitoring TTL Output for Traffic & Security | ZLY
$152.82
Sale price
$152.82
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE

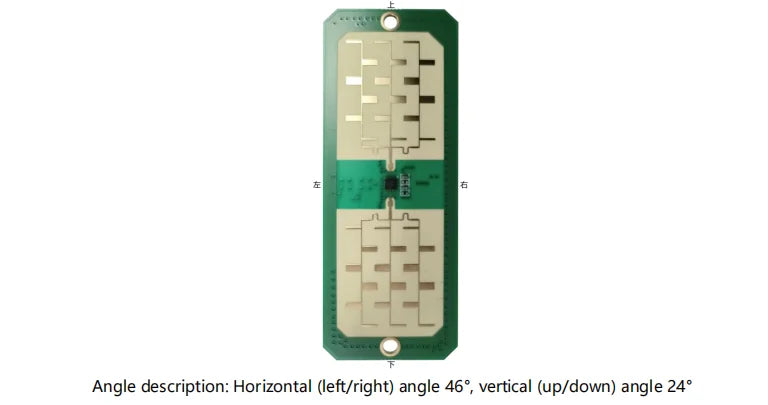

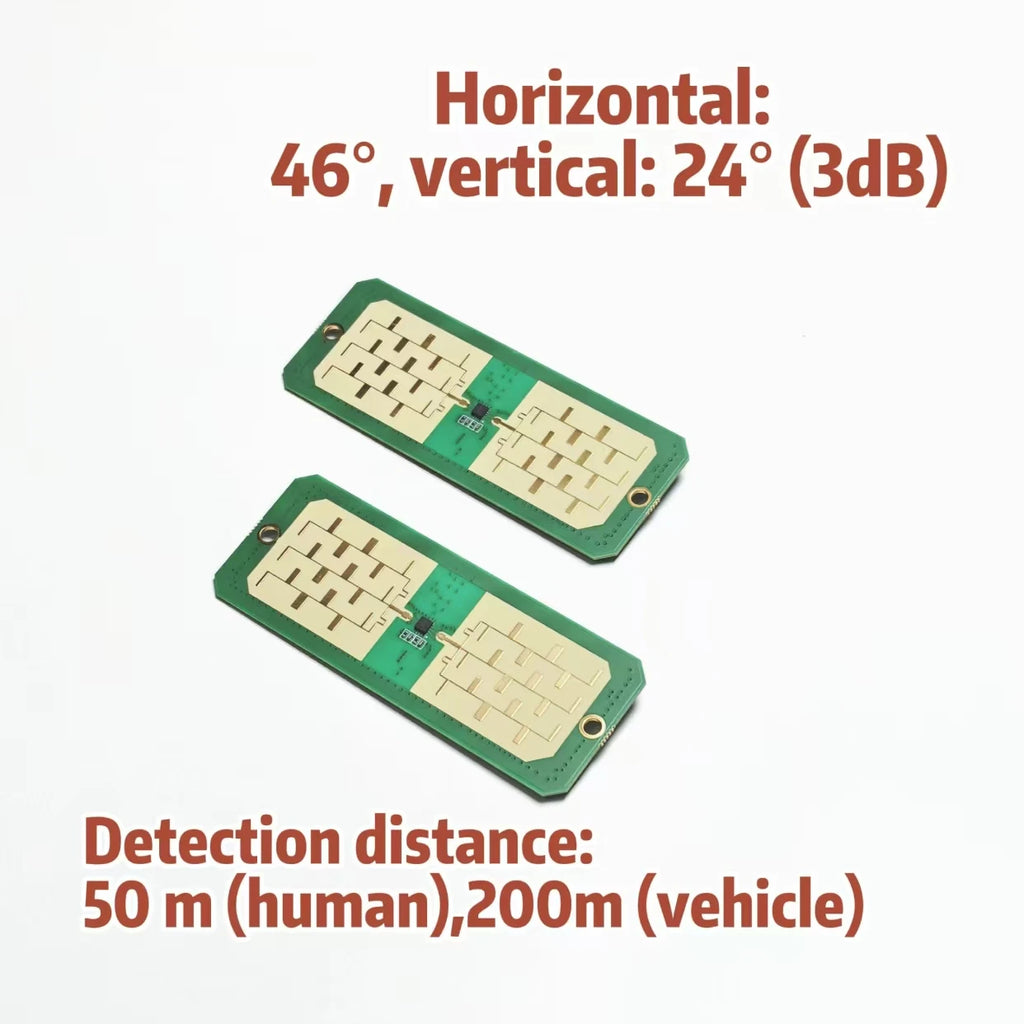

Detection Range: Horizontal plane 46°,vertical plane 24° (3dB)
Detection distance(human): less than or equal to 50 m
Detection distance(vehicle): less than or equal to 200 m
High-concerned chemical: none
Interface: TTL
Material: Mixture
Origin: Mainland China
Output: Digital Sensor
Power - Rated: 24GHZ
Series: Microwave Sensor radar
Use: Motion & Position Sensor
Voltage - Supply: DC 12V
Working Temperature: -40℃~+80℃
is_customized: Yes

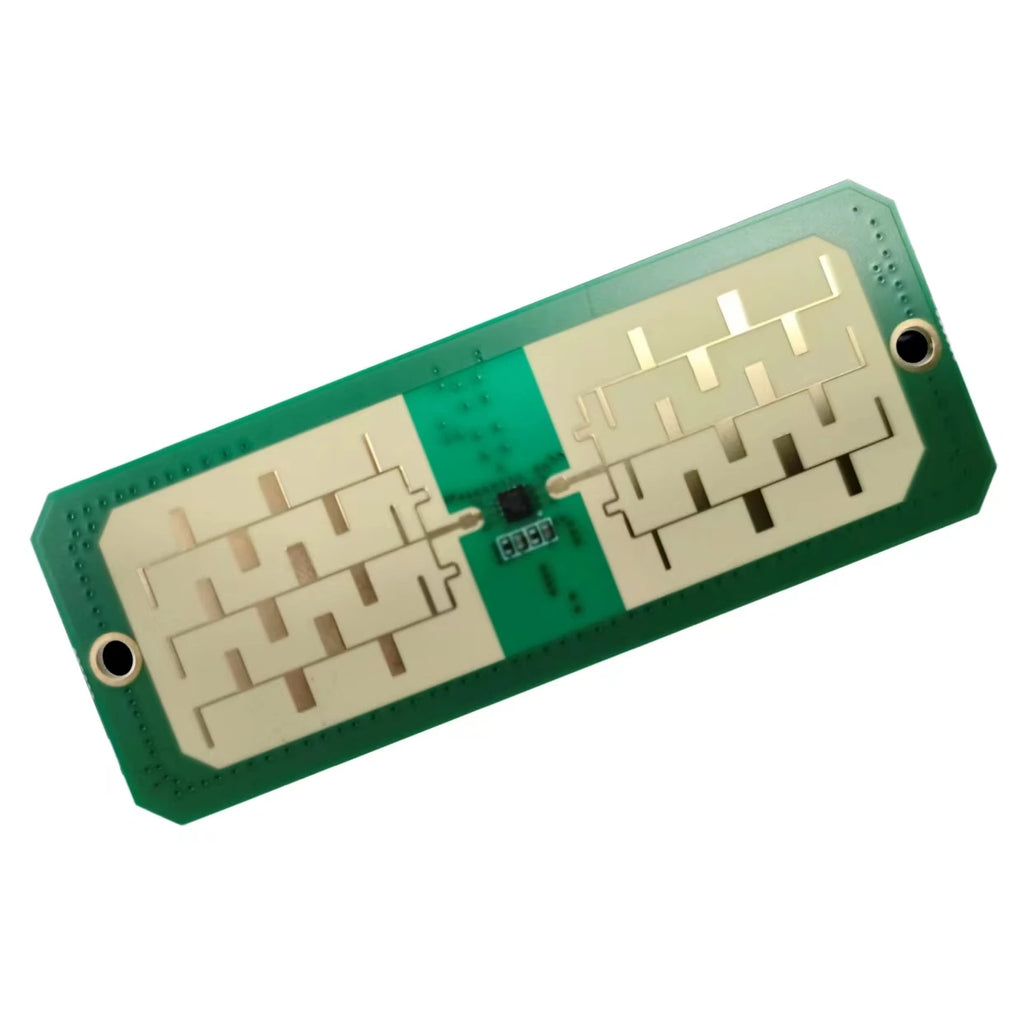

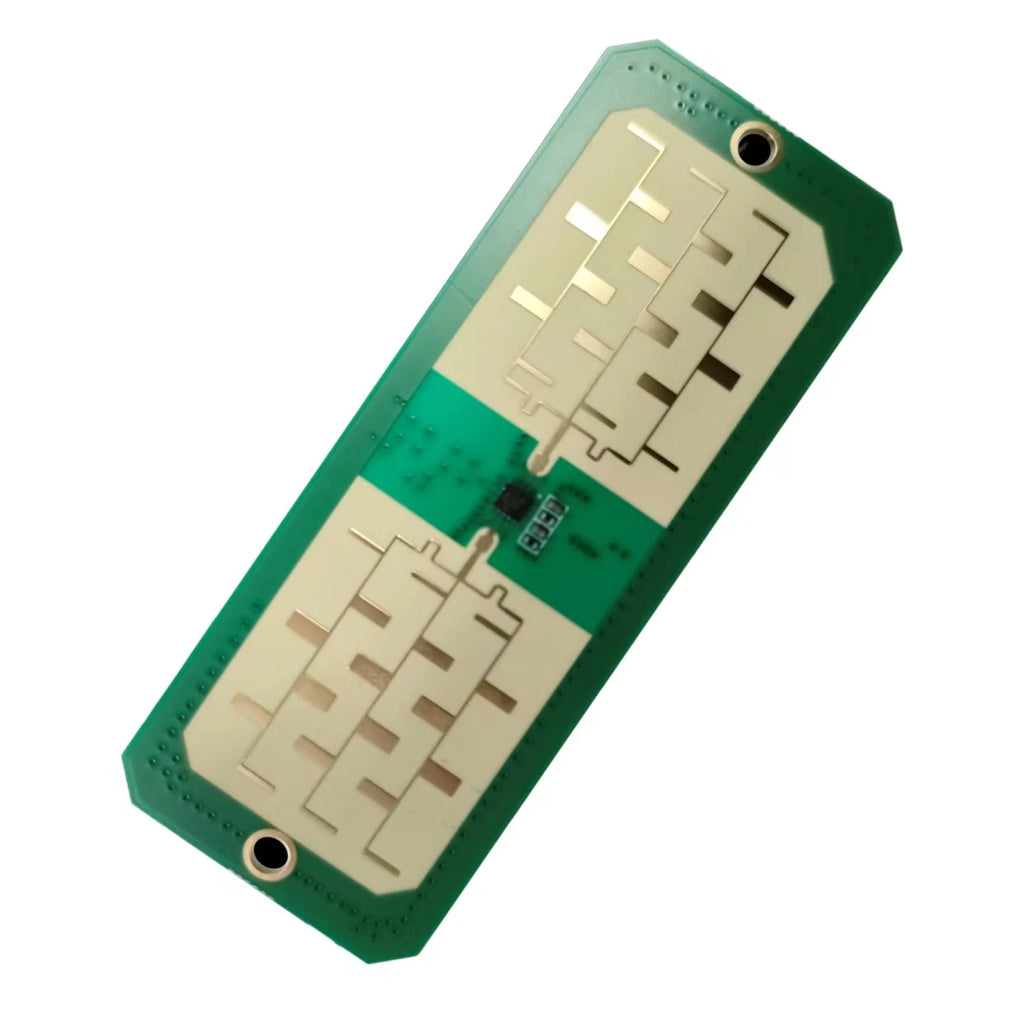

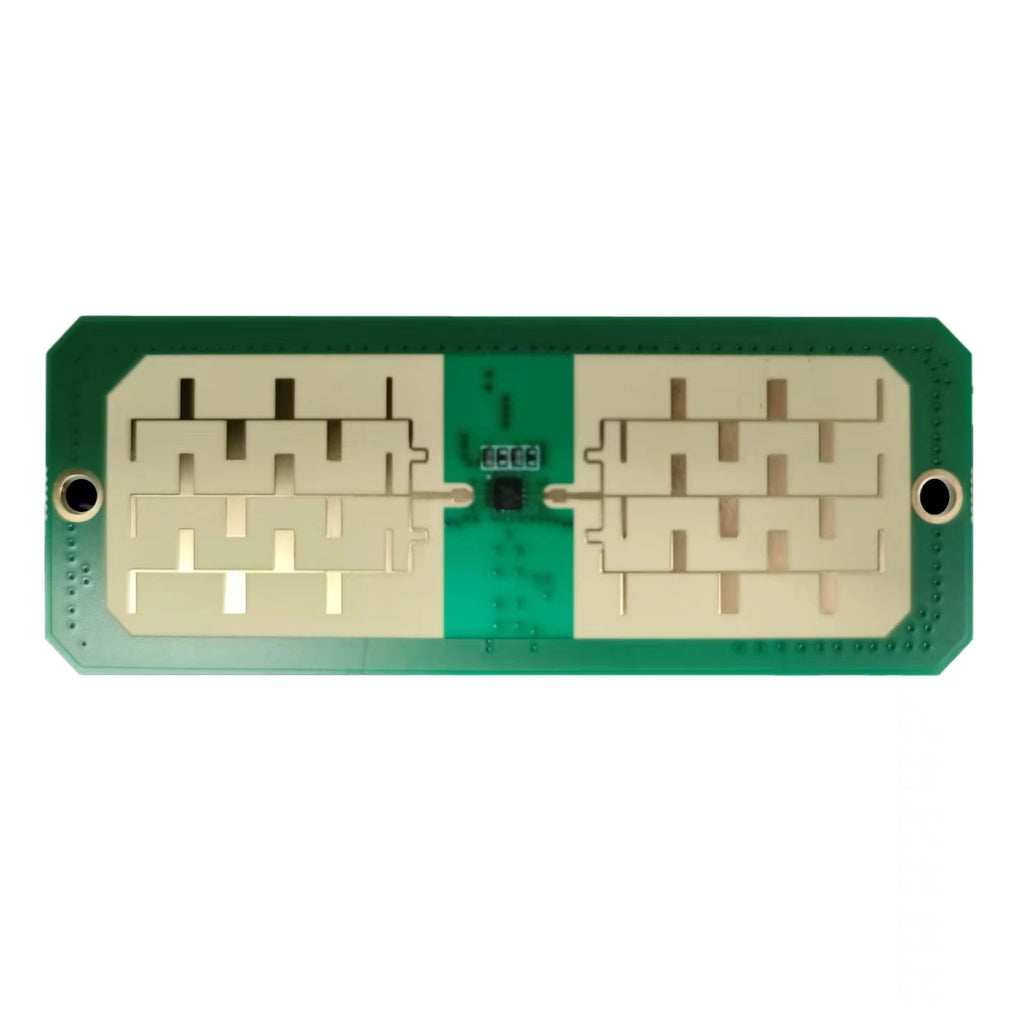

24GHz Microwave sensitive radar
1、Product Description
ZLYIR05 microwave sensing radar can be used to detect targets moving at speeds in the range of 1 km/h to 250 km/h and outputs approach, distance or presence signals (or commands) with an adjustable detection range.
2、Feature Description
★24GHz (ISM standard band) motion detector based on the radar principle of operation
★Maximum detection distance up to 200 meters (vehicle)
★Detection distance can be configured by sensitivity
★Serial TTL communication
★Strong anti-interference ability, and not affected by temperature, humidity, dust, etc.

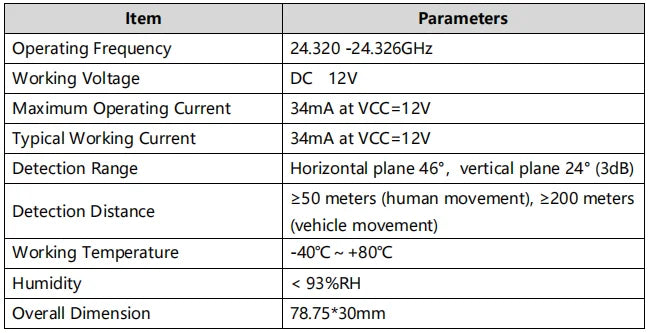

3、Technical Parameters

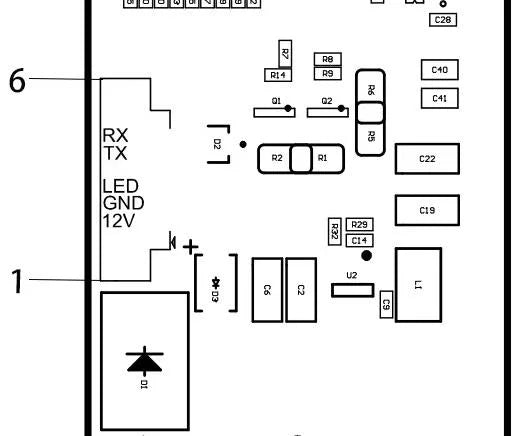

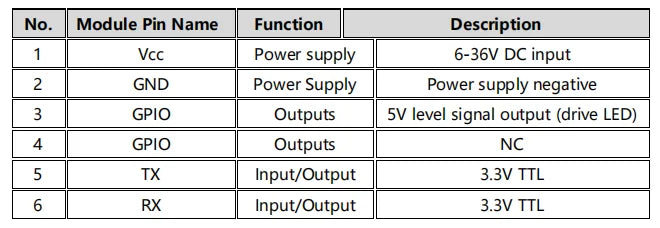

4、Interface Definitions

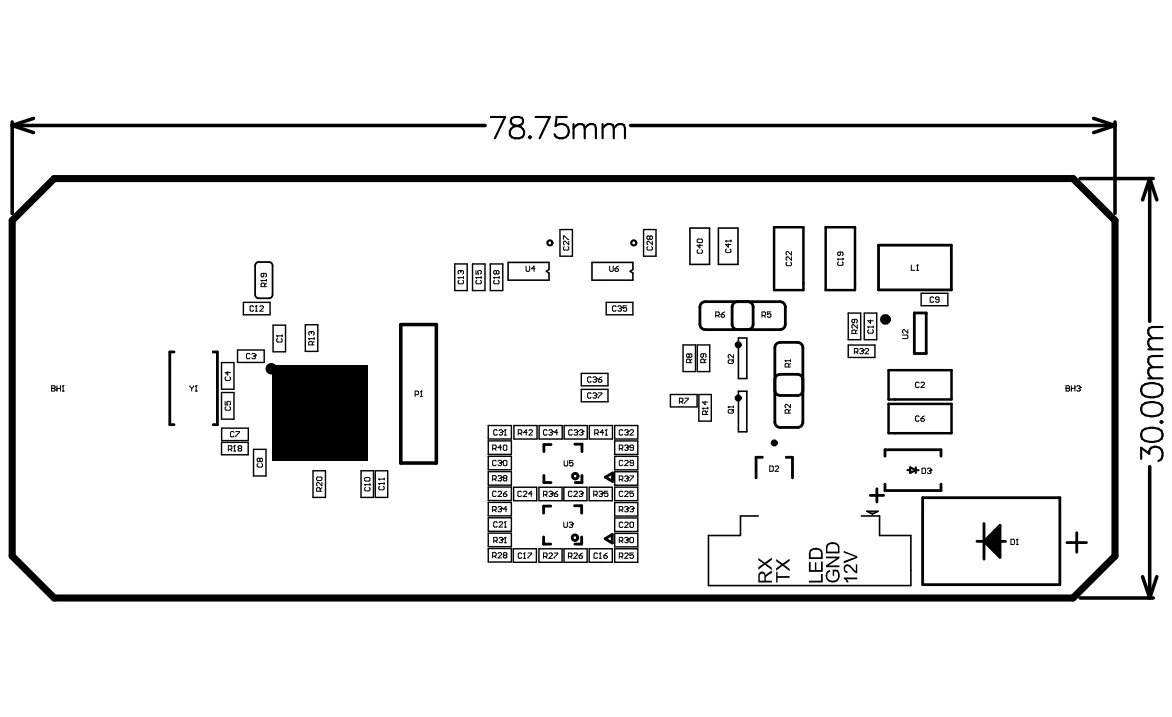

5、Mechanical Dimension
PCB Size:
