SPECIFICATIONS

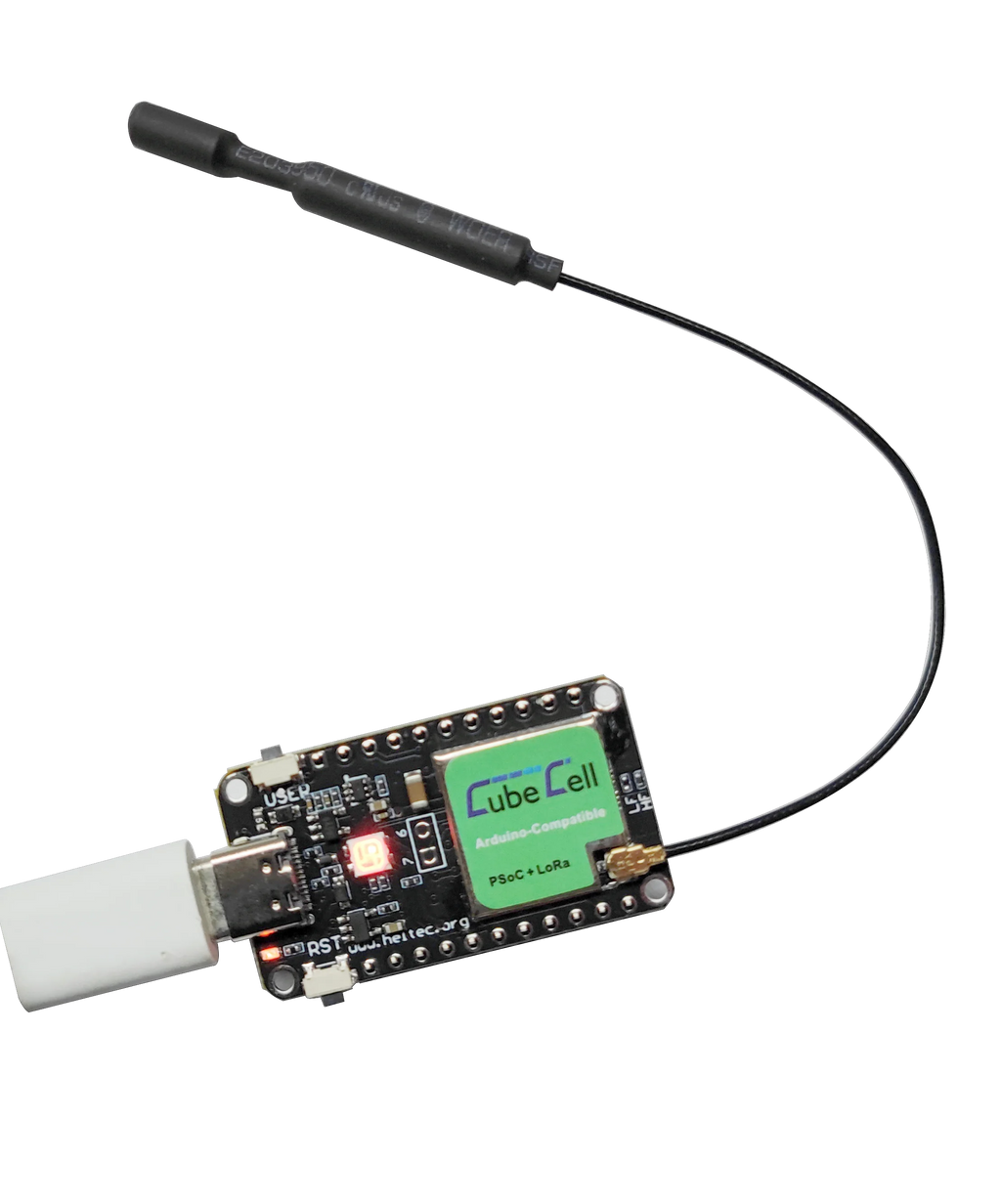

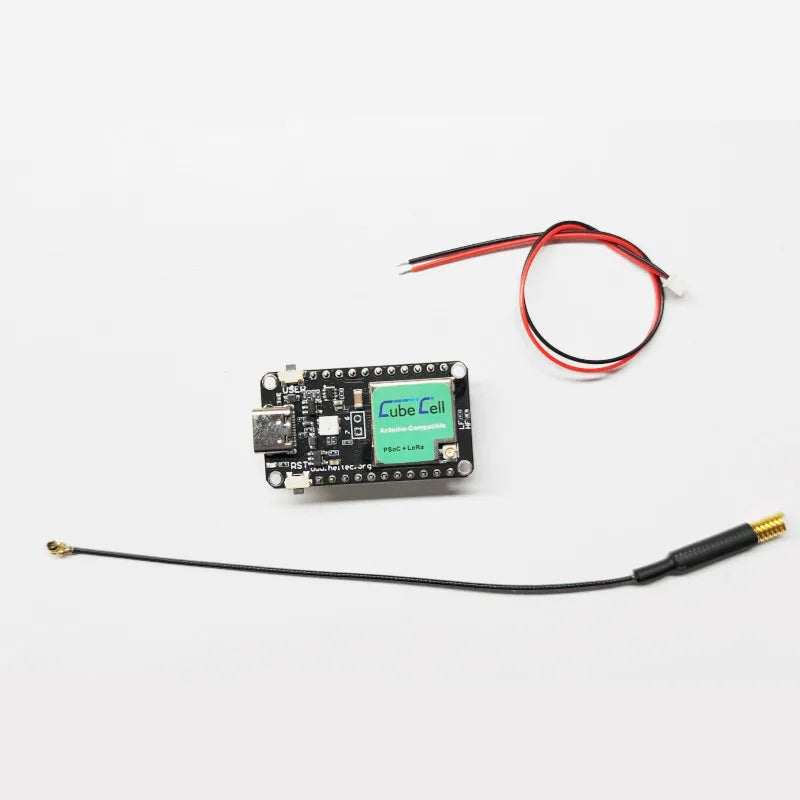

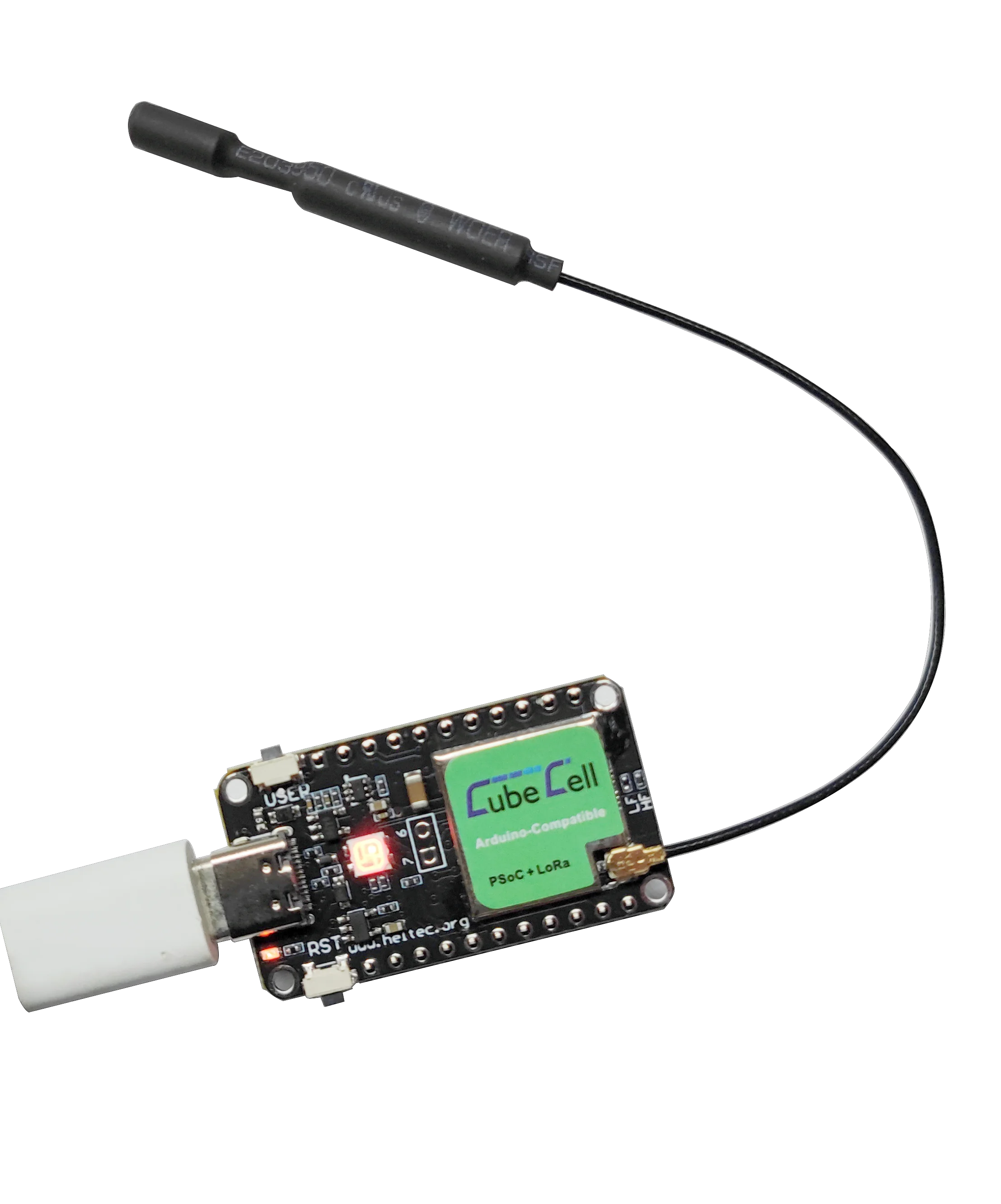

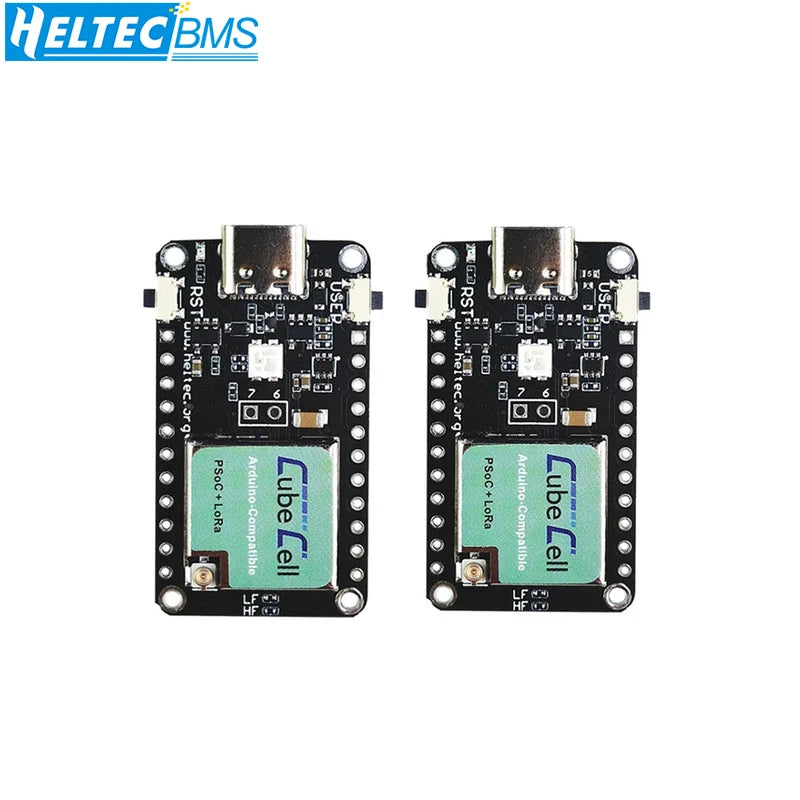

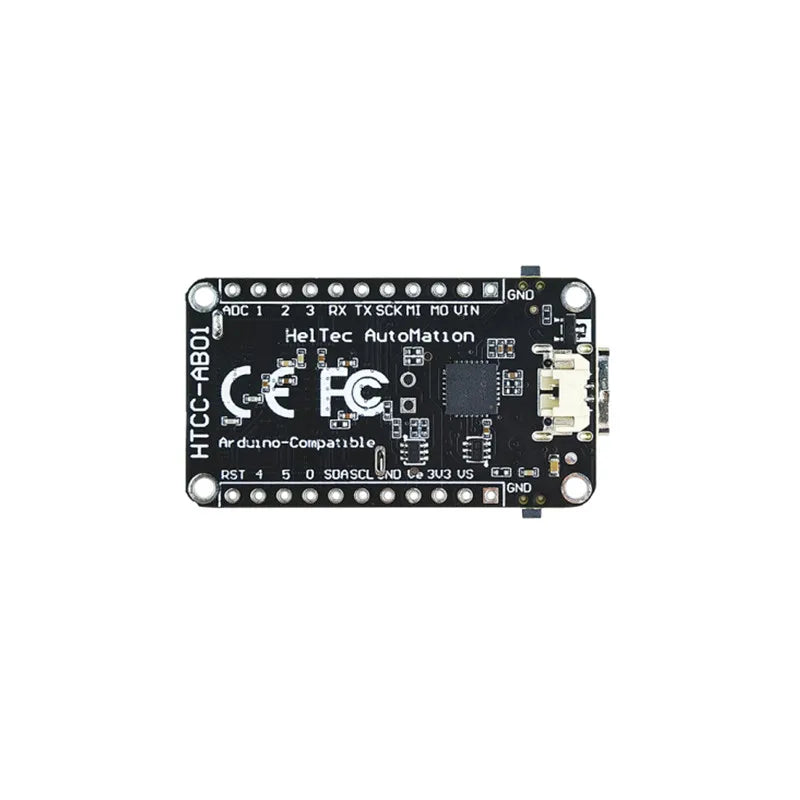

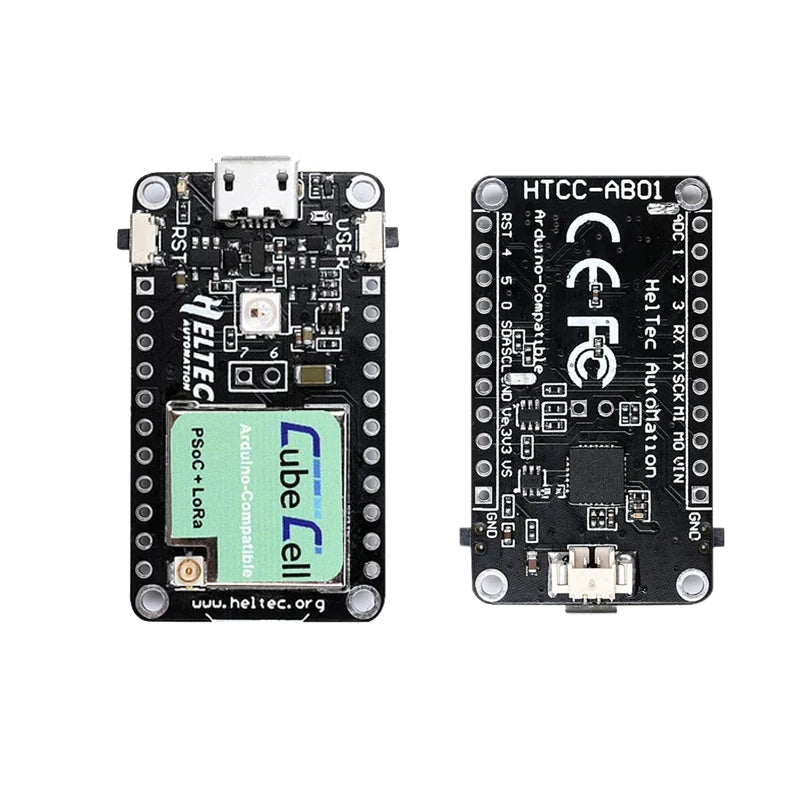

HTCC-AB01 (V2) belongs to Cubecell (TM) Series made by the Heltec team, mainly for LoRa/LoRaWAN node applications.

HTCC-AB01 (V2) is based on ASR6052, the chip is already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels.

HTCC-AB01 (V2) is a Dev-Board. Which is an upgraded version of HTCC-AB01, and can pin-to-pin placement with the previous version.

Perfect Arduino-Compatible!

CE and FCC certification;

Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;

LoRaWAN 1.0.2 support;

LoRaWAN 1.0.2 support;

Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;

Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);

Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);

Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;

Good impendence matching and long communication distance.

1. Description
1.1 Overview
HTCC-AB01 is Cubecell(TM) Series made by Heltect team, mainly for LoRa/LoRaWAN
node applications.
HTCC-AB01 is based on ASR6052, the chip is already integrated with the PSoC® 4000
series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration
and development, made it perfectly support Arduino®, can run the LoRaWAN protocol
stably, can easily connect lithium batteries and solar panels. HTCC-AB01 is a Dev-Board.
Friendly designed for developers, easy to verify communication solutions.

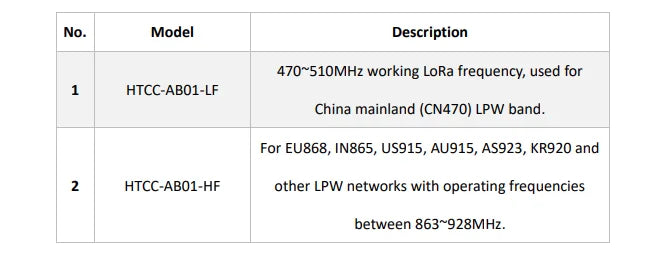

HTCC-AB01 product model list:

1.2 Product features
➢ Perfect Arduino-Compatible;
➢ CE and FCC certification;
➢ Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the
PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
➢ LoRaWAN 1.0.2 support;
➢ Ultra low power design, 3.5uA in deep sleep;
➢ Onboard solar energy management system, can directly connect with a 5.5~7V
solar panel;
➢ Onboard SH1.25-2 battery interface, integrated lithium battery management
system (charge and discharge management, overcharge protection, battery power
detection, USB / battery power automatic switching);
➢ Micro USB interface with complete ESD protection, short circuit protection, RF
shielding, and other protection measures;
➢ Integrated CP2102 USB to serial port chip, convenient for program downloading,
debugging information printing;
➢ Good impendence matching and long communication distance.

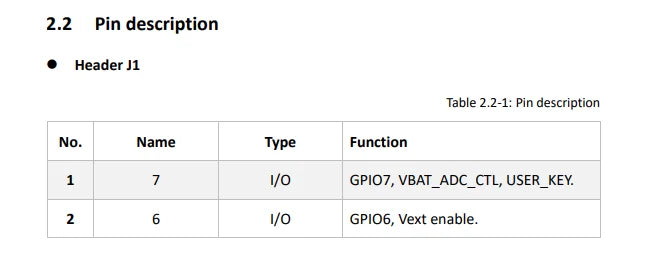

2. Pin Definition

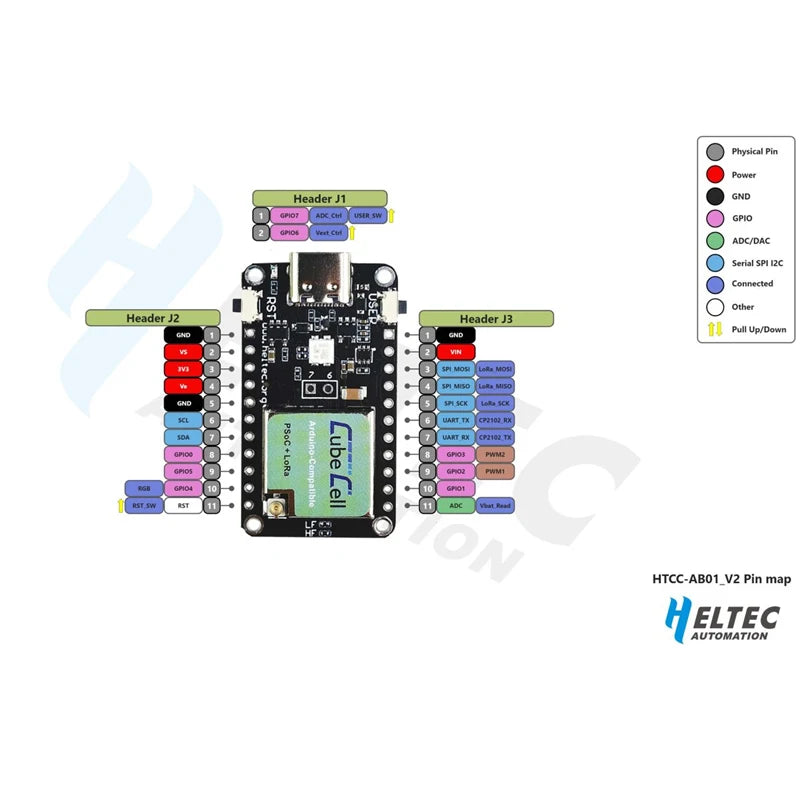

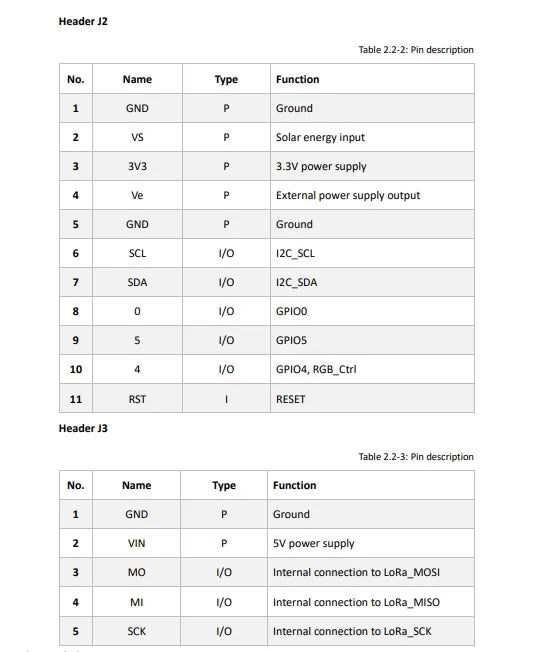

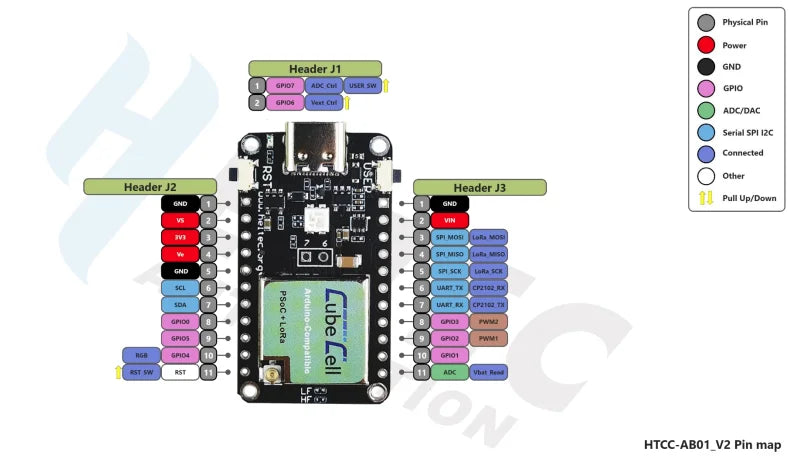

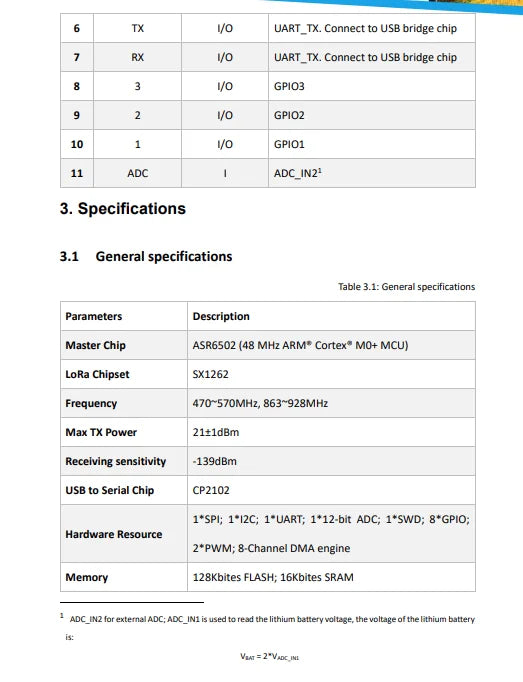

2.1 Pin assignment

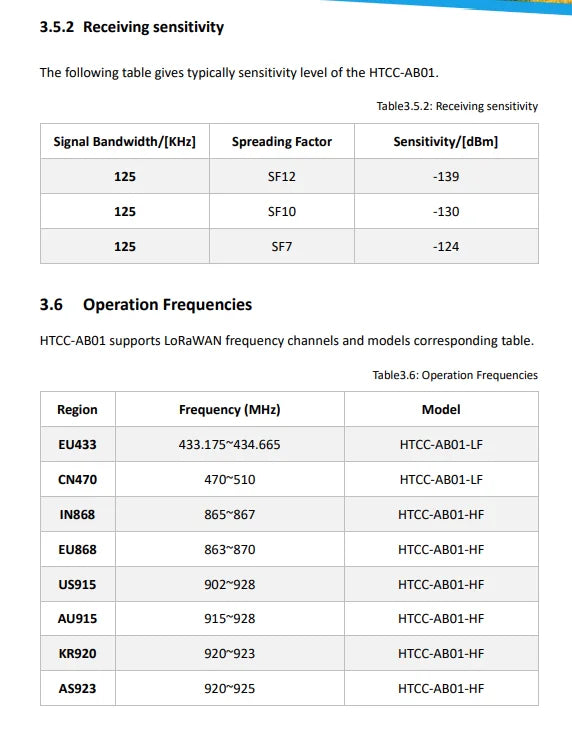

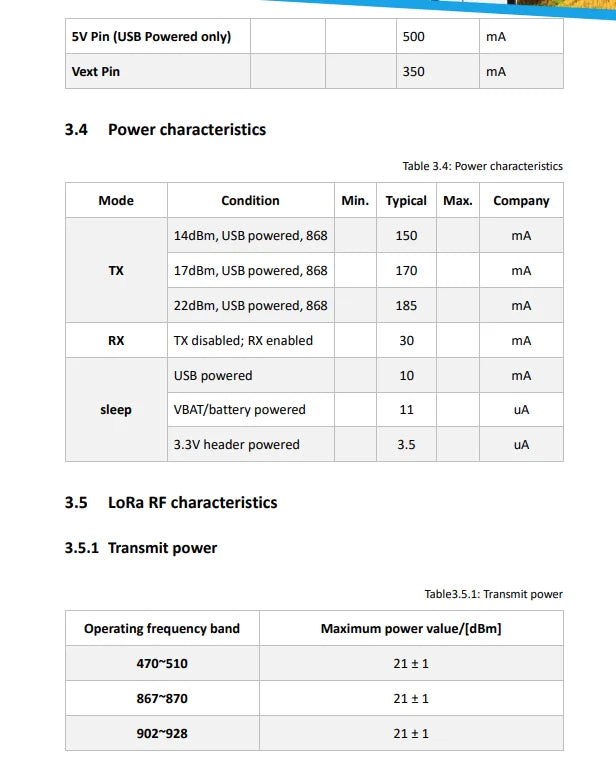

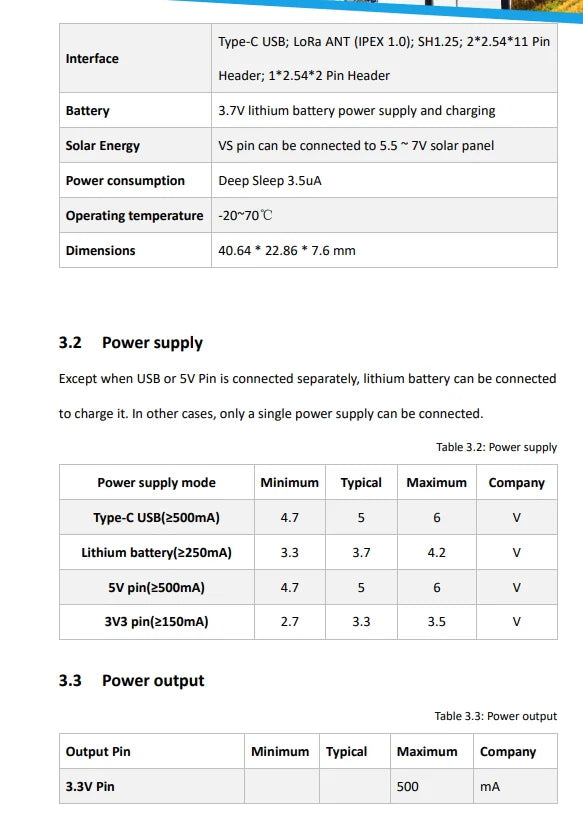

4. Hardware resource

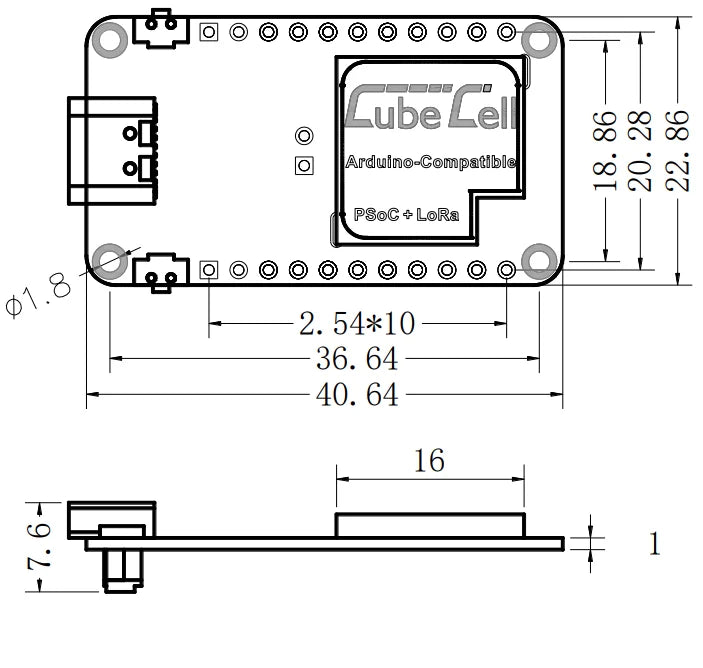

4.1 Physical dimensions

Details:
