SPECIFICATIONS

Brand Name: NONE

Certification: CE

Color: white

High-concerned chemical: none

Model Number: WG-027

Origin: Mainland China

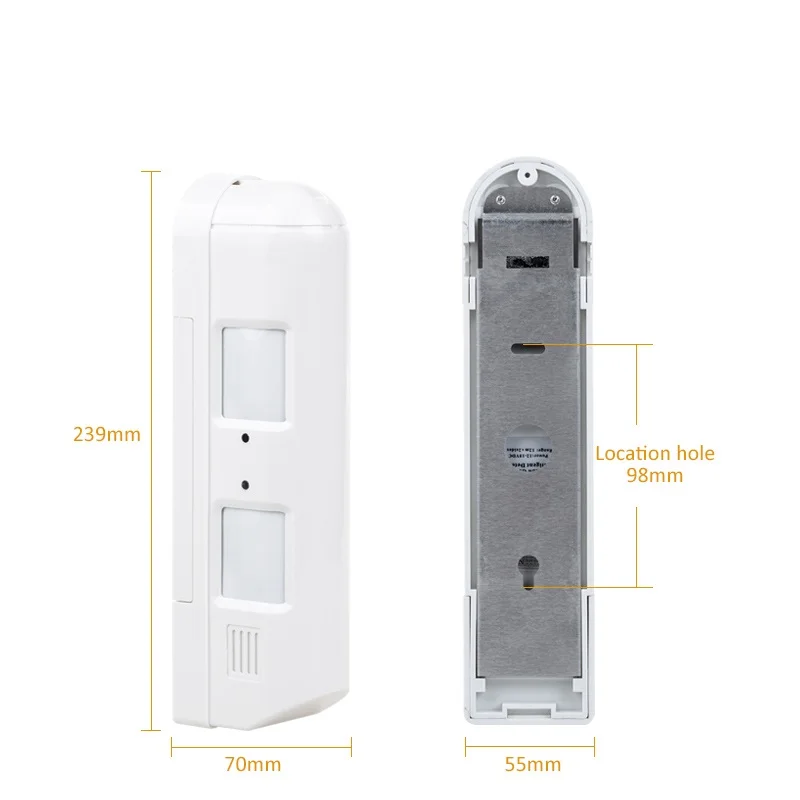

SIZE: 239mmX70mmX55mm

Smart home platform: NONE

anti-pet weight: 25kg

detection range: 24-meter Detection Range

feature: Built-in Buzzer 70dB

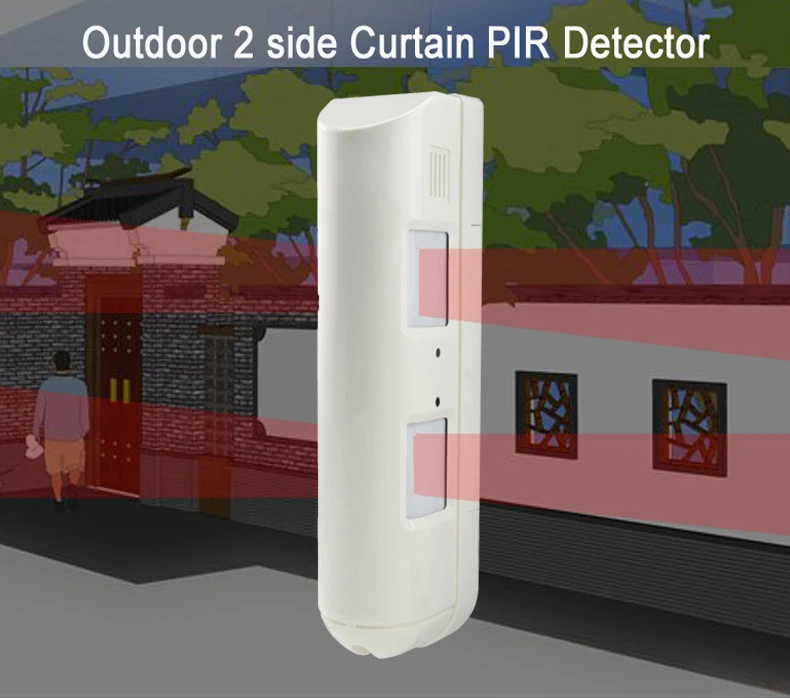

product name 1: Outdoor Wired Curtain PIR Motion Detector

product name 2: curtain pir motion sensor

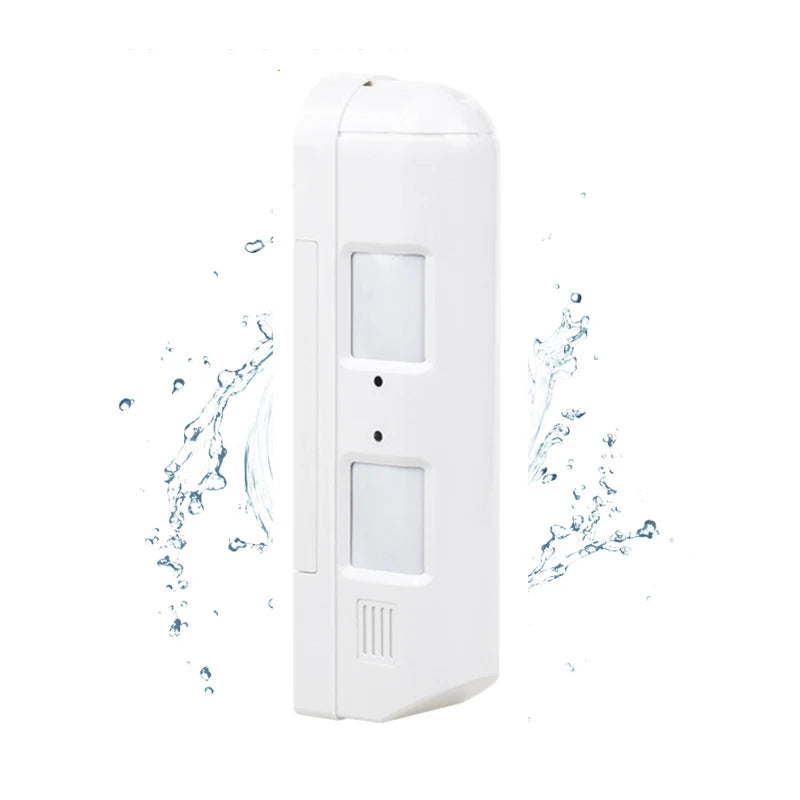

2pc Outside Inside Use Wired Curtain PIR Motion Sensor with Dip Switches Pet Immune 25KG Built-in Buzzer 70dB 24M Detection

Product Introduction:

This is a remarkable digital outdoor curtain style PIR detector, which can avoid external interference from sunshine, UV, radio frequency and truck headlight. Very effective to avoid interference from humidity, dust, insects and wind also.It adopts very advanced technology as below: direct analysis technology to intrusion PIR signal from digital high-speed micro-processor; automatic temperature compensation technology, direct adjustment to digital signal sensitivity; filtering technology to mixed rays from multi PIR channels etc. At the same time, it uses extra technology of anti-mask from active infrared light, which can protect its efficiency when detector is blocked intentionally. When alarm is triggered, built-in buzzer can send out alarm sound to frighten intruder. Its curtain style protection advantage can guarantee detector's stability when used in particular environment. And the IP-55 water proof can offer best protection when used both indoor and outdoor.

Feature:

Elegant and flexible appearance design

Bi-direction temperature compensation technology

Active infrared anti-mask

2 grades anti-mask sensitivities adjustable

With frightening alarm audio

2 grades of alarm audio sensitivity adjustable

Remote control to audio

EDS/anti electric strike/anti mobile interference

Parameter:

Detection way:                                      Passive Infrared

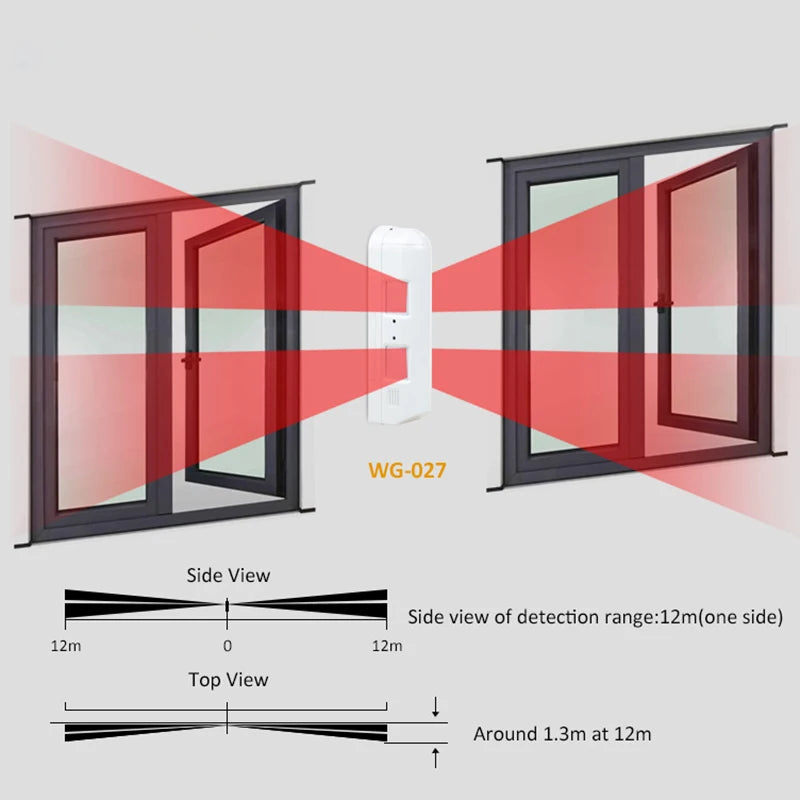

Coverage range:                                   24m (12m each side)

Detection zones:                                   4 zones (2 zones each side)

Sensitivity:                                            0.6m/s during 16

Detectable speed:                                0.3-2.0s

Input power:                                        10-28VDC

Power consumption:                            80mA max

Alarm period:                                        2.0±1.0s

Relay output:                                        No & NC max

Tamper switch:                                     NC opens when front cover removed

Range detection mode:                       On/off

Warm up period:                                  around 45 secs (LED blinks)

Audio alarm volume:                            around 70db at 1m

Alarm led:                                             Blinks during warm up and alarm period

Operation temperature:                       -20℃-+50℃

Environment humidity:                         95% max

Anti RF interference:                           no alarm below 20v/m

Installation:                                          Wall (indoor/outdoor)

Installation height:                              0.8-1.2m

IP grade:                                              IP55

Accessories Installation screws:         (4*20)*2

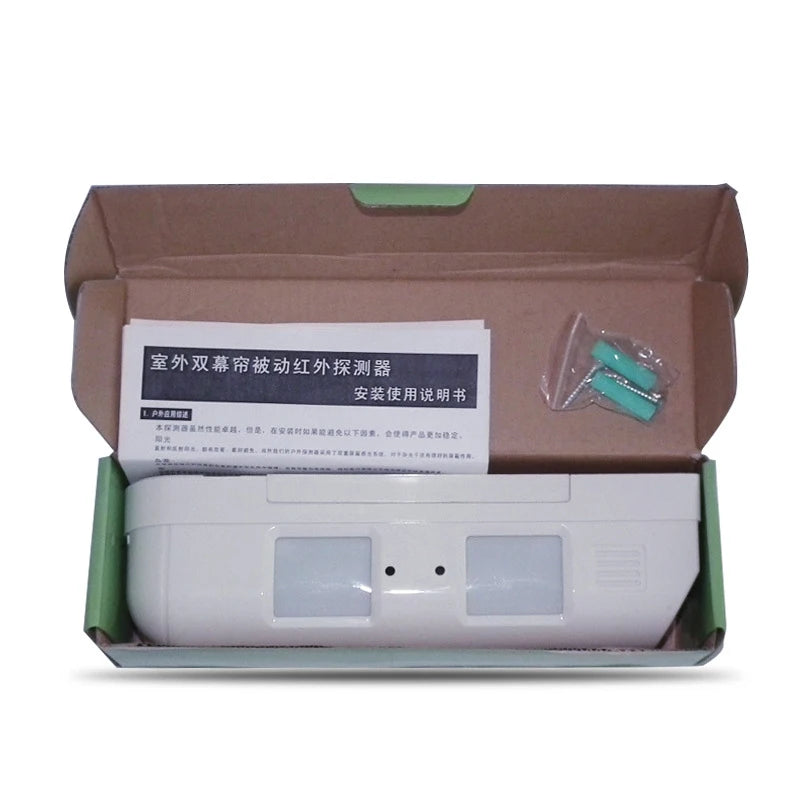

Packing List:

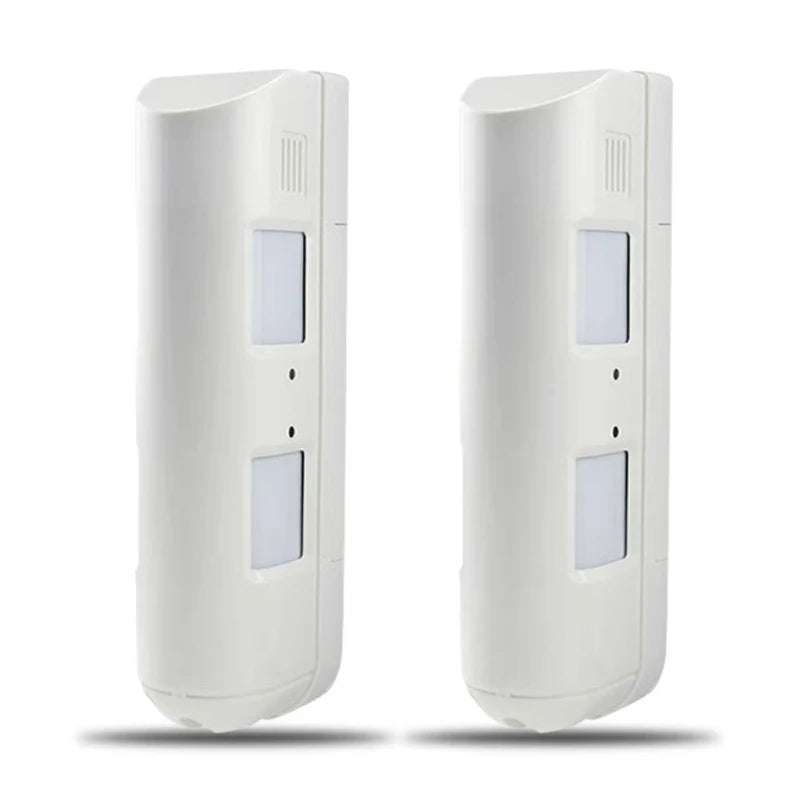

2pc Wired Outdoor Indoor Dual Curtain PIR motion sensors  (Bracket, screws, manual included!)

Note: This sensor can not work alone, it is for all alarm systems that has wired port.
